USER MANUAL VZ-PVM-Z1W2 ViewZ

9.7-INCH TFT-LED PUBLIC VIEW MONITOR

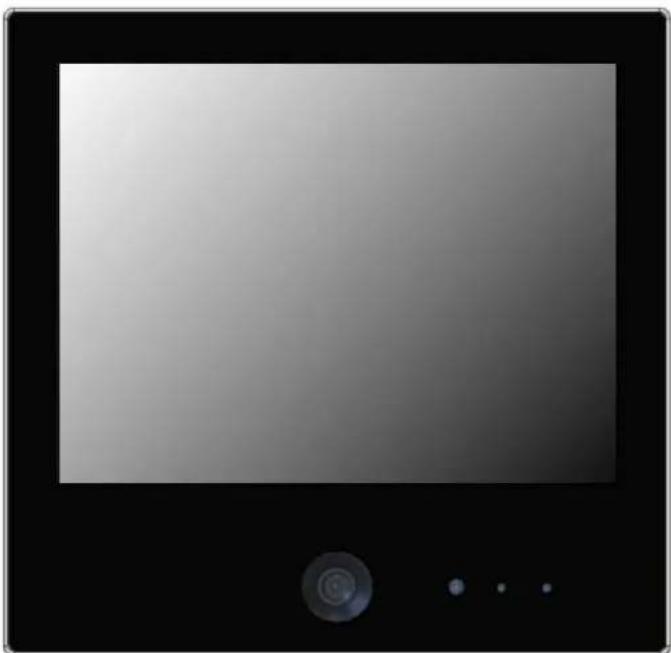

Front view of a flat-screen monitor with a circular button and three small dots below (no text or symbols visible)

INSTRUCTION MANUAL

Please read this manual thoroughly before use, and keep it handy for future reference.

CONTENTS

SAFETY INSTRUCTION 2\~3

CAUTIONS 4

FCC RF INTERFERENCE STATEMENT 5

CONNECTING WITH EXTERNAL EQUIPMENT 6

REMOTE FUNCTIONS 7

CONTROLS AND FUNCTIONS 8 \~ 16

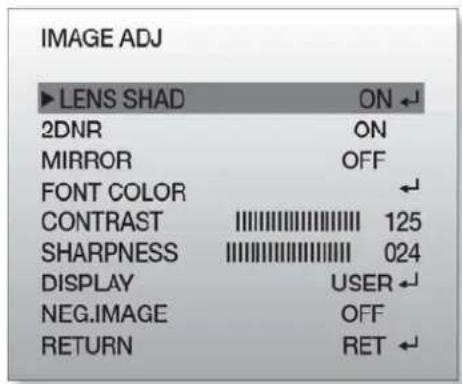

CAMERA CONTROLS AND FUNCTIONS 17 \~ 22

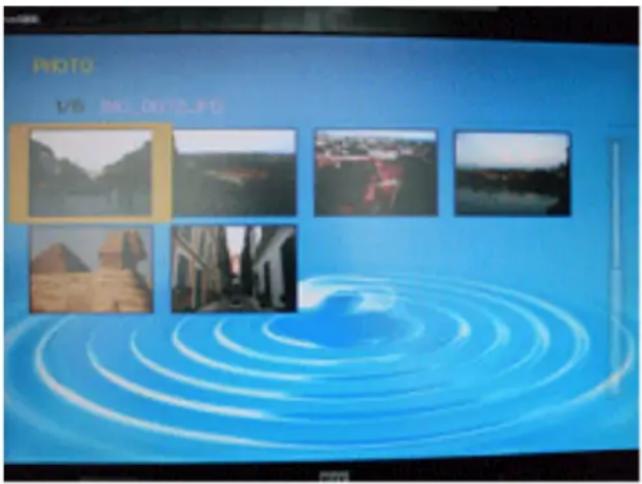

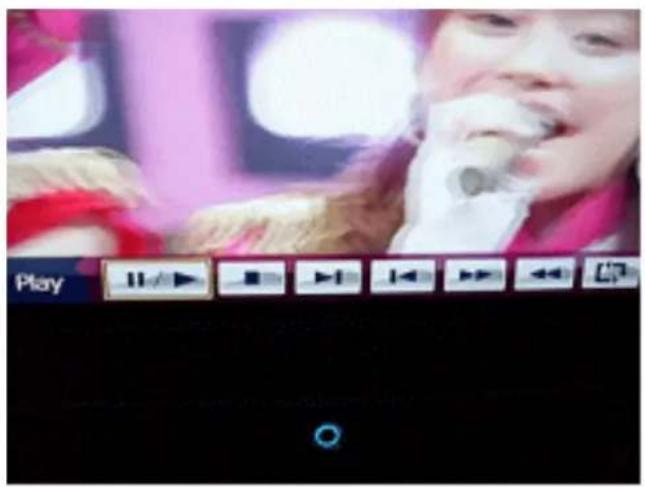

CARD READER CONTROLS AND FUNCTIONS 23 \~ 29

MOUNTING GUIDE 30

POWER MANAGEMENT 31

SPECIFICATIONS 32 \~ 34

TROUBLE SHOOTING GUIDE 35

This Monitor was

Manufactured by ISO 9001

Certified Factory

Important Safety Instruction

1. Read these instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.
   Apolarized plug has two blades with one wider than the other.
   Agrounding type plug has two blades and a third grounding prong.
   The wide blade or the third prong are provided for your safety.
   If the provided plug does not fit into your outlet, consult an electrician for replacement of the bsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

11. Only use attachment/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

1. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped.

SAFETY INSTRUCTION

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus.

14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.

"WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture."

"The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus."

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE REAR COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

This symbol is intended to alert the user to the presence of uninsulated : dangerous voltage with in the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.

CAUTIONS

CAUTION

The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible.

ATTENTION

POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING

EMISSION CHARACTERISTICS TESTED BY SEMKO

THIS PRODUCT HAS BEEN TESTED AND HAS SHOWN COMPLIANCE WITH THE NATIONAL SPECIFICATIONS SUCH AS SWEDISH MPR 1990.10.(MPR II)

NEVER REMOVE ▶ THE BACK COVER

Removal of the back cover should be carried out only by qualified personnel.

DO NOT USE IN HOSTILE ENVIRONMENTS▶

To prevent shock or fire hazard, do not expose the unit to rain or moisture.

This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust of corrosive gases.

KEEP IN A WELL VENTILATED PLACE▶

Ventilation holes are provided on the cabinet to prevent the temperature from rising.

Do not cover the unit or place anything on the top of unit.

AVOID DHEAT

Avoid placing the unit in direct sunshine or near a heating appliance.

TO ELIMINATE EYE FATIGUE▶

Do not use the unit against a bright back ground and where sunlight or other light sources will shine directly on the monitor.

BE CAREFUL OF HEAVY OB▶ JECT

Neither the monitor itself nor any other heavy object should rest on the power cord.

Damage to a power cord can cause fire or electrical shock.

FCC RF

INTERFERENCE STATEMENT

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio, TV technician for help.
• Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

▶ DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.

CONNECTING WITH EXTERNAL EQUIPMENT

BACK PANEL CONTROL

1 2 3 4 5

6 7

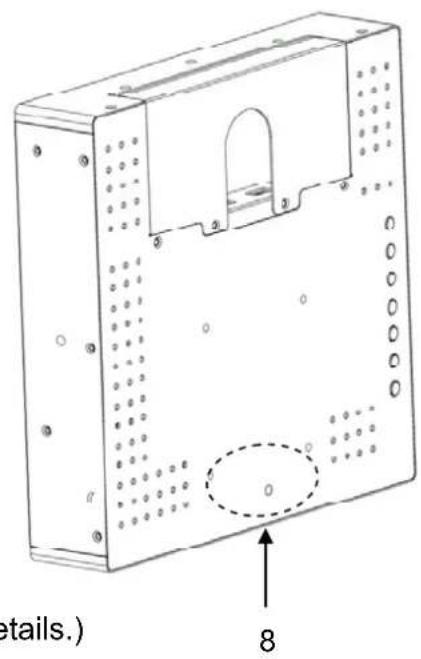

Technical line drawing of a rectangular electronic device with perforated sides and mounting holes (no text or symbols)

1. AC 24V IN
2. VGA IN
3. VIDEO(AV) IN
4. VIDEO (AV) OUT
5. CAM OUT
6. SD CARD READER (Optional)
7. USB 2.0 (Optional)
8. CAMERA OSD CONTROL (Refer to page 17\~22 for details.)

REMOTE FUNCTIONS

REMOTE CONTROLLER (Optional)

1. POWER( )

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

2. SOURCE

Selects pc or video(Camera, AV, C/R) sources.

3. AUTO

Auto geometry adjustment in PC Source.

4. HOLD

Stops the Motion Detection & Auto switching functions.

5. MUTE

Not operating.

6. MENU

Activates and exits the On Screen Display.

7. EXIT

Exits the On Screen Display.

8. VOL(◀ & ▶)

Accepts your selection.

9. UP/DOWN

Moves to OSD menu.

10. ENTER

Accepts your selection or displays the current mode.

11. INFO

Input mode information Display.

12. STILL

Not operating.

13. PIP (Picture In Picture)

Not operating.

14. P.INPUT

Not operating.

15. P.POS

Not operating.

16. P.SIZE

Not operating.

17. SWAP

Not operating.

18. ARC (Aspect Ratio Control)

Selects screen ratio.

19. APC (Auto Picture Control)

Selects picture mode.

20. ACC (Auto Color Control)

Selects Color mode.

21. S.SET

Not operating.

22. PC

Selects PC mode(PC,DVI)

23. AV

Selects AV mode.(Camera, AV, C/R)

24. COMP

Not operating.

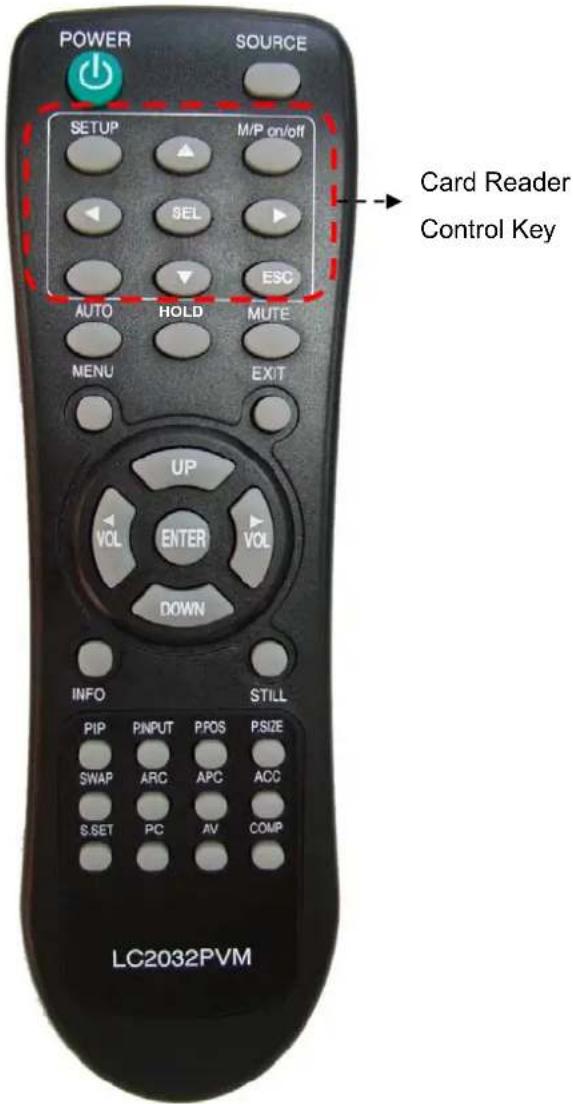

POWER SOURCE SETUP M/P on/off SEL ESC AUTO HOLD MUTE MENU EXIT UP VOL ENTER VOL DOWN INFO STILL PIP PINPUT P/POS PSIZE SWAP ARC APC ACC S-SET PC AV COMP LC2032PVM Card Reader Control Key

Card Reader Control Key

25. SETUP

It doesn't have any functions.

26. M/P on/off

Turns the M/P(Media Player) on or off.

27. SEL

Accepts your selection in the menu of M/P (Media Player).

28. ESC

Escapes the menu of M/P (Media Player).

29. ◀ & ▲ & ▶ & ▼

Moves the cursor in the menu of M/P (Media Player).

CONTROLS AND FUNCTIONS

Diagram showing a device panel with numbered arrows pointing to a control panel labeled 'O/1', 'MENU/EXIT', and 'SOURCE/SELECT'.

1. BUILT-IN CAMERA

Image of camera.

2. IR Sensor

Remote controller sensor.

3. POWER LED

Turned on: Green color.

Turned off: LED off.

4. RECORDING INDICATOR LED

This LED indicates the recording status by blinking the LED light.

User can choose the LED blink.

5. POWER ON/OFF(∅)

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

6. MENU/EXIT

Activates and exits the On Screen Display.

This button can also be used to move previous menu or status.

7. SOURCE/SELECT

Selects an input source.

Enters a submenu or accepts your selection in the OSD menu.

8 & 9. ▲ & ▼

Moves upwards or downwards in the OSD menu.

The up(▲) button is HOLD function and stop the Auto switching functions.

The down(▼) button is auto adjustment function in the VGA input.

10 & 11. ◀(-) & ▶(+)

Adjust menu settings.

CONTROLS AND FUNCTIONS

OSD Menu Description

All picture, sound settings and setup for the monitor can be adjusted in the OSD menu.

(On Screen Display)

To adjust the OSD screen:

1. Press the MENU button to enter the OSD menu.
2. Press the▲/▼ buttons to select the desired option. The selected option is highlighted.
3. Press the ▶(+) button to enter the submenu for adjusting items.
4. Change the value you wish to adjust by using the ◀(-) / ▶(+) buttons.
5. Press the ◀(-) button to exit the submenu for adjusting items.
6. Press the MENU button to exit the OSD menu.

A. PICTURE

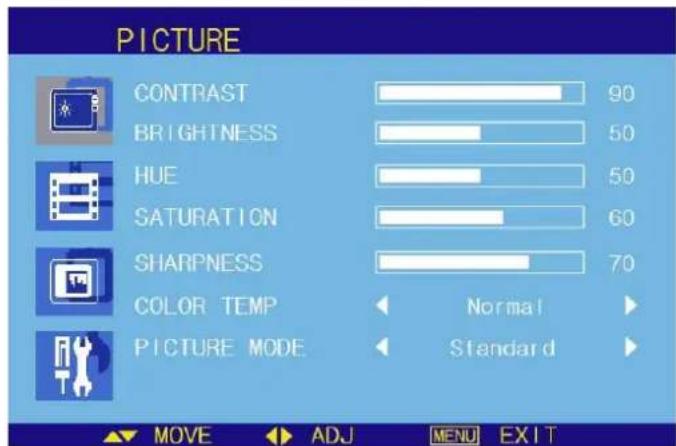

PICTURE CONTRAST 90 BRIGHTNESS 50 HUE 50 SATURATION 60 SHARPNESS 70 COLOR TEMP Normal PICTURE MODE Standard MOVE ADJ MENU EXIT

Option Function Value
CONTRAST Adjusts intensity of the image. 0 ~ 100
BRIGHTNESS Adjusts brightness of the screen. 0 ~ 100
HUE Adjust the hue of picture. 0 ~ 100
SATURATION Adjust the saturation of picture. 0 ~ 100
SHARPNESS Adjusts sharpness of the picture. 0 ~ 100
COLOR TEMP	Select the color temp of picture	Normal, Warm, Cool
PICTURE MODE	Select the picture mode of picture.	Standard, Cinema, Vivid

※ Unavailable in RGB-PC Mode.

CONTROLS AND FUNCTIONS

B. SOUND/FUNCTION

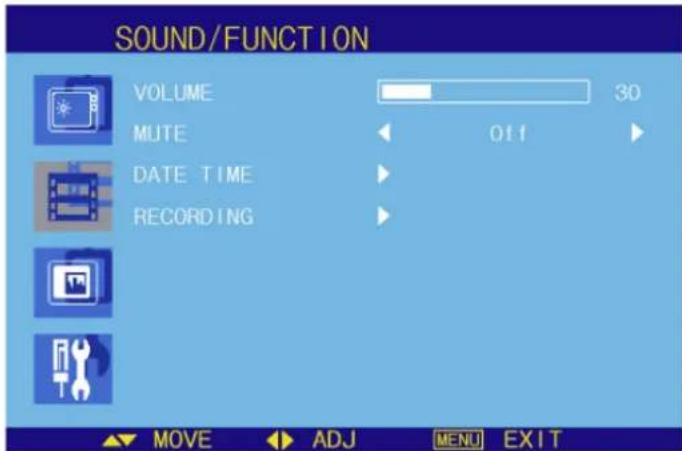

SOUND/FUNCTION VOLUME 30 MUTE Off DATE TIME RECORDING MOVE ADJ MENU EXIT

Option Function Value
VOLUME	Not operating.
MUTE	Not operating.
DATE TIME Sets the date time on the screen. See the table on Next page.
RECORDING Sets the recording indication text. See the table on Next page.

CONTROLS AND FUNCTIONS

DATE TIME

DATE TIME DATE TIME Off BLINK Off POSITION TOP YEAR 2011 MONTH 7 DAY 8 HOUR 15 MINUTE 39 MOVE ADJ MENU EXIT

Option Function Value
DATE TIME Activates the feature of Date Time. Off or On
BLINK This function is for blinking Date & Time texts. Off or On
POSITION Selects the location of Date Time text. Top, Bottom
YEAR* Selects the wanted year. 2000~2100
MONTH* Selects the wanted month. 1~12
DAY* Selects the wanted day. 1~31
HOUR* Selects the wanted hour.		0~23
MINUTE*	Selects the wanted minute.	0~59

* User can set the wanted time (Year, Month, Day, Hour, Minute) by using ◀(-) & ▶(+) key.

CONTROLS AND FUNCTIONS

RECORDING

RECORDING INDICATOR LED TEXT DISPLAY TEXT BLINK TEXT SIZE TEXT Off Off Off x1 TEXT1 MOVE ADJ MENU EXIT

Option Function Value
INDICATOR LED Sets the light color of recoding LED Off or On
TEXT DISPLAY Activates the feature of Recording Text. Off or On
TEXT BLINK This function is for blinking Recording text. Off or On
TEXT SIZE Selects the size of Recording text. X1, X2, X3
TEXT Selects the wanted phrases. Text1, Text2, Text3	1)

1) Text phrases

• Text1: Recording
  ● Text2: Recording in Progress
  ● Text3: Surveillance in Progress

CONTROLS AND FUNCTIONS

C. PC (Only PC Mode)

PC CONTRAST 90 BRIGHTNESS 50 PC ADJUST COLOR MODE PICTURE MODE Standard RESOLUTION 1024x768 MOVE ADJ MENU EXIT

Option Function Value
CONTRAST Adjusts intensity of the image. 0 ~ 100
BRIGHTNESS Adjusts brightness of the screen. 0 ~ 100
PC ADJUST Adjusts the PC Mode. See the table on Next page.
COLOR MODE Adjusts the vertically picture position. See the table on Next page.
PICTURE MODE Adjusts the vertical noise of screen image. Standard, Cinema, Vivid
RESOLUTION	Not operating.

※ Unavailable in Camera, AV Mode (Only PC Mode).

CONTROLS AND FUNCTIONS

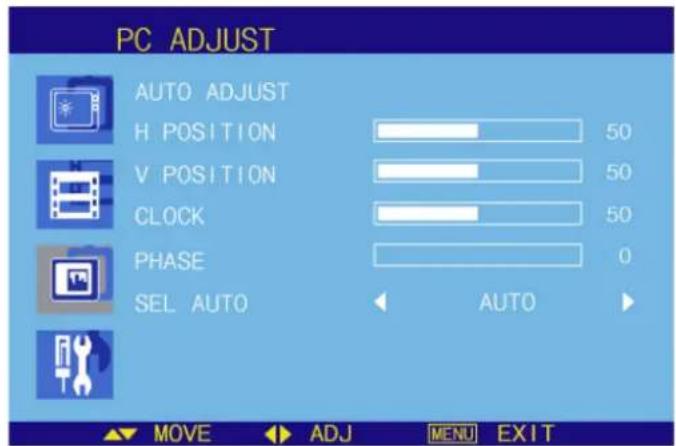

PC ADJUST

PC ADJUST AUTO ADJUST H POSITION 50 V POSITION 50 CLOCK 50 PHASE 0 SEL AUTO AUTO MOVE ADJ MENU EXIT

Option Function Value
AUTO ADJUST Auto geometry adjustment.
H POSITION Adjusts the horizontally picture position. 0 ~ 100
V POSITION Adjusts the vertically picture position. 0 ~ 100
CLOCK Adjusts the vertical noise of screen image. 0 ~ 100
PHASE Adjusts the number of horizontal picture elements. 0 ~ 100
SEL AUTO Selects the type of auto adjustment. MANUAL	^1) , AUTO^2)

1) Manual: Operating the auto adjustment of the screen only the first time.
2) Auto: Operating the auto adjustment every time the resolution is changed.

COLOR MODE

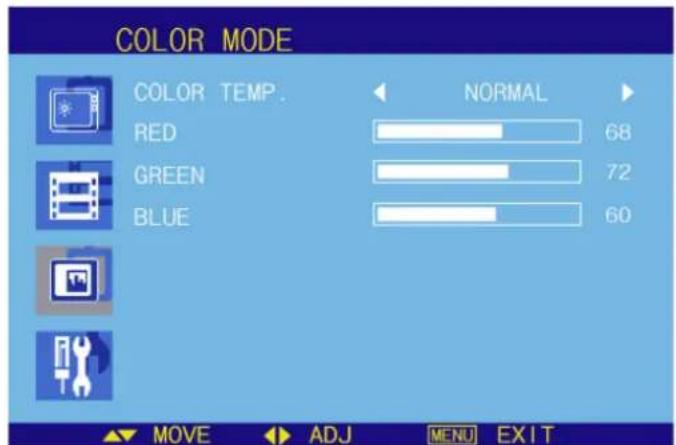

COLOR MODE COLOR TEMP. RED GREEN BLUE NORMAL 68 72 60 MOVE ADJ MENU EXIT

Cool Gives the white color a bluish tint.
Normal	Gives the white color a neutral tint.
Warm	Gives the white color a reddish tint.
User^1)	To manually adjust the color tones (Red, Green, and Blue).

1) Unavailable in Camera, AV Mode (Only PC Mode).

CONTROLS AND FUNCTIONS

D. SETUP

SETUP Language OSD Key Lock ARC MOTION DETECTION RECALL English 011 4:3 MOVE ADJ MENU EXIT

Option Function	Value
Language Sets the language of the OSD menu.		English, German, French, Italian, Spanish, Netherlands and Korea
OSD Sets the OSD. See the table on Next page.
Key Lock1)	Locks all buttons of the monitor.Note: Use remote controller to unlock.	Off or On
ARC Sets the screen ratio.		AV Mode: 16:9, 1:1, 4:3, 14:9, Zoom1, Zoom2, UnderPC Mode: 4:3
MOTION DETECTION	See the table on Next page.
RECALL Resets the monitor settings to the factory default.

1) How to unlock

① On the front key: Press the MENU and UP button at the same time over 3 seconds.
② On the Remote Controller: The Remote Controller operates well because the Key Lock function is only allowed for the front key of this product.

CONTROLS AND FUNCTIONS

OSD

OSD H POSITION 50 V POSITION 50 OSD TIMER 50 TRANSPARENT Off MOVE ADJ MENU EXIT

Option Function Value
H POSITION Move OSD horizontally on screen right or left. 0 ~ 100
V POSITION Move OSD vertically on screen up or down. 0 ~ 100
OSD TIMER Adjust OSD displaying time. 5 ~ 60
TRANSPARENT Adjust OSD transparent. Off or On

MOTION DELECTION

MOTION DETECTION ENABLE INPUT BUZZER TIME OPTION Off CAMERA Off 10 High MOVE ADJ MENU EXIT

Option Function Value
ENABLE Activates the motion detection feature. Off or On
INPUT Selects the input source for the motion detection. Camera, AV, RGB PC, C/R
BUZZER	Not operating.
TIME	Selects the amount of time, in seconds, that the monitor displays the motion detection input image.	0 ~ 100
OPTION	Not operating.

CAMERA CONTROLS AND FUNCTIONS

Setting up the menu

Settings can be made using the OSD Switch located on the back of the camera.

1. Press the button to access the SETUP mode. The SETUP menu is displayed on the monitor.

2. Please select any function you wish to activate by using the UP/DOWN selections.

The cursor can be moved up or down by using the UP/DOWN selections.

Position the cursor to point to the function you wish to operate.

SET UP ► LENS MANUAL EXPOSURE WHITE BAL. ATW 1 BACK LIGHT HLC DAY&NIGHT AUTO IMAGE ADJ SPECAIL RESET EXIT

< SET UP START-UP SCREEN >

* MAIN-menu : Use UP/ DOWN selections. / SUB-menu : Use LEFT/ RIGHT selection

1. Change the status of the selected feature using the LEFT/RIGHT selections.

When the LEFT or RIGHT selection is done, available values and modes are displayed in order. Please keep the selection until you get to the mode you wish to operate.

1. When completed, move the cursor indicator to 'EXIT' position and press the Button to finish the setting.

1. SET UP MENU

1-1. LENS

(1) Manual Mode

- The level of brightness of a screen is automatically controlled using the Electronic Shutter, AGC, and Sense-Up.

(2) DC Iris Mode

- DC IRIS, AGC, and Sense-Up are used to automatically control the brightness level of a screen.

(3) Video Iris Mode

- VIDEO IRIS, AGC, and Sense-Up are used to automatically control the brightness level of a screen.

SET UP ► LENS MANUAL EXPOSURE WHITE BAL. ATW 1 BACK LIGHT HLC DAY&NIGHT AUTO IMAGE ADJ DCP SPECAIL RESET EXIT

CAMERA CONTROLS AND FUNCTIONS

1-2. EXPOSURE

(1) SHUTTER

- Shutter speed control (AUTO & FLK level: 1/60\~1/100000)

(2) BRIGHTNESS

- Adjust the brightness in 0\~255 (Default 50)

(3) AGC (Auto Gain Control)

The higher the gain level is, the brighter the screen becomes.

But the higher gain level causes more noise.

• LOW : Allows automatic gain control from 0 to 20db.
• MIDDLE : Allows automatic gain control from 0 to 30db.
• HIGH : Allows automatic gain control from 0 to 42db.
• OFF

(4) D-WDR (Digital Wide Dynamic Range)

- Color reproduction improvement A low light area could be recognizable without Digital Wide Dynamic Range but it is impossible to capture a clear image without improving a color signal processing.

Thanks to the improved color signal processing named as D-WDR, this series unveils the improved color reproduction.

Clear-cut feature improvement The technology makes the Dynamic Range enlarged by improving the contrast between low and high lighting areas and does the middle brightening area – the Dynamic Range cuts a loss - compensated by the clear-cut feature improvement. Contrast improvement The contrast is improved by D-WDR Image Processing technology with analyzing the information of the brightness and mapping the different brightness.

EXPOSURE ► SHUTTER AUTO BRIGHTNESS ← 060 AGC ---- DWDR OFF RETURN

AGC OFF

AGC ON

DWDR OFF

DWDR ON

CAMERA CONTROLS AND FUNCTIONS

1-3. WHITE BAL

(1) MANUAL

- In the manual mode, the user can choose the color and balance. The user can adjust the color and temperature by controlling red and blue gain.

(2) AWC→SET

- This is used in order not to change the color and temperature values set for a certain environment. Press for two to three seconds the "Set Button" on the OSD MENU in order to have the color and temperature values fixed.

SET UP
LENS	MANUAL
EXPOSURE
▶ WHITE BAL.	ATW 1
BACK LIGHT	HLC
DAY&NIGHT	AUTO
IMAGE ADJ
DCP
SPECAIL
RESET
EXIT

When the value of OPD Block is included in ATW Area, color and temperature are fixed for that relevant value only. If there is no such value included, the color and temperature are fixed for the entire image.

(3) ATW 1

- Auto tracking white balance. In certain light conditions the colors are adjusted automatically. Use this mode when color temp. is between 1800k\~10,500k

(4) ATW 2

- Auto tracking white balance. In certain light conditions the colors are adjusted automatically. Use this mode when color temp. is between 1800k\~10,500k

Interior view of a vintage-style living room with patterned sofas, lamps, and decorative curtains (no visible text or symbols)

WHITE BAL OFF

Interior view of a modern living room with large furniture and ambient lighting (no visible text or symbols)

WHITE BAL ON

CAMERA CONTROLS AND FUNCTIONS

1-4. BACK LIGHT

(1) HSBLC : HLC is a function to mask bright areas in order to prevent the target object from looking dark due to the backlighting
(2) BLC : Back Light Compensation controls the brightness Level of the screen in order to be able to distinguish objects against backlight.

Silhouette of a person standing in a doorway with high-rise buildings visible through the window (no text or symbols)

BLC OFF

Woman in business suit walking through a window with vertical bars and architectural structure (no visible text or symbols)

BLC ON

HLC ► LEVEL 100 MODE NIGHT ONLY RETURN RET ↙

BLC ▶ AREASEL. AREA1 AREA STATE ON GAIN 190 HEIGHT 005 WIDTH 005 LEFT/RIGHT 005 TOP/BOTTOM 005 RETURN

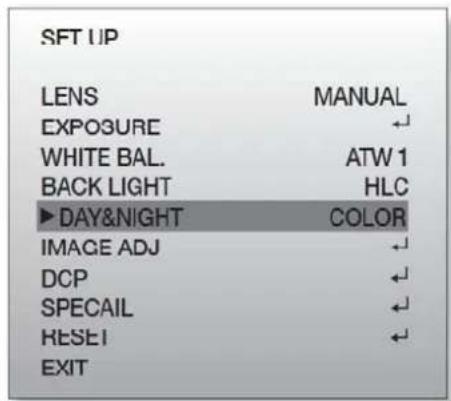

1-5. DAY & NIGHT

(Not operating.)

You can display pictures inBW/AUTO/COLOR

(1) B/W Mode

• B/W Mode is used to maintain B/W mode all the time.
• BURST
• IR-SMART
• IR-LEVEL

(2) Auto Mode
- Automatically turns between Day and Night Mode according to AGC operation.
(3) Color Mode
- COLOR Mode is used to maintain color mode all the time.

Aerial view of a modern city skyline with skyscrapers and green spaces (no visible text or signage)

DYA&NIGHY OFF

Black-and-white aerial view of a dense urban skyline with high-rise buildings and a prominent low-rise structure (no visible text or signage)

DYA&NIGHY ON

Interior view of a storage room with shelves and a bright light source (no visible text or symbols)

SMART OFF

A person in a white lab coat holding a small object, standing in front of shelves with framed certificates (no visible text or symbols)

SMART ON

D&N B/W ►BURST ON IR SMART OFF IR LEVEL HIGH RETURN RET ←

D&N AUTO ►D->N LEVEL 160 D->N DELAY 5 SEC N->D LEVEL 090 N->D DELAY 5 SEC RETURN RCT ↙

SFT UP LENS MANUAL EXPOSURE WHITE BAL. ATW 1 BACK LIGHT HLC DAY&NIGHT COLOR IMAGE ADJ DCP SPECAIL RESET EXIT

CAMERA CONTROLS AND FUNCTIONS

1-6. IMAGE ADJ

(1) LENS SHADE

- Mounted on the circumference of the lens to the lens mechanism that prevents the light directly incident (Level Adjustable 0\~255)

(2) 2DNR

- Cuts off the noise in low light condition.

(3) MIRROR

- Through ON-OFF on the screen like a mirror.

(4) FONT COLOR

- FONT SIZE LEVEL 0\~15

- ID&TITLE SIZW LEVEL 0\~15

(5) CONTRAST

- CONTRAST LEVEL 0\~255

(6) SHARPNESS

- Edge Enhancement enhances the sharpness of images by enhancing the sharpness around the edge and reducing the transition time of the edge. Adjusts the SHARPNESS level in 0\~31(Default 50)

(7) DISPLAY

- 3 modes of CRT/LCD/USER are available.

(8) NEG.IMAGE

- NEGATIVE IMAGE, Change colors off like film

IMAGE ADJ ►LENS SHAD ON ← 2DNR ON MIRROR OFF FONT COLOR ← CONTRAST 125 SHARPNESS 024 DISPLAY USER ← NEG.IMAGE OFF RETURN RET ←

1-7. DPC (Dead Pixel Compensation)

(1) Cover the lens then press enter key

DPC

COVER THE LENS

THEN

PRESS ENTER KEY

CAMERA CONTROLS AND FUNCTIONS

1-8. SPECIAL

(1) CAM TITLE

- We offers the CAM TITLE function and it can configure a title made up of up to 15 letters.

(2) MOTION

- MD (Motion Detection) consists of the pre-processor that extracts motion information and the mixer that displays the motion information on the screen. MD pre-processor

SPECAIL
▶ CAM TITLE	ON
MOTION	OFF
PRIVACY	OFF
PARK LINE	OFF
COMM ADJ.
LANGUAGE	ENGLISH
VERSION	11 08 19
RETURN	RET ←

divides the screen into predefined blocks and identifies whether each block has motion information.

(3) PRIVACY

- Privacy masking allows masking a certain spot on the screen.

That offers a total of 8 Privacy Masking Windows.

Priority is allocated to each window so when multiple number of windows is overlapped,

window (Window 7 is given the highest priority) at a higher level is given priority.

For each window, color, boundary (yes/no), image inversion (yes/no), black & white (yes/no) and transparent level can be adjusted.

Those areas privacy masked are excluded from the areas for motion detection.

Color swatch palette with eight distinct solid color blocks arranged in a grid (no text or symbols)

PRIVACY ON

Interior view of a modern office or library space with people seated at desks and colorful geometric blocks in the background (no visible text or symbols)

PRIVACY ON

Exterior view of a modern office building with a red train car on an elevated bridge (no signage)

PRIVACY ON

(4) PARK.LINE

(5) COMM ADJ

- CAM ID/ BAUD / RATE / PROTOCOL / DISPLAT ID/ ID POS

(6) LANGUAGE

- ENGLISH/CHINESS

(7) VERSION

1-9. RESET

(1) FACTORY

- Resets the camera setting to the factory defaults.

RESET ▶FACTORY RETURN RESET ← RET ←

1-10. EXIT

CARD READER CONTROLS AND FUNCTIONS (Optional)

A. PHOTO

PHOTO IMG_0072.JPG IMG_0120.JPG IMG_027.JPG IMG_050.JPG IMG_0427.JPG IMG_0437.JPG size 140MB reset 2048x1506 date 20070802

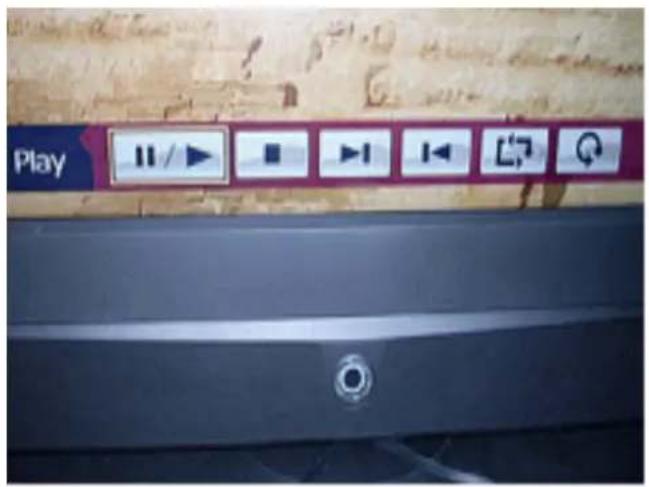

Play //▶ ▶▶▶▶ 播放

JPEG File Viewing Options

- When you select Photo in entry menu,

1. Press the USB button and then use ◀/▶ button to select the Photo.
2. Press the SEL button.
3. Press the ▲/▼ button to select photo file.
4. Press the SEL button for 1 picture display for slideshow.
5. Press exit or press the ESC button to return to the USB menu.

Slideshow

1. Press ◀/▶ button to select the Photo.
2. You can choose the slide show effect, frequency and play mode in the USB Setup.
3. Press the SEL button to pause the current image.
4. Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL Starting photo slideshow displaying
PLAY/PAUSE	PLAY/PAUSE functions use SEL button in slideshow displaying
ESC Stop slideshow and return to photo file list menu

CARD READER

CONTROLS AND FUNCTIONS

(Optional)

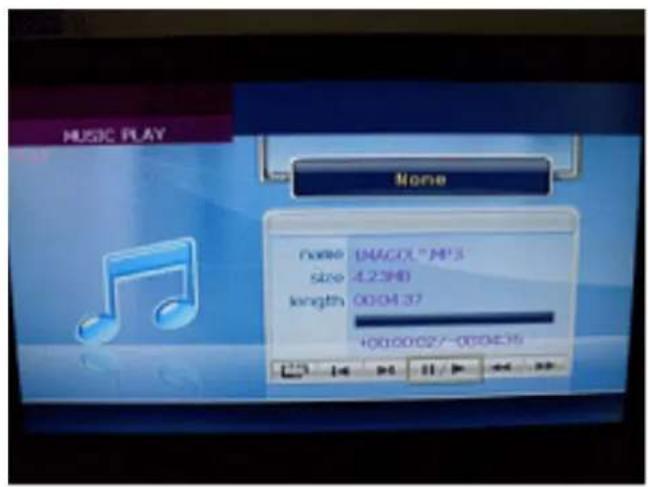

B. MUSIC

MUSIC UAGOL-MPS KINJONG-MPS 01/02 idle: 4.73MB size: 4.73MB length: 0431

MUSIC PLAY None Name: 10.600" MP3 size: 4.23MB length: 000437 +00:00:02/-00:04:15

- Purchased MP3/music files may contain copyright restrictions.

1. Press ◀/▶ button to select the Music.
2. Press the SEL button.
3. Press the ▲/▼ button to select desired music file.
4. Press the SEL button. Then the music starts.
5. Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL Selected music playing
PLAY/PAUSE	PLAY/PAUSE functions use SEL button
ESC Stop playing music and return the music file list

CARD READER CONTROLS AND FUNCTIONS (Optional)

C. MOVIE

MOVIE M06[AV~AV] M28[AV~AV] M31[AV~AV] M35[AV~AV] M27[AV~AV] M20[AV~AV] #AMSLAV 02/07

Play

- Select the Movie

1. Press ◀/▶ button to select the Movie
2. Press the SEL button.
3. Press the ▲/▼ button to select desired movie file.
4. Press the SEL button. Then the movie starts.
5. Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL Playing selected movie file
PLAY/PAUSE	PLAY/PAUSE functions use SEL button
ESC Stop playing movie and return to movie file list

CARD READER

CONTROLS AND FUNCTIONS

(Optional)

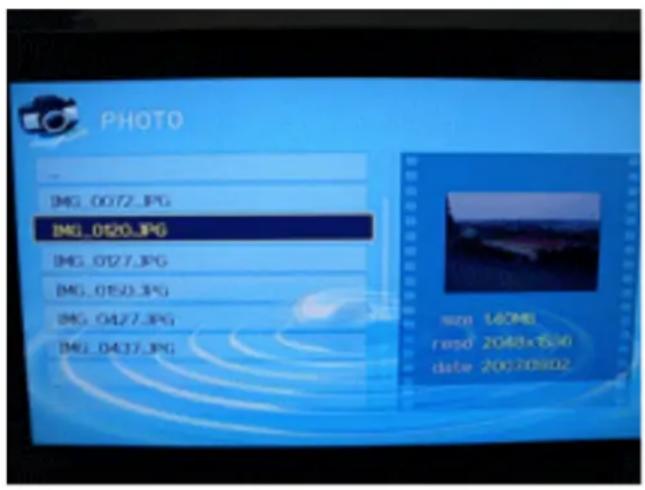

D. PHOTO MUSIC

PHOTO IMG_0072.JPG IMG_0120.JPG IMG_0127.JPG IMG_0150.JPG IMG_0427.JPG IMG_0437.JPG img 140MB reset 2048x650 date 20070802

MUSIC IMAGOL-MPS KYLONG-MPS 01/02 Title: MP3 size: 4.23MB length: 0431

-Playing slideshow with music.

1. Press the USB button and then use ◀/▶ button to select the PHOTO MUSIC.
2. Press the SEL button.
3. Press the ▲/▼ button to select photo file.
4. Press the SEL button for picture display for slideshow.
5. Moved to music file list for music playing.
6. Press the SEL button for playing music with photo slide show.
7. Press exit or press the ESC button to return to the USB menu.

Using the remote control

OK Select	photo and music file
PLAY/PAUSE	PLAY/PAUSE functions use SEL button in Music playing
ESC Stop	playing slideshow with music and return to movie file list

CARD READER

CONTROLS AND FUNCTIONS

(Optional)

E. PHOTO Thumbnail mode

MOTO V/S 100,0075.JPG

• Thumbnail mode in photo.

• Press ▶ button in Photo File list or ACT button in main menu

• Press ▲/▼/◄/► button to select desired photo file.

• Press SEL button to start Slideshow
• Press exit or press the ESC button to return to the USB menu.

Using the remote control

SEL Select	desired photo file for slideshow playing
PLAY/PAUSE	PLAY/PAUSE functions use SEL button in photo playing
ESC Stop	Thumbnail mode and return to file list

CARD READER

CONTROLS AND FUNCTIONS

(Optional)

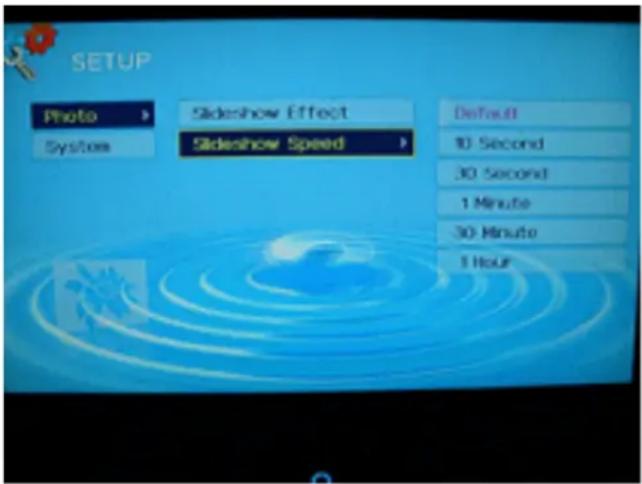

F. SETUP

1. SETUP-PHOTO

SETUP Photo System Sideshow Effect Sideshow Speed Default 10 Second 30 Second 1 Minute 30 Minute 1 Hour

Select Slideshow Effect

-The picture display effect for the slide show.

1. Press ◀/▶ button to select the Setup.
2. Press the SEL button enter the Setup menu.
3. Press the ▶ and then use ▲/▼ button to select Slideshow EFFECT.
4. Press the ▶ and then use ▲/▼ button to select the desired Effect.
5. Press exit or press the ESC button to return to the USB menu.

Select Slideshow Speed

-The picture display interval for the slide show.

1. Press ◀/▶ button to select the Setup.
2. Press the SEL button to enter the Setup menu.
3. Press the ▲/▼ button to select the PHOTO SETUP.
4. Press the ▶ and then use ▲/▼ button to select.
5. Press the ▶ and then use ▲/▼ button to select the Speed.
6. Press exit or press the ESC button to return to the USB menu.

CARD READER CONTROLS AND FUNCTIONS (Optional)

2. SETUP-SYSTEM

SETUP Photo System SUBTITLE LANG Default S/W Version English Farsi Spanish Portuguese

Select SUBTITLE LANG.

- The menus can be shown on the screen in the selected language.

First select your language.

1. Press ◀/▶ button to select the Setup.
2. Press the SEL button to enter the Setup menu.
3. Press the ▲/▼ button to select the SYSTEM SETUP.
4. Press the ▶ and then use ▲/▼ button to select SUBTITLE LANGUAGE.
5. Press the ▶ and then use ▲/▼ button to select the desired language.
6. Press exit or press the ESC button to return to the USB menu.

MOUNTING GUIDE

Wall mount(Optional)

1) Using the 75 mm VESA holes.
2) Using the VESA standard wall mount design and the 75mm hole pattern on the back side to install the LCD monitor to the wall.

75 75 M4x10 screws

※ Attention!

You must use four M4x10 screws to assemble this monitor and the wall mount bracket.

ACCESSORIES

1. Power cable (Optional).
2. User's manual.
3. Remote controller (Optional).
4. Batteries (Optional).
5. PC RGB cable (Optional).
6. Wall mount (Optional).

POWER MANAGEMENT

POWER CONSUMPTION

The power management feature of the monitor is comprised of two stages: ON(GREEN) and POWER OFF(LED Off).

MODE LED COLOR MONITOR OPERATION
ON	GREEN	Normal	Operation
POWER OFF	LED Off Not Operation

SPECIFICATIONS

1. Monitor Specification

	9.7"
LCD-Type	9.7" Diagonal AM-TFT(Active-Matrix)
	Pixel pitch(mm) : 0.192(H) x 0.192(V)
	BRIGHTNESS: 300cd/m2 (Typical)
	CONTRAST RATIO: 600:1(Typical)
	VIEWING ANGLE: 178°/178°(H/V)
	RESPONSE TIME: 35msec(Typical)
RESOLUTION (H x V)	1024x768 @60Hz
FREQUENCY	HORIZONTAL: 31~48KHz,VERTICAL: 56~60Hz
INPUT/OUTPUT SIGNAL	CAMERA OUT
	VIDEO (1ch input 1.0Vp-p, 75Ω terminated, loop-through out)
	VGA (RGB-PC)
	SD CARD REAEDR
	USB 2.0
ACTIVE DISPLAY AREA (H x V)	196.608mm x 147.456mm
PACKING DIMENSIONS (W x H x D)	343 mm x 300 mm x 173 mm (13.50" x 11.81" x 6.81")
WEIGHT	Net: 1.98kg (4.37 lbs)
	Gross : 2.85kg (6.28 lbs)
ELECTRICAL RATINGS	AC 24V (50/60Hz)

▶▶ NOTE: Technical specifications are subject to change without notice.

SPECIFICATIONS

1. Camera Specification

ITEM	Built-in PIX CAMERA
	NTSC PAL
Image Sensor	1/3" Sony Supper HAD II CCD (ICX638/639AKA)
Horizontal Resolution	Color Mode: 620TVL; B/W Mode: 680TVL
Effective Pixel	768(H) X 494(V) 752(H) X 582(V)
Sync. System	Internal
Lens	4mm Fixed Lens
Min. Illumination	0.001 Lux (F1.2)
Electronic Shutter	1/60~1/100,000	1/50~1/110,000
S/N Ratio	More than 52dB
Gamma	0.45
Shutter	Auto / Manual / FLK
AGC	OFF / Low / Middle / High
D-WDR	OFF / ON (Level Adjustable 0~63)
White Balance	ATW / ATW->SET / Manual
Backlight	OFF / BLC / HLC
Day & Night Selection	AUTO / COLOR / BW / EXT. D&N
Pict Adjust	Mirror / Brightness / Contrast / Sharpness
IR SMART	OFF / ON (IR GAIN Level Adjustable 0~255)
Motion Det	OFF / ON (Detect sense / 4 Area Sel)
Peivacy Masking	OFF / ON (8 Zone)
Lens Shadow	OFF / ON Selectable (Level Adjustable 0~255)
2D-DNR	OFF / ON
Camera ID	OFF / ON
O.S.D	Option (Built-in & Available)
Video Output	1 Vp-p / 75 Ohms
Power Supply	DC 12V±10% / Less than 100mA
Operation Temperature	-10°C ~ +50°C RH95% Max

▶▶ NOTE: Technical specifications are subject to change without notice.

SPECIFICATIONS

1. Card Reader Specification (Optional)

ITEM	MEDIA SUPPOTING SPECIFICATION
	Category	Format Support Remarks
		Video Audio TECRONY (Maximum bit rate, resolution)
Movie Specification	MPEG1	MPEG1	MP3, layer 1,2 YES		Over 10,240kbps
	MPEG2	MPEG2	MPEG2	NO	-
	MPEG4	Divx3	MP3	YES	Over 10,240kbps,720x576
			AC3	YES	Over 10,240kbps,720x576
		Divx4	MP3	YES	Over 10,240kbps,720x576
			AC3	YES	Over 10,240kbps,720x576
		Divx5	MP3	YES	Over 10,240kbps,720x576
			AC3	YES	Over 10,240kbps,720x576
		Divx6	MP3	YES	Over 10,240kbps,720x576
			AC3	YES	Over 10,240kbps,720x576
		Xvid	MP3	YES	Over 10,240kbps,720x576
			AC3	YES	Over 10,240kbps,720x576
	MS-MPEG4	V2	MP3	NO	-
		V3	MP3	NO
	WMV7	WMV7	WMV7	NO
	WMV8	WMV8	WMV8	NO
	WMV9	WMV9	WMV9	NO
	H.264			NO
	H.263			NO
Extension	.mpg	MPEG1/2	MP3, layer1,2	YES	1192kbps, 720x576
	.3gp	H.263	AMR		NO
		MPEG4	AMR	NO
	.mp4	MPEG4	AAC	NO
	.avi	MJEG
		DivX	MP3	YES	Over 10,240kbps,720x576
		Xvid	MP3	YES	Over 10,240kbps,720x576
		Lossless avi		NO
	.asf			NO
Subtitle	*.smi, *.srt, *.sub (Micro DVD), *.ssa

TROUBLESHOOTING GUIDE

TROUBLE	TROUBLESHOOTING TIP
No image on display screen	1. Check that power cord of the Monitor have been connected securely into wall outlet or grounded extension cable or strip.2. Power switch should be in the ON position and LED is lit.3. Check that the Brightness and/or the Contrast adjustments of the Display have not been turned down to minimum levels.
“NO SIGNAL” message on screen	1. The signal cable should be completely connected to the video card/computer.2. The video card should be completely seated in its slot and the computer is switched ON.
Display image is not centered, too small or too large in PC mode	Push the down key in front side or Auto key in remote controller.
Vertical or Horizontal noise is present in the picture	Adjust Clock and Phase in the OSD.

WEEE Symbols

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection system

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

MEMO
