USER MANUAL VZ-097LED ViewZ
CONTENTS
SAFETY INSTRUCTION 2 \~ 3
CAUTIONS 4
FCC RF INTERFERENCE STATEMENT 5
CONNECTING WITH EXTERNAL EQUIPMENT 6
CONTROLS AND FUNCTIONS 7 \~ 14
MOUNTING GUIDE 15
D-SUB CONNECTOR PIN ASSIGNMENTS 16
POWER MANAGEMENT 17
SPECIFICATIONS 18
TROUBLE SHOOTING GUIDE 19
This Monitor was
Manufactured by ISO 9001
Certified Factory
SAFETY INSTRUCTION
Important Safety Instruction
- Read these instructions.
- Keep these Instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
-
Clean only with dry cloth.
-
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
-
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Do not defeat the safety purpose of the polarized or grounding-type plug.
Apolarized plug has two blades with one wider than the other.
Agrounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement of the bsolete outlet.
-
Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus.
-
Only use attachment/accessories specified by the manufacturer.
-
Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
-
Unplug this apparatus during lightning storms or when unused for long periods of time.
-
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus the apparatus has been exposed to rain or moisture does not operate normally or has been dropped.

SAFETY INSTRUCTION
- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus.
- Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation.
"WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture."
"The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus."
This symbol is intended to alert the user to the presence of uninsulated : dangerous voltage with in the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in the literature accompanying the appliance.
CAUTIONS
CAUTION
The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible.
ATTENTION
POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING
EMISSION CHARACTERISTICS TESTED BY SEMKO
THIS PRODUCT HAS BEEN TESTED AND HAS SHOWN COMPLIANCE WITH THE NATIONAL SPECIFICATIONS SUCH AS SWEDISH MPR 1990.10.(MPR II)
▶ NEVER REMOVE THE BACK COVER
Removal of the back cover should be carried out only by qualified personnel.
▶ DO NOT USE IN HOSTILE ENVIRONMENTS
To prevent shock or fire hazard, do not expose the unit to rain or moisture.
This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust of corrosive gases.
▶ KEEP IN A WELL VENTILATED PLACE
Ventilation holes are provided on the cabinet to prevent the temperature from rising.
Do not cover the unit or place anything on the top of unit.
▶ AVOID HEAT
Avoid placing the unit in direct sunshine or near a heating appliance.
▶ TO ELIMINATE EYE FATIGUE
Do not use the unit against a bright back ground and where sunlight or other light sources will shine directly on the monitor.
▶ BE CAREFUL OF HEAVY OBJECT
Neither the monitor itself nor any other heavy object should rest on the power cord.
Damage to a power cord can cause fire or electrical shock.
FCC RF
INTERFERENCE STATEMENT
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Consult the dealer or an experienced radio, TV technician for help.
- Only shielded interface cable should be used.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.
▶ DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.
CONNECTING WITH EXTERNAL EQUIPMENT

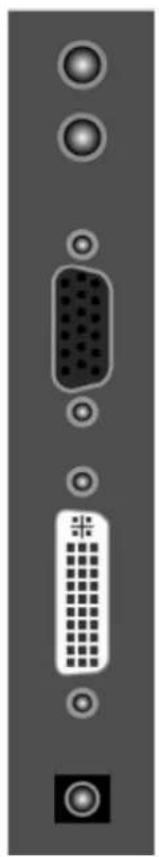

A. BACK
- AUDIO OUT.
- AUDIO IN.
- VGA.
- DVI.
- DC 12V.


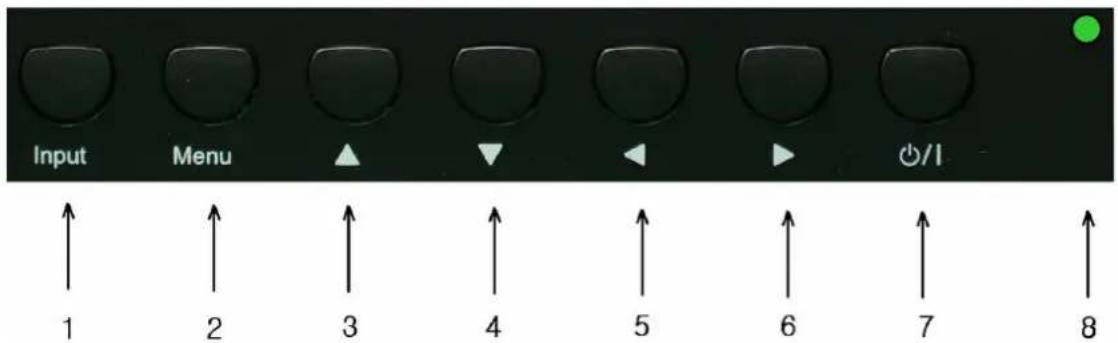

B. FRONT
Selects VGA or DVI inputs.
Selects an option in the OSD.
2. MENU
Activates or exits the OSD.
Moves previous menu or status in the OSD.
3, 4. ▲ / ▼
Moves another option in the OSD.
The ▼ button is auto adjustment function in the VGA input.
5, 6. ◀ / ▶
Adjusts the volume and menu settings.
The ◀ button is mute function.
7. ⏻ (POWER ON/OFF)
Turns the power on or off. There will be a few seconds delay before the display appears.
8. POWER LED
Turned on with VGA or DVI signals: Green color.
Turned on with no signal: Red color.
Turned off: LED off.
CONTROLS AND FUNCTIONS
OSD Menu Description
All picture, sound settings and setup for the monitor can be adjusted in the OSD menu.
To adjust the OSD screen:
- Press the MENU button to enter the OSD menu.
- Press the ▲/▼ buttons to select the desired option. The selected option is yellow color.
- Press the INPUT button twice to enter the sub-menu and adjust the item.
Change the value you wish to adjust by using the ◀/▶ buttons.
-
Press the MENU button twice to exit the sub-menu and the adjusted item.
-
Press the MENU button again to exit the OSD menu.
A. Color
Input Resolution Freq.

Color
Image Setting
Position
OSD Menu
Language
Misc.
Exit
Input Resolution Freq.

Contrast
Brightness
Color Adjust
Color Temp
Auto Color
Back
| Contrast | Adjusts intensity of the image. | 0 ~ 100. |
| Brightness | Adjusts brightness of the screen. | 0 ~ 100. |
| Color Adjust | Adjusts red, green & blue color of the picture. | 0 ~ 100. |
| Color Temp | Adjusts color temperature of the picture. | 9300K, 6500K, 5800K & USER. |
| Auto Color ^1) | Auto color adjustment. | |
| Back | Returns to previous menu. |
1) Unavailable in DVI input.
CONTROLS AND FUNCTIONS

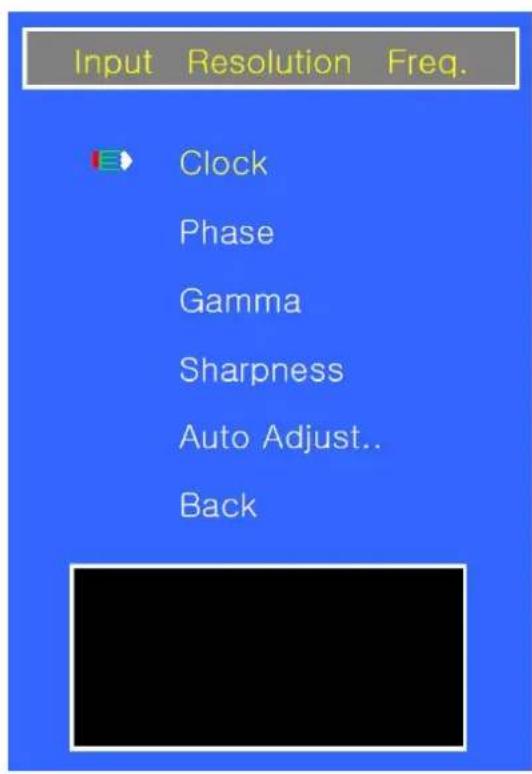

B. Image Setting
| Clock^1) | Adjusts the vertical noise of screen image. | 0 ~ 100. |
| Phase^1) | Adjusts the number of horizontal picture elements. | 0 ~ 60. |
| Gamma | Adjusts the gamma of the picture. | 0 ~ 3. |
| Sharpness | Adjusts sharpness of the picture. | 0 ~ 4. |
| Auto Adjust.^1) | Auto geometry adjustment. | |
| Back | Returns to previous menu. |
1) Unavailable in DVI input.
CONTROLS AND FUNCTIONS
C. Position (Only VGA input)
| H. Position | Adjusts the horizontally picture position. | 0 ~ 100. |
| V. Position | Adjusts the vertically picture position. | 0 ~ 100. |
| Back | Returns to previous menu. |
CONTROLS AND FUNCTIONS

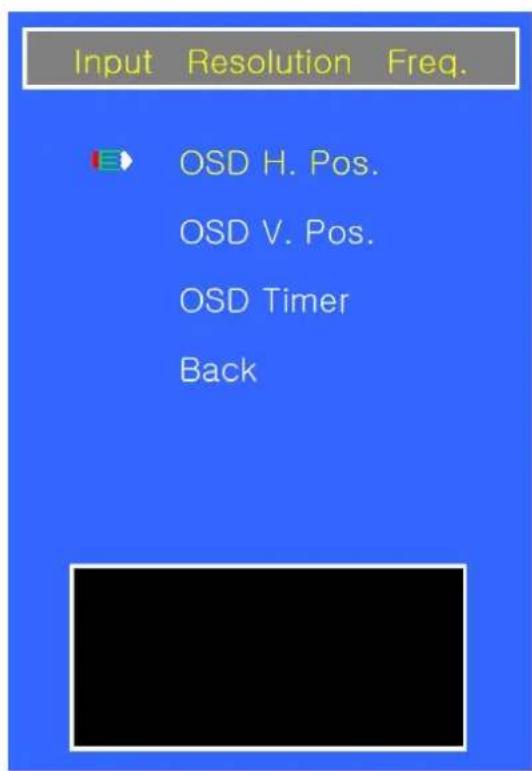

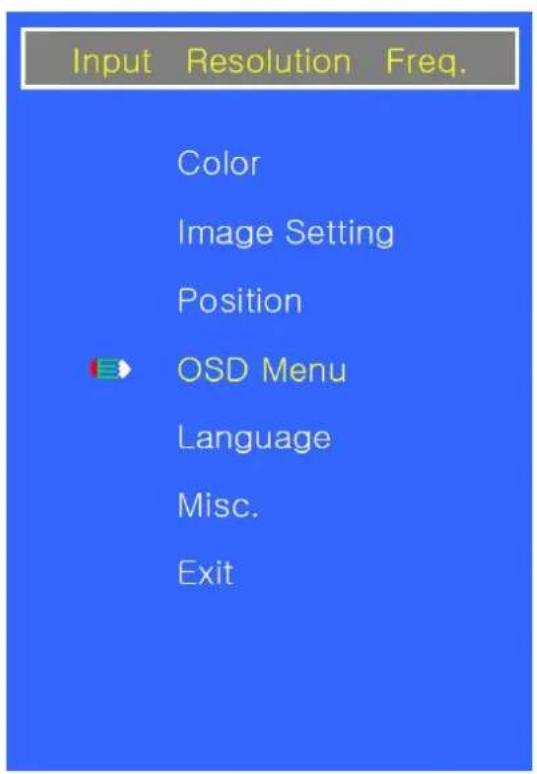

D. OSD Menu
| OSD H. Pos. | Moves the horizontally OSD position. | 0 ~ 100. |
| OSD V. Pos. | Moves the vertically OSD position. | 0 ~ 100. |
| OSD Timer | Adjusts the display time of OSD. | 5 ~ 20. |
| Back | Returns to previous menu. |
CONTROLS AND FUNCTIONS
E. Language
Input Resolution Freq.
Color
Image Setting
Position
OSD Menu

Language
Misc.
Exit
Input Resolution Freq.

English
한국어
Français
Deutsch
Español
| Option | Function | Value |
| Language | Sets the language of OSD menu. | English, Korean, French, Deutsch & Spanish. |
CONTROLS AND FUNCTIONS
F. Misc.
Input Resolution Freq.
Color
Image Setting
Position
OSD Menu
Language

Misc.
Exit
Input Resolution Freq.

Signal Source
Volume
Reset
Back
| Signal Source | Converts the signal source. | VGA & DVI. |
| Volume | Adjust the level of audio volume. | 0 ~ 100. |
| Reset | Resets the monitor settings to the factory default. | |
| Back | Returns to previous menu. |
CONTROLS AND FUNCTIONS
G. Exit
Input Resolution Freq.
Color
Image Setting
Position
OSD Menu
Language
Misc.

Exit
| Option | Function |
| Exit | Exits the OSD menu. |
MOUNTING GUIDE
A. Wall mount (Option)
1) Using the 75 mm VESA holes.
2) Using the VESA standard wall mount design and the 75mm hole pattern on the back side to install the LED monitor to the wall.
You must use four M4x10 screws to assemble this monitor and the wall mount bracket.
D-SUB CONNECTOR PIN ASSIGNMENTS
▶ PIN ASSIGNMENTS
- Power adaptor
- User's manual
- PC cable
- Stereo cable (Option)
- Wire Stand (Option)
- Wall mount (Option)
POWER MANAGEMENT
This monitor features a power management system to "power down" upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card.
The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal.
This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
Power Consumption
| Mode | Power Consumption |
| Turned On | < 8.2W |
| No Signal & Turned Off | < 1W |
LED Indicator
The power management feature of the monitor is comprised of three stages: Turned on(Green), no signal(Red) and turned off(LED off).
| Mode | LED | Monitor Operation |
| Turned On | Green | Normal Operation |
| No Signal | Red | Not Operation |
| Turned Off | LED off | Not Operation |
SPECIFICATIONS
| 9.7” | |
| LED-Type | 9.7” Diagonal AM-TFT(Active-Matrix) |
| Pixel pitch(mm) : 0.192(H) x 0.192(V) | |
| Brightness: 300cd/m2 (Typical) | |
| Contrast Ratio: 600:1(Typical) | |
| Response Time: 35msec(Typical) | |
| RESOLUTION (H x V) | 1024x768 @60Hz |
| FREQUENCY | HORIZONTAL : 31~48KHz,VERTICAL : 56~60Hz |
| INPUT SIGNAL | DVI (Digital Video Interface) |
| VGA (RGB-PC) | |
| AUDIO IN & OUT | |
| ACTIVE DISPLAY AREA (H x V) | 196.608mm x 147.456mm |
| PACKING DIMENSIONS (W x D x H) | 335mm x 280mm x 100mm(13.19” x 11.02” x 3.94”) |
| WEIGHT | Net: 1.11kg (2.45 lbs) |
| Gross: 2.3kg (5.07 lbs) | |
| ELECTRICAL RATINGS | 12V --- 0.68A (100-240V~, 50/60Hz) |
▶▶ NOTE : Technical specifications are subject to change without notice.
TROUBLESHOOTING GUIDE
| TROUBLE | TROUBLESHOOTING TIP |
| No image on display screen | 1. Check that power cord of the Monitor have been connected securely into wall outlet or grounded extension cable or strip.2. Power switch should be in the ON position and LED is lit.3. Check that the Brightness and/or the Contrast adjustments of the Display have not been turned down to minimum levels. |
| “NO SIGNAL” message on screen | 1. The signal cable should be completely connected to the video card/computer.2. The video card should be completely seated in its slot and the computer is switched ON. |
| Display image is not centered, too small or too large in PC mode | Push the down key in front side. |
| Vertical or Horizontal noise is present in the picture | Adjust Clock and Phase in the OSD. |
WEEE Symbols
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
