USER MANUAL 61400T Union Special
Union Special® INDUSTRIAL SEWING EQUIPMENT
CATALOG NO. T83T
STYLES
61400M
61400T
61400W
Catalog No. T83 T
LIST OF PARTS
Styles
61400 M 61400 T
61400 W
Top and Bottom Roller Feed Machines
Third Edition
Copyright 1957
by
Union Special Corporation
Rights Reserved in All Countries
INDUSTRIAL SEWING MACHINES
CHICAGO
Printed in U.S.A.
February, 1977
IDENTIFICATION OF MACHINES
Each UNION SPECIAL machine is identified by a Style number which is stamped into the name plate on the front of the machine. Style numbers are classified as standard and special. Standard Style numbers have one or more letters suffixed, but never contain the letter "Z". Example: "Style 61400 M". Special Style numbers contain the letter "Z". When only minor changes are made in a standard machine, a "Z" is suffixed to the standard Style number. Example: "Style 61400 MZ".
Styles of machines similar in construction are grouped under a class number which differs from the style number in that it contains no letters. Example: "61400".
APPLICATION OF CATALOG
This catalog applies specifically to the Standard Styles of machines as listed herein. It can also be applied with discretion to some Special Styles of machines in Class 61400. Catalog No. 83 R may prove helpful for illustrations not shown in this catalog. Reference to direction, such as right, left, front, back, etc., are given from the operator's position while seated at the machine. Operating direction of the handwheel is toward the operator.
STYLES OF MACHINES
61400 M Streamlined, modified lockstitch machine, for circular work, automatically synchronized power driven, top and bottom roller feed, 1 13/64 inch needle bar travel, automatic lubrication for lower mechanism, visible oil supply, equipped with hemmer for making 3/8 to 1/2 inch turned down hem on overalls, dungarees and similar garments. Seam specification 301-EFb-1, inverted. Type 180 GYS needle.
61400 T Streamlined, modified lockstitch machine, for circular work, automatically synchronized power driven top and bottom roller feed, 1 13/64 inch needle bar travel, automatic lubrication for lower mechanism, visible oil supply, for making a hand turned hem from 1/2 to 2 1/2 inches wide on children's wear, men's dress pants, semi-work pants and work pants. Seam specification 301-EFb-1 or EFa-1. Type 180 GXS needle.
61400 W Streamlined, modified lockstitch machine, automatically synchronized power driven top and bottom roller feed, 1 13/64 inch needle bar travel, automatic lubrication for lower mechanism, visible oil supply, for topstitching waistbands on twill and woolen pants. Seam specification 301-SSa-1. Type 180 GYS needle.
NEEDLES
Each UNION SPECIAL needle has both a type number and size number. The type number denotes the kind of shank, point, length, groove, finish, and other details. The size number, stamped on the needle shank, denotes the largest diameter of the blade, measured in thousandths of an inch, across the eye. Collectively, type and size number represents the complete symbol.
The following is a numerical list of the parts used in this machine. Quantities, part numbers, and descriptions are given. Following the parts list are photographs of some of the major parts.
| Amt. | Part No. | Description | Amt. | Part No. | Description | Amt. | Part No. | Description |
| 1 | 18 | Nut for 22832 G | 2 | 22565 C | Screw for 51239 T | 1 | 29126 CV | Top Roller Feed Drive |
| 4 | 27-435 | 1 | 22565 C | Screw for 61453 E | Eccentric Assembly(22832 G) | |||
| Blk. | Washer for 61439 AN | 2 | 22569 B | Screw for head cover | ||||
| 3 | 28-95 | 3 | 22569 C | Screw for 61494 A | 1 | 29474 G | Rotating HookAssembly | |
| Blk. | Spring Stop on 61339 R | 3 | 22569 H | Hook Set Screw | ||||
| 1 | 28 C | Needle Clamp Screwfor 61417 C | 1 | 22570 A | Screw for 61271 | 1 | 29475 AA | Tension Assembly(22597 E, 22863 B) |
| 6 | 22570 A | Screw for 61382 L | ||||||
| 1 | 50-223 | 4 | 22570 A | Screw for 61382 M | 1 | 39151 | Needle Clamp Nut for61417 D | |
| Blk. | Rivet for 61351 L | 4 | 22570 A | Screw for 61439 AB | ||||
| 1 | 50-567 | 4 | 22570 A | Screw for 61482 B | 6 | 41258 | Feed Clutch Roller | |
| Blk. | Oil Sight Gauge on61494 | 1 | 22570 B | Screw for 61391 D | 1 | 41358 M | Clutch Barrel(22597 B) | |
| 3 | 22574 | Screw for 61321 J | 1 | 41358 N | Clutch Block, right(22747) | |||
| 1 | 50-568 | 4 | 22580 | Screw for 51239 E | ||||
| Blk. | Oil Gauge | 1 | 22580 | Screw for 61439 AC | 1 | 41358 P | Clutch Block, left(22747) | |
| 4 | HA61 D | Screw for 61264,61264 A | 2 | 22585 A | Screw for 61351 J | |||
| 2 | 22593 | Screw for 23564 B | 6 | 41358 Q | Feed Clutch RollerSpring | |||
| 1 | 73 A | Screw for 61430 R | 2 | 22596 D | Adjusting Screw for61391 D (8372 A) | |||
| 1 | 77 B | Screw for 61414 B | 6 | 41358 S | Clutch Spring SupportPin | |||
| 1 | 88 | Screw for 6958 | 1 | 22597 A | Screw for 61251 D | |||
| 2 | 88 | Screw for 61242 | 1 | 22597 A | Screw for 62262 | 6 | 41358 T | Support Pin Washer |
| 1 | 88 B | Screw for 61458 C | 3 | 22597 B | Screw for 41358 M | 1 | 41390 E | Bushing for 61439 G |
| 2 | 89 | Screw for 61244 | 1 | 22597 E | Set Screw for tensionassembly | 1 | 51239 B | Feed Clutch CheckPlate Pin (22729) |
| 1 | 89 | Screw for 61449 AA | ||||||
| 1 | 89 | Screw for 61492 | 1 | 22704 | Screw for 61403 | 2 | 51239 E | 15 tooth Gear (22580) |
| 1 | 91 A | Screw for 23564 D | 2 | 22711 | Screw for 23564 | 2 | 51239 G | Universal Joint(22894 T) |
| 2 | 93 | Screw for 23564 G | 2 | 22711 | Screw for 23564 A | |||
| 2 | 93 | Screw for 61482 | 1 | 22712 F | Screw for 61368 F | 1 | 51239 S | Roller Feed ClutchShaft |
| 2 | 93 | Screw for 61482 L | 4 | 22716 A | Screw for 61210 B | |||
| 1 | 95 | Screw for 61259 A | 1 | 22716 B | Screw for 61414 C | 1 | 51239 T | Roller Feed ClutchBrake (22565 C) |
| 4 | 95 | Screw for 61339 D | 3 | 22716 H | Screw for 61411 A | |||
| 2 | 95 | Screw for 61439 AK | 2 | 22560 A | Screw for 61437 A | 1 | 51239 U | Roller Feed ClutchBrake Washer |
| 2 | 95 | Screw for 61439 AM | 1 | 22562 B | Screw for 61255 | |||
| 1 | 96 | Screw for 61454 D | 3 | 22564 B | Screw for 61437 C | 1 | 51292 C | Presser Foot TensionRegulating Nut |
| 1 | 96 A | Screw for 61341 C | 1 | 22726 A | Screw for 61453 F, M | |||
| 2 | 98 | Screw for 2339 F | 1 | 22729 | Screw for 51239 B | 1 | 61149 G | Stitch Eccen., .078 inchthrow, for 29126 CV |
| 1 | 98 | Screw for 61439 AD | 1 | 22730 | Screw for 61482 B | |||
| 2 | 109 | Tension Disc for29475 AA | 1 | 22738 B | Screw for 61430 X | 1 | 61149 H | Friction Disc for61149 G |
| 2 | 22738 F | Screw for 61430 BX | ||||||
| 1 | 110-4 | Presser Foot TensionRegulating Spring | 6 | 22747 | Screw for 41358 N, P | 1 | 61208 B | Rotating Hook for29474 G |
| 1 | 22757 C | Screw for 61255 H | ||||||
| 1 | 138 | Screw for 61370 | 1 | 22758 B | Screw for 61267 | 1 | 61210 B | Hook Thread Guardfor 29474 G (22716 A) |
| 2 | 138 | Screw for 61439 AP | 1 | 22775 | Screw for presserfoot on 61400 M, T | 1 | 61212 | Bobbin for 29474 G |
| 2 | 376 | Screw for 61424 W | ||||||
| 2 | 454 A | Washer for 22891 | 1 | 22775 | Screw for 61430 U | 1 | 61216 | Hinge Pin for 61415 |
| 1 | 652 B-20 | 1 | 22798 A | Screw for 61430 V | 1 | 61216 N | Bobbin Case Spring | |
| Lock Washer for lifterlever stud | 1 | 22817 A | Stud for 61468 | 1 | 61236 | Bushing for 61261 AHook Shaft Collar (88) | ||
| 1 | 22824 A | Screw for 61453 C | 1 | 61242 | ||||
| 1 | 660-142 | Spring Cotter Pin for61368 A | 2 | 22829 | Screw for 61482 A | 1 | 61244 | Hook Shaft Pinion Gear(89) |
| 1 | 22832 G | Screw for 29126 CV(18, 61434 G) | ||||||
| 1 | 660-205 | Retaining Ring for61251 D | 1 | 22845 | Screw for 61458 D | 1 | 61251 D | Take-up Lever Pin(660-205, 22597 A) |
| 1 | 660-226 | Needle Bearing for61439 AJ | 1 | 22863 B | Adjusting Screw fortension assembly | 1 | 61252 | Take-up Lever LinkTake-up Lever CrankPin |
| 2 | 660-249 | Needle Bearing for61439 AM | 1 | 22874 | Screw for 61439 G(9937, 80557) | 1 | 61255 | Needle Bar ConnectingStud (22562 B) |
| 1 | 660-257 | Washer for 22730 | 1 | 22874 F | Screw for 61468 (9937) | |||
| 2 | 666-20 | Oil Wick | 1 | 22880 | Spot Screw for 61391 D | 1 | 61255 H | Needle Bar Link(22757 C) |
| 1 | 666-104 | Oil Wick for mainshaft housing | 1 | 22882 | Screw for 61439 F | |||
| 2 | 22884 | Screw for 61260 A | 1 | 61256 G | Presser Spring Washer | |||
| 2 | 666-126 | Oil Wick for 61293 | 2 | 22884 | Screw for 61360 | 1 | 61257 G | Presser Bar Bushing,upper |
| 1 | 666-127 | Felt Oil Wick for61393 C | 2 | 22884 | Screw for 61360 G | |||
| 1 | 22890 | Screw for 61466 A | 1 | 61259 A | Presser Bar Guide (95) | |||
| 1 | 907 | Adjusting Screw Nutfor 23564 | 2 | 22891 | Screw for 61439 G(454 A) | 1 | 61260 A | Feed Driving ShaftGear (22884) |
| 2 | 1096 B | Screw for 61439 AN | 1 | 22892 | Screw for 61458 B | 1 | 61261 A | Feed Driving ShaftIntermediate Gear |
| 1 | 2339 F | Thrust Collar forlower main shaft | 2 | 22894 J | Screw for 61443 | |||
| 2 | 22894 T | Screw for 51239 G | 1 | 61264 | Intermediate GearShaft Collar, right(HA61 D) | |||
| 1 | 6958 | Collar for 23564 E (88) | 2 | 22894 V | Screw for 61391 D | |||
| 2 | 8372 A | Washer for 61391 D | 1 | 23364 AG | Hemmer Scroll SlideSpring | |||
| 2 | 9937 | Nut for 22874 | 1 | 61264 A | Intermediate GearShaft Collar, left(HA61 D) | |||
| 1 | 9937 | Nut for 22874 F | 1 | 23564 | Hemmer, comp., for61400 M (907, 22711) | |||
| 2 | 12986 B | Screw for 61403 A | ||||||
| 1 | 15872 F | Spring for releaselever | 1 | 23564 A | Hemmer Scroll, right(22711) | 1 | 61267 | Lifter Lever Link(22758 B) |
| 1 | 20110 | Spring for 23564 E | 1 | 23564 B | Hemmer Scroll, left(22593) | 1 | 61267 G | Spring Pin for releaselever |
| 1 | 21629 | Stud for 61430 BW | ||||||
| 1 | 21756 G | Stud for 61458 E | 1 | 23564 C | Hemmer Scroll Slide | 1 | 61271 | Frame Needle ThreadEyelet (22570 A) |
| 1 | 21756 G | Stud for 61458 H | 1 | 23564 D | Hemmer Base (91 A) | |||
| 2 | 22539 D | Plug Screw for base | 1 | 23564 E | Operating Rod (20110) | 1 | 61282 D | Gasket for 61382 L |
| 2 | 22564 E | Screw for 61414 C,61415 A | 1 | 23564 G | Hemmer MountingBracket for 61400 M(93) | 21 | 61282 E | Gasket for 61382 MNut for 61492 |
| 1 | 61292 C | Tension Release Pin | ||||||
| 1 | 22564 F | Screw for 61413 G | 1 | 61292 G | ||||
| 1 | 61292 H | Release Washer for 29475 AA | 1 | 61403 A | Edge Guide Mounting Bracket for 61400 T (12986 B) | 1 | 61439 AJ | Connecting Rod for 29126 CV (660-226) |
| 2 | 61293 | Oil Tube (666-126) | 1 | 61439 AK | Top Feed Roller (95) | |||
| 2 | 61293 N | Plug for inside of arm | 1 | 61411 A | Thread Retainer for 29474 G (22716 H) | 1 | 61439 AM | Presser Bar Roller Bracket (95, 660-249) |
| 1 | 61321 J | Handwheel for 61421 (22574) | 1 | 61413 E | Bobbin Case Assembly for 29474 G | 1 | 61439 AN | Presser Foot Shank Pin (1096 B) |
| 1 | 61321 L | Washer for 61421 | 1 | 61413 F | Bobbin Case | 1 | 61439 AP | Upper Roller Cloth Stripper (138) |
| 1 | 61322 B | Main Shaft | 1 | 61413 G | Bobbin Case Eyelet | 1 | 61439 AT | Bushing for 61439 Z |
| 1 | 61339 B | Ball Washer for 29126 CV | 1 | 61414 | Bobbin Case Holder for 29474 G | 1 | 61443 | Hook Shaft Driving Gear (22894 J) |
| 2 | 61339 D | Top and Bottom Roller Feed Driving Gear (95) | 1 | 61414 B | Bobbin Case Holder Position Finger (77 B) | 1 | 61449 B | Spring for 29126 CV |
| 1 | 61339 E | Feed Driving Shaft, right | 1 | 61414 C | Bobbin Case Tension Spring (22564 E, 22716 B) | 1 | 61449 AA | Stitch Regulating Collar (98) |
| 1 | 61339 R | Feed Driving Clutch Lever | 1 | 61415 | Bobbin Case Latch (61216) | 1 | 61451 C | Thrust Washer for 61351 L |
| 1 | 61339 S | Feed Clutch Check Plate | 1 | 61415 A | Bobbin Case Latch Lever (22564 E) | 1 | 61453 | Spring for 29475 AA |
| 1 | 61340 C | Hook Shaft | 1 | 61415 A | Bobbin Case Latch Lever (22564 E) | 1 | 61453 C | Take-up Spring Thread Wire (22824 A) |
| 1 | 61341 C | Hook Shaft Bushing, left (96 A) | 1 | 61417 C | Needle Bar for 61400 W (28 C) | 1 | 61453 D | Thread Control Shaft |
| 1 | 61341 D | Hook Shaft Bushing, right | 1 | 61417 D | Needle Bar for 61400 M, T (39151) | 1 | 61453 E | Thread Control Shaft Block (22565 C) |
| 1 | 61341 G | Oil Seal Washer | 1 | 61420 BL | Presser Foot for 61400 T (22775) | 1 | 61453 F | Thread Control Link, for 61400 M, T (22726 A) |
| 2 | 61341 J | Thrust Washer for hook shaft | 1 | 61420 BP | Presser Foot for 61400 M (22775) | 1 | 61453 G | Thread Control Link Spacer |
| 1 | 61351 C | Thrust Washer | 1 | 61420 CF | Presser Foot for 61400 W | 1 | 61453 L | Thread Controller Shaft Bushing |
| 1 | 61351 J | Frame Take-up Thread Eyelet (22585 A) | 1 | 61421 | "V" Belt Pulley Assembly | 1 | 61453 M | Thread Controller Link for 61400 W (22726 A) |
| 38 | 61351 K | Needle Bearing Roller | 1 | 61421 A | Pulley Hub for 61421 Throat Plate (376) | 1 | 61454 | Needle Bar Bushing, lower |
| 1 | 61351 L | Take-up Lever (61451 C) | 1 | 61424 W | Needle Hole Insert for 61424 W | 1 | 61454 D | Needle Bar Bushing, upper |
| 1 | 61351 M | Eyelet for 61351 L | 1 | 61428 | Guide for 61420 BL (73 A) | 1 | 61457 D | Presser Bar Bushing, lower |
| 1 | 61351 Q | Take-up Lever Assembly | 1 | 61430 U | Presser Foot Bottom for 61420 CF(22775) | 1 | 61457 H | Presser Bar |
| 1 | 61356 | Presser Spring | 1 | 61430 V | Yielding Spring for 61420 CF (22798 A) | 1 | 61458 B | Presser Bar Connec-tion (22892) |
| 1 | 61360 | Main Shaft Driving Gear (22884) | 1 | 61430 X | Needle Guard for 61420 BP (22738 B) | 1 | 61458 C | Presser Foot Lifter Block (88 B) |
| 1 | 61360 G | Feed Driving Shaft Collar (22884) | 1 | 61430 BW | Edge Guide for 61420 CF (21629) | 1 | 61458 D | Presser Foot Tension Bar (22845) |
| 1 | 61366 C | Lifter Lever Extension Stud for 61368 A | 1 | 61430 BX | Edge Guide Block for 61420 CF (22738 F) | 1 | 61458 E | Presser Foot Shank for 61400 M, T (21756 G) |
| 1 | 61368 | Lifter Lever Connect-ing Rod for 61368 A | 1 | 61432 B | Feed Driving Shaft Bushing, right | 1 | 61458 H | Presser Foot Shank for 61420 CF (21756 G) |
| 1 | 61368 A | Lifter Lever Exten-sion Stud and Lifter Lever Connecting Rod, complete (660-142) | 1 | 61432 C | Feed Driving Shaft Bushing, left | 1 | 61466 A | Lifter Lever (22890) |
| 1 | 61368 F | Bell Crank Roller (22712 F) | 1 | 61432 F | Lower Main Shaft | 1 | 61468 | Lifter Lever Bell |
| 1 | 61370 | Needle Thread Guide (138) | 1 | 61434 G | Washer for 29126 CV | 1 | Crank (22817 A, 22874 F) | |
| 1 | B61382 H | Head Cover for 61400 M, T (22569 B) | 1 | 61437 A | Eccentric Timing Collar for 29126 CV (22560 A) | 1 | 61482 | Hook Guard for 61400 M, T (93) |
| 1 | 61382 L | Housing Cover, right (22570 A) | 1 | 61437 B | Pivot Pin for 29126 CV | 1 | 61482 A | Cloth Guard (22829) |
| 1 | 61382 M | Housing Cover, left (22570 A) | 1 | 61437 C | Eccentric Housing for 29126 CV (22564 B) | 1 | 61482 B | Hook Shaft Gear Case Cover (660-257, 22570 A, 22730) |
| 1 | 61391 D | Main Shaft Counter-weight (22570 B, 22596 D, 22880, 22894 V) | 1 | 61439 F | Top Roller Feed Clutch Housing Support Bracket (22882) | 1 | 61482 L | Cloth Plate Extension for 61400 W (93) |
| 1 | 61392 F-14 | Tension Spring for 29475 AA | 1 | 61439 G | Feed Clutch Housing (22874, 22891) | 1 | 61490 | Head Cover for 61400 W |
| 1 | 61393 B | Oil Tube for upper main shaft (666-20) | 1 | 61439 Y | Lower Feed Drive Shaft | 1 | 61490 A | Main Shaft Bearing Housing and Bushing, right |
| 1 | 61393 C | Oil Tube (666-127) | 1 | 61439 Z | Lower Feed Driving Shaft Housing | 1 | 61492 | Main Shaft Bushing, left Tension Post for 29475 AA (89, 61292 C) |
| 1 | 61394 L | Oil Reservoir Secur-ing Screw (61494 U) | 1 | 61439 AA | Bushing for 61439 Z Shaft Housing Clamp Plate (22570 A) | 1 | 61492 A | Tension Post Socket for 29475 AA |
| 1 | 61394 M | Gasket for 61394 AC | 1 | 61439 AC | Feed Roller, lower, for 61400 M (22580) | 1 | 61494 | Hook Oil Reservoir Reservoir End Cover (22569 C) |
| 1 | 61394 AC | Filler Hole Plug Screw | 1 | 61439 AD | Feed Roller, lower, for 61400 T, W (98) | 1 | 61494 B | End Cover Gasket |
| 1 | 61394 AE | Oil Cup | 1 | 61439 AE | Top Roller Feed Shaft Guard | 1 | 61494 U | Washer for 61394 L Intermediate Gear Shaft (22597 A) |
| 2 | 61394 AF | Reservoir Gasket, left Hook Shaft Oil Metering Insert | 1 | 61439 AF | Top Roller Feed Drive Shaft, right | 1 | 63939 K | Top Feed Roller Shaft Washer for 22874 |
| 1 | 61403 | Edge Guide for 61400 T (22704) | 1 | 1 |
NOTE: Numbers in paranthesis following parts' description indicate the screws, nuts, etc. used to attach or hold these parts.


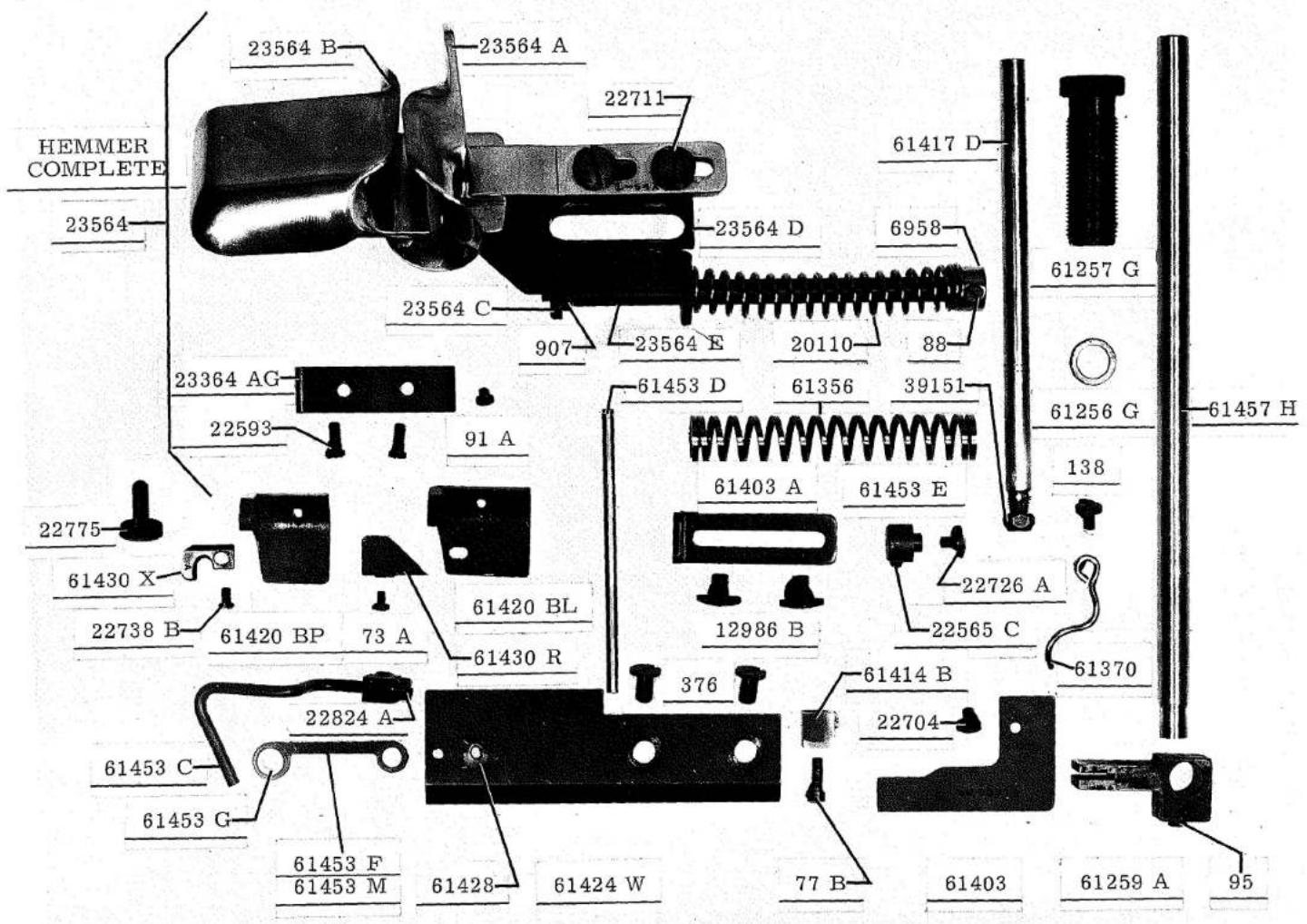

HEMMER COMPLETE 23564 23564 B 23564 A 22711 23564 C 907 23564 E 20110 6958 61417 D 61257 G 61457 H 23364 AG 22593 91 A 61453 D 61356 39151 61256 G 138 22775 61430 X 22738 B 61420 BP 73 A 61420 BL 61430 R 61403 A 61453 E 12986 B 22726 A 22565 C 61370 22824 A 61453 C 61453 G 61453 F 61453 M 61428 61424 W 376 61414 B 22704 77 B 61403 61259 A 95


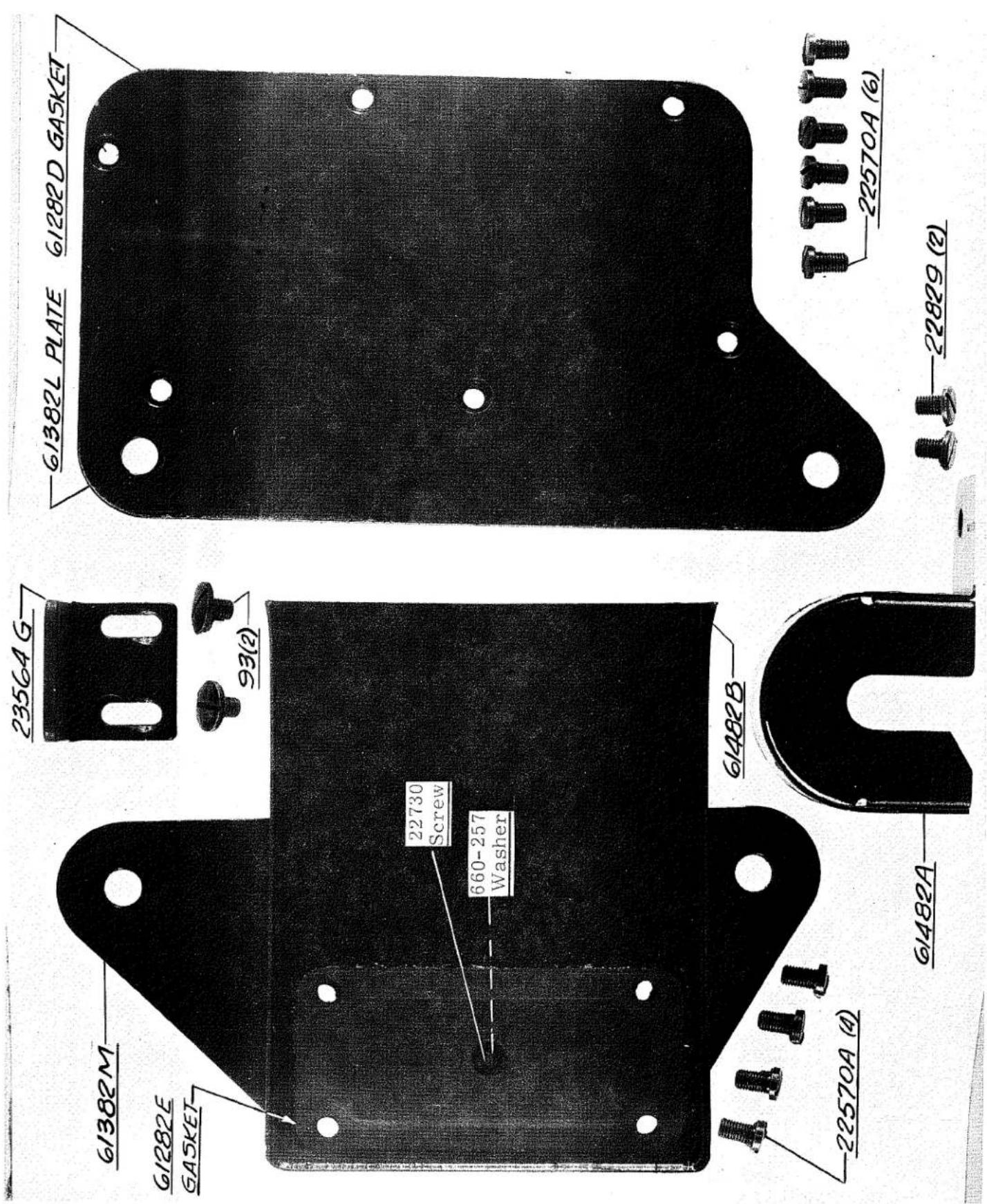

22570A (6) 22829 (2) 22824 22570A (4) 660-257 Washer 22730 Screw 93(2) G1382L PDATE G1282D GASKET 23564 5 G138BM G1282E GASKET G1382M
