USER MANUAL 36200L200-52 Union Special

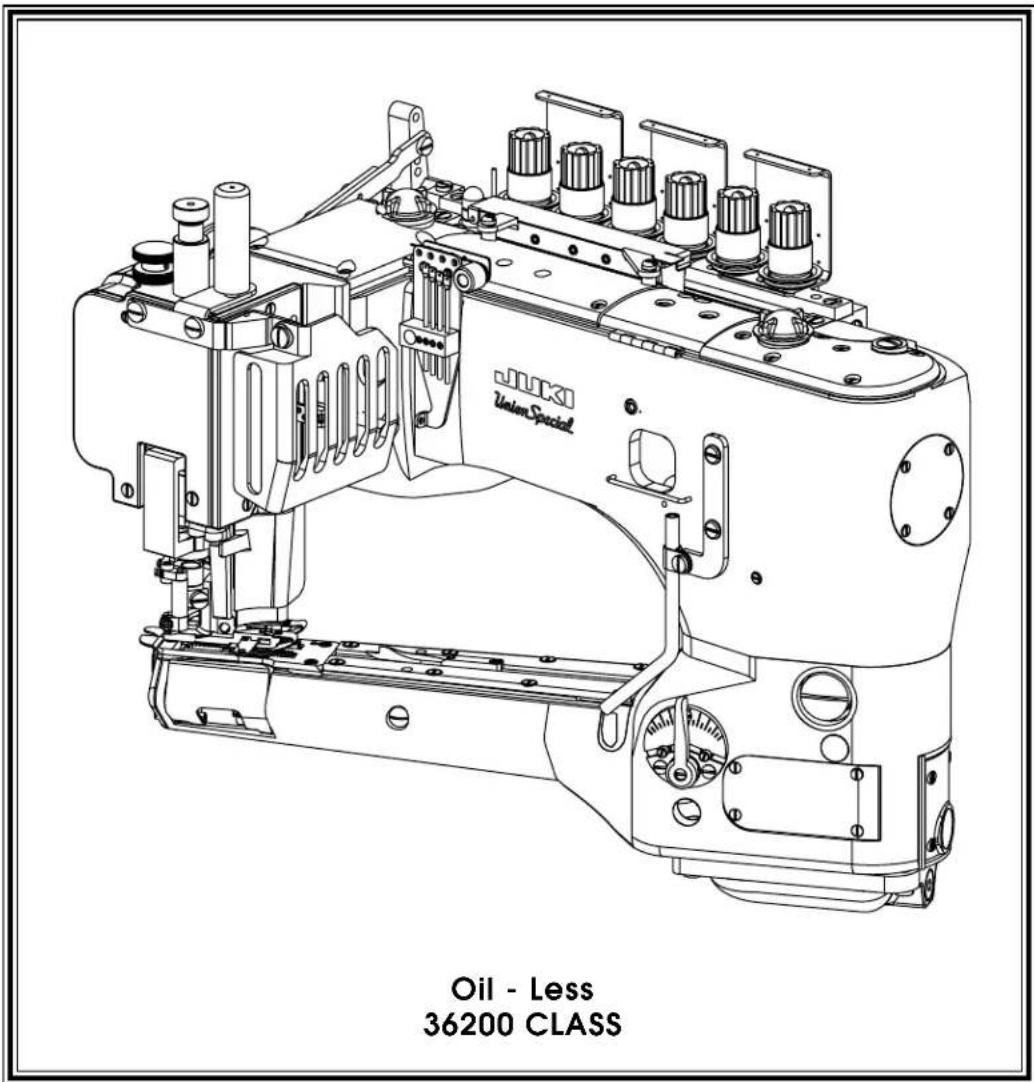

ADJUSTING INSTRUCTIONS / ILLUSTRATED PARTS LIST

JUKI Union Special Oil - Less 36200 CLASS

MANUAL NO. PT0405-GR

FOR STYLES

36200L100-52 36200L100-60

36200L200-52 36200L200-60

36200L202-52 36200L201-60

36200L210-52 36200L202-60

36200T300-52 36200L210-60

36200U300-52 36200T300-60

36200U300-60

RoHS

2002/95/EC

First Edition Copyright 2006

By

Union Special Corporation Rights Reserved In All Countries

Printed in U.S.A. August 2006

PREFACE

This parts manual has been prepared to assist you in locating individual parts or assemblies on 36200 Series machines.

It is the desire of Union Special that each machine run at its optimum performance. Parts listed in this manual are designed specifically for your machine and are manufactured with utmost precision to assure long lasting service.

This manual has been comprised on the basis of available information. Changes in design and/or improvements may incorporate a slight modification of configuration in illustrations or part numbers.

On the following pages are illustrations and terminology used in describing the parts used on 36200 Series machines.

IDENTIFICATION OF MACHINES

Each UNION SPECIAL machine is identified by a style number, which is stamped into the style plate affixed to the middle of the machine under the tension assembly.

The serial number is stamped on a plate attached to the right rear top of the machine.

CONTENTS

PREFACE 2

IDENTIFICATION OF MACHINES 2

DESCRIPTION OF MACHINES 4

REPLACEMENT PARTS 6

SAFETY RULES: 7

ILLUSTRATIONS 8

IDENTIFYING PARTS 8

NEEDLES 8

APPLICATION 8

TORQUE REQUIREMENTS 8

INSTALLATION....9

OILING 9

THREADING 10

ADJUSTING INSTRUCTIONS 11

SETTING THE NEEDLE BAR HEIGHT & ALIGNMENT 11

SETTING THE NEEDLE BAR HEIGHT & ALIGNMENT (CONT) 12

ALIGNING THE CYLINDER 12

SETTING THE LOOPER TRAVEL USING GAUGE 21227CN 12

INSTRUCTIONS FOR USING SYNCHRONIZING GAUGE 21227CG 13

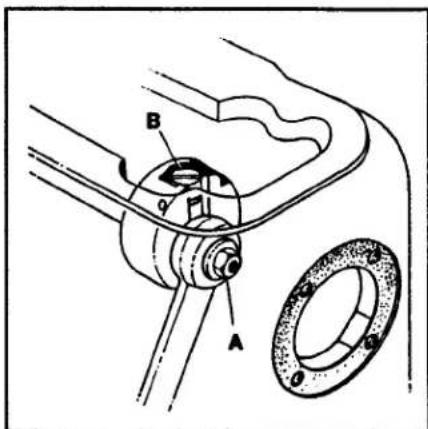

SETTING THE LOOPER TRAVEL 13

TIMING THE NEEDLES TO THE LOOPER 13

TIMING THE NEEDLES TO THE LOOPER (CONT.) 14

LOOPER ADJUSTMENTS 15

LOOPER ADJUSTMENTS (CONT.) 16

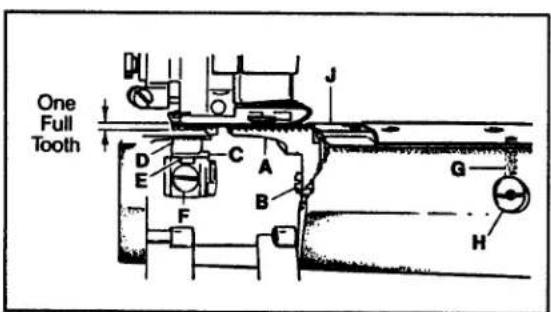

SETTING THE FRONT NEEDLE GUARD 16

SETTING THE FEED DOGS....16

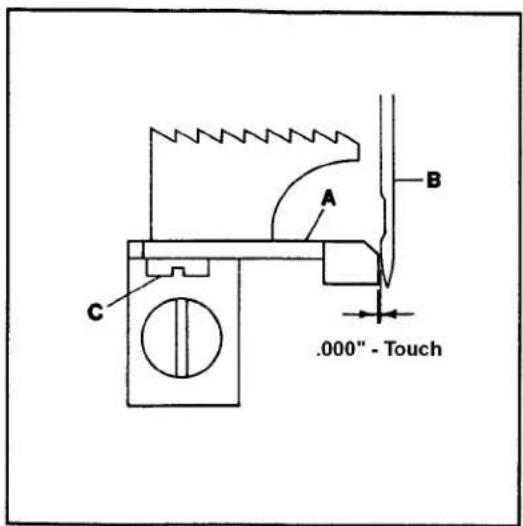

SETTING THE REAR NEEDLE GUARD 17

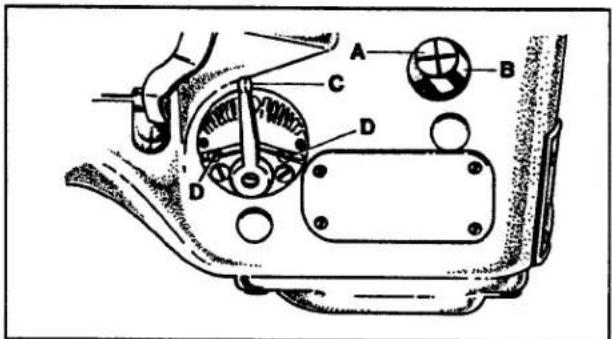

SETTING THE STITCH LENGTH 17

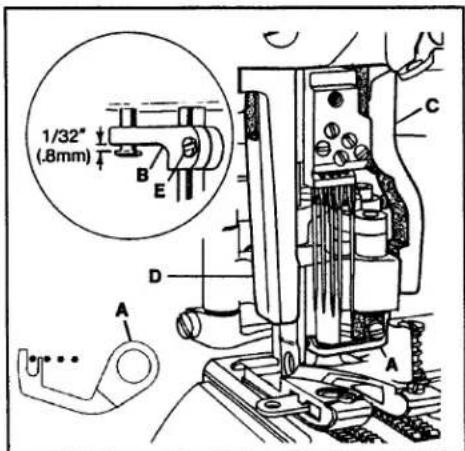

DIFFERENTIAL FEED CONTROL 17

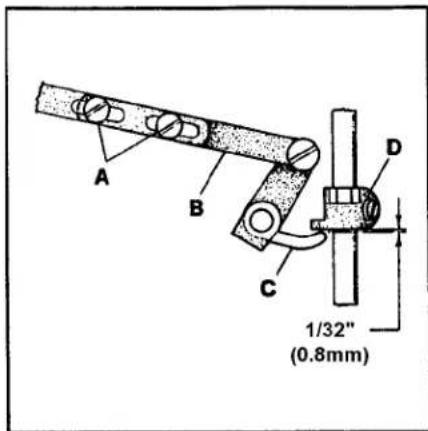

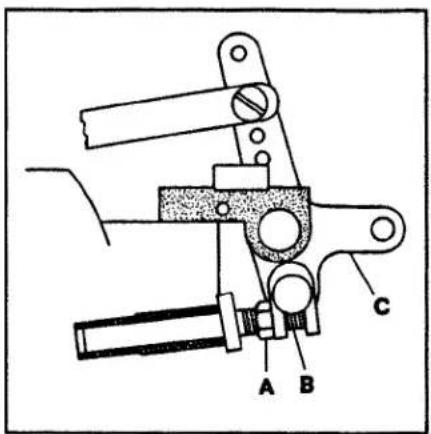

SETTING THE PRESSER FOOT 17

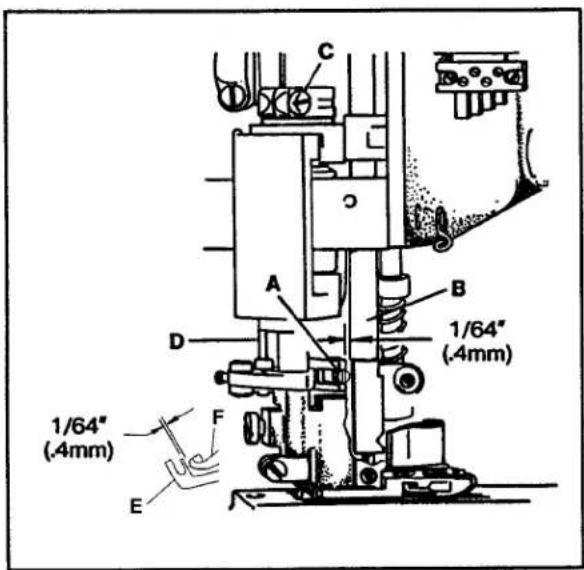

SETTING THE PRESSER FOOT (CONT.) 18

SETTING THE PRESSER FOOT (CONT.) 19

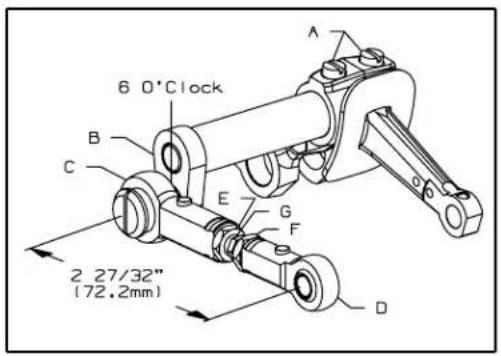

SETTING THE KNIFE DRIVE LEVER....19

SETTING THE KNIFE DRIVE LEVER (CONT.) 20

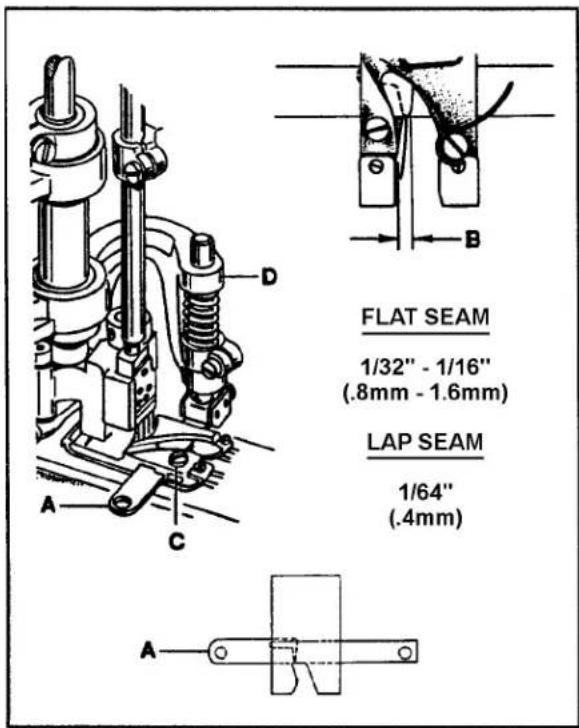

SETTING THE TRIMMING KNIVES FOR FLAT SEAMING (STYLES 36200L100-52, L100-60, T300-52, T300-60, U300-52, U300-60) ...... 20

SETTING THE TRIMMING KNIVES FOR LAP SEAMING (STYLES 36200L100-52, L100-60, L200-52, L200-60, L202-52, L202-60, L210-52, L210-60, U300-52, U300-60) 20

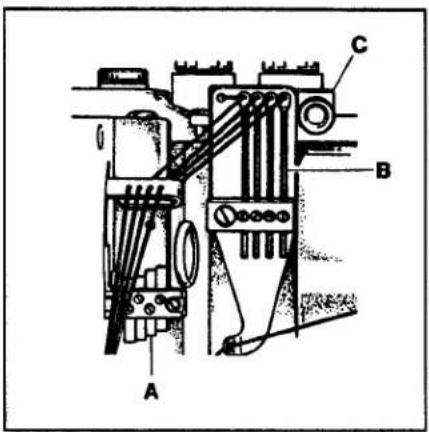

SETTING THE TRIMMING KNIVES (ALL STYLES) (CONT.) 21

NEEDLE THREAD ADJUSTMENTS 21

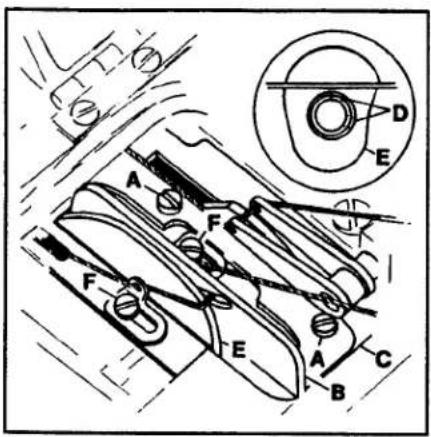

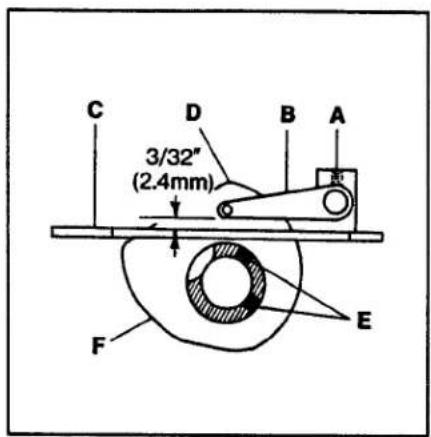

LOOPER THREAD ADJUSTMENT 22

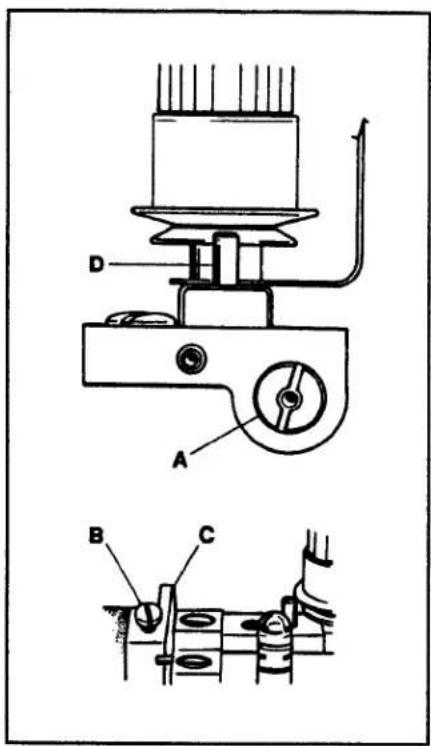

COVER THREAD ADJUSTMENT 22

TENSION RELEASE 22

HUNG FOOT ADJUSTMENT 23

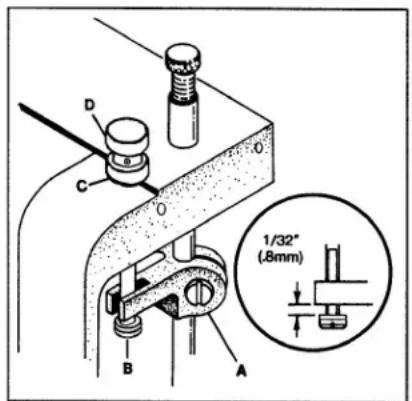

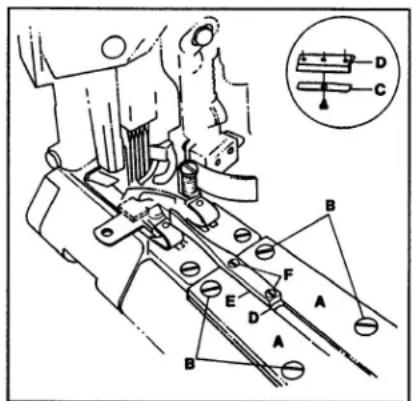

SETTING THE LAP FORMER 23

LAP SEAMING 23

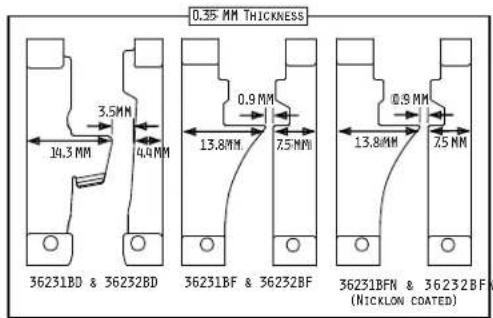

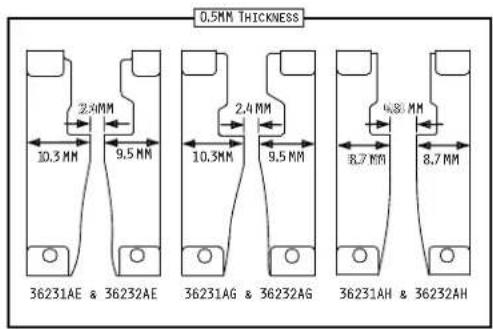

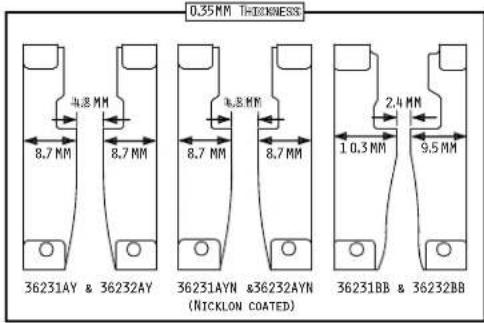

REPLACING PRESSER FOOT SHOES 24

OIL SIGHT GAUGES, TOP COVERS & MISCELLANEOUS TAKEUP & EYELET PARTS 27

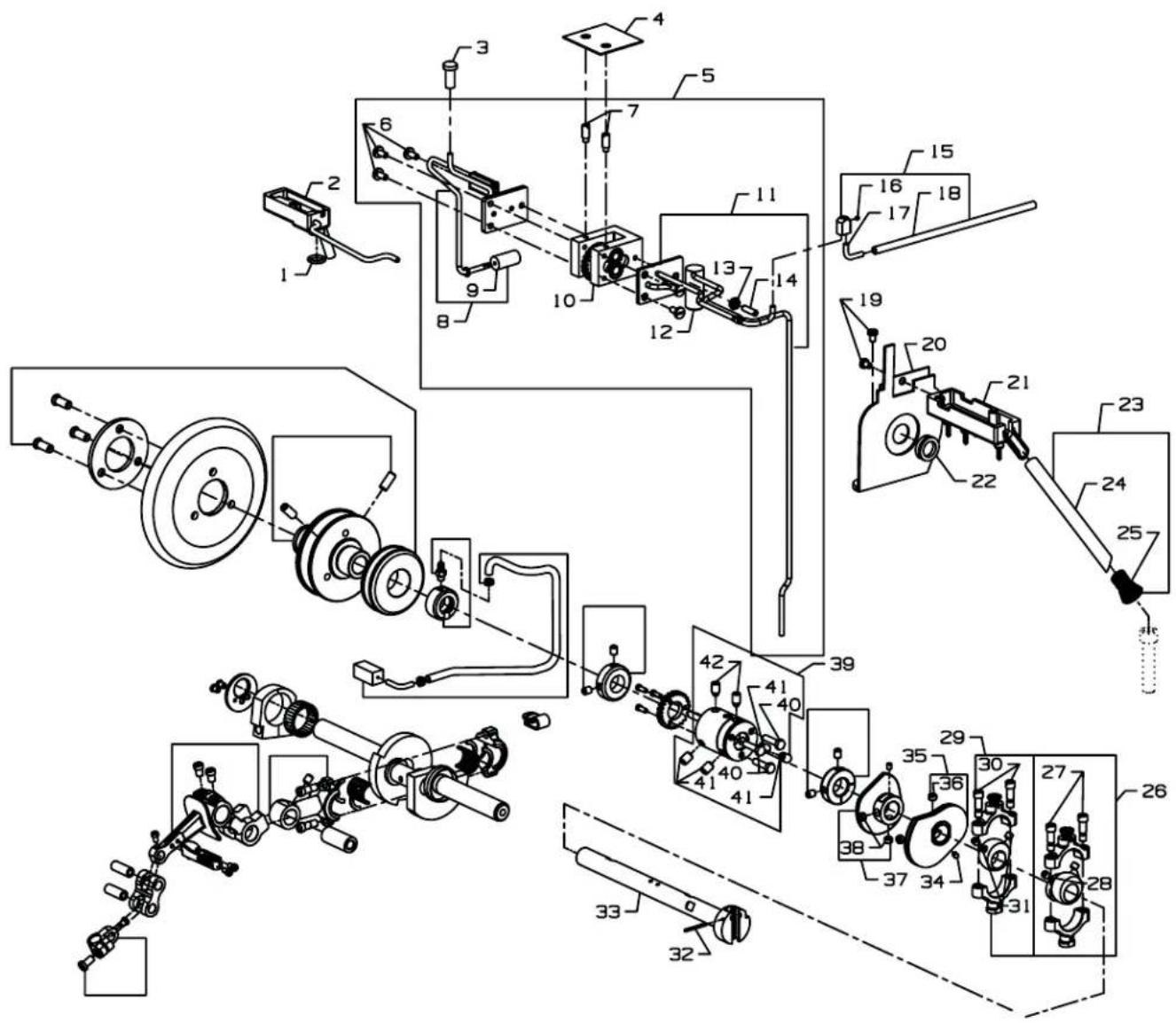

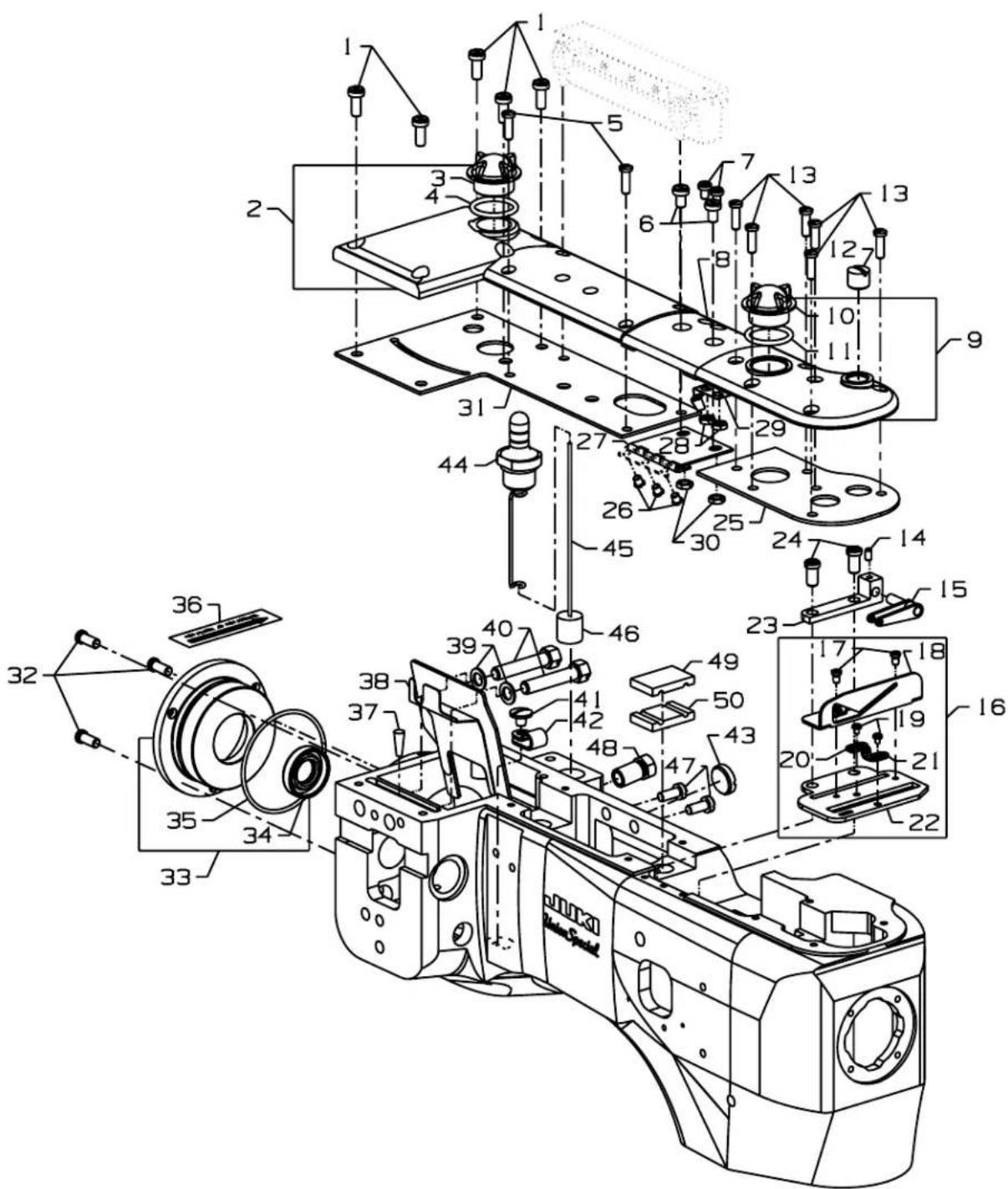

MAIN FRAME, BUSHINGS & MISCELLANEOUS EYELET & COVER PARTS 29

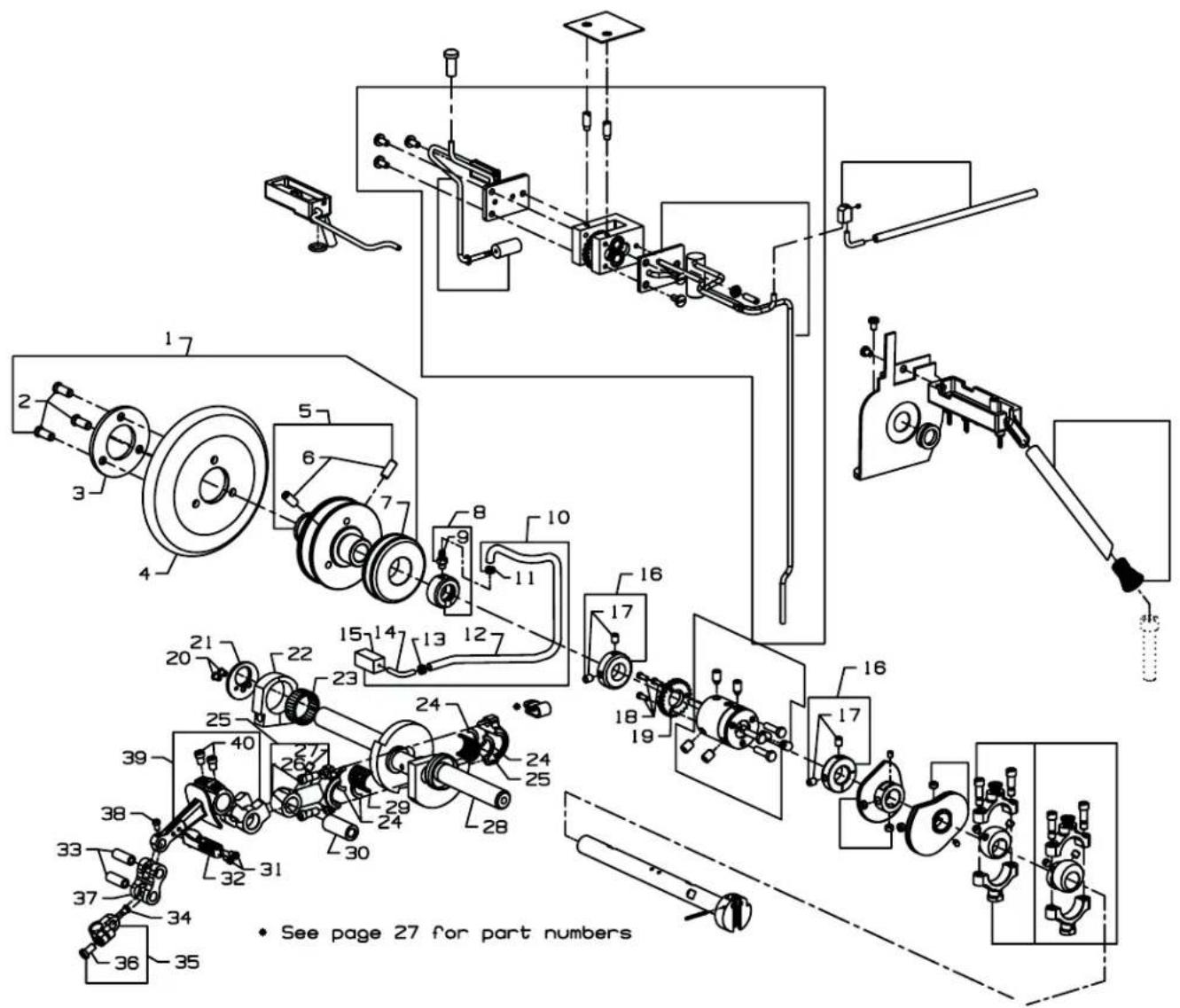

MAIN SHAFT & MISCELLANEOUS OILING 31

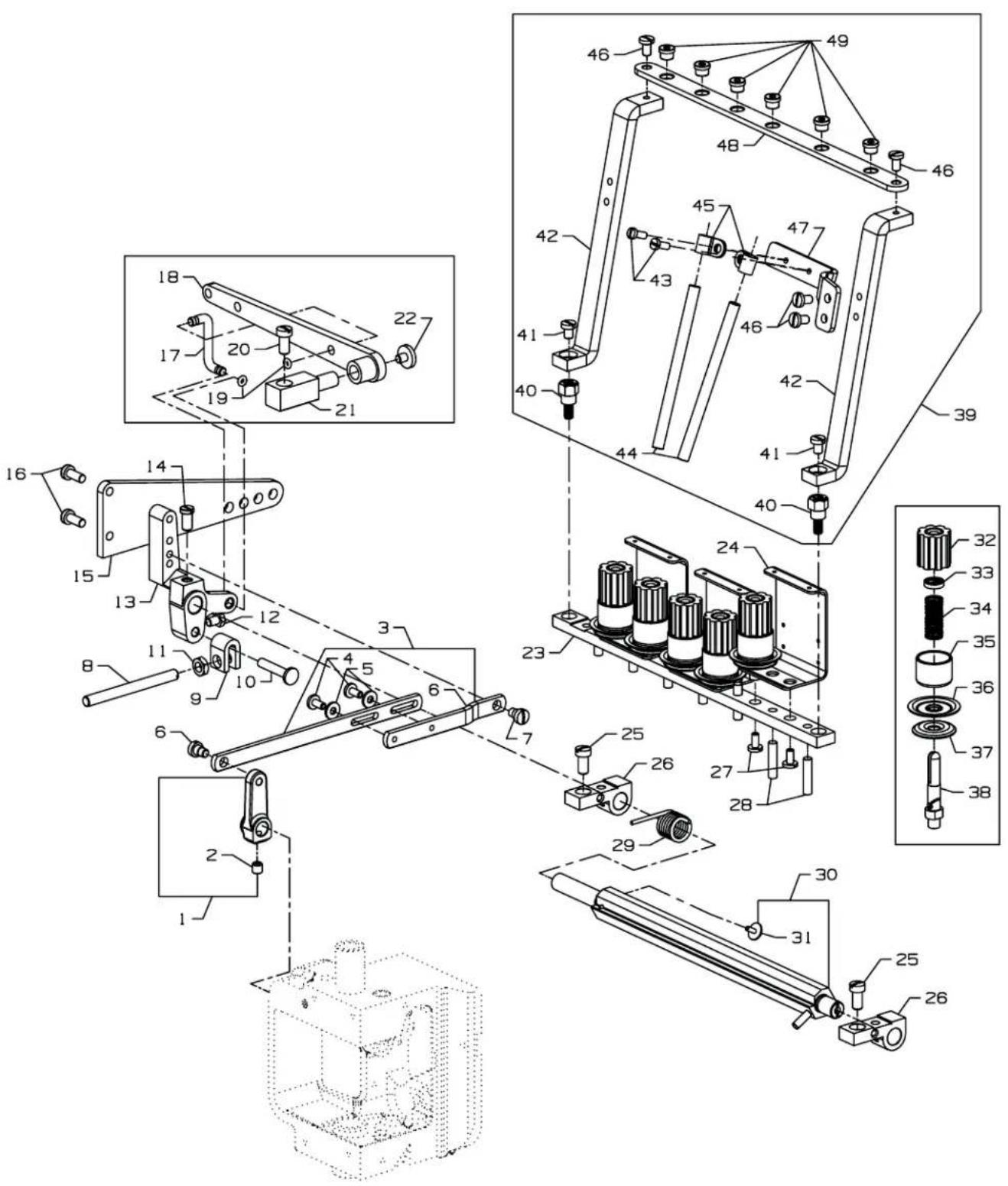

CRANKSHAFT & NEEDLE LEVER PARTS 33

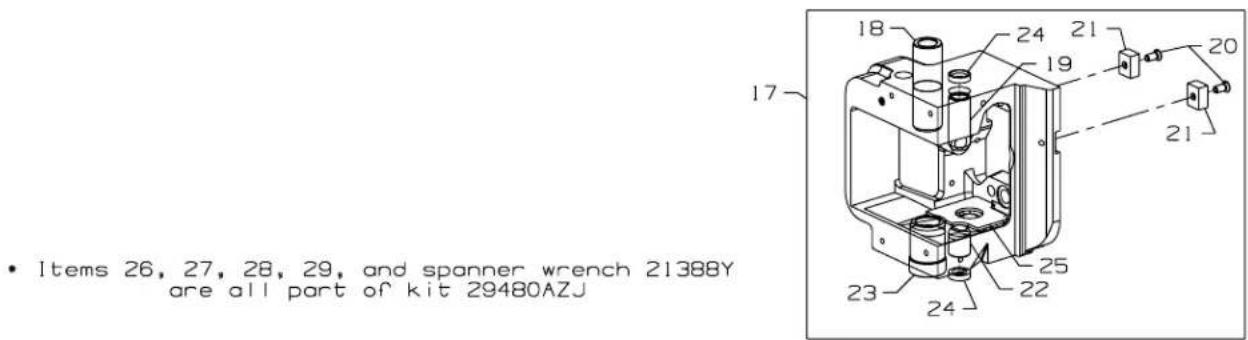

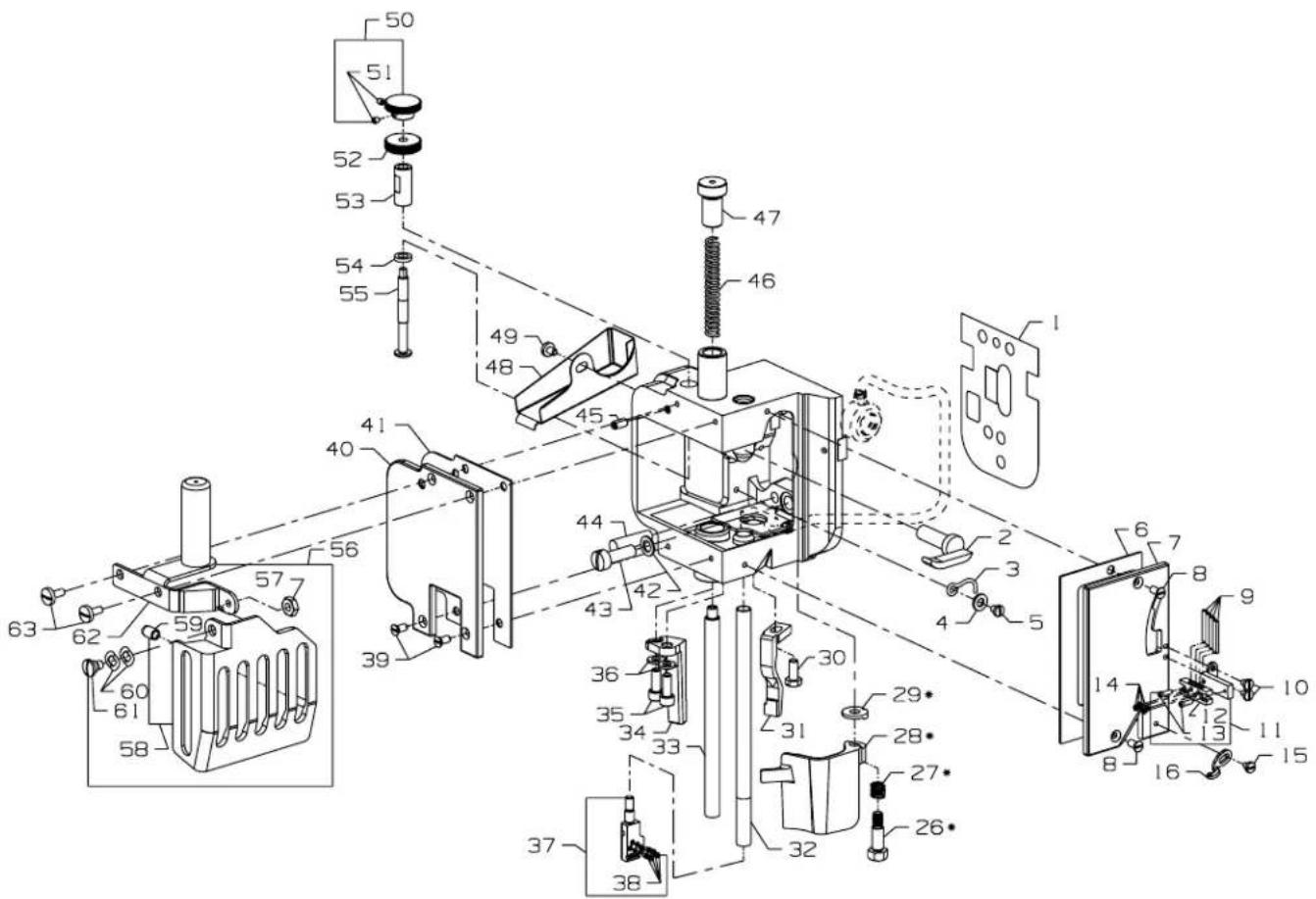

TENSION PARTS 35

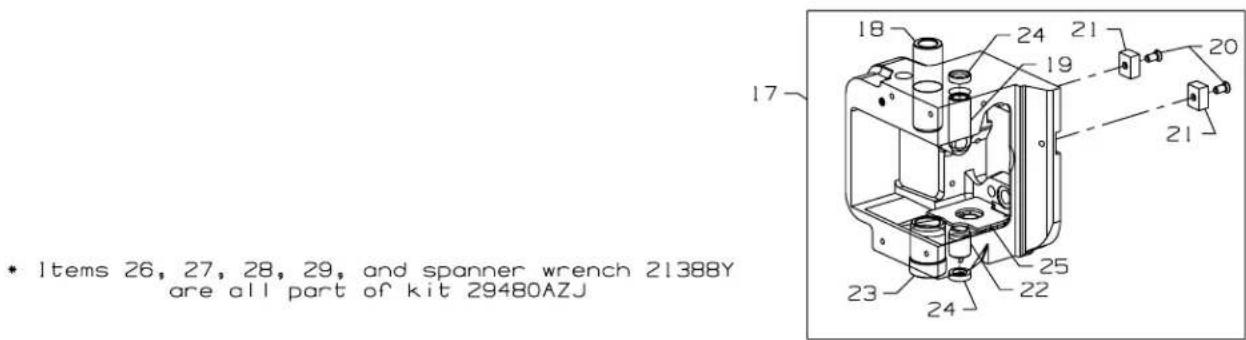

DETACHABLE HEAD, HEAD COVERS, NEEDLE BAR & NEEDLE BAR HEAD 37

DETACHABLE HEAD, HEAD COVERS, NEEDLE BAR & NEEDLE BAR HEAD 39

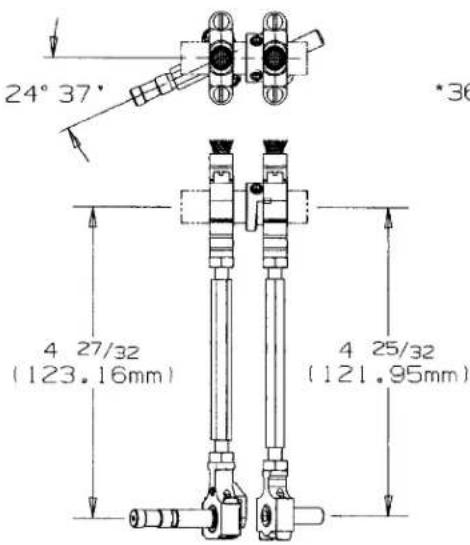

DIFFERENTIAL & MAIN FEED BARS, FEED DOGS & FEED LIFT ECCENTRIC ASSEMBLY 41

FEED DRIVE ASSEMBLY, FEED ROCKER & LOOPER AVOID PARTS 43

KNIFE DRIVING PARTS 45

Universal style, Feed-off-the-arm, high speed, medium throw, five or six thread machine. There are four needles and one retainer abreast, one looper and a manually adjusted differential feed control. There is an enclosed automatic lubricating system, filter type oil return pump, visual sight oil action and supply gauges. The maximum work space in front of the needles is 8 inches (203.2mm). Recommended maximum speed - 4200 R.P.M. for all Styles. Machines can be used on either table or pedestal mount.

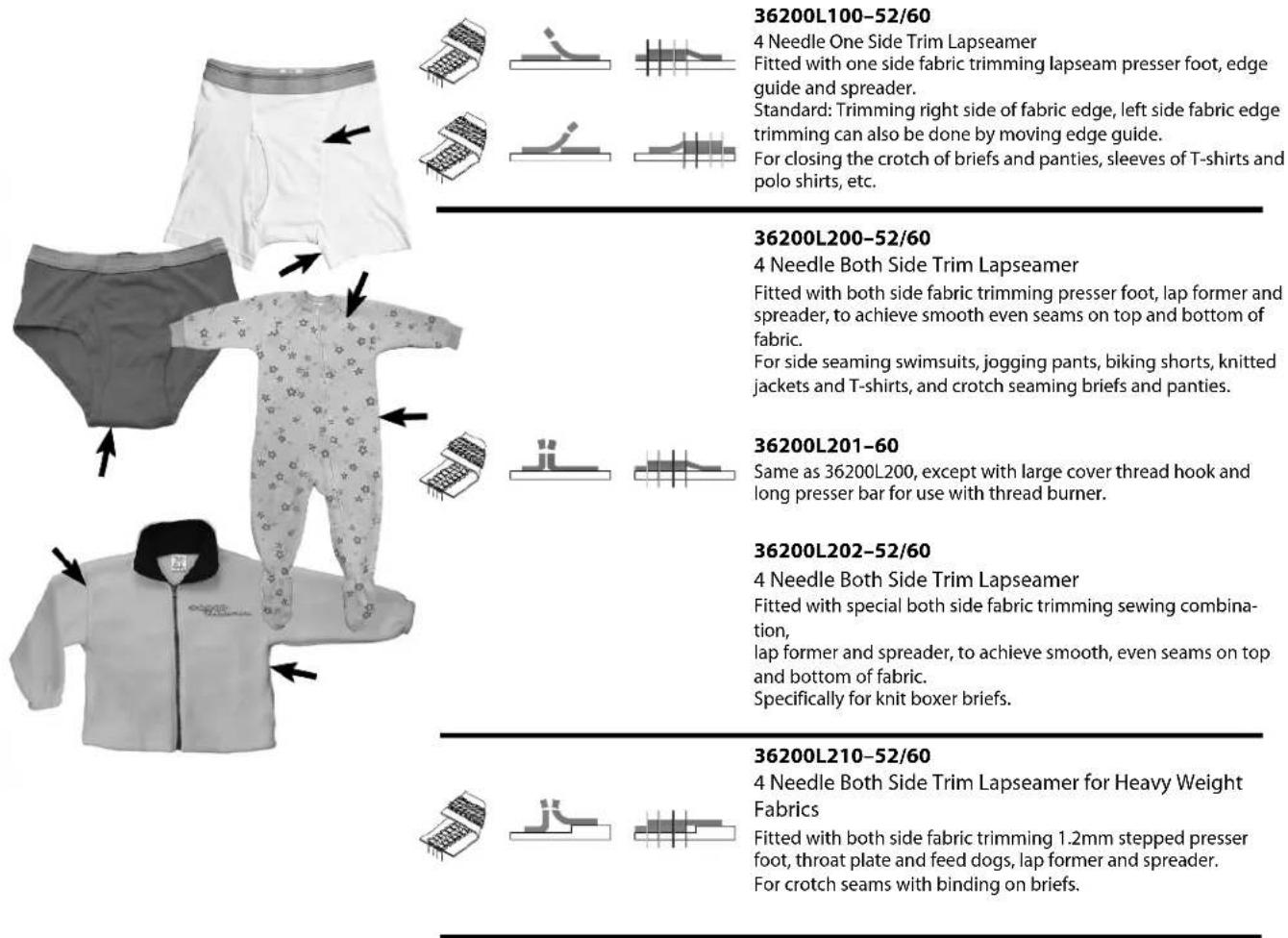

LAPSEAMING

36200L100-52/60 4 Needle One Side Trim Lapseamer Fitted with one side fabric trimming lapseam presser foot, edge guide and spreader. Standard: Trimming right side of fabric edge, left side fabric edge trimming can also be done by moving edge guide. For closing the crotch of briefs and panties, sleeves of T-shirts and polo shirts, etc. 36200L200-52/60 4 Needle Both Side Trim Lapseamer Fitted with both side fabric trimming presser foot, lap former and spreader, to achieve smooth even seams on top and bottom of fabric. For side seaming swimsuits, jogging pants, biking shorts, knitted jackets and T-shirts, and crotch seaming briefs and panties. 36200L201-60 Same as 36200L200, except with large cover thread hook and long presser bar for use with thread burner. 36200L202-52/60 4 Needle Both Side Trim Lapseamer Fitted with special both side fabric trimming sewing combination, lap former and spreader, to achieve smooth, even seams on top and bottom of fabric. Specifically for knit boxer briefs. 36200L210-52/60 4 Needle Both Side Trim Lapseamer for Heavy Weight Fabrics Fitted with both side fabric trimming 1.2mm stepped presser foot, throat plate and feed dogs, lap former and spreader. For crotch seams with binding on briefs.

JOINING & TAPING

Close-up of a dark gray men's underwear with a white arrow symbol on the front side (no text or symbols visible)

Pure mechanical component diagrams without any text, numbers, or symbols

36200T300-52/60

4 Needle Seamer for Attaching Tape

Fitted with one side fabric trimming or both side fabric trimming presser foot without spreader, and taping folder. folder uses 34 " (19mm) tape with 38 " (9.5mm) finish.

For attaching the tape on the front fly of briefs, thermal underwear and similar garments.

MULTIPURPOSE: LAPSEAMING & FLATSEAMING

Black-and-white photo collage showing various clothing items including a jacket, shorts, and patterned bodys, with no visible text or symbols.

36200U300-52/60

4 Needle Multipurpose Seamer for Lapseaming and Flatseaming Fitted with one side fabric trimming lapseam or both side fabric trimming flatseam presser foot, edge guide and spreader. Includes both side fabric trimming lapseam presser foot, lap former and spreader.

For closing crotch of briefs and panties, side seaming swimsuits, jogging pants, biking pants, knitted jackets and T-shirts, etc.

36200 Replacement Styles and Spare Parts Matrix			PRESSER FOOT	THROAT PLATE	MAIN FEED	DIFF. FEED	NEEDLE HEAD	LAP FORMER	[248Z] EDGE GUIDE	[YS4D] FOLDER
NEW STYLE	REPLACES STYLE	REPLACES STYLE
36200L100-52	36200UA52	36200PA/TA	36220A	C36224A	36205A	36226A	36218A52		36203
36200L100-60	36200UJ60	36200PJ/TJ	36220K	C36224J	36205A	36226A	36218A60		36203
36200L200-52	36200UE52		36220E	C36224A	36205A	36226A	36218A52	23420DB
36200L200-60	36200UE60		36220W	C36224J	36205A	36226A	36218A60	23420DB
36200L201-60		36200TL	36220V	C36224N	36205M	36226A	36218A60	23420CZ
36200L202-52	36200UY52		36220AE	C36224P	36205N	36226K	36218A52	23420DJ
36200L202-60	36200UY60		36220AF	C36224Q	36205N	36226K	36218A60	23420DJ
36200L210-52	36200UH52	36200PH/TH	36220H	36224H	36205H	36226H	36218A52	23420DB
36200L210-60	36200UM60	36200PM/TM	36220M	36224K	36205J	36226J	36218A60	23420DB
36200T300-52	36200UX52	36200PX/TX	36220B	C36224A	36205A	36226A	36218A52		36203	23401P-7/16
36200T300-60	36200UX60		36220B	C36224J	36205A	36226A	36218A60		36203	23401P-7/16
36200U300-52	36200UAE52		36220A	C36224A	36205A	36226A	36218A52		36203
			36220E					23420DB
36200U300-60	36200UJE60		36220K	C36224J	36205A	36226A	36218A60		36203
			36220W					23420DB

SAFETY RULES:

1. Before putting the machines described in this manual into service, carefully read the instructions. The starting of each machine is only permitted after taking notice of the instructions and by qualified operators.

IMPORTANT! Before putting the machine into service, also read the safety rules and instructions from the motor supplier.

1. Observe the national safety rules valid for your country.

2. The sewing machines described in this instruction manual are prohibited from being put into service until it has been ascertained that the sewing units which these sewing machines will be built into, have conformed with the EC Council Directives (89/392/EEC, Annex II B).

Each machine is only allowed to be used as foreseen. The foreseen use of the particular machine is described in paragraph "STYLES OF MACHINES" of this instruction manual. Another use, going beyond the description, is not as foreseen.

1. All safety devices must be in position when the machine is ready for work or in operation. Operation of the machine without the appertaining safety devices is prohibited.

2. Wear safety glasses.

3. In case of machine conversions and changes all valid safety rules must be considered. Conversions and changes are made at your own risk.

4. The warning hints in the instructions are marked with one of these two symbols:

1. When doing the following the machine has to be disconnected from the power supply by turning off the main switch or by pulling out the main plug:

8.1 When threading needle(s), looper, spreader etc.
8.2 When replacing any parts such as needle(s), presser foot, throat plate, looper, spreader, feed dog, needle guard, folder, fabric guide etc.
8.3 When leaving the workplace and when the workplace is unattended.
8.4 When doing maintenance work.
8.5 When using clutch motors without actuation lock, wait until the motor is stopped totally.

1. Maintenance, repair and conversion work (see item 8) must be done only by trained technicians or special skilled personnel under consideration of the instructions.

2. Any work on the electrical equipment must be done by an electrician or under direction and supervision of special skilled personnel.

3. Work on parts and equipment under electrical power is not permitted. Permissible exceptions are described in the applicable sections of standard sheet DIN VDE 0105.
4. Before doing maintenance and repair work on the pneumatic equipment, the machine has to be disconnected from the compressed air supply. In case of existing residual air pressure, after disconnecting from compressed air supply (i.e. pneumatic equipment with air tank), the pressure has to be removed by bleeding.

ILLUSTRATIONS

This manual has been arranged to simplify ordering repair parts. Exploded views of various sections of the mechanism are shown so that the parts may be seen in their actual position in the machine. On the page opposite the illustration will be found a listing of the parts with their part numbers, description and the number of pieces required in the particular view being shown.

Numbers in the first column are reference numbers only, and merely indicate the position of the part in the illustration. The reference number should never be used in ordering parts. Always use the part number listed in the second column.

Component parts of sub-assemblies which can be furnished for repairs are indicated by indenting their descriptions under the description of the main sub-assembly. As an example refer to the following text.

1. 29126 EC Upper Looper Drive Shaft Assembly 1

2. 22503 F Screw 1

3. 39543 E Cam Follower Locking Clamp .... 1

It will be noted in the previous example that the cam follower, bushing and cam guide and the upper looper drive shaft are not listed. The reason is that replacement of these parts individually is not recommended, so the complete upper looper drive shaft assembly should be ordered.

When a part is common to all machines covered in this manual, no specific usage will be mentioned in the description. However, when the parts for the various machines are not the same, the specific usage will be mentioned in the description and, if necessary, the difference will be shown in the illustration.

A numerical index of all the parts shown in this manual is located at the back. This will facilitate locating the illustration and description when only a part number is known.

IDENTIFYING PARTS

Where the construction permits, each part is stamped with its part number. On some of the smaller parts and on those where construction does not permit, an identification letter is stamped in to distinguish the part from similar ones.

PLEASE NOTE: Part numbers represent the same part, regardless of which manual they appear. On all orders please include part number, name and style of machine for which the part was ordered.

NEEDLES

Each needle has both a type and size number. The type number denotes the kind of shank, point, length, groove, finish and other details. The size number, stamped on the needle shank, denotes the largest diameter of the blade measured between the shank and the eye. Collectively, the type number and size number represent the complete symbol which is given on the label of all needles packed and sold by Union Special.

TYPE DESCRIPTION

118GAS Extra short, double groove, struck groove, .060" diameter shank, chromium plated needle. Sizes available 065/025, 070/027, 075/029, 080/032, 090/036.

118GBS Extra short, single groove, struck groove, spotted .060" diameter shank, chromium plated needle. Sizes available 075/029, 080/032.

118GHS Same as 118GBS, except with ball point. Sizes available 070/027, 075/029, 080/032.

118GJS Same as 118GHS, except with tapered blade and ball point. Sizes available 065/025, 070/027, 075/029.

118GKS Round shank, round point, extra short, double groove, struck groove, spotted, chromium plated needle. Sizes available 070/027, 075/029, 080/032.

36211 Retainer needle, no scarf, chromium plated. Sizes available 065/025, 070/027, 075/029.

APPLICATION

When changing the needle, make sure it is fully inserted in the needle driving arm before the clamp screw is tightened.

To have needles promptly and accurately filled, an empty package, a needle sample, or the type and size number should be forwarded. Use the description on the label. A complete order should read as follows: "100 needles, type 118 GKS, size 075/029".

TORQUE REQUIREMENTS

Torque (measured in inch-pounds) is a rotating force (in pounds applied through a distance by a lever (in inches or feet). This is accomplished by a wrench, screwdriver, etc. Many of these devices are available, which when set at the proper amount of torque will tighten the part to the correct amount and no tighter.

All straps and eccentrics should be tightened to 19-21 inch-pounds (22-24cm/kg) unless otherwise noted.

All other nuts, bolts, screws, etc. should be tightened by hand as tightly as possible, unless otherwise noted.

INSTALLATION

Make sure that the Machine is LEVEL when attaching to the installation (table or pedestal), or if machine is moved to a new location.

OILING

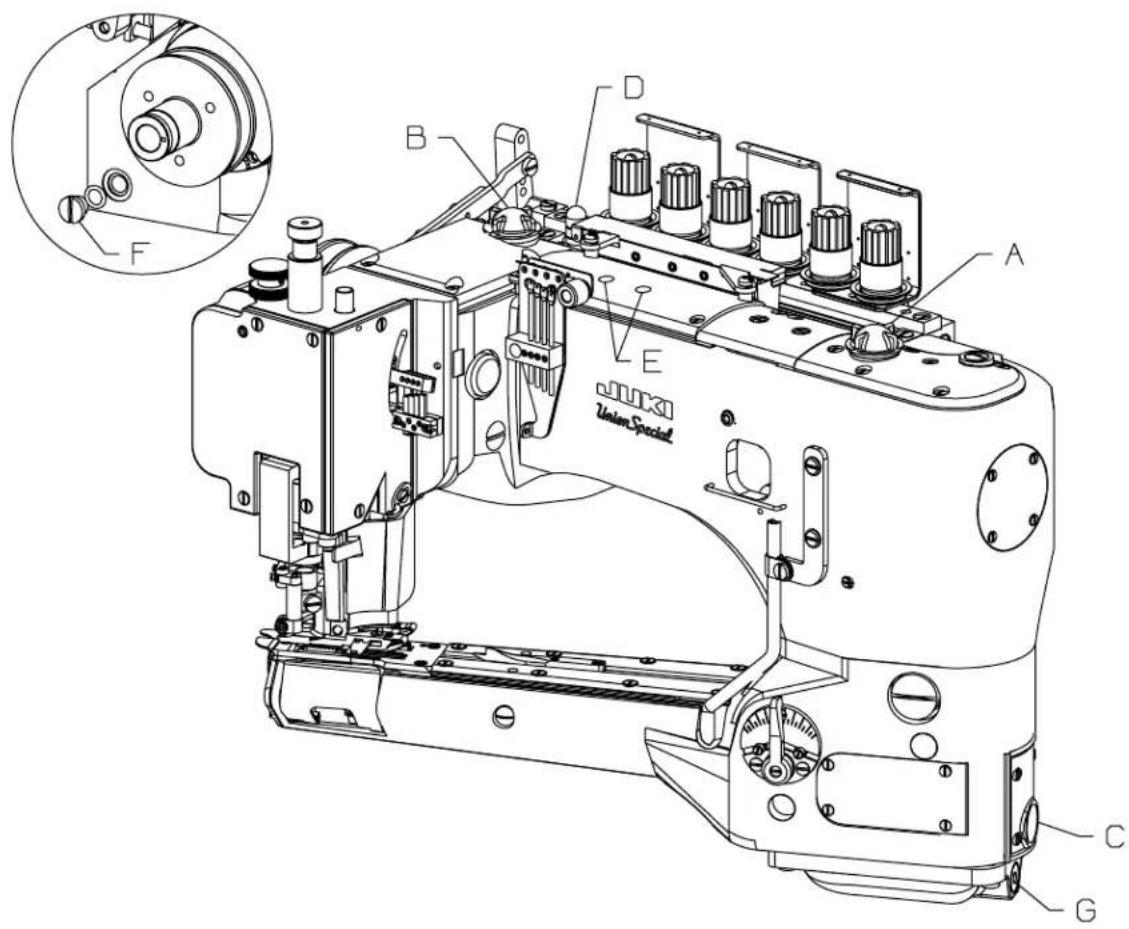

Referring to Fig. 1, fill the machine at (A) and (B). Oil capacity of class 36200 is 2.5 ounces in the bottom reservoir and 2.5 ounces in the top reservoir. Use a straight mineral oil, Saybolt viscosity of 90 to 125 seconds at 100° Fahrenheit (Union Special Spec 175 part no. 28604R). The oil level is checked at gauges (C) and (D). Maintain oil level between the red lines of these gauges.

This machine is automatically lubricated by a continuously driven rotary pump. Oil flow can be observed through windows (A) and (B). When installing a new machine or starting a machine that has been idle for some time, priming may be necessary. Remove plug screws (E), fill holes with recommended oil and replace screws BEFORE operating. If oil does not flow while machine is running, pump is inoperative.

Remove screw 22733B (F, Fig. 1 inset) to drain oil from the top reservoir. To drain oil from bottom reservoir remove screw 999-196 (G).

Occasionally, it is necessary to oil the linkage of the presser foot, the knife holder shank (36273A), guide collar (36273K) and the various links and bearings of the presser foot lifting mechanism and thread tension release.

F B D A E JUKO Union Special C G

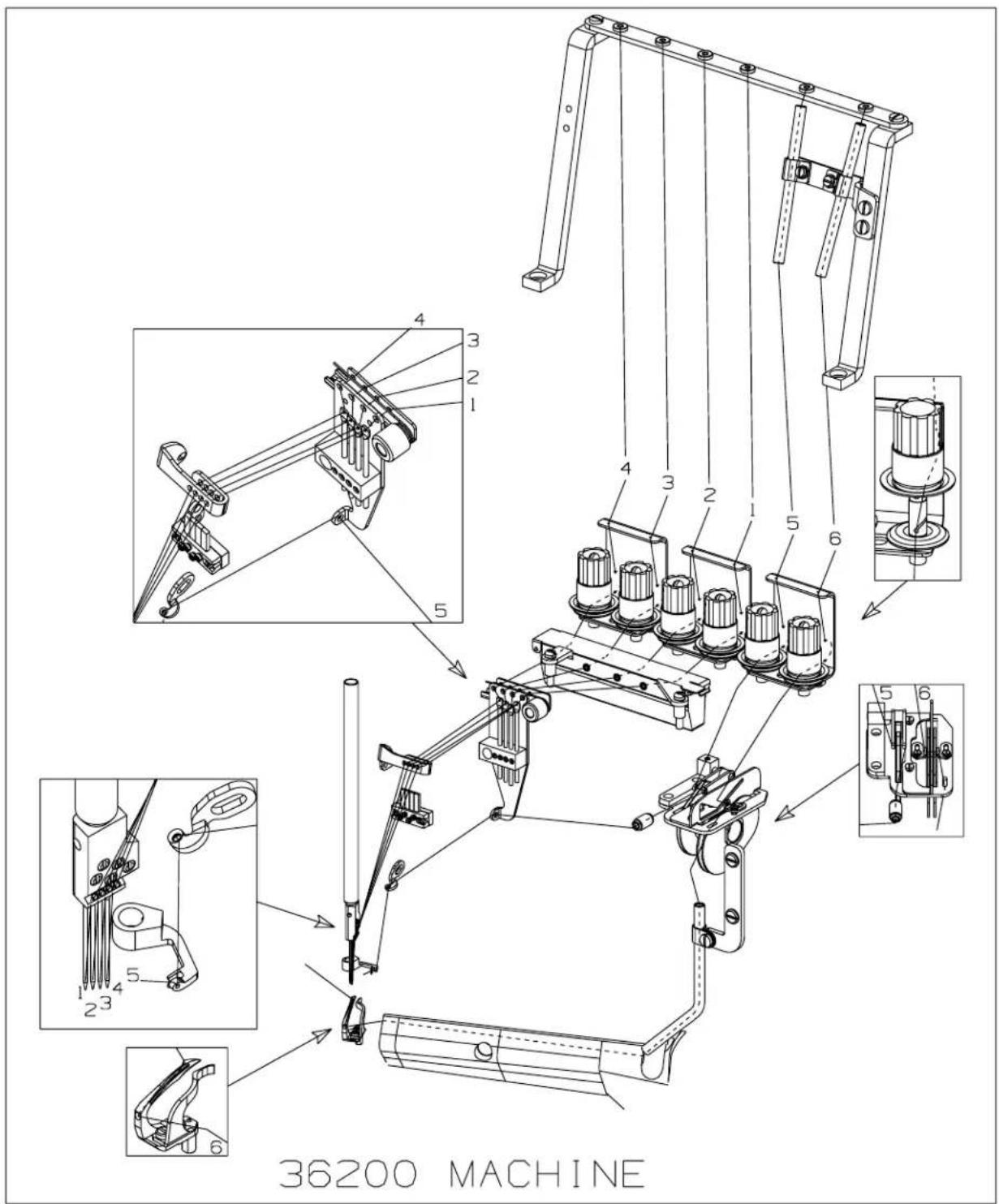

THREADING

36200 MACHINE

FIG. 1

ADJUSTING INSTRUCTIONS

Instructions stating direction or location, such as right, left, front or rear of the machine are given relative to the operator's position at the machine unless otherwise noted. The handwheel rotates clockwise in operating direction.

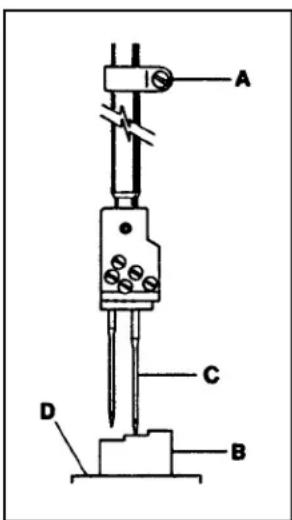

SETTING THE NEEDLE BAR HEIGHT & ALIGNMENT

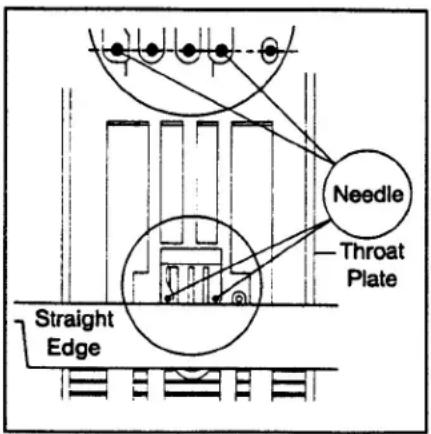

Needle Throat Plate Straight Edge

Insert the first (left) and fourth needles into the needle head. The needles for this Class of machine are made with two flats on the front of the shank. This will enable you to correctly position the needles in the needle head. Make certain the needle shank is fully inserted and that the screw is seated firmly on the flat.

To position the needle head square with the throat plate, use the upper knife or a straight edge to align the needles with the cross grooves in the throat plate. (See Fig. 2)

Refer to table 1 for the dimension from the fourth (lowest) needle to the surface of the throat plate and for the number of the needle bar height gauge.

FIG. 2

ELYTS	MORFNOISNENDEEN)TSEWOIAR4OTELDEEN THGIEHETALPTAORHEGUAG S ECAFFRUS REBMUN DEK		ELDTHGEGUPE
52 GAUGE	17/32" (13.5MM)	21227BU	.531
60 GAUGE	1/2" (12.7MM)	21227DS	.500

Position the needle bar at its highest point of travel. Loosen needle bar clamp screw (A, FIG.3) & use the specified needle bar height gauge (B) to achieve the desired height dimension from the fourth (lowest) needle (C) to the throat plate surface (D). Tighten clamp screw (A) and recheck setting. Care must be taken not to disturb the needle head alignment while making the adjustment. Add the two middle needles and the retainer.

TABLE 1

A C D B

FIG. 3

CAUTION: If the needle head has been replaced it must be torqued to 17 in. lbs. (20cm/kg). After tightening, check for expansion of the needle bar by positioning it up into the lower bushing hole. If the bar has expanded it will bind in the bushing. The bar must be replaced or lapped to reduce the bell shape. Align and set needle bar height as described above.

SETTING THE NEEDLE BAR HEIGHT & ALIGNMENT (CONT)

Left space is .006" (0.15mm) larger than the right space

FIG. 4

Correct spacing of the needles in the throat plate stitch tongue is imperative to proper sewing conditions. Improper relationship of the needles to the stitch tongue often results in malformed stitches. When replacing the stitch tongue make sure needles are aligned properly (see Fig. 4).

If the stitch tongue and throat plate are properly seated and the needle position is not correct, the cylinder has probably been forced out of position. If realignment is necessary, refer to the section "Aligning the Cylinder".

When the needles are correctly positioned in the throat plate the space to the left of the needles in the stitch tongue slot is .006" (0.15mm) more than the space to the right (see Fig. 4). Actually, the needle bar is centered to the throat plate and cylinder, however, to provide clearance on the left side of the needle for the needle loops passing around the looper during the down stroke of the needles, the slots in the stitch tongue are made off-center to the left. Accurate positioning of the needles may be obtained by repositioning the cylinder.

Torque To: 18 ft. lbs. A B

FIG. 5

ALIGNING THE CYLINDER

Remove the top front cover and gasket from the main frame. Loosen cylinder holding screw (A, Fig. 5). Turn eccentric screw (B) clockwise to move the cylinder so the needles are closer to the right side of the stitch tongue. Turn the stud counterclockwise to locate the needles closer to the left. Tighten screw (A) and recheck settings.

NOTE: The cylinder may not move freely when the eccentric is turned because the joint sealant compound has set. Light tapping with a wooden block at the joint or midpoint of the arm may be necessary.

54° 40' 55° 40' 86° 40' A B C

FIG. 6

SETTING THE LOOPER TRAVEL USING GAUGE 21227CN

Attach looper travel gauge plate (A, Fig. 6) to the rear of the cylinder arm. Set the bottom of the gauge so it is approximately horizontal and lock lightly in place with screw (B) directly underneath. Attach looper travel gauge pointer (C) to the looper using the left needle guard screw hole. Turn the handwheel in operating direction until the looper is positioned to the far right. Set pointer (C) at zero degrees by rotating gauge plate (A) and lock in place. Continue turning the handwheel until the pointer stops. If the looper travel is correct the pointer should indicate 55°40'.

SETTING THE LOOPER TRAVEL

Technical diagram showing mechanical assembly with labeled parts A and B, including a flange and bolted joint.

FIG. 7

To adjust the looper travel remove the top front cover and the end cover. Loosen left-handed locknut (A, Fig. 7) and turn screw (B) clockwise to decrease the looper travel or counterclockwise to increase the looper travel. Tighten locknut (A) and recheck setting.

NOTE: After setting the looper travel the machine must be checked for synchronization.

TIMING THE NEEDLES TO THE LOOPER

To visually check the timing of the needles to the looper, turn the handwheel in operating direction until the needle bar has reached its lowest position and has risen 5/32" (4.0mm). At this time the looper point should appear at the same relative position to the needles whether rotation of handwheel is clockwise or counterclockwise.

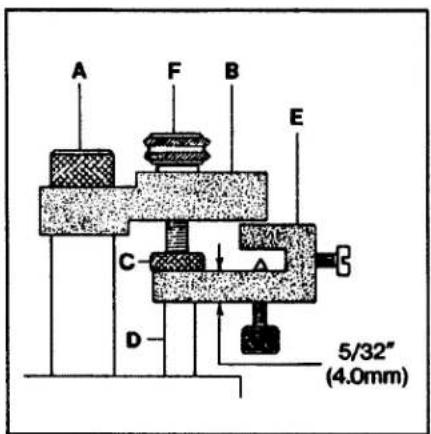

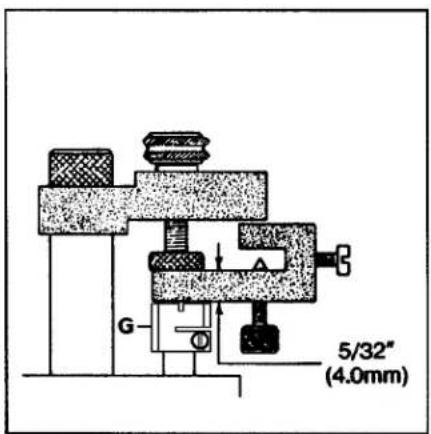

INSTRUCTIONS FOR USING SYNCHRONIZING GAUGE 21227CG

A F B E C D 5/32" (4.0mm)

FIG. 8

Turn the handwheel until the needle bar is at its lowest point. Loosen presser bar regulating screw (A, Fig. 8) and insert needle bar setting block (B) under the head of the screw (A) with stop screw (C) above needle bar (D). Tighten screw (A).

The long portion of the looper clamp and height gauge (E, Fig. 8) laid on its side is the 5/32" (4.0mm) gauge used to set the distance between stop screw (C) and the top of the needle bar (D) at its lowest position. Tighten nut (F) to clamp stop screw (C) into place.

NOTE: If needle height has already been set attach gauge 21227FD (G, Fig. 8A) to the top of the needle bar to obtain the 5/32" (4.0 mm) setting.

G 5/32" (4.0mm)

FIG. 8A

TIMING THE NEEDLES TO THE LOOPER (CONT.)

Technical diagram of a mechanical device with labeled parts A through G, showing assembly and mounting details.

FIG. 9

Attach the looper clamp and height gauge (A, Fig. 9) to the heal of the looper by tightening screw (B). Turn the handwheel slowly in a clockwise direction until needle bar (C) touches stop screw (D). Loosen screw (E) and set synchronizing gauge rod (F) so the flat end is on one of the lines in the center of the block (G). Tighten screw (E).

Turn the handwheel in the opposite direction until the needle bar (C, Fig. 9) or gauge block (Fig. 9A) touches stop screw (D, Fig. 9). Synchronizing rod (F) should come to the same line on block (G). The difference must not exceed one line.

If the setting cannot be achieved, main shaft coupling (A, Fig. 10) must be repositioned. Remove the crank chamber cover and gasket. Loosen the three coupling screws (B). If synchronizing rod (F, Fig. 9) moves more to the right while the handwheel is rotated in a clockwise direction, the looper is too fast and the main shaft should be retarded. If the rod moves more to the right when the handwheel is rotated in a counterclockwise direction the looper is too slow and the mainshaft should be advanced. Tighten screws (B, Fig. 10).

Technical diagram of a mechanical device with labeled parts A through G, showing assembly and mounting details.

FIG. 9A

NOTE: If the stationary Knife interferes with the synchronizing rod (F) remove the knife to make the adjustment.

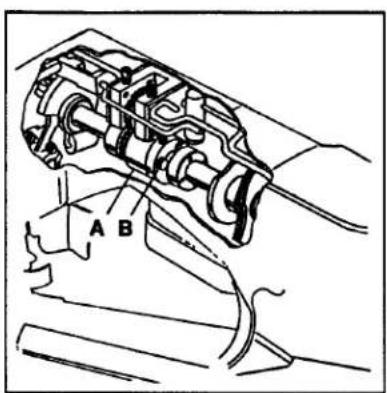

A B

FIG. 10

LOOPER ADJUSTMENTS

.094" (2.4mm) A C B

FIG. 11

Looper Avoid

The looper avoid is set at .094" (2.4mm). Using gauge no. 21227BV (A, Fig. 11), position looper shaft (B) fully to the rear (away from operator) and insert the gauge through the looper shaft hole in the end of the cylinder until the plunger is fully extended from the gauge. Tighten clamp screw (C). When the looper is positioned fully to the front, the end of the plunger should be flush with the end of the gauge. The motion of the plunger from the extended position to flush represents .094" (2.4mm) travel. To adjust the looper avoid remove the cylinder cover and loosen screw (A, Fig. 12) with TT-85 wrench. Raise the ball joint to shorten the avoid motion or lower it to lengthen the avoid motion. Tighten screw (A). Reposition gauge (A, Fig. 11) and recheck the setting.

Technical diagram of a mechanical component with gauges and adjustment knobs (no text or labels)

FIG. 12

Looper to sit on top of Looper Holder

FIG. 13

Vertical Adjustment of Looper

Looper to sit on top of looper holder.

LOOPER ADJUSTMENTS (CONT.)

5/32" - 3/16" (4.0mm - 4.8mm) A B Left Needle Looper Point 0-.001" (0.0-0.02mm)

FIG. 15

Looper Gauge

Turn the handwheel in operating direction until the looper has traveled fully to the left. Loosen screw (A, Fig. 15) and move the looper holder to the right or left until the distance from the point of the looper to the center of the first (left) needle is 5/32" - 3/16" (4.0mm - 4.8mm). Set looper point .000-.001" (0.0-0.02mm) to first needle. Turn screw (B) until the proper dimension is achieved. Tighten screw (A). Looper point should not deflect or pinch needles.

NOTE: Looper gauge may need to be increased or decreased slightly to obtain a proper stitch.

SETTING THE FRONT NEEDLE GUARD

Install needle guard (A, Fig. 16) with looper point at the middle of the first needle set guard to touch but not deflect or pinch .000-.001" (0.0-0.02mm) the first needle. Slowly turn the handwheel in operating direction and check the needles to make sure they are not pinched between the looper and the needle guard.

Technical line drawing of a mechanical assembly with no visible text or symbols

FIG. 16

One Full Tooth J D C A E F B G H

FIG. 17

SETTING THE FEED DOGS

Preliminary Setting:

Install the differential feed dog (A, Fig. 17) with screw (B). Attach rear needle guard (C) to main feed dog (D), pushing in fully to the rear and tighten screw (E). Install main feed dog with screw (F).

As a starting point loosen screw (G) and set the slot in feed bar eccentric stud (H) in a horizontal position. Tighten screw (G). At the highest point of travel feed dogs (A and D) should be the depth of one full tooth above throat plate (J). Loosen screws (B and F) and adjust the height of each feed dog by moving them up or down in the elongated slot of the shank. Tighten screws (B and F). Loosen screw (G) and turn stud (H) until the top of the feed dogs are parallel to the throat plate. Rotating stud (H) will simultaneously level both feed dogs.

NOTE: When setting eccentric stud (H) if turned clockwise feed dogs should go up if turned counterclockwise feed dogs should go down.

Final Setting:

Both the main and differential feed dogs may be individually adjusted to height. Main feed dog (D) at its highest position should rise above the top of the throat plate the depth of one full tooth when the normal presser spring pressure is applied. The differential feed (A) may then be raised to it.

SETTING THE REAR NEEDLE GUARD

A B C .000" - Touch

FIG. 18

Set rear needle guard (A, Fig. 18) so it touches the first (left) needle (B) but does not deflect. Check the guard position to the other needles to avoid pinching. Loosen screw (C) and reposition guard (A) as necessary. Tighten screw (C).

SETTING THE STITCH LENGTH

This machine is designed to sew 10 to 16 stitches per inch. The normal factory setting is 12 stitches per inch. To change the stitch length remove the plug screw located directly above the cylinder side cover. Loosen screw (A, Fig. 19) in lever (B) and move up to increase the stitch length or down to decrease the stitch length. Tighten screw (A) and replace the plug screw.

CAUTION: If the stitch length is changed the rear needle guard setting must be checked and readjusted if necessary. Failure to do so may result in needle and/or parts breakage.

CAUTION: When making stitch length adjustment do not exceed maximum recommended stitch length due to possible part damage.

Technical diagram of a car dashboard with labeled parts A, B, C, D and a dial indicator

FIG. 19

DIFFERENTIAL FEED CONTROL

The amount of differential feed is controlled by lever (C, Fig. 19). The adjusting plate is numbered from 1 to 9. When the lever is set from numbers 1 to 4 reverse differential or stretching occurs. The numbers from 4 to 5 produce equal feed stitching while numbers 5 to 9 produce a gathering stitch. The two stop screws (D) can be set to limit the movement of lever (C) or lock the lever in one position.

1/32° (.8mm) B E C D A

FIG. 20

SETTING THE PRESSER FOOT

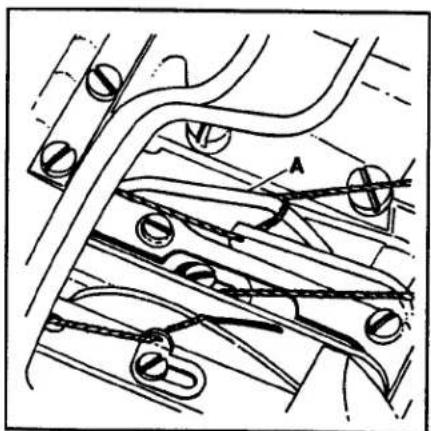

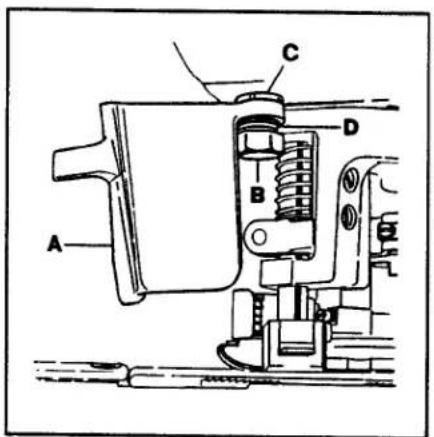

Remove the presser bar regulating screw and the presser spring. Raise the needle bar to its highest position and remove the retainer. As the foot is slipped under the needles, swing the upper knife into the opening on the right side of the foot and slide the linkage onto the hook driving sleeve. Insert the presser bar through the linkage and into the presser foot shank. Tighten presser foot screw. With the presser bar inserted properly into the presser foot, position the foot left to right so the finger of cover thread carrier (A, Fig. 20) is between the first and second needles. Set presser bar guide (B, Fig. 20 Inset) so foot will not move. Set right presser foot guide (C) and left presser foot guide (D) to maintain setting. Loosen presser bar guide screw (E Fig. 20 Inset) and check to see that foot has vertical freedom with no right to left play, no bind. Put the needle bar is in its lowest position, and set 1/32"(0.8mm) above head of presser bar guide stud. Tighten presser bar guide screw (E).

SETTING THE PRESSER FOOT (CONT.)

C A B D 1/64" (-.4mm) 1/64" (-.4mm) F E

FIG. 21

Turn the handwheel in operating direction until link (A, Fig. 20) has traveled fully to the front. There must be a 1/64" (0.4mm) clearance between link (A) and the back of needle bar (B) when link (A) starts to jackknife. Loosen screw (C) and rotate driving sleeve (D) to position link (A). Tighten screw (C).

Add the cover thread hook(F) and cover thread carrier(E) if they are not in place. Position carrier so the thread loop will be carried behind the first two needles. There should be a maximum 1/64"(0.4mm) clearance between the hook and the carrier at their closest position.

A B C D 1/32" (0.8mm)

FIG. 22

Replace the presser spring and the presser bar regulating screw. Loosen screws (A, Fig. 22) in lifter lever link assembly (B) and position lever (C) so there is 1/32" (0.8mm) clearance between it and presser bar guide (D) when the feed dogs are below the throat plate.

Pure technical line drawing of a road intersection with no text, numbers, or symbols

FIG. 23

When the hook swings to the left it will pass over the cover thread. On its return travel, the thread will "pop" into the slot on the underside of the hook and is carried to the right. This thread forms a triangle for the third and forth needle threads to pass through. As the cover thread "pops" into the slot it must cast-off the high point of take-up (A, Fig. 23) at the same time. Loosen the two screws in the cover thread take-up and reposition if necessary. If there is difficulty in making this adjustment, check the thread tension and make sure the hook point has an extremely high polish and the angle is correct. Due to clearance requirements bending the hook is not recommended.

SETTING THE PRESSER FOOT (CONT.)

Technical diagram of a mechanical clamp or lever assembly with labeled parts A, B, and C

FIG. 24

1/64" (.4mm)

FIG. 25
The presser foot lifter stop plunger must be set so the cover thread hook will not hit the bottom of the needle head as the presser foot is being lifted. Position the needle bar to its lowest point of travel. Loosen nut (A, Fig. 24) and turn plunger (B) clockwise until it strikes the crankshaft counterweight. While applying pressure to lifter (C) to lift the foot, back out of the plunger until the distance between the hook and the underside of the needle head is 1/64" (0.4mm) (see Fig. 25). Tighten nut (A, Fig. 24).

Technical diagram of a mechanical device with labeled parts A, B, C, D

FIG. 26

To adjust the position and tension of frame chip guard (A, Fig. 26), slightly loosen screw (B) and turn washer (C) with 21388Y spanner wrench until spring (D) snaps the guard into the closed position. Tighten screw (B). A light resistance should be felt when opening the guard.

SETTING THE KNIFE DRIVE LEVER

A B C

FIG. 27

Position the needle bar at the bottom of its stroke. Measure from the top of the needle bar to the top of the casting to obtain dimension "A" (see Fig. 27).

Position the needle bar at the top of its stroke. Measure from the top of the needle bar to the top of the casting to obtain dimension "B". Subtract dimension "A" from dimension "B" and divide by two. Add this number to dimension "A" to obtain "C". Set a caliper to the "C" dimension and turn the handwheel in operating direction until the height of the needle bar is at the "C" dimension

SETTING THE KNIFE DRIVE LEVER (CONT.)

6 0'Clock 2.27/32" (72.2mm)

FIG. 28

At this time the knife drive lever should be in the 6 o'clock position. If adjustment is necessary, loosen screws (A, Fig. 28) in the needle lever and reposition knife drive lever (B) to the 6 o'clock position. Tighten screws (A). The dimension between the centerline of right and left knife drive connection ball joints (C and D) must be 2 27/32" (72.2mm). Loosen left hand thread nut (E), right hand thread nut (F) and turn connecting rod (G) until dimension is achieved. Tighten nuts (E and F).

SETTING THE TRIMMING KNIVES FOR FLAT SEAMING (STYLES 36200L100-52, L100-60, T300-52, T300-60, U300-52, U300-60)

FLAT SEAM 1/32" - 1/16" (.8mm - 1.6mm) LAP SEAM 1/64" (.4mm)

FIG. 29

To make the adjustments for a flat seam, position lower knife (A, Fig. 29) in the foot so it extends 1/32" to 1/16" (0.8mm to 1.6mm) past the right side of the left toe (B) (approximately between the second and third needles). Loosen screw (C) and move knife in or out as required. Tighten screw (C) securely.

SETTING THE TRIMMING KNIVES FOR LAP SEAMING (STYLES 36200L100-52, L100-60, L200-52, L200-60, L202-52, L202-60, L210-52, L210-60, U300-52, U300-60)

To make the adjustments for a lap seam, position lower knife (A, Fig. 29) in the foot so it extends 1/64" (0.4mm) past the right side of the left toe (B) (approximately even with the first needle). Loosen screw (C) and move knife in or out as required. Tighten screw (C) securely.

(ALL STYLES)

Turn handwheel in operating direction until knife driving bracket (D) is positioned to the extreme left. At this time the front edge of both knives should be parallel with each other and the upper knife cutting edge should overlap lower knife cutting edge by 1/64" (0.4mm)

SETTING THE TRIMMING KNIVES (ALL STYLES) (CONT.)

Technical diagram showing mechanical assembly with labeled components A, B, C, D and a bolted joint detail

FIG. 30

A B C 1/16" (1.6mm)

FIG. 31

If necessary loosen screw (A, Fig. 30) and move knife (B) to the right or left as required. Tighten screw (A).

If the shear angle between the knives has to be changed, raise or lower screw (C, Fig. 30) in knife holder shank (D).

To set spring pressure between the knives loosen screw (A, Fig. 31) and raise knife holder guide collar (B) 1/16" (1.6mm) from knife driving bracket (C). Tighten screw (A).

Technical diagram of a mechanical device with labeled components A, B, and C

FIG. 32

NOTE: More or less spring pressure may be required depending on the type of material being sewn. Also, both knives may have to be repositioned after a trial seam is made so there is an equal margin from the edges of the two plies to the center rows of stitching.

NEEDLE THREAD ADJUSTMENTS

Four needle thread strike-off pins (A, Fig. 32) are provided for independent needle thread control. Level the take-ups to the height of the thread in the needle lever eyelet at its lowest position. Raise the first take-up (nearest the operator) 1/8" (3.2mm) and the second take-up 1/16" (1.6mm). Further adjustment may be necessary to obtain proper needle loop size so skipped stitches may be avoided.

1/8" (3.2mm) A B C D

FIG. 33

Set the four frame needle thread eyelets (B, Fig. 32) eye with the eyelets in holder (C). Adjust as necessary so the needle thread loops around the looper will remain firm and not seek random positions when the needle bar descends.

Unlocking spring (A, Fig. 33) provides a proportional amount of pull-up of the needle threads when the machine is reversed for unlocking the stitch so the loops will not form on the front of the needles and become caught by the looper.

NOTE: Unlocking spring is only used when starting and stopping on the material.

Turn screw (B) up or down so unlocking spring (A) will have 1/8" (3.2mm) drop from the bottom of the thread holes to the top of screw (B). Loosen screw (C) and turn knurled knob (D) to adjust the spring tension. Tighten screw (C).

Tension of the six threads is individually controlled. The needle tension is seldom uniform; the first needle thread having more tension than the other three. Use only enough tension to pull up the stitch. A well-balanced stitch will have the first and fourth needle loops pulled up and the second and third needle loops small and even.

LOOPER THREAD ADJUSTMENT

Technical diagram of a mechanical component with labeled parts A, B, C, D, E, F and an inset view showing a circular component.

FIG. 34

Loosen screws (A, Fig. 34) and position looper thread cast-off (B) flush with the right end of cast-off support plate (C). Tighten screws (A). Loosen screws (D, Fig. 34 inset) and time take-up (E) so the thread will cast-off when the needle bar has descended 7/64" (2.8mm) from its highest position. When thread eyelets (F) are moved further to the left the amount of thread pull-off will increase.

C D B A 3/32" (2.4mm) F E

FIG. 35

COVER THREAD ADJUSTMENT

Loosen screw (A, Fig. 35) and set the lower edge of cover thread take-up eyelet (B) so its 3/32" (2.4mm) above the surface of cast-off plate (C). Tighten screw (A). As the cover thread hook moves to the left over the cover thread and the needle bar starts to rise, the cover thread must "cast-off" from the high point of take-up (D). Loosen screws (E) and adjust take-up (F) accordingly. make sure that take-up (F) is centered in cast-off plate slot (C) and take-up eyelet (B) is centered to take-up (F). Tighten screws (E).

Technical diagram of a mechanical device with labeled components A, B, and D

FIG. 36

TENSION RELEASE

The tension releases should start to function when the presser foot has raised approximately 1/32" (0.8mm) above the surface of the throat plate and be entirely released when the presser foot has reached its highest position. Insert a large screwdriver into slot on the right end of shaft (A, Fig. 36), loosen screw (B) in lifter lever (C) and turn the screwdriver to raise or lower pins (D). Tighten screw (B).

NOTE: Make sure the 1/32" (0.8mm) clearance between the presser bar lifter lever and presser bar guide has been maintained. Refer to Fig. 22 if readjustment is necessary.

HUNG FOOT ADJUSTMENT

When sewing on extremely lightweight material and/or feed cutting is a problem, the presser foot may be "hung" by raising stud (B) until guide (A) rests on the shoulder of stud (B). This adjustment will raise the presser foot slightly, so only the pressure of the presser foot shoes contact the material. Turn handwheel in operating direction until the feed dogs are below the throat plate surface. At this time there should be a 1/32" (0.8mm) clearance between the bottom of presser bar guide (A, Fig. 37) and presser bar guide stud (B). To hang presser foot, loosen lock nut (C Fig. 37) and turn thumbscrew (D Fig. 37) so that the foot comes up slightly, tighten nut (C Fig. 37).

SETTING THE LAP FORMER

Attach gibs (A, Fig. 38) to the cylinder cover but do not tighten screws (B); leave them snug for further adjustment. Fasten spring (C, Fig. 38 inset) to the bottom of slide block (D) and insert between gibs (A). Attach lap former (E) to slide block (D) with screws (F) and position it in the center of the presser foot. Position the slide block so it has a snug (but not tight) fit the entire length of the gibs. Tighten screws (B).

D C 0 B A 1/32" (.8mm)

FIG. 37

Technical diagram of a sewing machine needle with labeled parts and a magnified inset showing internal components.

FIG. 38

LAP SEAMING

Lap Seaming can be accomplished using three methods:

1. Lap seaming cutting only right ply of material. (L100-52, L100-60, U300-52, U300-60)

A. Use flat seam presser foot.
B. Remove front right throat plate screw and attach 36203 edge guide with 22849 screw, and adjust left or right for proper coverage on bottom.
C. Adjust knives left or right for proper trimming and coverage on top.

1. Lap seaming cutting only left ply of material. (L100-52, L100-60, U300-52, U300-60)

A. Use flat seam presser foot.
B. Remove left front throat plate screw and attach 36203 edge guide with 22849 screw, and adjust left or right for proper coverage on bottom.
C. Adjust knives left or right for proper trimming and coverage on top.

1. Lap Seaming cutting two plies of material. (L200-52, L200-60, L201-60, L202-52, L202-60, L210-52, L210-60, U300-52, U300-60)

A. Remove flat seam presser foot and replace with lap seam presser foot. Refer to pages 15, 16, & 17 for presser foot adjustments.
B. Attach lap former and slide block with spring. See above for adjustments.

REPLACING PRESSER FOOT SHOES

Technical diagram of a mechanical assembly with labeled components A, B, and C, showing directional arrows indicating motion or flow.

FIG. 39

REMOVING

1. Remove screws (A, Fig. 39).
2. Remove the presser foot shoes (B, Fig. 39) from the presser foot.
3. Remove each shoe (B, Fig. 39) from the shoe holder (C, Fig. 39).

RESETTING

1. Reset each presser foot shoe (B, Fig. 39) with the shoe holder (C, Fig. 39).
2. Reset the shoes (B, Fig. 39) parallel to each other on the presser foot.
3. Tighten the screws (A, Fig. 39) securely.

EXPLODED VIEWS

Technical diagram of a sewing machine with numbered components and exploded view, showing internal parts and assembly relationships.

OIL SIGHT GAUGES, TOP COVERS & MISCELLANEOUS TAKEUP & EYELET PARTS

Ref.			Amt.
No.	Part No.	Description	Req.

1. 93 Screw, for crank chamber cover 5
2. 35888N Crank Chamber Cover 1
3. 22924708 Oil Sight Gauge 1
4. 660-212 "O"Ring.... 1
5. 22516A Screw 2
6. 93A Screw, for middle top cover 2
7. 90 Screw, for spring 2
8. 35887X Top Cover, middle 1
9. 35887AE Top Cover, front 1
10. 22924708 Oil Sight Gauge 1
11. 660-212 "O"Ring 1
12. 22539M Plug Screw 1
13. 22516A Screw, for front top cover 6
14. 73C Screw 1
15. 36256 Cover Thread Take-up Eyelet 1
16. 29476XC Cast-Off Plate Assembly 1
17. 22KH Screw, for cast-off 2
18. 36204 Cast-off 1
19. 73A Screw, for cast-off plate eyelets 2
20. 52958F Cast-off Plate Eyelet, rear 1
21. 52958C Cast-off Plate Eyelet, front 1
22. 36204A Cast-off Plate 1
23. 36256A Cover Thread Take-up Eyelet Holder 1
24. 22839 Screw 2
25. 36284T Gasket, for front top cover 1
26. 22564B Screw, for middle cover hinge 3
27. 35887R Middle Cover Hinge 1
28. 41071G Nut, for top middle cover spring screw 2
29. 35887M Spring, for middle top cover 1
30. 12934A Nut, for top middle cover spring screw 2
31. 36284M Gasket, for crank chamber 1
32. 22569B Screw, for bushing housing 3
33. 36290M Crankshaft Bushing Housing Assembly 1
    Lip Seal 1
    'O"Ring 1
34. LA528 Directional Label 1
35. CO67E Cork 1
36. 36289K Oil Shield 1
37. 6042A Washer, for screw 2
38. 22759A Screw, for connecting head to main frame 2
39. 22711 Screw, for hose clamp 1
40. 998-358E Hose Clamp, for pump 36293R 1
41. 22539AA Plug Screw 1
42. 36293B Oil Sight Gauge 1
43. 36293E Oil Level Indicator 1
44. 39593C Oil Gauge Float 1
45. 93 Screw, for oil pump housing 2
46. 35890P Bushing 1
47. 35893G Seal, Upper 1
48. 35893H Seal, Lower 1

Technical diagram of a mechanical assembly with numbered components and exploded view

MAIN FRAME, BUSHINGS & MISCELLANEOUS EYELET & COVER PARTS

Ref.			Amt.
No.	Part No.	Description	Req.

1. 36284S Gasket, end cover.... 1
2. 35887Z End Cover 1
3. 22564B Screw, end cover 4
4. 36290B Main Shaft Bushing, front 1
5. 92201 Screw, for looper drive lever shaft 1
6. 22829 Screw, looper thread shield 2
7. 29105BH Looper Thread Shield 1
8. 35866A Tube 1
9. SS7110510SP Screw 1
10. 35866B Tube Clamp 1
11. 35883AL Support.... 1
12. 35781D Looper Thread Guide Wire 1
13. 660-1132 Oil Seal 1
14. 62271B Thread Guide 1
15. 36290G Main Shaft Bushing, rear 1
16. 35890E Crankshaft Bushing, front 1
17. 22539T Plug Screw 2
18. 35761D Bushing Cap 1
19. 36260B Needle Lever Shaft Bushing, front 1
20. 36260C Needle Lever Shaft Bushing, rear 1
21. 660-206 Rubber "O" Ring 1
22. 22733B Oil Drain Screw 1
23. 36271A Needle Thread Eyelet 4
24. 73A Screw, for needle thread eyelet 2
25. 22768B Screw, for unlocking spring height adjusting 1
26. 36271G Stitch Unlocker Mounting Bracket 1
27. 36271E Unlocking Spring 1
28. 36271H Spring Holder 1
29. 36271 Frame, Needle Thread Eyelet 1
30. 28C Screw 4
31. 22596D Screw, for needle thread eyelet 1
32. 36293N Felt 1

Technical schematic diagram of a mechanical assembly with numbered components and labeled parts

MAIN SHAFT & MISCELLANEOUS OILING

Ref.			Amt.
No.	Part No.	Description	Req.

1. 660-207 Oil Seal Ring 1
2. 36294G Oil Reservoir, back 1
3. 36293T Oil Tube Extension 1
4. 35897BW Gasket 1
5. 29472AG Pump Assembly 5
6. 22585A Screw, for housing cover 2
7. 21756G Vent Screw 1
8. 36297J Housing Cover and Oil Tube, rear 1
   Intake Filter 1
9. 29472AC Pump Body and Gear Assembly 1
10. 36297N Housing Cover and Oil Tube, front 1
11. 22571B Plug Screw 1
12. 41071G Nut 1
13. 22565A Screw 1
14. 36293M Oil Splitter 1
15. 1096 Screw 1
16. 36293L Oil Tube 1
17. 50393-140 Tubing 2
18. 90 Screw, for take-up shield 1
19. 36261A Take-up Shield Assembly 1
20. 35894L Oil Reservoir, front 1
21. 666-338 Oil Seal Ring 1
22. 36293K Oil Tube Bypass 1
23. 671B3 Oil Tube 1
24. 11550209 Tension Spring 1
25. 29101J Feed Drive Eccentric Assembly 2
    Screw 2
26. 22894W Set Screw 1
27. 29103T Feed Lift Eccentric Assembly 2
28. 22587E Screw 2
29. 22894W Set Screw 1
30. 660-219P Roll Pin.... 1
31. 36222C Main Shaft 2
32. 22801 Screw 1
33. 36223 Double Disc Take-up 2
    Screw 1
34. 36223A Cover Thread Take-up 2
35. 22580 Screw 1
36. 35895W Main Shaft Coupling 3
37. 22519F Screw 4
38. 22894J Set Screw 2
39. 22894K Spot Screw

17 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 See page 27 for part numbers

CRANKSHAFT & NEEDLE LEVER PARTS

Ref.			Amt.
No.	Part No.	Description	Req.

1. 36221N Pulley Assembly 1
2. 22574 Screw 3
3. 61321L Clamp Plate 1
4. 61321J Handwheel.... 1
5. 36221P Pulley 1
6. 22894E Screw, for pulley 2
7. 50311C Ball Bearing 1
8. 36293Q Bushing Pump 1
9. SQ1110401MZ Barb Fitting 1
10. 36293R Pump Assembly 1
11. 50393KM Tube retainer spring 1
12. 50393-260 Tubing 1
13. 50393CS Tube retainer spring 1
14. 36293S Oil Tube 1
15. 666-214 Oil Intake Felt 1
16. 35895Y Crankshaft Thrust Collar 2
17. 22894AM Screw 4
18. 22797 Screw 3
19. 35897BY Pump Driving Gear 1
20. 22766 Screw 2
21. 36251N Needle Bearing Retaining Plate 1
22. 36251M Eccentric Bearing 1
23. 36263 Needle Bearing Rollers 28
24. 35763G Needle Bearing Retaining Ring 4
25. 35862A Needle Lever Connecting Rod 1
26. 22587B Screw 2
27. 22894W Screw 1
28. 36222A Crankshaft 1
29. 35763F Needle Bearing Rollers 28
30. 36247 Needle Lever Connecting Rod Pin 1
31. 77 Screw 2
32. 36264D Needle Lever Thread Eyelet 1
33. 36254B Link Pin 2
34. 22564 Screw 1
35. 35816 Needle Bar Connection.... 1
36. SS7110910TP Screw 1
37. 36254A Needle Bar Link 1
38. 77 Screw 1
39. 36215 Needle Lever 1
40. 22596B Screw 2

Technical schematic diagram of a mechanical assembly with numbered components and exploded views

TENSION PARTS

Ref. No.	Part No.	Description	Amt. Req.
1.	36233	Lift Lever Link Connection	1
2.	22894J	Screw	1
3.	36280V	Lifter Lever Link Assembly	1
4.	22585A	Screw	2
5.	53678N	Washer	2
6.	36280U	Lifter Lever Link	1
7.	86	Screw	2
8.	36280A	Presser Foot Lifter Stop Plunger	1
9.	36280C	Stop Plunger Segment	1
10.	36280D	Stop Plunger Segment Pin	1
11.	258A	Nut	1
12.	22519	Screw, for stop plunger segment pin	1
13.	36280W	Presser Bar Lifter Lever	1
14.	22839D	Screw	1
15.	36280X	Lever	1
16.	93	Screw	2
*17.	36280T	Lifter Lever Connecting Link	1
*18.	36280S	Presser Foot Connection Lifter Lever	1
*19.	660-254C	Retaining Ring	2
*20.	22517	Screw, for presser foot lifter bearing bracket	1
*21.	36280N	Presser Foot Lifter Bearing Bracket	1
*22.	255	Screw	1
23.	36298H	Tension Support	1
24.	36298G	Tension Thread Eyelet	3
25.	22517	Screw, for tension plate bracket	2
26.	36292M	Tension Plate Bracket	2
27.	22585A	Screw, for tension post	6
28.	35792T	Tension Disc Release Pin	7
29.	36292K	Spring, for tension release shaft	1
30.	36292N	Tension Release Shaft	1
31.	22784F	Screw	1
32.	C50092S	Tension Nut	6
33.	39592AK	Tension Spring Ferrule	6
34.	51292F-2	Tension Spring, for cover thread	1
	51292F-4	Tension Spring, for looper thread	1
	51292F-5	Tension Spring, for needle thread	4
35.	W56392F	Shield, for tension spring	6
36.	35792	Tension Disc, large	6
37.	109	Tension Disc, small	6
38.	36292Q	Tension Post	6
39.	36266A	Thread Guide Assembly	1
40.	22894BK	Screw Post	1
41.	94	Screw	2
42.	36283R	Mounting Bracket	2
43.	SS7090910TP	Screw	2
44.	36266	Eyelet Tube	2
45.	35866B	Eyelet Tube Holder	2
46.	SS7110840SP	Screw	4
47.	36283T	Bracket, Tube	1
48.	36283S	Eyelet Plate	1
49.	22931208	Eyelet	6
*50.	421D38	Chain, (not shown)	1
*51.	660-264	"S" Hook, (not shown)	2

* These parts are extra send and charge Items
And may be purchased as kit 29480BER

Technical diagram of a mechanical assembly with numbered components and exploded views

• Items 26, 27, 28, 29, and spanner wrench 21388Y are all part of kit 29480AZJ

DETACHABLE HEAD, HEAD COVERS, NEEDLE BAR & NEEDLE BAR HEAD

Ref. No.	Part No.	Description	Amt. Req.
1.	36289B	Baffle Plate	1
2.	36280J	Presser Bar Lifter Lever	1
3.	36294F	Oil Deflector Wire	1
4.	8372A	Washer	1
5.	22513	Screw	1
6.	36289H	Gasket, for front head cover	1
7.	36289	Head Cover, front	1
8.	22524	Screw, for front head cover	2
9.	36264B	Needle Thread Strike-off Pin	4
10.	28	Screw, for needle thread take-up	2
11.	36264E	Needle Thread Take-up, complete	4
12.	36264F	Strike-off Pin Holder	1
13.	22738C	Screw, for needle thread take-up	2
14.	28A	Screw, for needle thread take-up	4
15.	28	Screw, for cover thread eyelet	1
16.	51259	Cover Thread Eyelet	1
17.	36229H	Detachable Sewing Head	1
18.	36278A	Presser Bar Bushing	1
19.	36273T	Needle Bar Bushing, upper	1
20.	22524	Screw	2
21.	35767	Sewing Head Key	2
22.	36273S	Needle Bar Bushing, lower	1
23.	36273R	Cover Thread Carrier and Hook Driving Sleeve Bushing	1
24.	660-739	Oil Lip Seal	2
25.	36293P	Felt	1
26.	22777B	Screw, for frame chip guard	1
27.	36279L	Spring, for frame chip guard	1
28.	36279N	Frame Chip Guard	1
29.	36279M	Washer, for frame chip guard	1
30.	22881A	Screw, for right presser foot guide	1
31.	36278K	Presser Foot Guide, right	1
-	36278S	Presser Foot Guide, right, for styles 36200L202-52, L202-60	1
32.	36217A	Needle Bar	1
33.	36278	Presser Bar	1
-	36278P	Presser Bar, for Style 36200L201-60	1

1. thru 63. See Following page

Technical diagram of a mechanical assembly with numbered components and exploded views, likely for assembly or maintenance.

* Items 26, 27, 28, 29, and spanner wrench 21388Y are all part of kit 29480AZJ

DETACHABLE HEAD, HEAD COVERS, NEEDLE BAR & NEEDLE BAR HEAD

Ref.			Amt.
No.	Part No.	Description	Req.

1. thru 33. See Preceding page

1. 36278L Presser Foot Guide, left 1
2. 36278R Presser Foot Guide, left, for styles 36200L202-50, L202-60 .... 1
3. 22653B-8 Screw, for left presser foot guide 2
4. 8372A Washer 2
5. 36218A52 Needle Head, for 5.2 Gauge .... 1
6. 36218A60 Needle Head, for 6.0 Gauge .... 1
7. 22738H Screw, for needles and retainer 5
8. 22524 Screw, for left head cover 2
9. 36289A Head Cover, left 1
10. 36289J Gasket, for left head cover 1
11. 6042A Washer 1
12. 318 Screw, for connecting head to main frame 1
13. 664F-16 Taper Pin 1
14. 22560A Screw, for presser bar guide stud .... 1
15. 36278F Spring, for presser bar.... 1
16. 36278U Spring, for presser bar, for styles 36200L202-50, L202-60 .... 1
17. 36278M Presser Bar Regulating Screw 1
18. 36294E Oil Guard 1
19. 22585C Screw 1
20. 660-1131 Knurled Knob 1
21. 28C Screw 2
22. 660-1130 Knurled Nut 1
23. 36290E Threaded Sieve 1
24. 36237M Collar Bumper 1
25. 36278T Screw Stud 1
26. 29476YP Sewing Guard Assembly 1
27. 9937 Nut 1
28. 35896D Sewing Guard 1
29. 666-340A Bumper Plug 1
30. WZ0641510KP Spring Washer 2
31. 22758E Screw 1
32. 36283P Mounting Bracket 1
33. 22585B Screw 2

TORQUE TO 28-30 in. lbs. (32-35 cm/kg) TORQUE TO 28-30 in. lbs. (32-35 cm/kg) 24 25 27 26 28 29 31 30 32 33 34 24° 37' 4 27/32 (123.16mm) 4 25/32 (121.95mm)

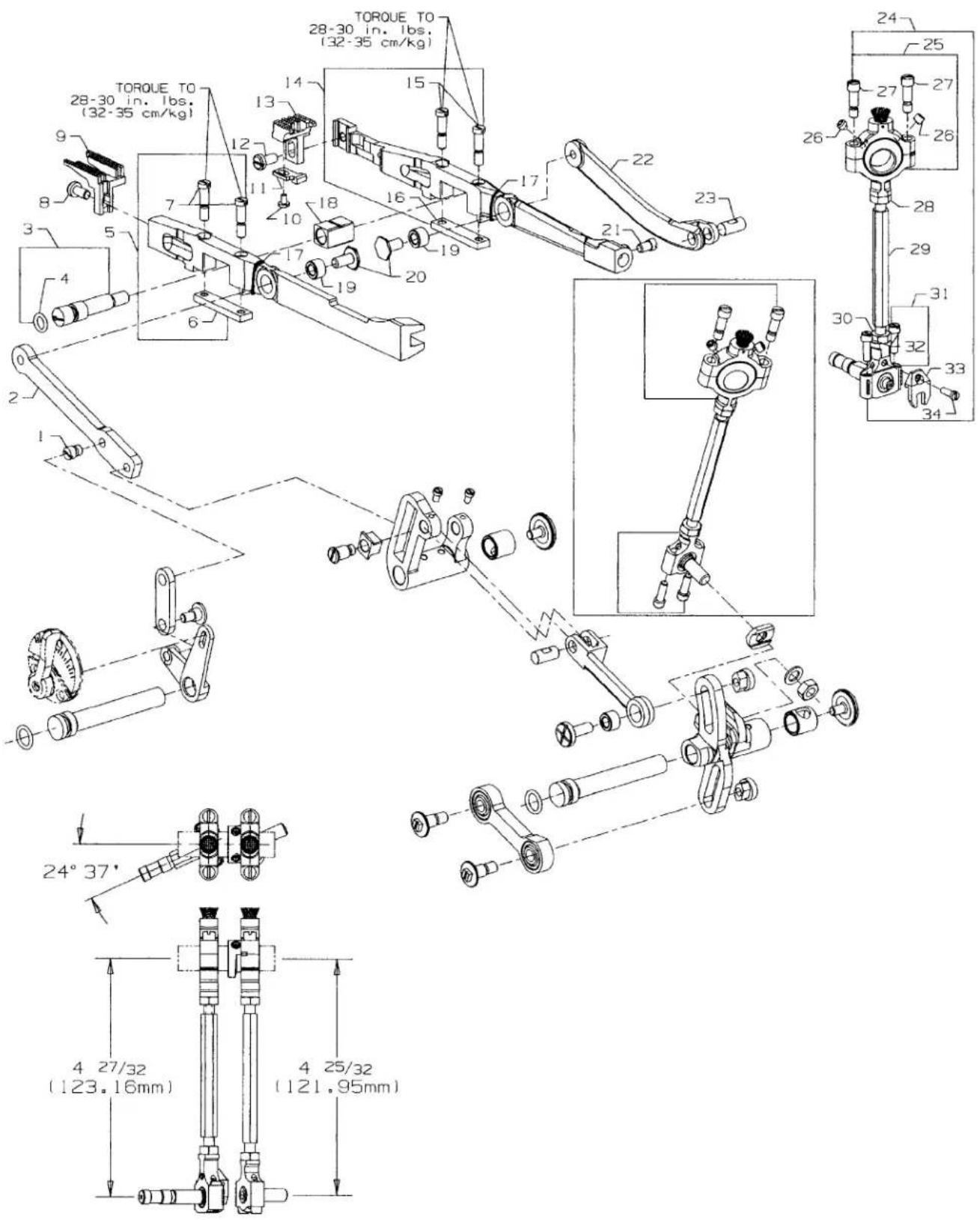

DIFFERENTIAL & MAIN FEED BARS, FEED DOGS & FEED LIFT ECCENTRIC ASSEMBLY

Ref.			Amt.
No.	Part No.	Description	Req.

1. 22845M Screw, for differential feed bar driving link .... 1
2. 36236F Differential Feed Bar Driving Link 1
3. 36234N Feed Bar Eccentric Stud 1
4. 660-220 "O"Ring 1
5. 36234F Differential Feed Bar 1
6. 36234G Feed Bar Plate 1
7. 22587H Screw 2
8. 22528 Screw, for differential feed dog.... 1
9. 36226A Differential Feed Dog, marked "FV", 14 teeth per inch, for Styles 36200L100-52, L100-60, L200-52, L200-60, L201-60, T300-52, T300-60, U300-52, U300-60
10. 36226B Differential Feed Dog, marked "PB", 16 teeth per inch .... 1
11. 36226K Differential Feed Dog, 16 teeth per inch, for styles 36200L202-52, L202-60
12. 36226H Differential Feed Dog, marked "PQ", 14 teeth per inch, .050" (1.27mm) step on right side for style 36200L210-52.... 1
13. 36226J Differential Feed Dog, marked "VU", 16 teeth per inch, .050" (1.27mm) step on right side for style 36200L210-60.... 1
14. 22781G Screw, for needle guard 1
15. 36225A Needle Guard 1
16. 22528 Screw, for main feed dog .... 1
17. 36205A Main Feed Dog, marked "PK", 14 teeth per inch, for Styles 36200L100-52, L100-60, L200-52, L200-60, T300-52, T300-60, U300-52, U300-60.... 1
18. 36205B Main Feed Dog, marked "PL", 16 teeth per inch .... 1
19. 36205M Main Feed Dog, marked "AAK", 14 teeth per inch, for styles 36200L201-60
20. 36205N Main Feed Dog, 16 teeth per inch, for styles 36200L202-52, L202-60 .... 1
21. 36205H Main Feed Dog, marked "PR", 14 teeth per inch, .050" (1.27mm) step on right side for Styles 36200L210-52.... 1
22. 36205J Main Feed Dog, marked "VV", 16 teeth per inch, .050" (1.27mm) step on right side for Styles 36200L210-60.... 1
23. 36234E Main Feed Bar 1
24. 22578H Screw 2
25. 36234G Feed Bar Plate 1
26. CQ200000000 Yarn 2
27. 36234C Feed Bar Slide Block 1
28. 36236H Bushing 2
29. 36236G Driving Link Stud 2
30. 33174B Screw 1
31. 36236E Main Feed Bar Drive Link 1
32. 62238A Link Pin 1
33. 29478CS Feed Lift Eccentric Assembly 1
34. 29103T Feed Lift Eccentric Assembly Ball Joint 1
35. 22894W Set Screw 2
36. 22587E Screw 2
37. 269 Nut, left thread.... 1
38. 36244 Connecting Rod 1
39. 18 Nut, right thread .... 1
40. 36244A Ball Joint, complete 1
41. 22729C Screw 2
42. 41255B Ball Fork 1
43. 22747 Screw, for ball fork 1

TORQUE TO 28-30 in. lbs. (32-35 cm/kg) TORQUE TO 28-30 in. lbs. (32-35 cm/kg) 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 29 30 31 32 33 34 35 24° 37'

* Items 35 and 36 may also be purchased as 29478FI

24° 37' *36 4 27/32 (123.16mm) 4 25/32 (121.95mm)

FEED DRIVE ASSEMBLY, FEED ROCKER & LOOPER AVOID PARTS

Ref.			Amt.
No.	Part No.	Description	Req.

1. 660-207 Oil Seal Ring 1
2. 36236A Feed Rocker Shaft 1
3. 36237 Differential Feed Adjusting Lever 1
4. 36237A Differential Feed Adjusting Link 1
5. 22504C Screw 1
6. 36236J Differential Driving Link Stud 1
7. 36236K Differential Feed Driving Link Slide Block 1
8. 36236 FeedRocker 1
9. 77 Screw 2
10. 36236B Bushing 1
11. 22733G Screw 1
12. 29478CT Feed Drive Assembly 1
13. 29101J Feed Drive Eccentric Assembly 1
14. 22587E Screw 2
15. 22894W Set Screw 2
16. 269 Nut, left thread.... 1
17. 43246 Connecting Rod 1
18. 18 Nut, right thread .... 1
19. 35846 Ball Joint 1
20. 22729C Screw 2
21. 35846B Washer 1
22. 35866 Nut 1
23. 36236B Bushing....1
24. 22733G Screw 1
25. 35766B Nut 1
26. 35842J Feed Drive and Looper Avoid Drive Lever 1
27. 36236A Feed Drive Shaft 1
28. 660-207 Oil Seal Ring 1
29. 35836C Screw, for feed rocker driving link 1
30. 36236H Bushing 1
31. 258 Nut 1
32. 6042A Washer.... 1
33. 36236C Feed Rocker Driving Link 1
34. 62238A Link Pin.... 1
35. 35851S Connecting Rod 1
36. 35851P Screw 2

TORQUE TO 55 in lbs. (63 cm/kg) 2 27/32" (72.2mm) 24° 30' 3 5/32" (80.2mm) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

KNIFE DRIVING PARTS

Ref.			Amt.
No.	Part No.	Description	Req.

1.	36251B	Cover Thread Carrier and Hook Driving Sleeve	1
2.	12934A	Nut	1
3.	51235G	Washer	2
4.	36245K	Screw	2
*5.	36245H	Rod End Bearing	1
*6.	36245D	Nut, right thread	1
7.	36251AE	Cover Thread Carrier and Hook Driving Connection Rod Ball Joint	1
8.	36275A	Washer	2
9.	36278J	Presser Bar Guide	1
0.	22569G	Screw	1
1.	52841H	Nut	1
2.	660-1019	"O"Ring	1
3.	36275	Torlon Washer	1
4.	36261	Knife Drive Lever	1
5.	GR-36245G	Rod End Bearing	1
6.	36275B	Washer, seal	2
7.	36245J	Screw	1
8.	12934A	Nut	1
9.	36245E	Nut, left thread	1
10.	36251C	Sleeve Driving Lever, for styles 36200L100-52, L200-52, L202-52, L210-52, T300-52, U300-52	1
-	36251V	Sleeve Driving Lever, for styles 36200L100-60, L200-60, L202-60, L210-60, T300-60, U300-60	1
21.	22585	Screw	1
22.	36245F	Stud, Rod End Bearing	1
23.	36273U	Knife Driving Bracket	1
24.	36273Q	Bushing	1
25.	36273P	Bushing	1
26.	605A	Screw	2
27.	36273J	Knife Holder Guide Plate	1
28.	660-219D	Roll Pin	2
29.	36273C	Knife Holder Spring	1
30.	36273K	Knife Holder Guide Collar	1
31.	22729M	Screw	1
32.	22799N	Screw	1
33.	36273D	Knife Support	1
34.	36270C	Knife, upper	1
35.	36273G	Knife Holder	1
36.	22894X	Screw	1
37.	22767A	Screw	2
38.	36273A	Knife Holder Shank	1
39.	1096B	Screw	1
40.	CQ200000000	Oil Wick	1

* May also be purchased assembled and set to length as 29478FJ.

Technical schematic diagram of a mechanical assembly with numbered components and dimensional annotations in millimeters.

• Items 36, 37, 38, and 40 are part of Looper Drive connection kit 29478FG

Ref.			Amt.
No.	Part No.	Description	Req.

1. 36210 Looper Mounted Needle Guard, marked "FZ" 1
2. 604 Screw, for needle guard 2
3. 36208A Looper.... 1
4. 22585A Screw 1
5. 36248 Looper Holder 1
6. 1096B Looper Adjusting Screw 1
7. 22564D Screw 1
8. 22652A-6 Screw 1
9. 36249 Looper Rocker Shaft 1
10. 35751G Looper Shaft Collar 1
11. 22572B Screw 1
12. 36249B Looper Shaft Sleeve 1
13. 36278C Guide Stud 1
14. 41255B Ball Fork 1
15. 22747 Screw 1
16. 36253B Looper Drive Lever Shaft 1
17. 660-221 Oil Seal Ring 1
18. 29478CU Looper Drive Connecting Rod Assembly 1
19. 35851L Ball Joint, upper 1
20. 22729C Screw 2
21. 269 Nut, left thread .... 1
22. 4761 Connecting Rod.... 1
23. 18 Nut, right thread.... 1
24. 39145A Ball Joint, lower 1
25. 22729C Screw 2
26. 12865 Collar 2
27. 88 Screw 2
28. 15037A Nut 1
29. 36253A Looper Drive Lever 1
30. 258A Nut 1
31. 77 Screw 1
32. 52336 Link Pin 1
33. 660-215 Retaining Ring 2
34. 22795B Screw 1
35. 36253G Looper Drive Crank Stud 1
36. 36245B Looper Drive Connecting Rod and Ferrule Sub-Assembly 1
37. 97A Screw 1
38. 39543N Washer....1
39. 269 Nut, left thread.... 1
40. 53636C Washer 1

Exploded view diagram of a mechanical assembly with numbered components and labeled parts such as torque, shaft, and housing.

Ref.			Amt.
No.	Part No.	Description	Req.

1. 36224H Throat Plate, for Style 36200L210-52 1

- 36224K Throat Plate, for Style 36200L210-60 1

1. 36240 Stitch Tongue, marked "D", for Throat Plates 36224H 1

- 36240J Stitch Tongue, marked "AC", for Throat Plates 36224K.... 1

1. 22716A Screw, for stitch tongue .... 1

2. 23420DE Lap Former, for styles 36200L200-52, L200-60, L210-52, L210-60, U300-52, U300-60

- 23420CZ Lap Former, for style 36200L201-60 1

- 23420DJ Lap Former, for styles 36200L202-52, L202-60 1

1. 22738B Screw, for lap former 1

2. 73A Screw, for lap former 1

3. 36283J Gib, right, for styles 36200L200-52, L200-60, L201-60, L202-52, L202-60, L210-52, L210-60, U300-52, U300-60

4. 23423X Lap Former Slide Block, for 36200L200-52, L200-60, L201-60, L210-52, L210-60, U300-52, U300-60....

- 23423AE Lap Former Slide Block, for 36200L202-52, L202-60 1

1. 36283H Gib, left, for styles 36200L200-52, L200-60, L201-60, L202-52, L202-60, L210-52, L210-60, U300-52, U300-60

2. 23424Z Spring, for lap former slide block .... 1

3. 22716A Screw, for lap former slide block spring .... 1

4. 36283G Cylinder Cover, for styles 36200L200-52, L200-60, L201-60, L202-52, L202-60, L210-52, L210-60, U300-52, U300-60.... 1

5. 36283F Gasket, for cylinder cover, all styles .... 1

6. 36284E Upper Lint Shield, all styles .... 1

7. 22798 Screw, upper lint shield .... 1

8. 40-107 Washer 1

9. 22653E-24 Screw, for joining cylinder to main frame 3

10. 35876U Washer 3

11. GR-36284 Gasket 1

12. 98A Screw, for cylinder cover 8

13. 36283E Cylinder Cover 1

14. 36283F Gasket, for cylinder cover 1

15. 22562A Screw, for throat plate 2

16. 22849 Screw, for edge guide 1

17. 36203 Edge Guide 1

18. C36224A Throat Plate, for Style 36200L100-52, L200-52, T300-52, U300-52.... 1

- C36224J Throat Plate, for Style 36200L200-60, L100-60, T300-60, U300-60 .... 1

- C36224N Throat Plate, for Style 36200L201-60 1

- C36224P Throat Plate, for Style 36200L202-52 1

- C36224Q Throat Plate, for Style 36200L202-60 1

1. 22716A Screw, for stitch tongue 1

2. 36240 Stitch Tongue, marked "D", for Throat Plates C36224A, C36224P .... 1

- 36240J Stitch Tongue, marked "AC", for Throat Plates C36224J, C36224Q, C36224N 1

1. 22KH Screw, for chain cutting knife 1

2. 36296B Guard, for chain cutting knife 1

3. 36296A Chain Cutting Knife 1

4. 22801 Screw, for chain cutting knife 1

5. 36251K Dowel Pin 2

6. 36283C Cylinder Hinged Spring Support Stud 1

7. 36283B Spring....1

8. 22585C Screw, spring 1

9. 36284Z Lower Lint Shield 1

10. 531 Screw 1

11. 667D-16 Dowel Pin 1

12. 22571A Plug Screw 1

13. 22596 Screw, for feed bar eccentric stud .... 1

14. 36229A-1 Cylinder Alignment Eccentric Pin 1

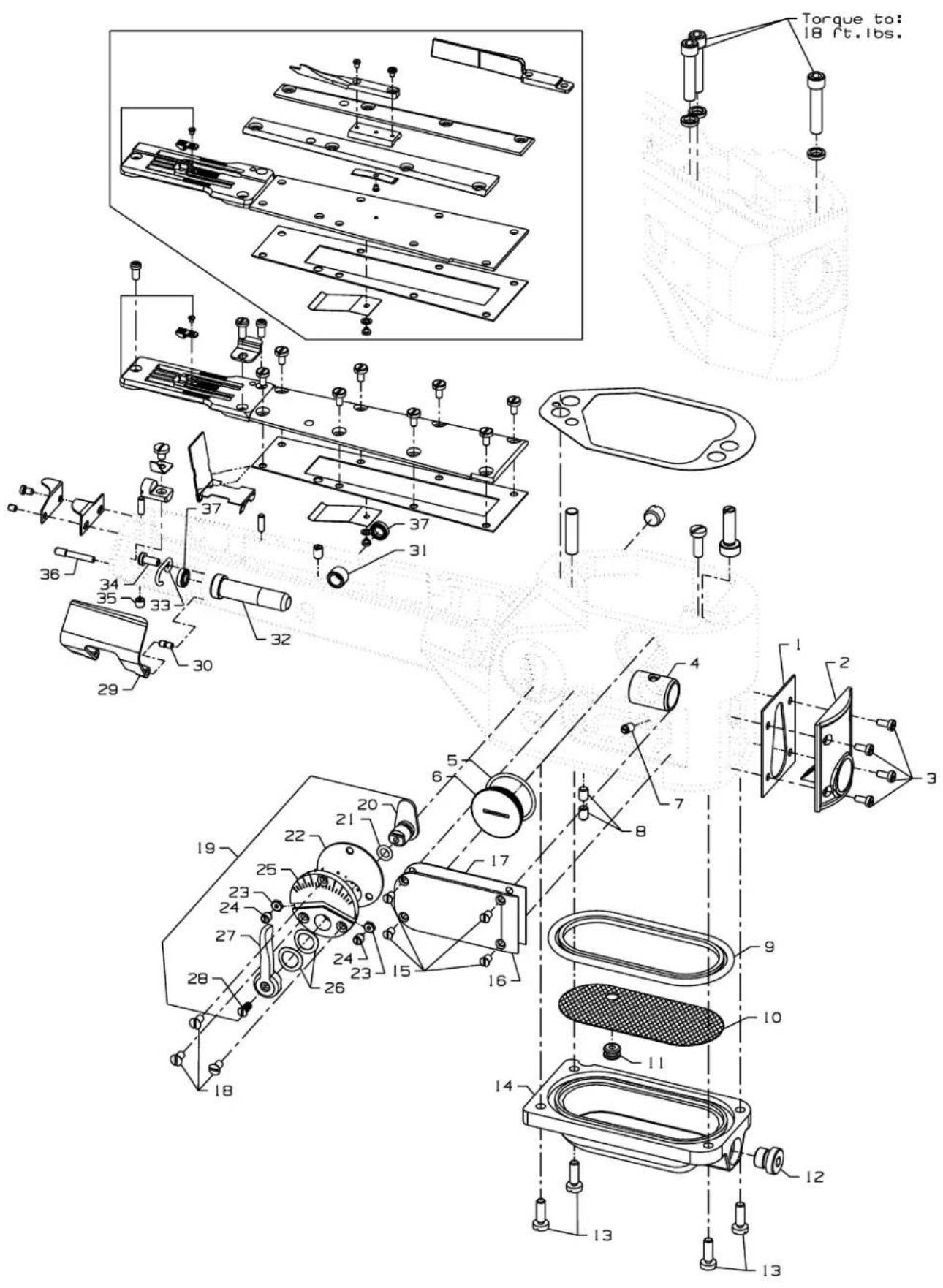

Torque to: 18 ft.1bs. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

CYLINDER BUSHINGS, DIFFERENTIAL FEED CONTROL ASSEMBLY & MISCELLANEOUS CYLINDER COVERS

Ref.			Amt.
No.	Part No.	Description	Req.

1. 36284R Gasket, for front cylinder cover and oil gauge .... 1
2. 36284C Cylinder Cover and Oil Gauge, front 1
3. J87J Screw, for front cylinder cover and oil gauge 4
4. 36249A Bushing, for looper shaft, front .... 1
5. 660-1115 "O" Ring 1
6. 22539AL Plug Screw 1
7. 22560A Screw, for guide stud.... 1
8. 531 Screw 2
9. 36284F Gasket, for bottom cover 1
10. 36293G Screen, for bottom cover 1
11. 661-150 Rubber "O" Ring, for screen 1
12. 999-196 Oil Drain Plug Screw 1
13. 22596 Screw, for bottom cover 4
14. 36282 Bottom Cover 1
15. 22766 Screw, for cylinder side cover 4
16. 36286 Cylinder Side Cover 1
17. 36284Q Gasket, for cylinder side cover 1
18. 87A Screw, for differential feed control assembly 3
19. 29478CZ Differential Feed Control Assembly, complete 1
20. 36237E Adjusting Lever 1
21. 660-220 Oil Seal Ring 1
22. 36238F Gasket 1
23. 41071J Nut 2
24. 35768C Stop Screw 2
25. 36238 Adjusting Plate 1
26. 36237J Spring Washer 2
27. 36237K Operating Lever 1
28. 538 Screw 1
29. 36283K Cylinder Hinged Cover 1
30. 35883G Pin 1
31. 36237L Bushing, for feed bar eccentric stud.... 1
32. 35850F Bushing, for looper shaft, rear 1
33. 36256B Looper Thread Guide Wire 1
34. 22849 Screw, for looper thread guide wire 1
35. 22894P Screw, for cylinder hinged spring support stud .... 1
36. 22791E Screw Pin 1
37. 660-1117 Oil Seal 2

Technical diagram of a mechanical assembly with numbered parts for identification

Technical line drawing of a curved mechanical component with a labeled section '17A' (no other text or symbols)

PRESSER FOOT

FOR STYLES

36200L200-52, L200-60, L201-60, L210-52, L210-60, U300-52, U300-60

Ref.			Amt.
No.	Part No.	Description	Req.

1.	36220E	Presser Foot, complete, for Style 36200L200-52, U300-52	1
-	36220H	Presser Foot, complete, for Style 36200L210-52	1
-	36220M	Presser Foot, complete, for Style 36200L210-60	1
-	36220V	Presser Foot, complete, for Style 36200L201-60	1
-	36220W	Presser Foot, complete, for Style 36200L200-60, U300-60	1
2.	36279D	Spring, for chip guard	1
3.	36279C	Chip Guard	1
4.	22731	Screw, for chip guard	1
5.	22738G	Screw, for presser foot shoe	2
6.	36232AK	Presser Foot Shoe, right, 36220 E, 36220 W, 36220 V presser foot	1
-	36232AM	Presser Foot Shoe, right, 36220H presser foot	1
-	36232AP	Presser Foot Shoe, right, 36220M presser foot	1
7.	36231AK	Presser Foot Shoe, left, 36220E, 36220 W, 36220 V presser foot	1
-	36231AM	Presser Foot Shoe, left, 36220H presser foot	1
-	36231AP	Presser Foot Shoe, left, 36220M presser foot	1
8.	36250K	Stationary Knife Clamp, .213" (5.41mm) ID Mark "D"	1
*-	36250M	Stationary Knife Clamp, .222" (5.64mm) ID Mark "F"	1
*-	36250L	Stationary Knife Clamp, .226" (5.74mm) ID Mark "E"	1
9.	36250	Stationary Knife	1
0.	150	Screw, for stationary knife clamp	1
1.	36230D	Shoe Holding Wire	1
2.	36230R	Cloth Guide Plate	1
3.	22716A	Screw, for cloth guide plate	1
4.	36230C	Spring, for yielding section	1
5.	36230P	Yielding Section	1
6.	22565A	Screw, for yielding section	1
7.	36251AC	Cover Thread Hook, for 36220E, 36220H presser foot	1
-	36251AD	Cover Thread Hook, for 36220M, 36220W presser foot	1
'A	36251FE	Cover Thread Hook, for 36220V presser foot	1
8.	22562A	Screw, for cover thread hook	1
9.	36230M	Presser Foot Base, for 36220 E, 36220 W, 36220 V presser foot	1
-	36230S	Presser Foot Base, for 36220 H, 36220M presser foot	1
0.	94	Screw, for presser foot base	1
1.	36251H	Cover Thread Hook Driving Lever and Shaft	1
2.	22738P	Screw	3
3.	36251J	Link, for ref. no. 21, 25 and 26	2
4.	36251K	Link Pin	4
5.	36251L	Cover Thread Carrier and Hook Driving Segment	1
6.	36251G	Cover Thread Carrier Driving Lever and Shaft	1
7.	36251E	Cover Thread Carrier, for 36220E, 36220H presser foot	1
-	36251W	Cover Thread Carrier, for 36220M, 36220 W, 36220 V presser foot	1
8.	22565A	Screw, for cover thread carrier	1
9.	1096	Screw	1

* When replacing the stationary knife clamp, order the clamp that has the same I. D. mark as the one being replaced.

See page 58-59 for other presser foot shoes available.

Technical diagram of mechanical assembly with numbered parts and exploded views, likely from an engineering manual.

PRESSER FOOT

FOR STYLES

36200L100-52, L100-60, T300-52, T300-60, U300-52, U300-60

Ref.			Amt.
No.	Part No.	Description	Req.

1. 36220A Presser Foot, complete, for Styles 36200L100-52, U300-52 .... 1

- 36220K Presser Foot, complete, for Styles 36200L100-60, U300-60 .... 1

1. 22731 Screw, for chip guard 1

2. 36279D Spring, for chip guard 1

3. 36279C Chip Guard 1

4. 36251E Cover Thread Carrier, for 36220A presser foot .... 1

- 36251W Cover Thread Carrier, for 36220K presser foot .... 1

1. 22565A Screw, cover thread carrier 1

2. 150 Screw, for stationary knife clamp 1

3. 36250 Stationary Knife 1

4. 36250K Stationary Knife Clamp, .213" (5.41mm) ID Mark"D" 1

* - 36250M Stationary Knife Clamp, .222" (5.64mm) ID Mark "F" .... 1

*- 36250L Stationary Knife Clamp, .226" (5.74mm) ID Mark "E"....1

1. 22738G Screw, for presser foot shoe 2

11. 36232AY Presser Foot Shoe, right, for 36220A, K presser foot.... 1

12. 36231AY Presser Foot Shoe, left, for 36220A, K presser foot .... 1

1. 36230D Shoe Holding Wire 1

2. 36230J Yielding Section 1

3. 22565A Screw, for yielding section 1

4. 36230C Spring, for yielding section 1

5. 36251AC Cover Thread Hook, for 36220A presser foot .... 1

- 36251AD Cover Thread Hook, for 36220K presser foot .... 1

1. 22562A Screw, for cross thread hook 1

2. 36230U Presser Foot Base, for 36220 A, K presser foot .... 1

3. 94 Screw, for presser foot base .... 1

4. 36251H Cover Thread Hook Driving Lever and Shaft 1

5. 22738P Screw 3

6. 36251J Link, for ref. no. 21, 25 and 26 2

7. 36251K Link Pin 4

8. 36251L Cover Thread Carrier and Hook Driving Segment .... 1

9. 36251G Cover Thread Carrier Driving Lever and Shaft 1

10. 1096 Screw 1

11. 36220B Presser Foot, complete, for Styles 36200T300-52, T300-60 1

12. 22731 Screw, for chip guard.... 1

13. 36279D Spring, for chip guard .... 1

14. 36279H Chip Guard 1

15. 150 Screw, for stationary knife clamp 1

*33. 36250 Stationary Knife 1

* - 36250K Stationary Knife Clamp, .213" (5.41mm) ID Mark "D" .... 1

* - 36250M Stationary Knife Clamp, .222" (5.64mm) ID Mark "F" 1

1. 36250L Stationary Knife Clamp, .226" (5.74mm) ID Mark "E"....1

35. 22738G Screw, for presser foot shoe 2

36. 36232BA Presser Foot Shoe, right, for 36220 B presser foot .... 1

1. 36231BA Presser Foot Shoe, left, for 36220 B presser foot .... 1

2. 36230D Shoe Holding Wire 1

3. 36230J Yielding Section 1

4. 22565A Screw, for yielding section 1

5. 36230C Spring, for yielding section 1

6. 36230G Presser Foot Base, for 36220 B presser foot .... 1

7. 94 Screw, for presser foot base .... 1

* When replacing the stationary knife clamp, order the clamp that has the same I. D. mark as the one being replaced.

See page 58-59 for other presser foot shoes available.

Technical diagram of a mechanical assembly with numbered components for identification

PRESSER FOOT

FOR STYLES

36200L202-52, L202-60

Ref.			Amt.
No.	Part No.	Description	Req.

1.	36220AE	Presser Foot, complete, for Style 36200L202-52	1
-	36220AF	Presser Foot, complete, for Style 36200L202-60	1
2.	22-331	Pin	1
3.	36251K	Link Pin, for 5, 6 and 8	4
4.	22738P	Screw	3
5.	36251G	Cover Thread Lever	1
6.	36251J	Driving Lever Link	2
7.	36251L	Driving Segment	1
8.	36251H	Cover Thread Hook Lever	1
9.	36251AC	Cover Thread Hook, For 36220AE presser foot	1
-	36251AD	Cover Thread Hook, For 36220AF presser foot	1
0.	22562A	Screw	1
1.	36230AR	Presser Foot	1
2.	94	Screw	1
3.	22716A	Screw	5
4.	36230AP	Plate, Right	1
5.	36230AH	Plate, Left	1
6.	36251E	Cover Thread Carrier, For 36220AE presser foot	1
-	36251W	Cover Thread Carrier, For 36220AF presser foot	1
7.	22565A	Screw	2
8.	150	Screw	1
9.	22731	Screw	1
10.	36279D	Spring, Chip Guard	1
11.	36279P	Chip Guard	1
12.	36250K	Stationary Knife Clamp, .213"(5.14mm) ID Mark"D"	1
-	36250M	Stationary Knife Clamp, .222"(5.64mm) ID Mark"F"	1
-	36250L	Stationary Knife Clamp, .226"(5.74mm) ID Mark"E"	1
13.	36250	Stationary Knife	1
14.	22738G	Screw	1
15.	36232BG	Presser Foot Shoe, Right	1
16.	36231BG	Presser Foot Shoe, Left	1
17.	36230D	Shoe Holding Wire	1
18.	36230AS	Cloth Guide	1
19.	36230AJ	Spring, Yielding Section	1
20.	36230AL	Yielding Section	1
21.	1096	Screw	1

* When replacing the stationary knife clamp, order the clamp that has the same I. D. mark as the one being replaced.

See page 58-59 for other presser foot shoes available.

PRESSER FOOT SHOE CHART

1) THICKNESS OF SHOES—

THICK: approximately .020" (0.5mm) thick, for medium to heavy weight materials that require heavy presser foot pressure.

THIN: approximately .014" (0.35mm) thick, for light to medium weight materials, that require light presser foot pressure and when marking of the material by the shoes and/or feed dogs is a problem.

2) WIDTH OF SHOES—

NARROW: for medium heavy to heavy weight materials.

MEDIUM: for medium weight materials.

WIDE: for light weight materials.

3) SPACING BETWEEN INSIDE OF SHOES—

AVAILABLE SPACINGS:

1/64" (0.4mm) spacing—

Very light materials

1/32" (0.9mm) to 1/16" (1.6mm) spacing——Lightweight materials

5/64" (2mm) to 3/32" (2.4mm) spacing—Medium weight materials

5/32" (4mm) to 3/16" (4.8mm) spacing—Heavy weight materials

4) LENGTH OF TOE—

SHORT TOE: The front part of the toe extends past the front of the presser foot by approximately 3/64" (1mm). This is a good all around shoe that adapts easily to a variety of operations, and is also good for sewing curves and corners.

EXTENDED TOE: The front of the toe extends past the front of the presser foot approximately 3/16"(4.7mm). This shoe has more feeding surface to the front of the presser foot than the short toe and is ideal for long flat seams. For many operations it also allows the operator to start the material without lifting the presser foot.

5) SHOE FINISHES—

HIGH POLISHED FINISH: For most general sewing operations. Steel is polished so that surface is smooth and free of tool marking for easy feeding and less drag on the material.

NICKLON COATING: For hard to feed materials and surfaces. Steel is polished so that surface is smooth and free of tool markings and then treated with a special hard and slippery Nicklon coating to allow the material to feed much smoother and easier than the standard High Polished Finish.

PRESSER FOOT SHOE	STANDARD ON PRESSER FOOT	FURNISHED ON MACHINE STYLE	SAME AS
36231AD	NONE	NONE
36232AD
36231AE	NONE	NONE	36231BB
36232AE			36232BB
36231AF	NONE	NONE
36232AF
36231AG	NONE	NONE
36232AG
36231AH	NONE	NONE	36231AY
36232AH			36232AY
36231AJ	NONE	NONE	36231AZ
36232AJ			36232AZ
36231AK	NONE	NONE	36231AW
36232AK			36232AW
36231AL	NONE	NONE	36231BA
36232AL			36232BA
36231AM	36220H	36200L210-52
36232AM
36231AP	36220M	36200L210-60
36232AP
36231AW	36220E 36220W	36200L200-52,36200L200-60,36200L200-52,36200U300-60	36231AK
36232AW			36232AK
36231AWN	NONE	NONE
36232AWN
36231AY	36220A36220K36220L	36200L100-52,36200L100-60	36231AH
36232AY			36232AH
36231AYN	NONE	NONE
36232AYN
36231AZ	NONE	NONE	36231AJ
36232AZ			36232AJ
36231BA	36220B	36200T300-52,36200T300-60	36231AL
36232BA			36232AL
36231BB	3622036220J	NONE	36231AE
36232BB			36232AE
36232BD	36220X36220Y	36200L202-52,36200L202-60
36232BD
36231BF	NONE	NONE
36232BF
36231BFN	NONE	NONE
36232BFN

PRESSER FOOT SHOE CHART

0.5MM THICKNESS 4 MM 9.5 MM 8.7 MM 2.4 MM 10.3 MM 9.5 MM 4.8 MM 8.7 MM 8.7 MM 36231AD & 36232AD 36231AF & 36232AF 36231AJ & 36232AJ

0.35 MM THICKNESS 4.8 MM 8.7 MM 8.7 MM 36231AZ & 36232AZ

One-side Trim Lapseaming Two-side Trim Flatseaming Extended Toe

0.5MM THICKNESS 2.4MM 10.3 MM 9.5 MM 2.4 MM 10.3 MM 9.5 MM 6.8 MM 8.7 MM 36231AE & 36232AE 36231AG & 36232AG 36231AH & 36232AH

0.35MM THICKNESS 4.8 MM 8.7 MM 8.7 MM 4.8 MM 8.7 MM 8.7 MM 2.4 MM 10.3 MM 9.5 MM 36231AY & 36232AY 36231AYN &36232AYN (NICKLON COATED) 36231BB & 36232BB

One-side Trim Lapseaming Two-side Trim Flatseaming Short Toe

0.5 MN TRACKNESS 2.4MM 12.7 MM 7.1 MM 1.6 MM 12.7MM 7.9MM 2.4 MM 12.7MM 7.1 MM 2 MM 36231AK & 36232AK 36231AM & 36232AM 36231AP & 36232AP 36231ARLAP 36232AR2A REVERSE LAP

0,35 mm THICKNESS 2.4 MM 12.7 MM 7.1 MM 36231AW & 36232AN 2.4 MM 12.7 MM 7.1 MM 36231ANN &36232ANN (RICKLON COATED) 2 MM 7.1 MM 1 2.7 MM 36231AX & 36232AX REVERSE LAP

Two-side Trim Lapseaming Extended Toe

0.35 MM THICKNESS 36231BD & 36232BD 36231BF & 36232BF 36231BFN & 36232BF (NICKLOW COATED)

Two-side Trim Lapseaming Short Toe

0.5 MM THICKNESS 2.4MM 10.3 MM 9.5 MM 36231AL & 36232AL 035 MM THICKNESS 2.4 MM 10.3 MM 9.5 MM 36231BA & 36232BA

One- or Two-side Trim Taping Short Toe

* Reverse lap presser foot shoes used on 36220N presser foot ONLY

Spacing between shoes can vary from 0.1–0.2mm

Drawings not to scale

NICKLON® coating by Bales Mold Service Inc.

Technical line drawing of a mechanical device with multiple circular components and a central vertical support (no text or symbols)

Diagram of a mechanical component with labeled parts 1, 2, and 3, showing directional arrows.

4 Unit Special

THREAD STAND

Ref.			Amt.
No.	Part No.	Description	Req.

1. 21101W6 Thread Stand, complete 1
   *2. 21233KS Bracket Connection, marked "KS" 1
   *3. 22651CD-5 Screw, for bracket connection 2
2. 28604R Oil 1

* These parts used with pedestal.

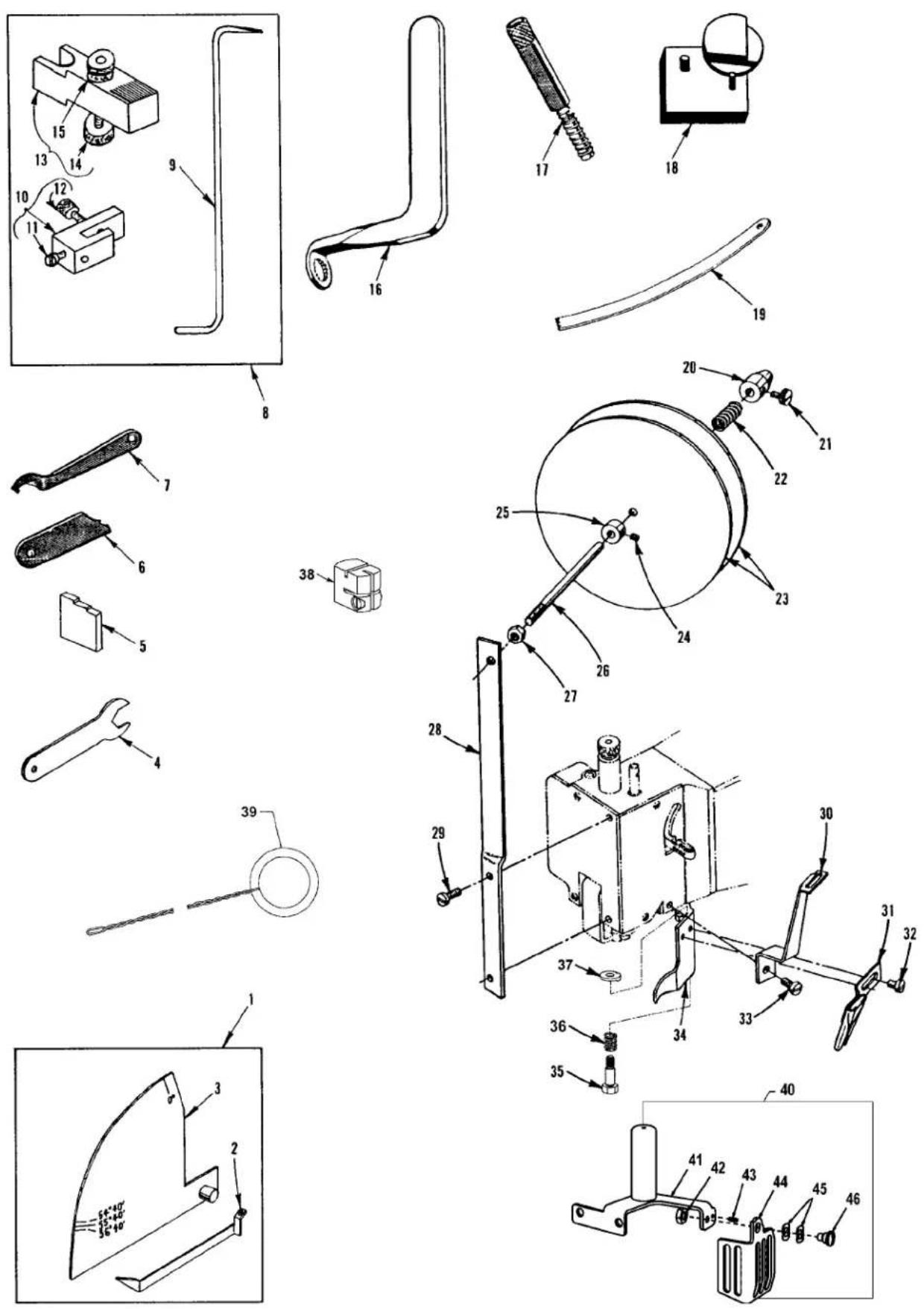

MISCELLANEOUS GAUGES & TAPE REEL PARTS

Ref.			Amt.
No.	Part No.	Description	Req.

1.	21227CN	Looper Travel Gauge, complete	1
2.	21227CM	Looper Travel Gauge Pointer	1
3.	21227CS	Looper Travel Gauge Plate	1
4.	21388AZ	Wrench, for driving link stud	1
5.	21227BU	Needle Height Gauge, for all Styles except 36200L100-60, L202-60, L210-60	1
-	21227DS	Needle Height Gauge, for Styles 36200L100-60, L202-60, L210-60	1
6.	21225F-3/16	Looper Gauge	1
-	21225F-5/32	Looper Gauge	1
-	21225-11/64	Looper Gauge	1
7.	21388Y	Spanner Wrench	1
8.	21227CG	Synchronizing Gauge, for looper and needle timing, complete	1
9.	21227CK	Synchronizing Gauge Rod	1
0.	21227CJ	Looper Clamp and Height Gauge	1
1.	22738	Screw	1
2.	22703A	Screw	1
3.	21227CH	Needle Setting Block	1
4.	14087	Thumbscrew	1
5.	1347A	Nut	1
6.	TT85	Wrench, for 3/16" square nut on screw	1
7.	21227BV	Looper Avoid Gauge	1
8.	21227CV	Cover Thread Hook Gauge	1
9.	23279D	Folder Threader	1
10.	753	Adjustable Axle Cone	1
11.	188D	Screw, for adjustable axle cone	1
12.	51292F-8	Spring, for tape holder disc	1
13.	21178	Tape Holder Disc	2
14.	88	Screw, for collar	1
15.	161	Collar	1
16.	21114W	Tape Reel Axle	1
17.	258A	Nut, for tape reel axle	1
18.	21171Z	Tape Reel Frame	1
19.	22729A	Screw, for tape reel frame	2
20.	21171AA	Tape Guide	1
21.	23401P-7/16	Tape Folder	1
22.	357	Screw, for tape folder	2
23.	28	Screw, for tape guide	1
24.	36279E	Frame Chip Guard	1
25.	22777B	Screw, for Frame Chip Guard	1
26.	36279B	Spring, for Frame Chip Guard	1
27.	36279A	Washer, for Frame Chip Guard	1
28.	21227FD	Needle Bar Torque Tool	1
29.	GR-51899	Threading Wire	1
30.	29476YN	Sewing Guard Assembly	1
31.	36283M	Mounting Bracket	1
32.	9937	Nut	1
33.	PS0200062KH	Pin	1
34.	36296C	Sewing Guard	1
35.	WZ0641510KP	Spring Washer	2
36.	22758E	Screw	1

*Indicates tape holder parts for Styles 36200T300-52, 36200T300-60

Technical diagram of a mechanical assembly with numbered components and exploded view, likely for engineering or manufacturing documentation.

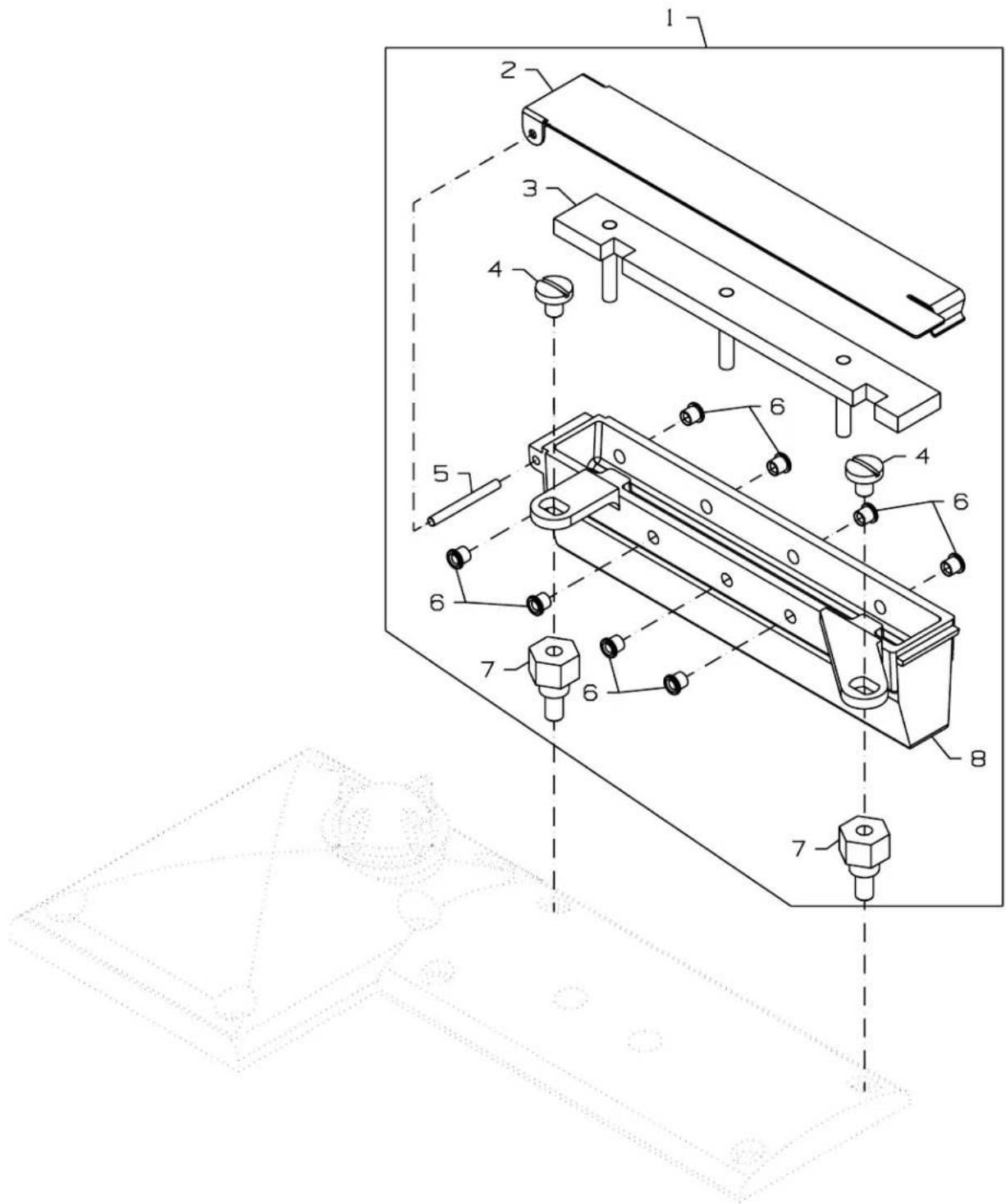

THREAD LUBRICATOR

Ref.			Amt.
No.	Part No.	Description	Req.

1. 29480AZY Needle Thread Lubricator Complete 1
2. 35893J Reservoir Cover 1
3. 666-339 Reservoir Wick 1
4. 22585C Screw 2
5. 660-219AX Pin 1
6. 50358M Eyelet 8
7. 22894BL Shoulder Screw 2
8. 35893K Reservoir 1
9. 28604W Bottle of Silicone (not shown) 1

NUMERICAL INDEX OF PARTS

Part No.	Page No.	Part No.	Page No.	Part No.	Page No.	Part No.	Page No.	Part No.	Page No.
109	35	22571A	49	22849	49, 51	35846	43	36223	31
1096	31, 53	22571B	31	22881A	37	35846B	43	36223A	31
1096	55, 57	22572B	47	22894AM	33	35850F	51	36224H	49
1096B	45, 47	22574	33	22894BK	35	35851L	47	36224K	49
11550209	31	22578H	41	22894BL	65	35851P	43	36225A	41
12865	47	22580	31	22894E	33	35851S	43	36226A	41
12934A	27, 45	22585	45	22894J	31, 35	35862A	33	36226B	41
1347A	63	22585A	31, 35	22894K	31	35866	43	36226H	41
14087	63	22585A	47	22894P	51	35866A	29	36226J	41
150	53, 55, 57	22585B	39	22894W	31, 33	33566B	29, 35	36226K	41
15037A	47	22585C	39	22894W	41, 43	35876U	49	36229A-1	49
161	63	22585C	49, 65	22894X	45	35883AL	29	36229H	37
18	41, 43, 47	22587B	33	22924708	27	35883G	51	36230AH	57
188D	63	22587E	31, 41	22931208	35	35887AE	27	36230AJ	57
21101W6	61	22587E	43	22KH	27, 49	35887M	27	36230AL	57
21114W	63	22587H	41	23279D	63	35887R	27	36230AP	57
21171AA	63	22596	49, 51	23401P-7/16	63	35887X	27	36230AR	57
21171Z	63	22596B	33	23420CZ	49	35887Z	29	36230AS	57
21178	63	22596D	29	23420DE	49	35888N	27	36230C	53, 55
21225-11/64	63	22651CD-5	61	23420DJ	49	35890E	29	36230D	53, 55
21225F-3/16	63	22652A-6	47	23423X	49	35890P	27	36230D	57
21225F-5/32	63	22653B-8	39	23423AE	49	35893G	27	36230G	55
21227BU	63	22653E-24	49	23424Z	49	35893H	27	36230J	55
21227BV	63	22703A	63	255	35	35893J	65	36230M	53
21227CG	63	22711	27	258	43	35893K	65	36230P	53
21227CH	63	22716A	49, 53	258A	35, 47, 63	35894L	31	36230R	53
21227CJ	63	22716A	57	269	41, 43, 47	35895W	31	36230S	53
21227CK	63	22729A	63	28	37, 63	35895Y	33	36230U	55
21227CM	63	22729C	41, 43	28604R	61	35896D	39	36231AK	53
21227CN	63	22729C	47	28604W	65	35897BV	31	36231AM	53
21227CS	63	22729M	45	28A	37	35897BW	31	36231AP	53
21227CV	63	22731	53, 55, 57	28C	29, 39	35897BY	33	36231AY	55
21227DS	63	22733B	29	29101J	31, 43	36203	49	36231BA	55
21227FD	63	22733G	43	29103T	31, 41	36204	27	36231BG	57
21233KS	61	22738	63	29105BH	29	36204A	27	36232AK	53
21388AZ	63	22738B	49	29472AC	31	36205A	41	36232AM	53
21388Y	63	22738C	37	29472AG	31	36205B	41	36232AP	53
21756G	31	22738G	53, 55	29476XC	27	36205H	41	36232AY	55
22-331	57	22738G	57	29476YN	63	36205J	41	36232BA	55
22504C	43	22738H	39	29476YP	39	36205M	41	36232BG	57
22513	37	22738P	53, 55	29478CS	41	36205N	41	36233	35
22516A	27	22738P	57	29478CT	43	36208A	47	36234C	41
22517	35	22747	41, 47	29478CU	47	36210	47	36234E	41
22519	35	22758E	39, 63	29478CZ	51	36215	33	36234F	41
22519F	31	22759A	27	29480AZY	65	36217A	37	36234G	41
22524	37, 39	22766	33, 51	318	39	36218A52	39	36234N	41
22528	41	22767A	45	33174B	41	36218A60	39	36236	43
22539AA	27	22768B	29	357	63	36220A	55	36236A	43
22539AL	51	22777B	37, 63	35751G	47	36220AE	57	36236B	43
22539M	27	22781G	41	35761D	29	36220AF	57	36236C	43
22539T	29	22784F	35	35763F	33	36220B	55	36236E	41
22560A	39, 51	22791E	51	35763G	33	36220E	53	36236F	41
22562A	49, 53	22795B	47	35766B	43	36220H	53	36236G	41
22562A	55, 57	22797	33	35767	37	36220K	55	36236H	41, 43
22564	33	22798	49	35768C	51	36220M	53	36236J	43
22564B	27, 29	22799N	45	35781D	29	36220V	53	36236K	43
22564D	47	22801	31, 49	35792	35	36220W	53	36237	43
22565A	31, 53	22829	29	35792T	35	36221N	33	36237A	43
22565A	55, 57	22839	27	35816	33	36221P	33	36237E	51
22569B	27	22839D	35	35836C	43	36222A	33	36237J	51
22569G	45	22845M	41	35842J	43	36222C	31	36237K	51

NUMERICAL INDEX OF PARTS

Part No.	Page No.	Part No.	Page No.	Part No.	Page No.	Part No.	Page No.	Part No.	Page No.
36237L	51	36260C	29	36280T	35	36297J	31	660-935	27
36237M	39	36261	45	36280U	35	36297N	31	661-150	51
36238	51	36261A	31	36280V	35	36298G	35	664F-16	39
36238F	51	36263	33	36280W	35	36298H	35	666-214	33
36240	49	36264B	37	36280X	35	39145A	47	666-338	31
36240J	49	36264D	33	36282	51	39543N	47	666-339	65
36244	41	36264E	37	36283B	49	39592AK	35	666-340A	39
36244A	41	36264F	37	36283C	49	39593C	27	667D-16	49
36245B	47	36266	35	36283E	49	40-107	49	671B3	31
36245D	45	36266A	35	36283F	49	41071J	51	73A	27, 29, 49
36245E	45	36270C	45	36283G	49	41071G	27, 31	73C	27
36245F	45	36271	29	36283H	49	41255B	41, 47	753	63
36245H	45	36271A	29	36283J	49	421D38	45	77	33, 43, 47
36245J	45	36271E	29	36283K	51	43246	43	8372A	37, 39
36245K	45	36271G	29	36283M	63	4761	47	86	35
36247	33	36271H	29	36283P	39	50311C	33	87A	51
36248	47	36273A	45	36283R	35	50358M	65	88	47, 63
36249	47	36273C	45	36283S	35	50393-140	31	90	27, 31
36249A	51	36273D	45	36283T	35	50393-260	33	92201	29
36249B	47	36273G	45	36284C	51	50393CS	33	93	27, 35
36250	53, 55, 57	36273J	45	36284E	49	50393KM	33	93A	27
36250K	53, 55	36273K	45	36284F	51	51235G	45	94	53, 55, 57
36250L	53, 55	36273P	45	36284M	27	51259	37	97A	47
36250M	53, 55	36273Q	45	36284Q	51	51292F-2	35	98A	49
36250K	57	36273R	37	36284R	51	51292F-4	35	9937	39, 63
36250L	57	36273S	37	36284S	29	51292F-5	35	998-358E	27
36250M	57	36273T	37	36284T	27	51292F-8	63	999-196	51
36251AE	45	36273U	45	36284Z	49	52336	47	C36224A	49
36251AC	53, 55	36275	45	36286	51	52841H	45	C36224J	49
36251AC	57	36275A	45	36289	37	52958C	27	C36224N	49
36251AD	53, 55	36275B	45	36289A	39	52958F	27	C36224P	49
36251AD	57	36278	37	36289B	37	531	49, 51	C36224Q	49
36251B	45	36278A	37	36289H	37	53636C	47	C50092S	35
36251C	45	36278C	47	36289J	39	53678N	35	CO67E	27
36251E	53, 55	36278F	39	36289K	27	538	51	CQ20000000	41
36251E	57	36278J	45	36290B	29	604	47	CQ20000000	45
36251FE	53	36278K	37	36290E	39	6042A	27, 39, 43	GR-36245G	45
36251E	53, 55	36278L	39	36290G	29	605A	45	GR-36284	49
36251E	57	36278M	39	36290M	27	61321J	33	GR-51899	63
36251H	53, 55	36278P	37	36292K	35	61321L	33	J87J	51
36251H	57	36278R	39	36292M	35	62238A	41, 43	LA528	27
36251J	53, 55	36278S	37	36292N	35	62271B	29	PS0200062KH	63
36251J	57	36278T	39	36292Q	35	660-1019	45	SS7090910TP	35
36251K	49, 53	36278U	39	36293B	27	660-1115	51	SS7110510SP	29
36251K	55, 57	36279A	63	36293E	27	660-1117	51	SS7110840SP	35
36251L	53, 55	36279B	63	36293G	51	660-1130	39	SS7111120TP	33
36251L	57	36279C	53, 55	36293K	31	660-1131	39	SQ1110401MZ	33
36251M	33	36279P	57	36293L	31	660-1132	29	TT85	63
36251N	33	36279D	53, 55	36293M	31	660-1146	27	W56392F	35
36251V	45	36279D	57	36293N	29	660-206	29	WZ0641510KP	39
36251W	53, 55	36279E	63	36293P	33	660-207	31, 43	WZ0641510KP	63
36251W	57	36279H	55	36293Q	33	660-212	27
36253A	47	36279L	37	36293R	33	660-215	47
36253B	47	36279M	37	36293S	33	660-219AX	65
36253G	47	36279N	37	36293T	31	660-219D	45
36254A	33	36280A	35	36294E	39	660-219P	31
36254B	33	36280C	35	36294F	37	660-220	41, 51
36256	27	36280D	35	36294G	31	660-221	47
36256A	27	36280J	37	36296A	49	660-254C	35
36256B	51	36280N	35	36296B	49	660-264	35
36260B	29	36280S	35	36296C	63	660-739	37

Union Special Corporation

Corporate Office

One Union Special Plaza

Huntley, IL 60142

Phone: 847·669·5101

Fax: 847·669·4454

Union Special GmbH

EuropeanDistributionCenter

Raiffeisenstrasse 3

D-71696 Möglingen, Germany

Tel: 49·07141·247·0

Fax: 49·07141·247·100

JUKI CORPORATION

INTERNATIONAL SALES DIVISION

8-2-1, KOKURYO - CHO,
