USER MANUAL Zena FTXJ50PVMAS DAIKIN
DAIKIN ROOM AIR CONDITIONER
OPERATION MANUAL
INVERTER R32
MODELS
FTXJ25PVMAW
FTXJ35PVMAW
FTXJ50PVMAW
FTXJ25PVMAS
FTXJ35PVMAS
FTXJ50PVMAS
Features
Enhanced comfort and energy E savings savings

INTELLIGENT EYE
The INTELLIGENT EYE sensor detects human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation.
Page 15

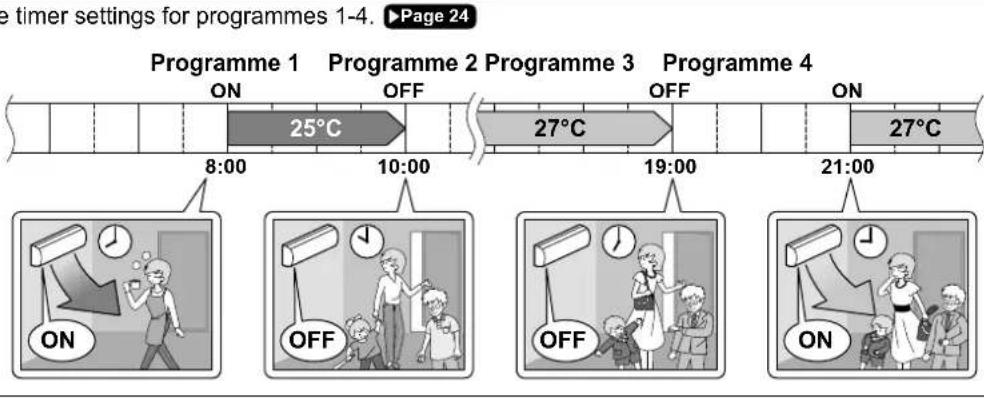

WEEKLY TIMER

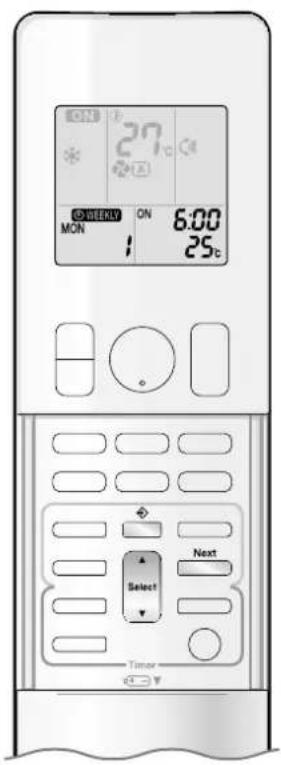

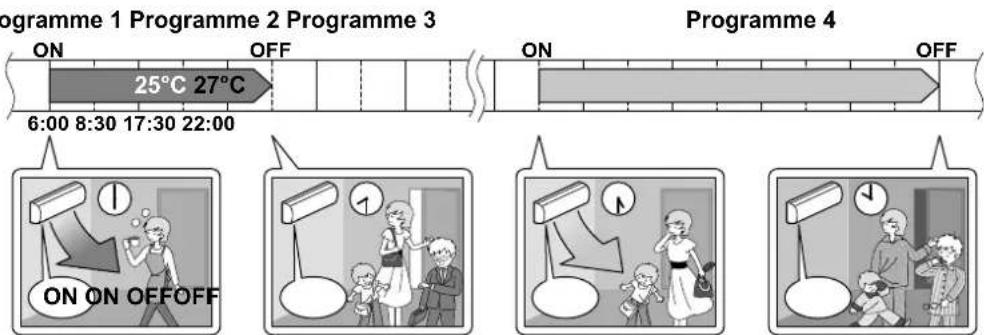

Up to 4 timer settings can be saved for each day of the week according to your family's life style. The WEEKLY TIMER allows you to set on/off times and the desired temperature.
Page 23
Other functions Other functions

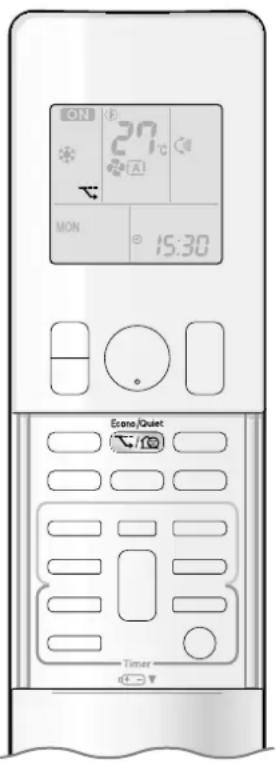

COMFORT AIRFLOW OUTDOOR UNIT QNIET
The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on your body. ▶Page 15

OUTDOOR UNIT QUIET operation assures a low noise level of the outdoor unit. This function is useful to maintain a quiet neighbourhood.
▶Page 19
Contents
Read Before Operation
Safety Precautions 3
Names of Parts 5
Preparation Before Operation 9
Operation

Adjusting the Airflow Direction and Rate 13

COMFORT AIRFLOW / INTELLIGENT EYE Operation .....15

POWERFUL Operation ....18

ECONO / OUTDOOR UNIT QUIET Operation....19

OFF TIMER Operation 21

ON TIMER Operation ......22

WEEKLY TIMER Operation ......23
Care
Care and Cleaning 29
Toubleshooting

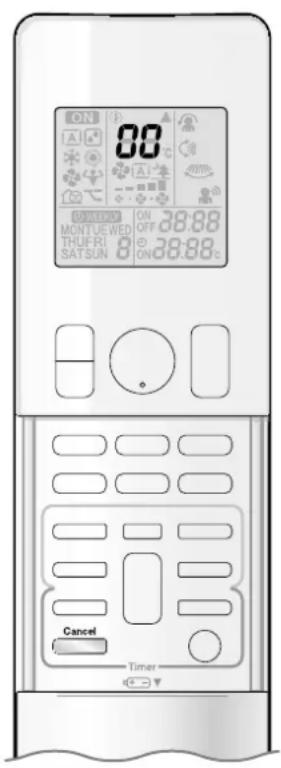

Troubleshooting....33
ECONO
This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air conditioner and other electrical devices simultaneously on a shared electrical circuit. ▶Page 19
Safety Precautions

Read the precautions in this manual carefully before operating the unit.

This appliance is filled with R32.
- Keep this manual where the user can easily find it.
- The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail.

WARNING
Failure to follow these instructions properly may result in personal injury or loss of life.

CAUTION
Failure to follow these instructions properly may result in property damage or personal injury, which may be serious depending on the circumstances.

Never attempt.

Be sure to follow the instructions.

Be sure to establish an earth connection.
- After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual.

WARNING

- Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- The appliance must be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
- Do not pierce or burn.
Be aware that refrigerants may not contain an odour. - The appliance must be installed, operated and stored in a room with a floor area larger than 4.7m^2 .
- To avoid fire, explosion or injury, do not operate the unit when harmful gases (e.g. flammable or corrosive) are detected near the unit.
- Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too cool or too warm, can be harmful to your physical condition and health.
- Do not place objects, including rods, your fingers, etc., in the air inlet or outlet. Product damage or personal injury may result due to contact with the air conditioner's high-speed fan blades.
- Do not attempt to repair, dismantle, reinstall or modify the air conditioner yourself as this may result in water leakage, electric shocks or fire hazards.
- Do not use flammable spray near the air conditioner, or otherwise fire may result.
- Do not use a refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and personal injury.
- To avoid electric shocks, do not operate with wet hands.

- Beware of fire in case of refrigerant leakage. If the air conditioner is not operating correctly, i.e. not generating cool or warm air, refrigerant leakage could be the cause. Consult your dealer for assistance. The refrigerant within the air conditioner is safe and normally does not leak. However, in the event of a leakage, contact with a naked burner, heater or cooker may result in generation of noxious gas. Do not use the air conditioner until a qualified service person confirms that the leakage has been repaired.
- Do not attempt to install or repair the air conditioner yourself. Improper workmanship may result in water leakage, electric shocks or fire hazards. Please contact your local dealer or qualified personnel for installation and maintenance work.
- If the air conditioner is malfunctioning (giving off a burning odour, etc.), turn off power to the unit and contact your local dealer. Continued operation under such circumstances may result in a failure, electric shocks or fire hazards.
- Be sure to install an earth leakage circuit breaker. Failure to install an earth leakage circuit breaker may result in electric shocks or fire.

- Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead. Imperfect earthing may result in electric shocks.

CAUTION

- Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely affect the performance, quality and/or longevity of the object concerned.
- Do not expose plants or animals directly to the airflow from the unit as this may cause adverse effects.
- Do not place appliances that produce naked flames in places exposed to the airflow from the unit as this may impair combustion of the burner.
- Do not block the air inlets nor outlets. Impaired airflow may result in insufficient performance or trouble.

CAUTION

- Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage.
- Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned.
- After prolonged use, check the unit stand and its mounts for damage. If they are left in a damaged condition, the unit may fall and cause injury.
- To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units.
- The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and harm to health may result.
- Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental operation by a child may result in impairment of bodily functions and harm health.
- Avoid impacts to the indoor and outdoor units, or otherwise product damage may result.
- Do not place flammable items, such as spray cans, within 1m of the air outlet.
The spray cans may explode as a result of hot air from the indoor or outdoor units. - Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shocks or fire.
- Do not wash the air conditioner with water, as this may result in electric shocks or fire.
- Do not place water containers (vases, etc.) above the unit, as this may result in electric shocks or fire hazards if they should topple over.

- To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used together with the air conditioner.
- Before cleaning, be sure to stop unit operation, and turn off the circuit breaker. Otherwise, an electric shock and injury may result.
- Only connect the air conditioner to the specified power supply circuit. Power supplies other than the one specified may result in electric shocks, overheating and fires.
- Arrange the drain hose to ensure smooth drainage. Imperfect drainage may cause wetting of the building, furniture, etc.
- Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around the unit.
Leaves are a hotbed for small animals which can enter the unit. Once inside the unit, such animals can cause malfunctions, smoke or fire if they come into contact with electrical parts. - Do not place objects around the indoor unit.
Doing so may have an adverse influence on the performance, product quality, and life of the air conditioner. - This appliance is not intended to be used by persons with reduced physical, sensory or mental capabilities, or with lack of operation knowledge, unless they have been given supervision or instruction concerning the appliance use by person responsible for their safety.
Keep out of children's reach to ensure that they do not play with the appliance.
P004
Installation site
To install the air conditioner in the following types of environments, consult the dealer. ■
Places with an oily environment or where steam or soot occurs.
Salty environment such as coastal areas.
- Places where sulfide gas occurs such as hot springs.
- Places where snow may block the outdoor unit.
Be sure to follow the instructions below.
- The indoor unit is at least 1m away from any television or radio set (unit may cause interference with the picture or sound).
- The drain from the outdoor unit must be discharged to a place of good drainage.
Consider nuisance to your neighbours from noises
For installation, choose a place as described below.
- A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.
- A place from where the air discharged from the outdoor unit or the operation noise will not annoy your neighbours.
Electrical work
■ For power supply, be sure to use a separate power circuit dedicated to the air conditioner.
System relocation
■ Relocating the air conditioner requires specialized knowledge and skills. Please consult the dealer if relocation is necessary for moving or remodeling.
Names of Parts
Indoor Unit
Appearance of the indoor unit may differ.
INTELLIGENT EYE sensor
• Detects the movements of people and automatically switches between normal operation and energy saving operation. ▶Page 15-17
Indoor temperature sensor
• Detects the air temperature around the unit.
Display

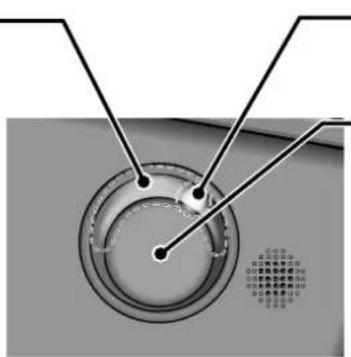

Multi-monitor lamp and TIMER lamp
Multi-monitor lamp
- The lamp colour changes according to the operation.
| Operation | Multi-monitor lamp |
| AUTO | Red/Blue |
| DRY | Green |
| COOL | Blue |
| HEAT | Red |
| FAN | White |
| TIMER | Orange |
Signal receiver and Indoor unit ON/OFF switch
Signal receiver
Receives signals from the remote • controller. When the unit receives a signal, you will • hear a beep sound.
| Case Sound type |
| Operation start beep-beep |
| Setting changed beep |
| Operation stop long beep |
TIMER lamp

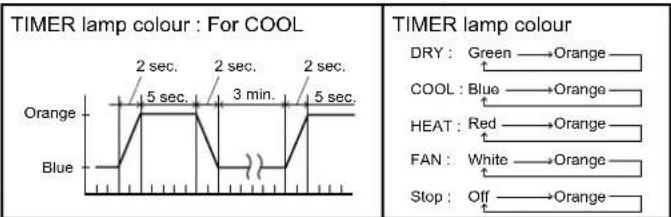

When operation by timer has been set, the multi-monitor lamp periodically changes to orange. After lighting orange for about 5 seconds, it returns to the colour of the operation mode. The multi-monitor lamp will turn orange on and off in cyclic manner while the air conditioner is not in operation.
Press this switch once to start operation.
Press once again to stop it.
For the operation mode setting, refer to the following table.
| Mode Temperature setting Airflow rate | |
| AUTO 25°C AUTO | |
This switch can be used when the remote controller is missing.

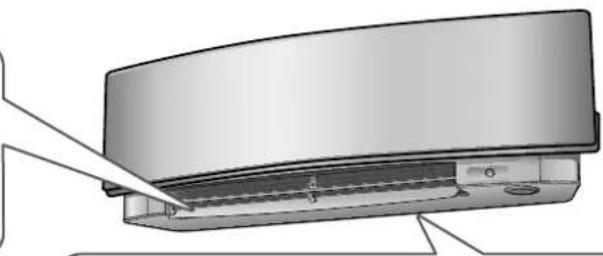

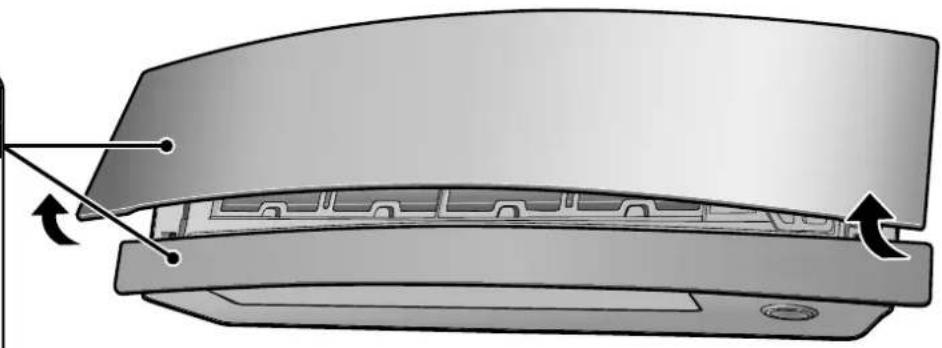

Open the upper front panel


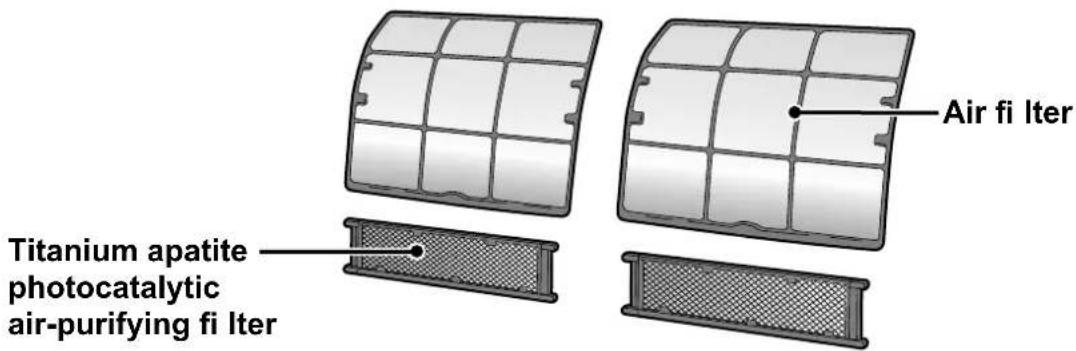

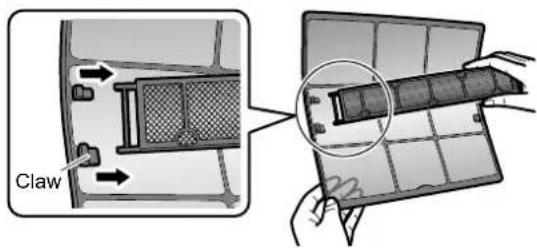

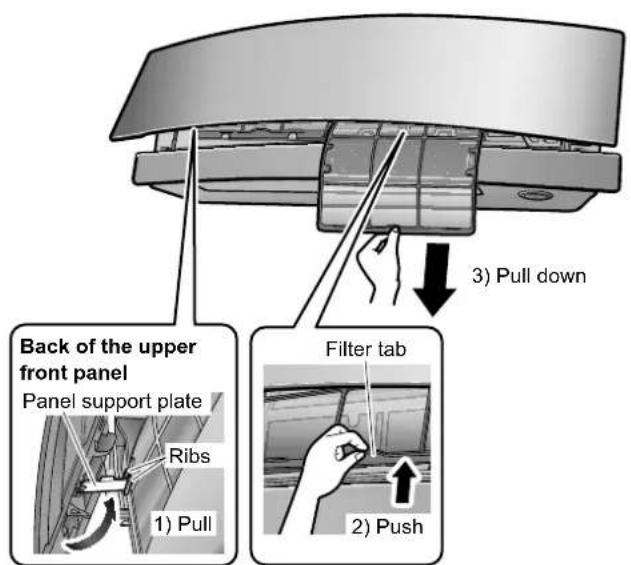

Air fi Iter Titanium apatite photocatalytic air-purifying fi IterOutdoor Unit

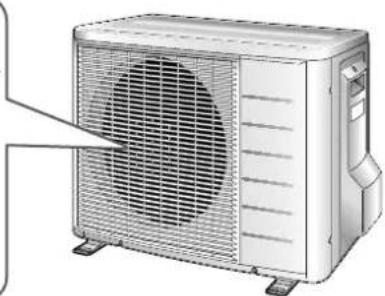

The appearance of the outdoor unit may differ between different models.


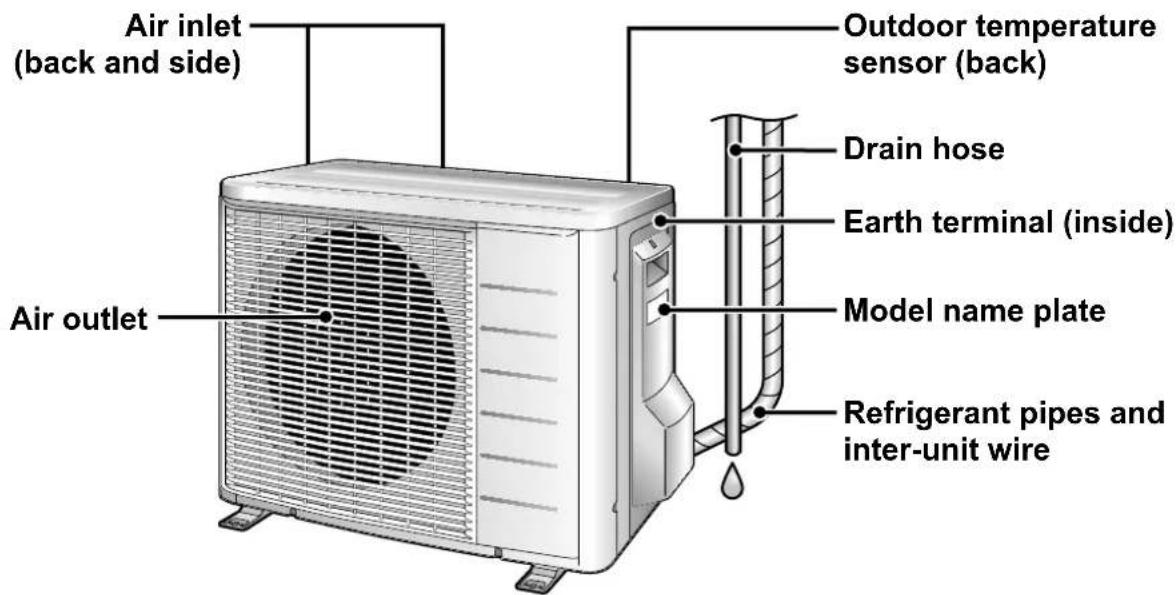

Air inlet (back and side) Outdoor temperature sensor (back) Drain hose Earth terminal (inside) Model name plate Refrigerant pipes and inter-unit wire Air outletNames of Parts
Remote Controller
Signal transmitter
Do not drop the remote controller. Do not get it wet.
The maximum transmission distance is about 6m.
Make sure that there are no obstacles within 50cm under the signal receiver.
Such obstacles, if any, may have an adverse influence on the reception performance of the receiver and the reception distance may be shortened.

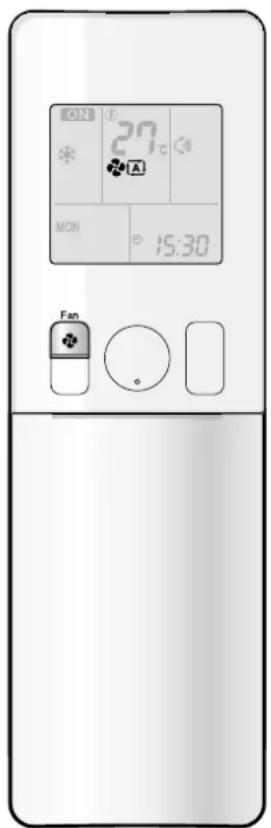

FAN setting button
Selects the airflow rate setting.
▶Page 14

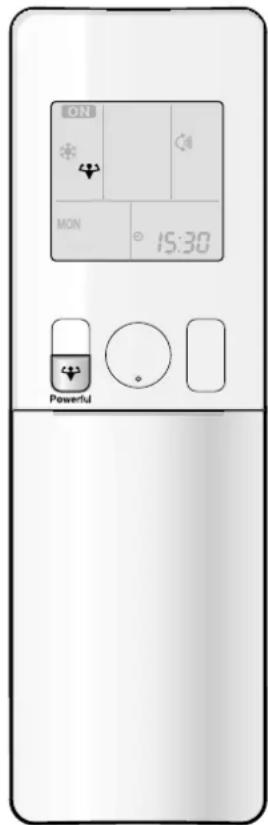

POWERFUL button
POWERFUL operation. ▶Page 18
Model ARC466A9
Display (LCD)
Displays the current settings. (In this illustration, each section is shown with its displays on for the purpose of explanation.)
TEMPERATURE adjustment button
Changes the temperature setting.
▶Page 12
ON/OFF button
Press this button once to start operation.
Press once again to stop it. ▶Page 11
Front cover
Open the front cover. ▶Page 8
Open the front cover ■


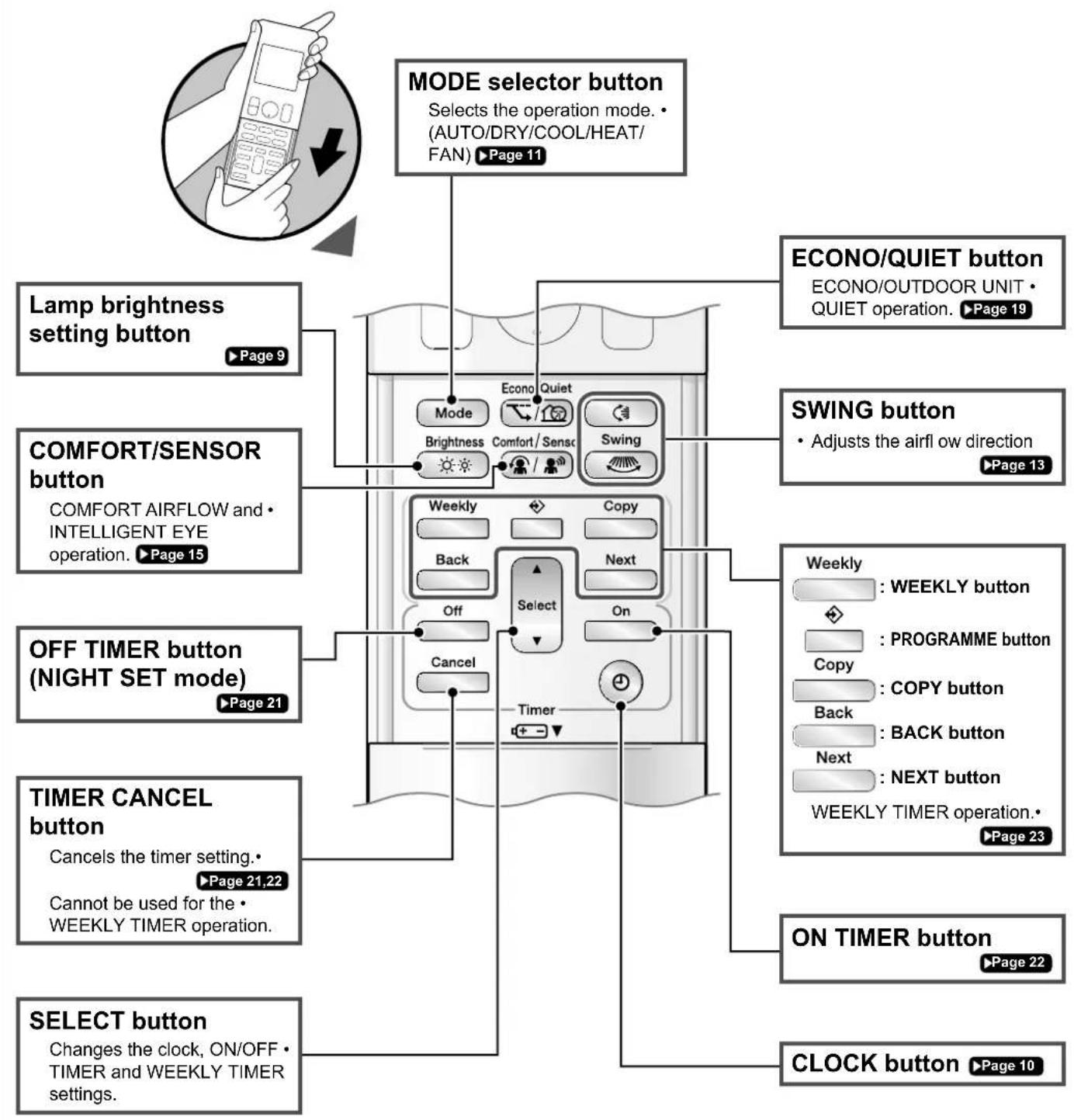

MODE selector button Selects the operation mode. (AUTO/DRY/COOL/HEAT/ FAN) ▶ Page 11 Lamp brightness setting button ▶ Page 9 ECONO/QUIET button ECONO/OUTDOOR UNIT • QUIET operation. ▶ Page 19 COMFORT/SENSOR button COMFORT AIRFLOW and • INTELLIGENT EYE operation. ▶ Page 15 SWING button • Adjusts the airflow direction ▶ Page 13 OFF TIMER button (NIGHT SET mode) ▶ Page 21 Timer CANCEL button Cancels the timer setting. ▶ Page 21,22 Cannot be used for the • WEEKLY TIMER operation. SELECT button Changes the clock, ON/OFF • TIMER and WEEKLY TIMER settings. ON TIMER button ▶ Page 22 CLOCK button ▶ Page 10Preparation Before Operation
Slide the front cover to take it off.1.
Insert 2 dry batteries AAA.LR03 (alkaline).2.
Replace the front cover.3.
■ To fix the remote controller holder to a wall


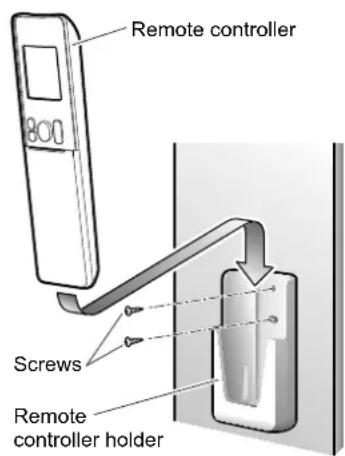

Remote controller Screws Remote controller holderChoose a place from where the signals 1. reach the unit.
- Fix the holder to a wall, a pillar, or similar location with the screws supplied with the holder.
- Place the remote controller in the remote controller holder.
To set the luminance of the display ■
The luminance of the indoor unit display can be set.
NOTE
Notes on batterie
- When replacing the batteries, use batteries of the same type, and replace both old batteries together.
- When the system is not used for a long time, take the batteries out.
- The batteries will last for about 1 year. If the remote controller display begins to fade and the possible transmission range becomes shorter within a year, however, replace both batteries with new, size AAA.LR03 (alkaline).
- The batteries supplied with the remote controller are for initial operation.
The batteries may run out in less than 1 year.
■ Notes on remote controller
- Never expose the remote controller to direct sunlight.
- Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
- Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room. Consult the shop if that is the case.
- If the remote controller signals happen to operate another appliance, move that appliance to somewhere else, or consult the service shop.


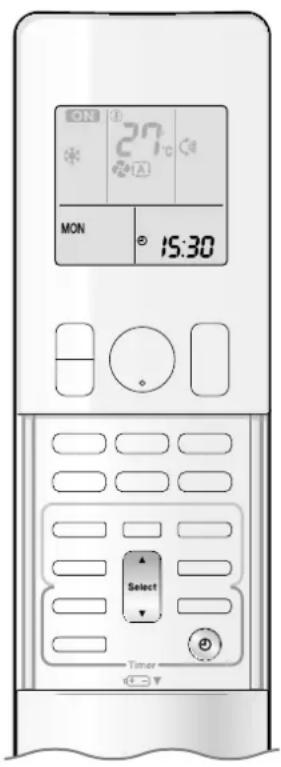

ON 27°C MON 15:30 Select Timer■ Turn on the circuit breaker
- After the power is turned on, the flaps of the indoor unit open and close once to set the reference position.
To set the clock ■


"0.08 is displayed on the LCD.
"MONand" blink.
-
Press Select to set the current day of the week.
-
Press

" ⊕ " blinks.
- Press Select to set the clock to the present time.
- Holding down ▲ or ▼ rapidly increases or decreases the displayed time.

- Point the remote controller at the indoor unit when pressing the buttons.

“•” blinks.
NOTE
Note on setting the clock ■
- If the indoor unit's internal clock is not set to the correct time, the ON/OFF TIMER and WEEKLY TIMER will not operate punctually.
From the next time on, the air conditioner will operate with the same operation mode.
■ To start operation

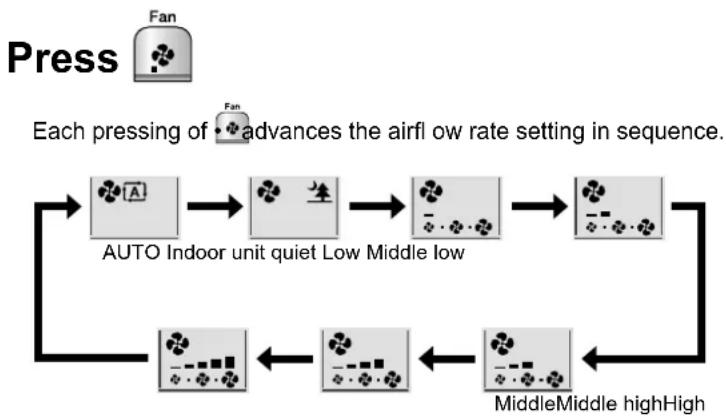

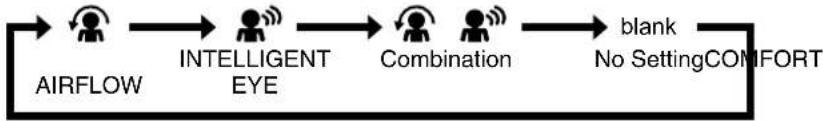

Press 1 Mode and select an operation mode.
Each pressing of the button advances the mode setting in sequence.
Press

- “ON displayed on the LCD.
The multi-monitor lamp lights up.
The colour of the lamp varies depending on the operation mode.

Display
| Operation | Multi-monitor lamp |
| AUTO | Red/Blue |
| DRY | Green |
| COOL | Blue |
| HEAT | Red |
| FAN | White |
To stop operation ■
Press ⏻ again.
- “ON” disappears from the LCD.
• The multi-monitor lamp goes off.
NOTE
| MODE | Notes on each operation mode |
| HEAT | Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is recommended to use another heating appliance in combination with the air conditioner.The heat pump system heats the room by circulating hot air around all parts of the room. After the start of HEAT operation, it takes some time before the room gets warmer.In HEAT operation, frost may occur on the outdoor unit and lower the heating capacity. In that case, the system switches into defrosting operation to take away the frost.During defrosting operation, hot air does not flow out of indoor unit. |
| COOL | This air conditioner cools the room by releasing the heat in the room outside.Therefore, the cooling performance of the air conditioner may be degraded if the outdoor temperature is high |
| DRY | Eliminates humidity while maintaining the indoor temperature as much as possible. It automatically controls temperature and airflow rate, so manual adjustment of these functions is unavailable. |
| AUTO | In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the indoor temperature and starts the operation.The system automatically reselects setting at a regular interval to bring the indoor temperature to the user-setting level. |
| FAN | This mode is valid for fan only. |
Press

The displayed items on the LCD will change whenever either one of the buttons is • pressed.
| COOL operation HEAT operation AUTO operation DRY or FAN operation | |||
| 18-32°C 10-30°C 18-30°C | The temperature setting cannot be changed. | ||
| Press ▲ to raise the temperature and press ▼ to lower the temperature. | |||
Operating conditions
Recommended temperature setting ■
- For cooling: 26-28°C
- For heating: 20-24°C
Tips for saving energy
- Be careful not to cool (heat) the room too much.
Keeping the temperature setting at a moderate level helps save energy. - Cover windows with a blind or a curtain.
Blocking sunlight and air from outdoors increases the cooling (heating) effect. - Clogged air filters cause inefficient operation and waste energy. Clean them once in about every 2 weeks. ▶Page 30
Notes on the operating conditions
- The air conditioner always consumes a small amount of electricity even while it is not operating.
- If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn off the circuit breaker.
- Use the air conditioner in the following conditions.
- Operation outside the humidity or temperature range described in the table may cause a safety device to disable the system.
| MODE | Operating conditions | If operation is continued out of this range |
| COOL | Outdoor temperature : -10-46°CIndoor temperature : 18-32°CIndoor humidity : 80% max. | A safety device may work to stop the operation.Condensation may occur on the indoor unit and drip. |
| HEAT | Outdoor temperature : -15-24°CIndoor temperature : 10-30°C | A safety device may work to stop the operation. |
| DRY | Outdoor temperature : -10-46°CIndoor temperature : 18-32°CIndoor humidity : 80% max. | A safety device may work to stop the operation.Condensation may occur on the indoor unit and drip. |

Adjusting the Airflow Direction and Rate
To start auto swing
Up and down airflow direction
Press

“💡” is displayed on the LCD.
The fl aps (horizontal blades) will begin to swing.
Right and left airflow direction
Press

“is displayed on the LCD.
The louvres (vertical blades) will begin to swing.
The 3-D airflow direction
Press


“💡” and “💡” are displayed on the LCD.
• The fl aps and louvres move in turn.
- To cancel 3-D airflow, press either 📄 or 🌐 again. The flaps or louvres will stop moving.
- This function is effective while the flaps or louvres are in auto swing mode.
Press 🏠 and 🌐 when the flaps or louvres reach the desired position.
• In the 3-D airflow, the flaps and louvres move in turn.
- “◀” or “◀” disappears from the LCD.
- When the airflow is set to “♠”, quiet operation starts and noise from the indoor unit will become quieter.
- In the quiet operation mode, the airflow rate is set to a weak level.
- If the temperature does not reach the desired point, change the airflow rate setting.
- In DRY operation, the airflow rate setting is not variable.
NOTE
■ Note on the angles of the flaps
- The flaps swinging range depends on the operation. (See the figure.)
- Using 3-D airflow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling, throughout the room, preventing areas of cold and hot developing.
■ Notes on airflow rate setting
- At smaller airflow rates, the cooling (heating) effect is also smaller.
- If the air conditioner is operated in COOL or DRY operation with the flaps kept stopped in the downward direction, the flaps will automatically start operating in approximately an hour in order to prevent dew condensation.

CAUTION
• Always use a remote controller to adjust the angles of the flaps and louvres.
- If you attempt to move the flaps and louvres forcibly by hand when they are swinging, the mechanism may be damaged.
- Inside the air outlet, a fan is rotating at a high speed.
COMFORT AIRFLOW / INTELLIGENT EYE Operation
COMFORT AIRFLOW operation
The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on the occupants in the room.
The INTELLIGENT EYE sensor detects human movement and adjusts the right and left airflow direction to avoid blowing air directly on the person.
If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor works differently depending on the situation.
[Example]
A person is detected in area 1. ■
![DAIKIN Zena FTXJ50PVMAS - [Example] - 1](/content/2026/06/1210879/images/3d255c9f96fde6910ba5f315f2710b4791151e0aedb10b7adf314eb3a837b7ba.jpg)
![DAIKIN Zena FTXJ50PVMAS - [Example] - 2](/content/2026/06/1210879/images/0fe68869b60c89e50fb01b7ab023e0480aad3bd31838799158d08859a6a54bbc.jpg)
A person is detected in area 2. ■
![DAIKIN Zena FTXJ50PVMAS - [Example] - 3](/content/2026/06/1210879/images/11bfaa39904fa77066661fdc68736a18e7c83e7eaadba2c05eac97292441d9ef.jpg)
![DAIKIN Zena FTXJ50PVMAS - [Example] - 4](/content/2026/06/1210879/images/528c0e204c85cd3399017dde4220fb886a7404df2a79d0c25d44e04372c00a48.jpg)
*The airflow direction may differ from the illustrated direction depending on the actions and movements of the people in the areas.
INTELLIGENT EYE operation is useful for energy saving
■nergy saving operation
- If no presence detected in the room for 20 minutes, the energy saving operation will start.
- This operation changes the temperature -2^ in HEAT / +2^ in COOL / +2^ in DRY operation from set temperature.
When the room temperature exceeds 30^ C, the operation changes the temperature +1^ C in COOL / +1^ C in DRY operation from set temperature. - This operation decreases the airflow rate slightly in FAN operation only.
Combination of COMFORT AIRFLOW operation and INTELLIGENT EYE operation
The air conditioner can go into operation with the COMFORT AIRFLOW and INTELLIGENT EYE operations combined.

Comfort/Sensor
Press and select the desired mode.
Comfort/Sensor
Each time • is pressed, a different setting option is displayed on the LCD. The INTELLIGENT EYE lamp lights green.

Display
By selecting “💡” from the following icons, the air conditioner will switch to COMFORT AIRFLOW operation combined with INTELLIGENT EYE operation.
- When the flaps (horizontal blades) are swinging, selecting any of the modes above will cause the flaps (horizontal blades) to stop.
The lamp lights when human movement is detected.
COMFORT AIRFLOW / INTELLIGENT EYE operation settings
| Display Operation mode | Explanation | |
| COMFORT AIRFLOW | The flaps adjust the airflow direction upward while cooling, downward while heating. ▶Page 15 | |
| INTELLIGENT EYE | The sensor detects the movement of people in the sensing areas and the louvres adjust the airflow direction to an area where people are not present. When there are no people in the sensing areas, the air conditioner switches to the energy-saving mode. ▶Page 15 | |
| COMFORT AIRFLOW and INTELLIGENT EYE | The air conditioner will be in COMFORT AIRFLOW operation combined with INTELLIGENT EYE operation. ▶Page 15 | |
| Blank | No function | - |
■ To cancel operation
Comfort/Sensor
Press until no icon is displayed.
• The INTELLIGENT EYE lamp goes off.
NOTE
Notes on COMFORT AIRFLOW operation ■
- The position of the flaps will change, preventing air from blowing directly on the occupants of the room.
POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
- The airflow rate will be set to AUTO. If the up and down airflow direction is selected, COMFORT AIRFLOW operation will be cancelled.
Notes on INTELLIGENT EYE operation ■
Application range is as follows.
Vertical angle 90° (Side view)

Horizontal angle 110° (Top view)

- While the air conditioner is in INTELLIGENT EYE operation, the louvres adjust the airflow direction if there are people in the sensing areas of the INTELLIGENT EYE so that the leftward or rightward airflow will not be directed to the people.
If no people are detected in either area 1 or 2 for 20 minutes, the air conditioner switches to the energy-saving mode with the set temperature shifted by 2^ C.
The air conditioner may switch to the energy-saving operation even if there are people in the areas.
This may occur depending on the clothes the people are wearing, if there is no movement of the people in the areas.
- The airflow direction from the louvres will be leftward if there are people in both areas 1 and 2. The air will also flow left if there is a person right in front of the sensor as the sensor judges that there are people in both areas.
- Due to the position of the sensor, people might be exposed to the airflow of the indoor unit if they are close to the front side of the indoor unit. If there are people close to the front side of the indoor unit or in both areas, it is recommended to use the COMFORT AIRFLOW and INTELLIGENT EYE operations simultaneously. Using both modes together, the air conditioner will not direct the airflow towards the people.
The sensor may not detect moving objects further than 7m away. (Please see the application range.)
- Sensor detection sensitivity changes according to the indoor unit location, the speed of passers-by, temperature range, etc.
- The sensor could also mistakenly detect pets, sunlight, fluttering curtains and light reflected off of mirrors as passers-by.
- INTELLIGENT EYE operation will not switch on during POWERFUL operation.
- NIGHT SET mode ▶Page 21 will not switch on during use of INTELLIGENT EYE operation.
■ Notes on combining COMFORT AIRFLOW operation and INTELLIGENT EYE operation
- The airflow rate will be set to AUTO. If the up and down airflow direction is selected, COMFORT AIRFLOW operation will be canceled. Priority is given to the function of whichever button is pressed last.
- When the INTELLIGENT EYE sensor detects the movement of people, it adjusts the airflow direction upward (while in COOL operation) and downward (while in HEAT operation), by adjusting the flaps. When the sensor detects people, the louvres will direct the airflow in such a way that it will not be blown directly on them. If there are no people, the air conditioner will switch to energy-saving operation after 20 minutes.

CAUTION
- Do not place large objects near the INTELLIGENT EYE sensor.
Also keep heating units and humidifiers outside the sensor's detection area. This sensor can detect undesirable objects. - Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.
To start POWERFUL operation ■
Press during operation.
“◀” is displayed on the LCD.
POWERFUL operation ends in 20 minutes. Then the system automatically operates • again with the previous settings which were used before POWERFUL operation.
To cancel POWERFUL operation
Press again.
“◀” disappears from the LCD.
[Example]
NOTE
■ Notes on POWERFUL operation
- When using POWERFUL operation, there are some functions which are not available.
- POWERFUL operation cannot be used together with ECONO, COMFORT AIRFLOW or OUTDOOR UNIT QUIET operation. Priority is given to the function of whichever button is pressed last.
- POWERFUL operation can only be set when the unit is running. Pressing ⏻ causes the settings to be cancelled, and “▼” disappears from the LCD.
- POWERFUL operation will not increase the capacity of the air conditioner if the air conditioner is already in operation with its maximum capacity demonstrated.
• In COOL and HEAT operation
To maximize the cooling (heating) effect, the capacity of outdoor unit increases and the airflow rate becomes fixed at the maximum setting. The temperature and airflow settings cannot be changed.
• In DRY operation
The temperature setting is lowered by 2.5^ C and the airflow rate is slightly increased.
- In FAN operation
The airflow rate is fixed at the maximum setting.
• In AUTO operation
To maximize the cooling (heating) effect, the capacity of outdoor unit is increased and the airflow rate is fixed to the maximum setting.
ECONO / OUTDOOR UNIT QUIET Operation
ECONO operation
ECONO operation is a function which enables efficient operation by limiting the maximum power consumption value.
This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.
[Example]
Normal operation ECONO operation
![DAIKIN Zena FTXJ50PVMAS - [Example] - 1](/content/2026/06/1210879/images/1e967e44840082306f0bfd08c9e47b0d5bc8a5347ec48a9b5898308415b3d095.jpg)
![DAIKIN Zena FTXJ50PVMAS - [Example] - 2](/content/2026/06/1210879/images/04e9f3211266989b0f3ecbf87485028f4b1564714b91db159a4cf9dbced458c9.jpg)
OUTDOOR UNIT QUIET operation ■
OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. This function is convenient during the night-time operation.
[Example] Using the OUTDOOR UNIT QUIET operation during the night.

Econo/Quiet Press and select the desired mode.
To cancel operation

Econo/Quiet Press until no icon is displayed.
NOTE
Notes on ECONO operation ■
- ECONO operation can only be set when the unit is running. Pressing ⏻ causes the settings to be cancelled, and “” disappears from the LCD.
- ECONO operation is a function which enables efficient operation by limiting the power consumption of the outdoor unit (operating frequency). ECONO operation functions in AUTO, COOL, DRY, and HEAT operation.
POWERFUL and ECONO operation cannot be used at the same time.
Priority is given to the function of whichever button is pressed last.
- If the power consumption level is already low, switching to ECONO operation will not reduce the power consumption.
Notes on OUTDOOR UNIT QUIET operation
- This function is available in COOL, HEAT, and AUTO operation. This is not available in FAN and DRY operation.
- POWERFUL operation and OUTDOOR UNIT QUIET operation cannot be used at the same time. Priority is given to the function of whichever button is pressed last.
- Even if the operation is stopped by using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET operation, "💡" will remain lit on the remote controller display.
- OUTDOOR UNIT QUIET operation will not reduce the frequency nor fan speed if they already are operating at reduced levels.
- This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.


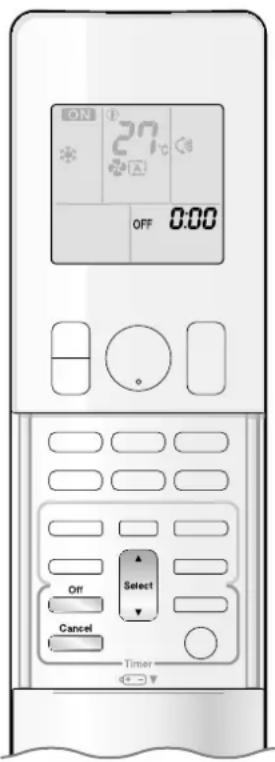

OFF 0:00 OK 27 Select Cancel TimerTimer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER together.
To use OFF TIMER operation
Check that the clock is correct.
If not, set the clock to the present time. ▶Page 10


"0:08 is displayed on the LCD.
"OFFblinks.
“④” and day of the week disappear from the LCD.
Press 2. until the time setting reaches the point you like.
Each pressing of either button increases or decreases the time setting by 10 minutes. • Holding down either button changes the time setting rapidly.
Press 3. Off again.
"OFF and setting time are displayed on the LCD.
- The multi-monitor lamp blinks twice.
The TIMER lamp periodically lights orange. ▶Page 5

Display
No cancel OFF TIMER operation

"OFF and setting time disappear from the LCD.
- “④” and day of the week are displayed on the LCD.
NOTE
■ Notes on TIMER operation
- When TIMER is set, the present time is not displayed.
- Once you set ON/OFF TIMER, the time setting is kept in the memory. The memory is canceled when remote controller batteries are replaced.
- When operating the unit via the ON/OFF TIMER, the actual length of operation may vary from the time entered by the user. (Maximum about 10 minutes)
■ NIGHT SET mode
- When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) during sleeping hours.
Check that the clock is correct.
If not, set the clock to the present time. ▶Page 10


"6:08 is displayed on the LCD.
"ON" blinks.
“ ⊕” and day of the week disappear from the LCD.
Press 2. until the time setting reaches the point you like.
Each pressing of either button increases or decreases the time setting by 10 minutes. • Holding down either button changes the setting rapidly.
Press 3. On again.
"ON" and setting time are displayed on the LCD.
The multi-monitor lamp blinks twice.
The TIMER lamp periodically lights orange. ▶Page 5

Display
To cancel ON TIMER operation

"ON" and setting time disappear from the LCD.
- “ Ⓐ” and day of the week are displayed on the LCD.
To combine ON TIMER and OFF TIMER operation
- A sample setting for combining the 2 timers is shown below.
■ In the following cases, set the timer again.
• After the circuit breaker has turned off.
• After a power failure.
• After replacing the batteries in the remote controller.
Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family's life style.
Setting example of the WEEKLY TIMER
The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend.
| [Monday] | Make timer settings for programmes 1-4. ▶Page 24Pr![]() |
| [Tuesday] to [Friday] | Use thosePr![]() |
| [Saturday] | No timer settings |
| [Sunday] | Make ![]() |
- Up to 4 reservations per day and 28 reservations per week can be set using the WEEKLY TIMER. The effective use of the copy mode simplifies timer programming.
- The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn off the air conditioner automatically if you forget to turn it off.


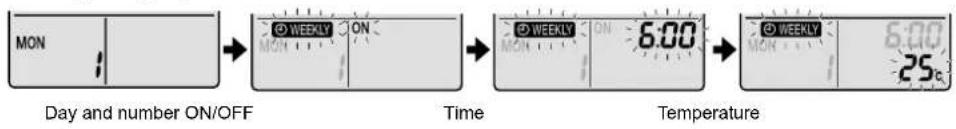

ON 6:00 25°C ON MON Select Next Timer■ To use WEEKLY TIMER operation
Setting mode
Make sure the day of the week and time are set. If not, set the day of the week and time.
Page 10
Programme 1 Programme 2 Programme 3 Programme 4
1. Press
- The day of the week and the reservation number of the current day will be displayed.
• 1 to 4 settings can be made per day.
2. Press Select to select the desired day of the week and reservation number.
- Pressing Select changes the reservation number and the day of the week.
3. Press Next.
- The day of the week and reservation number will be set.
- “WEEKLY” and “ON” blink.
4. Press Select to select the desired mode.
- Pressing Select changes the "ON" or "OFF" setting in sequence.
- In case the reservation has already been set, selecting "blank" deletes the reservation.
- Proceed to step 9 if "blank" is selected.
- To return to the day of the week and reservation number setting, press Back.
5. Press Next.
• The ON/OFF TIMER mode will be set.
- “ Ⓞ WEEKLY ” and the time blink.
The time can be set between 0:00 and 23:50 in 10-minute intervals.
To return to the ON/OFF TIMER mode setting, press • Back
- Proceed to step 9 when setting the OFF TIMER.
7. Press Next.
• The time will be set.
- “WEEKLY” and the temperature blink.
8. Press Select to select the desired temperature.
• The temperature can be set between 10^ C and 32^ C.
COOL or AUTO: The unit operates at 18^ C even if it is set to 10 to 17^ C. ▶Page 12
HEAT or AUTO: The unit operates at 30^ C even if it is set to 31 to 32^ C. ▶Page 12
• To return to the time setting, press Back.
- The set temperature is only displayed when the mode setting is on.
9. Press Next.
- Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the multi-monitor lamp.
- The temperature and time are set while in ON TIMER operation, and the time is set while in OFF TIMER operation.
- The next reservation screen will appear.
• To continue further settings, repeat the procedure from step 4.
• The multi-monitor lamp blinks twice.
The TIMER lamp periodically lights orange. ▶Page 5
The multi-monitor lamp will not blink orange if all the reservation settings are deleted.

Display
10. Press ☐ to complete the setting.
- “WEEKLY” is displayed on the LCD and WEEKLY TIMER operation is activated.
- A reservation made once can be easily copied and the same settings used for another day of the week. Refer to Copy mode. ▶Page 26
NOTE
Notes on WEEKLY TIMER operation ■
- Do not forget to set the clock on the remote controller first. ▶Page 10
- The day of the week, ON/OFF TIMER mode, time and set temperature (only for ON TIMER mode) can be set with the WEEKLY TIMER. Other settings for the ON TIMER are based on the settings just before the operation.
- WEEKLY TIMER and ON/OFF TIMER operation cannot be used at the same time. The ON/OFF TIMER operation has priority if it is set while WEEKLY TIMER is still active. The WEEKLY TIMER will enter the standby state, and “WEEKLY” will disappear from the LCD. When the ON/OFF TIMER is up, the WEEKLY TIMER will automatically become active.
- Turning off the circuit breaker, power failure, and other similar events will render operation of the indoor unit's internal clock inaccurate. Reset the clock. ▶Page 10


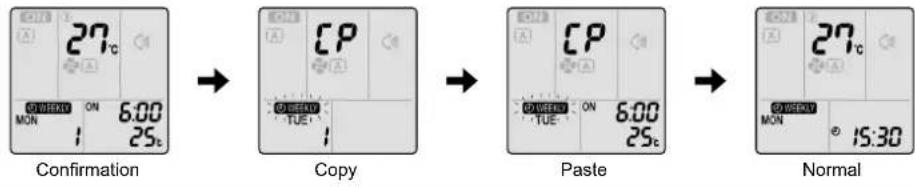

A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied.
Programme 1 Programme 2 Programme 3 Programme 4
- Press
- Press Select to confirm the day of the week to be copied.
- Press Copy
- The whole reservation of the selected day of the week will be copied.
- Press Select to select the destination day of the week.
-
Press Copy
-
Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking the multi-monitor lamp.
- The reservation will be copied to the selected day of the week. The whole reservation of the selected day of the week will be copied.
• To continue copying the settings to other days of the week, repeat step 4 and step 5. -
The multi-monitor lamp blinks twice. The TIMER lamp periodically lights orange.
-
Press ☐ to complete the setting.
- “WEEKLY” is displayed on the LCD and WEEKLY TIMER operation is activated.
NOTE

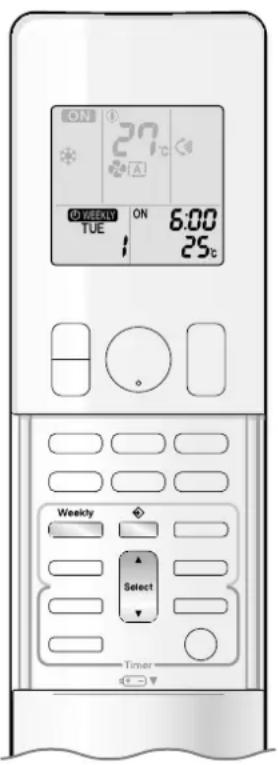

■ Note on copy mode
- The entire reservation of the source day of the week is copied in the copy mode.
In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press and change the settings in the steps of Setting mode. ▶Page 24
The reservation can be confirmed.
The day of the week and the reservation number of the current day will be displayed.
Press 2. to select the day of the week and the reservation number to be confirmed.
Pressing Select displays the reservation details.
- To change the confirmed reserved settings, select the reservation number and press Next. The mode is switched to setting mode. Proceed to setting mode step 2. ▶Page 24
- Press ☐ to exit the confirmation mode.
■ To deactivate WEEKLY TIMER operation
Press ☐ while “ ⏻ WEEKLY ” is displayed on the LCD.
- The “WEEKLY” will disappear from the LCD.
• The TIMER lamp goes off. - To reactivate the WEEKLY TIMER operation, press ____ again.
- If a reservation deactivated with is activated once again, the last reservation mode will be used.
NOTE
- If not all the reservation settings are reflected, deactivate the WEEKLY TIMER operation once. Then press again to reactivate the WEEKLY TIMER operation.
An individual reservation
Press

The day of the week and the reservation number will be displayed.
Press 2. to select the day of the week and the reservation number to be deleted.
3. Press

“ WEEKLY” or “ON” blinkOFF
Press 4 until no icon is displayed. Pressing Select changes the ON/OFF TIMER mode in sequence.
- Selecting "blank" will cancel any reservation you may have.
Press

- The selected reservation will be deleted.
Press 6. .
- If there are still other reservations, WEEKLY TIMER operation will be activated.
Reservations for each day of the week
- This function can be used for deleting reservations for each day of the week.
- It can be used while confirming or setting reservations.
Press 1 to select the day of the week to be deleted.
2. Hold Weekly for about 5 seconds.
- The reservation of the selected day of the week will be deleted.
All reservations
Weekly
Hold for about 5 seconds with the normal display.
- Be sure to direct the remote controller toward the indoor unit and check for a receiving tone.
- This operation cannot be used for the WEEKLY TIMER setting display.
- All reservations will be deleted.
Care and Cleaning
Quick reference
How to open the upper front panel How
Hold the upper front panel by the sides and open it. Fix the panel with the panel support plate.
close the upper front panel

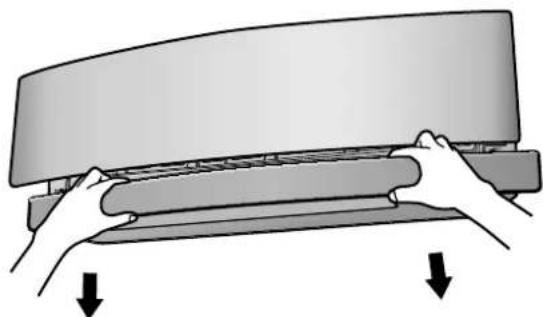

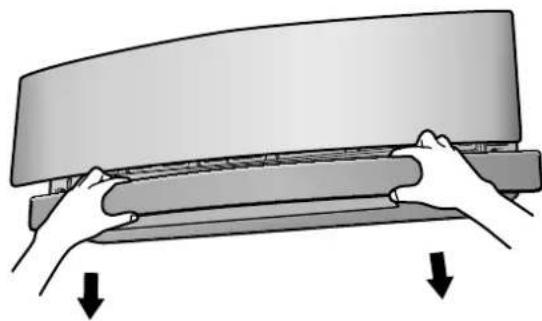

Return the panel support plate to its previous position. Lower the lower front panel to the original position. Press the upper front panel at both sides.
Cleaning parts
Upper and lower front panels
- With the panels closed, wipe them with a soft damp cloth.
If dirty
• Vacuum dust or wash the filter.
Once every 2 weeks
Page 30

Titanium apatite photocatalytic air-purifying filter
• Vacuum dust or replace the filter.
[Cleaning]
Once every 6 months
Page 31
[Replacement]
Once every 3 years
▶Page 31
Indoor unit and remote controller
- Wipe them with a soft cloth.
If dirty
Notes on cleaning
■ For cleaning, do not use any of the following:
Water hotter than 40°C
Volatile liquid such as benzene, petrol and thinner•
Polishing compounds•
Rough materials such as a scrubbing brush•
CAUTION
- Before cleaning, be sure to stop the operation and turn off the circuit breaker.
- Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury.
■ Air filter

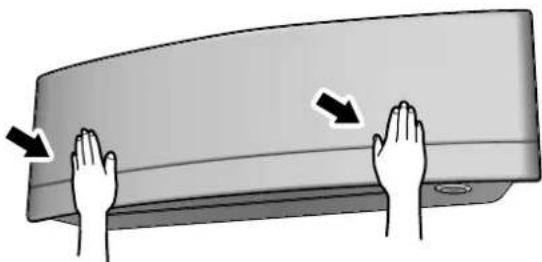

Pull out the air fi Iters.1.
Open the upper front panel.
Set the panel support plate between the ribs on the unit to fix the upper front panel.
- Push the filter tab at the center of each air filter a little upwards, then pull it down.
- It is recommended to clean the air filters every 2 weeks.
Wash the air fi liters with neutral detergent thinned with • lukewarm water, then let them dry in the shade. Be sure to remove the titanium apatite photocatalytic • air-purifying filter. Refer to “Titanium apatite photocatalytic air-purifying filter” on the next page.
- Return the panel support plate to its previous position.
- Lower the lower front panel to the original position.
- Press the upper front panel at both sides.
CAUTION
- Do not touch the aluminium fins by bare hand at the time of dismounting or mounting the filter.
Care and Cleaning
■ Titanium apatite photocatalytic air-purifying filter
Take off the titanium 1. apatite photocatalytic air- purifying fi Iters.
- Open the upper front panel and pull out the air filters. Hold the recessed parts of the frame and unhook • the 4 claws.
[Cleaning]
Vacuum dust, and soak in lukewarm 2-1 water or water for about 10 to 15 minutes if very dirty.
Do not remove the filter from the frame when washing with water.
After washing, shake off remaining 2-2 water and let them dry in the shade.
- Do not wring out the filter to remove water from it.
[Replacement]
Remove the filter from the filter frame and attach a new one.
Do not throw away the fi Iter frame. Reuse the • fi Iter frame when replacing the titanium apatite photocatalytic air-purifying fi Iter.
- When attaching the filter, check that the filter is properly set in the tabs.
3. Set the fil ters as they were and close the upper front panel.
- Return the panel support plate to its previous position. - Lower the lower front panel to the original position.
- Operation with dirty filters:
- cannot deodorise the air,
- cannot clean the air,
- results in poor heating or cooling,
- may cause odour.
- Dispose of old filters as non-flammable waste.
• To order titanium apatite photocatalytic air-purifying filter, contact the dealer where you bought the air conditioner.
| Item | Titanium apatite photocatalytic air-purifying filter (without frame) 1 set |
| Part No. | KAF970A46 |
■ Check the units
- Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded.
■ Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit.
Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. ■
- If no drain water is seen, water may be leaking from the indoor unit. Stop operation and consult the service shop if this is the case.
Prior to a long period of non-use ■
- Operate the FAN mode for several hours on a fine day to dry out the inside.

- After operation stops, turn off the circuit breaker for the room air conditioner.
- Clean the air fi Iters and set them again.
- Take out the batteries from the remote controller.
We recommend periodical maintenance
- In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist in addition to regular cleaning by the user.
- For specialist maintenance, please contact the dealer where you bought the air conditioner.
- The maintenance cost must be borne by the user.
Troubleshooting
These cases are not troubles.
The following cases are not air conditioner troubles but have some reasons. You may just continue using it.
Indoor unit
The fl aps do not start swinging immediately.
The air conditioner is adjusting the position of the • flaps. The flaps will start moving soon.
The air conditioner stops generating airflow during HEAT operation.
- Once the set temperature is reached, the airflow rate is reduced and operation stopped in order to avoid generating cool airflow. Operation will resume automatically when the indoor temperature falls.
Operation does not start soon.
When button was pressed soon after operation was stopped.
When the mode was reselected. ■
This is to protect the air conditioner. You should wait for about 3 minutes.
HEAT operation stops suddenly and a flowing sound is heard.
The outdoor unit is defrosting. HEAT operation starts after the frost on the outdoor unit has been removed. This can take about 4 to 12 minutes.
■A sound like flowing water
- This sound is generated because the refrigerant in the air conditioner is flowing.
- This is a pumping sound of the water in the air conditioner and heard when the water is pumped out from the air conditioner during COOL or DRY operation.
- The refrigerant flows in the air conditioner even if the air conditioner is not working when the indoor units in other rooms are in operation.
■owing sound
- This sound is generated when the flow of the refrigerant in the air conditioner is switched over.
Ticking sound
- This sound is generated when the cabinet and frame of the air conditioner slightly expand or shrink as a result of temperature changes.
Whistling sound
- This sound is generated when refrigerant flows during defrosting operation.
■ Clicking sound during operation or idle time
- This sound is generated when the refrigerant control valves or the electrical parts operate.
■ Clopping sound
- This sound is heard from the inside of the air conditioner when the exhaust fan is activated while the room doors are closed. Open the window or turn off the exhaust fan.
Outdoor unit
The outdoor unit emits water or steam.
■HEAT operation
- The frost on the outdoor unit melts into water or steam when the air conditioner is in defrosting operation.
COOL or DRY operation
- Moisture in the air condenses into water on the cool surface of the outdoor unit piping and drips.
If the problem persists, consult your dealer.

Not trouble
These cases are not troubles.

Check
Please check again before • requesting repairs.
The air conditioner does not operate. (Multi-monitor lamp is off.)
Has the circuit breaker been tripped or the fuse blown? Is there a power failure? •
Are batteries set in the remote controller? •
Is the timer setting correct?

The room does not cool down/warm up.
- Are the air filters dirty?
Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?
Is the set temperature appropriate?•
Is the airflow rate setting appropriate? - Is the adjustment of the airflow direction appropriate?
• Is a window or door open? - Is the air conditioner in ECONO operation or OUTDOOR UNIT QUIET operation?

An abnormal functioning happens during operation.
- The air conditioner may malfunction with lightning or radio waves. Turn off the circuit breaker, turn it on again and try operating the air conditioner with the remote controller.

Operation stopped suddenly. (Multi-monitor lamp is blinking.)
- Are the air filters dirty?
Clean the air filters.
Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?
Stop operation and after turning off the circuit breaker, remove the obstruction. Then restart operation with the remote controller. If the multi-monitor lamp is still blinking, check the error code and consult your dealer.

Upper and lower front panels do not open. (Multi-monitor lamp is blinking.)
- Is there something caught in the upper and lower front panels?
Remove the object and attempt operation again using the remote controller.
If the upper and lower front panels still do not open and the multi-monitor lamp is still blinking, consult the dealer where you bought the air conditioner.

Upper front panel does not close completely.
- Are the upper front panel locks set appropriately?

Mist comes out of the indoor unit.
- This happens when the air in the room is cooled into mist by the cold airflow during COOL or other operation.

Troubleshooting
Hot air does not flow out soon after the start of HEAT operation.
The air conditioner is warming up. Wait for about 1 to 4 minutes. (The system is designed to start discharging air only after it has reached a certain temperature.)

The ON/OFF TIMER does not operate according to the settings.
Check if the ON/OFF TIMER and the WEEKLY TIMER • are set to the same time.
Change or deactivate the settings in the WEEKLY TIMER. ▶ Page 23

Operation stopped suddenly. (Multi-monitor lamp is on.)
To protect the system, the air conditioner may stop operating after sudden large voltage fluctuations. It automatically resumes operation in about 3 minutes.

Remote controller does not work properly.
The unit does not receive signals from the ■ remote controller or has a limited operating range.
LCD is faint, is not working, or the display is erratic.
The batteries may be exhausted. Replace both • batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”

The outdoor fan rotates while the air conditioner is not in operation.
Immediately after the air conditioner is ■ stopped
- The outdoor unit fan continues rotating for about another 1 minute to protect the system.
■ While the air conditioner is not in operation
- When the outdoor temperature is high, the outdoor unit fan may start rotating to protect the system.

The air conditioner gives off an odour.
The room odour absorbed in the unit is discharged with the airflow.
We recommend you to have the indoor unit cleaned. Please consult your dealer.

If the upper and lower front panels are closed while the air conditioner is in operation, the air conditioner will stop operating and the multi-monitor lamp will blink.
- Restart the air conditioner after stopping the operation of the air conditioner with the remote controller.

HEAT operation cannot be selected, even though the unit is heat pump model.

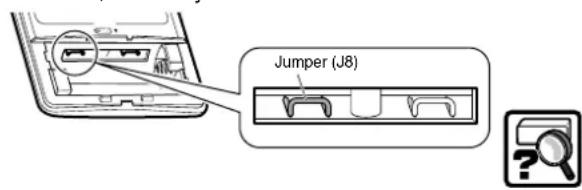

- Check that the jumper (J8) has not been cut. If it has been cut, contact your dealer.

WARNING
■ When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.
- Continued operation in an abnormal condition may result in troubles, electric shocks or fire.
Consult the dealer where you bought the air conditioner.
Do not attempt to repair or modify the air conditioner by yourself. ■
- Incorrect work may result in electric shocks or fire.
Consult the dealer where you bought the air conditioner.
If one of the following symptoms takes place, call your dealer immediately.
The power cord is abnormally hot or damaged.
An abnormal sound is heard during operation.
The circuit breaker, a fuse, or the earth leakage circuit • breaker cuts off the operation frequently.
A switch or a button often fails to work properly.
There is a burning smell.
• Water leaks from the indoor unit.
Turn off the circuit breaker and call your dealer.

After a power failure
- The air conditioner automatically resumes operation in about 3 minutes. You should just wait for a while.
■lightning
- If there is a risk lightning could strike in the neighbourhood, stop operation and turn off the circuit breaker to protect the system.
■Disposal requirements
- Dismantling of the unit, handling of the refrigerant, oil and other parts, should be done in accordance with the relevant local and national regulations.
Troubleshooting

■ Fault diagnosis by remote controller
The remote controller can receive relevant error codes from the indoor unit.
When 1. is held down for about 5 seconds, "00" blinks in the temperature display section.
2. Prepeatedly until a continuous beep is produced.
- The code indication changes as shown below, and notifies you with a long beep.
| CODE | MEANING | |
| SYSTEM | 00 | NORMAL |
| U0 | REFRIGERANT SHORTAGE | |
| U2 | OVER-VOLTAGE DETECTION | |
| U4 | SIGNAL TRANSMISSION ERROR (BETWEEN INDOOR AND OUTDOOR UNIT) | |
| INDOOR UNIT | A1 | INDOOR UNIT PCB ABNORMALITY |
| A5 | FREEZE-UP PROTECTION OR HEATING PEAK-CUT CONTROL | |
| A6 | FAN MOTOR (DC MOTOR) ABNORMALITY | |
| C4 | INDOOR HEAT EXCHANGER THERMISTOR ABNORMALITY | |
| C7 | FRONT PANEL OPEN /CLOSE FAULT | |
| C9 | ROOM TEMPERATURE THERMISTOR ABNORMALITY | |
| OUTDOOR UNIT | EA | FOUR WAY VALVE ABNORMALITY |
| E1 | OUTDOOR UNIT PCB ABNORMALITY | |
| E5 | OL ACTIVATION (COMPRESSOR OVERLOAD) | |
| E6 | COMPRESSOR LOCK | |
| E7 | DC FAN LOCK | |
| F3 | DISCHARGE PIPE TEMPERATURE CONTROL | |
| H0 | COMPRESSOR SYSTEM SENSOR ABNORMALITY | |
| H6 | POSITION SENSOR ABNORMALITY | |
| H8 | DC VOLTAGE / CURRENT SENSOR ABNORMALITY | |
| H9 | OUTDOOR TEMPERATURE THERMISTOR ABNORMALITY | |
| J3 | DISCHARGE PIPE THERMISTOR ABNORMALITY | |
| J6 | OUTDOOR HEAT EXCHANGER THERMISTOR ABNORMALITY | |
| L4 | RADIATION FIN TEMPERATURE RISE | |
| L5 | OUTPUT OVERCURRENT DETECTION | |
| P4 | RADIATION FIN THERMISTOR ABNORMALITY |
NOTE
A short beep and 2 consecutive beeps indicate non-corresponding codes.
Cancel
To cancel the code display, hold • for about 5 seconds. The code display also clears if no button is pressed for 1 minute.
■Memo
Quick Reference
DAIKIN INDUSTRIES, LTD.
Head office:
Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,
Kita-ku, Osaka, 530-8323 Japan
Tokyo office:
JR Shinagawa East Bldg., 2-18-1, Konan,
Minato-ku, Tokyo, 108-0075 Japan
http://www.daikin.com

The two-dimensional bar code is a manufacturing code.
