USER MANUAL Alira X FTKM46WVMA DAIKIN

DAIKIN ROOM AIR CONDITIONER

OPERATION MANUAL

Line drawing of a rectangular air conditioner unit with ventilation slots and a scroll (no text or symbols)

STREAMER

MODELS

FTXM20W1VMA

FTXM25W1VMA

FTXM35W1VMA

FTXM46W1VMA

Black-and-white interior photo of a modern living room with a sofa, coffee table, potted plant, and large window (no text or symbols visible)

[Sticker attachment area]

Attach the SSID&KEY sticker of wireless LAN connecting adapter to the sticker attachment area and keep safe.

Enhanced comfort, energy savings and air cleaning

INTELLIGENT EYE

The INTELLIGENT EYE sensor detects human movement and adjusts the right and left airflow direction. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor works differently depending on the situation. ▶Page 21

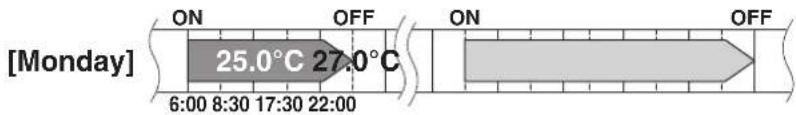

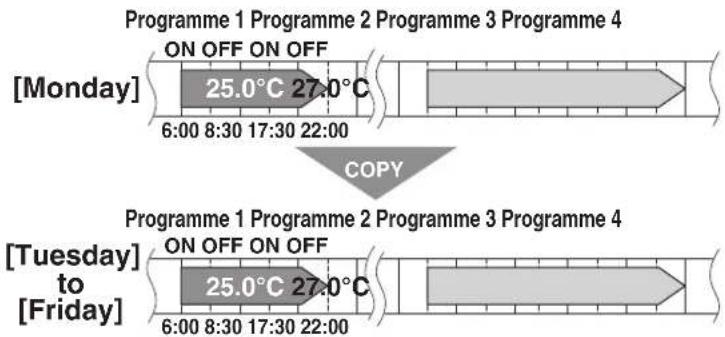

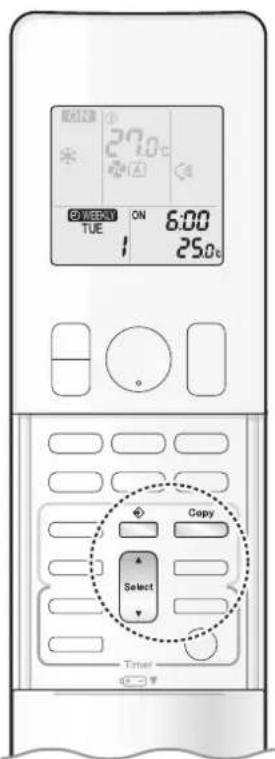

WEEKLY TIMER

Up to 4 timer settings can be saved for each day of the week according to your family's life style. The WEEKLY TIMER allows you to set on/off times and the desired temperature. ▶Page 28

MOLD PROOF

The MOLD PROOF function dries the interior of the indoor unit and provides an ideal environment to suppress the generation of mold for the indoor unit. ▶Page 17

FLASH STREAMER AIR CLEANING

Flash streamer decomposes mold and allergic substances. It keeps air in the room and the inside of the air conditioner clean to make a comfortable space. ▶Page 19

Other functions

COMFORT AIRFLOW OUTDOOR UNIT QUIET

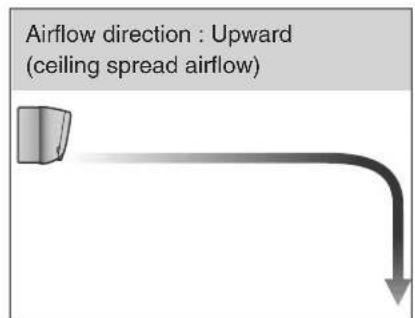

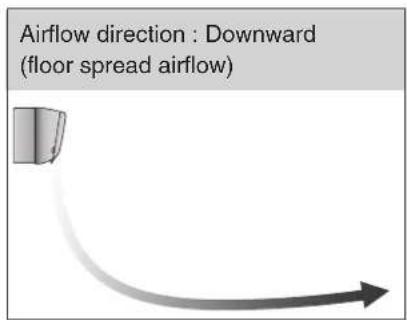

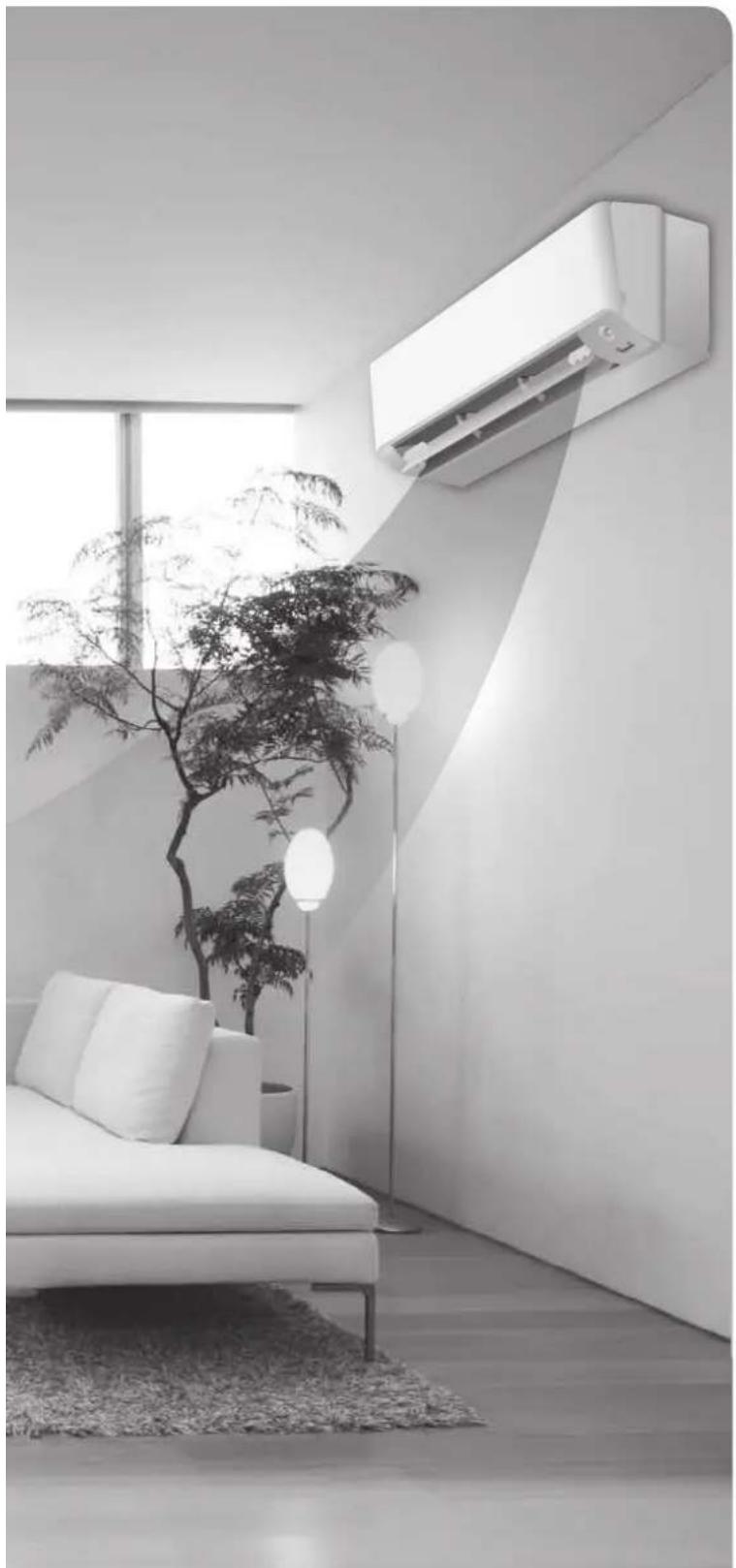

The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on your body. ▶Page 20

OUTDOOR UNIT QUIET operation assures a low noise level of the outdoor unit. This function is useful to maintain a quiet neighbourhood.

Modern minimalist living room interior with white sofa, wall-mounted air conditioner unit, and potted tree (no text or symbols visible)

ECONO

This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air conditioner and other electrical devices simultaneously on a shared electrical circuit. ▶Page 24

Contents

Read Before Operation

Safety Precautions 3

Names of Parts 5

Preparation Before Operation 10

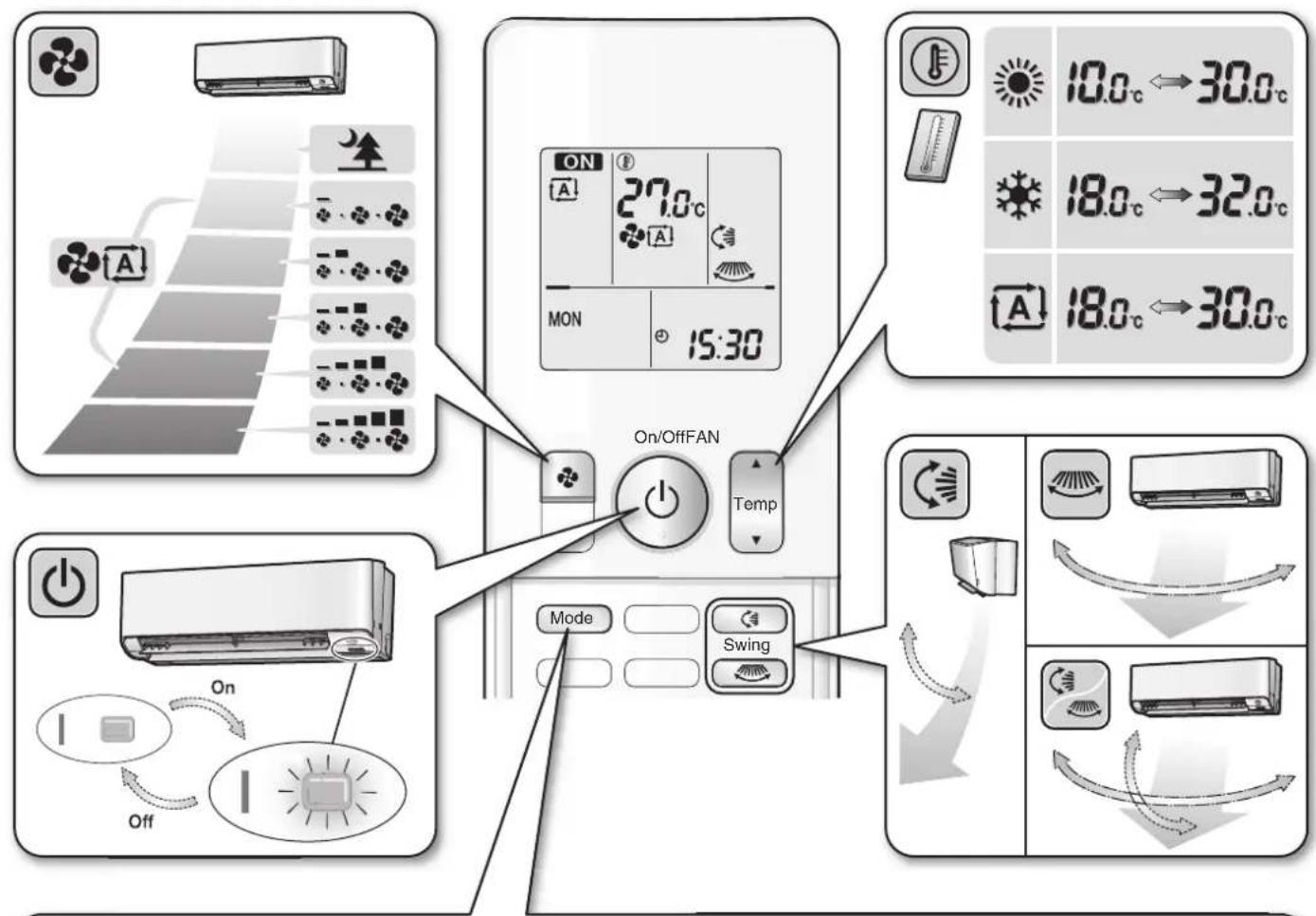

Basic Operation

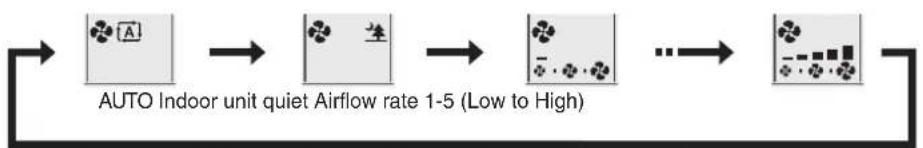

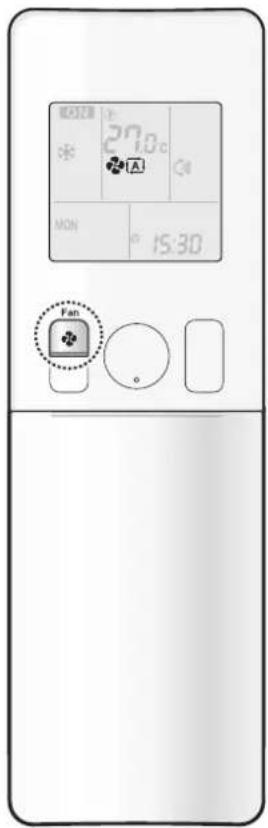

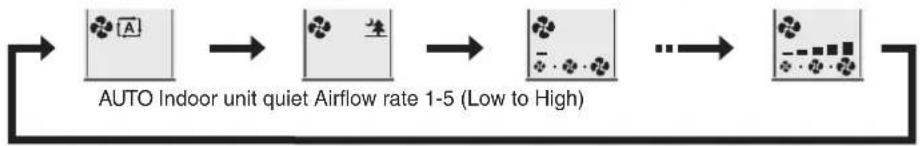

Adjusting the Airflow Rate .....15

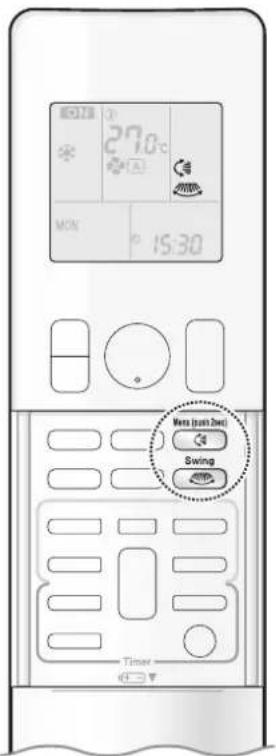

Adjusting the Airflow Direction .....16

Useful Functions

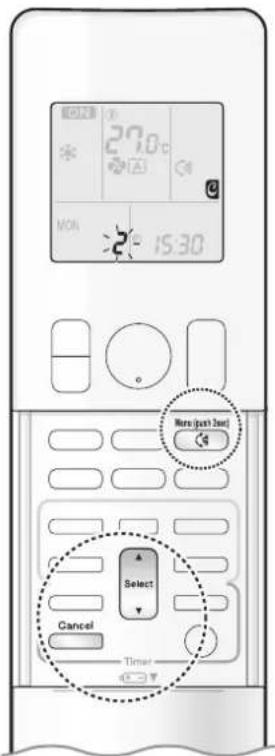

MOLD PROOF Operation .....17

FLASH STREAMER AIR CLEANING Operation ....19

COMFORT AIRFLOW Operation .....20

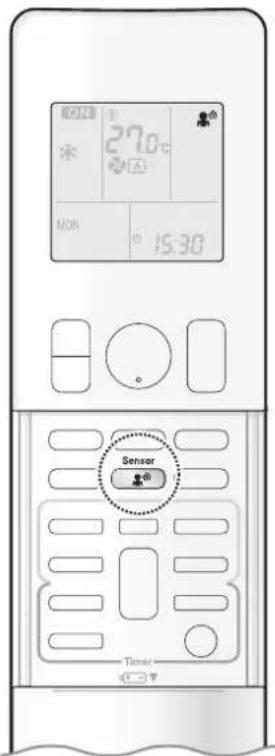

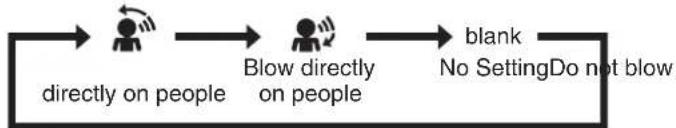

INTELLIGENT EYE Operation .....21

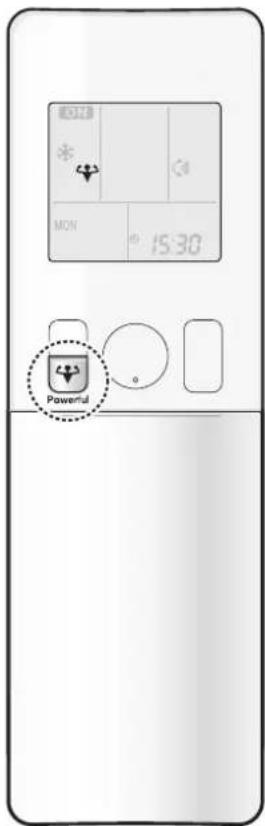

POWERFUL Operation ......23

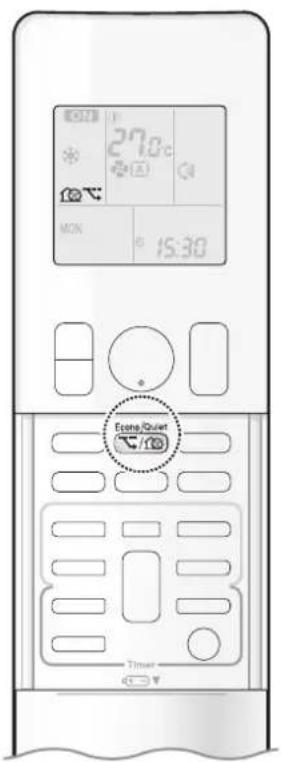

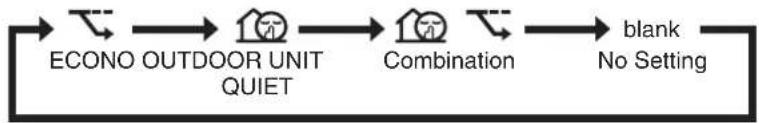

ECONO / OUTDOOR UNIT QUIET Operation 24

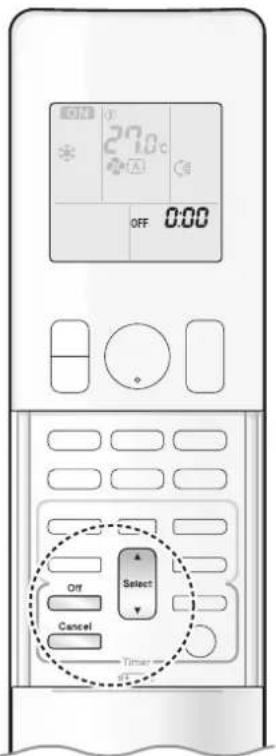

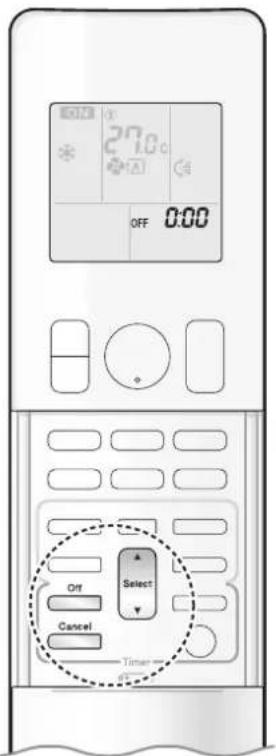

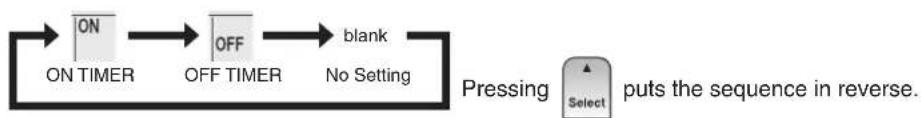

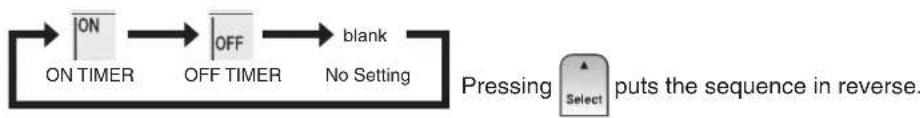

TIMER Operation

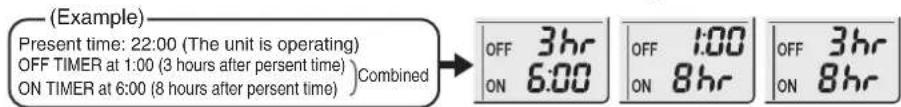

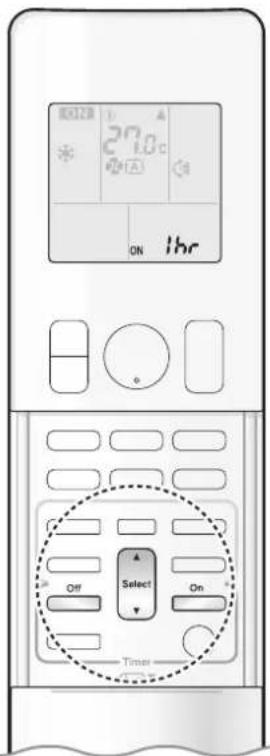

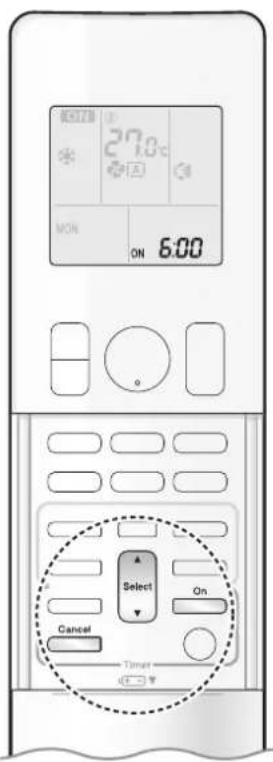

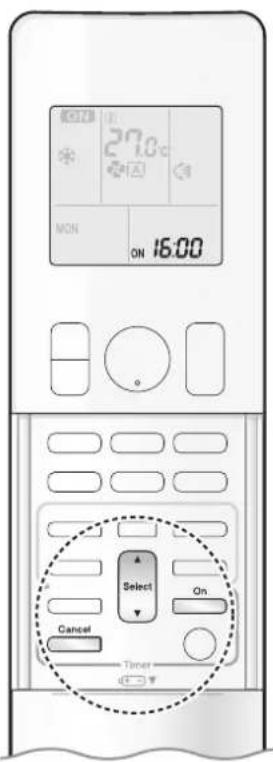

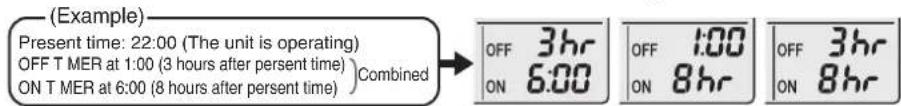

ON/OFF TIMER Operation .....25

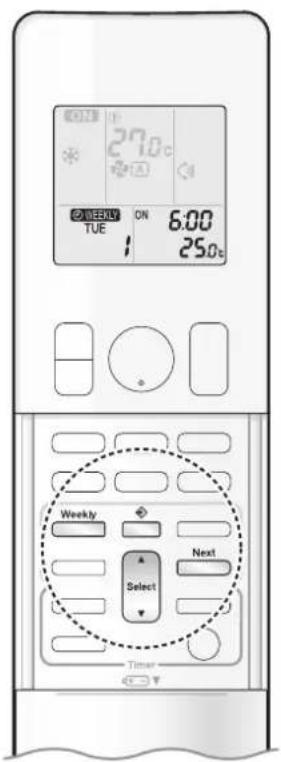

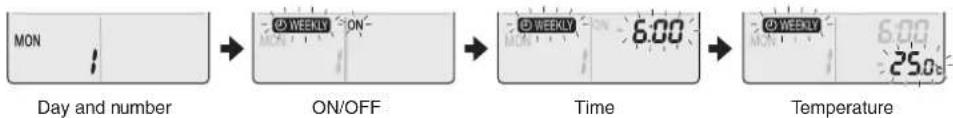

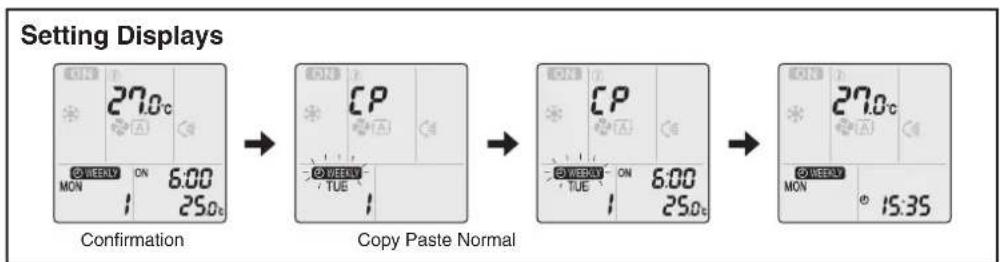

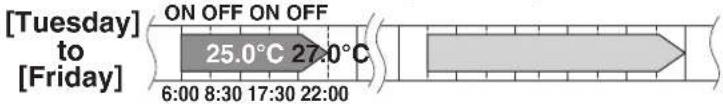

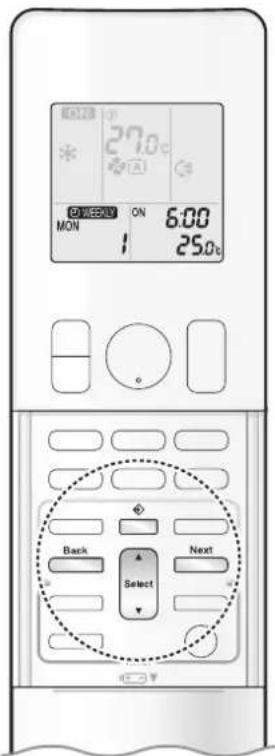

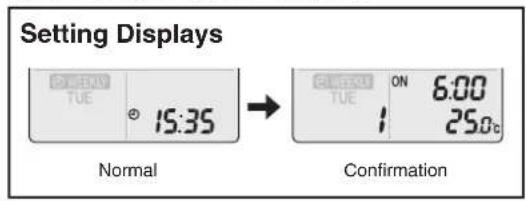

WEEKLY TIMER Operation ......28

System control via Smart Control

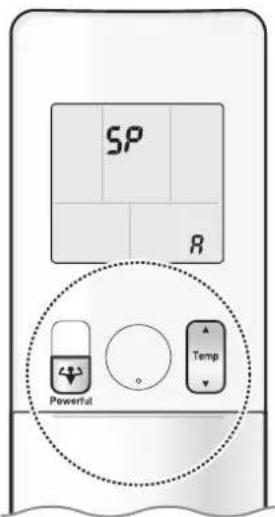

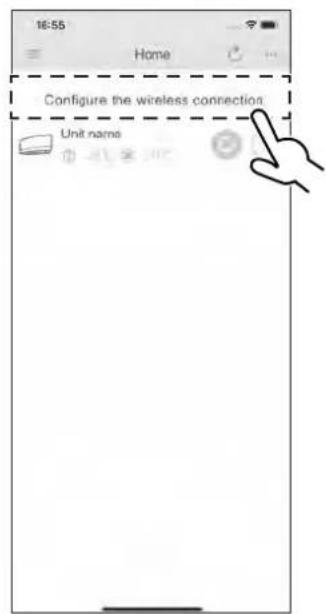

Wireless LAN connection ....34

Care

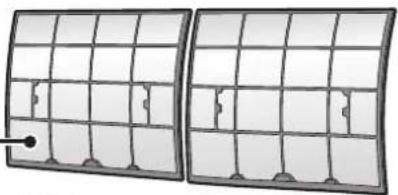

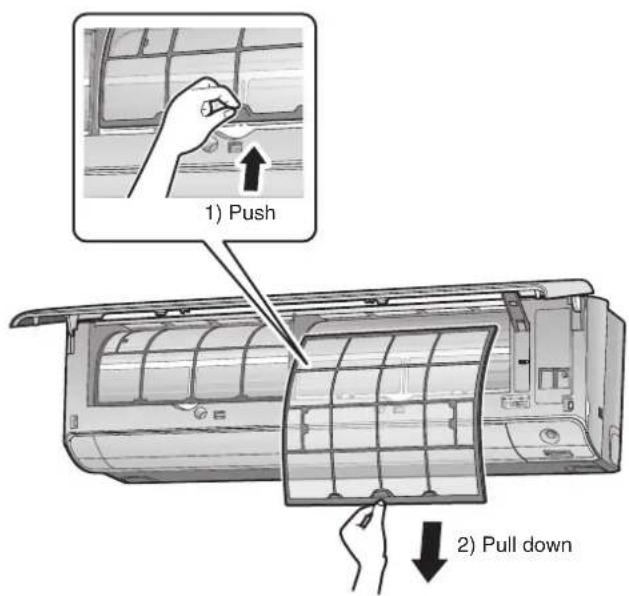

Care and Cleaning 38

When the Need Arises

FAQ 42

Troubleshooting 43

Safety Precautions

Read the precautions in this manual carefully before operating the unit.

This appliance is filled with R32.

• Keep this manual where the user can easily find it.
• The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail.

WARNING

Failure to follow these instructions properly may result in personal injury or loss of life.

CAUTION

Failure to observe these instructions properly may result in property damage or personal injury, which may be serious depending on the circumstances.

Never attempt.

Be sure to follow the instructions.

Be sure to establish an earth connection.

- After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual.

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance must be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• The appliance must be installed, operated and stored in a room with floor area larger than -^*m^2 for 20/25/35/46 class.
  * Since the maximum refrigerant charge of the models is below 1.84kg, it does not have any limitation for the minimum floor area.
  Maintain an installation height of 1.8m or more from the floor surface to the bottom of the appliance.
• To avoid fire, explosion or injury, do not operate the unit when harmful gases (e.g. flammable or corrosive) are detected near the unit.
• Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too cool or too warm, can be harmful to your physical condition and health.
• Do not place objects, including rods, your fingers, etc., in the air inlet or outlet. Product damage or personal injury may result due to contact with the air conditioner's high-speed fan blades.
• Do not attempt to repair, dismantle, reinstall or modify the air conditioner yourself as this may result in water leakage, electric shock or fire hazards.
• Do not use flammable spray near the air conditioner, or otherwise fire may result.
• Do not use a refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and personal injury.
• To avoid electric shock, do not operate with wet hands.

• Beware of fire in case of refrigerant leakage. If the air conditioner is not operating correctly, i.e. not generating cool or warm air, refrigerant leakage could be the cause. Consult your dealer for assistance. The refrigerant within the air conditioner is safe and normally does not leak.
  However, in the event of a leakage, contact with a naked burner, heater or cooker may result in generation of noxious gas. Do not use the air conditioner until a qualified service person confirms that the leakage has been repaired.
• Do not attempt to install or repair the air conditioner yourself. Improper workmanship may result in water leakage, electric shock or fire hazards. Please contact your local dealer or qualified personnel for installation and maintenance work.
• If the air conditioner is malfunctioning (giving off a burning odour, etc.), turn off power to the unit and contact your local dealer. Continued operation under such circumstances may result in a failure, electric shock or fire hazards.
• Be sure to install an earth leakage circuit breaker. Failure to install an earth leakage circuit breaker may result in electric shock or fire.

- Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead. Imperfect earthing may result in electric shock.

CAUTION

• Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely affect the performance, quality and/or longevity of the object concerned.
• Do not expose plants or animals directly to the airflow from the unit as this may cause adverse effects.
• Do not place appliances that produce naked flames in places exposed to the airflow from the unit as this may impair combustion of the burner.
• Do not block the air inlets nor outlets. Impaired airflow may result in insufficient performance or trouble.

• Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage.
• Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned.
• After prolonged use, check the unit stand and its mounts for damage. If they are left in a damaged condition, the unit may fall and cause injury.
• To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units.
• The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and harm to health may result.
• Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental operation by a child may result in impairment of bodily functions and harm health.
• Avoid impacts to the indoor and outdoor units, or otherwise product damage may result.
• Do not place flammable items, such as spray cans, within 1m of the air outlet.
  The spray cans may explode as a result of hot air from the indoor or outdoor units.
• Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shock or fire.
• Do not wash the air conditioner with water, as this may result in electric shock or fire.
• Do not place water containers (vases, etc.) above the unit, as this may result in electric shock or fire hazards if they should topple over.
• Do not insert the batteries in the wrong polarity (+/-) orientation as this may result in short circuiting, fire, or battery leakage.
• Do not sit or hang on the panel. The panel may fall, and injury or product malfunctioning may result.
• Do not sway the panel. The panel may hit people or objects, and injury or property damage may result.
• Do not let children play around the panel. Injury or property damage may result.
• Do not pull the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not locate obstacles in the route. The panel may fall, and injury or property damage may result.
• Do not bend or damage the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not put objects on the panel, or otherwise production malfunctioning may result.
• Do not use an unstable stand at the time of operating or maintaining the air conditioner, or otherwise you may topple over or injury yourself.
• Locate the remote controller in places out of reach of children. The wrong operation of the remote controller may result in injury.

• To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used together with the air conditioner.
• Before cleaning, be sure to stop unit operation and turn off the circuit breaker. Otherwise, an electric shock and injury may result.
• Only connect the air conditioner to the specified power supply circuit. Power supplies other than the one specified may result in electric shock, overheating and fires.
• Arrange the drain hose to ensure smooth drainage. Imperfect drainage may cause wetting of the building, furniture, etc.
• Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around the unit. Leaves are a hotbed for small animals which can enter the unit. Once inside the unit, such animals can cause malfunctions, smoke or fire if they come into contact with electrical parts.
• Do not place objects around the indoor unit.
  Doing so may have an adverse influence on the performance, product quality, and life of the air conditioner.
• This appliance is not intended to be used by persons with reduced physical, sensory or mental capabilities, or with lack of operation knowledge, unless they have been given supervision or instruction concerning the appliance use by person responsible for their safety. Keep out of children's reach to ensure that they do not play with the appliance.

Precautions relating to area surrounding the indoor and outdoor units

■ Be sure to follow the instructions below.

- The indoor unit is at least 1m away from any television or radio set (unit may cause interference with the picture or sound).

- Refrain from using the units in areas prone to high levels of oily smoke, such as a kitchen. Water leakage may result.

Names of Parts

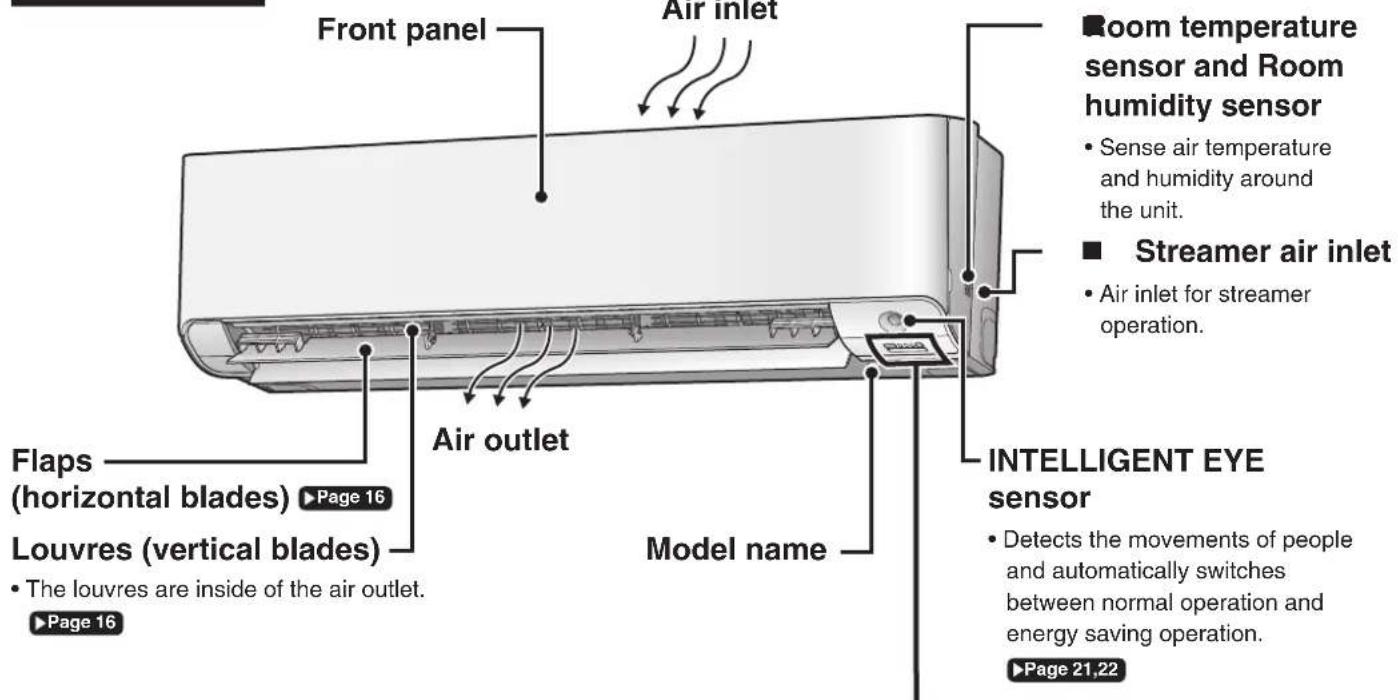

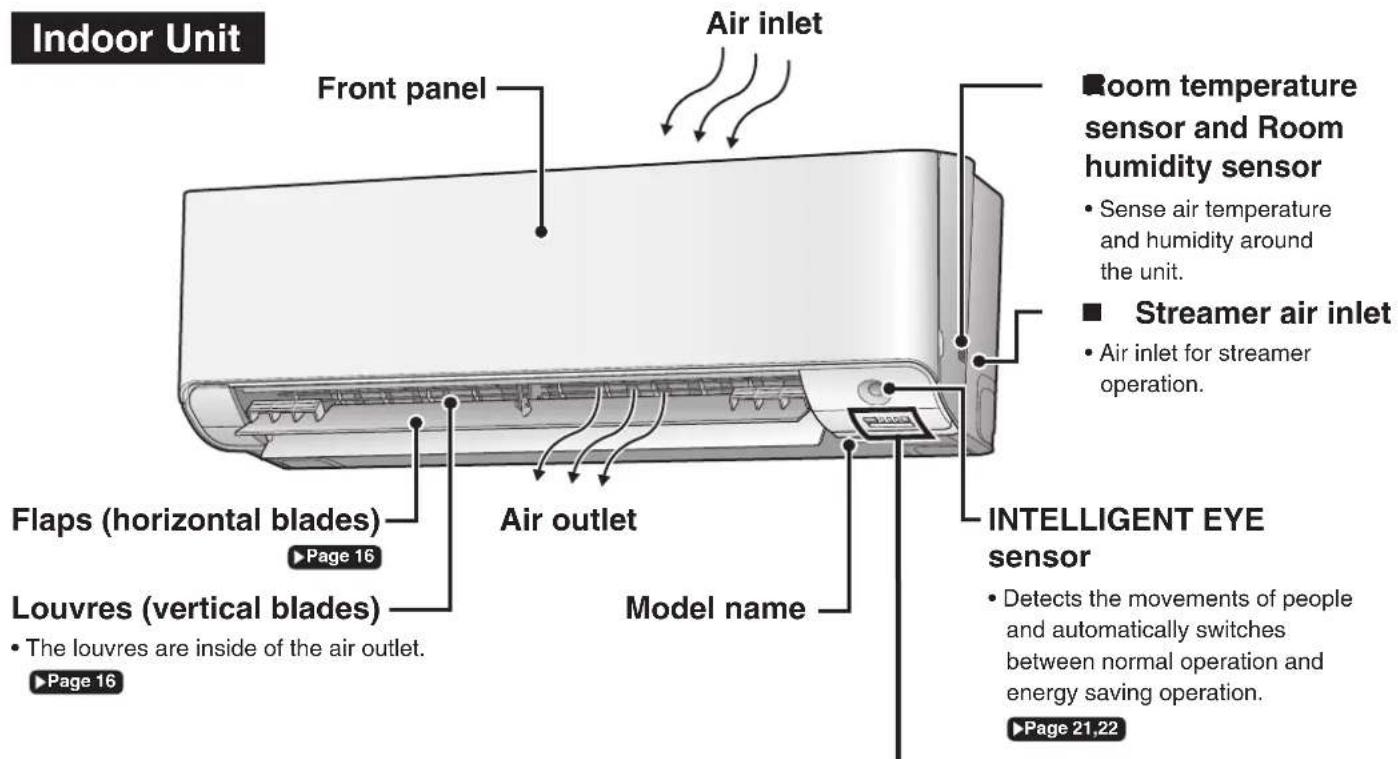

Indoor Unit Front panel Air inlet Room temperature sensor and Room humidity sensor • Sense air temperature and humidity around the unit. ■ Streamer air inlet • Air inlet for streamer operation. Flaps (horizontal blades) ▶Page 16 Air outlet Model name InTELLIGENT EYE sensor • Detects the movements of people and automatically switches between normal operation and energy saving operation. ▶Page 16 Louvres (vertical blades) • The louvres are inside of the air outlet. ▶Page 16 ▶Page 21,22

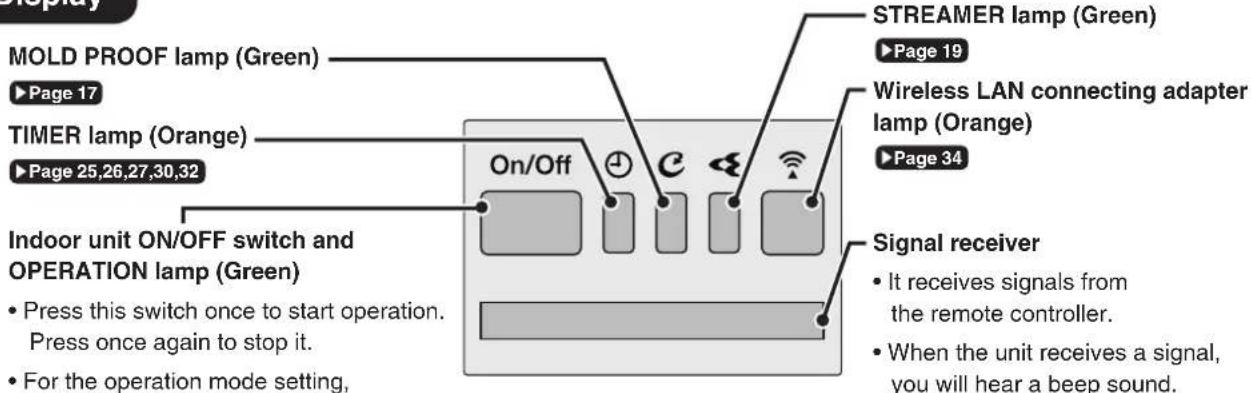

Display
MOLD PROOF lamp (Green)
▶ Page 17
TIMER lamp (Orange)
▶ Page 25,26,27,30,32
Indoor unit ON/OFF switch and OPERATION lamp (Green)
- Press this switch once to start operation. Press once again to stop it.

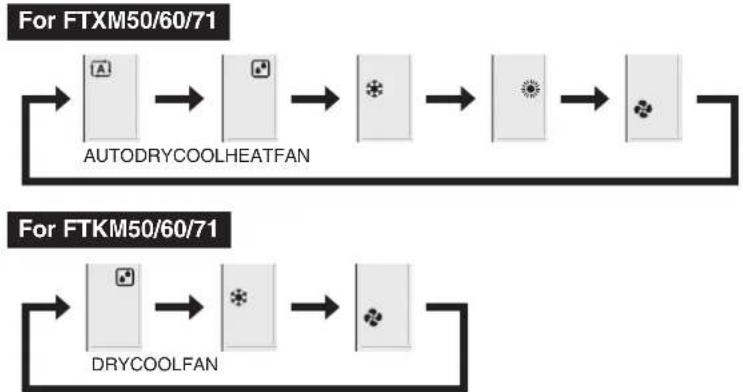

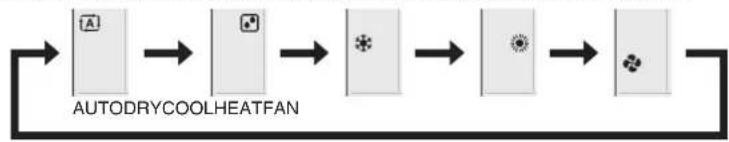

- For the operation mode setting, refer to the following table.

Mode Temperature setting Airflow rate
AUTO 25.0 ^	AUTO

- This switch can be used when the remote controller is missing or out of batteries.

STREAMER lamp (Green)

▶Page 19

Wireless LAN connecting adapter lamp (Orange)

Page 34

Signal receiver

• It receives signals from the remote controller.
- When the unit receives a signal, you will hear a beep sound.

Case Sound type

Operation start beep-beep

Setting change beep

Operation stop long beep

List of lamps

Lamp	Colour	State	Description
OPERATION lamp	green	Lights up	The air conditioner is running.
		Blinks	Check the error code.
TIMER lamp	orange Lights up		TIMER is set. ▶Page 25,26,27,30,32
MOLD PROOF lamp	green	Lights up	MOLD PROOF operation. ▶Page 17
STREAMER lamp	green	Lights up	STREAMER operation. ▶Page 19
Wireless LAN connecting adapter lamp	orange	Lights up	Wireless LAN connecting adapter operation. ▶Page 34
		Blinks	Wireless LAN connecting adapter is connected. ▶Page 34

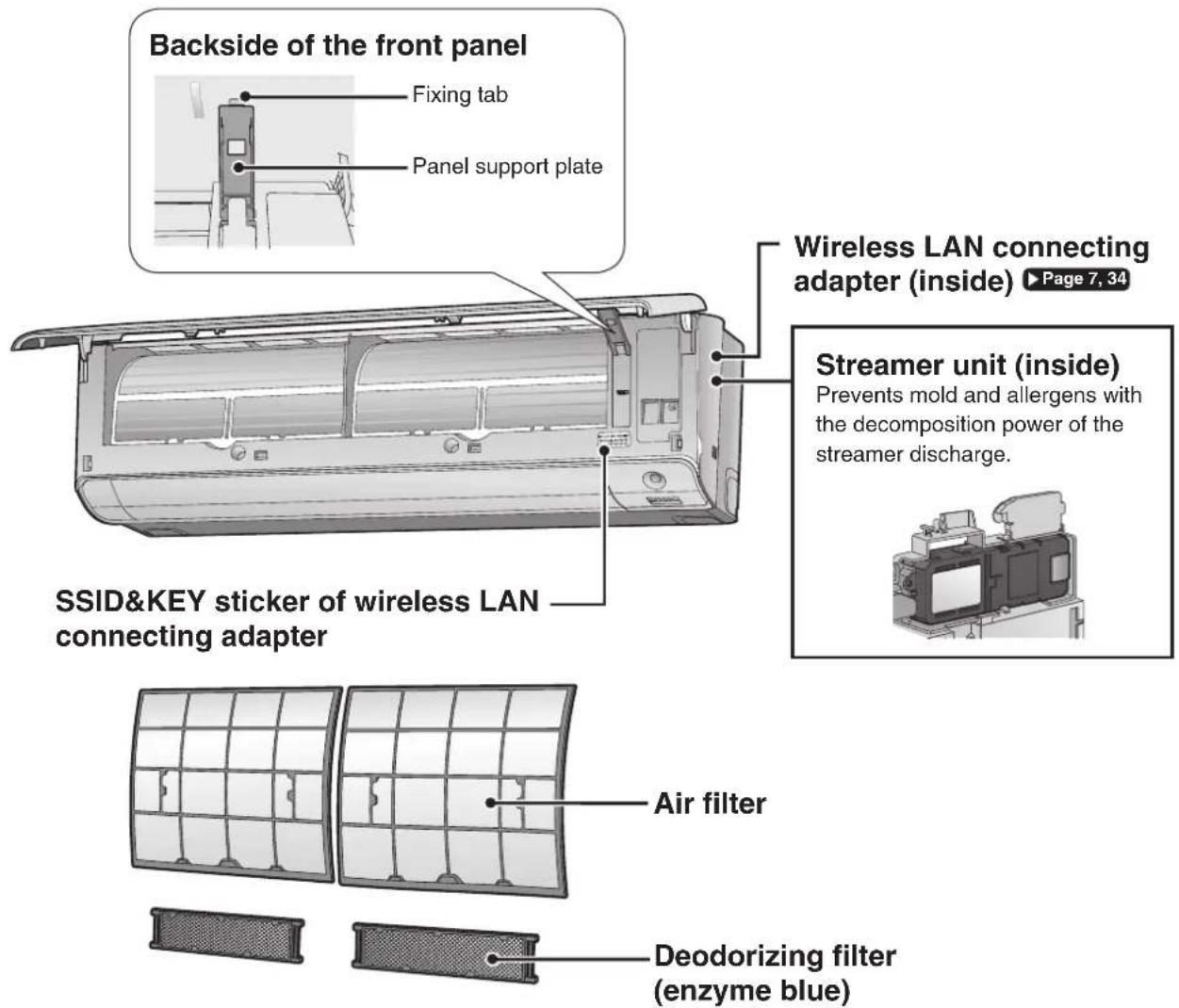

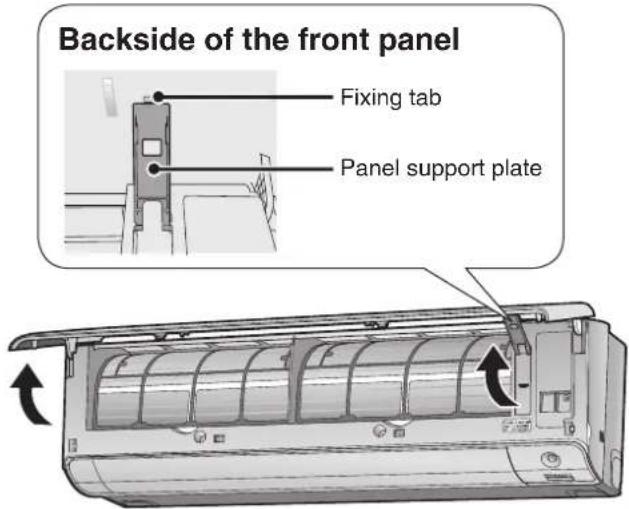

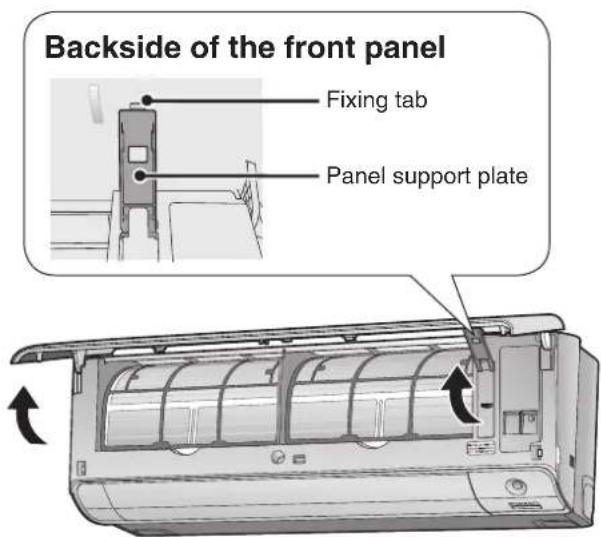

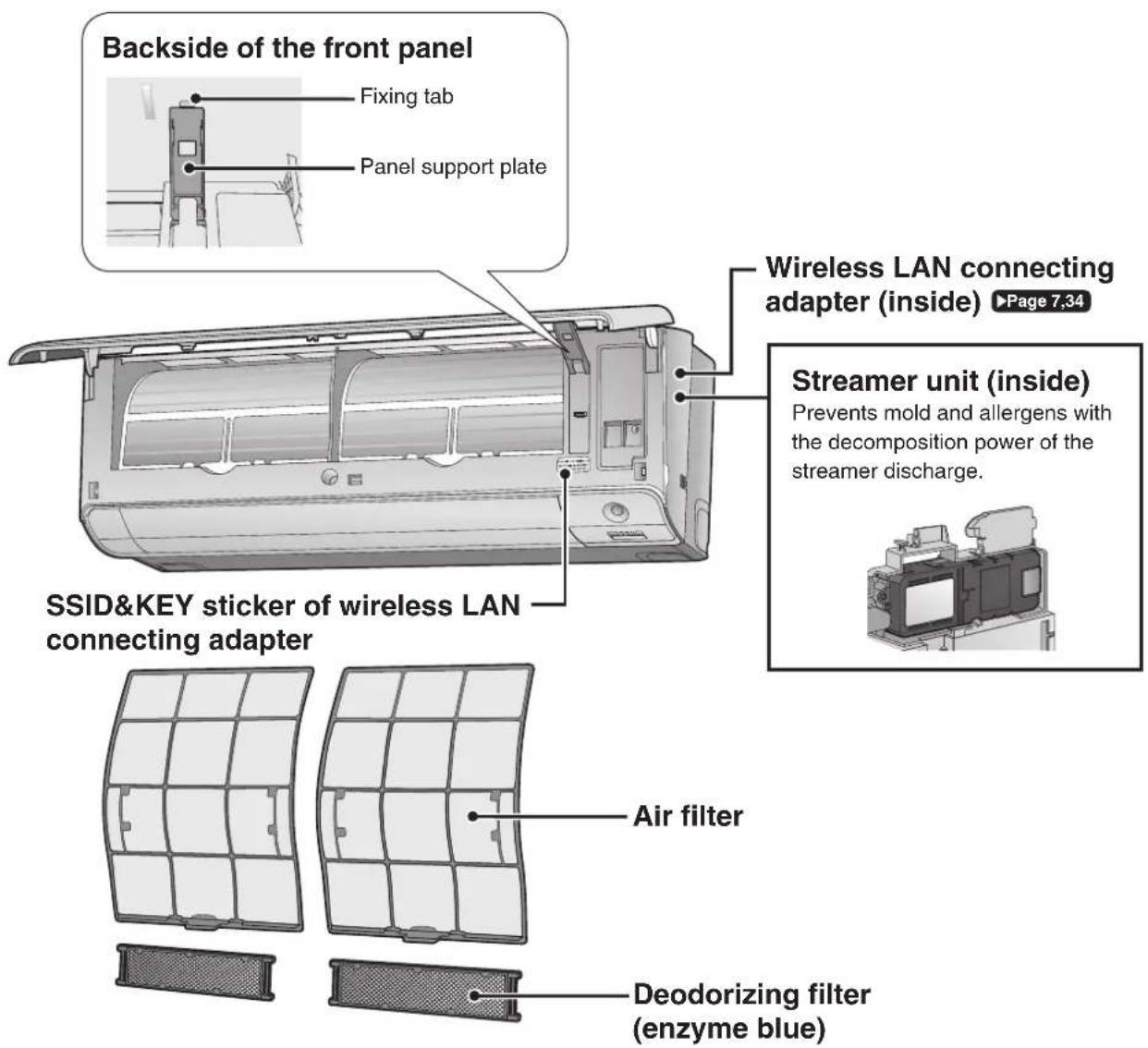

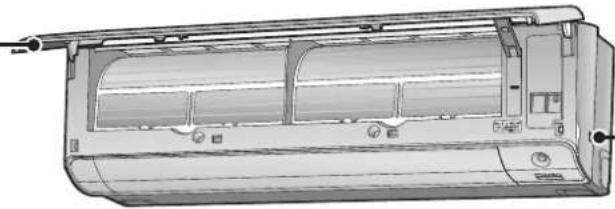

■ Open the front panel

Backside of the front panel Fixing tab Panel support plate Wireless LAN connecting adapter (inside) ▶Page 7.34 Streamer unit (inside) Prevents mold and allergens with the decomposition power of the streamer discharge. SSID&KEY sticker of wireless LAN connecting adapter Air filter Deodorizing filter (enzyme blue)

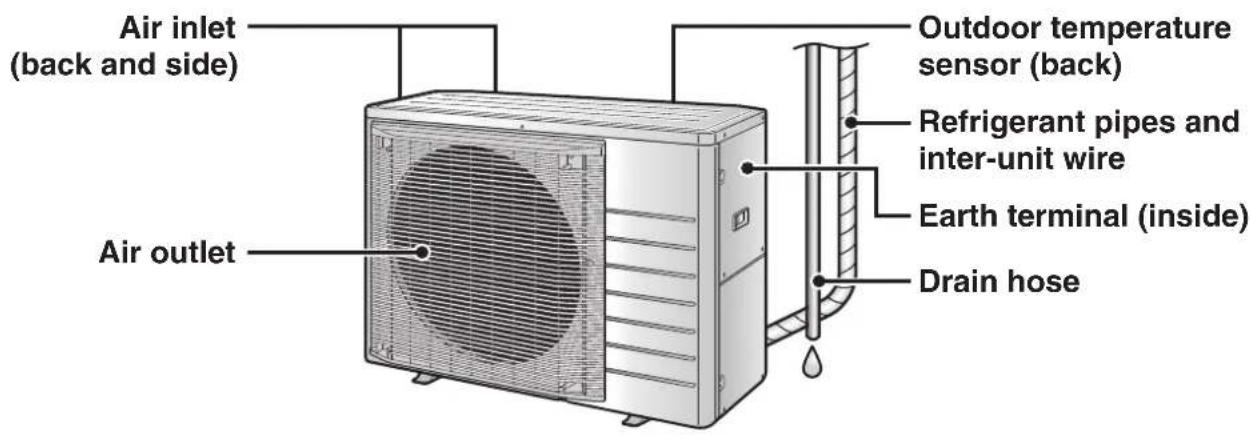

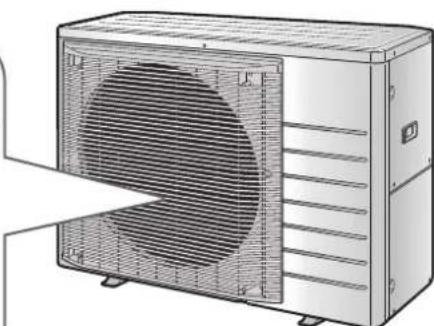

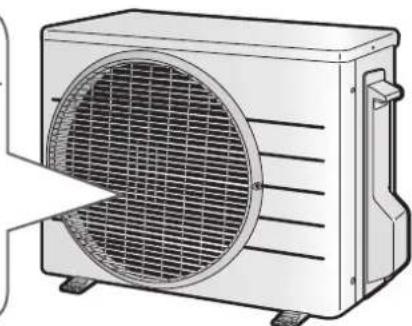

Outdoor Unit

- The appearance of the outdoor unit may differ between different models.

Air inlet (back and side) Outdoor temperature sensor (back) Air outlet Earth terminal (inside) Refrigerant pipes and inter-unit wire Drain hose

Names of Parts

Wireless LAN connecting adapter

The wireless LAN connecting adapter function requires the DAIKIN Mobile Controller application for connecting to the air conditioner and controlling it via your smartphone or tablet over your network.

ATTENTION

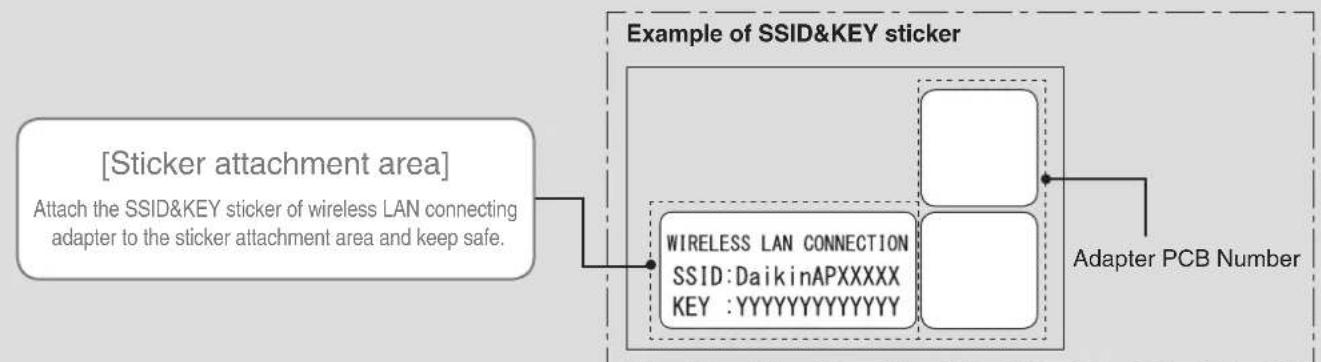

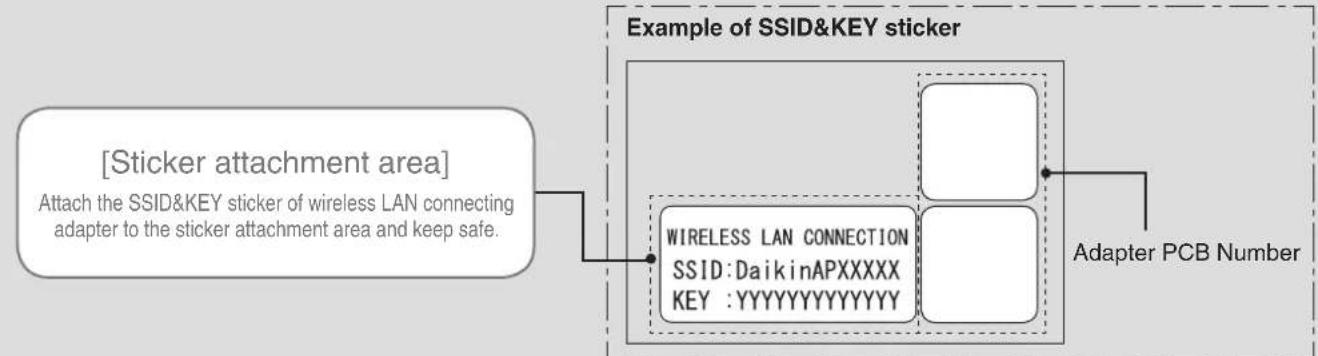

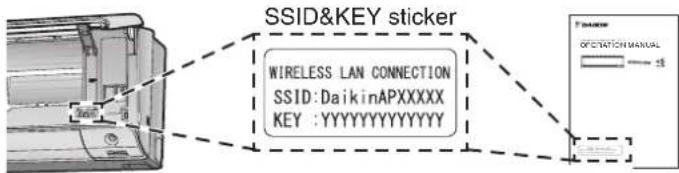

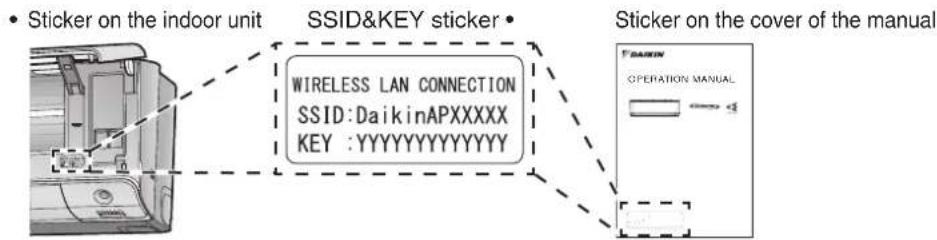

- Attach the sticker to the sticker attachment area on the cover page of the operation manual and keep it safe, as in the detail below:

[About the SSID and KEY]

• The [SSID] and [KEY] shown on the SSID&KEY sticker are necessary when connecting the air conditioner to a smartphone via wireless LAN.

■ Configuration

- The user is responsible for providing the following items before using this product:

■ Smartphone or tablet (Supported OS versions: Android 4.1.2 or higher; iOS 10.0 or higher. For the latest compatibility information, refer to the web site at http://www.daikinthai.com/product/dmobile/compatible.)

■ Internet line and communicating device (Modem/router or similar device)

■ Wireless LAN access point

■ Application name: [DAIKIN Mobile Controller] (free)

(application version 4.0 or higher is needed to control this product)

For details on the installation method for the DAIKIN Mobile Controller application, please see ▶Page 34

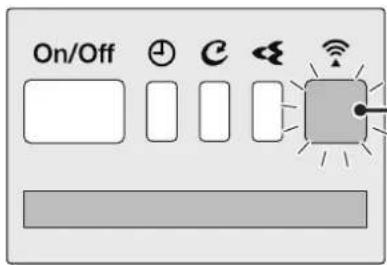

On/Off C W S

Display

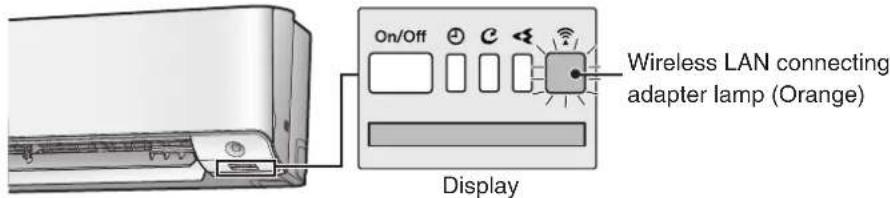

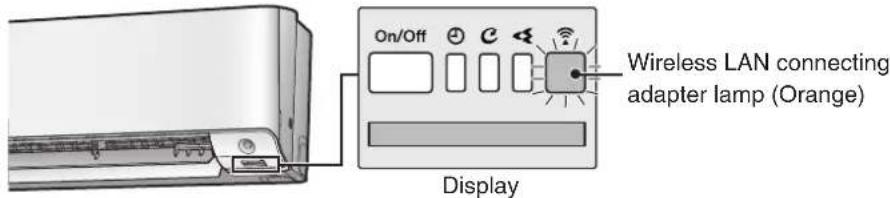

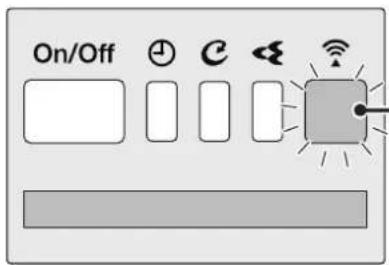

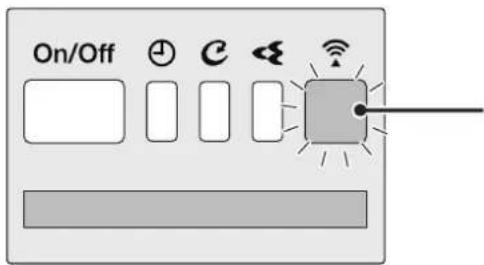

Wireless LAN connecting adapter lamp (Orange)

- The wireless LAN connecting adapter lamp lights when connecting to a router (Wireless LAN access point). Please see ▶Page 34.

- For wireless LAN connecting adapter operation, please see ▶Page 35.

NOTE

Notes on the wireless LAN connecting adapter

• Do not use this product near a microwave oven. (This can affect wireless LAN communications.)
• While the wireless LAN connecting adapter operates, it may affect persons using cardiac pacemakers or defibrillators. This product may cause electromagnetic interference.
• While the wireless LAN connecting adapter operates, it may affect automatic doors or fire alarm equipment. This product may cause faulty behaviour of the equipment.
• For the latest details about installation of the wireless LAN connecting adapter and applicable units, refer to the web site http://www.daikinthai.com/product/dmobile.

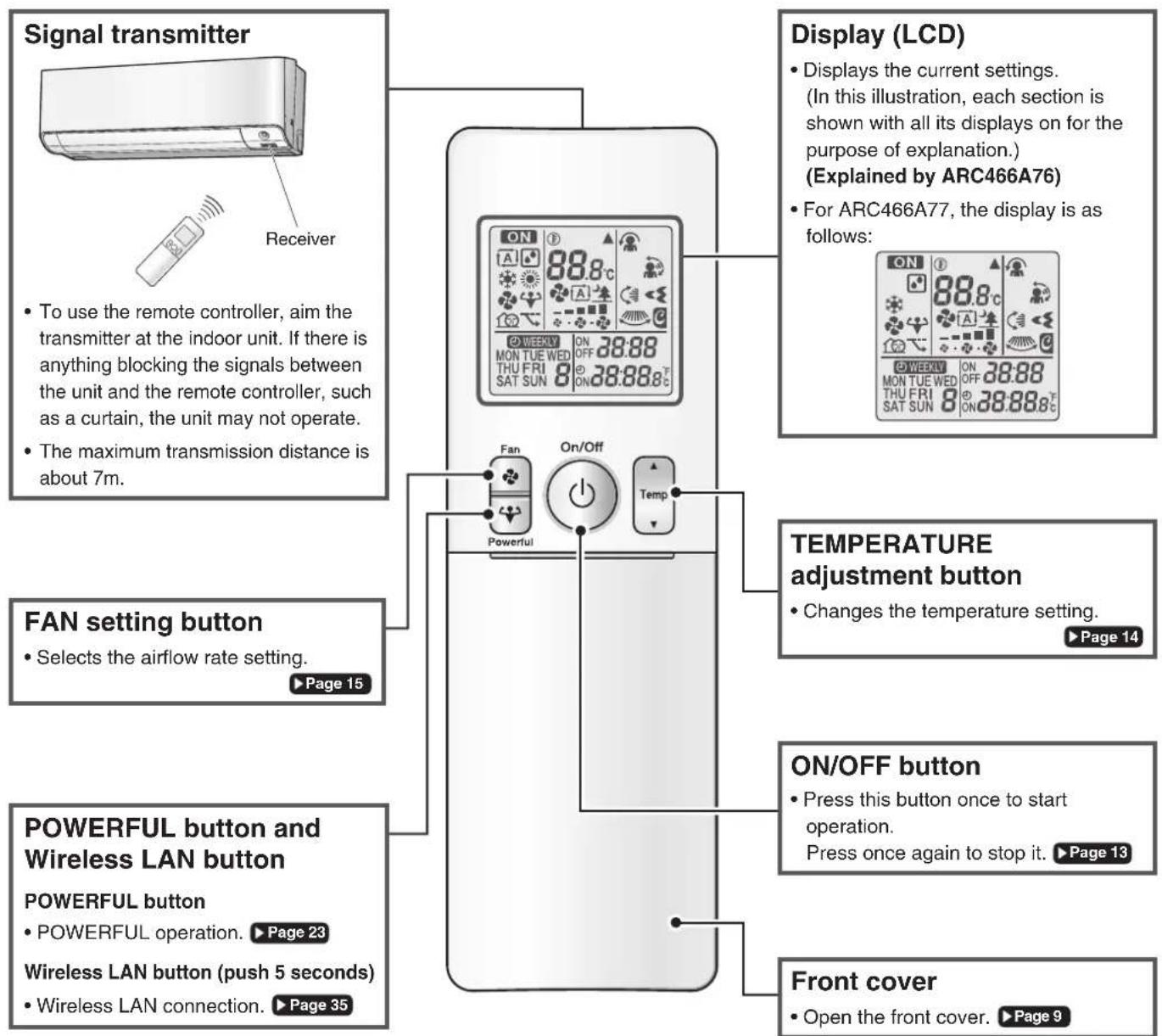

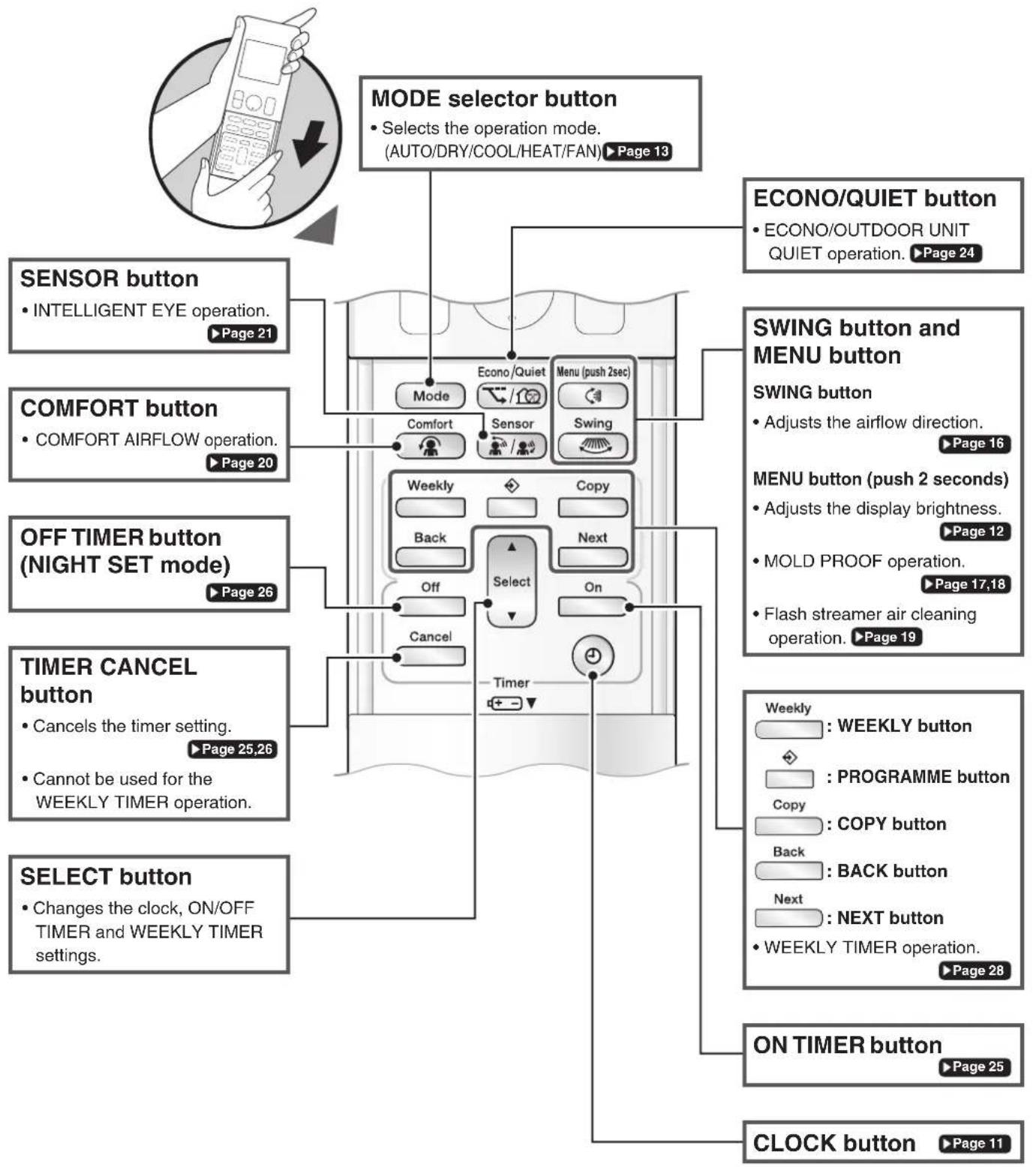

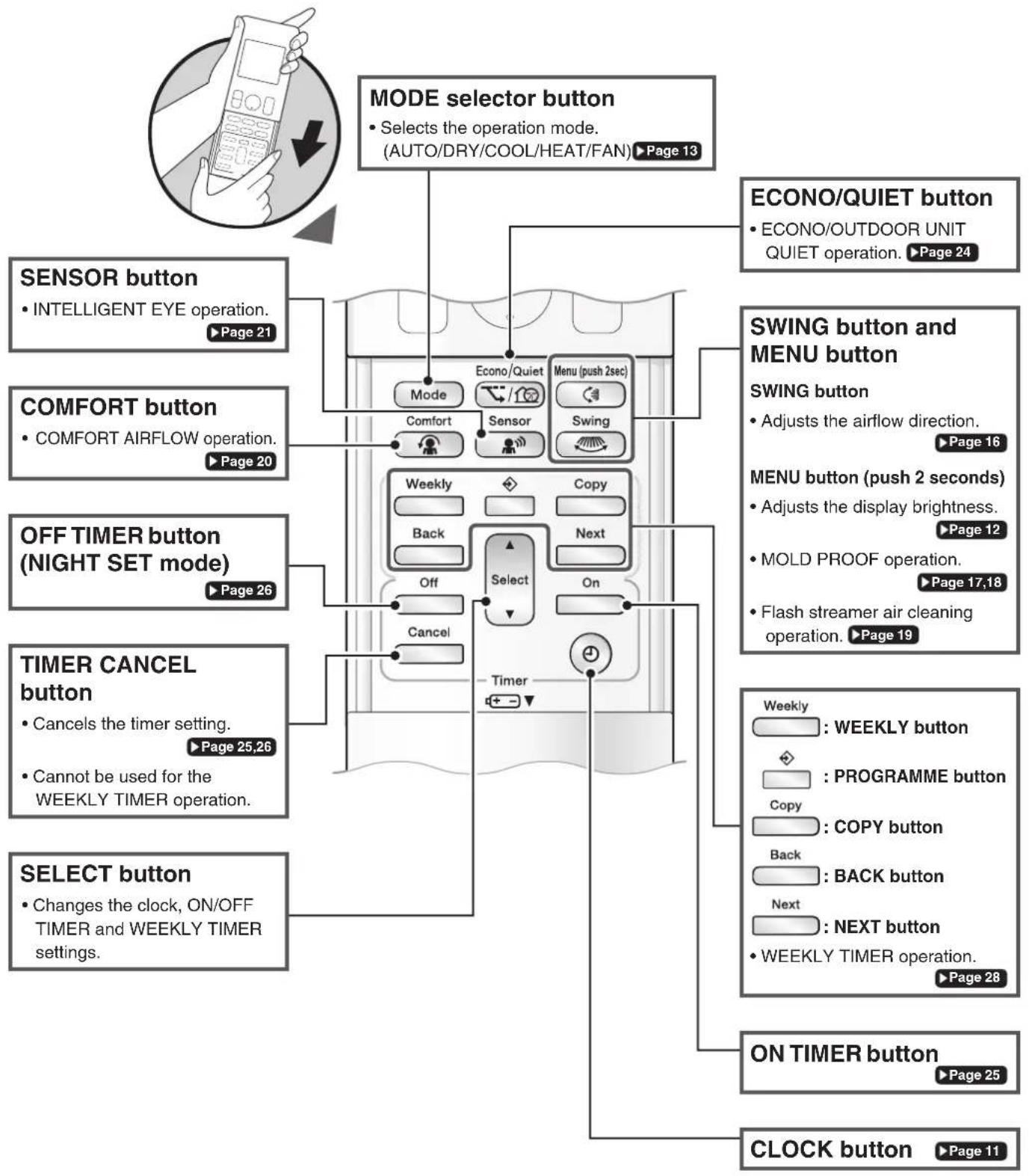

Remote Controller

Signal transmitter Receiver To use the remote controller, aim the transmitter at the indoor unit. If there is anything blocking the signals between the unit and the remote controller, such as a curtain, the unit may not operate. The maximum transmission distance is about 7m. Display (LCD) • Displays the current settings. (In this illustration, each section is shown with all its displays on for the purpose of explanation.) TEMPERATURE adjustment button • Changes the temperature setting. ▶Page 14 FAN setting button • Selects the airflow rate setting. ▶Page 15 ON/OFF button • Press this button once to start operation. Press once again to stop it. ▶Page 13 POWERFUL button and Wireless LAN button POWERFUL button • POWERFUL operation. ▶Page 23 Wireless LAN button (push 5 seconds) • Wireless LAN connection. ▶Page 35 Front cover • Open the front cover. ▶Page 9

Model name ARC466A76

Names of Parts

■ Open the front cover

Preparation Before Operation

CAUTION

Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure.

Please observe the following precautions and use safely.

• If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional.
• Keep batteries out of reach of children. In the event that batteries are swallowed, seek the immediate attention of a medical professional.
• Do not expose batteries to heat or fire. Do not disassemble or modify batteries. The insulation or gas release vent inside the battery may be damaged, resulting in battery leakage, rupturing, or heating.
• Do not damage or peel off labels on the batteries.

■ To insert the batteries

1. Slide the front cover to take it off.
2. Insert 2 dry batteries AAA.LR03 (alkaline).
3. Replace the front cover.

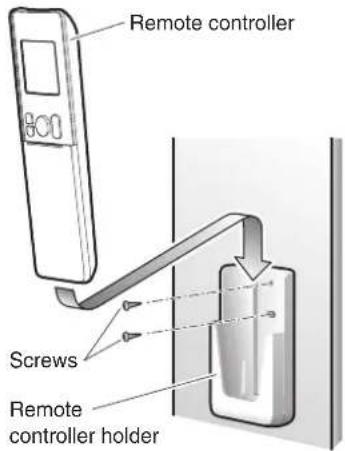

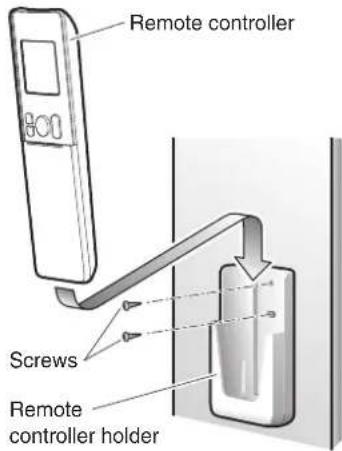

■ To fix the remote controller holder to a wall

1. Choose a place from where the signals reach the unit.
2. Fix the holder to a wall, a pillar, or similar location with the screws supplied with the holder.
3. Place the remote controller in the remote controller holder.

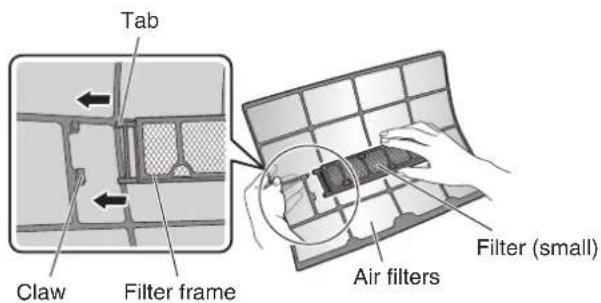

■ To attach the deodorizing filter (enzyme blue)

- If attaching the separately sold filters, attach them before turning the power on. ▶ Page 40

■ Turn on the circuit breaker

• After the power is turned on, the flaps of the indoor unit open and close once to set the reference position.

1 2 3 Position + and - correctly!

Remote controller Screws Remote controller holder

NOTE

Notes on batteries

• To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time.
- The standard replacement time is 1 year. Both batteries should be replaced at the same time. Be sure to replace them with new size AAA. LR03 (alkaline) batteries.
- When battery power has run out, the LCD will begin blinking as an alert that the batteries need replacing. In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking.
- The batteries supplied with the remote controller are for initial operation. The batteries may run out in less than 1 year.
- The usable period of the batteries may be short depending on the manufactured date of the air conditioner.

Notes on remote controller

• Do not drop the remote controller. Do not get it wet.
• Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room.
  Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance to somewhere else, or consult the service shop.

Preparation Before Operation

27.0°C MON 15:30 Select Timer

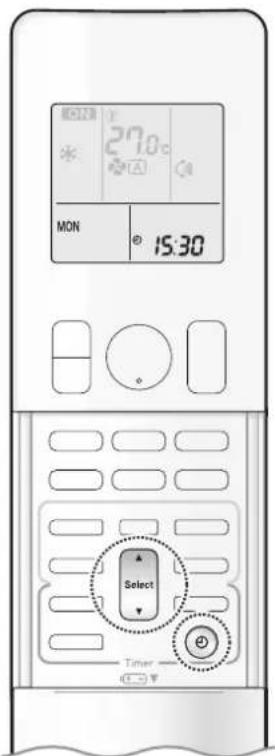

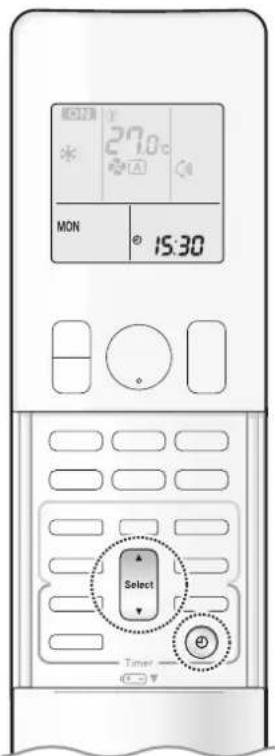

■ To set the clock

1. Press 🔒

"0" appears on the LCD.
“MON” and “Oblink.

2. Press to set the current day of the week.

Display Day of the week
MON Monday
TUE Tuesday
WED Wednesday
THU	Thursday
FRI	Friday
SAT	Saturday
SUN	Sunday

3. Press

"blinks.

4. Press to set the clock to the present time.

- Holding down ▲ or ▼ rapidly increases or decreases the displayed time.

5. Press

- Point the remote controller at the indoor unit when pressing the button.

“ ” blinks.

NOTE

Note on setting the clock

- If the indoor unit's internal clock is not set to the correct time, the ON/OFF TIMER and WEEKLY TIMER will not operate punctually.

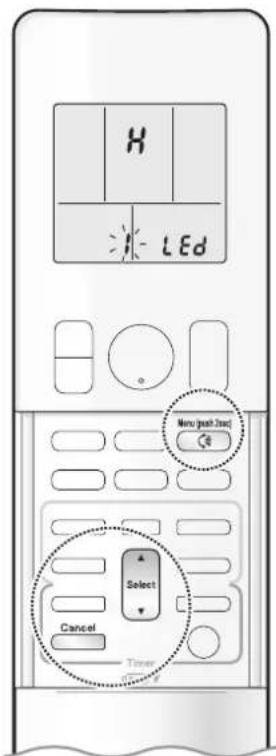

H LED Menu (push 2nd) Select Cancel Timer

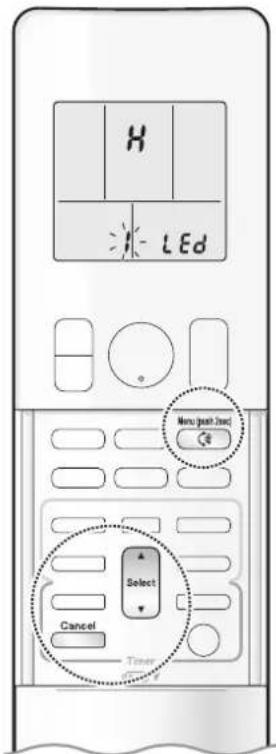

■ To set the brightness of the indoor unit lamps

Adjust the brightness of the indoor unit display as desired, or turn OFF the display.

■ To set

1. Press and hold the button for 2 seconds.

1. Press ▲ or ▼ and select menu number 1.

2. Press to confirm the selected setting.

3. Press or and select the desired brightness.

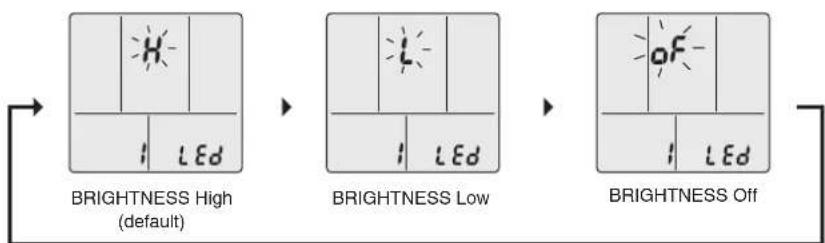


1. Press ^Menu (push 2sec) again.

- Brightness will be set to the chosen value.

1. Press to return to the default screen.

NOTE

Note on setting brightness of the indoor unit lamps

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press Cancel twice.

ON 27.0°C * MINI ON 15:30 On/Off Mode Timer

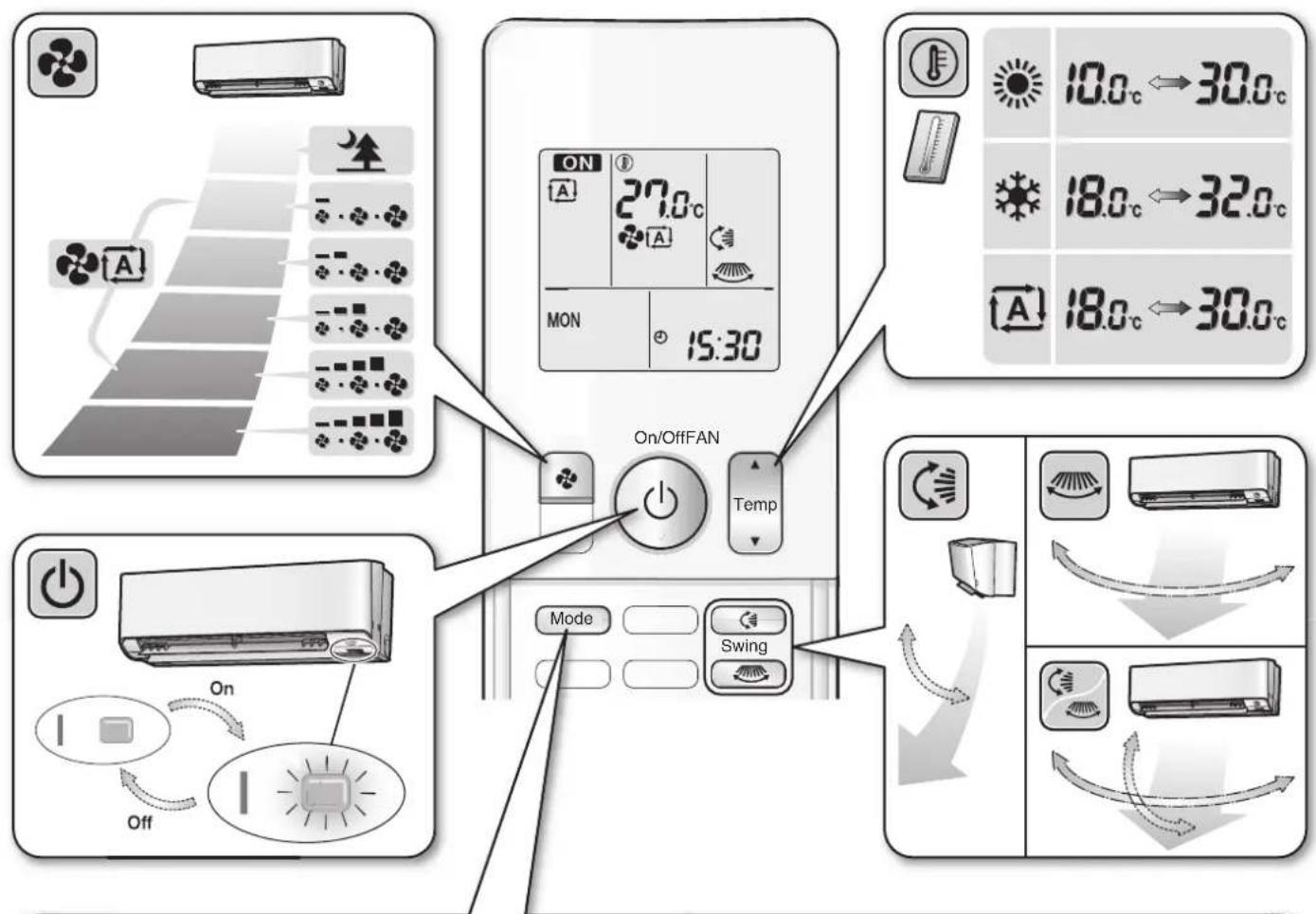

The air conditioner operates with the operation mode of your choice.

From the next time on, the air conditioner will operate with the same operation mode.

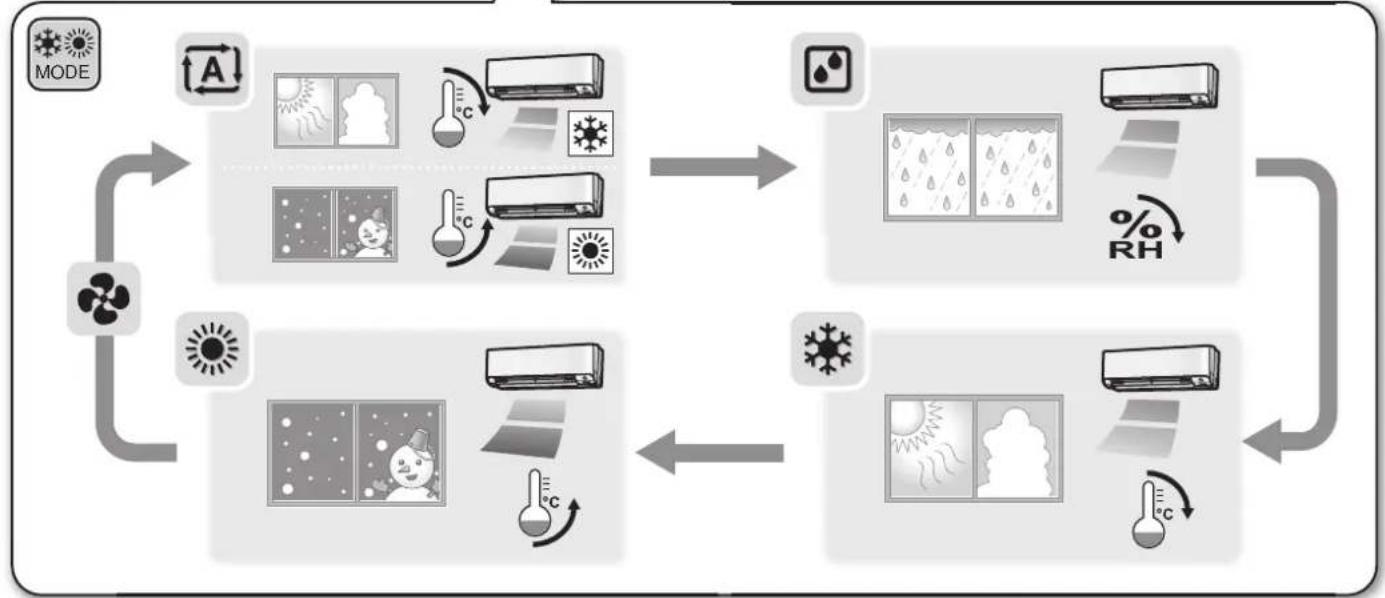

■ To start

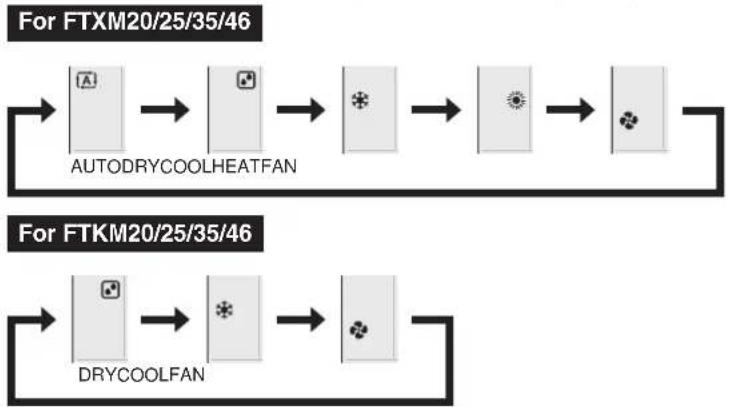

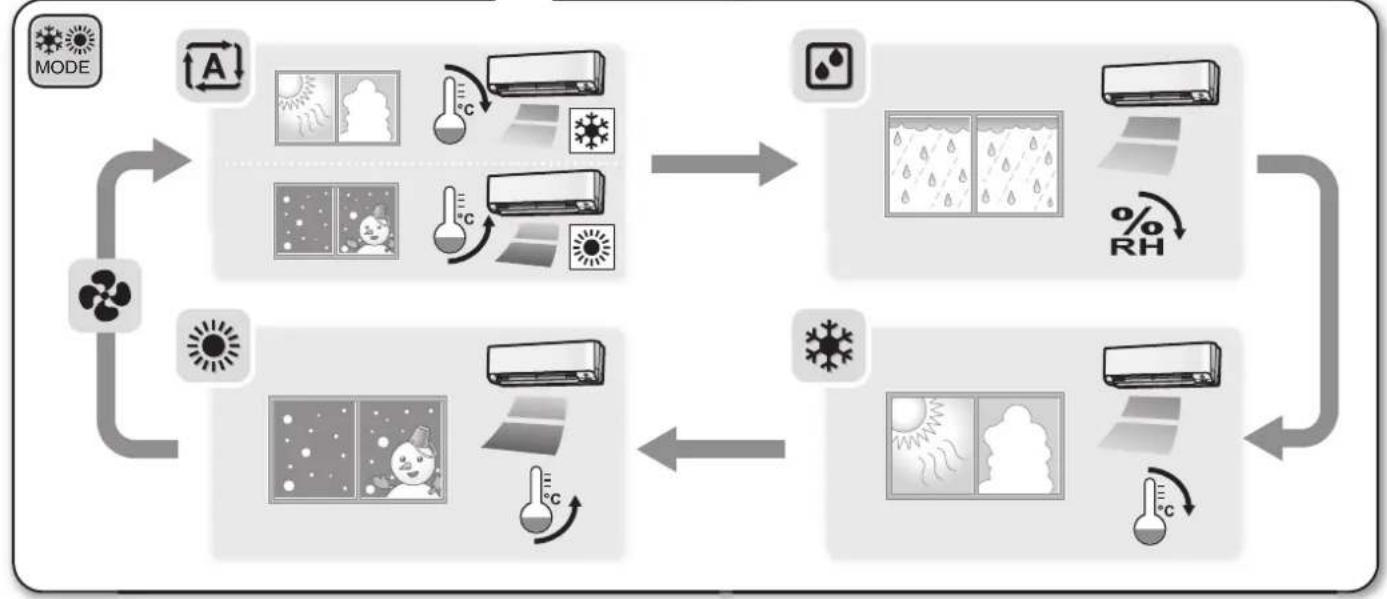

1. Press and select an operation mode.

• Each pressing of the button changes the mode setting in sequence.

2. Press On/Off

• " On pears on the LCD.
• The OPERATION lamp lights green.

On/Off

Display

■ To stop

Press again.

• “ Off appears from the LCD.
• The OPERATION lamp goes off.

NOTE

Notes on AUTO operation

• In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the indoor temperature and starts the operation.
• The system automatically reselects setting at a regular interval to bring the indoor temperature to the user-setting level.

Note on COOL operation

• This air conditioner cools the room by releasing the heat in the room outside.
  Therefore, the cooling performance of the air conditioner may be degraded if the outdoor temperature is high.

Note on DRY operation

- Eliminates humidity while maintaining the indoor temperature as much as possible. It automatically controls temperature and airflow rate, so manual adjustment of these functions is unavailable.

Notes on HEAT operation

• Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is recommended to use another heating appliance in combination with the air conditioner.
• The heat pump system heats the room by circulating hot air around all parts of the room. After the start of HEAT operation, it takes some time before the room gets warmer.
• In HEAT operation, frost may occur on the outdoor unit and lower the heating capacity. In that case, the system switches into defrosting operation to take away the frost.

Note on FAN operation

• This mode is valid for fan only.

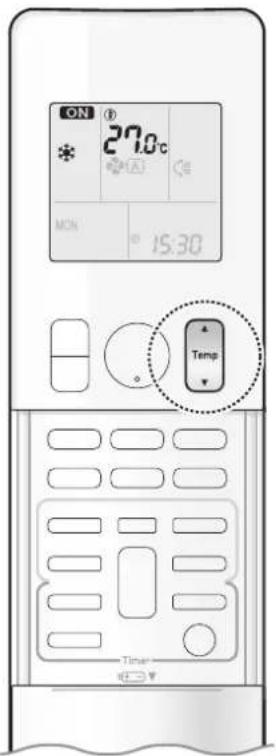

ON 27.0°C MOS ° 15:30 Temp Timer

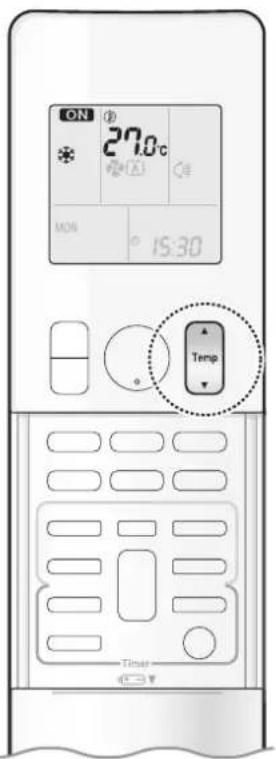

■ To change the temperature setting

Press

- Press ▲ to raise the temperature and press ▼ to lower the temperature. Each pressing of the button changes the temperature by 0.5°C.

COOL operation	HEAT operation	AUTO operation	DRY/FAN operation
18.0~32.0°C	10.0~30.0°C	18.0~30.0°C	The temperature setting cannot be changed.

Tips for saving energy

Keeping the temperature setting at a moderate level helps save energy.

- Recommended temperature setting for cooling: 26.0-28.0°C, for heating: 20.0-24.0°C

Cover windows with a blind or a curtain.

- Blocking sunlight and air from outdoors increases the cooling (heating) effect.

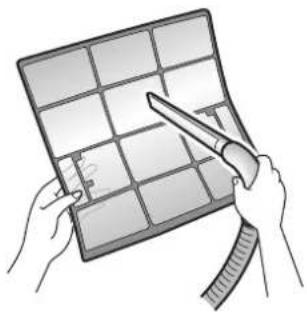

Keep the air filters clean.

- Clogged air filters cause inefficient operation and waste energy. Clean them once in about every 2 weeks. ▶ Page 39

If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn off the circuit breaker.

- The air conditioner always consumes a small amount of electricity even while it is not operating.

Adjusting the Airflow Rate

MASTER 27:00 MON 15:30 Fan

You can adjust the airflow rate to increase your comfort.

■ To adjust the airflow rate setting

• Each pressing of the button changes the airflow rate setting in sequence.

• When the airflow is set to “quiet operation starts and noise from the indoor unit will become quieter.
• In the quiet operation mode, the airflow rate is set to a weak level.
• If the temperature dose not reach the desired point, change the airflow rate setting.
• If COOL/DRY operation is started with airflow settings on "AUTO", the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)
• At smaller airflow rates, the cooling (heating) effect is also smaller.

Adjusting the Airflow Direction

27.0°C MON 15:30 Vista (pass 2nd) Swing Timer

You can adjust the airflow direction to increase your comfort.

ATTENTION

• Always use a remote controller to adjust the angles of the flaps and louvres.
- If you attempt to move the flaps and louvres forcibly by hand when they are swinging, the mechanism may be damaged.
- Inside the air outlet, a fan is rotating at a high speed.

■ To start auto swing

Up and down airflow direction

Press

• “ Appears on the LCD.
• The flaps (horizontal blades) will begin to swing.

Diagram showing a circular icon with rotation arrow and a rectangular device emitting light (no text or symbols)

Right and left airflow direction

Press

• “ appears on the LCD.
- The louvres (vertical blades) will begin to swing.

Diagram showing airflow around a rectangular air conditioner unit (no text or symbols)

The 3-D airflow direction

Press

• “and” appear on the LCD.
• The flaps and louvres move in turn.
- To cancel 3-D airflow, press either 📁 or again. The flaps or louvres will stop moving.

Diagram showing airflow around a washing machine (no text or symbols)

■ To set the flaps or louvres at the desired position

- This function is effective while the flaps or louvres are in auto swing mode.

Press and when the flaps or louvres reach the desired position.

• In the 3-D airflow, the flaps and louvres move in turn.
- “” or “” disappears from the LCD.

NOTE

Note on airflow direction setting

- The movable range of the flaps varies according to the operation mode.

Note on 3-D airflow

- Using 3-D airflow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling, throughout the room, preventing areas of cold and hot developing.

Movable range of the flaps

of the flaps COOL / DRY FAN HEAT

MOLD PROOF Operation

27.0°C MON 15:30 Next (past 2nd) Select Cancel Timer

The inside of the air conditioner is dried to reduce the occurrence of mold and odour. When COOL or DRY operation is performed, condensation may occur inside the air conditioner and may cause mold or odour. It is recommended to dry the inside of the air conditioner using MOLD PROOF operation.

[To operate automatically]

■ To set

1. Press and hold the button for 2 seconds.

2. Press or and select menu number . 2

• “ 📄 appears on the LCD.

• “2” (menu number) blinks.

1. Press to confirm the selected setting.

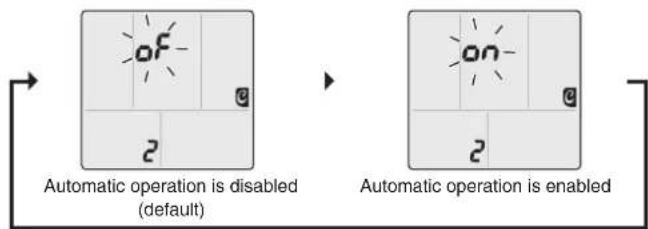

2. Press or to change the setting as follows:

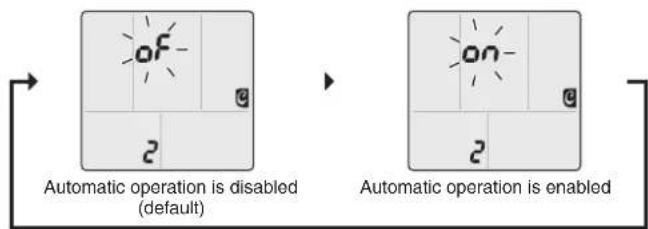


5. Press again.

- Automatic MOLD PROOF operation will be enabled or disabled according to the chosen setting.

- If automatic MOLD PROOF operation is enabled, “ Ⓞ” appears on the LCD and the MOLD PROOF lamp lights green when MOLD PROOF operation is in progress.

- The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off C Wi-Fi

Display

NOTE

6. Press Cancel to return to the default screen.

Note on MOLD PROOF setting

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press ☐ twice.

Notes on MOLD PROOF operation

• When you want to stop MOLD PROOF operation midway, press ⏻ twice.
  • After DRY or COOL operation stops, the air conditioner starts MOLD PROOF operation automatically, and then stops automatically 60 minutes later.
• This operation dries the inside of the air conditioner while streamer discharge is performed to reduce the development of mold and odour inside the air conditioner. But the function does not remove any adhered dust and mold.
• MOLD PROOF operation is not available when the unit is turned off using the OFF TIMER or turned off using a smartphone.

NOTE

Notes on MOLD PROOF operation

• The flaps may sometimes close to increase the drying effect inside the air conditioner.
• MOLD PROOF operation may not be performed if the COOL or DRY operation time is short.
• If MOLD PROOF operation does not suit your preference, set operation to "OFF". ▶ Page 17

Relation between MOLD PROOF operation and indoor unit lamps

Air conditioner MOLD PROOF setting MOLD PROOF lamp STREAMER lamp
Operating (OPERATION lamp lights up)	MOLD PROOF is “ON” Lights up		Depends on STREAMER setting
	MOLD PROOF is “OFF” Goes off
Not operating (OPERATION lamp goes off)	MOLD PROOF is “ON” Lights up Lights up

FLASH STREAMER AIR CLEANING operation

27.0°C MOM 15:30 None (just 2wt) Select Cancel Timer

The streamer generates a high-speed electron stream with a high oxidizing power, reducing bad odours and viruses. Together with the deodorizing filter (enzyme blue) and the air filters, this function cleans the air in the room.

■ To set

1. Press and hold the button for 2 seconds.

2. Press or and select menu number . 3

• “ appears on the LCD.

• “3-” (menu number) blinks.

1. Press to confirm the selected setting.
2. Press or to change the setting as follows:

1. Press again.

2. Flash streamer air cleaning will be enabled or disabled according to the chosen setting.

3. If STREAMER operation is enabled, “◀◀” appears on the LCD. The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off ⊕ C ← Wi

Display

1. Press Cancel to return to the default screen.

NOTE

What is streamer discharge?

- This is a type of plasma discharge comprising high-speed electrons with a high oxidative capacity that is released within the unit. It decomposes odours and harmful gases. (The high-speed electrons are generated and then adsorbed within the unit ensure your safety.)

Note on flash streamer air cleaning setting

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press Cancel twice.

Notes on flash streamer air cleaning operation

• The streamer discharge may generate a fizzing sound, however this does not indicate a defect.
• Do not block the air inlets of the streamer with any objects (Fig.1). Impaired airflow may result in insufficient performance or trouble with streamer operation.

Streamer air inlets

Fig. 1

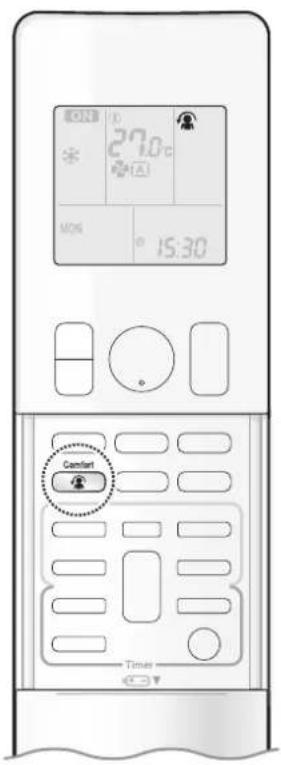

COMFORT AIRFLOW Operation

27.0°C MOS 15:30 Comfort Times

The flow of air will be in the upward direction while in COOL/DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable wind that will not come in direct contact with people.

Airflow direction : Upward (ceiling spread airflow)

COOL and DRY operation

Airflow direction : Downward (floor spread airflow)

HEAT operation

■ To start

Press

• “ 🍒 appears on the LCD.

	COOL and DRY operation	HEAT operation FAN operation
Flaps direction	Goes up Goes down
Airflow rate AUTO

■ To cancel

D Press

again.

• “ disappears from the LCD.
- The flaps will return to the position in memory from before COMFORT AIRFLOW operation.

NOTE

Notes on COMFORT AIRFLOW Operation

• POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.
  • The airflow rate will be set to AUTO.
• If the upward and downward airflow direction is selected, the COMFORT AIRFLOW function will be canceled.
  Priority is given to the function of whichever button is pressed last.
• If there is an obstruction under the air conditioner when using heating, the airflow may not reach the center of the room and the room may be difficult to warm up.

INTELLIGENT EYE Operation

27.0°C MON 15:30 Sensor Timer

The INTELLIGENT EYE sensor detects human movement and adjusts airflow direction. It can be set to avoid people or to direct airflow specifically at people. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation.

CAUTION

• Do not place large objects near the INTELLIGENT EYE sensor. Also keep heating units and humidifiers outside the sensor's detection area. This sensor can detect undesirable objects.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.

■ To start

Press Sensor and select the desired mode.

• Each time is pressed, a different setting option appears on the LCD.

- If both INTELLIGENT EYE operation and auto swing airflow directions (up and down or right and left) are set simultaneously, priority is given to auto swing airflow directions and INTELLIGENT EYE operation will be operated in energy saving operation only. ("") or "will remain on the LCD.) To keep INTELLIGENT EYE operation active, do not use it in combination with auto swing airflow direction modes.

■ To cancel

Press Sensor until no icon is displayed.

NOTE

Notes on combining INTELLIGENT EYE operation and COMFORT AIRFLOW operation

• INTELLIGENT EYE operation can operate in combination with COMFORT AIRFLOW operation.
When the INTELLIGENT EYE operation is set to blow directly on people and COMFORT AIRFLOW operation is activated simultaneously, the air conditioner tracks you horizontally, without the air blowing directly on you.
- The airflow rate will be set to AUTO. If the up and down airflow direction is selected, the COMFORT AIRFLOW operation will be canceled. Priority is given to the function of whichever button is pressed last.

■ How INTELLIGENT EYE operation works

The INTELLIGENT EYE sensor detects human movement and adjusts the right and left airflow direction. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor works differently depending on the situation.

[Example]

	A person is detected in area 1. area 2.	A person is detected in	People are detected in both areas.	No people are detected in the areas.
			The airflow is directed to Area 1.	The air conditioner will switch to energy-saving mode after 20 minutes.
			The current airflow direction is maintained.

INTELLIGENT EYE operation is useful for energy saving

Energy saving operation

• If no presence detected in the room for 20 minutes, the energy saving operation will start.
• This operation changes the temperature by -2^ in HEAT / +2^ in COOL / +2^ in DRY operation from the set temperature.
  When the room temperature exceeds 30^ C, the operation changes the temperature by +1^ C in COOL / +1^ C in DRY operation from the set temperature.
• This operation decreases the airflow rate slightly in FAN operation only.

NOTE

Notes on INTELLIGENT EYE operation

• Application range is as follows.

Vertical angle 90° (Side view) 5m 90°

Horizontal angle 110° (Top view) 55° 55° 5m

- While the air conditioner is in INTELLIGENT EYE operation, the louvres adjust the airflow direction if there are people in the sensing areas of the INTELLIGENT EYE so that the leftward or rightward airflow will not be directed to the people. If no people are detected in either area 1 or 2 for 20 minutes, the air conditioner switches to the energy-saving mode with the set temperature shifted by 2^ .

The air conditioner may switch to the energy-saving operation even if there are people in the areas.

This may occur depending on the clothes the people are wearing, if there is no movement of the people in the areas.

• The airflow direction from the louvres will be leftward if there are people in both areas 1 and 2. The air will also flow left if there is a person right in front of the sensor as the sensor judges that there are people in both areas.
• Due to the position of the sensor, people might be exposed to the airflow of the indoor unit if they are close to the front side of the indoor unit. If there are people close to the front side of the indoor unit or in both areas, it is recommended to use the COMFORT AIRFLOW and INTELLIGENT EYE operations simultaneously. Using both modes together, the air conditioner will not direct the airflow towards the people.
• The sensor may not detect moving objects further than 5m away. (Please see the application range)
• Sensor detection sensitivity changes according to the indoor unit location, the speed of passers-by, temperature range, etc.
• The sensor could also mistakenly detect pets, sunlight, fluttering curtains and light reflected off of mirrors as passers-by.
• NIGHT SET mode ▶ Page 26 will not switch on during use of INTELLIGENT EYE operation.

POWERFUL Operation

15:30 Powerful

POWERFUL operation quickly maximises the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.

■ To start

Press during operation.

• “ appears on the LCD.
- POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation.

■ To cancel

Press again.

• “ disappears from the LCD.

NOTE

Notes on POWERFUL operation

• Pressing causes the settings to be cancelled, and " " disappears from the LCD.
• POWERFUL operation will not increase the capacity of the air conditioner if the air conditioner is already in operation with its maximum capacity demonstrated.
• In COOL, HEAT and AUTO operation
  To maximise the cooling (heating) effect, the capacity of outdoor unit increases and the airflow rate becomes fixed at the maximum setting. The temperature and airflow settings cannot be changed.
• In DRY operation
  The temperature setting is lowered by 2.5°C and the airflow rate is slightly increased.
• In FAN operation
  The airflow rate is fixed at the maximum setting.

Regarding the combination of POWERFUL and other operations

POWERFUL + COMFORT AIRFLOW	Not available*
POWERFUL + ECONO
POWERFUL + OUTDOOR UNIT QUIET

*Priority is given to the function of whichever button is pressed last.

ECONO / OUTDOOR UNIT QUIET Operation

27.0°C MON 15:30 Ecoq/Quint Timer

ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.

OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. This function is convenient during the night-time operation.

■ To start

Press Econo/Quiet and select the desired mode.

• Each time is pressed, a different setting option appears on the LCD.

■ To cancel

Press Econo/Quiet until no icon is displayed.

NOTE

Notes on ECONO operation

• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.
• Pressing ⏻ causes the settings to be cancelled, and “” disappears from the LCD.
• If the power consumption level is already low, switching to ECONO operation will not reduce the power consumption.

Notes on OUTDOOR UNIT QUIET operation

• Even if the operation is stopped by using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET operation, "💡" will remain displayed on the remote controller.
• OUTDOOR UNIT QUIET operation will not reduce the frequency nor fan speed if they already are operating at reduced levels.
• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.

Possible combinations of ECONO / OUTDOOR UNIT QUIET operation and basic operations

	Operation mode
	AUTO DRY COOL		HEAT FAN
ECONO	√	√	√	√	-
OUTDOOR UNIT QUIET	√	-	√	√	-

ON/OFF TIMER Operation

27.0°C MON ON 16:00 Select On Cancel Timer

Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together.

[ON TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶ Page 11

1. Press On

“5.00 appears on the LCD. “ON-” blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the setting rapidly.

3. Press on again.

- “ON” and setting time appear on the LCD.

• The TIMER lamp lights orange.

On/Off

Display

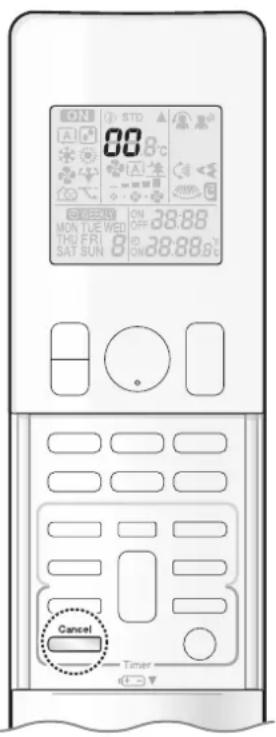

■ To cancel

Press Cancel.

• “ON” and setting time disappear from the LCD.
• “ ⏻ ” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

NOTE

Note on TIMER operation

- When TIMER is set, the present time is not displayed.

In the following cases, set the timer again.

• After the circuit breaker has turned off.
• After a power failure.
• After replacing the batteries in the remote controller.

27.0°C OFF 0:00 Off Select Cancel Timer

[OFF TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press Off

“ 0.00 appears on the LCD.

“>OFF-” blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the time setting rapidly.

3. Press off again.

• “OF and setting time appear on the LCD.
  • The TIMER lamp lights orange.

On/Off

Display

■ To cancel

Press Cancel

• “OF and setting time disappear from the LCD.
• “ ⊕” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

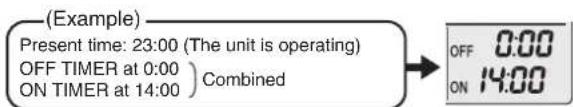

[ON/OFF TIMER combination]

■ To combine

- A sample setting for combining the 2 timers is shown below.

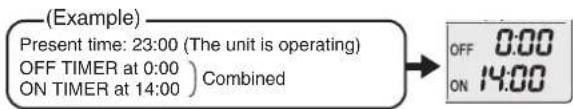

(Example) Present time: 23:00 (The unit is operating) OFF TIMER at 0:00 ON TIMER at 14:00) Combined OFF 0:00 ON 14:00

NOTE

NIGHT SET mode

- When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) during sleeping hours.

ON/OFF TIMER Operation

27.0°C ON Ihr Off Select On Timer

[ON/OFF TIMER with an hours remaining display] (COUNT UP-DOWN ON/OFF TIMER)

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press and hold on or for about 5 seconds, when signal indicator (▲) blink, release your finger from the button.

For ON TIMER

"Ibr" appears on the LCD.

“ON-” blinks.

For OFF TIMER

"Ibr" appears on the LCD.

“OFF-”blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of the button increases or decreases the time setting by 1 hour.

• The time can be set between 1 and 12 hours.

3. Press On or again. Off

- “ONand” “ONand setting time appear on the LCD.

• The TIMER lamp lights orange.

- To change the display mode from COUNT UP-DOWN ON/OFF TIMER to 24 HOUR ON/OFF TIMER, repeat STEP 1, and continue from STEP 2 of "24 HOUR ON/OFF TIMER". ▶ Page 25, 26

- Timer display mode cannot be changed while “ON-” or “Dare blinking. Press ☐ or ☐ to stop the blinking.

On/Off

Display

■ Combining display modes

- Different display modes (24 HOUR ON/OFF TIMER and COUNT UP-DOWN ON/OFF TIMER) can be used for the ON TIMER and OFF TIMER simultaneously.

(Example) Present time: 22:00 (The unit is operating) OFF TIMER at 1:00 (3 hours after persent time) ) Combined ON TIMER at 6:00 (8 hours after persent time) ON ON OFF 3hr 6:00 OFF 1:00 ON 8hr OFF 3hr ON 8hr

NOTE

Note on COUNT UP-DOWN ON/OFF TIMER

- After setting, the time displayed on the LCD will automatically count down by 1 hour for every 1 hour that passes. For example, if the OFF TIMER is set to 3 hours, the display will change as follows: 3hr 2hr 1hr blank (OFF)

Switching between ON/OFF TIMER display modes (24 hour clock and hours remaining display)

- When changing timer display modes (from 24 HOUR ON/OFF TIMER to COUNT UP-DOWN ON/OFF TIMER or vice versa), the timer cancels. The timer must be set again to activate it.

WEEKLY TIMER Operation

Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family's life style.

■ Setting example of the WEEKLY TIMER

The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend.

[Monday]	Make timer settings for programmes 1-4. ▶Page 29
	Programme 1	Programme 2	Programme 3	Programme 4
[Tuesday] to [Friday]	Use the copy mode to make settings for Tuesday to Friday, because these settings are the same as those for Monday. ▶Page 31Pr			4
[Saturday]	No timer settings
[Sunday]	Make timer settings for programmes 1-4. ▶Page 29

- Up to 4 reservations per day and 28 reservations per week can be set using the WEEKLY TIMER. The effective use of the copy mode simplifies timer programming.

- The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn off the air conditioner automatically if you forget to turn it off.

WEEKLY TIMER Operation

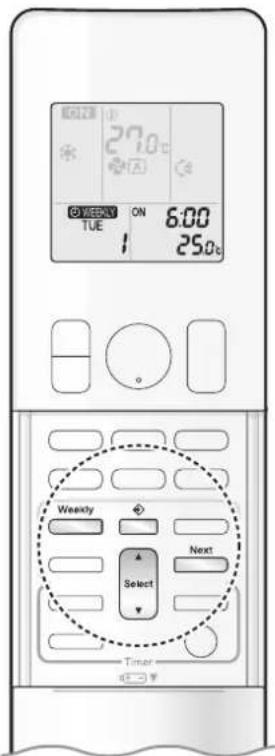

MON ON 6:00 25.0℃ Back Select Next

■ To use WEEKLY TIMER operation

Setting mode

- Make sure the day of the week and time are set. If not, set the day of the week and time. ▶Page 11

Programme 1 Programme 2 Programme 3 Programme 4

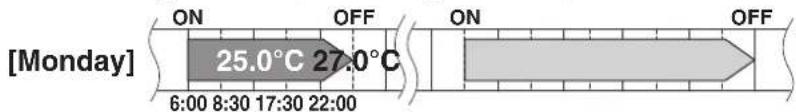

[Monday] ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 ON OFF

Setting Displays

1. Press

• The day of the week and the reservation number of the current day will be displayed.
• 1 to 4 settings can be made per day.

2. Press Select to select the desired day of the week and reservation number.

- Pressing Select changes the reservation number and the day of the week.

3. Press Next .

• The day of the week and reservation number will be set.

- “WEEKLY” and “ON-” blink.

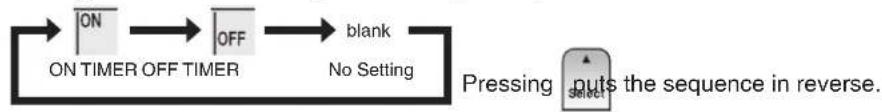

4. Press Select to select the desired mode.

- Pressing Select changes the "ON" or "OFF" setting in sequence.

• In case the reservation has already been set, selecting "blank" deletes the reservation.
• Proceed to STEP 9 if "blank" is selected.
  • To return to the day of the week and reservation number setting, press ☐

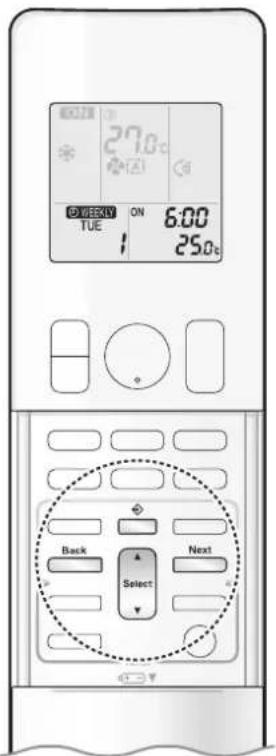

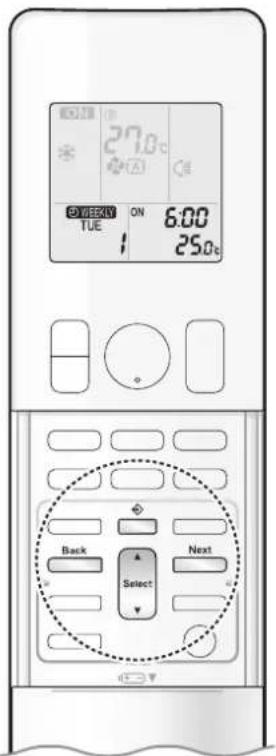

5. Press Next .

• The ON/OFF TIMER mode will be set.
• “ Ⓧ WEEKLY ” and the time blink.

27.0°C ON 6:00 TUE 1 25.0°C Back Select Next

6. Press □ to select the desired time.

• The time can be set between 0:00 and 23:50 in 10-minute intervals.
• To return to the ON/OFF TIMER mode setting, press BACK
• Proceed to STEP 9 when setting the OFF TIMER.

7. Press Next

• The time will be set.
• “ Ⓧ WEEKLY ” and the temperature blink.

8. Press to select the desired temperature.

• The temperature can be set between 10.0°C and 32.0°C. COOL or AUTO: The unit operates at 18.0°C even if it is set to 10.0°C to 17.0°C. ▶Page 14 HEAT or AUTO: The unit operates at 30.0°C even if it is set to 31.0°C to 32.0°C. ▶Page 14
  • To return to the time setting, press .
• The set temperature is only displayed when the mode setting is on.

9. Press Next

• The temperature will be set and go to the next reservation setting.
• The temperature is set while in ON TIMER operation, and the time is set while in OFF TIMER operation.
  • The next reservation screen will appear.
• To continue further settings, repeat the procedure from STEP 4.

10. Press to complete the setting.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the OPERATION lamp.
• “ WEEKLY ” appears on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off

Display

- A reservation made once can be easily copied and the same settings used for another day of the week. Refer to Copy mode. ▶Page 31

NOTE

Notes on WEEKLY TIMER operation

• Do not forget to set the clock on the remote controller first. ▶Page 11
• The day of the week, ON/OFF TIMER mode, time and set temperature (only for ON TIMER mode) can be set with the WEEKLY TIMER. Other settings for the ON TIMER are based on the settings just before the operation.
• WEEKLY TIMER and ON/OFF TIMER operation cannot be used at the same time. The ON/OFF TIMER operation has priority if it is set while WEEKLY TIMER is still active. The WEEKLY TIMER will enter the standby state, and “WEEKLY” will disappear from the LCD. When the ON/OFF TIMER is up, the WEEKLY TIMER will automatically become active.
• Only the time and set temperature with the WEEKLY TIMER are sent with the ☐. Set the WEEKLY TIMER only after setting the operation mode, the airflow rate and the airflow direction ahead of time.
• Turning off the circuit breaker, power failure, and other similar events will render operation of the indoor unit's internal clock inaccurate. Reset the clock. ▶Page 11
  • can be used only for the time and temperature settings. It cannot be used to go back to the reservation number.

WEEKLY TIMER Operation

27.0°C WEEKLY ON 6:00 TUE 25.0°C Copy Select Timer

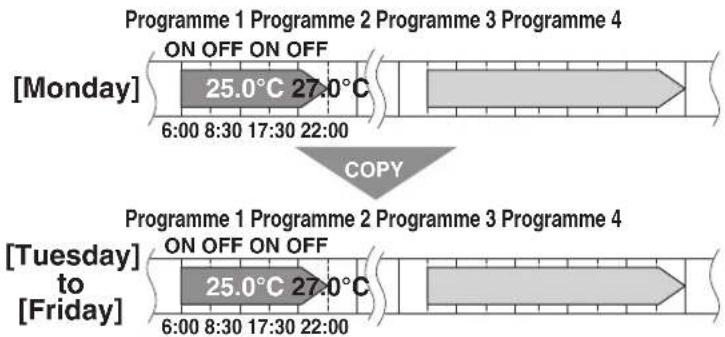

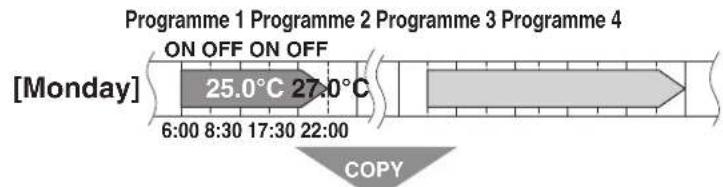

Copy mode

- A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied.

Programme 1 Programme 2 Programme 3 Programme 4 [Monday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 COPY Programme 1 Programme 2 Programme 3 Programme 4 [Tuesday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00

1. Press
2. Press Select to confirm the day of the week to be copied.
3. Press Copy .

- The whole reservation of the selected day of the week will be copied.

1. Press Select to select the destination day of the week.

2. Press Copy

3. The reservation will be copied to the selected day of the week. The whole reservation of the selected day of the week will be copied.
   • To continue copying the settings to other days of the week, repeat STEP 4 and STEP 5.

4. Press ☐ to complete the setting.

- “WEEKLY” appears on the LCD and WEEKLY TIMER operation is activated.

NOTE

Note on COPY MODE

- The entire reservation of the source day of the week is copied in the copy mode. In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press and change the settings in the steps of Setting mode. ▶Page 29

27.0°C ON TUE 6:00 25.0°C Weekly Select Next Timer

■ Confirming a reservation

• The reservation can be confirmed.

Setting Displays DREAM TUE 15:35 Normal ON ON 6:00 TUE 25.0c Confirmation

1. Press

- The day of the week and the reservation number of the current day will be displayed.

2. Press to select the day of the week and the reservation number to be confirmed.

• Pressing displays the reservation details.
• To change the confirmed reserved settings, select the reservation number and press Next. The mode is switched to setting mode. Proceed to Setting mode STEP 4. ▶Page 29

3. Press to exit the confirmation mode.

• “ WEEKLYrs on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off

Display

■ To deactivate WEEKLY TIMER operation

Press ☐ while “ Ⓧ WEEKLY ” is displayed on the LCD.

• “Wears from the LCD.
• The TIMER lamp goes off.
• To reactivate the WEEKLY TIMER operation, press ____ again.
- If a reservation deactivated with ____ is activated once again, the last reservation mode will be used.

NOTE

- If not all the reservation settings are reflected, deactivate the WEEKLY TIMER operation once. Then press ____ again to reactivate the WEEKLY TIMER operation.

WEEKLY TIMER Operation

27.0°C ON 6:00 TUE 25.0°C Weekly Select Next Timer

■ To delete a reservation

An individual reservation

1. Press

- The day of the week and the reservation number will be displayed.

2. Press to select the day of the week and the reservation number to be deleted.

3. Press Next .

4. Press □ until no icon is displayed.

- Pressing Changes the ON/OFF TIMER mode in sequence.

- Selecting "blank" will cancel any reservation you may have.

5. Press Next .

- The selected reservation will be deleted.

6. Press

- If there are still other reservations, WEEKLY TIMER operation will be activated.

Reservations for each day of the week

• This function can be used for deleting reservations for each day of the week.
• It can be used while confirming or setting reservations.

1. Press

- The day of the week and the reservation number will be displayed.

2. Press Select to select the day of the week to be deleted.

3. Hold for about 5 seconds.

- The reservation of the selected day of the week will be deleted.

4. Press

- If there are still other reservations, WEEKLY TIMER operation will be activated.

All reservations

Weekly

Hold for about 5 seconds with the normal display.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone.
• This operation cannot be used for the WEEKLY TIMER setting display.
• All reservations will be deleted.

Wireless LAN connection

Please note

- Turn off the air conditioner before setting up wireless connection.

Prior to setting up, please make sure your device is ready to connect. You may refer to the indoor unit LED table for guidance.

Check the indoor unit LED.

Wireless LAN connecting adapter lamp Status
Blinks for one second	The wireless LAN connecting adapter is ready to connect.
No blinking/no light	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.Please refer to the troubleshooting guide or contact the store where you bought the air conditioner to request a repair service.
Lamp stays lit	The wireless LAN connecting adapter is connected to a modem/router.

On/Off Wireless LAN connecting adapter lamp (Orange) Display

Wireless LAN connection

Web site: http://www.daikinthai.com/product/dmobile

For more information on the latest version of wireless LAN control, please refer to the above website.

■ Application software installation

- Before downloading the application software for installation, please read "Configuration" on ▶Page 7

For Android phones

1) Open [Google Play].
2) Search using the application name: [DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

For iOS phones

1) Open [App Store].
2) Search using the application name: [DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

Setting

Connect the wireless LAN connecting adapter to your home network.

- The wireless LAN connecting adapter will communicate with the smart devices in your home network via a modem, router, or a similar device.

There are two options for connecting the wireless LAN connecting adapter to your smart phone or tablet:

1) Simple connection (WPS connection), if there is a WPS button on the router, ▶Page 36
2) Access point connection (AP connection), if there is no WPS button on the router, ▶ Page 37

For more information and Frequently Asked Questions, please refer to:

http://www.daikinthai.com/product/dmobile

WPS MARTINOCED SETUP

NOTE

Note on wireless LAN connection

- For more information on how the wireless LAN connecting adapter operates, please see ▶Page 35-37

Wireless LAN connection

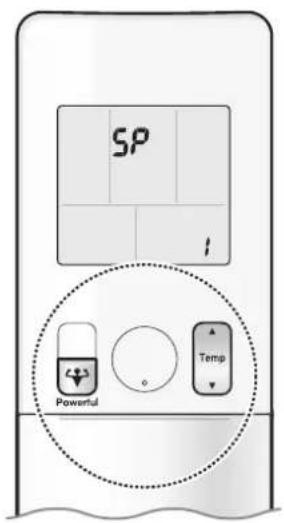

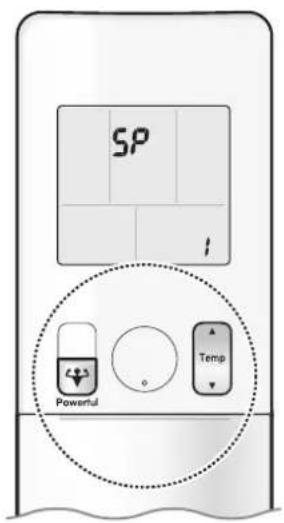

SP 1 Powerful Temp

On/Off C

Display

Enabling/disabling the wireless LAN connecting adapter

■ To enable

1. While operation is stopped, press and hold the button for 5 seconds.

1. Press or and select SP menu.

2. Press to confirm the selected setting.

- “▲blinks briefly. - The wireless LAN connecting adapter lamp (orange) blinks for one second.

1. Press to return to the default screen.

■ To disable

1. While operation is stopped, press and hold the button for 5 seconds.

1. Press or and select SP menu . off

2. Press and hold for 2 seconds to confirm the selected setting.

- “▲blinks briefly. - The wireless LAN connecting adapter lamp (orange) goes off.

1. Press Cancel to return to the default screen.

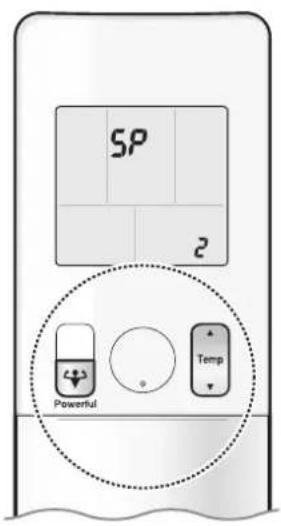

SP 2 Powerful Temp

On/Off

Display

16:55 Home All units in Unit name SETC SETC

Fig. 1

To connect the wireless LAN connecting adapter to your home network

The wireless LAN connecting adapter can be connected to your home network by means of:

• Simple connection (WPS connection), if there is a WPS button on the router.
• Access point connection (AP connection), if there is no WPS button on the router.

■ Simple connection (WPS connection)

If there is a WPS button on your Wi-Fi router, please follow the below steps.

1. While operation is stopped, press and hold the button for 5 seconds.

2. “SPappears on the LCD.
   • “ ” (SP menu) blinks.

1. Press or and select SP menu . 2
2. Press to confirm the selected setting.

• “▲blinks briefly.

- The wireless LAN connecting adapter lamp (orange) blinks more quickly.

1. Press the WPS button on your communication device (e.g. router) within approximately one minute. Please refer to the manual of your communication device.

- The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.

1. Press to return to the default screen.
2. Connect your smart phone to your home network.
3. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there (Fig. 1).

NOTE

Note on simple connection (WPS connection)

• If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-5.
  Alternatively, try connecting via your device directly. Please refer to "Access point connection (AP connection)". ▶Page 37

Wireless LAN connection

On/Off C

Display

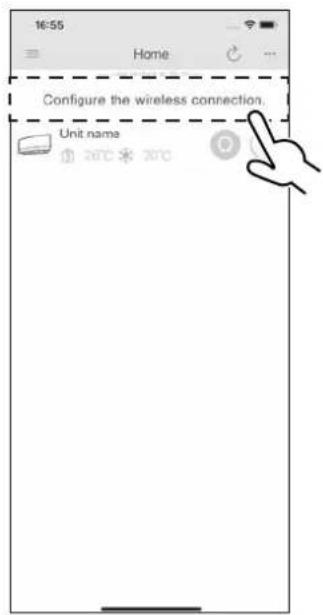

16:55 Home Configure the wireless connection. Unit name 20℃ 20℃

Fig. 2

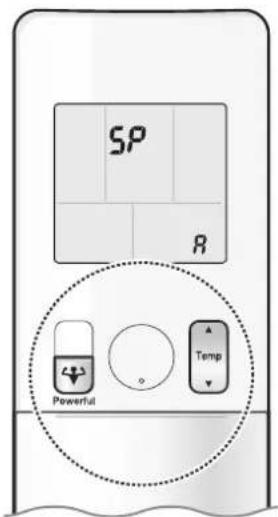

SP R Powerful Temp

■ Access point connection (AP connection).

If your home Wi-Fi router does not have a WPS button, you can connect your smart phone directly to the wireless LAN connecting adapter in order to set up a connection to your home network by following these steps. - This step requires SSID number and KEY located on the indoor unit or on the cover of the manual.

1. Connect the wireless LAN connecting adapter to a smart phone or tablet.

View available Wi-Fi networks on your smart phone or tablet and connect to the SSID (DaikinAP****) printed out on the sticker. SSID and KEY are located on the indoor unit or on the cover of the manual, as shown in the below image.

• Sticker on the indoor unit SSID&KEY sticker • WIRELESS LAN CONNECTION SSID:DaikinAPXXXXX KEY :YYYYYYYYYYYYY • Sticker on the cover of the manual FARION OPERATION MANUAL

2. Open the DAIKIN Mobile Controller application and select "Configure the wireless connection" (Fig. 2) and connect to your home network as per the on-screen instructions.

- The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.

3. Connect your smart phone to your home network.

4. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there.

Reset connection setting to factory defaults.

Please note

When the device is reset, out-of-home user account and wireless LAN connection setting will be changed back to the factory defaults.

■ To reset

1. While operation is stopped, press and hold the button for 5 seconds.

• “SPappears on the LCD.
• “ ” (SP menu) blinks.

2. Press or and select SP menu . R

3. Press and hold 📋 for 2 seconds to confirm the selected setting.

• “▲” blinks briefly.
• The wireless LAN connecting adapter lamp (orange) blinks for one second.

4. Press Cancel to return to the default screen.

NOTE

Note on access point connection (AP connection)

- If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-2.

Care and Cleaning

CAUTION

• Before cleaning, be sure to stop the operation and turn off the circuit breaker.
• Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

■ Quick reference

Cleaning parts

Front panel

• Wipe it with a soft damp cloth.
• Only neutral detergent may be used.

If dirty

Air filter

• Vacuum dust or wash the filter.

Once every 2 weeks

Page 39

Indoor unit and remote controller

- Wipe them with a soft cloth.

If dirty

Technical line drawing of an air conditioner unit showing internal compartments and ventilation duct (no text or labels)

Two curved solar panels with grid patterns and mounting feet, shown from different angles (no text or symbols)

Streamer air inlet

- Do not place objects around the indoor unit. Doing so may have an adverse influence on the performance, product quality, and life of the streamer.

Deodorizing filter (enzyme blue)

To purchase the filters (Table 1) or to purchase the another type, contact the dealer where you bought the air conditioner. The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Table 1

Item Part No.
Air quality filter (enzyme blue with PM2.5) - without frame (set of 2)	BAFP094A43
Deodorizing filter (enzyme blue) - without frame (set of 2) BAF	P094A41
Dust collection filter (PM 2.5) - without frame (set of 2) BAFP046A41
Titanium apatite deodorizing filter - without frame (set of 2) KAF	F970A46

Deodorizing filter (enzyme blue), Titanium apatite deodorizing filter.

• Vacuum dust or replace the filter.

[Cleaning] [Replacement]

Once every 6 months Once every 3 years

▶Page 40

▶Page 40

Air quality filter (enzyme blue with PM2.5), Dust collection filter (PM 2.5)

- No cleaning is required. Please replace the filter every 6 months. ▶Page 40

NOTE

For cleaning, do not use any of the following:

• Water hotter than 40°C
• Volatile liquid such as benzene, petrol and thinner
- Polishing compounds
- Rough materials such as a scrubbing brush

Illustration of a teapot, a brush, and a bottle (no text or symbols)

Care and Cleaning

Air filter

1. Open the front panel.

- Hold the front panel by the sides and open it.

Backside of the front panel Fixing tab Panel support plate

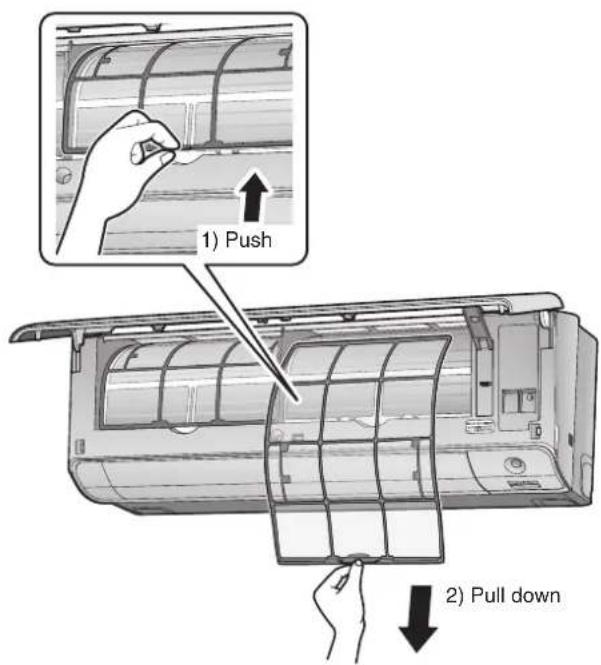

2. Pull out the air filters.

- Push the filter tab at the centre of each air filter a little upwards, then pull it down.

1) Push 2) Pull down

3. Wash the air filters with water or clean them with vacuum cleaner.

- It is recommended to clean the air filters every 2 weeks.

Illustration of hands holding a grid-based object with a pen, no text or symbols present

If the dust does not come off easily

- Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade. - Be sure to remove the filter (small). Refer to "Filter (small)" on the next page.

Simple line drawing of a basin with a rectangular object floating above it (no text or symbols)

4. Reattach the filters.

5. Close the front panel slowly.

- Press the panel at both sides and the centre.

Illustration of a wall-mounted air conditioner unit with three black arrows indicating airflow or cooling direction (no text or symbols)

- Make sure that the front panel is securely fixed.

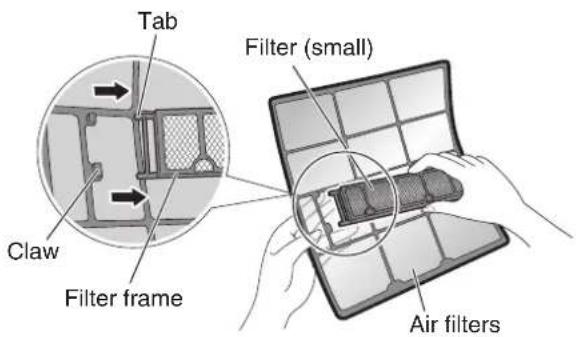

■ Filter (small)

* For the applicable filter type, please refer to ▶ Page 38

Attaching

1. Open the front panel and pull out the air filters. ▶ Page 39

2. Insert the filter.

- Check that the filters are inserted securely under the tabs.

Tab Claw Filter frame Filter (small) Air filters

Cleaning and Replacement

1. Open the front panel and pull out the air filters. ▶Page 39

2. Take off the filter.

• Hold the recessed parts of the frame and unhook the 4 claws.
• Remove the filters from the tabs.

Tab Claw Filter frame Filter (small) Air filters

NOTE

• Operation with dirty filters:
- cannot deodorise the air,
- cannot clean the air,
– results in poor heating or cooling,
- may cause odour.
- Dispose of old filters as non-flammable waste.

3. Clean or replace.

[Cleaning]

Deodorizing filter (enzyme blue) : Blue / Titanium apatite deodorizing filter : Blue-Black

3-1 Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty.
3-2 After washing, shake off remaining water and let them dry in the shade.

- This filter can be renewed by washing it with water once every 6 months and we recommend replacing it once every 3 years.

- Do not wiring out the filter when removing water from it.

Air quality filter (enzyme blue with PM2.5) : Blue-White/ Dust collection filter (PM 2.5) : White

• Do not wash the filters as this will reduce their efficiency.
• It is recommended to replace it once every 6 months.

[Replacement]

Remove the filter from the filter frame and prepare a new one.

• Do not throw away the filter frame.
• Reuse the filter frame when replacing the filter.

- When attaching the filter, check that the filter is properly set in the tabs.

4. Set the filters as they were and close the front panel.

- Press the front panel at both sides and the center.

Care and Cleaning

■ Prior to a long period of non-use

1. Operate the MOLD PROOF mode. ▶Page 17
2. After operation stops, turn off the circuit breaker for the room air conditioner.
3. Clean the air filters and reattach them. ▶Page 39
4. To prevent battery leakage, take out the batteries from the remote controller.

■ We recommend periodical maintenance

• In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist in addition to regular cleaning by the user.
• For specialist maintenance, please contact the dealer where you bought the air conditioner.
• The maintenance cost must be borne by the user.

FAQ

Indoor unit

The flaps do not start swinging immediately.

- The air conditioner is adjusting the position of the flaps. The flaps will start moving soon.

The air conditioner stops generating airflow during HEAT operation.

- Once the set temperature is reached, the airflow rate is reduced and operation stopped in order to avoid generating a cool airflow. Operation will resume automatically when the indoor temperature falls.

HEAT operation stops suddenly and a flowing sound is heard.

- The outdoor unit is defrosting. HEAT operation starts after the frost on the outdoor unit has been removed. This can take about 4 to 12 minutes.

Operation does not start soon.

■ When ⏻ was pressed soon after operation was stopped.

■ When the mode was reselected.
• This is to protect the air conditioner. You should wait for about 3 minutes.

Outdoor unit

The outdoor unit emits water or steam.

In HEAT operation
- The frost on the outdoor unit melts into water or steam when the air conditioner is in defrosting operation.
In COOL or DRY operation
- Moisture in the air condenses into water on the cool surface of the outdoor unit piping and drips.

Technical illustration of a wall-mounted air conditioner unit showing internal cooling fins and ventilation slots (no text or symbols)

Commonly occurring sounds.

A sound like flowing water
- This sound is generated because the refrigerant in the air conditioner is flowing.
- This is a pumping sound of the water in the air conditioner and can be heard when the water is pumped out from the air conditioner during COOL or DRY operation.
- This sound is generated during COOL operation on outdoor ambient lower than 12°C when outdoor fan stop for keep pressure.

■ Blowing sound

- This sound is generated when the flow of the refrigerant in the air conditioner is switched over.

Tickingsound

- This sound is generated when the cabinet and frame of the air conditioner slightly expand or shrink as a result of temperature changes.

■ Whistlingsound

- This sound is generated when refrigerant flows during defrosting operation.

■ Clicking sound during operation or idle time

- This sound is generated when the refrigerant control valves or the electrical parts operate.

■ Cloppingsound

- This sound is heard from the inside of the air conditioner when the exhaust fan is activated while the room doors are closed. Open the window or turn off the exhaust fan.

■ Hissing/Cracking sound

- The sound of the streamer discharge. It is not a malfunction.

Illustration of a rectangular air conditioner unit with a circular vent and side-mounted cooling fins (no text or symbols)

• The appearance of the outdoor unit may differ between different models.

Troubleshooting

Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer.

Not a problem

This case is not a problem.

Check

Please check again before requesting repairs.

Air conditioner

The air conditioner does not operate

Case Description / what to check
OPERATION lamp is off.	Has the circuit breaker been tripped or the fuse blown?Is there a power failure?Are batteries set in the remote controller?
OPERATION lamp is blinking.	Turn off the power with the circuit breaker and restart operation with the remote controller.If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner suddenly stops operating

Case Description / what to check
OPERATION lamp is on.	To protect the system, the air conditioner may stop operating after sudden large voltage fluctuations. It automatically resumes operation in about 3 minutes.
OPERATION lamp is blinking.	Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit? Stop operation and after turning off the circuit breaker, remove the obstruction. Then restart operation with the remote controller. If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner does not stop operating

Case Description / what to check
The air conditioner continues operating even after operation is stopped.	☑ ■ Immediately after the air conditioner is stopped• The outdoor unit fan continues rotating for about another 1 minute to protect the system.■ While the air conditioner is not in operation• When the outdoor temperature is high, the outdoor unit fan may start rotating to protect the system.
	☑ • MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)

The room does not cool down/warm up

Case Description / what to check
Air does not come out.	HEAT operationThe air conditioner is warming up. Wait for about 1 to 4 minutes.During defrosting operation, hot air does not flow out of the indoor unit.COOL or DRY operationIf COOL/DRY operation is started with airflow settings on “AUTO”, the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)When the air conditioner operates immediately after the circuit breaker is turned onThe air conditioner is preparing to operate. Wait for about 3 to 15 minutes.
Air does not come out / Air comes out.	Is the airflow rate setting appropriate?Is the airflow rate setting low, such as “Indoor unit quiet” or “Airflow rate 1”?Increase the airflow rate setting.Is the set temperature appropriate?Is the adjustment of the airflow direction appropriate?
Air comes out.	Is there any furniture directly under or beside the indoor unit?Is the air conditioner in ECONO operation or OUTDOOR UNIT QUIET operation?▶Page 24Are the air filters dirty?Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?Is a window or door open?Is an exhaust fan turning?
The room temperature does not reach the set temperature.	If the air coming out of the air conditioner is blowing against a wall, the set temperature may not be reached correctly.

Air conditioner

Mist comes out

Case Description / what to check
Mist comes out of the indoor unit.	[2W2W]This happens when the air in the room is cooled into mist by the cold airflow during COOL or other operation.

Remote controller

Case Description / what to check
The unit does not receive signals from the remote controller or has a limited operating range.	• The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room. Consult your dealer if that is the case.• The remote controller may not function correctly if the transmitter is exposed to direct sunlight.
LCD is faint, is not working, or the display is erratic.	• The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10
The LCD is blinking and the remote controller cannot be operated.	[KHOK]• Battery power has run out.Replace both batteries at the same time with new size AAA.LR03 (alkaline) batteries.Leaving exhausted batteries in the remote controller can result in injury due to battery leakage, rupturing or heating, or lead to equipment failure.(Even when the LCD is blinking, the OFF button remains functional.)
Other electric devices start operating.	• If the remote controller activates other electric devices, move them away or consult your dealer.

Air has an odour

Case Description / what to check
The air conditioner gives off an odour.	[4067]The room odour absorbed in the unit is discharged with the airflow.We recommend that you have the indoor unit cleaned. Please consult your dealer.Due to streamer discharge, the air outlet may emit a slight odour as trace amounts of ozone are generated. However, the amount is negligible and is not harmful to your health.

Display lamps

Case Description / what to check
The OPERATION lamp is off,but the air conditioner is operating.	[AH5W]Is the display brightness set to “Off”?
	[824K]MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)
The display lamps on the main unit are dark.	Is the display brightness set to “Low”?

Streamer air cleaning operation

Case Description / what to check
The sound of streamer discharge can no longer be heard.	[5OTO] • If the airflow becomes weak, the streamer discharge stops.

Others

Case Description / what to check
The air conditioner suddenly starts behaving strangely during operation.	[8007] • The air conditioner may malfunction due to lightning or radio.If the air conditioner malfunctions, turn off the power with the circuit breaker and restart the operation with the remote controller.
The ON/OFF TIMER does not operate according to the settings.	• Check if the ON/OFF TIMER and the WEEKLY TIMER are set to the same time.Change or deactivate the settings in the WEEKLY TIMER. ▶Page 28,29,30

NOTE

Note on the operating conditions

• If operation continues under any conditions other than those listed in the table, - A safety device may activate to stop the operation. - Dew may form on the indoor unit and drip from it when COOL or DRY operation is selected.

Mode Operating conditions
COOL / DRY	Outdoor temperature: -10.0~46.0°CIndoor temperature: 18.0~32.0°CIndoor humidity: 80% max.
HEAT	Outdoor temperature: -15.0~24.0°CIndoor temperature: 10.0~30.0°C

Troubleshooting

Wireless LAN connecting adapter

The following table provides brief descriptions of how to handle problems or carry out connection setting.

Refer to the FAQ on our web site for more details.

Wireless LAN connection

When this happens Explanation and where to check
The device (air conditioner) cannot be found on the device list screen.	Carry out connection setting again.Move the router (wireless LAN access point) close to the indoor unit.There is a possibility that you are using an unsupported smart phone or router (wireless LAN access point). For details, refer to the web site.
Even if the wireless LAN connecting adapter lamp is lit, operation from outside the home is not possible.	Communication between the router and the internet connection may not be working.Please confirm.
The wireless LAN connecting adapter lamp does not blink or light.	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.There may be a problem with your device. Please contact the store where you bought the air conditioner to request a repair service.
None of the above work.	Refer to the FAQ on:http://www.daikinthai.com/product/dmobile

For instructions about how to operate the DAIKIN Mobile Controller application, please refer to the operation manual at http://www.daikinthai.com/product/dmobile

■ Call your dealer immediately

WARNING

When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.

• Continued operation in an abnormal condition may result in problems, electric shock or fire.
• Consult the dealer where you bought the air conditioner.

Do not attempt to repair or modify the air conditioner by yourself.

• Incorrect work may result in electric shock or fire.
• Consult the dealer where you bought the air conditioner.

If one of the following symptoms occurs, call your dealer immediately.

• The power cord is abnormally hot or damaged.
• An abnormal sound is heard during operation.
• The circuit breaker, a fuse, or the earth leakage circuit breaker cuts off the operation frequently.
• A switch or a button often fails to work properly.
  • There is a burning smell.
  • Water leaks from the indoor unit.

Turn off the circuit breaker and call your dealer.

■ After a power failure

- The air conditioner automatically resumes operation in about 3 minutes. Please wait for a while.

Lightning

- If there is a risk lightning could strike in the neighbourhood, stop operation and turn off the circuit breaker to protect the system.

■ Disposal requirements

- Dismantling of the unit and handling of the refrigerant, oil and other parts should be done in accordance with the relevant local and national regulations.

88 ON OFF 28.88 MIN U-FE RED THU FR SAT SUN B 28.88g Cancel Timer

■ Fault diagnosis by remote controller

- In case the air conditioner is malfunctioning, you can check the error code via the remote controller before consulting with service personnel and informing them of the malfunction code.

1. When Cancel is held down for about 5 seconds, "00" blinks in the temperature display section.

2. Press Cancel repeatedly until a long beep is produced.

- The code indication changes as shown below, and notifies you with a long beep.

	CODE MEANING
SYSTEM	00 NORMAL
	UA INDOOR	OUTDOOR UNIT COMBINATION FAULT
	U0 REFRIGERANT SHORTAGE
	U2 DROP VOLTAGE OR MAIN CIRCUIT OVERVOLTAGE
	U4 FAILURE OF TRANSMISSION (BETWEEN INDOOR UNIT AND OUTDOOR UNIT)
INDOOR UNIT	A1 INDOOR PCB DEFECTIVENESS
	A5 HIGH PRESSURE CONTROL OR FREEZE-UP PROTECTOR
	A6 FAN MOTOR FAULT
	C4 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	C9 FAULTY SUCTION AIR TEMPERATURE SENSOR
	CC	FAULTY HUMIDITY SENSOR
OUTDOOR UNIT	EA	COOLING-HEATING SWITCHING ERROR
	E1 CIRCUIT BOARD FAULT
	E5 OL STARTED
	E6 FAULTY COMPRESSOR START UP
	E7 DC FAN MOTOR FAULT
	F3 HIGH TEMPERATURE DISCHARGE PIPE CONTROL
	F6 HIGH PRESSURE CONTROL (IN COOLING)
	F8 OPERATION HALT DUE TO COMPRESSOR INTERNAL TEMPERATURE
	H0	SENSOR FAULT
	H6	OPERATION HALT DUE TO FAULTY POSITION DETECTION SENSOR
	H8	DC CURRENT SENSOR FAULT
	H9	FAULTY SUCTION AIR TEMPERATURE SENSOR
	J3 FAULTY DISCHARGE PIPE TEMPERATURE SENSOR
	J6 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	J8 FAULTY LIQUID PIPE TEMPERATURE SENSOR
	L3 ELECTRICAL PARTS HEAT FAULT
	L4 HIGH TEMPERATURE AT INVERTER CIRCUIT HEATSINK
	L5 OUTPUT OVERCURRENT
	P4 FAULTY INVERTER CIRCUIT HEATSINK TEMPERATURE SENSOR

NOTE

• A short beep and 2 consecutive beeps indicate non-corresponding codes.
• To cancel the code display, hold down for about 5 seconds. The code display also clears if no button is pressed for 1 minute.

Quick Reference

ON 27.0°C MON 15:30 On/OffFAN Temp Mode Swing 10.0°C → 30.0°C 18.0°C → 32.0°C 18.0°C → 30.0°C

DAIKIN INDUSTRIES, LTD.

Head office:

Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,

Kita-ku, Osaka, 530-8323 Japan

Tokyo office:

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

https://www.daikin.com

The two-dimensional bar code is a manufacturing code.

DAIKIN ROOM AIR CONDITIONER

OPERATION MANUAL

Line drawing of a rectangular air conditioner unit (no text or symbols)

INVERTER

STREAMER

MODELS

FTXM50W1VMA

FTXM60W1VMA

FTXM71W1VMA

Black-and-white interior photo of a modern living room with a sofa, coffee table, potted plant, and large window (no text or symbols visible)

[Sticker attachment area]

Attach the SSID&KEY sticker of wireless LAN connecting adapter to the sticker attachment area and keep safe.

Features

Enhanced comfort, energy savings and air cleaning

INTELLIGENT EYE

The INTELLIGENT EYE sensor detects human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. ▶Page 21

WEEKLY TIMER

Up to 4 timer settings can be saved for each day of the week according to your family's life style. The WEEKLY TIMER allows you to set on/off times and the desired temperature. ▶Page 28

MOLD PROOF

The MOLD PROOF function dries the interior of the indoor unit and provides an ideal environment to suppress the generation of mold for the indoor unit. ▶Page 17

FLASH STREAMER AIR CLEANING

Flash streamer decomposes mold and allergic substances. It keeps air in the room and the inside of the air conditioner clean to make a comfortable space. ▶Page 19

Other functions

COMFORT AIRFLOW OUTDOOR UNIT QUIET

The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on your body. ▶Page 20

OUTDOOR UNIT QUIET operation assures a low noise level of the outdoor unit. This function is useful to maintain a quiet neighbourhood.

Modern living room interior with white sofa, wall-mounted air conditioner unit, and potted plant (no text or symbols visible)

ECONO

This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air conditioner and other electrical devices simultaneously on a shared electrical circuit. ▶Page 24

Contents

Read Before Operation

Safety Precautions 3

Names of Parts 5

Preparation Before Operation 10

Basic Operation

Adjusting the Airflow Rate .....15

Adjusting the Airflow Direction .....16

Useful Functions

MOLD PROOF Operation .....17

FLASH STREAMER AIR CLEANING Operation ....19

COMFORT AIRFLOW Operation .....20

INTELLIGENT EYE Operation .....21

POWERFUL Operation 23

ECONO / OUTDOOR UNIT QUIET Operation 24

TIMER Operation

ON/OFF TIMER Operation .....25

WEEKLY TIMER Operation ......28

System control via Smart Control

Wireless LAN connection ....34

Care

Care and Cleaning 38

When the Need Arises

FAQ 42

Troubleshooting 43

Safety Precautions

Read the precautions in this manual carefully before operating the unit.

This appliance is filled with R32.

• Keep this manual where the user can easily find it.
• The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail.

WARNING

Failure to follow these instructions properly may result in personal injury or loss of life.

CAUTION

Failure to observe these instructions properly may result in property damage or personal injury, which may be serious depending on the circumstances.

Never attempt.

Be sure to follow the instructions.

Be sure to establish an earth connection.

- After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual.

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance must be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• The appliance must be installed, operated and stored in a room with a floor area larger than 4.6m^2 for 50/60 class, 4.9m^2 for 71 class.
  Maintain an installation height of 1.8m or more from the floor surface to the bottom of the appliance.
• To avoid fire, explosion or injury, do not operate the unit when harmful gases (e.g. flammable or corrosive) are detected near the unit.
• Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too cool or too warm, can be harmful to your physical condition and health.
• Do not place objects, including rods, your fingers, etc., in the air inlet or outlet. Product damage or personal injury may result due to contact with the air conditioner's high-speed fan blades.
• Do not attempt to repair, dismantle, reinstall or modify the air conditioner yourself as this may result in water leakage, electric shock or fire hazards.
• Do not use flammable spray near the air conditioner, or otherwise fire may result.
• Do not use a refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and personal injury.
• To avoid electric shock, do not operate with wet hands.

- Beware of fire in case of refrigerant leakage. If the air conditioner is not operating correctly, i.e. not generating cool or warm air, refrigerant leakage could be the cause. Consult your dealer for assistance. The refrigerant within the air conditioner is safe and normally does not leak.

However, in the event of a leakage, contact with a naked burner, heater or cooker may result in generation of noxious gas. Do not use the air conditioner until a qualified service person confirms that the leakage has been repaired.
- Do not attempt to install or repair the air conditioner yourself. Improper workmanship may result in water leakage, electric shock or fire hazards. Please contact your local dealer or qualified personnel for installation and maintenance work.
- If the air conditioner is malfunctioning (giving off a burning odour, etc.), turn off power to the unit and contact your local dealer. Continued operation under such circumstances may result in a failure, electric shock or fire hazards.
- Be sure to install an earth leakage circuit breaker. Failure to install an earth leakage circuit breaker may result in electric shock or fire.

- Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead. Imperfect earthing may result in electric shock.

CAUTION

• Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely affect the performance, quality and/or longevity of the object concerned.
• Do not expose plants or animals directly to the airflow from the unit as this may cause adverse effects.
• Do not place appliances that produce naked flames in places exposed to the airflow from the unit as this may impair combustion of the burner.
• Do not block the air inlets nor outlets. Impaired airflow may result in insufficient performance or trouble.

• Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage.
• Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned.
• After prolonged use, check the unit stand and its mounts for damage. If they are left in a damaged condition, the unit may fall and cause injury.
• To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units.
• The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and harm to health may result.
• Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental operation by a child may result in impairment of bodily functions and harm health.
• Avoid impacts to the indoor and outdoor units, or otherwise product damage may result.
• Do not place flammable items, such as spray cans, within 1m of the air outlet.
  The spray cans may explode as a result of hot air from the indoor or outdoor units.
• Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shock or fire.
• Do not wash the air conditioner with water, as this may result in electric shock or fire.
• Do not place water containers (vases, etc.) above the unit, as this may result in electric shock or fire hazards if they should topple over.
• Do not insert the batteries in the wrong polarity (+/-) orientation as this may result in short circuiting, fire, or battery leakage.
• Do not sit or hang on the panel. The panel may fall, and injury or product malfunctioning may result.
• Do not sway the panel. The panel may hit people or objects, and injury or property damage may result.
• Do not let children play around the panel. Injury or property damage may result.
• Do not pull the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not locate obstacles in the route. The panel may fall, and injury or property damage may result.
• Do not bend or damage the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not put objects on the panel, or otherwise production malfunctioning may result.
• Do not use an unstable stand at the time of operating or maintaining the air conditioner, or otherwise you may topple over or injury yourself.
• Locate the remote controller in places out of reach of children. The wrong operation of the remote controller may result in injury.

• To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used together with the air conditioner.
• Before cleaning, be sure to stop unit operation and turn off the circuit breaker. Otherwise, an electric shock and injury may result.
• Only connect the air conditioner to the specified power supply circuit. Power supplies other than the one specified may result in electric shock, overheating and fires.
• Arrange the drain hose to ensure smooth drainage. Imperfect drainage may cause wetting of the building, furniture, etc.
• Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around the unit. Leaves are a hotbed for small animals which can enter the unit. Once inside the unit, such animals can cause malfunctions, smoke or fire if they come into contact with electrical parts.
• Do not place objects around the indoor unit.
  Doing so may have an adverse influence on the performance, product quality, and life of the air conditioner.
• This appliance is not intended to be used by persons with reduced physical, sensory or mental capabilities, or with lack of operation knowledge, unless they have been given supervision or instruction concerning the appliance use by person responsible for their safety. Keep out of children's reach to ensure that they do not play with the appliance.

Precautions relating to area surrounding the indoor and outdoor units

■ Be sure to follow the instructions below.

• The indoor unit is at least 1m away from any television or radio set (unit may cause interference with the picture or sound).

- Refrain from using the units in areas prone to high levels of oily smoke, such as a kitchen. Water leakage may result.

Names of Parts

Indoor Unit

Front panel Air inlet Flaps (horizontal blades) ▶ Page 16 Louvres (vertical blades) • The louvres are inside of the air outlet. ▶ Page 16 Air outlet Model name ■ Room temperature sensor and Room humidity sensor • Sense air temperature and humidity around the unit. ■ Streamer air inlet • Air inlet for streamer operation. INTELLIGENT EYE sensor • Detects the movements of people and automatically switches between normal operation and energy saving operation. ▶ Page 21,22

Display

MOLD PROOF lamp (Green) ▶Page 17 TIMER lamp (Orange) ▶Page 25,26,27,30,32 Indoor unit ON/OFF switch and OPERATION lamp (Green) • Press this switch once to start operation. Press once again to stop it. • For the operation mode setting, STREAMER lamp (Green) ▶Page 19 Wireless LAN connecting adapter lamp (Orange) ▶Page 34 Signal receiver • It receives signals from the remote controller. • When the unit receives a signal, you will hear a beep sound.

Mode	Temperature setting	Airflow rate
AUTO	25.0°C AUTO

• This switch can be used when the remote controller is missing or out of batteries.

Case Sound type

Operation start beep-beep

Setting change beep

Operation stop long beep

List of lamps

Lamp	Colour	State	Description
OPERATION lamp	green	Lights up	The air conditioner is running.
		Blinks	Check the error code.
TIMER lamp	orange	Lights up	TIMER is set. ▶Page 25,26,27,30,32
MOLD PROOF lamp	green	Lights up	MOLD PROOF operation. ▶Page 17
STREAMER lamp	green	Lights up	STREAMER operation. ▶Page 19
Wireless LAN connecting adapter lamp	orange	Lights up	Wireless LAN connecting adapter operation. ▶Page 34
		Blinks	Wireless LAN connecting adapter is connected. ▶Page 34

■ Open the front panel

Backside of the front panel Fixing tab Panel support plate Wireless LAN connecting adapter (inside) ▶ Page 7, 34 Streamer unit (inside) Prevents mold and allergens with the decomposition power of the streamer discharge. SSID&KEY sticker of wireless LAN connecting adapter Air filter Deodorizing filter (enzyme blue)

Outdoor Unit

Air inlet (back and side) Air outlet Outdoor temperature sensor (back) Refrigerant pipes and inter-unit wire Earth terminal (inside) Drain hose

Names of Parts

Wireless LAN connecting adapter

The wireless LAN connecting adapter function requires the DAIKIN Mobile Controller application for connecting to the air conditioner and controlling it via your smartphone or tablet over your network.

ATTENTION

- Attach the sticker to the sticker attachment area on the cover page of the operation manual and keep it safe, as in the detail below:

[About the SSID and KEY]

- The [SSID] and [KEY] shown on the SSID&KEY sticker are necessary when connecting the air conditioner to a smartphone via wireless LAN.

■ Configuration

- The user is responsible for providing the following items before using this product:

■ Smartphone or tablet (Supported OS versions: Android 4.1.2 or higher; iOS 10.0 or higher. For the latest compatibility information, refer to the web site at http://www.daikinthai.com/product/dmobile/compatible.)

■ Internet line and communicating device (Modem/router or similar device)

■ Wireless LAN access point

■ Application name: [DAIKIN Mobile Controller] (free)

(application version 4.0 or higher is needed to control this product)

For details on the installation method for the DAIKIN Mobile Controller application, please see ▶Page 34

On/Off Clock C Wireless Signal

Display

Wireless LAN connecting adapter lamp (Orange)

- The wireless LAN connecting adapter lamp lights when connecting to a router (Wireless LAN access point). Please see ▶Page 34.

- For wireless LAN connecting adapter operation, please see ▶Page 35.

NOTE

Notes on the wireless LAN connecting adapter

• Do not use this product near a microwave oven. (This can affect wireless LAN communications.)
• While the wireless LAN connecting adapter operates, it may affect persons using cardiac pacemakers or defibrillators. This product may cause electromagnetic interference.
• While the wireless LAN connecting adapter operates, it may affect automatic doors or fire alarm equipment. This product may cause faulty behaviour of the equipment.
• For the latest details about installation of the wireless LAN connecting adapter and applicable units, refer to the web site http://www.daikinthai.com/product/dmobile.

Remote Controller

Signal transmitter Receiver To use the remote controller, aim the transmitter at the indoor unit. If there is anything blocking the signals between the unit and the remote controller, such as a curtain, the unit may not operate. The maximum transmission distance is about 7m. Display (LCD) Displays the current settings. (In this illustration, each section is shown with all its displays on for the purpose of explanation.) TEMPERATURE adjustment button Changes the temperature setting. ▶ Page 14 FAN setting button Selects the airflow rate setting. ▶ Page 15 POWERFUL button and Wireless LAN button POWERFUL button POWERFUL operation. ▶ Page 23 Wireless LAN button (push 5 seconds) Wireless LAN connection. ▶ Page 35 ON/OFF button Press this button once to start operation. Press once again to stop it. ▶ Page 13 Front cover Open the front cover. ▶ Page 9

Model name ARC466A78

Names of Parts

■ Open the front cover

Preparation Before Operation

CAUTION

Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure.

Please observe the following precautions and use safely.

• If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional.
• Keep batteries out of reach of children. In the event that batteries are swallowed, seek the immediate attention of a medical professional.
• Do not expose batteries to heat or fire. Do not disassemble or modify batteries. The insulation or gas release vent inside the battery may be damaged, resulting in battery leakage, rupturing, or heating.
• Do not damage or peel off labels on the batteries.

■ To insert the batteries

1. Slide the front cover to take it off.
2. Insert 2 dry batteries AAA.LR03 (alkaline).
3. Replace the front cover.

1 2 3 Position + and - correctly!

■ To fix the remote controller holder to a wall

1. Choose a place from where the signals reach the unit.
2. Fix the holder to a wall, a pillar, or similar location with the screws supplied with the holder.
3. Place the remote controller in the remote controller holder.

■o attach the deodorizing filter (enzyme blue)

• If attaching the separately sold filters, attach them before turning the power on. ▶Page 40

Remote controller Screws Remote controller holder

■ Turn on the circuit breaker

• After the power is turned on, the flaps of the indoor unit open and close once to set the reference position.

NOTE

Notes on batteries

• To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time.
• The standard replacement time is 1 year. Both batteries should be replaced at the same time. Be sure to replace them with new size AAA. LR03 (alkaline) batteries.
• When battery power has run out, the LCD will begin blinking as an alert that the batteries need replacing. In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking.
• The batteries supplied with the remote controller are for initial operation. The batteries may run out in less than 1 year.
• The usable period of the batteries may be short depending on the manufactured date of the air conditioner.

Notes on remote controller

• Do not drop the remote controller. Do not get it wet.
• Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
  • Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room.
  Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance to somewhere else, or consult the service shop.

Preparation Before Operation

27.0°C MON 15:30 Select Timer

■ To set the clock

1. Press 🔒

"0" appears on the LCD.
“-MON” and “blink.

2. Press to set the current day of the week.

Display Day of the week
MON Monday
TUE Tuesday
WED Wednesday
THU	Thursday
FRI	Friday
SAT	Saturday
SUN	Sunday

3. Press

"blinks.

4. Press to set the clock to the present time.

- Holding down ▲ or ▼ rapidly increases or decreases the displayed time.

5. Press

- Point the remote controller at the indoor unit when pressing the button.

“ ” blinks.

NOTE

Note on setting the clock

- If the indoor unit's internal clock is not set to the correct time, the ON/OFF TIMER and WEEKLY TIMER will not operate punctually.

H LED Menu (push 2nd) Select Cancel Timer

■ To set the brightness of the indoor unit lamps

Adjust the brightness of the indoor unit display as desired, or turn OFF the display.

■ To set

1. Press and hold the button for 2 seconds.

1. Press ▲ or ▼ and select menu number 1.

2. Press to confirm the selected setting.

3. Press or Select and select the desired brightness.

1. Press again.

- Brightness will be set to the chosen value.

1. Press Cancel to return to the default screen.

NOTE

Note on setting brightness of the indoor unit lamps

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press Cancel twice.

ON 27.0°C * MIN 15:30 On/Off Mode Timer

The air conditioner operates with the operation mode of your choice.

From the next time on, the air conditioner will operate with the same operation mode.

■ To start

1. Press and select an operation mode.

• Each pressing of the button changes the mode setting in sequence.

2. Press On/Off

• " ON pears on the LCD.
• The OPERATION lamp lights green.

On/Off

Display

■ To stop

Press again.

• “ On appears from the LCD.
• The OPERATION lamp goes off.

NOTE

Notes on AUTO operation

• In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the indoor temperature and starts the operation.
• The system automatically reselects setting at a regular interval to bring the indoor temperature to the user-setting level.

Note on COOL operation

• This air conditioner cools the room by releasing the heat in the room outside.
  Therefore, the cooling performance of the air conditioner may be degraded if the outdoor temperature is high.

Note on DRY operation

- Eliminates humidity while maintaining the indoor temperature as much as possible. It automatically controls temperature and airflow rate, so manual adjustment of these functions is unavailable.

Notes on HEAT operation

• Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is recommended to use another heating appliance in combination with the air conditioner.
• The heat pump system heats the room by circulating hot air around all parts of the room. After the start of HEAT operation, it takes some time before the room gets warmer.
• In HEAT operation, frost may occur on the outdoor unit and lower the heating capacity. In that case, the system switches into defrosting operation to take away the frost.

Note on FAN operation

• This mode is valid for fan only.

ON 27.0°C MON 15:30 Temp Time

■ To change the temperature setting

- Press ▲ to raise the temperature and press ▼ to lower the temperature. Each pressing of the button changes the temperature by 0.5°C.

COOL operation	HEAT operation	AUTO operation	DRY/FAN operation
18.0~32.0°C	10.0~30.0°C	18.0~30.0°C	The temperature setting cannot be changed.

Tips for saving energy

Keeping the temperature setting at a moderate level helps save energy.

- Recommended temperature setting for cooling: 26.0-28.0°C, for heating: 20.0-24.0°C

Cover windows with a blind or a curtain.

- Blocking sunlight and air from outdoors increases the cooling (heating) effect.

Keep the air filters clean.

• Clogged air filters cause inefficient operation and waste energy. Clean them once in about every 2 weeks. ▶ Page 39

If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn off the circuit breaker.

- The air conditioner always consumes a small amount of electricity even while it is not operating.

Adjusting the Airflow Rate

27.0°C MON 15:30 Fan

You can adjust the airflow rate to increase your comfort.

■ To adjust the airflow rate setting

• Each pressing of the button changes the airflow rate setting in sequence.

• When the airflow is set to “quiet operation starts and noise from the indoor unit will become quieter.
• In the quiet operation mode, the airflow rate is set to a weak level.
• If the temperature dose not reach the desired point, change the airflow rate setting.
• If COOL/DRY operation is started with airflow settings on "AUTO", the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)
• At smaller airflow rates, the cooling (heating) effect is also smaller.

Adjusting the Airflow Direction

27:00 MON 15:30 Vista (push Don) Swing Timer

You can adjust the airflow direction to increase your comfort.

ATTENTION

• Always use a remote controller to adjust the angles of the flaps and louvres.
- If you attempt to move the flaps and louvres forcibly by hand when they are swinging, the mechanism may be damaged.
- Inside the air outlet, a fan is rotating at a high speed.

■ To start auto swing

Up and down airflow direction

Press

• “ Appears on the LCD.
• The flaps (horizontal blades) will begin to swing.

Right and left airflow direction

Press

• “ appears on the LCD.
- The louvres (vertical blades) will begin to swing.

The 3-D airflow direction

Press

• “and” appear on the LCD.
• The flaps and louvres move in turn.
- To cancel 3-D airflow, press either 📁 or again. The flaps or louvres will stop moving.

Diagram showing a computer monitor with a circular icon and curved arrow, no text or symbols present

Illustration of a car air conditioner unit with airflow arrows indicating airflow direction (no text or symbols)

Illustration of a washing machine with airflow arrows indicating circulation (no text or symbols)

■ To set the flaps or louvres at the desired position

- This function is effective while the flaps or louvres are in auto swing mode.

Press and when the flaps or louvres reach the desired position.

• In the 3-D airflow, the flaps and louvres move in turn.
- “” or “” disappears from the LCD.

NOTE

Note on airflow direction setting

- The movable range of the flaps varies according to the operation mode.

Note on 3-D airflow

- Using 3-D airflow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling, throughout the room, preventing areas of cold and hot developing.

Movable range of the flaps

of the flaps COOL / DRY FAN HEAT

MOLD PROOF Operation

27.0°C MON 15:30 Menu (push 2nd) Select Cancel Timer

The inside of the air conditioner is dried to reduce the occurrence of mold and odour. When COOL or DRY operation is performed, condensation may occur inside the air conditioner and may cause mold or odour. It is recommended to dry the inside of the air conditioner using MOLD PROOF operation.

[To operate automatically]

■ To set

1. Press and hold the button for 2 seconds.
2. Press or and select menu number . 2
   • “ 📄 appears on the LCD.
   • “>2-” (menu number) blinks.
3. Press to confirm the selected setting.
4. Press ▲ or ▼ to change the setting as follows:

5. Press again.

• Automatic MOLD PROOF operation will be enabled or disabled according to the chosen setting.
• If automatic MOLD PROOF operation is enabled, “ Ⓞ” appears on the LCD and the MOLD PROOF lamp lights green when MOLD PROOF operation is in progress.
• The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off C W

Display

6. Press to return to the default screen.

NOTE

Note on MOLD PROOF setting

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press ____ twice.

Notes on MOLD PROOF operation

• When you want to stop MOLD PROOF operation midway, press ⏻ twice.
  • After DRY or COOL operation stops, the air conditioner starts MOLD PROOF operation automatically, and then stops automatically 60 minutes later.
• This operation dries the inside of the air conditioner while streamer discharge is performed to reduce the development of mold and odour inside the air conditioner. But the function does not remove any adhered dust and mold.
• MOLD PROOF operation is not available when the unit is turned off using the OFF TIMER or turned off using a smartphone.

NOTE

Notes on MOLD PROOF operation

• The flaps may sometimes close to increase the drying effect inside the air conditioner.
• MOLD PROOF operation may not be performed if the COOL or DRY operation time is short.
• If MOLD PROOF operation does not suit your preference, set operation to "OFF". ▶ Page 17

Relation between MOLD PROOF operation and indoor unit lamps

Air conditioner MOLD PROOF setting MOLD PROOF lamp STREAMER lamp
Operating (OPERATION lamp lights up)	MOLD PROOF is “ON” Lights up		Depends on STREAMER setting
	MOLD PROOF is “OFF” Goes off
Not operating (OPERATION lamp goes off)	MOLD PROOF is “ON” Lights up Lights up

FLASH STREAMER AIR CLEANING operation

27.0°C MON 15:30 Home (past 2nd) Select Cancel Timer

The streamer generates a high-speed electron stream with a high oxidizing power, reducing bad odours and viruses. Together with the deodorizing filter (enzyme blue) and the air filters, this function cleans the air in the room.

To set

1. Press and hold the button for 2 seconds.
2. Press or and select menu number . 3
   • “ appears on the LCD.
   • “3-” (menu number) blinks.
3. Press to confirm the selected setting.
4. Press or Select to change the setting as follows:

1. Press again.

2. Flash streamer air cleaning will be enabled or disabled according to the chosen setting.

3. If STREAMER operation is enabled, “◀◀” appears on the LCD. The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off ⊕ C ← + -

Display

1. Press ☐ to return to the default screen.

NOTE

What is streamer discharge?

- This is a type of plasma discharge comprising high-speed electrons with a high oxidative capacity that is released within the unit. It decomposes odours and harmful gases. (The high-speed electrons are generated and then adsorbed within the unit ensure your safety.)

Note on flash streamer air cleaning setting

- The display automatically returns to the default screen after 60 seconds.

To return to the default screen sooner, press ☐ twice.

Notes on flash streamer air cleaning operation

• The streamer discharge may generate a fizzing sound, however this does not indicate a defect.
• Do not block the air inlets of the streamer with any objects (Fig.1). Impaired airflow may result in insufficient performance or trouble with streamer operation.

Streamer air inlets

Fig. 1

COMFORT AIRFLOW Operation

27.0°C MOS 15:30 Comfort Timer

The flow of air will be in the upward direction while in COOL/DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable wind that will not come in direct contact with people.

Airflow direction : Upward (ceiling spread airflow)

COOL and DRY operation

Airflow direction : Downward (floor spread airflow)

HEAT operation

■ To start

Press

Comfort

• “ 🍒 appears on the LCD.

	COOL and DRY operation	HEAT operation FAN operation
Flaps direction	Goes up Goes down
Airflow rate AUTO

■ To cancel

Press

Comfort

• “ disappears from the LCD.
- The flaps will return to the position in memory from before COMFORT AIRFLOW operation.

NOTE

Notes on COMFORT AIRFLOW Operation

• POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.
  • The airflow rate will be set to AUTO.
• If the upward and downward airflow direction is selected, the COMFORT AIRFLOW function will be canceled.
  Priority is given to the function of whichever button is pressed last.
• If there is an obstruction under the air conditioner when using heating, the airflow may not reach the center of the room and the room may be difficult to warm up.

INTELLIGENT EYE Operation

27.0°C MON 15:30 Sensor Timer

The INTELLIGENT EYE operation detects human movement. If no one is detected in the room for more than 20 minutes, the unit automatically enters energy saving operation.

CAUTION

• Do not place large objects near the INTELLIGENT EYE sensor. Also keep heating units and humidifiers outside the sensor's detection area. This sensor can detect undesirable objects.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.

To start

Press

Sensor

• " appears on the LCD.

To cancel

Press

Sensor

• “ disappears from the LCD.

INTELLIGENT EYE operation is useful for energy saving

■ People are detected in the sensing area.

Illustration of a person sitting on a couch with an elderly person seated nearby, under a spotlight (no text or symbols)

The air conditioner is in normal operation while the sensor is detecting human movement.

■ No people are detected in the sensing area.

The air conditioner will switch to energy-saving mode after 20 minutes.

Diagram showing a car with a roof-mounted unit and a sofa, no text or symbols present

Energy saving operation

• If no presence detected in the room for 20 minutes, the energy saving operation will start.
• This operation changes the temperature by -2^ in HEAT / +2^ in COOL / +2^ in DRY operation from the set temperature.
  When the room temperature exceeds 30^ C, the operation changes the temperature by +1^ C in COOL / +1^ C in DRY operation from the set temperature.
• This operation decreases the airflow rate slightly in FAN operation only.

NOTE

Notes on INTELLIGENT EYE operation

• Application range is as follows.

Vertical angle 90° (Side view) 7m 90°

Horizontal angle 110° (Top view) 55° 55° 7m

• When the air conditioner is function in INTELLIGENT EYE operation, if no people are detected in the areas for 20 minutes, the air conditioner switches to the energy-saving mode with the set temperature shifted by 2^ .
  The air conditioner may switch to the energy-saving operation even if there are people in the areas. It may happen depending on the clothes people are wearing if there are no movements of the people in the areas.
• The sensor may not detect moving objects further than 7m away. (Please see the application range)
• Sensor detection sensitivity changes according to the indoor unit location, the speed of passers-by, temperature range, etc.
  • The sensor could also mistakenly detect pets, sunlight, fluttering curtains and light reflected off of mirrors as passers-by.
• NIGHT SET mode ▶Page 26 will not switch on during use of INTELLIGENT EYE operation.

POWERFUL Operation

15:30 Powerful

POWERFUL operation quickly maximises the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.

■ To start

Press during operation.

• “ appears on the LCD.
- POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation.

■ To cancel

Press again.

• “ disappears from the LCD.

NOTE

Notes on POWERFUL operation

• Pressing causes the settings to be cancelled, and " " disappears from the LCD.
• POWERFUL operation will not increase the capacity of the air conditioner if the air conditioner is already in operation with its maximum capacity demonstrated.
• In COOL, HEAT and AUTO operation
  To maximise the cooling (heating) effect, the capacity of outdoor unit increases and the airflow rate becomes fixed at the maximum setting. The temperature and airflow settings cannot be changed.
• In DRY operation
  The temperature setting is lowered by 2.5°C and the airflow rate is slightly increased.
• In FAN operation
  The airflow rate is fixed at the maximum setting.

Regarding the combination of POWERFUL and other operations

POWERFUL + COMFORT AIRFLOW	Not available*
POWERFUL + ECONO
POWERFUL + OUTDOOR UNIT QUIET

*Priority is given to the function of whichever button is pressed last.

ECONO / OUTDOOR UNIT QUIET Operation

27.0°C MON 15:30 Eco/Quart Timer

ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.

OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. This function is convenient during the night-time operation.

■ To start

Press Econo/Quiet and select the desired mode.

• Each time is pressed, a different setting option appears on the LCD.

■ To cancel

Press Econo/Quiet until no icon is displayed.

NOTE

Notes on ECONO operation

• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.
• Pressing ⏻ causes the settings to be cancelled, and “” disappears from the LCD.
• If the power consumption level is already low, switching to ECONO operation will not reduce the power consumption.

Notes on OUTDOOR UNIT QUIET operation

• Even if the operation is stopped by using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET operation, "💡" will remain displayed on the remote controller.
• OUTDOOR UNIT QUIET operation will not reduce the frequency nor fan speed if they already are operating at reduced levels.
• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.

Possible combinations of ECONO / OUTDOOR UNIT QUIET operation and basic operations

	Operation mode
	AUTO DRY COOL		HEAT FAN
ECONO	√	√	√	√	-
OUTDOOR UNIT QUIET	√	-	√	√	-

ON/OFF TIMER Operation

ON 27.0°C MON ON 6:00 Select On Cancel Timer

Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together.

[ON TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶ Page 11

1. Press On

"6.00 appears on the LCD. "ON-" blinks.

- “④” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the setting rapidly.

3. Press □ again.

- “ON” and setting time appear on the LCD. - The TIMER lamp lights orange.

On/Off C W

Display

■ To cancel

Press Cancel

• “ON” and setting time disappear from the LCD.
• “ ⏻ ” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

NOTE

Note on TIMER operation

• When TIMER is set, the present time is not displayed.
  • After the circuit breaker has turned off.
  • After a power failure.
  • After replacing the batteries in the remote controller.

In the following cases, set the timer again.

27.0°C OFF 0:00 Off Select Cancel Timer OK

[OFF TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press Off

“0.00 appears on the LCD.

“OFF-” blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the time setting rapidly.

3. Press off again.

• "OFAnd setting time appear on the LCD.
  • The TIMER lamp lights orange.

On/Off

Display

■ To cancel

Press Cancel.

• “OF and setting time disappear from the LCD.
• “ ⏻” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

[ON/OFF TIMER combination]

■ To combine

- A sample setting for combining the 2 timers is shown below.

(Example) Present time: 23:00 (The unit is operating) OFF TIMER at 0:00 ON TIMER at 14:00) Combined OFF 0:00 ON 14:00

NOTE

NIGHT SET mode

- When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) during sleeping hours.

ON/OFF TIMER Operation

27.0°C ON 1hr Select Off On Timer

[ON/OFF TIMER with an hours remaining display] (COUNT UP-DOWN ON/OFF TIMER)

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press and hold on or for about 5 seconds, when signal indicator (▲) blink, release your finger from the button.

For ON TIMER

"Ibr" appears on the LCD.

"ON-"blinks.

For OFF TIMER

"Ibr" appears on the LCD.

“OFF-”blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of the button increases or decreases the time setting by 1 hour.

• The time can be set between 1 and 12 hours.

3. Press on or again.

- “ONand” “OEF and setting time appear on the LCD.

• The TIMER lamp lights orange.

- To change the display mode from COUNT UP-DOWN ON/OFF TIMER to 24 HOUR ON/OFF TIMER, repeat STEP 1, and continue from STEP 2 of "24 HOUR ON/OFF TIMER". ▶ Page 25, 26

- Timer display mode cannot be changed while “ON-” or “are blinking. Press ☐ or ☐ to stop the blinking.

On/Off

Display

■ Combining display modes

- Different display modes (24 HOUR ON/OFF TIMER and COUNT UP-DOWN ON/OFF TIMER) can be used for the ON TIMER and OFF TIMER simultaneously.

(Example) Present time: 22:00 (The unit is operating) OFF TIMER at 1:00 (3 hours after persent time) ) Combined ON TIMER at 6:00 (8 hours after persent time) ON OFF 3hr ON 6:00 OFF 1:00 ON 8hr OFF 3hr ON 8hr

NOTE

Note on COUNT UP-DOWN ON/OFF TIMER

- After setting, the time displayed on the LCD will automatically count down by 1 hour for every 1 hour that passes. For example, if the OFF TIMER is set to 3 hours, the display will change as follows: 3hr 2hr 1hr blank (OFF)

Switching between ON/OFF TIMER display modes (24 hour clock and hours remaining display)

- When changing timer display modes (from 24 HOUR ON/OFF TIMER to COUNT UP-DOWN ON/OFF TIMER or vice versa), the timer cancels. The timer must be set again to activate it.

WEEKLY TIMER Operation

Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family's life style.

■ Setting example of the WEEKLY TIMER

The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend.

[Monday]	Make timer settings for programmes 1-4. ▶Page 29
	Programme 1	Programme 2	Programme 3	Programme 4
[Tuesday] to [Friday]	Use the copy mode to make settings for Tuesday to Friday, because these settings are the same as those for Monday. ▶Page 31Pr
[Saturday]	No timer settings
[Sunday]	Make timer settings for programmes 1-4. ▶Page 29

- Up to 4 reservations per day and 28 reservations per week can be set using the WEEKLY TIMER. The effective use of the copy mode simplifies timer programming.

- The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn off the air conditioner automatically if you forget to turn it off.

WEEKLY TIMER Operation

27.0°C ON 6:00 MON 25.0°C Back Next Select

■ To use WEEKLY TIMER operation

Setting mode

• Make sure the day of the week and time are set.

If not, set the day of the week and time. ▶Page 11

Programme 1 Programme 2 Programme 3 Programme 4

[Monday] ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 ON OFF

Setting Displays

1. Press

• The day of the week and the reservation number of the current day will be displayed.
• 1 to 4 settings can be made per day.

2. Press Select to select the desired day of the week and reservation number.

- Pressing changes the reservation number and the day of the week.

3. Press Next .

• The day of the week and reservation number will be set.
- “ WEEKLY ” and “ ON - ” blink.

4. Press Select to select the desired mode.

- Pressing Select changes the "ON" or "OFF" setting in sequence.

• In case the reservation has already been set, selecting "blank" deletes the reservation.
• Proceed to STEP 9 if "blank" is selected.
• To return to the day of the week and reservation number setting, press

5. Press Next .

• The ON/OFF TIMER mode will be set.
- “ Ⓧ WEEKLY ” and the time blink.

27.0°C ON 6:00 TUE 1 25.0°C Back Next Select

6. Press to select the desired time.

• The time can be set between 0:00 and 23:50 in 10-minute intervals.
• To return to the ON/OFF TIMER mode setting, press □.
• Proceed to STEP 9 when setting the OFF TIMER.

7. Press Next

• The time will be set.
• “ Ⓧ WEEKLY ” and the temperature blink.

8. Press to select the desired temperature.

• The temperature can be set between 10.0°C and 32.0°C.

COOL or AUTO: The unit operates at 18.0^ C even if it is set to 10.0^ C to 17.0^ C. ▶Page 14 HEAT or AUTO: The unit operates at 30.0^ C even if it is set to 31.0^ C to 32.0^ C ▶Page 14

• To return to the time setting, press .
- The set temperature is only displayed when the mode setting is on.

9. Press Next

• The temperature will be set and go to the next reservation setting.
• The temperature is set while in ON TIMER operation, and the time is set while in OFF TIMER operation.
  • The next reservation screen will appear.
  • To continue further settings, repeat the procedure from STEP 4.

10. Press to complete the setting.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the OPERATION lamp.
• “WEEKLY” appears on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off

Display

- A reservation made once can be easily copied and the same settings used for another day of the week. Refer to Copy mode. ▶Page 31

NOTE

Notes on WEEKLY TIMER operation

• Do not forget to set the clock on the remote controller first. ▶Page 11
• The day of the week, ON/OFF TIMER mode, time and set temperature (only for ON TIMER mode) can be set with the WEEKLY TIMER. Other settings for the ON TIMER are based on the settings just before the operation.
• WEEKLY TIMER and ON/OFF TIMER operation cannot be used at the same time. The ON/OFF TIMER operation has priority if it is set while WEEKLY TIMER is still active. The WEEKLY TIMER will enter the standby state, and “WEEKLY” will disappear from the LCD. When the ON/OFF TIMER is up, the WEEKLY TIMER will automatically become active.
• Only the time and set temperature with the WEEKLY TIMER are sent with the ☐. Set the WEEKLY TIMER only after setting the operation mode, the airflow rate and the airflow direction ahead of time.
• Turning off the circuit breaker, power failure, and other similar events will render operation of the indoor unit's internal clock inaccurate. Reset the clock. ▶Page 11
• can be used only for the time and temperature settings. It cannot be used to go back to the reservation number.

WEEKLY TIMER Operation

27.0°C ON 6:00 TUE 25.0°C Copy Select Timer

Copy mode

- A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied.

Programme 1 Programme 2 Programme 3 Programme 4 [Monday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 COPY Programme 1 Programme 2 Programme 3 Programme 4 [Tuesday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00

1. Press
2. Press Select to confirm the day of the week to be copied.
3. Press Copy .

- The whole reservation of the selected day of the week will be copied.

1. Press Select to select the destination day of the week.

2. Press Copy .

3. The reservation will be copied to the selected day of the week. The whole reservation of the selected day of the week will be copied.
   • To continue copying the settings to other days of the week, repeat STEP 4 and STEP 5.

4. Press ☐ to complete the setting.

- “WEEKLY” appears on the LCD and WEEKLY TIMER operation is activated.

NOTE

Note on COPY MODE

- The entire reservation of the source day of the week is copied in the copy mode. In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press and change the settings in the steps of Setting mode. ▶ Page 29

27.0°C ON TUE 6:00 25.0°C Weekly Select Next Timer

■ Confirming a reservation

• The reservation can be confirmed.

Setting Displays TUE 15:35 Normal ON 6:00 TUE 25.0c Confirmation

1. Press

- The day of the week and the reservation number of the current day will be displayed.

2. Press to select the day of the week and the reservation number to be confirmed.

• Pressing displays the reservation details.
• To change the confirmed reserved settings, select the reservation number and press. Next The mode is switched to setting mode. Proceed to Setting mode STEP 4. ▶Page 29

3. Press to exit the confirmation mode.

• “WEEKLYrs on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off C ← Wi -

Display

■ To deactivate WEEKLY TIMER operation

Press Weekly while “ WEEKLY ” is displayed on the LCD.

• “Wears from the LCD.
• The TIMER lamp goes off.
• To reactivate the WEEKLY TIMER operation, press □ again.
- If a reservation deactivated with ____ is activated once again, the last reservation mode will be used.

NOTE

- If not all the reservation settings are reflected, deactivate the WEEKLY TIMER operation once. Then press 📋 again to reactivate the WEEKLY TIMER operation.

WEEKLY TIMER Operation

27.0°C ON TUE 6:00 25.0°C Weekly Select Next Timer

■ To delete a reservation

An individual reservation

1. Press

- The day of the week and the reservation number will be displayed.

2. Press to select the day of the week and the reservation number to be deleted.

3. Press Next .

4. Press until no icon is displayed.

- Pressing Changes the ON/OFF TIMER mode in sequence.

- Selecting "blank" will cancel any reservation you may have.

5. Press Next

• The selected reservation will be deleted.

6. Press

- If there are still other reservations, WEEKLY TIMER operation will be activated.

Reservations for each day of the week

• This function can be used for deleting reservations for each day of the week.
• It can be used while confirming or setting reservations.

1. Press

- The day of the week and the reservation number will be displayed.

2. Press Select to select the day of the week to be deleted.

3. Hold for about 5 seconds.

- The reservation of the selected day of the week will be deleted.

4. Press

- If there are still other reservations, WEEKLY TIMER operation will be activated.

All reservations

Hold Weekly for about 5 seconds with the normal display.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone.
• This operation cannot be used for the WEEKLY TIMER setting display.
• All reservations will be deleted.

Wireless LAN connection

Please note

- Turn off the air conditioner before setting up wireless connection.

Prior to setting up, please make sure your device is ready to connect. You may refer to the indoor unit LED table for guidance.

Check the indoor unit LED.

Wireless LAN connecting adapter lamp Status
Blinks for one second	The wireless LAN connecting adapter is ready to connect.
No blinking/no light	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.Please refer to the troubleshooting guide or contact the store where you bought the air conditioner to request a repair service.
Lamp stays lit	The wireless LAN connecting adapter is connected to a modem/router.

On/Off Wireless LAN connecting adapter lamp (Orange) Display

Wireless LAN connection

Web site: http://www.daikinthai.com/product/dmobile

For more information on the latest version of wireless LAN control, please refer to the above website.

■ Application software installation

• Before downloading the application software for installation, please read "Configuration" on Page 7
  For Android phones

1) Open [Google Play].
2) Search using the application name:
[DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

For iOS phones

1) Open [App Store].
2) Search using the application name:
[DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

Setting

Connect the wireless LAN connecting adapter to your home network.

- The wireless LAN connecting adapter will communicate with the smart devices in your home network via a modem, router, or a similar device.

There are two options for connecting the wireless LAN connecting adapter to your smart phone or tablet:

1) Simple connection (WPS connection), if there is a WPS button on the router, ▶Page 36
2) Access point connection (AP connection), if there is no WPS button on the router, ▶Page 37

For more information and Frequently Asked Questions, please refer to:

http://www.daikinthai.com/product/dmobile

WPS MARTINOCED SETUP

NOTE

Note on wireless LAN connection

- For more information on how the wireless LAN connecting adapter operates, please see ▶Page 35-37

Wireless LAN connection

SP 1 Powerful Temp

On/Off C ← W S

Display

Enabling/disabling the wireless LAN connecting adapter

■ To enable

1. While operation is stopped, press and hold the button for 5 seconds.

1. Press or and select SP menu.
2. Press to confirm the selected setting.

- “▲blinks briefly. - The wireless LAN connecting adapter lamp (orange) blinks for one second.

1. Press Cancel to return to the default screen.

■ To disable

1. While operation is stopped, press and hold the button for 5 seconds.

1. Press or and select SP menu . OFF
2. Press and hold for 2 seconds to confirm the selected setting.

- “▲blinks briefly. - The wireless LAN connecting adapter lamp (orange) goes off.

1. Press Cancel to return to the default screen.

SP 2 Powerful Temp

On/Off C W

Display

16:55 Home All units (1) Unit name 280℃ 270℃

Fig. 1

To connect the wireless LAN connecting adapter to your home network

The wireless LAN connecting adapter can be connected to your home network by means of:

• Simple connection (WPS connection), if there is a WPS button on the router.
• Access point connection (AP connection), if there is no WPS button on the router.

■ Simple connection (WPS connection)

If there is a WPS button on your Wi-Fi router, please follow the below steps.

1. While operation is stopped, press and hold the button for 5 seconds.

• “SP appears on the LCD.
  • “ ” (SP menu) blinks.

2. Press or and select SP menu .

3. Press □ to confirm the selected setting.

• “▲blinks briefly.
• The wireless LAN connecting adapter lamp (orange) blinks more quickly.

4. Press the WPS button on your communication device (e.g. router) within approximately one minute. Please refer to the manual of your communication device.

- The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.

5. Press Cancel to return to the default screen.

6. Connect your smart phone to your home network.

7. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there (Fig. 1).

NOTE

Note on simple connection (WPS connection)

• If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-5.
  Alternatively, try connecting via your device directly. Please refer to "Access point connection (AP connection)". ▶Page 37

Wireless LAN connection

On/Off C ← Wi-Fi

Display

16:55 Home Configure the wireless connection Unit name 36°C 20°C

Fig. 2

SP R Powerful Temp

■ Access point connection (AP connection).

If your home Wi-Fi router does not have a WPS button, you can connect your smart phone directly to the wireless LAN connecting adapter in order to set up a connection to your home network by following these steps. – This step requires SSID number and KEY located on the indoor unit or on the cover of the manual.

1. Connect the wireless LAN connecting adapter to a smart phone or tablet.

View available Wi-Fi networks on your smart phone or tablet and connect to the SSID (DaikinAP***** ) printed out on the sticker. SSID and KEY are located on the indoor unit or on the cover of the manual, as shown in the below image.

- Sticker on the indoor unit

- Sticker on the cover of the manual

SSID&KEY sticker WIRELESS LAN CONNECTION SSID:DaikinAPXXXXX KEY :YYYYYYYYYYYYYY FERENCE OPERATION MANUAL

1. Open the DAIKIN Mobile Controller application and select "Configure the wireless connection" (Fig. 2) and connect to your home network as per the on-screen instructions.
2. The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.
3. Connect your smart phone to your home network.
4. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there.

Reset connection setting to factory defaults.

Please note

When the device is reset, out-of-home user account and wireless LAN connection setting will be changed back to the factory defaults.

■ To reset

1. While operation is stopped, press and hold the button for 5 seconds.

2. “58 appears on the LCD.
   • “ ” (SP menu) blinks.

3. "58 appears on the LCD.
   • “ ”(SP menu) blinks.
4. “SR appears on the LCD.
5. “> (SP menu) blinks.

1. Press or and select SP menu.

2. Press and hold 📋 for 2 seconds to confirm the selected setting.

3. “▲” blinks briefly.

4. The wireless LAN connecting adapter lamp (orange) blinks for one second.

5. Press Cancel to return to the default screen.

NOTE

Note on access point connection (AP connection)

- If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-2.

Care and Cleaning

CAUTION

• Before cleaning, be sure to stop the operation and turn off the circuit breaker.
• Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

■ Quick reference

Cleaning parts

Front panel

• Wipe it with a soft damp cloth.
• Only neutral detergent may be used.

If dirty

Air filter

• Vacuum dust or wash the filter.

Once every 2 weeks

Page 39

Indoor unit and remote controller

- Wipe them with a soft cloth.

If dirty

Technical line drawing of a cylindrical air conditioner unit with internal compartments and ventilation slots (no text or symbols)

Two identical grid panels with small rectangular cutouts and a pointer, no text or symbols present

Streamer air inlet

- Do not place objects around the indoor unit. Doing so may have an adverse influence on the performance, product quality, and life of the streamer.

Deodorizing filter (enzyme blue)

To purchase the filters (Table 1) or to purchase the another type, contact the dealer where you bought the air conditioner. The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Table 1

Item Part No.
Air quality filter (enzyme blue with PM2.5) - without frame (set of 2)	BAFP094A43
Deodorizing filter (enzyme blue) - without frame (set of 2) BAFP094A41
Dust collection filter (PM 2.5) - without frame (set of 2) BAFP046A41
Titanium apatite deodorizing filter - without frame (set of 2) KAF970A46

Deodorizing filter (enzyme blue), Titanium apatite deodorizing filter.

• Vacuum dust or replace the filter.
[Cleaning] [Replacement]

Once every 6 months Once every 3 years

▶Page 40

▶Page 40

Air quality filter (enzyme blue with PM2.5), Dust collection filter (PM 2.5)

- No cleaning is required. Please replace the filter every 6 months. ▶Page 40

NOTE

For cleaning, do not use any of the following:

• Water hotter than 40°C
• Volatile liquid such as benzene, petrol and thinner
- Polishing compounds
- Rough materials such as a scrubbing brush

Illustration of a kettle, a brush, and a bottle (no text or symbols)

Care and Cleaning

Air filter

1. Open the front panel.

- Hold the front panel by the sides and open it.

Backside of the front panel Fixing tab Panel support plate

2. Pull out the air filters.

- Push the filter tab at the centre of each air filter a little upwards, then pull it down.

1) Push 2) Pull down

3. Wash the air filters with water or clean them with vacuum cleaner.

- It is recommended to clean the air filters every 2 weeks.

Illustration of hands using a tool to spread a grid on a flat surface (no text or symbols visible)

If the dust does not come off easily

• Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade.
• Be sure to remove the filter (small). Refer to "Filter (small)" on the next page.

Simple line drawing of a basin with a rectangular basin on top (no text or symbols)

4. Reattach the filters.

5. Close the front panel slowly.

- Press the panel at both sides and the centre.

Illustration of a car air conditioner unit with downward arrows indicating airflow or cooling direction (no text or symbols)

- Make sure that the front panel is securely fixed.

■ Filter (small)

* For the applicable filter type, please refer to ▶ Page 38

Attaching

1. Open the front panel and pull out the air filters. ▶ Page 39

2. Insert the filter.

- Check that the filters are inserted securely under the tabs.

Tab Claw Filter frame Air filters Filter (small)

Cleaning and Replacement

1. Open the front panel and pull out the air filters. ▶Page 39

2. Take off the filter.

• Hold the recessed parts of the frame and unhook the 4 claws.
• Remove the filters from the tabs.

Tab Claw Filter frame Air filters Filter (small)

NOTE

• Operation with dirty filters:
- cannot deodorise the air,
- cannot clean the air,
– results in poor heating or cooling,
- may cause odour.
- Dispose of old filters as non-flammable waste.

3. Clean or replace.

[Cleaning]

Deodorizing filter (enzyme blue) : Blue / Titanium apatite deodorizing filter : Blue-Black

3-1 Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty.
3-2 After washing, shake off remaining water and let them dry in the shade.

- This filter can be renewed by washing it with water once every 6 months and we recommend replacing it once every 3 years.

- Do not wiring out the filter when removing water from it.

Air quality filter (enzyme blue with PM2.5) : Blue-White/ Dust collection filter (PM 2.5) : White

• Do not wash the filters as this will reduce their efficiency.
• It is recommended to replace it once every 6 months.

[Replacement]

Remove the filter from the filter frame and prepare a new one.

• Do not throw away the filter frame.
• Reuse the filter frame when replacing the filter.

- When attaching the filter, check that the filter is properly set in the tabs.

4. Set the filters as they were and close the front panel.

- Press the front panel at both sides and the center.

Care and Cleaning

■ Prior to a long period of non-use

1. Operate the MOLD PROOF mode. ▶Page 17
2. After operation stops, turn off the circuit breaker for the room air conditioner.
3. Clean the air filters and reattach them. ▶ Page 39
4. To prevent battery leakage, take out the batteries from the remote controller.

■ We recommend periodical maintenance

• In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist in addition to regular cleaning by the user.
• For specialist maintenance, please contact the dealer where you bought the air conditioner.
• The maintenance cost must be borne by the user.

FAQ

Indoor unit

The flaps do not start swinging immediately.

- The air conditioner is adjusting the position of the flaps. The flaps will start moving soon.

The air conditioner stops generating airflow during HEAT operation.

- Once the set temperature is reached, the airflow rate is reduced and operation stopped in order to avoid generating a cool airflow. Operation will resume automatically when the indoor temperature falls.

HEAT operation stops suddenly and a flowing sound is heard.

- The outdoor unit is defrosting. HEAT operation starts after the frost on the outdoor unit has been removed. This can take about 4 to 12 minutes.

Operation does not start soon.

■ When ⏻ was pressed soon after operation was stopped.

■ When the mode was reselected.
• This is to protect the air conditioner. You should wait for about 3 minutes.

Outdoor unit

The outdoor unit emits water or steam.

In HEAT operation

• The frost on the outdoor unit melts into water or steam when the air conditioner is in defrosting operation.
  ■ In COOL or DRY operation
• Moisture in the air condenses into water on the cool surface of the outdoor unit piping and drips.

Line drawing of a wall-mounted air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Commonly occurring sounds.

■ A sound like flowing water

• This sound is generated because the refrigerant in the air conditioner is flowing.
• This is a pumping sound of the water in the air conditioner and can be heard when the water is pumped out from the air conditioner during COOL or DRY operation.
• This sound is generated during COOL operation on outdoor ambient lower than 12°C when outdoor fan stop for keep pressure.

■ Blowing sound

• This sound is generated when the flow of the refrigerant in the air conditioner is switched over.
  Tickingsound
• This sound is generated when the cabinet and frame of the air conditioner slightly expand or shrink as a result of temperature changes.
  ■ Whistlingsound
• This sound is generated when refrigerant flows during defrosting operation.
• Clicking sound during operation or idle time
• This sound is generated when the refrigerant control valves or the electrical parts operate.
  ■ Cloppingsound
• This sound is heard from the inside of the air conditioner when the exhaust fan is activated while the room doors are closed. Open the window or turn off the exhaust fan.
  ■ Hissing/Cracking sound
• The sound of the streamer discharge. It is not a malfunction.

Technical line drawing of a large industrial air conditioning unit with ventilation grilles and cooling fins (no text or symbols)

Troubleshooting

Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer.

Not a problem

This case is not a problem.

Check

Please check again before requesting repairs.

Air conditioner

The air conditioner does not operate

Case Description / what to check
OPERATION lamp is off.	Has the circuit breaker been tripped or the fuse blown?Is there a power failure?Are batteries set in the remote controller?
OPERATION lamp is blinking.	Turn off the power with the circuit breaker and restart operation with the remote controller.If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner suddenly stops operating

Case Description / what to check
OPERATION lamp is on.	To protect the system, the air conditioner may stop operating after sudden large voltage fluctuations. It automatically resumes operation in about 3 minutes.
OPERATION lamp is blinking.	Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit? Stop operation and after turning off the circuit breaker, remove the obstruction. Then restart operation with the remote controller. If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner does not stop operating

Case Description / what to check
The air conditioner continues operating even after operation is stopped.	√ Immediately after the air conditioner is stopped• The outdoor unit fan continues rotating for about another 1 minute to protect the system. □ While the air conditioner is not in operation• When the outdoor temperature is high, the outdoor unit fan may start rotating to protect the system.
	√ MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)

The room does not cool down/warm up

Case Description / what to check
Air does not come out.	In HEAT operationThe air conditioner is warming up. Wait for about 1 to 4 minutes.During defrosting operation, hot air does not flow out of the indoor unit.In COOL or DRY operationIf COOL/DRY operation is started with airflow settings on “AUTO”, the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)When the air conditioner operates immediately after the circuit breaker is turned onThe air conditioner is preparing to operate. Wait for about 3 to 15 minutes.
Air does not come out / Air comes out.	Is the airflow rate setting appropriate?Is the airflow rate setting low, such as “Indoor unit quiet” or “Airflow rate 1”?Increase the airflow rate setting.Is the set temperature appropriate?Is the adjustment of the airflow direction appropriate?
Air comes out.	Is there any furniture directly under or beside the indoor unit?Is the air conditioner in ECONO operation or OUTDOOR UNIT QUIET operation?▶Page 24Are the air filters dirty?Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?Is a window or door open?Is an exhaust fan turning?
The room temperature does not reach the set temperature.	If the air coming out of the air conditioner is blowing against a wall, the set temperature may not be reached correctly.

Air conditioner

Mist comes out

Case Description / what to check
Mist comes out of the indoor unit.	This happens when the air in the room is cooled into mist by the cold airflow during COOL or other operation.

Remote controller

Case Description / what to check
The unit does not receive signals from the remote controller or has a limited operating range.	[CK/CV] · The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10 · Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room. Consult your dealer if that is the case. · The remote controller may not function correctly if the transmitter is exposed to direct sunlight.
LCD is faint, is not working, or the display is erratic.	[WZKH] · The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10
The LCD is blinking and the remote controller cannot be operated.	[BYXH] · Battery power has run out. Replace both batteries at the same time with new size AAA.LR03 (alkaline) batteries. Leaving exhausted batteries in the remote controller can result in injury due to battery leakage, rupturing or heating, or lead to equipment failure. (Even when the LCD is blinking, the OFF button remains functional.)
Other electric devices start operating.	[WHSZ] · If the remote controller activates other electric devices, move them away or consult your dealer.

Air has an odour

Case Description / what to check
The air conditioner gives off an odour.	The room odour absorbed in the unit is discharged with the airflow.We recommend that you have the indoor unit cleaned. Please consult your dealer.Due to streamer discharge, the air outlet may emit a slight odour as trace amounts of ozone are generated. However, the amount is negligible and is not harmful to your health.

Display lamps

Case Description / what to check
The OPERATION lamp is off,but the air conditioner is operating.	Is the display brightness set to “Off”?
	[C48V]MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)
The display lamps on the main unit are dark.	[ZZZB]Is the display brightness set to “Low”?

Streamer air cleaning operation

Case Description / what to check
The sound of streamer discharge can no longer be heard.	If the airflow becomes weak, the streamer discharge stops.

Others

Case Description / what to check
The air conditioner suddenly starts behaving strangely during operation.	[4287]• The air conditioner may malfunction due to lightning or radio.If the air conditioner malfunctions, turn off the power with the circuit breaker and restart the operation with the remote controller.
The ON/OFF TIMER does not operate according to the settings.	[H476]• Check if the ON/OFF TIMER and the WEEKLY TIMER are set to the same time.Change or deactivate the settings in the WEEKLY TIMER. ▶Page 28,29,30

NOTE

Note on the operating conditions

• If operation continues under any conditions other than those listed in the table, - A safety device may activate to stop the operation. - Dew may form on the indoor unit and drip from it when COOL or DRY operation is selected.

Mode Operating conditions
COOL / DRY	Outdoor temperature: -10.0~46.0°CIndoor temperature: 18.0~32.0°CIndoor humidity: 80% max.
HEAT	Outdoor temperature: -15.0~24.0°CIndoor temperature: 10.0~30.0°C

Troubleshooting

Wireless LAN connecting adapter

The following table provides brief descriptions of how to handle problems or carry out connection setting.

Refer to the FAQ on our web site for more details.

Wireless LAN connection

When this happens Explanation and where to check
The device (air conditioner) cannot be found on the device list screen.	Carry out connection setting again.Move the router (wireless LAN access point) close to the indoor unit.There is a possibility that you are using an unsupported smart phone or router (wireless LAN access point). For details, refer to the web site.
Even if the wireless LAN connecting adapter lamp is lit, operation from outside the home is not possible.	Communication between the router and the internet connection may not be working.Please confirm.
The wireless LAN connecting adapter lamp does not blink or light.	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.There may be a problem with your device. Please contact the store where you bought the air conditioner to request a repair service.
None of the above work.	Refer to the FAQ on:http://www.daikinthai.com/product/dmobile

For instructions about how to operate the DAIKIN Mobile Controller application, please refer to the operation manual at http://www.daikinthai.com/product/dmobile

■ Call your dealer immediately

WARNING

When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.

• Continued operation in an abnormal condition may result in problems, electric shock or fire.
• Consult the dealer where you bought the air conditioner.

Do not attempt to repair or modify the air conditioner by yourself.

• Incorrect work may result in electric shock or fire.
• Consult the dealer where you bought the air conditioner.

If one of the following symptoms occurs, call your dealer immediately.

• The power cord is abnormally hot or damaged.
• An abnormal sound is heard during operation.
• The circuit breaker, a fuse, or the earth leakage circuit breaker cuts off the operation frequently.
• A switch or a button often fails to work properly.
  • There is a burning smell.
  • Water leaks from the indoor unit.

Turn off the circuit breaker and call your dealer.

■ After a power failure

- The air conditioner automatically resumes operation in about 3 minutes. Please wait for a while.

Lightning

- If there is a risk lightning could strike in the neighbourhood, stop operation and turn off the circuit breaker to protect the system.

■ Disposal requirements

- Dismantling of the unit and handling of the refrigerant, oil and other parts should be done in accordance with the relevant local and national regulations.

ON A 88.8°C ON MON TUE WED THU FR SAT SUN B ON 38.88% ON 38.88% Cancel Timer

■ Fault diagnosis by remote controller

- In case the air conditioner is malfunctioning, you can check the error code via the remote controller before consulting with service personnel and informing them of the malfunction code.

1. When Cancel is held down for about 5 seconds, "00" blinks in the temperature display section.

2. Press Cancel repeatedly until a long beep is produced.

- The code indication changes as shown below, and notifies you with a long beep.

	CODE MEANING
SYSTEM	00 NORMAL
	UA INDOOR	OUTDOOR UNIT COMBINATION FAULT
	U0 REFRIGERANT SHORTAGE
	U2 DROP VOLTAGE OR MAIN CIRCUIT OVERVOLTAGE
	U4 FAILURE OF TRANSMISSION (BETWEEN INDOOR UNIT AND OUTDOOR UNIT)
INDOOR UNIT	A1 INDOOR PCB DEFECTIVENESS
	A5 HIGH PRESSURE CONTROL OR FREEZE-UP PROTECTOR
	A6 FAN MOTOR FAULT
	C4 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	C9 FAULTY SUCTION AIR TEMPERATURE SENSOR
	CC FAULTY HUMIDITY SENSOR
OUTDOOR UNIT	EA	COOLING-HEATING SWITCHING ERROR
	E1 CIRCUIT BOARD FAULT
	E5 OL STARTED
	E6 FAULTY COMPRESSOR START UP
	E7 DC FAN MOTOR FAULT
	F3 HIGH TEMPERATURE DISCHARGE PIPE CONTROL
	F6 HIGH PRESSURE CONTROL (IN COOLING)
	F8 OPERATION HALT DUE TO COMPRESSOR INTERNAL TEMPERATURE
	H0	SENSOR FAULT
	H6	OPERATION HALT DUE TO FAULTY POSITION DETECTION SENSOR
	H8	DC CURRENT SENSOR FAULT
	H9	FAULTY SUCTION AIR TEMPERATURE SENSOR
	J3 FAULTY DISCHARGE PIPE TEMPERATURE SENSOR
	J6 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	J8 FAULTY LIQUID PIPE TEMPERATURE SENSOR
	L3 ELECTRICAL PARTS HEAT FAULT
	L4 HIGH TEMPERATURE AT INVERTER CIRCUIT HEATSINK
	L5 OUTPUT OVERCURRENT
	P4 FAULTY INVERTER CIRCUIT HEATSINK TEMPERATURE SENSOR

NOTE

• A short beep and 2 consecutive beeps indicate non-corresponding codes.
• To cancel the code display, hold down for about 5 seconds. The code display also clears if no button is pressed for 1 minute.

Quick Reference

ON 27.0°C MON 15:30 On/OffFAN Temp Mode Swing 10.0°C → 30.0°C 18.0°C → 32.0°C 18.0°C → 30.0°C

DAIKIN INDUSTRIES, LTD.

Head office:

Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,

Kita-ku, Osaka, 530-8323 Japan

Tokyo office:

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

https://www.daikin.com

The two-dimensional bar code is a manufacturing code.

DAIKIN ROOM AIR CONDITIONER

OPERATION MANUAL

Line drawing of a rectangular air conditioner unit with ventilation slots and a scroll (no text or symbols)

INVERTER

STREAMER

MODELS

FTXM20WVMA

FTXM25WVMA

FTXM35WVMA

FTXM46WVMA

FTKM20WVMA

FTKM25WVMA

FTKM35WVMA

FTKM46WVMA

Black-and-white interior photo of a modern living room with a sofa, coffee table, potted plant, and large window (no text or symbols visible)

[Sticker attachment area]

Attach the SSID&KEY sticker of wireless LAN connecting adapter to the sticker attachment area and keep safe.

Features

Enhanced comfort, energy savings and air cleaning

INTELLIGENT EYE

The INTELLIGENT EYE sensor detects human movement and adjusts the right and left airflow direction. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor works differently depending on the situation. ▶Page 21

WEEKLY TIMER

Up to 4 timer settings can be saved for each day of the week according to your family's life style. The WEEKLY TIMER allows you to set on/off times and the desired temperature. ▶Page 28

MOLD PROOF

The MOLD PROOF function dries the interior of the indoor unit and provides an ideal environment to suppress the generation of mold for the indoor unit. ▶Page 17

FLASH STREAMER AIR CLEANING

Flash streamer decomposes mold and allergic substances. It keeps air in the room and the inside of the air conditioner clean to make a comfortable space. ▶Page 19

Other functions

COMFORT AIRFLOW OUTDOOR UNIT QUIET

The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on your body. ▶Page 20

OUTDOOR UNIT QUIET operation assures a low noise level of the outdoor unit. This function is useful to maintain a quiet neighbourhood.

This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air conditioner and other electrical devices simultaneously on a shared electrical circuit. ▶Page 24

Contents

Read Before Operation

Safety Precautions....3

Names of Parts 5

Preparation Before Operation 10

Basic Operation

Adjusting the Airflow Rate......15

Adjusting the Airflow Direction......16

Useful Functions

MOLD PROOF Operation....17

FLASH STREAMER AIR CLEANING Operation....19

COMFORT AIRFLOW Operation......20

INTELLIGENT EYE Operation......21

POWERFUL Operation......23

ECONO / OUTDOOR UNIT QUIET Operation....24

TIMER Operation

ON/OFF TIMER Operation 25

WEEKLY TIMER Operation......28

System control via Smart Control

Wireless LAN connection....34

Care

Care and Cleaning......38

When the Need Arises

FAQ 42

Troubleshooting 43

Safety Precautions

Read the precautions in this manual carefully before operating the unit.

This appliance is filled with R32.

• Keep this manual where the user can easily find it.
• The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail.

WARNING

Failure to follow these instructions properly may result in personal injury or loss of life.

CAUTION

Failure to observe these instructions properly may result in property damage or personal injury, which may be serious depending on the circumstances.

Never attempt.

Be sure to follow the instructions.

Be sure to establish an earth connection.

- After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual.

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance must be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• The appliance must be installed, operated and stored in a room with floor area larger than -^*m^2 for 20/25/35/46 class.
  * Since the maximum refrigerant charge of the models is below 1.84kg, it does not have any limitation for the minimum floor area.
  Maintain an installation height of 1.8m or more from the floor surface to the bottom of the appliance.
• To avoid fire, explosion or injury, do not operate the unit when harmful gases (e.g. flammable or corrosive) are detected near the unit.
• Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too cool or too warm, can be harmful to your physical condition and health.
• Do not place objects, including rods, your fingers, etc., in the air inlet or outlet. Product damage or personal injury may result due to contact with the air conditioner's high-speed fan blades.
• Do not attempt to repair, dismantle, reinstall or modify the air conditioner yourself as this may result in water leakage, electric shock or fire hazards.
• Do not use flammable spray near the air conditioner, or otherwise fire may result.
• Do not use a refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and personal injury.
• To avoid electric shock, do not operate with wet hands.

• Beware of fire in case of refrigerant leakage. If the air conditioner is not operating correctly, i.e. not generating cool or warm air, refrigerant leakage could be the cause. Consult your dealer for assistance. The refrigerant within the air conditioner is safe and normally does not leak.
  However, in the event of a leakage, contact with a naked burner, heater or cooker may result in generation of noxious gas. Do not use the air conditioner until a qualified service person confirms that the leakage has been repaired.
• Do not attempt to install or repair the air conditioner yourself. Improper workmanship may result in water leakage, electric shock or fire hazards. Please contact your local dealer or qualified personnel for installation and maintenance work.
• If the air conditioner is malfunctioning (giving off a burning odour, etc.), turn off power to the unit and contact your local dealer. Continued operation under such circumstances may result in a failure, electric shock or fire hazards.
• Be sure to install an earth leakage circuit breaker. Failure to install an earth leakage circuit breaker may result in electric shock or fire.

- Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead. Imperfect earthing may result in electric shock.

CAUTION

• Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely affect the performance, quality and/or longevity of the object concerned.
• Do not expose plants or animals directly to the airflow from the unit as this may cause adverse effects.
• Do not place appliances that produce naked flames in places exposed to the airflow from the unit as this may impair combustion of the burner.
• Do not block the air inlets nor outlets. Impaired airflow may result in insufficient performance or trouble.

• Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage.
• Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned.
• After prolonged use, check the unit stand and its mounts for damage. If they are left in a damaged condition, the unit may fall and cause injury.
• To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units.
• The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and harm to health may result.
• Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental operation by a child may result in impairment of bodily functions and harm health.
• Avoid impacts to the indoor and outdoor units, or otherwise product damage may result.
• Do not place flammable items, such as spray cans, within 1m of the air outlet.
  The spray cans may explode as a result of hot air from the indoor or outdoor units.
• Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shock or fire.
• Do not wash the air conditioner with water, as this may result in electric shock or fire.
• Do not place water containers (vases, etc.) above the unit, as this may result in electric shock or fire hazards if they should topple over.
• Do not insert the batteries in the wrong polarity (+/-) orientation as this may result in short circuiting, fire, or battery leakage.
• Do not sit or hang on the panel. The panel may fall, and injury or product malfunctioning may result.
• Do not sway the panel. The panel may hit people or objects, and injury or property damage may result.
• Do not let children play around the panel. Injury or property damage may result.
• Do not pull the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not locate obstacles in the route. The panel may fall, and injury or property damage may result.
• Do not bend or damage the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not put objects on the panel, or otherwise production malfunctioning may result.
• Do not use an unstable stand at the time of operating or maintaining the air conditioner, or otherwise you may topple over or injury yourself.
• Locate the remote controller in places out of reach of children. The wrong operation of the remote controller may result in injury.

• To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used together with the air conditioner.
• Before cleaning, be sure to stop unit operation and turn off the circuit breaker. Otherwise, an electric shock and injury may result.
• Only connect the air conditioner to the specified power supply circuit. Power supplies other than the one specified may result in electric shock, overheating and fires.
• Arrange the drain hose to ensure smooth drainage. Imperfect drainage may cause wetting of the building, furniture, etc.
• Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around the unit. Leaves are a hotbed for small animals which can enter the unit. Once inside the unit, such animals can cause malfunctions, smoke or fire if they come into contact with electrical parts.
• Do not place objects around the indoor unit.
  Doing so may have an adverse influence on the performance, product quality, and life of the air conditioner.
• This appliance is not intended to be used by persons with reduced physical, sensory or mental capabilities, or with lack of operation knowledge, unless they have been given supervision or instruction concerning the appliance use by person responsible for their safety. Keep out of children's reach to ensure that they do not play with the appliance.

Precautions relating to area surrounding the indoor and outdoor units

■ Be sure to follow the instructions below.

- The indoor unit is at least 1m away from any television or radio set (unit may cause interference with the picture or sound).

- Refrain from using the units in areas prone to high levels of oily smoke, such as a kitchen. Water leakage may result.

Names of Parts

Indoor Unit Front panel Air inlet Room temperature sensor and Room humidity sensor • Sense air temperature and humidity around the unit. ■ Streamer air inlet • Air inlet for streamer operation. Flaps (horizontal blades) ▶Page 16 Air outlet Model name InTELLIGENT EYE sensor • Detects the movements of people and automatically switches between normal operation and energy saving operation. ▶Page 16 Louvres (vertical blades) • The louvres are inside of the air outlet. ▶Page 16 ▶Page 21,22

Display
MOLD PROOF lamp (Green)
Page 17
TIMER lamp (Orange)
▶ Page 25,26,27,30,32
Indoor unit ON/OFF switch and OPERATION lamp (Green)
- Press this switch once to start operation. Press once again to stop it.
- For the operation mode setting, refer to the following table.

Model Mode	Temperature setting	Airflow rate
FTXM20/25/35/46	AUTO	25.0°C	AUTO
FTKM20/25/35/46	COOL	22.0°C	AUTO

STREAMER lamp (Green)

Page 19

Wireless LAN connecting adapter lamp (Orange)

Page 34

Signal receiver

• It receives signals from the remote controller.
- When the unit receives a signal, you will hear a beep sound.

Case Sound type

Operation start beep-beep

Setting change beep

Operation stop long beep

- This switch can be used when the remote controller is missing or out of batteries.

List of lamps

Lamp	Colour	State	Description
OPERATION lamp	green	Lights up	The air conditioner is running.
		Blinks	Check the error code.
TIMER lamp orange	Lights up		TIMER is set. ▶Page 25,26,27,30,32
MOLD PROOF lamp	green	Lights up	MOLD PROOF operation. ▶Page 17
STREAMER lamp	green	Lights up	STREAMER operation. ▶Page 19
Wireless LAN connecting adapter lamp	orange	Lights up	Wireless LAN connecting adapter operation. ▶Page 34
		Blinks	Wireless LAN connecting adapter is connected. ▶Page 34

■ Open the front panel

Backside of the front panel Fixing tab Panel support plate Wireless LAN connecting adapter (inside) ▶Page 7.34 Streamer unit (inside) Prevents mold and allergens with the decomposition power of the streamer discharge. SSID&KEY sticker of wireless LAN connecting adapter Air filter Deodorizing filter (enzyme blue)

Outdoor Unit

- The appearance of the outdoor unit may differ between different models.

Air inlet (back and side) Outdoor temperature sensor (back) Air outlet Earth terminal (inside) Refrigerant pipes and inter-unit wire Drain hose

Names of Parts

Wireless LAN connecting adapter

The wireless LAN connecting adapter function requires the DAIKIN Mobile Controller application for connecting to the air conditioner and controlling it via your smartphone or tablet over your network.

ATTENTION

- Attach the sticker to the sticker attachment area on the cover page of the operation manual and keep it safe, as in the detail below:

[About the SSID and KEY]

• The [SSID] and [KEY] shown on the SSID&KEY sticker are necessary when connecting the air conditioner to a smartphone via wireless LAN.

■ Configuration

- The user is responsible for providing the following items before using this product:

■ Smartphone or tablet (Supported OS versions: Android 4.1.2 or higher; iOS 10.0 or higher. For the latest compatibility information, refer to the web site at http://www.daikinthai.com/product/dmobile/compatible.)

■ Internet line and communicating device (Modem/router or similar device)

■ Wireless LAN access point

■ Application name: [DAIKIN Mobile Controller] (free)

(application version 4.0 or higher is needed to control this product)

For details on the installation method for the DAIKIN Mobile Controller application, please see ▶Page 34

On/Off ⏻ C < < W W

Display

Wireless LAN connecting adapter lamp (Orange)

- The wireless LAN connecting adapter lamp lights when connecting to a router (Wireless LAN access point). Please see ▶Page 34.

- For wireless LAN connecting adapter operation, please see ▶Page 35.

NOTE

Notes on the wireless LAN connecting adapter

• Do not use this product near a microwave oven. (This can affect wireless LAN communications.)
• While the wireless LAN connecting adapter operates, it may affect persons using cardiac pacemakers or defibrillators. This product may cause electromagnetic interference.
• While the wireless LAN connecting adapter operates, it may affect automatic doors or fire alarm equipment. This product may cause faulty behaviour of the equipment.
• For the latest details about installation of the wireless LAN connecting adapter and applicable units, refer to the web site http://www.daikinthai.com/product/dmobile.

Remote Controller

Signal transmitter Receiver To use the remote controller, aim the transmitter at the indoor unit. If there is anything blocking the signals between the unit and the remote controller, such as a curtain, the unit may not operate. The maximum transmission distance is about 7m. Display (LCD) Displays the current settings. (In this illustration, each section is shown with all its displays on for the purpose of explanation.) (Explained by ARC466A76) For ARC466A77, the display is as follows: FAN setting button Selects the airflow rate setting. ▶ Page 15 TEMPERATURE adjustment button Changes the temperature setting. ▶ Page 14 POWERFUL button and Wireless LAN button POWERFUL button POWERFUL operation. ▶ Page 23 Wireless LAN button (push 5 seconds) Wireless LAN connection. ▶ Page 35 ON/OFF button Press this button once to start operation. Press once again to stop it. ▶ Page 13 Front cover Open the front cover. ▶ Page 9

For FTXM20/25/35/46 ARC466A76

For FTKM20/25/35/46 ARC466A77

Names of Parts

■ Open the front cover

Preparation Before Operation

CAUTION

Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure.

Please observe the following precautions and use safely.

• If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional.
• Keep batteries out of reach of children. In the event that batteries are swallowed, seek the immediate attention of a medical professional.
• Do not expose batteries to heat or fire. Do not disassemble or modify batteries. The insulation or gas release vent inside the battery may be damaged, resulting in battery leakage, rupturing, or heating.
• Do not damage or peel off labels on the batteries.

■ To insert the batteries

1. Slide the front cover to take it off.
2. Insert 2 dry batteries AAA.LR03 (alkaline).
3. Replace the front cover.

■ To fix the remote controller holder to a wall

1. Choose a place from where the signals reach the unit.
2. Fix the holder to a wall, a pillar, or similar location with the screws supplied with the holder.
3. Place the remote controller in the remote controller holder.

■ To attach the deodorizing filter (enzyme blue)

- If attaching the separately sold filters, attach them before turning the power on. ▶ Page 40

■ Turn on the circuit breaker

• After the power is turned on, the flaps of the indoor unit open and close once to set the reference position.

1 2 3 Position + and - correctly!

Remote controller Screws Remote controller holder

NOTE

Notes on batteries

• To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time.
- The standard replacement time is 1 year. Both batteries should be replaced at the same time. Be sure to replace them with new size AAA. LR03 (alkaline) batteries.
- When battery power has run out, the LCD will begin blinking as an alert that the batteries need replacing. In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking.
- The batteries supplied with the remote controller are for initial operation. The batteries may run out in less than 1 year.
- The usable period of the batteries may be short depending on the manufactured date of the air conditioner.

Notes on remote controller

• Do not drop the remote controller. Do not get it wet.
• Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room.
  Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance to somewhere else, or consult the service shop.

Preparation Before Operation

MON 27.0°C 15:30 Select Timer

■ To set the clock

1. Press 🔒

"0" appears on the LCD.
“MON” and “Oblink.

2. Press to set the current day of the week.

Display Day of the week
MON Monday
TUE Tuesday
WED	Wednesday
THU	Thursday
FRI	Friday
SAT	Saturday
SUN	Sunday

3. Press

"blinks.

4. Press to set the clock to the present time.

- Holding down ▲ or ▼ rapidly increases or decreases the displayed time.

5. Press

- Point the remote controller at the indoor unit when pressing the button.

“ ” blinks.

NOTE

Note on setting the clock

- If the indoor unit's internal clock is not set to the correct time, the ON/OFF TIMER and WEEKLY TIMER will not operate punctually.

H LED Menu (push 2nd) Select Cancel Timer

■ To set the brightness of the indoor unit lamps

Adjust the brightness of the indoor unit display as desired, or turn OFF the display.

■ To set

1. Press and hold the button for 2 seconds.

1. Press ▲ or ▼ and select menu number 1.

2. Press to confirm the selected setting.

3. Press or and select the desired brightness.

1. Press ^Menu (push 2sec) again.

- Brightness will be set to the chosen value.

1. Press to return to the default screen.

NOTE

Note on setting brightness of the indoor unit lamps

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press Cancel twice.

ON 27.0°C * MIN 15:30 On/Off Mode Timer

The air conditioner operates with the operation mode of your choice.

From the next time on, the air conditioner will operate with the same operation mode.

■ To start

1. Press and select an operation mode.

• Each pressing of the button changes the mode setting in sequence.

2. Press ON/OFF

• “ On” appears on the LCD.
• The OPERATION lamp lights green.

On/Off + C < Wi

Display

■ To stop

Press again.

• “ On appears from the LCD.
  • The OPERATION lamp goes off.

NOTE

Notes on AUTO operation

• In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the indoor temperature and starts the operation.
• The system automatically reselects setting at a regular interval to bring the indoor temperature to the user-setting level.

Note on COOL operation

• This air conditioner cools the room by releasing the heat in the room outside.
  Therefore, the cooling performance of the air conditioner may be degraded if the outdoor temperature is high.

Note on DRY operation

- Eliminates humidity while maintaining the indoor temperature as much as possible. It automatically controls temperature and airflow rate, so manual adjustment of these functions is unavailable.

Notes on HEAT operation

• Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is recommended to use another heating appliance in combination with the air conditioner.
• The heat pump system heats the room by circulating hot air around all parts of the room. After the start of HEAT operation, it takes some time before the room gets warmer.
• In HEAT operation, frost may occur on the outdoor unit and lower the heating capacity. In that case, the system switches into defrosting operation to take away the frost.

Note on FAN operation

• This mode is valid for fan only.

ON 27.0°C MOS ° 15:30 Temp Timer

■ To change the temperature setting

Press

- Press ▲ to raise the temperature and press ▼ to lower the temperature. Each pressing of the button changes the temperature by 0.5°C.

COOL operation	HEAT operation	AUTO operation	DRY/FAN operation
18.0~32.0°C	10.0~30.0°C	18.0~30.0°C	The temperature setting cannot be changed.

Tips for saving energy

Keeping the temperature setting at a moderate level helps save energy.

- Recommended temperature setting for cooling: 26.0-28.0°C, for heating: 20.0-24.0°C

Cover windows with a blind or a curtain.

- Blocking sunlight and air from outdoors increases the cooling (heating) effect.

Keep the air filters clean.

• Clogged air filters cause inefficient operation and waste energy. Clean them once in about every 2 weeks. ▶ Page 39

If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn off the circuit breaker.

- The air conditioner always consumes a small amount of electricity even while it is not operating.

Adjusting the Airflow Rate

MASTER 27:00 MON 15:30 Fan

You can adjust the airflow rate to increase your comfort.

■ To adjust the airflow rate setting

• Each pressing of the button changes the airflow rate setting in sequence.

• When the airflow is set to “quiet operation starts and noise from the indoor unit will become quieter.
• In the quiet operation mode, the airflow rate is set to a weak level.
• If the temperature dose not reach the desired point, change the airflow rate setting.
• If COOL/DRY operation is started with airflow settings on "AUTO", the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)
• At smaller airflow rates, the cooling (heating) effect is also smaller.

Adjusting the Airflow Direction

27.0°C MON 15:30 Vista (pack 2wt) Swing Timer

You can adjust the airflow direction to increase your comfort.

CAUTION

• Always use a remote controller to adjust the angles of the flaps and louvres.

• If you attempt to move the flaps and louvres forc bly by hand when they are swinging, the mechanism may be damaged.
• Inside the air outlet, a fan is rotating at a high speed.

■ To start auto swing

Up and down airflow direction

Press

• “ Appears on the LCD.
- The flaps (horizontal blades) will begin to swing.

Right and left airflow direction

Press

• “ appears on the LCD.
- The louvres (vertical blades) will begin to swing.

The 3-D airflow direction

Press

• “and” appear on the LCD.
• The flaps and louvres move in turn.
- To cancel 3-D airflow, press either 📁 or 🌐 again.

The flaps or louvres will stop moving.

Diagram showing a circular icon with rotation arrow and a rectangular device emitting a curved arrow (no text or symbols)

Diagram showing airflow around a refrigerant air conditioner unit (no text or symbols)

Illustration of a washing machine and its airflow path (no text or symbols)

■ To set the flaps or louvres at the desired position

- This function is effective while the flaps or louvres are in auto swing mode.

Press 📊 and 🌐 when the flaps or louvres reach the desired position.

• In the 3-D airflow, the flaps and louvres move in turn.
- “ 📋 ” or “ 📄 disappears from the LCD.

NOTE

Note on airflow direction setting

- The movable range of the flaps varies according to the operation mode.

Note on 3-D airflow

- Using 3-D airflow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling, throughout the room, preventing areas of cold and hot developing.

Movable range of the flaps

of the flaps COOL / DRY FAN HEAT

MOLD PROOF Operation

27.0°C MON 15:30 Next (past 2nd) Select Cancel Timer

The inside of the air conditioner is dried to reduce the occurrence of mold and odour. When COOL or DRY operation is performed, condensation may occur inside the air conditioner and may cause mold or odour. It is recommended to dry the inside of the air conditioner using MOLD PROOF operation.

[To operate automatically]

■ To set

1. Press and hold the button for 2 seconds.

2. Press or and select menu number . 2

• “ 📄 appears on the LCD.

• “2” (menu number) blinks.

1. Press to confirm the selected setting.

2. Press or to change the setting as follows:

5. Press ^Menu (push 2sec) again.

- Automatic MOLD PROOF operation will be enabled or disabled according to the chosen setting.

- If automatic MOLD PROOF operation is enabled, “ Ⓞ” appears on the LCD and the MOLD PROOF lamp lights green when MOLD PROOF operation is in progress.

- The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off C Wi-Fi

Display

NOTE

6. Press Cancel to return to the default screen.

Note on MOLD PROOF setting

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press ☐ twice.

Notes on MOLD PROOF operation

• When you want to stop MOLD PROOF operation midway, press ⏻ twice.
  • After DRY or COOL operation stops, the air conditioner starts MOLD PROOF operation automatically, and then stops automatically 60 minutes later.
• This operation dries the inside of the air conditioner while streamer discharge is performed to reduce the development of mold and odour inside the air conditioner. But the function does not remove any adhered dust and mold.
• MOLD PROOF operation is not available when the unit is turned off using the OFF TIMER or turned off using a smartphone.

NOTE

Notes on MOLD PROOF operation

• The flaps may sometimes close to increase the drying effect inside the air conditioner.
• MOLD PROOF operation may not be performed if the COOL or DRY operation time is short.
• If MOLD PROOF operation does not suit your preference, set operation to "OFF". ▶ Page 17

Relation between MOLD PROOF operation and indoor unit lamps

Air conditioner MOLD PROOF setting MOLD PROOF lamp STREAMER lamp
Operating (OPERATION lamp lights up)	MOLD PROOF is “ON” Lights up		Depends on STREAMER setting
	MOLD PROOF is “OFF” Goes off
Not operating (OPERATION lamp goes off)	MOLD PROOF is “ON” Lights up Lights up

FLASH STREAMER AIR CLEANING operation

27.0°C MOM 15:30 None (just 2wt) Select Cancel Timer

The streamer generates a high-speed electron stream with a high oxidizing power, reducing bad odours and viruses. Together with the deodorizing filter (enzyme blue) and the air filters, this function cleans the air in the room.

■ To set

1. Press and hold the button for 2 seconds.

2. Press or and select menu number . 3

• “ appears on the LCD.

• “3-” (menu number) blinks.

1. Press to confirm the selected setting.
2. Press or to change the setting as follows:

1. Press again.

2. Flash streamer air cleaning will be enabled or disabled according to the chosen setting.

3. If STREAMER operation is enabled, “◀◀” appears on the LCD. The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off ⊕ C ← Wi

Display

1. Press Cancel to return to the default screen.

NOTE

What is streamer discharge?

- This is a type of plasma discharge comprising high-speed electrons with a high oxidative capacity that is released within the unit. It decomposes odours and harmful gases. (The high-speed electrons are generated and then adsorbed within the unit ensure your safety.)

Note on flash streamer air cleaning setting

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press Cancel twice.

Notes on flash streamer air cleaning operation

• The streamer discharge may generate a fizzing sound, however this does not indicate a defect.
• Do not block the air inlets of the streamer with any objects (Fig.1). Impaired airflow may result in insufficient performance or trouble with streamer operation.

Streamer air inlets

Fig. 1

COMFORT AIRFLOW Operation

27.0°C MOS 15:30 Comfort Times

The flow of air will be in the upward direction while in COOL/DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable wind that will not come in direct contact with people.

Airflow direction : Upward (ceiling spread airflow)

COOL and DRY operation

Airflow direction : Downward (floor spread airflow)

HEAT operation

■ To start

Press

• “ 🍒 appears on the LCD.

	COOL and DRY operation	HEAT operation FAN operation
Flaps direction	Goes up Goes down
Airflow rate AUTO

■ To cancel

D Press

again.

• “ disappears from the LCD.
- The flaps will return to the position in memory from before COMFORT AIRFLOW operation.

NOTE

Notes on COMFORT AIRFLOW Operation

• POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.
  • The airflow rate will be set to AUTO.
• If the upward and downward airflow direction is selected, the COMFORT AIRFLOW function will be canceled.
  Priority is given to the function of whichever button is pressed last.
• If there is an obstruction under the air conditioner when using heating, the airflow may not reach the center of the room and the room may be difficult to warm up.

INTELLIGENT EYE Operation

27.0°C MON 15:30 Sensor Timer

The INTELLIGENT EYE sensor detects human movement and adjusts airflow direction. It can be set to avoid people or to direct airflow specifically at people. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation.

CAUTION

• Do not place large objects near the INTELLIGENT EYE sensor. Also keep heating units and humidifiers outside the sensor's detection area. This sensor can detect undesirable objects.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.

■ To start

Press Sensor and select the desired mode.

• Each time Sensor is pressed, a different setting option appears on the LCD.

- If both INTELLIGENT EYE operation and auto swing airflow directions (up and down or right and left) are set simultaneously, priority is given to auto swing airflow directions and INTELLIGENT EYE operation will be operated in energy saving operation only. ("") or "will remain on the LCD.) To keep INTELLIGENT EYE operation active, do not use it in combination with auto swing airflow direction modes.

■ To cancel

Press Sensor until no icon is displayed.

NOTE

Notes on combining INTELLIGENT EYE operation and COMFORT AIRFLOW operation

• INTELLIGENT EYE operation can operate in combination with COMFORT AIRFLOW operation.
When the INTELLIGENT EYE operation is set to blow directly on people and COMFORT AIRFLOW operation is activated simultaneously, the air conditioner tracks you horizontally, without the air blowing directly on you.
- The airflow rate will be set to AUTO. If the up and down airflow direction is selected, the COMFORT AIRFLOW operation will be canceled. Priority is given to the function of whichever button is pressed last.

■ How INTELLIGENT EYE operation works

The INTELLIGENT EYE sensor detects human movement and adjusts the right and left airflow direction. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor works differently depending on the situation.

[Example]

	A person is detected in area 1. area 2.	A person is detected in	People are detected in both areas.	No people are detected in the areas.
			The airflow is directed to Area 1.	The air conditioner will switch to energy-saving mode after 20 minutes.
			The current airflow direction is maintained.

INTELLIGENT EYE operation is useful for energy saving

Energy saving operation

• If no presence detected in the room for 20 minutes, the energy saving operation will start.
• This operation changes the temperature by -2^ in HEAT / +2^ in COOL / +2^ in DRY operation from the set temperature.
  When the room temperature exceeds 30^ C, the operation changes the temperature by +1^ C in COOL / +1^ C in DRY operation from the set temperature.
• This operation decreases the airflow rate slightly in FAN operation only.

NOTE

Notes on INTELLIGENT EYE operation

• Application range is as follows.

Vertical angle 90° (Side view) 5m 90°

Horizontal angle 110° (Top view) 55° 55° 5m

- While the air conditioner is in INTELLIGENT EYE operation, the louvres adjust the airflow direction if there are people in the sensing areas of the INTELLIGENT EYE so that the leftward or rightward airflow will not be directed to the people. If no people are detected in either area 1 or 2 for 20 minutes, the air conditioner switches to the energy-saving mode with the set temperature shifted by 2^ .

The air conditioner may switch to the energy-saving operation even if there are people in the areas.

This may occur depending on the clothes the people are wearing, if there is no movement of the people in the areas.

• The airflow direction from the louvres will be leftward if there are people in both areas 1 and 2. The air will also flow left if there is a person right in front of the sensor as the sensor judges that there are people in both areas.
• Due to the position of the sensor, people might be exposed to the airflow of the indoor unit if they are close to the front side of the indoor unit. If there are people close to the front side of the indoor unit or in both areas, it is recommended to use the COMFORT AIRFLOW and INTELLIGENT EYE operations simultaneously. Using both modes together, the air conditioner will not direct the airflow towards the people.
• The sensor may not detect moving objects further than 5m away. (Please see the application range)
• Sensor detection sensitivity changes according to the indoor unit location, the speed of passers-by, temperature range, etc.
• The sensor could also mistakenly detect pets, sunlight, fluttering curtains and light reflected off of mirrors as passers-by.
• NIGHT SET mode ▶ Page 26 will not switch on during use of INTELLIGENT EYE operation.

POWERFUL Operation

15:30 Powerful

POWERFUL operation quickly maximises the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.

■ To start

Press during operation.

• “ appears on the LCD.
- POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation.

■ To cancel

Press again.

• “ disappears from the LCD.

NOTE

Notes on POWERFUL operation

• Pressing causes the settings to be cancelled, and " " disappears from the LCD.
• POWERFUL operation will not increase the capacity of the air conditioner if the air conditioner is already in operation with its maximum capacity demonstrated.
• In COOL, HEAT and AUTO operation
  To maximise the cooling (heating) effect, the capacity of outdoor unit increases and the airflow rate becomes fixed at the maximum setting. The temperature and airflow settings cannot be changed.
• In DRY operation
  The temperature setting is lowered by 2.5°C and the airflow rate is slightly increased.
• In FAN operation
  The airflow rate is fixed at the maximum setting.

Regarding the combination of POWERFUL and other operations

POWERFUL + COMFORT AIRFLOW	Not available*
POWERFUL + ECONO
POWERFUL + OUTDOOR UNIT QUIET

*Priority is given to the function of whichever button is pressed last.

ECONO / OUTDOOR UNIT QUIET Operation

27.0°C MON 15:30 Eco/Quint Timer

ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.

OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. This function is convenient during the night-time operation.

■ To start

Press Econo/Quiet and select the desired mode.

• Each time is pressed, a different setting option appears on the LCD.

■ To cancel

Press Econo/Quiet until no icon is displayed.

NOTE

Notes on ECONO operation

• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.
• Pressing ⏻ causes the settings to be cancelled, and “” disappears from the LCD.
• If the power consumption level is already low, switching to ECONO operation will not reduce the power consumption.

Notes on OUTDOOR UNIT QUIET operation

• Even if the operation is stopped by using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET operation, "💡" will remain displayed on the remote controller.
• OUTDOOR UNIT QUIET operation will not reduce the frequency nor fan speed if they already are operating at reduced levels.
• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.

Possible combinations of ECONO / OUTDOOR UNIT QUIET operation and basic operations

	Operation mode
	AUTO DRY COOL		HEAT FAN
ECONO	√	√	√	√	-
OUTDOOR UNIT QUIET	√	-	√	√	-

ON/OFF TIMER Operation

27.0°C MON ON 16:00 Select On Cancel Timer

Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together.

[ON TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press On

“5.00 appears on the LCD. “ON-” blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the setting rapidly.

3. Press on again.

- “ON” and setting time appear on the LCD.

• The TIMER lamp lights orange.

On/Off

Display

■ To cancel

Press Cancel.

• “ON” and setting time disappear from the LCD.
• “ ⏻ ” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

NOTE

Note on TIMER operation

- When TIMER is set, the present time is not displayed.

In the following cases, set the timer again.

• After the circuit breaker has turned off.
• After a power failure.
• After replacing the batteries in the remote controller.

27.0°C OFF 0:00 Off Select Cancel Timer

[OFF TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press Off

“0.00 appears on the LCD.

“>OFF-” blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the time setting rapidly.

3. Press off again.

• “OF and setting time appear on the LCD.
  • The TIMER lamp lights orange.

On/Off

Display

■ To cancel

Press Cancel

• “OF and setting time disappear from the LCD.
• “ ⊕” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

[ON/OFF TIMER combination]

■ To combine

- A sample setting for combining the 2 timers is shown below.

(Example) Present time: 23:00 (The unit is operating) OFF TIMER at 0:00 ON TIMER at 14:00) Combined OFF 0:00 ON 14:00

NOTE

NIGHT SET mode

- When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) during sleeping hours.

ON/OFF TIMER Operation

27.0°C ON Ihr Select Off On Timer

[ON/OFF TIMER with an hours remaining display] (COUNT UP-DOWN ON/OFF TIMER)

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press and hold on or for about 5 seconds, when signal indicator (▲) blink, release your finger from the button.

For ON TIMER

"Ibr" appears on the LCD.

“ON-” blinks.

For OFF TIMER

"Ihr" appears on the LCD.

“OFF-”blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of the button increases or decreases the time setting by 1 hour.

• The time can be set between 1 and 12 hours.

3. Press On or again. Off

- “ONand” “ONand setting time appear on the LCD.

• The TIMER lamp lights orange.

- To change the display mode from COUNT UP-DOWN ON/OFF TIMER to 24 HOUR ON/OFF TIMER, repeat STEP 1, and continue from STEP 2 of "24 HOUR ON/OFF TIMER". ▶ Page 25, 26

- Timer display mode cannot be changed while “ON-” or “Dare blinking. Press ☐ or ☐ to stop the blinking.

On/Off

Display

■ Combining display modes

- Different display modes (24 HOUR ON/OFF TIMER and COUNT UP-DOWN ON/OFF TIMER) can be used for the ON TIMER and OFF TIMER simultaneously.

(Example) Present time: 22:00 (The unit is operating) OFF T MER at 1:00 (3 hours after persent time) ON T MER at 6:00 (8 hours after persent time) Combined OFF 3hr ON 6:00 OFF 1:00 ON 8hr OFF 3hr ON 8hr

NOTE

Note on COUNT UP-DOWN ON/OFF TIMER

- After setting, the time displayed on the LCD will automatically count down by 1 hour for every 1 hour that passes. For example, if the OFF TIMER is set to 3 hours, the display will change as follows: 3hr 2hr 1hr blank (OFF)

Switching between ON/OFF TIMER display modes (24 hour clock and hours remaining display)

- When changing timer display modes (from 24 HOUR ON/OFF TIMER to COUNT UP-DOWN ON/OFF TIMER or vice versa), the timer cancels. The timer must be set again to activate it.

WEEKLY TIMER Operation

Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family's life style.

■ Setting example of the WEEKLY TIMER

The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend.

[Monday]	Make timer settings for programmes 1-4. ▶Page 29
	Programme 1	Programme 2	Programme 3	Programme 4
	—
[Tuesday] to [Friday]	Use the copy mode to make settings for Tuesday to Friday, because these settings are the same as those for Monday. ▶Page 31Pr			≥4
[Saturday]	No timer settings
[Sunday]	Make timer settings for programmes 1-4. ▶Page 29

- Up to 4 reservations per day and 28 reservations per week can be set using the WEEKLY TIMER. The effective use of the copy mode simplifies timer programming.

- The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn off the air conditioner automatically if you forget to turn it off.

WEEKLY TIMER Operation

27.0°C ON 6:00 MON 25.0°C Back Select Next

■ To use WEEKLY TIMER operation

Setting mode

- Make sure the day of the week and time are set. If not, set the day of the week and time. ▶Page 11

Programme 1 Programme 2 Programme 3 Programme 4

[Monday] ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 ON OFF

Setting Displays

1. Press

• The day of the week and the reservation number of the current day will be displayed.
• 1 to 4 settings can be made per day.

2. Press Select to select the desired day of the week and reservation number.

- Pressing Select changes the reservation number and the day of the week.

3. Press Next .

• The day of the week and reservation number will be set.

- “WEEKLY” and “ON-” blink.

4. Press Select to select the desired mode.

- Pressing Select changes the "ON" or "OFF" setting in sequence.

• In case the reservation has already been set, selecting "blank" deletes the reservation.
• Proceed to STEP 9 if "blank" is selected.
• To return to the day of the week and reservation number setting, press □.

5. Press Next .

• The ON/OFF TIMER mode will be set.
• “ Ⓧ WEEKLY ” and the time blink.

27.0°C ON 6:00 TUE 1 25.0°C Back Select Next

6. Press □ to select the desired time.

• The time can be set between 0:00 and 23:50 in 10-minute intervals.
• To return to the ON/OFF TIMER mode setting, press BACK
  • Proceed to STEP 9 when setting the OFF TIMER.

7. Press Next

• The time will be set.
• “ Ⓧ WEEKLY ” and the temperature blink.

8. Press to select the desired temperature.

• The temperature can be set between 10.0°C and 32.0°C.
COOL or AUTO: The unit operates at 18.0^ C even if it is set to 10.0^ C to 17.0^ C. ▶Page 14 HEAT or AUTO: The unit operates at 30.0^ C even if it is set to 31.0^ C to 32.0^ C ▶Page 14
• To return to the time setting, press .
- The set temperature is only displayed when the mode setting is on.

9. Press Next

• The temperature will be set and go to the next reservation setting.
• The temperature is set while in ON TIMER operation, and the time is set while in OFF TIMER operation.
  • The next reservation screen will appear.
  • To continue further settings, repeat the procedure from STEP 4.

10. Press to complete the setting.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the OPERATION lamp.
• “ WEEKLY ” appears on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off

Display

- A reservation made once can be easily copied and the same settings used for another day of the week. Refer to Copy mode. ▶Page 31

NOTE

Notes on WEEKLY TIMER operation

• Do not forget to set the clock on the remote controller first. ▶Page 11
• The day of the week, ON/OFF TIMER mode, time and set temperature (only for ON TIMER mode) can be set with the WEEKLY TIMER. Other settings for the ON TIMER are based on the settings just before the operation.
• WEEKLY TIMER and ON/OFF TIMER operation cannot be used at the same time. The ON/OFF TIMER operation has priority if it is set while WEEKLY TIMER is still active. The WEEKLY TIMER will enter the standby state, and “WEEKLY” will disappear from the LCD. When the ON/OFF TIMER is up, the WEEKLY TIMER will automatically become active.
• Only the time and set temperature with the WEEKLY TIMER are sent with the ☐. Set the WEEKLY TIMER only after setting the operation mode, the airflow rate and the airflow direction ahead of time.
• Turning off the circuit breaker, power failure, and other similar events will render operation of the indoor unit's internal clock inaccurate. Reset the clock. ▶Page 11
  • can be used only for the time and temperature settings. It cannot be used to go back to the reservation number.

WEEKLY TIMER Operation

27.0°C ON TUE 1 6:00 25.0°C Copy Select Timer

Copy mode

- A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied.

Programme 1 Programme 2 Programme 3 Programme 4 [Monday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 COPY

Programme 1 Programme 2 Programme 3 Programme 4

[Tuesday] to [Friday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00

Setting Displays

27.0°C ON 6:00 MON 25.0°C Confirmation CP ON TUE Copy Paste Normal CP ON 6:00 TUE 25.0°C ON MON 15:35 27.0°C

1. Press
2. Press Select to confirm the day of the week to be copied.
3. Press Copy .

- The whole reservation of the selected day of the week will be copied.

1. Press Select to select the destination day of the week.

2. Press Copy

3. The reservation will be copied to the selected day of the week. The whole reservation of the selected day of the week will be copied.
   • To continue copying the settings to other days of the week, repeat STEP 4 and STEP 5.

4. Press ☐ to complete the setting.

- “WEEKLY” appears on the LCD and WEEKLY TIMER operation is activated.

NOTE

Note on COPY MODE

- The entire reservation of the source day of the week is copied in the copy mode. In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press and change the settings in the steps of Setting mode. ▶Page 29

27.0°C ON TUE 6:00 25.0°C Weekly Select Next Timer

■ Confirming a reservation

• The reservation can be confirmed.

Setting Displays DREAM TUE 15:35 Normal ON ON 6:00 TUE 25.0c Confirmation

1. Press

- The day of the week and the reservation number of the current day will be displayed.

2. Press to select the day of the week and the reservation number to be confirmed.

• Pressing displays the reservation details.
• To change the confirmed reserved settings, select the reservation number and press Next. The mode is switched to setting mode. Proceed to Setting mode STEP 4. ▶Page 29

3. Press to exit the confirmation mode.

• “ WEEKLYrs on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off

Display

■ To deactivate WEEKLY TIMER operation

Press ☐ while “ Ⓧ WEEKLY ” is displayed on the LCD.

• “Wears from the LCD.
• The TIMER lamp goes off.
• To reactivate the WEEKLY TIMER operation, press ____ again.
- If a reservation deactivated with ____ is activated once again, the last reservation mode will be used.

NOTE

- If not all the reservation settings are reflected, deactivate the WEEKLY TIMER operation once. Then press ____ again to reactivate the WEEKLY TIMER operation.

WEEKLY TIMER Operation

27.0°C ON 6:00 TUE 25.0°C Weekly Select Next Timer

■ To delete a reservation

An individual reservation

1. Press

- The day of the week and the reservation number will be displayed.

2. Press to select the day of the week and the reservation number to be deleted.

3. Press Next .

4. Press 📋 until no icon is displayed.

- Pressing changes the ON/OFF TIMER mode in sequence.

- Selecting "blank" will cancel any reservation you may have.

5. Press Next .

- The selected reservation will be deleted.

6. Press

- If there are still other reservations, WEEKLY TIMER operation will be activated.

Reservations for each day of the week

• This function can be used for deleting reservations for each day of the week.
• It can be used while confirming or setting reservations.

1. Press

- The day of the week and the reservation number will be displayed.

2. Press Select to select the day of the week to be deleted.

3. Hold for about 5 seconds.

- The reservation of the selected day of the week will be deleted.

4. Press

- If there are still other reservations, WEEKLY TIMER operation will be activated.

All reservations

Weekly

Hold for about 5 seconds with the normal display.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone.
• This operation cannot be used for the WEEKLY TIMER setting display.
• All reservations will be deleted.

Wireless LAN connection

Please note

- Turn off the air conditioner before setting up wireless connection.

Prior to setting up, please make sure your device is ready to connect. You may refer to the indoor unit LED table for guidance.

Check the indoor unit LED.

Wireless LAN connecting adapter lamp Status
Blinks for one second	The wireless LAN connecting adapter is ready to connect.
No blinking/no light	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.Please refer to the troubleshooting guide or contact the store where you bought the air conditioner to request a repair service.
Lamp stays lit	The wireless LAN connecting adapter is connected to a modem/router.

On/Off Wireless LAN connecting adapter lamp (Orange) Display

Wireless LAN connection

Web site: http://www.daikinthai.com/product/dmobile

For more information on the latest version of wireless LAN control, please refer to the above website.

■ Application software installation

- Before downloading the application software for installation, please read "Configuration" on ▶Page 7

For Android phones

1) Open [Google Play].
2) Search using the application name: [DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

For iOS phones

1) Open [App Store].
2) Search using the application name: [DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

Setting

Connect the wireless LAN connecting adapter to your home network.

- The wireless LAN connecting adapter will communicate with the smart devices in your home network via a modem, router, or a similar device.

There are two options for connecting the wireless LAN connecting adapter to your smart phone or tablet:

1) Simple connection (WPS connection), if there is a WPS button on the router, ▶Page 36
2) Access point connection (AP connection), if there is no WPS button on the router, ▶ Page 37

For more information and Frequently Asked Questions, please refer to:

http://www.daikinthai.com/product/dmobile

WPS MARTINOCED SETUP

NOTE

Note on wireless LAN connection

- For more information on how the wireless LAN connecting adapter operates, please see ▶Page 35-37

Wireless LAN connection

SP 1 Powerful Temp

On/Off C

Display

Enabling/disabling the wireless LAN connecting adapter

■ To enable

1. While operation is stopped, press and hold the button for 5 seconds.

1. Press or and select SP menu.

2. Press to confirm the selected setting.

- “▲” blinks briefly. - The wireless LAN connecting adapter lamp (orange) blinks for one second.

1. Press Cancel to return to the default screen.

■ To disable

1. While operation is stopped, press and hold the button for 5 seconds.

1. Press or and select SP menu OFF

2. Press and hold for 2 seconds to confirm the selected setting.

- “▲” blinks briefly. - The wireless LAN connecting adapter lamp (orange) goes off.

1. Press Cancel to return to the default screen.

SP 2 Powerful Temp

On/Off

Display

16:55 Home All units 11 Unit name + mn + sc

Fig. 1

To connect the wireless LAN connecting adapter to your home network

The wireless LAN connecting adapter can be connected to your home network by means of:

• Simple connection (WPS connection), if there is a WPS button on the router.
• Access point connection (AP connection), if there is no WPS button on the router.

■ Simple connection (WPS connection)

If there is a WPS button on your Wi-Fi router, please follow the below steps.

1. While operation is stopped, press and hold the button for 5 seconds.

2. “SPappears on the LCD.
   • “ ” (SP menu) blinks.

1. Press or and select SP menu.
2. Press to confirm the selected setting.

• “▲blinks briefly.

- The wireless LAN connecting adapter lamp (orange) blinks more quickly.

1. Press the WPS button on your communication device (e.g. router) within approximately one minute. Please refer to the manual of your communication device.

- The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.

1. Press Cancel to return to the default screen.
2. Connect your smart phone to your home network.
3. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there (Fig. 1).

NOTE

Note on simple connection (WPS connection)

• If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-5.
  Alternatively, try connecting via your device directly. Please refer to "Access point connection (AP connection)". ▶Page 37

Wireless LAN connection

On/Off C

Display

16:55 Home Configure the wireless connection Unit name

Fig. 2

SP R Powerful Temp

■ Access point connection (AP connection).

If your home Wi-Fi router does not have a WPS button, you can connect your smart phone directly to the wireless LAN connecting adapter in order to set up a connection to your home network by following these steps. - This step requires SSID number and KEY located on the indoor unit or on the cover of the manual.

1. Connect the wireless LAN connecting adapter to a smart phone or tablet.

View available Wi-Fi networks on your smart phone or tablet and connect to the SSID (DaikinAP****) printed out on the sticker. SSID and KEY are located on the indoor unit or on the cover of the manual, as shown in the below image.

• Sticker on the indoor unit SSID&KEY sticker • WIRELESS LAN CONNECTION SSID:DaikinAPXXXXX KEY :YYYYYYYYYYYYY • Sticker on the cover of the manual F5000 OPERATION MANUAL

2. Open the DAIKIN Mobile Controller application and select "Configure the wireless connection" (Fig. 2) and connect to your home network as per the on-screen instructions.

- The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.

3. Connect your smart phone to your home network.

4. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there.

Reset connection setting to factory defaults.

Please note

When the device is reset, out-of-home user account and wireless LAN connection setting will be changed back to the factory defaults.

■ To reset

1. While operation is stopped, press and hold the button for 5 seconds.

• “SP” appears on the LCD.
  • “ ” (SP menu) blinks.

and hold

2. Press ▲ or ▼ and select SP menu R.

3. Press and hold 📋 for 2 seconds to confirm the selected setting.

• “▲” blinks briefly.
• The wireless LAN connecting adapter lamp (orange) blinks for one second.

4. Press Cancel to return to the default screen.

NOTE

Note on access point connection (AP connection)

- If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-2.

Care and Cleaning

CAUTION

• Before cleaning, be sure to stop the operation and turn off the circuit breaker.
• Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

■ Quick reference

Cleaning parts

Front panel

• Wipe it with a soft damp cloth.
• Only neutral detergent may be used.

If dirty

Air filter

• Vacuum dust or wash the filter.

Once every 2 weeks

Page 39

Indoor unit, outdoor unit and remote controller

- Wipe them with a soft cloth.

If dirty

Technical line drawing of an air conditioner unit with ventilation ducts and control panel (no text or symbols)

Diagram of two solar panel structures with grid patterns and mounting brackets (no text or symbols)

Streamer air inlet

- Do not place objects around the indoor unit. Doing so may have an adverse influence on the performance, product quality, and life of the streamer.

Deodorizing filter (enzyme blue)

To purchase the filters (Table 1) or to purchase the another type, contact the dealer where you bought the air conditioner. The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Table 1

Item Part No.
Air quality filter (enzyme blue with PM2.5) - without frame (set of 2)	BAFP094A43
Deodorizing filter (enzyme blue) - without frame (set of 2) BAF	P094A41
Dust collection filter (PM 2.5) - without frame (set of 2) BAFP046A41
Titanium apatite deodorizing filter - without frame (set of 2) KAF	F970A46

Deodorizing filter (enzyme blue), Titanium apatite deodorizing filter.

• Vacuum dust or replace the filter.

[Cleaning] [Replacement]

Once every 6 months

▶Page 40

Once every 3 years

▶Page 40

Air quality filter (enzyme blue with PM2.5), Dust collection filter (PM 2.5)

- No cleaning is required. Please replace the filter every 6 months. ▶Page 40

NOTE

For cleaning, do not use any of the following:

• Water hotter than 40°C
• Volatile liquid such as benzene, petrol and thinner
- Polishing compounds
- Rough materials such as a scrubbing brush

Illustration of a kettle, a brush, and a bottle (no text or symbols)

Care and Cleaning

Air filter

1. Open the front panel.

- Hold the front panel by the sides and open it.

Backside of the front panel Fixing tab Panel support plate

2. Pull out the air filters.

- Push the filter tab at the centre of each air filter a little upwards, then pull it down.

1) Push 2) Pull down

3. Wash the air filters with water or clean them with vacuum cleaner.

- It is recommended to clean the air filters every 2 weeks.

Illustration of hands holding a grid-based device with a pen inserted, no text or symbols visible

If the dust does not come off easily

- Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade.

Simple line drawing of a basin with a rectangular object floating above it (no text or symbols)

4. Reattach the filters.

5. Close the front panel slowly.

- Press the panel at both sides and the centre.

Illustration of a wall-mounted air conditioner unit with three black arrows indicating airflow or cooling direction (no text or symbols)

- Make sure that the front panel is securely fixed.

■ Filter (small)

* For the applicable filter type, please refer to ▶ Page 38

Attaching

1. Open the front panel and pull out the air filters. ▶ Page 39

2. Insert the filter.

- Check that the filters are inserted securely under the tabs.

Tab Claw Filter frame Filter (small) Air filters

Cleaning and Replacement

1. Open the front panel and pull out the air filters. ▶Page 39

2. Take off the filter.

• Hold the recessed parts of the frame and unhook the 4 claws.
• Remove the filters from the tabs.

Tab Claw Filter frame Filter (small) Air filters

NOTE

• Operation with dirty filters:
- cannot deodorise the air,
- cannot clean the air,
– results in poor heating or cooling,
- may cause odour.
- Dispose of old filters as non-flammable waste.

3. Clean or replace.

[Cleaning]

Deodorizing filter (enzyme blue) : Blue / Titanium apatite deodorizing filter : Blue-Black

3-1 Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty.
3-2 After washing, shake off remaining water and let them dry in the shade.

- This filter can be renewed by washing it with water once every 6 months and we recommend replacing it once every 3 years.

- Do not wiring out the filter when removing water from it.

Air quality filter (enzyme blue with PM2.5) : Blue-White/ Dust collection filter (PM 2.5) : White

• Do not wash the filters as this will reduce their efficiency.
• It is recommended to replace it once every 6 months.

[Replacement]

Remove each filter from the front grille by detaching them from the 6 tabs and then install the new filters.

• Do not throw away the filter frame.
• Reuse the filter frame when replacing the filter.

- When attaching the filter, check that the filter is properly set in the tabs.

4. Set the filters as they were and close the front panel.

- Press the front panel at both sides and the center.

Care and Cleaning

■ Prior to a long period of non-use

1. Operate the MOLD PROOF mode. ▶Page 17
2. After operation stops, turn off the circuit breaker for the room air conditioner.
3. Clean the air filters and reattach them. ▶ Page 39
4. To prevent battery leakage, take out the batteries from the remote controller.

■ We recommend periodical maintenance

• In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist in addition to regular cleaning by the user.
• For specialist maintenance, please contact the dealer where you bought the air conditioner.
• The maintenance cost must be borne by the user.

FAQ

Indoor unit

The flaps do not start swinging immediately.

- The air conditioner is adjusting the position of the flaps. The flaps will start moving soon.

The air conditioner stops generating airflow during HEAT operation.

- Once the set temperature is reached, the airflow rate is reduced and operation stopped in order to avoid generating a cool airflow. Operation will resume automatically when the indoor temperature falls.

HEAT operation stops suddenly and a flowing sound is heard.

- The outdoor unit is defrosting. HEAT operation starts after the frost on the outdoor unit has been removed. This can take about 4 to 12 minutes.

Operation does not start soon.

■ When ⏻ was pressed soon after operation was stopped.

■ When the mode was reselected.
• This is to protect the air conditioner. You should wait for about 3 minutes.

Outdoor unit

The outdoor unit emits water or steam.

In HEAT operation

• The frost on the outdoor unit melts into water or steam when the air conditioner is in defrosting operation.
  In COOL or DRY operation
• Moisture in the air condenses into water on the cool surface of the outdoor unit piping and drips.

Technical illustration of a wall-mounted air conditioner unit showing internal cooling fins and ventilation slots (no text or symbols)

Commonly occurring sounds.

A sound like flowing water

• This sound is generated because the refrigerant in the air conditioner is flowing.
• This is a pumping sound of the water in the air conditioner and can be heard when the water is pumped out from the air conditioner during COOL or DRY operation.
• This sound is generated during COOL operation on outdoor ambient lower than 12°C when outdoor fan stop for keep pressure.

■ Blowing sound

• This sound is generated when the flow of the refrigerant in the air conditioner is switched over.
  Tickingsound
• This sound is generated when the cabinet and frame of the air conditioner slightly expand or shrink as a result of temperature changes.
  ■ Whistlingsound
• This sound is generated when refrigerant flows during defrosting operation.
• Clicking sound during operation or idle time
• This sound is generated when the refrigerant control valves or the electrical parts operate.
  ■ Cloppingsound
• This sound is heard from the inside of the air conditioner when the exhaust fan is activated while the room doors are closed. Open the window or turn off the exhaust fan.
  ■ Hissing/Cracking sound
• The sound of the streamer discharge. It is not a malfunction.

Illustration of a rectangular air conditioner unit with a circular vent and cooling fins (no text or symbols)

- The appearance of the outdoor unit may differ between different models.

Troubleshooting

Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer.

Not a problem

This case is not a problem.

Check

Please check again before requesting repairs.

Air conditioner

The air conditioner does not operate

Case Description / what to check
OPERATION lamp is off.	Has the circuit breaker been tripped or the fuse blown?Is there a power failure?Are batteries set in the remote controller?
OPERATION lamp is blinking.	Turn off the power with the circuit breaker and restart operation with the remote controller.If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner suddenly stops operating

Case Description / what to check
OPERATION lamp is on.	To protect the system, the air conditioner may stop operating after sudden large voltage fluctuations. It automatically resumes operation in about 3 minutes.
OPERATION lamp is blinking.	Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit? Stop operation and after turning off the circuit breaker, remove the obstruction. Then restart operation with the remote controller. If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner does not stop operating

Case Description / what to check
The air conditioner continues operating even after operation is stopped.	☑ ■ Immediately after the air conditioner is stopped• The outdoor unit fan continues rotating for about another 1 minute to protect the system.■ While the air conditioner is not in operation• When the outdoor temperature is high, the outdoor unit fan may start rotating to protect the system.
	☑ • MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)

The room does not cool down/warm up

Case Description / what to check
Air does not come out.	HEAT operationThe air conditioner is warming up. Wait for about 1 to 4 minutes.During defrosting operation, hot air does not flow out of the indoor unit.COOL or DRY operationIf COOL/DRY operation is started with airflow settings on “AUTO”, the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)When the air conditioner operates immediately after the circuit breaker is turned onThe air conditioner is preparing to operate. Wait for about 3 to 15 minutes.
Air does not come out / Air comes out.	Is the airflow rate setting appropriate?Is the airflow rate setting low, such as “Indoor unit quiet” or “Airflow rate 1”?Increase the airflow rate setting.Is the set temperature appropriate?Is the adjustment of the airflow direction appropriate?
Air comes out.	Is there any furniture directly under or beside the indoor unit?Is the air conditioner in ECONO operation or OUTDOOR UNIT QUIET operation?▶Page 24Are the air filters dirty?Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?Is a window or door open?Is an exhaust fan turning?
The room temperature does not reach the set temperature.	If the air coming out of the air conditioner is blowing against a wall, the set temperature may not be reached correctly.

Air conditioner

Mist comes out

Case Description / what to check
Mist comes out of the indoor unit.	This happens when the air in the room is cooled into mist by the cold airflow during COOL or other operation.

Remote controller

Case Description / what to check
The unit does not receive signals from the remote controller or has a limited operating range.	The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room. Consult your dealer if that is the case.The remote controller may not function correctly if the transmitter is exposed to direct sunlight.
LCD is faint, is not working, or the display is erratic.	The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10
The LCD is blinking and the remote controller cannot be operated.	Battery power has run out.Replace both batteries at the same time with new size AAA.LR03 (alkaline) batteries.Leaving exhausted batteries in the remote controller can result in injury due to battery leakage, rupturing or heating, or lead to equipment failure.(Even when the LCD is blinking, the OFF button remains functional.)
Other electric devices start operating.	If the remote controller activates other electric devices, move them away or consult your dealer.

Air has an odour

Case Description / what to check
The air conditioner gives off an odour.	The room odour absorbed in the unit is discharged with the airflow.We recommend that you have the indoor unit cleaned. Please consult your dealer.Due to streamer discharge, the air outlet may emit a slight odour as trace amounts of ozone are generated. However, the amount is negligible and is not harmful to your health.

Display lamps

Case Description / what to check
The OPERATION lamp is off, but the air conditioner is operating.	Is the display brightness set to “Off”?
	MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)
The display lamps on the main unit are dark.	Is the display brightness set to “Low”?

Streamer air cleaning operation

Case Description / what to check
The sound of streamer discharge can no longer be heard.	√ • If the airflow becomes weak, the streamer discharge stops.

Others

Case Description / what to check
The air conditioner suddenly starts behaving strangely during operation.	The air conditioner may malfunction due to lightning or radio.If the air conditioner malfunctions, turn off the power with the circuit breaker and restart the operation with the remote controller.
The ON/OFF TIMER does not operate according to the settings.	Check if the ON/OFF TIMER and the WEEKLY TIMER are set to the same time.Change or deactivate the settings in the WEEKLY TIMER. ▶Page 28,29,30

NOTE

Note on the operating conditions

• If operation continues under any conditions other than those listed in the table, - A safety device may activate to stop the operation. - Dew may form on the indoor unit and drip from it when COOL or DRY operation is selected.

Mode Operating conditions
COOL / DRY	Outdoor temperature: -10.0~46.0°CIndoor temperature: 18.0~32.0°CIndoor humidity: 80% max.
HEAT	Outdoor temperature: -15.0~24.0°CIndoor temperature: 10.0~30.0°C

Troubleshooting

Wireless LAN connecting adapter

The following table provides brief descriptions of how to handle problems or carry out connection setting.

Refer to the FAQ on our web site for more details.

Wireless LAN connection

When this happens Explanation and where to check
The device (air conditioner) cannot be found on the device list screen.	Carry out connection setting again.Move the router (wireless LAN access point) close to the indoor unit.There is a possibility that you are using an unsupported smart phone or router (wireless LAN access point). For details, refer to the web site.
Even if the wireless LAN connecting adapter lamp is lit, operation from outside the home is not possible.	Communication between the router and the internet connection may not be working.Please confirm.
The wireless LAN connecting adapter lamp does not blink or light.	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.There may be a problem with your device. Please contact the store where you bought the air conditioner to request a repair service.
None of the above work.	Refer to the FAQ on:http://www.daikinthai.com/product/dmobile

For instructions about how to operate the DAIKIN Mobile Controller application, please refer to the operation manual at http://www.daikinthai.com/product/dmobile

■ Call your dealer immediately

WARNING

When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.

• Continued operation in an abnormal condition may result in problems, electric shock or fire.
• Consult the dealer where you bought the air conditioner.

Do not attempt to repair or modify the air conditioner by yourself.

• Incorrect work may result in electric shock or fire.
• Consult the dealer where you bought the air conditioner.

If one of the following symptoms occurs, call your dealer immediately.

• The power cord is abnormally hot or damaged.
• An abnormal sound is heard during operation.
• The circuit breaker, a fuse, or the earth leakage circuit breaker cuts off the operation frequently.
• A switch or a button often fails to work properly.
  • There is a burning smell.
  • Water leaks from the indoor unit.

Turn off the circuit breaker and call your dealer.

■ After a power failure

- The air conditioner automatically resumes operation in about 3 minutes. Please wait for a while.

Lightning

- If there is a risk lightning could strike in the neighbourhood, stop operation and turn off the circuit breaker to protect the system.

■ Disposal requirements

- Dismantling of the unit and handling of the refrigerant, oil and other parts should be done in accordance with the relevant local and national regulations.

88 ON OFF 28.88 MIN U-FERED THU FRI SAT SUN B 28.88% Cancel Timer

■ Fault diagnosis by remote controller

- In case the air conditioner is malfunctioning, you can check the error code via the remote controller before consulting with service personnel and informing them of the malfunction code.

1. When Cancel is held down for about 5 seconds, "00" blinks in the temperature display section.

2. Press Cancel repeatedly until a long beep is produced.

- The code indication changes as shown below, and notifies you with a long beep.

	CODE MEANING
SYSTEM	00 NORMAL
	UA	INDOOR-OUTDOOR UNIT COMBINATION FAULT
	U0	REFRIGERANT SHORTAGE
	U2	DROP VOLTAGE OR MAIN CIRCUIT OVERVOLTAGE
	U4	FAILURE OF TRANSMISSION (BETWEEN INDOOR UNIT AND OUTDOOR UNIT)
INDOOR UNIT	A1	INDOOR PCB DEFECTIVENESS
	A5	HIGH PRESSURE CONTROL OR FREEZE-UP PROTECTOR
	A6	FAN MOTOR FAULT
	C4	FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	C9	FAULTY SUCTION AIR TEMPERATURE SENSOR
	CC	FAULTY HUMIDITY SENSOR
OUTDOOR UNIT	EA	COOLING-HEATING SWITCHING ERROR
	E1	CIRCUIT BOARD FAULT
	E5	OL STARTED
	E6	FAULTY COMPRESSOR START UP
	E7	DC FAN MOTOR FAULT
	F3 HIGH TEMPERATURE DISCHARGE PIPE CONTROL
	F6 HIGH PRESSURE CONTROL (IN COOLING)
	F8	OPERATION HALT DUE TO COMPRESSOR INTERNAL TEMPERATURE
	H0	SENSOR FAULT
	H6	OPERATION HALT DUE TO FAULTY POSITION DETECTION SENSOR
	H8	DC CURRENT SENSOR FAULT
	H9	FAULTY SUCTION AIR TEMPERATURE SENSOR
	J3 FAULTY DISCHARGE PIPE TEMPERATURE SENSOR
	J6 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	J8 FAULTY LIQUID PIPE TEMPERATURE SENSOR
	L3 ELECTRICAL PARTS HEAT FAULT
	L4	HIGH TEMPERATURE AT INVERTER CIRCUIT HEATSINK
	L5 OUTPUT OVERCURRENT
	P4	FAULTY INVERTER CIRCUIT HEATSINK TEMPERATURE SENSOR

NOTE

• A short beep and 2 consecutive beeps indicate non-corresponding codes.
• To cancel the code display, hold down for about 5 seconds. The code display also clears if no button is pressed for 1 minute.

Quick Reference

ON 27.0°C MON 15:30 On/OffFAN Temp Mode Swing 10.0°C → 30.0°C 18.0°C → 32.0°C 18.0°C → 30.0°C

DAIKIN INDUSTRIES, LTD.

Head office:

Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,

Kita-ku, Osaka, 530-8323 Japan

Tokyo office:

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

https://www.daikin.com

The two-dimensional bar code is a manufacturing code.

DAIKIN ROOM AIR CONDITIONER

OPERATION MANUAL

Line drawing of a rectangular air conditioner unit (no text or symbols)

STREAMER

MODELS

FTXM50WVMA

FTXM60WVMA

FTXM71WVMA

FTKM50WVMA

FTKM60WVMA

FTKM71WVMA

Black-and-white interior photo of a modern living room with a sofa, coffee table, potted plant, and large window (no text or symbols visible)

[Sticker attachment area]

Attach the SSID&KEY sticker of wireless LAN connecting adapter to the sticker attachment area and keep safe.

Features

Enhanced comfort, energy savings and air cleaning

INTELLIGENT EYE

The INTELLIGENT EYE sensor detects human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. ▶Page 21

WEEKLY TIMER

Up to 4 timer settings can be saved for each day of the week according to your family's life style. The WEEKLY TIMER allows you to set on/off times and the desired temperature. ▶Page 28

MOLD PROOF

The MOLD PROOF function dries the interior of the indoor unit and provides an ideal environment to suppress the generation of mold for the indoor unit. ▶Page 17

FLASH STREAMER AIR CLEANING

Flash streamer decomposes mold and allergic substances. It keeps air in the room and the inside of the air conditioner clean to make a comfortable space. ▶Page 19

Other functions

COMFORT AIRFLOW OUTDOOR UNIT QUIET

The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on your body. ▶Page 20

OUTDOOR UNIT QUIET operation assures a low noise level of the outdoor unit. This function is useful to maintain a quiet neighbourhood.

This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air conditioner and other electrical devices simultaneously on a shared electrical circuit. ▶Page 24

Contents

Read Before Operation

Safety Precautions....3

Names of Parts 5

Preparation Before Operation 10

Basic Operation

Adjusting the Airflow Rate......15

Adjusting the Airflow Direction......16

Useful Functions

MOLD PROOF Operation....17

FLASH STREAMER AIR CLEANING Operation....19

COMFORT AIRFLOW Operation.....20

INTELLIGENT EYE Operation......21

POWERFUL Operation......23

ECONO / OUTDOOR UNIT QUIET Operation....24

TIMER Operation

ON/OFF TIMER Operation 25

WEEKLY TIMER Operation......28

System control via Smart Control

Wireless LAN connection....34

Care

Care and Cleaning......38

When the Need Arises

FAQ 42

Troubleshooting 43

Safety Precautions

Read the precautions in this manual carefully before operating the unit.

This appliance is filled with R32.

• Keep this manual where the user can easily find it.
• The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail.

WARNING

Failure to follow these instructions properly may result in personal injury or loss of life.

CAUTION

Failure to observe these instructions properly may result in property damage or personal injury, which may be serious depending on the circumstances.

Never attempt.

Be sure to follow the instructions.

Be sure to establish an earth connection.

- After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual.

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance must be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that refrigerants may not contain an odour.
• The appliance must be installed, operated and stored in a room with a floor area larger than 4.6m^2 for 50/60 class, 4.9m^2 for 71 class.
  Maintain an installation height of 1.8m or more from the floor surface to the bottom of the appliance.
• To avoid fire, explosion or injury, do not operate the unit when harmful gases (e.g. flammable or corrosive) are detected near the unit.
• Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too cool or too warm, can be harmful to your physical condition and health.
• Do not place objects, including rods, your fingers, etc., in the air inlet or outlet. Product damage or personal injury may result due to contact with the air conditioner's high-speed fan blades.
• Do not attempt to repair, dismantle, reinstall or modify the air conditioner yourself as this may result in water leakage, electric shock or fire hazards.
• Do not use flammable spray near the air conditioner, or otherwise fire may result.
• Do not use a refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and personal injury.
• To avoid electric shock, do not operate with wet hands.

- Beware of fire in case of refrigerant leakage. If the air conditioner is not operating correctly, i.e. not generating cool or warm air, refrigerant leakage could be the cause. Consult your dealer for assistance. The refrigerant within the air conditioner is safe and normally does not leak.

However, in the event of a leakage, contact with a naked burner, heater or cooker may result in generation of noxious gas. Do not use the air conditioner until a qualified service person confirms that the leakage has been repaired.
- Do not attempt to install or repair the air conditioner yourself. Improper workmanship may result in water leakage, electric shock or fire hazards. Please contact your local dealer or qualified personnel for installation and maintenance work.
- If the air conditioner is malfunctioning (giving off a burning odour, etc.), turn off power to the unit and contact your local dealer. Continued operation under such circumstances may result in a failure, electric shock or fire hazards.
- Be sure to install an earth leakage circuit breaker. Failure to install an earth leakage circuit breaker may result in electric shock or fire.

- Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead. Imperfect earthing may result in electric shock.

CAUTION

• Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely affect the performance, quality and/or longevity of the object concerned.
• Do not expose plants or animals directly to the airflow from the unit as this may cause adverse effects.
• Do not place appliances that produce naked flames in places exposed to the airflow from the unit as this may impair combustion of the burner.
• Do not block the air inlets nor outlets. Impaired airflow may result in insufficient performance or trouble.

• Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage.
• Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned.
• After prolonged use, check the unit stand and its mounts for damage. If they are left in a damaged condition, the unit may fall and cause injury.
• To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units.
• The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and harm to health may result.
• Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental operation by a child may result in impairment of bodily functions and harm health.
• Avoid impacts to the indoor and outdoor units, or otherwise product damage may result.
• Do not place flammable items, such as spray cans, within 1m of the air outlet.
  The spray cans may explode as a result of hot air from the indoor or outdoor units.
• Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shock or fire.
• Do not wash the air conditioner with water, as this may result in electric shock or fire.
• Do not place water containers (vases, etc.) above the unit, as this may result in electric shock or fire hazards if they should topple over.
• Do not insert the batteries in the wrong polarity (+/-) orientation as this may result in short circuiting, fire, or battery leakage.
• Do not sit or hang on the panel. The panel may fall, and injury or product malfunctioning may result.
• Do not sway the panel. The panel may hit people or objects, and injury or property damage may result.
• Do not let children play around the panel. Injury or property damage may result.
• Do not pull the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not locate obstacles in the route. The panel may fall, and injury or property damage may result.
• Do not bend or damage the wires. The wires may be broken and the panel may fall, and injury or property damage may result.
• Do not put objects on the panel, or otherwise production malfunctioning may result.
• Do not use an unstable stand at the time of operating or maintaining the air conditioner, or otherwise you may topple over or injury yourself.
• Locate the remote controller in places out of reach of children. The wrong operation of the remote controller may result in injury.

• To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used together with the air conditioner.
• Before cleaning, be sure to stop unit operation and turn off the circuit breaker. Otherwise, an electric shock and injury may result.
• Only connect the air conditioner to the specified power supply circuit. Power supplies other than the one specified may result in electric shock, overheating and fires.
• Arrange the drain hose to ensure smooth drainage. Imperfect drainage may cause wetting of the building, furniture, etc.
• Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around the unit. Leaves are a hotbed for small animals which can enter the unit. Once inside the unit, such animals can cause malfunctions, smoke or fire if they come into contact with electrical parts.
• Do not place objects around the indoor unit.
  Doing so may have an adverse influence on the performance, product quality, and life of the air conditioner.
• This appliance is not intended to be used by persons with reduced physical, sensory or mental capabilities, or with lack of operation knowledge, unless they have been given supervision or instruction concerning the appliance use by person responsible for their safety. Keep out of children's reach to ensure that they do not play with the appliance.

Precautions relating to area surrounding the indoor and outdoor units

■ Be sure to follow the instructions below.

• The indoor unit is at least 1m away from any television or radio set (unit may cause interference with the picture or sound).

- Refrain from using the units in areas prone to high levels of oily smoke, such as a kitchen. Water leakage may result.

Names of Parts

Indoor Unit

Front panel Air inlet Flaps (horizontal blades) ▶ Page 16 Louvres (vertical blades) • The louvres are inside of the air outlet. ▶ Page 16 Air outlet Model name ■ Room temperature sensor and Room humidity sensor • Sense air temperature and humidity around the unit. ■ Streamer air inlet • Air inlet for streamer operation. INTELLIGENT EYE sensor • Detects the movements of people and automatically switches between normal operation and energy saving operation. ▶ Page 21,22

Display
MOLD PROOF lamp (Green)
▶ Page 17
TIMER lamp (Orange)
▶ Page 25,26,27,30,32
Indoor unit ON/OFF switch and OPERATION lamp (Green)
- Press this switch once to start operation. Press once again to stop it.
- For the operation mode setting, refer to the following table.

Model Mode Temperature setting Airflow rate
FTXM50/60/71	AUTO	25.0°C	AUTO
FTKM50/60/71	COOL	22.0°C	AUTO

- This switch can be used when the remote controller is missing or out of batteries.

STREAMER lamp (Green)

▶Page 19

Wireless LAN connecting adapter lamp (Orange)

Page 34

Signal receiver

• It receives signals from the remote controller.
- When the unit receives a signal, you will hear a beep sound.

Case Sound type

Operation start beep-beep

Setting change beep

Operation stop long beep

List of lamps

Lamp	Colour	State	Description
OPERATION lamp	green	Lights up	The air conditioner is running.
		Blinks	Check the error code.
TIMER lamp	orange	Lights up	TIMER is set. ▶Page 25,26,27,30,32
MOLD PROOF lamp	green	Lights up	MOLD PROOF operation. ▶Page 17
STREAMER lamp	green	Lights up	STREAMER operation. ▶Page 19
Wireless LAN connecting adapter lamp	orange	Lights up	Wireless LAN connecting adapter operation. ▶Page 34
		Blinks	Wireless LAN connecting adapter is connected. ▶Page 34

■ Open the front panel

Backside of the front panel Fixing tab Panel support plate Wireless LAN connecting adapter (inside) ▶ Page 7, 34 Streamer unit (inside) Prevents mold and allergens with the decomposition power of the streamer discharge. SSID&KEY sticker of wireless LAN connecting adapter Air filter Deodorizing filter (enzyme blue)

Outdoor Unit

Air inlet (back and side) Air outlet Outdoor temperature sensor (back) Refrigerant pipes and inter-unit wire Earth terminal (inside) Drain hose

Names of Parts

Wireless LAN connecting adapter

The wireless LAN connecting adapter function requires the DAIKIN Mobile Controller application for connecting to the air conditioner and controlling it via your smartphone or tablet over your network.

ATTENTION

- Attach the sticker to the sticker attachment area on the cover page of the operation manual and keep it safe, as in the detail below:

[About the SSID and KEY]

- The [SSID] and [KEY] shown on the SSID&KEY sticker are necessary when connecting the air conditioner to a smartphone via wireless LAN.

■ Configuration

- The user is responsible for providing the following items before using this product:

■ Smartphone or tablet (Supported OS versions: Android 4.1.2 or higher; iOS 10.0 or higher. For the latest compatibility information, refer to the web site at http://www.daikinthai.com/product/dmobile/compatible.)

■ Internet line and communicating device (Modem/router or similar device)

■ Wireless LAN access point

■ Application name: [DAIKIN Mobile Controller] (free)

(application version 4.0 or higher is needed to control this product)

For details on the installation method for the DAIKIN Mobile Controller application, please see ▶Page 34

On/Off Clock C Wireless Signal

Display

Wireless LAN connecting adapter lamp (Orange)

- The wireless LAN connecting adapter lamp lights when connecting to a router (Wireless LAN access point). Please see ▶Page 34.

- For wireless LAN connecting adapter operation, please see ▶Page 35.

NOTE

Notes on the wireless LAN connecting adapter

• Do not use this product near a microwave oven. (This can affect wireless LAN communications.)
• While the wireless LAN connecting adapter operates, it may affect persons using cardiac pacemakers or defibrillators. This product may cause electromagnetic interference.
• While the wireless LAN connecting adapter operates, it may affect automatic doors or fire alarm equipment. This product may cause faulty behaviour of the equipment.
• For the latest details about installation of the wireless LAN connecting adapter and applicable units, refer to the web site http://www.daikinthai.com/product/dmobile.

Remote Controller

Signal transmitter Receiver To use the remote controller, aim the transmitter at the indoor unit. If there is anything blocking the signals between the unit and the remote controller, such as a curtain, the unit may not operate. The maximum transmission distance is about 7m. Display (LCD) Displays the current settings. (In this illustration, each section is shown with all its displays on for the purpose of explanation.) (Explained by ARC466A78) For ARC466A79, the display is as follows: FAN setting button Selects the airflow rate setting. ▶ Page 15 TEMPERATURE adjustment button Changes the temperature setting. ▶ Page 14 POWERFUL button and Wireless LAN button POWERFUL button POWERFUL operation. ▶ Page 23 Wireless LAN button (push 5 seconds) Wireless LAN connection. ▶ Page 35 ON/OFF button Press this button once to start operation. Press once again to stop it. ▶ Page 13 Front cover Open the front cover. ▶ Page 9

For FTXM50/60/71 ARC466A78 For FTKM50/60/71 ARC466A79

Names of Parts

■ Open the front cover

Preparation Before Operation

CAUTION

Incorrect handling of batteries can result in injury from battery leakage, rupturing or heating, or lead to equipment failure.

Please observe the following precautions and use safely.

• If the alkaline solution from the batteries should get in the eyes, do not rub the eyes. Instead, immediately flush the eyes with tap water and seek the attention of a medical professional.
• Keep batteries out of reach of children. In the event that batteries are swallowed, seek the immediate attention of a medical professional.
• Do not expose batteries to heat or fire. Do not disassemble or modify batteries. The insulation or gas release vent inside the battery may be damaged, resulting in battery leakage, rupturing, or heating.
• Do not damage or peel off labels on the batteries.

■ To insert the batteries

1. Slide the front cover to take it off.
2. Insert 2 dry batteries AAA.LR03 (alkaline).
3. Replace the front cover.

1 2 3 Position + and - correctly!

■ To fix the remote controller holder to a wall

1. Choose a place from where the signals reach the unit.
2. Fix the holder to a wall, a pillar, or similar location with the screws supplied with the holder.
3. Place the remote controller in the remote controller holder.

■o attach the deodorizing filter (enzyme blue)

• If attaching the separately sold filters, attach them before turning the power on. ▶Page 40

Remote controller Screws Remote controller holder

■ Turn on the circuit breaker

• After the power is turned on, the flaps of the indoor unit open and close once to set the reference position.

NOTE

Notes on batteries

• To avoid possible injury or damage from battery leakage or rupturing, remove the batteries when not using the product for long periods of time.
• The standard replacement time is 1 year. Both batteries should be replaced at the same time. Be sure to replace them with new size AAA. LR03 (alkaline) batteries.
• When battery power has run out, the LCD will begin blinking as an alert that the batteries need replacing. In some cases, when battery consumption is accelerated owing usage conditions, signal reception may decline before the LCD begins blinking.
• The batteries supplied with the remote controller are for initial operation. The batteries may run out in less than 1 year.
• The usable period of the batteries may be short depending on the manufactured date of the air conditioner.

Notes on remote controller

• Do not drop the remote controller. Do not get it wet.
• Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room.
  Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance to somewhere else, or consult the service shop.

Preparation Before Operation

MON 27.0°C A 15:30 Select Timer

■ To set the clock

1. Press 🔒

"0" appears on the LCD.
“-MON” and “blink.

2. Press to set the current day of the week.

Display Day of the week
MON Monday
TUE Tuesday
WED	Wednesday
THU	Thursday
FRI	Friday
SAT	Saturday
SUN	Sunday

3. Press

"blinks.

4. Press to set the clock to the present time.

- Holding down ▲ or ▼ rapidly increases or decreases the displayed time.

5. Press

- Point the remote controller at the indoor unit when pressing the button.

“ ” blinks.

NOTE

Note on setting the clock

- If the indoor unit's internal clock is not set to the correct time, the ON/OFF TIMER and WEEKLY TIMER will not operate punctually.

H LED Menu (push 2nd) Select Cancel Timer

■ To set the brightness of the indoor unit lamps

Adjust the brightness of the indoor unit display as desired, or turn OFF the display.

■ To set

1. Press and hold the button for 2 seconds.

1. Press ▲ or ▼ and select menu number 1.

2. Press to confirm the selected setting.

3. Press or Select and select the desired brightness.

1. Press again.

- Brightness will be set to the chosen value.

1. Press Cancel to return to the default screen.

NOTE

Note on setting brightness of the indoor unit lamps

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press Cancel twice.

The air conditioner operates with the operation mode of your choice.

From the next time on, the air conditioner will operate with the same operation mode.

■ To start

1. Press and select an operation mode.

• Each pressing of the button changes the mode setting in sequence.

2. Press On/Off

• " On pears on the LCD.
• The OPERATION lamp lights green.

On/Off

Display

■ To stop

Press again.

• " On appears from the LCD.
• The OPERATION lamp goes off.

NOTE

Notes on AUTO operation

• In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the indoor temperature and starts the operation.
• The system automatically reselects setting at a regular interval to bring the indoor temperature to the user-setting level.

Note on COOL operation

• This air conditioner cools the room by releasing the heat in the room outside.
  Therefore, the cooling performance of the air conditioner may be degraded if the outdoor temperature is high.

Note on DRY operation

- Eliminates humidity while maintaining the indoor temperature as much as possible. It automatically controls temperature and airflow rate, so manual adjustment of these functions is unavailable.

Notes on HEAT operation

• Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is recommended to use another heating appliance in combination with the air conditioner.
• The heat pump system heats the room by circulating hot air around all parts of the room. After the start of HEAT operation, it takes some time before the room gets warmer.
• In HEAT operation, frost may occur on the outdoor unit and lower the heating capacity. In that case, the system switches into defrosting operation to take away the frost.

Note on FAN operation

• This mode is valid for fan only.

ON 27.0°C MON 15:30 Temp Time

■ To change the temperature setting

- Press ▲ to raise the temperature and press ▼ to lower the temperature. Each pressing of the button changes the temperature by 0.5°C.

COOL operation	HEAT operation	AUTO operation	DRY/FAN operation
18.0~32.0°C	10.0~30.0°C	18.0~30.0°C	The temperature setting cannot be changed.

Tips for saving energy

Keeping the temperature setting at a moderate level helps save energy.

- Recommended temperature setting for cooling: 26.0-28.0°C, for heating: 20.0-24.0°C

Cover windows with a blind or a curtain.

- Blocking sunlight and air from outdoors increases the cooling (heating) effect.

Keep the air filters clean.

• Clogged air filters cause inefficient operation and waste energy. Clean them once in about every 2 weeks. ▶ Page 39

If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn off the circuit breaker.

- The air conditioner always consumes a small amount of electricity even while it is not operating.

Adjusting the Airflow Rate

27.0°C MON 15:30 Fan

You can adjust the airflow rate to increase your comfort.

■ To adjust the airflow rate setting

• Each pressing of the button changes the airflow rate setting in sequence.

• When the airflow is set to “quiet operation starts and noise from the indoor unit will become quieter.
• In the quiet operation mode, the airflow rate is set to a weak level.
• If the temperature dose not reach the desired point, change the airflow rate setting.
• If COOL/DRY operation is started with airflow settings on "AUTO", the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)
• At smaller airflow rates, the cooling (heating) effect is also smaller.

Adjusting the Airflow Direction

MON 27:00 15:30 Vista (pack 2wt) Swing Timer

You can adjust the airflow direction to increase your comfort.

CAUTION

• Always use a remote controller to adjust the angles of the flaps and louvres.

• If you attempt to move the flaps and louvres forc bly by hand when they are swinging, the mechanism may be damaged.
• Inside the air outlet, a fan is rotating at a high speed.

■ To start auto swing

Up and down airflow direction

Press

• “ Appears on the LCD.
- The flaps (horizontal blades) will begin to swing.

Right and left airflow direction

Press

• “ appears on the LCD.
• The louvres (vertical blades) will begin to swing.

The 3-D airflow direction

Press

• “and” appear on the LCD.
• The flaps and louvres move in turn.
- To cancel 3-D airflow, press either 📁 or 🌐 again.

The flaps or louvres will stop moving.

Diagram showing a circular icon with rotation arrows and a server icon, no text or symbols present

Diagram showing airflow around a rectangular air conditioner unit with directional arrows (no text or symbols)

Illustration of a car air conditioner unit and its airflow direction (no text or symbols)

■ To set the flaps or louvres at the desired position

- This function is effective while the flaps or louvres are in auto swing mode.

Press 📊 and 🌐 when the flaps or louvres reach the desired position.

• In the 3-D airflow, the flaps and louvres move in turn.
- “ 📋 ” or “ 📄 disappears from the LCD.

NOTE

Note on airflow direction setting

- The movable range of the flaps varies according to the operation mode.

Note on 3-D airflow

- Using 3-D airflow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling, throughout the room, preventing areas of cold and hot developing.

Movable range of the flaps

of the flaps COOL / DRY FAN HEAT

MOLD PROOF Operation

27.0°C MON 15:30 Menu (push 2nd) Select Cancel Timer

The inside of the air conditioner is dried to reduce the occurrence of mold and odour. When COOL or DRY operation is performed, condensation may occur inside the air conditioner and may cause mold or odour. It is recommended to dry the inside of the air conditioner using MOLD PROOF operation.

[To operate automatically]

■ To set

1. Press and hold the button for 2 seconds.
2. Press or and select menu number . 2
   • “ 📄 appears on the LCD.
   • “>2-” (menu number) blinks.
3. Press to confirm the selected setting.
4. Press ▲ or ▼ to change the setting as follows:

5. Press again.

• Automatic MOLD PROOF operation will be enabled or disabled according to the chosen setting.
• If automatic MOLD PROOF operation is enabled, “ Ⓞ” appears on the LCD and the MOLD PROOF lamp lights green when MOLD PROOF operation is in progress.
• The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off C W

Display

6. Press to return to the default screen.

NOTE

Note on MOLD PROOF setting

- The display automatically returns to the default screen after 60 seconds. To return to the default screen sooner, press ____ twice.

Notes on MOLD PROOF operation

• When you want to stop MOLD PROOF operation midway, press ⏻ twice.
  • After DRY or COOL operation stops, the air conditioner starts MOLD PROOF operation automatically, and then stops automatically 60 minutes later.
• This operation dries the inside of the air conditioner while streamer discharge is performed to reduce the development of mold and odour inside the air conditioner. But the function does not remove any adhered dust and mold.
• MOLD PROOF operation is not available when the unit is turned off using the OFF TIMER or turned off using a smartphone.

NOTE

Notes on MOLD PROOF operation

• The flaps may sometimes close to increase the drying effect inside the air conditioner.
• MOLD PROOF operation may not be performed if the COOL or DRY operation time is short.
• If MOLD PROOF operation does not suit your preference, set operation to "OFF". ▶ Page 17

Relation between MOLD PROOF operation and indoor unit lamps

Air conditioner MOLD PROOF setting MOLD PROOF lamp STREAMER lamp
Operating (OPERATION lamp lights up)	MOLD PROOF is “ON” Lights up		Depends on STREAMER setting
	MOLD PROOF is “OFF” Goes off
Not operating (OPERATION lamp goes off)	MOLD PROOF is “ON” Lights up Lights up

FLASH STREAMER AIR CLEANING operation

27.0°C MON 15:30 Home (past 2nd) Select Cancel Timer

The streamer generates a high-speed electron stream with a high oxidizing power, reducing bad odours and viruses. Together with the deodorizing filter (enzyme blue) and the air filters, this function cleans the air in the room.

■ To set

1. Press and hold the button for 2 seconds.
2. Press or and select menu number . 3
   • “ appears on the LCD.
   • “3-” (menu number) blinks.
3. Press to confirm the selected setting.
4. Press or Select to change the setting as follows:

5. Press again.

• Flash streamer air cleaning will be enabled or disabled according to the chosen setting.
• If STREAMER operation is enabled, “◀◀” appears on the LCD. The STREAMER lamp lights green and flash streamer air cleaning operation starts.

On/Off ⊕ C ↔ Wi

Display

6. Press ☐ to return to the default screen.

NOTE

What is streamer discharge?

- This is a type of plasma discharge comprising high-speed electrons with a high oxidative capacity that is released within the unit. It decomposes odours and harmful gases. (The high-speed electrons are generated and then adsorbed within the unit ensure your safety.)

Note on flash streamer air cleaning setting

- The display automatically returns to the default screen after 60 seconds.

To return to the default screen sooner, press ☐ twice.

Notes on flash streamer air cleaning operation

• The streamer discharge may generate a fizzing sound, however this does not indicate a defect.
• Do not block the air inlets of the streamer with any objects (Fig.1). Impaired airflow may result in insufficient performance or trouble with streamer operation.

Streamer air inlets

Fig. 1

COMFORT AIRFLOW Operation

27.0°C MOS 15:30 Comfort Timer

The flow of air will be in the upward direction while in COOL/DRY operation and in the downward direction while in HEAT operation, which will provide a comfortable wind that will not come in direct contact with people.

Airflow direction : Upward (ceiling spread airflow)

COOL and DRY operation

Airflow direction : Downward (floor spread airflow)

HEAT operation

■ To start

Press

Comfort

• “ 🍒 appears on the LCD.

	COOL and DRY operation	HEAT operation FAN operation
Flaps direction	Goes up Goes down
Airflow rate AUTO

■ To cancel

Press

Comfort

• “ disappears from the LCD.
- The flaps will return to the position in memory from before COMFORT AIRFLOW operation.

NOTE

Notes on COMFORT AIRFLOW Operation

• POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.
  • The airflow rate will be set to AUTO.
• If the upward and downward airflow direction is selected, the COMFORT AIRFLOW function will be canceled.
  Priority is given to the function of whichever button is pressed last.
• If there is an obstruction under the air conditioner when using heating, the airflow may not reach the center of the room and the room may be difficult to warm up.

INTELLIGENT EYE Operation

27.0°C MON 15:30 Sensor Timer

The INTELLIGENT EYE operation detects human movement. If no one is detected in the room for more than 20 minutes, the unit automatically enters energy saving operation.

CAUTION

• Do not place large objects near the INTELLIGENT EYE sensor. Also keep heating units and humidifiers outside the sensor's detection area. This sensor can detect undesirable objects.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.

To start

Press

Sensor

• " appears on the LCD.

To cancel

Press

Sensor

• “ disappears from the LCD.

INTELLIGENT EYE operation is useful for energy saving

■ People are detected in the sensing area.

Illustration of a person sitting on a couch with an elderly person seated nearby, under a spotlight (no text or symbols)

The air conditioner is in normal operation while the sensor is detecting human movement.

■ No people are detected in the sensing area.

Diagram showing a car with a roof-mounted device and a sofa, no text or symbols present

The air conditioner will switch to energy-saving mode after 20 minutes.

Energy saving operation

• If no presence detected in the room for 20 minutes, the energy saving operation will start.
• This operation changes the temperature by -2^ in HEAT / +2^ in COOL / +2^ in DRY operation from the set temperature.
  When the room temperature exceeds 30^ C, the operation changes the temperature by +1^ C in COOL / +1^ C in DRY operation from the set temperature.
• This operation decreases the airflow rate slightly in FAN operation only.

NOTE

Notes on INTELLIGENT EYE operation

- Application range is as follows.

Vertical angle 90° (Side view) 7m 90°

Horizontal angle 110° (Top view) 55° 55° 7m

• When the air conditioner is function in INTELLIGENT EYE operation, if no people are detected in the areas for 20 minutes, the air conditioner switches to the energy-saving mode with the set temperature shifted by 2^ .
  The air conditioner may switch to the energy-saving operation even if there are people in the areas. It may happen depending on the clothes people are wearing if there are no movements of the people in the areas.
• The sensor may not detect moving objects further than 7m away. (Please see the application range)
• Sensor detection sensitivity changes according to the indoor unit location, the speed of passers-by, temperature range, etc.
• The sensor could also mistakenly detect pets, sunlight, fluttering curtains and light reflected off of mirrors as passers-by.
• NIGHT SET mode ▶ Page 26 will not switch on during use of INTELLIGENT EYE operation.

POWERFUL Operation

15:30 Powerful

POWERFUL operation quickly maximises the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.

■ To start

Press during operation.

• “ appears on the LCD.
- POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation.

■ To cancel

Press again.

• “ disappears from the LCD.

NOTE

Notes on POWERFUL operation

• Pressing causes the settings to be cancelled, and " " disappears from the LCD.
• POWERFUL operation will not increase the capacity of the air conditioner if the air conditioner is already in operation with its maximum capacity demonstrated.
• In COOL, HEAT and AUTO operation
  To maximise the cooling (heating) effect, the capacity of outdoor unit increases and the airflow rate becomes fixed at the maximum setting. The temperature and airflow settings cannot be changed.
• In DRY operation
  The temperature setting is lowered by 2.5°C and the airflow rate is slightly increased.
• In FAN operation
  The airflow rate is fixed at the maximum setting.

Regarding the combination of POWERFUL and other operations

POWERFUL + COMFORT AIRFLOW	Not available*
POWERFUL + ECONO
POWERFUL + OUTDOOR UNIT QUIET

*Priority is given to the function of whichever button is pressed last.

ECONO / OUTDOOR UNIT QUIET Operation

27.0°C MON 15:30 Eco/Quint Timer

ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.

OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. This function is convenient during the night-time operation.

■ To start

Press Econo/Quiet and select the desired mode.

• Each time is pressed, a different setting option appears on the LCD.

■ To cancel

Press Econo/Quiet until no icon is displayed.

NOTE

Notes on ECONO operation

• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.
• Pressing ⏻ causes the settings to be cancelled, and “” disappears from the LCD.
• If the power consumption level is already low, switching to ECONO operation will not reduce the power consumption.

Notes on OUTDOOR UNIT QUIET operation

• Even if the operation is stopped by using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET operation, "💡" will remain displayed on the remote controller.
• OUTDOOR UNIT QUIET operation will not reduce the frequency nor fan speed if they already are operating at reduced levels.
• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.

Possible combinations of ECONO / OUTDOOR UNIT QUIET operation and basic operations

	Operation mode
	AUTO DRY COOL		HEAT FAN
ECONO	√	√	√	√	-
OUTDOOR UNIT QUIET	√	-	√	√	-

ON/OFF TIMER Operation

ON 27.0°C MON ON 6:00 Select On Cancel Timer

Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together.

[ON TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press On

"6.00 appears on the LCD. "ON-" blinks.

- “④” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

- Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the setting rapidly.

3. Press □ again.

- “ON” and setting time appear on the LCD. - The TIMER lamp lights orange.

On/Off C W

Display

■ To cancel

Press Cancel

• “ON” and setting time disappear from the LCD.
• “ ⏻ ” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

NOTE

Note on TIMER operation

• When TIMER is set, the present time is not displayed.
  • After the circuit breaker has turned off.
  • After a power failure.
  • After replacing the batteries in the remote controller.

In the following cases, set the timer again.

27.0°C OFF 0:00 Off Select Cancel Timer

[OFF TIMER with a 24 hour clock display] (24 HOUR ON/OFF TIMER)

■ To set

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press Off

“0.00 appears on the LCD.

“OFF-” blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the time setting rapidly.

3. Press off again.

• "OF and setting time appear on the LCD.
  • The TIMER lamp lights orange.

On/Off

Display

■ To cancel

Press Cancel.

• “OF and setting time disappear from the LCD.
• “ ⊕” and day of the week appear on the LCD.
  • The TIMER lamp goes off.

[ON/OFF TIMER combination]

■ To combine

- A sample setting for combining the 2 timers is shown below.

(Example) Present time: 23:00 (The unit is operating) OFF TIMER at 0:00 ON TIMER at 14:00) Combined OFF 0:00 ON 14:00

NOTE

NIGHT SET mode

- When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) during sleeping hours.

ON/OFF TIMER Operation

27.0°C ON 1hr Select Off On Timer

[ON/OFF TIMER with an hours remaining display] (COUNT UP-DOWN ON/OFF TIMER)

- Check that the clock is correct. If not, set the clock to the present time. ▶Page 11

1. Press and hold on or for about 5 seconds, when signal indicator (▲) blink, release your finger from the button.

For ON TIMER

"Ibr" appears on the LCD.

"ON-"blinks.

For OFF TIMER

"Ibr" appears on the LCD.

“OFF-”blinks.

- “ ⊕” and day of the week disappear from the LCD.

2. Press until the time setting reaches the point you like.

• Each pressing of the button increases or decreases the time setting by 1 hour.

• The time can be set between 1 and 12 hours.

3. Press on or again.

- “ONand” “OEFnd setting time appear on the LCD.

• The TIMER lamp lights orange.

- To change the display mode from COUNT UP-DOWN ON/OFF TIMER to 24 HOUR ON/OFF TIMER, repeat STEP 1, and continue from STEP 2 of "24 HOUR ON/OFF TIMER". ▶ Page 25, 26

- Timer display mode cannot be changed while “ON-” or “are blinking. Press ☐ or ☐ to stop the blinking.

On/Off

Display

■ Combining display modes

- Different display modes (24 HOUR ON/OFF TIMER and COUNT UP-DOWN ON/OFF TIMER) can be used for the ON TIMER and OFF TIMER simultaneously.

(Example) Present time: 22:00 (The unit is operating) OFF T MER at 1:00 (3 hours after persent time) ON T MER at 6:00 (8 hours after persent time) Combined OFF 3hr ON 6:00 OFF 1:00 ON 8hr OFF 3hr ON 8hr

NOTE

Note on COUNT UP-DOWN ON/OFF TIMER

- After setting, the time displayed on the LCD will automatically count down by 1 hour for every 1 hour that passes. For example, if the OFF TIMER is set to 3 hours, the display will change as follows: 3hr 2hr 1hr blank (OFF)

Switching between ON/OFF TIMER display modes (24 hour clock and hours remaining display)

- When changing timer display modes (from 24 HOUR ON/OFF TIMER to COUNT UP-DOWN ON/OFF TIMER or vice versa), the timer cancels. The timer must be set again to activate it.

WEEKLY TIMER Operation

Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family's life style.

■ Setting example of the WEEKLY TIMER

The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend.

[Monday]	Make timer settings for programmes 1-4. ▶Page 29
	Programme 1	Programme 2	Programme 3	Programme 4
[Tuesday] to [Friday]	Use the copy mode to make settings for Tuesday to Friday, because these settings are the same as those for Monday. ▶Page 31Pr			4
[Saturday]	No timer settings
[Sunday]	Make timer settings for programmes 1-4. ▶Page 29

- Up to 4 reservations per day and 28 reservations per week can be set using the WEEKLY TIMER. The effective use of the copy mode simplifies timer programming.

- The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn off the air conditioner automatically if you forget to turn it off.

WEEKLY TIMER Operation

27.0°C ON 6:00 MON 25.0°C Back Next Select

■ To use WEEKLY TIMER operation

Setting mode

• Make sure the day of the week and time are set.

If not, set the day of the week and time. ▶Page 11

Programme 1 Programme 2 Programme 3 Programme 4

[Monday] ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 ON OFF

Setting Displays

1. Press

• The day of the week and the reservation number of the current day will be displayed.
• 1 to 4 settings can be made per day.

2. Press Select to select the desired day of the week and reservation number.

- Pressing changes the reservation number and the day of the week.

3. Press Next .

• The day of the week and reservation number will be set.
- “ WEEKLY ” and “ ON - ” blink.

4. Press Select to select the desired mode.

- Pressing Select changes the "ON" or "OFF" setting in sequence.

• In case the reservation has already been set, selecting "blank" deletes the reservation.
• Proceed to STEP 9 if "blank" is selected.
• To return to the day of the week and reservation number setting, press

5. Press Next .

• The ON/OFF TIMER mode will be set.
- “ Ⓧ WEEKLY ” and the time blink.

27.0°C ON 6:00 TUE 1 25.0°C Back Select Next

6. Press to select the desired time.

• The time can be set between 0:00 and 23:50 in 10-minute intervals.
• To return to the ON/OFF TIMER mode setting, press □.
• Proceed to STEP 9 when setting the OFF TIMER.

7. Press Next

• The time will be set.
• “ Ⓧ WEEKLY ” and the temperature blink.

8. Press to select the desired temperature.

• The temperature can be set between 10.0°C and 32.0°C.

COOL or AUTO: The unit operates at 18.0^ C even if it is set to 10.0^ C to 17.0^ C. ▶Page 14 HEAT or AUTO: The unit operates at 30.0^ C even if it is set to 31.0^ C to 32.0^ C ▶Page 14

• To return to the time setting, press .
- The set temperature is only displayed when the mode setting is on.

9. Press Next

• The temperature will be set and go to the next reservation setting.
• The temperature is set while in ON TIMER operation, and the time is set while in OFF TIMER operation.
  • The next reservation screen will appear.
  • To continue further settings, repeat the procedure from STEP 4.

10. Press to complete the setting.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the OPERATION lamp.
• “WEEKLY” appears on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off

Display

- A reservation made once can be easily copied and the same settings used for another day of the week. Refer to Copy mode. ▶Page 31

NOTE

Notes on WEEKLY TIMER operation

• Do not forget to set the clock on the remote controller first. ▶Page 11
• The day of the week, ON/OFF TIMER mode, time and set temperature (only for ON TIMER mode) can be set with the WEEKLY TIMER. Other settings for the ON TIMER are based on the settings just before the operation.
• WEEKLY TIMER and ON/OFF TIMER operation cannot be used at the same time. The ON/OFF TIMER operation has priority if it is set while WEEKLY TIMER is still active. The WEEKLY TIMER will enter the standby state, and “WEEKLY” will disappear from the LCD. When the ON/OFF TIMER is up, the WEEKLY TIMER will automatically become active.
• Only the time and set temperature with the WEEKLY TIMER are sent with the ☐. Set the WEEKLY TIMER only after setting the operation mode, the airflow rate and the airflow direction ahead of time.
• Turning off the circuit breaker, power failure, and other similar events will render operation of the indoor unit's internal clock inaccurate. Reset the clock. ▶Page 11
• can be used only for the time and temperature settings. It cannot be used to go back to the reservation number.

WEEKLY TIMER Operation

27.0°C ON 6:00 TUE 25.0°C Copy Select Timer

Copy mode

- A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied.

Programme 1 Programme 2 Programme 3 Programme 4 [Monday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00 COPY Programme 1 Programme 2 Programme 3 Programme 4 [Tuesday] ON OFF ON OFF 25.0°C 27.0°C 6:00 8:30 17:30 22:00

1. Press
2. Press Select to confirm the day of the week to be copied.
3. Press Copy .

- The whole reservation of the selected day of the week will be copied.

1. Press Select to select the destination day of the week.

2. Press Copy .

3. The reservation will be copied to the selected day of the week. The whole reservation of the selected day of the week will be copied.
   • To continue copying the settings to other days of the week, repeat STEP 4 and STEP 5.

4. Press ☐ to complete the setting.

- “WEEKLY” appears on the LCD and WEEKLY TIMER operation is activated.

NOTE

Note on COPY MODE

- The entire reservation of the source day of the week is copied in the copy mode. In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press and change the settings in the steps of Setting mode. ▶ Page 29

27.0°C ON TUE 6:00 25.0°C Weekly Select Next Timer

■ Confirming a reservation

• The reservation can be confirmed.

Setting Displays TUE 15:35 Normal ON 6:00 TUE 25.0c Confirmation

1. Press

- The day of the week and the reservation number of the current day will be displayed.

2. Press to select the day of the week and the reservation number to be confirmed.

• Pressing displays the reservation details.
• To change the confirmed reserved settings, select the reservation number and press. Next The mode is switched to setting mode. Proceed to Setting mode STEP 4. ▶Page 29

3. Press to exit the confirmation mode.

• “WEEKLYrs on the LCD and WEEKLY TIMER operation is activated.
  • The TIMER lamp lights orange.

On/Off C ← Wi

Display

■ To deactivate WEEKLY TIMER operation

Press Weekly while “ WEEKLY ” is displayed on the LCD.

• “Wears from the LCD.
• The TIMER lamp goes off.
• To reactivate the WEEKLY TIMER operation, press □ again.
- If a reservation deactivated with ____ is activated once again, the last reservation mode will be used.

NOTE

- If not all the reservation settings are reflected, deactivate the WEEKLY TIMER operation once. Then press 📄 again to reactivate the WEEKLY TIMER operation.

WEEKLY TIMER Operation

27.0°C ON TUE 6:00 25.0°C Weekly Select Next Timer

■ To delete a reservation

An individual reservation

1. Press

- The day of the week and the reservation number will be displayed.

2. Press to select the day of the week and the reservation number to be deleted.

3. Press Next .

4. Press until no icon is displayed.

- Pressing Changes the ON/OFF TIMER mode in sequence.

- Selecting "blank" will cancel any reservation you may have.

5. Press Next .

• The selected reservation will be deleted.

6. Press .

- If there are still other reservations, WEEKLY TIMER operation will be activated.

Reservations for each day of the week

• This function can be used for deleting reservations for each day of the week.
• It can be used while confirming or setting reservations.

1. Press

- The day of the week and the reservation number will be displayed.

2. Press Select to select the day of the week to be deleted.

3. Hold for about 5 seconds.

- The reservation of the selected day of the week will be deleted.

4. Press

- If there are still other reservations, WEEKLY TIMER operation will be activated.

All reservations

Hold Weekly for about 5 seconds with the normal display.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone.
• This operation cannot be used for the WEEKLY TIMER setting display.
• All reservations will be deleted.

Wireless LAN connection

Please note

- Turn off the air conditioner before setting up wireless connection.

Prior to setting up, please make sure your device is ready to connect. You may refer to the indoor unit LED table for guidance.

Check the indoor unit LED.

Wireless LAN connecting adapter lamp Status
Blinks for one second	The wireless LAN connecting adapter is ready to connect.
No blinking/no light	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.Please refer to the troubleshooting guide or contact the store where you bought the air conditioner to request a repair service.
Lamp stays lit	The wireless LAN connecting adapter is connected to a modem/router.

On/Off Wireless LAN connecting adapter lamp (Orange) Display

Wireless LAN connection

Web site: http://www.daikinthai.com/product/dmobile

For more information on the latest version of wireless LAN control, please refer to the above website.

■ Application software installation

• Before downloading the application software for installation, please read "Configuration" on Page 7
  For Android phones

1) Open [Google Play].
2) Search using the application name:
[DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

For iOS phones

1) Open [App Store].
2) Search using the application name:
[DAIKIN Mobile Controller].
3) Follow the on-screen instructions for installation.

Setting

Connect the wireless LAN connecting adapter to your home network.

- The wireless LAN connecting adapter will communicate with the smart devices in your home network via a modem, router, or a similar device.

There are two options for connecting the wireless LAN connecting adapter to your smart phone or tablet:

1) Simple connection (WPS connection), if there is a WPS button on the router, ▶Page 36
2) Access point connection (AP connection), if there is no WPS button on the router, ▶Page 37

For more information and Frequently Asked Questions, please refer to:

http://www.daikinthai.com/product/dmobile

WPS WPS PROCESSED SETUP

NOTE

Note on wireless LAN connection

- For more information on how the wireless LAN connecting adapter operates, please see ▶Page 35-37

Wireless LAN connection

SP 1 Powerful Temp

On/Off C

Display

Enabling/disabling the wireless LAN connecting adapter

■ To enable

1. While operation is stopped, press and hold the button for 5 seconds.

1. Press or and select SP menu.
2. Press to confirm the selected setting.

- “▲” blinks briefly. - The wireless LAN connecting adapter lamp (orange) blinks for one second.

1. Press Cancel to return to the default screen.
   ■ To disable
2. While operation is stopped, press and hold the button for 5 seconds.

- “SP appears on the LCD. - “ ” (SP menu) blinks.

1. Press or and select SP menu OFF
2. Press and hold for 2 seconds to confirm the selected setting.

- “▲” blinks briefly. - The wireless LAN connecting adapter lamp (orange) goes off.

1. Press Cancel to return to the default screen.

SP 2 Powerful Temp

On/Off C W

Display

16:55 Home All units (1) Unit name OK Cancel OK

Fig. 1

To connect the wireless LAN connecting adapter to your home network

The wireless LAN connecting adapter can be connected to your home network by means of:

• Simple connection (WPS connection), if there is a WPS button on the router.
• Access point connection (AP connection), if there is no WPS button on the router.

■ Simple connection (WPS connection)

If there is a WPS button on your Wi-Fi router, please follow the below steps.

1. While operation is stopped, press and hold the button for 5 seconds.

2. Press or and select SP menu . 2

3. Press ☐ to confirm the selected setting.

- “▲” blinks briefly. - The wireless LAN connecting adapter lamp (orange) blinks more quickly.

4. Press the WPS button on your communication device (e.g. router) within approximately one minute. Please refer to the manual of your communication device.

- The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.

5. Press Cancel to return to the default screen.

6. Connect your smart phone to your home network.

7. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there (Fig. 1).

NOTE

Note on simple connection (WPS connection)

- If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-5. Alternatively, try connecting via your device directly. Please refer to "Access point connection (AP connection)". ▶ Page 37

Wireless LAN connection

On/Off C ← Wi-Fi

Display

16:55 Home Configure the wireless connection Unit name

Fig. 2

SP R Powerful Temp

■ Access point connection (AP connection).

If your home Wi-Fi router does not have a WPS button, you can connect your smart phone directly to the wireless LAN connecting adapter in order to set up a connection to your home network by following these steps. – This step requires SSID number and KEY located on the indoor unit or on the cover of the manual.

1. Connect the wireless LAN connecting adapter to a smart phone or tablet.

View available Wi-Fi networks on your smart phone or tablet and connect to the SSID (DaikinAP***** ) printed out on the sticker. SSID and KEY are located on the indoor unit or on the cover of the manual, as shown in the below image.

- Sticker on the indoor unit

- Sticker on the cover of the manual

SSID&KEY sticker WIRELESS LAN CONNECTION SSID:DaikinAPXXXXX KEY :YYYYYYYYYYYYYY OPERATION MANUAL

1. Open the DAIKIN Mobile Controller application and select "Configure the wireless connection" (Fig. 2) and connect to your home network as per the on-screen instructions.

- The wireless LAN connecting adapter lamp (orange) stays lit. If you fail to connect, refer to NOTE.

1. Connect your smart phone to your home network.

2. Open the Home screen of the DAIKIN Mobile Controller application. The air conditioner will be listed there.

Reset connection setting to factory defaults.

Please note

When the device is reset, out-of-home user account and wireless LAN connection setting will be changed back to the factory defaults.

■ To reset

1. While operation is stopped, press and hold the button for 5 seconds.

2. “58 appears on the LCD.
   • “ ” (SP menu) blinks.

1. Press ▲ or ▼ and select SP menu R.

2. Press and hold 📋 for 2 seconds to confirm the selected setting.

3. “▲” blinks briefly.

4. The wireless LAN connecting adapter lamp (orange) blinks for one second.

1. Press Cancel to return to the default screen.

NOTE

Note on access point connection (AP connection)

- If you fail to connect (the wireless LAN connecting adapter lamp (orange) continues to blink), repeat steps 1-2.

Care and Cleaning

CAUTION

• Before cleaning, be sure to stop the operation and turn off the circuit breaker.
• Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

■ Quick reference

Cleaning parts

Front panel

• Wipe it with a soft damp cloth.
• Only neutral detergent may be used.

If dirty

Air filter

• Vacuum dust or wash the filter.

Once every 2 weeks

Page 39

Indoor unit, outdoor unit and remote controller

- Wipe them with a soft cloth.

If dirty

Technical line drawing of a cylindrical air conditioner unit with internal compartments and ventilation slots (no text or symbols)

Two identical grid panels with small rectangular cutouts and a pointer, no text or symbols present

Streamer air inlet

- Do not place objects around the indoor unit. Doing so may have an adverse influence on the performance, product quality, and life of the streamer.

Deodorizing filter (enzyme blue)

To purchase the filters (Table 1) or to purchase the another type, contact the dealer where you bought the air conditioner. The method of cleaning and replacement of the filters may differ depending on the model. Refer to the label attached to the separately sold filters themselves.

Table 1

Item Part No.
Air quality filter (enzyme blue with PM2.5) - without frame (set of 2)	BAFP094A43
Deodorizing filter (enzyme blue) - without frame (set of 2) BAFP094A41
Dust collection filter (PM 2.5) - without frame (set of 2) BAFP046A41
Titanium apatite deodorizing filter - without frame (set of 2) KAF970A46

Deodorizing filter (enzyme blue), Titanium apatite deodorizing filter.

• Vacuum dust or replace the filter.

[Cleaning]

Once every 6 months

▶Page 40

[Replacement]

Once every 3 years

▶Page 40

Air quality filter (enzyme blue with PM2.5), Dust collection filter (PM 2.5)

- No cleaning is required. Please replace the filter every 6 months. ▶Page 40

NOTE

For cleaning, do not use any of the following:

• Water hotter than 40°C
• Volatile liquid such as benzene, petrol and thinner
- Polishing compounds
- Rough materials such as a scrubbing brush

Illustration of a kettle, a brush, and a bottle (no text or symbols)

Care and Cleaning

Air filter

1. Open the front panel.

- Hold the front panel by the sides and open it.

Backside of the front panel Fixing tab Panel support plate

2. Pull out the air filters.

- Push the filter tab at the centre of each air filter a little upwards, then pull it down.

1) Push 2) Pull down

3. Wash the air filters with water or clean them with vacuum cleaner.

- It is recommended to clean the air filters every 2 weeks.

Illustration of hands using a power tool to spread a grid on a flat surface (no text or symbols)

If the dust does not come off easily

- Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade.

Simple line drawing of a basin with a rectangular object on top (no text or symbols)

4. Reattach the filters.

5. Close the front panel slowly.

- Press the panel at both sides and the centre.

Illustration of a wall-mounted air conditioner unit with downward arrows indicating airflow or cooling direction (no text or symbols)

- Make sure that the front panel is securely fixed.

■ Filter (small)

* For the applicable filter type, please refer to ▶ Page 38

Attaching

1. Open the front panel and pull out the air filters. ▶ Page 39

2. Insert the filter.

- Check that the filters are inserted securely under the tabs.

Tab Claw Filter frame Air filters Filter (small)

Cleaning and Replacement

1. Open the front panel and pull out the air filters. ▶Page 39

2. Take off the filter.

• Hold the recessed parts of the frame and unhook the 4 claws.
• Remove the filters from the tabs.

Tab Claw Filter frame Air filters Filter (small)

NOTE

• Operation with dirty filters:
- cannot deodorise the air,
- cannot clean the air,
– results in poor heating or cooling,
- may cause odour.
- Dispose of old filters as non-flammable waste.

3. Clean or replace.

[Cleaning]

Deodorizing filter (enzyme blue) : Blue / Titanium apatite deodorizing filter : Blue-Black

3-1 Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty.
3-2 After washing, shake off remaining water and let them dry in the shade.

- This filter can be renewed by washing it with water once every 6 months and we recommend replacing it once every 3 years.

- Do not wiring out the filter when removing water from it.

Air quality filter (enzyme blue with PM2.5) : Blue-White/ Dust collection filter (PM 2.5) : White

• Do not wash the filters as this will reduce their efficiency.
• It is recommended to replace it once every 6 months.

[Replacement]

Remove each filter from the front grille by detaching them from the 6 tabs and then install the new filters.

• Do not throw away the filter frame.
• Reuse the filter frame when replacing the filter.

- When attaching the filter, check that the filter is properly set in the tabs.

4. Set the filters as they were and close the front panel.

- Press the front panel at both sides and the center.

Care and Cleaning

■ Prior to a long period of non-use

1. Operate the MOLD PROOF mode. ▶Page 17
2. After operation stops, turn off the circuit breaker for the room air conditioner.
3. Clean the air filters and reattach them. ▶ Page 39
4. To prevent battery leakage, take out the batteries from the remote controller.

■ We recommend periodical maintenance

• In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist in addition to regular cleaning by the user.
• For specialist maintenance, please contact the dealer where you bought the air conditioner.
• The maintenance cost must be borne by the user.

FAQ

Indoor unit

The flaps do not start swinging immediately.

- The air conditioner is adjusting the position of the flaps. The flaps will start moving soon.

The air conditioner stops generating airflow during HEAT operation.

- Once the set temperature is reached, the airflow rate is reduced and operation stopped in order to avoid generating a cool airflow. Operation will resume automatically when the indoor temperature falls.

HEAT operation stops suddenly and a flowing sound is heard.

- The outdoor unit is defrosting. HEAT operation starts after the frost on the outdoor unit has been removed. This can take about 4 to 12 minutes.

Operation does not start soon.

■ When ⏻ was pressed soon after operation was stopped.

■ When the mode was reselected.
• This is to protect the air conditioner. You should wait for about 3 minutes.

Outdoor unit

The outdoor unit emits water or steam.

In HEAT operation

• The frost on the outdoor unit melts into water or steam when the air conditioner is in defrosting operation.
  ■ In COOL or DRY operation
• Moisture in the air condenses into water on the cool surface of the outdoor unit piping and drips.

Line drawing of a wall-mounted air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Commonly occurring sounds.

■ A sound like flowing water

• This sound is generated because the refrigerant in the air conditioner is flowing.
• This is a pumping sound of the water in the air conditioner and can be heard when the water is pumped out from the air conditioner during COOL or DRY operation.
• This sound is generated during COOL operation on outdoor ambient lower than 12°C when outdoor fan stop for keep pressure.

■ Blowing sound

• This sound is generated when the flow of the refrigerant in the air conditioner is switched over.
  Tickingsound
• This sound is generated when the cabinet and frame of the air conditioner slightly expand or shrink as a result of temperature changes.
  ■ Whistlingsound
• This sound is generated when refrigerant flows during defrosting operation.
• Clicking sound during operation or idle time
• This sound is generated when the refrigerant control valves or the electrical parts operate.
  ■ Cloppingsound
• This sound is heard from the inside of the air conditioner when the exhaust fan is activated while the room doors are closed. Open the window or turn off the exhaust fan.
  ■ Hissing/Cracking sound
• The sound of the streamer discharge. It is not a malfunction.

Technical line drawing of a large industrial air conditioning unit with ventilation grilles and cooling fins (no text or symbols)

Troubleshooting

Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer.

Not a problem

This case is not a problem.

Check

Please check again before requesting repairs.

Air conditioner

The air conditioner does not operate

Case Description / what to check
OPERATION lamp is off.	Has the circuit breaker been tripped or the fuse blown?Is there a power failure?Are batteries set in the remote controller?
OPERATION lamp is blinking.	Turn off the power with the circuit breaker and restart operation with the remote controller.If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner suddenly stops operating

Case Description / what to check
OPERATION lamp is on.	To protect the system, the air conditioner may stop operating after sudden large voltage fluctuations. It automatically resumes operation in about 3 minutes.
OPERATION lamp is blinking.	Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit? Stop operation and after turning off the circuit breaker, remove the obstruction. Then restart operation with the remote controller. If the OPERATION lamp is still blinking, check the error code and consult your dealer. ▶Page 46

The air conditioner does not stop operating

Case Description / what to check
The air conditioner continues operating even after operation is stopped.	☑ ■ Immediately after the air conditioner is stopped• The outdoor unit fan continues rotating for about another 1 minute to protect the system.■ While the air conditioner is not in operation• When the outdoor temperature is high, the outdoor unit fan may start rotating to protect the system.
	☑ • MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)

The room does not cool down/warm up

Case Description / what to check
Air does not come out.	HEAT operationThe air conditioner is warming up. Wait for about 1 to 4 minutes.During defrosting operation, hot air does not flow out of the indoor unit.COOL or DRY operationIf COOL/DRY operation is started with airflow settings on “AUTO”, the indoor unit will initially deodorise, which functions to suppress any internal odours. As a result, the indoor unit will not emit air immediately. (Wait for about 1 minute.)When the air conditioner operates immediately after the circuit breaker is turned onThe air conditioner is preparing to operate. Wait for about 3 to 15 minutes.
Air does not come out / Air comes out.	Is the airflow rate setting appropriate?Is the airflow rate setting low, such as “Indoor unit quiet” or “Airflow rate 1”?Increase the airflow rate setting.Is the set temperature appropriate?Is the adjustment of the airflow direction appropriate?
Air comes out.	Is there any furniture directly under or beside the indoor unit?Is the air conditioner in ECONO operation or OUTDOOR UNIT QUIET operation?▶Page 24Are the air filters dirty?Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?Is a window or door open?Is an exhaust fan turning?
The room temperature does not reach the set temperature.	If the air coming out of the air conditioner is blowing against a wall, the set temperature may not be reached correctly.

Air conditioner

Mist comes out

Case Description / what to check
Mist comes out of the indoor unit.	This happens when the air in the room is cooled into mist by the cold airflow during COOL or other operation.

Remote controller

Case Description / what to check
The unit does not receive signals from the remote controller or has a limited operating range.	The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room. Consult your dealer if that is the case.The remote controller may not function correctly if the transmitter is exposed to direct sunlight.
LCD is faint, is not working, or the display is erratic.	The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”. ▶Page 10
The LCD is blinking and the remote controller cannot be operated.	Battery power has run out.Replace both batteries at the same time with new size AAA.LR03 (alkaline) batteries.Leaving exhausted batteries in the remote controller can result in injury due to battery leakage, rupturing or heating, or lead to equipment failure.(Even when the LCD is blinking, the OFF button remains functional.)
Other electric devices start operating.	If the remote controller activates other electric devices, move them away or consult your dealer.

Air has an odour

Case Description / what to check
The air conditioner gives off an odour.	The room odour absorbed in the unit is discharged with the airflow.We recommend that you have the indoor unit cleaned. Please consult your dealer.Due to streamer discharge, the air outlet may emit a slight odour as trace amounts of ozone are generated. However, the amount is negligible and is not harmful to your health.

Display lamps

Case Description / what to check
The OPERATION lamp is off, but the air conditioner is operating.	Is the display brightness set to “Off”?
	MOLD PROOF operation is being performed.It is possible to stop MOLD PROOF operation while it is in progress.(If this does not suit your preferences, set MOLD PROOF to “Off”.)
The display lamps on the main unit are dark.	Is the display brightness set to “Low”?

Streamer air cleaning operation

Case Description / what to check
The sound of streamer discharge can no longer be heard.	√ • If the airflow becomes weak, the streamer discharge stops.

Others

Case Description / what to check
The air conditioner suddenly starts behaving strangely during operation.	The air conditioner may malfunction due to lightning or radio.If the air conditioner malfunctions, turn off the power with the circuit breaker and restart the operation with the remote controller.
The ON/OFF TIMER does not operate according to the settings.	Check if the ON/OFF TIMER and the WEEKLY TIMER are set to the same time.Change or deactivate the settings in the WEEKLY TIMER. ▶Page 28,29,30

NOTE

Note on the operating conditions

• If operation continues under any conditions other than those listed in the table, - A safety device may activate to stop the operation. - Dew may form on the indoor unit and drip from it when COOL or DRY operation is selected.

Mode Operating conditions
COOL / DRY	Outdoor temperature: -10.0~46.0°CIndoor temperature: 18.0~32.0°CIndoor humidity: 80% max.
HEAT	Outdoor temperature: -15.0~24.0°CIndoor temperature: 10.0~30.0°C

Troubleshooting

Wireless LAN connecting adapter

The following table provides brief descriptions of how to handle problems or carry out connection setting.

Refer to the FAQ on our web site for more details.

Wireless LAN connection

When this happens Explanation and where to check
The device (air conditioner) cannot be found on the device list screen.	Carry out connection setting again.Move the router (wireless LAN access point) close to the indoor unit.There is a possibility that you are using an unsupported smart phone or router (wireless LAN access point). For details, refer to the web site.
Even if the wireless LAN connecting adapter lamp is lit, operation from outside the home is not possible.	Communication between the router and the internet connection may not be working.Please confirm.
The wireless LAN connecting adapter lamp does not blink or light.	The wireless LAN connecting adapter is disabled.Malfunction in communication between the indoor unit and the wireless LAN connecting adapter.There may be a problem with your device. Please contact the store where you bought the air conditioner to request a repair service.
None of the above work.	Refer to the FAQ on:http://www.daikinthai.com/product/dmobile

For instructions about how to operate the DAIKIN Mobile Controller application, please refer to the operation manual at http://www.daikinthai.com/product/dmobile

■ Call your dealer immediately

WARNING

When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.

• Continued operation in an abnormal condition may result in problems, electric shock or fire.
• Consult the dealer where you bought the air conditioner.

Do not attempt to repair or modify the air conditioner by yourself.

• Incorrect work may result in electric shock or fire.
• Consult the dealer where you bought the air conditioner.

If one of the following symptoms occurs, call your dealer immediately.

• The power cord is abnormally hot or damaged.
• An abnormal sound is heard during operation.
• The circuit breaker, a fuse, or the earth leakage circuit breaker cuts off the operation frequently.
• A switch or a button often fails to work properly.
  • There is a burning smell.
  • Water leaks from the indoor unit.

Turn off the circuit breaker and call your dealer.

■ After a power failure

- The air conditioner automatically resumes operation in about 3 minutes. Please wait for a while.

Lightning

- If there is a risk lightning could strike in the neighbourhood, stop operation and turn off the circuit breaker to protect the system.

■ Disposal requirements

- Dismantling of the unit and handling of the refrigerant, oil and other parts should be done in accordance with the relevant local and national regulations.

ON A 88.8°C ON MON TUE WED THU FR SAT SUN B ON 38.88% ON 38.88% Cancel Timer

■ Fault diagnosis by remote controller

- In case the air conditioner is malfunctioning, you can check the error code via the remote controller before consulting with service personnel and informing them of the malfunction code.

1. When Cancel is held down for about 5 seconds, "00" blinks in the temperature display section.

2. Press Cancel repeatedly until a long beep is produced.

- The code indication changes as shown below, and notifies you with a long beep.

	CODE MEANING
SYSTEM	00 NORMAL
	UA	INDOOR-OUTDOOR UNIT COMBINATION FAULT
	U0 REFRIGERANT SHORTAGE
	U2	DROP VOLTAGE OR MAIN CIRCUIT OVERVOLTAGE
	U4 FAILURE OF TRANSMISSION (BETWEEN INDOOR UNIT AND OUTDOOR UNIT)
INDOOR UNIT	A1 INDOOR PCB DEFECTIVENESS
	A5 HIGH PRESSURE CONTROL OR FREEZE-UP PROTECTOR
	A6 FAN MOTOR FAULT
	C4	FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	C9 FAULTY $UCTION AIR TEMPERATURE SENSOR
	CC	FAULTY HUMIDITY SENSOR
OUTDOOR UNIT	EA	COOLING-HEATING SWITCHING ERROR
	E1 CIRCUIT BOARD FAULT
	E5 OL STARTED
	E6 FAULTY COMPRESSOR START UP
	E7 DC FAN MOTOR FAULT
	F3 HIGH TEMPERATURE DISCHARGE PIPE CONTROL
	F6 HIGH PRESSURE CONTROL (IN COOLING)
	F8	OPERATION HALT DUE TO COMPRESSOR INTERNAL TEMPERATURE
	H0	SENSOR FAULT
	H6	OPERATION HALT DUE TO FAULTY POSITION DETECTION SENSOR
	H8	DC CURRENT SENSOR FAULT
	H9	FAULTY SUCTION AIR TEMPERATURE SENSOR
	J3 FAULTY DISCHARGE PIPE TEMPERATURE SENSOR
	J6 FAULTY HEAT EXCHANGER TEMPERATURE SENSOR
	J8 FAULTY LIQUID PIPE TEMPERATURE SENSOR
	L3 ELECTRICAL PARTS HEAT FAULT
	L4	HIGH TEMPERATURE AT INVERTER CIRCUIT HEATSINK
	L5 OUTPUT OVERCURRENT
	P4 FAULTY INVERTER CIRCUIT HEATSINK TEMPERATURE SENSOR

NOTE

• A short beep and 2 consecutive beeps indicate non-corresponding codes.
• To cancel the code display, hold □ down for about 5 seconds. The code display also clears if no button is pressed for 1 minute.

Quick Reference

ON 27.0°C MON 15:30 On/OffFAN Temp Mode Swing 10.0°C → 30.0°C 18.0°C → 32.0°C 18.0°C → 30.0°C

DAIKIN INDUSTRIES, LTD.

Head office:

Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,

Kita-ku, Osaka, 530-8323 Japan

Tokyo office:

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

https://www.daikin.com

The two-dimensional bar code is a manufacturing code.
