DAIKIN ROOM AIR CONDITIONER

OPERATION MANUAL

INVERTER R32

MODELS

FTXJ25PVMAW
FTXJ35PVMAW
FTXJ50PVMAW
FTXJ25PVMAS
FTXJ35PVMAS
FTXJ50PVMAS

Features

Enhanced comfort and energy E savings savings

INTELLIGENT EYE

The INTELLIGENT EYE sensor detects human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation.

Page 15

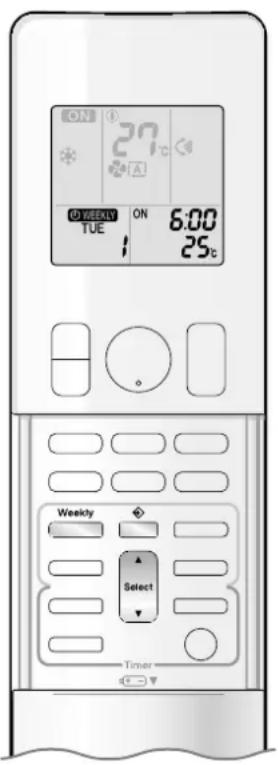

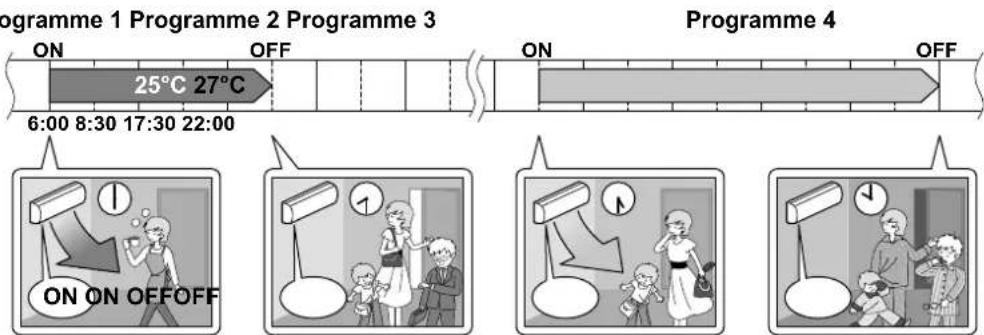

WEEKLY TIMER

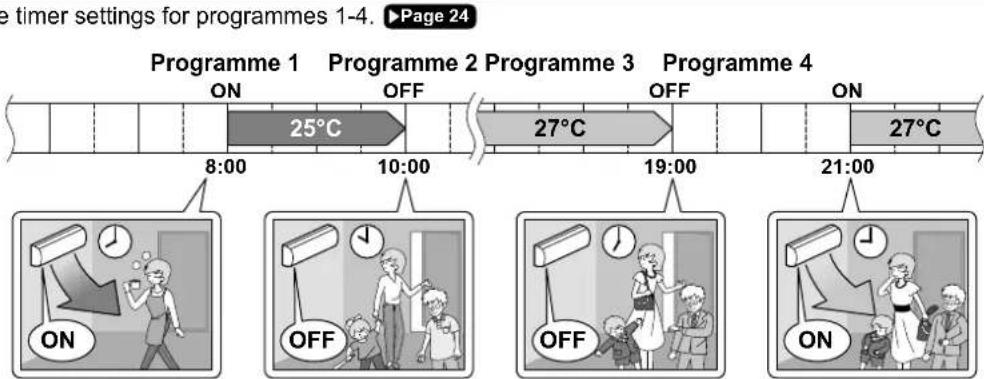

Up to 4 timer settings can be saved for each day of the week according to your family's life style. The WEEKLY TIMER allows you to set on/off times and the desired temperature.

Page 23

Other functions Other functions

COMFORT AIRFLOW OUTDOOR UNIT QNIET

The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on your body. ▶Page 15

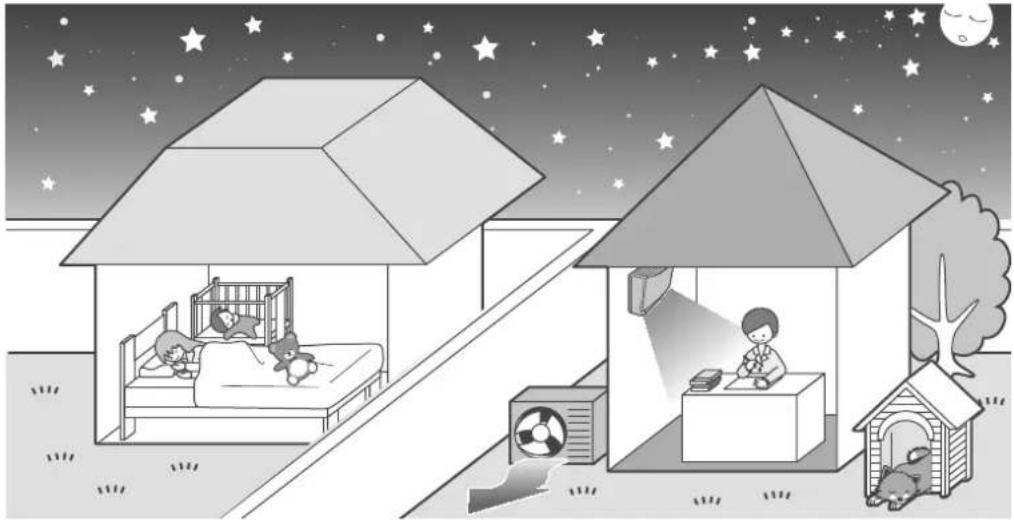

OUTDOOR UNIT QUIET operation assures a low noise level of the outdoor unit. This function is useful to maintain a quiet neighbourhood.

▶Page 19

Contents

Read Before Operation

Safety Precautions 3

Names of Parts 5

Preparation Before Operation 9

Operation

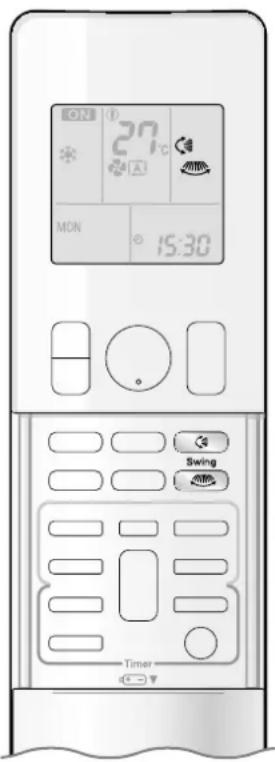

Adjusting the Airflow Direction and Rate 13

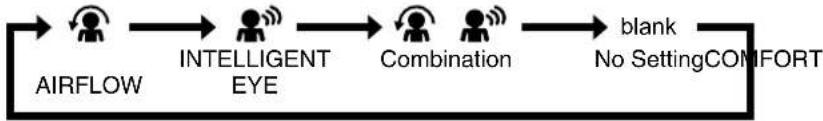

COMFORT AIRFLOW / INTELLIGENT EYE Operation .....15

POWERFUL Operation ......18

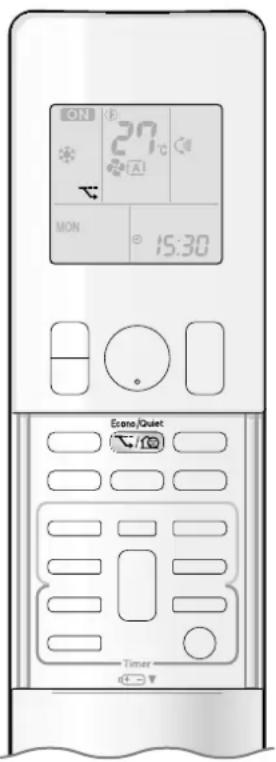

ECONO / OUTDOOR UNIT QUIET Operation....19

OFF TIMER Operation 21

ON TIMER Operation ......22

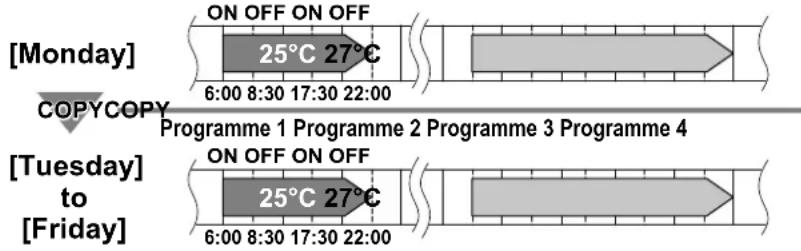

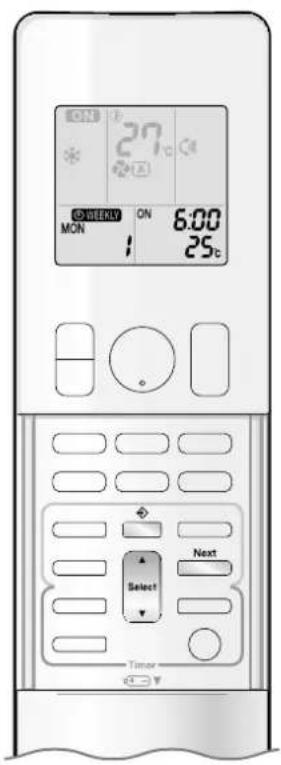

WEEKLY TIMER Operation ......23

Care

Care and Cleaning 29

Toubleshooting

Troubleshooting....33

Modern minimalist living room interior with white sofa, wall-mounted air conditioner, and potted tree (no text or symbols visible)

ECONO

This function enables efficient operation by limiting the maximum power consumption. It is useful when using the air conditioner and other electrical devices simultaneously on a shared electrical circuit. ▶Page 19

Safety Precautions

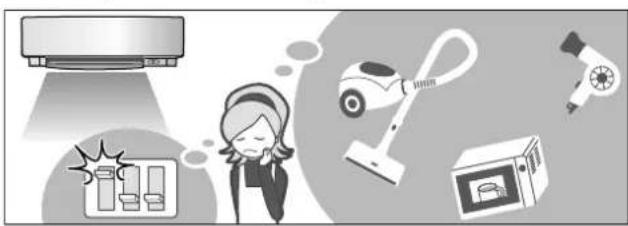

Read the precautions in this manual carefully before operating the unit.

This appliance is filled with R32.

• Keep this manual where the user can easily find it.
• The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail.

WARNING

Failure to follow these instructions properly may result in personal injury or loss of life.

CAUTION

Failure to follow these instructions properly may result in property damage or personal injury, which may be serious depending on the circumstances.

Never attempt.

Be sure to follow the instructions.

Be sure to establish an earth connection.

- After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual.

WARNING

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance must be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
• Do not pierce or burn.
  Be aware that refrigerants may not contain an odour.
• The appliance must be installed, operated and stored in a room with a floor area larger than 4.7m^2 .
• To avoid fire, explosion or injury, do not operate the unit when harmful gases (e.g. flammable or corrosive) are detected near the unit.
• Be aware that prolonged, direct exposure to cool or warm air from the air conditioner, or to air that is too cool or too warm, can be harmful to your physical condition and health.
• Do not place objects, including rods, your fingers, etc., in the air inlet or outlet. Product damage or personal injury may result due to contact with the air conditioner's high-speed fan blades.
• Do not attempt to repair, dismantle, reinstall or modify the air conditioner yourself as this may result in water leakage, electric shocks or fire hazards.
• Do not use flammable spray near the air conditioner, or otherwise fire may result.
• Do not use a refrigerant other than the one indicated on the outdoor unit (R32) when installing, moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and personal injury.
• To avoid electric shocks, do not operate with wet hands.

• Beware of fire in case of refrigerant leakage. If the air conditioner is not operating correctly, i.e. not generating cool or warm air, refrigerant leakage could be the cause. Consult your dealer for assistance. The refrigerant within the air conditioner is safe and normally does not leak. However, in the event of a leakage, contact with a naked burner, heater or cooker may result in generation of noxious gas. Do not use the air conditioner until a qualified service person confirms that the leakage has been repaired.
• Do not attempt to install or repair the air conditioner yourself. Improper workmanship may result in water leakage, electric shocks or fire hazards. Please contact your local dealer or qualified personnel for installation and maintenance work.
• If the air conditioner is malfunctioning (giving off a burning odour, etc.), turn off power to the unit and contact your local dealer. Continued operation under such circumstances may result in a failure, electric shocks or fire hazards.
• Be sure to install an earth leakage circuit breaker. Failure to install an earth leakage circuit breaker may result in electric shocks or fire.

- Be sure to earth the unit. Do not earth the unit to a utility pipe, lightning conductor or telephone earth lead. Imperfect earthing may result in electric shocks.

CAUTION

• Do not use the air conditioner for purposes other than those for which it is intended. Do not use the air conditioner for cooling precision instruments, food, plants, animals or works of art as this may adversely affect the performance, quality and/or longevity of the object concerned.
• Do not expose plants or animals directly to the airflow from the unit as this may cause adverse effects.
• Do not place appliances that produce naked flames in places exposed to the airflow from the unit as this may impair combustion of the burner.
• Do not block the air inlets nor outlets. Impaired airflow may result in insufficient performance or trouble.

CAUTION

• Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage.
• Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned.
• After prolonged use, check the unit stand and its mounts for damage. If they are left in a damaged condition, the unit may fall and cause injury.
• To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units.
• The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and harm to health may result.
• Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental operation by a child may result in impairment of bodily functions and harm health.
• Avoid impacts to the indoor and outdoor units, or otherwise product damage may result.
• Do not place flammable items, such as spray cans, within 1m of the air outlet.
  The spray cans may explode as a result of hot air from the indoor or outdoor units.
• Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shocks or fire.
• Do not wash the air conditioner with water, as this may result in electric shocks or fire.
• Do not place water containers (vases, etc.) above the unit, as this may result in electric shocks or fire hazards if they should topple over.

• To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used together with the air conditioner.
• Before cleaning, be sure to stop unit operation, and turn off the circuit breaker. Otherwise, an electric shock and injury may result.
• Only connect the air conditioner to the specified power supply circuit. Power supplies other than the one specified may result in electric shocks, overheating and fires.
• Arrange the drain hose to ensure smooth drainage. Imperfect drainage may cause wetting of the building, furniture, etc.
• Do not place objects in direct proximity of the outdoor unit and do not let leaves and other debris accumulate around the unit.
  Leaves are a hotbed for small animals which can enter the unit. Once inside the unit, such animals can cause malfunctions, smoke or fire if they come into contact with electrical parts.
• Do not place objects around the indoor unit.
  Doing so may have an adverse influence on the performance, product quality, and life of the air conditioner.
• This appliance is not intended to be used by persons with reduced physical, sensory or mental capabilities, or with lack of operation knowledge, unless they have been given supervision or instruction concerning the appliance use by person responsible for their safety.
  Keep out of children's reach to ensure that they do not play with the appliance.

P004

Installation site

To install the air conditioner in the following types of environments, consult the dealer. ■

Places with an oily environment or where steam or soot occurs.

Salty environment such as coastal areas.

• Places where sulfide gas occurs such as hot springs.
• Places where snow may block the outdoor unit.

Be sure to follow the instructions below.

• The indoor unit is at least 1m away from any television or radio set (unit may cause interference with the picture or sound).
• The drain from the outdoor unit must be discharged to a place of good drainage.

Consider nuisance to your neighbours from noises

For installation, choose a place as described below.

• A place solid enough to bear the weight of the unit which does not amplify the operation noise or vibration.
• A place from where the air discharged from the outdoor unit or the operation noise will not annoy your neighbours.

Electrical work

■ For power supply, be sure to use a separate power circuit dedicated to the air conditioner.

System relocation

■ Relocating the air conditioner requires specialized knowledge and skills. Please consult the dealer if relocation is necessary for moving or remodeling.

Names of Parts

Indoor Unit

Appearance of the indoor unit may differ.

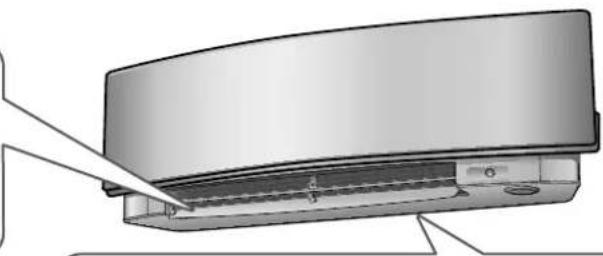

Air inlet Upper front panel Air outlet Lower front panel • It is located on the back of the upper front panel during operation. Flaps (horizontal blades) Louvres (vertical blades) ▶Page 13

The louvres are inside of the air outlet. ▶Page 13

INTELLIGENT EYE sensor

• Detects the movements of people and automatically switches between normal operation and energy saving operation. ▶Page 15-17

Indoor temperature sensor

• Detects the air temperature around the unit.

Display

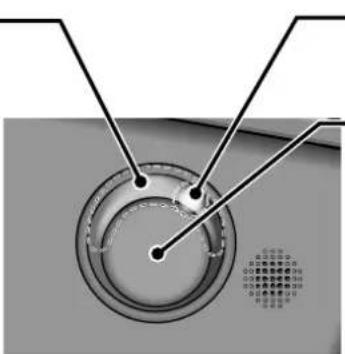

Multi-monitor lamp and TIMER lamp

Multi-monitor lamp

- The lamp colour changes according to the operation.

Operation	Multi-monitor lamp
AUTO	Red/Blue
DRY	Green
COOL	Blue
HEAT	Red
FAN	White
TIMER	Orange

Technical diagram showing a circular component with labeled parts and Chinese annotations, likely from an engineering or manufacturing context.

INTELLIGENT EYE lamp (green) ▶ Page 16

Signal receiver and Indoor unit ON/OFF switch

Signal receiver

Receives signals from the remote • controller. When the unit receives a signal, you will • hear a beep sound.

Case Sound type

Operation start beep-beep

Setting changed beep

Operation stop long beep

TIMER lamp

When operation by timer has been set, the multi-monitor lamp periodically changes to orange. After lighting orange for about 5 seconds, it returns to the colour of the operation mode. The multi-monitor lamp will turn orange on and off in cyclic manner while the air conditioner is not in operation.

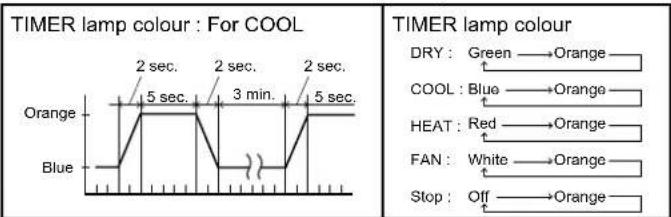

TIMER lamp colour : For COOL 2 sec. 2 sec. 2 sec. 5 sec. 3 min. 5 sec. Orange Blue TIMER lamp colour DRY : Green → Orange COOL : Blue → Orange HEAT : Red → Orange FAN : White → Orange Stop : Off → Orange

Indoor unit ON/OFF switch

Press this switch once to start operation.

Press once again to stop it.

For the operation mode setting, refer to the following table.

Mode Temperature setting Airflow rate
AUTO 25°C AUTO

This switch can be used when the remote controller is missing.

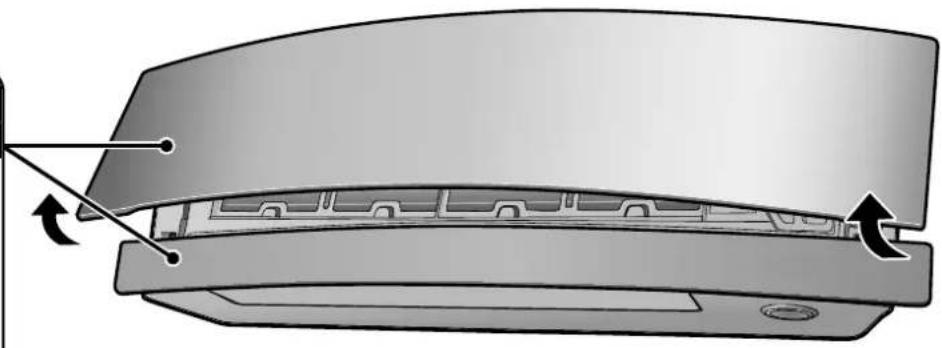

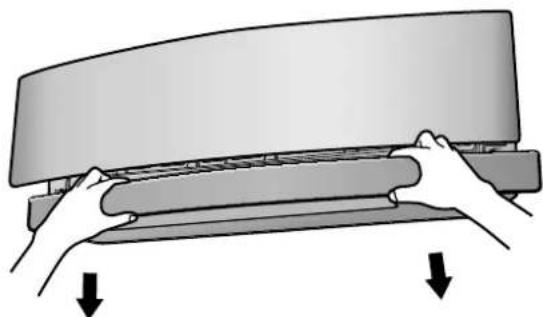

Open the upper front panel

Back of the upper front panel Panel support plate Lower front panel

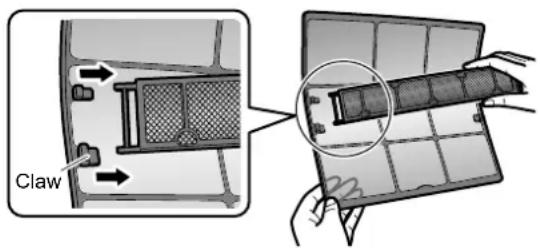

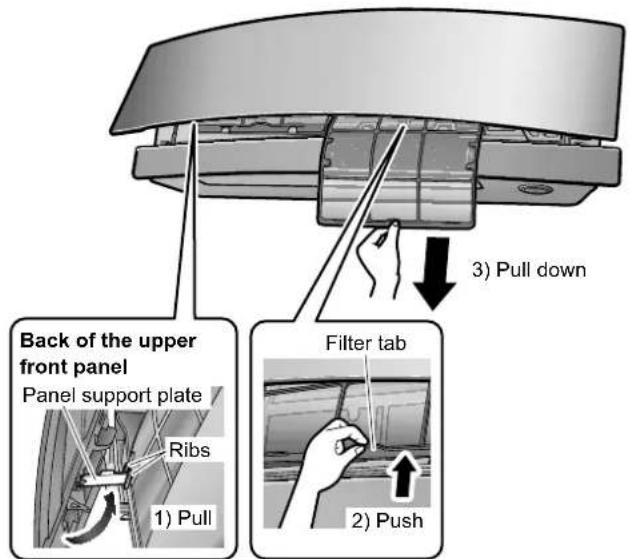

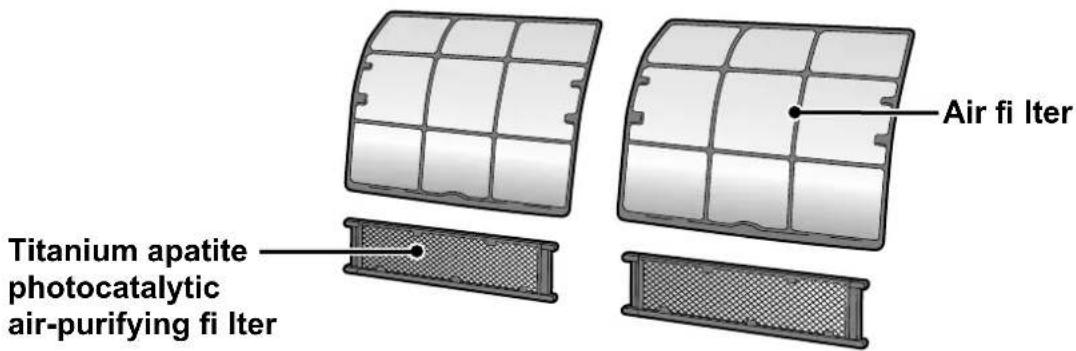

Air fi Iter Titanium apatite photocatalytic air-purifying fi Iter

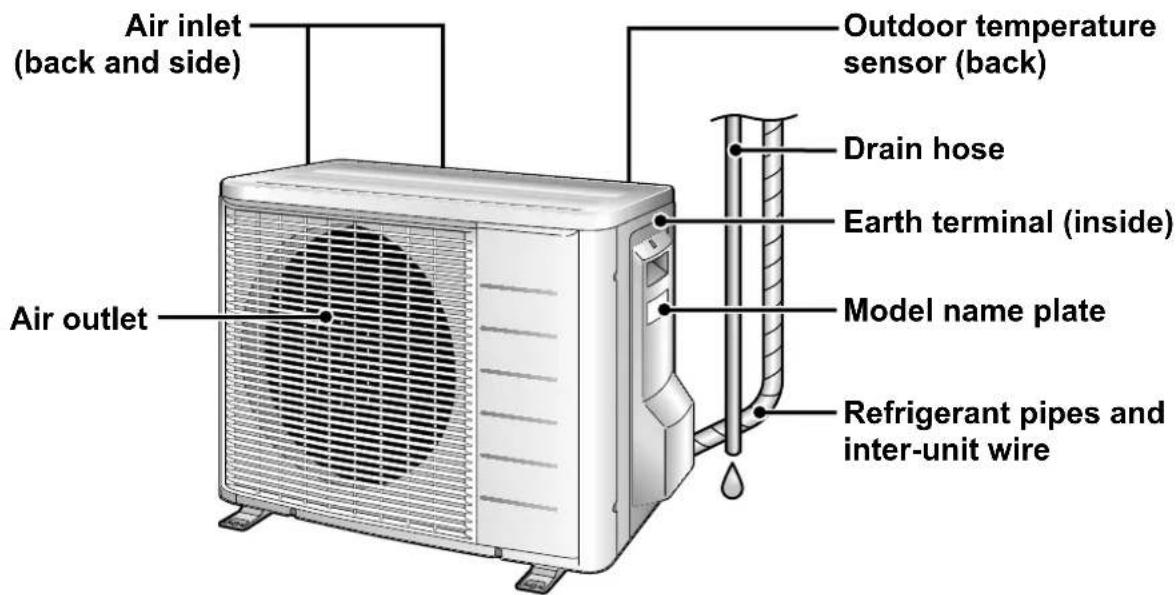

Outdoor Unit

The appearance of the outdoor unit may differ between different models.

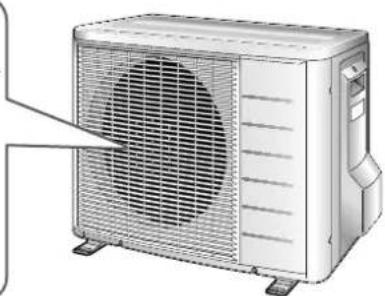

Air inlet (back and side) Outdoor temperature sensor (back) Drain hose Earth terminal (inside) Model name plate Refrigerant pipes and inter-unit wire Air outlet

Names of Parts

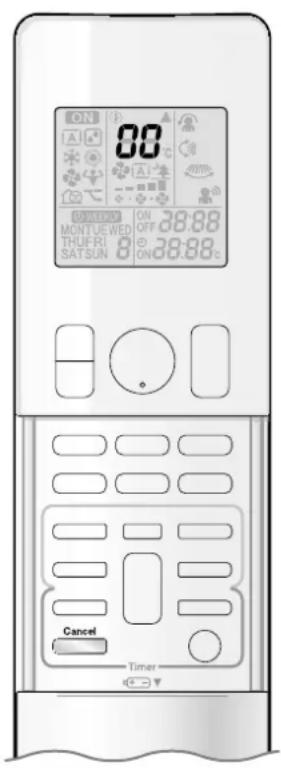

Remote Controller

Signal transmitter

Receiver 50cm or more

To use the remote controller, aim the transmitter at the indoor unit. If there is anything blocking the signals between the unit and the remote controller, such as a curtain, the unit may not operate.

Do not drop the remote controller. Do not get it wet.

The maximum transmission distance is about 6m.

Make sure that there are no obstacles within 50cm under the signal receiver.

Such obstacles, if any, may have an adverse influence on the reception performance of the receiver and the reception distance may be shortened.

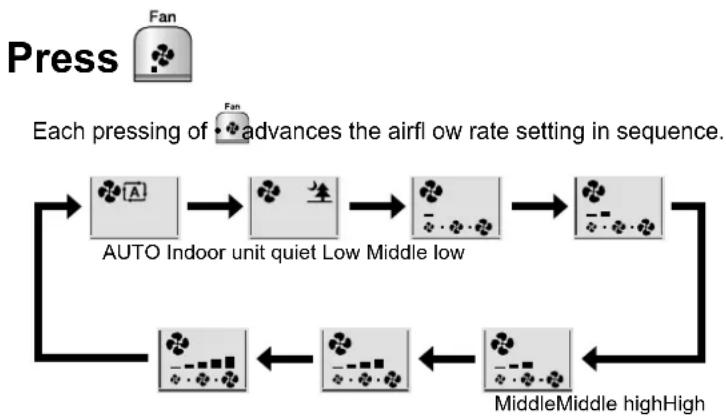

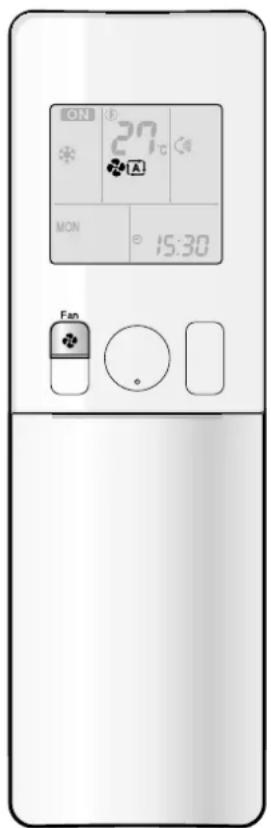

FAN setting button

Selects the airflow rate setting.

▶Page 14

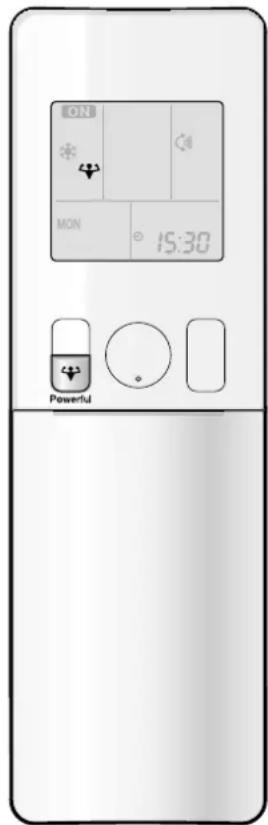

POWERFUL button

POWERFUL operation. ▶Page 18

Model ARC466A9

Display (LCD)

Displays the current settings. (In this illustration, each section is shown with its displays on for the purpose of explanation.)

TEMPERATURE adjustment button

Changes the temperature setting.

▶Page 12

ON/OFF button

Press this button once to start operation.

Press once again to stop it. ▶Page 11

Front cover

Open the front cover. ▶Page 8

Open the front cover ■

MODE selector button Selects the operation mode. (AUTO/DRY/COOL/HEAT/ FAN) ▶ Page 11 Lamp brightness setting button ▶ Page 9 ECONO/QUIET button ECONO/OUTDOOR UNIT • QUIET operation. ▶ Page 19 COMFORT/SENSOR button COMFORT AIRFLOW and • INTELLIGENT EYE operation. ▶ Page 15 SWING button • Adjusts the airflow direction ▶ Page 13 OFF TIMER button (NIGHT SET mode) ▶ Page 21 Timer CANCEL button Cancels the timer setting. ▶ Page 21,22 Cannot be used for the • WEEKLY TIMER operation. SELECT button Changes the clock, ON/OFF • TIMER and WEEKLY TIMER settings. ON TIMER button ▶ Page 22 CLOCK button ▶ Page 10

Preparation Before Operation

1 2 3 Position + and - correctly!

■ To insert the batteries

Slide the front cover to take it off.1.

Insert 2 dry batteries AAA.LR03 (alkaline).2.

Replace the front cover.3.

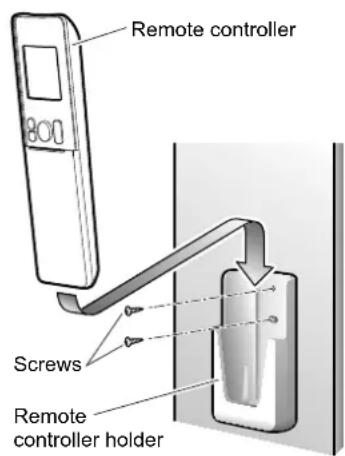

■ To fix the remote controller holder to a wall

Remote controller Screws Remote controller holder

Choose a place from where the signals 1. reach the unit.

1. Fix the holder to a wall, a pillar, or similar location with the screws supplied with the holder.
2. Place the remote controller in the remote controller holder.

To set the luminance of the display ■

The luminance of the indoor unit display can be set.

NOTE

Notes on batterie

• When replacing the batteries, use batteries of the same type, and replace both old batteries together.
• When the system is not used for a long time, take the batteries out.
• The batteries will last for about 1 year. If the remote controller display begins to fade and the possible transmission range becomes shorter within a year, however, replace both batteries with new, size AAA.LR03 (alkaline).
• The batteries supplied with the remote controller are for initial operation.
  The batteries may run out in less than 1 year.

■ Notes on remote controller

• Never expose the remote controller to direct sunlight.
• Dust on the signal transmitter or receiver will reduce the sensitivity. Wipe off dust with soft cloth.
• Signal communication may be disabled if an electronic-starter-type fluorescent lamp (such as inverter-type lamps) is in the room. Consult the shop if that is the case.
• If the remote controller signals happen to operate another appliance, move that appliance to somewhere else, or consult the service shop.

0:15 27 MON 15:30 Select Timer

■ Turn on the circuit breaker

- After the power is turned on, the flaps of the indoor unit open and close once to set the reference position.

To set the clock ■

"0.08 is displayed on the LCD.

"MONand" blink.

1. Press Select to set the current day of the week.

2. Press

" ∅ " blinks.

1. Press Select to set the clock to the present time.

- Holding down ▲ or ▼ rapidly increases or decreases the displayed time.

- Point the remote controller at the indoor unit when pressing the buttons.

“:” blinks.

NOTE

Note on setting the clock ■

- If the indoor unit's internal clock is not set to the correct time, the ON/OFF TIMER and WEEKLY TIMER will not operate punctually.

ON 27°C MON 15:30 On/Off Mode Timer

The air conditioner operates with the operation mode of your choice.

From the next time on, the air conditioner will operate with the same operation mode.

■ To start operation

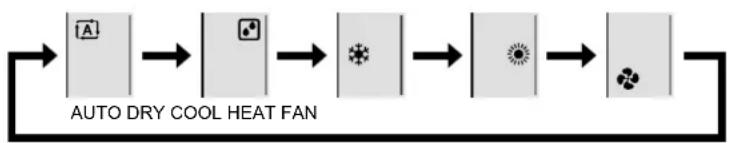

Press 1 Mode and select an operation mode.

Each pressing of the button advances the mode setting in sequence.

Press

- “ON displayed on the LCD.

The multi-monitor lamp lights up.

The colour of the lamp varies depending on the operation mode.

Display

Operation	Multi-monitor lamp
AUTO	Red/Blue
DRY	Green
COOL	Blue
HEAT	Red
FAN	White

To stop operation ■

Press @ again.

• "ON" disappears from the LCD.
  • The multi-monitor lamp goes off.

NOTE

MODE	Notes on each operation mode
HEAT	Since this air conditioner heats the room by taking heat from outdoor air to indoors, the heating capacity becomes smaller in lower outdoor temperatures. If the heating effect is insufficient, it is recommended to use another heating appliance in combination with the air conditioner.The heat pump system heats the room by circulating hot air around all parts of the room. After the start of HEAT operation, it takes some time before the room gets warmer.In HEAT operation, frost may occur on the outdoor unit and lower the heating capacity. In that case, the system switches into defrosting operation to take away the frost.During defrosting operation, hot air does not flow out of indoor unit.
COOL	This air conditioner cools the room by releasing the heat in the room outside.Therefore, the cooling performance of the air conditioner may be degraded if the outdoor temperature is high
DRY	Eliminates humidity while maintaining the indoor temperature as much as possible. It automatically controls temperature and airflow rate, so manual adjustment of these functions is unavailable.
AUTO	In AUTO operation, the system selects an appropriate operation mode (COOL or HEAT) based on the indoor temperature and starts the operation.The system automatically reselects setting at a regular interval to bring the indoor temperature to the user-setting level.
FAN	This mode is valid for fan only.

ON 27°C * A MON 15:30 Temp Timer

■ To change the temperature setting

Press

The displayed items on the LCD will change whenever either one of the buttons is • pressed.

COOL operation HEAT operation AUTO operation DRY or FAN operation
18-32°C 10-30°C 18-30°C			The temperature setting cannot be changed.
Press ▲ to raise the temperature and press ▼ to lower the temperature.

Operating conditions

Recommended temperature setting ■

• For cooling: 26-28°C
• For heating: 20-24°C

Tips for saving energy

• Be careful not to cool (heat) the room too much.
  Keeping the temperature setting at a moderate level helps save energy.
• Cover windows with a blind or a curtain.
  Blocking sunlight and air from outdoors increases the cooling (heating) effect.
• Clogged air filters cause inefficient operation and waste energy. Clean them once in about every 2 weeks. ▶Page 30

Notes on the operating conditions

• The air conditioner always consumes a small amount of electricity even while it is not operating.
• If you are not going to use the air conditioner for a long period, for example in spring or autumn, turn off the circuit breaker.
• Use the air conditioner in the following conditions.
• Operation outside the humidity or temperature range described in the table may cause a safety device to disable the system.

MODE	Operating conditions	If operation is continued out of this range
COOL	Outdoor temperature : -10-46°CIndoor temperature : 18-32°CIndoor humidity : 80% max.	A safety device may work to stop the operation.Condensation may occur on the indoor unit and drip.
HEAT	Outdoor temperature : -15-24°CIndoor temperature : 10-30°C	A safety device may work to stop the operation.
DRY	Outdoor temperature : -10-46°CIndoor temperature : 18-32°CIndoor humidity : 80% max.	A safety device may work to stop the operation.Condensation may occur on the indoor unit and drip.

Adjusting the Airflow Direction and Rate

ON 27°C MON 15:30 Swing Timer

You can adjust the airflow direction to increase your comfort.

To start auto swing

Up and down airflow direction

Press

“💡” is displayed on the LCD.

The fl aps (horizontal blades) will begin to swing.

Right and left airflow direction

Press

“is displayed on the LCD.

The louvres (vertical blades) will begin to swing.

The 3-D airflow direction

Press

“◀” and “◀◀” are displayed on the LCD.

• The fl aps and louvres move in turn.

- To cancel 3-D airflow, press either 📄 or 🌐 again. The flaps or louvres will stop moving.

Diagram showing a device with a circular icon and an arrow indicating rotation or refresh (no text or symbols)

Diagram showing airflow or fluid flow from a device to a control panel (no text or symbols)

Diagram showing airflow around a device with curved arrows indicating direction (no text or symbols)

■ To set the flaps or louvres at the desired position

- This function is effective while the flaps or louvres are in auto swing mode.

Press 🏠 and 🌐 when the flaps or louvres reach the desired position.

- In the 3-D airflow, the flaps and louvres move in turn.

- “◀” or “◀” disappears from the LCD.

ON 27°C MON 15:30 Fan

To adjust the airflow rate setting

• When the airflow is set to “♠”, quiet operation starts and noise from the indoor unit will become quieter.
• In the quiet operation mode, the airflow rate is set to a weak level.
• If the temperature does not reach the desired point, change the airflow rate setting.
• In DRY operation, the airflow rate setting is not variable.

NOTE

■ Note on the angles of the flaps

- The flaps swinging range depends on the operation. (See the figure.)

COOL, DRY and FAN operation Stop operation 30° Upper limit / COMFORT AIRFLOW 50° Lower limit

HEAT operation Stop operation 30° Upper limit 75° 70° Lower limit COMFORT AIRFLOW

■ Note on the angles of the flaps

- Using 3-D airflow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling, throughout the room, preventing areas of cold and hot developing.

■ Notes on airflow rate setting

• At smaller airflow rates, the cooling (heating) effect is also smaller.
• If the air conditioner is operated in COOL or DRY operation with the flaps kept stopped in the downward direction, the flaps will automatically start operating in approximately an hour in order to prevent dew condensation.

CAUTION

• Always use a remote controller to adjust the angles of the flaps and louvres.
• If you attempt to move the flaps and louvres forcibly by hand when they are swinging, the mechanism may be damaged.
• Inside the air outlet, a fan is rotating at a high speed.

COMFORT AIRFLOW operation

The airflow direction is upward while in COOL operation, and downward while in HEAT operation. This function prevents cold or warm air from blowing directly on the occupants in the room.

Illustration of two children sitting on a couch with a large air conditioner unit above (no text or symbols)

COOL operation HEAT operation

Illustration of a person sitting in a wheelchair facing a wall-mounted air conditioner unit (no text or symbols present)

INTELLIGENT EYE operation ■

The INTELLIGENT EYE sensor detects human movement and adjusts the right and left airflow direction to avoid blowing air directly on the person.

If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor works differently depending on the situation.

[Example]

A person is detected in area 1. ■

Area 1 Area 2

People are detected in both areas. ■

Area 1 Area 2

Use the INTELLIGENT EYE operation in combination with the COMFORT AIRFLOW operation.

A person is detected in area 2. ■

Area 1 Area 2

No people are detected in the areas. ■

Diagram showing a ceiling-mounted air conditioner with a chair and sofa, no text or symbols present

The air conditioner will switch to energy-saving mode after 20 minutes.
*The airflow direction may differ from the illustrated direction depending on the actions and movements of the people in the areas.

INTELLIGENT EYE operation is useful for energy saving

■nergy saving operation

• If no presence detected in the room for 20 minutes, the energy saving operation will start.
• This operation changes the temperature -2^ in HEAT / +2^ in COOL / +2^ in DRY operation from set temperature.
  When the room temperature exceeds 30^ C, the operation changes the temperature +1^ C in COOL / +1^ C in DRY operation from set temperature.
• This operation decreases the airflow rate slightly in FAN operation only.

Combination of COMFORT AIRFLOW operation and INTELLIGENT EYE operation

The air conditioner can go into operation with the COMFORT AIRFLOW and INTELLIGENT EYE operations combined.

27°C MON 15:30 Comfort / Sensor Timer

To start operation

Comfort/Sensor

Press and select the desired mode.

Comfort/Sensor

Each time • is pressed, a different setting option is displayed on the LCD. The INTELLIGENT EYE lamp lights green.

Display

By selecting “💡” from the following icons, the air conditioner will switch to COMFORT AIRFLOW operation combined with INTELLIGENT EYE operation.

- When the flaps (horizontal blades) are swinging, selecting any of the modes above will cause the flaps (horizontal blades) to stop.

The lamp lights when human movement is detected.

COMFORT AIRFLOW / INTELLIGENT EYE operation settings

Display Operation mode		Explanation
	COMFORT AIRFLOW	The flaps adjust the airflow direction upward while cooling, downward while heating. ▶Page 15
	INTELLIGENT EYE	The sensor detects the movement of people in the sensing areas and the louvres adjust the airflow direction to an area where people are not present. When there are no people in the sensing areas, the air conditioner switches to the energy-saving mode. ▶Page 15
	COMFORT AIRFLOW and INTELLIGENT EYE	The air conditioner will be in COMFORT AIRFLOW operation combined with INTELLIGENT EYE operation. ▶Page 15
Blank	No function	-

■ To cancel operation

Comfort/Sensor

Press until no icon is displayed.

• The INTELLIGENT EYE lamp goes off.

NOTE

Notes on COMFORT AIRFLOW operation ■

- The position of the flaps will change, preventing air from blowing directly on the occupants of the room.

POWERFUL operation and COMFORT AIRFLOW operation cannot be used at the same time.

Priority is given to the function of whichever button is pressed last.

- The airflow rate will be set to AUTO. If the up and down airflow direction is selected, COMFORT AIRFLOW operation will be cancelled.

Notes on INTELLIGENT EYE operation ■

Application range is as follows.

Vertical angle 90° (Side view)

Horizontal angle 110° (Top view)

- While the air conditioner is in INTELLIGENT EYE operation, the louvres adjust the airflow direction if there are people in the sensing areas of the INTELLIGENT EYE so that the leftward or rightward airflow will not be directed to the people.

If no people are detected in either area 1 or 2 for 20 minutes, the air conditioner switches to the energy-saving mode with the set temperature shifted by 2^ C.

The air conditioner may switch to the energy-saving operation even if there are people in the areas.

This may occur depending on the clothes the people are wearing, if there is no movement of the people in the areas.

- The airflow direction from the louvres will be leftward if there are people in both areas 1 and 2. The air will also flow left if there is a person right in front of the sensor as the sensor judges that there are people in both areas.

- Due to the position of the sensor, people might be exposed to the airflow of the indoor unit if they are close to the front side of the indoor unit. If there are people close to the front side of the indoor unit or in both areas, it is recommended to use the COMFORT AIRFLOW and INTELLIGENT EYE operations simultaneously. Using both modes together, the air conditioner will not direct the airflow towards the people.

The sensor may not detect moving objects further than 7m away. (Please see the application range.)

• Sensor detection sensitivity changes according to the indoor unit location, the speed of passers-by, temperature range, etc.
• The sensor could also mistakenly detect pets, sunlight, fluttering curtains and light reflected off of mirrors as passers-by.
• INTELLIGENT EYE operation will not switch on during POWERFUL operation.
• NIGHT SET mode ▶Page 21 will not switch on during use of INTELLIGENT EYE operation.

■ Notes on combining COMFORT AIRFLOW operation and INTELLIGENT EYE operation

• The airflow rate will be set to AUTO. If the up and down airflow direction is selected, COMFORT AIRFLOW operation will be canceled. Priority is given to the function of whichever button is pressed last.
• When the INTELLIGENT EYE sensor detects the movement of people, it adjusts the airflow direction upward (while in COOL operation) and downward (while in HEAT operation), by adjusting the flaps. When the sensor detects people, the louvres will direct the airflow in such a way that it will not be blown directly on them. If there are no people, the air conditioner will switch to energy-saving operation after 20 minutes.

CAUTION

• Do not place large objects near the INTELLIGENT EYE sensor.
  Also keep heating units and humidifiers outside the sensor's detection area. This sensor can detect undesirable objects.
• Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction.

ON MON 15:30 Powerful

POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. In this mode, the air conditioner operates at maximum capacity.

To start POWERFUL operation ■

Press during operation.

“◀” is displayed on the LCD.

POWERFUL operation ends in 20 minutes. Then the system automatically operates • again with the previous settings which were used before POWERFUL operation.

To cancel POWERFUL operation

Press again.

“◀” disappears from the LCD.

[Example]

NOTE

■ Notes on POWERFUL operation

• When using POWERFUL operation, there are some functions which are not available.
• POWERFUL operation cannot be used together with ECONO, COMFORT AIRFLOW or OUTDOOR UNIT QUIET operation. Priority is given to the function of whichever button is pressed last.

- POWERFUL operation can only be set when the unit is running. Pressing ⏻ causes the settings to be cancelled, and “▼” disappears from the LCD.

- POWERFUL operation will not increase the capacity of the air conditioner if the air conditioner is already in operation with its maximum capacity demonstrated.

• In COOL and HEAT operation

To maximize the cooling (heating) effect, the capacity of outdoor unit increases and the airflow rate becomes fixed at the maximum setting. The temperature and airflow settings cannot be changed.

- In DRY operation

The temperature setting is lowered by 2.5^ C and the airflow rate is slightly increased.

- In FAN operation

The airflow rate is fixed at the maximum setting.

• In AUTO operation

To maximize the cooling (heating) effect, the capacity of outdoor unit is increased and the airflow rate is fixed to the maximum setting.

ECONO / OUTDOOR UNIT QUIET Operation

ECONO operation

ECONO operation is a function which enables efficient operation by limiting the maximum power consumption value.

This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit.

[Example]

Normal operation ECONO operation

Illustration of household appliances including a washing machine, vacuum cleaner, and washing machine (no text or symbols)

In case the air conditioner and other appliances which require high power consumption are used at the same time, a circuit breaker may trip if the air conditioner operates with its maximum capacity.

Illustration of a kitchen appliance with a worker, a vacuum cleaner, and appliances like a washing machine and fan (no text or symbols)

- The maximum power consumption of the air conditioner is limited by using ECONO operation. The circuit breaker will hardly trip even if the air conditioner and other appliances are used at same time.

OUTDOOR UNIT QUIET operation ■

OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. This function is convenient during the night-time operation.

[Example] Using the OUTDOOR UNIT QUIET operation during the night.

Illustration of a night scene with two houses, a bed, a child at a desk, and animals in a small doghouse under a starry sky (no text or symbols)

The noise level of the • outdoor unit will be lower. This function is useful when you need to consider the noise for your neighbourhood.

27°C MON 15:30 Erao Outlet Timer

To start operation

Econo/Quiet Press and select the desired mode.

To cancel operation

Econo/Quiet Press until no icon is displayed.

NOTE

Notes on ECONO operation ■

• ECONO operation can only be set when the unit is running. Pressing ⏻ causes the settings to be cancelled, and “” disappears from the LCD.
• ECONO operation is a function which enables efficient operation by limiting the power consumption of the outdoor unit (operating frequency). ECONO operation functions in AUTO, COOL, DRY, and HEAT operation.

POWERFUL and ECONO operation cannot be used at the same time.

Priority is given to the function of whichever button is pressed last.

- If the power consumption level is already low, switching to ECONO operation will not reduce the power consumption.

Notes on OUTDOOR UNIT QUIET operation

• This function is available in COOL, HEAT, and AUTO operation. This is not available in FAN and DRY operation.
• POWERFUL operation and OUTDOOR UNIT QUIET operation cannot be used at the same time. Priority is given to the function of whichever button is pressed last.
• Even if the operation is stopped by using the remote controller or the indoor unit ON/OFF switch when using OUTDOOR UNIT QUIET operation, "💡" will remain lit on the remote controller display.
• OUTDOOR UNIT QUIET operation will not reduce the frequency nor fan speed if they already are operating at reduced levels.
• This operation is performed with lower power and therefore may not provide a sufficient cooling (heating) effect.

0:23 27 OFF 0:00 Off Select Cancel Timer

Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER together.

To use OFF TIMER operation

Check that the clock is correct.

If not, set the clock to the present time. ▶Page 10

"0:08 is displayed on the LCD.

"OFFblinks.

“④” and day of the week disappear from the LCD.

Press 2. until the time setting reaches the point you like.

Each pressing of either button increases or decreases the time setting by 10 minutes. • Holding down either button changes the time setting rapidly.

Press 3. Off again.

"OFF and setting time are displayed on the LCD.

- The multi-monitor lamp blinks twice.

The TIMER lamp periodically lights orange. ▶Page 5

Display

To cancel OFF TIMER operation

"OFF" and setting time disappear from the LCD.

- “④” and day of the week are displayed on the LCD.

NOTE

■ Notes on TIMER operation

- When TIMER is set, the present time is not displayed.

- Once you set ON/OFF TIMER, the time setting is kept in the memory. The memory is canceled when remote controller batteries are replaced.

- When operating the unit via the ON/OFF TIMER, the actual length of operation may vary from the time entered by the user. (Maximum about 10 minutes)

■ NIGHT SET mode

- When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5°C up in COOL, 2.0°C down in HEAT) to prevent excessive cooling (heating) during sleeping hours.

ON 27°C A ON 6:00 Select Cancel On Timer

To use ON TIMER operation ■

Check that the clock is correct.

If not, set the clock to the present time. ▶Page 10

"6:08 is displayed on the LCD.

"ON" blinks.

“ ⊕” and day of the week disappear from the LCD.

Press 2. until the time setting reaches the point you like.

Each pressing of either button increases or decreases the time setting by 10 minutes. • Holding down either button changes the setting rapidly.

Press 3. On again.

"ON" and setting time are displayed on the LCD.

The multi-monitor lamp blinks twice.

The TIMER lamp periodically lights orange. ▶Page 5

Display

To cancel ON TIMER operation

"ON" and setting time disappear from the LCD.

- “ Ⓐ” and day of the week are displayed on the LCD.

To combine ON TIMER and OFF TIMER operation

- A sample setting for combining the 2 timers is shown below.

(Example) Present time: 23:00 (The unit operating) OFF TIMER at 0:00 ON TIMER at 14:00) Combined OFF 0:00 ON 14:00

NOTE

■ In the following cases, set the timer again.

• After the circuit breaker has turned off.
• After a power failure.
• After replacing the batteries in the remote controller.

Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family's life style.

Setting example of the WEEKLY TIMER

The same timer settings are used from Monday through Friday, while different timer settings are used for the weekend.

[Monday]	Make timer settings for programmes 1-4. ▶Page 24Pr
[Tuesday] to [Friday]	Use thosePr
[Saturday]	No timer settings
[Sunday]	Make

• Up to 4 reservations per day and 28 reservations per week can be set using the WEEKLY TIMER. The effective use of the copy mode simplifies timer programming.
• The use of ON-ON-ON-ON settings, for example, makes it possible to schedule operating mode and set temperature changes. Furthermore, by using OFF-OFF-OFF-OFF settings, only the turn off time of each day can be set. This will turn off the air conditioner automatically if you forget to turn it off.

ON 6:00 25°C ON MON Select Next Timer

■ To use WEEKLY TIMER operation

Setting mode

Make sure the day of the week and time are set. If not, set the day of the week and time.

Page 10

Programme 1 Programme 2 Programme 3 Programme 4

[Monday] ON OFF ON OFF 25°C 27°C 6:00 8:30 17:30 22:00

Setting Displays

1. Press

• The day of the week and the reservation number of the current day will be displayed.
  • 1 to 4 settings can be made per day.

2. Press Select to select the desired day of the week and reservation number.

- Pressing Select changes the reservation number and the day of the week.

3. Press Next.

• The day of the week and reservation number will be set.
• “WEEKLY” and “ON” blink.

4. Press Select to select the desired mode.

- Pressing Select changes the "ON" or "OFF" setting in sequence.

• In case the reservation has already been set, selecting "blank" deletes the reservation.
• Proceed to step 9 if "blank" is selected.
• To return to the day of the week and reservation number setting, press Back.

5. Press Next.

• The ON/OFF TIMER mode will be set.
- “ Ⓞ WEEKLY ” and the time blink.

27°C ON TUE 6:00 25°C Select Next Timer

6. Press to select the desired time.

The time can be set between 0:00 and 23:50 in 10-minute intervals.

To return to the ON/OFF TIMER mode setting, press • Back

- Proceed to step 9 when setting the OFF TIMER.

7. Press Next.

• The time will be set.
- “WEEKLY” and the temperature blink.

8. Press Select to select the desired temperature.

• The temperature can be set between 10^ C and 32^ C.
COOL or AUTO: The unit operates at 18^ C even if it is set to 10 to 17^ C. ▶Page 12 HEAT or AUTO: The unit operates at 30^ C even if it is set to 31 to 32^ C. ▶Page 12
• To return to the time setting, press Back.
- The set temperature is only displayed when the mode setting is on.

9. Press Next.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the multi-monitor lamp.
• The temperature and time are set while in ON TIMER operation, and the time is set while in OFF TIMER operation.
• The next reservation screen will appear.
  • To continue further settings, repeat the procedure from step 4.
  • The multi-monitor lamp blinks twice.

The TIMER lamp periodically lights orange. ▶Page 5

The multi-monitor lamp will not blink orange if all the reservation settings are deleted.

Display

10. Press ☐ to complete the setting.

• “WEEKLY” is displayed on the LCD and WEEKLY TIMER operation is activated.
• A reservation made once can be easily copied and the same settings used for another day of the week. Refer to Copy mode. ▶Page 26

NOTE

Notes on WEEKLY TIMER operation ■

• Do not forget to set the clock on the remote controller first. ▶Page 10
• The day of the week, ON/OFF TIMER mode, time and set temperature (only for ON TIMER mode) can be set with the WEEKLY TIMER. Other settings for the ON TIMER are based on the settings just before the operation.
• WEEKLY TIMER and ON/OFF TIMER operation cannot be used at the same time. The ON/OFF TIMER operation has priority if it is set while WEEKLY TIMER is still active. The WEEKLY TIMER will enter the standby state, and “WEEKLY” will disappear from the LCD. When the ON/OFF TIMER is up, the WEEKLY TIMER will automatically become active.
• Turning off the circuit breaker, power failure, and other similar events will render operation of the indoor unit's internal clock inaccurate. Reset the clock. ▶Page 10

ON 27°C 6:00 TUE 25°C Copy Select Timer

Copy mode

A reservation made once can be copied to another day of the week. The whole reservation • of the selected day of the week will be copied.

Programme 1 Programme 2 Programme 3 Programme 4

[Monday] ON OFF ON OFF 25°C 27°C 6:00 8:30 17:30 22:00 COPYCOPY Programme 1 Programme 2 Programme 3 Programme 4 [Tuesday] to [Friday] ON OFF ON OFF 25°C 27°C 6:00 8:30 17:30 22:00

Setting Displays

Confirmation

Copy

Paste

Normal

1. Press
2. Press Select to confirm the day of the week to be copied.
3. Press Copy

- The whole reservation of the selected day of the week will be copied.

1. Press Select to select the destination day of the week.

2. Press Copy

3. Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking the multi-monitor lamp.

4. The reservation will be copied to the selected day of the week. The whole reservation of the selected day of the week will be copied.
5. To continue copying the settings to other days of the week, repeat step 4 and step 5.

6. The multi-monitor lamp blinks twice. The TIMER lamp periodically lights orange.

7. Press ☐ to complete the setting.

- “WEEKLY” is displayed on the LCD and WEEKLY TIMER operation is activated.

NOTE

■ Note on copy mode

- The entire reservation of the source day of the week is copied in the copy mode.

In the case of making a reservation change for any day of the week individually after copying the content of weekly reservations, press and change the settings in the steps of Setting mode. ▶Page 24

ON 27°C A O°WERCY ON 6:00 TUE 25°C Weekly Select Timer

■ Confirming a reservation

The reservation can be confirmed.

Setting Displays WEEKLY TUE 15:30 Normal Confir rmation WEEKLY TUE ON 6:00 25℃

Press 1. .

The day of the week and the reservation number of the current day will be displayed.

Press 2. to select the day of the week and the reservation number to be confirmed.

Pressing Select displays the reservation details.

- To change the confirmed reserved settings, select the reservation number and press Next. The mode is switched to setting mode. Proceed to setting mode step 2. ▶Page 24

1. Press ☐ to exit the confirmation mode.

■ To deactivate WEEKLY TIMER operation

Press ☐ while “ Ⓧ WEEKLY ” is displayed on the LCD.

• The “WEEKLY” will disappear from the LCD.
  • The TIMER lamp goes off.
• To reactivate the WEEKLY TIMER operation, press ____ again.
• If a reservation deactivated with is activated once again, the last reservation mode will be used.

NOTE

- If not all the reservation settings are reflected, deactivate the WEEKLY TIMER operation once. Then press again to reactivate the WEEKLY TIMER operation.

ON 27°C A BEERLY ON 6:00 TUE 25°C Weekly Next Select Timer

■ To delete reservations

An individual reservation

Press

The day of the week and the reservation number will be displayed.

Press 2. to select the day of the week and the reservation number to be deleted.

3. Press

“ WEEKLY” ” or “ON” blinkOFF

Press 4 until no icon is displayed. Pressing Select changes the ON/OFF TIMER mode in sequence.

- Selecting "blank" will cancel any reservation you may have.

Press

- The selected reservation will be deleted.

Press 6. .

- If there are still other reservations, WEEKLY TIMER operation will be activated.

Reservations for each day of the week

• This function can be used for deleting reservations for each day of the week.
• It can be used while confirming or setting reservations.

Press 1 to select the day of the week to be deleted.

2. Hold Weekly for about 5 seconds.

- The reservation of the selected day of the week will be deleted.

All reservations

Weekly

Hold for about 5 seconds with the normal display.

• Be sure to direct the remote controller toward the indoor unit and check for a receiving tone.
• This operation cannot be used for the WEEKLY TIMER setting display.
• All reservations will be deleted.

Care and Cleaning

Quick reference

How to open the upper front panel How

Hold the upper front panel by the sides and open it. Fix the panel with the panel support plate.

close the upper front panel

Return the panel support plate to its previous position. Lower the lower front panel to the original position. Press the upper front panel at both sides.

Cleaning parts

Upper and lower front panels

- With the panels closed, wipe them with a soft damp cloth.

If dirty

Illustration of a hand cleaning a curved air conditioner cover (no text or symbols)

Diagram of a device's internal structure showing a lid and base with directional arrows indicating movement (no text or symbols)

Air filter

• Vacuum dust or wash the filter.

Once every 2 weeks

Page 30

Diagram of a grid-like structure with a black arrow pointing to one corner (no text or symbols)

Illustration of a grid-patterned object with no visible text or symbols

Titanium apatite photocatalytic air-purifying filter

• Vacuum dust or replace the filter.

[Cleaning]

Once every 6 months

Page 31

[Replacement]

Once every 3 years

▶Page 31

Indoor unit and remote controller

- Wipe them with a soft cloth.

If dirty

Notes on cleaning

■ For cleaning, do not use any of the following:

Water hotter than 40°C

Volatile liquid such as benzene, petrol and thinner•

Polishing compounds•

Rough materials such as a scrubbing brush•

Illustration of a kettle, a banana pan, and a bottle with a flame (no text or symbols)

CAUTION

• Before cleaning, be sure to stop the operation and turn off the circuit breaker.
• Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury.

Air filter

Pull out the air fi Iters.1.

Open the upper front panel.

Set the panel support plate between the ribs on the unit to fix the upper front panel.

- Push the filter tab at the center of each air filter a little upwards, then pull it down.

Back of the upper front panel Panel support plate Ribs 1) Pull 3) Pull down Filter tab 2) Push

Wash the air fi lters with 2. water or clean them with a vacuum cleaner.

- It is recommended to clean the air filters every 2 weeks.

Illustration of hands holding a grid-based device with scissors, no text or symbols visible

If the dust does not come off easily

Wash the air fi lters with neutral detergent thinned with • lukewarm water, then let them dry in the shade. Be sure to remove the titanium apatite photocatalytic • air-purifying filter. Refer to "Titanium apatite photocatalytic air-purifying filter" on the next page.

Simple line drawing of a basin with a rectangular object on top (no text or symbols)

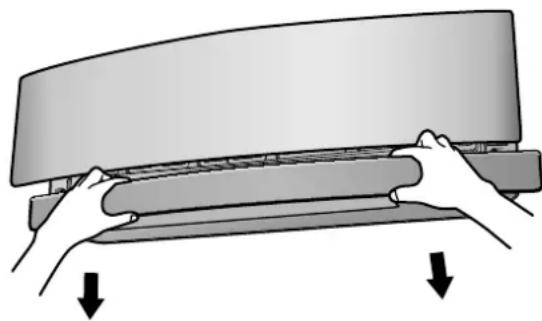

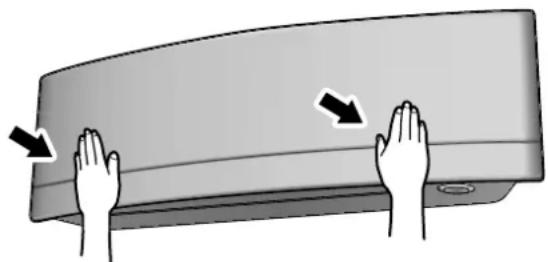

3. Set the filters as they were and close the upper front panel.

• Return the panel support plate to its previous position.
• Lower the lower front panel to the original position.

Illustration of hands pressing down on a curved object, with two arrows indicating downward motion (no text or symbols)

• Close the upper front panel slowly.
• Press the upper front panel at both sides.

Illustration of two hands pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

CAUTION

- Do not touch the aluminium fins by bare hand at the time of dismounting or mounting the filter.

Care and Cleaning

■ Titanium apatite photocatalytic air-purifying filter

Take off the titanium 1. apatite photocatalytic air- purifying fi Iters.

- Open the upper front panel and pull out the air filters. Hold the recessed parts of the frame and unhook • the 4 claws.

Claw

2. Clean or replace the titanium apatite photocatalytic air-purifying fi Iters.

[Cleaning]

Vacuum dust, and soak in lukewarm 2-1 water or water for about 10 to 15 minutes if very dirty.

Do not remove the filter from the frame when washing with water.

After washing, shake off remaining 2-2 water and let them dry in the shade.

- Do not wring out the filter to remove water from it.

[Replacement]

Remove the filter from the filter frame and attach a new one.

Do not throw away the fi Iter frame. Reuse the • fi Iter frame when replacing the titanium apatite photocatalytic air-purifying fi Iter.

- When attaching the filter, check that the filter is properly set in the tabs.

Tabs

- Dispose of the old filter as non-flammable waste.

3. Set the fil ters as they were and close the upper front panel.

• Return the panel support plate to its previous position.
• Lower the lower front panel to the original position.

Illustration of hands pressing down on a curved object, showing two downward arrows (no text or symbols)

Close the upper front panel slowly.
- Press the upper front panel at both sides.

Illustration of two hands pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

NOTE

• Operation with dirty filters:
– cannot deodorise the air,
- cannot clean the air,
– results in poor heating or cooling,
- may cause odour.

- Dispose of old filters as non-flammable waste.

- To order titanium apatite photocatalytic air-purifying fi lter, contact the dealer where you bought the air conditioner.

Item	Titanium apatite photocatalytic air-purifying fi iter (without frame) 1 set
Part No.	KAF970A46

■ Check the units

■ Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded.
■ Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit.

Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. ■

- If no drain water is seen, water may be leaking from the indoor unit. Stop operation and consult the service shop if this is the case.

Prior to a long period of non-use ■

1. Operate the FAN mode for several hours on a fine day to dry out the inside.

1. After operation stops, turn off the circuit breaker for the room air conditioner.
2. Clean the air fi Iters and set them again.
3. Take out the batteries from the remote controller.

We recommend periodical maintenance

• In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist in addition to regular cleaning by the user.
• For specialist maintenance, please contact the dealer where you bought the air conditioner.
• The maintenance cost must be borne by the user.

Troubleshooting

These cases are not troubles.

The following cases are not air conditioner troubles but have some reasons. You may just continue using it.

Indoor unit

The fl aps do not start swinging immediately.

The air conditioner is adjusting the position of the • flaps. The flaps will start moving soon.

The air conditioner stops generating airflow during HEAT operation.

- Once the set temperature is reached, the airflow rate is reduced and operation stopped in order to avoid generating cool airflow. Operation will resume automatically when the indoor temperature falls.

Operation does not start soon.

When button was pressed soon after operation was stopped.

When the mode was reselected. ■

This is to protect the air conditioner. You should wait for about 3 minutes.

HEAT operation stops suddenly and a flowing sound is heard.

The outdoor unit is defrosting. HEAT operation starts after the frost on the outdoor unit has been removed. This can take about 4 to 12 minutes.

Diagram of a car air conditioner unit with a cooling fan and cooling fins (no text or labels)

Different sounds are heard.

■A sound like flowing water

• This sound is generated because the refrigerant in the air conditioner is flowing.
• This is a pumping sound of the water in the air conditioner and heard when the water is pumped out from the air conditioner during COOL or DRY operation.
• The refrigerant flows in the air conditioner even if the air conditioner is not working when the indoor units in other rooms are in operation.

■owing sound

- This sound is generated when the flow of the refrigerant in the air conditioner is switched over.

Ticking sound

- This sound is generated when the cabinet and frame of the air conditioner slightly expand or shrink as a result of temperature changes.

Whistling sound

- This sound is generated when refrigerant flows during defrosting operation.

■ Clicking sound during operation or idle time

- This sound is generated when the refrigerant control valves or the electrical parts operate.

■ Clopping sound

- This sound is heard from the inside of the air conditioner when the exhaust fan is activated while the room doors are closed. Open the window or turn off the exhaust fan.

Outdoor unit

The outdoor unit emits water or steam.

HEAT operation

- The frost on the outdoor unit melts into water or steam when the air conditioner is in defrosting operation.

COOL or DRY operation

- Moisture in the air condenses into water on the cool surface of the outdoor unit piping and drips.

Illustration of a white air conditioner unit with cooling fins and ventilation grilles (no text or symbols)

Before making an inquiry or a request for repair, please check the following.

If the problem persists, consult your dealer.

Not trouble

These cases are not troubles.

Check

Please check again before • requesting repairs.

The air conditioner does not operate. (Multi-monitor lamp is off.)

Has the circuit breaker been tripped or the fuse blown? Is there a power failure?

Are batteries set in the remote controller? •

Is the timer setting correct?

The room does not cool down/warm up.

• Are the air filters dirty?
  Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?
  Is the set temperature appropriate?•
  Is the airflow rate setting appropriate?
• Is the adjustment of the airflow direction appropriate?
  • Is a window or door open?
• Is the air conditioner in ECONO operation or OUTDOOR UNIT QUIET operation?

An abnormal functioning happens during operation.

- The air conditioner may malfunction with lightning or radio waves. Turn off the circuit breaker, turn it on again and try operating the air conditioner with the remote controller.

Operation stopped suddenly. (Multi-monitor lamp is blinking.)

- Are the air filters dirty?

Clean the air filters.

Is there anything blocking the air inlet or air outlet of the indoor unit or outdoor unit?

Stop operation and after turning off the circuit breaker, remove the obstruction. Then restart operation with the remote controller. If the multi-monitor lamp is still blinking, check the error code and consult your dealer.

Upper and lower front panels do not open. (Multi-monitor lamp is blinking.)

• Is there something caught in the upper and lower front panels?
  Remove the object and attempt operation again using the remote controller.
  If the upper and lower front panels still do not open and the multi-monitor lamp is still blinking, consult the dealer where you bought the air conditioner.

Upper front panel does not close completely.

- Are the upper front panel locks set appropriately?

Mist comes out of the indoor unit.

- This happens when the air in the room is cooled into mist by the cold airflow during COOL or other operation.

Troubleshooting

Hot air does not flow out soon after the start of HEAT operation.

The air conditioner is warming up. Wait for about 1 to 4 minutes. (The system is designed to start discharging air only after it has reached a certain temperature.)

The ON/OFF TIMER does not operate according to the settings.

Check if the ON/OFF TIMER and the WEEKLY TIMER • are set to the same time.

Change or deactivate the settings in the WEEKLY TIMER. ▶ Page 23

Operation stopped suddenly. (Multi-monitor lamp is on.)

To protect the system, the air conditioner may stop operating after sudden large voltage fluctuations. It automatically resumes operation in about 3 minutes.

Remote controller does not work properly.

The unit does not receive signals from the ■ remote controller or has a limited operating range.

LCD is faint, is not working, or the display is erratic.

The batteries may be exhausted. Replace both • batteries with new dry batteries AAA.LR03 (alkaline). For details, refer to “Preparation Before Operation”.

The outdoor fan rotates while the air conditioner is not in operation.

Immediately after the air conditioner is ■ stopped

- The outdoor unit fan continues rotating for about another 1 minute to protect the system.

■ While the air conditioner is not in operation

- When the outdoor temperature is high, the outdoor unit fan may start rotating to protect the system.

The air conditioner gives off an odour.

The room odour absorbed in the unit is discharged with the airflow.

We recommend you to have the indoor unit cleaned. Please consult your dealer.

If the upper and lower front panels are closed while the air conditioner is in operation, the air conditioner will stop operating and the multi-monitor lamp will blink.

- Restart the air conditioner after stopping the operation of the air conditioner with the remote controller.

HEAT operation cannot be selected, even though the unit is heat pump model.

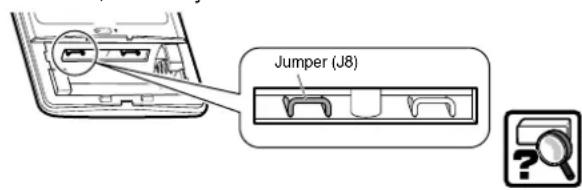

- Check that the jumper (J8) has not been cut. If it has been cut, contact your dealer.

Jumper (J8)

Call your dealer immediately ■

WARNING

■ When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker.

- Continued operation in an abnormal condition may result in troubles, electric shocks or fire.

Consult the dealer where you bought the air conditioner.

Do not attempt to repair or modify the air conditioner by yourself. ■

- Incorrect work may result in electric shocks or fire.

Consult the dealer where you bought the air conditioner.

If one of the following symptoms takes place, call your dealer immediately.

The power cord is abnormally hot or damaged.

An abnormal sound is heard during operation.

The circuit breaker, a fuse, or the earth leakage circuit • breaker cuts off the operation frequently.

A switch or a button often fails to work properly.*

There is a burning smell.

• Water leaks from the indoor unit.

Turn off the circuit breaker and call your dealer.

After a power failure

- The air conditioner automatically resumes operation in about 3 minutes. You should just wait for a while.

■lightning

- If there is a risk lightning could strike in the neighbourhood, stop operation and turn off the circuit breaker to protect the system.

■ Disposal requirements

- Dismantling of the unit, handling of the refrigerant, oil and other parts, should be done in accordance with the relevant local and national regulations.

Troubleshooting

■ Fault diagnosis by remote controller

The remote controller can receive relevant error codes from the indoor unit.

When 1. is held down for about 5 seconds, "00" blinks in the temperature display section.

2. Prepeatedly until a continuous beep is produced.

- The code indication changes as shown below, and notifies you with a long beep.

	CODE	MEANING
SYSTEM	00	NORMAL
	U0	REFRIGERANT SHORTAGE
	U2	OVER-VOLTAGE DETECTION
	U4	SIGNAL TRANSMISSION ERROR (BETWEEN INDOOR AND OUTDOOR UNIT)
INDOOR UNIT	A1	INDOOR UNIT PCB ABNORMALITY
	A5	FREEZE-UP PROTECTION OR HEATING PEAK-CUT CONTROL
	A6	FAN MOTOR (DC MOTOR) ABNORMALITY
	C4	INDOOR HEAT EXCHANGER THERMISTOR ABNORMALITY
	C7	FRONT PANEL OPEN /CLOSE FAULT
	C9	ROOM TEMPERATURE THERMISTOR ABNORMALITY
OUTDOOR UNIT	EA	FOUR WAY VALVE ABNORMALITY
	E1	OUTDOOR UNIT PCB ABNORMALITY
	E5	OL ACTIVATION (COMPRESSOR OVERLOAD)
	E6	COMPRESSOR LOCK
	E7	DC FAN LOCK
	F3	DISCHARGE PIPE TEMPERATURE CONTROL
	H0	COMPRESSOR SYSTEM SENSOR ABNORMALITY
	H6	POSITION SENSOR ABNORMALITY
	H8	DC VOLTAGE / CURRENT SENSOR ABNORMALITY
	H9	OUTDOOR TEMPERATURE THERMISTOR ABNORMALITY
	J3	DISCHARGE PIPE THERMISTOR ABNORMALITY
	J6	OUTDOOR HEAT EXCHANGER THERMISTOR ABNORMALITY
	L4	RADIATION FIN TEMPERATURE RISE
	L5	OUTPUT OVERCURRENT DETECTION
	P4	RADIATION FIN THERMISTOR ABNORMALITY

NOTE

A short beep and 2 consecutive beeps indicate non-corresponding codes.

Cancel

To cancel the code display, hold • for about 5 seconds. The code display also clears if no button is pressed for 1 minute.

■Memo

Quick Reference

    K[" MODE "] --> L[" Weather Change Icon: Air Fan, Air Condition, Air Temperature, Air Pressure, Air Humidity, Air Rainfall, Air Wind Speed, Air Temperature, Air Humidity, Air Rainfall, Air Wind Speed, Air Temperature, Air Rainfall, Air Wind Speed, Air Temperature, Air Rainfall, Air Wind Speed, Air Temperature, Air Rainfall"] --> M[" Directional Flow: Directional Mode & Weather Change Icon"]
    M --> N[" Directional Flow: Directional Mode & Weather Change Icon"]
    N --> O[" Directional Flow: Directional Mode & Weather Change Icon"]
    O --> P[" Directional Flow: Directional Mode & Weather Change Icon"]
    P --> Q[" Directional Flow: Directional Mode & Weather Change Icon"]
    Q --> R[" Directional Flow: Directional Mode & Weather Change Icon"]
    R --> S[" Directional Flow: Directional Mode & Weather Change Icon"]
    S --> T[" Directional Flow: Directional Mode & Weather Change Icon"]
    T --> U[" Directional Flow: Directional Mode & Weather Change Icon"]
    U --> V[" Directional Flow: Directional Mode & Weather Change Icon"]

DAIKIN INDUSTRIES, LTD.

Head office:

Umeda Center Bldg., 2-4-12, Nakazaki-Nishi,

Kita-ku, Osaka, 530-8323 Japan

Tokyo office:

JR Shinagawa East Bldg., 2-18-1, Konan,

Minato-ku, Tokyo, 108-0075 Japan

http://www.daikin.com

The two-dimensional bar code is a manufacturing code.
