Cammeray Freestanding Parcel Letterbox

Assembly guide

[Revision 4.0 December 2021]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Installation

The Letterbox should be installed in a place that the delivery couriers can easily access.

At Your Front Door (On A Concrete Slab)

Tools required: Drill, 4 x masonry floor bolts (8mm diameter x 40mm and washers, not included).

1. Place the Letterbox on the floor in the desired location. Open the bottom door and mark with a pencil the location of holes.

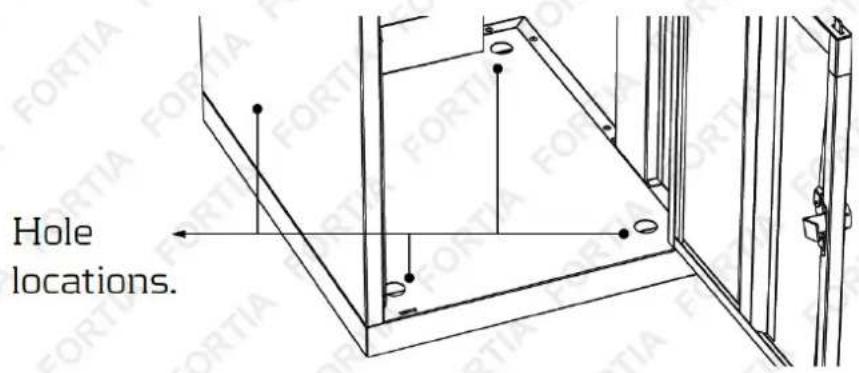

Hole locations.

1. Remove the Letterbox and drill the 4 holes to correct diameter and depth.
2. Place the Letterbox over the holes, insert the floor bolts/washers and tighten.
3. Ensure that the Letterbox is firmly in place.

At Your Front Fence (On the Ground)

Tools required: Shovel and standard setting concrete.

NOTE: Do not use quick setting concrete, it can sometimes react with metal.

1. Determine the desired location for the Letterbox and clear the ground so that its level.
2. Dig a hole approximately 28cm wide x 38cm length and 18cm deep. Do not make the hole wider than the Letterbox and ensure the unit sits on the ground over the hole.
3. Place the Letterbox on its back and bend both integrated mounting brackets to 90 degrees.

Technical line drawing of a rectangular electronic device with internal components and directional arrows indicating flow or movement (no text or symbols present)

1. Position the Letterbox over the hole to ensure that the hole is deep enough. If required, use the shovel to make adjustments to level the ground.

2. Remove the Letterbox from the hole and pour the premixed concrete into the hole. When the hole is filled, ensure that the concrete is packed down firmly with a wooden block or spade to remove any air pockets.

3. Locate the Letterbox into place, use a spirit level to make sure it is straight and allow concrete to set.

Mailbox Installation

1. Remove the roof of the Letterbox by opening the front door chute and remove the 4 screws with the hex key provided.

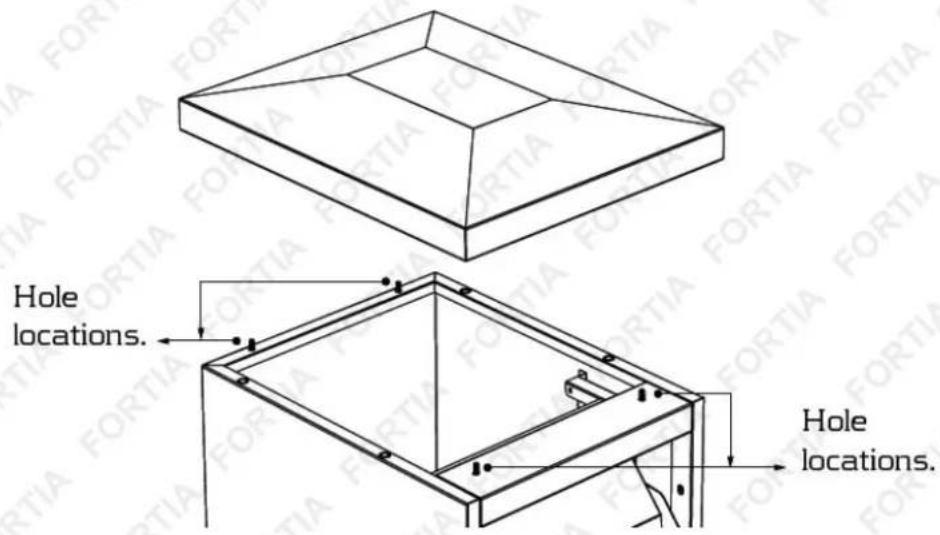

Hole locations. Hole locations.

1. Place the mailbox on the top of the Letterbox, open the mailbox door and using the 4 screws and hex key provided, fasten the mailbox to the Letterbox.

Hole locations. Hole locations.

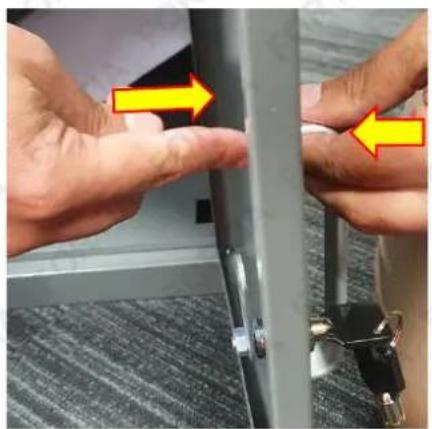

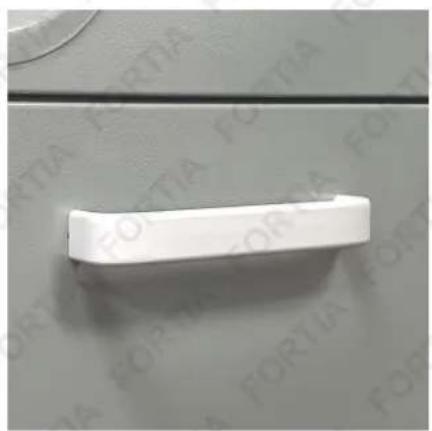

Handles Installation

Close-up of hands using a compass to adjust a metal component, with yellow arrows highlighting the process and partial text visible on the tray.

Close-up of a hand using a screwdriver to press or install a component, with no visible text or symbols.

Close-up of a white rectangular object on a gray surface, with 'FORTIA' printed in the background (no readable text or symbols)

Close-up of hands adjusting a metal bracket with yellow arrows pointing to the finger (no text or symbols visible)

Close-up of hands installing a screwdriver on a metal panel, with a red curved arrow indicating rotation (no text or symbols visible)

Close-up of a metallic key inserted into a white door handle (no text or symbols visible)

Maintenance

• Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends on factors such as proximity to the ocean and humidity or condensation of water vapour on metal surfaces.
• To mitigate this, WD40 can be used to remove surface corrosion then, when applied periodically, it will prevent rust from forming.

Specifications

Freestanding Yes
Letter box Yes
Newspaper slot Yes
Parcel drop box Yes
Body material	SPCC steel, powder coated finish
Metal thickness 1mm
Handle material Aluminium
Key-lockable	Yes
Keys Yes
Separation between letterbox and parcel compartment	Separate inlets, one outlet
Max. capacity of parcel	100kg, 0.04CBM
Max size of single parcel	W: 280 x D: 200 x H: 150
Can be opened at the back	No
