USER MANUAL NVR1640 FIRST ALERT

First Alert®

Welcome

Thank you for choosing First Alert for your security needs!

For more than half a century, First Alert has made the home-safety and security products that make your job easier. Our products are built to the highest standard which has earned us a leadership role in the home-safety and security product categories. We are committed to serving our customers, from the professionals who install our products, to the families and businesses who count on them. First Alert has been helping families and businesses stay safe for over 50 years. By having a First Alert Security System, you're taking the first step in protecting your home or business from damage or theft. We're watching, even when you're not.

This manual is written for the Network Video Recorder. It was accurate at the time it was completed. However, because of our ongoing effort to constantly improve our products, additional features and functions may have been added since that time and on-screen displays may change. We encourage you to visit our website at www.firstalert.com or www.brkelectronics.com to check for the latest manuals (English and Spanish), firmware updates, downloads, other security camera products and announcements. Please visit www.firstalert.com for software downloads and manual updates.

© 2015 BRK Brands, Inc. All rights reserved. Distributed by BRK Brands, Inc., Aurora, Illinois 60504. BRK Brands, Inc. is a subsidiary of Jarden Corporation (NYSE: JAH). First Alert® and SmartBridge™ are registered trademarks of the First Alert Trust. Due to continuing product development, the product inside the packaging may look slightly different than the one on the package. To obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday, 7:30 a.m. - 5 p.m., Central Standard Time. Made in China

Main Description

Sixteen channel digital video recorder with Internet remote surveillance, motion detection, PTZ and alarm control suitable for applications such as high-end residential - new or remodel, light commercial, small business/retail, small warehouse or small grocery.

Product Features

• Auto IP connection capability
- Record, playback, mobile phone live view, backup, control, & remote access
- Supports up to 4TB SATA hard drive and can support up to 4 HDD's depending on model
• Supports smart phone live view
• High Definition 720P/1080P Viewing Modes
- Advanced motion detection activated recording
• 24/7 Scheduled Recording
• Network monitoring through internet access
• Supports USB or external DVD backup
• Hi-speed backup/upgrade/record via USB2.0
- PTZ camera control
- HDMI Video Out
- e-Sata Interface
• 16 Channel POe

PRODUCT OVERVIEW PACKAGE CONTENTS

What's in the Box\*

NVR Device

First Alert SmartBridge

You will Need...

• Monitor or Television with HDMI or VGA inputs
• VGA cable (If not using included HDMI cable)

Close-up of a silver CD or DVD disc with a flat center and circular rim (no text or symbols visible)

Installation Software & Manual

Front view of a white surveillance camera with 'First Alert' branding (no additional text or symbols visible)

IR Bullet Camera

360^ Camera

Black cable with two connectors, no visible text or symbols

Power Cord for NVR

Black computer mouse with USB cable and cord, isolated on white background (no text or symbols)

USB Mouse

Coiled beige cable with connectors, no visible text or symbols

Ethernet Cable

IR Remote Control

Two dark blue metal plate panels with four circular holes, no text or symbols visible

Brackets

Close-up of a mechanical component with a curved handle and two small parts, no visible text or symbols.

Screws & Mounting Parts

HDMI Cable

First Alert QUICK START GUIDE Network Short Company STANDARD

Quick Start Guide

SATA Cable

PRODUCT OVERVIEW

CAMERA AND POWER CONNECTIONS

Ring 1 First Alert Slot for exposed cable installation

Use First Alert Cameras Only

Close-up of a white electronic device labeled 'Piret Alert' with circular ports and a blue connector (no readable text beyond label)

PTZ & Alarm Connections (Cameras not included)

Installing Cameras

Installing Cable-Safe Mounting Bracket

Decide if the camera is to be wall or ceiling mounted and if cable will be fed through mounting surface hidden directly behind the bracket or fed through the side of the bracket so cable is exposed. Mark area where you will drill your hole. The Cable-Safe Mounting Bracket has three Adjusting Points. 1) Rotates Bracket 360° relative to mounting surface, 2) Adjusts bracket hinge 180° and 3) Rotates camera body 360° to level image.

Step 1: Select the position for the camera and drill your hole for the cable. Feed cable through mounting surface. Mount bracket to surface.

Step 2: Aim camera at target and using Adjusting Points 1 and 2 in tandem position camera. Tighten Ring and Thumb Screw.

Step 3: Rotate camera body using Adjusting Point 3 to the proper view angle making sure the Camera Shield is always on top and parallel to the ground so the image is level in the Live View Screen. See "Camera Orientation" Info box. Tighten screw.

Step 4: Attach proper length of Ethernet cable and run from camera to NVR location.

Step 5: Check camera orientation via the Live View screen. Adjust as required.

Connecting Devices

Follow this diagram to make device connections. Note, some devices are not included with this kit. See "What's in the Box" for included devices.

Tablet & Smartphone App RCA Audio In from Audio Cameras or Powered Microphone (Not included) VGA Cable HDMI Cable Use First Alert Power Supply Only Additional Cameras can be Connected USB Mouse Ethernet to Internet

SECTION DESCRIPTION PAGE #

Product Overview
	Package Contents 4
	Camera and Power Connections 5
	Safety Caution Statements 8
	Safety Caution Statements 9
	Front Panel 10
	Rear Panel 11
	Remote Control 13
	USB Mouse 14
	Virtual Keypad 15
Initial Setup
	Startup and Shutdown 16
	Setup Wizard 17
	Adding and Connecting Cameras 20
Live View
	Live View Introduction 21
	Operations 22
PTZ Controls

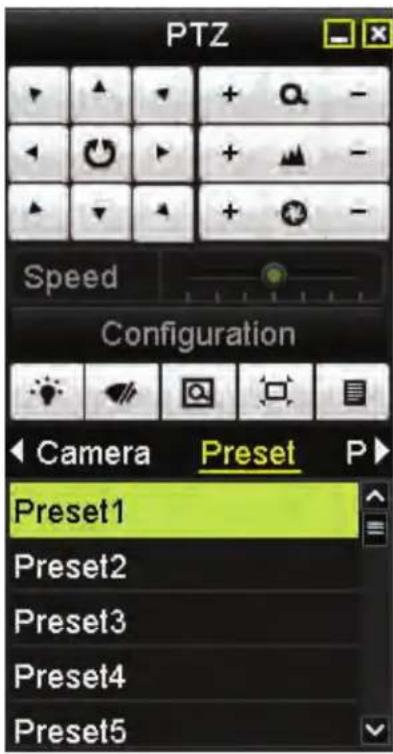

	Configuring PTZ Settings	25
	Setting PTZ Presets, Patrols, and Controls	25
Recording and Capture Settings
	Configuring Parameters	31

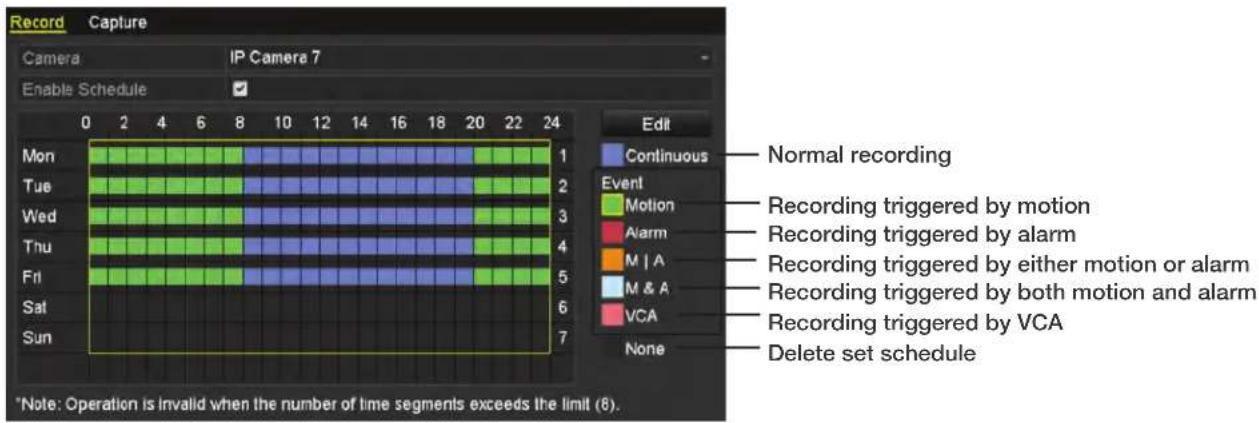

	Configuring Recording/Capture Schedule	32
	Configuring Motion Detection Recording and Capture	33
	Manual Recording and Continuous Capture	35
	Configuring Holiday Recording and Capture	35
	Configuring Redundant Recording and Capture	36
	Configuring HDD Group for Recording Capture	37
	File Protection	38
Playback

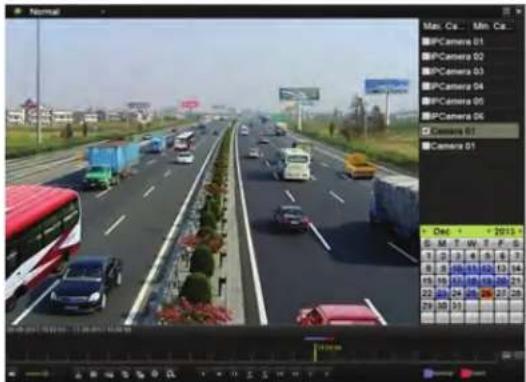

	Playing Back Record Files	40
	Auxiliary Functions of Playback	45
	Picture Playback	46
Backup
	Backing Up Record Files	47
	Backing Up Pictures	53
	Managing Backup Devices	53
	Hot Spare Device Backup	55
Alarm Settings
	Setting Motion Detection Alarm	57
	Setting Sensor Alarms	58
	Detecting Video Loss Alarm	59
	Detecting Video Tampering Alarm	59
	Handling Exceptions Alarm	60
	Setting Alarm Response Actions	60

INTRODUCTION TABLE OF CONTENTS

SECTION DESCRIPTION PAGE #
8	Network Setting
	Configuring General Settings 63
	Configuring Advanced Settings 63

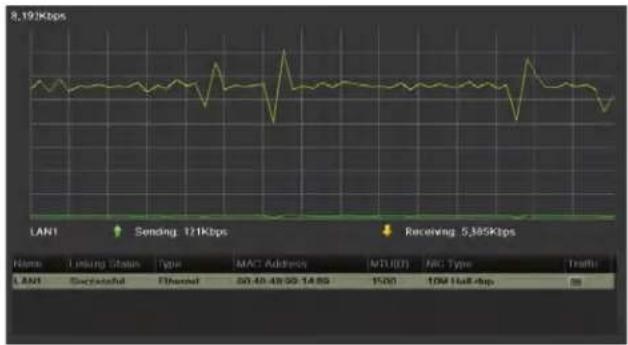

	Checking Network Traffic 69
	Configuring Network Detection 69
	HDD Management
9	Initializing HDDs 71
	Managing a Network HDD 72
	Managing eSATA 73
	Managing HDD Group 73
	Configuring Quota Mode 75
	Configuring Disk Clone 76

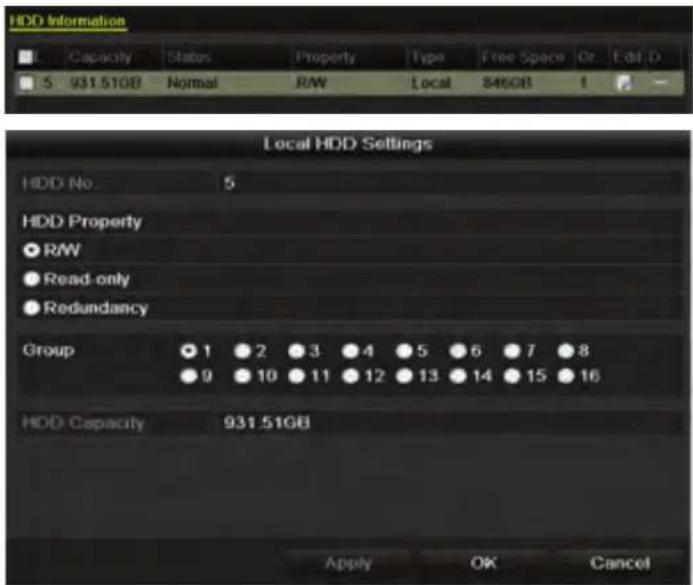

	Checking HDD Status 77
	HDD Detection 77
	Configuring HDD Error Alarms	78
10	Camera Settings
	Configuring OSD Settings	79
	Configuring Privacy Mask	79
	Configuring Video Parameters	80
	Management and Maintenance
	Viewing Device Information	81
	Viewing Camera Information	81
	Viewing Record Information	81
	Viewing Alarm Information	82
	Viewing Network Information	82
11	Viewing HDD Information	83
	Search Log Files	83
	Export Log Files	84
	Export/Import IP Camera Information	85
	Export/Import Configuration Files	86
	Upgrading by Local Backup Device	86
	Upgrading by FTP	87
	Restore Default Settings 87
	Additional Information
12	RS-232 Serial Port Configuration	88
	General Settings	88
	DST Settings	89
	Smartbridge Function - P2P	83

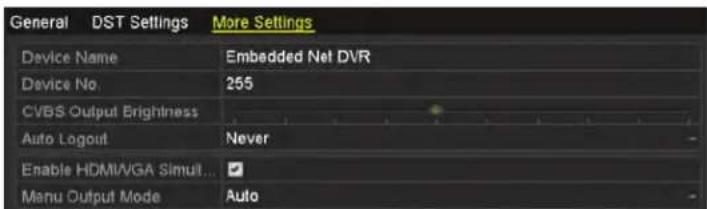

	More Settings	91
	User Account Management	92
	Deleting and Editing Users	94
	Mobile App
	Accessing Your Device From the App	95
	Appendix
14	Hard Drive	96
	Specifications	97
	FAQ's	98
	Troubleshooting	99
	Warranty	100

SAFETY CAUTION STATEMENTS

Safety Precautions

• Do not drop, puncture, or disassemble the cameras or NVR.
• Do not tug on the power adapter. Use the plug to remove it from the wall.

• Do not expose the cameras or NVR to high temperatures.

• For your own safety, avoid using the NVR when there is a storm or lightning in your area.

• Use the cameras and NVR with care. Avoid pressing hard on the cameras or NVR body.
• Do not use power cable if it is damaged or crushed.

Safety Precautions

Instructions for Use

• Always purchase the correct size and grade of battery most suitable for the intended use.
- Replace all batteries of a set at the same time.
- Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries are installed correctly with regard to polarity (+ and -).
• Remove batteries from equipment that is not to be used for an extended period of time.
• Remove used batteries promptly.

FCC Compliance

FCC Compliance Class B Digital Device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of the receiver.
• Consult the dealer or an experienced radio or TV technician for help.

Notice: Only peripherals complying with FCC class B limits may be attached to this equipment. Operation with non-compliant peripherals or peripherals not recommended by First Alert / BRK Brands, Inc. is likely to result in interference to radio and TV reception. Changes or modifications to the product, not expressly approved by First Alert / BRK Brands, Inc., could void the user's authority to operate the equipment.

Important: The information shown in the FCC Declaration of Conformity paragraph below is a requirement of the FCC and is intended to supply you with information regarding the FCC approval of this device. The phone number listed below is for FCC related questions only and not intended for questions regarding the connection or operation for this device.

FCC Declaration of Conformity for devices with the FCC logo. Responsible Party: First Alert / BRK Brands, Inc., 3901 Liberty Street Rd., Aurora, IL. 60504-8122 Telephone: (630) 851 - 7330. Product / Model: NVR1640. We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Certification (if applicable)

This device contains a radio transmitter. Accordingly, it has been certified as compliant with 47 CFR Part 15 of the FCC Rules for intentional radiators. Products that contain a radio transmitter are labeled with an FCC ID.

Fire and Electric Shock Hazard Statement

CAUTION

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. UNPLUG ALL POWER SOURCES, INCLUDING CAMERAS FROM THE NVR BEFORE REMOVING COVER. FAILURE TO DO SO CAN RESULT IN DAMAGE TO THE NVR OR ITS COMPONENTS AS WELL AS INJURY OR DEATH

Caution!

When working with electrostatic sensitive devices such as hard disk or NVR unit, make sure you use a static-free workstation. Any electrostatic energy coming in contact with the hard disk or NVR can damage it permanently.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS NVR UNIT TO RAIN OR MOISTURE

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT

Disposal

These symbols indicate that it is prohibited to dispose of these batteries in the household waste. Take spent batteries that can no longer be charged to the designated collection points in your community.

PRODUCT OVERVIEW

Front Panel

First Alert SmartBridge 6 4 3 2 1 5 ABC DEF GHJ JKL SHIFT 1 2 3 4 5 MENU F1 F2 ESC EDIT MND PDRS TUV WXYZ 6 7 8 9 0 PLAY REC PTZ PREV A POWER READY STATUS ALARM HOD FA/Rs

ITEM FUNCTION DESCRIPTION
1	Status Indicators	Power Displays green when power is on
		Ready Displays green when device is functioning properly
		Status Displays green when the IR remote control is enabledDisplays red when the function on the composite keys (SHIFT) are usedNo display when neither the IR remote control is enabled or composite keys used
		Alarm Displays red when an alarm occurs
		HDD Flashes red when HDD is reading/writing
		Tx/Rx Flashes green when network connection is functioning properly
2	Control Buttons	DirectionMenu mode Navigate between different fields and items and select setting parameters
		Playback mode Control playing speed with up and down buttonsForward or rewind recording by 30 seconds with left and right buttons
		Image Setting interface Adjust level bar of the image parameters with up and down buttons
		Live View mode Switch channelsEnterMenu mode Confirm selection or select checkbox fields and ON/OFF switch
		Playback mode Play or pause video
		Single-Frame Play mode Play video by a single frame
		Auto-Sequence View Pause or resume auto sequence mode

PRODUCT OVERVIEW

ITEM FUNCTION DESCRIPTION
3	Composite Keys	Shift Switch between letters, numbers, and functions of the following composite keys
		Enter the number 1 or access the main menu
		Enter the number 2 or the letters A, B, or CUse F1 in a list field to select all itemsPTZ Control mode - zoom out
		Enter the number 3 or the letters D, E, or FUse F2 to change tab pagesPTZ Control mode - zoom in
		Enter the number 4 or the letters G, H, or IUse ESC to exit and return to previous screen
		Enter the number 5 or the letters J, K, or LUse EDIT to delete characters before the cursor, to check checkboxes, and to select ON/OFFPlayback mode - start/stop record clipping
		Enter the number 6 or the letters M, N, or OUse PLAY for direct access to Playback interface
		Enter the number 7 or the letters P, Q, R, or SUse REC to open the Manual Record interface
		Enter the number 8 or the letters T, U, or VAccess the PTZ Control interface
		Enter the number 9 or the letters W, X, Y, or ZMulti-channel display in Live View
		Enter the number 0Shift input methods in the editing text field (upper and lowercase, alphanumeric, or symbols input)Press twice to switch main and auxiliary output
	Jog Shuttle Control	Cycle through channels in Live ViewJump 30 seconds forward/back in Playback modeMove up or down in active selection in a menuControl PTZ camera movement in PTZ Control mode
	Power On/Off Power on or off
	USB Interfaces Plug in additional USB devices such as USB mouse or USB hard disk drive (HDD)

PRODUCT OVERVIEW

Rear Panel

7 4 5 9 10 12 eSATA RS-232 VGA SW RS-485 KB ALARM IN ALARM OUT 1 2 3 4 5 6 7 8 POE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 15 1 2 3 6 14 8 11 13

ITEM FUNCTION DESCRIPTION
1	Video Out For connecting to a BNC monitor for video output
2	CVBS Audio Out	For connecting to a BNC monitor for audio output (synchronized with CVBS video output)
	VGA Audio Out	For connecting to a BNC monitor for audio output (synchronized with VGA video output)
3	Line In For connecting to a BNC monitor for audio output
4	RS-232 Interface For connecting RS-232 devices
5	VGA For DB9 connector for VGA output (display local video output and menu)
6	HDMI For connecting an HDMI video output cord
7	eSATA	For connecting external SATA HDD, CD/DVD-RM
8	Network Interface	One network interface provided
9	Termination Switch	RS-485 termination switchUp position is not terminatedDown position is terminated with 120 Ω resistance
10	RS-485 Interface	For connecting RS-485 devices
	Controller Port	D+, D- pin connects to Ta, Tb pin of controller. (for cascading devices, the first NVR's D+, D- pin should be connected with the D+, D- pin of the next NVR)
	Alarm In	For connecting alarm input
	Alarm Out	For connecting alarm output
11	Ground	Ground connection (must be connected to start NVR)
12	AC 100V ~ 240V AC 100V ~ 240V power supply
13	Power	Power on or off
14	USB Interface	For connecting additional USB devices
15	Network Interfaces with PoE function	For interfacing cameras over network and providing power over Ethernet

Remote Control

The remote control provided requires two (2) AAA batteries. Install batteries before operating.

ITEM FUNCTION DESCRIPTION
1	Power Power on or off
2	DEV Enable/disable remote control
3	Alphanumeric Buttons Same as alphanumeric buttons on front panel
4	EDIT Sames as EDIT button on front panel
5	A Same as A button on front panel
6	REC Same as REC button on front panel
7	PLAY	Same as PLAY button on front panel
8	INFO	Reserved for future use
9	VOIP/MON	Same as MAIN/SPOT/ZOOM on front panel
10	MENU	Same as MENU button on front panel
11	PREV	Same as PREV button on front panel
12	Direction/Enter	Same as direction buttons on front panel
13	PTZ	Same as PTZ button on front panel
14	ESC	Same as ESC button on front panel
15	Reserved	Reserved for future use
16	F1	Same as F1 button on front panel
17	PTZ Control	Adjust iris, focus, and zoom of a PTZ camera
18	F2	Same as F2 button on front panel

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 DEV 20C OUT 123 GHJKLAMNO 456 PORTUANXXXZ 7 8 9 EDIT 0 A REPLAY INFO VOP/MON MENU PITZENZ ENTER FIDY F1S FOCUS ZOOM F2

Troubleshooting Remote Control

Make sure batteries are properly installed and that the remote is aimed directly at the IR receiver on the front panel. If remote still does not work properly, take the following steps:

1. Go to MENU > CONFIGURATION > GENERAL > MORE SETTINGS.
2. Check and note NVR ID# (default is 255).
3. Press DEV on remote control.
4. Enter NVR ID# from step 2.
5. Press ENTER on remote control.
6. Check status indicator on front panel (blue = remote is functioning properly).

NOTE:

If status indicator does not turn blue and remote does not respond, repeat steps 1 through 6 or contact device provider.

PRODUCT OVERVIEW

USB Mouse

A standard three-button (left/right/scroll-wheel) USB mouse can be used with this NVR. To use a USB mouse, simply plug the USB mouse into one of the USB interfaces on the front panel.

NOTE:

The NVR will automatically detect a compatible mouse.

Follow the steps below to operate the USB mouse.

1 Left-Button:

• Click to select a menu option.
• Click to select channel and show quick set menu in Live View.
• Double-click in Live View to switch between single-screen and multi-screen.
• Click and drag in PTZ Control to pan, tilt, and zoom.
• Click and drag to select target area in Video Tampering, Privacy Mask, and Motion Detection.
• Click and drag to select target area in Digital Zoom.
• Click and drag to drag channel/time bar in Live View.

2 Right-Button:

• Click to show menu in Live View.
• Click to exit current menu to upper-level menu.

3 Scroll-Wheel:

• Scroll up in Live View to go to previous screen.
• Scroll up in any menu to go to previous item.
• Scoll down in Live View to go to next screen.
• Scroll down in menu to go to next item.

Mouse Button Operation

PRODUCT OVERVIEW

Virtual Keypad

To enter text or numerical data, the system uses a virtual keypad. In fields where letters or numbers can be entered, you can switch between various formats — numbers, upper case letters (ABC), and lowercase letters (abc).

Virtual Keypad 1 Virtual Keypad 2

1 2 3 4 5 6 7 8 9 0 Q W E R T Y U I O P A S D F G H J K L Z X C V B N M 123 58 6 7

1 2 3 . - 4 5 6 _ : 7 8 9 / @ 0 #+= × ABC ↓ ◀ ▶ ←

ITEM	BUTTON DESCRIPTION
1	Alphanumeric Buttons Letters and Number Keys
2	Shift / Caps Lock
3	Delete / Backspace
4	Switch to number keypad
5	Space Bar
6		Direction Controls
7	Enter
8	Switch to alphabet keypad
9	Switch to ypad

Powering your NVR

Make sure the voltage of the extra power supply meets the NVR's requirement and that the ground connection is working properly.

Start Up and Shut Down

Starting Up

1. Make sure the power cord is properly plugged into an electrical outlet. Using an Uninterruptible Power Supply (UPS) is highly recommended. The Power indicator LED on the front panel will display red when the device has power.
2. Press Power on the front panel. The Power indicator will display blue when the device starts.
3. After startup, the Power indicator should remain green. The following screen will appear with the status of HDD. The row of icons at the bottom of the screen shows the HDD status. "X" means the HDD is not installed or cannot be detected.

Shutting Down

There are two options for shutting down the NVR.

Standard Shutdown:

1. Menu > Shutdown
2. Shutdown
3. Yes

Front-Panel Shutdown:

1. Press and hold Power for three seconds
2. Enter administrator's username and password in dialog box
3. Click Yes

Rebooting

1. Menu > Shutdown
2. Reboot

NOTE:

The Logout button will lock the NVR.

Shutdown Logout Shutdown Reboot Cancel

Setup Wizard

Quick Startup

After the initial system power up, the Setup Wizard will automatically launch. Click "Next" in the Wizard screen to work through the Setup Wizard.

To skip the Setup Wizard temporarily, check the "Start wizard when device starts" box and then click "Exit."

Wizard Start wizard when device starts? Next Exit

To login to the Setup Wizard, enter the default admin password 12345. Check the New Admin Password box. Enter and confirm a new password and then click Next to set the date and time.

Wizard Admin Password ***** New Admin Password ✓ New Password *** Confirm ***

Wizard Time Zone (GMT+08:00) Beijing, Urumqi, Singapore Date Format MM-DD-YYYY System Date 05-08-2013 System Time 15:22:59 Previous Next Exit

Set the correct time zone.

Choose from the dropdown menu to set preferred date format.

* Click on the calendar icon to set the current system date.

Click on the clock icon to set the current system time and then click Next to set the network parameters.

INITIAL SETUP

Network Wizard

Check mark "Enable DHCP" and choose "Next"

Wizard NIC Type 10M/100M/1000M Self-adaptive Enable DHCP IPv4 Address 172 .9 .11 .212 IPv4 Subnet Mask 255 .255 .255 .0 IPv4 Default Gateway 172 .9 .11 .1 Preferred DNS Server Alternate DNS Server Internal NIC IPv4 Ad... 192 .168 .1 .1 Previous Next Exit

HDD Management

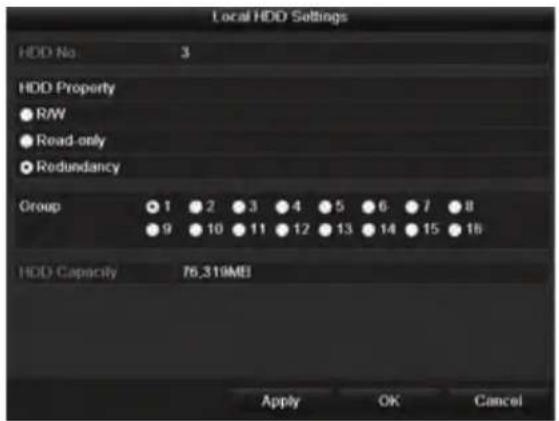

After the network has been configured, the HDD needs to be initialized in order to activate the HD. Click Init and then Next.

Wizard L... Capacity Status Property Type Free Space 2 465.76GB Uninitialized R/W Local 0MB 7 931.51GB Uninitialized R/W Local 0MB 10 931.51GB Uninitialized R/W Local 0MB Init Previous Next Exit

INITIAL SETUP

Adding an IP Camera

After initializing the HDD, IP cameras can be added through the IP Camera interface.

To find an online IP camera, click Search. Select the IP camera and click Add.

Click Next to move to the next menu to configure the recording for the added IP camera.

Wizard No. IP Address Amount of... Device Ty... Protocol Manage F Add Search Previous Next Exit

Wizards Continuous Motion Detection Previous OK Edit

Once an IP camera is added, configure the recording settings and click Ok to complete the Setup Wizard.

Adding and Connecting Cameras

Before you start

Connect network cameras via the PoE interfaces. If there are three fisheye cameras, connect them to any PoE interfaces.

Protocol over Ethernet

The Protocol Over Ethernet (PoE) interface allows electrical power and data to safely pass from Ethernet cables to connected network cameras. This NVR allows up to 16 direct network PoE camera connections. If the PoE interface is disabled, online network cameras can be connected.

To add cameras with the PoE function, enter the Camera Management interface: Menu > Camera > Camera.

NOTE: Fisheye cameras have five channels. When connected to the NVR, the first fisheye channel will be added automatically. The four other channels can be added manually.

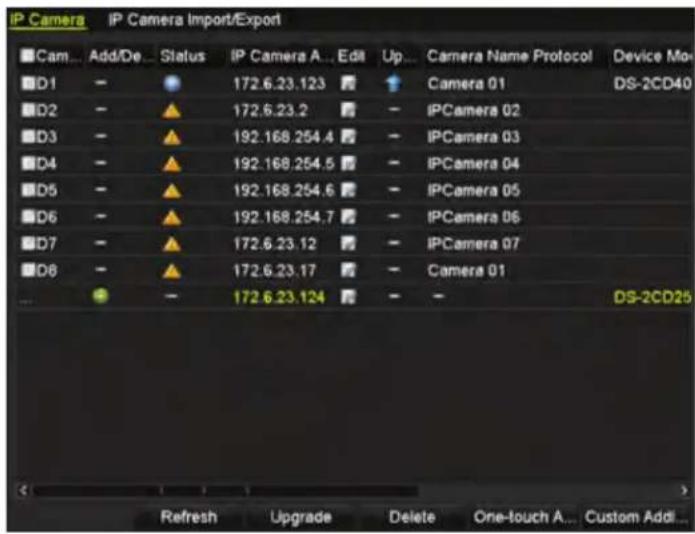

IP Camera IP Camera Import/Export Cam... Add/De... Status IP Camera A... Edit Up... Camera Name Protocol Device Mo- D1 - ● 172.6.23.123 📁 Camera 01 DS-2CD40 D2 - ▲ 172.6.23.2 📁 - IPCamera 02 D3 - ▲ 192.168.254.4 📁 - IPCamera 03 D4 - ▲ 192.168.254.5 📁 - IPCamera 04 D5 - ▲ 192.168.254.6 📁 - IPCamera 05 D6 - ▲ 192.168.254.7 📁 - IPCamera 06 D7 - ▲ 172.6.23.12 📁 - IPCamera 07 D8 - ▲ 172.6.23.17 📁 - Camera 01 ... - 172.6.23.124 📁 - DS-2CD25 Refresh Upgrade Delete One-touch A... Custom Add...

1. Click the button and select the adding method in the dropdown list.

2. Change Plug-and-Play to Manual.

3. Input IP address, channel port, administrator user name and password manually.

4. Click OK to add other channels.

NOTE: To add a second channel of the fisheye camera, configure channel port to 2.

Edit IP Camera IP Camera No D1 Adding Method Manual IP Camera Address 172.6.23.123 Protocol Management Port 8000 Channel Port 1 Transfer Protocol Auto User Name adults Admin Password ***** Protocol OK Cancel

Live View Introduction

What is Live View?

The Live View setting displays the real-time images from each camera. When powered on, the NVR automatically enters Live View mode.

Exterior view of a modern multi-story building with glass facade and adjacent street (no signage)

Live View Icons

The Live View icons show the status of the record and alarm for each channel. The icons are located at the upper-right portion of the screen.

ICON DESCRIPTION
	Alarm (video loss, video tampering, motion detection, or sensor)
	Record (manual record, schedule record, motion detection or alarm triggered record)
	Alarm and Record
	Event/Exception (motion detection, sensor alarm or exception information) — will appear at the lower-left corner of the screen

Operations

Operations in Live View?

Live View offers the following functions:

FUNCTION DESCRIPTION
Single Screen Displays only one screen on the monitor
Multi-Screen Simultaneously displays multiple screens on the monitor
Auto-Switch	Use to auto switch between screensDwell time for each screen must be set in the Configuration menu before enabling(Menu >Configuration >Live View >Dwell Time)
Start Recording Continuously record (motion detection record supported)
Output Mode Set output to Standard, Bright, Gentle, or Vivid
Add IP Camera Shortcut to IP Camera Management interface
Playback Play current day's recorded videos
Aux/Main Output Switch	Defines the main and auxiliary output interfacesPriority level for the main and aux output is HDMI >VGA >CVBS(if HDMI is used, VGA will be main output and if VGA is used, CVBS will be main output)

Priority Chart

	HDMI	VGA	CVBS	MAIN OUTPUT	AUXILIARY OUTPUT
1 √√	√ HDMI VGA
2 √	x	√ HDMI		CVBS
3	x	√√	VGA CVBS
4	x	x	√ CVBS

√ means interface is in use

x means interface is out of use or connection is invalid

08-03-2014 Sun 09:09:10 Menu Single Screen Multi screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback Output Mode Air Monitor Camera 01

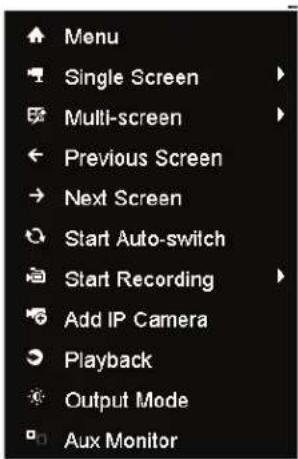

Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback Output Mode Aux Monitor

Choosing Live View Functions

The Live View functions described on the previous page can be set using either the front panel, the USB mouse, or an auxiliary monitor. Only certain features are available with each type of operation. The following table describes the functions available for each.

FUNCTION	FRONT PANEL OPERATION	MOUSE OPERATION(RIGHT-CLICK MENU)	AUXILIARY MONITOR
Single Screen	Press corresponding alphanumeric button (e.g. “2” to display screen for channel 2 only)	Choose channel number from dropdown list	Select camera from dropdown list and switch to full-screen display of that camera
Multi-Screen Press PREV/FOCUS button		Choose screen layout from dropdown list	Choose screen layout from dropdown list
Previous/Next Screen	Use right/down buttons to move to next screen and left/up buttons to move to previous screen	Click on Previous Screen or Next Screen	Click Next Screen to switch to the next set of displays when viewing less than the maximum number of cameras in Live View
Auto-Switch Press ENTER		Click Start Auto-Switch to enable Click Stop Auto-Switch to disable
Playback Press PLAY	Click Playback Enter Playback mode
Main/Aux Output Switch	Press MAIN/AUX button to switch between main and auxiliary output	Click Aux Monitor to disable main output
Menu Right click to enter main menu
Start Recording		Click Start Recording to start continuous or motion-detection recording of all channels
Add IP Camera Click Add IP Camera
Output Mode		Click Output Mode to choose Standard, Bright, Gentle, or Vivid
Aux Monitor Click Aux Monitor
Main Monitor Enter Main operation mode
PTZ Enter PTZ Control mode
NOTE:		The dwell time of the Live View configuration must be set before using the Start Auto-Switch.The mouse will not work if in Aux monitor mode and aux monitor is not connected.	While Aux output mode is enabled in the main output monitor, the menu operation is not available.In Live View on the main output monitor, the menu operation is not available while Aux output mode is enabled.

Live View Quick Setting Toolbar

Each channel offers a quick setting toolbar for single-click mouse options in the corresponding screen.

5m

ICON	FUNCTION	ICON	FUNCTION
	Enable / Disable manual record PTZ Co
	Capture Live View Strategy
	Image Settings		Mute / Audio On
	Close Digital Zoom
	Instant Playback Stream Informa

NOTE: Image settings menu allows you to customize parameters like contrast, brightness, saturation & hue.

Instant playback only shows last five minutes of recording. No record found means no record for last five minutes.

Set strategy with Live View Strategy including realtime, balanced and fluency.

To use Digital Zoom, left-click and drag to draw a box around the selected area to zoom.

Stream Information shows real time stream information including frame rate, bitrate and resolution.

Adjust Live View Settings

To configure Live View settings (such as the Output interface, dwell time, mute or audio on, or screen number for each channel), Enter the Live View interface: Menu > Configuration > Live View.

SETTING FUNCTION
Video Output Interface	Designates output settings for HDMI, VGA, Main CVBS, and Spot Output
Live View Mode Designates the Display Mode to be used for Live View
Dwell Time	Time (in seconds) to delay between switching channels when enabling auto-switch in Live View
Enable Audio Output Enables / Disables audio output for selected video output
Volume	Adjust volume of Live View, Playback, and two-way audio for selected output interface
Event Output Designates the output to show event video
Full Screen Monitoring Dwell Time	Time (in seconds) to show alarm event screen

1. Select a View Mode in □□□□□ including

1/4/6/8/16/25/32/36-window division modes.

1. Select small window and double click on channel number.

2. Click Apply.

General View Channel-Zero Encoding
Video Output Interface	VGA/HDMI
Live View Mode	4 * 4
Dwell Time	No Switch
Enable Audio Output
Volume
Event Output	Main CVBS
Full Screen Monitoring D...	10s

General View Channel-Zero Encoding Video Output Interface VGA/HDMI Camera ... Camera Name D1 Camera 01 D2 Camera 01 D3 IPCamera 03 D4 IPCamera 04 D5 IPCamera 05 D6 IPCamera 06 D7 IPCamera 07 D8 IPCamera 08 1 2 3 4 5 6 7 8 9 D1 D2 X D8 D5 X D7 X D6 P: 1/4

NOTE: You can also click and drag the camera to the desired window on the live view interface to set camera order.

Channel-Zero Encoding

In order to decrease bandwidth without affecting the image quality, channel-zero encoding is supported to get a remote view of many channels in real time from web browser of CMS software. Enter Live View Settings interface: Menu > Configuration > Live View> Channel-Zero Encoding.

1. Enable Channel-Zero Encoding.
2. Configure Frame Rate, Max. Bitrate Mode, and Max. Bitrate.

After you set the Channel-Zero encoding, you can get a view in the remote client or web brower of 16 channels in one screen.

General View Channel-Zero Encoding Enable Channel-Zero Encoding ✓ Frame Rate Full Frame Max. Bitrate Mode General Max. Bitrate/Video 1792

User Logout

After logging out, the monitor turns to live view mode. After logging out of the system, menu operation on screen is invalid. It is required to input a username and password.

1. Enter Shutdown Menu: Menu > Shutdown.
2. Click Logout.

Shutdown Layout Shutdown Reboot Cancel

Configuring PTZ Settings

Before you start

Make sure the PTZ and NVR are properly connected through the RS-485 interface.

PTZ is an acronym for pan, tilt, zoom. PTZ cameras that allow the camera to pan left and right, tilt up and down, and zoom in and out. To set the parameters of a PTZ camera, enter the PTZ Settings interface: Menu > Camera > PTZ.

1. Choose camera from Camera dropdown list.
2. Enter parameters (should match PTZ camera parameters).
3. Click Apply.

General More Settings Camera IP Camera 1 Baud Rate 9600 Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None PTZ Protocol Address 0 Address range: 0~255

Setting PTZ Presets, Patrols, and Controls

Customizing Presets

Set a preset location for a PTZ camera to point to when an event takes place: Menu > Camera > PTZ > More Settings.

1. Use directional button to wheel camera to desired location.
2. Click Save Preset.
3. Choose present number.
4. Repeat to save more presets. If number of presets is more than 17, click [...] and choose available numbers.

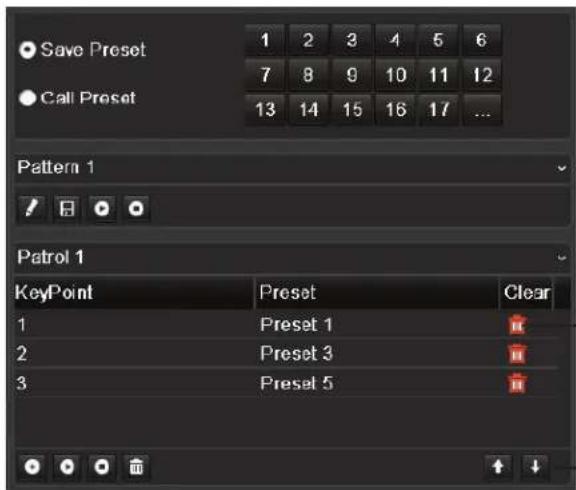

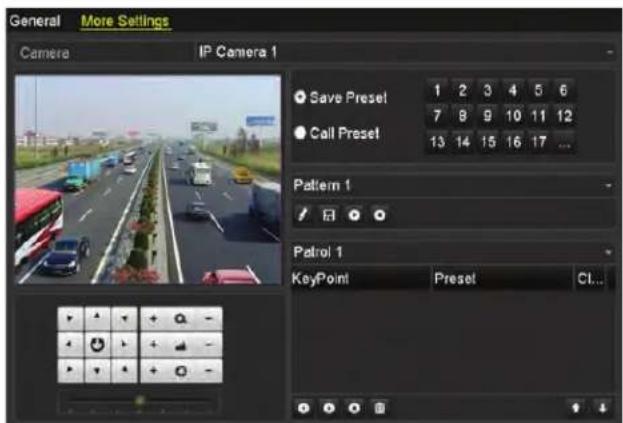

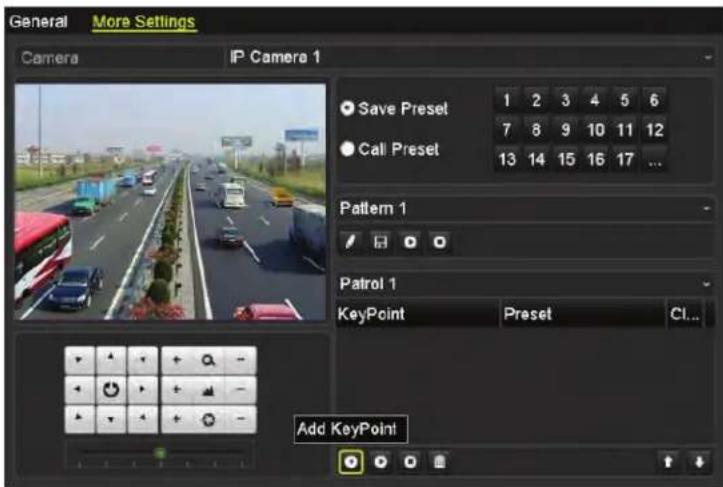

General More Settings Camera IP Camera 1 Save Preset 1 2 3 4 5 6 Call Preset 7 8 9 10 11 12 13 14 15 16 17 ... Pattern 1 Patrol 1 KeyPoint Preset CI...

PTZ Controls

Calling Presets in PTZ Setting Interface

Enable a position for a PTZ camera to point to when an event takes place: Menu > Camera > PTZ > More Settings.

1. Check Call Preset.
2. Choose preset number.

Save Preset Call Preset

Calling Presets in Live View Mode

1. Click PTZ button.
2. Choose camera from list.
3. Double-click Preset from list.

PTZ Speed Configuration Camera Preset P D1 D2 D3 D4 D5

PTZ Speed Configuration Camera Preset P Preset1 Preset2 Preset3 Preset4 Preset5

Customizing Patrols

Patrols allow a PTZ camera to move to different points for set durations before moving to the next point. Key points correspond to presets: Menu > Camera > PTZ > More Settings.

1. Select patrol number from dropdown.
2. Click ☐ to add key point.
3. Configure key point parameters. The Key Point No. determines order.
4. Click OK.

General More Settings Camera IP Camera 1 Save Preset 1 2 3 4 5 6 Call Preset 7 8 9 10 11 12 13 14 15 16 17 ... Pattern 1 Patrol 1 KeyPoint Preset Cl... Add KeyPoint

KeyPoint KeyPoint:1 Preset 1 Duration 3 Speed 1 OK Cancel

Choose corresponding preset number.
Choose time duration to stay at key point.
Choose speed at which PTZ camera will move to next key point.

Save Preset Call Preset 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 ... Pattern 1 Patrol 1 KeyPoint Preset Clear 1 Preset 1 2 Preset 3 3 Preset 5

Delete key point

To reorder key points, select a key point and use the arrows

PTZ Controls

Calling Patrols in PTZ Setting Interface

Start moving PTZ camera according to pre-defined patrol path in the PTZ setting interface: Menu > Camera > PTZ > More Settings.

1. Select patrol number and click 📄 to call the patrol.
2. Click to stop it.

Save Preset Call Preset 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 ... Pattern 1 Patrol 1 KeyPoint Preset Clear 1 Preset 1 2 Preset 3 3 Preset 5

Calling Patrols in Live View Mode

Start moving PTZ camera according to pre-defined patrol path in Live View mode by clicking the PTZ button in the PTZ Setting interface or by pressing the PTZ icon 📋 on the front panel.

1. Choose Patrol on control bar.
2. Double click patrol or select the patrol and click 📋 to call it.

PTZ Speed Configuration Preset Patrol Patl Patrol1 Patrol2 Patrol3 Patrol4

Customizing Patterns

Set patterns by recording the movement of the PTZ camera and call the pattern to make the PTZ camera movement according to the predefined path: Menu > Camera > PTZ > More Settings.

1. Choose pattern number.
2. Click find use mouse to drag image or click directional buttons. The movement of the PTZ camera is recorded as the pattern.
3. Click ☐ save.

General More Settings Camera IP Camera 1 Save Preset 1 2 3 4 5 6 Call Preset 7 8 9 10 11 12 13 14 15 16 17 ... Pattern 1 Patrol 1 KeyPoint Preset CL...

Calling Patterns in PTZ Setting Interface

Move PTZ camera according to predefined patterns in PTZ setting interface: Menu > Camera > PTZ > More Settings.

1. Choose pattern number.
2. Click ▶ The PTZ moves according to the pattern.
3. Click ☐ to stop it.

General More Settings Camera IP Camera 3 Save Preset 1 2 3 4 5 6 Call Preset 7 8 9 10 11 12 13 14 15 16 17 ... Pattern 1 Patrol 1 KeyPoint Preset Cl

PTZ Controls

Calling Patterns in Live View Mode

Move PTZ camera according to predefined patterns in Live View mode by clicking the PTZ button on the screen or pressing the PTZ button on the front panel.

1. Choose pattern number.
2. Double click pattern or select pattern and click 📋 to call it.

PTZ Control Panel

Option 1: In PTZ settings interface, click PTZ button in lower right corner.

Option 2: In Live View mode, press PTZ Control button on front panel or remote control, or choose 📄 PTZ icon.

Click configuration button on control panel.

PTZ Speed Configuration Camera Preset P D1 D2 D3 D4 D5

PTZ Speed Configuration Preset Patrol Patrol1 Patrol2 Patrol3 Patrol4

NOTE: In PTZ control mode, the PTZ panel will be displayed when mouse is connected. If no mouse is connected,

PTZ icon appears in lower left corner of window, indicating that camera is in PTZ control mode.

ICON		DESCRIPTION	ICON	DESCRIPTION
		Direction and auto-cycle Zoom + / Focus + / Iris +	+
		Speed of PTZ movement Zoom - / Focus - / Iris -	-
		3D-Zoom Light On / Off
		Previous item Wiper On / Off
		Next item Image centralization
		Patrol Menu
		Pattern Start pattern / patrol
		Preset Minimize window
		Stop patrol or pattern movement Exit

RECORDING AND CAPTURE SETTINGS

Configuring Parameters

Check the storage mode of the HDD: Menu > HDD > General.

1. Click Advanced
2. If HDD mode is Quota: Set maximum record capacity and maximum picture capacity. If HDD mode is Group: Set the HDD group.

Storage Mode Disk Clone Mode Group Record on HDD Group Quota Group IP Camera D1 D2 D3 D4 D5 D6 D7 D8

Configure parameters to define image quality including transmission stream type and resolution. Enter the Record Settings interface to set recording parameters: Menu > Record > Parameters > Record.

1. Configure parameters according to table below.
2. Click Apply.

Before you start

Make sure the HDD has already been installed and initialized.

Camera	IP Camera 1
Encoding Parameters	Main Stream(Continuous)	Main Stream(Event)
Stream Type	Video & Audio	Video & Audio
Resolution	704'576(4CIF)	704'576(4CIF)
Bitrate Type	Variable	Variable
Video Quality	Medium	Medium
Frame Rate	Full Frame	Full Frame
Max. Bitrate Mode	General	General
Max. Bitrate(Kbps)	2048	2048
Max. Bitrate Range Reco...	1152~1920(Kbps)	1152~1920(Kbps)
Pre-record	5s
Post-record	5s
Expired Time (day)	0
Redundant Record/Capt...

SETTING FUNCTION
Pre-Record Time set to record before a scheduled event
Post-Record Time set to record after a scheduled time or event
Expired Time	The longest time for a record file to be kept in the HDD before deleting. “0” will keep a file from being deleted.
Redundant Record / Capture Enable to save record and captured picture in redundant HDD
Record Audio Enable / Disable audio recording
Video Stream	Choose between main stream or sub-stream (Sub-stream allows longer record time with the same storage space)

NOTE: Redundant HDD must be configured in HDD settings prior to use.

NOTE: Main stream parameters are read-only.

To set sub-stream parameters, enter sub-stream tab page.

Camera	IP Camera 1
Stream Type	Video
Resolution	352*288(CIF)
Bitrate Type	Variable
Video Quality	Medium
Frame Rate	Full Frame
Max. Bitrate Mode	General
Max. Bitrate(Kbps)	256
Max. Bitrate Range Reco...	384~640(Kbps)

To set parameters for capture, click Capture.

Record Substream Capture
Camera	IP Camera 4
Parameter Type	Continuous	Event
Resolution	704*480(4CIF)	704*480(4CIF)
Picture Quality	Medium	Medium
Interval	2s	2s

1. Use the dropdown lists to set each parameter.

2. Click Apply.

3. Use the dropdown lists to set each parameter.

4. Click Apply.

NOTE: The interval is the time period between two capturing actions. You can configure all the parameters on this menu on your demand.

RECORDING AND CAPTURE SETTINGS

Configuring Recording/Capture Schedule

Record schedules are used to set times for cameras to automatically start or stop. The following steps can also be taken to set a schedule for automatic capture by entering the Capture tab in the Schedule interface: Menu > Record/Capture > Schedule > Record/Capture Schedule.

Record Capture Camera IP Camera 7 Enable Schedule 0 2 4 6 8 10 12 14 16 18 20 22 24 Mon Tue Wed Thu Fri Sat Sun Edit Continuous Event Motion Alarm M | A M & A VCA None

1. Choose the camera to schedule.
2. Check Enable Schedule.
3. Click Edit or choose a color icon under the Edit button and draw the schedule line on the panel.

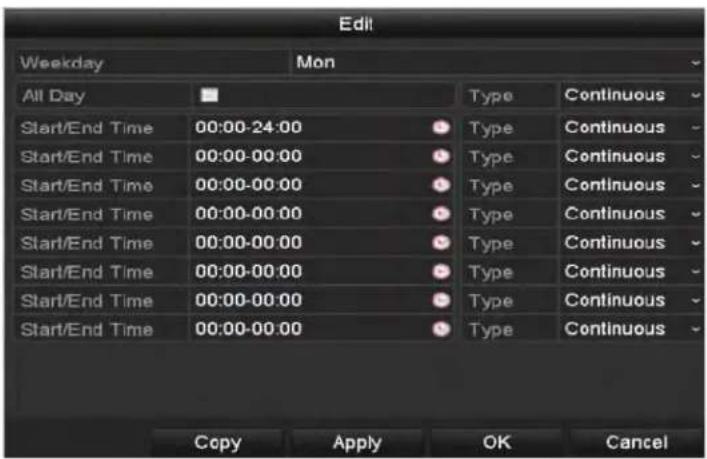

Edit Weekday Mon All Day Type Continuous Start/End Time 00:00-24:00 Type Continuous Start/End Time 00:00-00:00 Type Continuous Start/End Time 00:00-00:00 Type Continuous Start/End Time 00:00-00:00 Type Continuous Start/End Time 00:00-00:00 Type Continuous Start/End Time 00:00-00:00 Type Continuous Start/End Time 00:00-00:00 Type Complete Copy Apply OK Cancel

1. Select the day of the week to schedule
2. Check All Day item to schedule an all-day recording. Click on the the clock to set the accurate Start / End times for the recording.
3. For a non-All Day schedule, leave All Day unchecked and set the Start / End time (up to eight recording periods can be schedule for each day and times cannot overlap).
4. Select the record type from the dropdown list.

NOTE: To enable Motion, Alarm, M | A (motion or alarm), M & A (Motion and alarm) and VCA (Video Content Analysis) triggered recording and capture, configure motion detection settings, alarm input settings or VCA settings. The VCA settings are only available to the smart IP cameras.

1. Click Copy to copy settings to another day of the week.
2. Click OK to save setting and return to upper level menu.
3. Click Apply in Record Schedule interface.

RECORDING AND CAPTURE SETTINGS

Drawing a Schedule

1. Click on the color to determine the schedule type as continuous or an event.

Record Capture Camera IP Camera 7 Enable Schedule 0 2 4 6 8 10 12 14 16 18 20 22 24 Edit Continuous Event Motion Alarm M | A Recording triggered by either motion or alarm Recording triggered by both motion and alarm VCA None Normal recording Recording triggered by motion Recording triggered by alarm Recording triggered by VCA Delete set schedule Mon Tue Wed Thu Fri Sat Sun *Note: Operation is invalid when the number of time segments exceeds the limit (6).

1. Click Apply. (To apply to other channels, click Copy and select channels).

Configuring Motion Detection Recording and Capture

The motion detection setting can automatically trigger recording, full screen monitoring, audio warning, notification to surveillance center, and more when enabled. To enable: Menu > Camera > Motion.

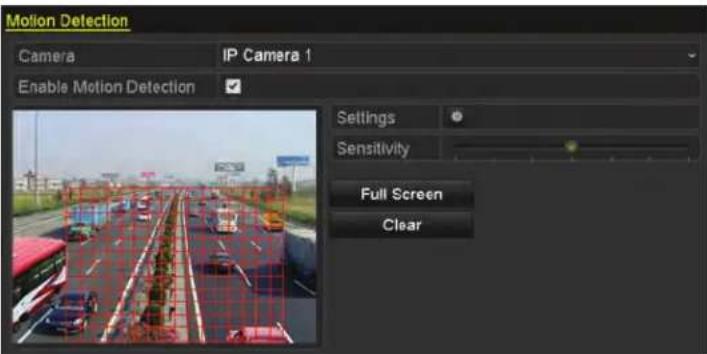

Motion Detection Camera IP Camera 1 Enable Motion Detection Settings Sensitivity Full Screen Clear

1. Choose the camera.
2. Check Enable Motion Detection.
3. Drag and draw a box on area for motion detection using left mouse button or choose "Full Screen" to enable motion detection for the entire viewing area. Click Clear to remove a motion detection area.
4. Click Settings for the Channel Information pop up.

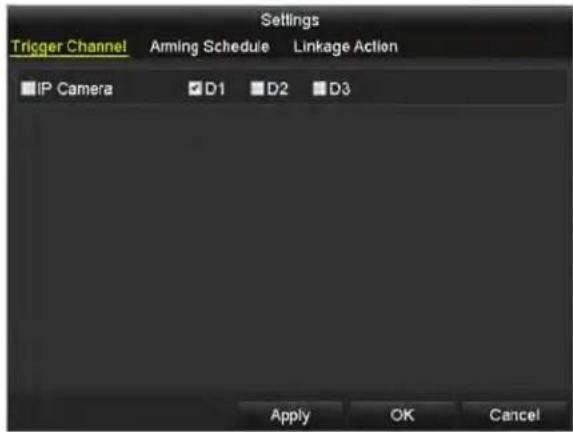

Settings Trigger Channel Arming Schedule Linkage Action P Camera D1 D3 D4 Apply OK Cancel

1. Select the channels which you want the motion detection event to trigger recording.
2. Click Apply
3. Click OK to return to the previous menu and exit the motion detection menu.

RECORDING AND CAPTURE SETTINGS

Configuring Motion Detection Recording and Capture

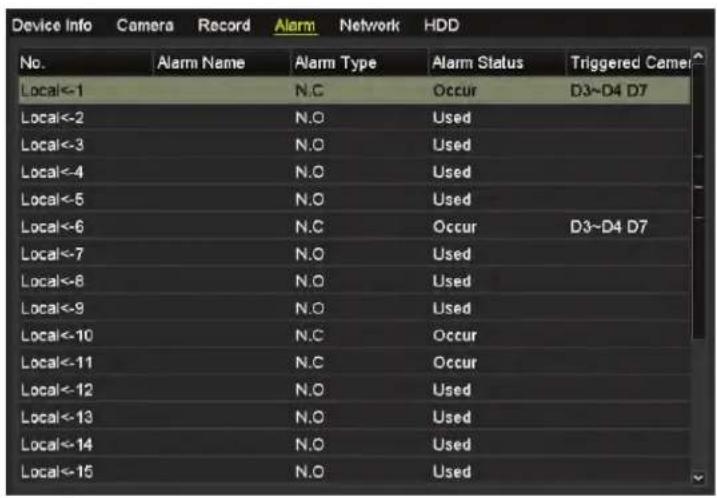

Enter the Alarm Setting interface: Menu > Configuration > Alarm and click Alarm Input.

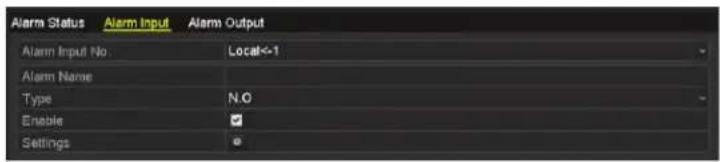

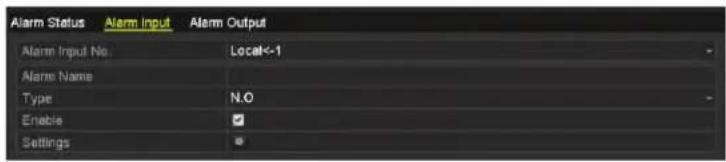

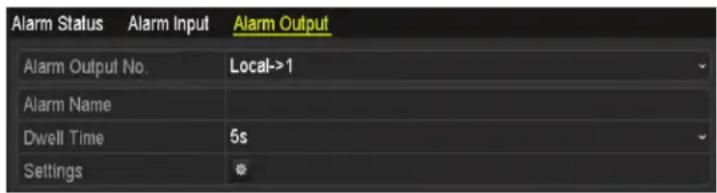

Alarm Status Alarm Input Alarm Output Alarm Input List Alarm Input No Alarm Name Alarm Type Local<-1 N.O Local<-2 N.O Local<-3 N.O Local<-4 N.O Local<-5 N.O Local<-6 N.O Local<-7 N.O Alarm Output List Alarm Output No. Alarm Name Dwell Time Local->1 Manually Clear Local->2 Manually Clear Local->3 Manually Clear Local->4 Manually Clear 172.6.23.105:8000->1 5s

Alarm Status Alarm Input Alarm Output Alarm Input No Local<-1 Alarm Name Type N.O Enable Settings

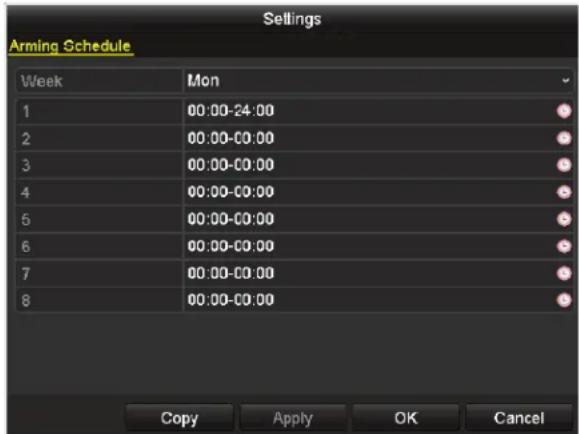

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking IP Camera D1 D2 Apply OK Cancel

NOTE: Alarm Inputs can be copied by clicking Copy and selecting the alarm input numbers.

1. Select Alarm Input No and configure parameters.
2. Choose N.O (Normally Open) or N.C (Normally Closed).
3. Check Enable.
4. Click Settings.
5. Choose the alarm triggered recording channel.
6. Click Apply to save the settings.
7. Click OK to return to upper level menu.

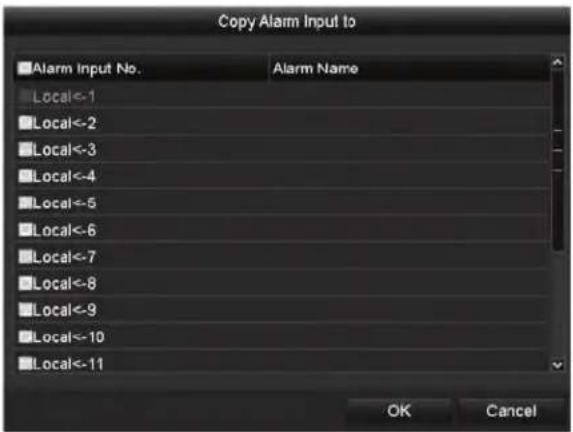

Copy Alarm input to ■Alarm Input No. Alarm Name Local← 1 ■Local←2 ■Local←3 ■Local←4 ■Local←5 ■Local←6 ■Local←7 ■Local←8 ■Local←9 ■Local←10 ■Local←11 OK Cancel

RECORDING AND CAPTURE SETTINGS

Manual Recording and Continuous Capture

Enter the Manual Settings interface: Menu > Manual or press the REC/SHOT button on the front panel.

Record IP Camera D1 D2 D3 Recording by schedule Recording by manual operation Continuous Motion Detection

1. Click Record.
2. Click status button to change 📄 . 📆
3. Click ☐o enable manual recording. Click disable manual recording.

Green ON icon means the channel is configured to the record schedule. Reboot will activate all changes.

To set continuous capture, click Continuous Capture.

Continuous Capture IP Camera D1 D2 D3 Capturing by schedule Capturing by manual operation

1. Click Continuous Capture.
2. Click status button to change ON to ON
3. Click ☐ to enable continuous capture. Click disable continuous capture.

Green ON icon means the channel is configured to the capture schedule. Reboot will activate all changes.

Configuring Holiday Recording and Capture

To configure recording and capture settings for holidays, enter the Record Setting interface: Menu > Record > Holiday. Click on the holiday and then press the button.

Holiday Settings No.Holiday Names Options Cancel Code Cancel Color Cancel 1.Holiday1 Enabled 1.Jan 1.Jan # 2.Holiday2 Enabled 1st Day Jan nd Wind Jan 3.Holiday3 Disabled 1.Jan 1.Jan # 4.Holiday4 Disabled 1.Jan 1.Jan # 5.Holiday5 Disabled 1.Jan 1.Jan # 6.Holiday6 Disabled 1.Jan 1.Jan # 7.Holiday7 Disabled 1.Jan 1.Jan # 8.Holiday8 Disabled 1.Jan 1.Jan # 9.Holiday9 Disabled 1.Jan 1.Jan # 10.Holiday10 Disabled 1.Jan 1.Jan # 11.Holiday11 Disabled 1.Jan 1.Jan # 12.Holiday12 Disabled 1.Jan 1.Jan # Back

Edit Holiday Name Holiday1 Enable Mode By Week Start Date Jan - 1st - Sun End Date Jan - 1st - Sun Apply OK Cancel

1. Check Enable Holiday.
2. Select Mode from dropdown list.
3. Set Start Date and End Date.
4. Click Apply.
5. Click OK.

RECORDING AND CAPTURE SETTINGS

Configuring Redundant Recording and Capture

Before you start

Storage mode in HDD Advanced Settings must be set to Group before the HDD Property can be set to Redundant.

Redundant recording and capture enhances data safety and reliability. To configure, enter the HDD Information interface: Menu > HDD. Select the HDD and click

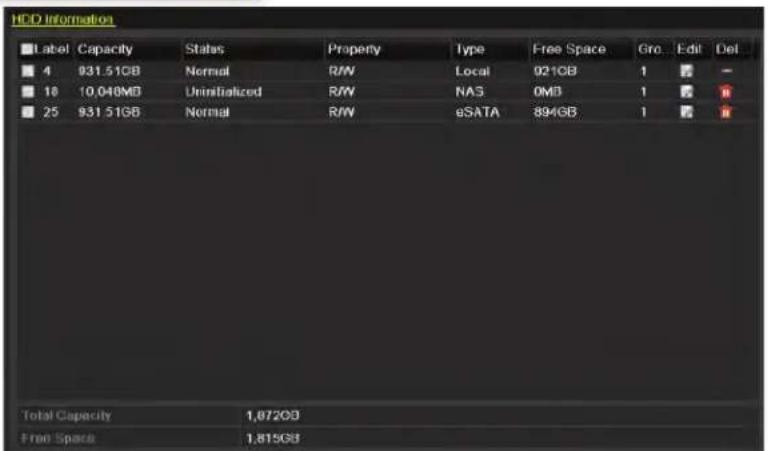

HDD Information Capacity Status Property Type Free Space Or Edit D 5 931.510B Normal RW Local 8460B I

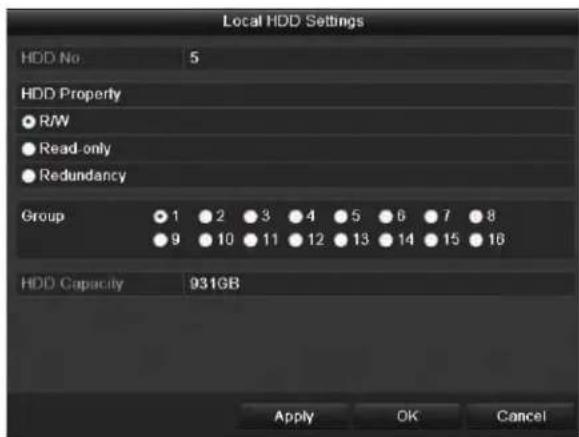

Local HDD Settings HDD No: 3 HDD Property ● R/W ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 76.319MEJ Apply OK Cancel

1. Set HDD Property to Redundancy.
2. Click Apply.
3. Click OK.

NOTE: You must set the Storage mode in the HDD advanced settings to Group before you set the HDD property to Redundant. There should be at least another HDD which is in Read/Write status.

Enter the Record Setting interface: Menu > Record > Parameters.

Camera Encoding Parameters Stream Type Resolution Bitrate Type Video Quality Frame Rate Max. Bitrate Mode Max. Bitrate(Kbps) Max. Bitrate Range Reco... Pre-record Post-record Expired Time (day) Redundant Record/Capl... Record Audio Video Stream IP Camera 1 Main Stream(Continuous) Video & Audio 704*576(4CiF) Variable Medium Full Frame General 2048 1152~1920(Kbps) Main Stream(Event) Video & Audio 704*576(4CiF) Variable Medium Full Frame General 2048 1152~1920(Kbps)

1. Select Record.
2. Select Camera to configure from dropdown list.
3. Check Redundant Record/Capture.
4. Click OK.

RECORDING AND CAPTURE SETTINGS

Configuring HDD Group for Recording and Capture

Record files and captured pictures can be saved to certain HDD groups. To configure HDD groups, enter the HDD Setting interface: Menu > HDD.

HDD General Storage Mode Disk Clone Advanced Mode Group Record on HDD Group 1 IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16

HDD Information ■ Capacity States Property Type Free Space Or Edit D ■ 5 931.51GB Normal RAW Local 846GB 1

Local HDD Settings HDD No. 4 HDD Property ● RAW ● Read-only ● Redundancy Group ●1 ●2 ●3 ●4 ●5 ●6 ●7 ●8 ● 9 ●10 ●11 ●12 ●13 ●14 ●15 ●16 HDD Capacity 2,794GB

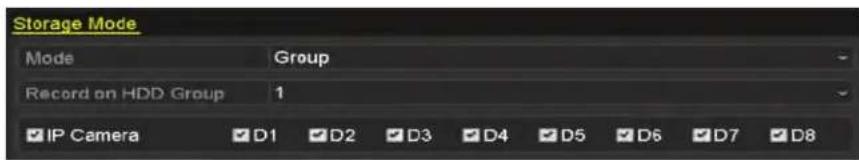

Mode Group Record on HDD Group 1 IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16

1. Click Advanced.
2. Set Mode to Group, click Apply and select Yes to Reboot.

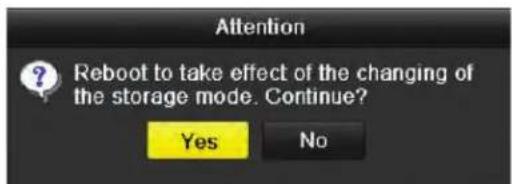

Attention Reboot to take effect of the changing of the storage mode. Continue? Yes No

1. Select General.
2. Click to enter Editing interface.

3. Configure HDD group:

4. Choose a group number.

5. Click Apply.

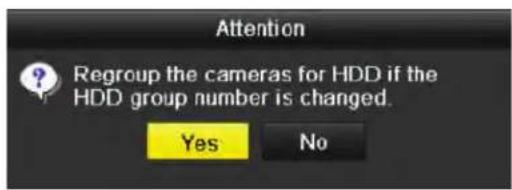

6. Click Yes in pop-up window.

7. Click OK.

8. Choose destination channels to save record files in HDD group:

9. Select Advanced.

10. Choose Group Number in dropdown list.
11. Check appropriate channels.
12. Click Apply.

NOTE: After configuring HDD groups, you can configure Recording and Capture settings.

RECORDING AND CAPTURE SETTINGS

File Protection

Record files can be protected from deletion by locking record files or setting the HDD Property to Read-Only.

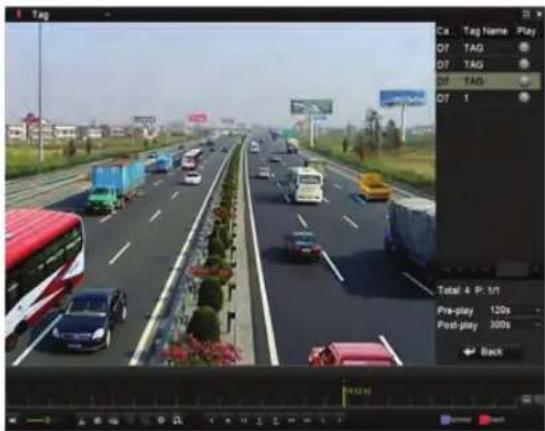

Locking Recording Files in Playback

Enter the Playback interface: Menu > Playback.

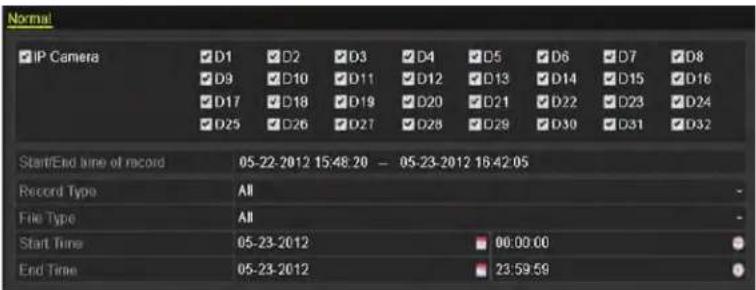

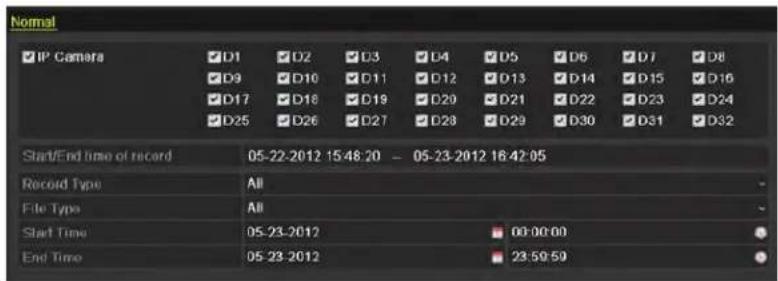

Normal Max. Ca... Min. Ca... IPCamera 01 IPCamera 02 IPCamera 03 IPCamera 04 IPCamera 05 IPCamera 06 Camera 01 Camera 01 Dec 2013 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 1:00:00 Monitor

1. Check the channel and double-click to set calendar date.
2. During playback, click the 📄 button to lock current recording file.

NOTE: In multi-channel playback mode, click the button to lock all recorded files related to playback channels.

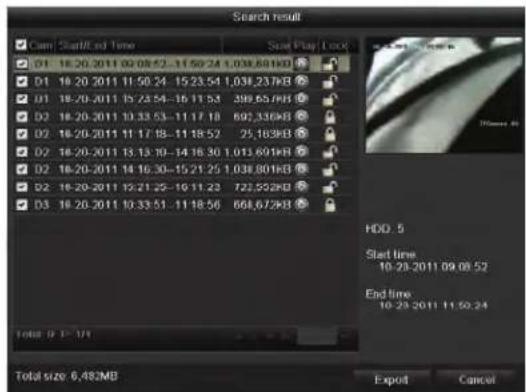

1. Click the button to open File Management interface.

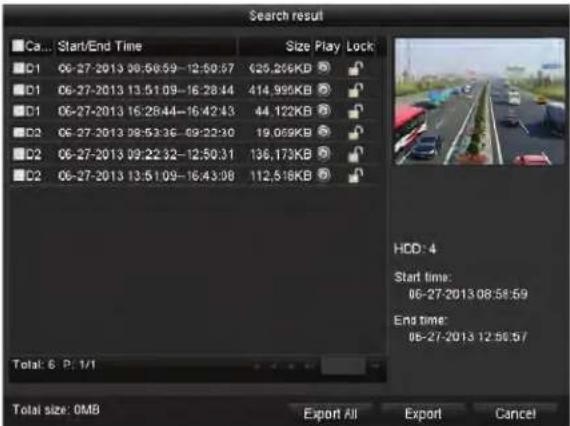

File Management Video Clips Playback Capture Locked File Tag Cam... Start/End Time Size Lock D3 12-17-2013 17:49:51-20:24:12 199.971KB D4 12-17-2013 17:49:51-20:24:12 199.628KB D7 12-17-2013 17:49:51-20:24:12 123.343KB D7 12-26-2013 17:13:48-17:32:22 45.401KB D7 12-26-2013 14:37:54-15:39:52 242.565KB HOD: 4 Start time 12-17-2013 17:49:51 End time. 12-17-2013 20:24:12 Total: 5 P. 1/1 Total size: 0MB Export All Export Cancel

1. Click the Locked File tab.
2. Click to lock file and to unlock file.

RECORDING AND CAPTURE SETTINGS

Locking Recording Files in Export

Enter the Export Setting interface: Menu > Export.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 Start/End time of record 06-27-2013 08:53:36 - 06-27-2013 16:41:08 Record Type All File Type All Start Time 06-27-2013 00:00:00 End Time 06-27-2013 23:59:59

1. Select channels to review.
2. Configure Record Type, File Type, Start Time and End Time.
3. Click Search to view results.

Search result Ca Start/End Time Size Play Lock D1 06-27-2013 09:58:59-12:50:57 626.256KB D1 06-27-2013 13:51:09-16:20:44 414.995KB D1 06-27-2013 16:28:44-16:42:43 44.122KB D2 06-27-2013 08:53:36-09:22:30 19.059KB D2 06-27-2013 09:22:32-12:50:31 136.173KB D2 06-27-2013 13:51:09-16:43:08 112.518KB HDD : 4 Start time: 06-27-2013 08:58:59 End time: 06-27-2013 12:50:57 Total: 6 P: 1/1 Total size: 9MB Export All Export Cancel

1. Select files to protect.
2. Click to unlock file and to lock and protect file.

NOTE: When unlocking a previously locked file, this message will appear:

Attention Record file may be overwritten after unlocking. Continue? Yes No

Setting HDD Property to Read-Only

Enter the HDD Setting interface: Menu > HDD.

HDD Information Capacity Status Property Type Free Space Or Edit D 5 931.51GB Normal RW Local 846GB 1 Local HDD Settings HDD No 5 HDD Property ● RW ● Read-only ● Redundancy Group 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 HDD Capacity 931.51GB Apply OK Cancel

1. Click ☐ to edit the preferred HDD.
   NOTE: To edit HDD property, set the storage mode of the HDD to Group.
2. Set HDD Property to Read-only.
3. Click OK.
   NOTE: Files can only be saved when HDD Property is set to R/W.
   NOTE: NVR cannot record files with HDD if it is set to Read-only.

PLAYBACK

Playing Back Record Files

Instant Playback by Channel

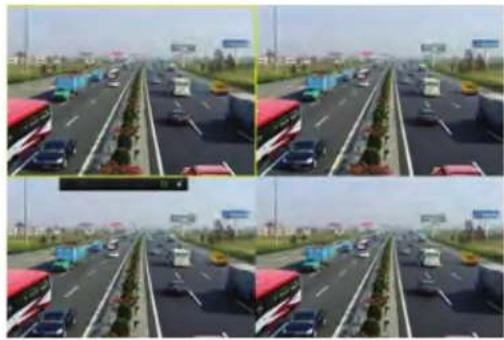

In Live View mode, choose a channel to view by clicking the button on the quick setting toolbar.

NOTE: Instant playback will only play files recorded on the selected channel during the previous five minutes.

Four-panel highway surveillance photo showing multiple lanes with vehicles and traffic, no visible text or symbols

Playback by Channel

Enter the Playback interface: Menu > Playback (on mouse) or by pressing PLAY on front panel.

Use bottom toolbar to control playing progress. Use the mouse to click any point of the progress bar to locate special frames, and drag the cursor to show thumbnails of the current time.

06-27-2013 08:58:59--06-27-2013 09:44:02

Indicates the start / end time of the record.

■ Represents normal recording

■ Represents event recording

Menu Single Screen Multi-screen Previous Screen Next Screen Start Auto-switch Start Recording Add IP Camera Playback Output Mode Aux Monitor

To play recorded files from a specified time duration, enter the Playback interface: Menu > Playback. Choose the desired channel and click the calendar. See table on page 34 for details on Playback Controls.

Dec 2013 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 29 30 31

NOTE: Dates highlighted as 10 contain recorded files.

NOTE: Dates displayed as 10 do not contain recorded files.

Normal Max. Ca... Min. Ca... IPCamera 01 IPCamera 02 IPCamera 03 IPCamera 04 IPCamera 05 IPCamera 06 Camera 01 Camera 01 Dec 2013 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 20 21 22 23 24 25 26 27 28 29 30 31 06-06-2013/06/02/08 - 12:30-2013/06/04/08

Playback by Event Search

To play recorded files on one or more channels by a restricting event type, enter the Playback interface: Menu > Playback. Choose the Event on the left.

Event Major Ty... Motion Camera PCamera 01 PCamera 02 PCamera 03 PCamera 04 PCamera 05 PCamera 06 Camera 01 Camera 01 Start Time 12-26-2013 00:00:00 End Time 12-26-2013 23:59:58 Search

1. Select the Event from dropdown list (Alarm Input, Motion or VCA).
2. Edit the Start Time and End Time.
3. Click Search.
4. Play back the preferred file by clicking the 📋 button.

Sour... Start Time Play D7 14:39:21 D7 14:41:02 D7 14:42:35 D7 14:43:49 D7 14:46:18 D7 14:46:33 D7 14:51:23 D7 14:53:26 D7 14:54:19 D7 14:55:02 D7 14:58:02 D7 14:58:28 D7 14:59:46 Total: 59 P: 1/1 Pre-play 30s - Post-play 30s - Back

— Return to previous screen

PLAYBACK

Playback by Tag

Video tags allow records to be tagged with labels in order to appear in future searches. Before tags can be searched, they must be added. To add a tag, enter the Playback interface: Menu > Playback and find the record to tag.

Click add default tag.

Click add customized tag and imput tag name.

NOTE: Maximum 64 tags can be added to a single video file.

See table on page 34 for more details on Playback Controls.

Normal Max. Ca... Min. Ca... PCamera 01 PCamera 02 PCamera 03 PCamera 04 PCamera 05 PCamera 06 Camera 01 Camera 01 Dec 2013 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 09-09-2013 18:02:03 - 12:26-2013 18:04:58 Normal Event

File Management Video Clips Playback Capture Locked File Tag Camer Tag Name Time Edit Delete D7 TAG 12-26-2013 14:47:55 # # D7 TAG 12-26-2013 14:47:56 # # Total: 2 P: 1/1 Cancel

To manage tags through the File Management interface:

1. Click 📄 to enter the File Management interface.
2. Click the Tag tab.
3. Check, edit and delete tags.

PLAYBACK

To search available tags, access the Playback interface: Menu > Playback.

Tag Camera IPCamera 01 IPCamera 02 IPCamera 03 IPCamera 04 IPCamera 05 IPCamera 06 Camera 01 Camera 01 Keyword Start Time 12-26-2013 00:00:00 End Time 12-26-2013 23:58:59 Q Search

1. Select the Tag from dropdown list in Playback interface.
2. Choose the channels and edit Start Time and End Time.
3. Click Search.

NOTE: Enter keyword in the Keyword to search the tag on your demand.

Tag Ca: Tag Name Play DT TAG DT TAG DT TAG DT 1 Total: 4 P: 5/1 Pre-play 120s Post-play 300s Back

1. Click 📄 to play back the file.
2. Click Back to return to search interface.

See table on page 34 for more details on Playback Controls.

Smart Playback

Smart Playback allows the system to analyze video containing motion or VCA information, mark it green, and play it back at normal speed while video without motion plays at 16 times faster. This makes it easy to work through uneventful data. To use, enter the Playback interface: Menu > Playback.

1. Select Smart from the dropdown list.
2. Select the camera and select date in calendar.
3. Click the button to play.

■ Represents normal recording

■ Represents event recording

■ Represents smart search result

Enters the search area editing interface.

See table on page 34 for more details on Playback Controls.

Smart IPCamera 01 IPCamera 02 IPCamera 03 IPCamera 04 IPCamera 05 IPCamera 06 Camera 01 Camera 01 Dec S M T W T F S: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 09.09-2013 16:22:03 - 12:26-2013 16:30:08 F 15:24:56 format Event Smart

PLAYBACK

Playback by System Logs

To play record files associated with system logs, enter the Log Information interface: Menu > Maintenance > Log Information. Click the Log Search tab.

1. Set search time and type.
2. Click Search.
3. Choose a log with record file and click to enter the Playback interface. See table on page 34 for more details on Playback Controls.

NOTE: If there is no record file at the time point of the log, the message box "No Result Found" will pop up.

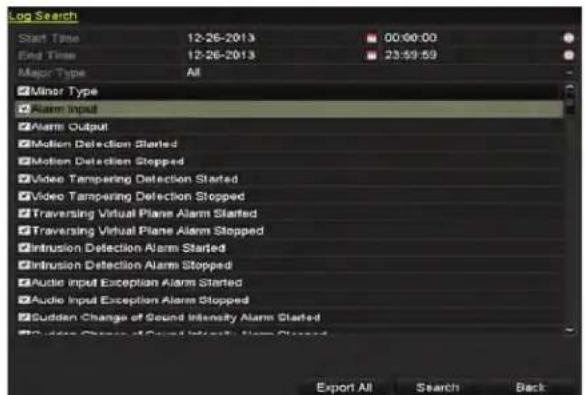

Log Search Start Time 12-26-2013 00:00:00 End Time 12-26-2013 23:59:59 Major Type All Minor Type Alarm Input Alarms Output Motion Detection Started Motion Detection Stopped Video Tampering Detection Started Video Tampering Detection Stopped Traversing Virtual Plans Alarm Started Traversing Virtual Plans Alarm Stopped Intrusion Detection Alarm Started Intrusion Detection Alarm Stopped Audio Input Exception Alarm Started Audio Input Exception Alarm Stopped Sudden Change of Sound Intensity Alarm Started Video Chanc of Sound Intensity Alarm Stopped Export All Search Back

Search Result No. Major Type Time Minor Type Parameter Play Details 167 Alarm 12-26-2013 11:25:54 Video Tamperin... N/A 168 Alarm 12-26-2013 11:26:01 Video Tamperin... N/A 169 Alarm 12-26-2013 11:26:12 Video Tamperin... N/A 190 Alarm 12-26-2013 11:26:17 Video Tamperin... N/A 191 Alarm 12-26-2013 11:26:23 Video Tamperin... N/A 192 Information 12-26-2013 11:26:51 System Running... N/A 193 Information 12-26-2013 11:27:02 System Running... N/A 194 Operation 12-26-2013 11:27:12 Remote Operati... IP Camera 195 Operation 12-26-2013 11:27:12 Remote Operati... N/A 196 Operation 12-26-2013 11:27:12 Remote Operati... Device 197 Operation 12-26-2013 11:30:12 Remote Operati... IP Camera 198 Operation 12-26-2013 11:30:12 Remote Operati... N/A 199 Operation 12-26-2013 11:30:12 Remote Operati... Device 200 Operation 12-26-2013 11:33:11 Remote Operati... IP Camera Total: 1067 P: 2/11 Export Back

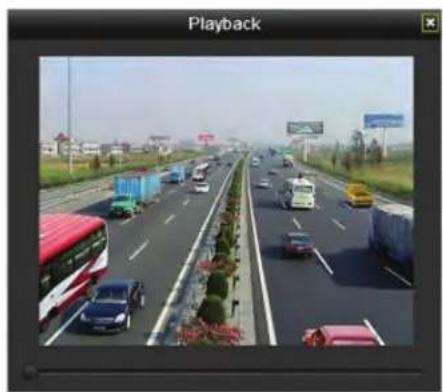

Highway scene with multiple vehicles and traffic, no visible text or symbols on the road or surroundings.

External File Playback

To play record files from external devices, enter the Playback interface: Menu > Playback.

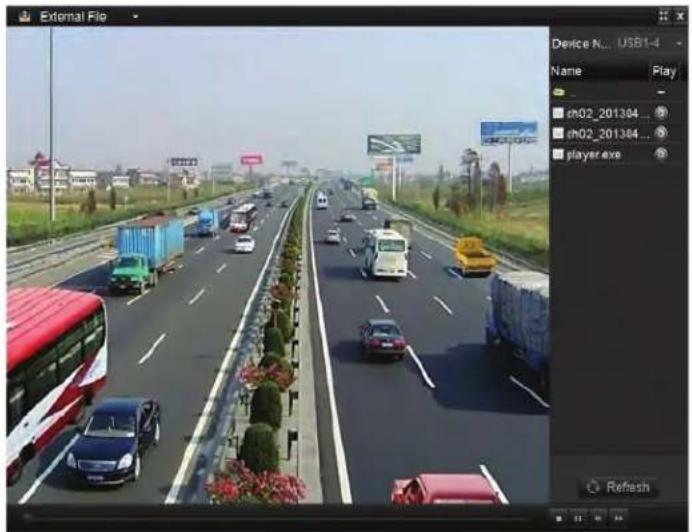

External File Device N... USB1-4 Name Play ch02_201304 ... ch02_201304 ... player.exe Refresh

1. Select External File in dropdown list.
2. Select file and click 📋 to play back the file.
3. Adjust playback speed by clicking and .

NOTE:

Click

C Refrask

the file list.

Auxiliary Functions of Playback

Frame-by-Frame Playback

Enter the Playback interface: Menu > Playback.

USING MOUSE	USING FRONT PANEL
In record file, click 📋 until speed adjusts to single-frame and one click on the playback screen represents the playback of one frame.To reverse playback, click 📋 until speed adjusts to single-frame and one click on the playback screen represents the reverse playback of one frame.	Rotate and hold outer ring on Jog Shuttle counter clockwise or click 📋 to adjust speed to single-frame.One click on 📋 one click on the Playback screen or Enter button represents reverse playback of one frame.

Digital Zoom

Enter the Digital Zoom interface by clicking 📄 in the playback control bar. Use the mouse to draw a red rectangle to enlarge the image inside the rectangle up to 16 times its size. Right-click to exit.

Highway scene with vehicles and trucks, residential buildings in background (no visible text or symbols)

Reverse Playback of Multi-Channel

To play multi-channel record files in reverse, enter the Playback interface: Menu > Playback. Select channel(s) and date on the calendar. Click to play file in reverse.

NOTE: The record files will be marked by two lines on the process bar. The upper indicates the record files of the selected channel. The lower indicates the record files of all the selected channels.

Normal Max. Ca... Min. Ca... Camera 01 Camera 01 IPCamera 03 IPCamera 04 IPCamera 05 IPCamera 06 IPCamera 07 IPCamera 08 1/1/07 09:02:3 - 04:06 2014 11:00:02 S M T W T F S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 25 27 28 29 30 31

PLAYBACK

Picture Playback

To play captured pictures that are stored in the HDD, enter the Playback interface: Menu > Playback. Select the picture in the dropdown list. Select channels and edit start/end times. Click Search. Choose a picture you want to view and click 📄. You can click Back to return to search interface.

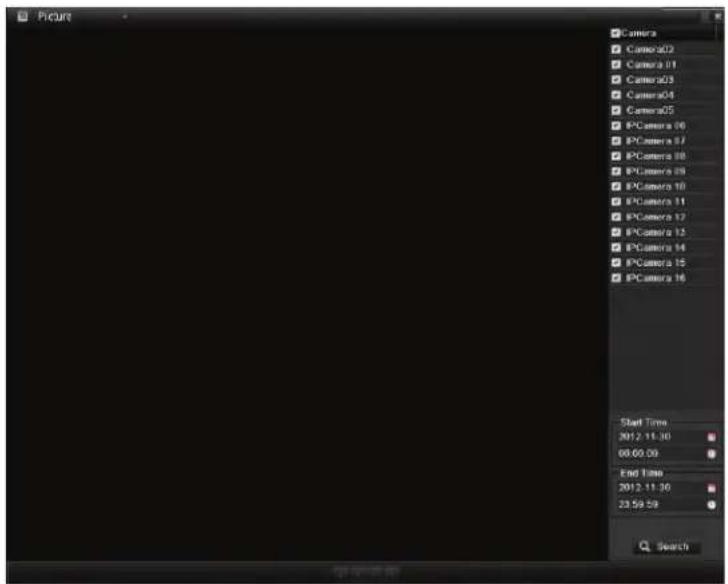

Picture Camera Camera02 Camera 11 Camera03 Camera04 Camera05 PCamera 06 PCamera 07 PCamera 08 PCamera 09 PCamera 10 PCamera 11 PCamera 12 PCamera 13 PCamera 14 PCamera 15 PCamera 16 Start Time 2012.11:30 00:00:00 End Time 2012.11:30 23:59:59 Search

Picture Time Poly D3 14:00:29 D3 14:30:24 D3 14:30:29 D3 14:30:33 D3 14:30:37 D3 14:30:41 D3 14:30:45 D3 14:30:49 D3 14:30:53 D3 14:30:57 D3 14:31:01 D3 14:31:05 D3 14:31:09 D3 14:31:13 D3 14:31:17 D3 14:31:21 D3 14:31:25 D3 14:31:29 D3 14:31:33 D3 14:31:37 D3 14:31:41 D3 14:31:45 D3 14:31:49 D3 14:31:53 D3 14:31:57 D3 14:32:01 D3 14:32:05 D3 14:32:09 D3 14:32:13 Total: 88 P/1/1 Back

BUTTON OPERATION
	Play in Reverse
	Play
	Previous Picture
	Next Picture

Backing Up Record Files

Quick Export

To quickly export record files to a backup device, enter the Video Export interface: Menu > Export > Normal.

1. Choose the channel to back up.
2. Click Quick Export.
3. Click Export to begin exporting.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Start/End time of record 05-22-2012 15:48:20 - 05-23-2012 16:42:05 Record Type All File Type All Start Time 05-23-2012 00:00:00 End Time 05-23-2012 23:59:59

NOTE: If duration of record files on a specified channel exceed one day, the following message will appear: "Max 24 hours are allowed for quick export."

NOTE: Stay in Exporting interface until all files are exported.

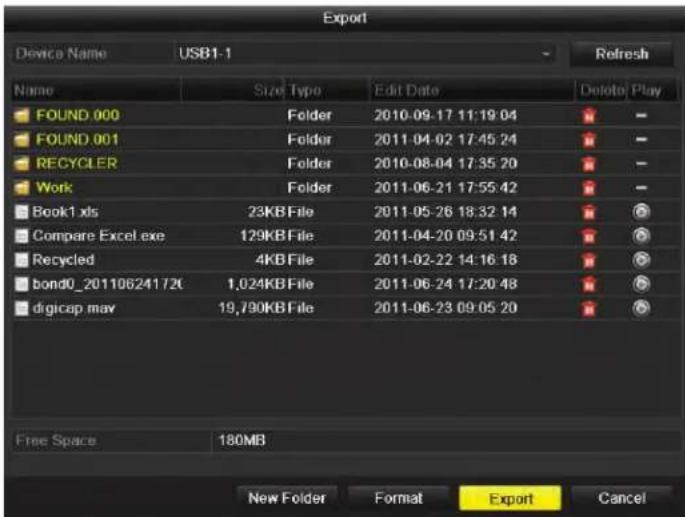

Export Device Name USB1-1 Refresh Name Size Type Edit Date Delete Play Free Space 2.004MB New Folder Format Export Cancel

Export Export finished. OK

1. To check backup result, choose the file in the Export interface and click 📋.

NOTE: The Player player.exe will be exported automatically during record file export.

Export Device Name USB1-1 Name Size Type Edit Date Delete File 11 Folder 06-23-2011 20:07:22 Backup Folder 06-23-2011 20:07:28 Export record files to me 0KB File 06-23-2011 20:07:58 Welcome to use backup 0KB File 06-23-2011 20:07:36 ch03_20110623006000 26/MB File 06-23-2011 20:15:02 ch03_20110623042932 280MB File 06-23-2011 20:11:14 ch03_20110623091403 4,423KB File 06-23-2011 20:11:20 ch03_20110623092323 127MB File 06-23-2011 20:12:12 ch03_20110623113325 110MB File 06-23-2011 20:12:54 ch03_20110623137800 18.36/KB File 06-23-2011 20:13:02 ch03_20110623134743 37,305KB File 06-23-2011 20:13:12 player.exe 608KB File 06-23-2011 20:09:40 File space 150MB New Folder Format Export Cancel

BACKUP

Normal Video Search Backup

Backup Using USB Flash Drive and USB HDD-enter the Export interface: Menu > Export > Normal.

1. Set search condition and click Search.

2. Select the files to back up. Click 📋 to play the record file if you want to check it.

NOTE: The size of the currently selected files is displayed in the lower-left corner.

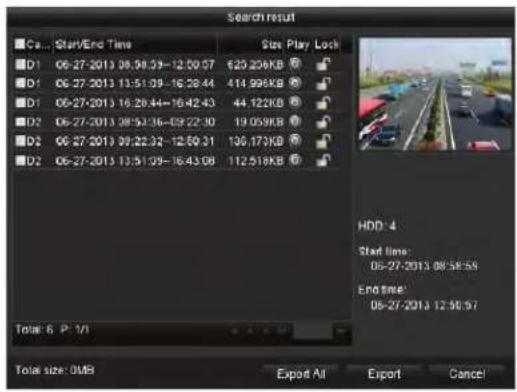

Search result Ca. Start/End Time Size Play Lock 01 06-27-2013 08:58:59-12:50:57 629,239KB 01 06-27-2013 13:51:39-16:28:44 414,985KB 01 06-27-2013 16:26:44-16:42:43 44,122KB 02 06-27-2013 09:53:36-09:22:30 19,059KB 02 06-27-2013 09:22:32-12:50:31 136,173KB 02 06-27-2013 13:51:39-16:43:08 112,518KB Total: 5 P. I/I HOO! 4 Start time: 06-27-2013 08:58:59 End time: 06-27-2013 12:50:57 Total size: CMB Export All Export Cancel

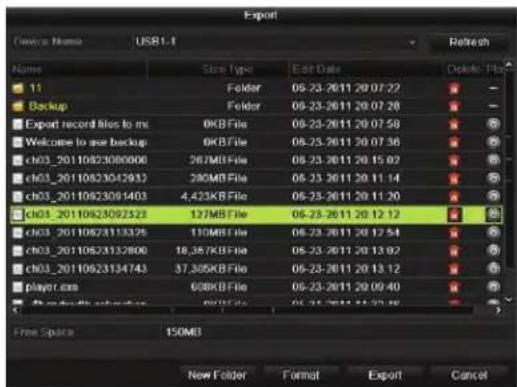

Export Device Name: USB1.1 Refresh Name Save Type Edit Date Delete Play ch03_20110623000C 267MBF File 06-23-2011 20 15:02 ch03_2011062304293 280MBF File 06-23-2011 20 18:14 ch03_201106230914C 4,423KB File 06-23-2011 20 18:20 ch03_2011062309252 177MBF File 06-23-2011 20 12:17 ch03_2011062311332 110MBF File 06-23-2011 20 12:54 ch03_201106231578C 18,567KB File 06-23-2011 20 19:07 ch03_2011062313474 37,305KB File 06-23-2011 20 18:12 player.exe 608KB File 06-23-2011 20 09:46 Free Space: 150MD New Folder Format Export Cancel

Export Name Size Type Edit Date Delete Flo 11 Folder 09-23-2011 20 07 22 Backup Folder 08-23-2011 20 07 26 Export record files to ms 0KB File 08-23-2011 20 07 58 Welcome to new backup 0KB File 08-23-2011 20 07 36 ch03_20110823090000 267MB File 08-23-2011 20 15 02 ch03_20110823042932 280MB File 05-23-2011 20 11 14 ch03_20110823091403 4,423KB File 05-23-2011 20 11 20 ch03_20110823092323 127MB File 05-23-2011 20 12 12 ch03_20110823133325 110MB File 08-23-2011 20 12 54 ch03_20110823132800 18,367KB File 05-23-2011 20 13 02 ch03_20110823134743 37,305KB File 05-23-2011 20 13 12 player.com 608KB File 05-23-2011 20 09 40 Standardly export 9KB File 05-23-2011 15:33:46 Free Space 150MB New Folder Format Export Cancel

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Start/End time of record 05-22-2012 15:48:20 - 05-23-2012 16:42:05 Record Type All File Type All Start Time 05-23-2012 00:00:00 End Time 05-23-2012 23:59:59

1. Click Export All to export all recording files, or click Export to enter the Export interface.

NOTE: If USB not recognized, click Refresh, reconnect device, or check compatibility. You can also reformat USB flash drives or USB HDDs via the device.

NOTE: Stay in interface until "Export finished" message appears.

Export Export finished OK

1. To check backup result, choose the file in the Export interface and click

NOTE: The Player player.exe will be exported automatically during record file export.

Backup Using USB Writer and SATA Writer-enter the Export interface: Menu > Export > Normal.

1. Set search condition and click Search.

2. Select the files to back up. Click 📋 to play the record file if you want to check it.

NOTE: The size of the currently selected files is displayed in the lower-left corner.

Search result Ca... Start/End Time Size Play Lock D1 06-27-2013 09:38:39-12:50:57 620.206KB D1 06-27-2013 11:51:09-16:28:44 414.996KB D1 06-27-2013 16:28:44-16:42:43 44.122KB D2 06-27-2013 08:53:36-69:22:30 19.059KB D2 06-27-2013 09:22:32-12:50:31 136.173KB D2 06-27-2013 13:51:09-16:43:08 112.518KB Total: 6 P: 7/1 HDD: 4 Start time: 05-27-2013 08:58:59 End time: 05-27-2013 12:50:57 Total size: OMB Export All Export Cancel

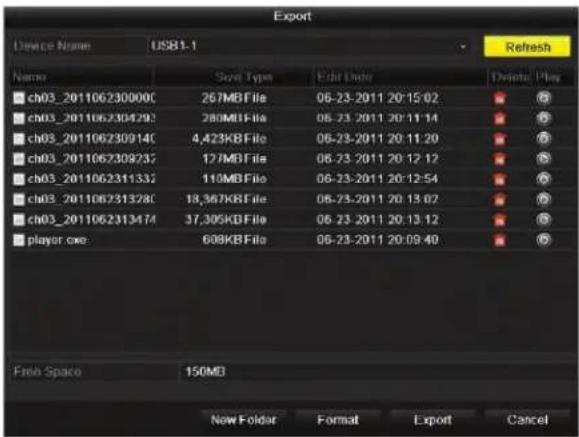

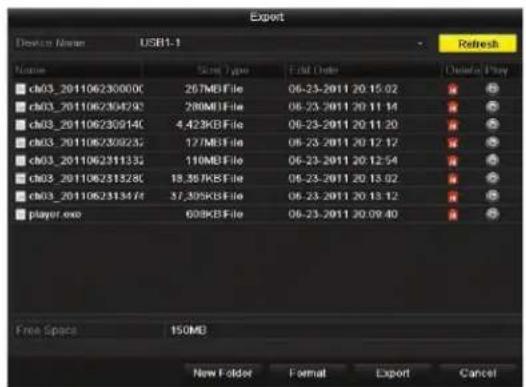

Export Device Name USB1-1 Name Size Type End Date Delia Play ch03_201106230000C 267MBTFile 06-23-2011 20:15:02 ch03_2011062304292 280MBTFile 06-23-2011 20:11:14 ch03_201106230914C 4.423KBTFile 06-23-2011 20:11:20 ch03_201106230923G 177MBTFile 06-23-2011 20:12:12 ch03_201106231133G 110MBTFile 06-23-2011 20:12:54 ch03_201106231528K 18.397KBTFile 06-23-2011 20:13:02 ch03_201106231347F 37.395KBTFile 06-23-2011 20:13:12 player.exe 608KBTFile 06-23-2011 20:09:40 Free Space 150MB New Folder Format Export Cancel

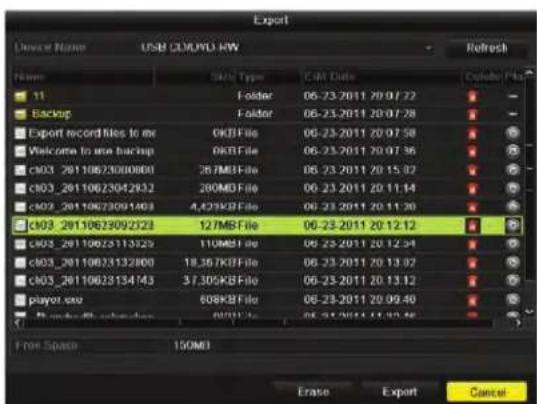

Export Device Name: USB LOGO1.0 RW Name 11 Backup Export record files to me Welcome to me backup C003_20110623000800 C003_20110623042932 C003_20110623091403 C003_20110623092323 C003_20110623113525 C003_20110623132800 C003_20110623134743 playset.exe Free Space 150MB File Type Folder Folder OKB File OKB File 26/MB File 200MD File 4,42KB File 12/MB File 110MB File 18,367KB File 37,305KB File 608KB File Erase Export Date Dolorer Plus Erase Cancel

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Start/End time of record 05-22-2012 15:48:20 - 05-23-2012 16:42:05 Record Type All File Type All Start Time 05-23-2012 00:00:00 End Time 05-23-2012 23:59:50

1. Click Export.

NOTE: If USB writer or SATA is not recognized, click Refresh, reconnect device, or check compatibility.

NOTE: Stay in interface until "Export finished" message appears.

Export Export finished OK

1. To check backup result, choose the file in the Export interface and click

NOTE: The Player player.exe will be exported automatically during record file export.

BACKUP

Backup Using eSATA HDDs-

Enter Menu > Record > Advanced.

1. Choose eSATA and set usage at Export.
2. Click Yes to reboot system.

NOTE: The usages of eSATA HDD contain Record/ Capture and Export. Changes in usage will take effect after rebooting.

1. Enter Export interface: Menu > Export > Normal.

Search result Cam Start/Off Time Start Play Lock D1 18:20:2011 00:08:52-11:50:24 1.038.681KB D1 18:20:2011 11:50:24 -15:23:54 1.038.237KB D1 18:20:2011 15:23:54 -16:11:53 398.657KB D2 18:20:2011 10:33:53 -11:17:18 692.336KB D2 18:20:2011 11:17:18 -11:18:52 75.183KB D2 18:20:2011 13:13:19 -14:18:30 1.013.691KB D2 18:20:2011 14:16:30 -15:21:25 1.038.801KB D2 18:20:2011 15:21:25 -16:11:23 722.552KB D3 18:20:2011 10:33:51 -11:18:56 668.672KB Total size 6,482MB HDD 5 Start time 10.23-2011 09.08:52 End time 10.23-2011 11:50:24 Export Cancel

Export Device Name ESATA0.1 Name Size Type Edit Outa Doals Play Free Space 76,279MB New Folder Format Export Cancel

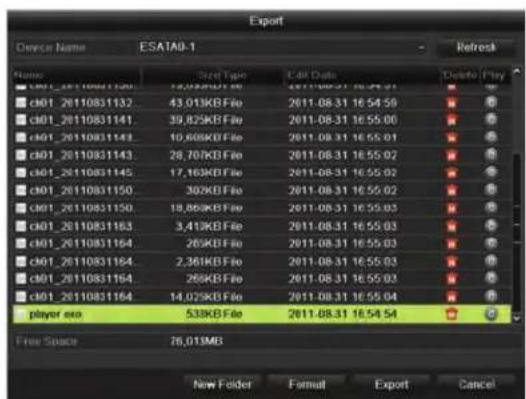

Export Device Name ESATA8-1 Name Size Type Ctrl Date Disbit Play c01_20110831130 12,025KB File 2011-08-31 16:55:01 c01_20110831132 43,013KB File 2011-08-31 16:54:59 c01_20110831141 39,825KB File 2011-08-31 16:55:00 c01_20110831143 10,608KB File 2011-08-31 16:55:01 c01_20110831143 28,707KB File 2011-08-31 16:55:02 c01_20110831145 17,163KB File 2011-08-31 16:55:02 c01_20110831150 302KB File 2011-08-31 16:55:02 c01_20110831150 18,856KB File 2011-08-31 16:55:03 c01_20110831163 3,413KB File 2011-08-31 16:55:03 c01_20110831164 262KB File 2011-08-31 16:55:03 c01_20110831164 2,381KB File 2011-08-31 16:55:03 c01_20110831164 269KB File 2011-08-31 16:55:03 c01_20110831164 14,075KB File 2011-08-31 16:55:04 player.exe 533KB File 2011-08-31 16:54:54 Free Space 76,013MB New Folder Format Export Cancel

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Start/End time of record 05-22-2012 15:48:20 - 05-23-2012 16:42:05 Record Type All File Type All Start Time 05-23-2012 00:00:00 End Time 05-23-2012 23:59:59

1. Set search condition and click Search.
2. Select files to back up. Click 📋 to play the record file if you want to check it.

NOTE: The size of the currently selected files is displayed in the lower-left corner.

1. Click Export All to export all recording files, or click Export to enter the Export interface.

NOTE: Format the eSATA first when using it for the first time. If the inserted eSATA HDD is not recognized, click Refresh, reconnect device, or check compatibility. You can also reformat SATA HDD via the device.

NOTE: Stay in interface until "Export finished" message appears.

Export Export finished. OK

1. To check backup result, choose the file in the Export interface and click 📋.

NOTE: The Player player.exe will be exported automatically during record file export.

Backup by Event Search

To back up event-related files, enter the Export interface: Menu > Export > Event.

1. Select Alarm Input from Event Type dropdown list.
2. Select Alarm Input No. and time.
3. Click Search.

NOTE: Event types contain Alarm Input, Motion and VCA; we take export by alarm input as an example.

Event Event Type Alarm Input Start Time 18-05-2013 00:00:00 End Time 18-05-2013 23:59:53 ✓ Alarm Input No. Alarm Name ✓ Local<-1 1 ✓ Local<-2 ✓ Local<-3 ✓ Local<-4 ✓ Local<-5 ✓ Local<-6 ✓ Local<-7 ✓ Local<-8 ✓ Local<-9 ✓ Local<-10 ✓ Local<-11 ✓ Local<-12 ✓ Local<-13 ✓ Local<-14

Export Device Name: LUSB1-4 Name Size Type Edit Date Delete Play ● Folder 01-01-1870 00:00:00 - - ch02_20130423053... 36.959KB File 04-23-2013 10:27:18 - - ch02_20130423053... 3KB File 04-23-2013 10:27:18 - - player.exe T7KB File 04-23-2013 10:27:00 - - Free Space 1.857MB New Folder Format Export Cancel

1. Select record files to export and click Quick Export.
2. Click Details to view more information.
3. Click Export All to export all recording files, or click Export to enter the Export interface.

NOTE: If USB not recognized, click Refresh, reconnect device, or check compatibility. You can also reformat USB flash drives or USB HDDs via the device.

Export Device Name: USB1.1 File Edit View Insert Format Delete 11 Fuster 06.23.2011 20:07:22 Backup Fuster 06.23.2011 20:07:28 Export record files to us 062F1ac 06.23.2011 20:07:58 Welcome to new backup 062F1ac 06.23.2011 20:07:56 c001_2011B8235083990 26.MBT1ac 06.23.2011 20:15:07 c003_2011B823542832 25MBT1ac 06.23.2011 20:11:14 c003_2011B8235085893 4.425KB7ac 06.23.2011 20:11:29 c003_2011B8235082823 127MBT1ac 06.23.2011 20:17:12 c003_2011B8235133225 113MBT1ac 06.23.2011 20:17:54 c003_2011B8235133889 98.567KB7ac 06.23.2011 20:13:57 c003_2011B8235134743 37.395KB7ac 06.23.2011 20:13:17 power one 6589KB7ac 06.23.2011 20:09:46 New Version 150MD New Folder Format Export Cancel

NOTE: Stay in interface until "Export finished" message appears.

1. Check backup result.

NOTE: The Player player.exe will be exported automatically during record file export.

Export Export finished. OK

BACKUP

Backup Video Clips

Enter the Playback interface: Menu > Playback.

1. During playback, use and buttons in playback toolbar to start and stop clipping.
2. Click the Button to enter the File Management interface.
3. Click the Video Clips tab to check and export files.

NOTE: A maximum of 30 clips can be selected per channel.

1. Check files and click Export to start backup or click Export All to export all recording files.

NOTE: If USB device is not recognized, click Refresh, reconnect device, or check compatibility. You can also format the USB flash drive or USB HDDs via the device.

File Management Video Clips Playback Capture Locked File Tag Camera No. Start/End Time Size D2 12-17-2013 18:28:31-18:33:01 5.849KB D3 12-17-2013 18:28:31-18:33:01 5.857KB D7 12-17-2013 18:28:31-18:33:01 3.688KB D7 12-25-2013 15:03:06-15:12:02 32.867KB Total: 4 P: 1/1 Camera with clip recording: 7 Start time: 12-26-2013 15:03:06 End time: 12-26-2013 15:12:02 Selected clips: 2 Total size: 36,475KB Export All Export Cancel

Export Device Name: USB1-4 Name Size Type Edit Date Delete Play ... Folder 01-21-1970 00:00:00 - ch02_20130423093... 36.959KB File 04-23-2013 10:27:18 - ch02_20130423093... 3KB File 04-23-2013 10:27:18 - player.exe 776KB File 04-23-2013 10:27:00 - Free Space 1.857MB New Folder Format Export Cancel

Export Export finished. OK

NOTE: Stay in interface until "Export finished" message appears.

1. Check backup result.

NOTE: The Player player.exe will be exported automatically during record file export.

Backing Up Pictures

Backup Using Captured Pictures in Playback- Enter the Playback interface: Menu > Playback.

1. During playback, click the 📷 button to capture picture.
2. Click the Button to enter the File Management interface.
3. Click the Playback Capture tab to check and export pictures.

File Management Video Clips Playback Capture Locked File-Tag Cam: HDD Time Picture Size 07 4 12-27-2013 08:50:53 89KB 07 4 12-27-2013 09:36:14 89KB 07 4 12-27-2013 11:51:17 89KB 07 4 12-26-2013 11:48:04 105KB Dimensions: 1920 x 1080 Total X P: 0/1 Total size: 105KB Export All Export Cancel

Track result MT name: HCD Time Picture Size 01 A 06-27-2013 01:24:55 19KB 02 A 06-27-2013 08:53:38 19KB 03 A 06-27-2013 08:53:38 19KB 04 A 06-27-2013 08:53:40 19KB 05 A 06-27-2013 08:53:42 19KB 06 A 06-27-2013 08:53:44 19KB 07 A 06-27-2013 08:53:46 19KB 08 A 06-27-2013 08:53:48 19KB 09 A 06-27-2013 08:53:50 19KB 10 A 06-27-2013 08:53:52 19KB 11 A 06-27-2013 08:53:54 19KB 12 A 06-27-2013 08:53:56 19KB 13 A 06-27-2013 08:53:58 19KB Total 4220 P: LND Dimension: NM x S/N Total size: RM Export Alt Export Cancer

Export Device Name UGB1-4 Refresh Name Size Type Edit Date Delete Play ... Folder 01-01-1970 00:00:00 — — dno2_20130423083... 36.95KB File 04-23-2013 10:27:18 — — dno2_20130423083... 3KB File 04-23-2013 10:27:18 — — player.exe 776KB File 04-23-2013 10:27:00 — —

Backup All Types of Captured Pictures-

Enter the Export interface: Menu > Export > Picture.

1. Select the channel, image type, Start Time and End Time.
2. Click Search.
3. Select pictures to back up.
4. Click Export All to export all recording files, or click Export to enter the Export interface.
5. Check backup result.

Picture IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 Picture Type All Start Time 06-27-2013 00:00:00 End Time 06-27-2013 23:59:59

NOTE: Stay in interface until "Export finished" message appears.

Managing Backup Devices

Management of USB Flash Drives, USB

HDDs, and eSATA HDDs - Enter the Search

Result interface: Menu > Export > Normal.

1. Set search condition and click Search.

At least one channel should be selected.

1. Click Export All to export all recording files, or click Export to enter the Export interface.

At least one file should be selected.

1. Select pictures to back up.
2. Click Export or Export All

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Start/End time of record 05-22-2012 15:48:20 - 05-23-2012 16:42:05 Record Type All File Type All Start Time 05-23-2012 00:00:00 End Time 05-23-2012 23:59:59

BACKUP

To manage backup device:

1. Click New Folder if needed.
2. Select a record file or folder in backup device and click button to delete or button to play.
3. Click Format to format backup device.

NOTE: If USB not recognized, click Refresh, reconnect device, or check compatibility.

Export Device Name USB1-1 Refresh Name Save Type Edit Order Delete Play ch03_201106230000C 267MBF file 06-23-2011 20:15:02 S ch03_2011062304293 280MBF file 06-23-2011 20:11:14 S ch03_201106230914C 4,423KBF file 06-23-2011 20:11:20 S ch03_201106230923C 127MBF file 06-23-2011 20:12:12 S ch03_201106231133C 110MBF file 06-23-2011 20:12:54 S ch03_201106231328C 18,367KBF file 06-23-2011 20:13:02 S ch03_2011062313474 37,305KBF file 06-23-2011 20:13:12 S player.exe 608KBF file 06-23-2011 20:09:40 S Free Space 150MB New Folder Format Export Cancel

Management of USB Writers and DVD-R/W- Enter the Search Result interface: Menu > Export > Normal.

1. Set search condition and click Search.
   NOTE: At least one channel should be selected.
2. Select files to back up.
3. Click Export All to export all recording files, or click Export to enter the Export interface.

NOTE: At least one file should be selected.

Normal IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 D17 D18 D19 D20 D21 D22 D23 D24 D25 D26 D27 D28 D29 D30 D31 D32 Start/End time of record 05-22-2012 15:48:20 - 05-23-2012 16:42:05 Record Type All File Type All Start Time 05-23-2012 00:00:00 End Time 05-23-2012 23:59:59

Search result Ca... Start/End Time Size Play Lock C1 06-27-2013 09:56:59-12:50:57 (25,256KB) C1 06-27-2013 13:51:09-16:28:44 (414,995KB) C1 06-27-2013 16:28:44-16:42:43 (44,122KB) C2 06-27-2013 09:53:36-09:22:30 (19,059KB) C2 06-27-2013 09:22:32-12:50:31 (136,173KB) C2 06-27-2013 13:51:09-16:43:08 (112,518KB) Total: 6 P: 1/1 HDD: 4 Start time: 06-27-2013 08:58:59 End time: 06-27-2013 12:50:57 Total size: 0MB Export All Export Cancel

Click Erase if files from a rewritable CD/DVD need to be erased.

NOTE: Rewritable CD/DVD must be inserted at time of operation.

NOTE: If USB Writer is not recognized, click Refresh, reconnect device, or check compatibility.

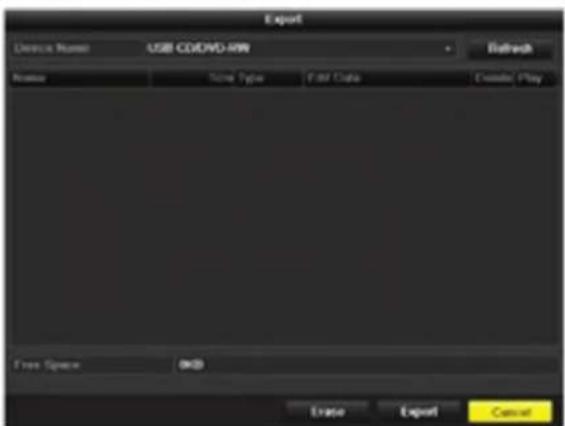

Export Device Name: USB CODMD-APR Name Some Type Full Data Cancel Play Free Space OKD Exase Export Cancel

Hot Spare Device Backup

Before you start

At least two devices must be online. A bidirectional connection is required to be built between the hot spare device and each working device.

Setting Hot Spare Device

Enter the Hot Spare Settings interface:

Menu > Configuration > Hot Spare.

1. Set the Work Mode as Hot Spare.
2. Click Apply.
3. Click Yes to reboot device.

NOTE: The camera connection will be disabled when the device works in hot spare mode. It's highly recommended to restore the defaults of the device after switching the working mode of the hot spare device to normal mode to ensure the normal operation afterwards.

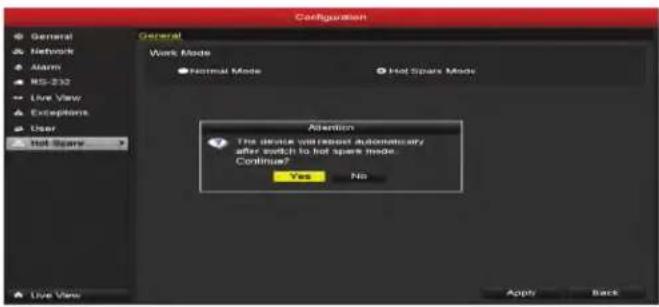

Configuration General Network Alarm RS-232 Live View Exception User Hot Spars Work Mode Normal Mode Hot Spars Mode Attention The device will remain automatically after switch to hot spars mode. Continue? Yes No Live View Apply Back

Setting Working Device

Enter the Hot Spare Settings interface:

Menu > Configuration > Hot Spare.

1. Set the Work Mode as Normal (default).
2. Check Enable.
3. Enter IP address and admin password of hot spare device.
4. Click Apply.

General Work Mode Normal Mode Hot Spare Mode Enable IPv4 address of the hot sp... Password of the hot spare... ****** Working Status Connected Note: After the hot spare is enabled, you must link the working device to the hot spare device, otherwise, this function is not available. Apply Back

BACKUP

Managing Hot Spare System

Enter the Hot Spare Settings interface:

Menu > Configuration > Hot Spare.

1. Check the box to select the working device from the device list.

2. Click Add.

A hot spare device can connect up to 32 working devices.

View the working status on the Working Status list. When working properly, "No Record" displays.

When offline, the hot spare device will record the video of the IP Camera connected to the working device for backup. The status of the hot spare device will display as "Backing Up."

The record backing up can be functioned for 1 g device at a time.

When working device comes online, the lost files will be restored by the record synchronization function, and the working status of the hot spare device will display as "Synchronizing."

Record synchronization can be enabled for one g device at a time.

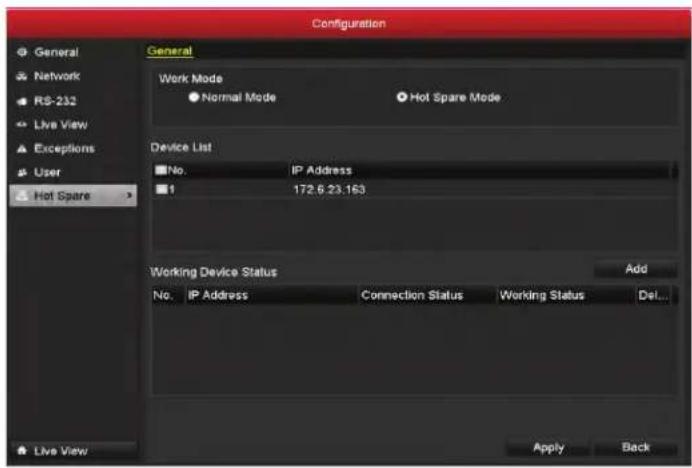

Configuration General Work Mode Normal Mode Hot Spare Mode Device List No. IP Address 1 172.6.23.163 Working Device Status Add No. IP Address Connection Status Working Status Del... Live View Apply Back

Working Device Status No. IP Address Connection Status Working Status Delete 1 172.6.23.163 Online No record

Working Device Status No. IP Address Connection Status Working Status Del... 1 172.6.23.163 Offline Backing up

Working Device Status No. IP Address Connection Status Working Status Del... 1 172.6.23.163 Online Synchronizing (99%) Add

Setting Motion Detection Alarm

Enter the Motion Detection interface of Camera Management Management and choose a camera you want to set up motion detection: Menu > Camera > Motion.

Motion Detection Camera IP Camera 1 Enable Motion Detection Settings Sensitivity Full Screen Clear

1. Click the Trigger Channel tab.
2. Select one or more channels to start record/capture or to monitor in full-screen when motion alarm is triggered.

3. Click Apply.

4. Check Enable Motion Detection and draw the detection area with the mouse.

5. Drag the Sensitivity bar to set sensitivity level.
6. Click the button to set alarm response options.

Settings Trigger Channel Aiming Schedule Linkage Action IP Camera D1 D2 D3 Apply OK Cancel

Settings Trigger Channel Arming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

To set arming schedule of a channel:

1. Select Arming Schedule.
2. Choose one day of the week and time periods (up to eight per day — time periods cannot overlap).
3. Click Apply.

NOTE: To set alarm response actions of a motion alarm, click Handling.

NOTE: Settings can be copied to other channels by clicking Copy.

ALARM SETTINGS

Setting Sensor Alarms

Enter Alarm Settings of System Configuration interface: Menu > Configuration > Alarm > Alarm Input.

Check Enable and click Settings.

Alarm Status Alarm Input Alarm Output Alarm Input No. Local<-1 Alarm Name Type N.O Enable Settings

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

1. Select Trigger Channel and select channels to start record/capture or to monitor in full-screen when an external alarm is input.
2. Click Apply and then select Arming Schedule.
3. Choose day of the week and up to eight time periods.
4. Click Apply.

NOTE: Settings can be copied to other days by clicking Copy.

The Linkage Action tab can be used to set up alarm response actions of the alarm input.

To set PTZ linkage of the alarm input, click on PTZ Linking. Complete the settings and click OK.

NOTE: Check whether the PTZ or speed dome supports PTZ linkage. One alarm input can trigger presets, patrol or pattern of more than one channel. But presets, patrols and patterns are exclusive.

Settings Trigger Channel Arming Schedule Linkage Action PTZ Linking PTZ Linking IP Camera 4 Call Preset Preset 1 Call Patrol Patrol 1 Call Pattern Pattern 1 Apply OK Cancel

Copy Alarm Input to Alarm Input No. Alarm Name Local<-1 Local<-2 Local<-3 Local<-4 Local<-5 Local<-6 Local<-7 Local<-8 Local<-9 Local<-10 Local<-11 OK Cancel

NOTE: Settings can be copied by clicking the Copy button on the Alarm Input Setup interface.

Detecting Video Loss Alarm

Enter the Video Loss interface of Camera Management: Menu > Camera > Video Loss and select the channel to detect.

1. Check Enable Video Loss Alarm and click 📄 to set up handling of video loss.

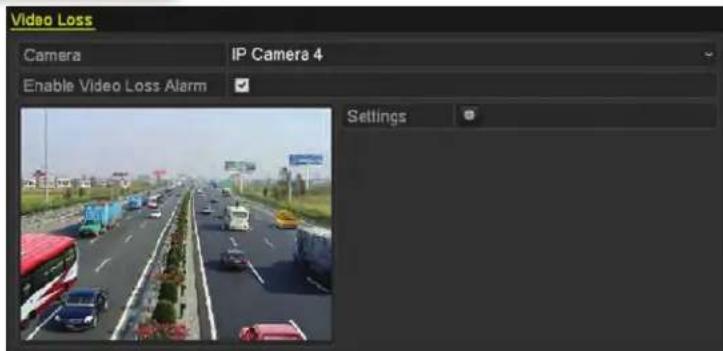

Video Loss Camera IP Camera 4 Enable Video Loss Alarm Settings

Settings Armng Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

1. Select Arming Schedule.
2. Choose a day of the week and up to eight time periods (time periods cannot overlap).
3. Click Apply.
4. Select Linkage Action to set up alarm response action of video loss. Click OK.

Detecting Video Tampering Alarm

Video tampering triggers an alarm when a lens is covered. To configure a video tampering alarm, enter the Video Tampering interface of Camera Management: Menu > Camera > Video Tampering and select the channel to detect.

1. Check Enable Video Tampering and drag sensitivity bar to adjust the sensitivity.
2. With the mouse, draw the area you want to detect video tampering.

Settings Aiming Schedule Linkage Action Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

Video Tampering Detection Settings Camera IP Camera 1 Enable Video Tampering Settings Sensitivity Clear

1. Click 📋 to set up handling of video tampering.
2. Select Arming Schedule tab.
3. Choose one day of week up to eight time periods (time periods cannot overlap).
4. Click Apply.
5. Select Linkage Action to set up alarm response actions of video tampering. Click OK.

ALARM SETTINGS

Handling Exceptions Alarm

To handle various exception alarms, enter the Exception interface: Menu > Configuration > Exceptions.

Exception Enable Event Hint ✓ Event Hint Settings ✦ Exception Type HDD Full Audible Warning ■ Notify Surveillance Center ■ Send Email ■ Trigger Alarm Output ■

EXCEPTION DESCRIPTION
HDD Full The HDD is full
HDD Error A writing error occurred or the HDD is not formatted
Network Disconnected Disconnected network cable
IP Conflicted Duplicated IP address
Illegal Login Incorrect user ID or password
Record/Capture Exception No space for saving recorded files or captured images
Hot Spare Exception Disconnected from working network device

Setting Alarm Response Actions

Event Hint Display - Alarm response actions will activate when an alarm or exception occurs, including Event Hint Display, Full Screen Monitoring, Audible Warning (buzzer), Notify Surveillance Center, Trigger Alarm Output and Send Email.

To configure, enter the Exception interface: Menu > Configuration > Exceptions.

1. Check Enable Event Hint and click 🙏️.

2. Set event type to be displayed on image.

3. Click OK.

NOTE: When an event or exception happens, a hint will be displayed on the lower-left corner of live view. Click the icon to check the detials.

Enable Event Hint Event Hint Settings

Event Hint Settings All HDD Full HDD Error Network Disconnected IP Conflicted Illegal Login Video Signal Loss Alarm Input Triggered Video Tamper Detected Motion Detection Record/Capture Exception IP Camera Conflicted Device Temperature Exception OK Cancel

Full Screen Monitoring - When an alarm is triggered, the local monitor (VGA, HDMI or BNC monitor) will display, in full screen, the video image from the alarming channel configured for full screen monitoring.

If alarms are triggered simultaneously in several channels, their full-screen images will be switched at an interval of 10 seconds (default dwell time). A different dwell time can be set by going to Menu>Configuration>Live View>Full Screen Monitoring Dwell Time.

Auto-switch will terminate once the alarm stops and the Live View interface will appear.

NOTE: You must select the channel you want to make full screen in "Trigger Channel" settings.

Trigger Alarm Output - To configure, enter the Alarm Output interface: Menu > Configuration > Alarm > Alarm Output.

1. Select an alarm output and set alarm name and dwell time.

NOTE: If "Manually Clear" is selected in the dropdown list of Dwell Time, you can only clear it by going to Menu > Manual > Alarm.

1. Click Schedule to set up arming schedule of alarm output. Choose one day of week up to eight time periods (time periods cannot overlap).

2. Click OK

NOTE: Settings can be copied to other days and to other Channels by clicking Copy.

Audible Warning - Trigger an audible beep when an alarm is detected.

Notify Surveillance Center - Send an exception or alarm signal to the remote alarm host when an event occurs. The alarm host refers to the PC installed with Remote Client.

NOTE: The alarm signal will be transmitted automatically at detection mode when the remote alarm host is configured.

Email Linkage - Send an email with alarm information to a user or users when an alarm is detected.

Alarm Status Alarm Input Alarm Output Alarm Output No. Local->1 Alarm Name Dwell Time 5s Settings *

Settings Arming Schedule Week Mon 1 00:00-24:00 2 00:00-00:00 3 00:00-00:00 4 00:00-00:00 5 00:00-00:00 6 00:00-00:00 7 00:00-00:00 8 00:00-00:00 Copy Apply OK Cancel

ALARM SETTINGS

Setting Alarm Response Actions

To manually trigger or clear an alarm output, enter the Alarm interface: Menu > Manual > Alarm.

Alarm Output No.	Alarm Name	Trigger
Local->1		No
Local->2		No
Local->3		No
Local->4		No
172.6.23.105:8000->1		No

Click Trigger/Clear if you want to trigger or clear an alarm output.

Click Trigger All if you want to trigger all alarm outputs.

Click Clear All if you want to clear all alarm outputs.

Configuring General Settings

Enter the Network Settings interface: Menu > Configuration > Network > General. Set the appropriate parameters and click Apply.

NOTE: Network settings must be properly configured before you operate NVR over network.

NOTE: If the DHCP server is available, click the checkbox to automatically obtain an IP address and other network settings from that server.

NIC Type	10M/100M/1000M Self-adaptive
Enable DHCP
IPv4 Address	172.6 .23 .199
IPv4 Subnet Mask	255.255.255.0
IPv4 Default Gateway	172.6 .23 .1
IPv4 Address 1	fe80..212:42#.fe8d.ec46/64
IPv4 Address 2
IPv4 Default Gateway
MAC Address	00:12:42:fd:ec:46
MTU(Bytes)	1500
Preferred DNS Server
Alternate DNS Server
Internal NIC IPv4 Address	192.168.254.1

Configuring Advanced Settings

Configuring PPPoE Setting

To configure the Point-to-Point Protocol over Ethernet (PPPoE) setting, enter the Network Settings interface: Menu > Configuration > Network > PPPoE.

Enable PPPOE User Name Password

1. Check Enable PPPO.
2. Enter user name and password and click Apply.
   NOTE: The User ID and password should be assigned by your ISP.
3. Reboot system to enable changes.

NETWORK SETTING

Enable DDNS DDNS Type IPServer Server Address Device Domain Name User Name Password Confirm

Configuring DDNS

To configure the Dynamic DNS (DDNS), enter the Network Settings interface: Menu > Configuration > Network > DDNS.

NOTE: Prior registration with your ISP is required before configuring the system to use DDNS.

1. Check Enable DDNS.

2. Select the DDNS Type (options include IPServer, DynDNS, PeanutHull, NO-IP, and SimpleDDNS). Follow the instructions in the table below.

3. Click Apply.

DDNS TYPE INSTRUCTIONS
IPServer Enter Server Address for IPServer.
DynDNS	Enter Server Address. Enter domain obtained from DynDNS website in NVR Domain Name field.Enter User Name and Password registered in the DynDNS website.
PeanutHull Enter User Name and Password opted from PeanutHull website.
NO-IP	Enter Server Address for NO-IP. Enter domain obtained from NO-IP website in NVR Domain Name field.Enter User Name and Password registered in the NO-IP website.
HiDDNS	Server Address of SimpleDDNS server appears by default: www.simpleddns.com.Enter Device Domain Name. You can enter domain name directly on NVR to create a new one.

Configuring NTP Server

A Network Time Protocol (NTP) can be configured to ensure the accuracy of system date and time. To configure, enter the Network Settings interface: Menu > Configuration > Network > NTP.

1. Check Enable NTP.
2. Set the Time Interval, NTP Server, and NTP Port.
3. Click Apply.

Enable NTP Interval (min) 60 NTP Server NTP Port 123

- Time interval between the two synchronizing actions with NTP server (can be set from 1 to 10080 minutes - default is 60 minutes).

IP address of NTP server

NETWORK SETTING

Configuring SNMP

Before you start

Download the SNMP software and manage to receive device information via SNMP port before configuring the SNMP. By setting the Trap Address, the NVR is allowed to send the alarm even and exception message to the surveillance center.

Access the SNMP to get device status and parameter-related information by entering the Network Settings interface: Menu > Configuration > Network > SNMP.

1. Check Enable SNMP.
2. Configure Trap Address and Trap Port.
3. Click Apply.

Enable SNMP SNMP Version V2 SNMP Port 101 Read Community public Write Community private Trap Address Trap Port 102

Configuring Remote Alarm Host

Configuring the Remote Alarm Host allows the NVR to send the alarm event or exception message to the host whenever an alarm is triggered. The Network Video Surveillance software must be installed.

To configure, enter the Network Settings interface: Menu > Configuration > Network > More Settings.

1, Enter Alarm Host IP and Alarm Host Port.

1. Click Apply.

Alarm Host IP Alarm Host Port 0 Server Port 8000 HTTP Port 80 Multicast IP RTSP Port 554 Enable High-speed Dow...

Alarm Host IP refers to the IP address of the remote PC on which the Network Video Surveillance Software is installed.

Alarm Host Port must be the same as the alarm monitoring port configured in the software.

Configuring Multicast

Configure the Multicast to realize Live View for more than 128 connections through the network. To configure, enter the Network Settings interface: Menu > Configuration > Network > More Settings.

1. Set Multicast IP (address can span the Class-D IP range of 224.0.0.0 to 239.255.255.255 — a range of 239.252.0.0. to 239.255.255.255 is recommended).

2. Click Apply.

3. Set Multicast IP (address can span the Class-D IP range of 224.0.0.0 to 239.255.255.255 — a range of 239.252.0.0. to 239.255.255.255 is recommended).

4. Click Apply.

Server Port 8000 HTTP Port 80 Multicast IP 239.221.2.78

When adding a device Network Video Surveillance Software, the multicast address must be the same as the NVR's multicast IP.

NOTE: The multicast function should be supported by the network switch to which the NVR is connected.

NETWORK SETTING

Configuring RTSP

The Real Time Streaming Protocol (RTSP) controls streaming media servers. To configure, enter the Network Settings interface: Menu > Configuration > Network > More Settings.

1. Enter the RTSP port in the RTSP Service Port field (the default RTSP port is 554).
2. Click Apply.

Configuring Server and HTTP Ports

To configure, enter the Network Settings interface: Menu > Configuration > Network > More Settings.

1. Enter new Server Port (the default is 8000).
2. Enter HTTP Port (the default is 80).
3. Click Apply.

Configuring and HTTPS Port

HTTPS provides protection against attacks. The HTTPS Port must be configured through the web browser.

RTSP Port

554

Server Port	8000
HTTP Port	60
Multicast IP	239.221 2.78

NOTE: The Server Port should be set to a range of 2000-65535 and it is used for remote client software access. The HTTP port is used for remote web browser access.

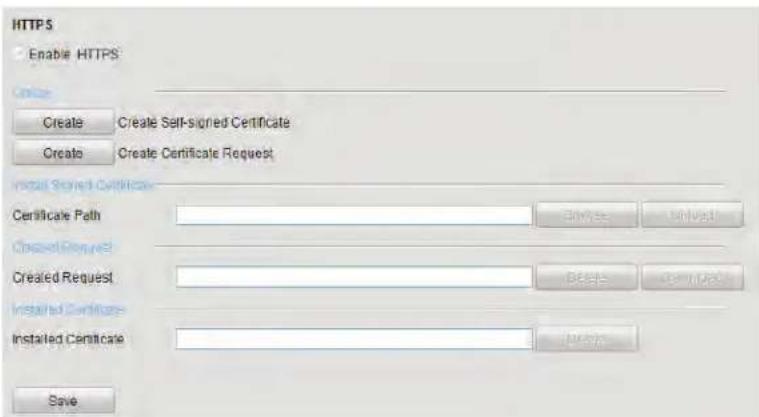

HTTPS Enable HTTPS Create Create Self-signed Certificate Create Certificate Request Install Signed Certificate Certificate Path Checked Request Created Request Installed Certificate Installed Certificate Save

To configure:

1. Open browser and input IP address of device.
2. Input user name and password.
3. Click Login.
4. Enter HTTPS Settings interface: Configuration > Remote Configuration > Network Settings > HTTPS.
5. Create a self-signed certificate or authorized certificate.

To create the self-signed certificate:

1. Click Create.
2. Complete the fields.
3. Click OK.

Country CN * example CN Hashrs/MP 172.5.23.67 * Validity 200 Day* range: 1-5000 Password State or province Locality Organization Organizational Unit Email OK Cancel

To create the authorized certificate:

1. Click Create.
2. Download the certificate request.
3. Submit to the trusted certificate authority for a signature.
4. Import certificate to the device after receiving the signed valid certificate.

Installed Certificate Installed Certificate C=CN, H/IP=172.6.23.110 Delete Property Subject: C=CN, H/IP=172.6.23.110 Issuer: C=CN, H/IP=172.6.23.110 Validity: 2013-06-28 10:42.40 ~ 2013-06-30 10:42.40

1. Enable the HTTPS function.
2. Click Save.

NETWORK SETTING

Configuring Email

Before you configure email settings

The NVR must be connected to a local area network (LAN) that maintains an SMTP mail server. It must also be connected to either an intranet or the Internet — depending on the location of the email accounts to which the emails will be sent.

Email notifications can be sent to all designated users when an alarm event is detected, when a motion event is detected, or when the administrator password is changed. To configure emails, enter the Network Settings interface: Menu > Configuration > Network.

Working Mode Select NIC NIC Type Enable DHCP IPv4 Address IPv4 Subnet Mask IPv4 Default Gateway IPv6 Address 1 IPv6 Address 2 IPv6 Default Gateway MAC Address MTU(Bytes) Preferred DNS Server Alternate DNS Server Main NIC Net Fault-tolerance bond0 10M/100M/1000M Self-adaptive 172 .6 .21 .159 255 .255 .255 .0 172 .6 .21 .1 foc0: a 240.48ff fe62 dcd/64 2002:ac06.1578:a 240.48ff fe62 dcd/64 00:40:48:62:0d:cd 1500 LAN1

1. Set the IPv4 Address, IPv4 Subnet Mask, IPv4 Gateway, and the Preferred DNS server.
2. Click Apply.
3. Click on Email.
4. Configure the settings according to the diagram/list below.
5. Click Apply.

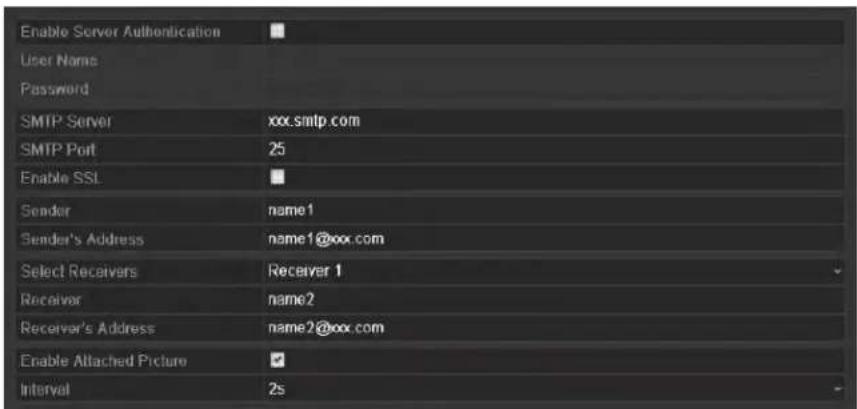

Enable Server Authentication User Name Password SMTP Server xxx.smtp.com SMTP Port 25 Enable SSL Sender{name1 Sender's Address{[e-mail] Select Receivers Receiver 1 Receiver{name2} Receiver's Address{[e-mail] Enable Attached Picture Interval 2s

1. Clicking Test will display one of the following messages.

Attention Email test succeeded OK

Attention Failed to send test email, please check the parameters or network status OK

Enable Server Authentication: Optional.

User name: user account of sender's Email for SMTP server authentication.

Password: password of sender's Email for SMTP server authentication.

SMTP Server IP address or host name

SMTP Port No: The default TCP/IP port used is 25.

Enable SSL: Optional.

Sender: Name of sender.

Sender's Address: Email address of sender.

Receiver: Name of user to be notified.

Receiver's Address: Email addres of notified user. Up to 3 can be configured.

Enable Attached Pictures: Enabling allows alarm images to be attached to emails.

Interval: Time (in seconds) between two actions of sending attached pictures.

Configuring NAT

Before you start

To utilize Universal Plug and Play (UPnP™) on the NVR, the UPnP™ function must first be enabled on the router connected to the NVR. When the network working mode of device is set as multi-address, the Default Route of the device should be in the same network segment as that of the LAN IP address of the router.

Universal Plug and Play (UPnP ^™ ) allows the NVR to seamlessly discover the presence of other devices on the network and establish functional network services for data sharing, communications, and more. Use the UPnP ^™ function to enable the fast connection of the device to the WAN via a router without port mapping.

To configure, access the Network Settings interface: Menu > Configuration > Network.

1. Select NAT tab.
2. Check Enable UPnP.
3. Select Mapping Type.

NOTE: For Auto Mapping, simply choose Auto in the Mapping Type dropdown list and click Apply. If Auto is selected, the Port Mapping items are read-only, and the external ports will be set by the router automatically.

NOTE: For Manual mapping, choose Manual in the Mapping Type dropdown list. Click the button to activate the External Port Settings dialog box. Configure the port settings. If Manual is selected, you can edit the external port on your demand.

1. Click Apply.
2. Click Refresh to get the latest status of the port mapping.

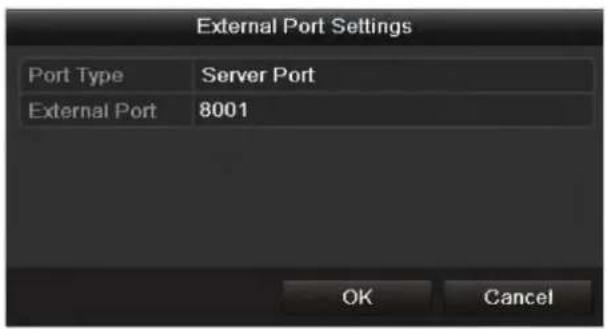

External Port Settings Port Type Server Port External Port 8001 OK Cancel

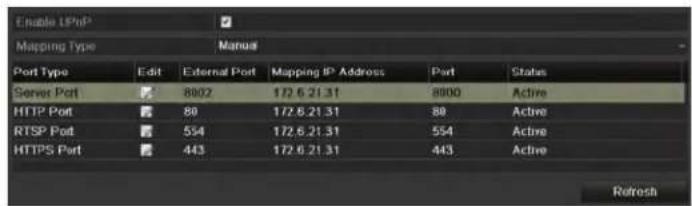

Enable LPPoP Mapping Type Manual Port Type Edit External Port Mapping IP Address Port Status Server Port 8002 172.6.21.31 8000 Active HTTP Port 80 172.6.21.31 88 Active RTSP Port 554 172.6.21.31 554 Active HTTPS Port 443 172.6.21.31 443 Active Refresh

Enable UIP# Mapping Type Manual Port Type Edit External Port Mapping IP Address Part Status Server Port 8000 0.0.0 8800 Inactive HTTP Port 80 0.0.0 88 Inactive RTSP Port 554 0.0.0 554 Inactive HTTPS Port 443 0.0.0 443 Inactive Refresh

Before you start

Make sure the router supports the configuration of internal port and external port in the interface of Forwarding.

NOTE: The RTSP Port number should be 554 or between 1024 and 65535 while the other port numbers should be between 1 and 65535. The value for each must be different.

NETWORK SETTING

If router does not support the UPnP™ function, follow these steps:

Enter the Network Settings interface: Menu > Configuration > Network.

1. Select NAT tab

2. Leave Enable UPnP box uncheked.

3. Click the button to activate the External Port settings dialog box.

4. Configure as mentioned on the previous page.

5. Click OK and then Apply.

6. Enter virtual server setting page of router and populate Internal Source IP.

Configuring High-Speed Download

The High-Speed Download function widens the outgoing bandwidth of the NVR. This helps to speed up the download of record files through the web browse or CMS software.

NOTE: This function affects local menu operation. Disable this function after completing remote downloading.

To configure, enter the Network Settings interface: Menu > Configuration > Network > More Settings.

1. Check box and click OK.
2. Then click Apply.

Virtual Host Settings

NOTE: This function can only be configured through the web browser.

Enter the Advanced settings interface: Configuration > Remote Configuration > Network Settings > Advanced.

1. Check Enable Virtual Host.
2. Click Save.
3. Enter IP Camera Management interface: Configuration > Remote Configuration > Camera Management > IP Camera.

IP Camera Add Make Deade Cancel Custom Protocol Channel No. IP Camera Address Channel No. Management Port Status Protocol Connect D01 192.168.254.8 1 8000 Offline(IP camera does not exist) HIKVISION hip://172.6.23.198.65001 D02 192.168.254.3 1 8000 Offline(IP camera does not exist) HIKVISION hip://172.6.23.198.65002 D03 192.168.254.4 1 8000 Offline(IP camera does not exist) HIKVISION hip://172.6.23.198.65003 D04 192.168.254.7 1 8000 Offline(IP camera does not exist) HIKVISION hip://172.6.23.198.65004 D05 192.168.254.6 1 8000 Offline(IP camera does not exist) HIKVISION hip://172.6.23.198.65005 D06 172.6.23.177 1 8000 Offline(Network Abnormal) HIKVISION hip://172.6.23.198.65006 D07 172.6.23.123 1 8000 Online HIKVISION hip://172.6.23.123.80 D08 172.6.23.12 1 8000 Online HIKVISION hip://172.6.23.12.80

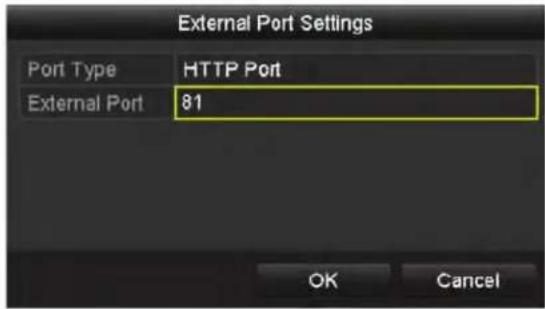

External Port Settings Port Type HTTP Port External Port 81 OK Cancel

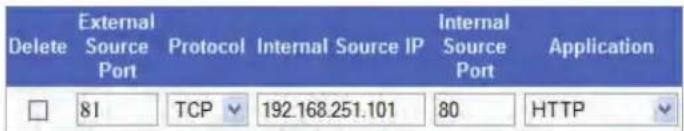

External Delete Source Port Protocol Internal Source IP Internal Source Port Application 81 TCP 192.168.251.101 80 HTTP

NOTE: Each item should correspond with the device port, including server port, http port, RTSP port and https port. The above virtual server setting is for reference only, it may be different due to different router manufacturers.

Attention Enabling high-speed download may cause the local GUI operation stuck. OK

Advanced Alarm Host IP Alarm Host Port 0 Multicast Address Enable Virtual Host Enable Telnet Save

NETWORK SETTING

Telnet Settings

The Telnet function provides easy access to the NVR. Enter the Advanced settings interface: Configuration > Remote Configuration > Network Settings > Advanced.

1. Check Enable Telnet.
2. Click Save.
3. Open the Command Prompt window on the PC, and input "telnet IP Address" to connect with the NVR.

Microsoft Windows [Version 6.1.7%01] Copyright (c) 2009 Microsoft Corporation. All rights reserved. G:\Users\Telnet 192.8.8.64_

For example, if the IP address of the NVR is 192.0.0.64, you can input "telnet 192.0.0.64" and then press Enter to connect.

Checking Network Traffic

To check network traffic and real-time information of the NVR, access the Network Traffic interface: Menu > Maintenance > Net Detect.

NOTE:

Traffic data is refreshed every one second.

Configuring Network Detection

Testing Network Delay and Packet Loss

Enter the Network Traffic interface: Menu > Maintenance > Net Detect > Network Detection.

1. Enter Destination Address.
2. Click Test.

Network Delay, Packet Loss Test Select NIC LAN1 Destination Address 172.6.23.6 Network Packet Export Device Name LAN1 172.8.21.64 2,789Kbps Test Refresh Export

NOTE:

Clicking Test will display one of the following messages.

Result Average delay: 63 ms Packet loss rate: 0% OK

Attention The destination is unreachable. OK

NETWORK SETTING

Exporting Network Packet

To export the captured network data packet to a USB-flash disk, SATA/eSATA, DVD-R/W and other local devices, enter the Network Traffic interface: Menu > Maintenance > Net Detect > Network Detection.

1. Select backup device from Device Name dropdown list

NOTE: Click Refresh if connected local backup device is not displayed. When it fails to detect the backup device, please check whether it is compatible with the NVR. You can format the backup device if the format is incorrect.

1. Click Export.

2. After export is complete, click OK.

NOTE: Up to 1M data can be exported each time.

Network Delivery, Packet List Test Dataset: NBC LAN1 Communication: Redkess Network Packet Caport Access Name LAN1 372.6.23.198 WIDTHps Status Network Back

Network Delay, Packet Loss Test Select NC LAN1 Destination Address 172.6.23.6 Test Network Packet Export Device Name USB1-1 LAN1 172.6.21.64 2.740Kbps Refresh Export

Packet exporting Cancel

Attention Packet export succeeded. OK

Checking Network Status

To check network status and quick set the network parameters, enter the Network Detection page: Menu > Maintenance > Net Detect > Network Detection

1. Click Status.

NOTE: If the network is normal the following message will appear:

Result Network status is normal. OK

Checking Network Statistics

To obtain real-time information on the NVR, enter the Network Detection interface: Menu > Maintenance > Net Detect > Network Stat.

Type IP Camera Remote Live View Remote Playback Net Receive Idle Net Send Idle Bandwidth 9,216Kbps 0bps 0bps 31Mbps 240Mbps Refresh

NOTE: Check the bandwidth of IP Camera, bandwidth of Remote Live View, bandwidth of Remote Playback, bandwidth of Net Receive Idle and bandwidth of Net Send Idle.

NOTE: Click Refresh to get the newest status.

HDD MANAGEMENT

Initializing HDDs

If a hard disk drive (HDD) has not been initialized, the following message will appear when the NVR starts.

Click Yes to immediately initialize.

Attention ? Not all hard disks are initialized. Initialization will erase all data on the disk. Do you want to initialize the disk(s)? Yes No

The HDD can also be initialized through the HDD Information interface: Menu > HDD > General.

1. Select the HDD.

2. Click Init.

HDD Information L... Capacity Status Property Type Free Space Gr Edit D... 5 931.51GB Normal R/W Local 846GB 1 -

Initialize Initialization will erase all data on the HDD. Continue? OK Cancel

Before you continue All data on an HDD will be deleted once it has been initialized.

1. Click OK.

Once initialized, this menu will appear with the status Normal.

HDD Information L... Capacity Status Property Type Free Space Gr... Edit D... 5 931.51GB Normal RAW Local 846GB 1

HDD MANAGEMENT

Managing a Network HDD

To use an allocated NAS or disk of IP SAN as the network HDD of the NVR.

Enter the HDD Information interface: Menu > HDD > General.

HDD Information L Capacity Status Property Type Free Space Gr Edit D 5 931.51GB Normal RW Local 846GB 1 -

Add NetHDD NetHDD NetHDD 1 Type NAS NetHDD IP Address NetHDD Directory OK Cancel

1. Click Add to enter the Add NetHDD interface.
2. Add the allocated NetHDD.
3. Choose NAS or IP SAN as the type.

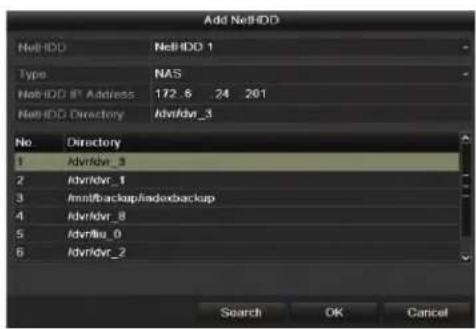

Add NetIDD NetIDD NetIDD 1 Type NAS NetIDD IP Address 172.6 .24 201 NetIDD Directory Idvrldvr_3 No Directory 1 Idvrldvr_3 2 Idvrldvr_1 3 Init/backup/indexbackup 4 Idvrldvr_8 5 Idvrflgu_0 6 Idvrldvr_2 Search OK Cancel

1. Configure the NAS or IP SAN settings.

- Add NAS disk:

a. Enter the NetHDD IP address in the text field.
b. Click Search to find available NAS disks.
c. Select from the list or manually enter the directory in the NetHDD Directory field.
d. Click OK to add the configured NAS disk.

NOTE:

Up to 8 NAS disks can be added.

- Add IP SAN:

1. Enter the NetHDD IP address in the text field.
2. Click Search to find available IP SAN disks.
3. Select from the list.
4. Click OK to add the selected IP SAN disk.

NOTE:

Up to 1 IP SAN disk can be added.

After having successfully added the NAS or IP SAN disk, return to the HDD Information menu. The added NetHDD will be displayed in the list.

NOTE:

If the added NetHDD is uninitialized, select it and click the Init button alization.

Add NetHDD NetHDD NetHDD 1 Type IP SAN NetHDD IP Address 172 .9 .2 .210 NetHDD Directory ign.2004-05.storos.t-8 No Directory 1 ign 2004-05.storos.t-8 2 ign 2004-05.storos.t-41 3 ign 2004-05.storos.t-1000 Search OK Cancel

Label Capacity Status Property Type Free Space Gro... Edit Del... 3 931.510B Normal RAW Local 8900B 1 - 4 931.510B Normal RAW Local 8670B 1 - 17 79.968MB Normal RAW NAS 79,872MB 1 -

Managing eSATA

When there is an external eSATA device connected to NVR, you can configure eSATA for the use of Record/Capture or Export, and you can manage the eSATA in the NVR. Enter the Advanced Record Settings interface: Menu > Record > Advanced.

1. Select the eSATA type to Export or Record/Capture from the dropdown list of eSATA. Export: use the eSATA for backup. Record/Capture: use the eSATA for record/capture.
2. When the eSATA type is selected to Record/Capture, enter the HDD Information interface: Menu > HDD > General
3. Edit the property of the selected eSATA, or initialize it is required.

Two storage mode eSATA when it is us

Label Capacity Status Property Type Free Space Gro... Edit Del... 4 931.51GB Normal R/W Local 921GB 1 18 10,048MB Uninitialized R/W NAS 0MB 1 25 931.51GB Normal R/W eSATA 894GB 1

Managing HDD Group

Setting HDD Groups

Multiples HDDs can be managed in groups. To record video from specified channels onto a particular HDD group,

Enter the Storage Mode interface:

Menu > HDD > Advanced > Storage Mode.

1. Set the Mode to Group.

Storage Mode Mode Group Record on HDD Group 1 ✓ IP Camera ✓D1 ✓D2 ✓D3 ✓D4 ✓D5 ✓D6 ✓D7 ✓D8

Attention Reboot to take effect of the changing of the storage mode. Continue? Yes No

1. Click the Apply button and the Attention box to the left will pop up.
2. Click Yes to reboot the device to activate the changes.
3. After reboot of device, enter the HDD information interface. Menu > HDD > General.

HDD MANAGEMENT

1. Select HDD from the list and click icon to enter the Local HDD settings interface.

Local HDD Settings HDD No: 5 HDD Property ● R/W ● Read-only ● Redundancy Group ● 1 ● 2 ● 3 ● 4 ● 5 ● 6 ● 7 ● 8 ● 9 ● 10 ● 11 ● 12 ● 13 ● 14 ● 15 ● 16 HDD Capacity 931GB Apply OK Cancel

1. Select the Group number for the current HDD.

NOTE: The default group No. for each HDD is 1.

1. Click OK to confirm the settings.

Attention Regroup the cameras for HDD if the HDD group number is changed. Yes No

1. Click Yes to finish the settings.

Setting HDD Property

Before you start Set storage mode to Group before setting the HDD property.

Enter the HDD Information interface:

Menu > HDD > General.

1. Select HDD from the list and click the 📄 icon to enter the Local HDD Settings interface.
2. Set the HDD property to either R/W, Read-Only, or Redundancy. 3. Click Apply and then the OK button.

NOTE: Read-only to prevent recorded files from being overwritten when the HDD becomes full in overwrite recording mode.

NOTE: Redundancy allows video to be recorded both onto the redundancy HDD and the read/write HDD simultaneously to ensure high security and reliability of video data.

NOTE: At least two hard disks must be installed on the NVR when the HDD is set to Redundancy and one is set to R/W.

1. Click Apply and then the OK button.
2. In the HDD Information menu, the HDD property will be displayed in the list.

Local HDD Settings HDD No 5 HDD Property ● R/W ● Read-only ● Redundancy Group ●1 ●2 ●3 ●4 ●5 ●6 ●7 ●8 ●9 ●10 ●11 ●12 ●13 ●14 ●15 ●16 HDD Capacity 931GB Apply OK Cancel

Configuring Quota Mode

To configure each camera with allocated quota for the storage of recorded files and captured pictures.

Enter the Storage Mode interface: Menu > HDD > Advanced.

1. Set Mode to Quota.

NOTE:

Reboot the NVR to enable changes.

1. After the reboot, return to this screen and select a camera.
2. Enter the storage capacity.

Storage Mode Mode Quote Camera IP Camera 1 Used Record Capacity 8,192MB Used Picture Capacity 1,024MB HDD Capacity (GB) 931 Max. Record Capacity (GB) 80 Max. Picture Capacity (GB) 100 ▲ Free Quota Space 751 GB

Storage Mode Mode Quota Camera IP Camera 1 Used Record Capacity 8,192MB Used Picture Capacity 1,024MB HDD Capacity (GB) 931 Max Record Capacity (GB) 80 Max Picture Capacity (GB) 100 ▲ Free Quota Space 751 C 1 2 3 4 5 6 7 8 9 0 0 home 0x

NOTE: Settings can be copied to other cameras if needed by clicking Copy. Select the camera to apply the settings to and click OK.
NOTE: You can also click the checkbox of IP Camera to select all cameras.
4. In the next screen, click Apply.
NOTE: A quota setting of "0" means that all cameras will use the total capacity of HDD for record and picture capture.

Copy to IP Camera D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 D16 OK Cancel

HDD MANAGEMENT

Configuring Disk Clone

ore you start

SATA disk should be connected to the NVR before starting.

If the S.M.A.R.T detection result declares the HDD is abnormal, you can choose to clone all the data on the HDD to an inserted eSATA disk manually.

An eSATA disk should be connected to the device.

1. Enter the HDD Advanced Setting interface: Menu > HDD > Advanced.

2. Click the Disk Clone tab.

3. Make sure usage of the eSATA disk is set to Export. If it is not, click Set, choose Export and click OK.

Storage Mode Disk Clone Clone Source Label Capacity Status Property Type Free Space Gr... 4 331.51GB Normal R/W Local 514GB 1 Clone Destination eSATA eSATA1 Refresh Usage Export Sel Total Capacity 931.51GB Clone Back

eSATA Usage eSATA1: Export Record/Ca... OK Cancel

NOTE: Capacity of the destination disk should match the clone source disk.

1. Check the box of the HDD to be cloned in the Clone Source list.
2. Click the Clone button and a message box pops up.
3. Click Yes.
   NOTE: If it is not, click "Set", choose "Export" and click "OK."

Attention The clone operation will stop the record task, lasting about 7 hours. Continue? Yes No

Checking HDD Status

To check the status on the installed HDDs, enter the HDD Information interface: Menu > HDD > General.

NOTE: Normal or Sleeping status means the HDD is working normally. Uninitialized or Abnormal means the HDD needs to be initialized or possibly replaced.

1. Enter the System Information Interface: Menu > Maintenance > System Info.

2. Click the HDD tab to view the status of each HDD displayed on the list.

HDD Information Label Capacity States Property Type Free Space Gro Edit Del 4 931.51GB Normal R/W Local 921GB 1 - 18 10.046MB Uninitialized R/W NAS 0MB 1 n 25 931.51GB Normal R/W eSATA 894GB 1 n Total Capacity 1,872GB Free Space 1,815GB

HDD Detection

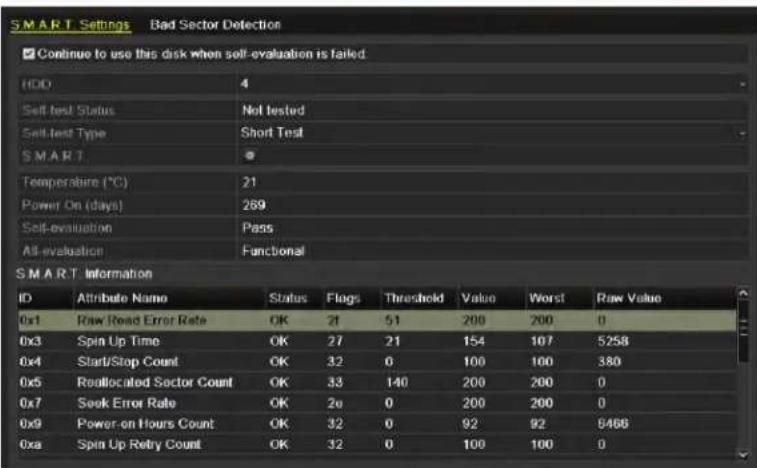

SMART Settings Bad Sector Detection Continue to use this disk when self-evaluation is failed. HDD 4 Self-test Status Not tested Self-test Type Short Test SMART Temperature (℃) 21 Power On (days) 289 Self-evaluation Pass All-evaluation Functional SMART Information ID Attribute Name Status Flags Threshold Value Worst Raw Value 0x1 Raw Read Error Rate OK 2f 51 200 200 0 0x3 Spin Up Time OK 27 21 154 107 5258 0x4 Start/Stop Count OK 32 0 100 100 380 0x5 Reallocated Sector Count OK 33 140 200 200 0 0x7 Seek Error Rate OK 2g 0 200 200 0 0x9 Power-on Hours Count OK 32 0 92 92 6466 0xa Spin Up Retry Count OK 32 0 100 100 0

To detect the HDD with the S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology), enter the S.M.A.R.T. Settings interface: Menu > Maintenance > HDD Detect.

Select the HDD to view its S.M.A.R.T. information. The related information of the S.M.A.R.T. is shown on the interface.

Choose self-test types as Short Test, Expanded Test, or the Conveyance Test. Click Star" to start the S.M.A.R.T. self-evaluation.

NOTE: If you want to use the HDD even when the S.M.A.R.T checking is failed, you can check the checkbox of the Continue to use the disk when evaluation is failed item.

To detect the HDD with the Bad Sector Detection:

1. Select the Bad Sector Detection tab.
2. Select the HDD number.
3. Choose All Detection or Key Area Detection as the Detection type.
4. Click Detect.

SMART Settings HDD No 4 Key Area Detection Detected HDD Capacity 931.510B Block Capacity 232MB Status Testing... 39% Error Count 0 Error info Pause Cancel Normal Damaged Shield

HDD MANAGEMENT

Configuring HDD Error Alarms

When HDD status is Uninitialized or Abnormal, configure the HDD through the Exception interface: Menu > Configuration > Exceptions.

Exception Exception Type HDD Error Audible Warning Notify Surveillance Center Send Email Trigger Alarm Output Alarm Output No. Alarm Name Local->1 Local->2 Local->3 Local->4 172.6.23.105:8000->1

1. Choose HDD Error as the Exception Type and then check the box for the desired alarm type.

NOTE: When the Trigger Alarm Output is selected, the Alarm Output can also be detected.

1. Click Apply.

CAMERA SETTINGS

Configuring OSD Settings

Enter the OSD Configuration interface: Menu > Camera > OSD. Make appropriate changes and click Apply.

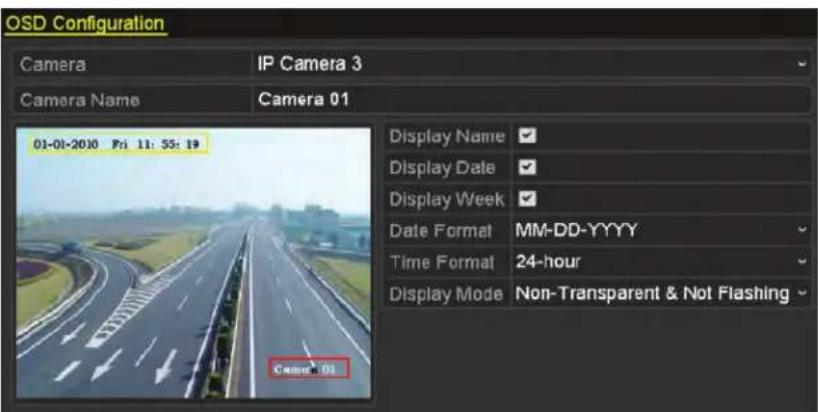

OSD Configuration Camera IP Camera 3 Camera Name Camera 01 01-01-2010 Fri 11: 55: 19 Display Name Display Date Display Week Date Format MM-DD-YYYY Time Format 24-hour Display Mode Non-Transparent & Not Flashing Camera 01

1. Select camera to configure.
2. Edit camera name.
3. Check boxes to configure display name, date, and week.
4. Select date and time formats and display mode.

NOTE: Click and drag mouse on preview window to adjust OSD position.

Configuring Privacy Mask

To prevent certain surveillance areas from being viewed by the Operator or recorded, configure a four-sided privacy mask. Enter the Privacy Mask Settings interface: Menu > Camera > Privacy Mask. Make appropriate changes and click Apply.

Privacy Mask Settings Camera P Camera 1 Enable Privacy Mask 01-01-2010 Fri 11:55:19 Clear All Clear Zone 1 Clear Zone 2 Clear Zone 3 Clear Zone 4 Camera 01

1. Select camera to set mask.
2. Check box to enable mask.
3. Select camera to set mask.

NOTE: Up to four privacy mask zones can be set. Size can be adjusted. Each zone will be marked with a different color frame.

Privacy Mask Settings Camera P Camera 1 Flexible Privacy Mask 01-01-2010 Fri 11:55:19 Clear All Clear Zone 1 Clear Zone 2 Clear Zone 3 Clear Zone 4 Camera 81

NOTE: Left-click and hold mouse to drag and draw mask zone on window.
NOTE: Clear zones individually or all at one time.

CAMERA SETTINGS

Configuring Video Parameters

Enter the Image Settings interface: Menu > Camera > Image. Make appropriate changes and click Apply. Select camera to configure.

Image Settings Camera IP Camera 3 Mode Customize Brightness 128 ° Contrast 128 ° Saturation 128 ° Hue 128 °

NOTE:

Use the arrows to change each parameter value.

MANAGEMENT AND MAINTENANCE

Viewing Device Information

Enter the System Information interface:

Menu > Maintenance > System Info > Device Info.

Device Info.	Camera	Record	Alarm	Network	HDD
Device Name			Embedded Net DVR
Model
Serial No.			1620120518BBRR408508857MCVU
Firmware Version
Encoding Version			V1.0, Build 121210

Viewing Camera Information

Enter the System Information interface:

Menu > Maintenance > System Info > Camera.

Device Info	Camera	Record	Alarm	Network	HDD
Camera ...	Camera Name			Status	Motion Detection	Tamper-proof	Video Loss
D1	Camera02			Connected	Occur	Used	Not used
D2	Camera 01			Disconnected	Not supported	Not supported	Not supported
D3	Camera03			Disconnected	Not supported	Not supported	Not supported
D4	Camera04			Disconnected	Not supported	Not supported	Not supported
D5	Camera05			Disconnected	Not supported	Not supported	Not supported

Viewing Record Information

Enter the System Information interface:

Menu > Maintenance > System Info > Record.

Device Info	Camera	Record	Alarm	Network	HDD
Camera No	Recording	Stream Typ	Frame Rate	Bitrate(Kbps)	Resolution	Record Typ	Encoding P	Redundant
D1	Used	Video & Au	30fps	2048	704*576(4CIF)	Manual	Event	No
D2	Used	Video	30fps	2048	1600*1200(UXG Manual		Normal	No
D3	Not used	Video & Au	30fps	2048	704*576(4CIF)		Normal	No
D5	Not used	Video	30fps	2048	4CIF		Normal	No
D6	Not used	Video & Au	30fps	2048	4CIF		Normal	No
D7	Not used	Video	30fps	2048	4CIF		Normal	No

MANAGEMENT AND MAINTENANCE

Viewing Alarm Information

Enter the System Information interface:

Menu > Maintenance > System Info > Alarm.

Device Info Camera Record Alarm Network HDD No. Alarm Name Alarm Type Alarm Status Triggered Camer Local<-1 N.C Occur D3~D4 D7 Local<-2 N.O Used Local<-3 N.O Used Local<-4 N.O Used Local<-5 N.O Used Local<-6 N.C Occur D3~D4 D7 Local<-7 N.O Used Local<-8 N.O Used Local<-9 N.O Used Local<-10 N.C Occur Local<-11 N.C Occur Local<-12 N.O Used Local<-13 N.O Used Local<-14 N.O Used Local<-15 N.O Used

Viewing Network Information

Enter the System Information interface:

Menu > Maintenance > System Info > Network.

System Maintenance Device Info Camera Record Alarm Network HDD NIC 80000 IPv4 Address 172.8.2.250 IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 172.8.2.1 IPv6 Address 1 fe80..240.48ffe4c.7f17/64 IPv6 Address 2 IPv6 Default Gateway Preferred DNS Server 192.0.0.200 Alternate DNS Server Enable DHCP Disabled Enable PPPOE Disabled PPPOE Address PPPOE Subnet Mask PPPOE Default Gateway Main NIC LAN1 Back

MANAGEMENT AND MAINTENANCE

Viewing HDD Information

Enter the System Information interface: Menu > Maintenance > System Info > HDD.

System Maintenance Device Info Camera Record Alarm Network HDD Label Status Capacity Fire Space Property Type(G 5 Normal 9310B 9310B R/W Local 1 6 Normal 9310B 9310B Redundancy Local 1 17 Normal 40,000MB 22,528MB R/W IP SAN 1 Total Capacity 1,902GB Free Space 1,864GB

Search Log Files

Operation, alarm, exception, and NVR information stored in log files can be viewed or exported at any time. Enter the Log Search interface: Menu > Maintenance > Log Information > Log Search.

Log Search Log Export Start Time 06-04-2012 00:00:00 End Time 06-04-2012 23:59:59 Major Type All Minor Type All No Major Type Time Minor Type Paramet Play Details Total 0 P. 1/1

1. Set conditions for log search.
2. Click Search.

MANAGEMENT AND MAINTENANCE

Log Search Log Export Start Time 06-04-2012 00:00:00 End Time 06-04-2012 23:59:59 Major Type All Minor Type All No. Major Type Time Minor Type Paramet... Play Details 100 Alarm 06-04-2012 06:12:35 Stop Motion Det... N/A ✓ 99 Alarm 06-04-2012 06:12:21 Start Motion Det... N/A ✓ 98 Alarm 06-04-2012 06:10:30 Start Motion Det... N/A ✓ 97 Alarm 06-04-2012 06:10:16 Start Motion Det... N/A ✓ 96 Alarm 06-04-2012 06:07:49 Start Motion Det... N/A ✓ 95 Alarm 06-04-2012 06:07:36 Start Motion Det... N/A ✓ 94 Alarm 06-04-2012 06:02:39 Start Motion Det... N/A ✓ 93 Alarm 06-04-2012 06:02:26 Start Motion Det... N/A ✓ 92 Alarm 06-04-2012 05:59:26 Start Motion Det... N/A ✓ 91 Alarm 06-04-2012 05:59:13 Start Motion Det... N/A ✓ 90 Alarm 06-04-2012 05:45:13 Start Motion Det... N/A ✓ 89 Alarm 06-04-2012 05:44:59 Start Motion Det... N/A ✓ 88 Alarm 06-04-2012 05:43:15 Start Motion Det... N/A ✓ Total: 1052 P: 1/11

1. Click the √ button to view the log details.
2. Click the 🎯 button to view a log's related video files.

NOTE: All logs meeting set conditions will display (up to 2,000 at a time).

Export Log Files

To export log files, enter the Log Information interface: Menu > Maintenance > Log Information > Log Export. Select the backup device and click Export.

NOTE:

Exports are named by time.

Export Device Name USB1-1 Refresh Name Size Type Edit Date Delete Play FOUND 000 Folder 2010-09-17 11:19:04 FOUND 001 Folder 2011-04-02 17:45:24 RECYCLER Folder 2010-08-04 17:35:20 Work Folder 2011-06-21 17:55:42 Book1.xls 23KB File 2011-05-26 18:32:14 Compare Excel exe 129KB File 2011-04-20 09:51:42 Recycled 4KB File 2011-02-22 14:16:18 bond0_20110624172t 1,024KB File 2011-06-24 17:20:48 digicap mav 19,790KB File 2011-06-23 09:05:20 Free Space 180MB New Folder Format Export Cancel

Connecting Backup Device NVR

Make sure the backup device is connected to the NVR before attempting a log export.

NOTE: Please connect the backup device to NVR before operating log export.

NOTE: The log files exported to the backup device are named by exporting time.

1. Create a new folder in backup device.
2. Formate backup device before log export.

MANAGEMENT AND MAINTENANCE

To export all log files, enter the Log Information interface: Menu > Maintenance > Log Information > Log Export. Check the HDD checkbox and click Export.

Log Search Log Export Capacity Status Property Type Free Space Cr. ✓ 5 931.51GB Normal R/W Local 775GB 1 Export Back

Export/Import IP Camera Information

To export IP camera information to an Excel file or local device for backup, enter the Camera Management interface: Menu > Camera > IP Camera Import/Export and click Export.

To import a file, select the file from the backup device and click Import.

NVR must be rebooted after an import.

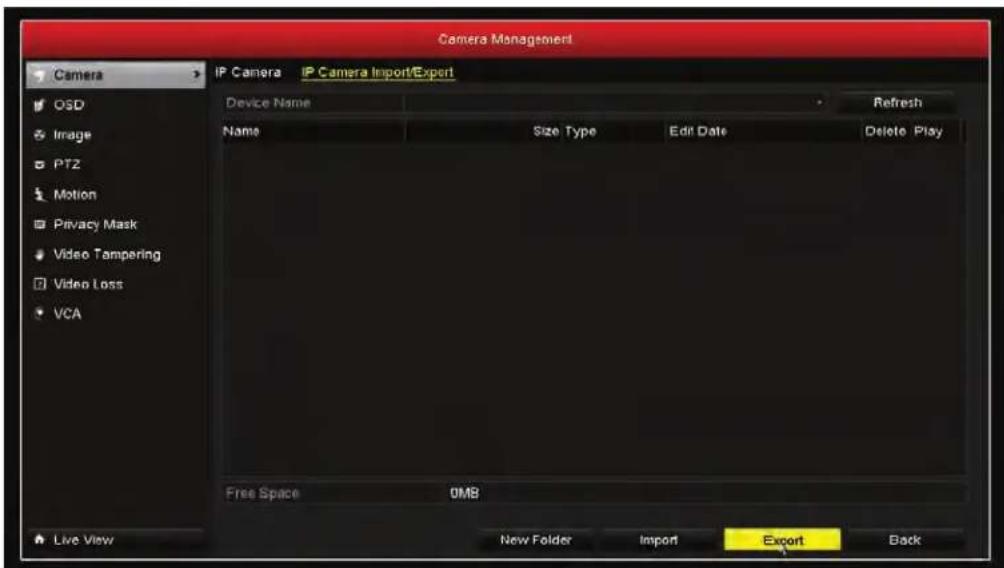

Camera Management Camera IP Camera IP Camera Import/Export Device Name Name Size Type Edit Date Delete Play Free Space 0MB New Folder Import Export Back Live View

MANAGEMENT AND MAINTENANCE

Export/Import Configuration Files

To export configuration files to a device for backup, enter the Import/Export Configuration File interface: Menu > Maintenance > Import/Export > and click Export.

To import a file, select the file from the backup device and click Import.

NOTE:

NVR must be rebooted after an import and will automatically after import completes.

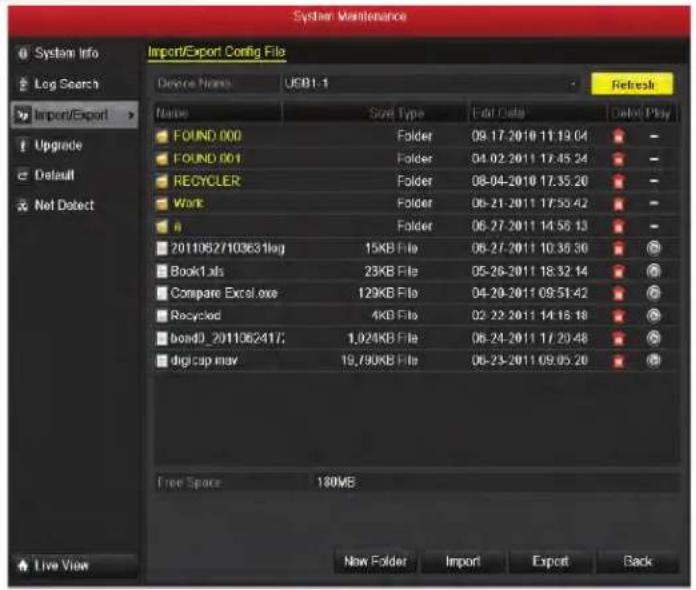

System Maintenance Import/Export Config File Device Name: USB1.1 Refresh Name Scel Type Edit Date Delete Play FOUND 000 Folder 09-17-2010 11:19:04 FOUND 001 Folder 04-02-2011 17:45:24 RECYCLER Folder 08-04-2010 17:35:20 Work Folder 06-21-2011 17:53:42 a Folder 06-27-2011 14:56:13 20110627103631log 15KB File 06-27-2011 10:36:30 Book1.xls 23KB File 05-26-2011 18:32:14 Compare Excel.exe 129KB File 04-20-2011 09:51:42 Recycled 4KB File 02-22-2011 14:15:18 bond0_2011362417; 1,924KB File 06-24-2011 17:20:48 digital may 19,790KB File 06-23-2011 09:05:20 Free Space 180MB New Folder Import Export Back Live View

Upgrading by Local Backup Device

Enter the Upgrade interface: Menu > Maintenance > Upgrade > Local Upgrade. Select the update file and click Upgrade.

NOTE:

NVR must be rebooted after upgrade to activate new firmware.

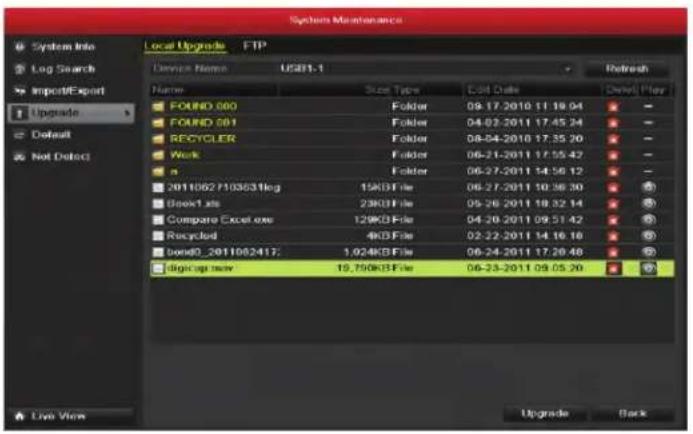

System Maintenance Local Upgrades FTP Device Name: US301-1 Name Size Type Edit Date Refresh Default Play FOUND 000 Folder 09.17.2010 11:19:04 FOUND 001 Folder 04.03-2011 17:45:24 RECYCLER Folder 08-04-2010 17:35:20 Work Folder 06-21-2011 17:55:42 n Folder 06-27-2011 14:56:12 2011062 F103631neg 15KB File 06-27-2011 10:36:30 Book1.xls 23KB File 05-26-2011 18:32:14 Compare Excel.exe 129KB File 04-20-2011 09:51:42 Recycled 4KB File 02-22-2011 14:16:18 bond0_2011062417: 1.024KB File 06-24-2011 17:20:48 Eligcup.net 18.756KB File 06-23-2011 09:05:20 Upgrade Back

Before you start

Connect NVR to local backup device where firmware file is located.

MANAGEMENT AND MAINTENANCE

Upgrading by FTP

Enter the Upgrade interface: Menu > Maintenance > Upgrade > FTP. Enter the FTP Server Address and click Upgrade.

NOTE:

NVR must be rebooted after upgrade to activate new firmware.

Local Upgrade FTP FTP Server Address . . .

Before you start

Configure PC and NVR to same Local Area Network before starting. Run the third-party software on the PC and copy firmware into the root directory of FTP.

System Maintenance Default System will restore factory settings after reboot. Continue? OK Beck

NOTE:

All NVR parameters will revert to the default settings using the network parameters: IP address, mask, gateway, MTU, NIC working mode, route, and server port.

ADDITIONAL INFORMATION

RS-232 Serial Port Configuration

Enter the RS-232 Settings interface to use the RS-232 port for connecting a PC to the NVR or to connect a serial device to the NVR: Menu > Configuration > RS-232. Configure settings and then click Apply.

RS-232 Settings
Baud Rate	115200
Data Bit	8
Stop Bit	1
Parity	None
Flow Ctrl	None
Usage	Console

General Settings

Configuration

BNC output standard, VGA output resolution, and mouse pointer speed can all be configured through the General Settings interface: Menu > Configuration > General > General. Configure settings and click Apply.

General	DST Settings	More Settings
Language		English
CVBS Output Standard		NTSC
VGA Resolution		1024*768/60HZ
HDMI Resolution		1920*1080/60HZ(1080P)
Time Zone		(GMT+08:00) Beijing, Urumqi, Singapore
Date Format		MM-DD-YYYY
System Date		04-25-2013
System Time		11:35:35
Mouse Pointer Speed
Enable Wizard
Enable Password

SETTING FUNCTION

Language The default language is English

CVBS Output Standard Set CVBS output standard to NTSC or PAL, which must be the same with video input standard

VGA Resolution VGA output resolution must be the same with monitor screen resolution

HDMI Resolution HDMI output resolution must be the same with monitor screen resolution

Time Zone / Date Format Set time zone and date format

System Time / Date Set system time and date

Mouse Pointer Speed Set speed of mouse pointer; 4 levels are configurable

Enable Wizard Enable / Disable Wizard when device starts up

Enable Password Enable / Disable use of login password

ADDITIONAL INFORMATION

DST Settings

Enter the General Settings interface: Menu > Configuration > General > DST Settings.

General DST Settings More Settings ■ Auto DST Adjustment Enable DST From Apr - 1st - Sun - 2 00 To Oct - last - Sun - 2 00 DST Bias 60 Minutes

NOTE: You can check the checkbox before the Auto DST Adjustment Item, or you can manually check the Enable DST checkbox, and then choose the date of the DST period.

Smartbridge Function

The NVR must be connected to the Internet to enable the P2P feature. The P2P feature can be enabled through the DDNS interface: Configuration > Network > DDNS.

Configuration General PPPOE DDNS NTP Email SNMP NAT More Settings Enable P2P Enable Stream Encryption Verification Code QWEASD! Enable DDNS DDNS Type SimpleDDNS Server Address www.simpleddns.com Device Domain Name User Name Password Confirm

1. Check the box to enable.
2. Define a six-letter, all-uppercase custom verification code.

File System View Tool Help Control Panel Main View Device Management IVMS-4200 valen Network:0% CPU:5% Memory:6% 18:25:07

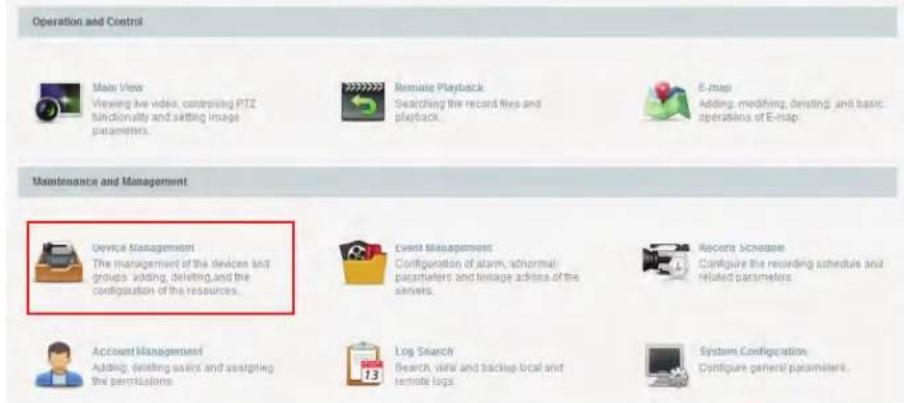

Operation and Control Main View Viewing live video, controlling PTZ functionality and setting image parameters. Remote Playback Searching the record files and playback. E-map Adding, modifying, deleting, and basic operations of E-map. Maintenance and Management Device Management The management of the devices and groups adding, deleting, and the configuration of the resources. Credit Management Configuration of alarm, abnormal parameters and linkage actions of the servers. Report Schedule Configure the recording schedule and Related parameters. Account Management Adding, deleting requests and assigning the permissions. Log Search Search, view and backup local and remote logs. System Configuration Configure general parameters.

1. Click on Device Management to install and open a PC.

ADDITIONAL INFORMATION

1. Click Add New Device Type.

File System View Tool Help Control Panel Device Management Server Group Organization Recording Device Add New Device Type Device for Management (0) Add Device Monitor Delete Generate Config Refresh All Help Nickname IP Device Serial No | Net Status HCD Status Recording Online Device (25) Refresh Every 15s

2. Select Device on Cloud and click Register.

File System View Tool Help First Alert Control Panel Device Management Server Group Organization Encoding Device Storage Server Device and Cloud Add New Device Type Device(s) for Management(0) Login Register

3. Complete fields and click Register.

Register Cloud Account CloudAccount: Password: Verify: Email: Verification Code: Get Email Code kZ2 Refresh Email Code: E:\Users\Windows\My\Control\code Register Cancel

NOTE: Clicking the Get Email Code will trigger an email with the code needed to register.

ADDITIONAL INFORMATION

1. Click Login and enter the information from the previous step.

Login Cloud Cloud Account firstalert Password: ••••••• Forgot Password A new group named after the account name will be created by default You can also m... Login Cancel

1. Enter Serial No. and Verification Code.

Add Device Serial No.: 423010281 Verification Code: QWEASD OK Cancel

Find this in Configuration > System Info > Device Info > Serial No. Choose just the middle part of the number beginning from "4".

This is the six-letter, all-uppercase custom verification code previously created.

More Settings

To configure more settings, access the General Settings interface: Menu > Configuration > General > More Settings. Once configured, click Apply.

General DST Settings More Settings Device Name Embedded Net DVR Device No 255 CVBS Output Brightness Auto Logout Never Enable HDMI/VGA Simul... Manu Output Mode Auto

SETTING FUNCTION
Device Name Edit the name of NVR
Device No. Edit serial number of NVR. The Device No. can be set in the range of 1-255. (Default is 255)
CVBS Output Brightness Adjust the video output brightness
Auto Logout Set timeout for menu inactivity.
Enable HDMI/VGA Simultaneous Output	By default the video outputs from HDMI and VGA can be operated separately. Set the simultaneous output by checking the option.
Menu Output Mode Choose the menu display on different video output: Auto, HDMI, VGA, and Main CVBS.

ADDITIONAL INFORMATION

User Account Management

The Administrator is the default account for the NVR with a username of "admin" and a password of "12345". Administrator permissions allow the ability to add and delete users and to configure user parameters.

Adding a User

Access the User Management interface: Menu > Configuration > User and then click Add.

User Management No User Name Level User's MAC Address Po Edit Del 1 admin Admin 00:00:00:00:00:00 - -

Enter the new user's information, click Apply and then click OK.

Add User User Name 01 Password ***** Confirm ***** Level Operator User's MAC Address 00 : 00 : 00 : 00 : 00 : 00 Apply OK Cancel

Level options include Guest or Operator.

• By default, Operator can use two-way audio in remote configuration and has all operating permission in camera configuration.
• By default, Guest only has permission for local/remote playback in camera configuration.

The MAC address of the remote PC that logs into the NVR. If configured and enabled, it only allows the remote user with this MAC address to access the NVR.

Click OK to save the settings.

The new user will appear in this screen. Click the button to enter permission settings.

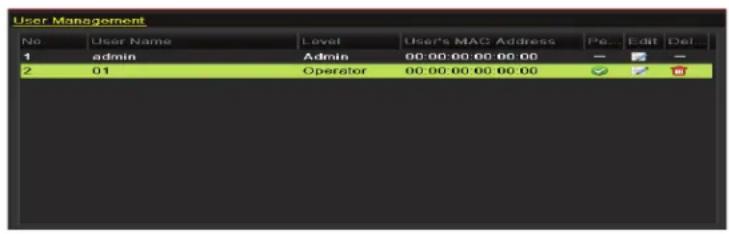

User Management No User Name Level User's MAC Address Pe... Edit Del... 1 admin Admin 00:00:00:00:00:00 - 2 01 Operator 00:00:00:00:00:00 ✓ ✓

ADDITIONAL INFORMATION

Permission Local Configuration Remote Configuration Camera Configuration ✓ Local Log Search ■ Local Parameters Settings ■ Local Camera Management ■ Local Advanced Operation ■ Local Shutdown / Reboot Apply OK Cancel

Set each configuration for the user and then click OK.

Local ConfigurationLocal Log Search to search and view logs and system informationLocal Parameters Settings to configure parameters, restore factory defaults, and import/export configuration files (*only Admin can restore factory defaults)Local Camera Management to add, delete, and edit IP camerasLocal Advanced Operation to initialize HDD and set HDD properties, upgrade system firmware, and clear I/O alarm outputLocal Shutdown/Reboot to shutdown or reboot NVR

Remote ConfigurationRemote Log Search to remotely view logs on NVRRemote Parameter Settings to remotely configure parameters, restore factory defaults, and import/export configuration files (*only Admin can restore factory defaults)Remote Camera Management to remotely add, delete, and edit IP camerasRemote Serial Port Control to configure RS-232 and RS-485 port settingsRemote Video Output Control to send remote button control signalTwo-Way Audio to realize two-way radio between remote client and NVRRemote Alarm Control to remotely arm and control alarm outputRemote Advanced Operation to remotely initialize HDD and set HDD properties, upgrade system firmware, and clear I/O alarm outputRemote Shutdown/Reboot to remotely shutdown or reboot NVR

Camera ConfigurationRemote Live View to remotely view live video of selected camera(s)Local Manual Operation to locally start or stop manual recording, picture capture, and alarm output of selected camera(s)Remote Manual Operation to remotely start or stop manual recording, picture capture, and alarm output of selected camera(s)Local Playback to locally play recorded files of selected camera(s)Remote Playback to remotely play recorded files of selected camera(s)Local PTZ Control to locally control PTZ movement of selected camera(s)Remote PTZ Control to remotely control PTZ movement of selected camera(s)Local Video Export to locally export recorded files of selected camera(s)

Only the admin user account has the permission of restoring factory default parameters.

ADDITIONAL INFORMATION

Deleting a User

Access the User Management interface: Menu > Configuration > User.

1. Select the user
2. Click the button to delete.

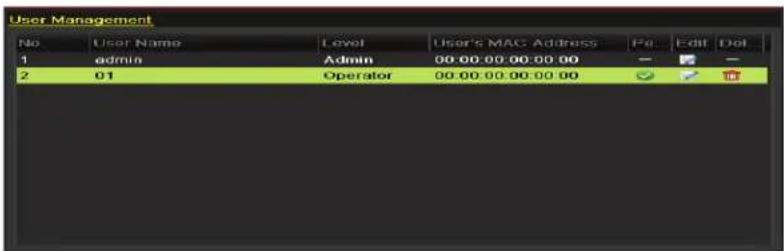

User Management No User Name Level User's MAC Address Pa Edit Del 1 admin Admin 00:00:00:00:00 00 - - - 2 01 Operator 00:00:00:00:00 00 ✓ ✓ Ter

Editing a User

Access the User Management interface: Menu > Configuration > User.

1. Select the user

2. Click the button to edit.

3. Make necessary edits and click OK.

Edit User User Name 01 Password ****** Confirm ****** Level Operator User's MAC Address 00 00:00:00 00:00 Apply OK Cancel

Screen for editing Operator and Guest. Screen for editing Admin.

NOTE: Operator and Guest:

You can edit the user information, including user name, password, permission level and MAC address. Check the checkbox of Change Password if you want to change the password, and input the correct old password, and the new one in the text field of Password and Confirm.

NOTE: The admin user can also be edited.

Edit User User Name admin Old Password Change Password Password Confirm User's MAC Address 00 :00 :00 :00 :00 :00 OK Cancel

NOTE: Admin:

You are only allowed to edit password and MAC address. Check the checkbox of Change Password if you want to change the password, and input the correct old password, and the new one in the text field of Password and Confirm.

SmartBridge High Definition Mobile App

First Alert offers both a Smartphone as well as Tablet optimized app for mobile access to your live video stream!

This manual was accurate at the time it was completed. However, because of our ongoing effort to constantly improve our products, additional features and functions may have been added since that time and on-screen displays may change. We encourage you to visit our website at www.firstalert.com to check for the latest manuals (English and Spanish), firmware updates, downloads, other security camera products and announcements.

SmartBridge HD

ACCESSING YOUR DEVICE FROM THE APP

To control your NVR system from a tablet or smartphone, download the Smartbridge HD App and follow the steps below.

1. From the main dropdown menu , click the Cloud and log into your Cloud Account. Click Add Device. Enter 9 digit Device Code from NVR. If you do not have a Cloud Account, register for one using a valid e-mail address. A four-digit code will be e-mailed to you within minutes which you will need to reference to complete registration.

Serial No R123456789W

NOTE:

To obtain your Device Code, access your NVR system directly using the mouse provided with the NVR. Right click, select Menu and enter login info. Click Maintenance. Find the 9-digit code within the Serial No. field highlighted above and write it below for future reference:

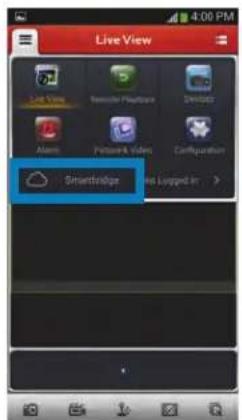

Live View Smartbridge Get Logged in :>

1. Click back into Devices, and click on the Icon in the list. Hit Live View.

Live View Live View Home Libya Services Flash Picture & Video Configurations Smartbouge Not Laggent on

1. Simple DDNS (on remote network). Click Devices. Click the + icon. In the Register Mode field, select simpleddns. Enter your NVR login information.

Live View Connected Live View Connected PlayBack Connected Home Picture & Video Configuration SmartBridge Hot Logged in

APPENDIX HARD DRIVE

Hard Drive Removal and Installation

HDD Installation

To replace the hard drive in the NVR:

1. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. UNPLUG ALL POWER SOURCES, INCLUDING CAMERAS FROM THE NVR BEFORE REMOVING COVER. FAILURE TO DO SO CAN RESULT IN DAMAGE TO THE NVR OR ITS COMPONENTS AS WELL AS INJURY OR DEATH
2. Remove screws securing the cover of the NVR and remove cover.
3. Disconnect the hard drive power and data cables.
4. Remove old hard drive and replace with the new one.
5. Re-install the screws securing the hard drive to the bottom of the NVR.
6. Re-connect the hard drive power and data cables.
7. Replace the cover and screws. NOTE: Format hard drive per instructions in HDD MANAGEMENT section.

Caution!

When working with electrostatic sensitive devices such as hard disk or NVR unit, make sure you use a static-free workstation. Any electrostatic energy

coming in contact with the hard disk or NVR can damage it permanently.

Hard Drive Format

NOTE: A new hard drive must be formatted after installation. Format per instructions in the HDD MANAGEMENT section of this manual.

CAUTION!

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. UNPLUG ALL POWER SOURCES, INCLUDING CAMERAS FROM THE NVR BEFORE REMOVING COVER. FAILURE TO DO SO CAN RESULT IN DAMAGE TO THE NVR OR ITS COMPONENTS AS WELL AS INJURY OR DEATH.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Technical line drawing of a rectangular electronic device with mounting holes and screwdriver (no text or symbols)

Hard Drive Remove/Install Screws from Below

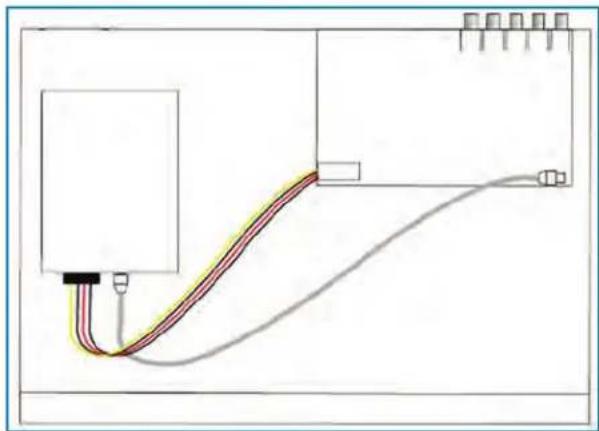

Pure electrical circuit lines without any symbols

Hard Drive - Connected to Circuit Board

Technical Specifications

-000 (NVR16XX-360H) DS-7716NI-SP
Video/Audio input
IP video input 16-ch
Two-way audio input 1-ch, BNC (2.0 Vp-p, 1kΩ)
Incoming bandwidth 80Mbps
Video/Audio output
Recording resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
HDMI output	2-ch audio input, impedance 600Ω, RCA: 1920 × 1080P /60Hz, 1920 × 1080P / 50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
VGA output	1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Audio output 2-ch, BNC (Linear, 600Ω)
Playback resolution 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback 16-ch
Hard disk
SATA 4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
eSATA 1 eSATA interface
Capacity Up to 4TB capacity for each HDD
External Interface
Network interface	1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface16 independent 100 Mbps PoE network interfaces
Serial interface	1 RS-232 interface (for parameters configuration, maintenance, transparent channel); 1 RS-485 interface (reserved);1 RS-485 keyboard interface (for special keyboard control)
USB interface	3 × USB 2.0
Alarm in	16
Alarm out	4
General
Power supply	100 ~ 240VAC, 6.3A, 50 ~ 60Hz
Consumption	≤ 40 W
PoE	12VDC @ 1A X 16
Working temperature	-10 oC ~ +55 oC
Working humidity	10% ~ 90%
Chassis	19-inch rack-mounted 1.5U chassis
Dimensions (W × D ×H)	445mm × 390mm × 70mm
Weight	≤ 8 Kg (17.64 lb) (without hard disk or DVD-R/W)
Revision Numbers
Firmware Version	V3.1.1, Build 141203
Encoding Version	V1.0, Build 140508

FAQ's

If your problem is not listed below, please call our toll-free number for more support. Tech Services: 800-323-9005.

Question: Why does NVR not work after starting? Why did the NVR stop working?

Answer:

• Check that the power adapter is plugged into the NVR properly
• Check the power source and all power cord connections are properly connected
• Make sure the power on-off switch on the back of the NVR unit is on

Question: Why does the NVR reboot automatically? Or stop for several minutes after starting?

Answer:

• Check the supply voltage to be sure it is stable
• Bad track on hard drive or the hard drive is bad
  • Instability of the front-end video signal
• High temperature, too much dust, bad NVR operating environment

Question: Why is there no video output on single, multi or all channels?

Answer:

• Check if the camera adaptor is properly connected
• Check the cable for connecting video input/output in the back panel of NVR
• Insert the video source directly into the display device and check if they are causing the problem.
• Check the brightness of the picture and bring it back to its original default setting
• No video input signal or too weak

Question: What is the meaning of? Answer:

	Start / Stop Recording
	Instant Playback
	Audio On
	Capture
	PTZ Control
	Digital Zoom
	Image Settings
	Live View Strategy
	Information
	Close

Question: Why does NVR have problems with real-time images, such as bad image color or serious brightness distortion?

Answer:

• If PAL and NTSC are not correctly selected, the images will be in black and white and possibly a rolling screen.
  • NVR is not compatible with monitor
• Adjust the NVR color settings

Question: Why is there no audio sound when monitoring? Answer:

• Check sound box or speaker functions. Also check possible short circuit.
• Audio source may be connected to the video channel. You can click to full-screen to check.
  • The hardware of NVR is defective
• Cameras are not audio capable
• Speakers need to have an amplifier
  • Channel being monitored is not connected to an audio camera
  • Volume regulate is turned down

Question: Why is there no audio when playing back? Answer:

• Check to see that the audio settings for the channels are correct.
  • Audio is off in record menu

Question: Why is my system time not correct? Answer:

- Wrong setting or user did not click OK to confirm

Question: Why doesn't motion detection work? Answer:

• The setting of motion detection area is not correct
• Sensitivity is too low

Question: Why do I have no disc or disc mount error? Answer:

• The data being downloaded exceeds the capacity of backup device
• The backup device is incompatible
  • The backup device is damaged

Question: Why doesn't the Remote Control work? Answer:

• The remote control is too far from the NVR
- Remote control batteries are dead or low
- Remote control is damaged, check by using the control on the NVR

Question: Why can't I log in over the Internet? Answer:

• Check the network to see if it is connected. Check if LINK or 100M LED is displayed normally on the panel; use ping xxx.xxx.xxx.xxx (NVR IP) to check if the Internet is linked properly.
• Make sure you are running Windows 7, Vista or XP operating system and Internet Explorer 6.0 - 8.0
  • Refer to the network setup section in the manual.

Troubleshooting

Error Possible Cause Solutions
System is not receiving power or is not powering up	Cable from power adapter is loose or is unplugged	Confirm that all cables are connected correctlyConfirm that the power adapter is securely connected to the back of the unit
	Cables are connected, but system is not receiving sufficient power	Confirm that the system is powered on (LED indicators on the front should be ON)If the unit is connected through a power bar or surge protector, try bypassing the bar and connecting the power directly to the wall outletConfirm that there is power at the outletConnect the power cable to another outletTest the outlet with another plugged device
Remote control not detected by the system	Battery in the remote control is drained or is missing	Install two fresh AAA alkaline batteries in the remote control
Hard drive is not detected by the system	Hard drive cables are loose or not properly connected	Remove the housing and check that hard drive cables are firmly connected
		Open the housing and install a 3.5 SATA hard drive
Mouse not detected by system	Mouse cable is not connected or is not firmly connected to the system	Firmly connect the mouse cable to the USB Mouse port (not the USB Data port) on the front panel.
	System needs to be reset	Power off the system (Turn power switch off position on back of unit). Firmly connect a USB mouse to the USB Mouse port on the front panel of the system. Power on the system (Turn power switch to on position on back of unit).
There is no picture on selected channels/camera picture is not being displayed	Camera cables are loose or have become disconnected	Check the camera video cable and connectionsDisconnect and reconnect the cable at the system and at the cameraTry moving the camera to another channel or use another cable
The image on the NVR appears but does not have sound	Audio cables are loose or have been disconnected Check the AUDIO connections to the NVR
	Audio channels are disabled insert check the system settings	Check the Configurations: System Setup>Channel>Audio
	Volume on external speakers (not included) is low or off	Increase volume on external speakers (not included)
	Cameras are not audio capable or a powered microphone is not attached	Add audio capable cameras or a powered microphone (not included with this kit)
The system beeps at startup The beep at startup is normal

Warranty

PRODUCT LIMITED WARRANTY

BRK Brands, Inc., ("BRK") the maker of First Alert® brand products warrants that for a period of one year from the date of purchase (the "Warranty Period"), this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or replace this product or any component of the product found to be defective during the Warranty Period. Replacement or repair will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser only from the date of initial retail purchase and is not transferable. In order to obtain warranty service, you must keep the original sales receipt and proof of purchase in the form of the UPC code from the package. BRK dealers, service centers, or retail stores selling BRK products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

WARRANTY EXCLUSIONS

Parts and Labor: 1 year limited (warranted parts do not include bulbs, LEDs, and batteries)

This warranty does not apply to bulbs, LEDs, and batteries supplied with or forming part of the product.

This warranty is invalidated if non-BRK accessories are or have been used in or in connection with the product or in any modification or repair is made to the product.

This warranty does not apply to defects or damages arising by use of the product in other than normal (including normal atmospheric, moisture and humidity) conditions or by installation or use of the product other than in strict accordance with the instructions contained in the product owner's manual.

This warranty does not apply to defects in or damages to the product caused by (i) negligent use of the product, (ii) misuse, abuse, neglect, alteration, repair or improper installation of the product, (iii) electrical short circuits or transients, (iv) usage not in accordance with product installation, (v) use of replacement parts not supplied by BRK, (vi) improper product maintenance, or (vii) accident, fire, flood or other Acts of God.

This warranty does not cover the performance or functionality of any computer software included in the package with the product. BRK makes no warranty that the software provided with the product will function without interruption or otherwise be free of anomalies, errors, or "Bugs." This warranty does not cover any costs relating to removal or replacement of any product or software installed on your computer.

BRK reserves the right to make changes in design or to make additions to or improvements in its products without incurring any obligations to modify any product which has already been manufactured. BRK will make every effort to provide updates and fixes to its software via its website. This warranty does not cover any alteration or damage to any other software that may be or may become resident on the users system as a result of installing the software provided. This warranty is in lieu of other warranties, expressed or implied, and BRK neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the sale or service of the product. In no event shall BRK be liable for any special or consequential damages arising from the use of the product or arising from the malfunctioning or non-functioning of the product, or for any delay in the performance of this warranty due to any cause beyond its control.

BRK does not make any claims or warranties of any kind whatsoever regarding the product's potential, ability, or effectiveness to prevent, minimize, or in any way affect personal or property damage or injury. BRK is not responsible for any personal damage, loss, or theft related to the product or to its use for any harm, whether physical or mental related thereto. Any and all claims or statements, whether written or verbal, by salespeople, retailers, dealers, or distributors to the contrary are not authorized by BRK, and do not affect this provision of this warranty.

BRK's responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement or refund, as set forth above. These remedies are the sole and exclusive remedies for any breach of warranty. BRK is not responsible for direct, special, incidental, or consequential damages resulting from any breach of warranty or under any other legal theory including but not limited to, loss profits, downtime, goodwill, damage to or replacement of equipment and property and any costs of recovering, reprogramming or reproducing any program or data stored in or used with a system containing the product accompanying software. BRK does not warrant the software will operate with any other software except that which is indicated. BRK cannot be responsible for characteristics of their party hardware or software which may effect the operation of the software included.

Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above Warranty Period. Some states, provinces, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state, or province to province, or jurisdiction to jurisdiction.

OBTAINING SERVICE

If service is required, do not return the product to your place of purchase. In order to obtain warranty service, contact the Consumer Affairs Division at 1-800-323-9005, 7:30 a.m. – 5:00 a.m. Central Standard Time, Monday through Friday. To assist us in serving you, please have the model number and date of purchase available when calling.

After contacting the Consumer Affairs Division and it is determined that the product should be returned for Warranty Service, please mail the product to: BRK Brands, Inc., 3901 Liberty Street Road, Aurora, IL 60504-8122.

NOTES

NOTES

NOTES

First Alert®

©2015 BRK Brands, Inc.

A Jarden Corporation Company (NYSE:JAH)

3901 Liberty Street Road, Aurora, IL 60504-8122

Phone: [phone] Tech Services: 800-323-9005

www.firstalert.com / www.brkelectronics.com

NVR1640-360H
