USER MANUAL Laundrylink Slim Protege

[Revision 2.0 July 2021]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Macerator Pump Safety

• The appliance is only ready for use after installation.
• The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30mA.
• If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
  • This appliance is for domestic use only.
• If away for long periods (e.g., holidays), it is recommended that you turn off the water supply to the pump.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhaust FumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety 2

Safety Symbols....4

Parts Identification ....7

Installation....8

Installation Diagrams 8

Operation....13

Proper Operation....13

Electrical Connection....13

Starting and Operating Instructions....13

Maintenance....14

Specifications ....15

Technical 15

Measurements....16

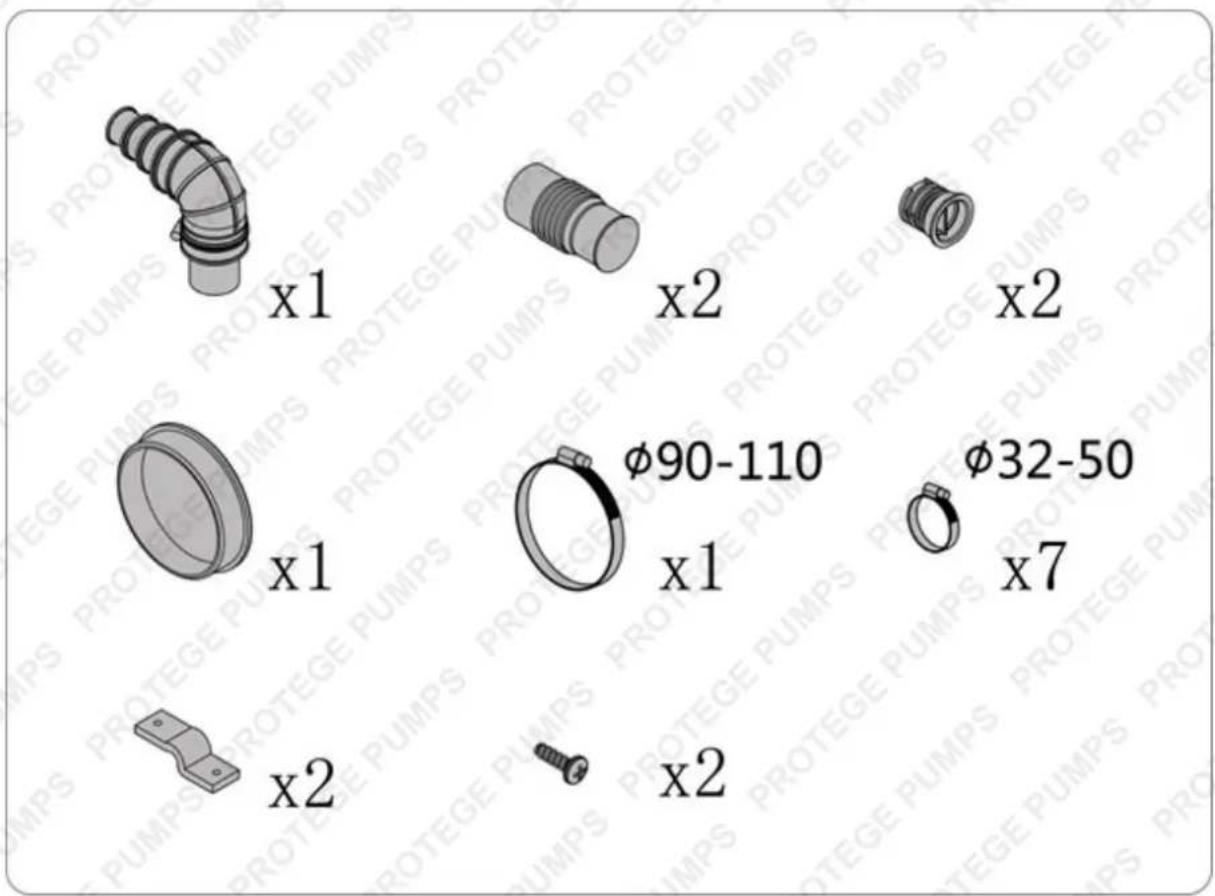

Parts Identification

Spare Parts:

x1 x2 x2 x1 φ90-110 x1 φ32-50 x7 x2 x2

NOTE: no toilet inlet cover and inlet clamp.

Installation

The appliance must be installed in such a way as to ensure easy access for repair and maintenance. Installation must be carried out by a qualified person.

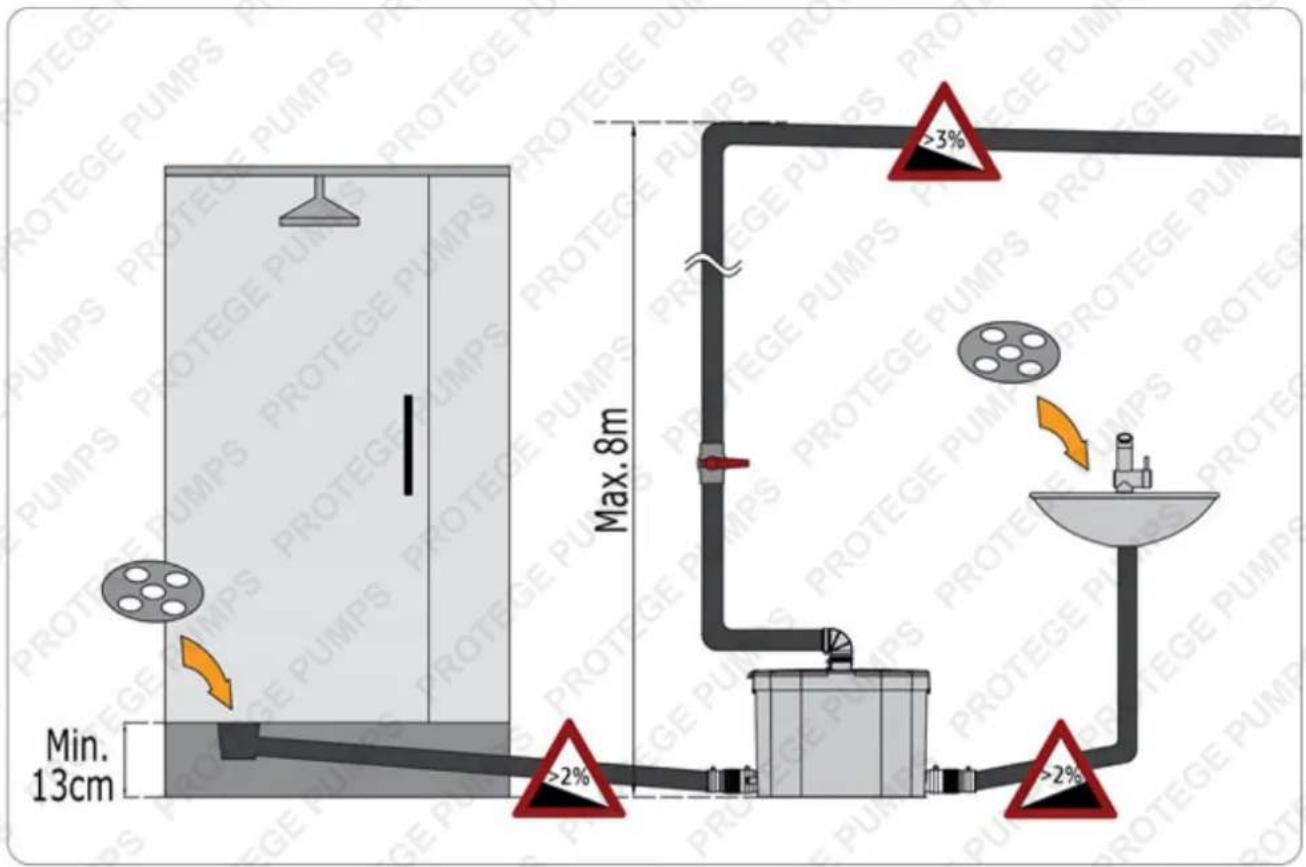

Installation Diagrams

• Outlet check valve is necessary.
• Install an extra manual check valve for repair (recommended).
- Lift the shower 13cm high when you connect the side inlet.
• Use the filter in the shower & lavatory to reduce hair and debris from getting into the macerator pump.

Max. 8m Min. 13cm >2% >2% >3% PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMP PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE

Outlet (Check Valve):

Discharge pipe: insert the check valve only at a depth of 1-2cm, avoid inserting it too deeply:

Technical diagram showing exploded and assembled views of a mechanical component with labeled parts and assembly details.

Installation Lengths for Pumping Head:

Flow Rate:

Installation Angle:

It is recommended to use 2pcs. of 45° elbow instead of a 1pc. 90° elbow.

PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEG PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTEN PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTENT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS PROTNT PROTEGE PUMPS

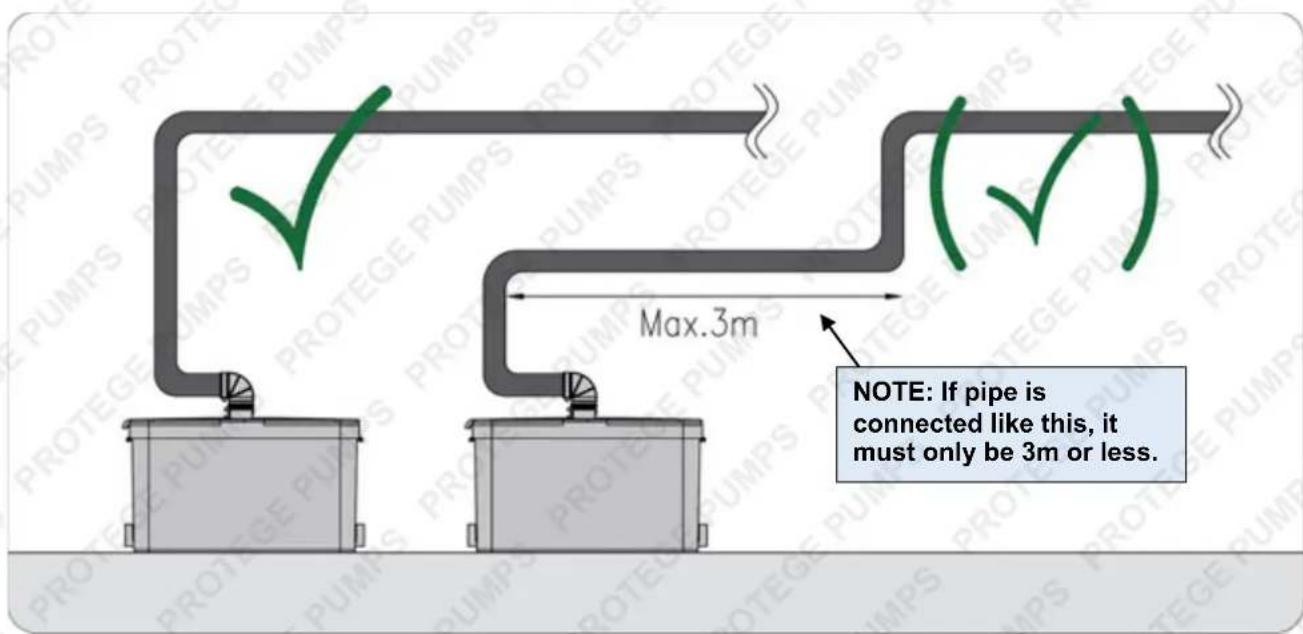

Connecting the discharge pipe:

Diagram showing three identical industrial tanks connected by a pipeline with red and green checkmarks indicating failure or rejection points.

Max.3m NOTE: If pipe is connected like this, it must only be 3m or less.

Operation

Proper Operation

• In order to ensure optimal performance of this appliance, the installation and maintenance instructions, described in this manual, must be strictly followed.
• Disregarding these instructions may cause the appliance to malfunction.
  • Note that this pump is not suitable for underground installation and not to be installed in hazardous locations.
• This appliance may be used to pump wastewater produced by basins and showers in a domestic situation.

Electrical Connection

All electrical connections must comply with local laws in your region. The current must be single-phase 220V/50Hz. The electrical outlet must be located at a minimum distance of 1000mm from the shower or bath. Only connect this appliance to a safety protected circuit.

Starting and Operating Instructions

• Run the water from the bathroom or from the kitchen appliance connected to the pump and check that connections are water tight and that the pump starts and stops correctly.
• The pump starts automatically as soon as the bath, the shower or the sink begins to drain. It shuts down when all the water has been drained.
• Note that the pump will work intermittently as the pump will turn on and off or several cycles until it discharges all the water.

IMPORTANT! Never drain alkaline or acidic liquids, solvents, oils, paints paint strippers, food leftovers, or bleaches that may jam, damage or corrode this appliance.

• In case of power failure, do not use any of the bathroom appliances connected to the pump because they will not function properly until power is restored.
• Never submerse pump entirely under water nor allow water to seep in through electric wire access.
• Make sure that all faucets are fully shut otherwise the motor may stop and start, leading to a short circuit. This may also lead to flooding.
• If you do not plan to use the pump for a long period of time (vacation, major power shortage, maintenance, renovation), shut off the water supply.
• In regions prone to frost and freezing, the appliance must be adequately protected against freezing. This requires emptying all pipes and the pump body. Antifreeze may be used to protect the system. Pour 1 liter of antifreeze into a sink connected to the pump. This will activate the pump and any remaining water will be replaced by antifreeze. Neither labor nor parts are covered if the appliance is damaged by frost or freezing.

Maintenance

DISCONNECT THE ELECTRICAL POWER SUPPLY, BEFORE ATTEMPTING ANY WORK ON THE APPLIANCE.

• This appliance does not require any particular maintenance. In case of appliance failure, all repair work must be performed by professional technicians. This applies particularly when replacing the power cord.
  • This appliance is fitted with an active carbon filter and requires no external venting.

Specifications

Technical

Product Standard	EN12050-3 / EN12050-4, GS / CE
Features	Not suitable for toiletsSuitable for family usageSilent & multifunctional
Applications	Wash basinsBathtubsShowersWashing machinesNot suitable for toilets
Cutting system	No
Toilet inlet	No toilet inlet
Number and size of inlet	3 x φ40mm
Number and size of outlet	1 x φ23 / 28 / 32 / 44mm1 x emergency outlet
Tank size	13L
Flow rate at max head (L/min)	100L/min
Water temperature (degree)	1 - 75°C (85°C in 1 hour)
Thermal protection	100°C
Noise level (dbs.)	30 - 45dbs
Horizontal discharge (m)	80
Vertical discharge (m)	8
IP rating	IPX4
Air vent	Yes
Repair panel	Open the top repair panel, you can easily take out blockages near the blade or repair the mic-switchRotate the switch case and take it out; you can also take out the block from the case bottom
None return valve	Yes
Power	450W
Motor	220-240V / 50Hz / 2800RMPMotor filled with oil, copper wire motorMotor size: D110mm
Plug	SAA
Tank material	PP

Slim Laundry Macerator Pump - Laundrylink 4 Slim

Blade material	None
Fully automated operation triggered by flushing	Yes
Manual mode option	No
Water start level	8.5 - 9.5cm
Lift the shower high when you connect the side inlet	13cm
Min. size below shower	not recommended to be installed under the shower
Min. size from toilet outlet to rear wall	None

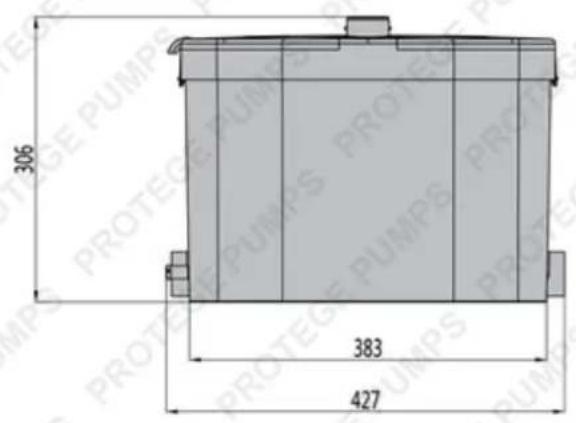

Measurements

306 383 427

30 38 135 40 S P R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P A R G E P

153.5 427

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.
