Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote this information to your dealer when you require service.

WARNING / CAUTION

WARNING / CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

WARNING / CAUTION

To prevent fire or shock hazards, do not expose this product to rain or moisture.

FCC NOTICE

Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user's authority to operate this product

SAFETY INSTRUCTION

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.

1 Do not use this apparatus near water.

2 Clean only with dry cloth.

3 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

4 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

5 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Diagram showing a computer monitor connected to an electrical outlet with two labeled components, highlighting the connection point.

6 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Diagram showing a computer monitor with a prohibition symbol and an electrical plug, indicating no protection or disapproval.

7 Only use attachments/accessories specified by the manufacturer.

8 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Two icons: a shopping cart and a circular symbol with a person and tools, both without any readable text or symbols.

9 Unplug this apparatus during lighting storms or when unused for long periods of time.

10 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

SAFETY INSTRUCTION

11 Never touch this apparatus or antenna during a thunder or lighting storm.

12 When mounting a TV on the wall, make sure not to install the TV by the hanging power and signal cables on the back of the TV.

13 Do not allow an impact shock or any objects to fall into the product, and do not drop onto the screen with something.

14 CAUTION concerning the Power Cord: It is recommend that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not make the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

15 WARNING - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles or expose the TV to direct air conditioning.

16 Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit).

17 GROUNDING

Ensure that you connect the earth ground wire to prevent possible electric shock. (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet) If grounding methods are not possible, have a qualified electrician install a separate circuit breaker.

Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Short-circuit Breaker Power Supply

18 DISCONNECTING DEVICE FROM MAINS

Mains plug is the disconnecting device. The plug must remain readily operable.

19 Keep the product away from direct sunlight.

ANTENNAS

Outdoor antenna grounding

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur.

Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

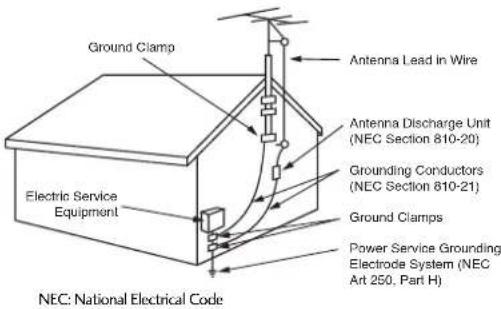

Antenna grounding according to the National Electrical Code, ANSI/NFPA 70

Ground Clamp Antenna Lead in Wire Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC Art 250, Part H) Electric Service Equipment NEC: National Electrical Code

Cleaning

When cleaning, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzene.

Moving

Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press against or put stress on the front panel of the TV.

Ventilation

Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials (e.g.) plastic while plugged in. Do not install in excessively dusty places.

If you smell smoke or other odors coming from the TV or hear strange sounds, unplug the power cord contact an authorized service center.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.

CONTENTS

WARNING / CAUTION...... A

SAFETY INSTRUCTION 1

FEATURE OF THIS TV 5

PREPARATION

Accessories 5

Front Panel Controls 7

Back Panel Information 10

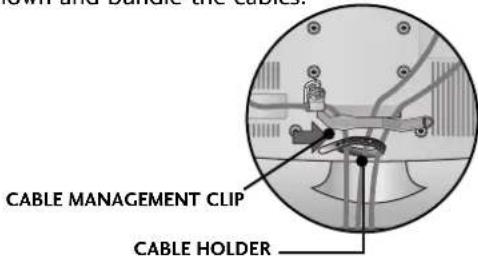

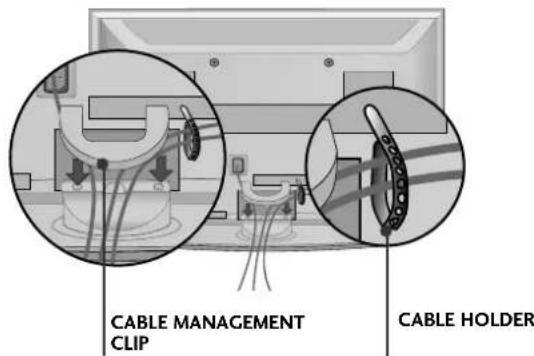

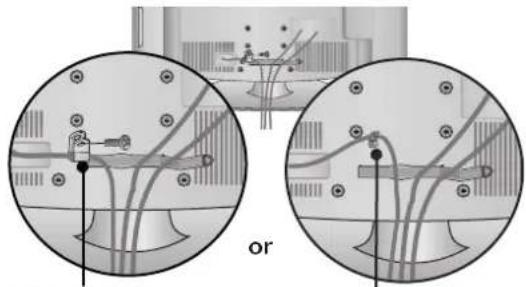

Back Cover for Wire Arrangement....12

Stand Installation 15

Attaching the TV to a Wall 17

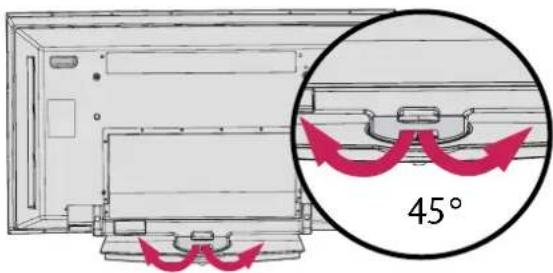

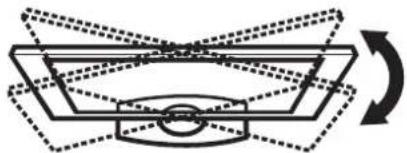

Swivel Stand....17

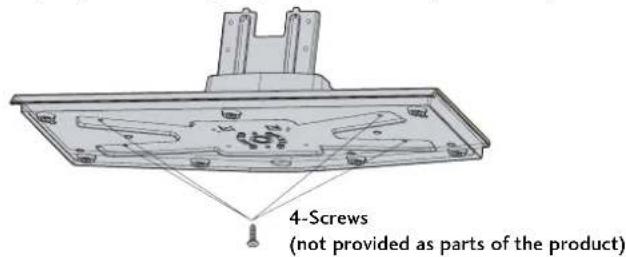

Attaching the TV to a Desk 18

VESA Wall Mounting 19

Desktop Pedestal Installation 19

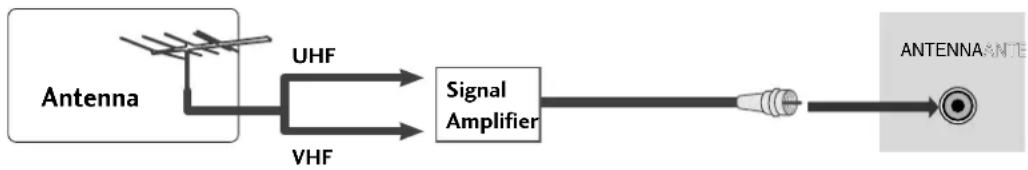

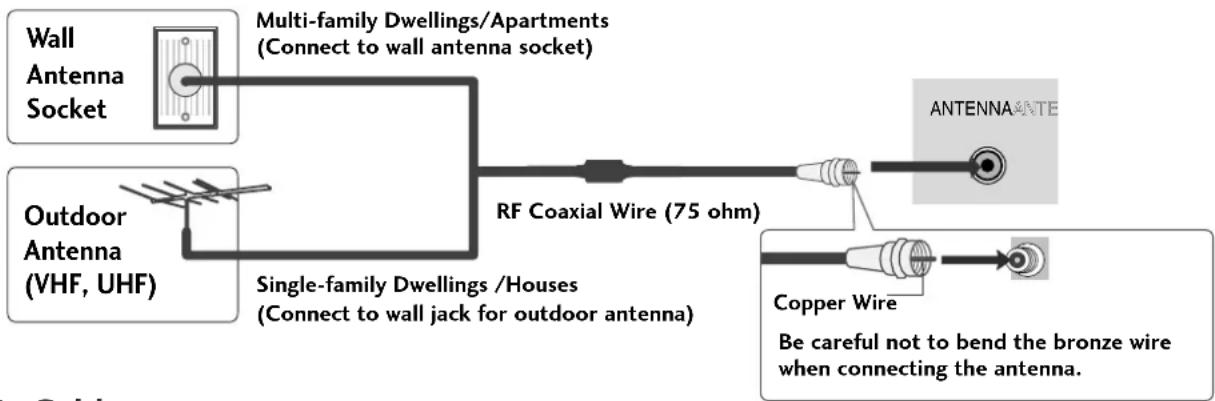

Antenna or Cable Connection 20

EXTERNAL EQUIPMENT SETUP

HD Receiver Setup 21

DVD Setup 24

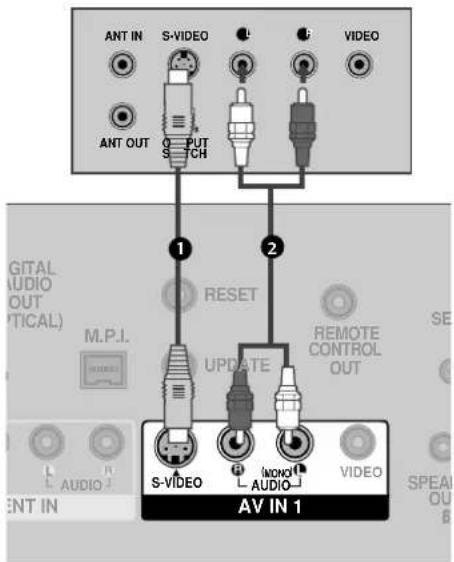

VCR Setup 26

Other A/V Source Setup 28

Digital Audio Output 28

PC Setup 29

WATCHING TV / CHANNEL CONTROL

Remote Control Functions 32

Turning On TV 34

Channel Selection 34

Volume Adjustment 34

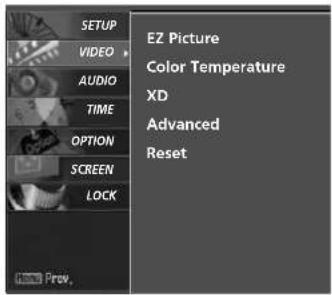

On-Screen Menus Selection 35

Channel Setup 36

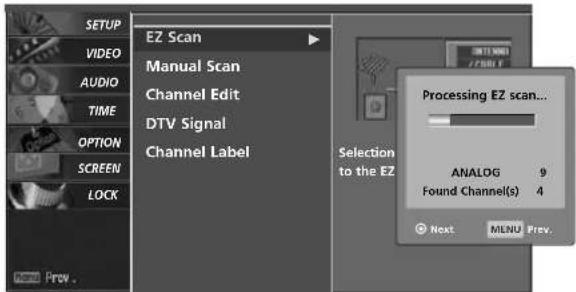

- Auto Scan (EZ Scan) 36

- Add / Delete Channel (Manual Scan)....37

- Channel Editing 38

DTV Signal Strength 39

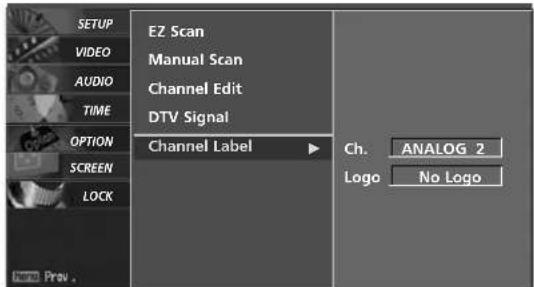

Channel Label 40

PICTURE CONTROL

Watching DW (Double Window) 41

Picture Size (Aspect Ratio) Control 43

Preset Picture Settings

- EZ Picture - Preset 45

- Color Tone - Preset.....46

Manual Picture Adjustment

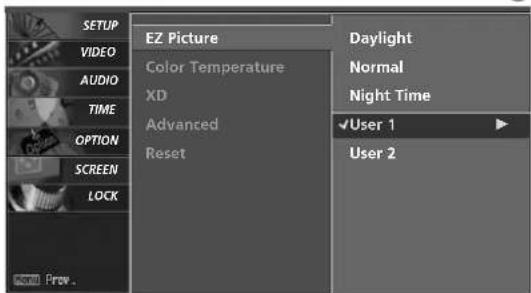

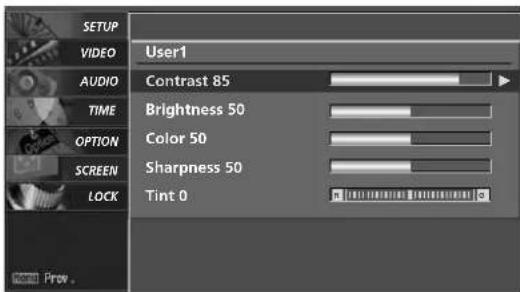

- EZ Picture - User Mode 47

Color Tone - User Mode 48

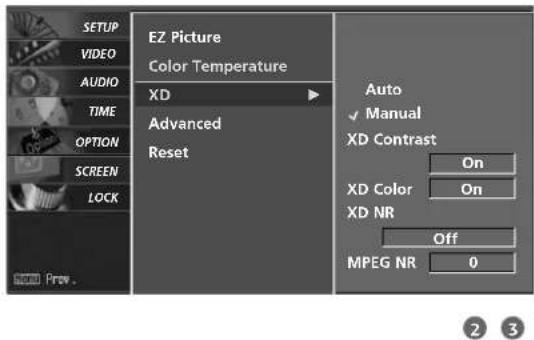

XD - Picture Improvement Technology....49

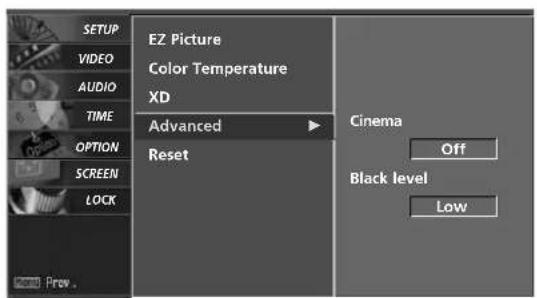

Advanced - Cinema Mode 50

Advanced - Black (Darkness) Level 51

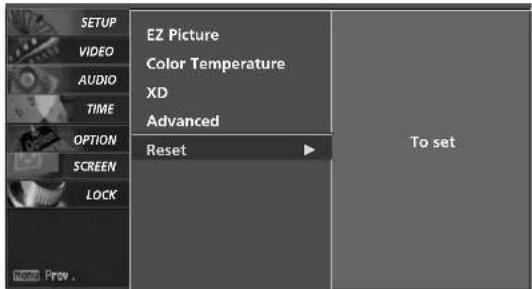

Picture Reset 52

Low-Power Picture Mode 52

Image Sticking Minimization(ISM) Method 53

SOUND & LANGUAGE CONTROL

Auto Volume Leveler (EZ SoundRite)....54

Preset Sound Setting (EZ Sound)....55

Sound Setting Adjustment - User Mode .... 56

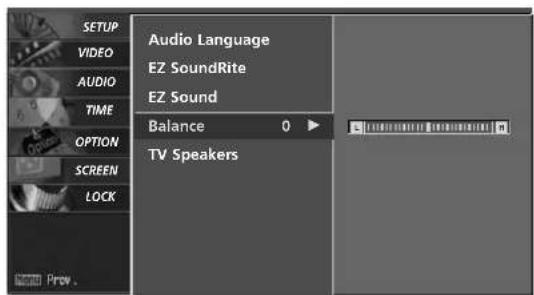

Balance Adjustment....57

TV Speakers On/Off Setup 58

Stereo/SAP Broadcasts Setup 59

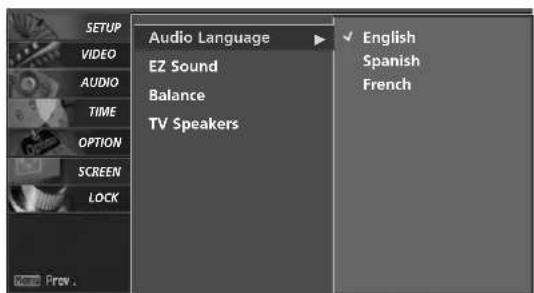

Audio Language 60

On-Screen Menus Language Selection....61

Caption/Text 62

- Analog Broadcasting System Captions ..... 62

- Digital Broadcasting System Captions......63

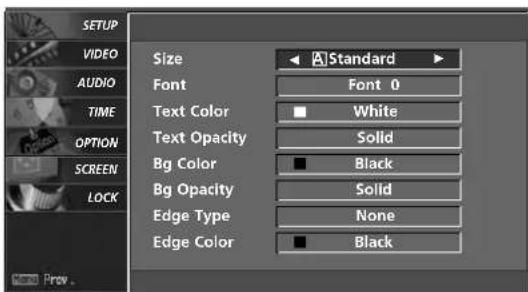

Caption Options 64

TIME SETTING

Clock Setting 65

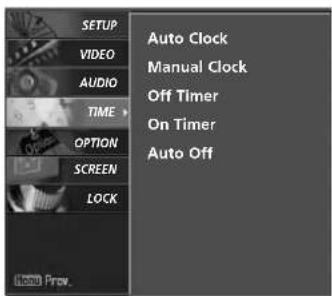

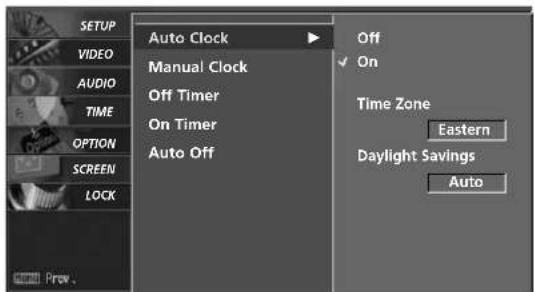

- Auto Clock Setup 65

- Manual Clock Setup 66

Auto On/Off Timer Setting 67

Auto Shut-off Setting 68

Sleep Timer Setting....69

SCREEN ADJUSTMENT

Auto Configure (RGB(PC) Mode only) 70

Manual Configure 71

Selecting XGA Mode 72

Initializing (Reset to Original Factory Settings) .73

PARENTAL CONTROL / RATINGS

Set Password & Lock System 74

- Setting up Your Password 74

- Set Password 75

- Lock System 75

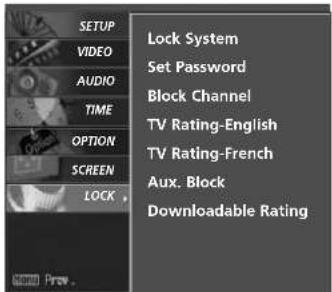

Channel Blocking 76

External Input Blocking....76

Movie & TV Rating....77

- Movie Rating (MPAA) 77

- Downloadable Rating 77

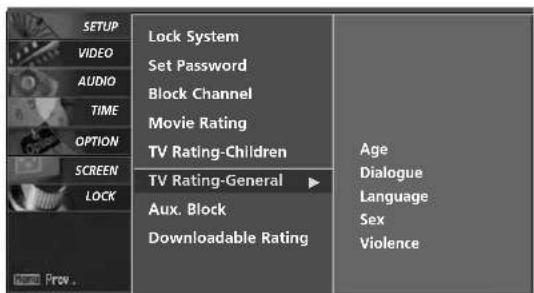

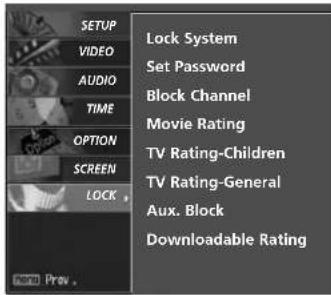

- TV Rating Children & General 78

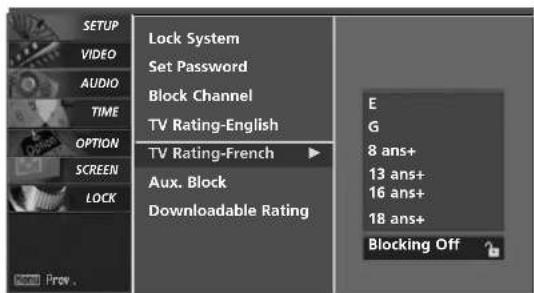

- TV Rating English & French 79

APPENDIX

Troubleshooting....80

Maintenance 82

Product Specifications 83

Programming the Remote Control....84

Set ID 86

IR Codes 87

FEATURES OF THIS TV

FOR LCD TV

If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.

Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

On Disposal

a. The fluorescent lamp used in this product contains a small amount of mercury.
b. Do not dispose of this product with general household waste.
c. Disposal of this product must be carried out in accordance to the regulations of your local authority.

PREPARATION

ACCESSORIES

Ensure that the following accessories are included with your product. If an accessory is missing, please contact the dealer where you purchased the product.

User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard compliance for the product.

Owner's Manual, Setup & Operation Guide for Commercial Mode

CD Manual

Illustration of two remote control devices with one displaying 1.5V battery and the other showing no text or symbols (no readable labels or symbols)

Remote Control, Batteries

Power Cord

Polishing Cloth This feature is not available for all models.

* Slightly wipe stained spot on the exterior only with the polishing cloth for the product exterior if there is stain or fingerprint on surface of the exterior.
* Do not wipe roughly when removing stain. Please be cautions of that excessive pressure may cause scratch or discoloration.

LCD TV model only

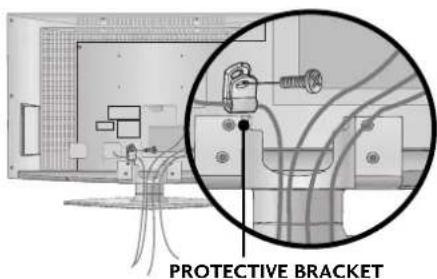

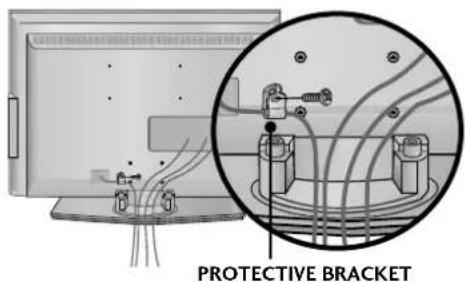

Protective Bracket and Bolt for Power Cord

(This feature is not available for all models.) (Refer to P.12-13, 15)

M4xL22

Torx plus Star head screw (Refer to p.7, 15)

Option Extras

D-sub 15 pin Cable

Only 32/37/42LC5DC*,32/37/42LC50C*,42LB5DC, 42LB50C models

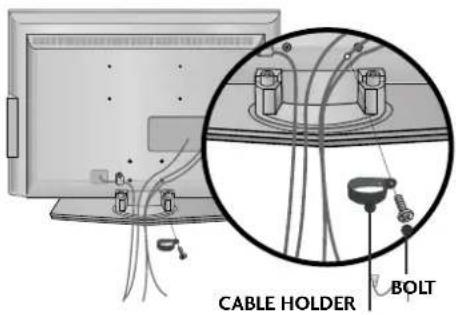

Cable Management (Refer to p.12)

Cable Holder (Refer to p.12-13)

1-Bolt for fixing the Cable Holder (Refer to p.12-13)

4-Bolts for stand assembly (Refer to p.16) Only 32/37LC5DC*, 32/37LC50C* models

Only 32/37/42LG5*** models

Bolts for stand assembly (Refer to P.15)

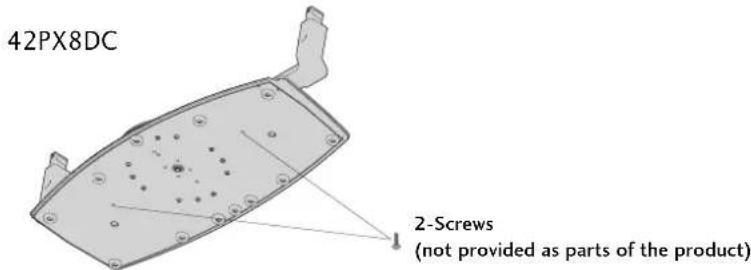

Screw for stand fixing (Refer to P.19)

Protection Cover

Cable Holder

Plug in type holder

Plasma TV models only

75 ohm Round Cable (Except 42PG60C/65C)

D-sub 15 Pin Cable (Except 42PG60C/65C)

Cable Holder (Except 42PX8DC)

Only 42PG65C model

Cable Management Clip

Bolts for stand assembly (Refer to P.14)

FRONT PANEL CONTROLS

■ Here shown may be somewhat different from your TV.

32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

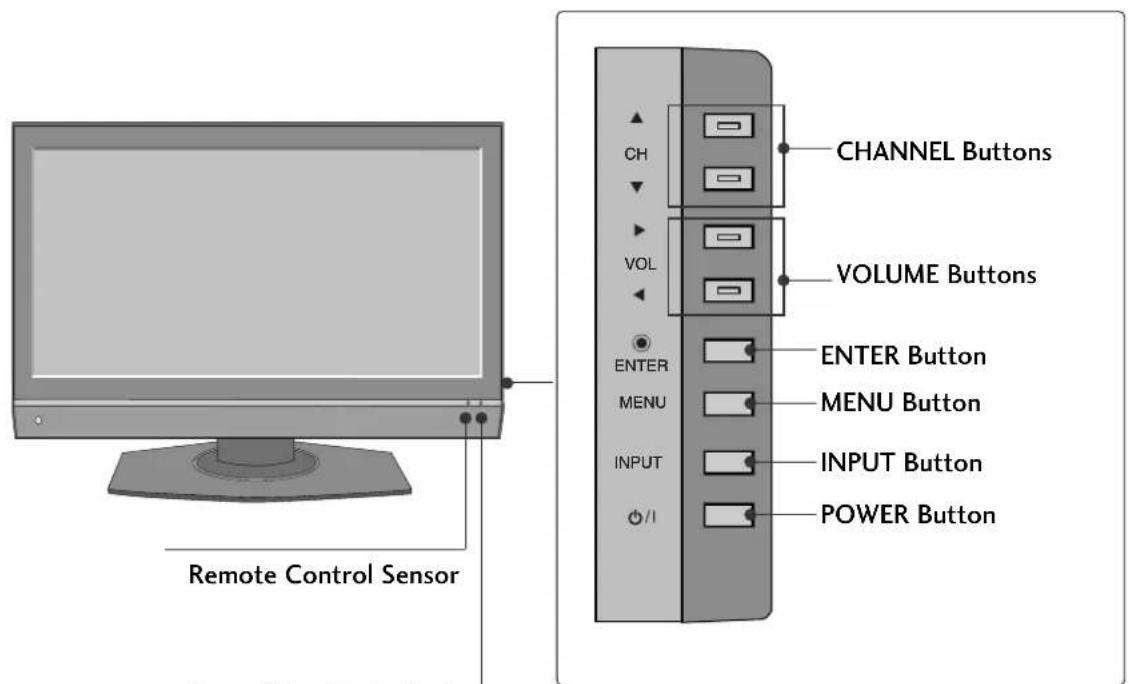

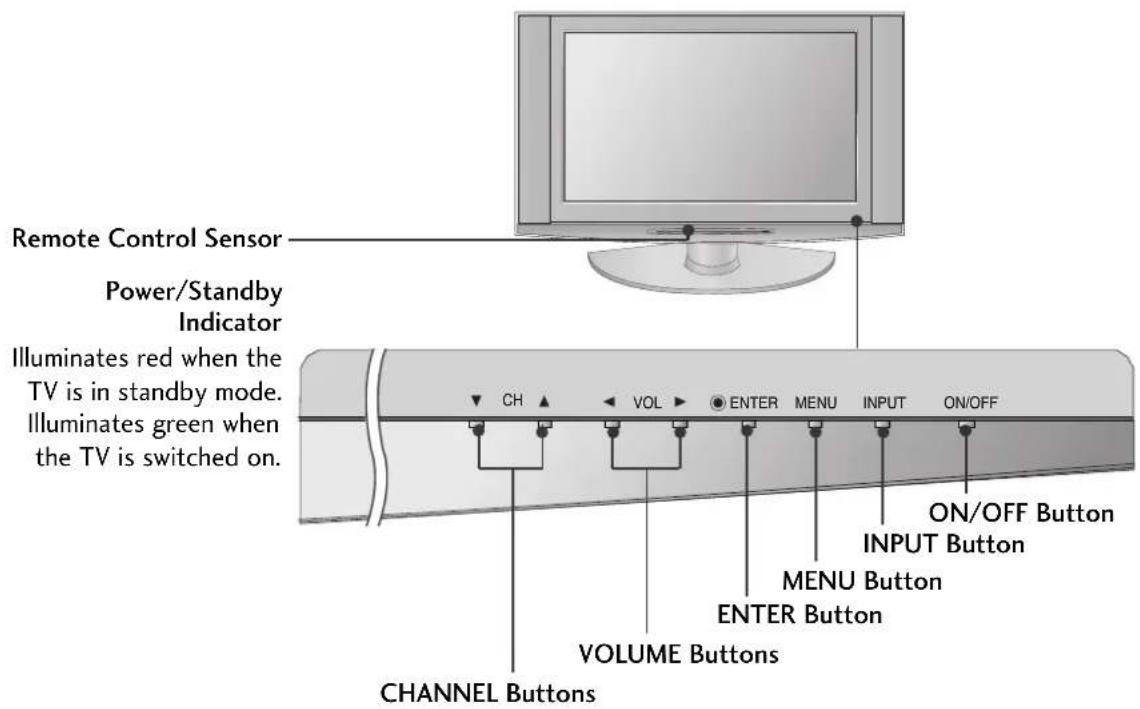

Remote Control Sensor CHANNEL Buttons VOLUME Buttons ENTER Button MENU Button INPUT Button POWER Button

Power/Standby Indicator Illuminates red when the TV is in standby mode. Illuminates green when the TV is switched on.

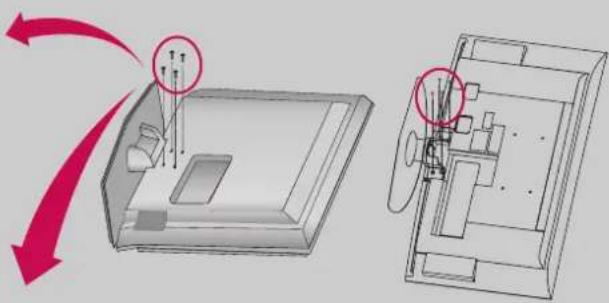

x 4 Tighten the stand with the four screws (provided as parts of the TV).

or

x2

x2

Tighten the two of these four screws and the two Torx plus star head screws (provided as parts of the TV) to secure the TV. Tighten the two Torx plus star head screws with a star head driver bit (not provided as parts of the TV).

Diagram illustrating a device's internal structure with red arrows indicating motion and magnified views showing internal components.

PREPARATION

32LX5DC*, 32LX50C*

Remote Control Sensor Power/Standby Indicator Illuminates red when the TV is in standby mode. Illuminates green when the TV is switched on. CHANNEL Buttons VOLUME Buttons CH VOL ENTER MENU INPUT ON/OFF ON/OFF Button INPUT Button MENU Button ENTER Button

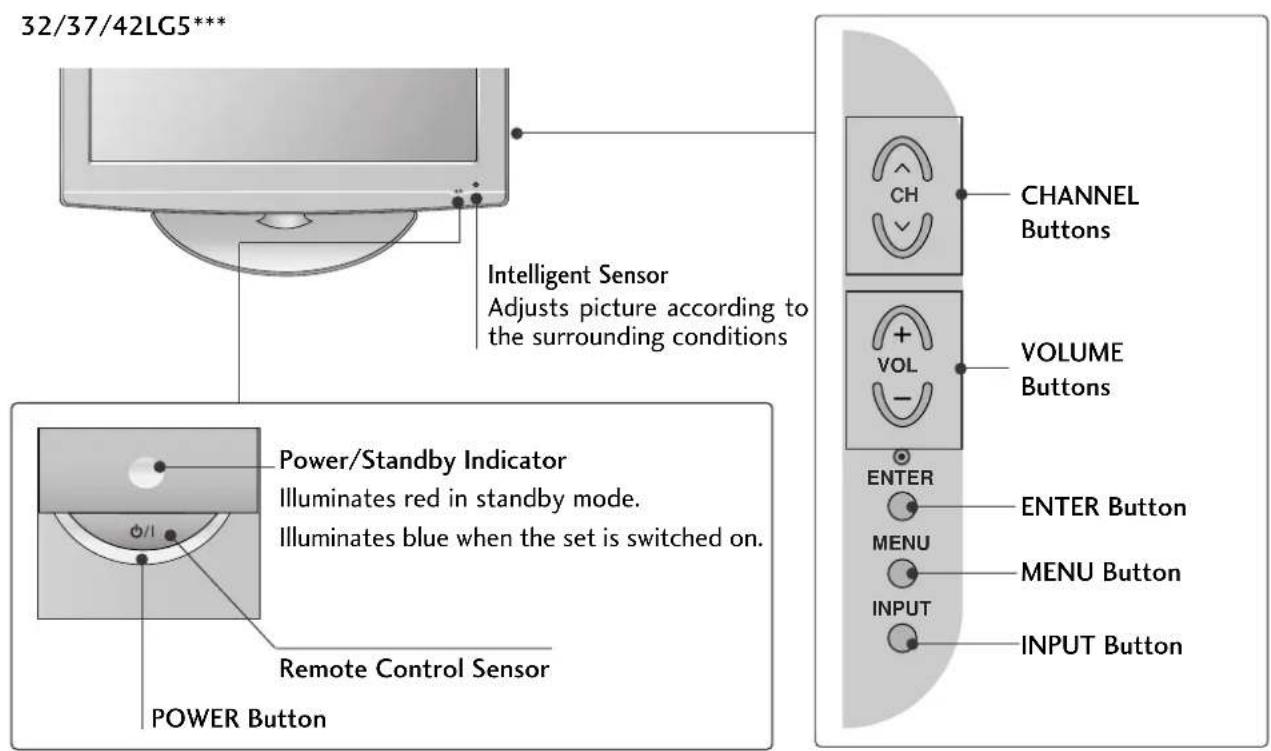

32/37/42LG5*** Intelligent Sensor Adjusts picture according to the surrounding conditions Power/Standby Indicator Illuminates red in standby mode. Illuminates blue when the set is switched on. Remote Control Sensor POWER Button CHANNEL Buttons VOLUME Buttons ENTER ENTER Button MENU MENU Button INPUT INPUT Button

42PX8DC

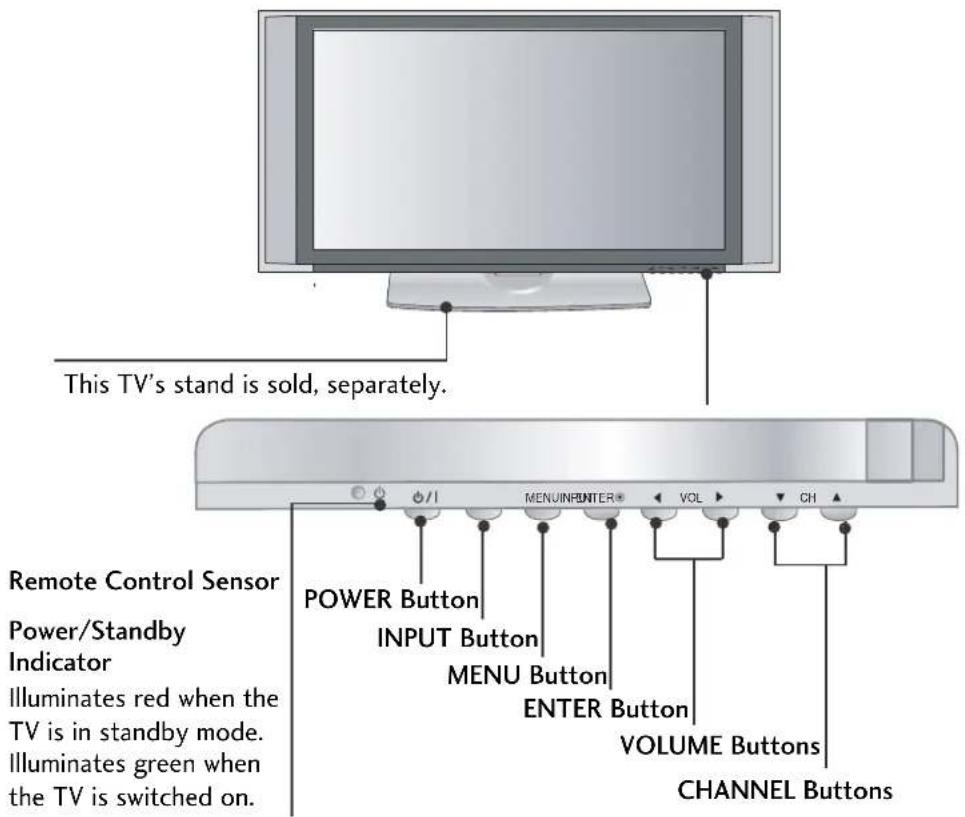

This TV's stand is sold, separately. Remote Control Sensor Power/Standby Indicator Illuminates red when the TV is in standby mode. Illuminates green when the TV is switched on. POWER Button INPUT Button MENU Button ENTER Button VOLUME Buttons CHANNEL Buttons

42PG60C, 42PG65C

Remote Control Sensor POWER Button Power/Standby Indicator Illuminates red in standby mode. Illuminates blue when the set is switched on. Stand (Only 42PG65C model)

INPUT MENU ENTER - VOL + ▼ CH ▲ INPUT Button MENU Button ENTER Button VOLUME (-,+) Buttons CHANNEL (▼,▲) Buttons

PREPARATION

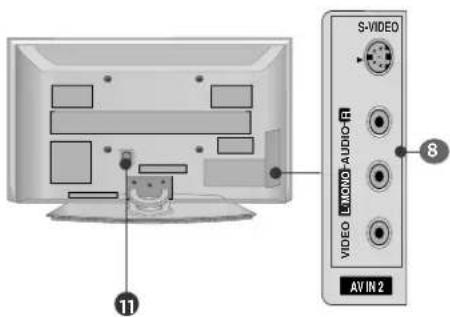

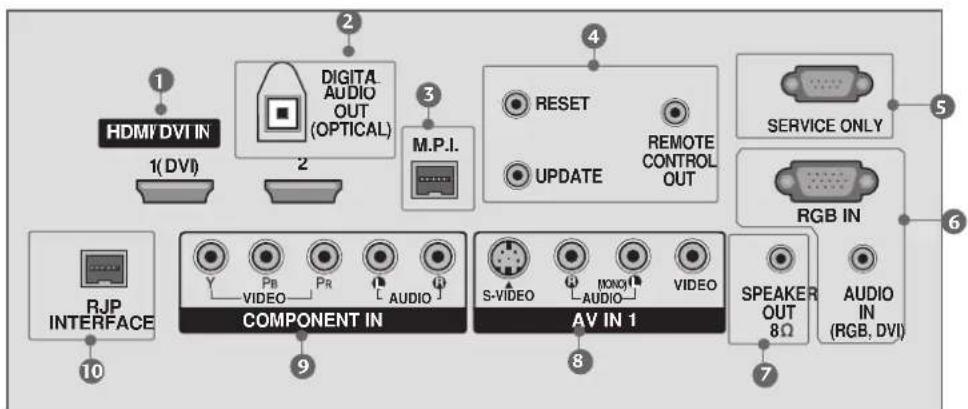

BACK PANEL INFORMATION

■ Here shown may be somewhat different from your TV.

42PG60C, 42PG65C

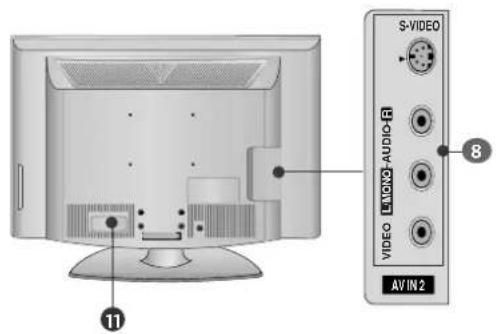

S-VIDEO VIDEO AUDIO-R AV IN 2 11

32/37/42LG5***

S-VIDEO AUDIO AUDIO-R VIDEO AVIN2 11

ANTENNA IN ANTENN M.P.I.M.P. 12 13

32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C, 32LX5DC*, 32LX50C*, 42PX8DC

HDMI DVI IN 1(DVI) DIGITA AUDIO OUT (OPTICAL) M.P.I. RESET UPDATE REMOTE CONTROL OUT SERVICE ONLY RGB IN COMPONENT IN AV IN 1 S-VIDEO MONO AUDIO VIDEO SPEAKER OUT 8Ω AUDIO IN (RGB, DVI) RJP INTERFACE 10 2 3 4 5 6 7

42PG60C, 42PG65C

RGB IN RGB(PC) AUDIO (RGB / DVI) RJP INTERFACE SPEAKER OUT 8Ω DIGITAL AUDIO OUT OPTICAL REMOTE CONTROL OUT HDMI IN COMPONENT IN Y PB PR L R VIDEO L AUDIO SERVICE ONLY S-VIDEO VIDEO L (MONO) AV IN 1 RESET UPDATE

32/37/42LG5***

HDMI/DVI IN 1(DVI) 2 RJP INTERFACE 10 RGB IN RGB(PC) AUDIO (RGB/DVI) RS-232C IN (SERVICE ONLY) COMPONENT IN AV IN 1 S-VIDEO AUDIO-LINXO VIDEO RESET UPDATE OPTICAL DIGITAL AUDIO OUT SPEAKER OUT 8Ω REMOTE CONTROL OUT 4 9 5 8

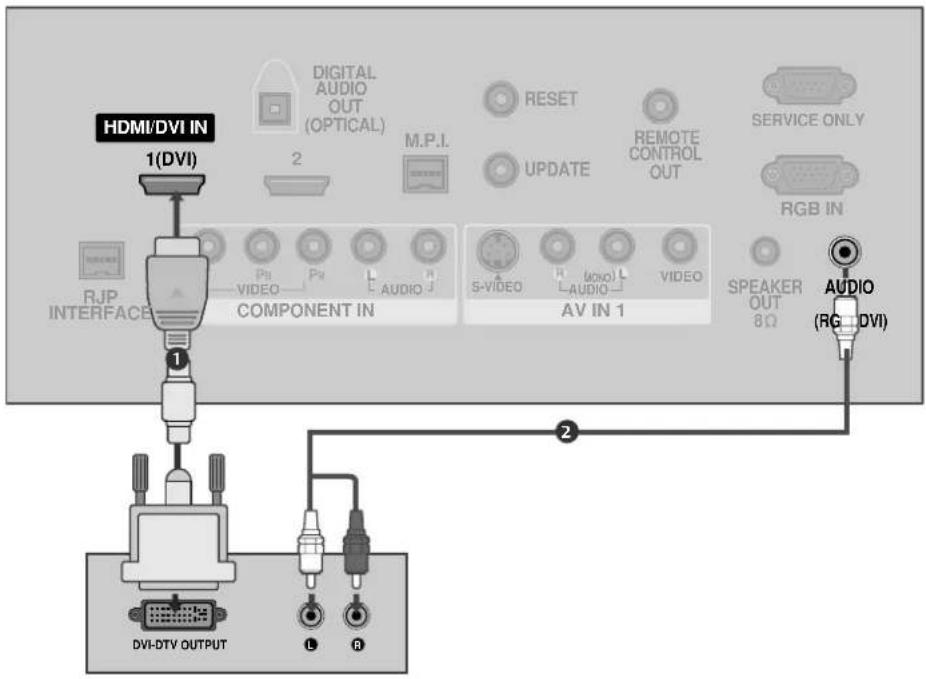

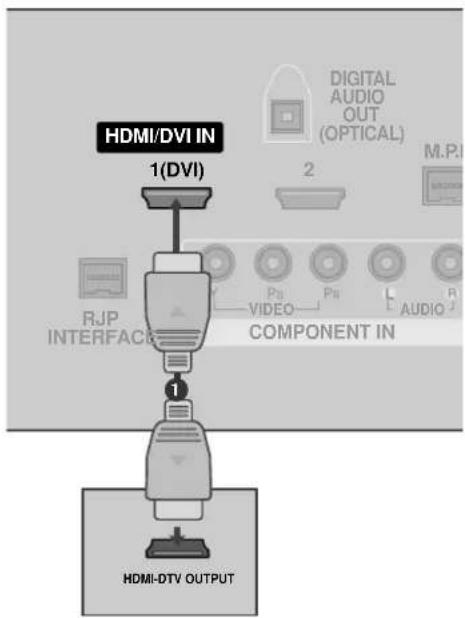

① HDMI/DVI IN, HDMI IN

Connect a HDMI (DVI) connection to either input.

2 DIGITAL AUDIO OUT

Connect digital audio from various types of equipment.

Note: In standby mode, these ports do not work.

3 13 M.P.I

4 RESET/UPDATE/REMOTE CONTROL OUT

5 SERVICE ONLY

6 RGB IN (PC)

Connect the output from a PC.

AUDIO IN (RGB, DVI)

Connect the audio from a PC or DTV.

7 SPEAKER OUT 8Ω

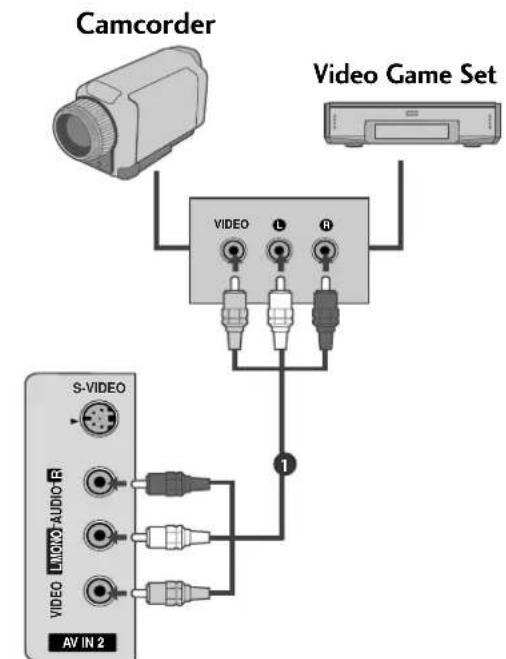

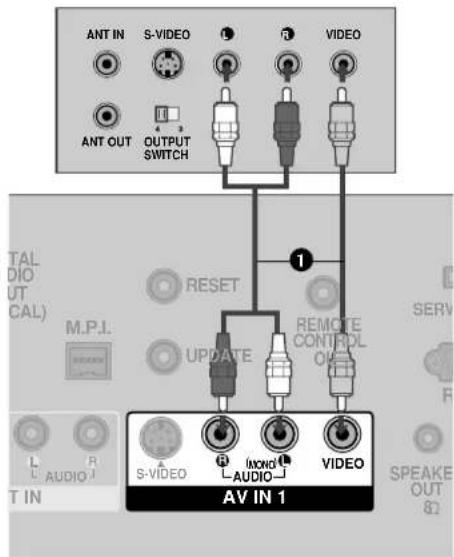

8 AV (Audio/Video) IN

Connect audio/video output from an external device to these jacks.

S-VIDEO

Connect S-Video out from an S-VIDEO device.

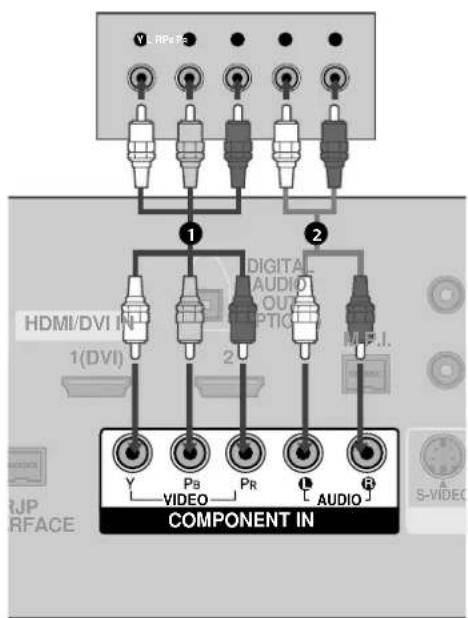

9 COMPONENT IN

Connect a component video/audio device to these jacks.

10 RJP INTERFACE

11 Power Cord Socket

For operation with AC power.

Caution: Never attempt to operate the TV on DC power.

12 ANTENNA IN

Connect over-the air signals to this jack.

PREPARATION

BACK COVER FOR WIRE ARRANGEMENT

■ Here shown may be somewhat different from your TV.

(This feature is not available for all models.)

1 Connect the cables as necessary.

To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Secure the power cable with the PROTECTIVE BRACKET and the screw as shown. It will help prevent the power cable from being removed by accident.

PROTECTIVE BRACKET

2 Install the CABLE HOLDER as shown.

CABLE HOLDER BOLT

2 Install the CABLE MANAGEMENT as shown.

CABLE MANAGEMENT

NOTE

Do not hold the CABLE MANAGEMENT when moving the product.

- If the product is dropped, you may be injured or the product may be damaged.

Illustration of a flat-screen TV with a small screen and cable, no text or symbols visible

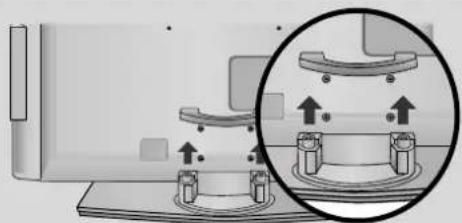

How to remove the CABLE MANAGEMENT

▶ Hold the CABLE MANAGEMENT with both hands and pull it backward.

Diagram showing a mechanical assembly with an inset magnified view of a component (no text or symbols present)

(This feature is not available for all models.)

To separate the CABLE HOLDER, loosen the bolt installed the set.

Illustration of a computer monitor with front, back, and side views (no text or symbols visible)

2 Connect the cables as necessary. To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Secure the power cable with the PROTECTIVE BRACKET and the screw as shown. It will help prevent the power cable from being removed by accident.

PROTECTIVE BRACKET

3 Install the CABLE HOLDER as shown.

BOLT CABLE HOLDER

Illustration of a person standing in front of a large screen with multiple screens and a stand (no text or symbols visible)

PREPARATION

BACK COVER FOR WIRE ARRANGEMENT

■ Here shown may be somewhat different from your TV.

42PX8DC

1 Hold the CABLE MANAGEMENT with both hands and pull it as shown.

45°

2 Connect the cables as necessary. To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Line drawing of a flat-screen TV with open doors and a mounted screen (no text or symbols)

3 Install the CABLE MANAGEMENT as shown.

Diagram showing a device with wires and a magnified inset highlighting internal components (no text or symbols)

42PG60C, 42PG65C

1 Connect the cables as necessary. To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Interior view of a flat-screen television set with no visible text or symbols

2 Install the CABLE MANAGEMENT CLIP as shown. (Except 42PG60C model) If your TV has CABLE HOLDER, fix it as shown and bundle the cables.

CABLE MANAGEMENT CLIP CABLE HOLDER

How to remove the CABLE MANAGEMENT CLIP

(Except 42PG60C model)

▶ First, press the cable management. Hold the CABLE MANAGEMENT CLIP with both hands and pull it upward.

Two circular diagrams showing a mechanical assembly before and after transformation, with no visible text or symbols.

NOTE

Do not hold the CABLE MANAGEMENT CLIP when moving the TV.

- If the TV is dropped, you may be injured or the product may be broken.

32/37/42LG5***

BACK COVER FOR WIRE ARRANGEMENT

1 Connect the cables as necessary.

To connect additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Secure the power cable with the PROTECTIVE BRACKET/Screw or PLUG IN TYPE HOLDER for power code. It will help prevent the power cable from being removed by accident.

Diagram showing two circular views of a mechanical or electrical component with internal wiring and mounting holes (no text or symbols)

PROTECTIVE BRACKET
(This feature is not available for all models.)

PLUG IN TYPE HOLDER

2 Install the CABLE MANAGEMENT CLIP as shown. If your TV has the CABLE HOLDER, install it as shown and bundle the cables.

CABLE MANAGEMENT CLIP CABLE HOLDER

3 Put the cables inside the CABLE MANAGEMENT CLIP and snap it closed.

Mechanical assembly diagram showing a rotating component with mounting holes and a central lever (no text or labels)

PROTECTION COVER

After removing the stand, install the included protection cover over the hole for the stand.

Press the PROTECTION COVER into the TV until you hear it click.

Diagram showing two views of a mechanical component with arrows indicating movement or force, no text or symbols present.

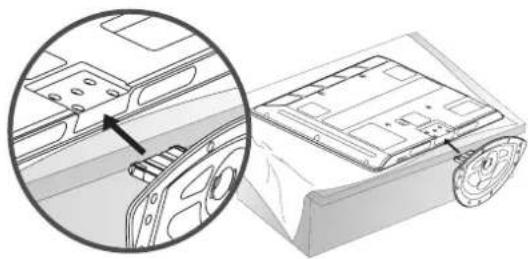

STAND INSTALLATION

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

3D diagram of a rectangular electronic component with a central square and internal slot, shown without any text or symbols.

2 Assemble the parts of the STAND BODY with COVER BASE of the TV.

STAND BODY COVER BASE

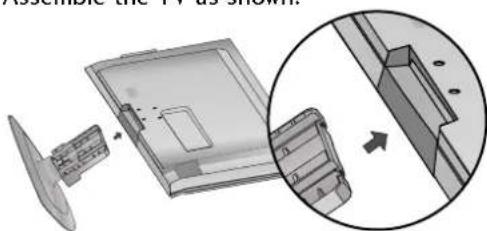

3 Assemble the TV as shown.

3D mechanical assembly diagram showing a component being inserted into a housing, with an inset close-up highlighting the internal structure (no text or symbols present)

4 x 4

Tighten the stand with the four screws (provided as parts of the TV).

Illustration of a device with arrows indicating motion or force, no text or symbols present

or

x2 x2 Tighten the two of these four screws and the two Torx plus star head screws (provided as parts of the TV) to secure the TV. Tighten the two Torx plus star head screws with a star head driver bit (not provided as parts of the TV).

NOTE

When assembling the desk type stand, make sure the bolt is fully tightened (If not tightened fully, the TV can tilt forward after the product installation). Do not over tighten.
With some TVs, the PLUG IN TYPE HOLDER and the CABLE HOLDER are included. If these holders are inserted into the hole provided on back of the TV, they cannot be removed.

PREPARATION

STAND INSTALLATION

32/37LC5DC\*, 32/37LC50C\*

1 Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage.

3D diagram of a rectangular object with a central square and internal structure, no visible text or symbols

2 Assemble the product stand with the product as shown.

Diagram of a mechanical assembly with an inset circular detail showing a component (no text or symbols)

3 Securely install the 4 bolts provided as shown below.

3D technical illustration of a mechanical component with no visible text or symbols

42PG65C

1 Carefully place the TV screen side down on a cushioned surface to protect the screen from damage.

Technical line drawing of a mechanical component with internal compartments (no text or symbols)

NOTE

▶ After inserting the MPI slot/card, install the product stand.

2 Assemble the product stand with the product as shown.

Technical illustration of a mechanical component with an inset close-up showing a slot and mounting bracket (no text or symbols)

3 Tighten the 4 bolts securely using the holes in the back of the TV.

Technical line drawing of a laptop chassis showing internal compartments and a pen inserted (no text or symbols)

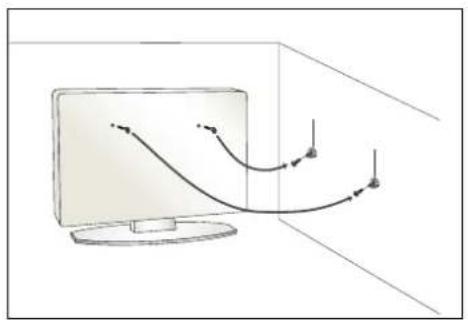

ATTACHING THE TV TO A WALL

■ This feature is not available for all models.

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, potentially causing injury or damaging the product.

Caution: Please make sure that children don't climb on or hang from the TV.

Simple line drawing of a computer monitor with curved arrows pointing to its screen (no text or symbols)

■ Insert the TV brackets (or eye-bolts) and bolts to tighten the product to the wall as shown in the picture.

*If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.

Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.

Ensure the eye-bolts or brackets are tightened securely.

Side view of a modern flat-screen monitor (no text or symbols visible)

■ Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product.

SWIVEL STAND

Pure mechanical diagram showing a rotating component with dashed lines indicating motion (no text or symbols)

20° (37LC5DC1, 42LC5DC, 42LC50C, 42PX8DC, 42LB5DC, 42LB50C, 42PG65C models)

90° (32LX5DC/S, 32LX50C/S, 32LC5DC/S, 32LC50C/S, 37LC5DC, 37LC50C, 32/37/42LG5*** models)

The TV can be conveniently swivelled on its stand 20^ or 90^ to the left or right to provide the optimum viewing angle.

PREPARATION

ATTACHING THE TV TO A DESK

■ Here shown may be somewhat different from your TV.

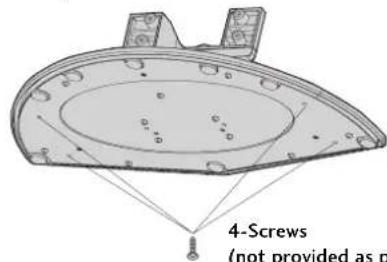

The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.

* Screws - M5 x L (table depth + 8\~10 mm) ex) table depth-15mm: Bolts - M5 x 25

32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

4-Screws (not provided as parts of the product)

Stand Desk

32LX5DC*, 32LX50C*

4-Screws (not provided as p

Stand

42PX8DC 2-Screws (not provided as parts of the product)

Stand Desk

Technical line drawing of a mechanical component with no visible text or symbols

Stand Desk

32/37/42LG5*** 4-Screws (not provided as parts of the product)

Stand Desk

32/37/42LG5***

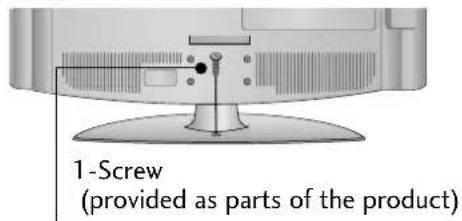

1-Screw (provided as parts of the product)

Stand Desk

WARNING

To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury.

VESA WALL MOUNTING

This product accepts a VESA-compliant mounting interface pad. (optional)

There 4 threaded holes are available for attaching the bracket.

■ This feature is not available for all models.

A B

Product Model		VESA(A * B)
LCD TV	32LC5DC*, 32LC50C*,32LX5DC*,32LX50C*, 32LG5***	200 * 100
	37LG5***, 42LG5***	200 * 200
	32/37/42LC5DC*, 32/37/42LC50C*,42LB5DC, 42LB50C	600 * 400
PLASMA TV	42PG60C	400 * 400
	42PX8DC	600 * 400

NOTE

▶ Screw length needed depends on the wall mount used. For further information, refer to the VESA Wall Mounting Instruction Guide.

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4 inches on each side from the wall.

■ Image shown may differ from your TV.
■ This feature is not available for all models.

N 4 inches 4 inches 4 inches 4 inches 4 inches

CAUTION

▶ Ensure adequate ventilation by following the clearance recommendations.

ANTENNA OR CABLE CONNECTION

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.

For optimum picture quality, adjust antenna direction if needed.

1. Cable


Cable TV Wall Jack RF Coaxial Wire (75 ohm) ANTENNAATI

■ To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
■ If the antenna is not installed properly, contact your dealer for assistance.

NOTE

The TV will let you know when the analog, cable, and digital channel scans are complete.

EXTERNAL EQUIPMENT SETUP

■ To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■ This part of external equipment setup mainly use picture for LCD TV(Except 32/37/42LG5*** ) models.

HD RECEIVER SETUP

This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

When connecting Component cable

1. How to connect

1 Connect the video outputs (Y, PB, PR) of the digital set top box to the COMPONENT IN VIDEO jacks on the set. Match the jack colors

$$ (Y = \text { green }, P _ {B} = \text { blue }, \text { and } P _ {R} = \text { red }). $$

2 Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jacks on the set.

2. How to use

■ Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box)
■ Select Component input source with using the INPUT button on the remote control.

Y LBPm 1 2 DIGITAL AUDIO OUT OPTIC HDMI/DVI 1(DVI) 2 M.P.I. VIDEO PR AUDIO COMPONENT IN S-VIDEO

Signal	Component	HDMI1/DVI, HDMI2
480i	Yes	No
480p	Yes	Yes
720p	Yes	Yes
1080i	Yes	Yes
1080p	Yes	Yes

* 42LB5DC, 42LB50C model only

EXTERNAL EQUIPMENT SETUP

When connecting HDMI cable

1. How to connect

1 Connect the digital set-top box to HDMI/DVI IN 1 (DVI) or 2 jack on the set.
2 No separated audio connection is necessary. HDMI supports both audio and video.

2. How to use

■ Turn on the digital set-top box.
(Refer to the owner's manual for the digital set-top box)
■ Select HDMI1/DVI or HDMI2 input source with using the INPUT button on the remote control.

NOTE

If the device does not support Auto HDMI, you need to set the output resolution appropriately.

HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT (OPTICAL) 2 M.P. RJP INTERFACE VIDEO COMPONENT IN 1 HDMI-DTV OUTPUT

When connecting HDMI to DVI cable

HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT (OPTICAL) 2 M.P.I. RESET UPDATE REMOTE CONTROL OUT SERVICE ONLY RGB IN RJP INTERFACE COMPONENT IN S-VIDEO AUDIO AV IN 1 SPEAKER OUT 8Ω AUDIO (RG DVI) DVI-DTV OUTPUT L R

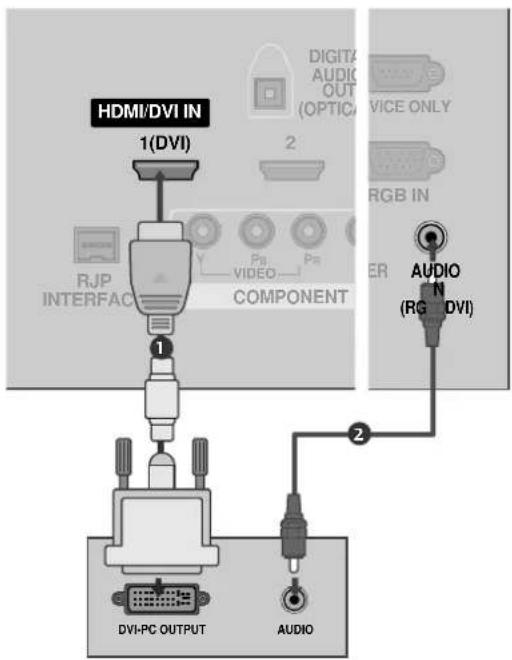

1. How to connect

1 Connect the DVI output of the digital set-top box to theHDMI/DVI IN 1 (DVI) or 2 jack on the set.
2 Connect the audio output of the digital set-top box to the AUDIO IN (RGB,DVI)jack on the set.

2. How to use

■ Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box)
■ Select HDMI1/DVI or HDMI2 input source with using the INPUT button on the remote control.

EXTERNAL EQUIPMENT SETUP

DVD SETUP

When connecting Component cable

1. How to connect

1 Connect the video outputs (Y, PB, PR) of the DVD to the COMPONENT IN VIDEO jacks on the set. Match the jack colors (Y = green, PB = blue, and PR = red).

2 Connect the audio outputs of the DVD to the COMPONENT IN AUDIO jacks on the set.

2. How to use

■ Turn on the DVD player, insert a DVD.
■ Select Component input source with using the INPUT button on the remote control.
- Refer to the DVD player's manual for operating instructions.

V1 RP6 PS 1 2 HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT V OPTION MP.I. VIDEO PY PR L R AUDIO COMPONENT IN S-VIDEO

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV	Y	P_B	P_R
Video output ports on DVD player	Y	P_B	P_R
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

When connecting with an S-Video cable

1. How to connect

1 Connect the S-VIDEO output of the DVD to the S-VIDEO input on the set.
2 Connect the audio outputs of the DVD to the AUDIO input jacks on the set.

2. How to use

■ Turn on the DVD player, insert a DVD.
■ Select AV1 input source with using the INPUT button on the remote control.
■ If connected to AV IN2, select AV2 input source.
- Refer to the DVD player's manual for operating instructions.

When connecting HDMI cable

1. How to connect

1 Connect the HDMI output of the DVD to the HDMI/DVI IN 1 (DVI) or 2 jack on the set.
2 No separated audio connection is necessary. HDMI supports both audio and video.

2. How to use

■ Select HDMI1/DVI or HDMI2 input source with using the INPUT button on the remote control.
- Refer to the DVD player's manual for operating instructions.

NOTE

If the device does not support Auto HDMI, you need to set the output resolution appropriately.

S-VIDEO AUDIO L R 1 2 DIGITAL AUDIO OUT TICAL) M.P.I. RESET UPDATE REMOTE CONTROL OUT S AUDIO AV IN 1 NONO AUDIO VIDEO SPEN IN

HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT (OPTICAL) 2 M.P.I. RJP INTERFACE VIDEO COMPONENT IN 1 HDMI-DVD OUTPUT

EXTERNAL EQUIPMENT SETUP

VCR SETUP

■ To avoid picture noise (interference), leave an adequate distance between the VCR and TV.

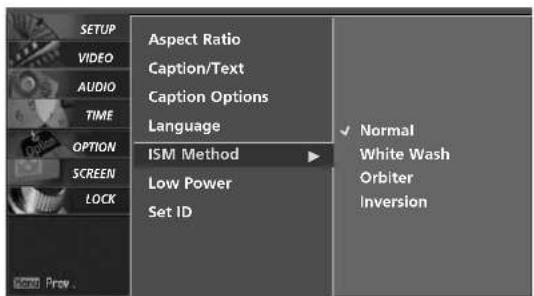

■ Use the ISM feature in the Option menu to avoid having a fixed image remain on the screen for a long period of time. (Only Plasma TV model). If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen. This phenomenon is common to all manufactures and in consequence the manufactures warranty does not cover the product bearing this phenomenon.

When connecting with an antenna

S-VIDEO OUTPUT SWITCH VIDEO L R ANT OUT ANT IN Wall Jack Antenna 1 ANTENNA&ANTENA&MPMLF.II. 2

1. How to connect

1 Connect the RF antenna out socket of the VCR to the Antenna socket on the set.
2 Connect the antenna cable to the RF antenna in socket of the VCR.

2. How to use

■ Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
- Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual)

When connecting with a RCA cable

1. How to connect

1 Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red)

2. How to use

• Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual)
  ■ Select AV1 input source with using the INPUT button on the remote control.
  ■ If connected to AV IN2, select AV2 input source.

When connecting with an S-Video cable

1. How to connect

1 Connect the S-VIDEO output of the VCR to the S-VIDEO input on the set.
2 Connect the audio outputs of the VCR to the AUDIO input jacks on the set.

2. How to use

• Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual)
  ■ Select AV1 input source with using the INPUT button on the remote control.
  ■ If connected to AV IN2, select AV2 input source.

NOTE

The picture quality is improved: compared to normal composite (RCA cable) input.

ANT IN S-VIDEO R VIDEO ANT OUT OUTPUT SWITCH 1 TAL DIO UT CAL) M.P.I. RESET UPDATE REMOTE CONTROL OUT SERV L R AUDIO AV IN 1 L R IN

NOTE

If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the set.

ANT IN S-VIDEO OUT CH ANT OUT 1 2 RESET M.P.I. UPDATE REMOTE CONTROL OUT S-VIDEO L. MONGAudio AV IN 1 VIDEO DIGITAL AUDIO OUT (TICAL) M.P.I. AUDIO SPEAU OUT

CAUTION

Do not connect to both Video and S-Video at the same time. In the event that you connect both Video and the S-Video cables, only the S-Video will work.

EXTERNAL EQUIPMENT SETUP

OTHER A/V SOURCE SETUP

1. How to connect

1 Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors. (Video = yellow, Audio Left = white, and Audio Right = red)

2. How to use

■ Select AV2 input source with using the INPUT button on the remote control.
■ If connected to AV IN1 input, select AV1 input source.
■ Operate the corresponding external equipment.

Camcorder Video Game Set VIDEO L R S-VIDEO VIDEO LMICO AUDIO-R AV IN 2

i.e) 32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

DIGITAL AUDIO OUTPUT

Send the TV's audio to external audio equipment via the Digital Audio Output (Optical) port.

1. How to connect

1 Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.
2 Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment.
3 Set the "TV Speaker option - Off" in the AUDIO menu. (▶p.58). See the external audio equipment instruction manual for operation.

NOTE

When connecting with external audio equipments, such as amplifiers or speakers, please turn the TV speakers off. (p.58)

CAUTION

Do not look into the optical output port. Looking at the laser beam may damage your vision.

DIGITAL AUDIO OUT (OPTICAL) HDMI/DVI IN 1(DVI) 2 M.P.I. RJP INTERFACE COMPONENT IN 1 2

PC SETUP

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

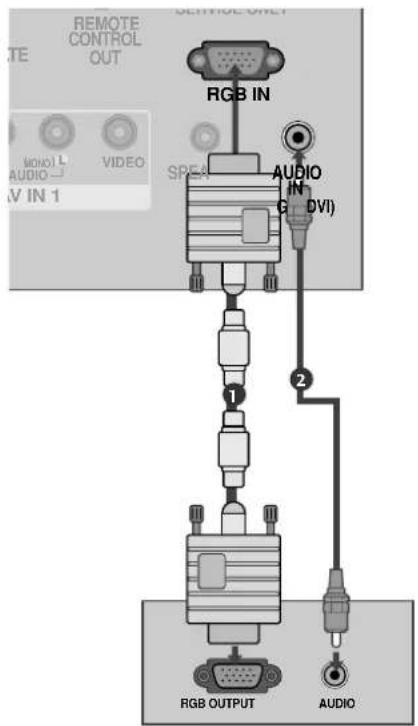

When connecting D-sub 15pin cable

1. How to connect

1 Connect the RGB output of the PC to the RGB IN jack on the set.
2 Connect the PC audio output to the AUDIO IN (RGB, DVI)jack on the set.

2. How to use

■ Turn on the PC and the set.
- Select RGB-PCinput source with using the INPUT button on the remote control.

When connecting HDMI to DVI cable

REMOTE CONTROL OUT SERVITURE ONLY RGB IN AUDIO IN G DVI) SPEA 1 2 AUDIO RGB OUTPUT AUDIO

1. How to connect

1 Connect the DVI output of the PC to the HDMI/DVI IN 1 (DVI) jack on the set.
2 Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the set.

2. How to use

■ Turn on the PC and the set
■ Select HDMI1/DVI input source with using the INPUT button on the remote control.

HDMI/DVI IN 1(DVI) DIGIT/ AUDIO OUT (OPTIC) 2 RJP INTERFAC VIDEO COMPONENT RGB IN AUDIO N (RG DVI) DVI-PC OUTPUT AUDIO

EXTERNAL EQUIPMENT SETUP

NOTES

▶ Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
▶ Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the

PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

Avoid keeping a fixed image on the screen for a long period of time. The fixed image may become permanently imprinted on the screen.
The synchronization input form for Horizontal and Vertical frequencies is separate.

Supported Display Specifications (RGB/HDMI1-PC)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
640x350	31.469	70.08
640x480	31.469 59.9437.861 72.8037.500 75.00
800x600	35.156 56.2537.879 60.3148.077 72.1846.875 75.00
1024x768	48.363 60.0056.476 70.0660.023 75.02
1280x768	47.700 60.00
1360x768	47.720 59.799
1366x768	47.130 59.658

Supported Display Specifications (RGB/HDMI1-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.50	60.00
	31.47(HDMI1-DTV:31.469)	59.94
1280x720	44.96	59.94
	45.00	60.00
1920x1080i	33.72	59.94
	33.75	60.00

Supported Display Specifications (HDMI2-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.500 60.00
	31.469 59.94
1280x720	44.960 59.94
	45.000	60.00
1920x1080i	33.720 59.94
	33.750	60.00

Supported Display Specifications (Y, C_B/P_B , C_R/P_R )

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	15.73	59.94
	15.73	60.00
	31.47	59.94
	31.50	60.00
1280x720	44.96	59.94
	45.00	60.00
1920x1080i	33.72	59.94
	33.75	60.00

* RGB-DOS mode only: 640x350

* Except 42PG60C/65C models in HDMI1-PC mode.

Supported Display Specifications (RGB/HDMI1-PC)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
640x350 (RGB only)	31.469	70.08
640x480	31.469 59.9437.861 72.8037.500 75.00
800x600	35.156 56.2537.879 60.3148.077 72.1846.875 75.00
1024x768	48.363 60.0056.476 70.0660.023 75.02
1280x768	47.700 60.00
1360x768	47.720 59.799
1366x768	47.130 59.658
1280x1024 (RGB only)	63.668 59.895
1400x1050 (RGB only)	65.317 59.978
1600x1200	74.537	59.869
1920x1080	66.587	59.934
1920x1200	74.038	59.950

Supported Display Specifications (HDMI2-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.500 60.0031.469 59.94
1280x720	44.960 59.9445.000 60.00
1920x1080	33.720 59.9433.750 60.0067.500 60.00

Supported Display Specifications (Y, C_B/P_B , C_R/P_R )

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	15.73	59.94
	15.73	60.00
	31.47	59.94
	31.50	60.00
1280x720	44.96	59.94
	45.00	60.00
1920x1080	33.72	59.94
	33.75	60.00
	67.50	60.00

* RGB-DOS mode only: 640x350

Supported Display Specifications (RGB/HDMI1-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.50	60.00
	31.47(HDMI1-DTV:31.469)	59.94
1280x720	44.96	59.94
	45.00	60.00
1920x1080	33.72	59.94
	33.75	60.00
	67.43(HDMI1-DTV:67.5)	59.94

WATCHING TV / CHANNEL CONTROL

REMOTE CONTROL FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

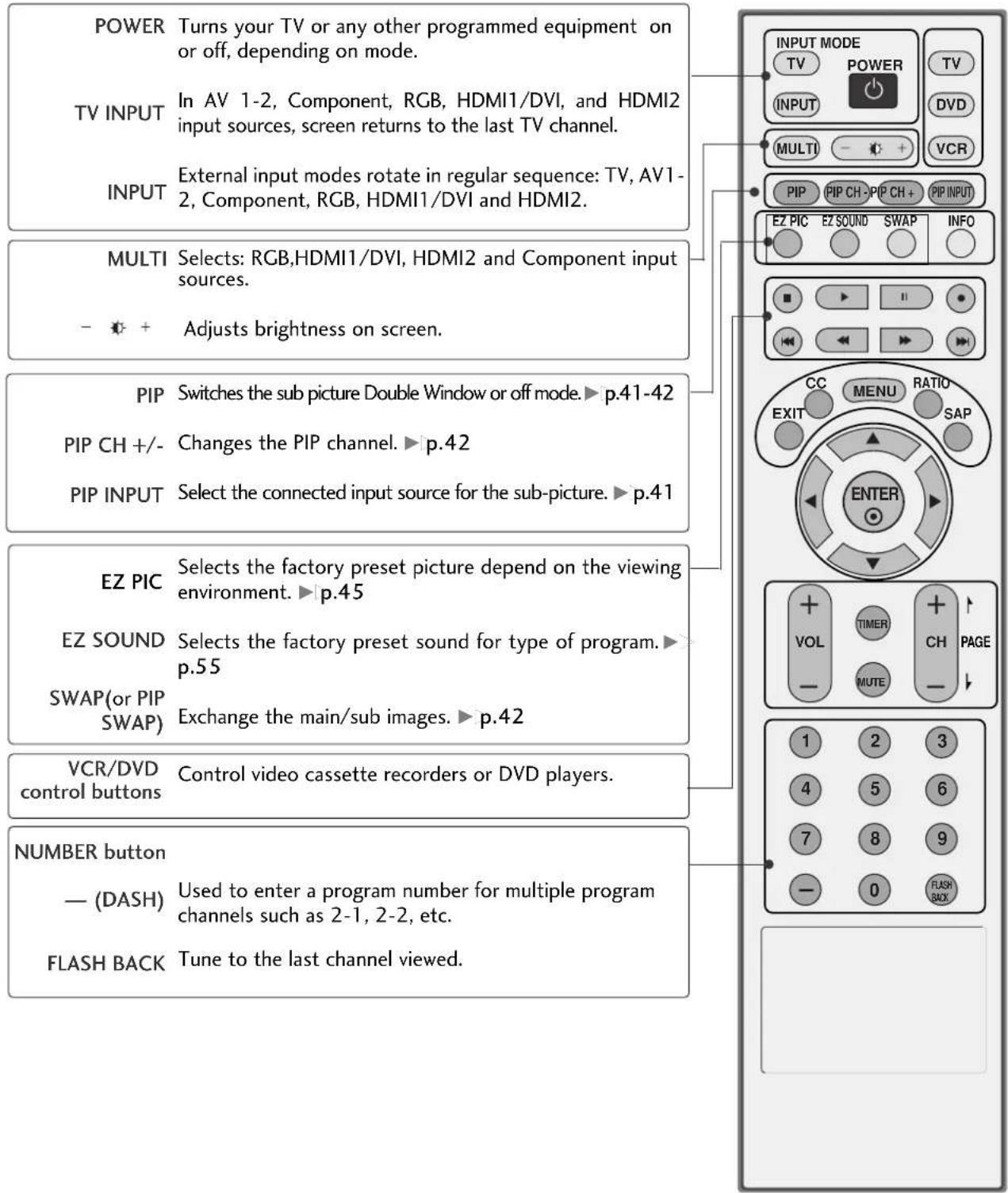

POWER Turns your TV or any other programmed equipment on or off, depending on mode. TV INPUT In AV 1-2, Component, RGB, HDMI1/DVI, and HDMI2 input sources, screen returns to the last TV channel. INPUT External input modes rotate in regular sequence: TV, AV1- 2, Component, RGB, HDMI1/DVI and HDMI2. MULTI Selects: RGB,HDMI1/DVI, HDMI2 and Component input sources. - + Adjusts brightness on screen. PIP Switches the sub picture Double Window or off mode.► p.41-42 PIP CH +/- Changes the PIP channel.► p.42 PIP INPUT Select the connected input source for the sub-picture.► p.41 EZ PIC Selects the factory preset picture depend on the viewing environment.► p.45 EZ SOUND Selects the factory preset sound for type of program.► p.55 SWAP(or PIP SWAP) Exchange the main/sub images.► p.42 VCR/DVD Control buttons Control video cassette recorders or DVD players. NUMBER button — (DASH) Used to enter a program number for multiple program channels such as 2-1, 2-2, etc. FLASH BACK Tune to the last channel viewed. INPUT MODE TV POWER INPUT MULTI — + PIP CH -PIP CH + PIP INPUT EZ PIC EZ SOUND SWAP INFO CC MENU RATIO EXIT SAP ENTER + TIMER + VOL MUTE 1 2 3 4 5 6 7 8 9 — 0 FLASH BACK

(Only 42PG60C, 42PG65C, 32/37/42LG5*** models)

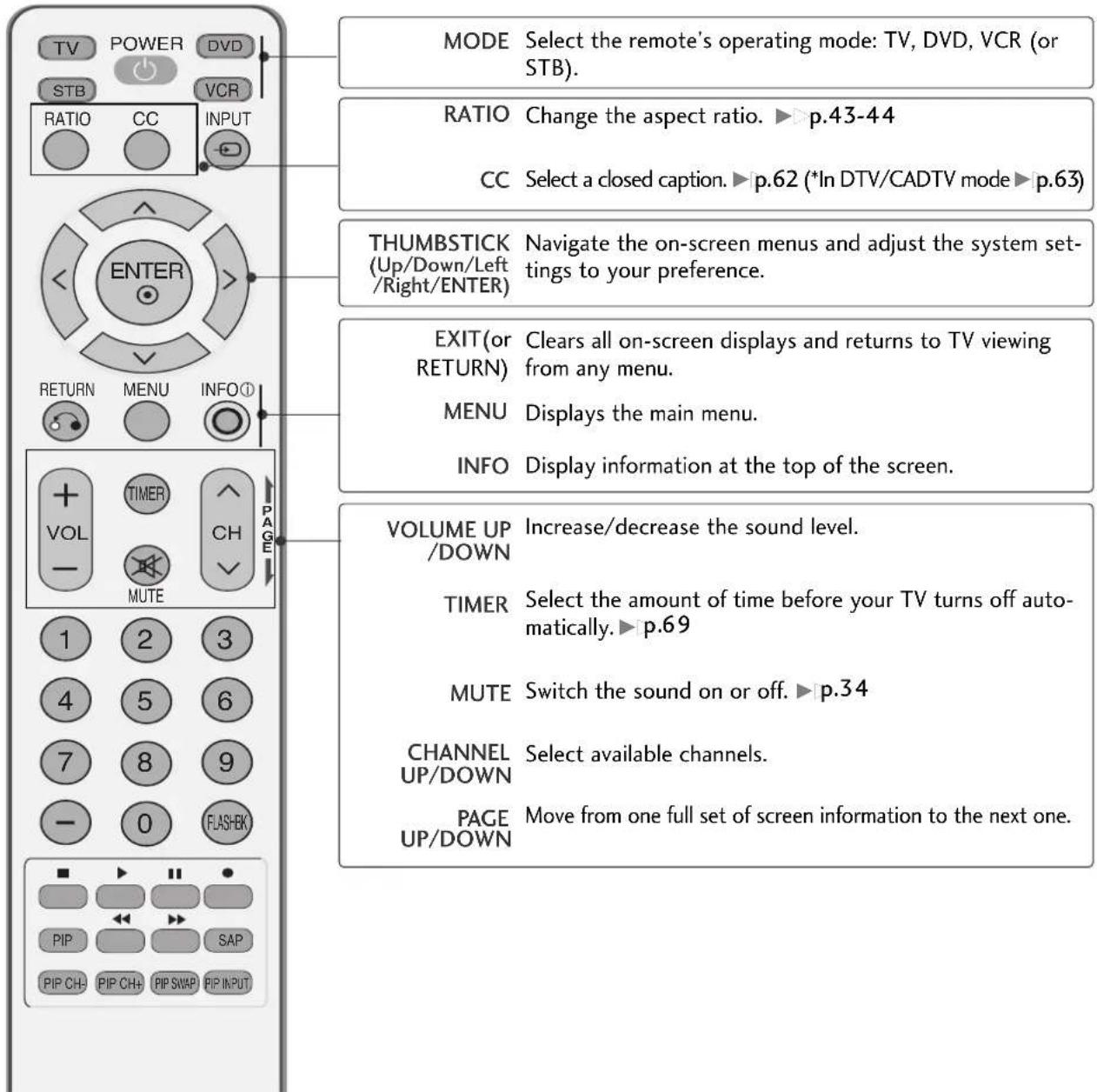

TV POWER DVD STB VCR RATIO CC INPUT MODE Select the remote's operating mode: TV, DVD, VCR (or STB). RATIO Change the aspect ratio. ▶ p.43-44 CC Select a closed caption. ▶ p.62 (*In DTV/CADTV mode ▶ p.63) THUMBSTICK (Up/Down/Left /Right/ENTER) Navigate the on-screen menus and adjust the system set- tings to your preference. EXIT(or RETURN) Clears all on-screen displays and returns to TV viewing from any menu. MENU Displays the main menu. INFO Display information at the top of the screen. VOLUME UP /DOWN Increase/decrease the sound level. TIMER Select the amount of time before your TV turns off auto- matically. ▶ p.69 MUTE Switch the sound on or off. ▶ p.34 CHANNEL UP/DOWN Select available channels. PAGE UP/DOWN Move from one full set of screen information to the next one. PIP SAP PIP CH PIP CH PIP SWAP RIP INPUT

Installing Batteries

Illustration showing two hands performing a manual task: one applying material to a sheet, the other holding a cylindrical device (no text or symbols present)

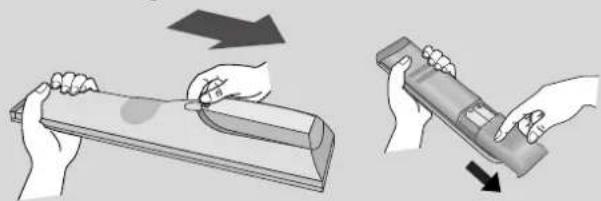

• Open the battery compartment cover on the back side and install the batteries matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries(or 1.5V AAA) Don't mix old or used batteries with new ones.
  Close cover.

WATCHING TV /CHANNEL CONTROL

TURNING ON TV

1 First, connect power cord correctly.

At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the (or ON/OFF) button on the TV or press the POWER button on the remote control.

2 Select the viewing source by using the INPUT(or TV INPUT) button on the remote control.

This TV is programmed to remember which power state it was last set to, even if the power cord is out.

3 When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.

NOTE

If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

CHANNEL SELECTION

1 Press the CH (+ or -) or CH (∧ or ∨) or NUMBER buttons to select a channel number.

VOLUME ADJUSTMENT

Adjust the volume to suit your personal preference.

1 Press the VOL (+ or -) button to adjust the volume.

2 If you want to switch the sound off, press theMUTE button.

3 You can cancel the Mute function by pressing theMUTE or VOL (+ or -) button.

ON-SCREEN MENUS SELECTION

Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

1 Press the MENU button and then use ▲ or ▼ or or button to select the each menu.
2 Press the ▶ or button and then use ▲ ▼ ◀ ▶ or button to display the available menus.

SETUP

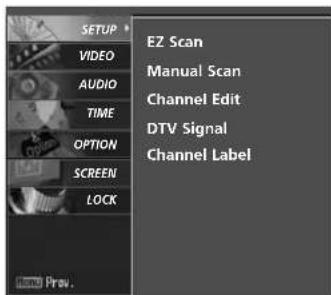

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label

VIDEO

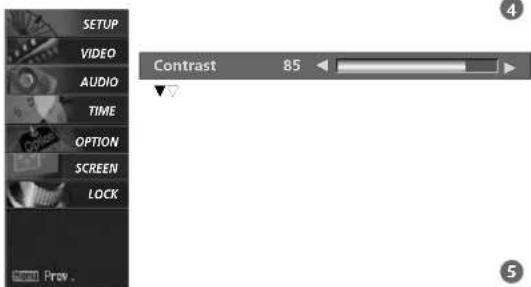

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Prev.

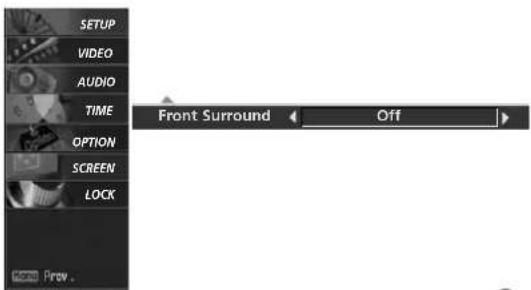

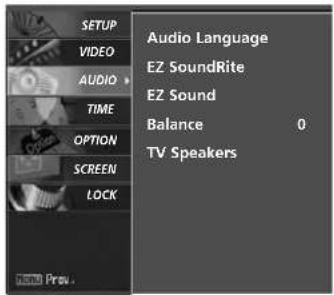

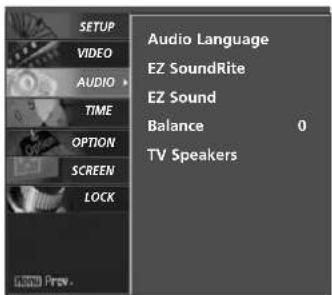

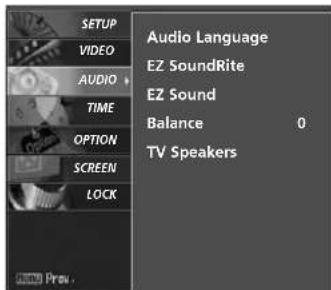

AUDIO

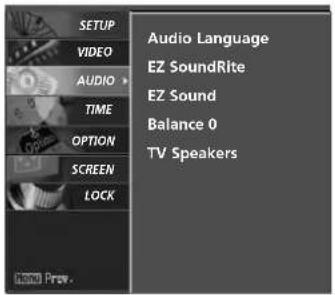

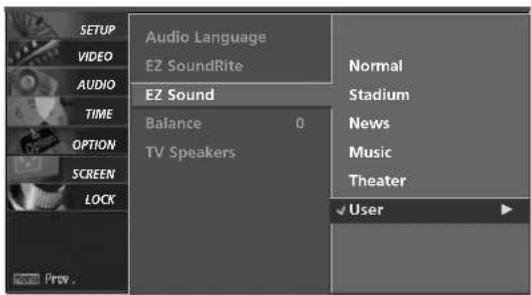

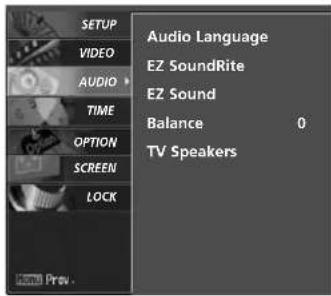

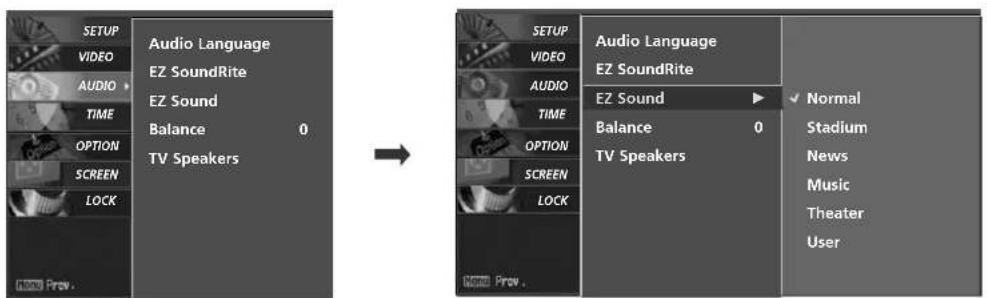

SETUP VIDEO AUDIO > TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

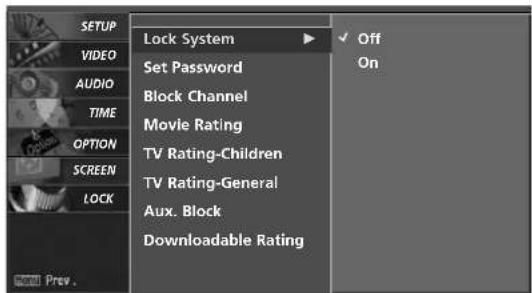

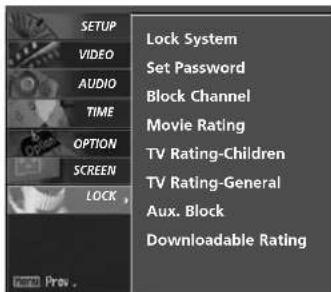

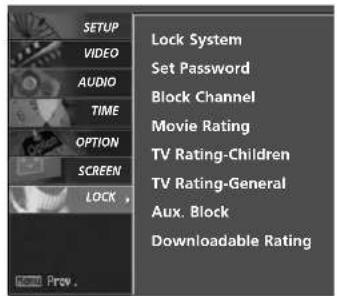

LOCK

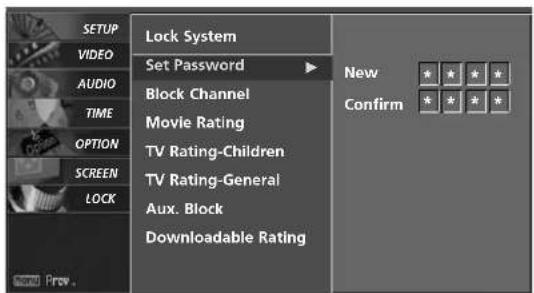

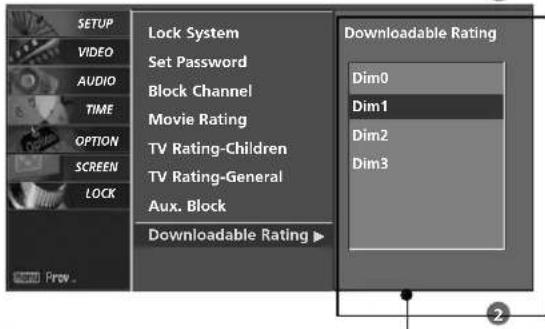

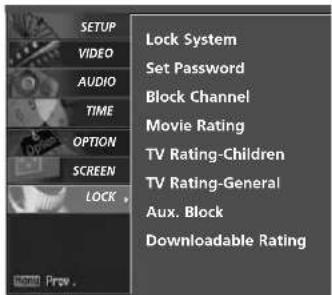

For USA SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

For Canada

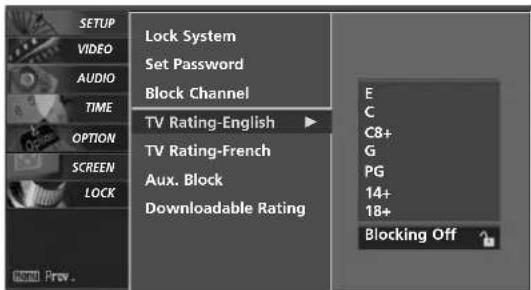

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

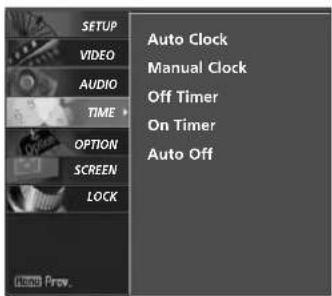

TIME

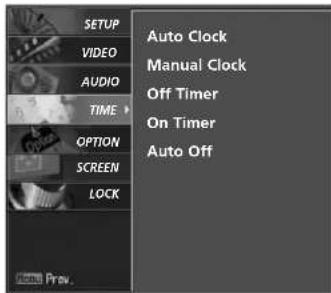

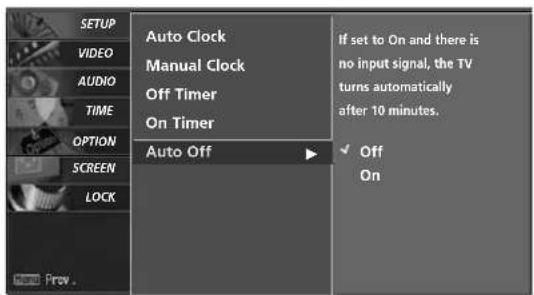

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Home Prev.

SCREEN

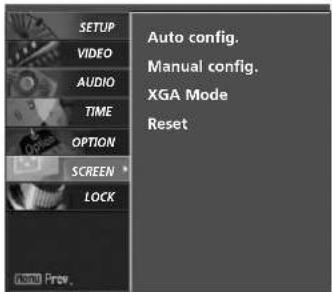

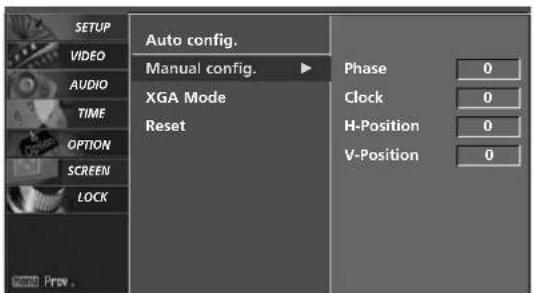

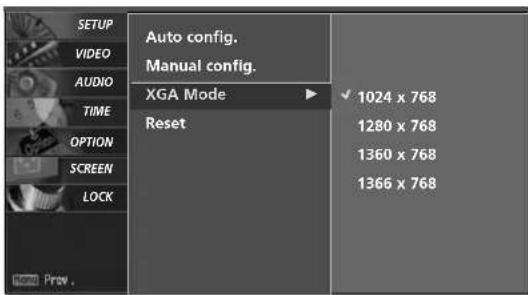

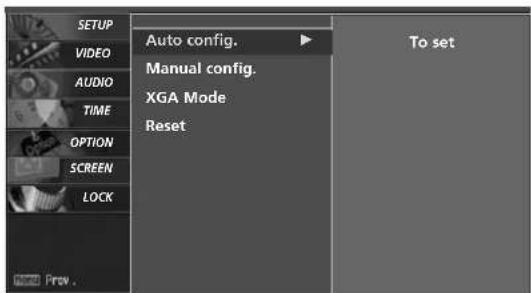

AUTO config. MANUAL config. XGA Mode Reset SETUP VIDEO AUDIO TIME OPTION SCREEN * LOCK Auto Prov.

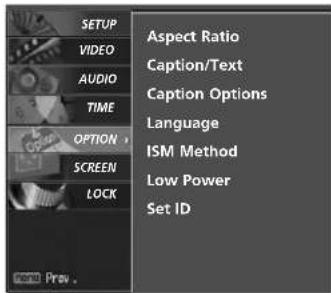

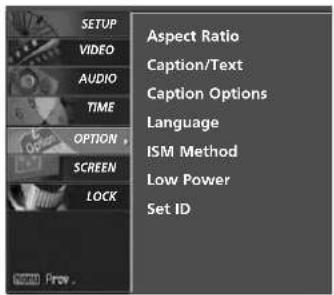

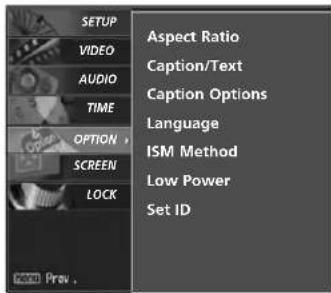

OPTION

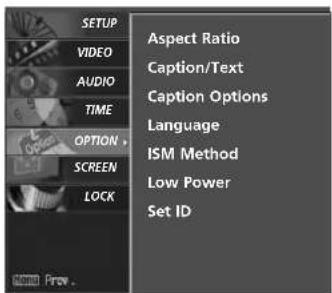

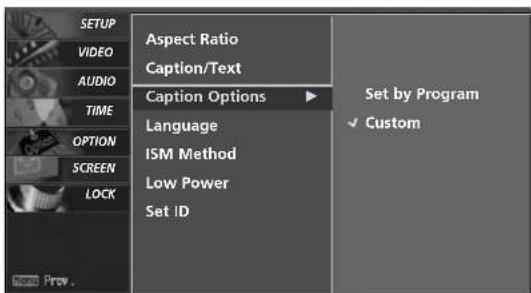

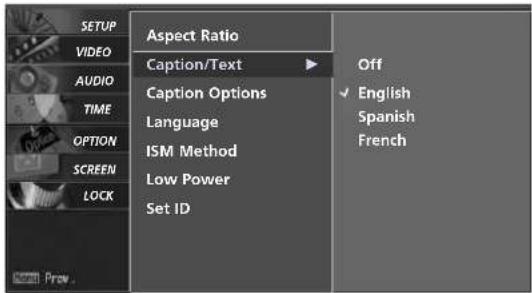

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

Only 42PX8DC model

WATCHING TV /CHANNEL CONTROL

CHANNEL SETUP

Auto Scan (EZ Scan)

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

Run EZ Scan again after any Antenna/Cable connection changes.

A password is required to gain access to EZ Scan menu if the Lock System is turned on.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the SETUP menu.
2 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to Eξελεταn.
3 Press the ENTER button to begin the channel search. Allow EZ Scan to complete the channel search cycle for ANTENNA and CABLE.

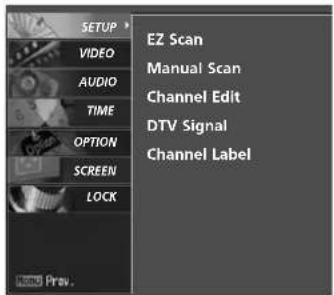

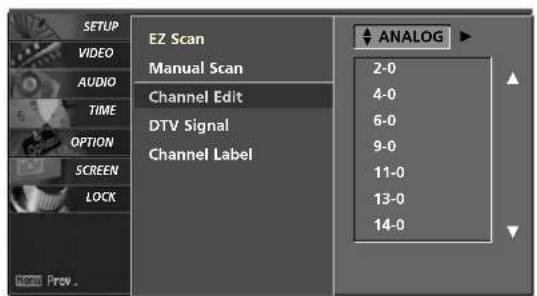

EZ Scan MANUAL SCAN CHANNEL Edit DTV Signal CHANNEL Label SETUP * VIDEO AUDIO TIME OPTION SCREEN LOCK Home Prev.

1

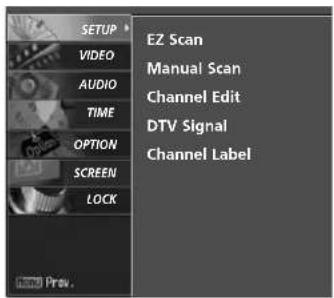

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Selection (► or ⭕) leads you to the EZ scan screen.

2

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Selection to the EZ Processing EZ scan... ANALOG 9 Found Channel(s) 4 Next MENU Prev.

3

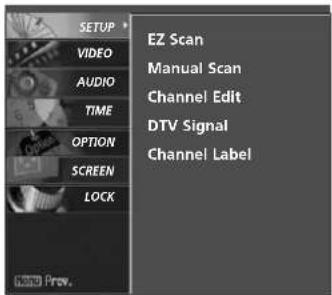

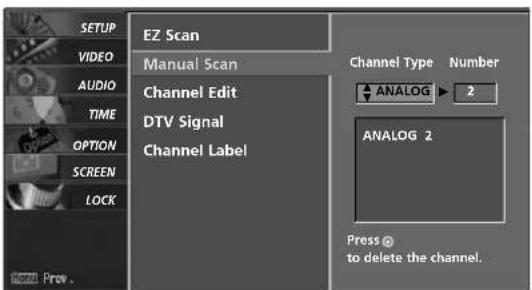

Add/Delete Channel (Manual Scan)

A password is required to gain access to Manual Scan menu if the Lock System is turned on.

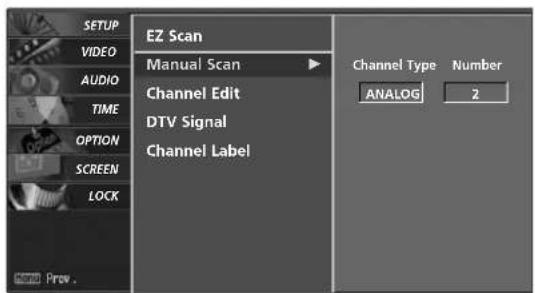

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the SETUP menu.
2 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to Mechanical Scan.
3 Press the ▶> or button and then use ▲/or ▼▽or ^ or button to select Analog( TTVCATV), Digital(DTV, CADTV).
4 Press the ▶ or button and then use ▲/or ▼▽ or ^ or button to select channel you want to add or delete.
5 Press the ENTER button to add or delete the channel.
6 Press the EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP * EZ Scan VIDEO AUDIO TIME OPTION SCREEN LOCK Manual Scan Channel Edit DTV Signal Channel Label PROV.

1

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Channel Type Number ANALOG 2

2

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Channel Type Number ANALOG 2 ANALOG 2 Press @ to delete the channel.

3 4 5

WATCHING TV /CHANNEL CONTROL

Channel Editing

A Custom List can be created by toggling each channel on or off with ENTER button. The channels in the Custom List are displayed in black, and the channels deleted from the Custom List are displayed in gray. Once a channel is highlighted you can add or delete the channel by referring to the small window at the top-left corner of the screen.

A password is required to gain access to Manual Scan menu if the Lock System is turned on.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label

1

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the SETUP menu.

2 Press the ▶or button and then use ▲/or ▼▽ or ^ or ∨ button to Channel Edit.

3 Press the ▶or button and then use ▲or ▼or △ or ▼ button to ANAeOG or DIGITAL.

4 Press the ▶or button and then use ▲or ▼▽or ^ or button to select channel and then use the ENTER button to add or delete it.

5 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label ANALOG 2-0 4-0 6-0 9-0 11-0 13-0 14-0

2

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label ANALOG 2-0 4-0 6-0 9-0 11-0 13-0 14-0

3 4

DTV SIGNAL STRENGTH

This feature displays the DTV signal levels being received and indicates whether you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

DTV Signal: This function is only available when the input signal is DTV or CADTV.

Press the MENU button and then use ▲ or ▼ or ▲ or button to select the SETUP menu.

Press the ▶>or > button and then use ▲/or ▼▽ or ∧ or ∨ button to select DTV Signal.

View the on-screen signal strength monitor to see the quality of the signal being received.

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Show Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Bad Normal Good Prop.

2 3

WATCHING TV /CHANNEL CONTROL

CHANNEL LABEL

Choose preset labels for your channels.

If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel even if you didn't preset a label for the channel.

1 Press the MENU button and then use ▲/or ▼/or ∧ or button to select the SETUP menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to Chelotel Label.
3 Press the ▶ or button and then use ▲ or ▼ or △ or button to select a channel to label.
4 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to select the appropriate label for the channel.
5 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

EZ Scan MANUAL SCAN CHANNEL Edit DTV Signal CHANNEL Label SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Prov.

1

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Ch. ANALOG 2 Logo No Logo

2 3

PICTURE CONTROL

WATCHING DW (DOUBLE WINDOW)

Double Window mode splits the screen into two images, allowing two picture sources to be shown on the TV screen at the same time. Each source is given half the screen.

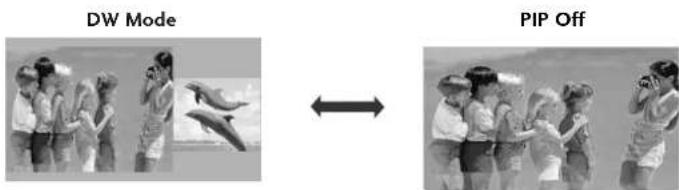

Watching Double Window

Press the PIP button to access the sub picture.

DW Mode PIP Off

Selecting an Input Signal Source for Double Window

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes the PIP source.

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes the PIP source.

Main Picture Source	Available Sub Picture Sources
TV	AV1, AV2
AV1	TV, AV2
AV2	TV, AV1
RGB, Component, HDMI1/DVI, HDMI2	TV, AV1, and AV2

TV Program Selection for PIP

1 Use the PIP CH +/- button to select a channel for the sub picture.

The selected channel number is displayed just below the input source of main picture.

Swapping the PIP / Double Window

Repeatedly, use the SWAP or PIP SWAP button to switch the main and sub pictures.

- Component, RGB, HDMI1/DVI, HDMI2 input sources for the main picture can't be used to swap the main and sub pictures.

PICTURE SIZE (ASPECT RATIO) CONTROL

This feature allows an analog picture with a 4:3 aspect ratio is displayed on your TV. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed.

■ RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.

1 Press the RATIO button repeatedly to select the desired picture format.

■ You can also adjust Aspect Ratio in the OPTION menu.

Set by program

Selects the proper picture proportion to match the source's image.

(4:3→4:3) (16:9→16:9) Set By Program Set By Program

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

Close-up of spherical objects with a labeled measurement '43' (no other text or symbols visible)

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

Close-up of three spherical objects with a label '16:9' in the corner (no other text or symbols)

PICTURE CONTROL

Horizon

The screen size is, more enlarged at both sides, to create a spectacular view.

Horizon

Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Grayscale image of a golf ball with two smaller balls, one labeled 'Zoom 1' in the corner (no other text or symbols)

Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage.

Grayscale 3D-rendered sphere with two smaller spheres, one labeled 'Zoom 2' in a button (no other text or symbols)

PRESET PICTURE SETTINGS

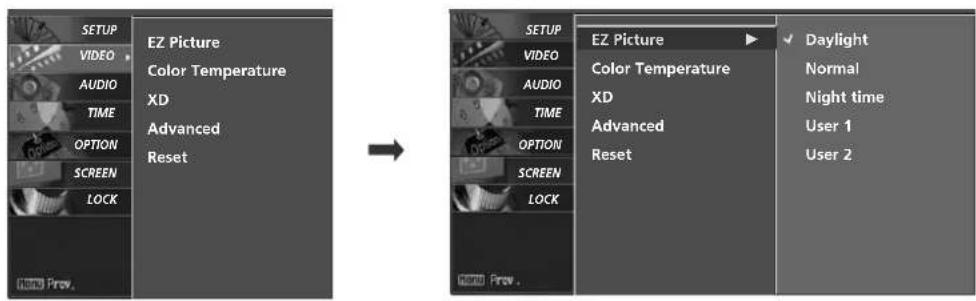

EZ Picture - Preset

EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the program category.

Daylight, Normal, Night Time Settings are preset for the optimum picture quality at the factory and are not adjustable.

In the User1 and User2 modes only, user can directly adjust the contrast, brightness, color, sharpness, tint.

1 Press the EZ PIC button repeatedly to select the picture appearance setup option as below(Except 42PG60C, 42PG65C models):

Daylight, Normal, Night Time, User1, and User2 (your own settings).

2 Press the EXIT or RETURN button to save and return to TV viewing.

■ You can also use the VIDEO menu to adjust EZ Picture.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Daylight Normal Night time User 1 User 2

PICTURE CONTROL

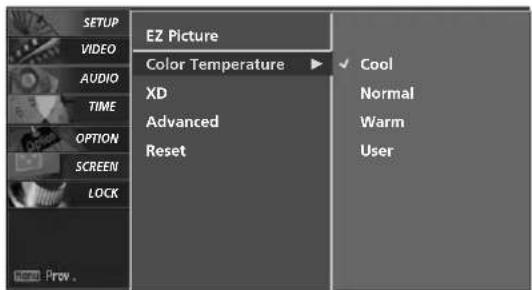

Color Tone - Preset

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue.

When selecting EZ Picture (User 1 and User 2), you can choose the Color Temperature.

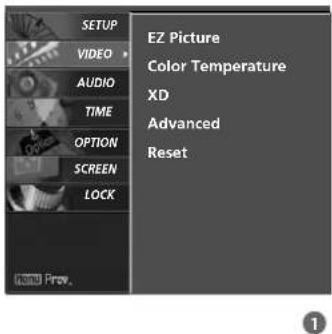

1 Press the MENU button and then use ▲ or ▼ or ▲ or ▼ button to select the VIDEO menu.
2 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to select Color Temperature.
3 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to select either Cool, Normal, Warm or User.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO > AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Sono Prov.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Cool Normal Warm User

2 3

MANUAL PICTURE ADJUSTMENT

EZ Picture - User Mode

Adjust the picture appearance to suit your preference and viewing situations.

This feature operate only if the EZ Picture set User 1 or User 2.

1 Press the MENU button and then use ▲ or ▼ or ▲ or ▼ button to select the VIDEO menu.
2 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to select EZ Picture.
3 Press the ▶ or > button and then use ▲ or ▼ or ∧ or ∨ button to select User 1 or User 2.
4 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to select the desired picture option (Contrast, Brightness, Color, Sharpness, or Tint).
5 Press the▶ or > button and then use◀ or ▶ or < or > button to make appropriate adjustments.
6 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP EZ Picture VIDEO Color Temperature AUDIO XD TIME Advanced OPTION Reset SCREEN LOCK HOLD Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZY Picture Color Temperature XD Advanced Reset Daylight Normal Night Time ✓User 1 User 2

2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK User1 Contrast 85 Brightness 50 Color 50 Sharpness 50 Tint 0

4

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Contrast 85 Prov.

PICTURE CONTROL

Color Tone - User Mode

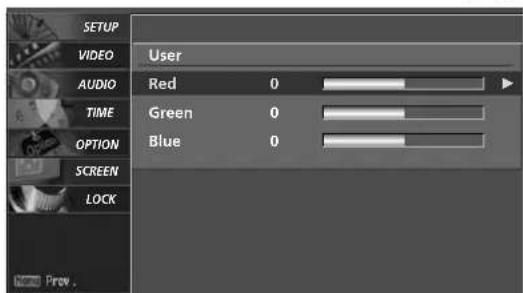

You can also adjust the detailed settings (Red, Green, Blue) by selecting the Color Temperature-User menu.

1 Press the MENU button and then use ▲/or ▼▽ or ▲ or button to select the VIDEO menu.

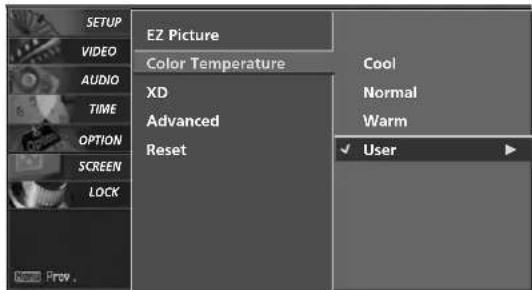

2 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to select Color Temperature.

3 Press the ▶or > button and then use▲/or ▼/or ∧ or √ button to selectUser.

4 Press the ▶or > button and then use▲ or ▼ or ▲ or ▼ button to select Red, Green, or Blue.

5 Press the ▶ or > button and then use ◀ or ▶ or < or > button to make appropriate adjustments.

■ The adjustment range of Red, Green, or Blue is -40 \~ +40.

6 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK E2 Picture Color Temperature XD Advanced Reset Status Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Prov. EZ Picture Color Temperature XD Advanced Reset Cool Normal Warm ✓ User

2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK User Red 0 Green 0 Blue 0 Prev.

4

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Red 0 ← Home Prev .

XD - PICTURE IMPROVEMENT TECHNOLOGY

XD is LG Electronic's unique picture improving technology to display a real HD source through an advanced digital signal processing algorithm.

When selecting EZ Picture options (Daylight, Normal and Night time), XD is automatically changed to Auto.

When selecting EZ Picture options (User 1 and User 2), you can choose the Auto / Manual.

When selecting the Manual, you can adjust the XD Contrast, XD color and XD Noise.

1

Press the MENU button and then use ▲ or ▼ or ∧ or button to select the VIDEO menu.

2

Press the ▶>or button and then use ▲/or ▼▽ or ^ or ▼ button to Xselect

3

Press the ▶>or button and then use ▲ or ▼▽ or △ or ▼ button to Autoer Manual.

Selecting the Manual Mode

1. Press the ▶ or button and then use ▲ or ▼▽ or ▲ or √ button to set XD Contrast, XD Color or XD NR (Noise), MPEG NR.

2. XD Contrast: Optimizing the contrast automatically according to the brightness of the reflection.

3. XD Color: Adjusting the colors of the reflection automatically to reproduce as closely as possible to the natural colors.

4. XD NR (Noise): Removing the noise up to the point where it does not damage the original picture.
   ■ MPEG NR: To reduce the picture noise which may appear on the screen during watching the TV.

5. Press the ◀ or ▶ or < or > button to select or Off.

4

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

EZ Picture Color Temperature XD Advanced Reset

EZ Picture Color Temperature XD Advanced Reset Auto ✓ Manual XD Contrast On XD Color On XD NR Off MPEG NR 0

PICTURE CONTROL

ADVANCED - CINEMA MODE

Set up the TV for the best picture appearance for viewing movies.

When you operate Cinema (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps video from movies to 30 fps video for display.

This feature operates only in Analog, AV1, AV2, and Component 480i mode.

1 Press the MENU button and then use ▲/or ▼▽ or ▲ or button to select the VIDEO menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to Aslected.
3 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to Cisenta.
4 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to OselectOff.
5 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset

1

EZ Picture Color Temperature XD Advanced Reset Cinema Off Black level Low

2 3 4

Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature operates only in AV1, AV2, HDMI1/DVI, or HDMI2mode.

1 Press the MENU button and then use ▲ or ▼▽ or ▲ or button to select the VIDEO menu.
2 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to Advanced.
3 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to Blacklevel.
4 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to Look at High.

Low

The screen gets darker.

■ High

The screen gets brighter.

5 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Cinema Off Black level Low

2 3 4

PICTURE CONTROL

PICTURE RESET

Use to quickly reset all the Video menu options to their original factory preset values.

1 Press the MENU button and then use ▲/or ▼▽ or ∧ or button to select the VIDEO menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to Resect
3 Press the ▶ or > button to reset the Video menu options to original values.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset

1

EZ Picture Color Temperature XD Advanced Reset To set

2 3

LOW-POWER PICTURE MODE (Only 42PX8DC model)

Low power reduces the plasma display power consumption.

1 Press the MENU button and then use ▲ or ▼ or ▲ or ▼ button to select the OPTION menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to Select Power.
3 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to OselectOff.

■ When you select On, the screen darkens.

4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

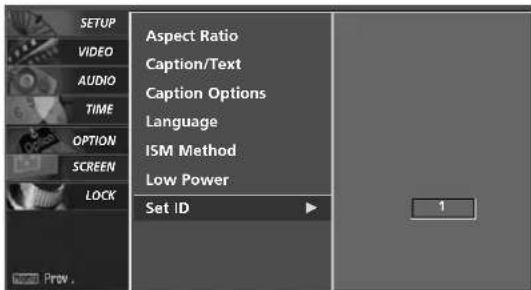

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Menu Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Off On

2 3

IMAGE STICKING MINIMIZATION(ISM) METHOD

A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image. Use our unique method to minimize any fixed image on the screen.

Press the MENU button and then use ▲/or ▼/or ∧ or button to select the OPTION menu.

Press the ▶>or button and then use ▲/or ▼▽or △ or ▼ button to ISAMethod.

Press the ▶ or button and then use ▲ or ▼ ▽ or ▲ or ▼ button to select Noneal, White Wash, Orbiter or Inversion.

Normal

If image sticking is never a problem, ISM is not necessary set to Normal.

■ White wash

White Wash removes permanent images from the screen.

NOTE

An excessive permanent image may be impossible to clear entirely with White Wash. To return to normal viewing, press any button.

Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the image will move once per 2 minutes: Left → Right → Upside → Downside → Right → Left → Downside → Upside.

■ Inversion

Inversion will automatically invert the plasma display panel color every 30 minutes.

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Normal White Wash Orbiter Inversion

2 3

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER (EZ SOUNDRITE)

Scans for changes in sound levels during commercials, then adjusts the sound to match the specified audio level. SoundRite makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program.

1 Press the MENU button and then use ▲/or ▼▽ or ▲ or button to select the AUDIO menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to EZE SoundRite.
3 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to OselOff.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO + TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers Prov.

1

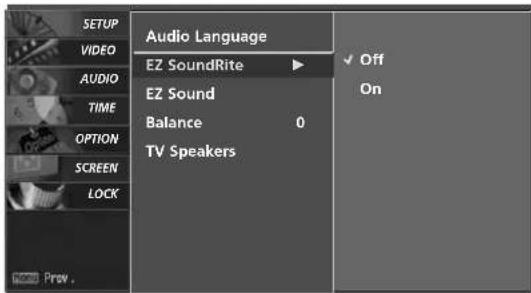

AUDIO Language EZ SoundRite EZ Sound Balance 0 TV Speakers Off On

2 3

PRESET SOUND SETTINGS (EZ SOUND)

EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound options based on the program content.

Normal, Stadium, News, Music and Theater are preset for good sound quality at the factory and are not adjustable.

1 Press the EZ SOUND button repeatedly to select the appropriate sound setup as below(Except 42PG60C, 42PG65C models):

Normal, Stadium, News, Music, Theater, and User (your own settings).

2 Press EXIT or RETURN button to return to TV viewing.

■ You can also adjust EZ Sound in the AUDIO menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers Normal Stadium News Music Theater User

SOUND & LANGUAGE CONTROL

SOUND SETTING ADJUSTMENT - USER MODE

Adjust the sound to suit your taste and room situations.

1 Press the MENU button and then use ▲ or ▼ or ▲ or ▼ button to select the AUDIO menu.
2 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to select EZ Sound.
3 Press the ▶ or > button and then use ▲ or ▼ or ∧ or ∨ button to selectUser.
4 Press the ▶ or > button and then use ▲ or ▼ or ▲ or ▼ button to select the desired sound option (Treble, Bass, or Front Surround).
5 Press the ▶ or > button and then use ◀ or ▶ or < or > button to make appropriate adjustments.

Selecting the Front surround

Press the ▶ or > button and then use ◀ or ▶ or < or > button to selectOff or 3D EchoSound System.

6 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

3D EchoSound System

Creates a stunning simulated stereo effect from any mono sound and a realistic three-dimensional sound with a very wide and deep sound stage.

SETUP VIDEO AUDIO + TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1

AUDIO TIME OPTION SCREEN LOCK SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers Normal Stadium News Music Theater User

2 3

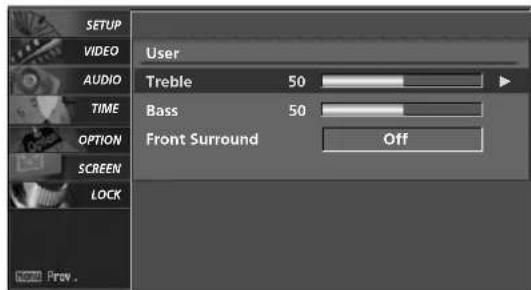

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK User Treble 50 Bass 50 Front Surround Off

4

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Front Surround Off

5

BALANCE ADJUSTMENT

Adjust the left/right sound of speaker to suit your taste and room situations.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the AUDIO menu.
2 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to Balance.
3 Press the ▶ or button and then use ◀ or ▶ or < or button to make appropriate adjustments.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

2

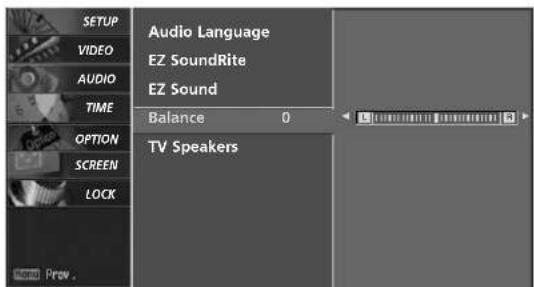

AUDIO Language EZ SoundRite EZ Sound Balance 0 TV Speakers

3

SOUND & LANGUAGE CONTROL

TV SPEAKERS ON/OFF SETUP

Turn the TV speakers off if using external audio equipment.

1 Press the MENU button and then use ▲/or ▼/or ▲ or button to select the AUDIO menu.
2 Press the ▶ or button and then use ▲ or ▼ or ^ or ▼ button to Tvelspeakers.
3 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to OselectOff.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1

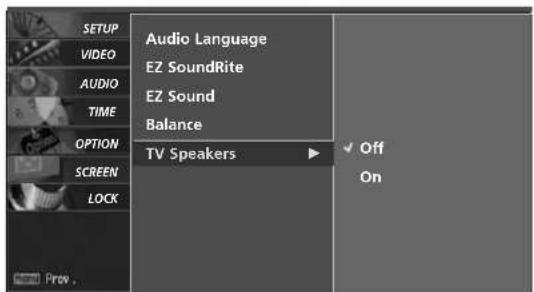

AUDIO EZ SoundRite EZ Sound Balance TV Speakers Audio Language EZ SoundRite EZ Sound Balance Off On

2 3

STEREO/SAP BROADCAST SETUP

This TV can receive MTS stereo programs and any SAP

(Secondary Audio Program) that accompanies the stereo program if the station transmits an additional sound signal as well as the original one and when you select Stereo or SAP on the remote control.

Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

Select Mono if you want to listen to the mono sound in remote areas during stereo/SAP broadcasting.

Stereo or SAP can be received in Analog channel.

1

Use the SAP button to select your desired MTS mode in analog signal. Each time you press the SAP button, Mono, Stereo, or SAP appear in turn.

■ If other languages available on the digital signal, select them with the SAP button.

2

Press EXIT or RETURN button to save and return to TV viewing.

SOUND & LANGUAGE CONTROL

AUDIO LANGUAGE

Other languages may be available if a digital signal is provided by the broadcasting station.

This feature operates only in DTV/CADTV mode.

1 Press the MENU button and then use ▲/or ▼/or ∧ or button to select the AUDIO menu.
2 Press the ▶ or button and then use ▲ or ▼ or ^ or ▼ button to As a dot Language.
3 Press the ▶ or button and then use ▲ or ▼ or ^ or ∨ button to English, Spanish, or French.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO + TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1

AUDIO Language EZ Sound Balance TV Speakers English Spanish French

2 3

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language. First select your language.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the OPTION menu.
2 Press the ▶ or button and then use ▲/or ▼/or ^ or ▼ button to Language.
3 Press the ▶ or button and then use ▲/or ▼▽ or ^ or button to select your desired language. From this point on, the on-screen menus will be shown in the selected language.
4 Press the EXIT or RETURN button to return to TV viewing or press MENU to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID ✓ English Spanish French

2 3

SOUND & LANGUAGE CONTROL

CAPTION / TEXT

Analog Broadcasting System Captions

Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog.

Text displays information, usually at the bottom position and is used for a data service, generally not program related.

Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable.

This TV is programmed to memorize the caption/text mode which was last set when you turn the power off.

When you select the CC1 \~ Text4, Caption options must be disabled.

Use the CC Button repeatedly to select CaptionOff, CC1, CC2, CC3, CC4, Text1, Text2, Text3 or Text4.

CAPTION

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

■ TEXT

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

Press EXIT or RETURN to save and return to TV viewing.

■ You can also use the OPTION menu to select Caption/Text.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Off CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

1

Press the MENU button and then use ▲ or ▼ or ▲ or button to select the OPTION menu.

2

Press the ▶ or button and then use ▲ or ▼ or ^ or ▼ button to Caption/Text.

3

Press the ▶ or button and then use ▲/or ▼▽ or ^ or ∨ button to select available caption languages: English, Spanish, or French.

4

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Off ✓ English Spanish French

2 3

SOUND & LANGUAGE CONTROL

CAPTION OPTIONS

Customize the DTV/CADTV captions that appear on your screen.

1 Press the MENU button and then use ▲/or ▼/or ∧ or button to select the OPTION menu.
2 Press the ▶or button and then use ▲/or ▼/or ^ or ∨ button to Caption Options.
3 Press the ▶or button and then use ▲/or ▼▽ or △ or ▼ button to Cselem.
4 Press the ▶ or button and then use ▲ or ▼ or ^ or √ button to customStyle, Font, etc., to your preference.

A preview icon is provided at the bottom of the screen, use it to see the caption language.

▶ Size: Set the word size.
▶ Font Select a typeface for the text.
Text Color: Choose a color for the text.
▶ Text Opacity: Specify the opacity for the text color.
Bg (Background) Color: Select a background color.
▶Bg (Background) Opacity: Select the opacity for the background color.
▶ Edge Type: Select an edge type.
▶ Edge Color: Select a color for the edges.

5 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION > SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Prov.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Set by Program ✓ Custom

2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Size Standard Font Font 0 Text Color White Text Opacity Solid Bg Color Black Bg Opacity Solid Edge Type None Edge Color Black

4

TIME SETTING

CLOCK SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting station.

Set the clock manually if the current time is set incorrectly by the auto clock function.

The factory default value of the Auto Clock is Off, because a clock information sent each broadcasting station is different.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the TIME menu.
2 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to AselectClock.
3 Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to O select
4 Press the ▶ or button and then use ▲ or ▼ or ▲ or button to select your viewing area time zone

U.S.A : Eastern, Central, Mountain, Pacific, Alaska or Hawaii.

Canada : Eastern, Central, Mountain, Pacific, New F. land or Atlantic.

5 Press the ▶ or button and then use ▲/or ▼/or ▲ or ▼ button to select Auto, Off, On, depending on whether or not your viewing area observes Daylight Saving time.
6 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Off ✓ On Time Zone Eastern Daylight Savings Auto

2 3 4 5

TIME SETTING

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the TIME menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to Mechanical Clock
3 Press the ▶ or button and then use ◀ or ▶ or < or > to select either the year, date, or time option. Once selected, use the ▲ or ▼ or ∧ or ∨ button to set the year, date, and time option.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME + OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Year Date Time Prov.

2 3

AUTO ON/OFF TIMER SETTING

The timer function operates only if the current time has been set.

The Off-Timer function overrides the On-Timer function if they are both set to the same time.

The TV must be in standby mode for the On-Timer to work. If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to standby mode.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the TIME menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to On Timer or On Timer.
3 Press the ▶ or button and then use ▲/or ▼/or ▲ or ▼ button to Oselect ■ To cancel the On/Off timer function, select Off.
4 Press the ▶ or button and then use ▲/or ▼/or △ or button to set the hour.
5 Press the ▶ or button and then use ▲ or ▼ or ▲ or button to set the minutes.
6 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME * OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Off On 6 : 30 AM

2 3 4 5

TIME SETTING

AUTO SHUT-OFF SETTING

If set to on and there is no input signal, the TV turns off automatically after 10 minutes.

1 Press the MENU button and then use ▲/or ▼/or ∧ or button to select the TIME menu.
2 Press the ▶ or button and then use ▲ or ▼ or ^ or ∨ button to AsdecOff.
3 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to SelectOff.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME > OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Prov.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off If set to On and there is no input signal, the TV turns automatically after 10 minutes. ✓ Off On

2 3

SLEEP TIMER SETTING

The Sleep Timer turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

1 Press the TIMER button repeatedly to select the number of minutes. First the Off option appears on the screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2 When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to count down from the number of minutes selected.
3 To check the remaining minutes before the TV turns off, press the TIMER button once.
4 To cancel the Sleep Timer, press theTIMER button repeatedly to select Off.

SCREEN ADJUSTMENT

AUTO CONFIGURE (RGB [PC] MODE ONLY)

Automatically adjusts picture position and minimizes image shaking.

Although the image is still not correct, your set is functioning properly but needs further adjustment.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the SCREEN menu.
2 Press the ▶ or button and then use ▲ or ▼ or ▲ or ▼ button to select Auto config.
3 Press the ▶or > button to start Auto config..

■ When Auto config. has finished, OK will be shown on screen.
■ If the position of the image is still not correct, try Auto adjustment again.

4 If the picture needs to be adjusted more after Auto adjustment in RGB (PC), you can adjust the Manual config..
5 Press the EXIT or RETURN button to return to TV viewing or press the MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN + LOCK Auto config. Manual config. XGA Mode Reset Menu Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto config. Manual config. XGA Mode Reset To set

23

MANUAL CONFIGURE

If the picture isn't clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually.

This function works in the following mode: RGB-PC, RGB-DTV, Component 480p/720p/1080i, HDMI 480p/720p/1080i.

The Phase, Clock functions work in the following mode: RGB-PC mode.

Press the MENU button and then use ▲ or ▼ or ▲ or button to select the SCREEN menu.

Press the ▶ or button and then use ▲/or ▼▽ or ▲ or ▼ button to select Manual config.

Press the ▶ or button and then use ▲ or ▼ or △ or ▼ button to select Phase, Clock, H-position or V-position.

Phase

This function allows you to remove any horizontal noise and clear or sharpen the image of characters.

Clock

This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size will also change.

■ H-position / V-position

This function is to adjust picture to left/right and up/down as you prefer.

Press the ◀ or ▶ or < or > button to make appropriate adjustments.

Press the EXIT or RETURN button to return to TV viewing or press the MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN * LOCK Auto config. Manual config. XGA Mode Reset

1

AUTO config. Manual config. XGA Mode Reset Phase Clock H-Position V-Position 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

234

SCREEN ADJUSTMENT

SELECTING XGA MODE

To see a normal picture, match the resolution of RGB mode and selection of XGA mode.

This function works in the following mode: RGB-PC mode.

If you select the 1600x1200, 1920x1200 resolution XGA mode is displayed.

1 Press the MENU button and then use ▲ or ▼ or ▲ or button to select the SCREEN menu.
2 Press the ▶ or button and then use ▲/or ▼▽ or ▲ or ▼ button to select XGA mode.
3 Press the ▶ or button and then use ▲ or ▼ ∨ or ∧ or button to select the desired XGA resolution.
4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN * LOCK Auto config. Manual config. XGA Mode Reset Sono Prev.

1

AUTO config. MANUAL config. XGA Mode Reset 1024 x 768 1280 x 768 1360 x 768 1366 x 768

23

INITIALIZING

(RESET TO ORIGINAL FACTORY SETTINGS)

This function operates in current mode.

To initialize the adjusted value.

Press the MENU button and then use ▲ or ▼ or ^ or button to select the SCREEN menu.

Press the ▶ or button and then use ▲/or ▼/or △ or ▼ button to Resect

Press the ▶>or > button.

SETUP VIDEO AUDIO TIME OPTION SCREEN * LOCK Auto config. Manual config. XGA Mode Reset

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto config. Manual config. XGA Mode Reset To set

23

PARENTAL CONTROL / RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done:

1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System(MPAA) only.

Ratings for Television programs including made-for-TV movies:

■ TV-G (General audience)

■ TV-PG (Parental guidance suggested)

■ TV-14 (Parents strongly cautioned)

■ TV-MA (Mature audience only)

■ TV-Y (All children)

■ TV-Y7 (Children 7 years older)

SET PASSWORD & LOCK SYSTEM

Setting up your password

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

Press the MENU button and then use the ▲/or ▼/or ∧ or ∨ button to select the LOCK menu. Then, press the ▶> or > button.

■ Enter the password as requested.
■ The TV is set up with the initial password "0-0-0-0".

Set Password

Change the password by inputting a new password twice.

After inputting the password, use the ▲ or ▼ or ▲ or ▼ button to Sledopassword.

Press the ▶>or > button and then choose any 4 digits for your new password. As soon as the 4 digits are entered, re-enter the same 4 digits on the Confirm. Then your changed password has been memorized.

Press EXIT or RETURN to return to TV viewing or press MENU to return to the previous menu.

NOTE

If you ever forget your password, key in '7', '7', '7', '7' on the remote control.

Lock System

Enables or disables the blocking scheme you set up previously.

After inputting the password, use the ▲ or ▼ or ▲ or ▼ button to BookSystem.

Press the ▶>or > button and then use the ▲/or ▼▽ or ∧ or ∨ button to OselectOff.

■ When you select O, the Lock System is enable.

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

For USA

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

For Canada

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating New Confirm * * * * * * * *

2

For USA

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

For Canada

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating ✓ Off On

2

PARENTAL CONTROL /RATINGS

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

After inputting the password, use the ▲ or ▼ or ▲ or ▼ button to BhookeChannel.

Press the ▶or > button. You will now see a screen filled with channel numbers and a preview picture.

Use ▲ ▼ ◀ ▶ or ∧ ∨ < > button to select a channel and then use the ENTER button to block or unblock it.

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

For USA

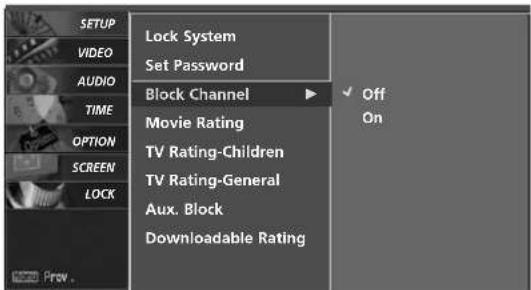

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK > Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

For Canada

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating ✓ Off On

1 2

EXTERNAL INPUT BLOCKING

Enables you to select a source to block from the external source devices you have hooked up.

For USA

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Prov. Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

For Canada

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

After inputting the password, use the ▲ or ▼ or ▲ or ▼ button to AlboxsBlock.

Press the ▶ or > button and then use the ◀ or ▶ or < or > button to select a source.

Press the ▶▶or > button and then use the ▲ or ▼▽ or ∧ or ∨ button to select ○○ on Off on the each source.

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating AV1 On AV2 On Component Off RGB Off HDMI1/DVI On HDMI2 Off

2 3

MOVIE & TV RATING

Movie Rating (MPAA) - for USA only

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

1 After inputting the password, use the ▲ or ▼ or ▲ or ▼ button to Movie Rating.
2 Press the ▶ or > button and then use the ▲ or ▼ ∨ or ∧ or ∨ button to select G, PG, PG-13, R, NC-17 or X.
■ G (General audiences)
■ PG (Parental guidance suggested)
■ PG-13 (Parents strongly cautioned)
■ R (Restricted)
■ NC-17 (No one 17 and under admitted)
■ X (Adult only)
■ Blocking Off (Permits all programs)
If you set PG-13: G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

3 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

Downloadable Rating

1 After inputting the password, use the ▲/or ▼/or ▲ or √ button to choose Downloadable Rating

2 Press the ▶or > button and then use the ▲or ▼or ^ or ∨ button to selectDim0, Dim1, Dim2, or Dim3.

3 Press the ▶>or > button and then use the ▲/or ▼▽ or ∧ or ∨ button to selectD1L1, D1L2, or D1L3.

4 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

NOTE

This function may become available in the future and will be available only for digital channel signal.
This function operates only when TV has received Region5 Rating data.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK + Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating G PG PG-13 R NC-17 X Blocking Off

For USA

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Prev. Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating ▶ Downloadable Rating Dim0 Dim1 Dim2 Dim3

Based on rating table, your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

PARENTAL CONTROL /RATINGS

TV Rating Children -for USA only

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

1 After inputting the password, use the ▲ or ▼ or or ▼ button to choose TV Rating-Children.
2 Press the ▶ or > button and then use the ▲ or ▼ or ^ or ∨ button to select Age, or Fantasy Violence. Press the ▶ or > button and then use the ▲ or ▼ or ^ or ∨ button to select block options.

■ Age (applies to TV-Y, TV-Y7)
■ Fantasy Violence (applies to TV-Y7)

3 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children ▶ TV Rating-General Aux. Block Downloadable Rating Age Fantasy Violence

2

TV Rating General -for USA only

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

1 After inputting the password, use the ▲ or ▼ or or √ button to choose TV Rating-General.
2 Press the ▶ or > button and then use the ▲ or ▼ or ▲ or ▼ button to select Age, Dialogue, Language, Sex or Violence.

Press the ▶▶or > button and then use the ▲/ or ▼▽ or ▲ or ▼ button to select block options.

■ Age (applies to TV-G, TV-PG, TV-14, TV-MA)
■ Dialogue-sexual dialogue (applies to TV-PG, TV-14)
■ Language-adult language (applies to TV-PG, TV-14, TV-MA)
■ Sex-sexual situations (applies to TV-PG, TV-14, TV-MA)
■ Violence (applies to TV-PG, TV-14, TV-MA)

3 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Prov. Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General ▶ Aux. Block Downloadable Rating Age Dialogue Language Sex Violence

2

TV Rating English - for CANADA only

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

1 After inputting the password, use the ▲ or ▼ or on √ button to choose TV Rating-English.
2 Press the ▶>or > button and then use the ▲/or ▼▽ or ▲ or ▼ button to select E=C, C8+, G, PG, 14+, 18+, or Blocking Off.

E(Exempt)
C(Children)
■ C8+(Children eight years and older)
■ G(General programming, suitable for all audiences)
■ PG(Parental Guidance)
■ 14+(Viewers 14 years and older)
■ 18+(Adult programming)
■ Blocking Off(Permits all programs)

3 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

TV Rating French - for CANADA only

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

1 After inputting the password, use the ▲ or ▼ or on √ button to choose TV Rating-French.
2 Press the ▶>or > button and then use the ▲ or ▼ or ▲ or ▼ button to select E,G, 8 ans+, 13 ans+, 16 ans+, 18 ans+, or Blocking Off.

■ E(Exempt)
■ G(General)
■ 8 ans+(General-Not convenient for little children)
■ 13 ans+(Not convenient for children of 13 years and younger)
■ 16 ans+(Not convenient for children of 16 years and younger)
■ 18 ans+(This programs is only for adults)
■ Blocking Off(Permits all programs)

3 Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel TV Rating-English ▶ TV Rating-French Aux. Block Downloadable Rating E C C8+ G PG 14+ 18+ Blocking Off Prev.

2

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK + Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel TV Rating-English TV Rating-French ▶ Aux. Block Downloadable Rating E G 8 ans+ 13 ans+ 16 ans+ 18 ans+ Blocking Off

2

APPENDIX

TROUBLESHOOTING

The operation does not work normally.
The remote control doesn’t work	Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.Ensure that the batteries are installed with correct polarity (+ to +, - to -).Ensure that the correct remote operating mode is set: TV, VCR etc.Install new batteries.
Power is suddenly turned off	Is the sleep timer set?Check the power control settings. Power interrupted.No broadcast on station tuned with Auto off activated.

The video function does not work.
No picture &No sound	Check whether the product is turned on.Try another channel. The problem may be with the broadcast.Is the power cord inserted into wall power outlet?Check your antenna direction and/or location.Test the wall power outlet, plug another product's power cord into the outlet where the product's power cord was plugged in.
Picture appears slowly after switching on	This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.
No or poor color or poor picture	Adjust Color in menu option.Keep a sufficient distance between the product and the VCR.Try another channel. The problem may be with the broadcast.Are the video cables installed properly?Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable product experiencing problems, tune to another station.Station signal is weak, reorient antenna to receive weaker station.Check for sources of possible interference.
Lines or streaks in pictures	Check antenna (Change the direction of the antenna).
The audio function does not work.
Picture OK & No sound	Press the VOL or VOLUME button.Sound muted? Press MUTE button.Try another channel. The problem may be with the broadcast.Are the audio cables installed properly?
No output from one of the speakers	Adjust Balance in menu option.
Unusual sound from inside the product	A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.

There is a problem in PC mode. (Only PC mode applied)
The signal is out of range	■Adjust resolution, horizontal frequency, or vertical frequency.■Check the input source.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	■Work the Auto configure or adjust clock, phase, or H/V position. (Option)
Screen color is unstable or single color	■Check the signal cable.■Reinstall the PC video card.

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.
2 Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

■ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■ Please be sure not to use a wet cloth.

Extended Absence

CAUTION

If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

PRODUCT SPECIFICATIONS

MODELS		42PG60C(42PG60C-UA)		42PG65C(42PG65C-UA)
Dimensions (Width x Height x Depth)	With stand(Only 42PG65C)			41.1 x 28.9 x12.1 inches1044.4 x 735.4 x 308.0 mm
	Without stand	41.1 x 26.7x 3.1 inches1044.4 x680.5x 79.6mm		41.1 x 26.7x 4.2 inches1044.4 x680.5x 107.6mm
Weight	With stand (Only 42PG65C)			61.2 pounds / 27.8 kg
	Without stand	55.1 pounds / 25.0 kg		55.1 pounds / 25.0 kg
MODELS		32LG500H (32LG500H-UA/UB),37LG500H (37LG500H-UA/UB),32LG505H (32LG505H-UA/UB),37LG505H (37LG505H-UA/UB),32LG515H (32LG515H-UA/UB)		42LG500H (42LG500H-UA,42LG500H-UB)
Dimensions (Width x Height x Depth)	With stand	32.0 x 23.5 x 8.9 inches813.8 x 598.8 x 227.3 mm	36.8 x 26.9 x 11.5 inches936.4 x 685.4 x 293.4 mm	40.7 x 28.9 x 11.5 inches1034.0 x 735.0 x 294.0 mm
	Without stand	32.0 x 21.2 x 4.3 inches813.8 x 540.4 x 111.5 mm	36.8 x 24.1 x 4.4 inches936.4 x 612.8 x 112.1 mm	40.7 x 26.1 x 4.5 inches1034.0 x 663.0 x 115.8 mm
Weight	With stand	29.9 pounds / 13.6 kg	40.3 pounds / 18.3 kg	48.5 pounds / 22.0 kg
	Without stand	26.6 pounds / 12.1 kg	34.3 pounds / 15.6 kg	42.9 pounds / 19.5 kg

PRODUCT SPECIFICATIONS

32LC5DC/S/B(32LC5DC/S/B-UA)32LC50C/S/B(32LC50C/S/B-UA)	Width x Height x Depth(inches/mm)	With Stand	31.8 x 23.9 x 9.8 inches806.6 x 607.5 x 249.0 mm
		Without Stand	31.8 x 21.7 x 3.8 inches806.6 x 552.3 x 97.2 mm
	Weight (pounds / kg)	With Stand	33.7 pounds / 15.3kg
		Without Stand	27.6 pounds / 12.5 kg
37LC5DC/1/B(37LC5DC/1/B-UA)37LC50C/B(37LC50C/B-UA)	Width x Height x Depth(inches/mm)	With Stand	36.5 x 27.4 x 10.4 inches926.8 x 695.8 x 264.6 mm
		Without Stand	36.5 x24.8 x 4.2 inches926.8 x 629.8 x 107.4 mm
	Weight (pounds / kg)	With Stand	47.2 pounds / 21.4 kg
		Without Stand	36.8 pounds / 16.7 kg
42LC5DC(42LC5DC-UA)42LC50C(42LC50C-UA)	Width x Height x Depth(inches/mm)	With Stand	40.7 x 29.6 x 11.6 inches1033.1 x 750.7 x 294.2 mm
		Without Stand	40.7 x 27.0x 4.3 inches1033.1 x 686.5 x 110.2 mm
	Weight (pounds / kg)	With Stand	61.3 pounds / 27.8 kg
		Without Stand	47.2 pounds / 21.4 kg
32LX5DC/S(32LX5DC/S-UA)32LX50C/S(32LX50C/S-UA)	Width x Height x Depth(inches/mm)	With Stand	36.3 x 24.2 x 11.3 inches922.0 x 615.0x 288.0 mm
		Without Stand	36.3 x 21.5 x 3.9 inches922.0 x 546.0 x 98.0 mm
	Weight (pounds / kg)	With Stand	39.0 pounds / 17.7 kg
		Without Stand	30.4 pounds / 13.8 kg
42PX8DC(42PX8DC-UA)	Width x Height x Depth(inches/mm)	With Stand	46.7 x 28.1 x 10.6 inches1186.0 x 714.0 x 270.0 mm
		Without Stand	46.7 x 25.7 x 3.9 inches1186.0 x 654.0 x 99.0 mm
	Weight (pounds / kg)	With Stand	72.5 pounds / 32.9 kg
		Without Stand	55.6 pounds / 25.2 kg
42LB5DC(42LB5DC-UA)42LB50C(42LB50C-UA)	Width x Height x Depth(inches/mm)	With Stand	40.7 x 29.6 x 11.6 inches1033.1 x 750.7 x 294.2 mm
		Without Stand	40.7 x 27.0x 4.3 inches1033.1 x 686.5 x 110,2 mm
	Weight (pounds / kg)	With Stand	61.3 pounds / 27.8 kg
		Without Stand	47.2 pounds / 21.4 kg
Power requirementTelevision SystemProgram CoverageExternal Antenna ImpedanceOperating Temperature RangeOperating Humidity RangeStorage Temperature RangeStorage Humidity Range		AC100-240V ~ 50/60HzNTSC-M, ATSC, 64 & 256 QAMVHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-13575 ohm32 ~ 104°F (0 ~ 40°C)Less than 80%-4 ~ 140°F (-20 ~ 60°C)Less than 85%

■ The specifications shown above may be changed without prior notice for quality improvement.

PROGRAMMING THE REMOTE CONTROL

The provided universal remote control can be programmed to operate most remote-controllable devices. Note that the remote may not control all models of other brands.

Programming a code into a remote mode

To find out whether your remote control can operate each device without programming, turn on the device (such as a VCR) and press the corresponding mode button on the remote.
After that, press the POWER button. If the device is turned off and it responds properly the remote control need not be programmed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.
2 Press the MENU and MUTE button continuously at the same time for two seconds; the currently selected device button is illuminated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from step 2.
3 Enter the appropriate code from the code table on the following pages. When pressing the button, the light blinks at a time. If the device turned off, the programming is successful.
4 Press the MENU button to store the code. After blinking twice, this code is stored.
5 Test the remote control functions to see if the device responds properly. If not, steps 2-5.

Remote Control Code

DVD

Brand Codes Brand Codes Brand Codes
APEX DIGITAL 022				MITSUBISHI	002		RCA	005	006
DENON	020	014		NAD	023		SAMSUNG	011	015
GE	005	006		ONKYO	008	017	SONY	007
HARMAN KARDON		027		PANASONIC	003	009	THOMPSON	005	006
JVC	012			PHILIPS	013		TOSHIBA	019	008
LG	001	010	016	025	PIONEER	004	026	YAMAHA	009	018
MAGNAVOX	013			PROCEED	021		ZENITH	010	016	025
MARANTZ	024			PROSCAN	005	006

Brand Codes Brand Codes Brand Codes

AIWA 034				MAGNAVOX	031	033	034	041	SAMSUNG	032	040	102	104
AKAI 016 043 046 124					067	068				105	107	109	112
	125146				012	031	033	067		113	115	120	122
AMPRO 072				MARANTZ	069					125
ANAM 031 033 103				MARTA 101					SANSUI	022	043	048	135
AUDIO DYNAMICS	012	023	039 043	MATSUI	027	030			SANYO	003	007	010	014
BROKSONIC	035	037	129	MEI	031	033				102	134
CANON	028	031	033	MEMOREX	003	010	014	031	SCOTT	017	037	112	129
CAPEHART	108				033	034	053	072		131
CRAIG	003	040	135		101	102	134	139	SEARS	003	008	009	010
CURTIS MATHES	031	033	041	MGA	045	046	059			013	014	017	020
DAEWOO	005	007	010 064	MINOLTA	013	020				031	042	073	081
	065	108	110 111	MITSUBISHI	013	020	045	046		101
	112	116	117 119		049	051	059	061	SHARP 031	054	149
DAYTRON	108				151				SHINTOM	024
DBX	012	023	039 043	MTC 034 040					SONY	003	009	031	052
DYNATECH	034	053		MULTITECH	024	034				056	057	058	076
ELECTROHOME	059			NEC	012	023	039	043		077	078	149
EMERSON	006	017	025 027		048				SOUNDESIGN	034
	029	031	034 035	NORDMENDE	043				STS	013
	036	037	046 101	OPTONICA	053	054			SYLVANIA	031	033	034	059
	129	131	138153	PANASONIC	066	070	074	083		067
FISHER	003	008	009 010		133140	145			SYMPHONIC	034
FUNAI 034									TANDY 010 034
GE	031	033	063 072	PENTAX	013	020	031	033	TATUNG	039	043
	107	109	144 147		063				TEAC	034	039	043
GO VIDEO	132	136		PHILCO	031	034	067		TECHNICS	031	033	070
HARMAN KARDON		012	045	PHILIPS 031 033	034	054			TEKNIKA	019	031	033	034
HITACHI	004	018	026 034		067	071	101			101
	043	063	137 150	PILOT	101				THOMAS	034
INSTANTREPLAY	031	033		PIONEER	013	021	048		TMK	006
JCL	031	033		PORTLAND	108				TOSHIBA	008	013	042	047
JCPENNY	012	013	015 033	PULSAR	072					059	082	112	131
	040	066	101	QUARTZ	011	014			TOTEVISION	040	101
JENSEN 043				QUASAR	033	066	075	145	UNITECH	040
JVC	012	031	033 043	RCA	013	020	033	034	VECTOR RESEARCH	012
	048	050	055 060		040	041	062	063	VICTOR	048
	130	150	152		107	109	140	144	VIDEO CONCEPTS	012	034	046
KENWOOD	014	034	039 043		145	147			VIDEOSONIC	040
	047	048		REALISTIC	003	008	010	014	WARDS 003 013	017	024
LG (GOLDSTAR)	001	012	013 020		031	033	034	040		031	033	034	040
	101	106	114 123		053	054	101			053	054	131
LLOYD	034			RICO 058					YAMAHA	012	034	039	043
LXI	003	009	013 014	RUNCO	148				ZENITH	034	048	056
	017	034	101 106	SALORA	014					058	072	080	101
MAGIN	040

APPENDIX

SET ID

Use this function to specify a TV ID number.

1

Press the MENU button and then use ▲ or ▼ or ▲ or button to select the OPTION menu.

2

Press the ▶or button and then use ▲or ▼or △ or ▼ button to Select

3

Press the ▶ or button and then use ▲/or ▼/or ▲ or ▼ button to Set ID to choose the desired TV ID number. The adjustment range of Set ID is 1\~99.

4

Press EXIT or RETURN button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION > SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID 1

2 3

IR CODES

Code (Hexa)	Function Note		Code (Hexa)	Function Note
0F TV INPUT	Remote control Button	(Some models)	D6	TV	Discrete IR Code(TV Input Selection)
0B INPUT	Remote control Button
08 POWER	Remote control Button (Power On/Off)		C4 POWER ON Discrete IR Code
98 MULTI	Remote control Button	(Some models)			(Only Power On)
79 RATIO	Remote control Button		C5 POWER OFF Discrete IR Code
0E TIMER	Remote control Button				(Only Power Off)
10-19	Number Key 0-9	Remote control Button	5A AV1	Discrete IR Code
4C - (Dash)	Remote control Button				(AV1 Input Selection)
1A FLASH BACK	Remote control Button		D0	AV2	Discrete IR Code(AV2 Input Selection)
09 MUTE	Remote control Button
02 VOL	+ Remote control Button		BF	COMPONENT	Discrete IR Code(Component Input Selection)
03 VOL -	Remote control Button
00	CH +, ^	Remote control Button	D5	RGB-PC	Discrete IR Code(RGB-PC Input Selection)
01 CH -,	√	Remote control Button
39 CC	Remote control Button		CE HDMI1/DVI Discrete IR Code
40	▲ , ^	Remote control Button			(HDMI1/DVI Input Selection)
41	▼ , √	Remote control Button	CC	HDMI2	Discrete IR Code(HDMI2 Input Selection)
07	◀ , <	Remote control Button
06	▶ , >	Remote control Button	76 Ratio 4:3		Discrete IR Code(Only 4:3 Mode)
44 ENTER	Remote control Button
43 MENU	Remote control Button		77 Ratio 16:9		Discrete IR Code(Only 16:9 Mode)
52 EZ SOUND	Remote control Button (Some models)
4D	EZ PIC	Remote control Button (Some models)	AF Ratio Zoom		Discrete IR Code(Only Zoom1 Mode)
5B EXIT,	RETURN	Remote control Button
0A SAP	Remote control Button
E1	-	Remote control Button(Some models)
E0	○ +	Remote control Button (Some models)
AA INFO	Remote control Button
60 PIP	Remote control Button
72 PIP CH -	Remote control Button
71 PIP CH +	Remote control Button
61 PIP INPUT	Remote control Button
63 SWAP, PIP SWAP	Remote control Button

NOTE

ENG

Some video codecs listed in the manual may not be supported, depending on the region (country).

POR
