USER MANUAL 42LB5DC LG

LCD TV | PLASMA TV OWNER'S MANUAL

LCD TV MODELS

PLASMA TV MODEL

32LC5DC

32LC50C

42PX8DC

32LC5DCS

32LC50CS

32LC5DCB

32LC50CB

37LC5DC

32LX50C

37LC5DCB

32LX50CS

37LC5DC1

37LC50C

42LC5DC

37LC50CB

32LX5DC

42LB50C

32LX5DCS

42LC50C

42LB5DC

Please read this manual carefully before operating your set.

Retain it for future reference.

Record model number and serial number of the set.

See the label attached on the back cover and quote tion to your dealer

when you require service.

LG's own special digital image generator, consisting of a full digital image processor, six different main picture quality factors.

High-definition television. High-resolution digital television broadcast and playback system composed of roughly a million or more pixels, 16:9 aspect-ratio screens, and AC3 digital audio. A subset of digital television, HDTV formats include 1080i and 720p resolutions.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

It has 2 HDMI ports that connect audio and video devices with one cable and produces the highest quality digital images and sound.

WARNING / CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING/CAUTION

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

WARNING / CAUTION

To prevent fire or shock hazards, do not expose this product to rain or moisture.

FCC NOTICE

Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

CAUTION

Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user's authority to operate this product

SAFETY INSTRUCTION

IMPORTANT SAFETY INSTRUCTIONS

Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the apparatus.

This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction:

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

1 Do not use this apparatus near water.

2 Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

4 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Illustration of a computer monitor connected to an electrical outlet with three icons above (no text or symbols)

6 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Safety warning symbol showing a computer monitor with a boot and power plug, indicating no protection or explosion.

7 Only use attachments/accessories specified by the manufacturer.

8 Unplug this apparatus when unused for long periods of time.

9 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

10 Never touch this apparatus or antenna during a thunder or lighting storm.

11 Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something. (You may be injured or the product can be damaged.)

12 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.

13 CAUTION concerning the Power Cord: Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced

with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

14 Outdoor use marking : WARNING - To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

15 Wet Location Marking : Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on or over apparatus.

16 GROUNDING Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.

Short-circuit Breaker Power Supply

17 DISCONNECTING DEVICE FROM MAINS Mains plug is the disconnecting device. The plug must remain readily operable.

CONTENTS

WARNING / CAUTION....1

SAFETY INSTRUCTION 2

FEATURE OF THIS TV 6

PREPARATION

Accessories 7

Front Panel Controls 8

Back Panel Information....11

Back Cover for Wire Arrangement....13

Attaching the TV to a Wall....16

Swivel Stand 16

Attaching the TV to a Desk....17

Stand Installation....18

VESA Wall Mounting....19

Desktop Pedestal Installation 19

Antenna or Cable Connection....20

EXTERNAL EQUIPMENT SETUP

HD Receiver Setup 21

DVD Setup 24

VCR Setup 26

Other A/V Source Setup 28

Digital Audio Output 28

PC Setup 29

WATCHING TV / CHANNEL CONTROL

Remote Control Functions 32

Turning On TV 34

Channel Selection 34

Volume Adjustment 34

On-Screen Menus Selection 35

Channel Setup 36

- Auto Scan (EZ Scan) 36

- Add / Delete Channel (Manual Scan)....37

- Channel Editing 38

DTV Signal Strength 39

Channel Label 40

PICTURE CONTROL

Watching DW (Double Window) 41

Picture Size (Aspect Ratio) Control....43

Preset Picture Settings

- EZ Picture - Preset 45

- Color Tone - Preset. 46

Manual Picture Adjustment

- EZ Picture - User Mode 47

- Color Tone - User Mode 48

XD - Picture Improvement Technology....49

Advanced - Cinema Mode 50

Advanced - Black (Darkness) Level 51

Picture Reset 52

Low-Power Picture Mode 52

Image Sticking Minimization(ISM) Method 53

SOUND & LANGUAGE CONTROL

Auto Volume Leveler (EZ SoundRite)....54

Preset Sound Setting (EZ Sound)....55

Sound Setting Adjustment - User Mode ..... 56

Balance Adjustment....57

TV Speakers On/Off Setup 58

Stereo/SAP Broadcasts Setup....59

Audio Language 60

On-Screen Menus Language Selection....61

Caption/Text 62

- Analog Broadcasting System Captions ..... 62

- Digital Broadcasting System Captions......63

Caption Options 64

TIME SETTING

Clock Setting 65

• Auto Clock Setup 65
• Manual Clock Setup 66

Auto On/Off Timer Setting 67

Auto Shut-off Setting 68

Sleep Timer Setting 69

SCREEN ADJUSTMENT

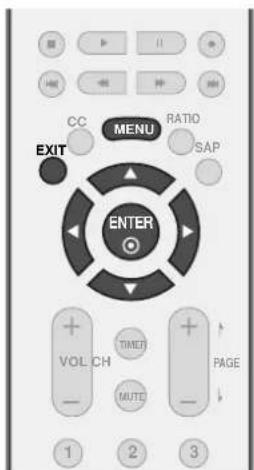

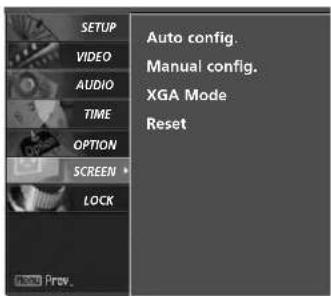

Auto Configure (RGB(PC) Mode only) 70

Manual Configure 71

Selecting XGA Mode....72

Initializing (Reset to Original Factory Settings) .73

PARENTAL CONTROL / RATINGS

Set Password & Lock System 74

• Setting up Your Password 74
• Set Password 75
• Lock System 75

Channel Blocking 76

External Input Blocking....76

Movie & TV Rating....77

• Movie Rating (MPAA) 77
• Downloadable Rating 77
• TV Rating Children & General 78
• TV Rating English & French 79

APPENDIX

Troubleshooting....80
Maintenance 82
Product Specifications 83
Programming the Remote Control....84
Set ID 86
IR Codes 87

FEATURES OF THIS TV

What is a Plasma TV?

Using plasma is the best way to achieve flat panel displays with excellent image quality and large screen sizes that are easily viewable. The Plasma TV can be thought of as a descendant of the neon lamp and or a series of fluorescent lamps.

How does it work?

Plasma TV is an array of cells, known as pixels, which are comprised of three sub-pixels, corresponding to the colors red, green, and blue. Gas in a plasma state is used to react with phosphors in each sub-pixel to produce colored light (red, green, or blue). These phosphors are the same types used in Cathode Ray Tube (CRT) devices such as televisions and common computer monitors.

Plasma TV offers a rich, dynamic display because each sub-pixel is individually controlled by advanced electronics to produce over 16 million different colors. This means that you get perfect images that are easily viewable in a display that is fewer than five inches thick.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle of over 160 degrees. This means that the display is clear and visible to viewers anywhere in the room.

Wide Screen

The wide screen offers a theater-like experience in your own home.

Multimedia

Connect your plasma display to a PC and use it for conferencing, games, and Internet browsing. The Picture-in-Picture feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional TVs do not fit.

The Plasma TV Manufacturing Process: a few minute colored dots may be present on the Plasma TV screen

The Plasma TV is composed of 0.9 to 2.2 million

cells. A few cell defects will normally occur in the Plasma TV manufacturing process. Several tiny, minute colored dots visible on the screen should be acceptable. This also occurs in other Plasma TV manufacturers' products. The tiny dots appearing does not mean that this Plasma TV is defective. Thus a few cell defects are not sufficient cause for the Plasma TV to be exchanged or returned. Our production technology minimizes these cell defects during the manufacture and operation of this product.

Cooling Fan Noise (This feature is not available for all models.) In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the Plasma TV is equipped with cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operating and cooling the Plasma TV.

The fan noise doesn't have any negative effect on the Plasma TV's efficiency or reliability. The noise from these fans is normal during the operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not sufficient cause for the Plasma TV to be exchanged or returned.

FOR LCD TV

If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with TV.

Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the monitor's performance.

Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

On Disposal

a. The fluorescent lamp used in this product contains a small amount of mercury.

b. Do not dispose of this product with general household waste.

c. Disposal of this product must be carried out in accordance to the regulations of your local authority.

PREPARATION

ACCESSORIES

Ensure that the following accessories are included with your product. If an accessory is missing, please contact the dealer where you purchased the product.

User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard compliance for the product.

Owner's Manual, Setup & Operation Guide for Commercial Mode

CD Manual

Illustration of a remote control with two batteries (1.5V) shown below, no text or symbols present.

Remote Control, Batteries

Power Cord

LCD TV model only

This feature is not available for all models.

2- TV Bracket Bolts

2- TV Brackets, 2- Wall Brackets

Twist Holder Arrange the wires with the twist holder.

Option Extras

D-sub 15 pin Cable

32/37/42LC5DC*,32/37/42LC50C*,42LB5DC,42LB50C models only

Cable Management (Refer to p.13)

Cable Holder (Refer to p.13)

1-Bolt for fixing the Cable Holder (Refer to p.13)

4-Bolts for stand assembly (Refer to p.18) 32/37LC5DC*,

M4xL22
Torx plus Star head screw (Refer to p.8)
32/37LC50C* models only

Plasma TV model only

75 ohm Round Cable

D-sub 15 Pin Cable

Polishing Cloth This feature is not available for all models.

* Slightly wipe stained spot on the exterior only with the polishing cloth for the product exterior if there is stain or fingerprint on surface of the exterior.
* Do not wipe roughly when removing stain. Please be cautions of that excessive pressure may cause scratch or discoloration.

PREPARATION

FRONT PANEL CONTROLS

■ Here shown may be somewhat different from your TV.
If your product has a protection tape attached, remove the tape. And then wipe the product with a cloth (If a polishing cloth is included with your product, use it).

32/37/42LC5DC*,32/37/42LC50C*, 42LB5DC, 42LB50C

Remote Control Sensor CHANNEL Buttons VOLUME Buttons ENTER MENU INPUT POWER Button

Power/Standby Indicator Illuminates red when the TV is in standby mode. Illuminates green when the TV is switched on.

Tighten the stand with the four screws (provided as parts of the TV).

or

x2

x2

Tighten the two of these four screws and the two Torx plus star head screws (provided as parts of the TV) to secure the TV. Tighten the two Torx plus star head screws with a star head driver bit (not provided as parts of the TV).

Diagram showing a device with red arrows indicating flow or movement, and a magnified view of the internal components.

32LX5DC*, 32LX50C*

Remote Control Sensor Power/Standby Indicator Illuminates red when the TV is in standby mode. Illuminates green when the TV is switched on. CHANNEL Buttons VOLUME Buttons ON/OFF Button INPUT Button MENU Button ENTER Button ON/OFF ON/OFF MENU VOLUME CHANNEL Buttons

PREPARATION

42PX8DC

This TV's stand is sold, separately. POWER Button INPUT Button MENU Button ENTER Button VOLUME Buttons CHANNEL Buttons

Remote Control Sensor

Power/Standby Indicator

Illuminates red when the TV is in standby mode.

Illuminates green when the TV is switched on.

BACK PANEL INFORMATION

■ Here shown may be somewhat different from your TV.

32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

S-VIDEO LVMO AUDIO-3 AV IN 2 11

S-VIDEO Input

Provides better picture quality than the video input.

VIDEO Input

Connects the video signal from a video device.

AUDIO Input

32LX5DC*, 32LX50C*

11 R AUDIO - LXXXO VIDEO S-VIDEO AV IN 2

S-VIDEO Input

Provides better picture quality than the video input.

VIDEO Input

Connects the video signal from a video device.

AUDIO Input

42PX8DC

AV IN 2 S-VIDEO LUNING AUDIO-H VIDEO C 11

S-VIDEO Input

Provides better picture quality than the video input.

VIDEO Input

Connects the video signal from a video device.

AUDIO Input

PREPARATION

■ Here shown may be somewhat different from your TV. This part mainly use picture for the LCD TV models.

ANTENNA IN ANTENM.P.I.W.P., 12 13

HDMI/DVI IN 1(DVI) DIGITAL AU DIC OUT (OPTICAL) M.P.I. RESET UPDATE REMOTE CONTROL OUT SERVICE ONLY RGB IN RJP INTERFACE COMPONENT IN AV IN 1 S-VIDEO MOND AUDIO VIDEO SPEAKER OUT 8Ω AUDIO IN (RGB, DVI) 10 2 3 4 5 6 7

① HDMI/DVI IN 1, HDMI IN 2 Connect a HDMI (DVI) connection to either input.
2 DIGITAL AUDIO OUT Connect digital audio from various types of equipment. Note: In standby mode, these ports do not work.
3 13 M.P.I
4 RESET/UPDATE/REMOTE CONTROL OUT
5 SERVICE ONLY
6 RGB IN (PC) Connect the output from a PC. AUDIO IN (RGB, DVI) Connect the audio from a PC or DTV.
7 SPEAKER OUT 8Ω

8 AV (Audio/Video) IN 1 Connect audio/video output from an external device to these jacks. S-VIDEO Connect S-Video out from an S-VIDEO device.
9 COMPONENT IN Connect a component video/audio device to these jacks.
10 RJP INTERFACE
11 Power Cord Socket For operation with AC power. Caution: Never attempt to operate the TV on DC power.
12 ANTENNA IN Connect over-the air signals to this jack.

BACK COVER FOR WIRE ARRANGEMENT

■ Here shown may be somewhat different from your TV.

32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

1 Connect the cables as necessary. To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

2 Install the CABLE HOLDER as shown.

2 Install the CABLE MANAGEMENT as shown.

3 Bundle the cables using the supplied twister holder. (This feature is not available for all models.)

NOTE

Do not hold the CABLE MANAGEMENT when moving the product.

- If the product is dropped, you may be injured or the product may be broken.

CABLE HOLDER BOLT

CABLE MANAGEMENT

TWISTER HOLDER

How to remove the CABLE MANAGEMENT

▶ Hold the CABLE MANAGEMENT with both hands and pull it backward.

Diagram showing mechanical components with an inset magnified view of a component (no text or symbols)

PREPARATION

BACK COVER FOR WIRE ARRANGEMENT

■ Here shown may be somewhat different from your TV.

32LX5DC*, 32LX50C*

1 To separate the CABLE HOLDER, loosen the bolt installed the set.

Interior view of a computer monitor with blank screen and wall panels (no visible text or symbols)

2 Connect the cables as necessary. To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Interior view of a modern TV or audio workstation with sound block and stand (no visible text or symbols)

3 Install the CABLE HOLDER as shown.

BOLT CABLE HOLDER

4 Bundle the cables using the supplied twister holder. (This feature is not available for all models.)

TWISTER HOLDER

42PX8DC

1 Hold the CABLE MANAGEMENT with both hands and pull it as shown.

45°

2 Connect the cables as necessary. To connect an additional equipment, see the EXTERNAL EQUIPMENT SETUP section.

Line drawing of a flat-screen monitor with cable inserted at the base (no text or symbols)

3 Install the CABLE MANAGEMENT as shown.

Diagram showing cable installation on a monitor with an inset close-up of the cable being inserted (no text or symbols present)

PREPARATION

ATTACHING THE TV TO A WALL

■ This feature is not available for all models.

We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.

Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction, potentially causing injury or damaging the product.

Caution: Please make sure that children don't climb on or hang from the TV.

32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

Diagram of a computer monitor connected to a cable with directional arrows indicating wiring (no text or symbols present)

32LX5DC*, 32LX50C*

Illustration of a computer monitor and its wall-mounted screen with indicator lights (no text or symbols)

- Insert the TV brackets (or eye-bolts) and bolts to tighten the product to the wall as shown in the picture. *If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts. Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on the wall. Match the height of the bracket that is mounted on the wall to the holes in the product. Ensure the eye-bolts or brackets are tightened securely.

Side view of a modern flat-screen monitor with a vertical screen (no text or symbols visible)

■ Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is safer to tie the rope so it becomes horizontal between the wall and the product.

SWIVEL STAND

Pure mechanical diagram showing a rotating component with dashed lines indicating motion (no text or symbols)

20° (37LC5DC1, 42LC5DC, 42LC50C, 42PX8DC, 42LB5DC, 42LB50C models)

90° (32LX5DC/S, 32LX50C/S, 32LC5DC/S, 32LC50C/S, 37LC5DC, 37LC50C models)

The TV can be conveniently swivelled on its stand 20° or 90° to the left or right to provide the optimum viewing angle.

ATTACHING THE TV TO A DESK

The TV must be attached to desk so it cannot be pulled in a forward/backward direction, potentially causing injury or damaging the product.

* Screws - M5 x L (table depth + 8\~10 mm) ex) table depth-15mm: Bolts - M5 x 25

32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

4-Screws

Stand Desk

32LX5DC*, 32LX50C*

Technical line drawing of a mechanical component with 4-screws assembly (no text or symbols on the diagram itself)

Stand Desk

42PX8DC

2-Screws

Stand Desk

! WARNING

This apparatus must be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the machine may cause injury/death.

PREPARATION

STAND INSTALLATION (Only 32/37LC5DC\*32/37LC50C\*models)

1 Carefully place the product screen side down on a cushioned surface that will protect product and screen from damage.

3D line drawing of a rectangular electronic component with a central square and internal structure (no text or symbols)

2 Assemble the product stand with the product as shown.

Technical diagram of a mechanical assembly with an inset magnified view showing internal components (no text or symbols)

3 Securely install the 4 bolts provided.

3D rendering of a mechanical component with mounting holes and internal cavity (no text or symbols)

VESA WALL MOUNTING

This product accepts a VESA-compliant mounting interface pad. (optional)

There 4 threaded holes are available for attaching the bracket.

32/37/42LC5DC*,32/37/42LC50C*, 42LB5DC, 42LB50C 600 mm (32LC5DC*, 32LC50C*: 200mm) 400mm (32LC5DC*, 32LC50C*: 100mm) 32LX5DC*, 32LX50C* 200 mm 100 mm 42PX8DC 600 mm 400 mm

NOTE

▶ Screw length needed depends on the wall mount used. For further information, refer to the VESA Wall Mounting Instruction Guide.

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4 inches on each side from the wall.

32/37/42LC5DC*,32/37/42LC50C*, 42LB5DC, 42LB50C 32LX5DC*, 32LX50C* 42PX8DC 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches

CAUTION

▶ Ensure adequate ventilation by following the clearance recommendations.

PREPARATION

ANTENNA OR CABLE CONNECTION

1. Antenna (Analog or Digital)

Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.

For optimum picture quality, adjust antenna direction if needed.

1. Cable


Cable TV Wall Jack RF Coaxial Wire (75 ohm) ANTENNA ANT

■ To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■ If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
■ If the antenna is not installed properly, contact your dealer for assistance.

NOTE

The TV will let you know when the analog, cable, and digital channel scans are complete.

EXTERNAL EQUIPMENT SETUP

■ To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■ This part of external equipment setup mainly use picture for LCD TV models.

HD RECEIVER SETUP

This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.

When connecting Component cable

1. How to connect

1 Connect the video outputs (Y, PB, PR) of the digital set top box to the COMPONENT IN VIDEO jacks on the set. Match the jack colors

$$ (Y = \text { green }, P _ {B} = \text { blue }, \text { and } P _ {R} = \text { red }). $$

2 Connect the audio output of the digital set-top box to the COMPONENT IN AUDIO jacks on the set.

2. How to use

■ Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box)
■ Select Component input source with using the INPUT button on the remote control.

Y LBPm 1 2 HDMI/DVI 1(DVI) DIGITAL AUDIO OUT OPTIC M.P.I. VIDEO PR AUDIO COMPONENT IN S-VIDEO

Signal	Component	HDMI1/DVI, HDMI2
480i	Yes	No
480p	Yes	Yes
720p	Yes	Yes
1080i	Yes	Yes
1080p	Yes	Yes

* 42LB5DC, 42LB50C model only

EXTERNAL EQUIPMENT SETUP

When connecting HDMI cable

1. How to connect

1 Connect the digital set-top box to HDMI/DVI IN 1 (DVI) or 2 jack on the set.
2 No separated audio connection is necessary. HDMI supports both audio and video.

2. How to use

■ Turn on the digital set-top box.
(Refer to the owner's manual for the digital set-top box)
■ Select HDMI1/DVI or HDMI2 input source with using the INPUT button on the remote control.

NOTE

▶ If the device does not support Auto HDMI, you need to set the output resolution appropriately.

HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT (OPTICAL) 2 M.P. RJP INTERFACE VIDEO P_B P_R L R AUDIO COMPONENT IN 1 HDMI-DTV OUTPUT

When connecting HDMI to DVI cable

HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT (OPTICAL) 2 M.P.I. RESET UPDATE REMOTE CONTROL OUT SERVICE ONLY RGB IN RJP INTERFACE COMPONENT IN S-VIDEO AUDIO AV IN 1 SPEAKER OUT 8Ω AUDIO (RG DVI) DVI-DTV OUTPUT L R

1. How to connect

1 Connect the DVI output of the digital set-top box to theHDMI/DVI IN 1 (DVI) or 2 jack on the set.
2 Connect the audio output of the digital set-top box to the AUDIO IN (RGB,DVI)jack on the set.

2. How to use

■ Turn on the digital set-top box. (Refer to the owner's manual for the digital set-top box)
■ Select HDMI1/DVI or HDMI2 input source with using the INPUT button on the remote control.

EXTERNAL EQUIPMENT SETUP

DVD SETUP

When connecting Component cable

1. How to connect

Connect the video outputs (Y, PB, PR) of the DVD to the COMPONENT IN VIDEO jacks on the set.

Match the jack colors

(Y = green, PB = blue, and PR = red).

Connect the audio outputs of the DVD to the COMPONENT IN AUDIO jacks on the set.

2. How to use

■ Turn on the DVD player, insert a DVD.
■ Select Component input source with using the INPUT button on the remote control.
- Refer to the DVD player's manual for operating instructions.

V1 RP6 PS 1 2 HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT V OPTION MP.I. VIDEO PY PR L R AUDIO COMPONENT IN S-VIDEO

Component Input ports

To get better picture quality, connect a DVD player to the component input ports as shown below.

Component ports on the TV	Y	P_B	P_R
Video output ports on DVD player	Y	P_B	P_R
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

When connecting with an S-Video cable

1. How to connect

1 Connect the S-VIDEO output of the DVD to the S-VIDEO input on the set.
2 Connect the audio outputs of the DVD to the AUDIO input jacks on the set.

2. How to use

■ Turn on the DVD player, insert a DVD.
■ Select AV1 input source with using the INPUT button on the remote control.
■ If connected to AV IN2, select AV2 input source.
- Refer to the DVD player's manual for operating instructions.

When connecting HDMI cable

1. How to connect

1 Connect the HDMI output of the DVD to the HDMI/DVI IN 1 (DVI) or 2 jack on the set.
2 No separated audio connection is necessary. HDMI supports both audio and video.

2. How to use

■ Select HDMI1/DVI or HDMI2 input source with using the INPUT button on the remote control.
- Refer to the DVD player's manual for operating instructions.

NOTE

If the device does not support Auto HDMI, you need to set the output resolution appropriately.

S-VIDEO AUDIO L R 1 2 DIGITAL AUDIO OUT TICAL) M.P.I. RESET UPDATE REMOTE CONTROL OUT S AUDIO AV IN 1 NONO AUDIO VIDEO S-VIDEO VIDEO SPE INT IN

HDMI/DVI IN 1(DVI) DIGITAL AUDIO OUT (OPTICAL) 2 M.P.I. RJP INTERFACE VIDEO COMPONENT IN 1 HDMI-DVD OUTPUT

EXTERNAL EQUIPMENT SETUP

VCR SETUP

■ To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
■ Use the ISM feature in the Option menu to avoid having a fixed image remain on the screen for a long period of time. (Only Plasma TV model). If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on the screen. This phenomenon is common to all manufactures and in consequence the manufactures warranty does not cover the product bearing this phenomenon.

When connecting with an antenna

S-VIDEO OUTPUT SWITCH VIDEO L R ANT OUT ANT IN Wall Jack Antenna 1 ANTENNA&ANTENA&MPMLF.II. 2

1. How to connect

1 Connect the RF antenna out socket of the VCR to the Antenna socket on the set.
2 Connect the antenna cable to the RF antenna in socket of the VCR.

2. How to use

■ Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
- Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual)

When connecting with a RCA cable

1. How to connect

1 Connect the AUDIO/VIDEO jacks between TV and VCR. Match the jack colors (Video = yellow, Audio Left = white, and Audio Right = red)

2. How to use

• Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual)
  ■ Select AV1 input source with using the INPUT button on the remote control.
  ■ If connected to AV IN2, select AV2 input source.

When connecting with an S-Video cable

1. How to connect

1 Connect the S-VIDEO output of the VCR to the S-VIDEO input on the set.
2 Connect the audio outputs of the VCR to the AUDIO input jacks on the set.

2. How to use

• Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner's manual)
  ■ Select AV1 input source with using the INPUT button on the remote control.
  ■ If connected to AV IN2, select AV2 input source.

NOTE

The picture quality is improved: compared to normal composite (RCA cable) input.

ANT IN S-VIDEO R VIDEO ANT OUT OUTPUT SWITCH 1 TAL DIO UT CAL) M.P.I. RESET UPDATE REMOTE CONTROL OUT SERV L R AUDIO AV IN 1 L R IN

NOTE

If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the set.

ANT IN S-VIDEO OUT CH ANT OUT 1 2 RESET M.P.I. UPDATE REMOTE CONTROL OUT S-VIDEO L AUDIO AV IN 1 VIDEO SPEAU OUT

CAUTION

Do not connect to both Video and S-Video at the same time. In the event that you connect both Video and the S-Video cables, only the S-Video will work.

EXTERNAL EQUIPMENT SETUP

OTHER A/V SOURCE SETUP

1. How to connect

1 Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colors. (Video = yellow, Audio Left = white, and Audio Right = red)

2. How to use

■ Select AV2 input source with using the INPUT button on the remote control.
■ If connected to AV IN1 input, select AV1 input source.
■ Operate the corresponding external equipment.

Camcorder Video Game Set VIDEO L R S-VIDEO VIDEO LMICO AUDIO-R AV IN 2

i.e) 32/37/42LC5DC*, 32/37/42LC50C*, 42LB5DC, 42LB50C

DIGITAL AUDIO OUTPUT

Send the TV's audio to external audio equipment via the Digital Audio Output (Optical) port.

1. How to connect

1 Connect one end of an optical cable to the TV Digital Audio (Optical) Output port.
2 Connect the other end of the optical cable to the digital audio (optical) input on the audio equipment.
3 Set the "TV Speaker option - Off" in the AUDIO menu. (▶p.58). See the external audio equipment instruction manual for operation.

NOTE

When connecting with external audio equipments, such as amplifiers or speakers, please turn the TV speakers off. (p.58)

CAUTION

Do not look into the optical output port. Looking at the laser beam may damage your vision.

DIGITAL AUDIO OUT (OPTICAL) HDMI/DVI IN 1(DVI) 2 M.P.I. RJP INTERFACE COMPONENT IN 1 2

PC SETUP

This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

When connecting D-sub 15pin cable

1. How to connect

1 Connect the RGB output of the PC to the RGB IN jack on the set.
2 Connect the PC audio output to the AUDIO IN (RGB, DVI)jack on the set.

2. How to use

■ Turn on the PC and the set.
- Select RGB-PCinput source with using the INPUT button on the remote control.

When connecting HDMI to DVI cable

REMOTE CONTROL OUT SERVITURE ONLY RGB IN AUDIO IN G DVI) SPEA 1 2 RGB OUTPUT AUDIO

1. How to connect

1 Connect the DVI output of the PC to the HDMI/DVI IN 1 (DVI) jack on the set.
2 Connect the PC audio output to the AUDIO IN (RGB/DVI) jack on the set.

2. How to use

■ Turn on the PC and the set
■ Select HDMI1/DVI input source with using the INPUT button on the remote control.

HDMI/DVI IN 1(DVI) DIGIT/ AUDIO OUT (OPTIC) 2 RJP INTERFAC VIDEO COMPONENT RGB IN AUDIO N (RG DVI) DVI-PC OUTPUT AUDIO

EXTERNAL EQUIPMENT SETUP

NOTES

▶ Depending on the graphics card, DOS mode may not work if a HDMI to DVI Cable is in use.
▶ Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or brightness in PC mode. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the VIDEO menu until the picture is clear. If the refresh rate of the

PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

Avoid keeping a fixed image on the screen for a long period of time. The fixed image may become permanently imprinted on the screen.
The synchronization input form for Horizontal and Vertical frequencies is separate.

Supported Display Specifications (RGB/HDMI1-PC)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
640x350	31.469	70.08
640x480	31.469 59.9437.861 72.8037.500 75.00
800x600	35.156 56.2537.879 60.3148.077 72.1846.875 75.00
1024x768	48.363 60.0056.476 70.0660.023 75.02
1280x768	47.700 60.00
1360x768	47.720 59.799
1366x768	47.130 59.658

Supported Display Specifications (RGB/HDMI1-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.50	60.00
	31.47(HDMI1-DTV:31.469)	59.94
1280x720	44.96	59.94
	45.00	60.00
1920x1080	33.72	59.94
	33.75	60.00

Supported Display Specifications (HDMI2-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.500 60.00
	31.469 59.94
1280x720	44.960 59.94
	45.000	60.00
1920x1080	33.720 59.94
	33.750	60.00

Supported Display Specifications (Y, C_B/P_B , C_R/P_R )

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	15.73	59.94
	15.73	60.00
	31.47	59.94
	31.50	60.00
1280x720	44.96	59.94
	45.00	60.00
1920x1080	33.72	59.94
	33.75	60.00

* RGB-DOS mode only: 640x350

Supported Display Specifications (RGB/HDMI1-PC)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
640x350 (RGB only)	31.469	70.08
640x480	31.469 59.9437.861 72.8037.500 75.00
800x600	35.156 56.2537.879 60.3148.077 72.1846.875 75.00
1024x768	48.363 60.0056.476 70.0660.023 75.02
1280x768	47.700 60.00
1360x768	47.720 59.799
1366x768	47.130 59.658
1280x1024 (RGB only)	63.668 59.895
1400x1050 (RGB only)	65.317 59.978
1600x1200	74.537	59.869
1920x1080	66.587	59.934
1920x1200	74.038	59.950

Supported Display Specifications (HDMI2-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.500 60.00
	31.469 59.94
1280x720	44.960 59.94
	45.000 60.00
1920x1080	33.720 59.94
	33.750 60.00
	67.500 60.00

Supported Display Specifications (Y, C_B/P_B , C_R/P_R )

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	15.73	59.94
	15.73	60.00
	31.47	59.94
	31.50	60.00
1280x720	44.96	59.94
	45.00	60.00
1920x1080	33.72	59.94
	33.75	60.00
	67.50	60.00

* RGB-DOS mode only: 640x350

Supported Display Specifications (RGB/HDMI1-DTV)

Resolution	Horizontal Frequency(KHz)	Vertical Frequency(Hz)
720x480	31.50	60.00
	31.47(HDMI1-DTV:31.469)	59.94
1280x720	44.96	59.94
	45.00	60.00
1920x1080	33.72	59.94
	33.75	60.00
	67.43(HDMI1-DTV:67.5)	59.94

WATCHING TV / CHANNEL CONTROL

REMOTE CONTROL FUNCTIONS

When using the remote control, aim it at the remote control sensor on the TV.

POWER Turns your TV or any other programmed equipment on or off, depending on mode. TV INPUT In AV 1-2, Component, RGB, HDMI1/DVI, and HDMI2 input sources, screen returns to the last TV channel. INPUT External input modes rotate in regular sequence: TV, AV1-2, Component, RGB, HDMI1/DVI and HDMI2. MULTI Selects: RGB,HDMI1/DVI, HDMI2 and Component input sources. - + Adjusts brightness on screen. VCR/DVD control buttons Control video cassette recorders or DVD players. THUMBSTICK (Up/Down/Left /Right/ENTER) Navigate the on-screen menus and adjust the system settings to your preference. VOLUME UP /DOWN Increase/decrease the sound level. TIMER Select the amount of time before your TV turns off automatically. ▶ p.69 MUTE Switch the sound on or off. ▶ p.34 CHANNEL UP/DOWN Select available channels. PAGE UP/DOWN Move from one full set of screen information to the next one. NUMBER button — (DASH) Used to enter a program number for multiple program channels such as 2-1, 2-2, etc. FLASH BACK Tune to the last channel viewed.

MODE Select the remote's operating mode: TV, DVD, VCR.

PIP Switches the sub picture Double Window or off mode. ▶ p.41-42 PIP CH +/- Changes the PIP channel. ▶ p.42 PIP INPUT Select the connected input source for the sub-picture. ▶ p.41

EZ PIC Selects the factory preset picture depend on the viewing environment.▶ p.45 EZ SOUND Selects the factory preset sound for type of program.▶ p.55 SWAP Exchange the main/sub images.▶ p.42 INFO Display information at the top of the screen.

EXIT Clears all on-screen displays and returns to TV viewing from any menu.

CC Select a closed caption. ▶ p.62 (*In DTV/CADTV mode ▶ p.63)

MENU Displays the main menu.

RATIO Change the aspect ratio. ▶ p.43-44

SAP • Analog mode: Selects MTS sound (Mono, Stereo, or SAP) ▶ p.59 • DTV mode: Changes the audio language.

Installing Batteries

Illustration of hands using a tool to lift a rectangular object, with an arrow indicating downward motion (no text or symbols)

• Open the battery compartment cover on the back side and install the batteries matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries. Don't mix old or used batteries with new ones.
• Close cover.

Remote control effective range

32/37/42LC5DC* 42LB5DC, 32/37/42LC5DC*, 32LX5DC*, 32LX50C* 42PBX8DC 32/37/42LC50C* 42LB5DC, 42LB50C

■ Use a remote control up to 7 meters distance and 30 degree (left/right) within the receiving unit scope.
■ Dispose of used batteries in a recycle bin to preserve environment.

WATCHING TV /CHANNEL CONTROL

TURNING ON TV

1 First, connect power cord correctly.

At this moment, the TV switches to standby mode.

In standby mode to turn TV on, press the (or ON/OFF) button on the TV or press the POWER button on the remote control.

2 Select the viewing source by using the TV INPUT, INPUT button on the remote control.

This TV is programmed to remember which power state it was last set to, even if the power cord is out.

3 When finished using the TV, press the POWER button on the remote control. The TV reverts to standby mode.

INPUT TV POWER MODE TV DVD INPUT MULTI - + VCR PIP PIP CH PIP CH PIP INPUT EZ PIC EZ SOUND SWAP INFO - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - CC MENU RATIO EXIT SAP ENTER

NOTE

If you intend to be away on vacation, disconnect the power plug from the wall power outlet.

CHANNEL SELECTION

1 Press the CH + - or NUMBER buttons to select a channel number.

+VOL - TIMES MUTE 1 2 3 4 5 6 7 8 9 - 0 +CH PAGE -

VOLUME ADJUSTMENT

Adjust the volume to suit your personal preference.

1 Press the VOL+ or - button to adjust the volume.

2 If you want to switch the sound off, press theMUTE button.

3 You can cancel the Mute function by pressing theMUTE or VOL + or - button.

VOL - TIMER MUTE CH PAGE 1 2 3 4 5 6

ON-SCREEN MENUS SELECTION

Your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

1 Press the MENU button and then use ▲/or ▼/button to select the each menu.
2 Press the ▶ button and then use ▲ ▼ ◀ ▶ button to display the available menus.

SETUP

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label

VIDEO

EZ Picture Color Temperature XD Advanced Reset

AUDIO

SETUP VIDEO AUDIO * TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

LOCK
For USA For Canada

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

TIME

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off

SCREEN

AUTO config. MANUAL config. XGA Mode Reset SETUP VIDEO AUDIO TIME OPTION SCREEN * LOCK

OPTION

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

Only Plasma TV model

WATCHING TV /CHANNEL CONTROL

CHANNEL SETUP

Auto Scan (EZ Scan)

Automatically finds all channels available through antenna or cable inputs, and stores them in memory on the channel list.

Run EZ Scan again after any Antenna/Cable connection changes.

A password is required to gain access to EZ Scan menu if the Lock System is turned on.

1 Press the MENU button and then use ▲ or ▼ button to select the SETUP menu.
2 Press the ▶ button and then use ▲ or ▼ button to select EZ Scan.
3 Press the ENTER button to begin the channel search. Allow EZ Scan to complete the channel search cycle for ANTENNA and CABLE.

MENU RATIO SAP CC EXIT ENTER VOL TIMER CH PAGE MUTE 1 2 3

SETUP * EZ Scan VIDEO AUDIO TIME OPTION SCREEN LOCK EZH Prov. Manual Scan Channel Edit DTV Signal Channel Label

1

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Selection (► or ⭕) leads you to the EZ scan screen.

2

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Selection to the EZ Processing EZ scan... ANALOG 9 Found Channel(s) 4 Next MENU Prev.

3

Add/Delete Channel (Manual Scan)

A password is required to gain access to Manual Scan menu if the Lock System is turned on.

1 Press the MENU button and then use ▲ or ▼ button to select the SETUP menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Manual Scan.
3 Press the ▶ button and then use ▲ or ▼ button to select Analog(TT,VCATV), Digital(DTV, CADTV).
4 Press the ▶ button and then use ▲ or ▼ button to select channel you want to add or delete.
5 Press the ENTER button to add or delete the channel.
6 Press the EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP CC EXIT ENTER VOL TIMER CH MUTS PAGE 1 2 3

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label SETUP * VIDEO AUDIO TIME OPTION SCREEN LOCK GNDP Rev.

1

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Channel Type Number ANALOG 2

2

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label CHANNEL TYPE Number ANALOG 2 ANALOG 2 Press @ to delete the channel. VIDEO AUDIO TIME OPTION SCREEN LOCK Prev.

3 4 5

WATCHING TV /CHANNEL CONTROL

Channel Editing

A Custom List can be created by toggling each channel on or off with ENTER button. The channels in the Custom List are displayed in black, and the channels deleted from the Custom List are displayed in gray. Once a channel is highlighted you can add or delete the channel by referring to the small window at the top-left corner of the screen.

A password is required to gain access to Manual Scan menu if the Lock System is turned on.

CC MENU RATIO EXIT SAP ENTER VOL TINER CH PAGE MUTC 1 2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label

1

1 Press the MENU button and then use ▲ or ▼ button to select the SETUP menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Channel Edit.
3 Press the ▶ button and then use ▲ or ▼ button to select ANALOG or DIGITAL.
4 Press the ▶ button and then use ▲ or ▼ button to select channel and then use the ENTER button to add or delete it.
5 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label ANALOG 2-0 4-0 6-0 9-0 11-0 13-0 14-0

2

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label ANALOG 2-0 4-0 6-0 9-0 11-0 13-0 14-0

3 4

DTV SIGNAL STRENGTH

This feature displays the DTV signal levels being received and indicates whether you need to adjust your antenna or digital cable input. The higher the signal strength, the less likely you are to experience picture degradation.

DTV Signal: This function is only available when the input signal is DTV or CADTV.

1 Press the MENU button and then use ▲ or ▼ button to select the SETUP menu.
2 Press the ▶ button and then use ▲ or ▼ button to select DTV Signal.
3 View the on-screen signal strength monitor to see the quality of the signal being received.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

CC MENU RATIO SAP EXIT ENTER VOL TIMER CH PAGE TIME 1 2 3

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Bad Normal Good Prov.

2 3

WATCHING TV /CHANNEL CONTROL

CHANNEL LABEL

Choose preset labels for your channels.

If a channel label is provided on the signal from the broadcasting station, the TV displays a short name for a channel even if you didn't preset a label for the channel.

MENU RATIO SAP EXIT ENTER VOL TIMER CH PAGE MUTE 1 2 3

EZ Scan MANUAL SCAN CHANNEL Edit DTV Signal CHANNEL Label

1

1 Press the MENU button and then use ▲/or ▼button to select the SETUP menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Channel Label.
3 Press the ▶ button and then use ▲ or ▼ button to select a channel to label.
4 Press the ▶ button and then use ▲ or ▼ button to select the appropriate label for the channel.
5 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

EZ Scan Manual Scan Channel Edit DTV Signal Channel Label Ch. ANALOG 2 Logo No Logo

2 3

PICTURE CONTROL

WATCHING DW (DOUBLE WINDOW)

Double Window mode splits the screen into two images, allowing two picture sources to be shown on the TV screen at the same time. Each source is given half the screen.

Watching Double Window

Press the PIP button to access the sub picture.

INPUT MODE TV POWER TV INPUT DVD MULTI VCR PIP PIP CH+ PIP CH+ PF INPUT EZ PIC EZ SOUND SWAP INFO CC MENU RATIO SAP EXIT ENTER

DW Mode PIP Off

Selecting an Input Signal Source for Double Window

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes the PIP source.

Use the PIP INPUT button to select the input source for the sub picture. Each press of PIP INPUT button changes the PIP source.

Main Picture Source	Available Sub Picture Sources
TV	AV1, AV2
AV1	TV, AV2
AV2	TV, AV1
RGB, Component, HDMI1/DVI, HDMI2	TV, AV1, and AV2

TV Program Selection for PIP

1 Use the PIP CH +/- button to select a channel for the sub picture.

The selected channel number is displayed just below the input source of main picture.

Swapping the PIP / Double Window

Repeatedly, use the SWAP button to switch the main and sub pictures.

- Component, RGB, HDMI1/DVI, HDMI2 input sources for the main picture can't be used to swap the main and sub pictures.

PICTURE SIZE (ASPECT RATIO) CONTROL

This feature allows an analog picture with a 4:3 aspect ratio is displayed on your TV. When you receive an analog picture with a 4:3 aspect ratio on your 16:9 TV, you need to specify how the picture is to be displayed.

■ RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.

Press the RATIO button repeatedly to select the desired picture format.

■ You can also adjust Aspect Ratio in the OPTION menu.

INPUT MODE TV POWER TV INPUT DVD MULTI VCR PIP PIP CH -PIP CH + PIP INPUT EZ PIC EZ SOUND SWAP INFO CC MENU RATIO EXIT SAP ENTER

Set by program

Selects the proper picture proportion to match the source's image.

(4:3→4:3) (16:9→16:9) Set By Program Set By Program

4:3

Choose 4:3 when you want to view a picture with an original 4:3 aspect ratio.

Close-up of spherical objects with a label '4.3' in the corner (no other text or symbols)

16:9

Adjust the picture horizontally, in a linear proportion to fill the entire screen.

Close-up of three spherical objects with a label '16:9' on the left (no other text or symbols visible)

PICTURE CONTROL

Horizon

The screen size is, more enlarged at both sides, to create a spectacular view.

Horizon

Zoom 1

Choose Zoom 1 when you want to view the picture without any alteration. However, the top and bottom portions of the picture will be cropped.

Grayscale image of a golf ball with two smaller balls, one labeled 'Zoom 1' in the corner (no other text or symbols)

Zoom 2

Choose Zoom 2 when you want the picture to be altered, both vertically extended and cropped. The picture taking a halfway trade off between alteration and screen coverage.

Grayscale 3D-rendered sphere with two smaller spheres, one labeled 'Zoom 2' in a button (no other text or symbols)

PRESET PICTURE SETTINGS

EZ Picture - Preset

EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the program category.

Daylight, Normal, Night Time Settings are preset for the optimum picture quality at the factory and are not adjustable.

In the User1 and User2 modes only, user can directly adjust the contrast, brightness, color, sharpness, tint.

INPUT MODE TV POWER TV INPUT DVD MULTI VCR PIP PIP CH +PIP CH + PIP INPUT EZ PIC EZ SOUND SWAP INFO CC MENU RATIO EXIT SAP ENTER

1 Press the EZ PIC button repeatedly to select the picture appearance setup option as below:

Daylight, Normal, Night Time, User1, and User2 (your own settings).

2 Press the EXIT button to save and return to TV viewing.

■ You can also use the VIDEO menu to adjust EZ Picture.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Daylight Normal Night time User 1 User 2

PICTURE CONTROL

Color Tone - Preset

Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as red, or set to cool to see less intense colors with more blue.

When selecting EZ Picture (User 1 and User 2), you can choose the Color Temperature.

1 Press the MENU button and then use ▲ or ▼ button to select the VIDEO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Color Temperature.
3 Press the ▶ button and then use ▲ or ▼ button to select either Cool, Normal, Warm or User.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMER MUTO PAGE 1 2 3

SETUP VIDEO > AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset SOM Prov.

1

EZ Picture Color Temperature XD Advanced Reset Cool Normal Warm User

2 3

MANUAL PICTURE ADJUSTMENT

EZ Picture - User Mode

Adjust the picture appearance to suit your preference and viewing situations.

This feature operate only if the EZ Picture set User 1 or User 2.

1 Press the MENU button and then use ▲ or ▼ button to select the VIDEO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select EZ Picture.
3 Press the ▶ button and then use ▲ or ▼ button to select User 1 or User 2.
4 Press the ▶ button and then use ▲ or ▼ button to select the desired picture option (Contrast, Brightness, Color, Sharpness, or Tint).
5 Press the ▶ button and then use ◀ or ▶ button to make appropriate adjustments.
6 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP EZ Picture VIDEO Color Temperature AUDIO XD TIME Advanced OPTION Reset SCREEN LOCK BNDP Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Daylight Normal Night Time ✓User 1 User 2

2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK User1 Contrast 85 Brightness 50 Color 50 Sharpness 50 Tint 0

4

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Contrast 85 Prev.

PICTURE CONTROL

Color Tone - User Mode

You can also adjust the detailed settings (Red, Green, Blue) by selecting the Color Temperature-User menu.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

1 Press the MENU button and then use ▲ or ▼ button to select the VIDEO menu.

2 Press the ▶ button and then use ▲ or ▼ button to select Color Temperature.

3 Press the ▶ button and then use ▲ or ▼ button to select User.

4 Press the ▶ button and then use ▲ or ▼ button to select Red, Green, or Blue.

5 Press the ▶ button and then use ◀ or ▶ button to make appropriate adjustments.

■ The adjustment range of Red, Green, or Blue is -40 \~ +40.

6 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset SOMO Prov.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset Cool Normal Warm ✓ User

2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK User Red 0 Green 0 Blue 0 Prev.

4

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Red 0 Home Prev .

XD - PICTURE IMPROVEMENT TECHNOLOGY

XD is LG Electronic's unique picture improving technology to display a real HD source through an advanced digital signal processing algorithm.

When selecting EZ Picture options (Daylight, Normal and Night time), XD is automatically changed to Auto.

When selecting EZ Picture options (User 1 and User 2), you can choose the Auto / Manual.

When selecting the Manual, you can adjust the XD Contrast, XD color and XD Noise.

MENU RATIO SAP EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

1 Press the MENU button and then use ▲ or ▼ button to select the VIDEO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select X×D
3 Press the ▶ button and then use ▲ or ▼ button to select Auto or Manual.

Selecting the Manual

1. Press the ▶ button and then use ▲ or ▼ button to select XD Contrast, XD Color or XD NR (Noise), MPEG NR.

2. XD Contrast: Optimizing the contrast automatically according to the brightness of the reflection.

3. XD Color: Adjusting the colors of the reflection automatically to reproduce as closely as possible to the natural colors.

4. XD NR (Noise): Removing the noise up to the point where it does not damage the original picture.
   ■ MPEG NR: To reduce the picture noise which may appear on the screen during watching the TV.

5. Press the ◀ or ▶ button to select O○ on Off.

EZ Picture Color Temperature XD Advanced Reset

1

EZ Picture Color Temperature XD Advanced Reset Auto ✓ Manual XD Contrast On XD Color On XD NR Off MPEG NR 0

2 3

4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

PICTURE CONTROL

ADVANCED - CINEMA MODE

Set up the TV for the best picture appearance for viewing movies.

When you operate Cinema (3:2 Pull-Down Mode or Cinema Correction Mode), the TV will adjust 24 fps video from movies to 30 fps video for display.

This feature operates only in Analog, AV1, AV2, and Component 480i mode.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMES PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset

1 Press the MENU button and then use ▲ or ▼ button to select the VIDEO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Advanced.
3 Press the ▶ button and then use ▲ or ▼ button to select Cinema.
4 Press the ▶ button and then use ▲ or ▼ button to select On or Off.
5 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

1

EZ Picture Color Temperature XD Advanced Reset Cinema Off Black level Low

2 3 4

Adjusting the contrast and the brightness of the screen using the black level of the screen.

This feature operates only in AV1, AV2, HDMI1/DVI, or HDMI2mode.

1 Press the MENU button and then use ▲ or ▼ button to select the VIDEO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Advanced.
3 Press the ▶ button and then use ▲ or ▼ button to select Black level.
4 Press the ▶ button and then use ▲ or ▼ button to select Low or High.

Low

The screen gets darker.

■ High

The screen gets brighter.

5 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset

1

EZ Picture Color Temperature XD Advanced Reset Cinema Off Black level Low

2 3 4

PICTURE CONTROL

PICTURE RESET

Use to quickly reset all the Video menu options to their original factory preset values.

1 Press the MENU button and then use ▲/or ▼/button to select the VIDEO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Reset
3 Press the ▶ button to reset the Video menu options to original values.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK EZ Picture Color Temperature XD Advanced Reset To set

2 3

LOW-POWER PICTURE MODE (Only Plasma TV model)

Low power reduces the plasma display power consumption.

1 Press the MENU button and then use ▲ or ▼ button to select the OPTION menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Low Power.
3 Press the ▶ button and then use ▲ or ▼ button to select ○ or Off.

■ When you select On, the screen darkens.

4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Off On

2 3

IMAGE STICKING MINIMIZATION(ISM) METHOD

A frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in a ghost image. Use our unique method to minimize any fixed image on the screen.

Press the MENU button and then use ▲/or ▼button to select the OPTION menu.

Press the ▶ button and then use ▲ or ▼ button to select ISM Method.

Press the ▶ button and then use ▲ or ▼ button to select either Normal, White Wash, Orbiter or Inversion.

Normal

If image sticking is never a problem, ISM is not necessary set to Normal.

■ White wash

White Wash removes permanent images from the screen.

NOTE

An excessive permanent image may be impossible to clear entirely with White Wash. To return to normal viewing, press any button.

Orbiter

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid a permanent image on the screen, the image will move once per 2 minutes: Left → Right → Upside → Downside → Right → Left → Downside → Upside.

■ Inversion

Inversion will automatically invert the plasma display panel color every 30 minutes.

Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

CC MENU RATIO SAP EXIT ENTER VOLT TIMER CH PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Normal White Wash Orbiter Inversion

2 3

SOUND & LANGUAGE CONTROL

AUTO VOLUME LEVELER (EZ SOUNDRITE)

Scans for changes in sound levels during commercials, then adjusts the sound to match the specified audio level. SoundRite makes sure that the volume level remains consistent whether you are watching a commercial or a regular TV program.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMED PAGE MUTE 1 2 3

SETUP VIDEO AUDIO + TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1 Press the MENU button and then use ▲ or ▼ button to select the AUDIO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select EZ SoundRite.
3 Press the ▶ button and then use ▲ or ▼ button to select On or Off.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

1

AUDIO Language EZ SoundRite EZ Sound Balance 0 TV Speakers Off On

2 3

PRESET SOUND SETTINGS (EZ SOUND)

EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound options based on the program content.

Normal, Stadium, News, Music and Theater are preset for good sound quality at the factory and are not adjustable.

INPUT MODE TV POWER TV INPUT DVD MULTI VCR PIP PIP CH -PIP CH+ PIP INPUT EZ PIC EZ SOUND SWAP INFO CC MENU RATIO SAP EXIT ENTER

1 Press the EZ SOUND button repeatedly to select the appropriate sound setup as below: Normal, Stadium, News, Music, Theater, and User (your own settings).

2 Press EXIT button to return to TV viewing.

■ You can also adjust EZ Sound in the AUDIO menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers Normal Stadium News Music Theater User

SOUND & LANGUAGE CONTROL

SOUND SETTING ADJUSTMENT - USER MODE

Adjust the sound to suit your taste and room situations.

1 Press the MENU button and then use ▲ or ▼ button to select the AUDIO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select EZ Sound.
3 Press the ▶ button and then use ▲ or ▼ button to select User.
4 Press the ▶ button and then use ▲ or ▼ button to select the desired sound option (Treble, Bass, or Front Surround).
5 Press the ▶ button and then use ◀ or ▶ button to make appropriate adjustments.

Selecting the Front surround

Press the ▶ button and then use ◀ or ▶ button to select Off or 3D EchoSound System.

6 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

3D EchoSound System

Creates a stunning simulated stereo effect from any mono sound and a realistic three-dimensional sound with a very wide and deep sound stage.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1

AUDIO TIME OPTION SCREEN LOCK SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers Normal Stadium News Music Theater ✓ User ►

2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK User Treble 50 Bass 50 Front Surround Off Prov.

4

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Front Surround Off Prov.

5

BALANCE ADJUSTMENT

Adjust the left/right sound of speaker to suit your taste and room situations.

1 Press the MENU button and then use ▲ or ▼ button to select the AUDIO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Balance.
3 Press the ▶ button and then use ◀ or ▶ button to make appropriate adjustments.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP VIDEO AUDIO * TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

2

AUDIO Language EZ SoundRite EZ Sound Balance 0 TV Speakers

3

SOUND & LANGUAGE CONTROL

TV SPEAKERS ON/OFF SETUP

Turn the TV speakers off if using external audio equipment. Feature turns the TV Speakers option On or Off.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMES PAGE MUTE 1 2 3

1 Press the MENU button and then use ▲ or ▼ button to select the AUDIO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select TV Speakers.
3 Press the ▶ button and then use ▲ or ▼ button to select On or Off.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1

AUDIO EZ SoundRite EZ Sound Balance TV Speakers Audio Language EZ SoundRite EZ Sound Balance Off On

2 3

STEREO/SAP BROADCAST SETUP

This TV can receive MTS stereo programs and any SAP

(Secondary Audio Program) that accompanies the stereo program if the station transmits an additional sound signal as well as the original one and when you select Stereo or SAP on the remote control.

Mono sound is automatically received if the broadcast is only in Mono; even though Stereo or SAP has been selected.

Select Mono if you want to listen to the mono sound in remote areas during stereo/SAP broadcasting.

Stereo or SAP can be received in Analog channel.

Use the SAP button to select your desired MTS mode in analog signal. Each time you press the SAP button, Mono, Stereo, or SAP appear in turn.

■ If other languages available on the digital signal, select them with the SAP button.

Press EXIT button to save and return to TV viewing.

INPUT MODE TV POWER TV INPUT MULTI - + VCR PIP PIP CH -PIP CH + EZ PIC EZ SOUND SWAP INFO CC MENU RATIO EXIT :SAP ENTER

SOUND & LANGUAGE CONTROL

AUDIO LANGUAGE

Other languages may be available if a digital signal is provided by the broadcasting station.

This feature operates only in DTV/CADTV mode.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMER MUTO PAGE 1 2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Audio Language EZ SoundRite EZ Sound Balance 0 TV Speakers

1 Press the MENU button and then use ▲ or ▼ button to select the AUDIO menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Audio Language.
3 Press the ▶ button and then use ▲ or ▼ button to select: English, Spanish, or French.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

AUDIO Language EZ Sound Balance TV Speakers English Spanish French

1
2 3

ON-SCREEN MENUS LANGUAGE SELECTION

The menus can be shown on the screen in the selected language. First select your language.

1 Press the MENU button and then use ▲ or ▼ button to select the OPTION menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Language.
3 Press the ▶ button and then use ▲ or ▼ button to select your desired language. From this point on, the on-screen menus will be shown in the selected language.
4 Press the EXIT button to return to TV viewing or press MENU to return to the previous menu.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID ✓ English Spanish French

2 3

SOUND & LANGUAGE CONTROL

CAPTION / TEXT

Analog Broadcasting System Captions

Select a caption mode for displaying captioning information if provided on a program. Analog caption displays information at any position on the screen and is usually the program's dialog.

Text displays information, usually at the bottom position and is used for a data service, generally not program related.

Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable.

This TV is programmed to memorize the caption/text mode which was last set when you turn the power off.

When you select the CC1 \~ Text4, Caption options must be disabled.

INPUT MODE TV POWER TV INPUT DVD MULTI VCR PIP PIP CH + RIP CH + PF INPUT EZ PIC EZ SOUND SWAP INFO B 11 << ← M H CC MENU RATIO EXIT SAP ENTER

Use the CC Button repeatedly to select CaptionOff, CC1, CC2, CC3, CC4, Text1, Text2, Text3 or Text4.

CAPTION

The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for the hearing impaired.

■ TEXT

The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by the broadcaster.

Press EXIT to save and return to TV viewing.

■ You can also use the OPTION menu to select Caption/Text.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Off CC1 CC2 CC3 CC4 Text1 Text2 Text3 Text4

Digital Broadcasting System Captions

Choose the language you want the DTV/CADTV Captions to appear in.

Other Languages can be chosen for digital sources only if they are included on the program.

1 Press the MENU button and then use ▲ or ▼ button to select the OPTION menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Caption/Text.
3 Press the ▶ button and then use ▲ or ▼ button to select available caption languages: English, Spanish, or French.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME OPTION > SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Off ✓ English Spanish French

2 3

SOUND & LANGUAGE CONTROL

CAPTION OPTIONS

Customize the DTV/CADTV captions that appear on your screen.

1 Press the MENU button and then use ▲ or ▼ button to select the OPTION menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Caption Options.
3 Press the ▶ button and then use ▲ or ▼ button to select Custom.
4 Press the ▶ button and then use ▲ or ▼ button to customize the Style, Font, etc., to your preference. A preview icon is provided at the bottom of the screen, use it to see the caption language.

▶ Size: Set the word size.
▶ Font: Select a typeface for the text.
▶ Text Color: Choose a color for the text.
▶ Text Opacity: Specify the opacity for the text color.
Bg (Background) Color: Select a background color.
Bg (Background) Opacity: Select the opacity for the background color.
▶ Edge Type: Select an edge type.
▶ Edge Color: Select a color for the edges.

5 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMED PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME OPTION > SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID Set by Program ✓ Custom

2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Size Standard Font Font 0 Text Color White Text Opacity Solid Bg Color Black Bg Opacity Solid Edge Type None Edge Color Black

4

TIME SETTING

CLOCK SETTING

Auto Clock Setup

The time is set automatically from a digital channel signal.

The digital channel signal includes information for the current time provided by the broadcasting station.

Set the clock manually if the current time is set incorrectly by the auto clock function.

The factory default value of the Auto Clock is Off, because a clock information sent each broadcasting station is different.

1 Press the MENU button and then use ▲ or ▼ button to select the TIME menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Auto Clock.
3 Press the ▶ button and then use ▲ or ▼ button to select On.
4 Press the ▶ button and then use ▲ or ▼ button to select your viewing area time zone

U.S.A : Eastern, Central, Mountain, Pacific, Alaska or Hawaii.

Canada : Eastern, Central, Mountain, Pacific, New F. land or Atlantic.

5 Press the ▶ button and then use ▲ or ▼ button to select Auto, Off, On, depending on whether or not your viewing area observes Daylight Saving time.
6 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME * OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Itemo Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Off ✓ On Time Zone Eastern Daylight Savings Auto

2 3 4 5

TIME SETTING

Manual Clock Setup

If the current time setting is wrong, reset the clock manually.

1 Press the MENU button and then use ▲ or ▼ button to select the TIME menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Manual Clock.
3 Press the ▶ button and then use ◀ or ▶ to select either the year, date, or time option. Once selected, use the ▲ or ▼ button to set the year, date, and time option.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO CC SAP EXIT ENTER VOL CH TIMED PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME * OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Control Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Year Date Time Prev.

2 3

AUTO ON/OFF TIMER SETTING

The timer function operates only if the current time has been set.

The Off-Timer function overrides the On-Timer function if they are both set to the same time.

The TV must be in standby mode for the On-Timer to work. If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to standby mode.

1 Press the MENU button and then use ▲ or ▼ button to select the TIME menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Off Timer or On Timer.
3 Press the ▶ button and then use ▲ or ▼ button to select O○.nn

■ To cancel the On/Off timer function, select Off.

4 Press the ▶ button and then use▲ or ▼ button to set the hour.
5 Press the ▶ button and then use▲ or ▼ button to set the minutes.
6 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO SAP EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME * OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Home Prev

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Off On 6 : 30 AM

2 3 4 5

TIME SETTING

AUTO SHUT-OFF SETTING

If set to on and there is no input signal, the TV turns off automatically after 10 minutes.

1 Press the MENU button and then use ▲ or ▼ button to select the TIME menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Auto Off.
3 Press the ▶ button and then use ▲ or ▼ button to select On or Off.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

MENU RATIO CC SAP EXIT ENTER VOL CH TIMET PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME > OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off Prov.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto Clock Manual Clock Off Timer On Timer Auto Off If set to On and there is no input signal, the TV turns automatically after 10 minutes. ✓ Off On

2 3

SLEEP TIMER SETTING

The Sleep Timer turns the TV off at the preset time.

Note that this setting is cleared when the TV is turned off.

1 Press the TIMER button repeatedly to select the number of minutes. First the Off option appears on the screen, followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2 When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to count down from the number of minutes selected.

3 To check the remaining minutes before the TV turns off, press the TIMER button once.

4 To cancel the Sleep Timer, press theTIMER button repeatedly to select Off.

VOL CH THER MUTE PAGE 1 2 3 4 5 6 7 8 9 - 0 FURG LUX

SCREEN ADJUSTMENT

AUTO CONFIGURE (RGB [PC] MODE ONLY)

Automatically adjusts picture position and minimizes image shaking.

Although the image is still not correct, your set is functioning properly but needs further adjustment.

MENU RATIO CC SAP EXIT ENTER VOL CH TIMED PAGE MUTE 1 2 3

1 Press the MENU button and then use ▲ or ▼ button to select the SCREEN menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Auto config..
3 Press the ▶ button to start Auto config..

■ When Auto config. has finished, OK will be shown on screen.
■ If the position of the image is still not correct, try Auto adjustment again.

4 If the picture needs to be adjusted more after Auto adjustment in RGB (PC), you can adjust the Manual config..

5 Press the EXIT button to return to TV viewing or press the MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN + LOCK Auto config. Manual config. XGA Mode Reset Menu Prev.

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto config. Manual config. XGA Mode Reset To set

23

MANUAL CONFIGURE

If the picture isn't clear after auto adjustment and especially if characters are still trembling, adjust the picture phase manually.

This function works in the following mode: RGB-PC, RGB-DTV, Component 480p/720p/1080i, HDMI 480p/720p/1080i.

The Phase, Clock functions work in the following mode: RGB-PC mode.

Press the MENU button and then use ▲ or ▼ button to select the SCREEN menu.

Press the ▶ button and then use ▲ or ▼ button to select Manual config..

Press the ▶ button and then use ▲ or ▼ button to select Phase, Clock, H-position or V-position.

Phase

This function allows you to remove any horizontal noise and clear or sharpen the image of characters.

Clock

This function is to minimize any vertical bars or stripes visible on the screen background. And the horizontal screen size will also change.

■ H-position / V-position

This function is to adjust picture to left/right and up/down as you prefer.

Press the ◀ or ▶ button to make appropriate adjustments.

Press the EXIT button to return to TV viewing or press the MENU button to return to the previous menu.

MENU RATIO SAP CC EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

SETUP VIDEO AUDIO TIME OPTION SCREEN * LOCK Auto config. Manual config. XGA Mode Reset Home Prev.

1

AUTO config. Manual config. XGA Mode Reset Phase 0 Clock 0 H-Position 0 V-Position 0

234

SCREEN ADJUSTMENT

SELECTING XGA MODE

To see a normal picture, match the resolution of RGB mode and selection of XGA mode.

This function works in the following mode: RGB-PC mode.

If you select the 1600x1200, 1920x1200 resolution, uXGA mode is displayed.

MENU RATIO CC SAP EXIT ENTER VOL CH TIMED PAGE MUTO 1 2 3

1 Press the MENU button and then use ▲ or ▼ button to select the SCREEN menu.
2 Press the ▶ button and then use ▲ or ▼ button to select XGA mode.
3 Press the ▶ button and then use ▲ or ▼ button to select the desired XGA resolution.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

AUTO config. MANUAL config. XGA Mode Reset

1

AUTO config. MANUAL config. XGA Mode Reset 1024 x 768 1280 x 768 1360 x 768 1366 x 768

23

INITIALIZING

(RESET TO ORIGINAL FACTORY SETTINGS)

This function operates in current mode.

To initialize the adjusted value.

MENU RATIO SAP EXIT ENTER VOL CH TIMER PAGE MUTE 1 2 3

1 Press the MENU button and then use ▲ or ▼ button to select the SCREEN menu.

2 Press the ▶ button and then use ▲ or ▼ button to select Reset.

3 Press the ▶ button.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto config. Manual config. XGA Mode Reset

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Auto config. Manual config. XGA Mode Reset To set

23

PARENTAL CONTROL / RATINGS

Parental Control can be used to block specific channels, ratings and other viewing sources.

The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible to block all program viewing for a time period. To use this function, the following must be done:

1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock

V-Chip rating and categories

Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating System(MPAA) only.

Ratings for Television programs including made-for-TV movies:

■ TV-G (General audience)
■ TV-PG (Parental guidance suggested)
■ TV-14 (Parents strongly cautioned)

■ TV-MA (Mature audience only)
■ TV-Y (All children)
■ TV-Y7 (Children 7 years older)

SET PASSWORD & LOCK SYSTEM

Setting up your password

Set up blocking schemes to block specific channels, ratings, and external viewing sources.

A password is required to gain access to this menu.

1 Press the MENU button and then use the ▲ or ▼ button to select the LOCK menu. Then, press the ▶ button.

■ Enter the password as requested.
■ The TV is set up with the initial password "0-0-0-0".

MENU RATIO SAP CC EXIT ENTER VOL TIMER CH PAGE MUTE

Set Password

Change the password by inputting a new password twice.

1 After inputting the password, use the ▲ or ▼ button to choose Set password.

2 Press the ▶ button and then choose any 4 digits for your new password. As soon as the 4 digits are entered, re-enter the same 4 digits on the Confirm. Then your changed password has been memorized.

3 Press EXIT to return to TV viewing or press MENU to return to the previous menu.

NOTE

If you ever forget your password, key in '7', '7', '7', '7' on the remote control.

Lock System

Enables or disables the blocking scheme you set up previously.

1 After inputting the password, use the ▲ or ▼ button to choose Lock System.

2 Press the ▶ button and then use the ▲ or ▼ button to select O○ or Off.

■ When you select O, the Lock System is enable.

3 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

For USA SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating For Canada Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating New Confirm * * * * * * * *

2

For USA SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating For Canada Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating ✓ Off On

2

PARENTAL CONTROL /RATINGS

CHANNEL BLOCKING

Blocks any channels that you do not want to watch or that you do not want your children to watch.

1 After inputting the password, use the ▲ or ▼ button to choose Block Channel.
2 Press the ▶ button. You will now see a screen filled with channel numbers and a preview picture.
3 Use ▲▼◀▶ button to select a channel and then use the ENTER button to block or unblock it.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

EXTERNAL INPUT BLOCKING

Enables you to select a source to block from the external source devices you have hooked up.

1 After inputting the password, use the ▲ or ▼ button to choose Aux. Block.
2 Press the ▶ button and then use the ◀ or ▶ button to select a source.
3 Press the ▶ button and then use the ▲ or ▼ button to select ○ or Off on the each source.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

For USA

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

For Canada

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating ✓ Off On

1 2

For USA

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

For Canada

Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating AV1 On AV2 On Component Off RGB Off HDMI1/DVI On HDMI2 Off

2 3

MOVIE & TV RATING

Movie Rating (MPAA) - for USA only

Blocks movies according to the movie ratings limits specified, so children cannot view certain movies. You can set the ratings limit by blocking out all the movies with the ratings above a specified level. Keep in mind that the movie ratings limit only applies to movies shown on TV, not TV programs, such as soap operas.

MENU RATIO SAP EXIT ENTER CC TWOFA

1 After inputting the password, use the ▲ or ▼ button to choose Movie Rating.
2 Press the ▶ button and then use the ▲ or ▼ button to select G, PG, PG-13, R, NC-17 or X.
■ G (General audiences)
■ PG (Parental guidance suggested)
■ PG-13 (Parents strongly cautioned)
■ R (Restricted)
■ NC-17 (No one 17 and under admitted)
■ X (Adult only)
■ Blocking Off (Permits all programs)
If you set PG-13: G and PG movies will be available, PG-13, R, NC-17 and X will be blocked.

3 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

Downloadable Rating

1 After inputting the password, use the ▲ or ▼ button to choose Downloadable Rating.
2 Press the ▶ button and then use the ▲ or ▼ button to select Dim0, Dim1, Dim2, or Dim3.
3 Press the ▶ button and then use the ▲ or ▼ button to select D1L1, D1L2, or D1L3.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

NOTE

This function may become available in the future and will be available only for digital channel signal.
This function operates only when TV has received Region5 Rating data.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK + Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating G PG PG-13 R NC-17 X Blocking Off

For USA

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Prev. Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating ▶ Downloadable Rating Dim0 Dim1 Dim2 Dim3

Based on rating table, your TV's OSD (On Screen Display) may differ slightly from what is shown in this manual.

PARENTAL CONTROL /RATINGS

TV Rating Children -for USA only

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

1 After inputting the password, use the ▲ or ▼ button to choose TV Rating-Children.
Press the ▶ button and then use the ▲ or ▼ button to select Age, or Fantasy Violence.
Press the ▶ button and then use the ▲ or ▼ button to select block options.

■ Age (applies to TV-Y, TV-Y7)
■ Fantasy Violence (applies to TV-Y7)

3 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children ▶ TV Rating-General Aux. Block Downloadable Rating Age Fantasy Violence

2

TV Rating General -for USA only

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

1 After inputting the password, use the ▲ or ▼ button to choose TV Rating-General.
2 Press the ▶ button and then use the ▲ or ▼ button to select Age, Dialogue, Language, Sex or Violence. Press the ▶ button and then use the ▲ or ▼ button to select block options.

■ Age (applies to TV-G, TV-PG, TV-14, TV-MA)
■ Dialogue-sexual dialogue (applies to TV-PG, TV-14)
■ Language-adult language (applies to TV-PG, TV-14, TV-MA)
■ Sex-sexual situations (applies to TV-PG, TV-14, TV-MA)
■ Violence (applies to TV-PG, TV-14, TV-MA)

3 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Prov. Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel Movie Rating TV Rating-Children TV Rating-General Aux. Block Downloadable Rating Age Dialogue Language Sex Violence

2

TV Rating English - for CANADA only

Prevents children from watching certain children's TV programs, according to the ratings limit set. The children rating does not apply to other TV programs. Unless you block certain TV programs intended for mature audiences in the TV Rating - sub menu, your children can view those programs.

1 After inputting the password, use the ▲ or ▼ button to choose TV Rating-English.
2 Press the ▶ button and then use the ▲ or ▼ button to select E, C, C8+, G, PG, 14+, 18+, or Blocking Off.

E(Exempt)
C(Children)
■ C8+(Children eight years and older)
■ G(General programming, suitable for all audiences)
■ PG(Parental Guidance)
■ 14+(Viewers 14 years and older)
■ 18+(Adult programming)
■ Blocking Off(Permits all programs)

3 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

TV Rating French - for CANADA only

Based on the ratings, blocks certain TV programs that you and your family do not want to view.

1 After inputting the password, use the ▲ or ▼ button to choose TV Rating-French.
2 Press the ▶ button and then use the ▲ or ▼ button to select E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+, or Blocking Off.

■ E(Exempt)
■ G(General)
■ 8 ans+(General-Not convenient for little children)
■ 13 ans+(Not convenient for children of 13 years and younger)
■ 16 ans+(Not convenient for children of 16 years and younger)
■ 18 ans+(This programs is only for adults)
■ Blocking Off(Permits all programs)

3 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel TV Rating-English ▶ TV Rating-French Aux. Block Downloadable Rating E C C8+ G PG 14+ 18+ Blocking Off

2

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK + Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Lock System Set Password Block Channel TV Rating-English TV Rating-French Aux. Block Downloadable Rating E G 8 ans+ 13 ans+ 16 ans+ 18 ans+ Blocking Off

2

APPENDIX

TROUBLESHOOTING

The operation does not work normally.
The remote control doesn’t work	Check to see if there is any object between the product and the remote control causing obstruction. Ensure you are pointing the remote control directly at the TV.Ensure that the batteries are installed with correct polarity (+ to +, - to -).Ensure that the correct remote operating mode is set: TV, VCR etc.Install new batteries.
Power is suddenly turned off	Is the sleep timer set?Check the power control settings. Power interrupted.No broadcast on station tuned with Auto off activated.

The video function does not work.
No picture &No sound	Check whether the product is turned on.Try another channel. The problem may be with the broadcast.Is the power cord inserted into wall power outlet?Check your antenna direction and/or location.Test the wall power outlet, plug another product's power cord into the outlet where the product's power cord was plugged in.
Picture appears slowly after switching on	This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.
No or poor color or poor picture	Adjust Color in menu option.Keep a sufficient distance between the product and the VCR.Try another channel. The problem may be with the broadcast.Are the video cables installed properly?Activate any function to restore the brightness of the picture.
Horizontal/vertical bars or picture shaking	Check for local interference such as an electrical appliance or power tool.
Poor reception on some channels	Station or cable product experiencing problems, tune to another station.Station signal is weak, reorient antenna to receive weaker station.Check for sources of possible interference.
Lines or streaks in pictures	Check antenna (Change the direction of the antenna).
The audio function does not work.
Picture OK & No sound	Press the VOL or VOLUME button.Sound muted? Press MUTE button.Try another channel. The problem may be with the broadcast.Are the audio cables installed properly?
No output from one of the speakers	Adjust Balance in menu option.
Unusual sound from inside the product	A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the product.

There is a problem in PC mode. (Only PC mode applied)
The signal is out of range	■ Adjust resolution, horizontal frequency, or vertical frequency.■ Check the input source.
Vertical bar or stripe on background & Horizontal Noise & Incorrect position	■ Work the Auto configure or adjust clock, phase, or H/V position. (Option)
Screen color is unstable or single color	■ Check the signal cable.■ Reinstall the PC video card.

APPENDIX

MAINTENANCE

Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can enjoy your new TV.

Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Here's a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it's almost dry, and then use it to wipe the screen.
2 Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.

Cleaning the Cabinet

■ To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■ Please be sure not to use a wet cloth.

Extended Absence

CAUTION

If you expect to leave your TV dormant for a long time (such as a vacation), it's a good idea to unplug the power cord to protect against possible damage from lightning or power surges.

PRODUCT SPECIFICATIONS

32LC5DC/S/B(32LC5DC/S/B-UA)32LC50C/S/B(32LC50C/S/B-UA)	Width x Height x Depth(inches/mm)	With Stand	31.8 x 23.9 x 9.8 inches806.6 x 607.5 x 249.0 mm
		Without Stand	31.8 x 21.7 x 3.8 inches806.6 x 552.3 x 97.2 mm
	Weight (pounds / kg)	With Stand	33.7 pounds / 15.3kg
		Without Stand	27.6 pounds / 12.5 kg
37LC5DC/1/B(37LC5DC/1/B-UA)37LC50C/B(37LC50C/B-UA)	Width x Height x Depth(inches/mm)	With Stand	36.5 x 27.4 x 10.4 inches926.8 x 695.8 x 264.6 mm
		Without Stand	36.5 x24.8 x 4.2 inches926.8 x 629.8 x 107.4 mm
	Weight (pounds / kg)	With Stand	47.2 pounds / 21.4 kg
		Without Stand	36.8 pounds / 16.7 kg
42LC5DC(42LC5DC-UA)42LC50C(42LC50C-UA)	Width x Height x Depth(inches/mm)	With Stand	40.7 x 29.6 x 11.6 inches1033.1 x 750.7 x 294.2 mm
		Without Stand	40.7 x 27.0x 4.3 inches1033.1 x 686.5 x 110.2 mm
	Weight (pounds / kg)	With Stand	61.3 pounds / 27.8 kg
		Without Stand	47.2 pounds / 21.4 kg
32LX5DC/S(32LX5DC/S-UA)32LX50C/S(32LX50C/S-UA)	Width x Height x Depth(inches/mm)	With Stand	36.3 x 24.2 x 11.3 inches922.0 x 615.0x 288.0 mm
		Without Stand	36.3 x 21.5 x 3.9 inches922.0 x 546.0 x 98.0 mm
	Weight (pounds / kg)	With Stand	39.0 pounds / 17.7 kg
		Without Stand	30.4 pounds / 13.8 kg
42PX8DC(42PX8DC-UA)	Width x Height x Depth(inches/mm)	With Stand	46.7 x 28.1 x 10.6 inches1186.0 x 714.0 x 270.0 mm
		Without Stand	46.7 x 25.7 x 3.9 inches1186.0 x 654.0 x 99.0 mm
	Weight (pounds / kg)	With Stand	72.5 pounds / 32.9 kg
		Without Stand	55.6 pounds / 25.2 kg
42LB5DC(42LB5DC-UA)42LB50C(42LB50C-UA)	Width x Height x Depth(inches/mm)	With Stand	40.7 x 29.6 x 11.6 inches1033.1 x 750.7 x 294.2 mm
		Without Stand	40.7 x 27.0x 4.3 inches1033.1 x 686.5 x 110,2 mm
	Weight (pounds / kg)	With Stand	61.3 pounds / 27.8 kg
		Without Stand	47.2 pounds / 21.4 kg
Power requirementTelevision SystemProgram CoverageExternal Antenna ImpedanceOperating Temperature RangeOperating Humidity RangeStorage Temperature RangeStorage Humidity Range		AC100-240V ~ 50/60HzNTSC-M, ATSC, 64 & 256 QAMVHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-13575 ohm32 ~ 104°F (0 ~ 40°C)Less than 80%-4 ~ 140°F (-20 ~ 60°C)Less than 85%

■ The specifications shown above may be changed without prior notice for quality improvement.

PROGRAMMING THE REMOTE CONTROL

The provided universal remote control can be programmed to operate most remote-controllable devices. Note that the remote may not control all models of other brands.

Programming a code into a remote mode

To find out whether your remote control can operate each device without programming, turn on the device (such as a VCR) and press the corresponding mode button on the remote.
After that, press the POWER button. If the device is turned off and it responds properly the remote control need not be programmed. If not, the remote should be programmed to operate the device. The programming procedures are explained below.
2 Press the MENU and MUTE button continuously at the same time for two seconds; the currently selected device button is illuminated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case, you have to repeat from step 2.
3 Enter the appropriate code from the code table on the following pages. When pressing the button, the light blinks at a time. If the device turned off, the programming is successful.
4 Press the MENU button to store the code. After blinking twice, this code is stored.
5 Test the remote control functions to see if the device responds properly. If not, steps 2-5.

Remote Control Code

DVD

Brand Codes Brand Codes Brand Codes
APEX DIGITAL 022				MITSUBISHI	002		RCA	005	006
DENON	020	014		NAD	023		SAMSUNG	011	015
GE	005	006		ONKYO	008	017	SONY	007
HARMAN KARDON		027		PANASONIC	003	009	THOMPSON	005	006
JVC	012			PHILIPS	013		TOSHIBA	019	008
LG	001	010	016	025	PIONEER	004	026	YAMAHA	009	018
MAGNAVOX	013			PROCEED	021		ZENITH	010	016	025
MARANTZ	024			PROSCAN	005	006

Brand Codes Brand Codes Brand Codes

AIWA 034				MAGNAVOX	031	033	034	041	SAMSUNG	032	040	102	104
AKAI 016 043 046 124					067	068				105	107	109	112
	125146				012	031	033	067		113	115	120	122
AMPRO 072				MARANTZ	069					125
ANAM 031 033 103				MARTA 101					SANSUI	022	043	048	135
AUDIO DYNAMICS	012	023	039 043	MATSUI	027	030			SANYO	003	007	010	014
BROKSONIC	035	037	129	MEI	031	033				102	134
CANON	028	031	033	MEMOREX	003	010	014	031	SCOTT	017	037	112	129
CAPEHART	108				033	034	053	072		131
CRAIG	003	040	135		101	102	134	139	SEARS	003	008	009	010
CURTIS MATHES	031	033	041	MGA	045	046	059			013	014	017	020
DAEWOO	005	007	010 064	MINOLTA	013	020				031	042	073	081
	065	108	110 111	MITSUBISHI	013	020	045	046		101
	112	116	117 119		049	051	059	061	SHARP 031	054	149
DAYTRON	108				151				SHINTOM	024
DBX	012	023	039 043	MTC 034 040					SONY	003	009	031	052
DYNATECH	034	053		MULTITECH	024	034				056	057	058	076
ELECTROHOME	059			NEC	012	023	039	043		077	078	149
EMERSON	006	017	025 027		048				SOUNDESIGN	034
	029	031	034 035	NORDMENDE	043				STS	013
	036	037	046 101	OPTONICA	053	054			SYLVANIA	031	033	034	059
	129	131	138153	PANASONIC	066	070	074	083		067
FISHER	003	008	009 010		133140	145			SYMPHONIC	034
FUNAI 034									TANDY 010 034
GE	031	033	063 072	PENTAX	013	020	031	033	TATUNG	039	043
	107	109	144 147		063				TEAC	034	039	043
GO VIDEO	132	136		PHILCO	031	034	067		TECHNICS	031	033	070
HARMAN KARDON		012	045	PHILIPS 031 033	034	054			TEKNIKA	019	031	033	034
HITACHI	004	018	026 034		067	071	101			101
	043	063	137 150	PILOT	101				THOMAS	034
INSTANTREPLAY	031	033		PIONEER	013	021	048		TMK	006
JCL	031	033		PORTLAND	108				TOSHIBA	008	013	042	047
JCPENNY	012	013	015 033	PULSAR	072					059	082	112	131
	040	066	101	QUARTZ	011	014			TOTEVISION	040	101
JENSEN 043				QUASAR	033	066	075	145	UNITECH	040
JVC	012	031	033 043	RCA	013	020	033	034	VECTOR RESEARCH	012
	048	050	055 060		040	041	062	063	VICTOR	048
	130	150	152		107	109	140	144	VIDEO CONCEPTS	012	034	046
KENWOOD	014	034	039 043		145	147			VIDEOSONIC	040
	047	048		REALISTIC	003	008	010	014	WARDS 003 013	017	024
LG (GOLDSTAR)	001	012	013 020		031	033	034	040		031	033	034	040
	101	106	114 123		053	054	101			053	054	131
LLOYD	034			RICO 058					YAMAHA	012	034	039	043
LXI	003	009	013 014	RUNCO	148				ZENITH	034	048	056
	017	034	101 106	SALORA	014					058	072	080	101
MAGIN	040

APPENDIX

SET ID

Use this function to specify a TV ID number.

1 Press the MENU button and then use ▲ or ▼ button to select the OPTION menu.
2 Press the ▶ button and then use ▲ or ▼ button to select Set ID.
3 Press the ▶ button and then use ▲ or ▼ button to adjust Set ID to choose the desired TV ID number. The adjustment range of Set ID is 1\~99.
4 Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

CC MENU RATIO SAP EXIT ENTER VOL CH TIMER MUTE PAGE 1 2 3

SETUP VIDEO AUDIO TIME OPTION + SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID

1

SETUP VIDEO AUDIO TIME OPTION SCREEN LOCK Aspect Ratio Caption/Text Caption Options Language ISM Method Low Power Set ID 1

2 3

IR CODES

Code (Hexa)	Function Note		Code (Hexa)	Function Note
0F TV INPUT	Remote control Button		D6	TV	Discrete IR Code(TV Input Selection)
0B INPUT	Remote control Button
08 POWER	Remote control Button (Power On/Off)		C4 POWER ON Discrete IR Code
98 MULTI	Remote control Button				(Only Power On)
79 RATIO	Remote control Button		C5 POWER OFF Discrete IR Code
0E TIMER	Remote control Button				(Only Power Off)
10-19	Number Key 0-9	Remote control Button	5A AV1	Discrete IR Code
4C - (Dash)		Remote control Button			(AV1 Input Selection)
1A FLASH BACK		Remote control Button	D0	AV2	Discrete IR Code(AV2 Input Selection)
09 MUTE		Remote control Button
02 VOL + Remote control Button			BF	COMPONENT	Discrete IR Code(Component Input Selection)
03 VOL -		Remote control Button
00	CH +	Remote control Button	D5	RGB-PC	Discrete IR Code(RGB-PC Input Selection)
01 CH -		Remote control Button
39 CC		Remote control Button	CE HDMI1/DVI Discrete IR Code
40	▲	Remote control Button			(HDMI1/DVI Input Selection)
41	▼	Remote control Button	CC	HDMI2	Discrete IR Code(HDMI2 Input Selection)
07	◀	Remote control Button
06	▶	Remote control Button	76 Ratio 4:3		Discrete IR Code(Only 4:3 Mode)
44 ENTER		Remote control Button
43 MENU	Remote control Button		77 Ratio 16:9		Discrete IR Code(Only 16:9 Mode)
52 EZ SOUND		Remote control Button
4D	EZ PIC	Remote control Button	AF Ratio Zoom		Discrete IR Code(Only Zoom1 Mode)
5B EXIT		Remote control Button
0A SAP		Remote control Button
E1	-	Remote control Button
E0	○ +	Remote control Button
AA INFO		Remote control Button
60 PIP		Remote control Button
72 PIP CH -		Remote control Button
71 PIP CH +		Remote control Button
61 PIP INPUT		Remote control Button
63 SWAP		Remote control Button

LG Electronics Inc.
