USER MANUAL GV-N1080XTREME WB-8GD GIGABYTE

NVIDIA® Graphics Accelerator

User's Manual

Rev. 107

Copyright

© 2018 GIGABYTE TECHNOLOGY CO., LTD

Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any form without the expressed, written permission of GBT.

Travista

Table of Contents

1. Introduction ...... 1
   1.1. Minimum System Requirements.... 1
2. Hardware Installation 3
   2.1.SLI Technology 4
3. Software Installation .... 5
   3.1. Driver and Utility Installation 5
   3.1.1. Driver and AORUS ENGINE Installation 5
   3.1.2. GIGABYTE AORUS ENGINE 10
4. Troubleshooting Tips 13

1. Introduction

1.1. Minimum System Requirements

• Hardware
• Motherboard with one or above PCI-Express x 16 slot
• 2GB system memory (4GB recommended)
• Optical drive for software installation (CD-ROM or DVD-ROM drive)
• Operating System
• Windows ^® 10
• Windows ^® 8
• Windows ^® 7

※ Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by static electricity, so the card should be left in its original packing until it is installed. Unpacking and installation should be done on a grounded anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same point as the anti-static mat. Inspect the card carton for obvious damage. Shipping and handling may cause damage to your card. Be sure there are no shipping and handling damages on the card before proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS DAMAGED.

In order to ensure that your graphics card can work correctly, please use

2. Hardware Installation

Now that you have prepared your computer, you are ready to install your graphics card.

Step 1.

Locate the PCI Express x16 slot. If necessary, remove the cover from this slot; then align your graphics card with the PCI Express x16 slot, and press it in firmly until the card is fully seated.

■ Make sure that the gold edge connector of the graphics card is securely inserted.

Step 2.

Replace the screw to fasten the card in place, and replace the computer cover.

Two-panel image showing a computer monitor with ventilation grilles and a close-up of a circuit board (no visible text or symbols)

If there are power connectors on your card, remember to connect the power cable to them, or the system will not boot. Do not touch the card when it's operating to prevent

2.1. SLI Technology

How NVIDIA®SLI™ (Scalable Link Interface) technology works:

If you are planning on using this graphics card as part of an SLI system, the following are required:

• An SLI certified motherboard with two or above PCI-E x16 slots and correct chipset driver
  • A two-way SLI bridge connector

In an SLI configuration, two SLI-ready graphics cards of the same model and the same manufacturers are connected together via SLI bridge connector in a system that provides two or above PCI Express x16 slots to scale graphics performance. The picture below shows that two graphics cards are linked in parallel in an SLI configuration.

2-Way SLI Configuration:

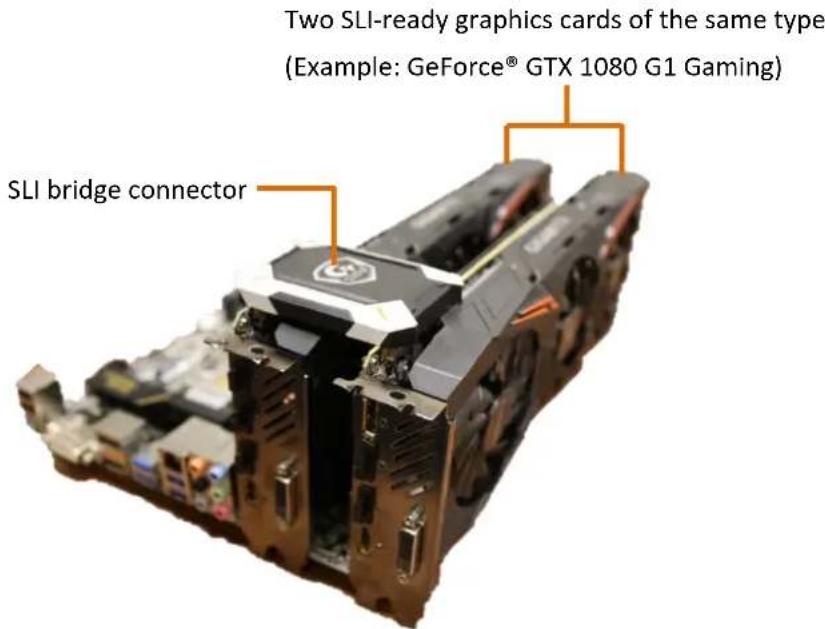

Two SLI-ready graphics cards of the same type (Example: GeForce® GTX 1080 G1 Gaming) SLI bridge connector

3. Software Installation

Notice the following guidelines before installing the drivers:

1. First make sure your system has installed DirectX 11 or later version.
2. Make sure your system has installed the appropriate motherboard drivers (For the motherboard drivers, please contact the motherboard manufacturer.)

※ Notice : The photos in this manual are for reference only and may not match what you exactly see on your screen

3.1. Driver and Utility Installation

3.1.1. Driver and AORUS ENGINE Installation

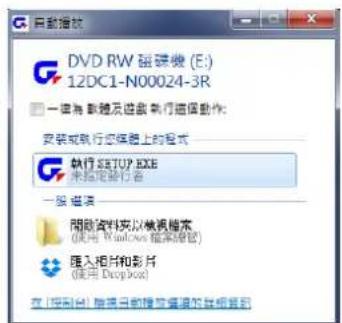

After installing the operating system, insert the driver disk into your optical drive. The driver Autorun screen is automatically displayed which looks like that shown in the screen shot on the right. (If the driver Autorun screen does not appear automatically, go to My Computer, double-click the optical drive and execute the setup.exe program.)

AORUS Install Display Driver AORUS Graphics Engine Google Chrome Google Toolbar Google Drive User Manual GIGABYTE recommends Google Drive. One safe place for all your stuff. Google Drive Install Google Drive Get going with up to 150B of free storage. By installing the application,you agrees to the Google Drive Terms of use and Privacy policy Note:Please connect to the Internet first. Install Exit

The window of AORUS ENGINE installation would appear first as the following picture.

AORUS ENGINE Downloading. 7.04%/20586KB

Step 2:

Click the Next button.

Setup - AORUS ENGINE Welcome to the AORUS ENGINE Setup Wizard This will install AORUS ENGINE on your computer. It is recommended that you close all other applications before continuing. Click Next to continue, or Cancel to exit Setup. Next > Cancel

Step 3:

Click Browse to choose where you'd like GIGABYTE AORUS ENGINE to be installed. And then click the Next button.

Setup - AORUS ENGINE Select Destination Location Where should AORUS ENGINE be installed? Setup will install AORUS ENGINE into the following folder. To continue, click Next. If you would like to select a different folder, click Browse. C:\Program Files (x86)\GIGABYTE\AORUS ENGINE Browse... At least 144.7 MB of free disk space is required. < Back Next > Cancel

Step 4:

Click Browse to choose where you'd like to place the shortcuts in Start Menu. And then click Next.

Setup - ADRUS ENGINE Select Start Menu Folder Where should Setup place the program's shortcuts? Setup will create the program's shortcuts in the following Start Menu folder. To continue, click Next. If you would like to select a different folder, click Browse... Browse... < Back Next > Cancel

Step 5:

Check the box if you'd like to create a desktop icon, and then click Next.

Setup - ADRUS ENGINE Select Additional Tasks Which additional tasks should be performed? Select the additional tasks you would like Setup to perform while installing ADRUS ENGINE, then stick Text. Additional icons: □ Create a desktop icon

Step 7:

Click the Finish button to complete AORUS ENGINE installation.

Setup - AORUS ENGINE Completing the AORUS ENGINE Setup Wizard Setup has finished installing AORUS ENGINE on your computer. The application may be launched by selecting the installed items. Click Finish to exit Setup. Launch AORUS ENGINE Finish

Step 8:

After installing AORUS ENGINE, the window of NVIDIA Driver would appear.

NVIDIA Graphics Driver Version 372.54 System Check License Awarded Options Install Fees Checking system compatibility

Step 10:

Check Express

(Recommended) and then click the NEXT button.

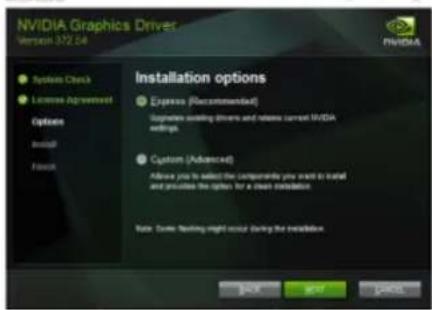

NVIDIA Graphics Driver Version 372.54 System Check License Agreement Options Install Finish Installation options Express (Recommodated) Supplies adding drivers and releases current NVIDIA software. Customs (Advanced) Allow you to select the component you want to install and provide the options for a clean installation. Note: Some testing might occur during the installation. BACK START Cancel

Step 11:

Installation begins.

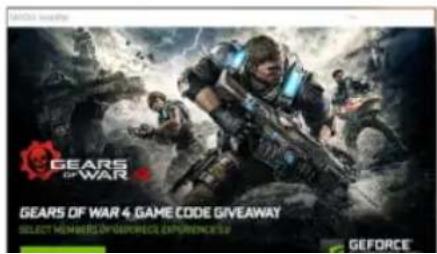

GEARS OF WAR GEARS OF WAR 4 GAME CODE GIVEAWAY SELECT MEMBERS OF GIVEECE EXPRIEANCE TO GEFORCE

3.1.2. GIGABYTE AORUS ENGINE

Users could adjust clock speeds, memory speeds, fan performance, and LED etc. according to their own preference through this intuitive interface.

※ The interface and functionality of the software is subject to each model.

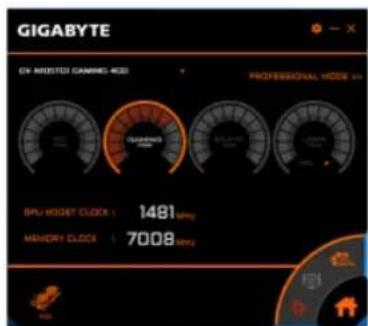

GIGABYTE ON PROSTED CAMPOS 400 PROFESSIONAL MODE 40 CPU HOURS T CLOCK 1: 1481 mpy MEMORY CLOCK: 7008 mpy

Easy setting

• OC mode
  High performance over clocking mode
• Gaming mode
  Default setting gaming mode
  • ECO mode
  Energy saving, silent ECO mode

GIGABYTE UV MOUNTED DAMPS-403 PROFESSIONAL MODE 403 CPU: 1507 MHz MEMORY: 7008 MHz

Users could also choose CUSTOMIZED for fan setting, and move the white dots on the line chart to adjust fan speed and temperature.

GIGABYTE GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX COLO MARKET GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX GO NUMBER: COMING INDEX Go to Change Go to Change (0) Go to Change (1) Go to Change (2) Go to Change (3) Go to Change (4) Go to Change (5) Go to Change (6) Go to Change (7) Go to Change (8) Go to Change (9) Go to Change (10) Go to Change (11) Go to Change (12) Go to Change (13) Go to Change (14) Go to Change (15) Go to Change (16) Go to Change (17) Go to Change (18) Go to Change (19) Go to Change (20) Go to Change (21) Go to Change (22) Go to Change (23) Go to Change (24) Go to Change (25) Go to Change (26) Go to Change (27) Go to Change (28) Go to Change (29) Go to Change (30) Go to Change (31) Go to Change (32) Go to Change (33) Go to Change (34) Go to Change (35) Go to Change (36) Go to Change (37) Go to Change (38) Go to Change (39) Go to Change (40) Go to Change (41) Go to Change (42) Go to Change (43) Go to Change (44) Go to Change (45) Go to Change (46) Go to Change (47) Go to Change (48) Go to Change (49) Go to Change (50)

LED

Choose LED on the lower right, users could choose different styles, brightness, colors; they could also turn off the LED effects through this software.

GIGABYTE BY APTESTO GAMING-800 3D COMPUTER 1200000000000000000000000000000000000000000000000000000000000000000000000000000000000 3D COMPUTER 120000000000000000 SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR SPR

Fan control

Choose SEMI PASSIVE/ACTIVE FAN on the lower right to switch the fan mode between semi passive and continuous spin.

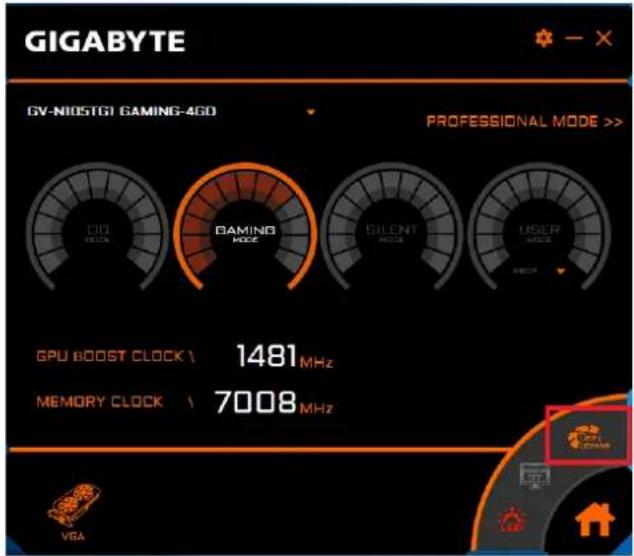

GIGABYTE GV-NIOSTGI GAMING-460 PROFESSIONAL MODE >> CPU GAMING MODE GILENT MODE USER MODE GPU BOOST CLOCK \ 1481 MHz MEMORY CLOCK \ 7008 MHz VISA

4. Troubleshooting Tips

The following troubleshooting tips may help if you experience problems. Contact your dealer or GIGABYTE for more advanced troubleshooting information.

• Check whether the card is seated properly in the PCI Express x16 slot.
• Ensure that the display cable is securely fastened to the card's display connector.
  ● Make sure that the monitor and computer are plugged in and receiving power.

- If necessary, disable any built-in graphics capabilities on your motherboard. For more information, consult your computer's manual or manufacturer.

(NOTE: Some manufacturers do not allow the built-in graphics to be disabled or to become the secondary display.)

● Make sure you selected the appropriate display device and graphics card when you install the graphics driver.

- Restart your computer. Press on your keyboard after system starts up. When the Windows Advanced Options Menu appears, select Safe Mode and press . After getting into Safe Mode, in Device Manager, check whether the driver for the graphics card is correct.

- If you are not able to find the desired monitor sales/resolution settings:
