USER MANUAL AR18TXHYBWKXSA SAMSUNG

AR**TYHY*** / AR**TXHY***

• Thank you for purchasing this Samsung air conditioner.
- Before operating this unit, please read this manual carefully and retain it for future reference.

Checking on the website

STEP1 Check the model name.

STEP 2 Go to the Samsung website (http://www.samsung.com) or Read the QR code.

STEP 3 Search and check User manual. SUPPORT > Manuals & Downloads > Search model

Checking in Service Centre

STEP1 Check the model name.

STEP 2 Contact Service Centre.

STEP 3 Ask for the user manual of your product model.

Indoor Unit Overview

The appearance of the actual product may differ slightly from the image below.

01 02 03 04 05 06 07 08

01 Air intake
02 Air filter
03 Front panel
04 Airflow blade (up and down)

05 Airflow blade (left and right)
06 Power button/Remote control receiver
07 Room temperature sensor
08 Display

Display

01 8.8 ° %, kWh 0203

01 Temperature indicator (numeric) Filter reset indicator OF Auto clean indicator O : Defrost indicator(For AR**TXHY*** models)
02 Timer indicator good'sleep indicator
03 Eco indicator

Set On Off 8.8°C F hr AUTO Auto Cool Dry Fan Heat Fast Eco Quiet Purify ≈ Direct Indirect Usage Beep Clean Filter Reset Display Mode Temp — Fast — Fan Timer Options (Clean 3sec) SET °C~°F 3sec >< >< >

Functions and Buttons

Function Button and Selection Display
Power On/Off
Auto	▶▶Select Auto.	Auto
Cool	▶▶Select Cool.	Cool
Dry	▶▶Select Dry.	Dry
Fan	▶▶Select Fan.	Fan
Heat	▶▶Select Heat.	Heat
Fast	In Cool or Heat mode ▶Fast	Fast
Quiet	In Cool or Heat mode ▶Optim C###	Quiet
	< >▶ Select Quiet. ▶SET °C~7 sec
Beep	▶▶▶ Select Beep. ▶SET °C~7 sec	Beep
Display lighting	▶▶▶ Select Display. ▶SET °C~7 sec	Display

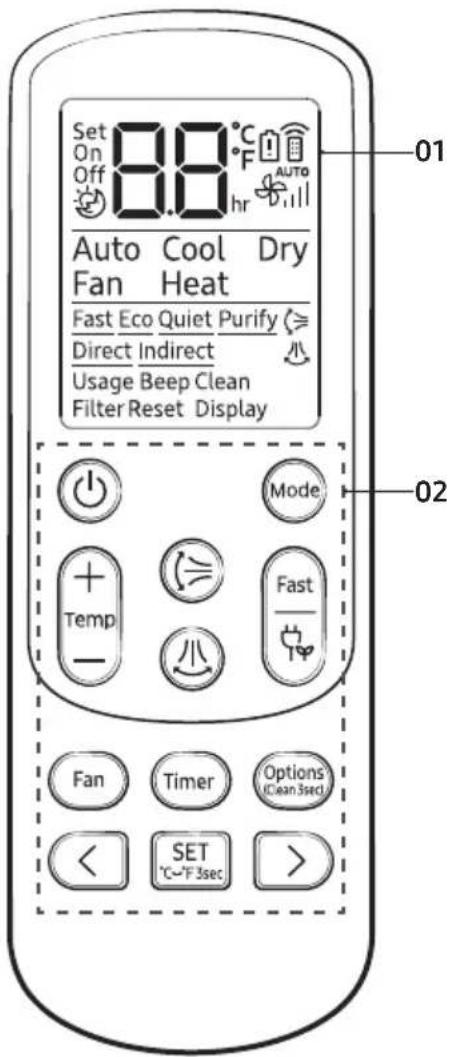

01 Display

02 Button

NOTE

• Although Heat (AR**TYHY***), Horizontal air flow (AR**TYHY***), Purify, Usage, Direct and Indirect is displayed on the remote control display, it is not available on this model.
• Features may differ depending on models.

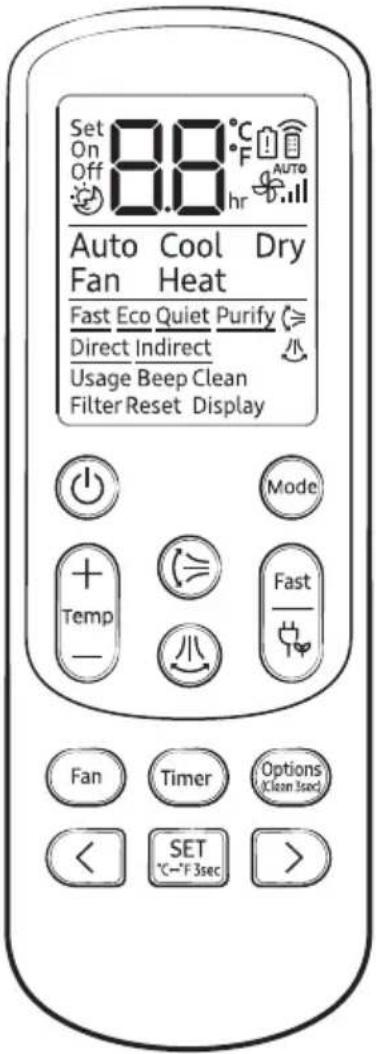

Set On Off 8.8°C F hr AUTO Auto Cool Dry Fan Heat Fast Eco Quiet Purify ≈ Direct Indirect Usage Beep Clean Filter Reset Display Mode + Temp - Fast - Fan Timer Options (Clean 3sec) < SET °C~°F 3sec > >

Function Button and Selection Display
Eco	In Cool or Heat mode ➤	Eco
Timed on/off
good'sleep

Auto clean function

Use the Auto clean function if the indoor unit produces odors.

Activating Auto clean

To activate Auto clean, press the (Options) button for at least 3 seconds. The indoor unit display shows:

Canceling Auto clean

To cancel Auto clean while it is running, follow the procedure below:

▶ Press and hold for 3 or more seconds.

Deactivating Auto clean

To deactivate Auto clean, follow the procedure below while the air conditioner is in operation or turned off:

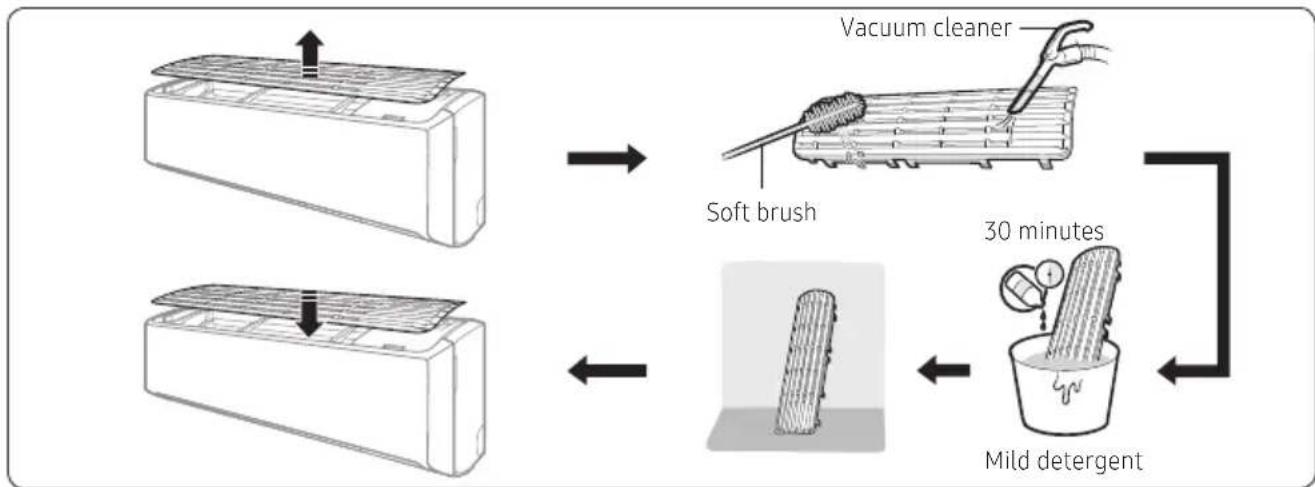

Cleaning the filter

Clean the air filter every two weeks or when the CF (filter cleaning reminder) appears on the indoor unit display. The time between cleanings may vary, depending on the usage and environmental conditions.

1 Slide the filter off of the unit.
2 Use a soft brush or vacuum cleaner to remove any dust or debris on the filter.
3 Soak the filter in a solution of water and mild detergent for 30 minutes.
4 Rinse the filter and let it air dry in a well ventilated area that is out of direct sunlight.
5 Reinstall the filter.
6 Reset the filter cleaning reminder:

In operation ▶ Options (Clean3sed) Select Filter Reset.
