USER MANUAL Verizon MBR1515A NETGEAR

Black Verizon H81 network device with wireless signal and antenna (no readable text or symbols beyond branding)

Overview

The NETGEAR 4G LTE Mobile Broadband N300 WiFi Router allows you to share your 4G LTE broadband with more WiFi devices. Ideal uses include mobile business and workforce situations, home and remote locations, events and conferences, or even from recreational vehicles. The Verizon 4G LTE network offers nationwide availability.

MBR1515A

Highlights

• Share Verizon 4G LTE broadband
- Fast, reliable connection anywhere and everywhere
• Usage meter helps control data costs
- Easy CD-less installation

Features

• N300 WiFi speed for faster connectivity
• High-performance antennas for optimal 4G LTE service
- Failover from wired to wireless connection and from wireless to wired connection
- 3G fallback—Falls back to 3G CDMA connection when no LTE is available
• 4 Fast Ethernet ports to connect wired devices to your network
• Available Ethernet WAN port for wired broadband service

Ideal Uses

A farmer crouching beside a large tire in a field with a tractor and a blue truck in the background (no visible text or symbols)

Mobile Business

Three professionals in business attire and hard hats discussing near a large glass building (no visible text or symbols)

Mobile Workforce

Wooden house with wooden legs and feet standing on a grassy shore overlooking the ocean (no text or symbols visible)

Home and Remote Locations

Group of people in a conference or seminar setting, some wearing suits and holding microphones (no visible text or signage)

Events and Conference

Rural scene with a white RV parked in front of green hills under a blue sky (no visible text or symbols)

Recreational Vehicles

Verizon 4G LTE Nationwide Network

• Nationwide availability—more 4G LTE coverage
• America's fastest 4G LTE network
• Video streaming and chat
- Portable WiFi
PAGE 1 OF 2

4G LTE Mobile Broadband N300 WiFi Router Data Sheet

MBR1515A

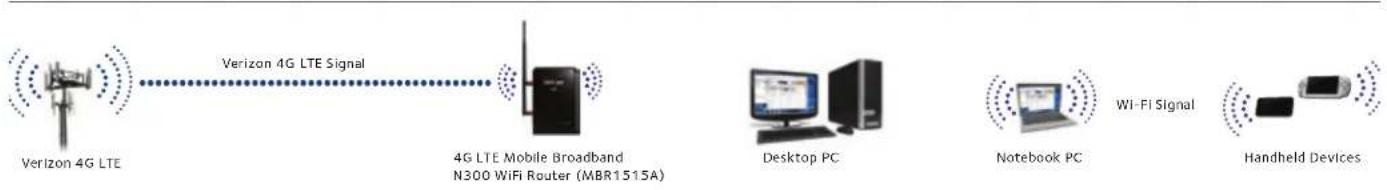

Create a 4G LTE Hot Spot Anywhere

Speed

Get the fastest 4G LTE currently available nationwide & enjoy fast, lag-free N300 WiFi connections.

4G LTE & 3G CONNECTIVITY—Get anytime, anywhere access to super-fast 4G LTE & 3G networks

WiFi Range

Whether you're at home or a remote location, you've got WiFi coverage no matter where your life takes you.

HIGH SPEED—N300 WiFi speed provides a faster internet connection for demanding applications like multiplayer gaming

OPTIMAL SERVICE—High-performance antennas for optimal 4G LTE service

WIRED BROADBAND—Ethernet WAN port for wired broadband service as alternate connection

Sharing

Share your 4G LTE broadband with more WiFi devices. And 4 Fast Ethernet ports let you connect wired devices to your network.

BROADBAND USAGE METER—Monitors Internet traffic and sends customized reports to help keep data costs under control

Reliable Connections

Enjoy fast, reliable connection anywhere and everywhere. And 4 Fast Ethernet ports let you connect wire devices to your network.

3G FALLBACK—Falls back to 3G CDMA connection when no LTE is available

FAILOVER—From wired to wireless connection and from wireless to wired connection

Ease of Use

NETGEAR wants to make sure installation and management is simple & easy, so you can connect quickly & make sure you stay that way!

EASY SETUP—CD-less installation for PCs, tablets and smartphones

NETGEAR GREEN FEATURES—Power and Wi-Fi on/off buttons, and 80% recycled packaging

SCAN TO LEARN MORE

MBR1515A

PACKAGE CONTENTS

• 4G LTE Mobile Broadband N300 WiFi Router (MBR1515A))
- Two (2) antennas
- Stand
- Ethernet cable
- Power adapter

PHYSICAL SPECIFICATIONS

• Dimensions: 285 x 225 x 100 mm (11.22 x 8.86 x 3.94 in)
• Weight: 0.8 kg (1.76 lb)

STANDARDS

- IEEE® 802.11 b/g/n 2.4 GHz

WARRANTY

• NETEAR 1-year limited warranty

SYSTEM REQUIREMENTS

• Verizon 3G/4G LTE mobile broadband service
- 802.11 b/g/n 2.4 GHz wireless adapter or Ethernet adapter and cable for each computer
- Microsoft "Windows" 7, Windows" 8, Vista", XP, 2000, Mac OS", or other operating systems running a TCP/IP network
- Microsoft ^ Internet Explorer ^ 5.0, Firefox ^ 2.0 or Safari ^ 1.4 or higher

SECURITY

• Wi-Fi Protected Access ^® (WPA/WPA2—PSK)
• Denial-of-service (DoS) attack prevention

PERFORMANCE

• Mobile Broadband 4G LTE
• 4G LTE Frequency Band - 700MHz (Band 13)
- 3G CDMA Frequency Band - 850MHz (BCO) & 1900MHz (BC1)
• Speeds of up to 70 Mbps (downlink), and 20 Mbps (uplink)

EASE OF USE

• CD-less installation
• Push 'N' Connect using Wi-Fi Protected Setup ^2 (WPS) ^1

ADVANCED FEATURES

• Wi-Fi enabled (802.11 n/b/g)
- Ethernet WAN port for alternate Internet connection supports failover/failback from Ethernet to 4G LTE connection
• Four Fast Ethernet ports (RJ45)
• Data traffic metering and limit controls
- Content filtering
• High-performance antennas for optimal 4G service
- Internet and Wi-Fi security
- Failover from wired to wireless connection and from wireless to wired connection

This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller.

*Basic technical support provided for 90 days from date of purchase when purchased from a NETGEAR authorized reseller.

Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput and wireless coverage will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate and wireless coverage. NETGEAR makes no express or implied representations or warranties about this product's compatibility with any future standards.

Works with devices supporting Wi-Fi Protected Setup® (WPS).

NETGEAR, and the NETGEAR Logo are trademarks and/or registered trademarks of NETGEAR, Inc. and/or subsidiaries in the United States and/or other countries. Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. Other brand names mentioned herein are for identification purposes only and may be trademarks of their respective holder(s). Information is subject to change without notice. All rights reserved. ©2014 NETGEAR, Inc.
