USER MANUAL 51392 KENMORE

Use & Care / Installation Manual

READ AND SAVE THESE INSTRUCTIONS

TABLE OF CONTENTS

SECTION ...... PAGE

Warranty....2

Safety Instructions 3

Operation....4

Cleaning 4

Parts Included With Hood 5

Parts Not Included With Hood 5

Tools Needed 5

Equivalent Duct Length Chart 6

Install Ductwork 7

Prepare The Hood 7-9

Prepare The Hood Location 10-14

EZ1 One-Person Installation 10-12

Install The Hood (EZ1 Brackets) 13

Standard Installation (without EZ1 Brackets) .....14

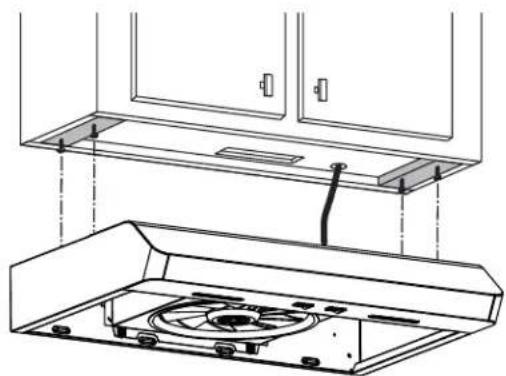

Install The Hood (Standard Installation) 14

Connect The Wiring 15

Install The Filters ....15

Service Parts 16

KENMORE LIMITED WARRANTY

WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions.

FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. A defective appliance will receive free repair or replacement at option of seller. This ONE YEAR coverage does not apply to the finish of any painted or bright metal part.

FOR THIRTY DAYS from the date of sale, any painted or bright metal part of this product will be replaced free of charge if its fi nish is defective in material or workmanship.

For warranty coverage details to obtain free repair or replacement, visit the web page: www.kenmore.com/warranty

All warranty coverage is void if this product is ever used for other than private household purposes.

This warranty covers ONLY defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, bags or screw-in base light bulbs.

2. A service technician to clean or maintain this appliance, or to instruct the user in correct appliance installation, operation and maintenance.

3. Service calls to correct appliance installation not performed by Sears authorized service agents, or to repair problems with house fuses, circuit breakers, house wiring, and plumbing or gas supply systems resulting from such installation.

4. Damage to or failure of this appliance resulting from installation not performed by Sears authorized service agents, including installation that was not in accord with electrical, gas or plumbing codes.

KENMORE LIMITED WARRANTY

1. Damage to or failure of this appliance, including discoloration or surface rust, if it is not correctly operated and maintained according to all supplied instructions.
2. Damage to or failure of this appliance, including discoloration or surface rust, resulting from accident, alteration, abuse, misuse or use for other than its intended purpose.
3. Damage to or failure of this appliance, including discoloration or surface rust, caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.
4. Damage to or failure of parts or systems resulting from unauthorized modifications made to this appliance.
5. Service to an appliance if the model and serial plate is missing, altered, or cannot easily be determined to have the appropriate certification logo.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair or replacement as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year for the range hood and thirty days for painted or bright metal parts, or the shortest period allowed by law. Seller shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation,

Hoffman Estates, IL 60179

SAFETY INSTRUCTIONS

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fi re-rated codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the fl ue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. To reduce the risk of fire or electric shock, do not use this range hood with an additional speed control device.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

1. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when cooking fl aming foods.
3. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:\*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you already know how to operate it.
B. The fi re is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire safety Tips" published by NFPA.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. For best capture of cooking impurities, your range hood should be mounted so that the top of the hood is 18-24" above the cooking surface.
4. Use only with range hood cord-connection kits that have been investigated and found acceptable for use with this model range hood.
5. Please read specification label on product for further information and requirements.

NOTE

If hood is to be installed Non-Ducted: Purchase non-ducted fi Iters and attach them to the micromesh fi Iters.

"Non-ducted Filters" available by calling 1-844-553-6667

OPERATION

FAN
SWITCH

LIGHT
SWITCH

Fan

This rocker switch (on the left) controls the fan. See below:

I Turns fan on to LOW speed.
- Turns fan OFF.
II Turns fan on to HIGH speed.

Light

This rocker switch (on the right) controls the light. See below:

• Turns light OFF.
  I Turns light ON.

WARNING: To reduce the risk of electric shock, disconnect from power supply before cleaning.

Micromesh fi Iters

Clean frequently using hot water and a mild detergent or in your dishwasher. The micromesh filters should be washed approximately every month depending on the amount of usage. Wash more often if your cooking style generates greater grease - like frying foods or wok cooking.

Non-ducted recirculation fi Iters

(available separately - see page 5)

The non-ducted recirculation filters should be changed every 3 to 6 months. Replace more often if your cooking style generates extra grease, such as frying and wok cooking. Refer to installation instructions included with non-ducted recirculation filters.

Painted hood surfaces

Clean with warm water and mild detergent only. If discoloration occurs, use a fi nish polish such as automotive polish. (DO NOT use rough abrasive cleaner or porcelain cleaner.)

Stainless steel hood surfaces

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  • Always clean in the direction of original polish lines.
  • Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner.

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the range hood to make sure no dust sticks to the stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
  • Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

Fan assembly

The fan blade should be cleaned frequently. Use a clean cloth soaked with warm detergent solution.

The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The fan blade should also be replaced.

PARTS INCLUDED WITH HOOD

Micromesh Grease Filters (2 per hood)

3 ^1/4 " x 10"
Damper / Duct Connector

PARTS NOT INCLUDED WITH HOOD

OPTIONAL PARTS (purchase separately)

Non-Ducted Recirculation Filters
(Non-ducted hoods only)
(2 per hood)
Part No. S97020466

7-inch Round Damper
(For use with 7-inch Round Duct)
Part No. 59183

7" Round Duct Connector

Technical drawing with sectional views and dimension annotations for a mechanical part

EZ-1 One person Installation Kit (including template for ducting, printed both sides, and installation brackets)

Parts Bag
(4 no. 8-18 x 1/2" metal screws,
6 no. 8 x 5/8" round head wood screws,
6 no. 8 x 1/2" countersunk wood screws)
"Parts Not Included With Hood" available by calling 1-844-553-6667

TOOLS NEEDED FOR HOOD INSTALLATION

Screwdriver
(Flat & Phillips no. 2)

Drill
(with 1/8" and
7/64" drill bits, and 1½" hole saw)

Long Nose Pliers

Metal Foil Duct Tape

Sabre Saw -or- Keyhole Saw

Sheet Metal Shears

Stripper

EQUIVALENT DUCT LENGTH CHART

Kenmore range hoods are designed to perform efficiently when attached to long runs of duct. As a point of reference, this hood will function at approximately 80% of its rated air flow when 25 equivalent feet of 7" round ductwork is attached. Use this chart to calculate the equivalent duct length of your system.

Straight Duct 3¼-in. x 10-in. x 2-ft. long Equivalent length 2 ft.

Straight Duct 7-in. round x 2-ft. long Equivalent length 2 ft.

7-in. Round Elbow Equivalent length 8 ft.

3¼-in. x 10-in. to 7-in. Round Transition Equivalent length 5.5 ft.

3½-in. x 10-in. Right-angle Elbow Equivalent length 8.5 ft.

3¼-in. x 10-in. Right-angle Flat Elbow Equivalent length 24 ft.

Technical line drawing of a mechanical component with no visible text or symbols

3¼-in. x 10-in. Right-angle Short Eave Elbow Equivalent length 15 ft.

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

3¼-in. x 10-in. Right-angle Long Eave Elbow Equivalent length 15 ft.

7-in. Round Wall Cap Equivalent length 34 ft. (6-ft. w/o damper)

Isometric line drawing of a rectangular electronic component with a slotted top and side gap (no text or symbols)

3¼-in. x 10-in. Wall Cap Equivalent length 45 ft. (7-ft. w/o damper)

Isometric line drawing of a 3D geometric object on a plane, no text or symbols present

Roof Cap (accepts 7-in. round or 3 ^1/4 -in. x 10-in. duct) Equivalent length 30 ft. (7-ft. w/o damper)

"Ducting Accessories" available by calling 1-844-553-6667

INSTALL DUCTWORK (DUCTED INSTALLATION ONLY)

1. Determine whether hood will discharge vertically (3 ^1/4 " x 10" or 7" Round) or horizontally (3 ^1/4 " x 10" only).
2. Run ductwork between the hood location and a roof cap or wall cap.
3. The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow. Refer to the table below to help you plan the most efficient installation.
4. Install wall cap or roof cap (sold separately); ensure there is no leak in hoïouse insulation. Connect metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints between ductwork sections.

ROOF CAP 3¼" x 10" OR 7" ROUND DUCT (FOR VERTICAL DISCHARGE) SOFFIT CABINET HOUSE WIRING (TOP OR BACK OF HOOD) WALL CAP HOOD 3¼" x 10" DUCT (FOR HORIZONTAL DISCHARGE) 18" MIN - 24" MAX ABOVE COOKING SURFACE

NOTE: Distances over 24" are at the installer and user discretion.

Maximum Duct Lengths Recommended to Achieve 80% Exhaust Efficiency

31⁄4" x 10" HORIZONTAL MAXIMUM DUCT LENGTH	31⁄4" x 10" VERTICAL MAXIMUM DUCT LENGTH	7" ROUND MAXIMUM DUCT LENGTH	ROOF OR WALL CAP WITH DAMPER	ELBOW(s)*(90° AND/OR 45°)
91 ft. 79 ft. 92 ft.	1	0
82 ft. 71 ft.	78 ft.	1	1
73 ft.	62 ft.	62 ft.	1	2

* Standard elbows with 1" internal radius.

PREPARE THE HOOD

1. If present, remove all protective polyfi lm from the hood and/or parts. Using the finger cup, remove the Micromesh Filters from the hood by pushing down and tilting filters out.

Diagram of a refrigerator with labeled parts and directional arrows indicating movement or change.

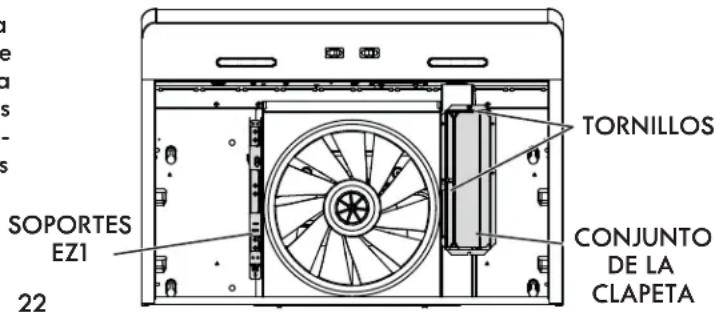

1. Remove the EZ1 brackets from inside the hood by cutting off the tie wrap. Remove both screws holding damper assembly to hood. Remove parts bag (captured behind the damper assembly). Remove damper assembly from inside the hood and keep the screws for further use.

EZ1 BRACKETS SCREWS DAMPER ASSEMBLY

1. Remove the wiring cover (shaded part on illustration beside) by sliding it out from the hood and set it aside.

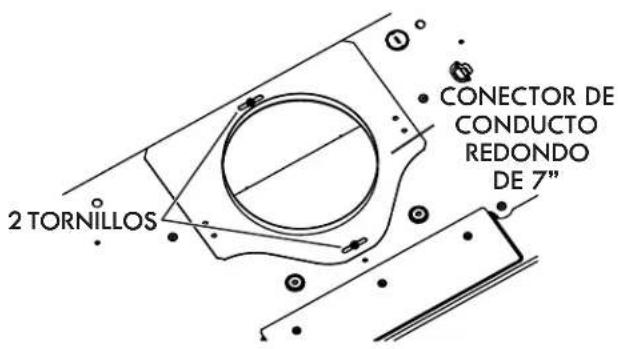

2. Remove 7" Round Duct Plate from top/back of hood (see illustration beside).

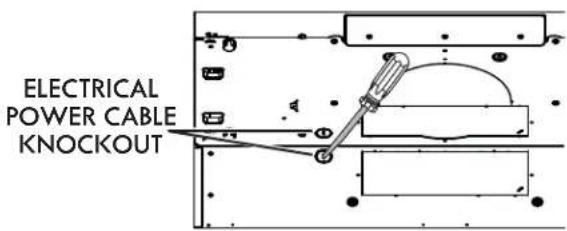

3. Remove Electrical Power Cable Knockout from top (vertical exhaust) or back (horizontal exhaust) of hood. Install an appropriate strain relief, 1/2" diameter (not included).

Technical line drawing of a mechanical component with a central wheel and directional arrow (no text or symbols)

2 SCREWS 7" ROUND DUCT PLATE

ELECTRICAL POWER CABLE KNOCKOUT

NON-DUCTED INSTALLATIONS ONLY

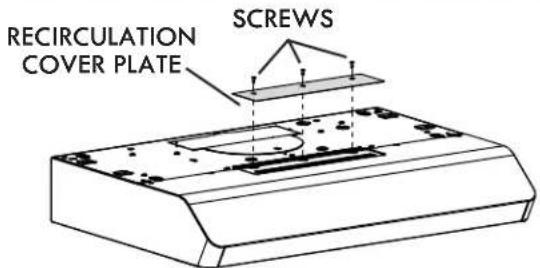

1. Remove 3 screws retaining the recirculation cover plate (shaded part in illustration beside) to the hood. Discard this plate with its screws.

RECIRCULATION COVER PLATE SCREWS

DUCTED INSTALLATIONS ONLY

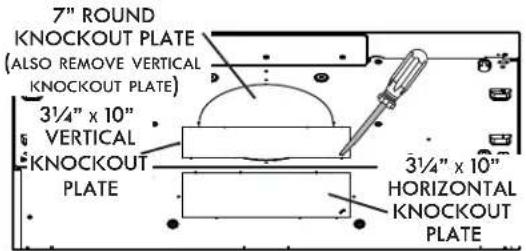

1. Remove 3½" x 10" vertical, 3½" x 10" horizontal, or 7-inch round knockout plate as appropriate for your ducting method (see FIGURES 1 A and 1 B).

FIGURE 1 A FIGURE 1 B

7" ROUND KNOCKOUT PLATE (ALSO REMOVE VERTICAL KNOCKOUT PLATE) 3¼" x 10" VERTICAL KNOCKOUT PLATE 3¼" x 10" HORIZONTAL KNOCKOUT PLATE

Diagram of a mechanical assembly with a cutting tool and component, no visible text or symbols

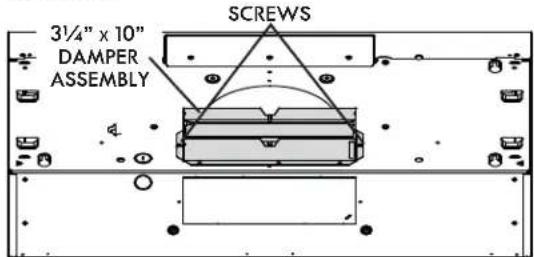

1. Attach 3 ^1/4 " x 10" Damper Assembly on top OR back of hood (if using 3 ^1/4 " x 10" duct; shaded part in FIGURE 2 A) or 7" Round Duct Plate (if using 7-inch round duct, FIGURE 3) over the knockout opening. When installed, the 3 ^1/4 " x 10" damper assembly must open as shown in FIGURE 2 B.

FIGURE 2 A

3¼" x 10" DAMPER ASSEMBLY SCREWS

FIGURE 2 B

TOP/BACK EDGE OF HOOD DAMPER FLAP PIVOT

3½" x 10" DAMPER ASSEMBLY SCREWS

BACK OF HOOD DAMPER FLAP PIVOT

FIGURE 3 7" ROUND DUCT PLATE SCREWS

NOTE: To accommodate off-center ductwork, the 7" round duct plate can be installed up to 1/2" on either side of the hood center.

TIP: Insert a small length of duct over the 3½" x 10" damper assembly (for rectangular ducting) or 7" round (for round ducting) and seal the joint using aluminum foil duct tape to ease connection with the house ductwork.

PREPARE THE HOOD LOCATION

NOTE: Before starting installation, read all the steps of these instructions.

Use the illustration beside to identify your kitchen cabinet type.

This manual covers 2 kinds of installation: the standard (without EZ1 brackets) and the EZ1 one-person installation system (using included template and brackets). For the standard installation, go to page 14.

FRAMED CABINET FRAMELESS CABINET

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

EZ1 One-person installation system

EZ1 installation is designed for use with kitchen cabinets that have the same width designation as the range hood width. If the cabinet is greater than 1/2" wider than the range hood width, please use the standard installation method.

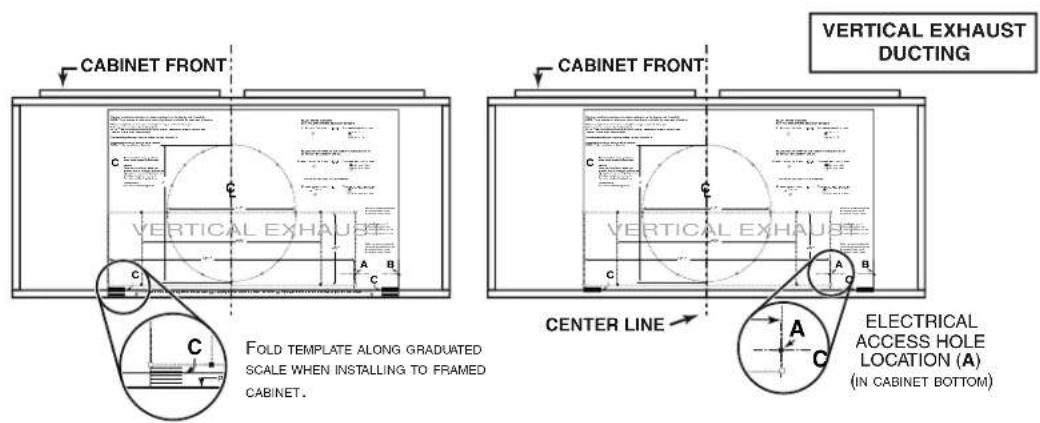

1. Use the proper template for vertical OR horizontal discharge (included) for placement of ductwork and electrical cutout in cabinet or wall. For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring. If replacing a hood and plan to use the existing duct and electrical, steps 2 to 5 may not be necessary. If so, skip to step 6.

2. Measure and mark the hood center line on cabinet bottom.

3. Align the center line on template with the hood center line marked on the bottom of the cabinet, placing the edge (where indicated) of the template against back wall. When using with framed cabinet for vertical exhaust installation, fold over rear edge of template equal to the depth of the cabinet frame at the wall (use graduations on template, C locations on template). Tape the template in place.

NOTE: When facing the installation, A and B (on template) must be at right.

CABINET FRONT VERTICAL EXHAUST DUCTING CABINET FRONT VERTICAL EXHAUST CENTER LINE ELECTRICAL ACCESS HOLE LOCATION (A) (IN CABINET BOTTOM) FOLD TEMPLATE ALONG GRADUATED SCALE WHEN INSTALLING TO FRAMED CABINET.

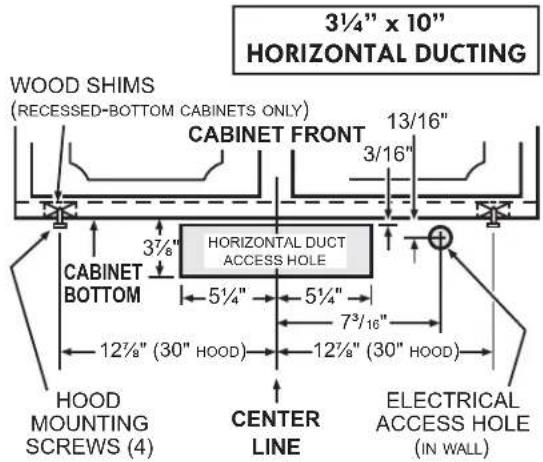

CENTER LINE HORIZONTAL EXHAUST DUCTING HORIZONTAL EXHAUST ELECTRICAL ACCESS HOLE LOCATION (A) (IN WALL)

1. Drill a 1/8" dia. pilot hole for house wiring, at A location on template.

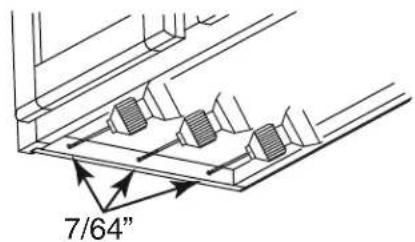

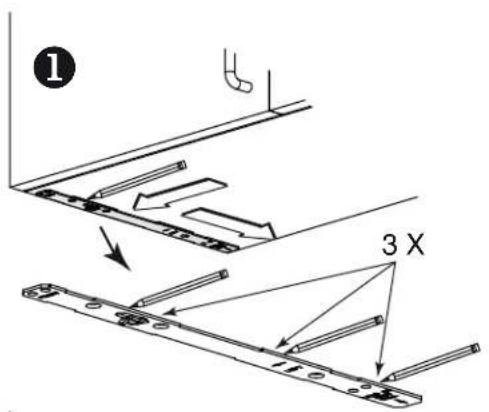

2. Use a sharp pencil or 1/8" drill bit to mark the locations for the appropriate duct access holes (16 locations for 7" round duct, or 4 corner locations for rectangular duct). Remove the template.

FRAMED CABINET

Refer to the marking on the brackets to determine the correct installation side and orientation.

1. Draw the border for the exhaust ducting by linking its marks (16 for round duct and 4 for rectangular duct), then cut the opening in the cabinet bottom (vertical exhaust) or in the wall (horizontal exhaust). Drill the house wiring hole by using a 1 12 " hole saw centered with the pilot hole previously made in 4.
2. Install the proper installation brackets according to the type of cabinet (framed or frameless). See below.

Technical diagram showing mechanical assembly with pulleys and labeled components, including Chinese annotations for parts like '螺母' (helix) and '螺母' (helix)

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

7/64"

3

Technical line drawing of a structural support frame with mounting holes and beams (no text or symbols)

① Mate the corresponding bracket to the cabinet side frame, while placing rear end of bracket against the wall. Use a pencil to mark 3 holes (there are 6 holes but only 3 are necessary).
② Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
③ Assemble the bracket to the side frame using a Phillips screwdriver and 3 provided no. 8 x 5/8" wood screws. Repeat for the other side frame.

FRAMELESS CABINET

Refer to the marking on the brackets to determine the correct installation side and orientation.

F F-1 F-2 F-3

① 3 X

Technical diagram showing a structural assembly with labeled components and directional arrows indicating movement or force.

Technical line drawing of a structural support frame with vertical supports and a pipe outlet (no text or symbols)

4 7/64"

Technical diagram showing a structural assembly with hanging fixtures and a pipe connection (no text or symbols)

① Align the corresponding bracket to the cabinet side, while placing rear end of bracket against the wall. Draw a line on the outer edge of the bracket (as shown).
② Slide the bracket towards the center of cabinet and align the outside edge of the bracket with the marked line, keeping the rear end edge leaning on the wall.
③ Use a pencil to mark 3 holes.
4 Remove the bracket. Using a 7/64" drill bit, drill 3 holes where marked.
⑤ Assemble the bracket to the cabinet bottom using a Phillips screwdriver and 3 provided countersunk wood screws. Repeat for the other cabinet side .

Install the hood (EZ1 brackets)

NOTE: The following procedure applies to both framed or frameless cabinet installations.

1. Run house power cable between service panel and hood location.
2. There are 2 pairs of recessed holes on each side of the top of the hood (on rear: A and B, on front C and D on illustration below); these holes allow the range hood to hang on the brackets (previously installed).

HORIZONTAL EXHAUST INSTALLATION ONLY

1. Temporarily hang the hood on the brackets using its 2 recessed REAR HOLES (A and B). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 5 on page 8.

2. Unhook the rear holes from the brackets and hang the hood using its 2 recessed FRONT HOLES (C and D). While holding the hood, attach the power cable to the hood using the strain relief.

VERTICAL EXHAUST INSTALLATION ONLY

1. Hang the hood on the brackets using the 2 recessed FRONT HOLES (C and D). While holding the hood, run the house power cable into the hood through the strain relief previously installed in step 5 on page 8. Attach power cable to the hood.

C A D B

A B

DUCTED INSTALLATIONS ONLY

1. Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

2. For framed cabinet, secure the hood to the EZ1 brackets using 4 no. 8-18 x 1/2" metal screws (screws included in parts bag). Insert 2 screws per side, in the slots (as shown in inset on illustration beside).

3. For frameless cabinet, secure the hood to the cabinet using 4 no. 8 x 5/8" round head wood screws (screws included in parts bag). Insert 2 screws per side, in the slots (as shown in inset on illustration beside).

FRAMED CABINET FRAMELESS CABINET

Technical line drawing of a mechanical assembly with pulleys and mounting holes (no text or symbols)

METAL
SCREWS

Technical line drawing of a mechanical device with pulleys and mounting holes (no text or symbols)

Wood
SCREWS

Standard Installation (without EZ1 brackets)

1. Use these diagrams for proper placement of ductwork and electrical cutout in cabinet or wall.

For a non-ducted installation, DO NOT cut a duct access hole, only cut the hole for electrical wiring.

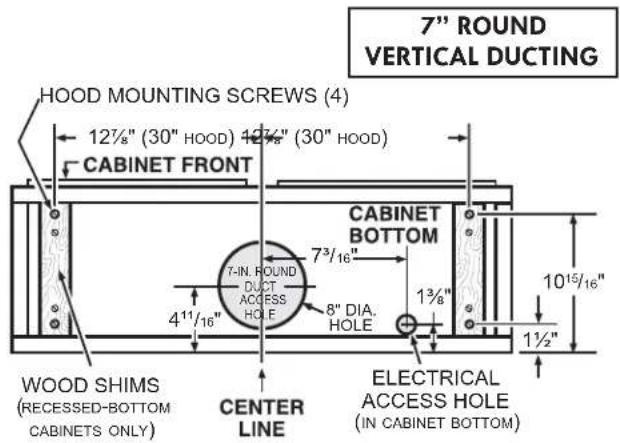

7" ROUND VERTICAL DUCTING HOOD MOUNTING SCREWS (4) 12½" (30" HOOD) 4½" (30" HOOD) CABINET FRONT CABINET BOTTOM 7³/16" 7-IN. ROUND DUCT ACCESS HOLE 8" DIA. HOLE 1¾" 10¹⁵/¹⁶" 4¹¹/¹⁶" 1½" WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM)

1. Install part-way four (4) ROUND HEAD no. 8 x 5/8" mounting screws into shims/cabinet, according to the proper diagram above. (Mounting screws are included in parts bag, but wood shims and shim mounting screws are not included)

3½" x 10" VERTICAL DUCTING HOOD MOUNTING SCREWS (4) 12½" (30" HOOD) 12½" (30" HOOD) CABINET FRONT CABINET BOTTOM 7¾/16" 5½" 4¾/16" VERTICAL DUCT ACCESS HOLE 1¾" 3/4" ELECTRICAL ACCESS HOLE (IN CABINET BOTTOM) WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CENTER LINE

3½" x 10" HORIZONTAL DUCTING WOOD SHIMS (RECESSED-BOTTOM CABINETS ONLY) CABINET FRONT 13/16" 3/16" 3½" HORIZONTAL DUCT ACCESS HOLE CABINET BOTTOM 5½" 5½" 7³/₁₆" 12½" (30" HOOD) 12½" (30" HOOD) HOOD MOUNTING SCREWS (4) CENTER LINE ELECTRICAL ACCESS HOLE (IN WALL)

Install the Hood (Standard Installation)

NOTE: Two installers are recommended because of the weight of this hood.

1. Run house power cable between service panel and hood location. Run the house power cable into the hood through the strain relief previously installed in step 5 on page 8.
2. Hang hood from (4) mounting screws previously installed. Slide hood back towards wall until mounting screw heads are engaged in narrow end of keyhole slots in top of hood. Tighten screws securely. Attach power cable to the hood using the strain relief.

Technical line drawing of a kitchen ventilation system with an open fan and cabinet (no text or symbols)

DUCTED INSTALLATIONS ONLY

1. Connect the ductwork to the hood and use metal foil duct tape to make joints secure and air-tight. Make sure the damper assembly (or round duct plate) enters the ductwork and that the damper opens and closes freely.

CONNECT THE WIRING

WARNING: Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

1. Connect House Power Cable to range hood wiring: BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw.

2. Reinstall wiring cover and attach it to the hood using its retaining screw.

CAUTION: Ensure both tabs on inner top of hood are engaged in their corresponding slots in wiring cover. Also, take care not to pinch wires while reinstalling wiring cover.

INSTALL THE FILTERS

Ducted Installation Only:

Re-install grease filters removed in step 1 on page 7, under "Prepare the Hood".

Non-ducted Installation Only:

Purchase two non-ducted filters (see part number in Service parts list). Attach the non-ducted filters following instructions packed with the non-ducted filters.

"Non-ducted Filters" available by calling 1-844-553-6667

SERVICE PARTS

Exploded view diagram of a kitchen air conditioner unit with numbered parts for identification

KEY NO.	PART NO. DESCRIPTION		QUANTITY
			51392	51393	51399
1	S97020030 R	ECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS)	1
	S97020031 R	ECIRCULATION COVER PLATE, STAINLESS STEEL (INCLUDING SCREWS)		1
	S97020029 R	ECIRCULATION COVER PLATE, BLACK (INCLUDING SCREWS)			1
2 SR6	80508 7" R	OUND DUCT PLATE (INCLUDING SCREWS)	1	1	1
3 S97	020534 31⁄4"	X 10" DAMPER ASSEMBLY (INCLUDING SCREWS)	1	1	1
4 S97	020409 B	LOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR)	1	1	1
5 S97	020407 F	ANPELLER (INCLUDING ITEM 6)	1	1	1
6	SR99420635	CLIP FOR FANPELLER	1	1	1
7	S99010434-002	GREASE FILTER - MICRO MESH - TYPE C1 (SET OF 2)	1	1	1
8	S99030377 R	OCKER SWITCH, WHITE (SET OF 2)	1
	S99030375	ROCKER SWITCH, GREY (SET OF 2)		1
	S99030376	ROCKER SWITCH, BLACK (SET OF 2)			1
9 S97	020444 LED	MODULE (PAIR)	1	1	1
10	S97020446 D	RIVER FOR LED ENERGY STAR (WITH SCREWS)	1	1	1
* S97	020449 W	IRE HARNESS	1	1	1
*	S98011637	WIRING COVER	1	1	1
* S97	020360	PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2",6 ROUND HEAD NO. 8 X 5/8" WOOD SCREWS,6 NO. 8 X 1/2" COUNTERSUNK WOOD SCREWS	1	1	1
* S97	020466 N	ON-DUCTED FILTER - TYPE XC (SET OF 2) (NON-DUCTED INSTALLATION ONLY)	1	1	1
*	S99527587	NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)	1	1	1
*	S97020470	EASY INSTALL KIT (INCLUDING HARDWARE)	1	1	1

Order replacement parts by PART NO. - not by KEY NO.
* Not illustrated

REPLACEMENT PARTS

In order to ensure your unit remains in good working condition, you must use the manufacturer genuine replacement parts only. The manufacturer genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. To purchase the genuine replacement parts listed above, call 1-844-553-6667.

LEA Y CONSERVE ESTAS INSTRUCCIONES

TABLA DE CONTENIDO

SECCIÓN....PÁGINA

Garantía....17

Sears Brands Management Corporation, Hoff man Estates, Illinois 60179

PREVISTO PARA COCINAR DOMÉSTICO SOLAMENTE.

VEGETICALE A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with labeled parts (no text or symbols beyond labels)

Pure electrical connector diagram without any text or symbols

Isometric line drawing of a 3D geometric object with a sloped top surface and a flat base (no text or symbols)

Diagram of a door with labeled parts and directional arrows indicating movement or flow

SOPORTES EZ1 22 TORNILLOS CONJUNTO DE LA CLAPETA

Technical line drawing of a mechanical fan or wheel assembly with no visible text or symbols

2 TORNILLOS • CONECTOR DE CONDUCTO REDONDO DE 7"

Diagram showing a mechanical or electrical component with labeled parts and an arrow indicating direction, possibly illustrating a process or assembly.

Two technical line drawings of a cabinet or enclosure with no text, numbers, or symbols present.

Technical diagram showing mechanical assembly with pulleys and labeled parts, including Chinese annotations

1

Technical line drawing of a mechanical assembly with no visible text or symbols

2

7/64"

3

Technical line drawing of a structural support frame with mounting holes (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and circular insets for detail views.

① 3 X

Technical diagram showing a structural assembly with labeled components and directional arrows indicating movement or force.

Technical line drawing of a structural support frame with vertical supports and a pipe outlet (no text or symbols)

4 7/64"

Technical diagram showing a ceiling structure with support fixtures and pipe connections (no text or symbols)

Technical line drawing of a mechanical device with pulleys and directional arrows indicating motion (no text or symbols)

TORNILLOS
PARA METAL

ARMARIO SIN ARMAZÓN

Technical line drawing of a mechanical device with pulleys and directional arrows indicating motion (no text or symbols)

TORNILLOS
PARA MADERA

Technical line drawing of a kitchen ventilation system with an open fan and cabinet (no text or symbols)

Exploded view diagram of a kitchen air conditioner unit with numbered parts for identification

CLAVE N.°	PIEZA N.° DESCRIPCIÓN		CANTIDAD
			51392	51393	51399
1	S97020030 P	LACA DE CUBIERTA DE RECIRCULACIÓN, BLANCA (INCLUYE TORNILLOS)	1
	S97020031 P	LACA DE CUBIERTA DE RECIRCULACIÓN, ACERO INOX. (INCL. TORNILLOS)		1
	S97020029 P	LACA DE CUBIERTA DE RECIRCULACIÓN, NEGRA (INCLUYE TORNILLOS)			1
2 SR680508 C		ONECTOR DE CONDUCTO REDONDO DE 7" (INCLUYE TORNILLOS)	1	1	1
3 S97020534 C		ONJUNTO DE CLAPETA DE 314 " X 10" (INCLUYE TORNILLOS)	1	1	1
4 S97020409 M		OTOR DEL VENTILADOR IMPELENTE (INCL. 4 TORNILLOS Y 1 CONDENSADOR)	1	1	1
5 S97020407 H		ÉLICE (INCLUYE N.° 6)	1	1	1
6	SR99420635	CLIP DE LA HÉLICE	1	1	1
7	S99010430-002	FILTRO DE GRASA - MICROFILTRACIÓN - TYPO C1 (JUEGO DE 2)	1	1	1
8	S99030377 I	INTERRUPTOR OSCILANTE, BLANCO (SJUEGO DE 2)	1
	S99030375	INTERRUPTOR OSCILANTE, GRIS (JUEGO DE 2)		1
	S99030376	INTERRUPTOR OSCILANTE, NEGRO (JUEGO 2)			1
9 S97020444 M		ÓDULO DE LED (JUEGO DE 2)	1	1	1
10	S97020446 A	CTIVADOR LED ENERGY STAR (INCLUYE TORNILLOS)	1	1	1
* S97020449 H		ARNÉS DE HILOS	1	1	1
*	S98011637	TAPA DE CABLEADOS	1	1	1
* S97020360		BOLSA DE PIEZAS, INCLUYE: 4 TORNILLOS PARA METAL N.° 8-18 x 1/2",6 TORNILLOS DE CABEZA REDONDA PARA MADERA N.° 8 x 9/16",6 TORNILLOS EMBUTIDOS N.° 8 x 1/2"	1	1	1
* S97020466		FILTRO DE RECIRCULACIÓN - TYPO XC (JUEGO DE 2)(INSTALACIÓN SIN CONDUCTOS ÚNICAMENTE)	1	1	1
*	S99527587 J	UEGO DE SUJETADORES PARA FILTROS DE CARBÓN – INCLUYE 4 SUJETADORES	1	1	1
*	S97020470 E	QUIPO PARA FÁCIL INSTALACIÓN (INCLUYE TORNILLOS)	1	1	1

Customer Care Hotline

To schedule in-home repair service or order replacement parts
