PREFACE

Every effort has been made to ensure that the information in this document is complete, accurate, and up-to-date. The manufacturer assumes no responsibility for the results of errors beyond its control. The manufacturer also cannot guarantee that changes in software and equipment made by other manufacturers and referred to in this guide will not affect the applicability of the information in it. Mention of software products manufactured by other companies does not necessarily constitute endorsement by the manufacturer.

While all reasonable efforts have been made to make this document as accurate and helpful as possible, we make no warranty of any kind, expressed or implied, as to the accuracy or completeness of the information contained herein.

The most up-to-date drivers and manuals are available from:

http://www.okiprintingsolutions.com

07094301 Iss. 2; Copyright © 2010. All rights reserved.

Oki is a registered trademark of Oki Electric Industry Company, Ltd.

Oki Printing Solutions is a trademark of Oki Data Corporation.

Energy Star is a trademark of the United States Environmental Protection Agency.

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corporation.

Apple, Macintosh, Mac and Mac OS are trademarks of Apple Inc.

Other product names and brand names are registered trademarks or trademarks of their proprietors.

As an Energy Star Program Participant, the manufacturer has determined that this product meets the Energy Star guidelines for energy efficiency.

This product complies with the requirements of the Council Directives 2004/108/EC (EMC), 2006/95/EC (LVD), 1999/5/EC (R&TTE) and 2009/125/EC (EuP) as amended where applicable, on the approximation of the laws of the member states relating to electromagnetic compatibility, low voltage, radio & telecommunications terminal equipment and energy using products.

The following cables were used to evaluate this product to achieve EMC directive 2004/108/EC compliance and configurations other than this may affect that compliance.

CABLE TYPE LENGTH(METRE)	CORE SHIELD
Power 2.0		×
USB 5.0		×√
LAN 15.0		×
Parallel 1.8		×√

Please note that Microsoft Windows XP was used to produce all screenshots in this manual. These screenshots may vary if you are using any other operating system, but the principle is the same.

EMERGENCY FIRST AID

Take care with toner powder:

If swallowed, give small amounts of cold water and seek medical attention. DO NOT attempt to induce vomiting.

If inhaled, move the person to an open area for fresh air. Seek medical attention.

If it gets into the eyes, flush with large amounts of water for at least 15 minutes keeping eyelids open. Seek medical attention.

Spillages should be treated with cold water and soap to help reduce risk of staining skin or clothing.

MANUFACTURER

Oki Data Corporation,

4-11-22 Shibaura, Minato-ku,

Tokyo 108-8551,

Japan

IMPORTER TO THE EU/AUTHORISED REPRESENTATIVE

Oki Europe Limited (trading as Oki Printing Solutions)

Oki Europe Limited

Blays House

Wick Road

Egham

Surrey TW20 0HJ

United Kingdom

For all sales, support and general enquiries contact your local distributor.

ENVIRONMENTAL INFORMATION

www.okiprintingsolutions.com OKI

CONTENTS

Preface 2

Emergency first aid ....3

Manufacturer....3

Importer to the EU/authorised representative. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Environmental Information....3

Contents 4

Notes, cautions and warnings .....7

Introduction 8

Printer overview 9

Front view 9

Rear view 10

Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Paper recommendations....11

Cassette trays....12

Multi purpose tray 12

Face down stacker....12

Face up stacker....13

Duplex unit. 13

Loading paper....14

Cassette trays. 14

Multi purpose tray 16

Operation 18

C801 and C810 18

C821 and C830 18

Printing settings in Windows (C801 and C810 only) .....19

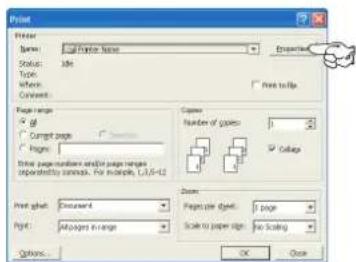

Printing preferences in windows applications .....19

Setup tab 19

Job options tab 20

Colour tab 21

Setting from windows control panel. 22

General tab 22

Advanced tab 22

Printing settings in Mac OS X (C801 and C810 only) .....24

Setting printing options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting printing options - saving driver settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Changing the default printer and paper size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Page setup options 25

Print options 26

Copies & pages 26

Layout 26

Scheduler 27

Paper handling 27

ColorSync. 28

Cover page. 28

Duplex 28

Paper source. 29

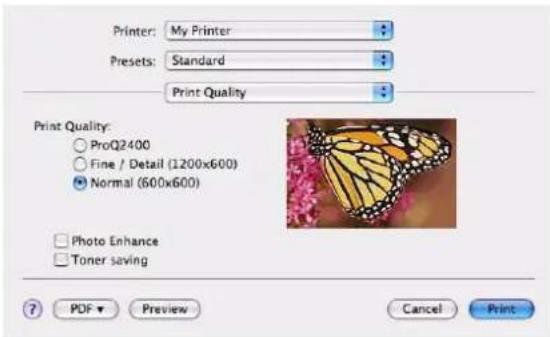

Print quality 29

Colour 30

Printer setup options 31

Printer options 31

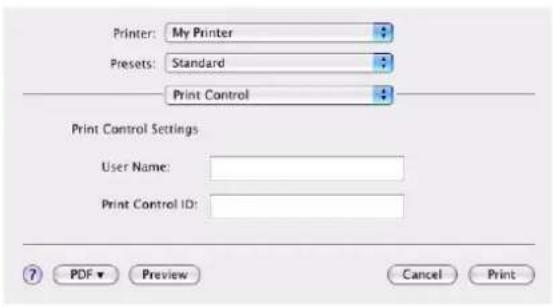

Print control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Summary 32

Colour printing (C801 and C810 only) .....33

Factors that affect the appearance of prints .....33

Tips for printing in colour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Printing photographic images .....34

Printing from Microsoft Office applications .....34

Printing specific colours (e.g. a company logo) .....34

Adjusting the brightness or intensity of a print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Accessing the colour matching options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Setting the colour matching options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Using the colour swatch feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Using the colour correct utility 36

Menu functions - C801 and C810 ....37

Operator Panel 37

How to change the settings - User. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

How to change the settings - Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Menus 39

Information menu 39

Shutdown menu 39

Print menu 39

Media menu 40

Colour menu. 42

System configuration menu 42

Network menu 43

Maintenance menu 44

Usage menu 44

Administrator (Boot) menu 45

Print statistics menu 47

Menu functions - C821 and C830 .....48

Operator panel 48

How to change the settings - User. 49

How to change the settings - Administrator 49

Configuration menu 50

Print information menu ....51

Print secure job. 52

Menus ....53

Shutdown menu 55

Admin setup 56

Calibration 65

Administrator (boot) menu 66

Print statistics menu 69

Maintenance 70

Replacing consumable items 70

Toner cartridge replacement 70

Image drum replacement 73

Transfer belt replacement. 76

Fuser replacement. 78

Cleaning. 80

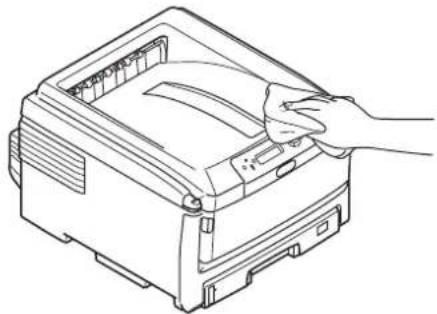

...the unit casing 80

...the LED head 80

...the paper feed rollers ....81

Installing upgrades .82

Duplex unit. 83

Memory upgrade (C821 and C830) 84

Hard disk drive (C821 and C830) 87

Additional paper tray(s) 89

Storage cabinet. 89

Adjusting printer drivers....90

Windows 90

Mac OS X....90

Troubleshooting 92

Major printer components and paper path 92

Paper sensor error codes .....93

Clearing paper jams 93

Dealing with unsatisfactory printing. 99

Specifications 101

Index 102

Oki contact details....103

NOTES, CAUTIONS AND WARNINGS

NOTE

A note provides additional information to supplement the main text.

CAUTION!

A caution provides additional information which, if ignored, may result in equipment malfunction or damage.

WARNING!

A warning provides additional information which, if ignored, may result in a risk of personal injury.

For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as "compatible", and if it does work, your product's performance and print quality may be degraded.

Non-genuine original products may invalidate your warranty.

Specifications subject to change without notice. All trademarks acknowledged.

INTRODUCTION

Congratulations on choosing this colour printer. Your new printer is designed with advanced features to give you clear, vibrant colour prints and crisp black and white pages at high speed on a range of print media for the office.

Your printer includes these features:

Compact A3 desktop footprint;
ProQ2400 multi-level technology produces subtler tones and smoother graduations of colour to lend photographic quality to your documents;
600 x 600, 1200 x 600 dpi (dots per inch) and ProQ2400 print resolution for high quality image production showing the finest detail;
Single Pass colour Digital LED technology for high speed processing of your printed pages;
Profile Assistant utility allows you to download ICC profiles to the hard disc (Hard Disc Drive required) (C821 and C830);
PostScript 3, PCL 5C, PCL 6 and Epson FX emulations for industry standard operation and wide compatibility with most computer software (C821 and C830);
Secure encrypted printing (C821 and C830) - allows you to print confidential documents on printers that are shared with other users in a network environment;
10Base-T and 100Base-TX network connection lets you share this valuable resource among users on your office network;
Photo Enhance mode to improve printouts of photographic images (not available on PS drivers).
"Ask Oki" – a user-friendly function for Windows that gives a direct link from your printer driver screen to a dedicated web site specific to the exact model you are using. This is where you'll find all the advice, assistance and support you could need to help you get the best possible results from your Oki printer;
Template Manager utility for Windows enables the design and print of Business cards, banners, labels with ease;

Additionally, the following optional features are also available:

Automatic two-sided (duplex) printing for economical use of paper and compact printing of larger documents (standard on dn models);

Additional paper trays for loading a further 530/1060 sheets to minimise operator intervention, or different paper stocks for letterhead stationery, alternative paper sizes or other print media;

Additional memory allows printing of more complex pages. For example, high resolution banner printing (C821 and C830);

Internal hard disk drive for Secure printing, storage of overlays, macros and downloadable fonts, and automatic collation of multiple copies of multipage documents and the download of ICC Profiles (C821 and C830);

Storage cabinet.

PRINTER OVERVIEW

FRONT VIEW

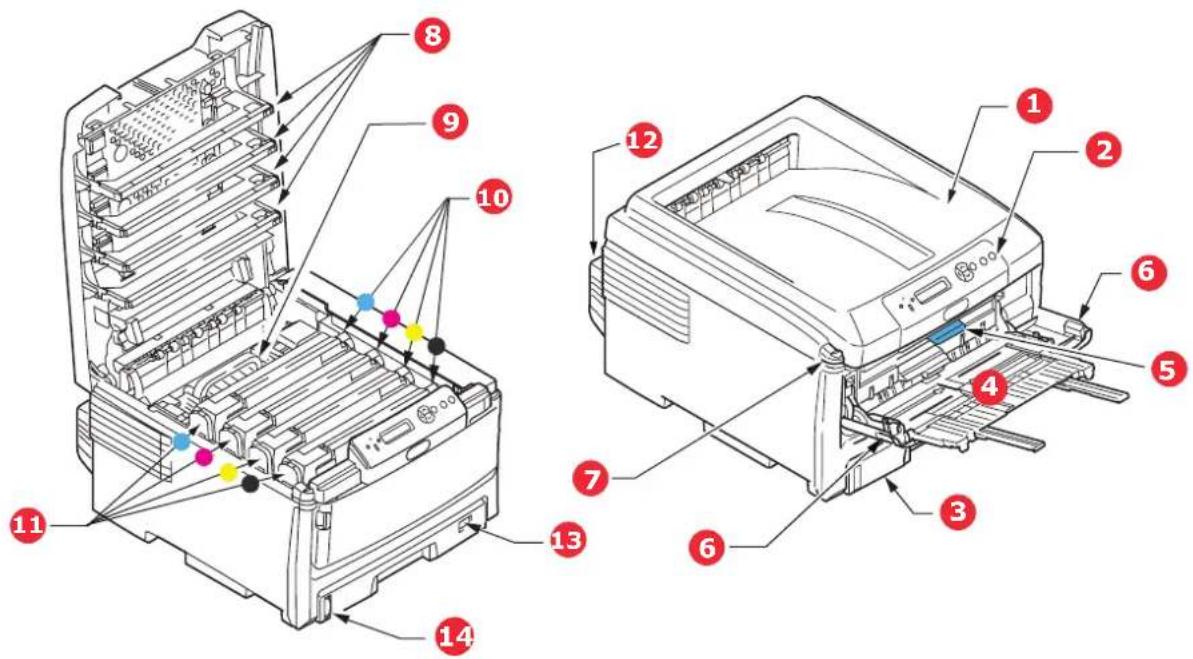

Technical diagram of a printer internal structure with numbered components and colored markers indicating parts.

1. Output stacker (face down).

Standard printed copy delivery point. Holds up to 250 sheets at 80g/m².

1. Operator panel.

Menu driven operator controls and LCD display panel.

1. Paper tray.

Standard blank paper tray. Holds up to 300 sheets of 80g/m² paper.

1. Multi purpose tray.

Used for feeding heavier paper stocks, envelopes and other special media. Also for manual feeding of single sheets when required.

1. Front cover release lever.

2. Multi-purpose tray release lever

3. Top cover release button.

4. LED heads

5. Fuser

10.Toner cartridges (C,M,Y,K).

11.ID units (C,M,Y,Y).

1. Duplex Unit (optional).

13.Paper size dial.

1. Paper level gauge.

The LCD display language can be changed to show different languages. (See "Changing the display language" on page 10.)

REAR VIEW

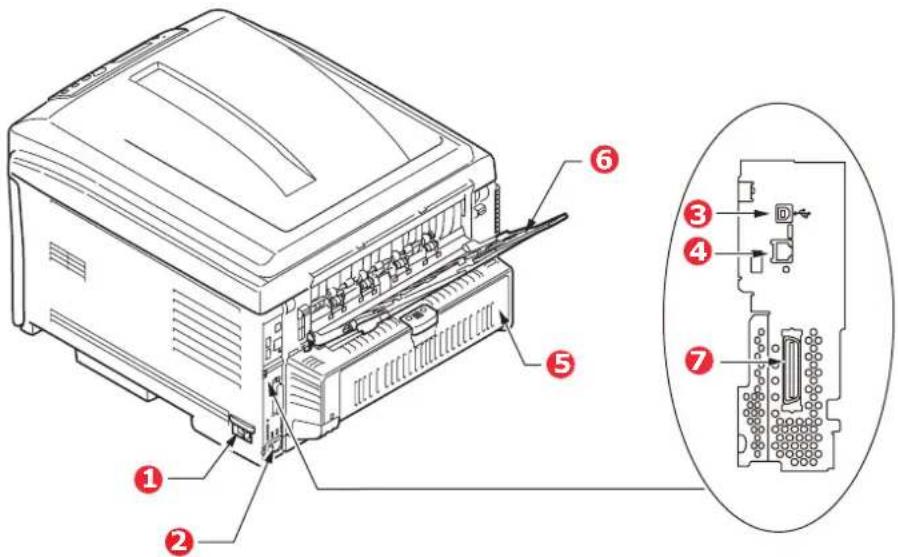

This view shows the connection panel, the rear output stacker and the location of the optional duplex (two-sided printing) unit.

Technical diagram of a printer internal structure with numbered components and an exploded view of the internal component.

1. ON/OFF switch.
2. AC power socket.
3. USB interface.

4. Network interface. ^1

5. Duplex unit (when fitted).

6. Rear, face up, 100 sheet stacker.

7. Parallel Port. ^2

8. The Network Interface may have a protective "plug" which must be removed before connection can be made.

9. C821 and C830.

When the rear paper stacker is folded down paper exits the printer through the rear of the printer and is stacked here face up. This is mainly used for heavy print media. When used in conjunction with the multi purpose feed tray, the paper path through the printer is essentially straight. This avoids bending the paper around curves in the paper path and enables feeding of up to 220g/m^2 media.

CHANGING THE DISPLAY LANGUAGE

The default language used by your machine for display messages is English. If required, this can be changed using the Panel Language Set-up utility.

PAPER RECOMMENDATIONS

Your printer will handle a variety of print media, including a range of paper weights and sizes, transparencies and envelopes. This section provides general advice on choice of media, and explains how to use each type.

The best performance will be obtained when using standard 75\~90g/m ^2 paper designed for use in copiers and laser printers.

Use of heavily embossed or very rough textured paper is not recommended.

Pre-printed stationery

CAUTION!

Pre-printed stationery can be used, but the ink must not offset when exposed to the high fuser temperatures used in the printing process.

Continued use of pre-printed stationery may cause the paper feed performance to degrade over time and paper jams may occur.

Clean the paper feed rollers as described on page 81.

Envelopes

Envelopes should be handled by the Multi Purpose tray.

CAUTION!

Envelopes should be free from twist, curl or other deformations. They should also be of the rectangular "peel and seal" type, with glue that remains intact when subjected to hot roll pressure fusing used in this type of printer. Window envelopes are not suitable.

Transparencies

Transparencies should be handled by the Multi Purpose tray.

CAUTION!

Transparencies should be of the type designed for use in copiers and laser printers. In particular, avoid office transparencies designed for use by hand with marker pens. These will melt in the fuser and cause damage.

Labels

Labels should be handled by the Multi Purpose tray.

CAUTION!

Labels should also be of the type recommended for use in copiers and laser printers, in which the base carrier page is entirely covered by labels. Other types of label stock may damage the printer due to the labels peeling off during the printing process.

CASSETTE TRAYS

SIZE DIMENSIONS WEIGHT (G/M2)
A6 (Tray 1 only)	105 x 148mm	Light 64-82g/m2Medium light 83-90g/m2Medium 91-105g/m2Heavy 106-128g/m2Ultra heavy1 129-203g/m2Ultra heavy2 204-220g/m2(>176g/m2 - MP Tray only)
A5 148 x 210mm
B5 182 x 257mm
Executive 184.2 x	266.7mm
A4 210 x 297mm
B4 250 x 353mm
A3 420 x 297mm
Letter 215.9 x 279.4mm
Legal 13in. 216 x	330mm
Legal 13.5in.	216 x 343mm
Legal 14in. 216 x	356mm

If you have identical paper stock loaded in another tray (2nd/3rd tray if you have one, or multi purpose tray) you can have the printer automatically switch to the other tray when the current tray runs out of paper. When printing from Windows applications, this function is enabled in the driver settings. When printing from other systems, this function is enabled in the Print Menu.

If fitted, tray 2/3 may be removed and replenished while the machine is being fed from tray 1. Tray 1 cannot be removed while the machine is being fed from tray 2/3, because parts of tray 1 are used to guide paper fed from tray 2. This also applies to tray 2 when paper is being fed from tray 3.

MULTI PURPOSE TRAY

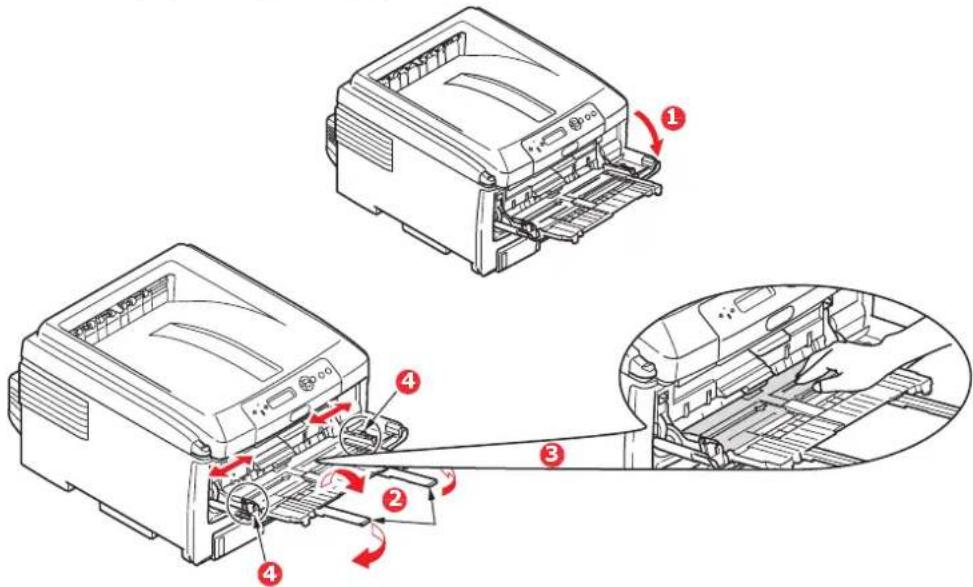

The multi purpose tray can handle the same sizes as the cassette trays but in weights up to 220g/m^2 . For very heavy paper stock use the face up (rear) paper stacker. This ensures that the paper path through the printer is almost straight.

The multi purpose tray can feed paper widths as small as 64mm and lengths up to 1321mm (banner printing).

For paper lengths exceeding 431.8mm use paper stock up to 128g/m ^2 and the face up (rear) paper stacker.

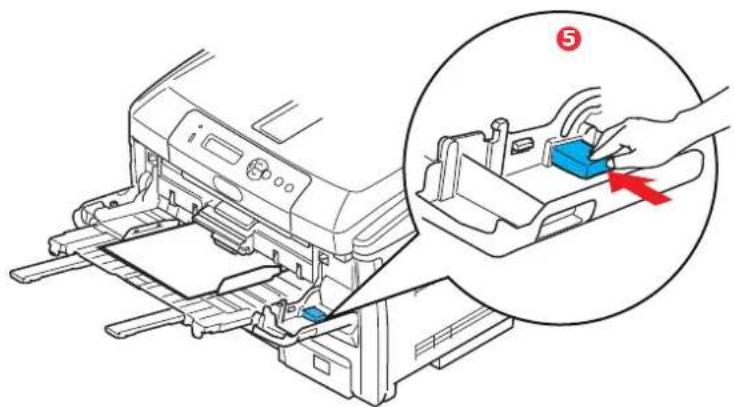

Use the multi purpose tray for printing on envelopes and transparencies. Up to 50 sheets of transparencies or 10 envelopes can be loaded at one time, subject to a maximum stacking depth of 10mm.

Paper or transparencies should be loaded print side up and top edge into the printer. Do not use the duplex (two-sided printing) function.

FACE DOWN STACKER

The face down stacker on the top of the printer can hold up to 250 sheets of 80g/m ^2 standard paper, and can handle paper stocks up to 128g/m ^2 . Pages printed in reading order (page 1 first) will be sorted in reading order (last page on top, facing down).

FACE UP STACKER

The face up stacker at the rear of the printer should be opened and the tray extension pulled out when required for use. In this condition paper will exit via this path, regardless of driver settings.

The face up stacker can hold up to 100 sheets of 80g/m^2 standard paper, and can handle stocks up to 220g/m^2 .

Always use this stacker and the multi purpose feeder for paper stocks heavier than 128g/m^2 .

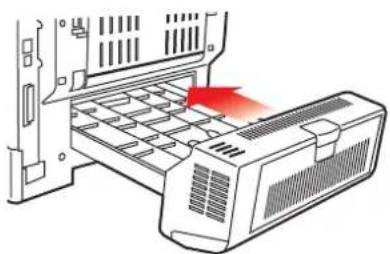

DUPLEX UNIT

This option provides automatic two-sided printing on the same range of paper sizes as tray 2/3 (i.e. all cassette sizes except A6), using paper stocks from 64-105g/m ^2 .

NOTE:

The duplex unit comes as standard with dn & cdtn models.

LOADING PAPER

CASSETTE TRAYS

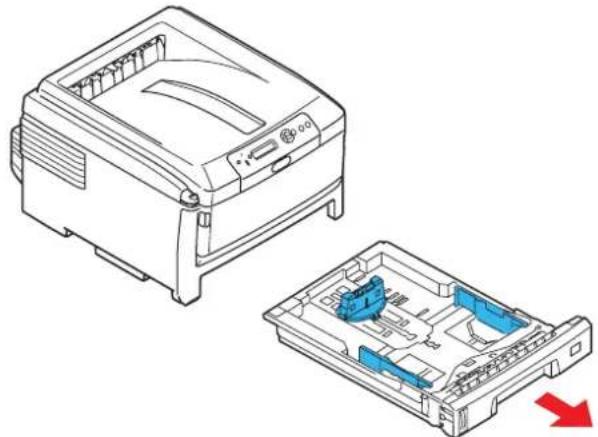

1. Remove the paper tray from the printer.

Technical line drawing of a printer case with internal components and a red arrow indicating a downward motion (no text or symbols present)

1. Fan the paper to be loaded at the edges (1) and in the middle (2) to ensure that all sheets are properly separated, then tap the edges of the stack on a flat surface to make it flush again (3).

Illustration showing three-step folding process: folding paper, folding paper with red arrows indicating direction, and folding paper with red arrows indicating rotation.

1. Load paper long edge feed (LEF) (letter headed paper - face down and top edge towards the right of the printer) (1) up to mark (a).

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating motion or movement.

1. Adjust the rear stopper, paper guides (2) and cassette tray roller (3) to the size and orientation of paper being used. For A6 paper, remove and re-install in the A6 position.

CAUTION!

IMPORTANT: Set paper size dial (3) to the size and orientation of paper being used (A4 LEF in the above example).

C801 and C810: GDI printers use the printer settings defined by the host (PC).

If the paper is oriented long-edge, the Long Edge Feed (LEF) checkbox must be enabled in the printer driver.

If the paper is oriented short-edge, the Long Edge Feed checkbox must be disabled in the printer driver.

Paper Feed options File to Pages □ Replace document to file printer page Conversion: A4 - A3 Cover Printing □ Use different sources for first page Paper feed options ☑ Auto Tray Changes ☑ Paper Chain ☑ Long Edge Feed Multiplane Tray Settings □ Use MP tray at general text Custom Size OK Cancel Help

If the driver setting doesn't match the paper orientation, the printer will display an error message indicating that a mismatch has occurred.

1. Close the paper tray gently.

If you have two trays and you are printing from the 1st (upper) tray, you can pull out the 2nd (lower) tray during printing to reload it. However, if printing from the 2nd (lower) tray, do not pull out the 1st (upper) tray. This will cause a paper jam.

If 3 trays are fitted this applies to trays 1 & 2 if printing from the 3rd (lower) tray.

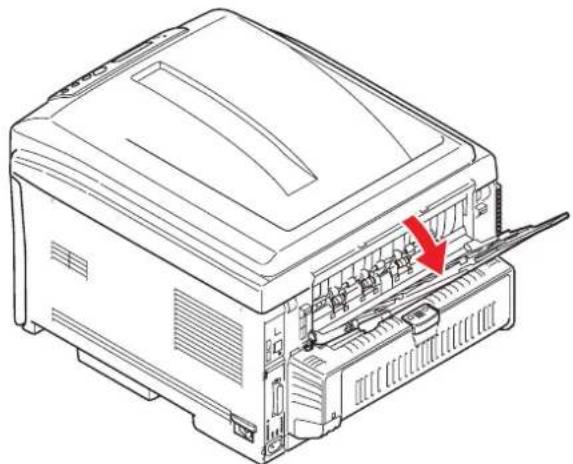

For face down printing, make sure the face up (rear) stacker (3) is closed (the paper exits from the top of the printer). Stacking capacity is approximately 250 sheets, depending on paper weight.

For face up printing, make sure the face up (rear) stacker (3) is open and the paper support (4) is extended. Paper is stacked in reverse order and tray capacity is approximately 100 sheets, depending on paper weight.

Line drawing of a printer with a paper feeding into a slot, showing internal components and a red arrow indicating the cutting edge (no text or symbols present)

Always use the face up (rear) stacker for heavy paper (card stock etc.).

CAUTION!

Do not open or close the rear paper exit while printing as it may result in a paper jam.

To prevent paper jams:

Do not leave space between the paper and the guides and rear stopper.
Do not overfill the paper tray. Capacity depends on the type of paper stock.
Do not load damaged paper.
Do not load paper of different sizes or types at the same time.
Do not pull the paper tray out during printing (except as described above for the 2nd tray).

MULTI PURPOSE TRAY

1. Open the multi purpose tray (1).
2. Fold out the paper supports (2).

Technical diagram showing two printer units with labeled parts and directional arrows indicating assembly or connection.

1. Press gently down on the paper platform (3) to ensure it is latched down.

2. Load the paper and adjust the paper guides (4) to the size of paper being used.

For single-sided printing on A4 headed paper load the paper into the multi purpose tray with pre-printed side up and left hand edge (LEF), top edge (SEF) into the printer.
For two-sided (duplex) printing on A4 headed paper load the paper with preprinted side down and left hand edge (LEF), top edge (SEF) away from the printer. (Optional duplex unit must be installed for this function.)
Envelopes should be loaded face up with top edge to the left and short edge into the printer. Do not select duplex printing on envelopes.
Do not exceed the paper capacity of about 100 sheets or 10 envelopes. Maximum stacking depth is 10mm.

1. Press the tray latch button (5) inwards to release the paper platform, so that the paper is lifted and gripped in place.

Diagram showing printer printer operation with a hand inserting a component labeled '5' to a box, highlighting the process.

1. Set the correct paper size for the multi purpose tray in the Media Menu (see "Menu Functions").

OPERATION

C801 and C810

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the following chapters:

"Printing settings in Windows (C801 and C810 only)" on page 19
"Printing settings in Mac OS X (C801 and C810 only)" on page 24
"Colour printing (C801 and C810 only)" on page 33

C821 and C830

For full details of how to use the machine and any optional accessories to print jobs efficiently and effectively, please refer to the Printing Guide and the Barcode Guide.

For full details of how to access and use the printer security features, please refer to the Security Guide.

PRINTING SETTINGS IN WINDOWS (C801 AND C810 ONLY)

Your printer's operator panel menus provide access to many options.

The Windows printer driver also contains settings for many of these items. Where items in the printer driver are the same as those in the operator panel menus, and you print documents from Windows, the settings in the Windows printer driver will override those items in the operator panel menus.

The illustrations in this chapter show Windows XP. Other Windows versions may appear slightly different, but the principles are the same.

PRINTING PREFERENCES IN WINDOWS APPLICATIONS

When you choose to print your document from a Windows application program a print dialogue box appears. This dialogue usually specifies the name of the printer on which you will print your document. Next to the printer name is a Properties button.

When you click Properties a new window opens which contains a short list of the printer settings available in the driver, which you can choose for this document.

Print Format: Name: Status: Type: Address: Content: Page range ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15 #16 #17 #18 #19 #20 #21 #22 #23 #24 #25 #26 #27 #28 #29 #30 #31 #32 #33 #34 #35 #36 #37 #38 #39 #40 #41 #42 #43 #44 #45 #46 #47 #48 #49 #50 #51 #52 #53 #54 #55 #56 #57 #58 #59 #60 #61 #62 #63 #64 #65 #66 #67 #68 #69 #70 #71 #72 #73 #74 #75 #76 #77 #78 #79 #80 #81 #82 #83 #84 #85 #86 #87 #88 #89 #90 #91 #92 #93 #94 #95 #96 #97 #98 #99 #100

The settings available from within your application are only those which you may want to change for specific applications or documents. Settings you change here will usually only last for as long as the particular application program is running.

SETUP TAB

When you click the Properties button from your application's Print dialogue, the driver window opens to allow you to specify your printing preferences for the current document.

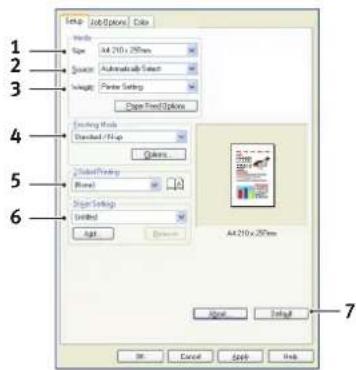

Setup Job Options Color Width Size: AA 210 x 250mm Source: Automatically Select Weight: Printer Settings Page Time Options Existing Tools Standard / Print Options Zlabeled Printing Flatten Sign Settings Unmarked Add Add AA 210 x 250mm Add Cancel Apply Help

1. Paper size should be the same as the page size of your document (unless you wish to scale the printout to fit another size), and should also be the same as the size of paper you will feed into the printer.

2. You can choose the source of the paper to feed, which may be Tray 1 (the standard paper tray) or the multi purpose feeder. You can also click on the appropriate part of the screen graphic to select your preferred tray.

3. The setting for paper weight should match the type of paper on which you intend to print.

4. A variety of document finishing options can be selected, such as normal one page per sheet, or N-up (where N can be any number up to 16) for printing scaled down pages at more than one page per sheet. Booklet printing prints two pages per sheet on each side of the paper so that when folded they make up a booklet.

Poster printing will print large pages as tiles spread over multiple sheets.

1. For two-sided printing, you can choose to flip the page by the long edge or the short edge.

2. If you have changed some printing preferences before and saved them as a set, you can recall them to avoid having to set them individually each time you need them.

3. A single on-screen button restores the default settings.

JOB OPTIONS TAB

Properties Setup Job Options Color First Quality ProQ2009 Free / General (20(60.0)) Normal (60(60.0)) Texture score Photo Enhance Stop blank pages Job Settings Cones: 1 (1/300) Color Orientation: Portrait 100° Landscape: Landscape 100° Scale (%): 100 (25-400%) Double Advanced Statements... Default OK Cancel Help 1 8 3 4 5 6 2 7

1. The output resolution of the printed page can be set as follows.

The ProQ2400 setting prints at 600 x 600dpi x 2 bit. This option requires the most printer memory and takes the longest to print.

The Fine/Detail setting prints at 1200 x 600dpi and is adequate for all but the most discerning applications.

The Normal setting prints at 600 x 600dpi and is suitable for most draft documents, where print quality is less critical.

1. You can print watermark text behind the main page image. This is useful for marking documents as draft, confidential, etc.

2. You can select up to 999 copies to print consecutively, although you will need to top up the paper tray during such a long print run.

3. Page orientation can be set to either portrait (tall) or landscape (wide).

4. The printed pages can be scaled to fit larger or smaller stationery.

5. Clicking the Advanced button gives you access to further settings. For example, you can elect to have black areas printed using 100%K toner (a more matte appearance).

6. A single on-screen button restores the default settings.

7. The quality of photographic images can be improved.

COLOUR TAB

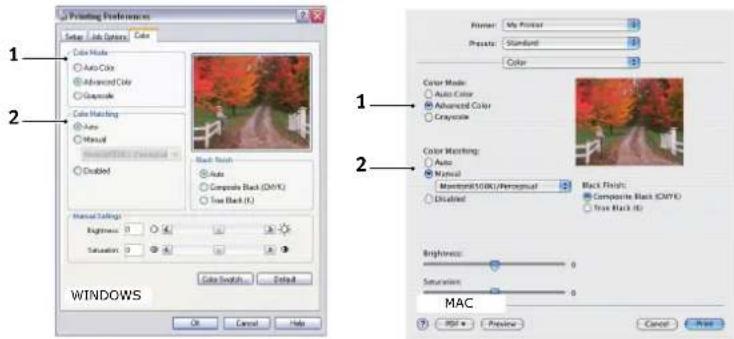

Printing Preferences Setup Job Options Color Color Mode Auto Color Advanced Color Grayscale Color Matching Auto Manual Manual Black (RGB) Disabled Black Finish Auto Composite Black (CMYK) True Black (R) Manual Settings Brightness: 0 Saturation: 0 Color Search Default OK Cancel Help

1. Control over the colour output of your printer may be performed automatically, or for advanced control, by manual adjustment. The automatic setting will be appropriate in most cases. The other options in this window only become visible when you select a choice other than Auto.

2. You can choose from a range of colour matching options, depending on the image source for your document. For example, a photograph taken on a digital camera might require different colour matching to a business graphic created in a spreadsheet application. Again, for most general purpose use, automatic is the best choice.

3. Printed output may be made lighter or darker, or the colours made more saturated and vibrant as required.

4. Black areas may be printed using cyan, magenta and yellow (composite black), giving a more glossy appearance, or using only black toner (true black), giving a more matte appearance. Choosing the automatic setting allows the driver to make the most appropriate choice depending on image content.

5. A single on-screen button restores the default settings.

SETTING FROM WINDOWS CONTROL PANEL

When you open the driver properties window directly from Windows, rather than from within an application program, a somewhat more extensive range of settings is provided. Changes made here will generally affect all documents you print from Windows applications, and will be remembered from one Windows session to the next.

GENERAL TAB

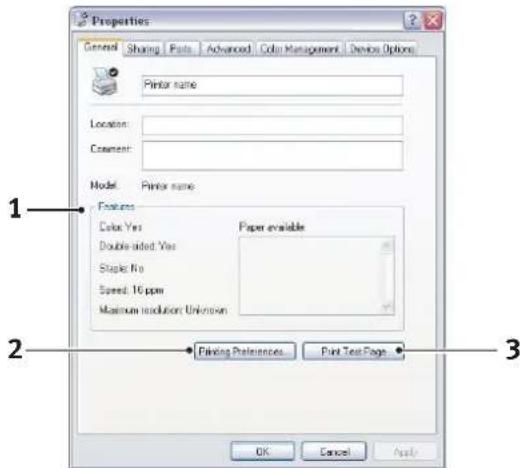

Properties General Sharing Paths Advanced Color Management Devices Options Printer name Location: Comment: Model: Printer name Features Color Yes Paper available Double-sided Yes Staple No Speed: 16 ppm Maximum isolation: Unknown Printing Preferences Print Text Page OK Cancel Apply

1. This area lists some of the main features of your printer.

2. This button opens the same windows as described earlier for items which can be set from within application programs. Changes you make here, however, will become the new default settings for all Windows applications.

3. This button prints a test page to ensure that your printer is working.

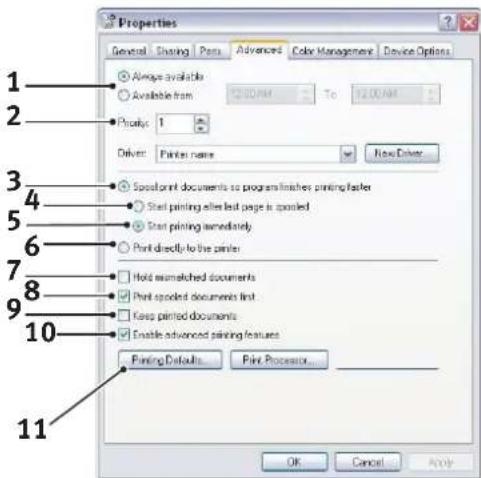

ADVANCED TAB

Properties General Sharing Ports Advanced Color Management Device Options 1 2 3 4 5 6 7 8 9 10 11 Unique available Available from 12.00 AM To 12.00 AM Priority: 1 Driver: Printer name New Driver Spotprint documents so program finishes printing faster Start printing after last page is spaced Start printing immediately Print directly to the printer Hold unmatched documents Print pooled documents first Keep printed documents Enable advanced printing features Printing Defaults Print Processor OK Cancel Apply

1. You can specify which times of day your printer will be available.

2. Indicates current priority, from 1 (lowest) to 99 (highest). Highest priority documents will print first.

3. Specifies that documents should be spooled (stored in a special print file) before being printed. The document is then printed in the background, allowing your application program to become available more quickly.

4. This specifies that printing should not start until the last page has been spooled. If your application program needs a lot of time for further computation in the middle of

printing, causing the print job to pause for more than a short period, the printer could prematurely assume that the document has finished. Selecting this option would prevent that situation, but printing will be completed a little later, as the start is delayed.

1. This is the opposite choice to the one above. Printing starts as soon as possible after the document begins spooling.

2. This specifies that the document should not be spooled, but printed directly. Your application will not normally be ready for further use until the print job is complete. This requires less disk space on your computer, since there is no spool file.

3. Directs the spooler to check the document setup and match it to the printer setup before sending the document to print. If a mismatch is detected, the document is held in the print queue and does not print until the printer setup is changed and the document restarted from the print queue. Mismatched documents in the queue will not prevent correctly matched documents from printing.

4. Specifies that the spooler should favour documents which have completed spooling when deciding which document to print next, even if completed documents are lower priority than documents which are still spooling. If no documents have completed spooling, the spooler will favour larger spooling documents over shorter ones. Use this option if you want to maximise printer efficiency. When this option is disabled the spooler chooses documents based only on their priority settings.

5. Specifies that the spooler should not delete documents after they are completed. This allows documents to be re submitted to the printer from the spooler instead of printing again from the application program. If you use this option frequently it will require large amounts of disk space on your computer.

6. Specifies whether advanced features, such as booklet printing, page order and pages per sheet, are available, depending on your printer. For normal printing keep this option enabled. If compatibility problems occur you can disable the feature. However, these advanced options may then not be available, even though the hardware might support them.

7. This button provides access to the same setup windows as when printing from applications. Changes made via the Windows Control Panel become the Windows default settings.

PRINTING SETTINGS IN MAC OS X (C801 AND C810 ONLY)

The information in this section is based on Mac OS X Tiger (10.4). Other versions may appear slightly different, but the principles are the same.

SETTING PRINTING OPTIONS

You can choose your printer and select options for how you want your documents to print from the Print dialog box.

To set your printer options:

1. Open the document you want to print.

2. To change the paper size or page orientation, select File > Page Setup. For a description of each option, see "Page setup options" on page 25.

Settings: Page Attributes Format for: My Printer Paper Size: A4 21.00 cm x 20.69 cm Orientation: Scale: 100 % Cancel OK

1. Close the Page Setup dialog box.

2. Select File > Print.

3. Select your printer from the Printer drop-down menu.

4. To change any printer driver settings, select the required options from the Settings drop-down menu. You can select more options from the Copies & Pages menu. For a description of these options, see "Print options" on page 26.

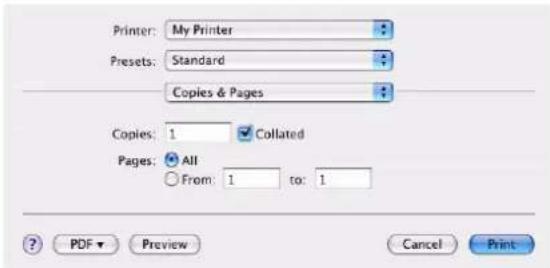

Printer: My Printer Presets: Standard Copies & Pages Copies: 1 Collated Pages: All From: 1 to: 1 ? PDF Preview Cancel Print

1. Click the Print button.

SETTING PRINTING OPTIONS - SAVING DRIVER SETTINGS

You can save a set of printer driver options to use for future documents.

1. Open the document you want to print.

2. To change the paper size or page orientation, select File > Page Setup.

Settings: Page Attributes Format for: My Printer Paper Size: A4 21.00 cm x 29.69 cm Orientation: Scale: 100 % Cancel OK

1. Select Save As Default from the Settings drop-down menu.

2. Select File > Print.

3. To save the current printer driver settings as a preset, select Save As from the Preset menu.

4. Enter a name for your preset and click OK.

CHANGING THE DEFAULT PRINTER AND PAPER SIZE

The following steps describe how to change your default printer and the paper size options.

1. Select Apple menu > System Preferences.
2. Click the Print & Fax icon.
3. Select your printer in the Selected Printer in Print Dialog drop-down menu.
4. Select your required paper size in the Default Size in Page Setup drop-down menu.

PAGE SETUP OPTIONS

This section provides a description of the page setup options available to you.

Settings: Page Attributes Format for: My Printer Paper Size: A4 21.00 cm x 29.69 cm Orientation: Scale: 100 % Cancel OK

Page Attributes

You can select Save As Default to use the current Page Setup settings as a standard for all documents.

Format for

Allows you to select your printer model before changing options such as Paper size and Orientation.

Paper Size

Select a paper size to match your document and the paper loaded in the printer. The paper margin is 4.2mm at all edges. To specify your own paper sizes, select Manage Custom Sizes...

Scale

You can scale documents up or down to fit onto different paper sizes. To fit your document on a specific paper size, select Options in the Paper Handling drop-down menu in the Print Options dialog box (see "Print options" on page 26).

Orientation

You can select a portrait or landscape option. When using landscape, you can rotate the document 180 degrees.

PRINT OPTIONS

COPIES & PAGES

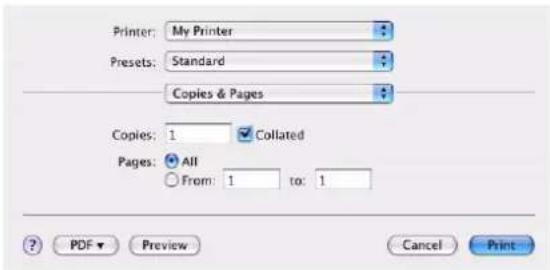

Printer: My Printer Presets: Standard Copies & Pages Copies: 1 Collated Pages: All From: 1 to: 1 ? PDF Preview Cancel Print

Copies

This option allows you to enter the number of copies to print. If you select Collate, all pages of the document will print before the next copy prints.

Pages

You can select whether to print all pages of a document or just a section of it.

LAYOUT

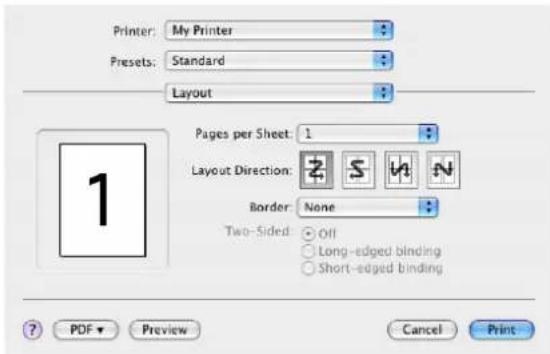

Printer: My Printer Presets: Standard Layout Pages per Sheet: 1 Layout Direction: Border: None Two-Sided: Off Long-edged binding Short-edged binding ? PDF Preview Cancel Print

Pages per sheet

You can shrink multiple pages and print them on a single sheet of paper. For example, choosing 4-up will tile four of your document's pages across a single sheet of paper.

You can control the order in which the documents are tiled and also choose to surround each document page with a border.

Two-sided

You cannot use the two sided printing options in this panel. Use the options in the Duplex panel instead. Refer to "Duplex" on page 28.

SCHEDULER

Printer: My Printer Presets: Standard Scheduler Print Document: Now At: 00.00 On Hold Priority: Medium ? PDF Preview Cancel Print

This option lets you choose whether to print your document immediately, or defer printing until later. You can also assign a priority to a print job.

These features are useful if you are printing large documents that take a long time to print.

PAPER HANDLING

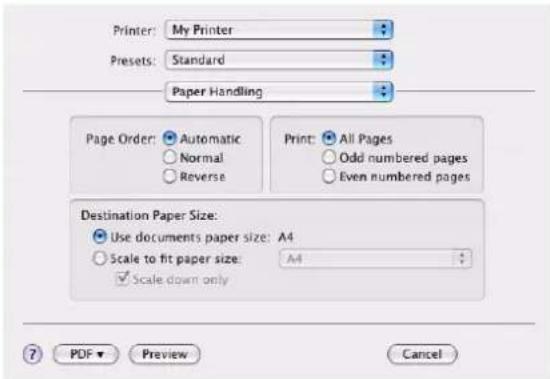

Printer: My Printer Presets: Standard Paper Handling Page Order: Automatic Normal Reverse Print: All Pages Odd numbered pages Even numbered pages Destination Paper Size: Use documents paper size: A4 Scale to fit paper size: A4 Scale down only ? PDF Preview Cancel

Page order

You can choose to print your document in the normal page order (1,2,3..) or reverse order (...3,2,1).

Print

This option allows you to choose whether to print only odd or even numbered pages. This is useful if you are using manual duplex for which you first print all odd pages, re-insert the paper in the printer and then print all even pages.

Destination paper size

Scale documents to fit on the size of paper in your printer. For example, you can take a document formatted for A3 and print it on A4 paper using an A4 printer.

COLORSYNC

Printer: My Printer Presets: Standard ColorSync Color Conversion: Standard Quartz Filter: None ? PDF ▼ Preview Cancel Print

Color conversion

For Color Conversion, Standard is the only option available for your printer model.

Quartz Filter

Choose a Quartz filter if you wish to apply a special effect to your print job, such as Sepia or Blue Tone.

COVER PAGE

Printer: My Printer Presets: Standard Cover Page Print Cover Page: None Before document After document Cover Page Type: Standard Billing Info: ? PDF ▼ Preview Cancel Print

Choosing a cover page may help you to identify your printed document in a large pile of paper. This is useful in a busy office with many people sharing the printer.

DUPLEX

Printer: My Printer Presets: Standard Duplex Duplex: Long-Edge Binding PDF Preview Cancel Print

Choosing duplex allows you to print on both sides of the paper, to save paper, weight, bulk and cost.

Long-Edge Binding prints pages that read like a normal book. Short-Edge Binding prints pages that read like a notepad.

PAPER SOURCE

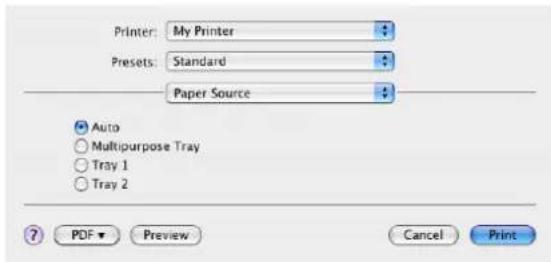

Printer: My Printer Presets: Standard Paper Source Auto Multipurpose Tray Tray 1 Tray 2 PDF Preview Cancel Print

This option allows you to select the paper tray to use for your print job.

PRINT QUALITY

Printer: My Printer Presets: Standard Print Quality Print Quality: ○ ProQ2400 ○ Fine / Detail (1200x600) ● Normal (600x600) □ Photo Enhance □ Toner saving ? PDF ▼ Preview Cancel Print

Print quality

Use this option to select the print resolution. The ProQ2400 setting produces the best graphic images, but these images can take longer to print.

Photo Enhance

Use Photo Enhance to significantly improve quality when printing images. The printer driver analyses any photographic images and processes them to improve the overall appearance. This setting cannot be used together with the "ProQ2400" print quality setting.

Toner Saving

Toner saving uses less toner when printing your document. This is best suited to draft text documents as it lightens the print significantly.

COLOUR

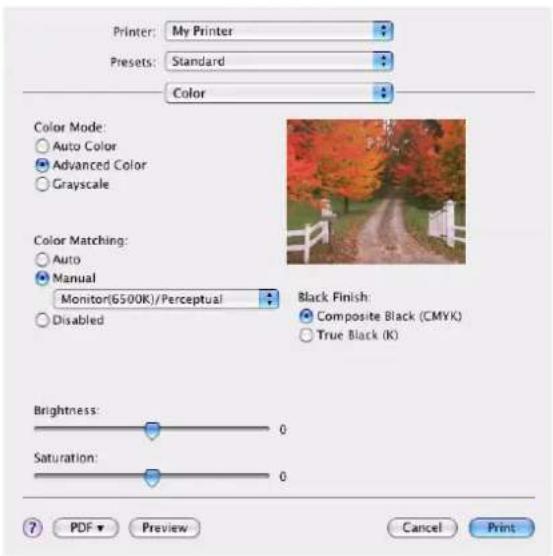

Printer: My Printer Presets: Standard Color Color Mode: Auto Color Advanced Color Grayscale Color Matching: Auto Manual Monitor(6500K)/Perceptual Disabled Black Finish: Composite Black (CMYK) True Black (K) Brightness: 0 Saturation: 0 ? PDF Preview Cancel Print

Colour mode

COLOUR MODE DESCRIPTION
Advanced Colour The driver	selects the most appropriate color settings.
Manual Allows you to manually adjust colour and black and white settings or select.
Grayscale Convert all colours to shades of grey.

Color matching

COLOUR DESCRIPTION
Monitor (6500K) Perceptual Optimised for printing photos. Colours are printed with emphasis on saturation.
Monitor (6500K) Vivid Optimised for printing photos, but with even more saturated colours.
Monitor (9300K) Optimised for printing graphics from applications such as Microsoft Office. Colours are printed with emphasis on Lightness.
Digital Camera Results will vary depending on the subject and conditions the image was taken.
sRGB The printer reproduces the sRGB colour space. This might be useful if colour matching from an sRGB input device such as a scanner or digital camera.

Black Finish

Use this option to control the way black is printed in colour documents. Select Composite Black (CMYK) to use all 4 toner colours to represent black. This option is recommended for color photos. Select True Black (K) to use 100% black toner to represent black. This option is recommended for text and business graphics.

Brightness / Saturation

This option allows you to increase brightness for a lighter print. Modify saturation to change the strength (or purity) of a colour.

If the printed colours are too strong, reduce saturation and increase brightness. As a general rule, reduce saturation by the same amount as you increase brightness. For example, if you reduce saturation by 10, increase brightness by 10 to compensate.

PRINTER SETUP OPTIONS

PRINTER OPTIONS

Printer: My Printer Presets: Standard Printer Options Media Weight: Printer Setting ✓ Auto tray switch ✓ Paper size check □ Feed manually from Multipurpose tray ✓ Always create 100% Black(K) Toner □ Run maintenance cycle before printing ? PDF ▼ Preview Cancel Print

Media weight

Select the thickness or type of paper in the printer. It is important to set this correctly as it affects the temperature at which the toner is fused to the paper. For example, if you are printing on normal A4 paper, do not select Labels or Transparency as this may cause toner smearing and paper jams.

Auto tray switch

If the printer runs out of paper in the current tray, Auto Tray Switch automatically changes to a tray that has the same type of paper and continues printing.

Paper size check

Select Paper Size check if you want the printer to warn you when the document paper size is different from the paper in the printer.

A warning message is displayed and printing continues when you load the correct paper in the paper tray and press ONLINE. When this option is deselected, the printer uses the paper loaded in the selected tray regardless of the document size.

Feed manually from Multipurpose Tray

Select this option if you want the printer to wait until you press the ONLINE button when feeding from the Multipurpose Tray. This can be useful if printing on envelopes.

Always create 100% black (K) toner

Select this option if you want the printer to always use only black (K) toner when printing pure black (RGB = 0,0,0). This is effective even when Composite Black (CMYK) is selected in the colour options.

Run maintenance cycle before printing

Depending on printing habits and usage patterns, running the maintenance cycle before printing may ensure the best possible print quality. This feature uses the printer's image drums and transfer belt. The life of these printer consumables may be shortened if the printer runs a maintenance cycle frequently.

PRINT CONTROL

Printer: My Printer Presets: Standard Print Control Print Control Settings User Name: Print Control ID: ? PDF ▼ Preview Cancel Print

If you are using the Windows Print Control Server software to manage printers, enter your assigned user name and ID. This information is sent to the printer with your print job and is recorded by the printer.

SUMMARY

Printer: My Printer Presets: Standard Summary Copies & Pages Copies 1, Collated Page Range All Layout Layout Direction Left-Right-Top-Bottom Pages Per Sheet 1 Two Sided Printing Off Scheduler Paper Handling ColorSync Cover Page Duplex Export All Collapse All PDF Preview Cancel Print

This option displays a summary of all selected print options for the current job.

COLOUR PRINTING (C801 AND C810 ONLY)

The printer drivers supplied with your machine provide several controls for changing the colour output. For general use the automatic settings will suffice, providing reasonable default settings that will produce good results for most documents.

Many applications have their own colour settings, and these may override the settings in the printer driver. Please refer to the documentation for your software application for details on how that particular program's colour management functions.

FACTORS THAT AFFECT THE APPEARANCE OF PRINTS

If you wish to manually adjust the colour settings in your printer driver, please be aware that colour reproduction is a complex topic, and there are many factors to take into consideration. Some of the most important factors are listed below.

Differences between the range of colours a monitor or printer can reproduce

Neither a printer nor a monitor is capable of reproducing the full range of colours visible to the human eye. Each device is restricted to a certain range of colours. In addition to this, a printer cannot reproduce all of the colours displayed on a monitor, and vice versa.

Both devices use very different technologies to represent colour. A monitor uses Red, Green and Blue (RGB) phosphors (or LCDs), a printer uses Cyan, Magenta, Yellow and Black (CMYK) toner or ink.
A monitor can display very vivid colours such as intense reds and blues and these cannot be easily produced on any printer using toner or ink. Similarly, there are certain colours, (some yellows for example), that can be printed, but cannot be displayed accurately on a monitor. This disparity between monitors and printers is often the main reason that printed colours do not match the colours displayed on screen.

Viewing conditions

A print can look very different under different lighting conditions. For example, the colours in a print may look different when viewed standing next to a sunlit window, compared to how they look under standard office fluorescent lighting.

Printer driver colour settings

The driver settings for Manual colour can change the appearance of a print. There are several options available to help match the printed colours with those displayed on screen.

Monitor settings

The brightness and contrast controls on your monitor can change how your document looks on-screen. Additionally, your monitor's colour temperature influences how "warm" or "cool" the colours look.

There are several settings found on a typical monitor:

5000k Warmest; yellowish lighting, typically used in graphic art environments.

6500k Cooler; approximates daylight conditions.

9300k Cool; the default setting for many monitors and television sets.

(k = degrees Kelvin, a measurement of temperature.)

How your software application displays colour

Some graphics applications such as Corel Draw or Adobe Photoshop may display colour differently from "Office" applications such as Microsoft Word. Please see your application's on-line help or user manual for more information.

Paper type

The type of paper used can also significantly affect the printed colour. For example, a printout on recycled paper can look duller than one on specially formulated glossy paper.

TIPS FOR PRINTING IN COLOUR

The following guidelines may help you to achieve good colour output from your printer.

PRINTING PHOTOGRAPHIC IMAGES

Use the Monitor (6500k) Perceptual setting.

If the colours look too dull, try the Monitor (6500k) Vivid or Digital Camera settings.

PRINTING FROM MICROSOFT OFFICE APPLICATIONS

Use the Monitor (9300k) setting. This may help if you are having problems with specific colours from applications such as Microsoft Excel or Microsoft Powerpoint.

PRINTING SPECIFIC COLOURS (E.G. A COMPANY LOGO)

There are 2 utilities on your DVD-ROM that can help match specific colours:

Colour Correct Utility
Colour Swatch Utility

ADJUSTING THE BRIGHTNESS OR INTENSITY OF A PRINT

If the print is too light/dark, you can use the Brightness control to adjust it.

If the colours are too intense/not intense enough, use the Saturation control.

ACCESSING THE COLOUR MATCHING OPTIONS

The colour matching options in the printer driver can be used to help match your printed colours to the ones displayed on your monitor or from some other source, such as a digital camera.

To open colour matching options from the Windows Control Panel:

1. Open the Printers window (called "Printers and Faxes" in Windows XP).
2. Right-click the printer name and choose Properties.
3. Click the Printing Preferences button (1).

Properties General Share/ Mode: Advanced Color/Managers / Device Options Place name Location: External: Model Parameters Features Color Yes Paper available Double-ended Yes Simple No. Speed 10 rpm Maximum resolution: Unknown Drawing Preferences... Print Text Page OK Cancel Apply

To open colour matching options from within a Windows application:

1. Choose File > Print... from the application's menu bar.
2. Click the Properties button next to the printer name.

SETTING THE COLOUR MATCHING OPTIONS

1. On the Colour tab select Advanced Colour (1) for colour matching.

Printing Preferences Setup / Auto Options / Color Color Mode Auto Color Advanced Color Grayscale Color Matching Auto Manual Unrealized (RGB) Disabled Black Touch Auto Composite Black (CMYK) True Black (R) Manual Settings Brightness: Saturation: Color Shift... OK Cancel Help 1 2 1 2 Printer: My Printer Prests: Standard Color Color Mode: Auto Color Advanced Color Grayscale Color Matching: Auto Material Maximural/CMYK/Perpendicular Black Flush: Composite Black (CMYK) Disinylated True Black (R) Brightness: 0 Saturation: 0 MAC 85% 0 Preview Cancel Print WINDOWS

1. Choose the Manual colour setting (2) and select from the following options:

(a) Monitor (6500k) Perceptual

Optimised for printing photographs. Colours are printed with emphasis on saturation.

(b) Monitor (6500k) Vivid

Optimised for printing photographs, but with even more saturated colours than the Monitor (6500k) Perceptual setting.

(c) Monitor (9300k)

Optimised for printing graphics from applications such as Microsoft Office. Colours are printed with emphasis on Lightness.

(d) Digital Camera

Optimised for printing photographs taken with a digital camera.

Your results will vary depending on the subject and the conditions under which the photograph was taken.

(e) sRGB

The printer will try to reproduce the sRGB colour space. This may be useful if colour matching from an sRGB input device such as a scanner or digital camera.

USING THE COLOUR SWATCH FEATURE

To use the Colour Swatch feature, you must install the Colour Swatch Utility. This is supplied on the DVD-ROM that you received with your printer.

The Colour Swatch function prints charts which contain a range of sample colours. Note that this is not the full range of colours that the printer can produce. Listed on each sample colour are the corresponding RGB (Red, Green, Blue) values. This can be used to pick specific colours in applications that allow you to choose your own RGB values. Simply click the Colour Swatch button (1) and choose from the options available.

Printing Preferences Setup - Select Colors Color Mode Auto Color Advanced Color Composite Color Matching Auto Manual Selected Back Finish Auto Composite-Black (CMY) True Back (%) Manual Settings Brightness: 0 Saturation: 0 OK Cancel Help

An example of using the Colour Swatch function:

You wish to print a logo in a particular shade of red. The steps you would follow are:

1. Print a colour swatch, then select the shade of red that best suits your needs.
2. Take a note of the RGB value for the particular shade that you liked.
3. Using your program's colour picker, enter these same RGB values, and change the logo to that colour.

The RGB colour displayed on your monitor may not necessarily match what was printed on the colour swatch. If this is the case, it is probably due to the difference between how your monitor and printer reproduce colour. Here, it is unimportant since your primary objective is to print the required colour.

USING THE COLOUR CORRECT UTILITY

The Oki Colour Correct Utility is provided on your DVD-ROM.

The Colour Correct utility has the following features:

Office palette colours can be individually adjusted. This is useful if you want to change how a specific colour is printed.
Colours can be adjusted by changing Hue, Saturation and Gamma. This is useful if you wish to change the overall colour output.

Once these colour adjustments have been made, the new settings can be selected from the printer driver Colour tab.

To select adjustments made with the Colour Correct Utility:

1. From your application program, click File and point to Print.
2. Click Properties. This displays the printer driver options.
3. Click the Colour tab.
4. Click Advanced Colour.
5. Click User Defined.

Select the colour adjustment you made with the Colour Correct Utility.

MENU FUNCTIONS - C801 AND C810

This section lists the menus accessed via the controls on the printer's operator panel and displayed in the LCD window.

OPERATOR PANEL

1 READY ATTENTION 2 C M Y K Back MENU ENTER ON LINE CANCEL 5 6 3 7 4 8

1. Ready LED	ON:Ready to receive data.Blinking:Processing data.OFF: Offline.	2. Display	Displays the printer status and any error messages.
3. Menu Button	Enters the Menu mode. In Menu mode, forwards or reverses the menu item displayed.Press for 2 secs. or longer to fast forward or reverse.	4. On Line Button	Switches between ONLINE and OFFLINE.Exits the menu and goes ONLINE when pressed in the Menu mode.Scrolls the HELP screen.Forces printing on the paper currently loaded when pressed with "WRONG PAPER" or "WRONG PAPER SIZE" displayed.
5. Attention LED	ON: A warning occurs.Printing is possible.Blinking: An error occurs.Printing not possible.OFF: Normal condition.	6. Back Button	Returns to the previous higher level menu item.
7. Enter Button	In the ONLINE or OFFLINE mode: enters the Menu mode.In the Menu mode:determines the setting selected.	8. Cancel Button	Deletes the data being printed or received when pressed for two seconds or longer.Deletes the data when pressed for two seconds or longer with WRONG PAPER SIZE, RUN OUT OF PAPER, TRAY 1 IS OPEN, or TRAY 1 IS NOT FOUND is displayed.

HOW TO CHANGE THE SETTINGS - USER

It should be noted that many of these settings can be, and often are, overridden by settings in the Windows printer drivers. However, several of the driver settings can be left at "Printer Setting", which will then default to the settings entered in these printer menus.

Where applicable, factory default settings are shown in bold type in the following tables.

In the normal operating condition, known as "standby," the printer's LCD window will show "ONLINE." In this condition, to enter the menu system, press the +/- buttons on the operator panel to move up and down through the list of menus until the menu you wish to view is displayed. Then proceed as follows:

1. Press ENTER to enter the menu.

2. Use the up or down Menu buttons to move up and down through the items in the menu. When the item you want to change is displayed, press Enter to edit that item. An asterisk (*) appears next to the setting currently in effect.

3. Use the up or down Menu buttons to move up and down through the available settings for this item, and press Enter when the setting you want is displayed. An asterisk (*) will appear next to the setting, indicating that this setting is now in effect.

4. Press BACK to move back to the list of menu items.

5. Do one of the following:

Press BACK again to move up to the list of menus;

or...

Press ON LINE to exit from the menu system and return to standby.

NOTE:

When you have changed any settings in the USB MENU, turn the printer OFF, then ON again.

HOW TO CHANGE THE SETTINGS - ADMINISTRATOR

You can set whether to ENABLE or DISABLE each category in the user menu.

Disabled categories are not displayed in the User's menu.

Only a system administrator can change these settings.

1. Turn OFF the printer.

2. Turn ON the printer while pressing the Enter button.

When the Admin Menu appears, take your finger off the button.

1. Press the Enter button.

2. When Enter Password appears, press the up or down Menu button several times to display the 1st line of the password and then press the Enter button.

Enter your 4- to 9-digit password.

(The default password is "aaaaaa").

1. Press the Enter button.

2. Press the up or down Menu button until the "category" you want to change is displayed.

3. When it is, press the Enter button.

4. Press the up or down Menu button until the "item" you want to change is displayed.

5. When it is, press the Enter button.

6. Initialization of the flash memory prompts with the message ARE YOU SURE?.

Confirm whether the change may be executed or not.

1. To execute it, press the up or down Menu button to display YES and then press the Enter button. The printer automatically reboots.

2. When PLEASE POW OFF/SHUTDOWN COMP is displayed, turn the printer OFF/ON

3. Press the up or down MENU button until the settingyou want is displayed.

4. Press the Enter button to enter [*] on the right side of the setting selected.

5. Press the On Line button to switch the printer online.

MENUS

INFORMATION MENU

This menu provides a quick method of listing various items stored within the printer.

ITEM ACTION EXPLANATION
PRINT MENU MAP EXECUTE	Prints complete menu	listing with current settings shown.
NETWORK EXECUTE Prints	Network configuration	information.
DEMO1 EXECUTE Prints de	monstration page containing graphics and text in colour and monochrome.
USAGE REPORT EXECUTE	Prints a report of total impressions and supply replacements.

SHUTDOWN MENU

ITEM ACTION EXPLANATION
SHUTDOWN START EXECUTE	Starts the power off sequence (this protects the filing system).

PRINT MENU

This menu provides adjustment of various print job related functions.

ITEM SETTINGS EXPLANATION
COPIES	1-999	Enter the number of copies of a document to be printed from 1 to 999.
PAPER FEED TRAY1	TRAY2MP TRAY	Selects the default tray for paper feed, Tray 1 (upper), Tray 2 (lower, if installed) or MP Tray (multi purpose tray).
AUTO TRAY SWITCH	ONOFF	If two trays contain identical paper, the printer can switch to an alternative source when the current tray runs out in the middle of a print job.
TRAY SEQUENCE	DOWNUPPAPER FEED TRAY	Determines tray sequence order when automatically switching.
MP TRAY USAGE	DO NOT USEWHEN MISMATCH	If a document to be printed demands a paper size not installed in the selected tray, the printer can automatically feed from the multi purpose tray instead. If this function is not enabled, the printer will stop and request the correct size of paper to be loaded.
MEDIA CHECK	ENABLEDISABLE	Determines whether the printer check the size of paper loaded matches that required for the document sent to print.
ITEM SETTINGS EXPLANATION
MONO-PRINT SPEED AUTO SPEED	MONO 32PPM	If the first page of a print job is black and white, the printer runs at 32ppm (pages per minute). When a colour page is detected the printer slows down to 30ppm (C810) or 26ppm (C801) for the rest of that job.This setting operates in the same way as AUTO SPEED, except that the printer runs at 32ppm until a colour page is detected. To achieve this speed the printer requires an additional time to warm up and cool down when switching to 30ppm (C810) or 26ppm (C801) for colour pages. This setting is therefore most appropriate when the majority of print jobs are entirely black and white.
	COLOR SPEED	The printer runs at 30ppm (C810) or 26ppm (C801) for all print jobs. This setting is most appropriate when the majority of print jobs are in colour.
	MIXED SPEED	The printer runs at 26 ppm (C810) or 22ppm (C801) for colour pages and 30 ppm (C810) or 26ppm (C801) for mono pages.

MEDIA MENU

This menu provides adjustment to suit a wide range of print media.

ITEM SETTINGS EXPLANATION
TRAY1 PAPERSIZE CASSETTE SIZECUSTOM		Selects the size of paper loaded in Tray 1 (upper tray if both trays installed). For CUSTOM setting see X-DIMENSION and Y-DIMENSION later in this table.
TRAY1 MEDIATYPE PLAIN	LETTERHEAD BONDRECYCLEDCARD STOCKGLOSSYROUGH	Selects the type of media loaded in this tray. This will help the printer to adjust its internal operating parameters, such as engine speed and fusing temperature, to better accommodate the media to be fed. For example, letterhead may benefit from a slightly lower fusing temperature to ensure that its ink does not offset.
TRAY1 MEDIAWEIGHT LIGHTMEDIUM LIGHTMEDIUMHEAVY		Adjusts the printer for the weight of paper stock loaded in this tray.
TRAY2 PAPERSIZE CASSETTE SIZECUSTOM		Selects the size of paper loaded in Tray 2 (lower) if installed. For CUSTOM setting see X-DIMENSION and Y-DIMENSION in this table.
TRAY2 MEDIATYPE PLAIN	LETTERHEADBONDRECYCLEDCARD STOCKGLOSSYROUGH	Selects the type of media loaded in this tray (if installed). (see notes above for tray 1).
TRAY2 MEDIAWEIGHT LIGHTMEDIUM LIGHTMEDIUMHEAVY		Adjusts the printer for the weight of paper stock loaded in this tray (if installed).
TRAY3 PAPERSIZE CASSETTE SIZECUSTOM		Selects the size of paper loaded in Tray 3 (lower) if installed.
TRAY3 MEDIATYPE PLAIN	LETTERHEADTRANSPARENCYBONDRECYCLEDCARD STOCKGLOSSYROUGH	Selects the type of media loaded in this tray (if installed). (see notes above for tray 1).
TRAY3 MEDIAWEIGHT LIGHT	MEDIUM LIGHTMEDIUMHEAVY-	Adjusts the printer for the weight of paper stock loaded in this tray (if installed).
MPT PAPERSIZE A3	A4 SEFA4 LEFA5 SEFA6B4B5 SEFB5 LEFLEGAL 14LEGAL 13.5LEGAL 13TABLOIDLETTER SEFLETTER LEFEXECUTIVECUSTOMCOM-10ENVELOPEDL ENVELOPEC5 ENVELOPEC4 ENVELOPE	Selects the size of paper to be fed from the multi purpose tray. For CUSTOM setting see X-DIMENSION and Y-DIMENSION later in this table.
MPT MEDIATYPE PLAIN	LETTERHEADTRANSPARENCYLABELSCARD STOCKGLOSSYBONDRECYCLEDROUGH	Selects the type of media to be fed from the multi purpose tray so that the printer can adjust its internal parameters to better accommodate the selected type of media.
MPT MEDIAWEIGHT LIGHT	MEDIUM LIGHTMEDIUMHEAVYULTRA HEAVY1ULTRA HEAVY2	Selects the media weight to be fed from the multi purpose tray.
UNIT OF MEASURE MILLIMETREINCH		Selects the unit of measure for the next two items.

COLOUR MENU

The printer automatically adjusts colour balance and density at appropriate intervals, optimising the printed output for bright white paper viewed in natural daylight conditions. The items on this menu provide a means of changing the default settings for special or particularly difficult print jobs. Settings revert to their default values when the next print job is complete.

ITEM SETTINGS EXPLANATION
DENSITY CONTROL AUTO	MANUAL	Selecting this will permit automatic adjustment of the colour density.
ADJUST DENSITY EXECUTE	Image density will be	automatically adjusted at power on, when a new image drum or toner cartridge is installed, and at intervals of 100, 300 and 500 drum counts. If a 500 drum count interval occurs during a print job it will occur at the end of that job, and will take up to 55 seconds.
AJST REGISTRATION EXECUTE	Performs automatic	colour registration adjustment.Normally this is done on power on and when the top cover is opened and then closed. This process accurately aligns the cyan, magenta and yellow images to the black image.
C REG FINE ADJ	-3~0~+3	Performs fine adjustment of image timing in relation to the black image component.
M REG FINE ADJ	-3~0~+3
Y REG FINE ADJ	-3~0~+3

This menu adjusts general printer settings to suit the way you prefer to work.

ITEMS SETTINGS EXPLANATION
POW SAVE DELAY 1	35153060240	Adjusts the idling time before the printer automatically switches into power saving mode. In this mode power consumption is reduced to a low level required to just keep the printer operating and ready to receive data. When a job is sent the printer will require a warm-up time of up to 1 minute before printing can begin.
CLRABLE WARNING ONLINE	JOB	When ONLINE, non-critical warnings, such as requests for a different paper size, can be cleared by pressing the ON LINE button. When set to JOB, they are cleared when the print job resumes.
MANUAL TIMEOUT OFF	3060	Specifies how many seconds the printer will wait for paper to be fed before cancelling the job.
WAIT TIMEOUT	OFF~90~300	Specifies how many seconds the printer will wait when received data pauses before forcing a page eject. In PostScript Emulation mode the job will be cancelled if timeout occurs.
TONER LOW CONTINUE	CONTINUE STOP	Specifies whether the printer should continue printing even after a low toner condition is detected.
JAM RECOVERY ON	OFF	Specifies whether the printer should perform jam recovery after a paper jam has occurred. If ON, the printer will attempt to print again any pages lost due to a paper jam once the jam has been cleared.
ERROR REPORT	ONOFF	Sets whether an error report is printed when an internal fault occurs.

USB MENU

This menu controls the operation of the printer's USB data interface.

ITEM SETTINGS EXPLANATION
SOFT RESET ENABLE / DISABLE		Enables or disables the SOFT RESET command.
SPEED 12 / 480 Mps	Selects the interface speed.
SERIAL NUMBER ENABLE / DISABLE Specifies		whether to ENABLE or DISABLE a USB serial number.The USB serial number is used to identify the USB device connected to your PC.

NOTE:

When you have changed any settings in the USB MENU, turn the printer OFF, then ON again.

NETWORK MENU

This menu controls the operation of the printer's 10Base-T/100Base-TX network interface.

ITEM SETTINGS EXPLANATION
TCP/IP ENABLE /	DISABLE	Enables or disables this network protocol.
NETBEUI ENABLE /	DISABLE	Enables or disables this network protocol.
IP ADDRESS SET	AUTO / MANUAL	Specifies whether IP address allocation is automatic (DHCP) or manually assigned.
IP ADDRESS	xxx.xxx.xxx.xxx	Current assigned IP address. To change, press ENTER and use up or down buttons to increment 1st octet, then press ENTER again to move on to next octet. When 4th octet has been set, press ENTER again to register new address.
SUBNET MASK	xxx.xxx.xxx.xxx	Current assigned subnet mask. To change, proceed as above.
GATEWAY ADDRESS	xxx.xxx.xxx.xxx	Current assigned gateway address. To change, proceed as above.
WEB	ENABLE / DISABLE	Enables or disables Web config. facility.
TELNET	ENABLE / DISABLE	Enables or disables Telnet config. facility.
FTP	ENABLE / DISABLE	Enables or disables communication via FTP.
SNMP	ENABLE / DISABLE	Enables or disables SNMP protocol.
NETWORK SCALE	NORMAL / SMALL	Selects network size.
HUB LINK SETTING	AUTO NEGOTIATE100BASE-TX FULL100BASE-TX HALF10BASE-T FULL10BASE-T HALF	Sets full or half duplex for communication via a network hub.
ITEM	SETTINGS	EXPLANATION
FACTORY DEFAULTS ENABLE	EXECUTE Reloads the	settings present when the unit was setup by the manufacturer.

MAINTENANCE MENU

This menu provides access to various printer maintenance functions.

ITEM SETTINGS EXPLANATION
MENU RESET EXECUTE	Resets menus to default settings.
SAVE MENU EXECUTE S	Saves the current menu	settings. The last menu executed is saved and the menu previously saved is overwritten and erased.When you press the ENTER button, the following confirmation message is displayed."DO YOU WANT TO EXECUTE THIS FUNCTION?" YES/NOIf you select NO, the display returns to the previous menu.If you select YES, the current menu settings are stored and the menu is exited.
POWER SAVE	ENABLE / DISABLE	Enables or disables automatic power save mode.Delay before entering this mode is set in the SYSTEM CONFIGURATION menu.
PAPER BLACK SET	-2~0~+2	Used for small adjustment when you experience faded print or light specks / streaking in monochrome printing on white paper. Select a higher value to reduce fading, or a lower value to reduce specks or streaking in high density print areas.
PAPER COLOR SET	-2~0~+2	As above, but for colour printing.
TRNSPR BLACK SET	-2~0~+2	As above but for mono printing on transparencies.
TRNSPR COLOR SET	-2~0~+2	As above but for colour printing on transparencies.
SMR SETTING	-3~0~+3	Compensates for print variations caused by differences in temperature, humidity, and printing density/frequency.Change the value when the image quality is uneven.
BG SETTING	-3~0~+3	Compensates for print variations caused by differences in temperature, humidity and printing density/frequency.Change the value when the background density is high.

USAGE MENU

This menu is for information only, and provides an indication of total usage of the printer and the expected life left in its consumable items. This is particularly useful if you do not have a full set of replacement consumables to hand and you need to know how soon you will need them.

ITEM	DISPLAY	EXPLANATION
TRAY1 COUNT	nnnnnn	The total number of pages fed from tray 1.
TRAY2 COUNT	nnnnnn	The total number of pages fed from tray 2 (if fitted).
TRAY3 COUNT	nnnnnn	The total number of pages fed from tray 3 (if fitted).
MPT COUNT	nnnnnn	The total number of pages fed from the multi purpose tray.
ITEM DISPLAY	EXPLANATION
K DRUM LIFE	REMAINING	Percentage of life remaining in these consumable items.
C DRUM LIFE	nnnnnn
M DRUM LIFE
Y DRUM LIFE
BELT LIFE REMAINING	nnnnnn	Percentage of belt life remaining.
FUSER LIFE REMAINING	nnnnnn	Percentage of fuser life remaining.
K TONER	REMAINING	Cartridge size and current toner level.
C TONER	nnnnnn
M TONER
Y TONER

ADMINISTRATOR (BOOT) MENU

This menu should only be changed by the System Administrators. In order to gain access to this menu, follow the instructions in "How to change the settings - Administrator" on page 38.

This menu is in ENGLISH only (default settings in bold type).

ITEM SUB-MENU SETTINGS EXPLANATION
Enter Password x	xxxxxxxxxxx Enter	a password to gain	entry to the Admin menu.Password should be from 6 to 12 digits of alpha/numeric characters (or mix)The default value is "aaaaaaa"The printer will restart after the Boot Menu.
	OP Menu
	ALL CATEGORY ENABLE/DISABLE		Enables/Disables all categories in the USERS MENU.If DISABLE is selected, only the PRINT JOB MENU will appear.
	INFORMATION MENU	ENABLE/DISABLE	Enables/disables the information menu. If DISABLE is selected, the information menu will not appear.
	SHUTDOWN MENU	ENABLE/DISABLE	Enables/disables the shutdown menu. If DISABLE is selected, this menu will not appear.
	PRINT MENU ENABLE/DISABLE		Enables/disables the print menu. If DISABLE is selected, this menu will not appear.
	MEDIA MENU ENABLE/DISABLE		Enables/disables the media menu. If DISABLE is selected, this menu will not appear.
	COLOR MENU ENABLE/DISABLE		Enables/disables the color menu. If DISABLE is selected, this menu will not appear.
	SYS CONFIG MENU	ENABLE/DISABLE	Enables/disables the system configuration menu. If DISABLE is selected, this menu will not appear.
	USB MENU ENABLE/DISABLE		Enables/disables the USB menu. If DISABLE is selected, this menu will not appear.
	NETWORK MENU	ENABLE/DISABLE	Enables/disables the network menu. If DISABLE is selected, this menu will not appear.
	MEMORY MENU ENABLE/DISABLE		Enables/disables the memory menu. If DISABLE is selected, this menu will not appear.
	SYS ADJUST MENU	ENABLE/DISABLE	Enables/disables the system adjust menu. If DISABLE is selected, this menu will not appear.
ITEM SUB-MENU SETTINGS EXPLANATION
	MAINTENANCE MENU	ENABLE/ DISABLE	Enables/disables the maintenance menu. If DISABLE is selected, this menu will not appear.
	USAGE MENU ENABLE DISABLE DISABLE		Enables/disables the usage menu. If DISABLE is selected, this menu will not appear.
	Config Menu
	NEARLIFE STATUS	ENABLE/ DISABLE	Enables/disables the LED control when NearLife warning of a toner, drum, fuser, or belt occurs.Attention LED is lighted when enabled, not lighted when disabled. (Displays LCD message).The status (Life warning) of temporay recovery by opening and closing of the cover is not included.
	NEARLIFE LED ENABLE DISABLE DISABLE
	PEAK POW CONTROL	NORMAL/LOW Sets level of peak power control.
	FILE SYS MAINT1
	FLASH INITIALIZE	EXECUTE Initializes the resident flash memory.The following message appears when pressing the enter button.ARE YOU SURE?YES/NOf NO is selected, the printer will go back to the source menu. If YES is selected, the printer will be automatically rebooted and initialize the flash memory.
	FILE SYS MAINT2
	INITIAL LOCK	YES/NO	If YES is selected ADMIN MENU will not appear - FILE SYS MAINT !
	LANGUAGE MENU
	LANG INITIALIZE	EXECUTE Initializes the message file loaded in flash memory.The following message for confirmation will appear by pressing the enter button.ARE YOU SURE?YES/NOf NO is selected, the printer will go back to the source menu. The procedure for clearing disk will start immediately after the menu is rebooted
	CHANGE PASSWORD
	NEW PASSWORD	********** Set a new password for entering administrator's menu.From 4 to 12 alpha/numerical digits can be entered.
	VERIFY PASSWORD	********** Verifies the new password set above.

PRINT STATISTICS MENU

This menu should only be changed by the System Administrators. In order to gain access to this menu, follow the instructions in "How to change the settings - Administrator" on page 38 but hold down the MENU UP button instead of the Enter button.

This menu is in ENGLISH only (default settings in bold type).

ITEM SETTINGS EXPLANATION
Enter Password	XXXX	Enters a password to enter Print Statistics menu.The default value is "0000".The password for entry to Print Statistics is different from the password for entry to Functions-Admin Setup."Print Statistics" category is not shown when Print Statistics function is not supported.
Usage Report	Enable/Disable	Enables/Disables the printing of the Usage Report.When changing a setting value, the printer is rebooted.
Group Counter	Enable/Disable	Specifies if the Group counter is displayed in the Usage Report Print.Enable: Displayed.Disable: Not displayed.Conditions for display:Enable must be selected in Functions/Print Statistics/Usage Report.
Supplies Report	Enable/Disable	Enables/disables the Supplies Report.Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Main Counter	Execute Resets the main counter to zero.	When executing this menu, resets the main counter to zero and exits from the menu. Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Supplies Counter	Execute Resets the Supplies counter to zero.
Change Password		Changes the password. Enable must be selected in Functions/Print Statistics/Usage Report
New Password	xxxx Sets a new password to enter Print Statistics menu.
Verify Password	xxxx Re-enter new password set to enter Print Statistics set in New Password for confirmation.

MENU FUNCTIONS - C821 AND C830

This section lists the menus accessed via the controls on the printer's operator panel and displayed in the LCD window.

OPERATOR PANEL

1 SHUT DOWN /RESTART READY HELP ATTENTION 2 Ready To Print Power Save Toner C M Y K Back MENU ENTER ON LINE CANCEL 6 3 7 4 8

1. Ready LED	ON: Ready to receive data.BLINKING: Processing data.OFF: Offline.	2. Display	Displays the printer status and any error messages.
3. Menu Buttons	Enters the Menu mode. In Menu mode, forwards or reverses the menu item displayed.Press for 2 secs. or longer to fast forward or reverse.	4. On Line Button	Switches between ONLINE and OFFLINE.Exits the menu and goes ONLINE when pressed in the Menu mode.Forces printing on the paper currently loaded when pressed with "WRONG PAPER" or "WRONG PAPER SIZE" displayed.
5. Attention LED	ON: A warning occurs.Printing not possible (e.g empty toner).BLINKING: An error occurs.Printing may be possible (e.g. toner low).OFF: Normal condition.	6. Back Button	Returns to the previous higher level menu item or exits menu & returns printer to "Ready to Print".
7. Enter Button	In the ONLINE or OFFLINEmode: enters the Menu mode.In the Menu mode:determines the setting selected. Advances through the menu structure.	8. Cancel Button	Deletes the data being printed or received when pressed for two seconds or longer.Deletes the data when pressed for two seconds or longer with, e.g., WRONG PAPER SIZE displayed.Exits the menu and goes ONLINE when pressed in the Menu mode.
9. Help Button	Provides advice when an error such as incorrect paper size occurs	10. Shut Down/Restart Button	When held for a few seconds carries out the correct shutdown/restart procedure to prevent possible machine damage

HOW TO CHANGE THE SETTINGS - USER

It should be noted that many of these settings can be, and often are, overridden by settings in the Windows printer drivers. However, several of the driver settings can be left at "Printer Setting", which will then default to the settings entered in these printer menus.

Where applicable, factory default settings are shown in bold type in the following tables.

In the normal operating condition, known as "standby," the printer's LCD window will show "Ready to Print". In this condition, to enter the menu system, press the up and down Menu buttons on the operator panel to move up and down through the list of menus until the menu you wish to view is displayed. Then proceed as follows:

1. Press Enter to enter the menu.
2. Use the up or down Menu buttons on the control panel to scroll through the menus. When the item you want to change is displayed, press Enter to view the sub-menus for that item.
3. Use the up or down Menu buttons to move up and down through the sub-menu items. When the item you want to change is displayed press Enter to display the setting.

4. Use the up or down Menu buttons to move up and down through the available settings for the sub-menu item. When the item you want to change is displayed press Enter to display the setting. An asterisk (*) will appear next to the setting, indicating that this setting is currently in effect.

5. Do one of the following:

Press Back again to move up to the list of menus;

or...

Press On Line or Cancel to exit from the menu system and return to standby.

NOTE:

When you have changed any settings in the USB menu, turn the printer OFF, then ON again.

HOW TO CHANGE THE SETTINGS - ADMINISTRATOR

You can set whether to ENABLE or DISABLE each category in the user menu.

Disabled categories are not displayed in the User's menu. Only a system administrator can change these settings.

1. Tum OFF the printer.

2. Turn ON the printer while pressing the Enter button. When Boot Menu appears, take your finger off the button.

3. Press the Enter button.

4. When Enter Password appears, press the up or down MENU button, each time followed by Enter, then Enter several times to input the 1st line of the your password, and then press the Enter button.

Enter your 4 to 9 digit password.

(The default password is aaaaaa).

1. Press the Enter button.

2. Press the up or down Menu button until the "category" you want to change is displayed.

3. When it is, press the Enter button.

4. Press the up or down Menu button until the "item" you want to change is displayed.

5. When it is displayed, press the Enter button.

6. Using the MENU up button or MENU down button, identify the parameter as required.

7. Press the Enter button to enter an asterisk (*) on the right side of the setting selected.

8. Press the On Line button to switch to online. The machine will automatically re-boot.

CONFIGURATION MENU

ITEM ACTION EXPLANATION
Tray Count Tray1	Tray 2*Tray 3*MP Tray*Note: Only available when optional trays are present	Select an item to display the total number of pages printed from the relevant tray.
Supplies Life Cyan Drum	Magenta DrumYellow DrumBlack DrumBeltFuserCyan TonerMagenta TonerYellow TonerBlack Toner	Select item to display the percentage of a consumable remaining.
Network Printer Name	Short Printer NameIP AddressSubnet MaskGateway AddressMAC AddressNetwork FW VersionWeb Remote version	Displays the full printer name.Displays an abbreviated version.Displays the IP Address Subnet of the network.Displays the Subnet Mask.Displays the Gateway of the network.Displays the Mac Address of the printer.Displays the Network firmware revision.Displays the Web remote version.
System Serial Number	Asset NumberCU VersionPU VersionTotal MemoryFlash MemoryHDD	Displays information for these items.

PRINT INFORMATION MENU

This menu provides a quick method of listing various items stored within the printer.

ITEM ACTION EXPLANATION
Configuration Execute Select execute to print out a configuration report.
Network Execute Scroll down to this parameter and select execute to print out Network information.
Demo Page DEMO1 Execute Scroll down to this parameter and select execute to print out a demonstration page.
File List Execute Scroll down to this parameter and select execute to print out a list of job files. (displayed only if FileSystem is installed).
PS Font List Execute Scroll down to this parameter and select execute to print out a Postscript emulation typeface list.
PCL Font List Execute Scroll down to this parameter and select execute to print out a PCL font list.
IBM PPR Font List Execute Scroll down to this parameter and select execute to print out an IBM PPR font list (must be enabled in System Maintenance).
EPSON FX Font List Execute Scroll down to this parameter and select execute to print out an Epson FX emulation font list (must be enabled in System Maintenance).
Usage Report Execute Scroll down to this parameter and select execute to print out a list of colour and mono pages printed.
Error Log Execute Scroll down to this parameter and select execute to print out the error log.
Color Profile List Execute Scroll down to this parameter and select execute to print out a list of colour profiles.

NOTE:

Only present if an optional Hard disk Drive (HDD) is fitted.

ITEM ACTION EXPLANATION
Encrypted Job Not Found	PrintDelete	Used for printing an encrypted authentication print job (Encrypted Job) stored in HDD.After inputting a password, "Searching Job" is displayed until a job appropriate for the password is found.(Searching time increases in proportion to the number of jobs stored in HDD, and the printer may take up to 20 sec.)The search can be cancelled by holding down the Cancel button.Not Found will be displayed where a file, which could be printed is not available.The following message will appear if a printable file is available.Encrypted JobPrintDeleteA set of all jobs will be printed if Print is selected and the Enter button is pressed.The following message will appear if Delete is selected:Are You Sure?YesNoThe display will return to the source menu if No is selected.All jobs will be deleted if Yes is selected.Print jobs with encrypted authentication stored in HDD are deleted by a delete method specified by the driver after printing or a delete instruction from the menu.
Stored Job Not Found	PrintDelete	Used to print out a stored job in a HDD.Not Found will be displayed where a file, which could be printed is not available.The following message will appear if a printable file is available.Stored JobPrintDeleteWhen Print is selected, Set Collating Amount is displayed and the number of pages to print can be specified.Specify the number of pages to print and press the Enter button.The following message will appear if Delete is selected:Are You Sure?YesNoIf No is selected, the display will return to the previous menu.If Yes is selected, all jobs will be deleted.

MENUS

ITEM ACTION EXPLANATION
Tray Configuration Paper	FeedTray1/MP Tray	Select tray (default condition indicated by *)Select by scroll and Enter button.Note: Optional additional trays shown if fitted.
	Auto Tray SwitchOn/Off	Switches Auto ON/OFF (default condition indicated by *). Select by scroll andEnterbutton.
	Tray SequenceDown/Up/Paper Feed	Selects Tray sequence Down/Up/Paper feed Tray(default condition indicated by *). Select by scroll andEnterbutton.
	Unit of Measurementinch/millimeter	Selects UOM Inches or millimeter (default condition indicated by *). Select by scroll andEnterbutton.
	Tray1 ConfigDefault:Paper size:Cassette Size /CustomMediaType:Plain/Letterhead/Bond/Recycled/Card Stock/Rough/Glossy/*User type 1 - 5MediaWeight:Light/MediumLight/Medium/Heavy	Configure Paper Size/Media Type/Media Weight.Defines default condition (indicated by *) Select by scroll andEnterbutton.*User type 1 to 5 are displayed only if registered in the host PC.
	Tray 2 Config (if fitted)Default:Paper size:Cassette Size /CustomMediaType:Plain/Letterhead/Bond/Recycled/Card Stock/Rough/Glossy/*User type 1 - 5MediaWeight:Light/MediumLight/Medium/Heavy	Configure Paper Size/Media Type/Media Weight.Defines default condition (indicated by *) Select by scroll andEnterbutton.*User type 1 to 5 are displayed only if registered in the host PC.
	Tray 3 Config (if fitted)Default:Paper size:Cassette Size /CustomMediaType:Plain/Letterhead/Bond/Recycled/Card Stock/Rough/Glossy/*User type 1 - 5MediaWeight:Light/MediumLight/Medium/Heavy	Configure Paper Size/Media Type/Media Weight.Defines default condition (indicated by *) Select by scroll andEnterbutton.*User type 1 to 5 are displayed only if registered in the host PC.
ITEM ACTION EXPLANATION
Tray Configuration (cont.)	MP Tray ConfigPaper size: A3/A4 Short EdgeA4 Long EdgeA5/A6/B4/B5 SEF/B5 LEF/Legal14/Legal13.5/Legal13/Tabloid/Letter Short Edge/Letter Long Edge/Executive/Custom/Com-10 Envelope/DL Envelope/C5/C4Media Type:Plain/Letterhead/Transparency/Labels/Bond/Recycled/CardStock/Rough/Glossy/*Usertype 1-5MediaWeight:Light/MediumLight/Medium/Heavy/Ultra Heavy1/Ultra Heavy2Tray us ag e:Do Not Use/WhenMismatching	Configure Paper Size/Media Type/Media Weight/Tray Usage.Defines default condition (indicated by *) Select by scroll andEnterbutton.*User type 1 to 5 are displayed only if registered in the host PC.Paper weight 189 220g/m^2 Sets MPTray usage.When Mismatching:if paper mismatch occurs, paper is requested from the MPTray instead of the specified tray.Do Not Use:sets MPTray unavailable both in Auto Tray Select and Auto Tray Switch.
System Adjust Power	Save TimeDefault:1	Select from1 / 3 / 5/10/15/30/60/240 Minutes(default condition indicated by *).Select by scroll andEnterbutton.
	Clearable WarningDefault:ONLINE	Select from:ONLINE/Job(default condition indicated by *). Select by scroll andEnterbutton. PS job only.
	Auto ContinueDefault:Off	Select fromOn/Off(default condition indicated by *). Select by scroll andEnterbutton.
	Manual TimeoutDefault:60	Select fromOff/30 seconds/60 seconds(default condition indicated by *). Select by scroll andEnterbutton.
	Wait TimeoutDefault:40	Select fromOff/5/10/20/30/40/50/60/90/120/150/180/210/240/270/300 seconds(default condition indicated by *).Select by scroll andEnterbutton.
	Low TonerDefault:Continue	Select action to take when toner sensor indicates low toner. Select fromContinue/Stop(default condition indicated by *). Select by scroll andEnterbutton.
	Jam RecoveryDefault:On	Select fromOn/Off(default condition indicated by *). Select by scroll andEnterbutton.
	Error ReportDefault:Off	Select fromOn/Off(default condition indicated by *). Select by scroll andEnterbutton.
ITEM	ACTION	EXPLANATION
System Adjust (cont.)	Print Position AdjustDefault: 0.00	Select from X Adjust/Y Adjust/Duplex X Adjust/Duplex Y Adjust (default condition indicated by *). Select by scroll and Enter button. Define measurement.
	Paper Black Settings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the black print on paper.
	Paper Color Settings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the colour print on paper.
	Trans. Black Settings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the black print on transparencies.
	Trans. Color Settings -2/-1/0/+1/+2Default: 0	Used for fine adjustment of the colour print on transparencies.
	SMR Setting +3/+2/+1/-1/-2/-3/Default: 0	To correct variations in print results caused by temperature/humidity conditions and difference in print density/frequency.Change the setting when print quality is uneven.
	BG Setting +3/+2/+1/-1/-2/-3/Default: 0	To correct variations in print results caused by temperature/humidity conditions and difference in print density/frequency.Change the setting when background is dark.
	Drum CleaningDefault: Off	Sets whether to rotate the drum in idle prior to printing in order to reduce horizontal white lines.Be warned that this will shorten the ID life by as much as this rotation (default condition indicated by *). Select by scroll and Enter button.
	Hex Dump Execute	Prints out data received from the host PC in the hexadecimal Dump. Turning off the power supply switch restores Normal Mode.

SHUTDOWN MENU

This menu only appears if the hard disk drive is installed.

This item should always be selected before switching the printer off, to ensure that no hard disk data is lost.

If using the Operator panel button instead, keep pressed for approximately 5 seconds

ITEM SETTINGS EXPLANATION
Shutdown Start Execute	Performs controlled shutdown of the printer, ensuring that all files on the internal hard disk are closed before power is turned off. Only power the printer off when the display indicates that shutdown is complete.

ADMIN SETUP

ITEM SETTINGS EXPLANATION
Enter Password		xxxxxxxxxxxx Enter a password to gain entry to the Admin Setup menu.Password should be from 6 to 12 digits of alpha/numeric characters (or mix)The default value is "aaaaaa"
Network Setup	TCP/IP Enable	Disable	Sets TCP/IP Protocol.Enable: TCP/IP Protocol is available.Disable: TCP/IP Protocol is not available.
	IP Version IP v4IP v4+v6		Set up the IP version.Operates with IPv4 for IPv4 (not valid with IPv6).Operates with both IPv4 and IPv6
	NetBEUI EnableDisable		Sets Enable/Disable of NETBEUI Protocol.
	NetWare EnableDisable		Sets Enable/Disable of NetWare Protocol.
	EtherTalk EnableDisable		Sets Enable/Disable of EtherTalk Protocol.
	Frame Type Auto802.2802.3Ethernet IISNAP		Sets the frame type.Netware should be enabled.
	IP Address Set	AutoManual	Sets the IP Address setting method.TCP/IP should be enabled.
	IP Address xxx.xxx.xxx.xxx Sets the IP Address.TCP/IP should be enabled.
	Subnet Mask xxx.xxx.xxx.xxx Sets the Subnet Mask.TCP/IP should be enabled.
	Gateway Address	xxx.xxx.xxx.xxx Sets the Gateway (default router) address.0.0.0 means that there is no router.TCP/IP should be enabled.
	Web Enable	Disable	Sets Enable/Disable of Web.Enable: Web/IPP is available.Disable: Web/IPP is not available.TCP/IP should be enabled.
	Telnet	EnableDisable	Sets Enable/Disable of Telnet.Enable: Telnet is available.Disable: Telnet is not available.TCP/IP should be enabled.
	FTP	EnableDisable	Sets Enable/Disable of FTP.Enable: FTP is available.Disable: FTP is not available.TCP/IP should be enabled.
ITEM		SETTINGS	EXPLANATION
Network Setup (cont.)	SNMP Enable	Disable	Sets Enable/Disable of SNMP. Enable: SNMP is available. Disable: SNMP is not available. TCP/IP or NetWare should be enabled.
	Network Scale	Normal Small	When Normal is selected, the network can work effectively even when it is connected to a HUB that has a spanning tree feature. However, printer start up time gets longer when computers are connected with two or three small LANs. When Small is selected, computers can cover from two or three small LANs to a large LAN, but may not work effectively when the network is connected to a HUB with a spanning tree feature.
	Hub Link Setting	Auto Negotiate 100Base-TX Full 100Base-TX Half 10Base-T Full 10Base-T Half	Sets a method to link to a HUB. When Auto is set, a connection method to a HUB is selected automatically.
	Factory Defaults?	Execute Specifies	whether to initialize the network factory default settings for the Network.
Print Setup Personality	Auto	PostScript PCL IBM PPR EPSON FX	Selects a printer language.
	Copies 1-999	Selects the default number of copies.
	Duplex	On/Off	Specifies Duplex print (option) if a Duplex unit is installed and enabled
	Binding Long	Edge Short Edge	Specifies Binding in duplex printing (if a Duplex unit is installed and enabled)
	Media Check	Enable Disable	Sets whether the printer checks the matching of printed data size and that of the tray. Only standard sizes are checked.
	Resolution 600dpi 600x1200dpi 600dpi multi-level.		Sets default resolution.
	Toner Save Mode	On/Off	This function works effectively only if the data input is color RGB data. This setting is valid in PS and PCL, but does not take effect in the following cases.(1) PS: If Color Matching is set OFF.(2) PS: If any setting other than ASIC Color Matching is set.(3) PS: CMYK data when Ink Simulation Mode is used (valid in any other cases except Case (1) and Case (2) above as long as data is RGB).(4) PCL binary data (Color/Monochrome).
ITEM SETTINGS EXPLANATION
Print Setup (cont.)	Mono-Print Speed	Auto	If the first page of a print job is black and white, the printer runs at 32ppm (pages per minute). When a colour page is detected the printer slows down to 30ppm (C830) or 26ppm (C821) for the rest of that job.This setting operates in the same way as AUTO SPEED, except that the printer runs at 32ppm until a colour page is detected. To achieve this speed the printer requires an additional time to warm up and cool down when switching to 30ppm (C830) or 26ppm (C821) for colour pages. This setting is therefore most appropriate when the majority of print jobs are entirely black and white.The printer runs at 30ppm (C830) or 26ppm (C821) for all print jobs. This setting is most appropriate when the majority of print jobs are in colour.The printer runs at 26 ppm (C830) or 22ppm (C821) for colour pages and 30 ppm (C830) or 26ppm (C821) for mono pages.
		Mono 32ppm
		Color Speed
		Mixed Speed
	Default Orientation	Portrait Landscape	Specifies print orientation.Not valid for PS (valid only for PCL/ IBMPPR/EPSONFX/ HP-GL2).
	Form Length 5	lines~64 lines~128 lines	Sets the number of lines that can be printed on a pageNot valid for PS (valid only for PCL/HP-GL2).Default values listed to the left are for Letter/A4. In practice, however, they change according to the size of paper loaded in the tray.
	Edit Size Cassette Size/A3/A4 Short Edge/A4 Long Edge/A5/A6/B4/B5 Short Edge/B5 Long Edge/Legal14/Legal13.5/Legal13/Tabloid/Letter Short Edge/Letter Long Edge/Executive/Custom/Com-10Envelope/DLEnvelope/C5/C4		Sets the size of an area to draw when the host PC does not specify the size via the paper edit size designating command (Not valid for PS - only for PCL).
	X Dimension 6	4 mm~210 mm~297 mm	Specifies paper width of Custom paper as a default value.Sets a paper size at right angles to the paper run direction.
	Y Dimension 1	105 mm~297 mm~1321 mm	Specifies paper length of Custom paper as a default value.Sets a paper size in the same direction as the paper run direction.
ITEM		SETTINGS	EXPLANATION
PS Setup Network	Protocol	ASCII/RAW	Specifies PS communication protocol mode of data from NIC port.(In RAW mode, Ctrl-T is invalid). PS models only.
	Parallel Protocol	ASCII/RAW Specifies PS communication protocol mode of data from Centronics port.(In RAW mode, Ctrl-T is invalid). PS models only.
	USB Protocol	ASCII/RAW	Specifies PS communication protocol mode of data from USB port.(In RAW mode, Ctrl-T is invalid). PS models only.
PCL Setup	Font Source	Resident	Specifies the location of PCL default font.
	Font Number	IO ~ I90 Sets the	PCL font number.The valid range of this variable changes depending on the FONT SOURCE setting at the time. If the default font is set for FONT SOURCE, the number starts at 0. If it is not, the number starts at 1. The maximum value is equal to the number of fonts installed in FONT SOURCE.
	Font Pitch 99.99CPI~10.00CPI~0.44CPI		Width of the PCL default font in characters per inch (CPI).Default font is fixed-pitch, scalable font.The value of pitch is displayed down to the second decimal place.Displayed only when the font selected in Font No. is a fixed-spacing, scalable font.
	Symbol Set	PC-8	Sets the symbol set of PCL (see machine operator panel for complete list).
	A4 Print Width	78 column80 column	Sets the number of characters for A4 paper.Auto LF.This is for 10-CPI characters when Auto CR/LF Mode is set to OFF.This menu is enabled only when A4 paper is selected in the menu that sets the print width of A4 paper in portrait orientation.Usually, such A4 paper print width is set slightly narrower than 8 inches (about 7.93 inches).This setting cannot print 80 10-cpi characters (only prints up to 78 10-cpi characters). 80 characters set at A4 Print Width widen the right and left margins.A PCL command selects or selects/deselects Auto CR/LF mode.
	White Page Skip	On/Off	Sets whether to eject a page without any data to print (blank page) upon reception of FF command (OCH) in PCL Mode. OFF: Ejecting.
	CR Function	CR/CR+LF	Sets action when CR code is received in PCL.CR: Carriage ReturnCR+LF: Carriage Return and Line Feed
	LF Function	LF/LF+CR	Sets action when LF code is received in PCL.LF: Line FeedLF+CR: Line Feed and Carriage Return
	Print Margin	Normal1/5 inch1/6 inch	Sets a non-printable area of paper.The width of the area along the right and left sides of paper (left and right sides depend on paper orientation).NORMAL: PCL emulation compatible, approximately 1/4~1/4.3INCH (depending on paper) is outside the printable area.
ITEM		SETTINGS EXPLANATION
PCL Setup (cont.)	True Black	On/Off Sets whether to use Composite Black (cmyk mixed) or Pure Black (K only) for the black (100%) in image data.OFF: Mode using Composite BlackON: Mode using Pure Black(PCL only)
	Pen Width Adjust	On/Off When minimum width is specified in PCL, sometimes a 1-dot line, looks broken.With PEN WIDTH Adjust set to ON, when the minimum width is specified, the line width will be emphasized so as to look wider than a 1-dot line.With PEN WIDTH Adjust set to OFF, the line will appear as before.
	Tray 2 ID#	1 ~ 5 ~ 59Sets the # to specify Tray 2 for the paper feed destination command (ESC&I#H) in PCL5e emulation.(Displayed only if Tray 2 is installed).
	Tray 3 ID#	1 ~ 20 ~ 59Sets the # to specify Tray 3 for the paper feed destination command (ESC&I#H) in PCL5e emulation.(Displayed only if Tray 3 is installed).
	MPTray ID#	1 ~ 4 ~ 59Sets the # to specify the MP tray for the paper feed destination command (ESC&I#H) in PCL5e emulation.
IBM PPR Setup	Character Pitch	10 CPI12 CPI17 CPI20 CPIProportional
	Font Condense	12CPI to 20CPI12CPI to 12CPI
	Character Set	SET-2SET-1Sets a character set.
	Symbol Set	IBM-437Sets the Symbol Set for IBM PPR (see machine operator panel for complete list).
	Letter O Style	Enable/DisableSpecifies the style that replaces ø (9B) and ¥ (9D) with ø (ou) and ∅ (zero).
	Zero Character	Normal/Slashed Specifies the style of 0(zero). SLASHED: SLASH ZERO
	Line Pitch	6/8 LPISets line space.
	White Page Skip	On/OffSets whether to eject a blank sheet. Available only when simplex is set.
	CR Function	CR/CR+LFSets action when CR code is received.
	LF Function	LF/LF+CRSets action when LF code is received.
	Line Length	80/136 columnSpecifies the number of characters per line.
	Form Length	11/11.7/12 inchSpecifies the length of paper.
	TOF Position	0.0/0.1/~1.0inchSets the position from the top edge of paper.
	Left Margin	0.0/0.1/~1.0inchSets the amount to shift the horizontal print start position to the right.

ITEM		SETTINGS	EXPLANATION
IBM PPR Setup (cont.)	Fit to Letter	Enable/Disable	Sets the printing mode that can fit print data, equivalent to 11 inches (66 lines), in the LETTER-size printable area.
	Text Height	Same/Diff Sets height of a character.SAME: Regardless of CPI, same heightDIFF: According to CPI, character heights vary.
	Continuous Paper Mode	On/Off	Sets printer for using continuous feed stationary.
EPSON FX Setup	Character Pitch	10 CPI/12 CPI/17 CPI20 CPI/Proportional	Specifies character pitch in Epson FX emulation.
	Character Set	SET-2SET-1	Sets a character set.
	Symbol Set	IBM-437	Sets the Symbol Set for Epson FX Emulation.(see machine operator panel for complete list).
	Letter O Style	Enable/Disable	Specifies the style that replaces ø (9B) and ¥ (9D) with ø(ou) and ∅ (zero).
	Zero Character	Normal/Slashed S	Specifies the style of 0(zero). SLASHED: SLASH ZERO
	Line Pitch 6/8	LPI Sets line space.
	White Page Skip	On/Off	Sets whether to eject a blank sheet. Available only when simplex is set.
	CR Function	CR/CR+LF	Sets action when CR code is received.
	Line Length	80/136 column	Specifies the number of characters per line.
	Form Length	11/11.7/12 inch	Specifies the length of paper.
	TOF Position	0.0/0.1/~1.0 inch	Sets the position from the top edge of paper.
	Left Margin	0.0/0.1/~1.0 inch	Sets the amount to shift the horizontal print start position to the right.
	Fit to Letter	Enable/Disable	Sets the printing mode that can fit print data, equivalent to 11 inches (66 lines), in the LETTER-size printable area.
	Text Height	Same/Diff	Sets height of a character.SAME: Regardless of CPI, same heightDIFF: According to CPI, character heights vary.
	Continuous Paper Mode	On/Off	Sets printer for using continuous feed stationary.
ITEM SETTINGS EXPLANATION
Color Setup Ink Simulation		Off SWOP Euroscale Japan	The machine has its own process simulation engine which simulates standard colors in the printer.This function is available only with PS language jobs.
		UCR Low	Medium High	Selects limitation to the toner layer thickness.If paper curl occurs in dark printing, selecting MEDIUM or LIGHT sometimes helps reduce this curl. UCR = Under Color Removal.
		CMY 100% Density	Enable/Disable	Enable/Disable 100% output against the CMY100% TRC compensation. Ordinarily, the TRC compensation function holds control for the appropriate print density; thus 100% output is not always possible.Selecting ENABLE will enable 100% output in any individual color. The actual print, including the TRC compensation function is limited to an appropriate area. This function is for special purposes such as specification in CMYK color reduction in PS.
		CMYK Conversion	On/Off Setting to	“OFF” will simplify the conversion process of CMYK data, which will reduce the processing time.This setting is ignored when Ink Simulation function is used.PS only
Memory Setup	Receive Buffer Size	Auto0.5 megabyte1 megabyte2 megabyte4 megabyte8 megabyte16 megabyte	Sets the size of receive buffer
	Resource Save	AutoOff0.5 megabyte1 megabyte2 megabyte4 megabyte8 megabyte16 megabyte	Sets the size of resource saving area.
HDD Setup This item is displayed only if a HDD (option) is installed.
			Initialize Execute	Initializes the HDD to the factory default setting. Machine performs partition-division, and initializes each partition. When this menu is executed, the following confirmation message appears.Are You Sure? Yes/NoIf No is selected, you will return to the previous menu. If Yes is selected, the following confirmation message appears.Execute Now? Yes/NoIf No is selected, you will return to the previous menu. The request to execute HDD initialization is put into the memory and initialization will be executed at the next power cycle.If Yes is selected, shutdown takes place, and the HDD is initialized at power Off/On cycle.
			Resize Partition	PCL nn%/ Common mm%/ PSII%/<Apply>

ITEM SETTINGS EXPLANATION
HDD Setup (cont.)	Format Partition	PCL Common PS	Formats a specified partition.When the Enter button is pressed, the following confirmation message appears.Are You Sure? Yes/NoIf No is selected, you will return to the previous menu.If Yes is selected, the following confirmation message appears.Execute Now? Yes/NoIf No is selected, you will return to the previous menu.The request to execute partition formatting is put into the memory and formatting will be executed at next power cycle.If Yes is selected, shutdown takes place and the partition is formatted at power Off/On cycle.In Non-PS machines, PS is replaced by Common, so the message is displayed as "PCL/Common/Common".
System Setup	Near Life Status	Enable/Disable	Sets the LCD display control whennear life warning of a drum, fuser or transfer belt occurs.ATTENTION LED is lit if ENABLED
	Near Life LED	Enable/Disable	Controls the settings of the Attention LED when near end of life warning of toner, drum, fuser, or belt occurs.Attention LED is lit when enabled, not lit if disabled.(Displays LCD message.)The temporary recovery by opening and closing of the cover in Life error is not included.
Change Password	New Password	xxxxxxxxxxxxxx Sets a new password to enter Admin Setup menuFrom 6 to 12 alpha/numeric digits can be entered.
	Verify password	xxxxxxxxxxxxxx Forces the User to input the new password to enter Admin Setup.From 6 to 12 alpha/numeric digits can be entered.
Settings Reset	Settings	Execute Resets EE PROM of CU. Resets User menu to the factory default.If Execute is selected, exits from the menu.
	Save Settings	Execute Saves menus currently set. With this function, the menus with which operation was last performed are saved, and overwrites with them menus that were previously saved.When the Enter button is pressed, the following confirmation message appears.Are You Sure? Yes/NoWhen No is selected, the preceding menus are restored.When Yes is selected, the current menu settings are saved and this menu is exited.

CALIBRATION

ITEM SETTINGS EXPLANATION
Auto Density Mode		On/Off Enables/disables automatic density adjustment.
Adjust Density Execute If Execute is selected, the printer will immediately adjust density and reflect it in TRC compensation.This adjustment must be executed when the printer is idling. It can become invalid if executed in any other state.
Adjust Registration		Execute When this menu is selected, the printer performs AutoAdjust Registration.This adjustment must be executed when the printer is idling.
Print Tuning Pattern		Execute Prints the pattern for the user to adjust TRC.Ordinarily, this function is not needed because TRC is automatically adjusted to the recommended levels through density adjustment and TRC compensation.Adjustment results will be reflected as offset values (addition) to the corrections through the Adjust Density/TRC Compensation function.
Cyan/Magenta/Yellow/Black Tuning	Highlight -3,-2,-1, 0,+1,+2,+3 ,		Adjusts HIGHLIGHT (light area) of the TRC.+ = Darker- = Lighter
	Mid-Tone -3,-2,-1, 0,+1,+2,+3 ,		Adjusts MID-TONE area of the TRC.+ = Darker- = Lighter
	Dark -3,-2,-1, 0,+1,+2,+3 ,		Adjusts DARK area of the TRC.+ = Darker- = Lighter
Cyan/Magenta/Yellow/Black Darkness		-3,-2,-1, 0,+1,+2,+3 ,	Adjusts the engine density.The Darkness settings for each of CMYK will be reflected as offset values (addition) to the corrections through the Adjust Density/TRC Compensation function.

ADMINISTRATOR (BOOT) MENU

This menu should only be changed by the System Administrators. In order to gain access to this menu, follow the instructions in "How to change the settings - Administrator" on page 49.

This menu is in ENGLISH only (default settings in bold type).

Parallel setup

This menu controls the operation of the printer's Parallel data interface.

ITEM SETTINGS EXPLANATION
Enter Password xxxxxxxxxx Enter a password to		gain entry to the Admin menu.Password should be from 6 to 12 digits of alpha/numeric characters (or mix)The default value is "aaaaaa"The printer will restart after the Boot Menu.
Parallel	Enable / Disable	Enables or disables the parallel port.
Bi-Direction	Enable / Disable	ENABLE/DISABLE the bi-directional capability of the parallel interface.
ECP	Enable / Disable	Extended Capabilities Port, enables/disables this function.
ACK Width	Narrow/Medium/Wide	Sets ACK width for compatible reception.= 0.5μs= 1.0μs= 3.0μs
ACK/Busy Timing Ack in Busy / Ack while Busy		Sets the order to output the BUSY and ACK signal for compatible reception.
I-Prime Disable/	3μsec/50μsec	Sets time to enable/disable I-prime signal
Offline Receive	Enable / Disable	To Enable/disable of this function. When set to Enable, the interface retains a receive possible state even when switching to Offline. Interface sends the BUSY signal only when the receive buffer is full or a service call occurs.

USB setup

This menu controls the operation of the printer's USB data interface.

ITEM	SETTINGS EXPLANATION
USB	Enable / Disable	ENABLES / DISABLES the USB port.
Speed	12 / 480 Mbps	Selects the interface speed. After setting change the menu, the printer restarts on exit.
Soft Reset	Enable / Disable	Enables or disables the SOFT RESET command.
Offline Receive	Enable / Disable	OFFLINE RECEIVE.
Serial Number	Enable / Disable	Specifies whether to ENABLE or DISABLE a USB serial number.The USB serial number is used to identify the USB device connected to your PC.

NOTE

When you have changed any settings in the USB MENU, turn the printer OFF, then ON again.

Security setup

Only available when a Hard Disk (option) is fitted.

ITEM SETTINGS EXPLANATION
Job Limitations Off	EncryptedJob	Job limitation mode control.Jobs other than specified ones are rejected.
Reset Cipher Key Execute Resets a cipher key to be used on an encrypted hard disk.When this processing is done, all data stored on the hard disk cannot be restored.After execution, the following confirmation messages will appear.Are You Sure?YesNoIf No is selected, the display will return to the previous menu.If Yes is selected, the printer will be automatically rebooted and the resetting of the cipher key will be executed.

Storage system

Only available when a Hard Disk (option) is fitted.

ITEM SETTINGS EXPLANATION
Check File System Execute Resolves mismatch between actual memory anddisplayed memory available in a file system. Performsadministration data (FAT information) recovery.Performs recovery only for an HDD.
Check All Sectors Execute Performs recovery of defective HDD sector informationand a file system mismatch mentioned above. The targetdevice is only a HDD and it takes 30 to 40 minutes tocomplete this function for an HDD of 10GB.
Enable HDD Yes	No	Even if a machine is inoperable at installation because ofa faulty HDD, the machine can be made operable bysetting this parameter to No (ignores the existence ofthe HDD).When No is set, access to a HDD results in FAIL becausethe HDD is regarded as not attached.After setting change and exit from the menu, the printerwill restart.
Erase HDD Execute De	etion of all data stored in the	hard disk. DoD5220.22-M sanitizing formula is used for clearing the disk. The machine will restart after changing setup. The following message appears after pressing the Enter switch.Are You Sure?YesNoIf NOis selected, you will be returned to the source menuIf Yesis selected the procedure for clearing disk will start immediately after the machine reboots.If the Cancelbutton is held down during erasing, the following confirmation messages will appear to discontinue processing.Do You Wish to Cancel?YesNoIf NOis selected, the procedure will continue. If YESis selected, the procedure will discontinue.
Enable initialization No	Yes	Prevents a setting change accompanying initialization of Block Device (HDD,FLASH).

Storage setup

ITEM SETTINGS EXPLANATION
Enable initialisation Yes/No

Power setup

ITEM SETTINGS EXPLANATION
Peak Power Control	Normal/Low	Sets peak Power control level.
Power Save Enable	Disable	Sets Enable/Disable of Power Save Mode.
USB Host Power	Off/On	Sets power supply for USB-HOST of the whole power save mode.When Off, suppress power supply.When On, do normal power supply.

Language setup

ITEM SETTINGS EXPLANATION
Language Initialize Execute Initialises the message	file loaded in FLASH.When you press theEnterbutton, the following message, requesting confirmation, will appear,Are You Sure?YesNoIfNOis selected, you will be returned to the source menu.The procedure for clearing the disk will start immediately after the menu and rebooting.

PRINT STATISTICS MENU

This menu should only be changed by the System Administrators. In order to gain access to this menu, follow the instructions in "How to change the settings - Administrator" on page 49, but hold down the Menu button instead of the Enter button.

This menu is in ENGLISH only (default settings in bold type).

ITEM SETTINGS EXPLANATION
Enter Password	XXXX	Enters a password to enter Print Statistics menu.The default value is "0000".The password for entry to Print Statistics is different from the password for entry to Functions-Admin Setup."Print Statistics" category is not shown when Print Statistics function is not supported.
Usage Report	Enable/Disable	Enables/Disables the printing of the Usage Report.When changing a setting value, the printer is rebooted.
Group Counter	Enable/Disable	Specifies if the Group counter is displayed in the Usage Report Print.Enable: Displayed,Disable: Not displayed.Conditions for display:Enable must be selected in Functions/Print Statistics/Usage Report.
Supplies Report	Enable/Disable	Enebles/disables the Supplies Report.Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Main Counter	Execute Resets the main counter to zero.	When executing this menu, resets the main counter to zero and exits from the menu. Enable must be selected in Functions/Print Statistics/Usage Report.
Reset Supplies Counter	Execute Resets the Supplies counter to zero.
ChangePasswordNewPasswordVerifyPassword		Changes the password.
	xxxx Sets a new password to enter Print Statistics menu.
	xxxx Re-enter new password set to enter Print Statistics set in New Password for confirmation.

MAINTENANCE

REPLACING CONSUMABLE ITEMS

This section explains how to replace consumable items when due.

NOTE:

When the LCD display indicates TONER LOW, or if print appears faded, first open the top cover and try tapping the cartridge a few times to evenly distribute the toner powder. This will enable you to obtain the best "yield" from your toner cartridge.

TONER CARTRIDGE REPLACEMENT

CAUTION!

To avoid toner wastage and possible toner sensor errors, do not change the toner cartridge(s) until "TONER EMPTY" is displayed.

For the protection of your product, and in order to ensure that you benefit from its full functionality, this model has been designed to operate only with genuine original toner cartridges. Any other toner cartridge may not operate at all, even if it is described as "compatible", and if it does work, your product's performance and print quality may be degraded.

Non-genuine original products may invalidate your warranty.

The toner used in this printer is a very fine dry powder. It is contained in four cartridges: one each for cyan, magenta, yellow and black.

Have a sheet of paper handy so that you have somewhere to place the used cartridge while you install the new one.

Dispose of the old cartridge responsibly, inside the pack that the new one came in. Follow any regulations, recommendations, etc., which may be in force concerning waste recycling.

If you do spill any toner powder, lightly brush it off. If this is not enough, use a cool, damp cloth to remove any residue.

Do not use hot water, and never use solvents of any kind. They will make stains permanent.

WARNING!

If you inhale any toner or get it in your eyes, drink a little water or bathe your eyes liberally in cold water. Seek medical attention immediately.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser may be hot. This area is clearly labelled. Do not touch.

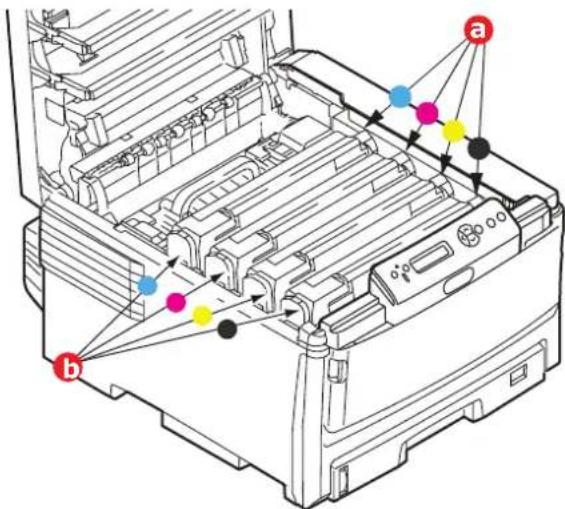

1. Note the positions of the four toner cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer internal structure with colored connection points and labeled parts (a, b)

1. Pull the coloured toner release lever (a) on the cartridge to be replaced fully towards the front of the printer.

Technical diagram showing a printer internal structure with labeled parts and directional arrows, including section (a) highlighting the component.

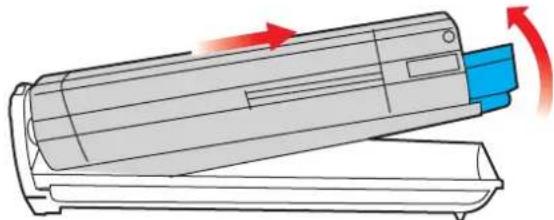

1. Lift the right-hand end of the cartridge and then draw the cartridge to the right to release the left-hand end as shown, and withdraw the toner cartridge (b).

2. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture.

3. Remove the new cartridge from its box but leave its wrapping material in place for the moment.

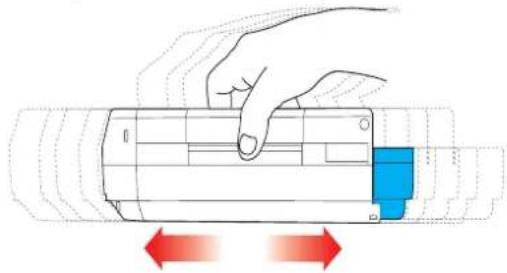

4. Gently shake the new cartridge from end to end several times to loosen and distribute the toner evenly inside the cartridge.

Illustration of a hand pressing down on a cylindrical device with red directional arrows indicating motion (no text or symbols)

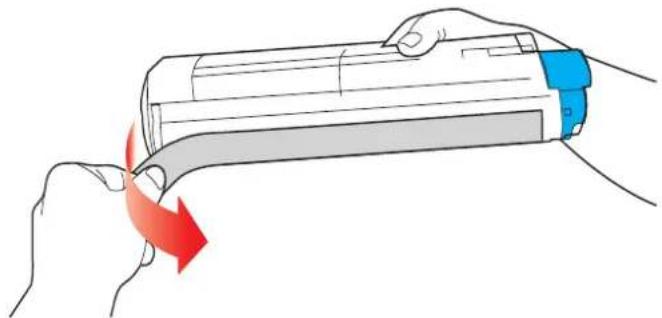

1. Remove the wrapping material and peel off the adhesive tape from the underside of the cartridge.

Illustration of hands holding a cylindrical device with a red arrow indicating rotation (no text or symbols)

1. Holding the cartridge by its top centre with the coloured lever to the right, lower it into the printer over the image drum unit from which the old cartridge was removed.

2. Insert the left end of the cartridge into the top of the image drum unit first (a), pushing it against the spring on the drum unit, then lower the right end of the cartridge down onto the image drum unit (b).

Technical diagram showing mechanical assembly with labeled components (a, b, c) and directional arrows indicating motion or flow.

1. Pressing gently down on the cartridge to ensure that it is firmly seated, push the coloured lever (c) towards the rear of the printer. This will lock the cartridge into place and release toner into the image drum unit.

2. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

IMAGE DRUM REPLACEMENT

CAUTION!

Static sensitive devices, handle with care.

The printer contains four image drums: cyan, magenta, yellow and black.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Note the positions of the four cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer internal structure with labeled components (a, b) and colored markers indicating parts.

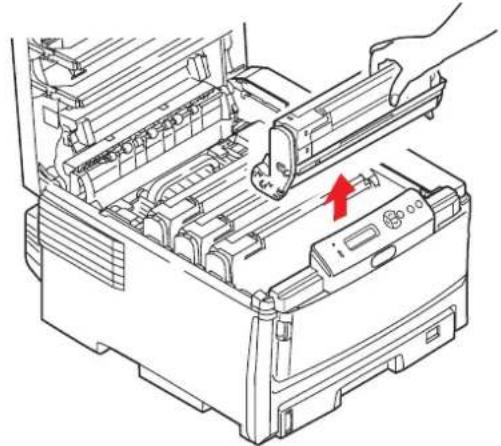

1. Holding it by its top centre, lift the image drum, complete with its toner cartridge, up and out of the printer.

Technical line drawing of a printer internal structure with a hand operating the top panel (no text or symbols visible)

1. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture and to avoid damaging the green drum surface.

CAUTION!

The green image drum surface at the base of the cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

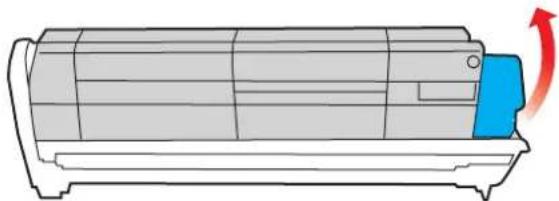

1. With the coloured toner release lever to the right, pull the lever towards you. This will release the bond between the toner cartridge and the image drum cartridge.

Diagram of a car air conditioner unit with a magnified inset showing internal components (no text or labels)

1. Lift the right-hand end of the cartridge and then draw the cartridge to the right to release the left-hand end as shown, and withdraw the toner cartridge out of the image drum cartridge. Place the cartridge on a piece of paper to avoid marking your furniture.

Diagram of a printer or scanner with a blue cover and red arrow indicating motion (no text or symbols)

1. Take the new image drum cartridge out of its packaging and place it on the piece of paper where the old cartridge was placed. Keep it the same way round as the old unit. Pack the old cartridge inside the packaging material for disposal.

2. Place the toner cartridge onto the new image drum cartridge as shown. Push the left end in first, and then lower the right end in. (It is not necessary to fit a new toner cartridge at this time unless the remaining toner level is very low.)

Diagram of a cylindrical device with blue internal components and red arrows indicating flow or movement (no text or symbols)

1. Push the coloured release lever away from you to lock the toner cartridge onto the new image drum unit and release toner into it.

Diagram of a cylindrical device with internal compartments and a blue component, showing a red curved arrow indicating rotation (no text or symbols)

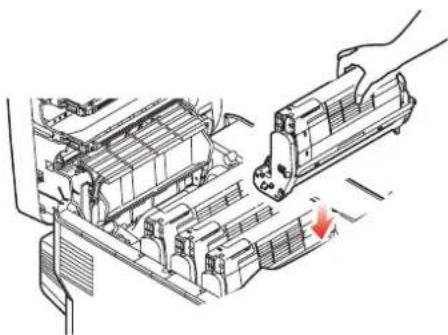

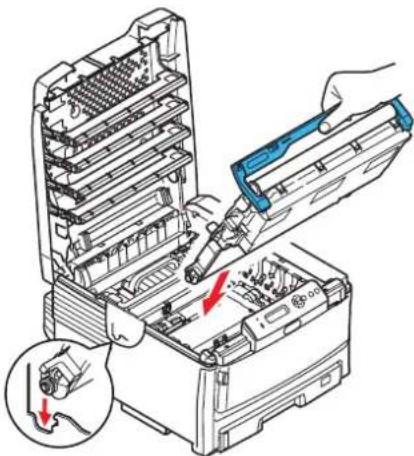

1. Holding the complete assembly by its top centre, lower it into place in the printer, locating the pegs at each end into their slots in the sides of the printer cavity.

Line drawing of a printer internal structure with a hand operating the top panel and a red arrow indicating a downward motion (no text or symbols present)

1. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

NOTE:

If you need to return or transport your printer for any reason, please make sure you remove the image drum unit beforehand and place in the bag provided. This is to avoid toner spillage.

TRANSFER BELT REPLACEMENT

The belt unit is located under the four image drums.

Switch off the printer and allow the fuser to cool for about 10 minutes before opening the cover.

1. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Note the positions of the four toner cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer internal structure with labeled components and colored markers indicating parts of each part.

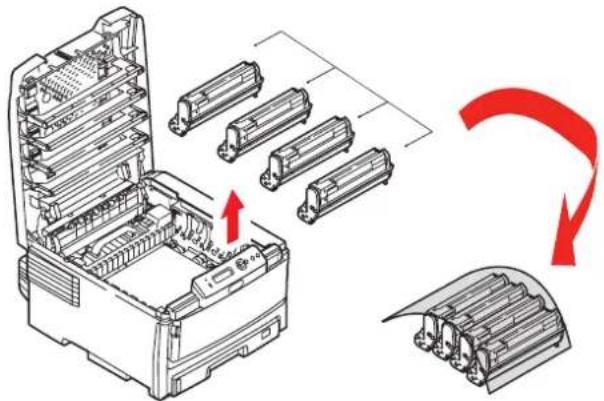

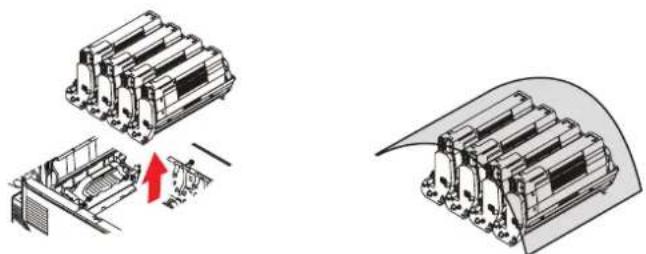

1. Lift each of the image drum units out of the printer and place them in a safe place away from direct sources of heat and light.

Diagram of a printer internal structure with exploded view and red arrow indicating rotation (no text or symbols)

CAUTION!

The green image drum surface at the base of each cartridge is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.

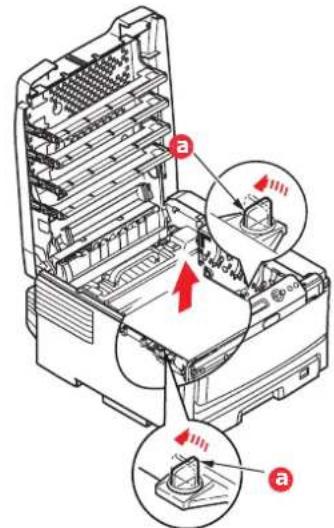

1. Locate the two fasteners (a) at each side of the belt and the lifting bar (b) at the front end.

Technical diagram of a device with labeled parts and directional arrows indicating movement or assembly.

Illustration of a hand using a tool to adjust internal components in a mechanical device (no text or symbols visible)

1. Turn the two fasteners 90^ to the left. This will release the belt from the printer chassis.

2. Pull the lifting bar (b) upwards so that belt tilts up towards the front, and withdraw the belt unit from the printer.

3. Lower the new belt unit into place, with the lifting bar at the front and the drive gear towards the rear of the printer. Locate the drive gear into the gear inside the printer by the rear left corner of the unit, and lower the belt unit flat inside the printer.

Illustration of a hand using a tool to adjust or install electronic components in a rack case, with an inset showing a close-up of the component (no text or symbols present)

1. Turn the two fasteners (a) 90^ to the right until they lock. This will secure the belt unit in place.

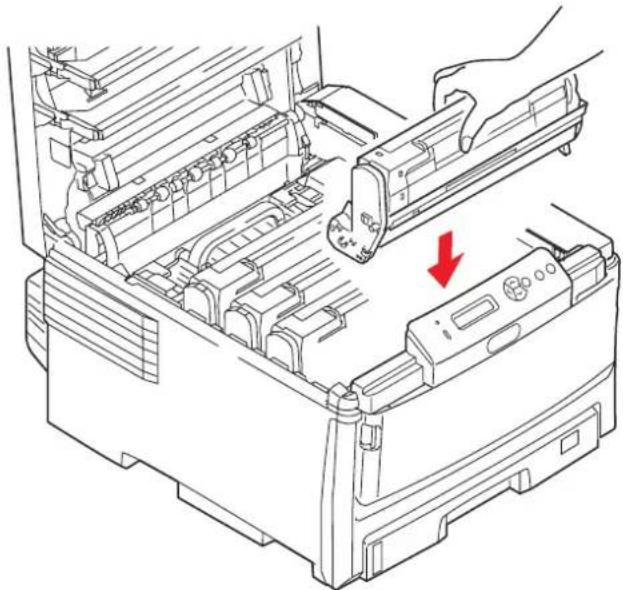

2. Replace the four image drums, complete with their toner cartridges, into the printer in the same sequence as they came out: cyan (nearest the rear), magenta, yellow and black (nearest the front).

3. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

FUSER REPLACEMENT

The fuser is located inside the printer just behind the four image drum units.

WARNING!

If the printer has recently been powered on, some fuser components will be very hot. Handle the fuser with extreme care, holding it only by its handle, which will only be mildly warm to the touch. A warning label clearly indicates the area. If in doubt, switch the printer off and wait at least 10 minutes for the fuser to cool before opening the printer cover.

1. Switch off the printer.
2. Press the cover release and open the printer's top cover fully.
3. Identify the fuser handle (a) on the top of the fuser unit.

Technical diagram of a printer internal structure with labeled parts (a) and (b), showing internal components and directional arrows.

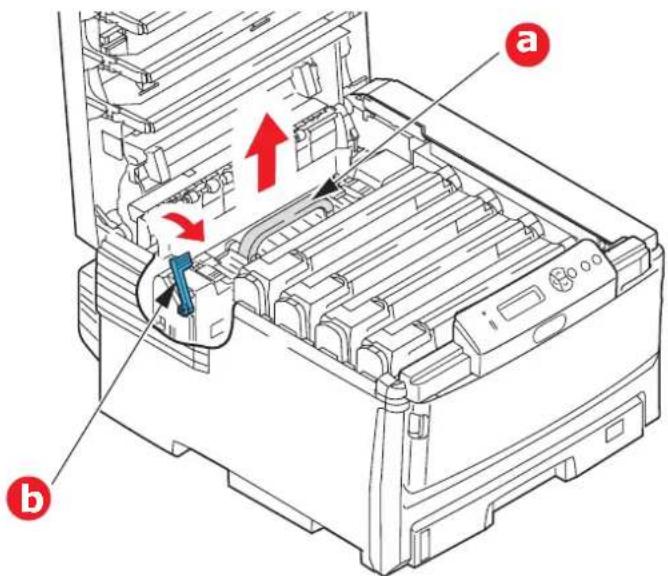

1. Pull the fuser retaining lever (b) towards the front of the printer so that it is fully upright.
2. Holding the fuser by its handle (a), lift the fuser straight up and out of the printer. If the fuser is still warm, place it on a flat surface which will not be damaged by heat.
3. Remove the new fuser from its packaging and remove the transit material.
4. Holding the new fuser by its handle, make sure that it is the correct way round. The retaining lever (b) should be fully upright.

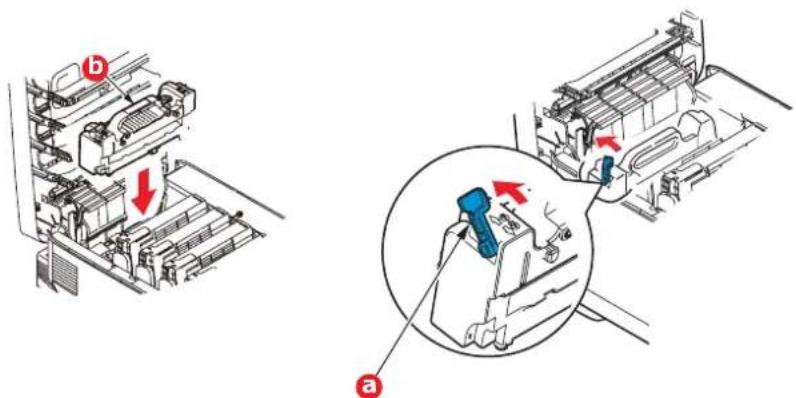

5. Lower the fuser into the printer.

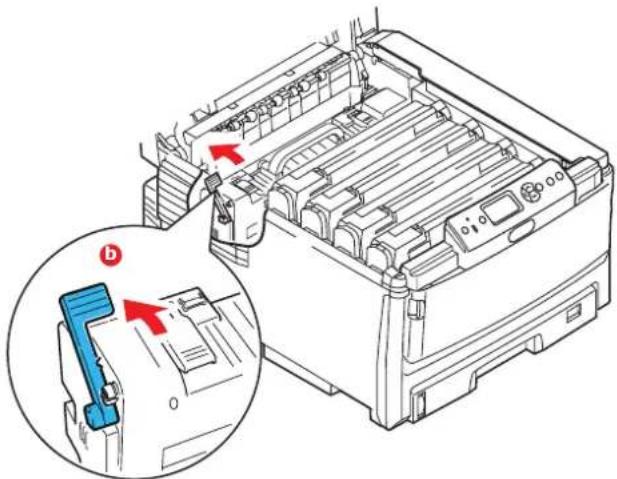

6. Push the retaining lever (b) towards the rear of the printer to lock the fuser in place.

Technical diagram of a printer with labeled parts and a magnified inset showing a blue mechanical component with red arrows indicating motion.

1. Finally, close the top cover and press down firmly at both sides so that the cover latches closed.

2. Switch the printer ON.

CLEANING

CAUTION!

Use a clean, moist, lint-free cloth for cleaning. Do not use benzine, thinners or alcohol as a cleaning agent.

...THE UNIT CASING

1. Switch the printer off.

2. Wipe the unit surface with a soft cloth moistened sparingly with water or neutral detergent.

Line drawing of a hand operating a printer with a handle (no text or symbols)

1. Use a soft dry cloth to dry the unit surface.

...THE LED HEAD

Clean the LED head when printing does not come out clearly, has white lines or when text is blurred.

1. Switch off the printer and open the top cover.

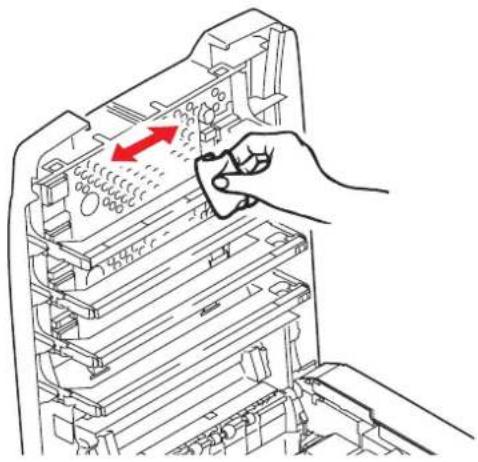

2. Gently wipe the LED head surface with a soft tissue.

Illustration of a hand inserting a component into a device casing with red arrows indicating direction (no text or symbols present)

CAUTION!

Do not use methyl alcohol or other solvents on the LED head as damage to the lens surface will occur.

1. Close the top cover.

Use a clean, moist, lint-free cloth for cleaning. Do not use benzine, thinners or alcohol as a cleaning agent.

Clean the paper feed rollers if paper jams frequently occur.

1. Remove items like a wrist watch or bracelet.
2. Switch the printer off.
3. Remove the paper tray from the printer.

Technical line drawing of a printer case with internal components and a red arrow indicating direction (no text or symbols)

1. Gaining access through the gap left by paper tray, wipe the paper feed rollers with a clean, lint-free cloth moistened with water.
2. Wipe the feed roller on the paper tray.
3. Replace the paper tray.

INSTALLING UPGRADES

This section explains how to install optional equipment into your printer. This includes:

duplex (two-sided printing) unit; page 83:
additional RAM memory page 84
hard disk drive. page 87
additional paper tray(s) page 89
cabinet page 89

Technical line drawing of a refrigerant air conditioner unit with internal grid layout (no text or symbols)

Isometric line drawing of a rectangular electronic component with multiple slots and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing or enclosure component with mounting holes and a curved cable (no text or symbols)

Isometric line drawing of a device casing with internal components and mounting holes (no text or symbols)

Isometric line drawing of a rectangular box with mounting base (no text or symbols)

DUPLEX UNIT

The duplex unit adds the function of two-sided printing, using less paper and making large documents easier to handle. It also enables booklet printing, which uses even less paper and makes large documents even easier to handle.

The duplex unit slides straight into the rear of the printer and requires no tools to install.

1. Unpack the new unit and remove any transit material from it.

2. Switch the printer off. It is not necessary to disconnect the AC power cable.

3. Ensure that the unit is the right way up, as shown, and push it into the slot behind the rear panel. The panel will swing inwards as you push the unit into it. Push the unit all the way in until it stops and latches home.

Diagram of a computer monitor with a red arrow indicating the handle (no text or symbols present)

1. Switch the printer on and wait for it to warm up (about 1 minute).

2. Print a menu map as follows:

(a) Press the Enter button.

(b) Press the Menu up button, then the Enter button to select the Print Information menu.

(c) Select Configuration with the Enter button.

(d) Press the Enter button once more to execute the Configuration menu.

(e) When the Configuration map is printed, press Online to exit the menu system.

1. Examine the first page of the menu map.

2. Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This list should indicate that the duplex unit is now installed.

All that remains is to adjust the printer driver to make full use of the new features ("Adjusting printer drivers" on page 90).

MEMORY UPGRADE (C821 AND C830)

The basic printer model comes equipped with 256MB of main memory. This can be upgraded with an additional memory board of 256MB or 512MB, giving a maximum total memory capacity of 768MB.

1. Switch the printer off and disconnect the AC power cable.

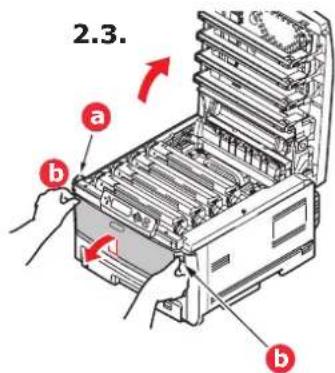

2. Press the cover release (a) and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

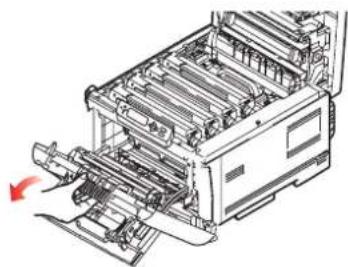

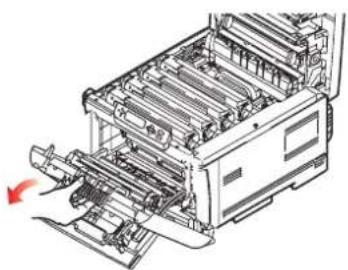

1. Pull down the MP Tray using the depressions (b). Lift the front cover release lever and lower the front cover.

2.3. a b b

Technical line drawing of a mechanical device with internal components and a red arrow indicating motion (no text or symbols)

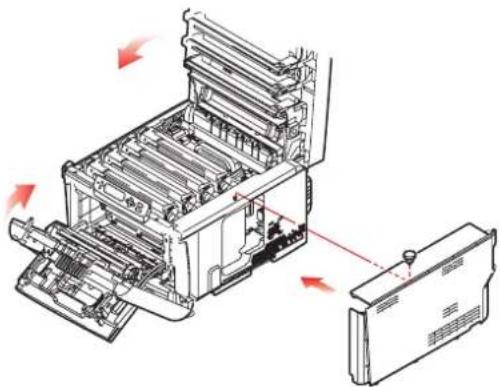

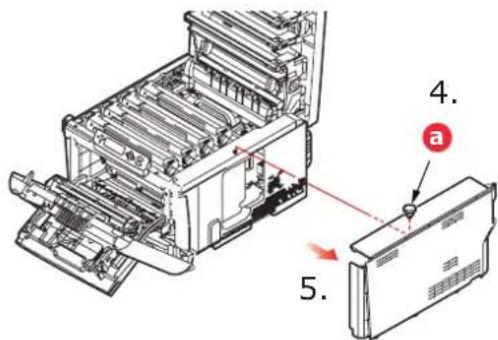

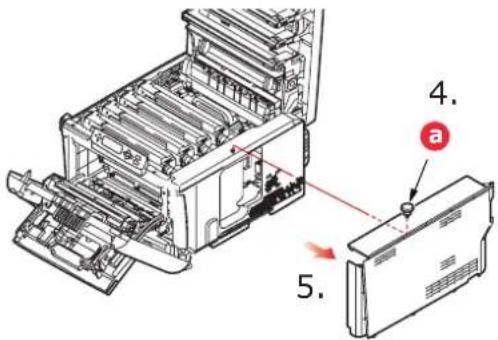

1. Remove the screw (a) securing the right-hand side cover.

Technical diagram showing a printer assembly with labeled parts and directional arrows indicating process flow.

1. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

2. Carefully remove the new memory board from its wrapping. Try to handle the board only by its short edges, avoiding contact with any metal parts as far as possible. In particular, avoid touching the edge connector.

3. Notice that the memory board has a small cutout in the edge connector, which is closer to one end than the other.

Isometric diagram of a RAM module with four slots and a red arrow indicating direction (no text or symbols)

1. Identify the RAM expansion slot in the printer.

2. If the RAM expansion slot already contains a memory upgrade board, that board will have to be removed before you can install the new one. To remove it, proceed as follows, otherwise skip to step 10.

(a) Grip the board firmly by its short edges and pull it out of the slot.
(b) Place the removed memory board in the antistatic bag which originally contained the new memory board.

1. Hold the new memory board by its short edges, so that the edge connector faces in towards the RAM expansion slot, and the small cutout is closer to the rear of the printer.

Technical diagram showing two views of a device with labeled components, including numbered callouts 10 and 11.

1. Gently push the board into the RAM expansion slot until it latches in and will not go any further.
2. Locate the three retaining clips at the bottom of the side cover into their rectangular holes near the bottom of the printer.
3. Close the top of the side cover up to the printer and refit the securing screw removed in step 4.

Technical line drawing of a mechanical device with internal components and directional arrows indicating motion (no text or symbols)

1. Close the front cover, and close the top cover, pressing down firmly at each side to latch it closed.

2. Reconnect the AC power cable and switch the printer on.

3. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu up button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system.

1. Examine the first page of the menu map.

Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This list contains the figure for total memory size.

This should indicate the total memory now installed.

HARD DISK DRIVE (C821 AND C830)

The optional internal hard disk drive (HDD) enables collating of printed pages and can be used to store overlays and macros, fonts, and secure or proof documents waiting to be printed.

1. Switch the printer off and disconnect the AC power cable.
2. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on recently, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Pull down the MP Tray using the depressions (b). Lift the front cover release lever and lower the front cover.

2.3. a b c b

Technical line drawing of a mechanical device with internal components and a red arrow indicating motion (no text or symbols)

1. Remove the screw (a) securing the right-hand side cover.

Technical diagram of a printer assembly with labeled parts and directional arrows indicating process flow

1. Lift the edge of the side cover slightly and pull the cover away from the printer at the top. Lift the cover slightly to detach it from the printer. Place it safely to one side.

2. Plug the end of the connecting cable (a) into the disk unit connector (b) in the printer.

Technical diagram showing mechanical assembly with labeled components a, b, and c, and directional arrows indicating motion or force vectors.

1. Tighten the two thumbscrews (c).

2. Close the top of the side cover up to the printer and refit the securing screw removed in step 4.

Technical illustration of a mechanical device with red arrows indicating motion or assembly (no text or symbols present)

1. Close the front cover and the top cover, pressing down firmly at each side to latch it closed.

2. All that remains is to adjust the printer driver to make full use of the new features ("Adjusting printer drivers" on page 90).

3. Reconnect the AC power cable and switch the printer on.

4. When the printer is ready, print a menu map as follows:

(a) Press the Enter button.
(b) Press the Menu up button then the Enter button to select the Print Information menu.
(c) Select Configuration with the Enter button.
(d) Press the Enter button once more to execute the Configuration menu.
(e) When the Configuration map is printed, press On Line to exit the menu system.

1. Examine the first page of the menu map.

Near the top of the page, between the two horizontal lines, you will see the current printer configuration. This should now indicate that the hard disk unit is installed.

ADDITIONAL PAPER TRAY(S)

1. Switch the printer off and disconnect the AC power cable.
2. Place additional paper tray(s) on desired location.

Technical line drawing of two stacked electronic devices with internal components and mounting holes (no text or symbols)

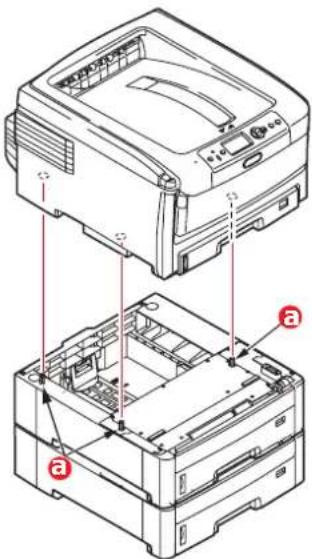

1. Observing safety rules for lifting and, using locating guides (a), place printer on top of the additional paper tray(s).

Technical diagram of a printer with labeled parts, showing internal structure and mounting points

1. Re-connect the AC power cable and switch the printer ON.

All that remains is to adjust the printer driver to make full use of the new features ("Adjusting printer drivers" on page 90).

STORAGE CABINET

Instructions for installing the storage cabinet are supplied with the cabinet.

ADJUSTING PRINTER DRIVERS

Once your new upgrade has been installed, you may need to update the printer driver so that the additional features are available to your applications.

Remember that if your printer is shared between users on different computers, the driver must be adjusted on each user's machine.

The illustrations shown here are for Windows XP. Other Windows versions may appear slightly different, but the principles are the same.

If you have installed a memory upgrade it is not necessary to change the printer driver, and you can ignore this section.

If you have installed a duplex unit, hard disk or paper tray(s), proceed as follows:

WINDOWS

1. Access the driver's Properties window.

(a) Open the Printers window (called "Printers and Faxes" in Windows XP) via the Start Menu or from the Windows Control Panel.
(b) Right-click the icon for this machine, and choose Properties from the pop-up menu.

1. Select the Device Options tab.

In the Windows XP PostScript driver the tab may be called Device Settings.

Properties General Sharing Ports Advanced Color Management Device Option Available Options Available Tray: Printer Option Unit Printer Hard Disk About... OK Cancel Apply

1. Set the options for any devices you have just installed.

2. Click OK to close the window and save your changes.

MAC OS X

If you have added additional hardware to your printer, these must be enabled in the printer driver. Additional hardware may include extra paper trays, a printer hard disk or a duplex unit.

Snow Leopard (Mac OS X 10.6) and Leopard (Mac OS X 10.5)

1. Open the Mac OS X Print & Fax Preferences.
2. Ensure your machine is selected.
3. Select Options & Supplies.
4. Select Driver.
5. Select all hardware options appropriate to your machine and click OK.

Tiger (Mac OS X 10.4)

1. Open the Mac OS X Print & Fax Preferences.
2. Ensure your machine is selected.
3. Select Printer Setup...
4. Select the menu and choose Installable Options...
5. Select all hardware options appropriate to your machine and click Apply Changes....

Panther (Mac OS X 10.3)

1. Open the Mac OS X Print & Fax Preferences.
2. Select Printing.
3. Select Set Up Printers...
4. Ensure your machine is selected and select Show Info...
5. Select the menu and choose Installable Options...
6. Select all hardware options appropriate to your machine and click Apply Changes....

TROUBLESHOOTING

Provided that you follow the recommendations in this guide on the use of print media, and you keep the media in good condition prior to use, your printer should give years of reliable service. However, paper jams occasionally do occur, and this section explains how to clear them quickly and simply.

Jams can occur due to paper misfeeding from a paper tray or at any point on the paper path through the printer. When a jam occurs, the printer immediately stops, and the Alert LED on the Status Panel (together with the Status Monitor) informs you of the event. If printing multiple pages (or copies), do not assume that, having cleared an obvious sheet, others will not also be stopped somewhere along the path. These must also be removed in order to clear the jam fully and restore normal operation.

MAJOR PRINTER COMPONENTS AND PAPER PATH

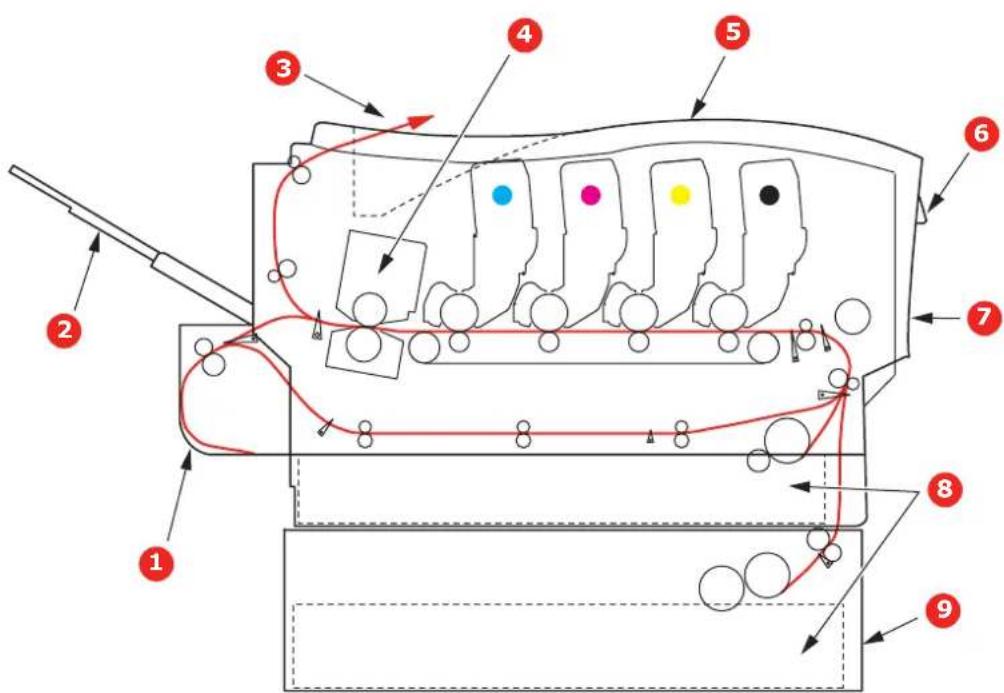

Technical diagram of a mechanical device with numbered components and colored indicators, likely illustrating assembly or inspection.

1. Duplex unit (if fitted). 6. Operator panel.
2. Face-up stacker. 7. Front cover.
3. Paper exit. 8. Paper tray.
4. Fuser unit 9. Additional paper tray
5. Top cover. (If fitted)

PAPER SENSOR ERROR CODES

382 381 380, 400 390 383 370 373 391 392 372371

CODE # LOCATION CODE # LOCATION
370	Duplex unita	382 Paper exit
371	Duplex unita	383	Duplex unita
372	Duplex unita	390 MP Tray
373	Duplex unita	391 Paper Tray
380 Paper feed 392			2^nd Paper traya
381 Paper path 400 Paper size

a. If fitted.

CLEARING PAPER JAMS

1. If a sheet is well advanced out of the top of the printer, simply grip it and pull gently to draw it fully out. If it does not remove easily, do not use excessive force. It can be removed from the rear later.

2. Press the cover release and open the printer's top cover fully.

WARNING!

If the printer has been powered on, the fuser will be hot. This area is clearly labelled. Do not touch.

1. Note the positions of the four toner cartridges (a) and image drums (b). It is essential that they go back in the same order.

Diagram of a printer internal structure with labeled components (a, b) and colored markers indicating parts.

It will be necessary to remove the four image drums (b) to gain access to the paper path.

1. Holding it by its top centre, lift the image drum, complete with its toner cartridge, up and out of the printer.

Technical illustration of a printer internal structure with a hand operating the tray (no text or symbols visible)

1. Put the assembly down gently onto a piece of paper to prevent toner from marking your furniture and to avoid damaging the green drum surface, and cover.

Technical illustration of mechanical components with no visible text or symbols

CAUTION!

The green image drum surface at the base of the Image Drum is very delicate and light sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes.

1. Repeat this removal procedure for each of the remaining image drum units.

2. Look into the printer to check whether any sheets of paper are visible on any part of the belt unit.

Technical diagram of a mechanical device with numbered components labeled 1 to 4

CAUTION!

Do not use any sharp or abrasive objects to separate sheets from the belt. This may damage the belt surface.

(a) To remove a sheet with its leading edge at the front of the belt (1), carefully lift the sheet from the belt and pull it forwards into the internal drum cavity and withdraw the sheet.

Illustration of a hand operating a computer with a red arrow indicating the right-hand rule (no text or symbols present)

(b) To remove a sheet from the central area of the belt (2), carefully separate the sheet from the belt surface and withdraw the sheet.

(c) To remove a sheet just entering the fuser (3), separate the trailing edge of the sheet from the belt, lift the fuser pressure release levers (4) up and press toward the rear to release the fuser's grip on the sheet, and withdraw the sheet through the drum cavity area.

Illustration of a computer motherboard with heat exchangers and a hand operating the next drive (no text or symbols)

NOTE:

If the sheet is well advanced into the fuser (only a short length is still visible), do not attempt to pull it back.

(d) To remove a sheet in the fuser; pull the retaining lever (a) towards the front of the printer to release the fuser. Withdraw the fuser unit using the handle (b). Lift the fuser pressure release levers (c) up and press toward the rear to release the fuser's grip on the sheet. Pull the trapped paper from the fuser.

Technical diagram showing two mechanical assembly steps labeled a, b, and c with directional arrows indicating movement or force.

(e) Replace fuser unit into the machine and move locking lever (a) toward the rear of the machine.

Technical diagram showing mechanical assembly with labeled components and a magnified inset highlighting a tool interacting with a component.

1. Starting with the cyan image drum unit nearest the fuser, replace the four image drums into the drum cavity, making sure to locate them in the correct order.

Technical illustration of a mechanical assembly with rollers and a red downward arrow indicating a component (no text or symbols present)

Holding the complete assembly by its top centre, lower it into place in the printer, locating the pegs at each end into their slots in the sides of the printer cavity.

Technical illustration of a mechanical assembly with a hand operating a component (no text or symbols visible)

1. Lower the top cover but do not press down to latch it closed yet. This will protect the drums from excessive exposure to room lighting while you check the remaining areas for jammed sheets.

2. Open the rear exit tray (a) and check for a sheet of paper in the rear path area (b).

Diagram of a printer or printer with labeled parts (a) and (b), showing internal structure and fan-like structure.

Pull out any sheets found in this area.

If the sheet is low down in this area and difficult to remove, it is probably still gripped by the fuser. In this case raise the top cover, reach around and press down on the fuser pressure release lever.

1. If you are not using the rear exit tray, close it once any paper has been removed from this area.

2. If a duplex unit is fitted, lift lever (a) and lower the duplex unit cover and pull out any sheets found in this area. Close the duplex unit cover

Diagram showing three steps of printer printing process with red arrows indicating motion and label 'a'

1. Pull down the MP Tray using the depressions (b). Lift the front cover release lever and lower the front cover.

Technical diagram showing printer internal structure with labeled parts and directional arrows indicating assembly or processing steps.

1. Check inside the cover for sheets in this area and remove any that you find, then close the cover.

Diagram illustrating the process of printer press application, showing steps from printer to printer and then to document handling.

1. Pull out the paper tray(s) and ensure that all paper is stacked properly, is undamaged, and that the paper guides are properly positioned against the edges of the paper stack. When satisfied, replace the tray.

2. Finally, close the top cover and press down firmly so that the cover latches closed. When the jam has been cleared, if Jam Recovery is set to ON in the System Configuration Menu, the printer will attempt to reprint any pages lost due to paper jams.

DEALING WITH UNSATISFACTORY PRINTING

SYMPTOMS POSSIBLE CAUSES STEPS TO TAKE
Vertical white lines can be seen on the printed page.	The LED head is dirty. Wipe the	LED head with a soft, lint-free cloth.
	The toner is low. Open the top	cover and tap the cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.
	Foreign materials may be present in the image drum.	Replace the image drum cartridge.
	Light-shielding film of the image drum cartridge is dirty.	Wipe the film with a soft, lint-free cloth.
Printed images are fading vertically.	The LED head is dirty. Wipe the	LED head with a soft, lint-free cloth.
	The toner is low. Open the top	cover and tap the cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.
	The paper is not suitable for the printer unit.	Use recommended paper.
Printing is light. The toner	cartridge is not properly seated.	Reinstall the toner cartridge.
	The toner is low. Open the top	cover and tap the cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.
	The paper is moist. Use paper	stored in proper temperature and humidity conditions.
	The paper is not suitable for the printer unit.	Use recommended paper.
	Thickness and type of paper are inappropriate.	Set the correct value of media type and media weight in the Media menu or set one value thicker for media weight.
	Recycled paper is being used.	Set one value thicker for media weight in the Media menu.
Partially faded images. White spots and lines appear in solid printing.	Paper is moist or dry. Use paper	stored in proper temperature and humidity conditions.
Vertical lines appear. The	image drum cartridge is damaged.	Replace the image drum cartridge.
	The toner is low. Open the top	cover and tap the cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.
Horizontal Lines and spots appear periodically.	When the interval is about 94mm (4in), the image drum (the green tube) is damaged or dirty.	Wipe it lightly with a soft cloth. Replace the image drum cartridge when it is damaged.
	When the interval is about 30mm (1.2in), there may be foreign particles in the image drum cartridge.	Open/close the top cover, and print again.
	When the interval is about 86mm (3.4in), the fuser unit is damaged.	Replace the fuser unit.
	The image drum cartridge has been exposed to light.	Replace the image drum cartridge if the problem is not resolved.
White area of paper is lightly stained.	Paper contains static. Use paper stored in proper temperature and humidity conditions.
	Too thick paper is used. Use thinner paper.
	The toner is low. Open the top cover and tap the cartridge a few times to evenly distribute any remaining toner. If symptoms persist, replace the toner cartridge.
Periphery of the letters is smudged.	The LED head is dirty. Wipe the LED head with a soft, lint-free cloth.
Toner comes off when it is rubbed.	The thickness and type of the paper are incorrectly set.	Set the correct value of media type and media weight in the Media menu or set one value lighter for media weight.
	Recycled paper is used. Set one value thicker for media weight in the Media menu.
Glossiness is not uniform.	The thickness and type of the paper are incorrectly set.	Set the correct value of media type and media weight in the Media menu or set one value lighter for media weight.

SPECIFICATIONS

C801 - N34240B

C810 - N34240B

C821 - N34241B

C830 - N34241B

ITEM SPECIFICATION

Dimensions 485 x 579 x 345mm (W x D x H) without Duplex unit
Weight 36Kg approx. (without Duplex unit)
Power supply 220 to 240VAC @ 50/60 Hz ± 2%
Power consumption Operating: <1350W peak; <570 W av. (25°C)Idle: 200 W typical (25°C)Power saving a: <15W (C801/C810) <17W (C821/C830)
Operating environment	Operating 10 to 32 °C/20 to 80% RH(optimum 25 °C wet, 2 °C dry)Off: 0 to 43 °C/10 to 90% RH(optimum 26.8 °C wet, 2 °C dry)
Print environment 30 to	73% RH @ 10 °C; 30 to 54% RH @ 32 °C10 to 32 °C @ 30% RH; 10 to 27 °C @ 80% RHColour 17 to 27 °C @ 50 to 0% RH
Noise Levels Operating:	Mono/Colour - less than 54dBaStandby Mode: less than 37dBaPower Saving Mode: Background level

a. To comply with the requirements of Energy Star, when no data is present for a set period of time, the printer goes into a power-saving mode. The printer has a "wake-up" feature which, when initiated from a host device or the operator panel, will revert the printer to its "running" mode.

NOTE

This device is not intended for use at visual display workplaces - in compliance with the German regulation BildscharbV.

INDEX

B

Belt

how to replace.... 76

life remaining.... 45

C

Cleaning the feed rollers ..... 81

Cleaning the LED head...... 80

Cleaning the unit casing...... 80

Colour

adjusting 42

D

Duplex

how to install.... 83

paper size and weight

limits 13

E

Envelopes

loading 16

F

Fuser

how to replace.... 78

life remaining...... 45

H

Hard disk drive

how to install.... 87

How to change the settings -

Administrator.... 38

I

Image drum

current usage state ...... 45

how to replace 73

L

Labels

recommended types...... 11

M

Major printer components and

paper path 92

Menu functions

C801 and C810.... 37

C821 and C830...... 48

Menu functions - C801 and C810

Administrator (Boot)

Menu 45

Changing the settings -

Administrator 38

Changing the settings -

User 37

Colour menu 42

Information menu...... 39

Maintenance menu ...... 44

Media menu 40

Network menu 43

Print menu 39

Print Statistics Menu...... 47

Shutdown Menu.... 39

System configuration

menu 42

Usage menu...... 44

USB Menu 43

Menu functions - C821 and C830

Admin Setup.... 56

Administrator (Boot) Menu66

Language Setup ...... 68

Parallel Setup 66

Power Setup 68

Print Statistics Menu ... 69

Security Setup ...... 67

Storage Setup...... 68

Storage System ...... 6/

USB Setup...... 66

Calibration 65

Changing the settings -

Administrator 49

Changing the settings -

User 49

Configuration Menu 50

Menu.... 53

Menus.... 53

Print information menu .... 51

Print secure Job.... 52

Shutdown menu 55

Menus

Colour menu 42

how to use....37, 48

Information menu 39

Maintenance menu 44

Media menu...... 40

menu map 39

Network menu...... 43

Print menu.... 39

resetting 44

System configuration

menu 42

Usage menu 44

USB menu 43

Multi purpose tray

how to use.... 16

paper metrics 12

N

Network addresses

setting 43

Network protocols

enabling or disabling ..... 43

0

Operator panel

C801 and C810...... 37

C821 and C830.... 48

P

Paper

jam clearing 92

jam, error codes.... 93

loading cassette trays ..... 14

loading letterhead 14

recommended types...... 11

supported sheet sizes..... 12

weights and sizes 40

Power saving

delay time 42

enabling or disabling ..... 44

Print order

face down stacker ..... 15

face up stacker.... 15

Print quality

adjusting 44

Printer overview....9

Problem checklist

unsatisfactory printing ..... 99

S

Switching off correctly ..... 55

T

Toner

current usage state ...... 45

how to replace.... 70

Transparencies

recommended types...... 11

U

Upgrades

memory 84

OKI CONTACT DETAILS

Oki Systems (UK) Limited

550 Dundee Road

Slough Trading Estate

Slough, SL1 4LE

Tel: [phone]

Fax: [phone]

http://www.oki.co.uk

Oki Systems Ireland Limited

The Square Industrial Complex

Tallaght, Dublin 24, Ireland

Tel: [phone]

Fax: [phone]

http://www.oki.ie

Technical Support:

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

OKI Systems (Ireland) Ltd.

(Northern Ireland)

40 Sydenham Park

Belfast, BT4 1PW

Tel: [phone]

http://www.oki.ie

Technical Support:

Tel: [phone]

E-mail: [e-mail]

OKI EUROPE LIMITED

Blays House

Wick Road

Egham

Surrey TW20 0HJ

United Kingdom

Tel: [phone]

Fax: [phone]

WWW.OKIPRINTINGSOLUTIONS.COM
