USER MANUAL Profile DPSB619EDCC GE

Safety Instructions ..... 2-5

Operating Instructions

Automatic Settings ..... 7, 8

Control Panels 6

Control Features ....10

Cycle Options 11

Cycle Status 12

Dryer Features 13

Drying Cycles 8

Dryness Levels 9

Heat Settings 9

Loading and Using the Dryer .....15

ONE TOUCH Cycles 6

ONE TOUCH Selections .....7

Reversing the Door .....14

Special Dry Cycles 8

Timed Dry Cycles 9

Venting the Dryer .....16

Troubleshooting Tips ....17–19

Consumer Support

Consumer Support ..... Back Cover

Warranty 23

Owner's Manual

DPSB613

DPSB619

Write the model and serial numbers here:

Model # ____

Serial #

They are on the label on the front of the dryer behind the door.

Abstract decorative swirl design with no text or symbols

175D1807P536 49-90268 11-05 JR

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or death.

■Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■Installation and service must be performed by a qualified installer, service agency or the gas supplier.

WHAT TO DO IF YOU SMELL GAS:

Do not try to light a match, or cigarette, or turn on any gas or electrical appliance.
2 Do not touch any electrical switch; do not use any phone in your building.
3 Clear the room, building or area of all occupants.

4 Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions carefully.
5 If you cannot reach your gas supplier, call the fire department.

California Safe Drinking Water and Toxic Enforcement Act

This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

PROPER INSTALLATION

This dryer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by visiting ge.com, or by calling 800.GE.CARES (800.432.2737).

■Properly ground dryer to conform with all governing codes and ordinances. Follow details in Installation Instructions.
■Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
■Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.
■Remove the colored protective film from the control panel.
■Remove all sharp packing items and dispose of all shipping materials properly.

Exhaust/Ducting:

Gas dryers MUST be exhausted to the outside.
2 Use only rigid metal 4" diameter ductwork inside the dryer cabinet. Use only rigid metal or flexible metal 4" diameter ductwork for exhausting to the outside. USE OF PLASTIC OR OTHER COMBUSTIBLE DUCTWORK CAN CAUSE A FIRE. PUNCTURED DUCTWORK CAN CAUSE A FIRE IF IT COLLAPSES OR BECOMES OTHERWISE RESTRICTED IN USE OR DURING INSTALLATION.

For complete details, follow the Installation Instructions.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

⚠ WARNING!

YOUR LAUNDRY AREA

■Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals, and other flammable vapors and liquids.
■Keep the floor around your appliances clean and dry to reduce the possibility of slipping.
■Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.

■Keep all laundry aids (such as detergents, bleaches, etc.) out of the reach of children, preferably in a locked cabinet. Observe all warnings on container labels to avoid injury.
■Never climb on or stand on the dryer top.

WHEN USING YOUR DRYER

■Never reach into the dryer while the drum is moving. Before loading, unloading or adding clothes, wait until the drum has completely stopped.
■Clean the lint filter before each load to prevent lint accumulation inside the dryer or in the room. DO NOT OPERATE THE DRYER WITHOUT THE LINT FILTER IN PLACE.
■Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
■Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a clothes load to catch fire.
■Any article on which you have used a cleaning solvent or that contains flammable materials (such as cleaning cloths, mops, towels used in beauty salons, restaurants or barber shops, etc.) must not be placed in or near the dryer until solvents or flammable materials have been removed. There are many highly flammable items used in homes such as acetone, denatured alcohol, gasoline, kerosene, some household cleaners, some spot removers, turpentines, waxes, wax removers and products containing petroleum distillates.

■The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's care instructions.
■Do not dry articles containing rubber, plastic, foam or similar materials such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, plastic bags, pillows, etc., that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.
■Do not store plastic, paper or clothing that may burn or melt on top of the dryer during operation.
■ Garments labeled Dry Away from Heat or Do Not Tumble Dry (such as life jackets containing kapok) must not be put in your dryer.
■Do not dry fiberglass articles in your dryer. Skin irritation could result from the remaining particles that may be picked up by clothing during subsequent dryer uses.
To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the dryer at the building's distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning (except the removal and cleaning of the lint filter). NOTE: Pressing STOP does NOT disconnect the appliance from the power supply.

WHEN USING YOUR DRYER (cont.)

■Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
■The interior of the machine and the exhaust duct connection inside the dryer should be cleaned at least once a year by a qualified technician. See the Loading and Using the Dryer section.
■If yours is a gas dryer, it is equipped with an automatic electric ignition and does not have a pilot light. DO NOT ATTEMPT TO LIGHT WITH A MATCH. Burns may result from having your hand in the vicinity of the burner when the automatic ignition turns on.

- You may wish to soften your laundered fabrics or reduce the static electricity in them by using a dryer-applied fabric softener or an anti-static conditioner. We recommend you use either a fabric softener in the wash cycle, according to the manufacturer's instructions for those products, or try a dryer-added product for which the manufacturer gives written assurance on the package that their product can be safely used in your dryer. Service or performance problems caused by use of these products are the responsibility of the manufacturers of those products and are not covered under the warranty to this appliance.

WHEN NOT USING YOUR DRYER

■Grasp the plug firmly when disconnecting this appliance to avoid damage to the cord while pulling. Place the cord away from traffic areas so it will not be stepped on, tripped over or subjected to damage.
- Do not attempt to repair or replace any part of this appliance or attempt any servicing unless specifically recommended in this Owner's Manual or in published user-repair instructions that you understand and have the skills to carry out.

■Before discarding a dryer, or removing it from service, remove the dryer door to prevent children from hiding inside.
■Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Easy ONE TOUCH cycles.

Your new dryer offers the convenience of starting your dryer loads with our easy ONE TOUCH cycles. Make one simple selection, and your DRYNESS LEVEL and HEAT SETTING are automatically set. Then all you have to do is press START.

ONE TOUCH Quick Start Guide

Simple line drawing of a cabinet with an open door and a numbered label (1), no text or symbols present.

• Clean lint filter

Simple line drawing of a t-shirt being open with a box, no text or symbols present

• Add clothes

• Select dry cycle
• Check dryness level
• Check heat setting

Dryer control panel.

You can locate your model number on the label on the front of the dryer, behind the door.

NOTE: Any time you make a selection that is incompatible with the chosen dry cycle, the dryer will beep twice.

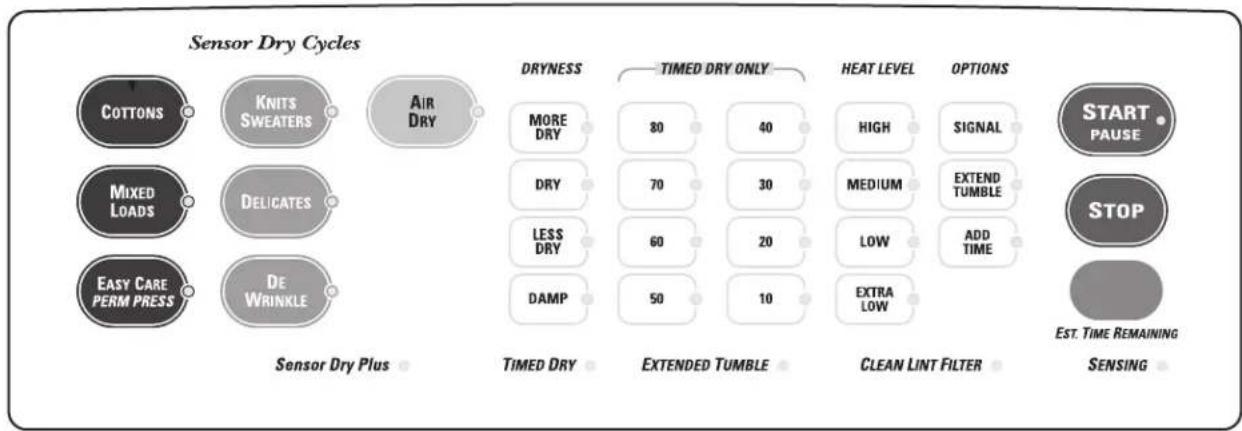

Model DPSB613

    style A fill:#999,stroke:#333
    style D fill:#999,stroke:#333
    style F fill:#999,stroke:#333
    style N fill:#ccc,stroke:#333

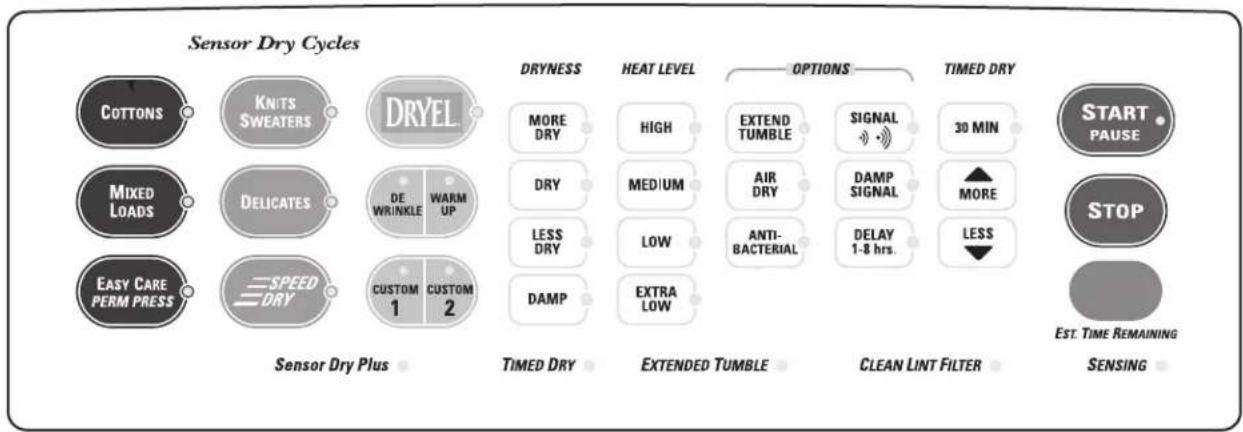

Model DPSB619

    L["DRYNESS"] --> M["MORE DRY"]
    M --> N["DRY"]
    N --> O["LESS DRY"]
    O --> P["DAMP"]

    Q["HEAT LEVEL"] --> R["HIGH"]
    R --> S["MEDIUM"]
    S --> T["LOW"]
    T --> U["EXTRA LOW"]

    V["OPTIONS"] --> W["EXTEND TUMBLE"]
    W --> X["AIR DRY"]
    X --> Y["ANTI-BACTERIAL"]

    Z["TIMED DRY"] --> AA["SIGNAL"]
    AA --> AB["DAMP SIGNAL"]
    AB --> AC["DELAY 1-8 hrs."]

    AD["START PAUSE"] --> AE["STOP"]
    AE --> AF["EST: TIME REMAINING"]
    AF --> AG["SENSING"]

    AH["30 MIN"] --> AI["MORE"]
    AI --> AJ["LESS"]

ONE TOUCH cycles use the Sensor Dry Plus feature, which continuously monitors the amount of moisture in the load and stops the dryer when the clothes are dry. Throughout this manual, features and appearance may vary from your model.

PRESS... AUTOMATICALLY SELECTS... THEN PRESS...

For cottons and most linens.

For loads consisting of cottons and poly-blends.

For wrinkle-free and permanent press items.

For knits and sweaters with fabric care labels that say "Machine Dry".

For lingerie and special-care fabrics.

(on some models)

For small loads that are needed in a hurry, such as sport or school uniforms. Can also be used if the previous cycle left some items damp, such as collars or waistbands.

NOTE: During SPEED DRY you will see:

Changing the automatic settings.

You can change any of the automatic settings by simply pressing the desired pads.

About drying cycles.

Throughout this manual, features and appearance may vary from your model.

DRYEL™ (on some models)

This feature is designed for use with the DRYEL ^™ “dry-clean only” fabric care system. See product package for directions.

For questions or issues related to the use and performance of DRYEL ^™ , call 1.800.214.8913, or visit the DRYEL ^™ Website at www.dryel.com.

Automatic DRYEL™ settings:

HEAT LEVEL

MEDIUM

EST. TIME REMAINING

DE WRINKLE

DEWRINKLE

Use this feature to remove wrinkles from items that are dry or slightly damp.

Automatic DEWRINKLE settings:

HEAT LEVEL

MEDIUM

EST. TIME REMAINING

AIR DRY

Use this feature to tumble items without heat.

Automatic AIR DRY settings:

EST. TIME REMAINING

CUSTOM Cycle (on some models)

Set up your favorite combination of settings and save them here for one-touch recall.

These custom settings can be set while a cycle is in progress.

Some models have two CUSTOM pads to store two different custom combinations.

To store a custom combination of settings:

1. Select a ONE TOUCH setting.
2. Change DRYNESS LEVEL and HEAT SETTING to fit your needs.
3. Select any drying OPTIONS you want.
4. Press and hold the CUSTOM Cycle pad for three seconds to store your selection.
   A beep will sound and the pad will light up.

To recall your stored combination:

Press the CUSTOM Cycle pad, then press START.

To reprogram the CUSTOM settings:

Repeat steps 1-4 above.

About dryness levels. ge.com

DRYNESS

MORE DRY

Use for heavy-duty fabrics.

DRY

Use for a normal dryness level suitable for most loads. This is the preferred cycle for energy saving.

LESS DRY

Use for lighter fabrics.

DAMP

For leaving items partially damp.

About timed dry cycles.

TIMED DRY ONLY 80 40 70 30 60 20 50 10

To use TIMED DRY:

1. Select the drying time.
2. Select the HEAT SETTING.
3. Select any OPTIONS. (NOTE: The ANTI-BACTERIAL option is not available with TIMED DRY cycles.)
4. Close door.
5. Push START.

OR

TIMED DRY

About heat settings.

HEAT LEVEL

HIGH

For regular to heavy cottons.

MEDIUM

For synthetics, blends and items labeled permanent press.

LOW

For delicates, synthetics and items labeled Tumble Dry Low.

EXTRA LOW

For lingerie and special-care fabrics.

About control features.

Throughout this manual, features and appearance may vary from your model.

START/PAUSE

■ Press twice to select the last cycle you used and start the dryer.
■ If you have selected a new cycle, press once to start the cycle.
If the dryer is running, press once to interrupt the cycle; press again to continue the cycle.

STOP

■ This pad should not be used to interrupt or pause a cycle.
■ Pressing this pad will cancel the current settings.

Estimated Time Remaining

Each time the dryer is used, it "learns" what types of loads you dry most often. It takes this data and determines the approximate time it will take the load to dry.

As the cycle begins, you will see the approximate total cycle time in the display. Then lights will flash in the display, and the SENSING light will flash. This means the dryer is continuously monitoring the amount of moisture in the load. The lights will continue until the dryer senses a low level of moisture in the load. At that point, the dryer will calculate and display the approximate time remaining.

About cycle options.

NOTE: Not all features are available on all dryer models.

ge.com

(Appearance and features may vary)	SIGNALAlerts you that the cycle is complete. The beeper will continue to sound every two minutes for the next 6 minutes, until the clothes are removed. The clothes should be removed when the beeper goes off so wrinkles won't set in.On some models, press SIGNAL to turn the beeper on or off.On some models, press SIGNAL to select low or high volume, or to turn the beeper off.
	EXTEND TUMBLEMinimizes wrinkles by adding approximately 20 minutes of no-heat tumbling after clothes are dry. The beeper will sound every 90 seconds to remind you to remove the clothes.The EST. TIME REMAINING display will show 00.
	ADD TIME (on some models)This option can be used to extend drying time at the end of any cycle. Each time the pad is pressed, 10 minutes is added.
	ANTI-BACTERIAL (on some models)This option can only be used with the COTTONS or MIXED LOADS cycles. This option reduces certain types of bacteria by 99.9%, including: Staphylococcus aureus, Pseudomonas aeruginosa, and Klebsiella pneumoniae*. The anti-bacterial process occurs when high heat is used during a portion of the drying cycle.NOTE: Do not use this cycle on delicate fabrics.* The Anti-Bacterial Cycle is Certified by NSF International (formerly National Sanitation Foundation) to NSF Protocol P154 Sanitization Performance of Residential Clothes Dryers.NSF Protocol P154Sanitization Performance of Residential Clothes Dryers
	DELAY 1–8 HOURS (on some models)Use to delay the start of your dryer for 1 to 8 hours. First choose your dry cycle and any options. Then press this pad for the number of hours you want to delay the cycle.Press the START pad to start the countdown.The countdown time will be shown in the EST. TIME REMAINING display.NOTE: If the door is opened while the dryer is in DELAY, the dryer will beep once a minute to remind you to restart the countdown. The countdown time will not restart unless the door is closed and START has been pressed again.
	DAMP SIGNAL (on some models)This option causes the dryer to beep when clothes have reached a damp dryness. Remove items that you wish to hang dry. The DAMP SIGNAL will only beep when the dryer SIGNAL is turned on.
	WARM UP (on some models)This option provides 10 minutes of warming time to warm up clothes. Perfect for use on a cold day, or to warm towels or robes.

About cycle status.

These cycle status indicator lights display what part of the cycle the dryer is in and remind you to clean the lint filter.
Sensor Dry Plus	TIMED DRY	EXTENDED TUMBLE	CLEAN LINT FILTER	SENSING
Sensor Dry Plus	SensorDry PlusThis light comes on when aONE TOUCH Sensor Dry Cycleis selected.
TIMED DRY	TIMED DRYThis light comes on whenAIR DRY, DEWRINKLE,DRYELTM(on some models) orTIMED DRYis selected.
EXTENDED TUMBLE	EXTENDED TUMBLEThis light comes on when theEXTEND TUMBLEoption is selected.
CLEAN LINT FILTER	CLEAN LINT FILTERThis light is a reminder to clean the lint filter. It comes on at the end of a cycle and goes off when the door is opened.
EST. TIME REMAININGSENSING	SENSINGSensor Dry Cycles provide greater drying accuracy than standard machines, resulting in shorter dry times and better clothes care. TheSENSINGlight will flash and lights will flash in the display while the dryer is monitoring the amount of moisture remaining in the clothes. When theSENSINGlight goes out, the dryer will calculate and display the approximate time remaining.

Hand inserting a spring into a washing machine (no text or symbols visible)

Drum Lamp

Before replacing the light bulb, be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker. Reach above dryer opening from inside the drum. Remove the bulb and replace with the same size bulb.

Technical line drawing of a mechanical device with internal components (no text or symbols)

Drying Rack (on some models)

A handy drying rack may be used for drying delicate items such as washable sweaters.

Hook the rack over the lint filter so the rack extends into the dryer drum.

NOTE:

■ The drying rack must be used with the TIMED DRY cycles.
■Do not use this drying rack when there are other clothes in the dryer.

Stainless Steel Drum (on some models)

The stainless steel used to make the dryer drum provides the highest reliability available in a GE dryer. If the dryer drum should be scratched or dented during normal use, the drum will not rust or corrode. These surface blemishes will not affect the function or durability of the drum.

About reversing the door.

Technical line drawing of a mechanical component with an inset close-up view showing a bracket detail (no text or symbols)

Reversing the Door

Tools needed:

■Standard #2 ■Tape-tipped Phillips screwdriver putty knife

Open the door and remove the filler plugs opposite the hinges. With the door completely open, remove the bottom screw from each hinge on the dryer face. Insert these screws about halfway into the TOP holes, for each hinge, on the opposite side (where you removed the filler plugs). Apply firm pressure to get the screw started in new holes.

Simple line drawing of a door handle with a circular frame (no text or symbols)

2 Loosen top screw from each hinge on the dryer face halfway. With one hand holding the top of the door and the other hand holding the bottom, remove the door from the dryer by lifting it UP and OUT.

Pure mechanical diagram showing a bracket with mounting holes and a downward arrow, no text or symbols present.

3 Rotate the door 180°. Insert it on the opposite side of the opening by moving the door IN and DOWN until the top hinge and the bottom hinge are resting on the top screws inserted in step 1.

Diagram of a door hinge with screw holes and a separate screw, showing no text or symbols

4 Remove the remaining screws from the side of the opening from which the door was removed. With these screws secure each hinge at the bottom. Tighten the two top screws of each hinge. Reinsert the plastic plugs on the side from which the door was removed.

Always follow the fabric manufacturer's care label when laundering.

Fabric Care Labels

Below are fabric care label "symbols" that affect the clothing you will be laundering.

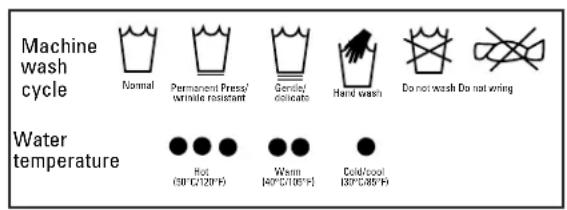

WASH LABELS

Machine wash cycle Normal Permanent Press/ wristine resistant Gender/ dilicate Hand wash Do not wash Do not wring Water temperature Hot (30°C/120°F) Warm (40°C/100°F) Cold/cool (35°C/85°F)

BLEACH LABELS

Bleach symbols

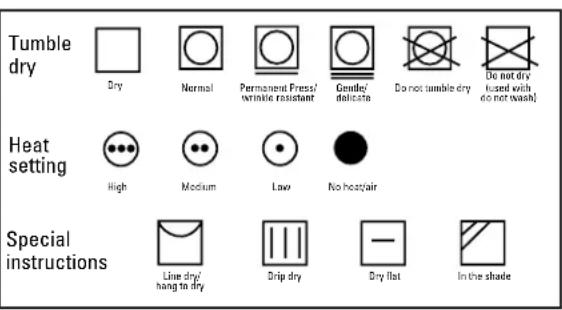

DRY LABELS

Tumble dry Dry Normal Permanent Press/ winkle resistant Gentle/ dilicate Do not tumble dry Do not dry fused with do not wash) Heat setting High Medium Low No heat/air Special instructions Line dry/ hang to dry Drip dry Dry flat In the shade

Sorting and Loading Hints

As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer. Try also to sort items according to size. For example, do not dry a sheet with socks or other small items.

Do not add fabric softener sheets once the load has become warm. They may cause fabric softener stains. Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.

Do not overload. This wastes energy and causes wrinkling.

Do not dry the following items: fiberglass items, woolens, rubber-coated items, plastics, items with plastic trim and foam-filled items.

Care and Cleaning of the Dryer

The Exterior: Wipe or dust any spills or washing compounds with a damp cloth. Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products. Apply these products away from the dryer. The fabric may then be washed and dried normally. Damage to your dryer caused by these products is not covered by your warranty.

The Lint Filter: Clean the lint filter before each use. Moisten your fingers and reach into the filter opening. Run your fingers across the filter. Have a qualified technician vacuum the lint from the dryer once a year.

Line drawing of a hand pressing down on a small electronic device (no text or symbols)

Stainless Steel: To clean stainless steel surfaces, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel surfaces. Remove the cleaner residue, and then dry with a clean cloth.

The Exhaust Duct: Inspect and clean the exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.

Follow these steps:

1 Turn off electrical supply by disconnecting the plug from the wall socket.

2 Disconnect the duct from the dryer. 3 Vacuum the duct with the hose attachment and reconnect the duct.

The Exhaust Hood: Check from the outside that the flaps of the hood move freely when operating. Make sure that there is no wildlife (birds, insects, etc.) nesting inside the duct or hood.

Venting the dryer.

For the best drying performance, the dryer needs to be properly vented. The dryer will use more energy and run longer if it is not vented to the below specifications. Carefully follow the details on Exhausting in the Installation Instructions.

■Do not use plastic or other combustible ductwork.

■ Use only rigid metal 4" diameter ductwork inside the dryer cabinet. Use only rigid metal or flexible metal 4" diameter ductwork for exhausting to the outside.

■Use the shortest length possible.

■Do not crush, kink or collapse the duct.

■Avoid resting the duct on sharp objects.

■Venting must conform to local building codes.

Correct Venting

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Simple line drawing of a building corner with stairs and a chimney (no text or symbols)

Incorrect Venting

Simple line drawing of a staircase with a cross symbol, no text or labels present

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Troubleshooting Tips Save time and money! Review the charts on the following pages, or visit ge.com. You may not need to call for service.

OPERATION Possible Causes What To Do

Control pads not responding service mode	Controls accidentally put in	• Press STOP.
Dryer doesn't start	Control panel is “asleep”	• This is normal. Press START twice to choose the last cycle you used and to start the dryer.
	Dryer is unplugged	• Make sure the dryer plug is pushed completely into the outlet.
	Fuse is blown/circuit breaker is tripped	• Check the building's fuse/circuit breaker box and replace fuse or reset breaker. NOTE: Electric dryers use two fuses or breakers.
Dryer doesn't heat	Fuse is blown/circuit breaker is tripped; the dryer may tumble but not heat	• Check the building's fuse/circuit breaker box and replace both fuses or reset both breakers. Your dryer may tumble if only one fuse is blown or one breaker tripped.
	Gas service is off	• Make sure gas shutoff at dryer and main shutoff are fully open.
	LP gas supply tank is empty or there has been a utility interruption of natural gas (gas models)	• Refill or replace tank. Dryer should heat when utility service is restored.
Dryer shakes or makes noise	Some shaking/noise is normal. Dryer may be sitting unevenly	• Move dryer to an even floor space, or adjust leveling legs as necessary until even.
Inconsistent drying times	Type of heat	• Drying time will vary according to the type of heat used. If you recently changed from an electric to a gas (natural or LP) dryer, or vice versa, the drying time could be different.
	Type of load and drying conditions	• The load size, types of fabric, wetness of clothes and the length and condition of the exhaust system will affect drying times.
No numbers displayed during cycle, only lights	Dryer is continuously monitoring the amount of moisture in the clothes	• This is normal. When the dryer senses a low level of moisture in the load, the dryer will display the dry time remaining.
Est. Time Remaining jumped to a lower number	The estimated time may change when a smaller load than usual is drying	• This is normal.
Clothes are still wet and dryer shut off after a short time	The door was opened mid-cycle. The load was then removed from the dryer and a new load put in without selecting a new cycle	• A dry cycle must be reselected each time a new load is put in.
	Small load	• When drying only a few items, choose SPEED DRY or TIMED DRY.
	Load was already dry except for collars and waistbands	• Choose SPEED DRY or TIMED DRY to dry damp collars and waistbands. In the future, when drying a load with collars and waistbands, choose MORE DRY.
	Dryer is not level	• Move dryer to an even floor space or adjust leveling legs as necessary until even.

Before you call for service...

OPERATION Possible Causes What To Do
The DRY dryness level was chosen but load is still damp	Load consists of a mixture of heavy and light fabrics	When combining heavy and light fabrics in a load, choose MORE DRY.
	Exhaust system is blocked	Inspect and clean exhaust system.
Cannot make a selection and the dryer beeps twice you are trying to select is incompatible with the chosen dry cycle	The DRYNESS LEVEL, HEAT SETTING or OPTION that	This is normal.
Dryer is running but 00 is displayed in Est. Time Remaining	The EXTEND TUMBLE option was chosen	This is normal. During extended tumbling, the time remaining is not displayed. The extended tumbling option lasts approximately 20 minutes.
LAUNDRY PRACTICES	Possible Causes What To Do
Clothes are wrinkled	Overdrying	Select a shorter drying time.Remove items while they still hold a slight amount of moisture. Select a LESS DRY or DAMP setting.
	Overloading	Separate large loads into smaller ones.
	Letting items sit in dryer after cycle ends	Remove items when cycle ends and fold or hang immediately, or use the EXTEND TUMBLE option.
Clothes shrink	Some fabrics will naturally shrink when washed. Others can be safely washed, but will shrink in the dryer	To avoid shrinkage, follow garment care labels exactly.Some items may be pressed back into shape after drying.If you are concerned about shrinkage in a particular item, do not machine wash or tumble dry it.
Greasy spots on clothes	Improper use of fabric softener	Follow directions on fabric softener package.
	Drying dirty items with clean ones	Use your dryer to dry only clean items. Dirty items can stain clean items and the dryer.
	Clothes were not completely clean	Sometimes stains which cannot be seen when the clothes are wet appear after drying. Use proper washing procedures before drying.
Lint on clothes	Lint filter is full	Clean lint screen before each load.
	Improper sorting	Sort lint producers (like chenille) from lint collectors (like corduroy).
	Static electricity can attract lint	See suggestions in this section under STATIC.
	Overloading	Separate large loads into smaller ones.
	Paper, tissue, etc., left in pockets	Empty all pockets before laundering clothes.
LAUNDRY PRACTICES Possible Causes What To Do
Static occurs	No fabric softener was used	Try a fabric softener.Bounce® Fabric Conditioner Dryer Sheets have been approved for use in all GE Dryers when used in accordance with the manufacturer's instructions.
	Overdrying Try a fabric softener.	Adjust setting to LESS DRY or DAMP.
	Synthetics, permanent press and blends can cause static	Try a fabric softener.
Collars and waistbands still wet at end of cycle	The dryness monitor senses that the body of the clothes is dry	Choose SPEED DRY or TIMED DRY to dry damp collars and waistbands. In the future, when drying a load with collars and waistbands, choose MORE DRY.
Clothes take too long to dry	Improper sorting	Separate heavy items from lightweight items (generally, a well-sorted washer load is a well-sorted dryer load).
	Large loads of heavy fabrics (like beach towels)	Large, heavy fabrics contain more moisture and take longer to dry. Separate large, heavy fabrics into smaller loads to speed drying time.
	Controls improperly set	Match control settings to the load you are drying.
	Lint filter is full	Clean lint filter before every load.
	Improper or obstructed ducting	Check installation instructions for proper ducting/venting.Make sure ducting is clean, free of kinks and unobstructed.Check to see if outside wall damper operates easily.Check the Installation Instructions to make sure the dryer venting is correct.
	Blown fuses or tripped circuit breaker	Replace fuses or reset circuit breakers. Since most dryers use 2 fuses/breakers, make sure both are operating.
	Overloading/combining loads	Do not put more than one washer load in the dryer at a time.
	Underloading	If you are drying only one or two items, add a few items to ensure proper tumbling.

Notes.

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!

Benefits Include:

• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
  • No out-of-pocket expenses
  • No hidden deductibles
  • One 800 number to call

We'll Cover Any Appliance. Anywhere. Anytime.\*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

Complete and mail your Consumer

Product Ownership Registration today.

Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.

2

After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800.GE.CARES (800.432.2737).

3

Read your Owner's Manual carefully. It will help you operate your new appliance properly.

Model Number Serial Number

Two identical horizontal lines with tick marks, no text or symbols present

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at ge.com.

Consumer Product Ownership Registration

Model Number

Serial Number

Mr. □ Ms. □ Mrs. □ Miss □ First Name

GE Consumer & Industrial

Appliances

General Electric Company

Louisville, KY 40225

ge.com

* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA).

□ Check here if you do not want to receive communications from GFA's carefully selected partners.

FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.

For information about GEA's privacy and data usage policy, go to ge.com and click on "Privacy Policy" or call 800.626.2224.

GE Dryer Warranty. (For customers in the United States)

All warranty support provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at ge.com or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain support under the warranty.

For The Period Of: GE Will Replace:

One YearFrom the date of the original purchase to replace the defective part.	Any part of the dryer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service costs
Second YearFrom the date of the original purchase	Any part of the dryer which fails due to a defect in materials or workmanship. During this additional one-year limited warranty, you will be responsible for any labor or related service costs.
Third through Fifth YearFrom the date of the original purchase	The extra large or super capacity dryer drum and main electronic control board if any of these parts should fail due to a defect in materials or workmanship. During this additional three-year limited warranty, you will be responsible for any labor or related service costs.

What GE Will Not Cover:

■Service trips to your home to teach you how to use the product.
■Improper installation, delivery or maintenance.
■Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■Replacement of the light bulb.
■Replacement of house fuses or resetting of circuit breakers.

■Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■Damage caused after delivery.
■Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer Support.

GE Appliances Website

ge.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service ge.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio ge.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties ge.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories ge.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us ge.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Register Your Appliance ge.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
