USER MANUAL ABD250P LG
Before connecting, operating or adjusting this product.
please read this instruction booklet carefully and completely.
Position your VCR so that no bright light or sunlight falls directly onto it.
Care should be taken not to expose your VCR to any unnecessary vibration, moisture, dust or heat.
During electrical storms it is advisable to unplug both the aerial cable and mains plug to prevent accidental damage to your VCR and TV.
Do not operate your VCR if it is damaged. Your VCR should not be repaired by anyone except qualified service personnel.
Never remove the back cover of your VCR as this can expose you to very high voltage and other hazards. If your VCR does not operate properly, please check the Troubleshooting Check List (see p. 29). If your VCR still does not operate properly, unplug it and call your dealer.
Just to name a few examples of the extraordinary features:

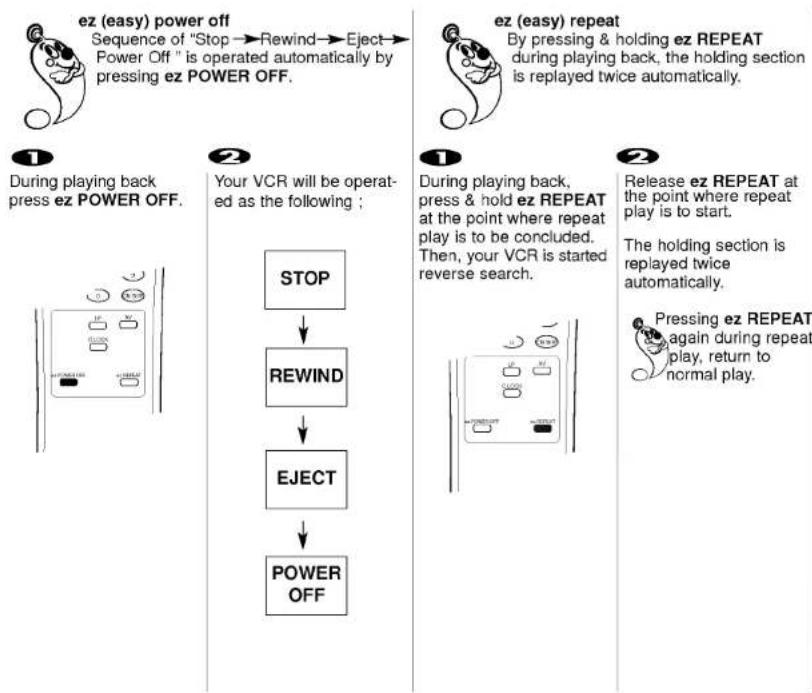

• ez (easy) operations (see p. 27)
• Programmable 80 channel memory with Frequency synthesised tuner
• ACMS (Automatic Channel Memory System)
• 7 event/1 month programmable timer
• Recording and playback for 16:9 Wide-screen format
• LP - Long Play - recording & playback
• Energy Saving function
• ICON OSD (On Screen Display)
• NTSC playback on PAL TV
• Logic & Picture Search
-Child Lock
• Auto Head Cleaner
• Auto Power on and Play
- Still function
• Real Time Counter
- Quick Start function
•Auto Tracking System
This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.
Welcome to LG
Thank you for buying this LG video cassette recorder Model BD250P.
Description 2 - 5 Advanced Operations 19 - 27
| Precautions & features | 2 |
| Remote Control Location & function | 4 |
| Your VCR's Controls | 5 |
Setting Up 6 - 14 Energy Saving 23
| Connecting to a TV | 6 |
| Tuning in a video channel on your TV | 7 - 8 |
| How to use the main menu | 9 |
| Tuning in TV Stations Automatically | 10 |
| Tuning in TV Stations Manually | 11 - 1 |
| Changing the order of TV Stations | 13 |
| Deleting & Selecting TV Stations | 14 |
Basic Operations 15 - 18 Helpful Hints 28 - 29
| Playing a tape | 15 - 16 |
| Setting the Colour System | 17 |
| Setting the Clock Manually | 18 |

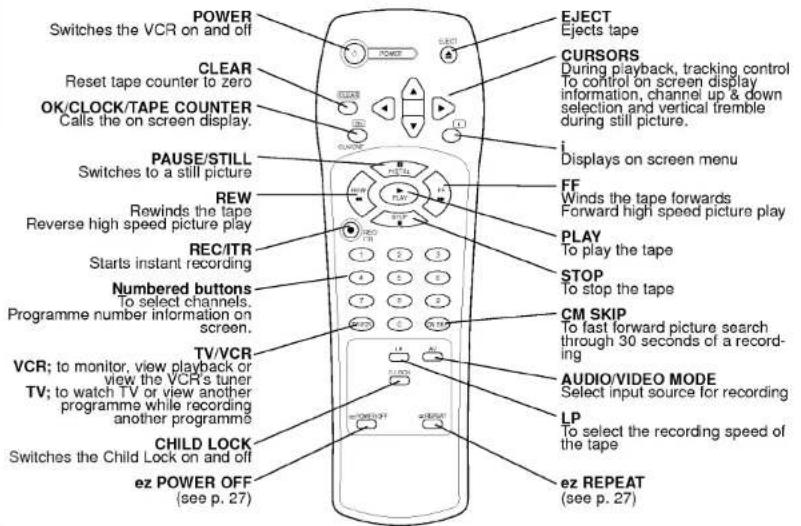

Remote Control Location & Function
To install batteries: Your REMOTE CONTROL HANDSET is powered by two AA type batteries.
- To insert them, push the tab backwards and lift off the cover of the handset.
- Put the two batteries into the compartment making sure the + and - are correctly positioned.
- Replace the cover.
Each button on your VCR has the same function as its corresponding button on the remote control handset.


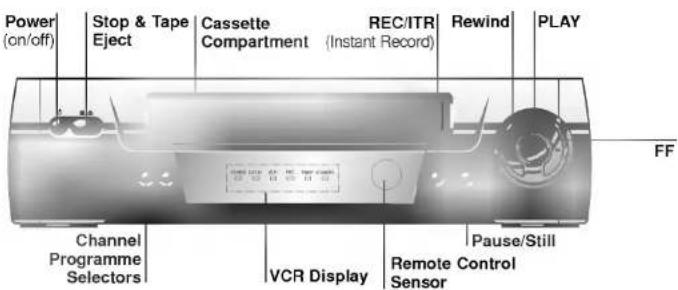

Power (on/off) Stop & Tape Eject Cassette Compartment REC/ITR (Instant Record) Rewind PLAY FF Channel Programme Selectors VCR Display Remote Control Sensor Pause/Still
Your VCR's

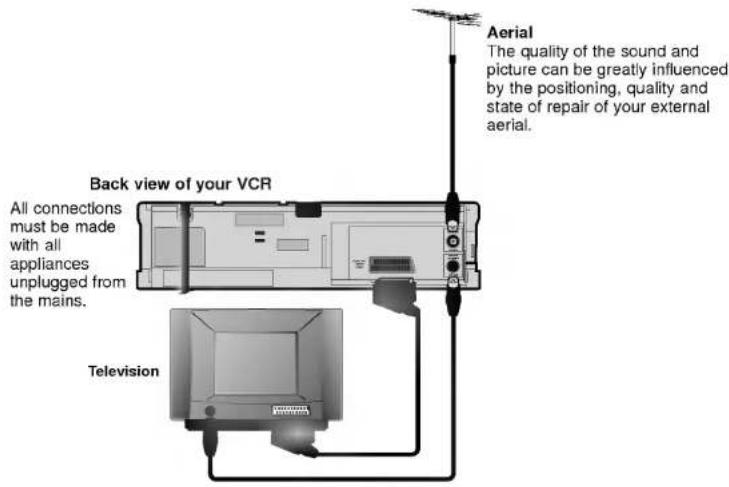

Connecting To a TV
Using your VCR very first time
Following picture will display on the TV screen when you have just connected your video recorder for the very first time.
To make tuning TV stations, please follow stages 3 to 4 as shown "ACMS" (see p.10).
The guidance given on this page is the most common form of connection. However please check with your manufacturer's instruction books for specific information. Make sure all connections are made with both your VCR and additional appliance unplugged from the mains to avoid damaging your equipment. Connecting a VCR using a SCART lead is one of the best ways to achieve optimum sound and picture quality from video-tape playback.
our TV receives signals from the video recorder (VCR) like another TV station. You have to select a channel number on your TV and tune it in so that you may watch video tapes.
If you connect a monitor or a TV set equipped with SCART socket this adjustment will not be necessary, simply select the AV mode on your TV.
1
Make sure that you have correctly installed your VCR as described earlier in this book.
Press POWER to turn on your VCR.
Turn on your TV.
2
Insert a pre-recorded video tape into your VCR and press PLAY on the remote control.
Select a TV channel number on which you wish to watch video's.
Don't worry if you don't have a video-tape to play at this stage! If you switch your VCR on and continue stages 3 \~ 4, instead of seeing video playback tune your TV until you see a bright blue screen.
3
Tune this channel until the video picture is sharp and the sound is clear.
If you have used a SCART cable you will not have to tune your TV, simply select the AV channel. The AV channel is already pre-tuned for optimum video playback on your TV.
4
Store this channel on your TV.
You will need to look at the TV instruction book if you do not know how to do this.
On your TV
Video channel
Tuning in a
The output frequency of this video recorder (VCR) is set at UHF channel 36. If channel 36 is already used by another TV station, or if the picture is distorted, you can change the transmitter channel of your VCR. Stages 5\~8 will show you how to change the output frequency of your VCR.
Tuning in a
Video channel
On your TV
Make sure that you have correctly installed your VCR and successfully lined in a dedicated
video channel on your TV. If you do not tune in a dedicated video channel on your TV you will be unable to view and record video tapes!
5
Only carry out stages 5 \~ 8 if you cannot obtain clear video play-back as described in stages 1 \~ 4.
Select a TV channel number on which you wish to watch video's.
Make sure that your VCR is in standby by pressing POWER on the remote control. (STANDBY indicator will light in the VCR display.)
6
Press PROG.
▲ or ▼ on the front of your VCR for more than 4 seconds.
All indicators will light in the VCR display.
The following picture will be displayed on the TV screen.
7
Press PROG. ▲ or ▼ to select another video channel.
You may select any channel number between 22 and 68.
8
Select a TV channel number on which you wish to watch video's.
Tune this channel so that a bright blue screen appears.
Store this channel on your TV.
Press POWER when you have finished.

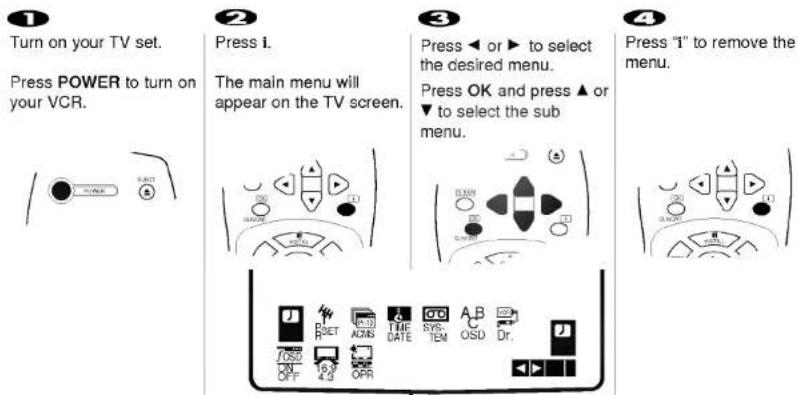

This VCR can easily be programmed by using the menus displayed on screen. The menus are controlled from the REMOTE CONTROL HANDSET.
● PR SET - Manual tuning setting (see p. 11 to 12).
● ACMS - ACMS (Automatic Channel Memory System) (see p. 10).
● TIME DATE - Date & clock setting (see p. 18).
● SYSTEM - To set the Colour System (see p. 17)
- ABC OSD - To change the language setting for OSD (see right)
● Dr. - To check a problem with your VCR (see p. 26).
● F.OSD ON/OFF - To switch the display of operational mode of your VCR ON or OFF (see p. 23).
● 16:9/4:3 - To select the aspect ratio of your TV (see p. 25).
● OPR - To improve the playback picture (see p. 16).
use the main menu
How to
LANGUAGE
SELECTION
You can select the
language among English.
Deutsch, Francais
Italiano, Español and
Dutch.
1
Make sure that you have correctly installed your VCR and tuned a video channel on your TV as described earlier in this book.
Switch on your TV and select the channel you wish to watch videos.
Press POWER to turn on your VCR.
2
Press i.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the ACMS.
Press OK.
3
Press ◀ or ▶ to select COUNTRY.
(A: Austria, B: Belgium, CH: Switzerland, D: Germany, DK: Denmark, E: Spain, F: France, I: Italy, N: Norway, NL:
Netherlands, P: Portugal, S: Sweden, SF: Finland, OTHERS)
Press OK to start the automatic tuning process.
4
The TV station table will appear when tuning is complete.
Press I to save your settings.
In certain areas of the country broadcast signals may be too weak for your VCR's automatic tuning process to find or assign TV stations correctly.
You must tune in these weaker broadcast stations manually in order for your VCR to store them.
Press i.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the PR SET.
Press OK.
Press AV to select C (Standard stations) or S (Cable stations): C02 - C71, S01 - S41.
If you know the broadcast station number of your particular TV station you may enter its number directly by using the number buttons on the remote control.
Press ▶ to select MFT. Press ▲ or ▼ to adjust.
Press ▶ to select STATION so that you may name your TV station.
Press OK.
The TV station name list will appear.
Manually
TV stations
Tuning in
Tuning in TV stations Manually
5
Press ▲ or ▼ to select a station name from the list.
Press OK to select it.
If your station name isn't on the list do not press OK, but go to stage 6.
6
You can change a TV station name manually rather than using the "standard" names.
Press ▶.
Press ▲ or ▼ to select letters and numbers for the new station name.
Press ◀ or ▶ to move back and forth between characters.
Press OK.
7
Press i, confirm the station placement.
Press i again.
8
Your new TV station has now been tuned into your VCR.
If you wish to manually tune other stations repeat stages 1-7.
After tuning TV stations into your VCR you may wish to change the order in which they are stored without having to retune them against! The instructions given on this page will show you how you can simply move them into your desired order.
1
Press i.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the PR SET.
Press OK.
2
Press i.
Press ▲ or ▼ to select the programme number you want to move (for example, PR 03).
Press ▶.
3
Press ▲ or ▼ to place the cursor line at the position where to insert the selected programme. (for example, PR 05)
4
Press OK. The selected programme will be moved to the new programme number.
Press i.
If you wish to move other TV stations repeat stages 1 - 4.
TV stations
the order of
Changing
Selecting stored TV stations:
Stored TV stations can be selected in either of two ways.
Press ▲ or ▼ to select different stations that are tuned into your VCR.
You may also directly select stations using the numbered buttons on the remote control.
After tuning TV stations into your VCR you may wish to delete a station.
The instructions given on this page will show you how easily delete any unwanted TV stations.
1
Press i.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the PR SET.
Press OK.
2
Press i.
Press ▲ or ▼ to select the programme number you want to delete. (for example, PR 01)
3
Press
After a short while, the selected station will be deleted.
The following stations are resorted automatically.
4
Press i.
If you wish to delete other TV stations repeat stages 1 - 4.
You will only be able to load and eject video cassettes when your VCR is plugged into the mains. Your VCR may also play back recordings from NTSC tapes (on PAL TV).
Getting a better picture When a cassette is inserted and playback started, the automatic tracking function works to get the best possible picture automatically. If the quality of the recording is poor, repeatedly press ▼ or ▲ on the remote control to manually adjust the tracking until any distortions have been removed. Press numbered 0 on the remote control to switch automatic tracking back on again.
1
Make sure that you have correctly connected your VCR as described earlier in this book.
Turn on your TV and select the video channel for video playback.
Press POWER to turn on your VCR.
Insert the video cassette into your VCR.
The video cassette should have the window side facing up and the arrow facing away from you.
2
Press PLAY to start playing your tape.
If you load a video cassette which has had its record protection tab removed playback of the cassette will start automatically.
AUTO TRACKING
Your VCR will automatically adjust the tracking to give the best picture quality.
3
Still picture : Press P/STILL to pause a picture.
Still pictures will have a lot of white streaks across them, this is quite normal and doesn't mean that there is anything wrong with your VCR! Tapes can be paused for up to 5 minutes. After 5 minutes your VCR will stop playing the tape to prevent damaging the tape or your VCR.
4
Press PLAY to continue playing your tape.
Picture search: During playing back press either FF or REW to this will enable you to rapidly wind the tape (7 times normal playback speed) and see where you are on the tape.
Logic search:
During fast forwarding or rewinding press and hold FF or REW the picture will be played back at 7 times normal playback speed.
Picture search will only continue for about 3 minutes, after which your VCR will return to normal playback. During picture search, logic search, and CM Skip the sound is muted and there will be some noise streaks on the picture.
Press STOP to end playback.
Press EJECT.
If the end of the tape is reached, your VCR will stop playback automatically rewind, stop, eject the tape and place itself into power off.
CM (Commercial Message) Skip:
This feature enables you during playback of a tape to skip a commercial break in a few seconds, then resume normal playback.
While tape is playing press CM SKIP on the remote control to skip commercial (or another programme material).
Repeatedly press CM SKIP to skip material:
1 Press 30 seconds
2 Press 60 seconds
3 Press 90 seconds
4 Press 120 seconds
5 Press 150 seconds
6 Press 180 seconds
OPR (Optimum Picture Respon
This feature automatically improves playback picture quality by adjusting your VCR to the condition of the tape. Press 1.
Press ◀ or ▶ to select OPR.
Press OK.
Press ▲ or ▼ repeatedly to select: OFF, SOFT or SHARP.
Please note you may only set OPR to on when playing a tape.
Press i to remove the menus.
Your VCR is equipped with dual colour standard, you can play and record in PAL and MESECAM. During playing back or recording your VCR detects the colour system automatically. It there are colour problems with very weak signals, you select the colour system manually.
Press i.
The main menu will appear on the TV screen.
Press ◀ or ▶ to select the SYSTEM.
Press OK.
Press ▲ or ▼ to select the COLOUR system used.
AUTO: automatic colour selection.
PAL: PAL recordings MESECAM: MESECAM recordings.
Press i to remove the menus.
The clock in your VCR controls time, day and date settings for your VCR.
1
Press i.
Press ◀ or ▶ to select TIME DATE.
Press OK.
2
Use the numbered buttons on the remote control to alter or enter the HOURS, MINUTES, DAY, MONTH and YEAR.
Please note your VCR uses a 24 hour clock. e.g. 1 pm will be displayed as 13:00.
When entering singles numbers a 0 must be added first, for example 1 must be entered as 01, 2 as 02 etc.
The day of the week will appear automatically when you enter the date.
3
If you make a mistake press ◀ or ▶ and enter the correct details.
4
Press i.
Your new clock settings are stored.
Your VCR allows you to make recordings using a variety of simple methods :
Instant Timer Recording (ITR) start recording immediately for a set period of time or until the video cassette runs out.
Timer Recording you may record at a later time (up to 1 month from the present). Up to 7 of these automatic recordings may be set.
1
Make sure that you have correctly installed your VCR as described earlier in this book.
Turn on your TV and select the channel that you set up for video playback.
Press POWER to turn on your VCR.
2
Insert a video cassette with protection tab into your VCR.
The video cassette should have the window side facing up and the arrow facing away from you.
3
Press ▲ or ▼ to select the programme number you wish to record.
You may also directly select programme number using the numbered buttons on the remote control.
4
If you wish to record directly from the SCART socket press AV, as shown by the display (AV) on the TV screen.
Recording(ITR)
Instant Timer
If you do not wish to record on a tape (this can happen
quite easily by accident!) remove the protection tab on the back edge of the video cassette.
It is possible to record on a
video cassette with the record protection tab removed by covering the hole with self adhesive tape.
Instant Timer Recording(ITR)
Remember you can record one programme while watching another by starting your ITR recording, press TV/VCR to select TV mode and then select a different channel on your TV.
Your VCR incorporates Long Play (LP) which enables you to record up to twice the amount of time on a video cassette. For example an E-180 will record up to 180 minutes using Standard Play (SP); using LP you will be able to record up to 360 minutes. Please note there will be a slight loss in picture and sound quality when using LP.
5
Press LP if you wish to record in Long Play or Standard Play.
SP will produce improved picture and sound quality, however LP will provide twice as much recording time as SP. SP or LP will be displayed in your VCR display to let you know which you have selected.
6
Press REC/ITR to start recording.
RECORD will appear on the TV screen.
Press REC/ITR several times. Each successive press will increase the record time by 30 minutes until you reach a maximum of 9 hours.
7
Press P/STILL to avoid recording unwanted scenes.
Press P/STILL again to continue recording.
Tapes can be paused for up to 5 minutes; RECP will be displayed when a tape is paused. After 5 minutes your VCR will stop recording to prevent damaging the tape or your VCR.
8
Press STOP to end recording.
Press EJECT.
EJECT will appear on the TV screen for a few seconds.
If the end of the tape is reached, your VCR will stop recording automatically, rewind, stop, eject the tape and place itself into power off.
You may set up to seven timer record events within one month of the current date. PLEASE NOTE! before setting the timer make sure that you have set the VCR clock correctly and you know which channels you have tuned TV stations on your VCR.
1
Make sure that TV channels have been tuned and stored.
Insert a video cassette with protection tab into your VCR.
The video cassette should have the window side facing up and the arrow facing away from you.
2
Press i.
Press ◀ or ▶ to select REC.
Press OK.
3
Press OK again to start setting the timer record event.
If all timer record events are full press ▲ or ▼ to select the event that you wish to remove and replace.
Press ◀ to remove the event.
4
Press the numbered buttons to enter the programme number that you wish to record.
When selecting programme numbers 1 - 9, press 0 first, then the programme number; for example PR NO. 1 as 01. You may also select programme numbers by pressing ▲ or ▼. Once selected press ▶. If you want to record from the SCART socket press AV.
If timer record events overlap...
Make sure that the preset times of the timer recording events do not overlap. If they do, the earlier programme will always be given priority.
Example:
Programme 1 is programmed to start at 10:30 and end at 11:30.
Programme 2 is programmed to start at 11:00 and end at 12:00.
(In this case, Programme 1 will be recorded in its entirety, but only the last 30 minutes of Programme 2 will be recorded.)
If at a later date you wish to delete or change any of the settings in timer event memory you may do so without having to enter all the timer event information again. Simply display the timer event screen. Press ▲ or ▼ to select the event that you wish to delete or change.
Press ◀ to delete the event.
/ Press OK to change; then press ◀ or ▶ to select Station, Date, Start and End times, and LP. Press ▲ or ▼ to enter the correct information.
5
Press the numbered buttons to enter the date of the programme.
If you press OK before entering the date you may select one of the following automated recording features. Press ◀ or ▶ to select, then press OK to confirm.
DLY(Daily) To record every day (except Saturday and Sunday) at the same time.
Weekly To record at the same time every week.
6
Press the numbered buttons to enter the recording start and end times of the programme that you wish to record.
Please note your VCR uses a 24 hour clock. e.g. 1 pm will be displayed as 13:00. You may also select the the start and end times by pressing ▲ or ▼.
7
Press ▶ to select the recording speed. Press ▲ or ▼ if you wish to record in Long Play or Standard Play.
8
Check that the timer event details are correct. Press i to save your settings.
If PLEASE CHECK is displayed, you have entered incorrect information and will need to re-enter the data. If you want to make other Timer recordings repeat stages 3 - 8. Press i again to remove the menus. Press POWER to switch your VCR off.
TIMER indicator will light in the video recorder's display while your VCR waits to make the recording.
Your VCR has an Energy Save feature which if set will place your VCR into an economic power save where the clock display will disappear. If you have programmed a recording, this feature will not work.
Press POWER on the VCR.
POWER and VCR indicators will light in the video recorder's display.
Press POWER on the VCR again and your VCR will go into Energy Save.
All indicators will turn off in the video recorder's display.
Press POWER to switch off Energy Save.
You may easily display the current time or tape counter and amount of tape left, day, month, year, day of week, programme channel, and operational mode of your VCR on the TV screen. If a recording is taking place these On Screen Displays will not be recorded onto the tape.
Press OK/CLK/CNT to display.
VCR Channel Function Programme
Day/Month/Year/Day of Week
Clock/Tape Counter & Amount of Tape Left
Press OK/CLK/CNT repeatedly to display the tape counter and amount of tape left.
Tape counter and amount of tape left appear only while a tape is loaded.
After 3 seconds the display will clear only leaving the clock or tape counter and amount of tape left on the TV screen.
Press OK/CLK/CNT again to remove all displays from the TV screen.
The Digital Tape Counter can be displayed on your TV screen instead of the time by pressing OK/CLK/CNT on the remote control. The Digital Tape Counter indicates the relative positions of recordings on the tape.
1
Press OK/CLK/CNT repeatedly until the counter is displayed on screen.
Press CLEAR to set the counter to 0:00:00.
Press PLAY or start recording.
The tape counter will display the actual play time in hours, minutes and seconds.
2
Press STOP when playback or recording is complete.
Press REW.
The tape will rewind and automatically stop when the counter returns to 0:00:00.
The control buttons on the front of the VCR can be switched off so that your VCR can only be operated using the remote control.
1
Press C.LOCK.
SAFE will appear on the TV screen.
POWER indicator will flicker in your video recorder's display for a few seconds.
None of the buttons on the front of your VCR will work (except STOP/ EJECT)
If any buttons on the front of your VCR are pressed POWER indicator will flicker in your video recorder's display for a few seconds.
2
Press C.LOCK again to switch off the child lock.
SAFE will disappear on the TV screen.
POWER indicator will flicker in your video recorder's display for a few seconds.
Your VCR can record and play back wide screen aspect ratio programmes (16:9). To record a wide screen format programme successfully the correct type of wide screen signal must be broadcast by the TV station.
Switch on your VCR.
Press i.
Press ◀ or ▶ to select 16:9/4:3.
Press OK.
Press ▲ or ▼ repeatedly to select : AUTO, 4:3 or 16:9.
AUTO: Automatically plays back Wide-Screen programmes as Wide- Screen and Normal programmes as normal.
4:3 Only for playing back and recording Normal format recordings (4:3).
Only for playing back and recording Wide-Screen format recordings (16:9).
Press I to remove the menus.
16:9
Compatibility
Wide Screen
Automatic Memory Power Shut-Off
This feature of your VCR enables you to switch off your VCR automatically after tape rewind has been completed.
1
Press POWER during tape rewind.
2
The tape will rewind to the beginning and your VCR will automatically switch itself off.
Video Doctor(Self-Diagnosis)
This feature informs you that there is a problem with your VCR. These error messages will appear on the TV screen.
1
Switch on your VCR.
Press i.
Press ◀ or ▶ to select Dr.
Press OK.
2
Press ▲ or ▼ to check a problem.
HEAD STATUS
- PLEASE CLEAN: Clean your video heads.
TAPE STATUS
● NOT RECORDABLE: Insert a tape with its protection tab in place
NO. OF TIMER
PROGRAMME
Shows the number of timer recording.
NEXT TIMER
PROGRAMME APP 26 10:0
●ARD 28 10.00\~11.00 Shows the current status of timer recording.
Press i.
operations
ez (easy)
Tape Copying
Specifications
The design and specifications are subject to change without notice.
A second VCR (for tape copying) should be connected to the SCART socket on the back of your VCR. Remember to select the appropriate audio/video mode by pressing the AV button on the remote control.
General
Power
Power consumption
Video Head System
Tape speed
Tape format
Maximum recording
time
Rewind time
Dimensions
Weight
Operating temperature
Operating humidity
Timer
Video
Television system
Recording format
RF reception
RF OUT
Input leve
Output level
Signal to noise ratio
RF Modulator
Audio
Input level
Output level
Track
Frequency response
Signal to noise ratio
200-240V\~, 50Hz.
Approx. 16 Watts (Energy saving
mode: 3 Watts)
Rotary 2 heads, helical scanning
23.39 mm/sec (SP mode)
11.69 mm/sec (LP mode).
Tape width 12.7 mm (0.5 inch).
4 hours (SP mode, E-240 tape)/
8 hours (LP mode, E-240 tape)
Approx. 180 sec.(E-180 tape)
360 x 94 x 270 mm (W x H x D)
3.4 Kg
5°C - 35°C
Less than 80%.
24 hours display type.
CCIR standard (625 lines, 50 fields)
PAL/SECAM colour signal
PAL/MESECAM
PAL B/G, SECAM B/G
PALG
VIDEO IN (SCART type)
1.0 Vp-p, 75 Ohm, unbalanced
VIDEO OUT (SCART type)
1.0 Vp-p, 75 Ohm, unbalanced
More than 43 dBm
UHF channels 22-68 (Adjustable)
AUDIO IN (SCART type)
-6.0 dBm, more than 10 kohms
AUDIO OUT (SCART type)
-6.0 dBm, less than 1 kohm
Mono track
100 Hz-10 kHz (-6/+3 dBm)
More than 43 dB
Video Head Cleaning
Whenever a video cassette is inserted into or ejected from your VCR the video head is automatically cleaned. This should mean that additional head cleaning should not be necessary. However dirt accumulating on the head after a long period of time can cause the playback picture to become blurred or broken up. High quality video cassette tapes will not normally deposit dirt onto the video head, but old or damaged tapes might.
| Symptom | Check points | Symptom | Check points |
| No picture & no sound | Is the mains plug plugged in and switched on?Is the TV switched on?Try another channel, maybe a weak signal.Check aerial is it plugged in? Check aerial, is the lead broken or damaged?Have you tuned in a video channel on your TV to watch video on?If you have used a SCART lead to connect your VCR and TV have you selected the AV channel on your TV?Check tuning, carry out Automatic Tuning again | Videocassettecannot beinsertedRemotecontrol doesnot workThe top ofthe playbackpicture isunstable | Is the cassette compartment empty?Are you trying to insert the cassette the right way round?Is the mains plug plugged in and switched on?Is the VCR switched onCheck the batteries in remote control.Is the video cassette damaged, have you tried using another one?Adjust the horizontal control on your TV.Check aerial is it plugged into VCR?Check aerial, is the lead broken or damaged?Check for local interferenceMake sure that you are using a video TV channel on your TV. |
| No playback or poor picture | Are the TV channels tuned in properly?Have you tried using another cassette?Can you minimise the noise bars to an acceptable level with 0, ▲ or ▼? | ||
| TV programmes cannot be recorded | Can you get a picture on the TV?Are the aerial leads and special RF connector lead between your VCR and TV connected?Are the TV channels tuned in properly?Has the safety tab on the video cassette been removed to prevent recording?Try another station, maybe a weak signalCheck aerial is it plugged into TV? | Auto Playdoes notwork | Has the safety tab been removed from the video cassette? |
Check List
Troubleshooting
LG Electronics Inc.
P/N: 3834RP0048F
