USER MANUAL 20M39A-B LG

OWNER'S MANUAL LED LCD Monitor (LED Monitor\*)

*LG LED Monitors are LCD Monitors with LED Backlighting.

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

19M38A	20M38A	22M38A	24M38A	27MP38VQ
19M38D	20M38D	22M38D	24M38D	27MP38HQ
19M38H	20M38H	22M38H	24M38H
20M39A
20M39H

CONTENTS

3 LICENSE

4 ASSEMBLING AND PREPARING

4 Unpacking
6 Parts and buttons
7 Moving and Lifting the Monitor
8 Setting up the Monitor set
8 - Attaching the Stand Base
9 - Detaching the Stand Base
10 - Mounting on a table
10 - Using the cable holder
12 - Mounting on a wall

13 USING THE MONITOR SET

13 Connecting to a PC
13 - D-SUB connection
13 - DVI-D connection
14 - HDMI connection
14 Connecting to AV Devices
14 - HDMI connection
15 Connecting to External Devices
15 - Peripheral device connection

16 CUSTOMIZING SETTINGS

17 Customizing Settings
17 - Menu Settings
19 - Picture

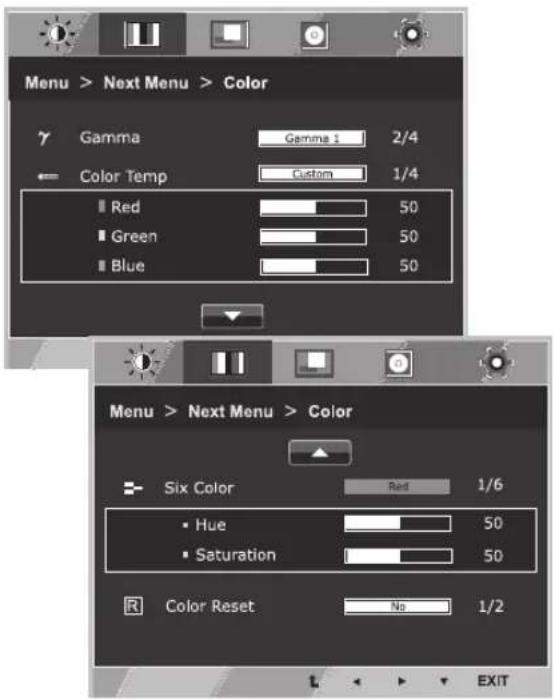

20 - Color
21 - Display
21 - Audio
22 - Others

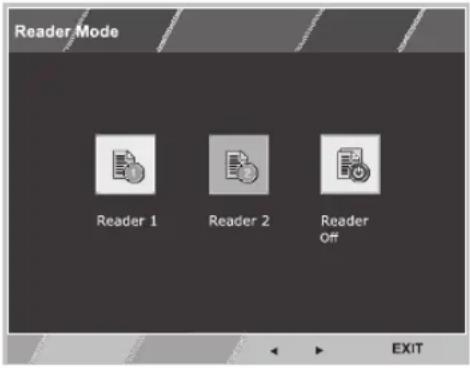

23 READER Setting
24 FUNC. Setting
24 - SMART ENERGY SAVING

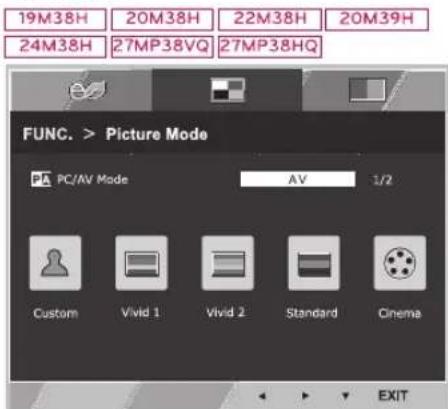

25 - Picture Mode
26 - Color Weakness

27 TROUBLESHOOTING

29 SPECIFICATIONS

40 Preset Modes (Resolution)
41 Indicator

20M38H19M38H22M38H24M38H27MP38VQ27MP38HQ20M39H

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:

*This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.

*To make this setting be disabled, change the option to 'Off' in OSD menu of "Automatic Standby".

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

CD(Owner's Manual) / Card

D-SUB Cable

( This cable is not included in all countries. )

DVI-HDMI Cable

( This cable is not included in all countries. )

Power Cord

AC-DC Adapter

or

AC-DC Adapter

( Depending on the country ) ( Depending on the country )

Stand Body

Stand Base

19M38A	20M38A	22M38A	24M38A
19M38D	20M38D	22M38D	24M38D
19M38H	20M38H	22M38H	24M38H
20M39A
20M39H

DVI-D Cable

19M38D	20M38D	22M38D
24M38D	27MP38VQ

( This cable is not included in all countries. )

Stand Body Two Screws

Stand Base

HDMI Cable

19M38H	20M38H	20M39H	22M38H
24M38H	27MP38VQ	27MP38HQ

( This cable is not included in all countries. )

27MP38VQ 27MP38HQ

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.

Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

Parts and buttons

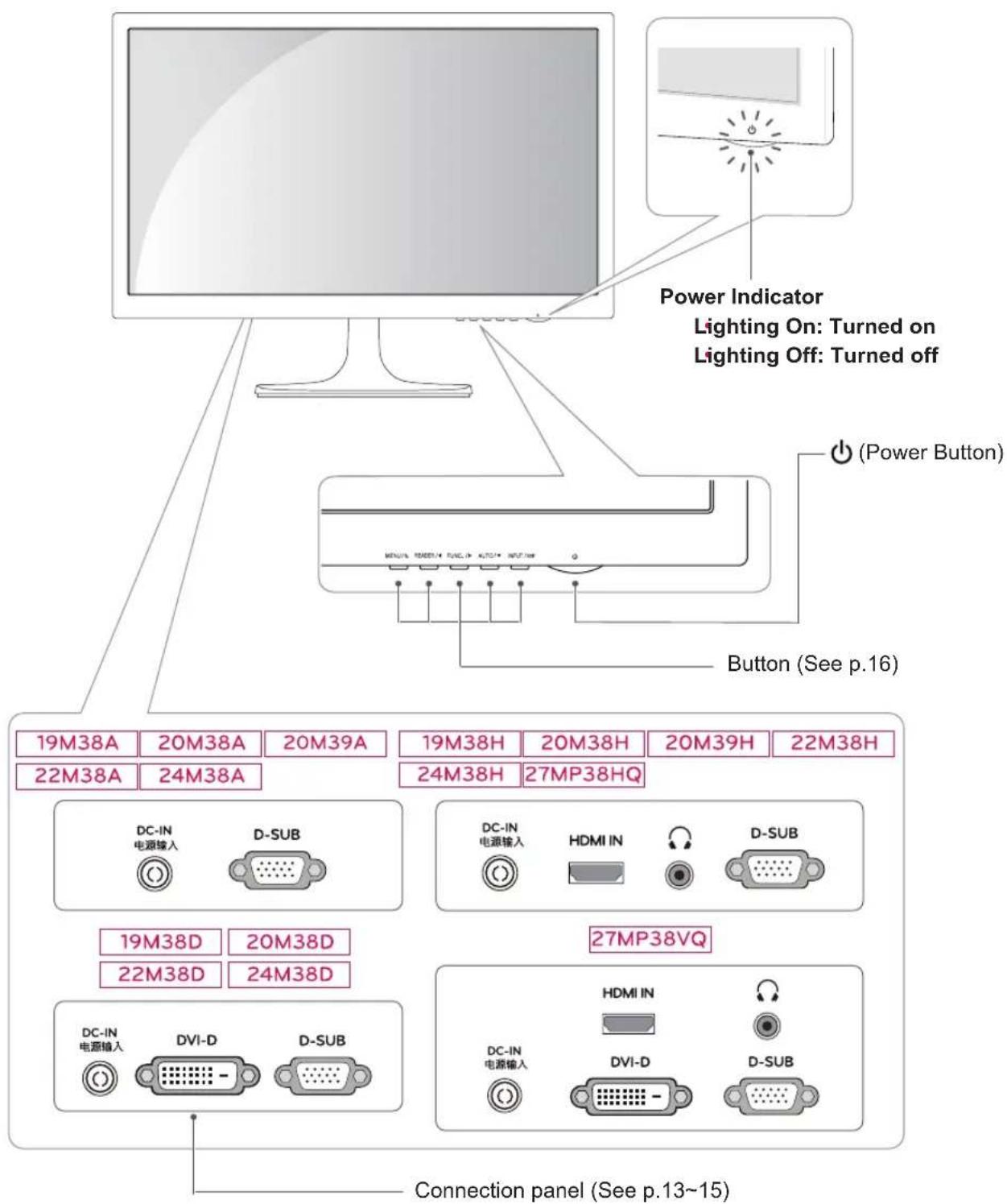

Power Indicator Lighting On: Turned on Lighting Off: Turned off Button (See p.16) 19M38A 20M38A 20M39A 19M38H 20M38H 20M39H 22M38H 22M38A 24M38A 24M38H 27MP38HQ DC-IN 电源输入 D-SUB 19M38D 20M38D 22M38D 24M38D DC-IN 电源输入 DVI-D D-SUB 27MP38VQ DC-IN 电源输入 HDMI IN D-SUB DC-IN 电源输入 DVI-D D-SUB Connection panel (See p.13~15)

Moving and Lifting the Monitor

When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or damaged and to ensure safe transportation regardless of its shape or size.

It is advisable to place the monitor in the original box or packing material before attempting to move it.

Before moving or lifting the monitor, disconnect the power cord and all cables.

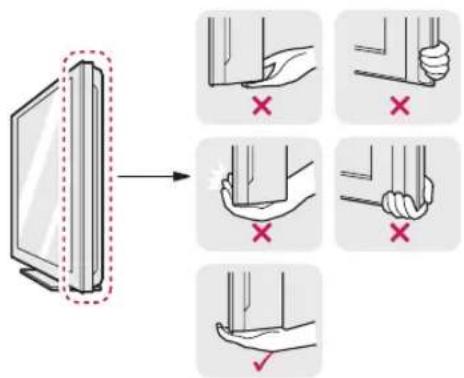

Hold the top and bottom of the monitor frame firmly. Do not hold the panel itself.

Diagram illustrating hand positioning and movement of a monitor, with red X marks indicating correct and incorrect positions.

When holding the monitor, the screen should face away from you to prevent it being scratched.

Prohibition sign with silhouette of person holding a device and crossed-out box, enclosed in red circle

When moving the monitor, avoid any strong shock or vibrations to the product.

When moving the monitor, keep it upright, never turn the monitor on its side or tilt it sideways.

CAUTION

As far as possible, avoid touching the monitor screen. This may result in damage to the screen or some of the pixels used to create images.

Illustration showing a hand holding a prohibition symbol above a computer monitor displaying red virus icons, implying suppression or suppression of COVID-19.

Setting up the Monitor set

Attaching the Stand Base

1 Place the Monitor set with the screen side down on a flat and cushioned surface.

CAUTION

Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.

2

19M38A 20M38A 22M38A 24M38A
19M38D	20M38D 22M38D 24M38D
19M38H	20M38H 22M38H 24M38H
20M39A
20M39H

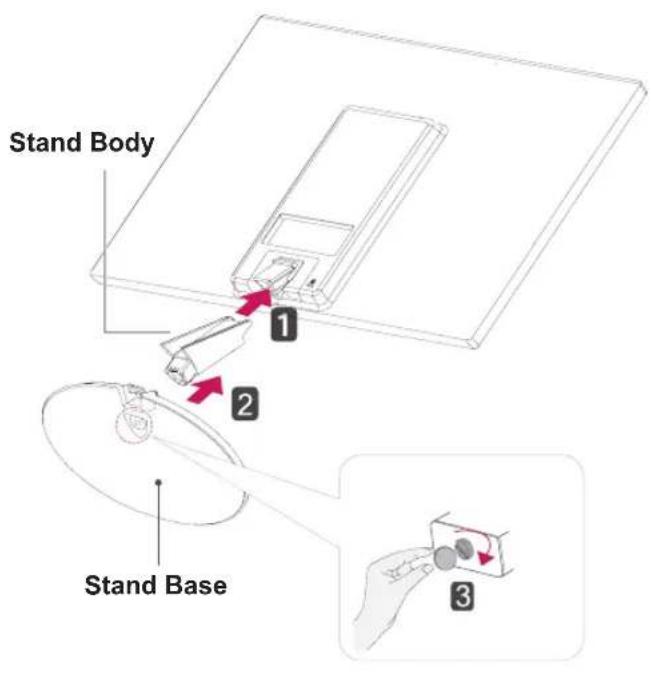

1 Attach the Stand Body to the monitor set.
2 Attach the Stand Base.
3 Tighten the screw to the right with a coin.

Stand Body 1 2 Stand Base 3

27MP38VQ 27MP38HQ

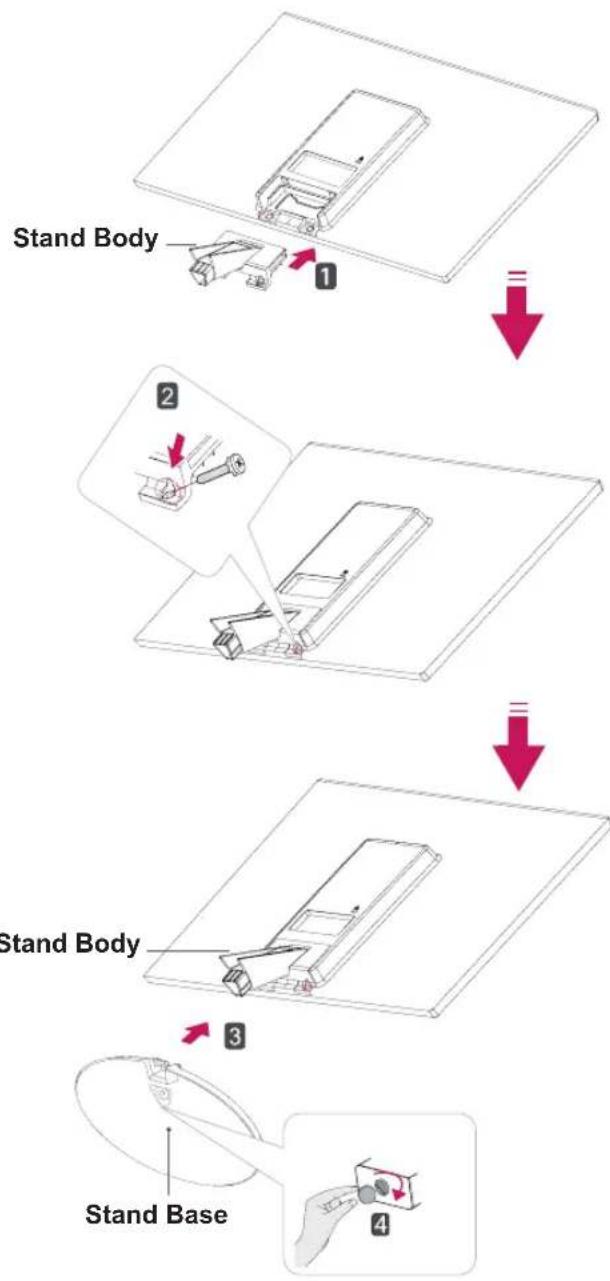

1 Attach the Stand Body to the monitor set.
2 Use two screws to fix the Stand Body and monitor set.
3 Attach the Stand Base.
4 Tighten the screw to the right with a coin.


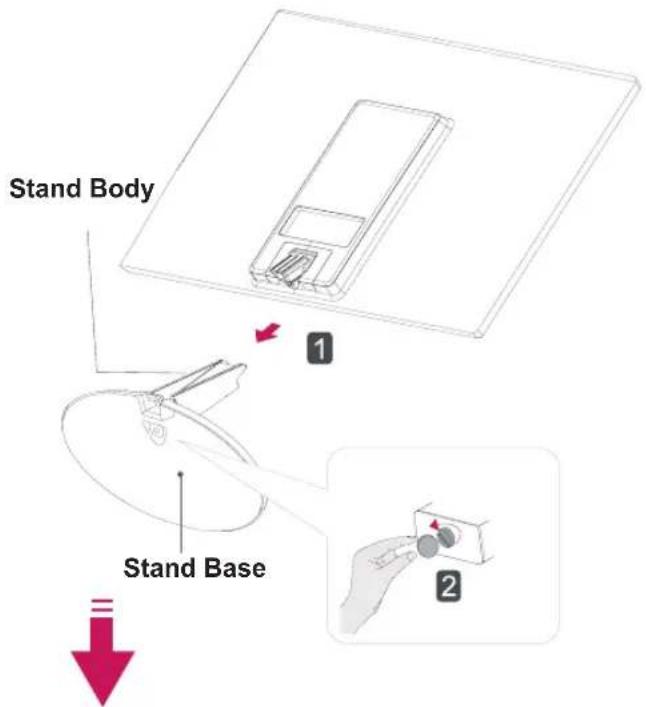

Detaching the Stand Base

1 Place the Monitor set with the screen side down on a flat and cushioned surface.

19M38A	20M38A 22M38A 24M38A
19M38D	20M38D 22M38D 24M38D
19M38H	20M38H 22M38H 24M38H
20M39A
20M39H

1 Pull out the Stand Body and Stand Base from the monitor set.
2 Turn the screw to the left with a coin.
3 Pull out the Stand Base.

Stand Body Stand Base

Stand Body Stand Base

27MP38VQ 27MP38HQ

1 Turn the screw to the left with a coin.
2 Pull out the Stand Base from the Stand Body.

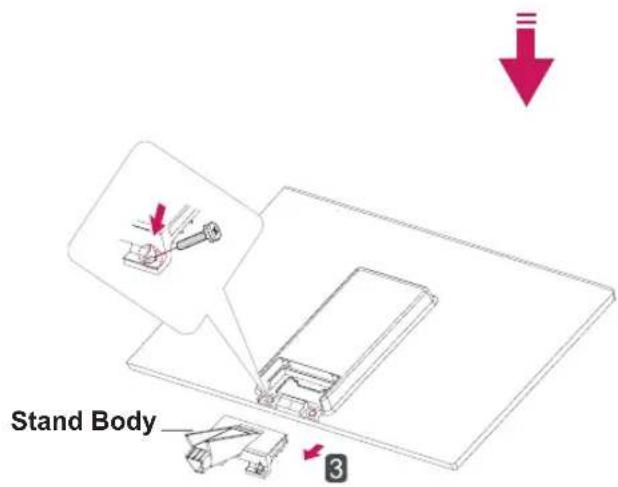

3 Remove two screws and pull out the Stand Body from the monitor set.

Stand Body 7.0

Stand Base 1 2

Stand Body 3

CAUTION

This illustration depicts the general model of connection. Your monitor may differ from the items shown in the picture.

Do not carry the product upside down holding only the stand base. The product may fall and get damaged or injure your foot.

Mounting on a table

1 Lift and tilt the Monitor set into its upright position on a table.

Leave a 100 mm space from the wall for proper ventilation.

100 mm 100 mm 100 mm 100 mm

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

or 1 2 3 1

3 Press (Power) button on the bottom switch panel to turn the power on.

CAUTION

Unplug the power cord before moving the Monitor to another location. Otherwise electric shock may occur.

Using the cable holder

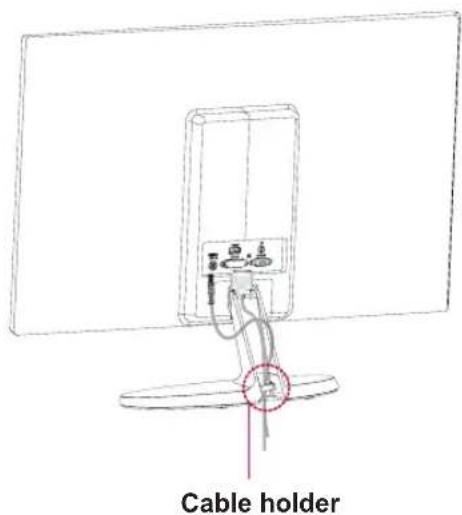

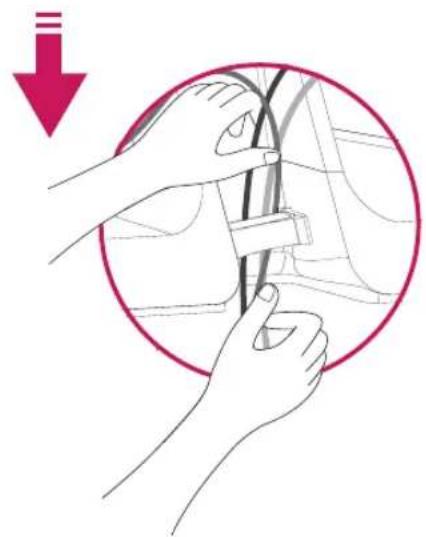

Cable holder

Illustration of hands connecting cables inside a vehicle wheel (no text or symbols)

WARNING

When you adjust the angle, do not hold the bottom of the Monitor set frame as shown on the following illustration, as may injure your fingers.

Two diagrams showing hand positioning of a cylindrical object on a surface, with no text or symbols present.

Do not touch or press the screen when adjusting the angle of the monitor.

Line drawing of two hands holding a blank computer monitor with a red prohibition symbol (no text or labels)

Do not hold this set like below picture.Monitor screen can detach from stand base and injure your body.

Simple line drawing of two hands holding a rectangular object with a red prohibition symbol (no text or labels)

NOTE

Tilt from +20 to -5 degrees up or down to adjust the angle of the Monitor set to suit your view.

-5° 20° Front Rear

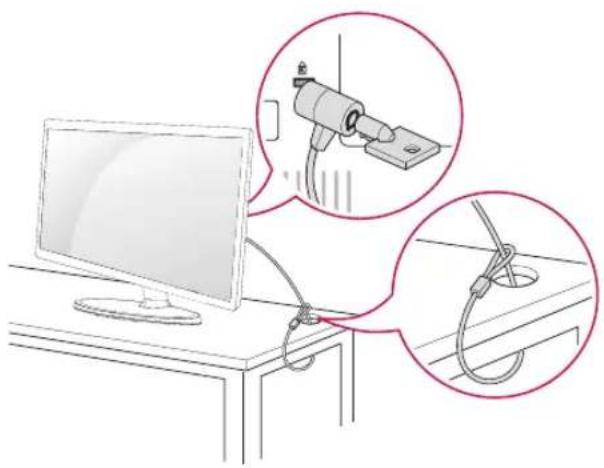

Using the Kensington security system

The Kensington security system connector is located at the back of the Monitor set. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the Monitor set and a table.

Illustration of a computer monitor connected to a cable with two magnified insets showing a mechanical device and rope (no text or symbols present)

NOTE

The Kensington security system is optional. You can obtain it from most electronics stores.

Mounting on a wall

For proper ventilation, allow a clearance of 100 mm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

100 mm 100 mm 100 mm 100 mm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1 If you use screw longer than standard, the monitor might be damaged internally.
2 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.

Model	19M38A	20M38A	22M38A
	19M38D	20M38D	22M38D
	19M38H	20M38H	22M38H
	20M39A
	20M39H
Wall Mount (A x B) 75 x 75
Standard screw M4
Number of screws 4

Model	24M38A	27MP38VQ	24M38H
	24M38D	27MP38HQ
Wall Mount (A x B)	100 x 100
Standard screw M4
Number of screws 4

Wall Mount (A x B)

CAUTION

Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.

If you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.

Use only an authorized LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may cause damage to the Monitor set and void your warranty.

Use only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. Screw length from outer surface of back cover should be under 8mm.

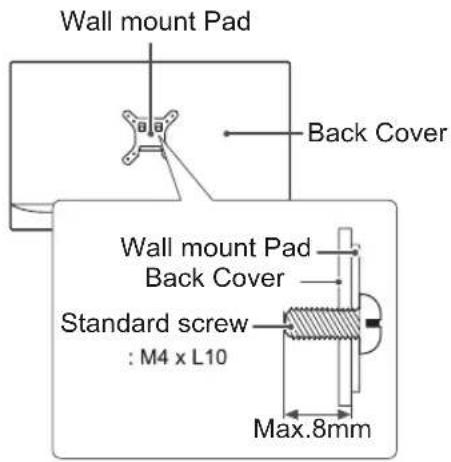

Wall mount Pad Back Cover Wall mount Pad Back Cover Standard screw : M4 x L10 Max.8mm

NOTE

Use the screws that are listed on the VESA standard screw specifications.

The wall mount kit will include an installation manual and necessary parts.

The wall mount bracket is optional. You can obtain additional accessories from your local dealer.

The length of screws may differ depending on the wall mount. Be sure to use the proper length.

For more information, refer to the instructions supplied with the wall mount.

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play*.

*Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

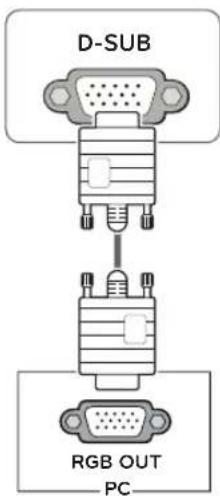

D-SUB connection

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

D-SUB RGB OUT PC

NOTE

When using a D-Sub signal input cable connector for Macintosh

Technical line drawing of a dual-port electronic component with no text or symbols

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

DVI-D connection

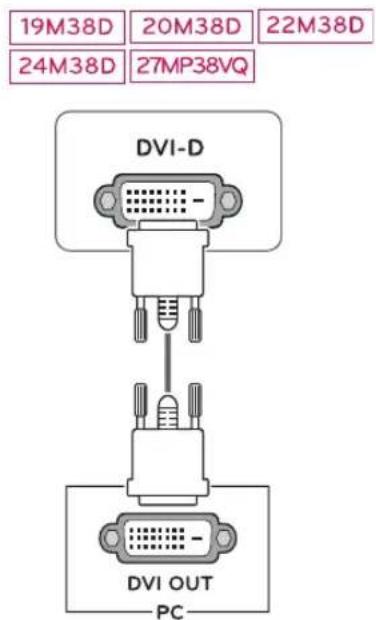

Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.

19M38D 20M38D 22M38D 24M38D 27MP38VQ DVI-D DVI OUT PC

CAUTION

Connect the signal input cable and tighten it by turning the screws clockwise.

Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

HDMI connection

Transmits the digital video and audio signals from your PC to the Monitor set. Connect the PC and the Monitor set with the HDMI cable as shown in the following illustrations.

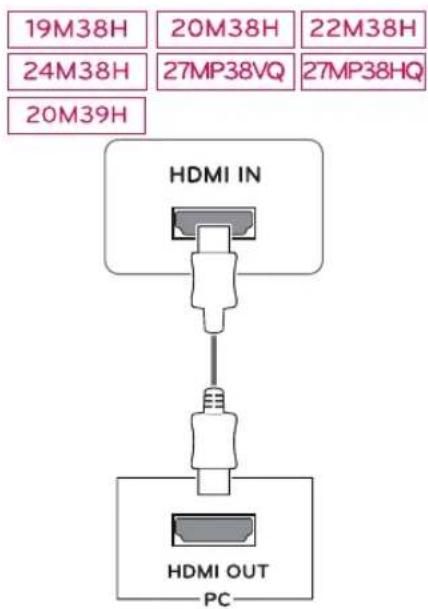

19M38H 20M38H 22M38H 24M38H 27MP38VQ 27MP38HQ 20M39H HDMI IN HDMI OUT PC

NOTE

If you use HDMI PC, it can cause compatibility problem.

Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

Recommended HDMI cable types

• High-Speed HDMI®/TM Cable
• High-Speed HDMI ^® /™ Cable with Ethernet

NOTE

When you want to use two PC in our Monitor, please connect the signal cable(D-SUB/DVI-D/HDMI) respectively in Monitor set.

If you turn the Monitor set on while it is cold, the screen may flicker. This is normal.

Some red, green, or blue spots may appear on the screen. This is normal.

Connecting to AV Devices

HDMI connection

Transmits the digital video and audio signals from your AV devices to the monitor. Connect your AV device to the monitor with the HDMI cable as illustrated below.

19M38H 20M38H 22M38H 24M38H 27MP38VQ 27MP38HQ 20M39H HDMI IN HDMI OUT A/V

NOTE

If you use HDMI PC, it can cause compatibility problem.

Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

Recommended HDMI cable types

• High-Speed HDMI®/TM Cable
• High-Speed HDMI®/TM Cable with Ethernet

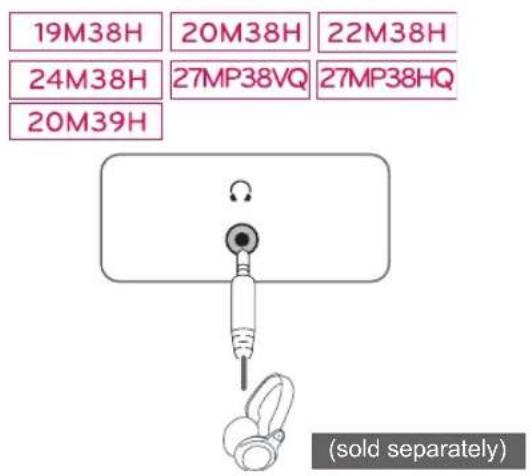

Connecting to External Devices Peripheral device connection

Connect peripheral devices to the monitor using headphone ports.

19M38H 20M38H 22M38H 24M38H 27MP38VQ 27MP38HQ 20M39H (sold separately)

NOTE

Peripheral devices are sold separately. Cables with angled plugs may have clearance issues, use straight plugs when possible.

Angle Type Straight Type

NOTE

Headphones or speakers may not work normally, depending on the server PC settings.

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the "Self Image Setting" Function is executed automatically. (Only supported in Analog Mode)

FUNC. /► AUTO /▼ INPUT / EXIT

NOTE

"Self Image Setting" Function.

This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. (Only supported in Analog Mode)

'AUTO' Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

CUSTOMIZING SETTINGS

1 Press the desired button on the bottom of the Monitor set.
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow (▲button.

3 Select EXIT to leave the OSD menu.

MENU /← READER/◄ FUNC. /► AUTO /▼ INPUT / EXIT Monitor set Buttons

Button Description
MENU / t	Accesses the main menus.(See p.17)
	OSD Locked/OSD Unlocked	This function allow you to lock the current control settings, so that they cannot be inadvertently changed.Press and hold the MENU button for several seconds. Then OSD of “OSD Lock” will appear. After that, user can select lock or unlock by pressing left/right button.If user selects the “Lock” icon by pressing the “OK” button, the message “OSD Locked” will appear. Otherwise, “OSD Unlocked” will appear. After selecting the “Lock”, If you want to change to Unlock, you can push the “MENU” button for several seconds. The message “OSD Unlocked” will appear.
READER / ◀	Use this button to enter Reader Mode menu. Its function works to display screen as paper-like picture for Eye comfort.If you want to more information(See p.23).
FUNC. / ▶	Use this button to enter SMART ENERGY SAVING , Picture Mode,Color Weakness menus.(See p.24~26)
AUTO / ▼	When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode)
	The best display mode	19M38A/19M38D/19M38H/20M39H: 1366 x 76820M38A/20M38D/20M38H: 1600 x 90022M38A/22M38D/22M38H/24M38A/24M38D/24M38H/27MP38HQ/27MP38VQ: 1920 x 1080
INPUT / EXIT	You can choose the input signal.When two input signals are connected, you can select the input signal (D-SUB/DVI-D/HDMI) you want.When only one signal is connected, it is automatically detected. The default setting is D-SUB.
	EXIT
	EXIT the OSD(On Screen Display).
◀ (Power Button)	Turns the power on or off.
	Power Indicator The	power indicator stays white if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks white.

Customizing Settings

Menu Settings

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Set the options by pressing the ◀ or ▶ or ▼ buttons.
3 Select the "Next Menu" button to enter the more option settings.
4 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow (▲button.

Menu Brightness 100 Contrast 70 Response Time Middle 3/4 Wide/Original Wide 1/2 Reset No 1/2 Next Menu Menu > Next Menu > Picture A Sharpness 5 Black Level High 1/2 Overscan Off 1/2 EXIT

Each option is explained below.

Menu Analog	Digital HDMI Description
Brightness • • •				To adjust the brightness, contrast of the screen.
Contrast • • •
Response Time27MP38VQ 27MP38HQ	• •	•		You can set a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use 'Off'. For a fast-moving picture, it is recommended that you use 'High'.
Wide/Original	• •	•		Wide
				Switch to full screen mode according to input image signal.
				Original
				Change the input image signal ratio to original.* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset	• •	•		Restore all factory default settings. Press the ◀ , ► buttons to reset immediately.

Menu > Next Menu Analog Digital HDMI Description
Picture Sharpness •	● ●				To adjust the clearness of the screen
	Black Level19M38H 20M39H20M38H 22M38H24M38H27MP38VQ 27MP38HQ			●	To set offset level
	Overscan19M38H 20M39H20M38H 22M38H24M38H27MP38VQ 27MP38HQ			●	To improve the clarity and stability of the screen
Color Gamma		● ●	●		To customize the color of the screen
	Color Temp
	Six Color27MP38VQ 27MP38HQ
	Color Reset27MP38VQ 27MP38HQ
Display Horizontal		●			To adjust the position of the screen
	Vertical
	Clock	●			To improve the clarity and stability of the screen
	Phase
Audio19M38H 20M39H20M38H 22M38H24M38H27MP38VQ 27MP38HQ	Volume •				To adjust the volume
Others Language		● ●	●		To customize the screen status for a user's operating environment
	Power Indicator
	Automatic Standby19M38H 20M39H20M38H 22M38H24M38H27MP38VQ 27MP38HQ	● ●	●
	Resolution •

Analog: D-SUB(Analog signal) input.
Digital: DVI-D(Digital signal) input.
HDMI: HDMI(Digital signal) input.


1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Enter to Picture by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ or ▼ buttons.
5 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow (▲button.

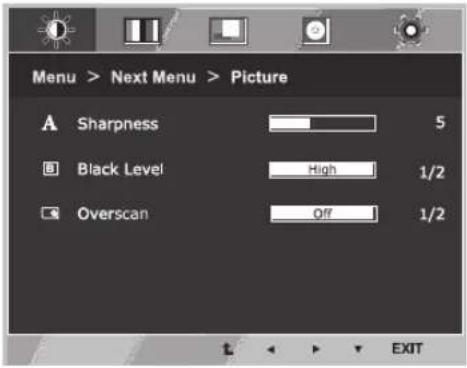

Menu > Next Menu > Picture A Sharpness 5 Black Level High 1/2 Overscan Off 1/2 EXIT

Each option is explained below.

Menu > Next Menu > Picture Description
Sharpness To adjust the clearness of the screen.
Black Level19M38H 20M39H20M38H 22M38H24M38H27MP38VQ 27MP38HQ	Sets the offset level (for HDMI only).Offset: as a reference for a video signal, this is the darkest color the monitor can display.
	High Keeps the current contrast ratio of the screen.
	Low Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
Overscan19M38H 20M39H20M38H 22M38H24M38H27MP38VQ 27MP38HQ	To select the range of output image for DTV timing in HDMI input.(only for HDMI input)Recommend Overscan function to turn on when connect AV equipment.

Color

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Color by pressing the ▶ button.
4 Enter to Color by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (▲ button.

Menu > Next Menu > Color γ Gamma Gamma 1 2/4 ← Color Temp Custom 1/4 ■ Red 50 ■ Green 50 ■ Blue 50 Menu > Next Menu > Color ■ Six Color Red 1/6 • Hue 50 • Saturation 50 R Color Reset Na 1/2 EXIT

Each option is explained below.

Menu > Next Menu > Color Description
Gamma Set your own gamma value. :	Gamma 0, Gamma 1, Gamma 2, Off on the monitor, high gamma values display blackish images and low gamma values display whitish images.If user don't want adjusted gamma, user can select Gamma off.
Color Temp Custom
	• Red:Set your own red color levels.• Green:Set your own green color levels.• Blue:Set your own blue color levels.
	Select the screen color.Warm:Set the screen to warm color temperature (more red).Medium:Set the screen to medium color temperature.Cool:Set the screen to cool color temperature (more blue).
Six Color[27MP38VQ]27MP38HQ	Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/Magenta/Yellow) to satisfy the color requirements of a user.
	Hue Adjusts the screen hue.
	Saturation Adjusts the color sharpness on the screen. Lower values make the color sharpness weaker and colors lighter while higher values make the color sharpness stronger and colors dark.
Color Reset[27MP38VQ]27MP38HQ	Resets the color settings to the factory default settings for the current input device.

Display

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Display by pressing the ▶ button.
4 Enter to Display by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow (▲button.

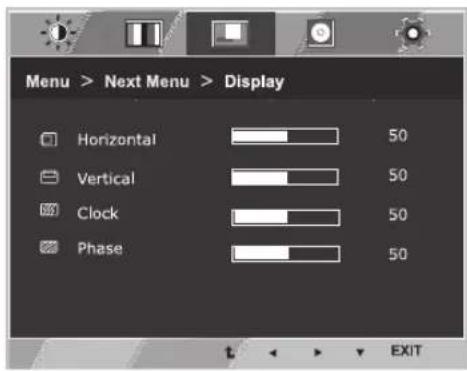

Menu > Next Menu > Display Horizontal 50 Vertical 50 Clock 50 Phase 50 EXIT

Each option is explained below.

Menu > Next Menu > Display Description

Horizontal To move image left and right.

Vertical To move image up and down.

Clock To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.

Phase To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

Audio

19M38H	20M39H
20M38H	22M38H 24M38H
27MP38VQ	27MP38HQ

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Audio by pressing the ▶ button.
4 Enter to Volume by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ buttons.
6 Select EXIT to leave the OSD menu.

To return to the upper menu or set other menu items, use the up arrow (↑button.

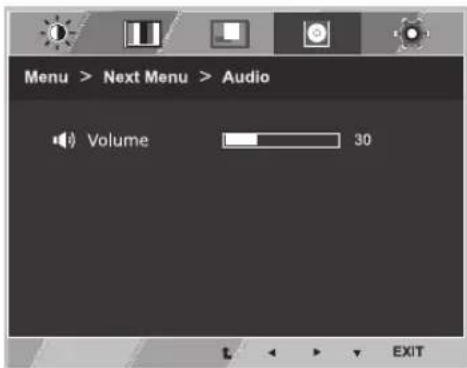

Menu > Next Menu > Audio Volume 30 EXIT

Each option is explained below.

Menu > Next Menu > Audio Description

Volume To adjust the volume of headphone/earphone.(Only for HDMI input)

Others

1 Press MENU button on the bottom of the Monitor set to display the Menu OSD.
2 Select the "Next Menu" button to enter the more option settings.
3 Select Others by pressing the ▶ button.
4 Enter to Others by pressing the ▼ button.
5 Set the options by pressing the ◀ or ▶ or ▼ buttons.
6 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (▲button.

Menu > Next Menu > Others Language English 1/17 Power Indicator Off 1/2 Automatic Standby Off 1/4 Resolution Off 1/1 D-SUB 1024x768 60Hz EXIT

Each option is explained below.

Menu > Next Menu > Others Description
Language To choose the language in which the control names are displayed.
Power Indicator	Use this function to set the power indicator on the bottom side of the monitor to On or Off.If you set Off, it will go off.If you set On at any time, the power indicator will automatically be turned on.
Automatic Standby19M38H 20M39H20M38H 22M38H24M38H27MP38VQ 27MP38HQ	The monitor will automatically switch to standby mode after a certain period.
Resolution User can set the desired resolution. The function is enabled only when the screen resolution on your computer is set to the following, except that the PC output wrong resolution.

READER Setting

1 Press READER button on the bottom of the Monitor set to display the Reader Mode OSD.
2 Set the options by pressing the ◀ or ▶ buttons.
3 Select EXIT to leave the OSD menu.

Reader Mode Reader 1 Reader 2 Reader Off EXIT

Each option is explained below.

Reader Mode Description
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you want screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.
Reader Off It is a mode that reader mode is off.

NOTE

If option of Reader Mode is Reader 1 or Reader 2, Picture Mode will automatically be Custom and SMART ENERGY SAVING and Color Weakness will automatically be Off.

FUNC. Setting

SMART ENERGY SAVING

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Enter to SMART ENERGY SAVING by pressing the ▼ button.
3 Set the options by pressing the ◀ or ▶ buttons.
4 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (▲button.

FUNC. > SMART ENERGY SAVING Conserve energy by using luminance compensation algorithm High Low Off EXIT

Each option is explained below.

SMART ENERGY SAVING Description
High	Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.
Low	Enables SMART ENERGY SAVING you can save energy with this energy- low efficient function.
Off Disables SMART ENERGY	SAVING .

* SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.

NOTE

Saving Data depends on the Panel. So, those values should be different from each panel and panel vendor. If option of SMART ENERGY SAVING is High or Low, monitor luminance become higher or lower depend on source. If option of SMART ENERGY SAVING is High or Low, Picture Mode will automatically be Custom and Reader Mode and Color Weakness will automatically be Off.

Picture Mode

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Select Picture Mode by pressing the ▶ button.
3 Enter to Picture Mode by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow(1button.

PC Mode

FUNC. > Picture Mode Custom Text Photo Cinema Game EXIT

AV Mode

19M38H 20M38H 22M38H 20M39H 24M38H 27MP38VQ 27MP38HQ FUNC. > Picture Mode PC/AV Mode AV 1/2 Custom Vivid 1 Vivid 2 Standard Cinema EXIT

Each option is explained below.

Picture Mode Description
Custom	It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Text It is a mode that	the screen is adjusted to the best for the textworks.
Photo It is a mode that	at the screen is adjusted to the best to view pictures.
Cinema It is a mode that	that the screen is adjusted to the best to view the videos.
Game It is a mode that	at the screen is adjusted to the best to play a game.

19M38H	20M38H	2M38H	20M39H
24M38H	27MP38VQ	27MP38HQ

Picture Mode Description
Custom	It is a mode that the user can adjust each element. It can adjust the color mode of the Main Menu.
Vivid 1	Adjusts the video image for the retail environment by enhancing the contrast, brightness, Colour, and sharpness.
Vivid 2
Standard Adjusts the	image for the normal environment.
Cinema It is a mode	that the screen is adjusted to the best to view the videos.

NOTE

If option of Picture Mode is non-Custom, Reader Mode, SMART ENERGY SAVING and Color Weakness will automatically be Off.

Color Weakness

1 Press FUNC. button on the bottom of the Monitor set to display the FUNC. OSD.
2 Select Color Weakness by pressing the ▶ button.
3 Enter to Color Weakness by pressing the ▼ button.
4 Set the options by pressing the ◀ or ▶ buttons.
5 Select EXIT to leave the OSD menu. To return to the upper menu or set other menu items, use the up arrow (▲button.

FUNC. > Color Weakness On Off EXIT

Each option is explained below.

Color Weakness Description
On This mode is for users who cannot distinguish between red and green. It enables users with color weakness to easily distinguish between the two colors.
Off	It is a mode that Color Weakness mode is off.

NOTE

This is subsidiary for color weakness user. Therefore if you feel uncomfortable with the screen, please turn off this function.

This function can't distinguish some colors in some images.

If option of Color Weakness is not Off, Reader Mode and SMART ENERGY SAVING will be Off and Picture Mode will automatically be Custom.

TROUBLESHOOTING

Check the following before calling for service.

No image appears
Is the power cord of the display connected?	Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on?	Press the Power button.
Is the power indicator flickering?	If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.Try to turn on the PC.
Do you see an "OUT OF RANGE" message on the screen?	This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "NO SIGNAL" message on the screen?	This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.

Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when you push MENU button?	• You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

Display image is incorrect
Display Position is incorrect.	Press the AUTO button to automatically adjust your display image to the ideal setting.
On the screen background, vertical bars or stripes are visible.	Press the AUTO button to automatically adjust your display image to the ideal setting.
Any horizontal noise appearing in any image or characters are not clearly portrayed.	Press the AUTO button to automatically adjust your display image to the ideal setting.Check Control Panel ▶ Display ▶ Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

CAUTION

Check Control Panel ▶ Display ▶ Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.

If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) atControl Panel▶ Settings.
The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?	Be sure to install the display driver from the display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lg.com.Make sure to check if the video card supports Plug&Play function.

SPECIFICATIONS

19M38A 19M38D 19M38H

Display Screen Type	Flat Panel Active matrix-	TFT LCD Anti-Glare coating
	Pixel Pitch 0.3 mm x 0.3	mm (Pixel Pitch)
Resolution Max 1366	6 x 768 @ 60 Hz
	Recommend VESA 1366	x 768 @ 60 Hz
Power consumption (Typ.)	On Mode : 19.8 W Typ.(Outgoing condition)*Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
Power Input 19 V	--- 0.8 A
AC-DC Adapter	Type ADS-18SG-19-3 19016G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPG, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPI, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPCU, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPB, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016EPCU-L, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP42, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-U, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP60-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type DA-16C19, manufactured by Asian Power Devices Inc. or Type WA-16D19FG, manufactured by Asian Power Devices Inc. or Type WA-16E19FK, manufactured by Asian Power Devices Inc. or Type WA-16E19FA, manufactured by Asian Power Devices Inc.
	OUTPUT: 19 V = 0.84 A
Dimensions (Width x Height x Depth)	With Stand 441.3 mm x 350.2 mm x 167.8 mm
	Without Stand 441.3 mm x 278.1 mm x 57.3 mm
Weight 1.9 kg
Tilt Range -5° to 20°
Environmental conditions	Operating Temperature Operating Humidity	0°C to 40 °C≤ 80%
	Storage Temperature Storage Humidity	-20°C to 60 °C≤ 85%

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard(Full White pattern, Maximum resolution).

			19M38A	19M38D	19M38H
Video Signal Horizontal Frequency	30 kHz to 83 kHz (Automatic)
	30 kHz to 61 kHz (Automatic)	● ●	●
	56 Hz to 75 Hz (D-SUB)	● ●	●
	56 Hz to 75 Hz (DVI-D)		●
	56 Hz to 75 Hz (HDMI)			●
	Separate Sync.	● ●	●
	Digital		●	●
Input Connector 15 pin D-SUB Connector		● ●	●
		DVI-D Connector (Digital)		●
		HDMI Connector			●

SPECIFICATIONS

20M38A 20M38D 20M38H

Display Screen Type	Flat Panel Active matrix-	TFT LCD Anti-Glare coating
	Pixel Pitch 0.271 mm x 0.262 mm (Pixel Pitch)
Resolution Max 1600	0 x 900 @ 60 Hz
	Recommend VESA 1600 x 900 @ 60 Hz
Power consumption (Typ.)	On Mode : 22 W Typ.(Outgoing condition)*Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
Power Input 19 V	--- 0.8 A
AC-DC Adapter	Type ADS-18SG-19-3 19016G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPG, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPI, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPCU, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPB, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016EPCU-L, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP42, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-U, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP60-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type DA-16C19, manufactured by Asian Power Devices Inc. or Type WA-16D19FG, manufactured by Asian Power Devices Inc. or Type WA-16E19FK, manufactured by Asian Power Devices Inc. or Type WA-16E19FA, manufactured by Asian Power Devices Inc.
	OUTPUT: 19 V = 0.84A
Dimensions (Width x Height x Depth)	With Stand 463.0 mm x 358.8 mm x 167.8 mm
	Without Stand 463.0 mm x 286.5 mm x 57.4 mm
Weight 2.0 kg
Tilt Range -5° to 20°
Environmental conditions	Operating Temperature Operating Humidity	0°C to 40 °C≤ 80%
	Storage Temperature Storage Humidity	-20°C to 60 °C≤ 85%

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard(Full White pattern, Maximum resolution).

			20M38A 20M38D	20M38H
Video Signal	Horizontal Frequency	30 kHz to 83 kHz (Automatic)	● ● ●
		30 kHz to 61 kHz (Automatic)
	Vertical Frequency	56 Hz to 75 Hz (D-SUB)	● ● ●
		56 Hz to 75 Hz (DVI-D)		●
		56 Hz to 75 Hz (HDMI)
	Synchronization	Separate Sync.	● ● ●
		Digital		●
Input Connector 15 pin D-SUB Connector			● ● ●
			DVI-D Connector (Digital)
			HDMI Connector

SPECIFICATIONS

20M39A 20M39H

Display Screen Type	Flat Panel Active matrix-	TFT LCD Anti-Glare coating
	Pixel Pitch 0.3177 mm x	0.307 mm (Pixel Pitch)
Resolution Max 1366	6 x 768 @ 60 Hz
	Recommend 1366 x 768	@ 60 Hz
Power consumption (Typ.)	On Mode : 22 W Typ.(Outgoing condition)*Sleep Mode ≤ 0.3 WOff Mode ≤ 0.3 W
Power Input 19 V	--- 0.8 A
AC-DC Adapter	Type ADS-18SG-19-3 19016G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPG, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPI, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPCU, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016GPB, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-18FSG-19 19016EPCU-L, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP42, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP36-U, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP60-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type DA-16C19, manufactured by Asian Power Devices Inc. or Type WA-16D19FG, manufactured by Asian Power Devices Inc. or Type WA-16E19FK, manufactured by Asian Power Devices Inc. or Type WA-16E19FA, manufactured by Asian Power Devices Inc.
	OUTPUT: 19 V = 0.84A
Dimensions (Width x Height x Depth)	With Stand 463.0 mm x 358.8 mm x 167.8 mm
	Without Stand 463.0 mm x 286.5 mm x 57.4 mm
Weight 2.2 kg
Tilt Range -5° to 20°
Environmental conditions	Operating Temperature Operating Humidity	0°C to 40 °C≤ 80%
	Storage Temperature Storage Humidity	-20°C to 60 °C≤ 85%

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.

* The On mode power consumption is measured with LGE test standard(Full White pattern, Maximum resolution).

SPECIFICATIONS

22M38A 22M38D 22M38H

Display Screen Type	Flat Panel Active matrix-	TFT LCD Anti-Glare coating
	Pixel Pitch 0.248 mm x 0	.248 mm (Pixel Pitch)
Resolution Max 1920	0 x 1080 @ 60 Hz
	Recommend VESA 1920	x 1080 @ 60 Hz
Power consumption (Typ.)	On Mode : 25.3 W Typ.(Outgoing condition)* Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W
Power Input 19 V	--- 1.2 A
AC-DC Adapter	Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-25FSG-19 19025EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP51, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type PA-1021-23, manufactured by Lite-On Technology Corporation
	OUTPUT: 19 V -1.3 A
Dimensions (Width x Height x Depth)	With Stand 508.5 mm x 386.5 mm x 186.7 mm
	Without Stand 508.5 mm x 315.7 mm x 56.8 mm
Weight	22M38A 22M38D	2.4 kg
	22M38H	2.7 kg
Tilt Range -5° to 20°
Environmental conditions	Operating Temperature Operating Humidity	0°C to 40 °C ≤ 80%
	Storage Temperature Storage Humidity	-20°C to 60 °C ≤ 85%

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard(Full White pattern, Maximum resolution)

			22M38A	22M38D	22M38H
Video Signal	Horizontal Frequency	30 kHz to 83 kHz (Automatic)	● ● ●
		30 kHz to 61 kHz (Automatic)
	Vertical Frequency	56 Hz to 75 Hz (D-SUB)	● ● ●
		56 Hz to 75 Hz (DVI-D)		●
		56 Hz to 75 Hz (HDMI)			●
	Synchronization	Separate Sync.	● ● ●
		Digital		●	●
Input Connector 15 pin D-SUB Connector			● ● ●
			DVI-D Connector (Digital)		●
			HDMI Connector			●

SPECIFICATIONS

24M38A 24M38D 24M38H

Display Screen Type	Flat Panel Active matrix-	TFT LCD Anti-Glare coating
	Pixel Pitch 0.272 mm x 0	.272 mm (Pixel Pitch)
Resolution Max 1920 x 1080 @ 60 Hz
Power consumption (Typ.)	Recommend VESA 1920 x 1080 @ 60 Hz
	On Mode: 27.5 W Typ.(Outgoing condition)* Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W
Power Input 19 V	--- 1.2 A
AC-DC Adapter	Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-25FSG-19 19025EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP51, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type PA-1021-23, manufactured by Lite-On Technology Corporation
	OUTPUT: 19 V -1.3 A
Dimensions (Width x Height x Depth)	With Stand	556.2 mm x 415.1 mm x 186.7 mm
	Without Stand	556.2 mm x 344.0 mm x 56.8 mm
Weight 2.8 kg
Tilt Range -5° to 20°
Environmental conditions	Operating Temperature Operating Humidity	0°C to 40°C ≤ 80%
	Storage Temperature Storage Humidity	-20°C to 60 °C ≤ 85%

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard(Full White pattern, Maximum resolution).

			24M38A	24M38D	24M38H
Video Signal	Horizontal Frequency	30 kHz to 83 kHz (Automatic)	● ● ●
		30 kHz to 61 kHz (Automatic)
	Vertical Frequency	56 Hz to 75 Hz (D-SUB)	● ● ●
		56 Hz to 75 Hz (DVI-D)		●
		56 Hz to 75 Hz (HDMI)			●
	Synchronization Separate Sync.		● ● ●
			Digital		●
Input Connector 15 pin D-SUB Connector			● ● ●
			DVI-D Connector (Digital)		●
			HDMI Connector

SPECIFICATIONS

27MP38HQ 27MP38VQ

Display Screen Type	Flat Panel Active matrix-	TFT LCD Anti-Glare coating
	Pixel Pitch 0.311 mm x 0.311 mm (Pixel Pitch)
Resolution Max 1920 x 1080 @ 60 Hz
Power consumption (Typ.)	On Mode: 31.13 W Typ.(Outgoing condition)* Sleep Mode ≤ 0.3 W Off Mode ≤ 0.3 W
Power Input 19 V	--- 1.6 A
AC-DC Adapter	Type ADS-40SG-19-3 19032G, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPI-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-40FSG-19 19032GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC or Type ADS-32FSG-19 19032EPCU-1L, manufactured by SHENZHEN HONOR ELECTRONIC or Type LCAP21A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP26A-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type LCAP51A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE or Type PA-1031-23, manufactured by Lite-On Technology Corporation
	OUTPUT: 19 V -1.7 A
Dimensions (Width x Height x Depth)	With Stand 641.4 mm x 459.7 mm x 203.0 mm
	Without Stand 641.4 mm x 393.0 mm x 48.2 mm
Weight 4.4 kg
Tilt Range -5° to 20°
Environmental conditions	Operating Temperature Operating Humidity	0°C to 40 °C ≤ 80%
	Storage Temperature Storage Humidity	-20°C to 60 °C ≤ 85%

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard(Full White pattern, Maximum resolution).

			27MP38HQ	27MP38VQ
Video Signal Horizontal Frequency		30 kHz to 83 kHz (Automatic)	●	●
		30 kHz to 61 kHz (Automatic)
		Vertical Frequency	56 Hz to 75 Hz (D-SUB)	●
			56 Hz to 75 Hz (DVI-D)
			56 Hz to 75 Hz (HDMI)	●
		Synchronization Separate Sync.	●	●
			Digital	●
Input Connector 15 pin D-SUB Connector			●	●
		DVI-D Connector (Digital)		●
		HDMI Connector	●	●

Preset Modes (Resolution)

D-SUB/DVI-D Timing

19M38A 19M38D 19M38H

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
832 x 624 49.725 75 -/-
1024 x 768 48.363 60 -/-
1366 x 768 47.712 60 +/+ Recommend Mode

20M38A 20M38D 20M38H

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1600 x 900 60.000 60 +/+ Recommend Mode

20M39A 20M39H

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
832 x 624 49.725 75 -/-
1024 x 768 48.363 60 -/-
1366 x768 47.712 60 +/+ Recommend Mode

22M38A 22M38D 22M38H 24M38A 24M38D			24M38H	27MP38HQ	27MP38VQ
Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode

HDMI Timing

19M38H 20M38H 20M39H

Factory support mode (Preset Mode)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O

22M38H 24M38H 27MP38VQ 27MP38HQ

Factory support mode (Preset Mode)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080P 56.25 50 O
1080P 67.50 60			ORecommend Mode

Indicator

Mode LED Color
On Mode	White
Sleep Mode	Blinking White
Off Mode	Off

LG

Life's Good

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the SET is located on the back and one side of the SET.

Record it below should you ever need service.

MODEL

SERIAL
