USER MANUAL 24BK55WV LG

LED LCD Monitor (LED Monitor\*)

Please read this manual carefully before operating your set and retain it for future reference.

LED LCD MONITOR MODEL

22BK55WV

24BK55WV

CONTENTS

3 LICENSE

4 ASSEMBLING AND PREPARING

4 Unpacking
5 Parts and buttons
6 Setting up the Monitor set
6 - Attaching the Stand Base
6 - Detaching the stand base
7 - Detaching the stand body
7 - Using the cable holder
7 - Mounting on a table
8 - Adjusting the angle
9 - Adjusting the stand height
9 - Using the Kensington locking device
10 - Swivel stand
10 - Using the Pivot function
11 - Mounting on a wall

12 USING THE MONITOR SET

12 Connecting to a PC
12 - D-SUB connection
12 - DVI-D connection
13 - HDMI connection
14 - Peripheral device connection

15 CUSTOMIZING SETTINGS

16 Customizing Settings
16 - Menu Settings

19 TROUBLESHOOTING

21 SPECIFICATIONS

21 22BK55WV
22 24BK55WV
23 Preset Modes (Resolution)
24 Indicator

LICENSE

Each model has different licenses. Visit www.lg.com for more information on the license.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP Directive:

* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to display.
* To make this setting be disabled, change the option to 'Off' in OSD menu of "Automatic Standby".

ASSEMBLING AND PREPARING

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

Illustration of a CD or DVD disc and its corresponding physical object (no text or symbols)

CD / Card

D-SUB Cable

(This cable is not included in all countries.)

DVI-D Cable

(This cable is not included in all countries.)

Power Cord

Simple line drawing of a square plate with a small square cutout on top (no text or symbols)

Stand Base

One Screw

Cable Holder

Audio Cable

( Depending on the country )

HDMI Cable

( This cable is not included in all countries. )

CAUTION

Do not use any unapproved accessories to ensure the safety and product life span.

Any damages or injuries by using unapproved accessories are not covered by the warranty.

NOTE

The accessories supplied with your product may vary depending on the model.

Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

Parts and buttons

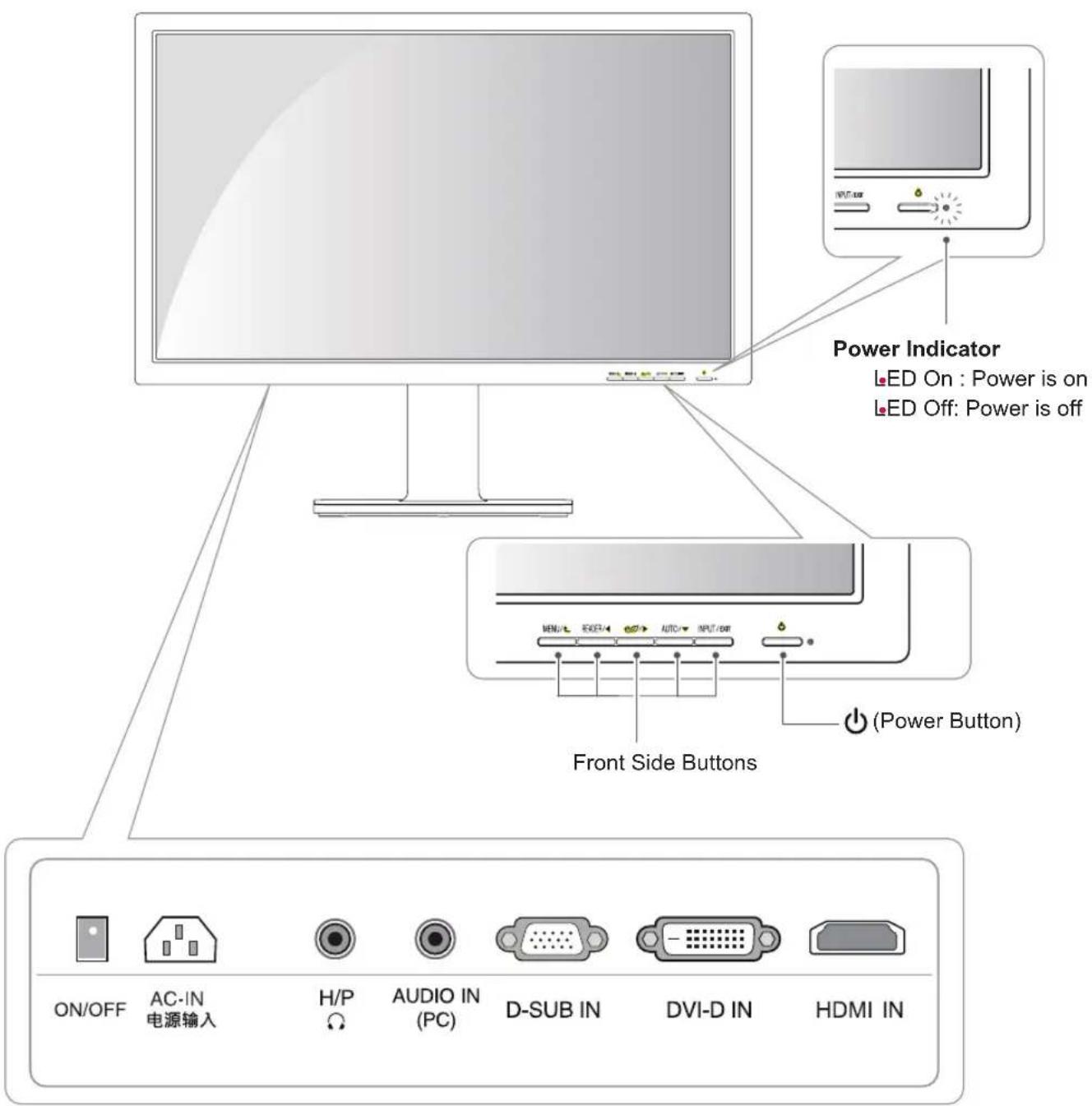

Power Indicator LED On : Power is on LED Off: Power is off Front Side Buttons (Power Button) ON/OFF AC-IN 电源输入 H/P AUDIO IN (PC) D-SUB IN DVI-D IN HDMI IN

Setting up the Monitor set

Attaching the Stand Base

1 Place the Monitor set with the screen side down on a flat and cushioned surface.

CAUTION

To protect the screen from scratches, cover the surface with a soft cloth.

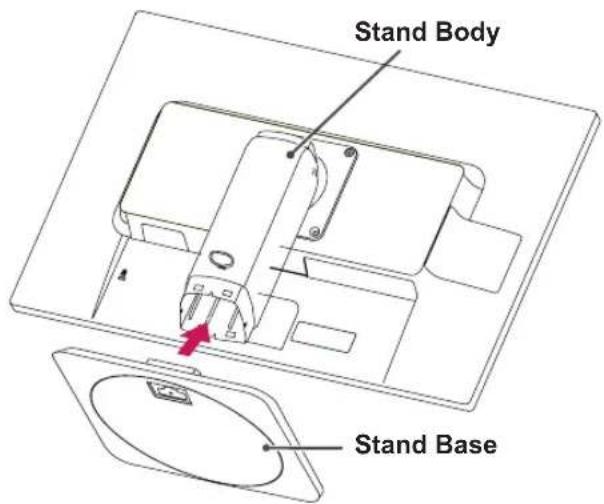

2 Check the position (at the front and rear) of the stand body, then mount the stand base on the stand body as shown in the figure.

Stand Body Stand Base

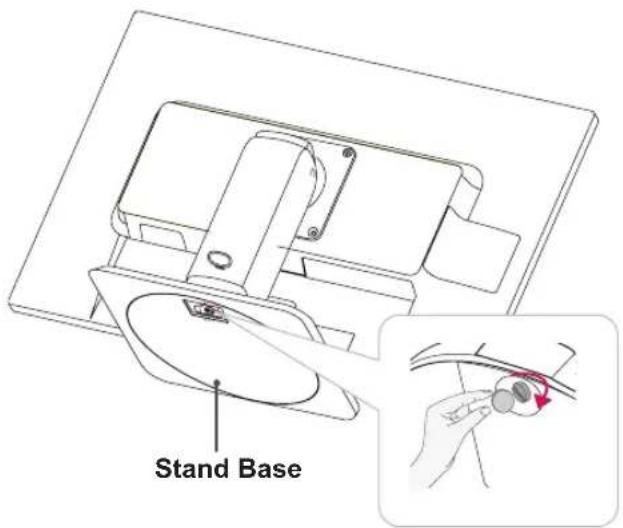

3 Using a coin, turn the screw clockwise to secure the stand base.

Stand Base

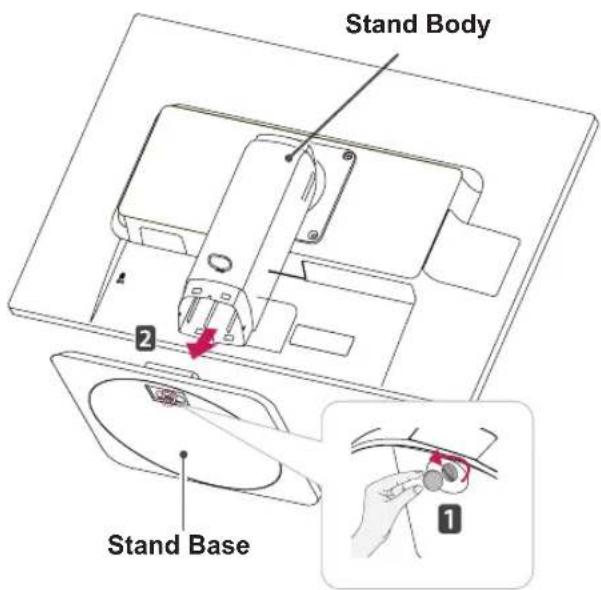

Detaching the stand base

1 Place the monitor's screen face down. To protect the screen from scratches, cover the surface with a soft cloth.

2 Using a coin, turn the screw in the stand base counterclockwise. Detach the stand base from the stand body.

Stand Body Stand Base

CAUTION

Illustrations in this document represent typical procedures, so they may look different from the actual product.

Do not carry the monitor upside down by just holding the stand base. This may cause the monitor to fall off the stand and could result in personal injury.

When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen may cause damage to it.

Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)

Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this way will not be covered by the product warranty.

Detaching the stand body

1 Place the monitor's screen face down. To protect the screen from scratches, cover the surface with a soft cloth.
2 Using a screwdriver, remove the four screws and detach the stand from the monitor.

Technical line drawing of a mechanical assembly with a magnified inset showing red arrows indicating force or movement (no text or symbols present)

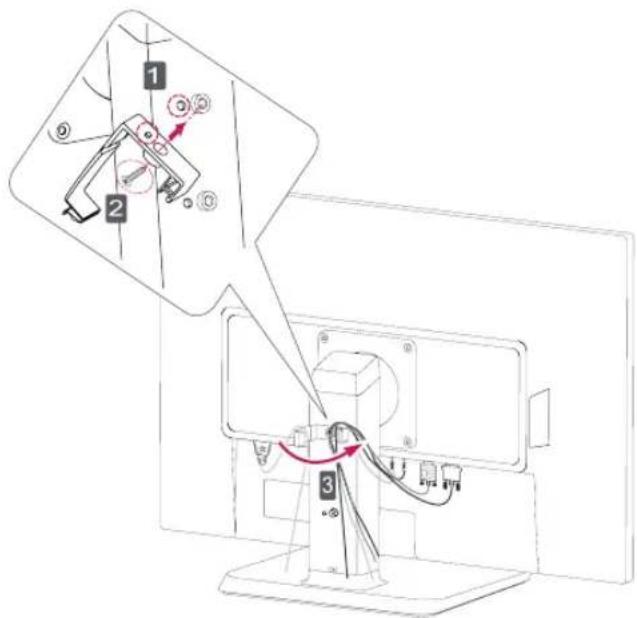

Using the cable holder

1 Fix the Knob (Cable holder) to the Hole(Hingebody).
2 Use one screw to fix the Cable Holder and monitor set.
3 Close the Cable holder.

Diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or assembly steps.

NOTE

The holes are used for wall mount bracket. Varies depending upon your country or model.

Technical diagram showing a vertical pipe or channel with two circular annotations labeled 'a' and 'b' indicating specific points of interest.

Mounting on a table

1 Lift the monitor and place it on the table in an upright position.

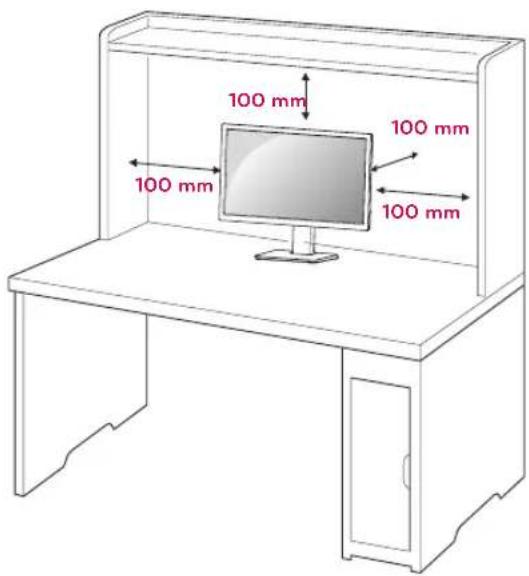

Install at least 100 mm away from the wall to ensure sufficient ventilation.

100 mm 100 mm 100 mm 100 mm

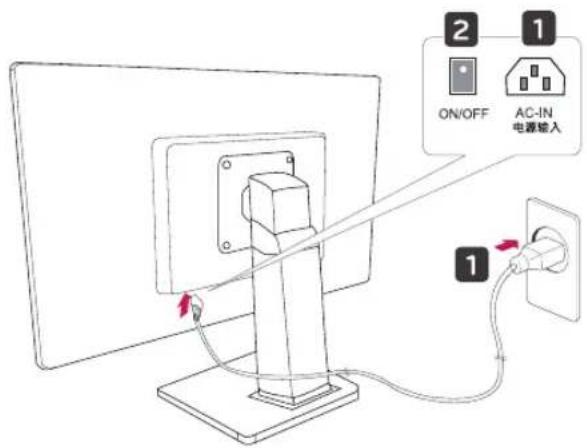

2 1 Connect the Power cord to the monitor, then plug the power cord into the wall outlet. (Before connect please check the "ON/OFF" knob in "O" state).

2 Press the "ON/OFF" knob in "☐" state (Open the power).

2 1 ON/OFF AC-IN 电源输入 1

3 Press the (Power) button on the front of the monitor to turn on the monitor.

CAUTION

Unplug the power cord prior to moving or installing the monitor. There is risk of electric shock.

Adjusting the angle

1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen. The angle of the screen can be adjusted up to 5^ forwards and 35^ backwards for a comfortable viewing experience.

35° -5°

Front SideRear Side

WARNING

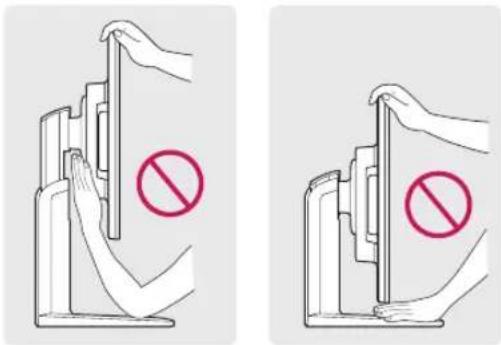

To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor's frame as illustrated below.

Two diagrams showing hand positioning of a device with a prohibition symbol, no text or labels present

Be careful not to touch or press the screen area when adjusting the angle of the monitor.

Illustration of two hands holding a tablet with a red prohibition symbol (no text or labels)

Adjusting the stand height

1 Place the monitor mounted on the stand base in an upright position.

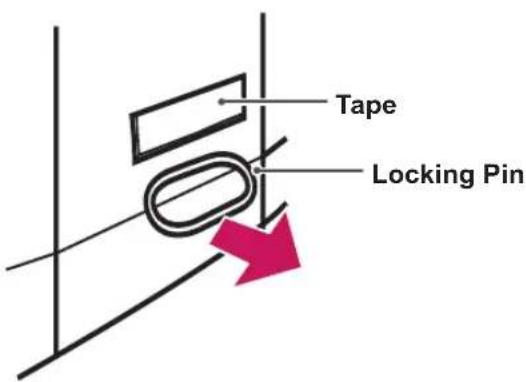

2 Remove the tape attached at the bottom rear of the stand body, then pull out the locking pin.

Stand Body

Tape Locking Pin

CAUTION

Once the pin is removed, it is not necessary to re-insert it to adjust the height.

WARNING

Do not put your finger between the screen and the base (chassis) when adjusting the screen's height.

Using the Kensington locking device

The connector for the Kensington lock is located on the rear of the monitor.

For more information on installation and usage, refer to the Kensington lock user manual or visit the website at http://www.kensington.com.

Connect the monitor to the table with the Kensington lock cable.

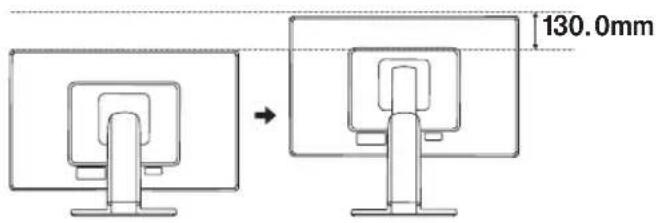

3 The height can be adjusted up to 130 mm.

130.0mm

Illustration of a computer monitor connected to a cable with magnified insets showing cable installation details (no text or symbols)

NOTE

Using the Kensington lock is optional. The accessories can be purchased at your local electronics store.

Swivel stand

Image shown may differ from your Monitor set.

1 Swivel 355 degrees and adjust the angle of the Monitor set to suit your view.

Using the Pivot function

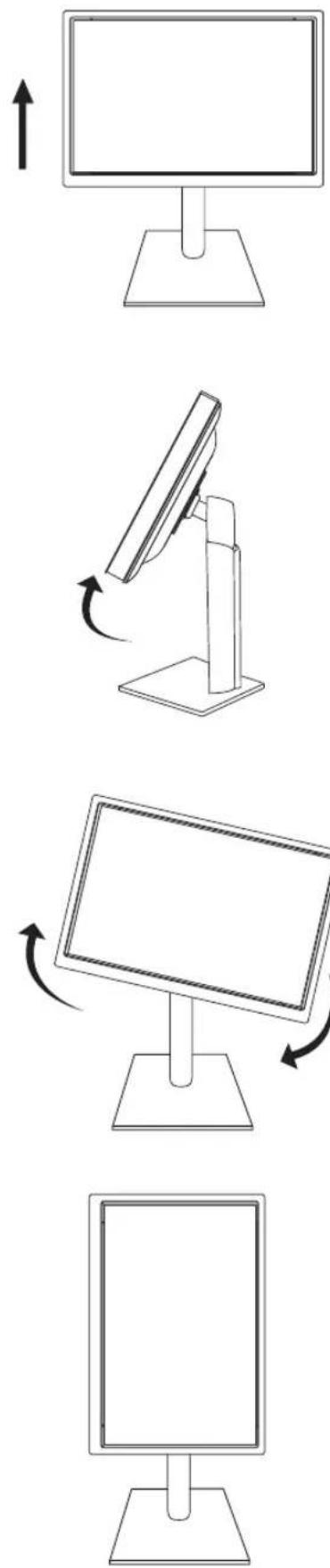

The pivot function allows you to rotate the screen 90 degrees clockwise.

1 Lift the monitor to its highest height to utilize the Pivot function.

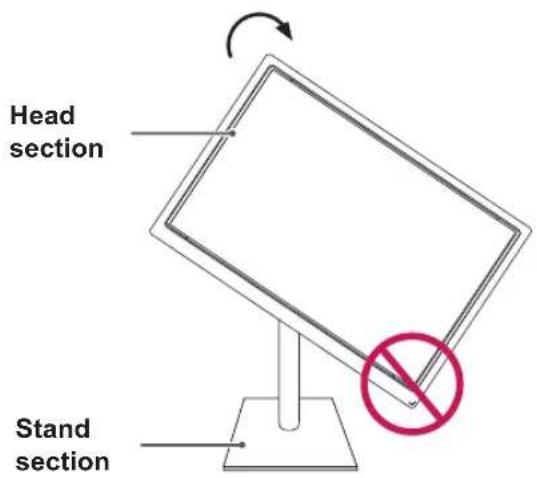

2 Landscape & Portrait: You can rotate the panel 90° clockwise. Please be cautious and avoid contact between the monitor head and the Stand Base when rotating the screen to access the Pivot function. If the monitor head touches the Stand Base, then the Stand Base could crack.

Head section Stand section

3 Be careful with the cables when rotating the screen.

Mounting on a wall

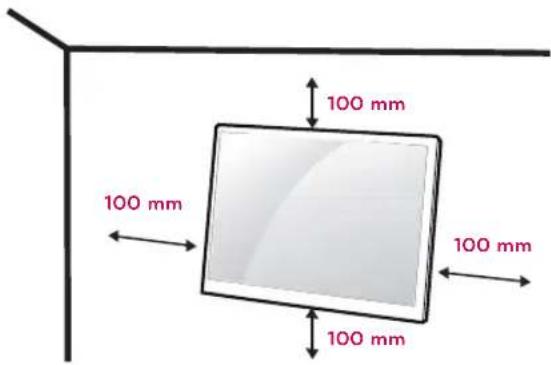

For proper ventilation, allow a clearance of 100 mm on each side and from the wall. Detailed instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

100 mm 100 mm 100 mm 100 mm

If you intend to mount the Monitor set to a wall, attach Wall mounting interface (optional parts) to the back of the set.

When you install the Monitor set using a wall mounting interface (optional parts), attach it carefully so it will not drop.

1 Please, Use the screw and wall mount interface in accordance with VESA Standards.
2 If you use screw longer than standard, the monitor might be damaged internally.
3 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.
4 VESA compatible only with respect to screw mounting interface dimensions and mounting screw specifications.
5 Please use VESA standard as below.

784.8 mm (30.9 inch) and under

* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

787.4 mm (31.0 inch) and above

* Please use VESA standard wall mount pad and screws.

Model	22BK55WV 24BK55WV
VESA (A x B)	100 x 100	200 x 100
Standard screw	M4	M4
Number of screws	4	4

CAUTION

Disconnect the power cord first, and then move or install the Monitor set. Otherwise electric shock may occur.

If you install the Monitor set on a ceiling or slanted wall, it may fall and result in severe injury.

Use only an authorized LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may cause damage to the Monitor set and void your warranty.
Use only screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. Screw length from outer surface of back cover should be under 8mm.

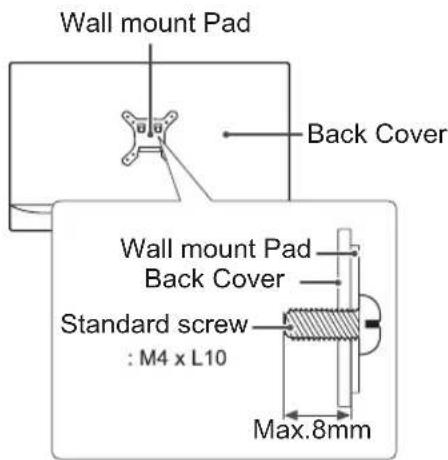

Wall mount Pad Back Cover Wall mount Pad Back Cover Standard screw : M4 x L10 Max.8mm

NOTE

Use the screws that are listed on the VESA standard screw specifications.

The wall mount kit will include an installation manual and necessary parts.

The wall mount bracket is optional. You can obtain additional accessories from your local dealer.

The length of screws may differ depending on the wall mount. Be sure to use the proper length.

For more information, refer to the instructions supplied with the wall mount.

USING THE MONITOR SET

Connecting to a PC

Your Monitor set supports Plug & Play ^* . *Plug & Play: A PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

D-SUB connection

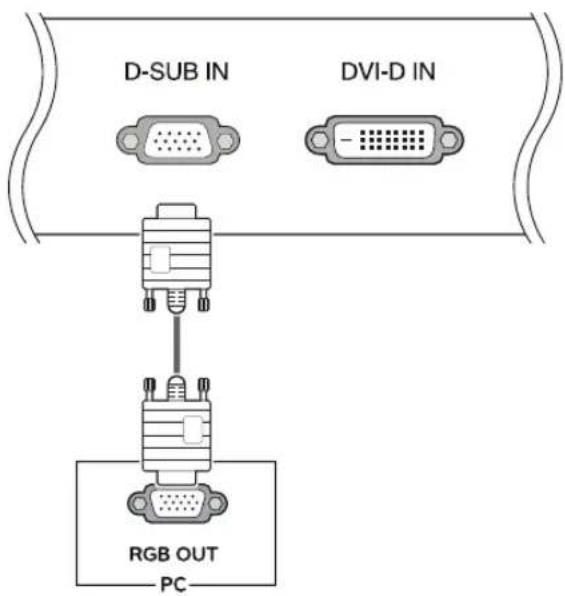

Transmits analog video from your PC to the Monitor set. Connect the PC and the Monitor set with the supplied D-sub 15 pin signal cable as shown in the following illustrations.

D-SUB IN DVI-D IN RGB OUT PC

NOTE

When using a D-Sub signal input cable connector for Macintosh

Technical line drawing of two electronic component blocks with pins (no text or symbols)

Mac adapter

For Apple Macintosh use, a separate plug adapter is needed to change the 15 pin high density (3 row) D-SUB VGA connector on the supplied cable to a 15 pin 2 row connector.

DVI-D connection

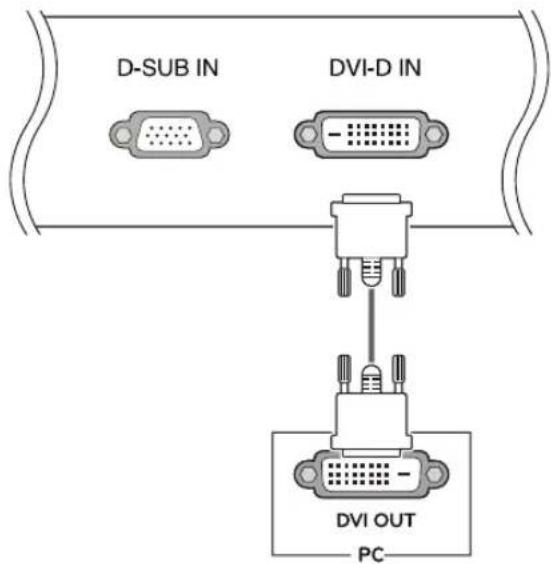

Transmits a digital video signal from your PC to the Monitor set. Connect the PC and the Monitor set with a DVI cable as shown in the following illustrations.

D-SUB IN DVI-D IN DVI OUT PC

HDMI connection

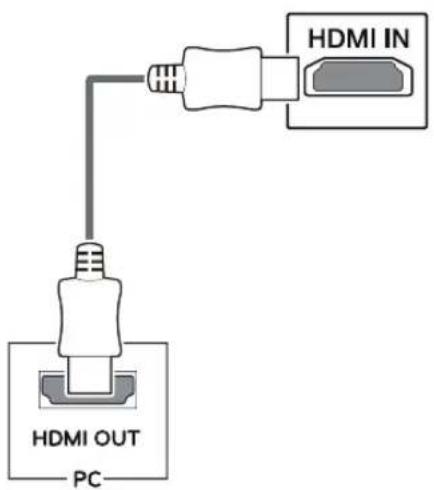

Transmits the digital video and audio signals from your PC and A/V devices to the monitor. Connect your PC and AV device to the monitor with the HDMI cable as illustrated below.

Press the menu button and then select the input option from the input menu.

HDMI IN HDMI OUT PC

NOTE

When you want to use two PC in our Monitor, please connect the signal cable(D-SUB/DVI-D/HDMI) respectively in Monitor set. If you turn the Monitor set on while it is cold, the screen may flicker. This is normal. Some red, green, or blue spots may appear on the screen. This is normal.

CAUTION

Connect the signal input cable and tighten it by turning the screws clockwise.

Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen. Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screensaver if possible.

NOTE

If you use HDMI PC, it can cause compatibility problem.

Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

Recommended HDMI cable types

• High-Speed HDMI ^® /TM Cable
• High-Speed HDMI ^® /™ Cable with Ethernet

Self Image Setting Function

Press the power button on the bottom panel to turn the power on. When monitor power is turned on, the "Self Image Setting" Function is executed automatically. (Only supported in Analog Mode)

MENU READER AUTO INPUT/EXIT

NOTE

"Self Image Setting" Function.

This function provides the user with optimal display settings. When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. (Only supported in Analog Mode)

'AUTO' Function.

When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the AUTO function button to improve resolution. (Only supported in Analog Mode)

Peripheral device connection

Connect peripheral devices to the monitor.

Two USB Downstream ports

Connect these ports to a mouse, USB keyboard, memory stick with current spec under 100mA.

One USB Upstream port

Connect this port to the downstream port of a computer, laptop or USB monitor (Your computer or USB monitor must support USB and have USB ports).

H/P AUDIO IN (PC) D-SUB IN DVI-D IN HDMI IN PC

NOTE

Headphones or speakers may not work normally, depending on the server PC settings. Virtual solutions may affect the functions or speed of the specific USB storage device.

CUSTOMIZING SETTINGS

1 Press the desired button on the bottom of the Monitor set.
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.

To return to the upper menu or set other menu items, use the up arrow (▲button.

3 Select EXIT to leave the OSD menu.

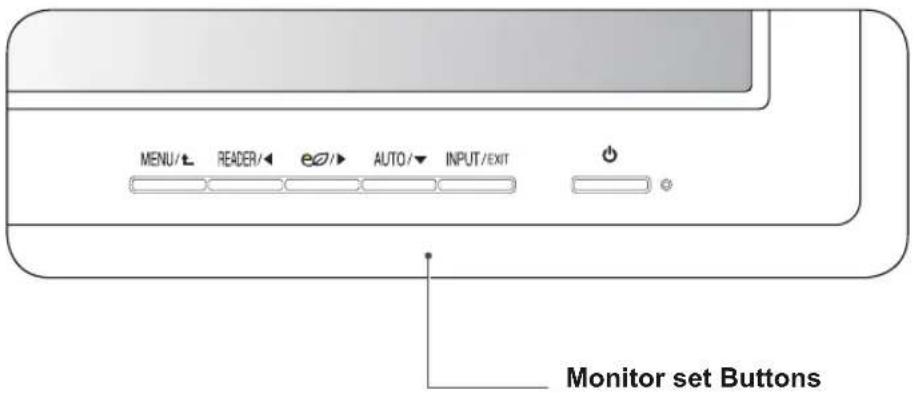

MENU/L READER/◄ e0/► AUTO/▼ INPUT/EXIT Monitor set Buttons

Button Description
MENU / ⬆	Accesses the main menus.(See p.16)
	OSD Locked/OSD Unlocked	This function allow you to lock the current control settings, so that they cannot be inadvertently changed.Press and hold the MENU button for several seconds. Then OSD of “OSD Lock” will appear. After that, user can select lock or unlock by pressing left/right button.If user selects the “Lock” icon by pressing the “OK” button, the message “OSD Locked” will appear. Otherwise, “OSD Unlocked” will appear. After selecting the “Lock”, If you want to change to Unlock, you can push the “MENU” button for several seconds. The message “OSD Unlocked” will appear.
READER/◀	Use this button to enter Reader Mode menu. Its function works to display screen as paper-like picture for Eye comfort.If you want to more information.(See p.18)
e∅/▶	Use this button to enter SMART ENERGY SAVING menu.(See p.18)
AUTO / ▼	When adjusting your display settings, always press the AUTO button on the MONITOR SETUP OSD. (Only supported in Analog Mode)
	The best display mode	22BK55WV: 1680 x 105024BK55WV: 1920 x 1200
INPUT / EXIT	You can choose the input signal.When two input signals are connected, you can select the input signal (D-SUB/DVI-D/HDMI) you want.When only one signal is connected, it is automatically detected. The default setting is D-SUB.
	EXIT
	Exit the OSD(On Screen Display).
◀ (Power Button)	Turns the power on or off.
	Power Indicator	The power indicator stays white if the display is running properly (On Mode). If the display is in Sleep Mode, the power indicator blinks white.

Customizing Settings

Menu Settings

Menu	Analog	Digital	HDMI	Description
Volume • • •				To adjust the volume
Brightness	•	•	•	To adjust the brightness of the screen
Response Time(only for 24K55WV)	•	•	•	You can set a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use 'Off'. For a fast-moving picture, it is recommended that you use 'High'.
Wide/Original	•	•	•	Wide
				Switch to full screen mode according to input image signal.
				Original
				Change the input image signal ratio to original.* This function works only if input resolution is lower than Monitor set ratio (16:9).
Reset	•	•	•	Restore all factory default settings. Press the◀ , ▶ buttons to reset immediately.

Menu > Next Menu Analog		Digital		HDMI	Description
Picture Contrast • • •					To adjust the contrast of the screen
		Sharpness • • •			To adjust the clearness of the screen
		Black Level •			Sets the offset level (for HDMI only).• Offset: as a reference for a video signal, this is the darkest color the monitor can display.
					High Keeps the current contrast ratio of the screen.
					Low	Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
		Overscan			•	To select the range of output image for DTV timing in HDMI input.(only for HDMI input)Recommend overscan function to turn on when connect AV equipment.
Color	Gamma	• •	•		To customize the color of the screen
	Color Temp
	Six Color
	Color Reset
Display	Horizontal	•			To adjust the position of the screen
	Vertical
	Clock	•			To improve the clarity and stability of the screen
	Phase
Audio	Audio Input			•	To select the audio input
Others	Language	• •	•		To customize the screen status for a user's operating environment
	Power Indicator
	Automatic Standby

• Analog: D-SUB(Analog signal) input.
• Digital: DVI-D(Digital signal) input.
• HDMI: HDMI(HDMI signal) input.

Menu > Next Menu > Picture Description
Contrast	To adjust the contrast of the screen.
Sharpness	To adjust the clearness of the screen.
Black Level	Sets the offset level (for HDMI only).Offset: as a reference for a video signal, this is the darkest color the monitor can display.
	High	Keeps the current contrast ratio of the screen.
	Low	Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
Overscan	To select the range of output image for DTV timing in HDMI input.(only for HDMI input)Recommend overscan function to turn on when connect AV equipment.

Menu > Next Menu > Color Description
Gamma	Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor, high gamma values display whitish images and low gamma values display blackish images.
Color Temp Custom
	• Red: Set your own red color levels.• Green: Set your own green color levels.• Blue: Set your own blue color levels.
	Select the screen color.Warm: Set the screen to warm color temperature (more red).Medium: Set the screen to medium color temperature.Cool: Set the screen to cool color temperature (more blue).
Six Color	Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/Magenta/Yellow) to satisfy the color requirements of a user.
	Hue	Adjusts the screen hue.
	Saturation	Adjusts the color sharpness on the screen. Lower values make the color sharpness weaker and colors lighter while higher values make the color sharpness stronger and colors dark.
Color Reset	Resets the color settings to the factory default settings for the current input device.

Menu > Next Menu > Display Description
Horizontal	To move image left and right.
Vertical	To move image up and down.
Clock	To minimize any vertical bars or stripes visible on the screen background.The horizontal screen size will also change.
Phase	To adjust the focus of the display. This item allows you to remove any horizontal noise and clear or sharpen the image of characters.

Menu > Next Menu > Audio Description
Audio Input	To select the audio input

Menu > Next Menu > Others Description
Language	To choose the language in which the control names are displayed.
Power Indicator	Use this function to set the power indicator on the bottom side of the monitor to On or Off.If you set Off, it will go off.If you set On at any time, the power indicator will automatically be turned on.
Automatic Standby	The monitor will automatically switch to standby mode after a certain period.
Reader Mode Description
Reader 1 It is a mode that the screen	is adjusted to the best for the newspaper. If you want screen more bright, you can control brightness in Menu OSD.
Reader 2 It is a mode that the screen	is adjusted to the best for the cartoon. If you want screen more bright, you can control brightness in Menu OSD.
Reader Off It is a mode that reader mode is off.

NOTE

If option of Reader Mode is Reader 1 or Reader 2, SMART ENERGY SAVING will automatically be Off.

SMART ENERGY SAVING Description
High	Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.
Low	Enables SMART ENERGY SAVING you can save energy with this energy- low efficient function.
Off Disables SMART ENERGY	SAVING.

* SMART ENERGY SAVING: Conserve energy by using luminance compensation algorithm.

NOTE

• The value of energy saving data may differ depending on panel and panel suppliers.
• If you select the option of SMART ENERGY SAVING is High or Low, monitor luminance become lower or higher depend on source.
  If option of SMART ENERGY SAVING is High or Low, Reader Mode will automatically be Reader Off.

TROUBLESHOOTING

Check the following before calling for service.

No image appears
Is the power cord of the display connected?	Check and see if the power cord is connected properly to the power outlet.
Is the power indicator light on?	Press the Power button.
Is the power on and the power indicator White?	Adjust the brightness and the contrast.
Is the power indicator flickering?	If the display is in power saving mode, try moving the mouse or pressing any key on the keyboard to bring up the screen.Try to turn on the PC.
Do you see an "OUT OF RANGE" message on the screen?	This message appears when the signal from the PC (video card) is out of horizontal or vertical frequency range of the display. See the 'Specifications' section of this manual and configure your display again.
Do you see a "NO SIGNAL" message on the screen?	After the monitor is on "NO SIGNAL", the monitor goes to DPM mode.This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect it.

Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when you push MENU button?	• You can secure the current control settings, so that they cannot be inadvertently changed. You can unlock the OSD controls at any time by pushing the MENU button for several seconds: the message “OSD UNLOCKED” will appear.

Display image is incorrect
Display Position is incorrect.	Press the AUTO button to automatically adjust your display image to the ideal setting.
On the screen background, vertical bars or stripes are visible.	Press the AUTO button to automatically adjust your display image to the ideal setting.
Any horizontal noise appearing in any image or characters are not clearly portrayed.	Press the AUTO button to automatically adjust your display image to the ideal setting.Check Control Panel ▶ Display ▶ Settings and adjust the display to the recommended resolution or adjust the display image to the ideal setting. Set the color setting higher than 24 bits (true color).

CAUTION

Check Control Panel ▶ Display ▶ Settings and see if the frequency or the resolution were changed. If yes, readjust the video card to the recommend resolution.

If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.

The setting method can differ by computer and O/S (Operation System), and resolution mentioned above may not be supported by the video card performance. In this case, please ask to the computer or the video card manufacturer.

Display image is incorrect
The screen color is mono or abnormal.	Check if the signal cable is properly connected and use a screwdriver to fasten if necessary.Make sure the video card is properly inserted in the slot.Set the color setting higher than 24 bits (true color) atControl Panel▶ Settings.
The screen blinks.	Check if the screen is set to interlace mode and if yes, change it to the recommend resolution.

Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display driver?	Be sure to install the display driver from our web site: http://www.lg.com.Make sure to check if the video card supports Plug&Play function.

SPECIFICATIONS

22BK55WV

Display Screen Type		Flat Panel Active matrix-TFT LCDAnti-Glare coating
	Pixel Pitch	0.282 mm x 0.282 mm
Sync Input Horizontal Frequency		30 kHz to 83 kHz (Automatic)
		56 Hz to 75 Hz
		Separate Sync. Digital
Video Input Signal Input		15 pin D-SUB Connector /DVI-D Connector (Digital)/ HDMI
		Input Form
		RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max		1680 × 1050 @ 60 Hz
	Recommend	1680 × 1050 @ 60 Hz
Plug & Play	DDC 2B(Analog,Digital,HDMI)
Power Consumption	On Mode : 16.1 W Typ. (Outgoing condition) * Sleep Mode ≤ 0.3 W ** Off Mode ≤ 0.3 W
Power Input	100-240 V~ 50/60 Hz 1.0 A
Speaker Wattage 1	W + 1 W
Dimensions (Width x Height x Depth)	With Stand	505.7 mm x 387.7 mm x 259 mm
	Without Stand	505.7 mm x 338.6 mm x 58.9 mm
Weight	4.9 kg
Environmental conditions	Operating Temperature Operating Humidity	10°C to 35 °C10 % to 80 %
	Storage Temperature Storage Humidity	-20°C to 60 °C5 % to 90 % non-Condensing
Stand Base	Attached ( ), Detached (O)
Power cord	Wall-outlet type

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

The power consumption level can be different by operating condition and monitor setting.

* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution)

** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

SPECIFICATIONS

24BK55WV

Display Screen Type		Flat Panel Active matrix-TFT LCDAnti-Glare coating
	Pixel Pitch 0.27 mm x 0.27 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency		56 Hz to 60 Hz
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)/HDMI)
Input Form RGB Analog		(0.7 Vp-p/ 75 ohm), Digital
Resolution Max		1920 × 1200 @ 60 Hz
	Recommend	1920 × 1200 @ 60 Hz
Plug & Play	DDC 2B(Analog,Digital,HDMI)
Power Consumption	On Mode : 22 W Typ. (Outgoing condition) *Sleep Mode ≤ 0.3 W **Off Mode ≤ 0.3 W
Power Input	100-240V~ 50/60Hz 1.2 A
Speaker Wattage 1 W + 1 W
Dimensions (Width x Height x Depth)	With Stand 558.4 mm x 402.9 mm x 259 mm
	Without Stand 558.4 mm x 370.5 mm x 59.2 mm
Weight	5.6 kg
Environmental conditions	Operating Temperature Operating Humidity	10°C to 35 °C10 % to 80 %
	Storage Temperature Storage Humidity	-20°C to 60 °C5 % to 90 % non-Condensing
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

The power consumption level can be different by operating condition and monitor setting.

* The On mode power consumption is measured with LGE test standard (Full White pattern, Maximum resolution)
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).

Preset Modes (Resolution)

D-SUB/DVI Timing

22BK55WV

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
720 X 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75.029 +/+
1152 x 864 67.5 75 +/-
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.035 +/+
1680 x 1050 64.674 59.883 +/-

24BK55WV

Display Modes (Resolution)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Polarity(H/V)
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 53.7 60 -/+
1280 x 720 45 60 +/+
1280 x 800 49.702 59.81 -/+
1280 x 1024 63.981 60.02 -/+
1600 x 1200 75 60 +/+
1680 x 1050 65.29 59.954 -/+
1920 x 1080 67.5 60 +/+
1920 x 1200 74.038 59.95 +/-

HDMI Timing (Video)

Factory support mode (Preset Mode)	Horizontal Frequency(kHz)	Vertical Frequency(Hz)	Remarks
480p 31.5 60
576P 31.25 50
720p 37.5 50
720p 45.0 60
1080p 56.25 50 only for 24BK55WV
1080p 67.5 60 only for 24BK55WV

Indicator

Mode LED Color
On Mode White
Sleep Mode Blinking White
Off Mode Off

LG

Life's Good

The model and serial number of the product are located on the back and on one side of the product.

Record them below in case you ever need service.

MODEL

SERIAL
