USER MANUAL Profile WPRB9250CCC GE

Safety Instructions ..... 2-3

Operating Instructions

Clothes Care Cycles .....8, 9

Controls....4,6

Controls Features .....10

Cycle Options .....11

Easy Touch Selections .....5, 7

Loading and Using

the Washer....13, 14

Other Features .....11

Quick Start Guides .....4, 6

Washer Features....8-12

Troubleshooting Tips .....15-18

Consumer Support

Consumer Support ..... Back Cover

Warranty 19

energy

As an ENERGY STAR ^® partner, GE has determined that this product meets the ENERGY STAR ^® guidelines for energy efficiency.

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on the bottom right of the washer cabinet.

Owner's Manual

WPRB9220

WPRB9250

Abstract decorative swirl design with no text or symbols

175D1807P405 49-90142 08-02 JR

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

▲WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

WATER HEATER SAFETY

Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by visiting www.GEAppliances.com, or by calling 800.GE.CARES (800.432.2737).

■Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.

■Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

■Remove the colored protective film from the control panel.

YOUR LAUNDRY AREA

■Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.

■Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

▲WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

Use this appliance only for its intended purpose as described in this Owner's Manual.

WHEN USING THE WASHER

■Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the lid.
■Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.
■Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.

■ The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.
■To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing START, STOP or POWER does NOT disconnect the appliance from the power supply.
■Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

WHEN NOT IN USE

■Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they should be replaced every 5 years.
■Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.

• Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.
  ■Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Quick Start Guide for Model WPRB9220.

You can locate your model number on the bottom right of the washer cabinet.

Add detergent.

Add diluted fabric softener (on models with a fabric softener dispenser).

Simple line drawing of a box with two test tubes and a central container (no text or symbols)

Loosely load clothes no higher than the top row of holes in the washer basket. The water level should just cover the clothes.

Simple line drawing of an open box with a gear-like object inside (no text or symbols)

Select the wash cycle and other wash options.

NOTE: Any time you make a selection that is incompatible with the chosen wash cycle, the washer will beep twice.

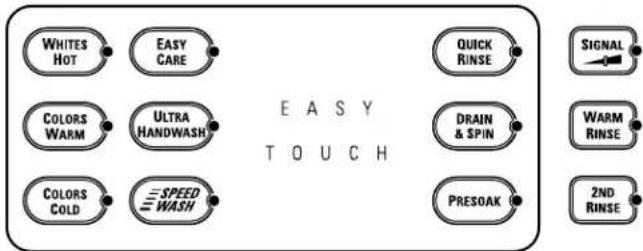

EASY TOUCH WHITES HOT EASY CARE QUICK RINSE SIGNAL COLORS WARM ULTRA HANDWASH DRAIN & SPIN WARM RINSE COLORS COLD SPEED WASH PRESOAK 2ND RINSE

Change any of the automatic settings, if desired, by pressing the pad beneath the setting. Higher settings will:

■ Fill the washer basket with more water
■ Remove heavier soil. The highest level is the Stain Wash cycle, with a 30 minute soak and agitation at the beginning of the wash cycle.
■ Add cold, warm or hot water
■ Spin faster to remove more water for shorter drying times

Close the lid and press START.

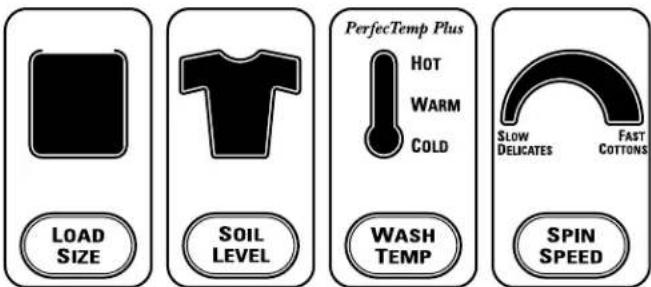

LOAD SIZE SOIL LEVEL PerfectTemp Plus HOT WARM COLD WASH TEMP SLOW DELICATES FAST COTTONS SPIN SPEED

Easy Touch Selections for Model WPRB9220. www.GEAppliances.com

Your new washer offers the convenience of starting your wash loads with our EASY TOUCH cycles. Make one simple selection, and your LOAD SIZE, SOIL LEVEL, WASH TEMPERATURE and SPIN SPEED are automatically set. Then all you have to do is press START.

	Cycle Wash Speed Description
WHITES HOT	WHITES Fast For heavy to lightly soiled white cottons, household linens, work and play clothes.
COLORS WARM	COLORS Fast WARM	For heavy to lightly soiled colorfast cottons, household linens, work and play clothes.
COLORS COLD	COLORS COLD Medium	For non-colorfast cottons and blends, and items that are labeled cold wash by the fabric manufacturer.
EASY CARE	EASY CARE Medium	For knits, wrinkle-free and permanent press items.
ULTRA HANDWASH	ULTRA HANDWASH Very Slow provide a true handwash for all of your delicate washables.	Uses an extra slow speed agitation combined with periods of soak to

Quick Start Guide for Model WPRB9250.

You can locate your model number on the bottom right of the washer cabinet.

Add detergent.

Add diluted fabric softener (on models with a fabric softener dispenser).

Loosely load clothes no higher than the top row of holes in the washer basket. The water level should just cover the clothes.

Select one of the three wash methods:

■ Press WASH CYCLES to wash according to load type
■ Press GARMENT CYCLES to wash according to clothing type
■ Press STAIN CYCLES to wash clothes with specific types of stains

The STAIN CYCLES will provide you with tips on pretreating your stain and will then automatically select the washer settings for the optimum cycle to remove the stain.

Select the wash, garment or stain cycle by pressing the arrow pads (☐) and the sides of the display. You can scroll up and down through the list of cycles by pressing the UP (△) and DOWN (▽) arrow pads beneath the display.

NOTE: Any time you make a selection that is incompatible with the chosen wash cycle, the washer will beep twice.

Change any of the automatic settings, if desired, by pressing the pad beneath the setting.

Higher settings will:

• Fill the washer basket with more water
• Remove heavier soil. The highest level is the Stain Wash cycle, with a 30 minute soak and agitation at the beginning of the wash cycle.
  ■ Add cold, warm or hot water
  ■ Spin faster to remove more water for shorter drying times

Close the lid and press START.

Simple line drawing of a box with two test tubes inside, no text or symbols present

Simple line drawing of a box with an open lid and a wavy object inside (no text or symbols)

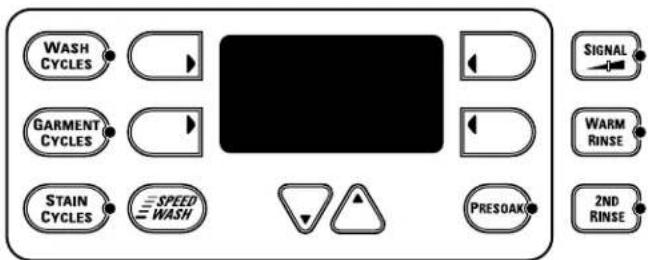

WASH CYCLES GARMENT CYCLES STAIN CYCLES SPEED WASH PRESOAK SIGNAL WARM RINSE 2ND RINSE

LOAD SIZE SOIL LEVEL PerfectTemp Plus HOT WARM COLD WASH TEMP SLOW DELICATES FAST COTTONS SPIN SPEED

Easy Touch Selections for Model WPRB9250. www.GEAppliances.com

Your new washer offers the convenience of starting your wash loads with our EASY TOUCH cycles. Make one simple selection, and your LOAD SIZE, SOIL LEVEL, WASH TEMPERATURE and SPIN SPEED are automatically set. Then all you have to do is press START.

WASH CYCLES

The Wash Cycles are optimized according to load type. The chart below will help you match the wash cycle setting with your clothing.

Cycle Wash Speed Description

WHITES Fast For heavy to lightly soiled white cottons, household linens, work and play clothes.
COLORS Fast		For heavy to lightly soiled colorfast cottons, household linens, work and play clothes.
DARK COLORS	Medium	For non-colorfast cottons and blends, and items that are labeled cold wash by the fabric manufacturer.
EASY CARE	Medium	For wrinkle-free and permanent press items.
CASUALS	Medium	For wrinkle-free and permanent press items. Provides agitate/pause cycles to clean your items.
KNITS	Medium	Specially designed for normally soiled knits.
DELICATES	Slow	For lingerie and special-care fabrics with light to normal soil. Provides periods of agitation and soak during wash and rinse.
ULTRA HANDWASH	Very Slow	For items labeled hand-washable with light soils. Provides periods of agitation and soak during wash and rinse.
QUICK RINSE	Medium	For quickly rinsing chlorine, perspiration, stains, etc. out of clothes.
DRAIN & SPIN	Spin Only	Drain and spin any cycle at any time.
SOAK	Medium	Provides a soak of up to 24 hours. The washer will drain and spin at the end of the cycle.
SPEED WASH	Medium Fast	For lightly soiled items that are needed in a hurry. Cycle time is approximately 20 minutes, depending on your household water pressure.

GARMENT CYCLES

The Garment Cycles are customized to provide optimum washing for a variety of fabrics and clothing types.

Garment Cycles include:

■ Jeans	■ Underwear	■ Towels	■ Infant Wear
■ Khakis	■ Play Clothes	■ Mats/Rugs	■ Lingerie
■ Dress Shirts	■ Everyday Wear	■ Sheets	■ Silks/Linen
■ Knit Shirts	■ Athletic Wear	■ Table Linen

STAIN CYCLES

The Stain Cycles are customized to provide optimum washing for specific types of stains. Press STAIN CYCLES, select the specific stain and follow the on-screen instructions. Stain selections include:

Food Stains	Body Stains	Outdoor Stains	Drink Stains
■ Catsup	■ Dingy Whites	■ Grass	■ Milk
■ Chocolate	■ Perspiration	■ Grease	■ Coffee/Tea
■ Meat Juices	■ Blood	■ Dirt	■ Juice/Wine
■ Egg	■ Underwear Stain	■ Ink	■ Soft Drinks

About Clothes Care Cycles.

PRESOAK

To presoak a load and go straight into a wash cycle:

Select your wash cycle, press the PRESOAK pad, then press the START pad.

■ Each time you press PRESOAK, you will add three minutes of agitation, followed by 12 minutes of soaking, for up to an hour of additional time. After the final soak period, the selected wash cycle begins.

■ Uses the speed and water temperature of your selected wash cycle.

QUICK RINSE

Use this feature to quickly rinse chlorine, perspiration, stains, etc. out of clothes.

■ The washer fills with water, agitates for three minutes, drains and spins. You may change the automatic settings if desired.

On some models, QUICK RINSE is found under the WASH CYCLES menu.

SPEED WASH

For lightly soiled items that are needed in a hurry. Cycle time is approximately 20 minutes, depending on your household water pressure.

SOIL LEVEL

SOIL LEVEL

The SOIL LEVEL setting determines the amount of agitation time.

The highest SOIL LEVEL is the Stain Wash cycle, which adds a 30 minute soak and agitation at the beginning of the selected wash cycle.

DRAIN & SPIN

You can drain and spin any cycle at any time.

On models with a DRAIN & SPIN pad, press to drain and spin.

On models without a DRAIN & SPIN pad, press START to pause the washer, select DRAIN & SPIN from the WASH CYCLES menu, then press START again.

CUSTOM 1 and CUSTOM 2 (on some models)

Set up your favorite combination of settings and save them here for one-touch recall.

These custom settings cannot be set while a cycle is in progress.

To store a custom combination of settings:

1. Select an EASY TOUCH setting.
2. Change LOAD SIZE, SOIL LEVEL, WASH TEMPERATURE or SPIN SPEED to fit your needs.
3. Select any OPTIONS you want.
4. Press and hold the CUSTOM 1 or CUSTOM 2 pad until the washer beeps to store your selection.

To recall your stored combination:

Press the CUSTOM 1 or CUSTOM 2 pad, then press START.

To reprogram the custom settings:

Repeat steps 1–4 above.

About controls features.

START

■ After you have selected a new cycle, press once to start the cycle.
■ Press twice to select the last cycle used and start the washer.
■ If the washer is running, press once to pause the cycle; press again to continue the cycle.

STOP

If the washer is running, press once to pause the cycle; press again to cancel the cycle.

TIME REMAINING

Time Remaining

■ Displays the approximate time remaining until the end of the cycle, or the time remaining for DELAY START.
■ Cycle time is affected by how long it takes the washer to fill. This depends on the water pressure in your home. The “smart” timer “learns” the amount of time it takes to fill your washer and adjusts the total time accordingly.

About cycle options. www.GEAppliances.com

	SIGNALAlerts you when the cycle is complete.Press SIGNAL to select low, medium or high volume, or to turn the beeper off.
	2ND RINSEAdds a second cold rinse to any cycle.
	WARM RINSEChanges the final rinse of a wash cycle from a cold to a warm rinse.
	DELAY STARTUse to delay the start of your washer.7 Choose your wash cycle and any options.2 Press DELAY START. You can change the delay time in 30 minute increments by one of the following methods, depending on the model:■ Using the arrow pads beneath the Time Remaining display■ Repeatedly pressing the DELAY START pad until the desired time is shown3 Press the START pad to start the countdown.The countdown time will be shown in the Time Remaining display.

About other features.

CYCLE STATUS	Cycle Status Indicators
●FILL ●RINSE	On some models, cycle status indicator lights show what part of the cycle the washer is in. On models without indicator lights, the cycle status will show in the display.
●SOAK ●2NDRINSE
●WASH ●SPIN
PerfecTemp Plus	PerfecTemp PlusPerfecTemp Plus senses the incoming water temperature and adjusts the temperature of the fill water to meet the clothing manufacturer's recommendations.The lid must be closed forPerfectTemp Plusto work.If your incoming water is too cold, detergent will not dissolve effectively and clothes may not get clean. If the water is too hot, fabrics could be damaged.PerfecTemp Plusadjusts these water temperature extremes for better washing performance.You may hear the water valves turning off and on while the water temperature is being adjusted. This is normal.

About washer features.

Illustration of a hand pouring liquid from a bottle onto a surface (no text or symbols)

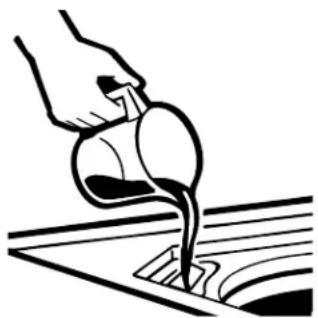

Liquid Bleach Dispenser

The dispenser dilutes liquid chlorine bleach before it reaches your wash load.

Check clothing care labels for special instructions.

Measure liquid bleach carefully, following instructions on the bottle.

■ Never pour undiluted liquid chlorine bleach directly onto clothes or into the wash basket.

■ Do not pour powdered bleach into bleach dispenser.

Before starting the washer, pour measured amount of bleach directly into bleach dispenser. Avoid splashing or over-filling dispenser. If you prefer to use powdered bleach, add it into the wash basket with your detergent.

■ Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can produce a toxic gas which may cause death.

Illustration of a hand pouring liquid into a small container on a laptop (no text or symbols)

The Agitator Cap or Fabric Softener Dispenser (depending on model)

The agitator cap fits into the top of the agitator. If it accidentally comes off, simply put it back on.

The fabric softener dispenser automatically releases liquid fabric softener at the proper time during the cycle.

Do not stop the washer during the first spin. This will cause the dispenser to empty too soon.

To use, follow these steps:

Make sure dispenser is securely attached to agitator.

Use only liquid fabric softener. Pour into dispenser, using amount recommended on package.

Never pour fabric softener directly on clothes. It may stain them.

Add water to dispenser until it reaches the maximum fill line.

Illustration of a hand using a cross symbol to compress a pipe into a pot (no text or symbols present)

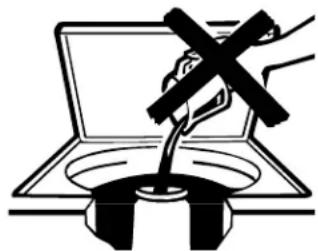

Do not pour anything into the agitator if the agitator cap or dispenser is removed.

Two technical line drawings of electronic components: a cylindrical capacitor and a funnel-shaped base (no text or symbols)

Separate for cleaning.

Cleaning the Fabric Softener Dispenser

Remove the dispenser from the top of the agitator.

Separate the dispenser cup from the cover by grasping the top and pushing down on the inside of the cup with your fingers. Dispenser cup will pop free from the cover.

To clean the dispenser, soak both the dispenser cup and the dispenser cover in the following solution:

■ 1 US gallon (3.8 liters) warm water
■ 1/4 cup (60 ml) heavy duty liquid detergent
■ 1 cup (240 ml) bleach

If necessary, loosen build-up with a clean, soft cloth after soaking. Do not use a stiff brush; you may roughen the surface of the dispenser.

Rinse and reassemble dispenser. Place dispenser back on the agitator.

Loading and using the washer.

Always follow fabric manufacturer's care label when laundering.

www.GEAppliances.com

Sorting Wash Loads

Sort by color (whites, lights, colors), soil level, fabric type (sturdy cottons, easy care, delicates), and whether the fabric produces lint (terry cloth, chenille) or collects lint (velveteen, corduroy).

Proper Use of Detergent

Using too much detergent is a common cause of laundry problems. Today's detergents are formulated to be effective without highly visible sudsing. Be sure to carefully read and follow manufacturer's recommendations for how much detergent to use in your wash.

You can use less detergent if you have soft water, a smaller load or a lightly soiled load.

Loading the Washer

Load dry items loosely, no higher than the top row of holes in the washer basket. When loading wet items, make sure you set the load/water level high enough to allow the items to move freely. Water level should just cover the clothes. To add items after washer has started, lift the lid and submerge additional items next to the agitator.

■Do not wrap long items like sheets or pants around the agitator.
■Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
■Agitation will not start with the lid up.

Loading and using the washer. Always follow fabric manufacturer's care label when laundering.

Care and Cleaning of the Washer

Wash Basket: Leave the lid open after washing to allow moisture to evaporate. If you want to clean the basket, use a clean soft cloth dampened with liquid detergent, then rinse. (Do not use harsh or gritty cleaners.)

Fill Hoses: Hoses connecting washer to faucet should be replaced every 5 years.

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. See the Installation Instructions packed with product for information on how to reinstall the shipping rod to keep the tub stationary when moving the washer. For more information, visit www.GEAppliances.com, or call 800.GE.CARES (800.432.2737). Do not store the washer where it will be exposed to the weather.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Fabric Care Labels

Below are fabric care label “symbols” that affect the clothing you will be laundering.

WASH LABELS

Machine wash cycle

Normal

Permanent Press/wrinkle resistant

Gentle/delicate

Hand wash

Do not wash Do not wring

Water temperature

Hot (50°C/120°F)

Warm (40°C/105°F)

Cold/cool (30°C/85°F)

DRY LABELS

Tumble dry

Dry

Normal

Permanent Press/wrinkle resistant

Gentle/delicate

Do not tumble dry

Do not dry (used with do not wash)

Heat setting

High

Medium

Low

No heat/air

Special instructions

Line dry/ hang to dry

Drip dry

Dry flat

In the shade

BLEACH LABELS

Bleach symbols

Any bleach (when needed)

Only non-chlorine bleach (when needed)

Do not bleach

Troubleshooting Tips

Save time and money! Review the charts on the following pages, or

visit www.GEAppliances.com. You may not need to call for service.

PERFECTEMP PLUS	Possible Causes What To Do
PerfecTemp Plus wash temperature is incorrect(Review PerfecTemp Plus in the About washer features section)	The washer is in a cold rinse cycleAll the water in the household water heater has been used	This is normal. ThePerfecTemp Plusfeature is designed not to activate during a cold rinse cycle to improve the energy efficiency of your washer.Wait until the water in the water heater is heated to the correct temperature.

PERFORMANCE Possible Causes What To Do
Clothes too wet	Incorrect spin speed selected are washing. Some fabrics will feel wetter when rinsed with cold water.	Make sure the spin cycle selected matches the load you will feel wetter when rinsed with cold water.
Colored spots	Incorrect use of fabric softener directions for using dispenser.Pretreat stain and rewash.
	Dye transfer	Sort whites or lightly colored items from dark colors.
Grayed or yellowed clothes Be sure to follow detergent manufacturer's directions.	Not enough detergent	Use more detergent (especially with larger loads).
	Hard water	Use a water conditioner like Calgon brand or install a water softener.
	Water is not hot enough	Make sure water heater is delivering water at 120°F-140°F (48°C-60°C).
	Washer is overloaded Select load size to match clothes load.
	Detergent is not dissolving	Add detergent as wash basket fills with water before you load clothes.
	Dye transfer	Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated.
Lint or residue on clothes clothes may retain more lint.	Clothes are air or line dried	If you do not dry your clothes with a clothes dryer, your
	Incorrect sorting	Separate lint producers from lint collectors.
	Washing too long	Wash small loads for a shorter time than larger loads.
	Detergent not dissolving	Add detergent as wash basket fills with water, before you load clothes.Try a liquid detergent.Use warmer water temperature.
	Overloading	Load clothes no higher than the top row of holes in the washer basket.Make sure load size selected matches clothes load size.
	Incorrect use of fabric softener	Check fabric softener package for instructions and follow directions for using dispenser.
	Wash speed is too fast	Choose a wash cycle with a slower wash speed.

Before you call for service...

PERFORMANCE (cont.) Possible Causes What To Do
Pilling	Result of normal wear on poly-cotton blends and pilling process by washing garments inside out. fuzzy fabrics	· While this is not caused by the washer, you can slow the
Snags, holes, tears, rips or excessive wear buttons	Pins, snaps, hooks, sharp belt buckles, zippers and sharp objects left in pockets	· Fasten snaps, hooks, buttons and zippers. Remove loose items like pins, objects in pockets and sharp buttons. Turn knits (which snag easily) inside out.
	Undiluted chlorine bleach	· Check bleach package instructions for proper amount. Never add undiluted bleach to wash or allow clothes to come in contact with undiluted bleach.
	Chemicals like hair bleach or dye, permanent wave washing. solution	· Rinse items that may have chemicals on them before
Wrinkling	Improper sorting	· Avoid mixing heavy items (like work clothes) with light items (like blouses). Try a fabric softener.
	Overloading or · Load your washer so clothes have enough room incorrect water level	to move freely with water covering all of the clothes.
	Incorrect wash and dry cycles	· Match Cycle selection to the type of fabric you are washing (especially for easy care loads).
	Repeated washing in water that is too hot	· Wash in warm or cold water.
OPERATION	Possible Causes What To Do
Washer pauses in cycle	The ULTRA HANDWASH, DELICATES or CASUALS cycle was chosen	· This is normal. The washer alternates between agitate and soak during the ULTRA HANDWASH, DELICATES and CASUALS cycles to get your clothes cleaner with less wear.
	The highest SOIL LEVEL setting was chosen	· The highest SOIL LEVEL setting adds a 15 minute Stain Wash agitate and soak period at the beginning of the wash cycle.
Washer won't operate	Control panel is asleep	· This is normal. Press POWER to activate the control panel.
	Washer is unplugged	· Make sure cord is plugged securely into a working outlet.
	Water supply is turned off	· Turn both hot and cold faucets fully on.
	Controls are not set properly	· Check controls.
	Lid is open—safety feature prevents agitation and spinning when lid is up.	· Close lid and reset cycle, to the beginning if necessary.
	Circuit breaker/fuse is tripped/blown	· Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet.
	Electronics need to be reset	· Unplug washer, wait 2 minutes, plug back in and press POWER.
	START was not pressed	· Press START.
	Extremely low water pressure	· Press START again.
	Washer was accidentally paused when starting Delay Start	· If the light on the DELAY START pad is flashing, the washer is paused. Press START to restart the countdown.
WATER Possible Causes What To Do
Too many suds	Type of detergent	Switch to a lower sudsing detergent brand and follow instructions on package.
	Very soft water Try less detergent.
	Too much detergent	Measure your detergent carefully. Use less soap if you have soft water, a smaller load or a lightly soiled load.
Water leaks	Fill hoses or drain hose is improperly connected and at washer.	Make sure hose connections are tight at faucetsMake sure end of drain hose is properly connected to washer and correctly inserted in and secured to drain facility.
	Household drain may be clogged	Check household plumbing. You may need to call a plumber.
	Constant water pressure to the fill hoses at the water source	Tighten hoses at the faucets and turn the water off after each use.Check condition of the fill hoses; they should be replaced every 5 years.
	Using too much detergent in washer	Use less detergent. Use less soap if you have soft water, a smaller load or a lightly soiled load.
Water temperature is incorrect	Control is not set properly	Check water temperature control and adjust.
	Water supply is turned off or improperly connected hoses are connected to correct faucets.	Turn both hot and cold faucets fully on and make sure connected to correct faucets.
	Water valve screens are stopped up	Turn off the water source and disconnect water fill hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
	House water heater is not set properly at 120°F-140°F (48°C-60°C).	Make sure house water heater is delivering water
	PerfecTemp Plus feature was not activated	The lid must be closed for PerfecTemp Plus to work.
Water pumped out before cycle is complete	Lid lifted or cycle was put in pause for over 24 hours	Reset cycle.
Water won't drain	Drain hose is kinked or improperly connected on it.	Straighten drain hose and make sure washer is not sittingTop of drain outlet should be less than 8 ft (2.5 m) above floor.
Water spraying during spin cycle	Washer in spin cycle	Spray rinse during a spin cycle is normal.
Washer did not fill to chosen level	Extremely low water pressure	Press the START button again.
	Inlet hoses are kinked	Straighten hoses.
	Water valve screens are stopped up	Turn off the water source and disconnect water fill hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
Water fills and drains at the same time	Drain stand pipe is too low	Drain stand pipe must be above 30" (76.2 cm).

Before you call for service...

NOISE Possible Causes What To Do

Washer is noisy	Washer is uneven	To level the front of the washer, adjust the front leveling legs by rotating the individual leg in the proper direction for up or down. To level back of washer, lift back of machine 4"(11 cm) and set down.
	Washer load is unbalanced redistribute the load evenly. Close the lid and press START again.	Press START to pause the washer, open the lid and
	Shipping rod is still assembled in unit attached rod from the bottom right hand side of washer.	To remove shipping rod from washer, pull yellow tag and
	Washer is sitting too close to wall (causes knocking during cycle)	Pull washer away from the wall; about 4" (11 cm) is needed.
	PerfecTemp Plus feature is being used	This is normal. PerfectTemp Plus turns water valves off and on to adjust water temperature.
OTHER	Possible Causes What To Do
Labels on the exterior of the washer will not peel off cleanly	Occasionally the adhesive used on the labels does not release cleanly	Use a hair dryer set at the lowest heat setting, directing the air at the label for a short amount of time. This will release the adhesive easily, without damaging the surface of the washer.

GE Washer Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One YearFrom the date of the original purchase the defective part.	Any part of the washer which fails due to a defect in materials or workmanship. During this full one-year warranty, GE will also provide, free of charge, all labor and related service costs to replace
Second YearFrom the date of the original purchase	Any part of the washer which fails due to a defect in materials or workmanship. During this additional one-year limited warranty, you will be responsible for any labor or related service costs.
Third through Fifth YearFrom the date of the original purchase	The suspension rod and spring assembly, and main electronic control board, if any of these parts should fail due to a defect in materials or workmanship. GE will also replace the washer lid or cover, if they should rust under operating conditions. During this additional three-year limited warranty, you will be responsible for any labor or related service costs.
Third through Tenth YearFrom the date of the original purchase labor or related service costs.	The transmission and outer washer tub, if any of these parts should fail due to a defect in materials or workmanship. During this additional eight-year limited warranty, you will be responsible for any
Lifetime of ProductFrom the date of the original purchase	The washer basket, if it should fail due to a defect in materials or workmanship. During this product lifetime limited warranty, you will be responsible for any labor or related service costs.

What Is Not Covered:

■Service trips to your home to teach you how to use the product.
■Improper installation.
■Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.

■Replacement of house fuses or resetting of circuit breakers.
■Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

GE Appliances Website

www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service www.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties www.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us www.GEAppliances.com

If you are not satisfied with the service you receive from GF, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance www.GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
