USER MANUAL WNSB8060BCC GE

Safety Instructions 2

Operating Instructions

Clothes Care Cycles .....8

Controls....3,6

Controls Features .....9

Cycle Options .....10

Loading and Using

the Washer .....13-14

One Touch Cycles .....3-7

Other Features .....11

Washer Features .....12

Troubleshooting Tips .....15-18

Consumer Support

Consumer Support ..... Back Cover

Warranty 19

Owner's Manual

WNSB8060

WNSB9080

WNSB9100

Write the model and serial numbers here:

Model # ____

Serial #

You can find them in the upper right corner on the back of your washer.

Abstract decorative swirl design with no text or symbols

175D1807P352 49-90090 02-02 JR

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

▲ WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

WATER HEATER SAFETY

Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by visiting GEAppliances.com, or by calling 800.GE.CARES (800.432.2737).

■ Install or store where it will not be exposed to temperatures below freezing or exposed to the weather.
■ Remove the colored protective film from the control panel.

■ Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

YOUR LAUNDRY AREA

- Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.

■ Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

WHEN USING THE WASHER

Use this appliance only for its intended purpose as described in this Owner's Manual.

■ Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the lid.
■ Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.
■ Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.

• The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.
  ■ To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing START or STOP does NOT disconnect the appliance from the power supply.
  ■ Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

WHEN NOT IN USE

■ Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they should be replaced every 5 years.
■ Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.

• Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.
  ■ Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Your new washer offers the convenience of starting your wash loads with our easy ONE TOUCH cycles. Make one simple selection, and your LOAD SIZE, SOIL LEVEL, WASH/RINSE TEMPERATURE, WASH SPEED and SPIN SPEED are automatically set. Then all you have to do is press START.

ONE TOUCH Quick Start Guide

- Add detergent
- Add diluted fabric softener (on models with a fabric softener dispenser)
- Add clothes
- Select wash cycle
- Check load size setting

- Close lid
- Push START

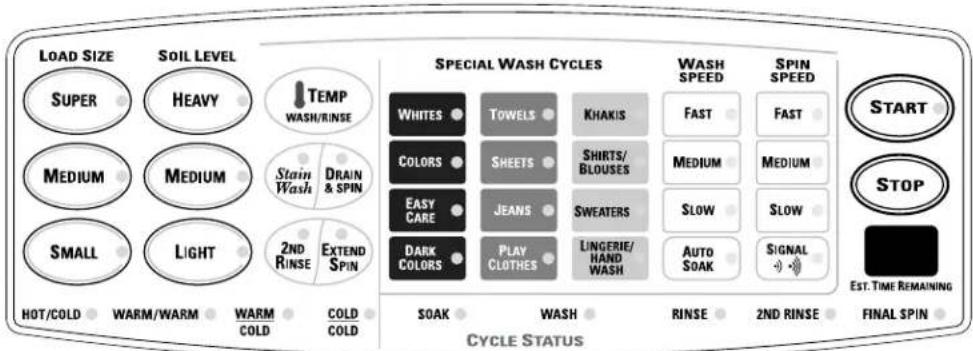

Washer control panel for Models WNSB9080 and WNSB9100.

You can locate your model number behind the top edge of the control panel.

Model WNSB9080

LOAD SIZE SUPER HEAVY MEDIUM MEDIUM SMALL LIGHT HOT/COLD WARM/WARM WARM COLD COLD COLD SOIL LEVEL TEMP WASH/RINSE Stain Wash DRAIN & SPIN 2ND RINSE EXTEND SPIN SPECIAL WASH CYCLES WHITES EASY CARE CASUALS FAST FAST COLORS TOWELS KNITS & SWEATERS MEDIUM MEDIUM DARK COLORS PLAY CLOTHES LINGERIE/ HAND WASH SLOW AUTO SOAK GENTLE SIGNAL SOAK WASH RINSE 2ND RINSE FINAL SPIN CYCLE STATUS START STOP EST. TIME REMAINING

Model WNSB9100

LOAD SIZE SUPER HEAVY MEDIUM MEDIUM SMALL LIGHT HOT/COLD WARM/WARM WARM COLD COLD COLD TEMP WASH/RINSE Stain Wash Drain & SPIN 2ND RINSE Extend SPIN SPECIAL WASH CYCLES WHITES TOWELS KHAKIS FAST FAST COLORS SHEETS SHIRTS/ BLOUSES MEDIUM MEDIUM EASY CARE JEANS SWEATERS SLOW SLOW DARK COLORS PLAY CLOTHES LINGERIE/ HAND WASH AUTO SOAK SIGNAL SOAK WASH RINSE 2ND RINSE FINAL SPIN CYCLE STATUS START STOP EST. TIME REMAINING

ONE TOUCH selections for Models WNSB9080 and WNSB9100.

Throughout this manual, features and appearance may vary from your model.

PRESS... AUTOMATICALLY SELECTS... THEN PRESS...

LOAD SIZE SOIL LEVEL WASH SPEED SPIN SPEED TEMP WASH/RINSE MEDIUM MEDIUM FAST FAST HOT/COLD START

For heavy to lightly soiled cottons, household linens, work and play clothes.

COLORS MEDIUM MEDIUM FAST FAST WARM COLD START

For heavy to lightly soiled cottons, household linens, work and play clothes.

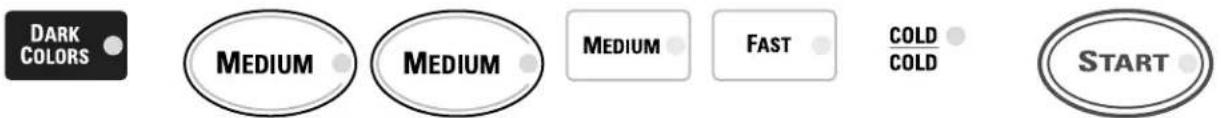

DARK COLORS MEDIUM MEDIUM MEDIUM FAST COLD COLD START

For non-colorfast cottons and blends, and items that are labeled cold wash by the fabric manufacturer.

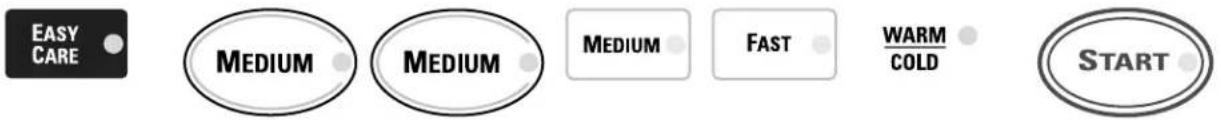

EASY CARE MEDIUM MEDIUM MEDIUM FAST WARM COLD START

For knits, wrinkle-free and permanent press items.

Changing the automatic settings.

You can change any of the automatic settings simply by pressing the desired pads. The wash/rinse temperature can be changed by pressing TEMP WASH/RINSE.

Special Wash Cycles are customized to provide optimum washing for a variety of fabrics and clothing types.

PRESS... AUTOMATICALLY SELECTS... THEN PRESS...

LOAD SIZE SOIL LEVEL WASH SPEED SPIN SPEED TEMP WASH/RINSE TOWELS SUPER LIGHT FAST FAST WARM COLD START SHEETS SUPER MEDIUM FAST FAST HOT/COLD START JEANS MEDIUM HEAVY FAST FAST WARM COLD START PLAY CLOTHES MEDIUM HEAVY FAST FAST WARM COLD START KHAKIS MEDIUM MEDIUM MEDIUM FAST WARM COLD START SHIRTS/ BLOUSES MEDIUM MEDIUM SLOW MEDIUM WARM COLD START KNITS & SWEATERS MEDIUM MEDIUM SLOW OR MEDIUM COLD COLD START LINGERIE/ HAND WASH SMALL MEDIUM SLOW OR MEDIUM COLD COLD START CASUALS MEDIUM MEDIUM MEDIUM FAST WARM COLD START

Changing the automatic settings.

You can change any of the automatic settings simply by pressing the desired pads. The wash/rinse temperature can be changed by pressing TEMP WASH/RINSE.

Easy ONE TOUCH Cycles.

Your new washer offers the convenience of starting your wash loads with our easy ONE TOUCH cycles. Make one simple selection, and your LOAD SIZE, SOIL LEVEL, WASH/RINSE TEMPERATURE and WASH/SPIN SPEED are automatically set. Then all you have to do is press START.

ONE TOUCH Quick Start Guide

Simple line drawing of a mechanical component with two pins and a base, no text or symbols present.

• Add detergent
• Add diluted fabric softener (on models with a fabric softener dispenser)

Simple line drawing of a mechanical component with a base and top, no text or symbols present

• Add clothes

LOAD SIZE SUPER HEAVY MEDIUM MEDIUM SMALL LIGHT Soil Level Stain Wash 3 W C C C PurkinTemp Filter SSAK WASH

• Select wash cycle
• Check load size setting

START 4

• Close lid
• Push START

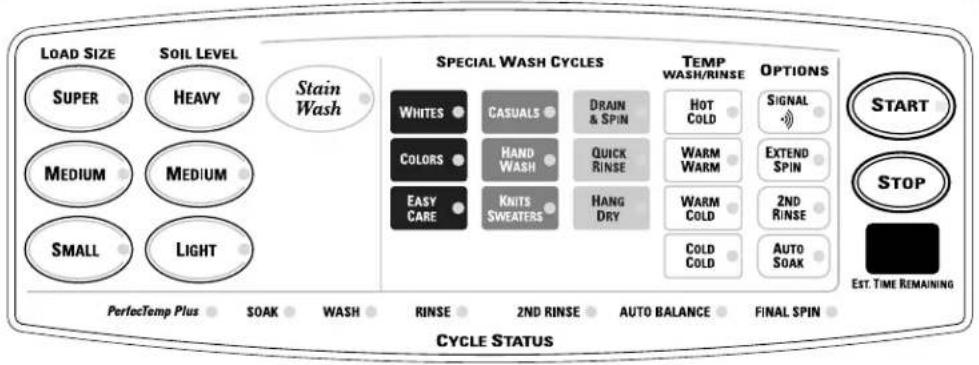

Washer control panel for Model WNSB8060.

You can locate your model number behind the top edge of the control panel.

LOAD SIZE SUPER MEDIUM SMALL SOIL LEVEL HEAVY MEDIUM MEDIUM LIGHT Stain Wash SPECIAL WASH CYCLES WHITES CASUALS DRAIN & SPIN COLORS HAND WASH QUICK RINSE EASY CARE KNITS SWEATERS HANG DRY TEMP WASH/RINSE HOT COLD WARM WARM WARM COLD COLD COLD OPTIONS SIGNAL EXTEND SPIN 2ND RINSE AUTO SOAK START STOP EST. TIME REMAINING PerfectTemp Plus SOAK WASH RINSE 2ND RINSE AUTO BALANCE FINAL SPIN CYCLE STATUS

Throughout this manual, features and appearance may vary from your model.

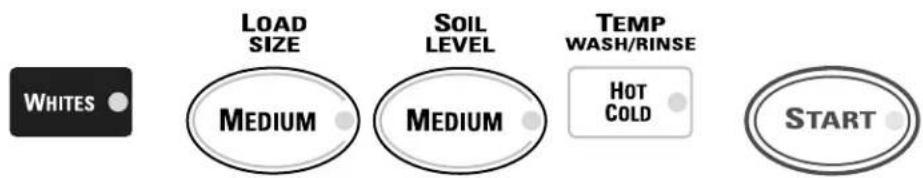

PRESS... AUTOMATICALLY SELECTS... THEN PRESS...

LOAD SIZE SOIL LEVEL TEMP WASH/RINSE MEDIUM MEDIUM HOT COLD START

For heavy to lightly soiled cottons, household linens, work and play clothes.

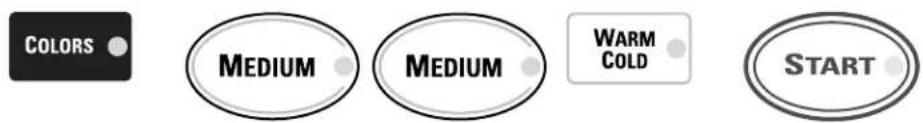

COLORS MEDIUM MEDIUM WARM COLD START

For heavy to lightly soiled cottons, household linens, work and play clothes.

EASY CARE MEDIUM MEDIUM WARM COLD START

For knits, wrinkle-free and permanent press items.

HAND WASH SMALL LIGHT COLD COLD START

For lingerie and items labeled hand-washable with light soils. Provides periods of agitation and soak during wash and rinse.

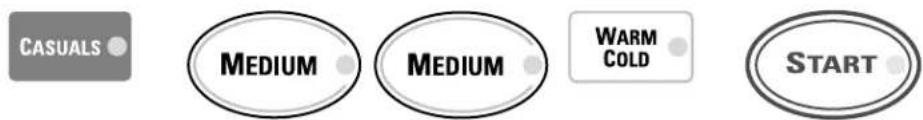

CASUALS MEDIUM MEDIUM WARM COLD START

For wrinkle-free and permanent press items and knits.

KNITS SWEATERS MEDIUM MEDIUM COLD COLD START

For knits and washable sweaters.

Changing the automatic settings.

You can change any of the automatic settings simply by pressing the desired pads.

About the variable speed motor. (on some models)

Models WNSB9080 and WNSB9100 use an advanced variable speed motor to provide you with superior clothes care and wash cycle flexibility. The use of this motor allows your washer to agitate more slowly than a conventional washer, and to spin at speeds that more closely meet the needs of your clothing.

Some wash cycles are pulsed, and will agitate and soak to provide you with better cleaning and less wear on your clothing. Some spin cycles will start slowly and then accelerate, allowing more water to be removed from the clothes with less wrinkling. These functions are a normal part of your new washer.

About Clothes Care Cycles.

Throughout this manual, features and appearance may vary from your model.

STAIN WASH (on some models)

For heavily soiled or stained items. Adds an extra agitation and soak at the beginning of the wash cycle.

QUICK RINSE (on some models)

Use this feature to quickly rinse chlorine, perspiration, stains, etc. out of clothes.

■ The washer fills with water, agitates for three minutes, drains and spins. You may change the automatic settings if desired.

HANG DRY (on some models)

If you air dry your clothes without the aid of a dryer, you may find that the slower final spin speed of the Hang Dry setting produces fewer wrinkles in your clothing. This may significantly reduce your ironing chore.

DRAIN & SPIN

DRAIN & SPIN any cycle at any time.

Throughout this manual, features and appearance may vary from your model.

START

■ After you have selected a new cycle, press once to start the cycle.
■ Press twice to select the last cycle used and start the washer.
■ If the washer is running, press once to interrupt the cycle; press again to continue the cycle.

STOP

This pad should not be used to interrupt or pause a cycle. Pressing this pad will cancel the current settings and the settings will be lost.

EST. TIME REMAINING

Estimated Time Remaining

■ Displays the approximate time remaining until the end of the cycle.
■ If the estimated time remaining is more than 60 minutes, "1H" will flash in the display, followed by the additional remaining minutes. When the time remaining is less than 60 minutes, the timer will count down.
- Cycle time is affected by how long it takes the washer to fill. This depends on the water pressure in your home. The “smart” timer “learns” the amount of time it takes to fill your washer and adjusts the total time accordingly.

NOTE: If PRESOAK is selected and a follow up wash cycle is not chosen, two dashes will come up in the display.

Spot Spray

Provides a short spray of water to allow you to dampen clothing when you pretreat stains.

1 Open the washer lid.
2 Press the SPOT SPRAY button. (You will see a short stream of water.)
3 Dampen your soiled garment with the SPOT SPRAY option and rub your favorite pretreatment product into soiled area.

NOTE: The SPOT SPRAY option will not work if

■ the washer lid is down
■ the washer tub is filling
■ the water has already reached the level you selected.

BLEACH SIGNAL

BLEACH SIGNAL (on some models)

The Bleach Signal is a reminder signal that can be turned on to remind you to add bleach at the proper time in the wash cycle. Adding detergent and bleach at the same time reduces the effectiveness of both the enzymes in the detergent and the chlorine in the bleach. By adding bleach later in the wash cycle, you allow the detergent's enzymes to remove dirt and stains first, and then provide a more effective dose of liquid bleach to whiten and sanitize your clothes.

About cycle options.

Appearance may vary.	SIGNALAlerts you when the cycle is complete.On some models, press SIGNAL to turn the beeper on or off.On some models, press SIGNAL to select low or high volume, or to turn the beeper off.
	2ND RINSEAdds a second rinse to any cycle.
	EXTEND SPINExtends the last spin of a wash cycle. This will extract more water from your clothes.Clothes will be drier when you use this option.
	AUTO SOAKThis option provides the flexibility to add short agitation and a soaking period to the beginning of any selected wash cycle.
	Cycle Status Indicator LightsThe cycle status indicator lights display what part of the cycle the washer is in.
	SOAK	WASH	RINSE	2ND RINSE	FINAL SPIN
PerfecTemp Plus	PerfecTemp Plus senses the incoming water temperature and adjusts the temperature of the fill water.The lid must be closed for PerfecTemp Plus to work.If your water is too cold, detergent will not dissolve effectively and clothes may not get clean. If the water is too hot, fabrics could be damaged.PerfecTemp Plus adjusts these water temperature extremes for better washing performance.You may hear the water valves turning off and on while the water temperature is being adjusted. This is normal.Some models have an indicator light that tells you when PerfecTemp Plus is active.
AUTO BALANCE	Auto Balance (on some models)The Auto Balance feature senses the wash load distribution for an even spin. Models with Auto Balance have an indicator light that tells you when the feature is active.

About washer features.

Illustration of a hand pouring liquid from a bottle onto a surface (no text or symbols)

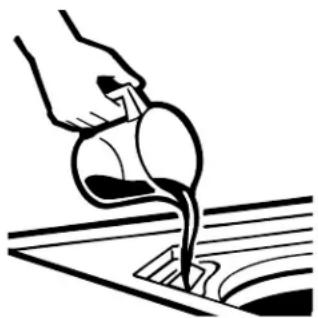

Liquid Bleach Dispenser

The dispenser dilutes liquid chlorine bleach before it reaches into your wash load.

Check clothing care labels for special instructions.
2 Measure liquid bleach carefully, following instructions on the bottle.

■ Never pour undiluted liquid chlorine bleach directly onto clothes or into the wash basket.
■ Do not pour powdered bleach into bleach dispenser.

3 Before starting the washer, pour measured amount of bleach directly into bleach dispenser. Avoid splashing or over-filling dispenser. If you prefer to use powdered bleach, add it into the wash basket with your detergent.

■ Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can produce a toxic gas which may cause death.

Illustration of a hand pouring liquid into a small ink bottle on a laptop (no text or symbols)

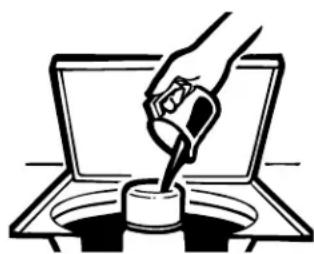

The Agitator Cap or Fabric Softener Dispenser

The agitator cap fits into the top of the agitator. If it accidentally comes off, simply put it back on.

The fabric softener dispenser automatically releases liquid fabric softener at the proper time during the cycle.

Do not stop the washer during the first spin. This will cause the dispenser to empty too soon.

To use, follow these steps:

Make sure dispenser is securely attached to agitator.

2 Use only liquid fabric softener. Pour into dispenser, using amount recommended on package.

Never pour fabric softener directly on clothes. It may stain them.

3 Add water to dispenser until it reaches the maximum fill line.

Illustration of a hand using a cross to compress a plug into a tank (no text or symbols)

Do not pour anything into the agitator if the agitator cap or dispenser is removed.

Simple line drawing of a cylindrical component and a funnel-shaped base with an upward arrow, no text or symbols present.

Separate for cleaning.

Cleaning the Fabric Softener Dispenser

Remove the dispenser from the top of the agitator.
Separate the dispenser cup from the cover by grasping the top and pushing down on the inside of the cup with your fingers. Dispenser cup will pop free from the cover.
3 To clean the dispenser, soak both the dispenser cup and the dispenser cover in the following solution:

■ 1 US gallon (3.8 liters) warm water
■ 1/4 cup (60 ml) heavy duty liquid detergent
■ 1 cup (240 ml) bleach

4 If necessary, loosen build-up with a clean, soft cloth after soaking. Do not use a stiff brush; you may roughen the surface of the dispenser.

5 Rinse and reassemble dispenser. Place dispenser back on the agitator.

Sorting Wash Loads

Sort by color (whites, lights, colors), soil level, fabric type (sturdy cottons, easy care, delicates), and whether the fabric produces lint (terry cloth, chenille), or collects lint (velveteen, corduroy).

Proper Use of Detergent

Using too much detergent is a common cause of laundry problems. Today's detergents are formulated to be effective without highly visible sudsing. Be sure to carefully read and follow manufacturer's recommendations for how much detergent to use in your wash.

You can use less detergent if you have soft water, a smaller load or a lightly soiled load.

Loading the Washer

Load dry items loosely, no higher than the top row of holes in the washer basket. When loading wet items make sure you set the load/water level high enough to allow the items to move freely. Water level should just cover the clothes. To add items after washer has started, lift the lid and submerge additional items next to the agitator.

■ Do not wrap long items like sheets or pants around the agitator.
■ Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
■ Agitation will not start with the lid up.

Loading and using the washer. Always follow fabric manufacturer's care label when laundering.

Care and Cleaning of the Washer

Wash Basket: Leave the lid open after washing to allow moisture to evaporate. If you want to clean the basket, use a clean soft cloth dampened with liquid detergent, then rinse. (Do not use harsh or gritty cleaners.)

Fill Hoses: Hoses connecting washer to faucet should be replaced every 5 years.

Lint Filter: The lint filter is located under the agitator. It is self-cleaning and requires no maintenance.

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Try not to hit surface with sharp objects.

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. See the Installation Instructions packed with product for information on how to reinstall the shipping rod to keep the tub stationary when moving the washer. For more information, visit GEAppliances.com, or call 800.GE.CARES (800.432.2737). Do not store the washer where it will be exposed to the weather.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Fabric Care Labels

Below are fabric care label "symbols" that affect the clothing you will be laundering.

WASH LABELS

Machine wash cycle

Normal

Permanent Press/wrinkle resistant

Gentle/delicate

Hand wash

Do not wash Do not wring

Do not wash Do not wring

Water temperature

Hot (50°C/120°F)

Warm (40°C/105°F)

Cold/cool (30°C/85°F)

DRY LABELS

Tumble dry

Dry

Normal

Permanent Press/wrinkle resistant

Gentle/delicate

Do not tumble dry

Do not dry (used with do not wash)

Heat setting

High

Medium

Low

No heat/air

Special instructions

Line dry/ hang to dry

Drip dry

Dry flat

In the shade

BLEACH LABELS

Bleach symbols

Any bleach (when needed)

Only non-chlorine bleach (when needed)

Do not bleach

Troubleshooting Tips Save time and money! Review the charts on the following pages, or visit GEAppliances.com. You may not need to call for service.

PERFECTEMP PLUS	Possible Causes What To Do
PerfecTemp Plus wash temperature is incorrect(Review PerfecTemp Plus in the About other features section)	The washer is in a cold rinse cycle	This is normal. ThePerfecTemp Plusfeature is designed not to activate during a cold rinse cycle to improve the energy efficiency of your washer.
	All the water in the household water heater has been used	Wait until the water in the water heater is heated to the correct temperature.

PERFORMANCE Possible Causes What To Do
Clothes too wet	Incorrect spin speed selected are washing. Some fabrics will feel wetter when rinsed with cold water.	Make sure the spin cycle selected matches the load you
Colored spots	Incorrect use of fabric softener directions for using dispenser.	Check fabric softener package for instructions and follow
		Pretreat stain and rewash.
	Dye transfer	Sort whites or lightly colored items from dark colors.
Grayed or yellowed clothes	Not enough detergent	Use more detergent (especially with larger loads). Be sure to follow detergent manufacturer's directions.
	Hard water	Use a water conditioner like Calgon brand or install a water softener.
	Water is not hot enough	Make sure water heater is delivering water at 120°F-140°F (48°C-60°C).
	Washer is overloaded Select load size to match clothes load.
	Detergent is not dissolving	Add detergent as wash basket fills with water before you load clothes.
	Dye transfer Sort clothes by color. If fabric label states unstable dyes may be indicated. wash separately,
Lint or residue on clothes	Clothes are air or line dried	If you do not dry your clothes with a clothes dryer, your clothes may retain more lint.
	Incorrect sorting	Separate lint producers from lint collectors.
	Washing too long	Wash small loads for a shorter time than larger loads.
	Detergent not dissolving	Add detergent as wash basket fills with water, before you load clothes.Try a liquid detergent.Use warmer water temperature.
	Overloading	Load clothes no higher than the top row of holes in the washer tub.Make sure load size selected matches clothes load size.
	Incorrect use of fabric softener	Check fabric softener package for instructions and follow directions for using dispenser.

Before you call for service...

PERFORMANCE (cont.) Possible Causes What To Do

Pilling	Result of normal wear on poly-cotton blends and pilling process by washing garments inside out. fuzzy fabrics	·While this is not caused by the washer, you can slow the
Snags, holes, tears, rips or excessive wear	Pins, snaps, hooks, sharp buttons, belt buckles, zippers and sharp objects left in pockets	·Fasten snaps, hooks, buttons and zippers. ·Remove loose items like pins, objects in pockets and sharp buttons. ·Turn knits (which snag easily) inside out.
	Undiluted chlorine bleach	·Check bleach package instructions for proper amount. ·Never add undiluted bleach to wash or allow clothes to come in contact with undiluted bleach.
	Chemicals like hair bleach or dye, permanent wave washing. solution	·Rinse items that may have chemicals on them before
Wrinkling	Improper sorting	·Avoid mixing heavy items (like work clothes) with light items (like blouses). ·Try a fabric softener.
	Overloading or ·Load your washer so clothes have enough room incorrect water level to move freely.
	Incorrect wash and dry cycles	·Match Cycle selection to the type of fabric you are washing (especially for easy care loads).
	Repeated washing in water that is too hot	·Wash in warm or cold water.

OPERATION	Possible Causes What To Do
Washer pauses in cycle	The HAND WASH or CASUALS cycle was chosen	This is normal. The washer alternates between agitate and soak during the HAND WASH and CASUALS cycles to get your clothes cleaner with less wear.
Washer won't operate	Washer is unplugged	Make sure cord is plugged securely into a working outlet.
	Water supply is turned off	Turn both hot and cold faucets fully on.
	Controls are not set properly	Check controls.
	Lid is open-safety feature prevents agitation and spinning when lid is up.	Close lid and reset cycle, to the beginning if necessary.
	Circuit breaker/fuse is tripped/blown	Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet.
	Electronics need to be reset	Unplug washer, wait 2 minutes, plug back in, and press START.
	START was not pressed	Press START.
	Extremely low water pressure	Press START again.
WATER Possible Causes What To Do
Too many suds	Type of detergent	Switch to a lower sudsing detergent brand and follow instructions on package.
	Very soft water Try less detergent.
	Too much detergent	Measure your detergent carefully. Use less soap if you have soft water, a smaller load or a lightly soiled load.
Water leaks	Fill hoses or drain hose is improperly connected and at washer.	Make sure hose connections are tight at faucetsMake sure end of drain hose is properly connected to washer and correctly inserted in and secured to drain facility.
	Household drain may be clogged plumber.	Check household plumbing. You may need to call a
	Constant water pressure to the fill hoses at the water source	Tighten hoses at the faucets and turn the water off after each use.Check condition of the fill hoses; they should be replaced every 5 years.
	Using too much detergent in washer	Use less detergent. Use less soap if you have soft water, a smaller load or a lightly soiled load.
Water temperature is incorrect	Control is not set properly	Check water temperature control and adjust.
	Water supply is turned off or improperly connected	Turn both hot and cold faucets fully on and make sure hoses are connected to correct faucets.
	Water valve screens are stopped up	Turn off the water source and disconnect water fill hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
	House water heater is not set properly	Make sure house water heater is delivering water at 120°F-140°F (48°C-60°C).
	PerfectTemp Plus feature was not activated	The lid must be closed for PerfectTemp Plus to work.
Water pumped out before cycle is complete	Lid lifted or cycle was put in pause for over 24 hours	Reset cycle.
Water won't drain	Drain hose is kinked or improperly connected on it.	Straighten drain hose and make sure washer is not sittingTop of drain outlet should be less than 8 ft (2.5 m) above floor.
Water spraying during spin cycle	Washer in spin cycle	Spray rinse during a spin cycle is normal.
Washer did not fill to chosen level (PerfectTemp Plus and START lights are flashing)	Extremely low water pressure	Press the START button again.
	Inlet hoses are kinked	Straighten hoses.
	Water valve screens are stopped up	Turn off the water source and disconnect water fill hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
Water fills and drains at the same time	Drain stand pipe is too low	Drain stand pipe must be above 30" (76.2 cm).

Before you call for service...

NOISE Possible Causes What To Do

Washer is noisy	Washer is uneven	To level the front of the washer, adjust the front leveling legs by rotating the individual leg in the proper direction for up or down. To level back of washer, lift back of machine 4" (11 cm) and set down.
	Washer load is unbalanced redistribute the load evenly. Close the lid and press START again.	Press START to pause the washer, open the lid and
	Shipping rod is still assembled in unit attached rod from the bottom right hand side of washer.	To remove shipping rod from washer, pull yellow tag and
	Washer is sitting too close to wall (causes knocking is needed. during cycle)	Pull washer away from the wall; about 4" (11 cm)
	PerfecTemp Plus feature • This is normal. PerfecTemp Plus turns water valves off is being used and on to adjust water temperature.

OTHER Possible Causes What To Do
Labels on the exterior of the washer will not peel off cleanly
Occasionally the adhesive used on the labels does not release cleanly
- Use a hair dryer set at the lowest heat setting, directing the air at the label for a short amount of time. This will release the adhesive easily, without damaging the surface of the washer.

GE Washer Warranty.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737).

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One Year Any partFrom the date of the original purchase	of the washer which fails due to a defect in materials or workmanship. During this full one-year warranty, GE will also provide, free of charge, all labor and related service costs to replace the defective part.
Second YearFrom the date of the original purchase	Any part of the washer which fails due to a defect in materials or workmanship. During this additional one-year limited warranty, you will be responsible for any labor or related service costs.
Third through The suspension rod and spring assembly, and main electronic control board, Fifth Year From the date of the cover, original purchase warranty,	if any of these parts should fail due to a defect in materials or workmanship. GE will also replace the washer lid or if they should rust under operating conditions. During this additional three-year limited you will be responsible for any labor or related service costs.
Third through The transmission and outer washer tub, Tenth Year From the date of the original purchase	if any of these parts should fail due to a defect in materials or workmanship. During this additional eight-year limited warranty, you will be responsible for any labor or related service costs.
Lifetime of Product The washer basket, From the date of the product lifetime limited warranty, original purchase	if it should fail due to a defect in materials or workmanship. During this you will be responsible for any labor or related service costs.

What Is Not Covered:

■ Service trips to your home to teach you how to use the product.
■ Improper installation.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

GE Appliances Website

GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Schedule Service

GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio

GEAppliances.com

GE supports the Universal Design concept-products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties

GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories

GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park Louisville, KY 40225

Register Your Appliance

GEAppliances.com

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
