USER MANUAL SVCA2000RP SVAN

White rectangular solar heating device with a circular control knob and metallic base (no visible text or symbols)

Modelos

SVCA1500RP

SVCA2000RP

Radiador plano

1.Botón encendido
2.Panel de control
3.Panel frontal
4.Cable
5.Pies

Simple line drawing of a rectangular device with two clamps above it (no text or symbols)

G1

G(2)

Uso del aparato

White rectangular solar heating device with a digital display and control knob (no visible text or symbols)

Model:

SVCA1500RP

SVCA2000RP

Description

1. Power Switch
2. Control panel
   3.Front Panel
   4.Cable
   5.Foot

Important safeguards

1 2 3 4 5

● The product is for household use only
● The item should be used only as intended
- Check item carefully before use. Do not switch on heater with defects or damaged cord.
● Placing of the item in water is forbidden.
- Plug in the item only to AC source.
● The appliance should be connected to the same voltage as pointed on the rating label and package
● The heater could be plugged in only grounded socket.
- Do not use non-standard power supply.
● Before plug in the heater, make sure that it is switched off.
- Do not use item outdoors.
- Protect the product from impacts of the sharp corners, high humidity.
- Do not touch heater with wet hands.
- If there is water on the surface of the heater, plug it out immediately.
- If the heater falls in water, plug it out immediately. It is forbidden to put hands in the water.
● Before next use the item should be checked by specialist.
● Always plug the item out after use, before cleaning or if you find the defects.
- The heater can't be carried by the cord.
- When you switch off the heater keep your hand on the plug and pull it, do not pull the cord.
- Do not wrap the cord around the appliance after the use.
- Flatten smoothly the cord when you do not use the heater.
● The cord could be changed only in service center.
- Only original spare parts could be used for repair.
- This appliance is not intended for use by persons(including children) with reduced physical,sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Safety instructions

● The appliance should be connected to the same voltage as pointed on the rating label and package.
- Do not plug the item in before its not wall mounted or set on castors.

• Do not cover the item when it is operating.
  ● Avoid placing foreign objects in air vents.
• It is forbidden to pull and twist the cord.

Before use

● Take the heater out of the box
- Remove the packing material
- Check the installation parts

Installation

● The panel convector heaters should be wall-mounted. Some items can be also stand with feet.
● Mount feet on the baseboard in accordance with scheme G1.

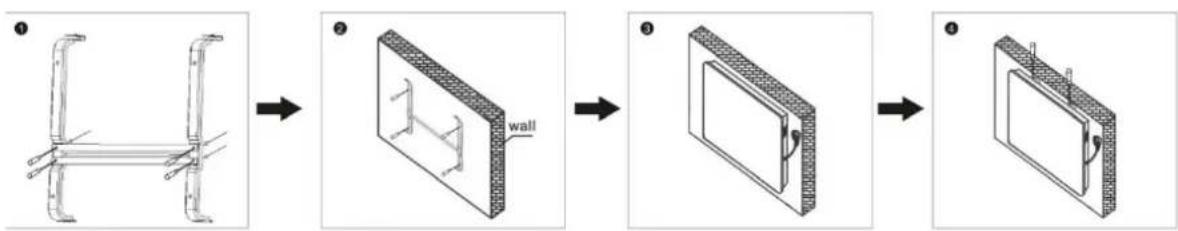

● For wall mounting study scheme G2.

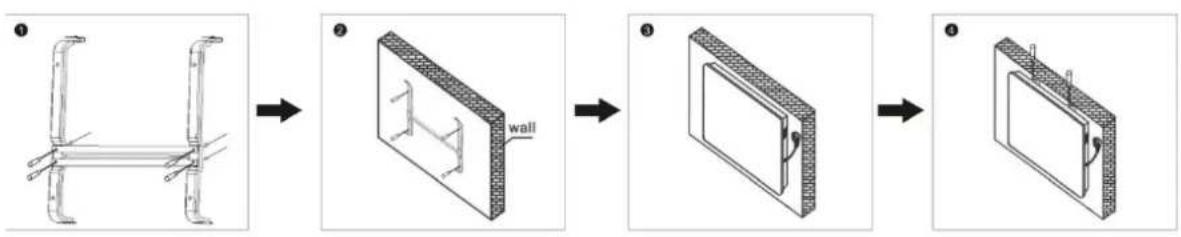

a..Install the bracket with screws firstly,see the image1

b. Drill the holes at each sides on the wall, then insert the plastic expanded plugs within, Fix the bracket in the wall with screw, see the image2

c.Fit the heater into suitable position ensuing that the holes align with bracket.see image3

d. Tight the screw on the top of bracket to catch steady

● Pay attention to the position of the convector with regard to other objects.
- It is forbidden to place item under the socket.
● The convector has got IPX4 degree of protection
- If you place item in bathroom, avoid ingress of water on the surface.

Simple line drawing of a rectangular box with two side panels, no text or symbols present.

G(2)

Use of the item

• Place the heater on flat stable surface
• Plug into any 220-240V, 50Hz, AC source, then turn on the switch at side, you will hear the sound of “Di”
• Turn on the heater by press the power “ ⏻”, the LED will display room temperature, then please use touch control or remote control to set power, temperature and time.
• If the appliance is not used for a long time--switch it off with power switch and plug the item out
  ● Attention! Do not cover the product! Convector should not be place under shower or in swimming pool

Operation for Touch Control

Insert the plug in a suitable power socket.

The touch screen buttons located on the product correspond to the remote control functions:

1. display
2. temperature
3. mode
4. timer
5. power

1 2 3 4 5

Power

When the product is on, press "power", . the upper part of the display shows temperature.

The heater is working at low power heating conditions.

Mode

Press "mode" to regulate low ||, or high temperature power.

Temperature

Press temperature button the temperature can be set from 16°C to 40°C.

Internal temperature is displayed every time the appliance is started up. The temperature can be set when the appliance is in stand-by or heating. When the room temperature reaches the set level, the high temperature power stops and the low temperature power remains active. When room temperature is 2 degrees over the set temperature, both the high and lower temperature powers will stop operating. The machine will begin operating again only when temperature decreases 2 degrees with respect to the set temperature.

Timer

The timer button can be set to start or stop the appliance at the desired time, with a time interval between 1 hour and 24 hours.

Operation for Remote Control

Insert the plug in a suitable power socket.

The touch screen buttons located on the product correspond to the remote control functions:

1. Power Button
2. Mode
3. Temperature
4. Timer
5. Child Lock

ON/OFF 1 2 Power Timer 3 Temperature Child Lock 4

Power

When the product is on, press "power", . the upper part of the display shows temperature.

The heater is working at low power heating conditions.

Mode

Press "mode" to regulate low ||, or high temperature power.

Temperature

Press temperature button the temperature can be set from 16°C to 40°C.

Internal temperature is displayed every time the appliance is started up. The temperature can be set when the appliance is in stand-by or heating. When the room temperature reaches the set level, the high temperature power stops and the low temperature power remains active. When room temperature is 2 degrees over the set temperature, both the high and

lower temperature powers will stop operating. The machine will begin operating again only when temperature decreases 2 degrees with respect to the set temperature.

Timer

The timer button can be set to start or stop the appliance at the desired time, with a time interval between 1 hour and 24 hours.

Child Lock

Press the child clock button 3 seconds, the heater is locked and it can be switched on.

After press Child Lock button for 3 seconds again, the heater is unlocked.

Operating sound

The appliance emits a beep upon each operation setting.

Cleaning

● Before cleaning the item wait when it cools down and plug out
- Do not use abrasives and solvents. Wipe the product with soft wet cloth
- It is necessary to remove dust from the surface regularly
● Washing the item and placing it in water is forbidden!
- If you are going not to use heater for long time, wipe it surface and put the item in color box.
- It should be placed in dry ventilated room. Avoid high humidity and mechanical impact on the item

Details	SVCA1500RP	SVCA2000RP
Voltage	220-240V	220-240V
Frequency	50Hz	50Hz
Power	750/1500W	1000/2000W

Attention: never leave heater unattended!

The importer retains his right to make changes in appearance and completeness of the item without preliminary notification to the customer.

The item is for household use only.

Attention! The manufacturer does not assume any liability for any damage caused directly or indirectly by not following this instruction manual, general safety rules, or interference in the construction of the product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
