USER MANUAL Profile JKD915CFCC GE
Warming Drawer Electric
Safety Instructions....2,3
Operating Instructions
Control Knob....5
Crisping Stale Items .....7
Drawer 6
Features 4
Moisture Selector ....5
ON Signal Light....5
Pans 5
Proofing Yeast Bread and Dough 7
Rack 6
Temperature Selection Charts . . . 7, 8
Warming Serving Bowl
and Plates 6
Care and Cleaning....9
Installation Instructions .... 10–15
Troubleshooting Tips ..... 16
Consumer Support
Consumer Support .....Back Cover
Product Registration ..... 19, 20
Warranty for Customers
in Canada 23
Warranty for Customers
in the U.S.A. 22
Write the model and serial numbers here:
Model # ____
Serial #
You can find them on a label on the right side of the cavity. Remove the pan to access this label.
In Canada, contact us at:
www.GEAppliances.ca
Owner's Manual and Installation Instructions
JKD915
JTD915
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.
▲WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
▲ WARNING ANTI-TIP BRACE REQUIRED
All warming drawers can tip and injury could result if not properly installed.
To prevent accidental tipping of the warming drawer, attach it to the wall with an anti-tip brace as described in the Installation Instructions.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
Use this appliance only for its intended purpose as described in this Owner's Manual.
- Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the provided installation instructions.
Do not attempt to repair or replace any part of your warming drawer unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
■Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference.
Before performing any service, unplug or disconnect the power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.
Do not leave children alone—children should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Do not allow anyone to climb, stand or hang on the drawer. They could damage the warming drawer, or cause severe personal injury.
- Be sure the warming drawer is securely installed in a cabinet that is firmly attached to the house structure.
Never leave the drawer open when you are not watching the warming drawer.
■Always keep combustible wall covering, curtains or drapes a safe distance from your warming drawer.
■ Always keep wooden and plastic utensils and canned food a safe distance away from your warming drawer.
■ Teach children not to play with the controls or any other part of the warming drawer.
- Do not place more than 50 pounds into the drawer.
For your safety, never use your appliance for warming or heating the room.
⚠ WARNING! SAFETY PRECAUTIONS
The purpose of the warming drawer is to hold hot cooked foods at serving temperature. Always start with hot food; cold food cannot be heated or cooked in the warming drawer.
- Do not warm food in the warming drawer for more than two hours.
■ A CAUTION: Items of interest to children should not be stored in cabinets above the warming drawer; children climbing on the drawer to reach items could be seriously injured.
Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot heating elements. Do not use a towel or other bulky cloth. - Do not let cooking grease or other flammable materials accumulate in or near the warming drawer.
Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off.
Flame in the warming drawer can be smothered by closing the drawer or using a multi-purpose dry chemical or foam-type fire extinguisher.
Do not touch the heating element or the interior surface of the warming drawer. These surfaces may be hot enough to burn.
REMEMBER: The inside surface of the warming drawer may be hot when the drawer is opened.
Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
■ Never leave jars or cans of fat drippings in or near your warming drawer.
Use care when opening the drawer. Open the drawer a crack and let hot air or steam escape before removing or replacing food. Hot air or steam which escapes can cause burns to hands, face and/or eyes.
Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.
- Keep the vent unobstructed.
Do not use the warming drawer to dry newspapers. If overheated, they can catch on fire.
- Do not use the warming drawer for a storage area. Items stored in the warming drawer can ignite.
Do not leave paper products, cooking utensils or food in the warming drawer when not in use.
■ Clean only parts listed in the Care and cleaning of the warming drawer section.
Do not use aluminum foil to line the drawer. Foil is an excellent heat insulator and will trap heat beneath it. This will upset the performance of the drawer and it could damage the interior finish.
■ Wear proper apparel. Loose fitting or hanging garments should never be worn while using this appliance.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

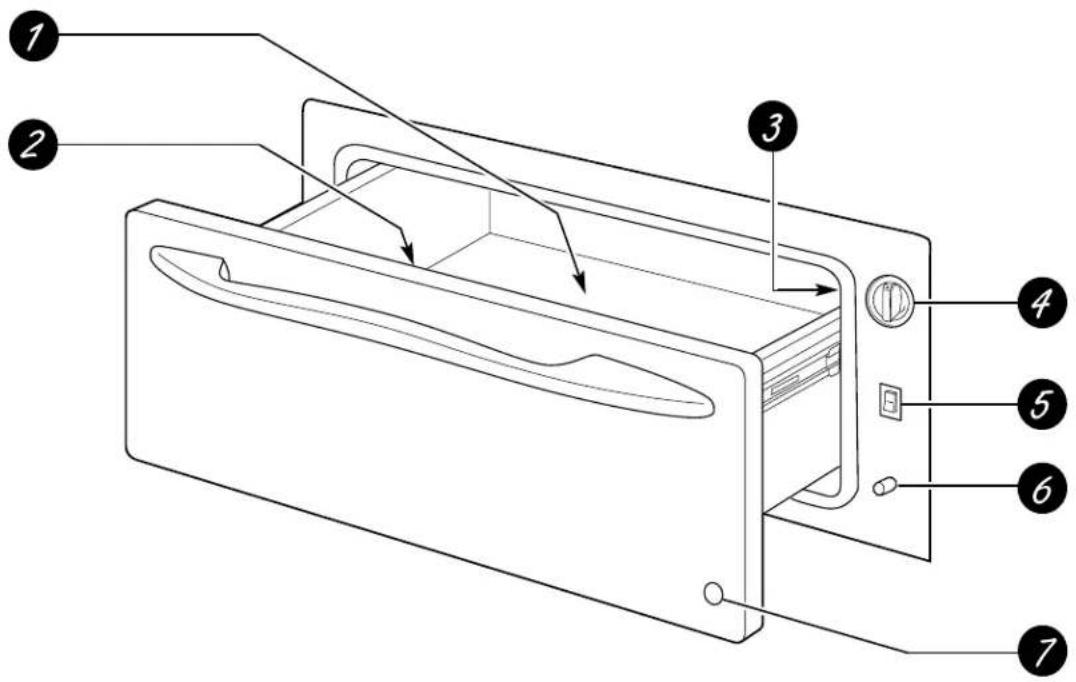

Features of your warming drawer.
Not all features are on all models. Appearance may vary.
| 1 | Warming Drawer PanRemovable for cleaning. 10 | |
| 2 | Moisture Selector (on back of panel)Use this to keep foods moist or crisp. 6, 8, 9 | |
| 3 | Model and Serial NumbersOn a label on the right side of the cavity 2 (remove pan to access). | |
| 4 | Control KnobThe control knob has settings for 6, 8, 9PROOF, LOW, MED and HIGH. | |
| 5 | ON/OFF SwitchUse this switch to turn the warming drawer on. 6 | |
| 6 | ON Signal LightGlows when the ON/OFF switch is in the ON position. | 6 |
| 7 | ON Signal Light Viewer LensThe ON signal light is visible through the 6 light viewer lens when the drawer is closed. |
Using the warming drawer. www.GEAppliances.com
The warming drawer will keep hot, cooked foods at serving temperature. Always start with hot food. Do not use to heat cold food other than proofing yeast dough, crisping crackers, chips or dry cereal.


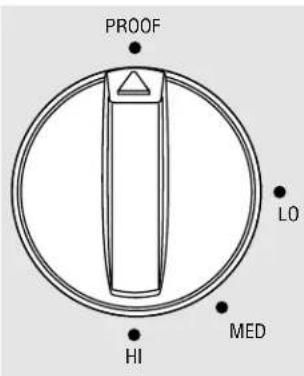

PROOF LO HI MEDControl Knob
The warming drawer controls are hidden with the drawer shut. Open the drawer. The controls are on the right side of the front frame.
To use the warming drawer, press the ON/OFF switch to the ON position.
Slide the moisture selector control to the open or closed setting. (See the Moisture Selector section.)
Turn the control knob to the desired setting.
PROOF 75–95°F
LOW 140-160°F
MED 160–195°F
HIGH 195-230°F
ON Signal Light
The ON signal light is located below the ON/OFF switch and glows when the ON/OFF switch is in the ON position. It stays on until the ON/OFF switch is moved to the OFF position.
The ON signal light is visible through the light viewer in the drawer front panel when the drawer is closed. This is a reminder that the heat is on.
The moisture selector is located on the inside front of the drawer.
To keep foods moist, slide the moisture selector control away from the control knob. This closes the vent and seals the moisture inside the drawer. With the vent closed hot foods stay moist and soft.
In this setting condensation may occur around the inside edge of the drawer.
To keep foods crisp, slide the moisture selector control to the right towards the control knob. This opens the vents and allows the moisture to escape.
With the vents open, it is normal for moisture to collect on surfaces above the warming drawer.

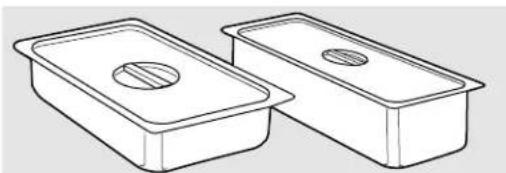

Additional Pans
Two pans with lids (4" deep)
One large pan (14 quarts)
One medium pan (6 quarts)
Using the warming drawer.


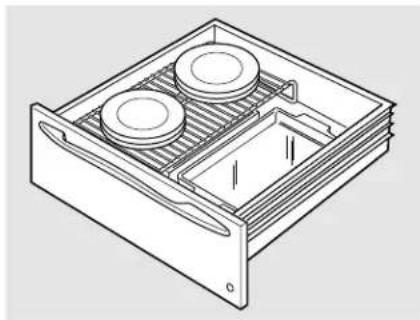

Rack will fit from front to back.
■ Preheat with the rack in place.
■ Using the rack allows for double stacking of items.
When using the warming drawer...
Do not line the warming drawer with aluminum foil.
- Allow time for the drawer to be preheated:
LOW 8 minutes
MED 15 minutes
HIGH 20 minutes
NOTE: It is not necessary to preheat the drawer for proofing.
Food in heat-safe glass and glass ceramic pans may need higher thermostat setting as compared to food in metal pans.
■ Repeated opening of the drawer allows the hot air to escape and the food to cool. Allow extra time for temperature inside the drawer to stabilize after adding items.
With large loads it may be necessary to use a higher thermostat setting and cover some of the cooked food items.
■Food should be kept hot in its cooking container or transferred to a heat-safe serving dish.
■ Aluminum foil may be used to cover food to prevent it from drying out.
▲ CAUTION: Plastic containers or plastic wrap will melt if in direct contact with the drawer. Melted plastic may not be removable and is not covered under your warranty.
■ Remove serving spoons, etc., before placing containers in warming drawer.
To Warm Serving Bowl and Plates
To warm serving bowls and plates set the control on LOW.
■ Use only heat-safe dishes.
Place the empty dishes on the rack to raise them off the bottom of the drawer. If you want hotter dishes or want to heat fine china, please check with the manufacturer of the dishes for their maximum heat tolerance.
■ Preheat empty serving dish while preheating the drawer.
When holding hot, cooked foods and warming empty serving dishes at the same time, place the serving dishes on the high rack position and the food on the bottom of the drawer.
⚠️ CAUTION: Dishes may be hot. Use pot holders or mitts when removing hot dishes.


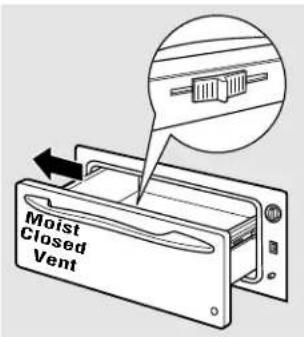

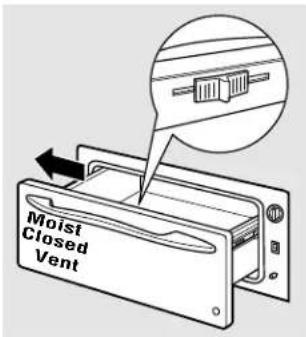

Moist Closed VentTo Proof Yeast Bread Dough
Yeast dough can be proofed in the warming drawer.
Place your dish on the warming drawer pan bottom.
You must always turn the control knob to LOW then immediately back to PROOF.
- Close the vent.
Lightly oil the top of the dough in a bowl large enough to double the dough size. Cover with a cloth.
■ Preheating not required for proofing.
Check the dough height in 40 minutes. Add time as needed. The dough should remain in the drawer until it has doubled in size and a slight depression remains when the surface is touched gently with a finger.

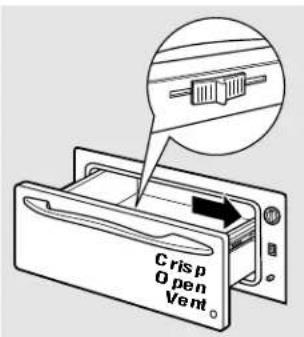

To Crisp Stale Items
Place food in low sided dishes or pans.
■ Preheat on LOW setting and open the vent.
- Check crispness after 45 minutes. Add time as needed.
To keep several different foods hot, set the temperature to the food needing the highest setting. Place the items needing the highest setting on the bottom of the drawer and items needing less heat on the rack.
Food Type Control Setting Moisture Selector Setting
| Bacon HIGH OPEN | ||
| Bread, hard rolls MED OPEN | ||
| Fried foods HIGH OPEN | ||
| Pies, two crusts | MED OPEN | |
| Pizza | HIGH OPEN | |
| Potatoes, baked | HIGH OPEN | |
| Tortilla Chips | LOW | OPEN |
Tips:
Leave food uncovered.
Do not use plastic containers or plastic wrap.
■Preheat prior to use according to recommended times.
Using the warming drawer.
To keep several different foods hot, set the temperature to the food needing the highest setting. Place the items needing the highest setting on the bottom of the drawer and items needing less heat on the rack.
Food Type Control Setting Moisture Selector Setting
| Beef, medium and well done* MED CLOSED | ||
| Bread, soft rolls MED CLOSED | ||
| Casseroles MED CLOSED | ||
| Cooked cereal MED CLOSED | ||
| Eggs MED CLOSED | ||
| Fish, seafood MED CLOSED | ||
| Fruit MED CLOSED | ||
| Gravy, cream sauces MED CLOSED | ||
| Ham MED CLOSED | ||
| Lamb MED CLOSED | ||
| Pancakes, waffles | HIGH | CLOSED |
| Pies, one crust | MED CLOSED | |
| Pork MED CLOSED | ||
| Potatoes, mashed | MED CLOSED | |
| Poultry | HIGH | CLOSED |
| Vegetables MED CLOSED | ||
* USDA/FSIS recommends an internal temperature of 145°F. as the minimum doneness for beef. Use a portable meat thermometer to check internal temperatures.
Tips:
■ Cover food with lid or aluminum foil.
- Do not put water in the warming pan.
- Do not use plastic containers or plastic wrap.
■ Preheat prior to use according to recommended times.
Care and cleaning of the warming drawer. www.GEAppliances.com
Be sure the controls are in the OFF position and all surfaces are cool before cleaning any part of the warming drawer.
Most cleaning can be done to the pan with the pan in place in the drawer. However, the pan may be removed if further cleaning is needed.
Clean the rack with detergent and water. After cleaning, rinse the rack with clean water and dry with a clean cloth.
Stainless Steel
Do not use a steel wool pad; it will scratch the surface.
To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow cleaner instructions for cleaning the stainless steel surface.
To inquire about purchasing stainless steel appliances cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:
National Parts Center 1.877.959.8688
www.GEAppliances.com
Control Knob
The control knob may be removed for easier cleaning.
Before removing the knob for cleaning, please note that it is in the PROOF position.
Wash the knob in soap and water or a vinegar and hot water solution but do not soak.
Dry and replace the knob.

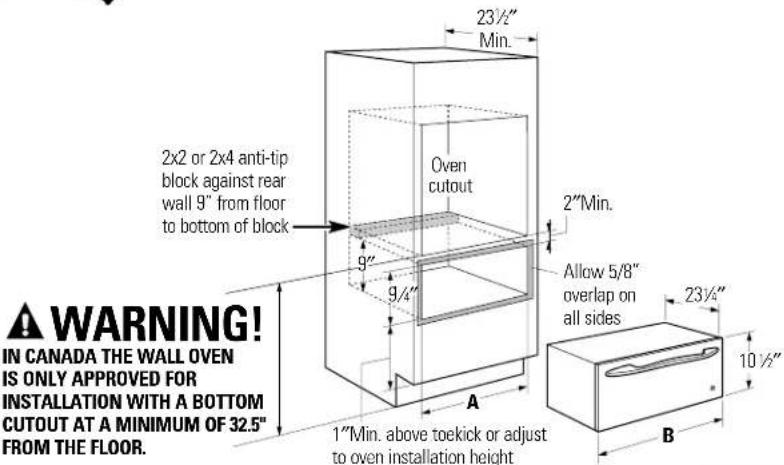

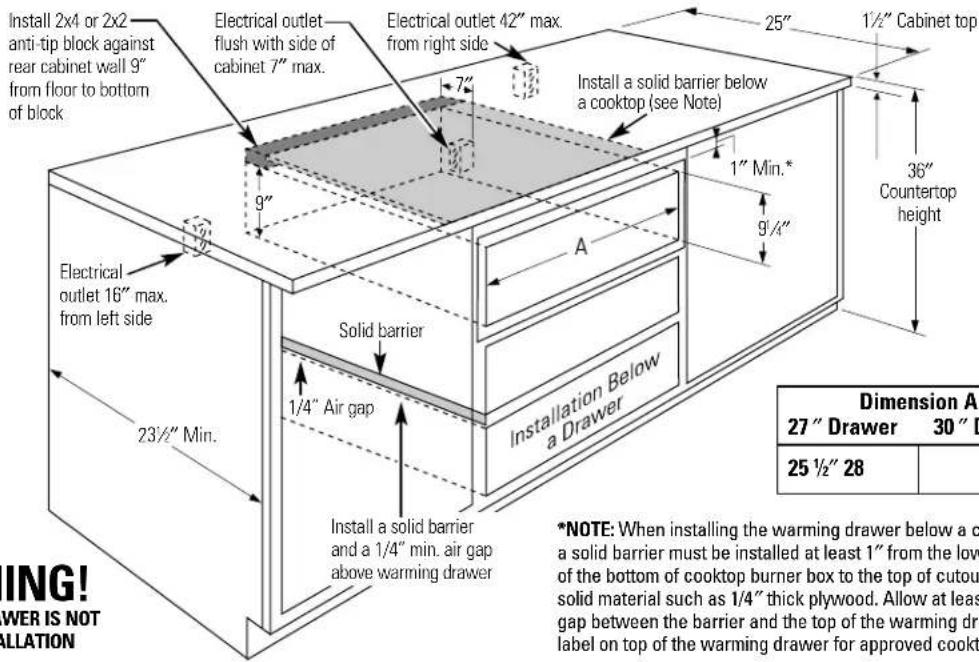

Installation of the warming drawer.
Read these instructions completely and carefully.
Before You Begin
IMPORTANT: Save these instructions for the local electrical inspector's use.
IMPORTANT: OBSERVE ALL GOVERNING CODES AND ORDINANCES.
NOTE TO INSTALLER: Leave these instructions with the appliance after installation is completed.
NOTE TO CONSUMER: Keep this Owner's Manual and Installation Instructions for future use.
NOTE: This appliance must be properly grounded.
NOTE: Insure that the power cord does not contact the hot surfaces on the bottom of ovens, cooktops, or any other appliance.

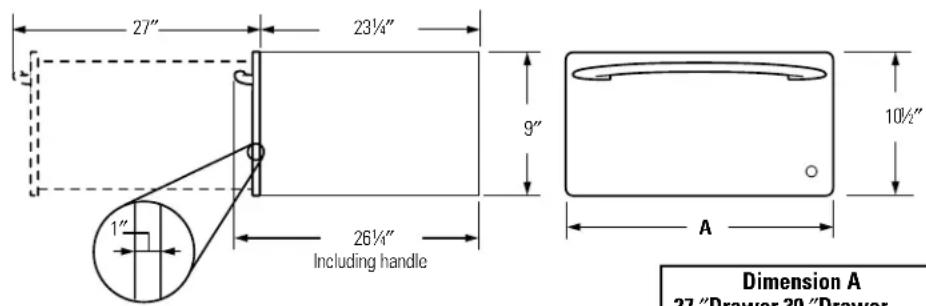

Product Dimensions
| 26 14 "30" | |
Custom Panel Kits
ZXD27B—This kit provides for the installation of a custom front panel on 27" wide models.
ZXD30B—This kit provides for the installation of a custom front panel on 30" wide models.
Tools Needed
2 x4 or 2 x 2 lumber for runners and brace
■ Wood screws and adhesive or other hardware for installing runners or shelf to support warmer drawer.
Runners must be level, rigidly mounted and capable of supporting 150 pounds.
Saw
Level
Drill and 1/16"bit
Phillips screwdriver
Read these instructions completely and carefully.
Advance Planning
The warming drawer may be installed directly into a wall or wall oven cabinetry.
The warming drawer may be installed below a countertop, a single or double oven and side by side using 2 drawers.
When installing warming drawer with a cooktop allow a 2" minimum from bottom of a cooktop burner box to top of cutout.
Electrical power cord is located on the right side of the warming drawer. Locate the outlet within reach of the 56"long power cord in adjacent cabinet, within 42" of the right side or 16" from the left side of the cutout. A recessed receptacle can be installed on the right side of the cutout, 7" maximum from the back of the cabinet.
Grounding the Appliance
IMPORTANT—(Please read carefully) FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED.
Do not use an extension cord or adapter plug with this appliance. Follow National Electrical codes and ordinances.
This warming drawer must be supplied with 120V, 60Hz, and connected to an individual, properly grounded branch circuit, and protected by a 15 or 20 amp circuit breaker or time delay fuse.
A properly grounded 3-prong receptacle should be located within reach of the drawer's 56"long power cord.
- Locate the receptacle in an adjacent cabinet.
—within 42" of the right side or,
—within 16" of the left side or
—A recessed receptacle may be located on the right side of the cutout, 7" maximum from the back of the cabinet. In this location, the excess power cord should be coiled and taped to the right side of the unit.
The power cord of this appliance is equipped with a 3-prong (grounding) plug that mates with a standard 3-prong grounding wall receptacle to minimize the possibility of electric shock. The customer should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded and has the correct polarity.
■ Where a standard 2-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded 3-prong wall receptacle.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD.
Installation of the warming drawer.
Read these instructions completely and carefully.
Remove Packaging and Parts
Parts provided: 4 Wood screws
1 Place carton on a flat surface.
2 Open one end of the carton and lift off the top piece.
3 Lift the warming drawer up and out of the carton.
4 Place the drawer on top of the shipping carton to protect the drawer front and the finished flooring.
5 Remove all packing materials and tape.
6 Locate package containing 4 wood screws and set aside.
Installation Below a Countertop
IN CANADA THIS DRAWER IS NOT APPROVED FOR INSTALLATION UNDER A COOKTOP.
*NOTE: When installing the warming drawer below a cooktop, a solid barrier must be installed at least 1" from the lowest point of the bottom of cooktop burner box to the top of cutout. Use any solid material such as 1/4" thick plywood. Allow at least 1/4" air gap between the barrier and the top of the warming drawer. See label on top of the warming drawer for approved cooktop models.
When installed, the front face of the warming drawer will be nearly flush with cabinetry doors or drawer fronts.
- Drawer overlaps will conceal cut edges on all sides of the opening.
The rough opening for the drawer must be:
—Depth: 23½" minimum from inside back to front of cabinet frame.
—Width: 25½" for 27" wide models
28½" for 30" wide models.
—Height: 9 ^1/4 "
5" minimum above floor or 1" above toekick. 23 14 " from floor to bottom of cutout is recommended for under countertop installation.
Installation below a cabinet drawer:
The warming drawer may be installed beneath a cabinet drawer. In this installation, a solid barrier should be installed above the warming drawer to block access. Use any solid material such as 1/4" thick plywood. Allow at least 1/4" air gap between the barrier and the top of the warming drawer. Observe the 5" min. above the floor or 1" above the tockick min. installation height.
NOTE: If you are installing in frameless cabinets, it may be necessary to install 1/2" wide cleats to accept drawer mounting screws. See drawer to find exact locations of mounting screws.
When installed under a cooktop:
Warming drawers are suitable for installation below only certain specified cooktop models. See the label attached to the top of the warming drawer for suitable models. A solid barrier and air gap between cooktop and warming drawer is required. See Note above.
Read these instructions completely and carefully.
Installation Below Wall Ovens
Installation below a single oven
Installation below a double oven
| 27 "Drawer 25 | 12 ''26 | ^3/_4'' |
| 30 "Drawer 28 | 12 ''30 '' | |
NOTE: Additional clearance between cutouts may be required. Check to be sure that oven supports above the warming drawer location do not obstruct the required interior 23½"depth and 9¼"height.
⚠ WARNING!
IN CANADA THIS DRAWER IS NOT APPROVED FOR INSTALLATION UNDER A DOUBLE OVEN.
When installed, the front face of the warming drawer will be nearly flush with cabinetry doors or drawer fronts.
- Drawer overlaps will conceal cut edges on all sides of the opening.
The rough opening for the drawer must be:
—Depth: 23½" minimum from inside back to front of cabinet frame.
—Width: 25½" for 27" wide models
28½" for 30" wide models.
—Height: 9 ^1/4 "
—Allow 2" minimum between oven and drawer cutouts for clearance of overlaps.
NOTE: If you are installing in frameless cabinets, it may be necessary to install 1/2"wide cleats to accept drawer mounting screws. See drawer to find exact locations of mounting screws.
When installed under a wall oven:
Warming drawers are suitable for installation below only certain specified wall oven models. See the label attached to the top of the warming drawer for suitable models.
NOTE: Electrical receptacle can be installed as shown for countertop installations. Do not install receptacle above the top of the warming drawer cutout.
Installation of the warming drawer.
Read these instructions completely and carefully.
Provide Cabinet Support
A 2" minimum clearance between oven and warming drawer cutouts are required. Additional clearance may be required if 2 x 4 blocks are used to support runners or solid floor of the oven above.
■ The warming drawer may be supported by either a solid bottom, 2 x 4 or 2 x 2 runners.
Step 1—Install Anti-Tip Brace
WARNING: ANTI-TIP PRECAUTIONS:
The anti-tip brace must be installed to prevent the drawer from tipping forward when opened and loaded.
Failure to do so could result in personal injury.
There is no way to level the drawer once it has been installed. Be sure supports are level.
The entire weight of the drawer is supported by the runners or solid floor and must be capable of supporting 150 lbs.
Step 2—Install Warming Drawer
7 Slide the left corner into opening and push power cord into the hole leading to the outlet location. Thread the cord through as drawer is being pushed back into the opening.
If the outlet is installed inside the opening, plug the cord into the outlet. In this location, the excess power cord should be coiled and taped to the right side of the unit. Make sure the cord does not get trapped by the drawer.
NOTE: Insure that the power cord does not contact the hot surfaces on the bottom of ovens, cooktops, or any other appliance.
2 Push the drawer back until the front flange is flush to the cabinet front.
3 Open the drawer fully.
5 Drive wood screws provided into each corner.
Before you call for service...
Troubleshooting Tips
Save time and money! Review the chart on this page
first and you may not need to call for service.
| Problem Possible Causes What To Do | ||
| Warming drawer will not work be blown or the circuit breaker tripped. | A fuse in your home may the circuit breaker tripped. | Replace the fuse or reset the circuit breaker. |
| Warming drawer not Plug in. plugged in. | ||
| Controls improperly set. | See the Using the warming drawer section. | |
| Drawer does not slide smoothly or drags | Ball bearings out of alignment. | Fully extend the drawer and push it all the way in. See the Care and cleaning section. |
| Drawer over-loaded or load unbalanced. | Reduce weight to less than 50 pounds. Redistribute drawer contents. | |
| Excessive condensation | Liquid in warming drawer pan. | Remove liquid. |
| Uncovered foods. | Cover food with lid or aluminum foil. | |
| Temperature setting too high. | Reduce temperature setting. | |
| Incorrect Moisture Selector setting. | Set the Moisture Selector to the open vent setting to allow venting. | |
| No heat in the PROOF setting | Room temperature may prevent the thermostat from tripping on. | Turn the knob to LOW then back to PROOF. |
| Food dries out | Moisture escaping. | Cover food with lid or aluminum foil. |
Notes.
| Safety Instructions | Operating Instructions | Care and Cleaning | Installation Instructions | Troubleshooting Tips | Consumer Support |
| Consumer Support | Troubleshooting Tips | Installation Instructions | Care and Cleaning | Operating Instructions | Safety Instructions |
Notes.
GE Service Protection Plus™
GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!
Benefits Include:
- Backed by GE
- All brands covered
• Unlimited service calls - All parts and labor costs included
• No out-of-pocket expenses
• No hidden deductibles
• One 800 number to call
We'll Cover Any Appliance. Anywhere. Anytime.\*
You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800.626.2224 for more information.
*All brands covered, up to 20 years old, in the continental U.S.
Cut here
Please place in envelope and mail to:
General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
1
Complete and mail your Consumer
Product Ownership
Registration today.
Have the peace of mind of knowing we can contact you in the unlikely event of a safety modification.
2
After mailing the registration below, store this document in a safe place. It contains information you will need should you require service. Our service number is 800.GE.CARES (800.432.2737).
3
Read your Owner's
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number Serial Number
Consumer Product Ownership Registration
Model Number Serial Number
GE Appliances
GE Consumer & Industrial
Louisville, Kentucky
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other important communications from GE Appliances (GEA).
Check here if you do not want to receive communications from GEA's carefully selected partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR WARRANTY RIGHTS.
For information about GEA's privacy and data usage policy, go to www.GEAppliances.com and click on "Privacy Policy" or call 800.626.2224.
Notes.
| Safety Instructions | Operating Instructions | Care and Cleaning | Installation Instructions | Troubleshooting Tips | Consumer Support |
GE Electric Warming Drawer Warranty. (For customers in the United States)
All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
For The Period Of: GE Will Replace:
One Year
From the date of the original purchase in-
Any part of the warming drawer which fails due to a defect in materials or workmanship.
During this full one-year warranty, GE will also provide, free of charge, all labor and service to replace the defective part.
What GE Will Not Cover:
■ Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
Damage caused after delivery.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
GE Electric Warming Drawer Warranty. (For customers in Canada)
All warranty service provided by our Factory Service Centers or an authorized Customer Care ^® technician. For service, call 1.800.361.3400.
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
For The Period Of: Camco Will Replace:
One Year
From the date of the original purchase in-home service to replace the defective part.
Any part of the warming drawer which fails due to a defect in materials or workmanship.
During this full one-year warranty, Camco will also provide, free of charge, all labor and
What Camco Will Not Cover:
Service trips to your home to teach you how to use the product.
- Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
Damage to the product caused by accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible defects with this appliance.
■ Damage caused after delivery.
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
Warrantor: CAMCO INC.
GE Appliances Website
In the U.S.: www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts, catalogs, or even schedule service on-line. You can also "Ask Our Team of Experts" your questions, and so much more... In Canada: www.geappliances.ca
Schedule Service
In the U.S.: www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.361.3400
Real Life Design Studio
In the U.S.: www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Camco, Inc. Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3
Extended Warranties
In the U.S.: www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133
Parts and Accessories
In the U.S.: www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Camco service center, or call 1.888.261.3055.
Contact Us
In the U.S.: www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.geappliances.ca, or write to: Director, Consumer Relations, Camco, Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance
In the U.S.: www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.geappliances.ca
