Product Type	Built-in Electric Oven
Brand	GE
Model	JTP45BABB
Installation Type	Built-in
Width	30 inches
Depth	27 inches
Height	28 inches
Weight	150 lbs
Power Supply	240V / 208V, 40A
Oven Capacity	5.0 cu ft
Self-Cleaning Mode	Yes
Convection Cooking	Yes
Bake Function	Yes
Broil Function	Yes
Control Type	Electronic touch pad
Oven Light Bulb	Halogen, replaceable
Shelf Racks	2 heavy-duty racks
Child Lock	Yes
Auto Shut-Off	Yes
Cleaning Method	Self-clean cycle or manual wipe
Spare Parts Available	Oven light, rack, door gasket
Reparability Index	Easy (common parts)

Frequently Asked Questions - JTP45BABB GE

How do I use the self-clean cycle on my GE JTP45BABB oven?

Remove all racks and accessories. Close the oven door, press the Self-Clean button, select a cleaning time (2-4 hours), and start. The oven will lock automatically. Wait for the cycle to finish and cool down before unlocking.

Why is my GE JTP45BABB oven not heating?

Check if the oven is receiving power. Ensure the circuit breaker is on. If the oven is in Demo mode, turn it off. Also, verify that the door is fully closed and the control is set to a baking mode.

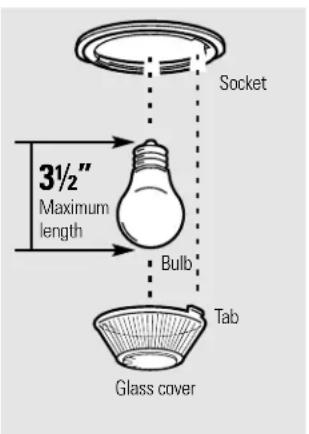

How to replace the oven light bulb in GE JTP45BABB?

Turn off the oven and let it cool. Remove the glass cover by turning it counterclockwise. Replace with a halogen bulb rated for oven use (120V, 40W). Reinstall the cover securely.

What is the oven capacity of the GE JTP45BABB?

The oven has a capacity of 5.0 cubic feet, suitable for large meals and multiple dishes.

Does the GE JTP45BABB have a convection feature?

Yes, it includes a convection cooking mode that uses a fan to circulate hot air for even baking and roasting.

How to set the clock on a GE JTP45BABB oven?

Press the Clock button, use the number pads to enter the time, then press Clock again or Start to confirm. The clock is a 12-hour format unless set to 24-hour mode.

Why does the door of my GE JTP45BABB stay locked after self-clean?

The door remains locked until the oven cools to a safe temperature (below 350°F). This can take 30-60 minutes. Ensure the Lock indicator light is off before trying to open.

Can I use aluminum foil in my GE JTP45BABB?

Yes, but avoid covering the oven bottom or air vents. Use foil only on racks to catch drips, and do not line the entire rack as it blocks heat circulation.

How do I disable the child lock on the GE JTP45BABB?

Press and hold the Lock or Child Lock button for 3 seconds until the indicator turns off. The oven will then be unlocked for normal use.

What are the dimensions of the GE JTP45BABB for installation?

The oven measures approximately 30 inches wide, 27 inches deep, and 28 inches high. Ensure the cutout in your cabinet matches these dimensions.

USER MANUAL JTP45BABB GE

Safety Precautions....3-5

Self-Cleaning Oven ....5

Operating Instructions

Clock and Timer .....12

Oven 6-16

Oven Thermostat .....14

Self-Cleaning .....15, 16

Timed Baking and

Roasting ....13

Care and Cleaning

Broiler Pan and Grid .....18

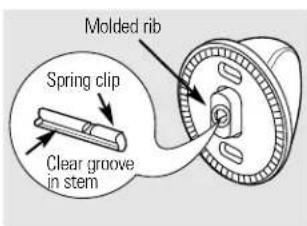

Control Panel and Knobs . . .18

Glass Surfaces .....18

Heating Element .....18

Lift-Off Oven Door .....17

Oven Interior .....19

Oven Light .....19

Painted Surfaces .....18

Shelves .....17

Stainless Steel Surfaces .....20

Troubleshooting Tips ..21-23

Consumer Services

Product Registration . .2, 25, 26

Service Telephone

Numbers ....Back Cover

Warranty 27

Owner's Manual

JKP27

JKP45

JRP24

JTP27

JTP45

JTP47

Abstract decorative swirl design with no text or symbols

GE & You, A Service Partnership.

IMPORTANT!

Fill out the Consumer Product Registration Card.

Two easy ways to register your appliance!

■ Through the internet at www.gcappliances.com
■ Complete and mail the enclosed Product Registration Card

FOR YOUR RECORDS

Write the model and serial numbers here:

#

#

You can find them on a label on the front of the lower oven behind the oven door.

Staple sales slip or cancelled check here.

Proof of the original purchase date is needed to obtain service under the warranty.

READ THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your oven properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your oven.

IF YOU NEED SERVICE

You'll find many answers to common problems in the Before You Call For Service section.

If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included in the back section of this manual.

OR

Visit our Website at: www.geappliances.com

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

The fiberglass insulation in self-clean ovens gives off a very small amount of carbon monoxide during the cleaning cycle. Exposure can be minimized by venting with an open window or using a ventilation fan or hood.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well-ventilated room.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the provided installation instructions.
• Do not attempt to repair or replace any part of your oven unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

• Have the installer show you the location of the circuit breaker or fuse. Mark it for easy reference.
  ■ Before performing any service, disconnect the oven power supply at the household distribution panel by removing the fuse or switching off the circuit breaker.
  Do not leave children alone—children should not be left alone or unattended in an area where an appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

• Do not allow anyone to climb, stand or hang on the door. They could damage the oven, or cause severe personal injury.

• Be sure the oven is securely installed in a cabinet that is firmly attached to the house structure. Never allow anyone to climb, sit, stand or hang on the oven door.
  ■ Never leave the oven door open when you are not watching the oven.
  ■ Always keep combustible wall covering, curtains or drapes a safe distance from your oven.
  ■ Always keep dish towels, dish cloths, pot holders and other linens a safe distance from your oven.
  ■ Always keep wooden and plastic utensils and canned food a safe distance away from your oven.
  ■ Teach children not to play with the controls or any other part of the oven.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

SAFETY PRECAUTIONS

• Do not store flammable materials in an oven.
  ■ CAUTION: Items of interest to children should not be stored in cabinets above an oven; children climbing on the oven to reach items could be seriously injured.
  ■ Never wear loose-fitting or hanging garments while using the appliance. Be careful when reaching for items stored in cabinets over the oven. Flammable material could be ignited if brought in contact with hot surfaces or heating elements and may cause severe burns.
  Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot heating elements. Do not use a towel or other bulky cloth.
  ■ For your safety, never use your appliance for warming or heating the room.
  ■ Do not let cooking grease or other flammable materials accumulate in or near the oven.
• Do not use water on grease fires. Never pick up a flaming pan. Turn the controls off.

Flame in the oven can be smothered completely by closing the oven door and turning the oven off or by using a multi-purpose dry chemical or foam-type fire extinguisher.

■ Never leave jars or cans of fat drippings in or near your oven.
- Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Stand away from the oven when opening the oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.
■ Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.
- Keep the oven vent unobstructed.
- Keep the oven free from grease buildup.
Place the oven shelf in the desired position while the oven is cool. If shelves must be handled when hot, do not let pot holder contact the heating elements.
- When using cooking or roasting bags in the oven, follow the manufacturer's directions.
Do not touch the heating elements or the interior surface of the oven. These surfaces may be hot enough to burn even though they are dark in color. During and after use, do not touch, or let clothing or other flammable materials contact any interior area of the oven; allow sufficient time for cooling first.

Potentially hot surfaces include oven vent openings, surfaces near the openings, crevices around the oven door, the edges of the window and metal trim parts above the door.

REMEMBER: The inside surface of the oven may be hot when the door is opened.

■ Pulling out the shelf to the stop-lock is a convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.
■ Do not use the oven to dry newspapers. If overheated, they can catch on fire.
- Do not use the oven for a storage area. Items stored in an oven can ignite.
■ Do not leave paper products, cooking utensils or food in the oven when not in use.

■ After broiling, always take the broiler pan out of the oven and clean it. Leftover grease in the broiler pan can catch fire next time you use the pan.
■ Clean only parts listed in this Use and Care Manual.
- Do not use aluminum foil to line oven bottoms, except as suggested in this manual. Improper installation of aluminum foil may result in a risk of electric shock or fire.

COOK MEAT AND POULTRY THOROUGHLY...

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160^ F. and poultry to at least an INTERNAL temperature of 180^ F. Cooking to these temperatures usually protects against foodborne illness.

SELF-CLEANING OVEN

• Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage or move the gasket.
  Do not use oven cleaners. No commercial oven cleaner or oven liner protective coating of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

■ Before self-cleaning the oven, remove the broiler pan, grid and other cookware.
- Be sure to wipe up excess spillage before starting the self-cleaning operation.
If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Using the oven controls.

Throughout this manual, features and appearance may vary from your model.

(on some models)

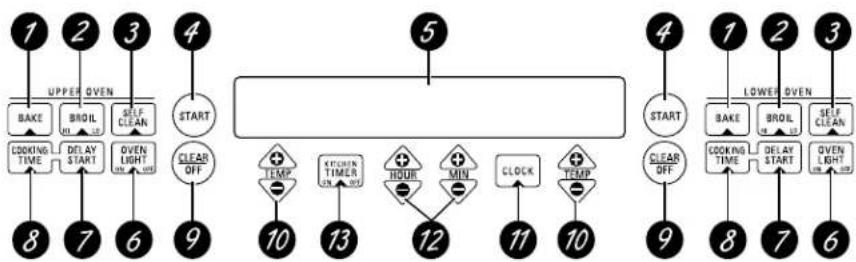

Oven Control, Clock and Timer Features and Settings

1 BAKE Pad Press this pad to select the bake function.
2 BROIL HI/LO Pad Press this pad to select the broil function.
3 SELF CLEAN Pad Press this pad to select the self-cleaning function. See the Using the self-cleaning oven section.
4 START Pad Must be pressed to start any cooking or cleaning function.
5 Display Shows the time of day, oven temperature, whether the oven is in the bake, broil or self- cleaning mode and the times set for the timer or automatic oven operations.

If "F — and a number or letter" flash in the display and the oven control signals, this indicates a function error code. Press the CLEAR/OFF pad. Allow the oven to cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the oven and call for service.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all programmed functions must be reset.

The time of day will flash in the display when there has been a power outage.

6 OVEN LIGHT ON/OFF Pad Press this pad to turn the oven light on or off.

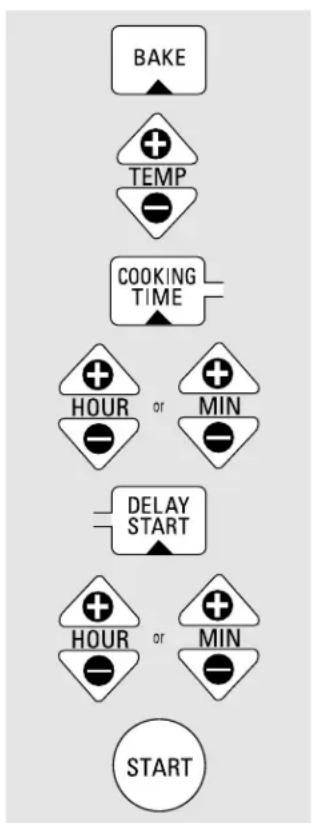

7 DELAY START Pad Use along with COOKING TIME or SELF CLEAN pads to set the oven to start and stop automatically at a time you set.

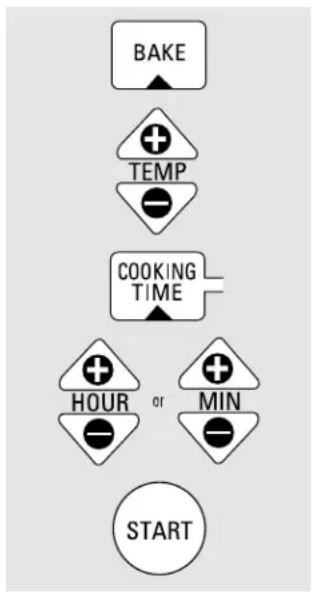

8 COOKING TIME Pad Press this pad and then press the number pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.
9 CLEAR/OFF Pad Press this pad to cancel ALL oven operations except the clock and timer.
10 TEMP + and - Pads Press these pads to set the cooking temperature you want to use.
11 CLOCK Pad Press this pad before setting the clock.
12 HOUR and MIN + and – Pads Press these pads to set times up to 9 hours and 59 minutes—for example, the time of day on the clock, the timer, the starting and length of cooking time for timed bake and the starting and length of cleaning time for self-clean.
13 KITCHEN TIMER ON/OFF Pad Press this pad to select the timer feature.

Lower Oven Control Settings on models with knob(s)

OVEN Knob

Turn this knob to the temperature setting you want.

The OVEN CYCLE light glows until the oven reaches your selected temperature, then goes off and on with the oven element(s) during cooking.

OVEN TEMP Knob

Turn this knob to the temperature you want.

OVEN SET Knob

Turn this knob to the setting you want.

OVEN TEMP LOWER OVEN OVEN SET OFF CAUCLE BAKE 3000 MB

The oven CYCLE light glows until the oven reaches your selected temperature, then goes off and on with the oven element(s) during cooking.

Special features of your oven control.

Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain in the control's memory until the steps are repeated.

When the display shows your choice, press the START pad. The special features will remain in memory after a power failure.

12 Hour Shut-Off

With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

If you wish to turn off this feature, follow the steps below.

1 Press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SF.
2 Press the DELAY START pad. The display will show 12 shdn (12 hour shut-off). Press the DELAY START pad again and the display will show no shdn (no shut-off).

3 Press the START pad to lock in the no shdn (no shut-off) feature and leave the control set in this special features mode.

NOTE:

• On models with touch pad controls for both ovens, this activates this special feature for both ovens.
  This feature is not available, for the lower oven, on models with oven knob(s).

BAKE + BROIL HI LO BROIL HI LO START

Fahrenheit or Celsius Temperature Selection

Your oven control is set to use the Fahrenheit temperature selections but you may change this to use the Celsius selections.

1 Press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SF.
2 Press the BROIL HI/LO pad. The display will show F (Fahrenheit).
3 Press the BROIL HI/LO pad again. The display will show C (Celsius).

4 Press the START pad.

NOTE:

• On models with touch pad controls for both ovens, the new setting will be displayed for both ovens.
  This feature is not available, for the lower oven, on models with oven knob(s).

Control Lockout

Your control will allow you to lock down the touch pads so they cannot be activated when pressed.

1 Press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SF.
2 Press the SELF CLEAN pad. The display will show LOC OFF. Press the SELF CLEAN pad again. The display will show LOC ON.
3 Press the START pad to activate the control lockout feature and leave the control set in this special features mode.

When this feature is on and the touch pads are pressed the control will beep and the display will show LOC.

NOTE:

The control lockout mode will not affect the CLOCK, KITCHEN TIMER ON/OFF and OVEN LIGHT ON/OFF touch pads.
- On models with touch pad controls for both ovens, this activates this special feature for both ovens.
This feature is not available, for the lower oven, on models with oven knob(s).

Special features of your oven control.

Tones at the End of a Timed Cycle

At the end of a timed cycle, 3 short beeps will sound followed by one beep every 6 seconds until the CLEAR/OFF pad is pressed. This continuous 6 second beep may be canceled.

To cancel the 6 second beep:

1 Press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SF.
2 Press the KITCHEN TIMER ON/OFF pad. The display shows CON BEEP (continuous beep). Press the KITCHEN TIMER ON/OFF pad again. The display shows BEEP. (This cancels the one beep every 6 seconds.)
3 Press the START pad.

NOTE:

• On models with touch pad controls for both ovens, this cancels the end of cycle tone for both ovens.
  This feature is not available, for the lower oven, on models with oven knob(s).

12 Hour, 24 Hour or Clock Black-Out

Your control is set to use a 12 hour clock.

If you would prefer to have a 24 hour military time clock or black-out the clock display, follow the steps below.

1 Press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SE.
2 Press the CLOCK pad once. The display will show 12 hr. If this is the choice you want press the START pad.

Press the CLOCK pad again to change to the 24 hour military time clock. The display will show 24 hr. If this is the choice you want press the START pad.

Press the CLOCK pad again to black-out the clock display. The display will show OFF. If this is the choice you want press the START pad.

NOTE: If the clock is in the black-out mode you will not be able to use the Delay Start function.

Cook and Hold

Your new control has a cook and hold feature that keeps cooked foods warm for up to 3 hours after the cooking function is finished.

To activate this feature, follow the steps below.

7 Both touch pad ovens follow the same step 1. First press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SF. Then proceed with steps 2 through 3, using the pads for the upper or lower oven.

2 Press the COOKING TIME pad. The display will show Hld OFF.

Press the COOKING TIME pad again to activate the feature. The display will show Hld ON.

3 Press the START pad to activate the cook and hold feature and leave the control set in this special features mode.

NOTE: This feature is not available, for the lower oven, on models with oven knob(s).

Changing the Speed of the + or - Pads

As you use the + or - pads when setting a time or temperature, you may notice the display changes slowly. This special feature allows you to change the speed. To set the speed you prefer, follow the steps below.

7 Press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SF.

2 Press the + pad. The display will show you a set speed between 1 and 5.

3 Press the + pad to increase the speed up to the number 5.

Press the - pad to decrease the speed down to the number 1.

4 Press START to activate the setting and leave the control set in this special features mode.

Using the oven.

To avoid possible burns, place the shelves in the desired position before you turn the oven on.

G F E D C B A

Before you begin...

The shelves have stop-locks, so that when placed correctly on the supports, they will stop before coming completely out, and will not tilt.

When placing and removing cookware, pull the shelf out to the bump on the shelf support.

To remove a shelf, pull it toward you, tilt the front end up and pull it out.

To replace, place the end of the shelf (stop-locks) on the support, tilt up the front and push the shelf in.

NOTE: 30 ovens (shown) have 7 shelf positions. 27" ovens have 4 shelf positions.

Illustration of a supermarket aisle with shelves and a cart, no visible text or symbols

How to Set the Oven for Baking or Roasting

1 Press the BAKEpad.
2 Press the TEMP +or - pads to set the desired temperature.
3 Press the STARTpad.
4 Check food for doneness at minimum time on recipe. Cook longer if necessary.
5 Press the CLEAR/OFFed when cooking is complete.

NOTE: On some models the lower oven is controlled with a knob or knobs. To set the oven for baking turn the knob to the desired setting and temperature. Turn the knob to OFF when baking is complete.

If you have a two knob system, turn both knobs to the desired setting and temperature to bake and to the OFF position when baking is complete.

Oven Shelf Positions
Type of Food 24" & 27" 30"

Frozen pies B or C C or D (on cookie sheet)

Angel food cake, A B bundt or pound cakes

Biscuits, muffins, B or C C or D

brownies, cookies,

cupcakes, layer

cakes, pies

Casseroles B or C C or D

NOTE: A cooling fan may automatically turn on and off to cool internal parts. This is normal, and the fan may continue to run even after the oven is turned off.

Preheating and Pan Placement

Preheat the oven if the recipe calls for it. To preheat, set the oven at the correct temperature. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

For ovens without a preheat indicator light or tone, preheat 10 minutes.

Baking results will be better if baking pans are centered in the oven as much as possible. Pans should not touch each other or the walls of the oven. If you need to use two shelves, stagger the pans so one is not directly above the other, and leave approximately 1 12 " between pans, from the front, back and sides of the wall.

Hand holding a tray with a grid of small objects, no text or symbols visible

Cut slits in the foil just like the grid.

Aluminum Foil

You can use aluminum foil to line the broiler pan and broiler grid. However, you must mold the foil tightly to the grid and cut slits in it just like the grid.

Aluminum foil may also be used to catch a spillover.

Never entirely cover a shelf with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower shelf several inches below the food.

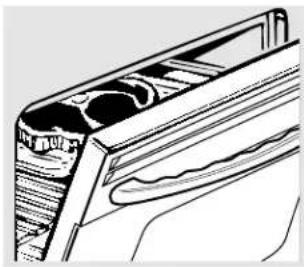

Cross-sectional diagram of a mechanical component or housing (no text or symbols visible)

Leave the door open to the broil stop position. The door stays open by itself, yet the proper temperature is maintained in the oven.

How to Set the Oven for Broiling

1 Place the meat or fish on the broiler grid in the broiler pan.
2 Follow suggested shelf positions in the Broiling Guide.

If your oven is connected to 208 volts, rare steaks may be broiled by preheating the broiler and positioning the oven shelf one position higher.

3 Press the BROIL HI/LO pad once for HI Broil.

To change to LO Broil, press the BROIL HI/LO pad again.

4 Press the START pad.
5 When broiling is finished, press the CLEAR/OFF pad.

NOTE: On some models the lower oven is controlled with a knob or knobs. To set the oven for broiling turn the knob to BROIL. Turn the knob to OFF when broiling is complete.

If you have a two knob system, turn both knobs to the BROIL position to broil and to the OFF position when broiling is complete.

Broiling Guide

Food	Quantity and/ Ovens Shelf First or Thickness	24" & 27" 24" & 27" Ovens 24" & 27" Ovens 30" Ovens 30" Ovens 30" Ovens						Comments
		Position	Time (min.)	Time (min.)	Position	Time (min.)	Time (min.)
Ground Beef	1 lb. (4 patties)	C	10	7	E	10	7	Space evenly. Up to 8 patties take about the same time.
Well Done	1/2 to 3/4" thick				E	10	9
Beef Steaks
Rare	1" thick	C	6	5	E	8	6	Steaks less than 1" thick cook
Medium	1 to 11⁄2 lbs.	C	8	6	E	10	8	through before browning.
Well Done		C	12	11	E	12	10
Rare	11⁄2" thick	C	10	7-8	E	10	8	Pan frying is recommended.
Medium	2 to 21⁄2 lbs.	C	15	14-16	E	15	14-16
Well Done		C	25	20-25	E	25	20-25	Slash fat.
Chicken	1 whole2 to 21⁄2 lbs., split lengthwise	A	35	10-15	C	25	10	Reduce time about 5 to 10 minutes per side for cut-up chicken. Brush each side with melted butter. Broil skin-side-down first.
Lobster Tails	2-46 to 8 oz. each	B	13-16	Do not turn over.	C	13-16	Do not turn over.	Cut through back of shell. Spread open. Brush with melted butter before broiling and after half of broiling time.
Fish Fillets	1/4 to 1/2" thick	C	5	5	E	5	5	Handle and turn very carefully. Brush with lemon butter before and during cooking, if desired. Preheat broiler to increase browning.
Ham Slices(precooked)	1" thick	B	8	8	D	8	8	Increase time 5 to 10 minutes per side for 11⁄2" thick or home-cured ham.
Pork Chops	2 (1/2" thick)	C	10	10	E	10	10	Slash fat.
Well Done	2 (1" thick) about 1 lb.	B	13	13	D	15	15
Lamb Chops
Medium	2 (1" thick) about 10	C	10	9	E	10	9	Slash fat.
Well Done	to 12 oz.	C	12	10	E	12	10
Medium	2 (11⁄2" thick) about 1 lb.	C	14	12	E	14	12
Well Done		B	17	12-14	E	17	12-14	17

Using the clock and timer.

Make sure the clock is set to the correct time of day.

To Set the Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a timed baking or self-cleaning cycle.

1 Press the CLOCK pad.

2 Press the HOUR and MIN + or - pads to set the time of day.

3 Press the START pad.

The timer is a minute timer only. The timer does not control oven operations. The maximum setting on the timer is 9 hours and 59 minutes.

To Set the Timer

1 Press the KITCHEN TIMER ON/OFF pad.
2 Press the HOUR and MIN + or - pads until the amount of time you want shows in the display. If you make a mistake, press KITCHEN TIMER ON/OFF and begin again.
3 Press the START pad.

After pressing the START pad, SET disappears; this tells you the time is counting down, although the display does not change until one minute has passed.

4 When the timer reaches :00, the control will beep 3 times followed by one beep every 6 seconds until the KITCHEN TIMER ON/OFF pad is pressed.

The 6 second tone can be canceled by following the steps in the Special features of your oven control section under Tones at the End of a Timed Cycle.

To Reset the Timer

If the display is still showing the time remaining, you may change it by pressing the KITCHEN TIMER ON/OFF pad, then press the HOUR and MIN + or - pads until the time you want appears in the display.

If the remaining time is not in the display (clock, delay start or cooking time are in the display), recall the remaining time by pressing the KITCHEN TIMER ON/OFF pad and then pressing the HOUR and MIN + or - pads to enter the new time you want.

To Cancel the Timer

Press the KITCHEN TIMER ON/OFF pad twice.

Using the timed baking and roasting features. (ovens operated with touch pads)

On models with touch pad controls for both ovens, you can use timed baking in one oven while using self-clean in the other; you can also use timed baking in both ovens at the same time.

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time the oven will turn off automatically.

Make sure the clock shows the correct time of day.

1 Press the BAKE pad.

2 Using the TEMP + or - pads, enter the desired temperature.

3 Press the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

4 Using the HOUR and MIN + or - pads, enter the desired baking time.

The oven temperature and the cooking time that you entered will be displayed.

5 Press the START pad.

The display shows the oven temperature that you set and the cooking time countdown. The display starts changing once the temperature reaches 100^ F.

NOTE: When using both ovens at the same time, the times showing in the display will be for the last oven set. To display the time set for the first oven set, press the COOKING TIME pad for that oven.

The oven will continue to cook for the programmed amount of time, then shut off automatically.

Press the CLEAR/OFF pad to clear the display.

How to Set a Delayed Start and Automatic Stop

You can set the oven control to delay-start the oven, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

1 Press the BAKE pad.

2 Using the TEMP + or - pads, enter the desired temperature.

3 Press the COOKING TIME pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

4 Using the HOUR and MIN + or - pads, enter the desired baking time.

5 Press the DELAY START pad.

6 Using the HOUR and MIN + or - pads, enter the time of day you want the oven to turn on and start cooking.

7 Press the STARTpad.

NOTE: An attention tone will sound if you are using timed baking and do not press the START pad after entering the baking temperature.

If you would like to check the times you have set press the DELAY START pad to check the start time you have set or press the COOKING TIME pad to check the length of cooking time you have set.

When the oven turns on at the time of day you have set, the display will show the changing temperature (starting at 100^ F.) and the cooking time countdown.

NOTE: When using both ovens at the same time, the times showing in the display will be for the last oven set. To display the time set for the first oven set, press the COOKING TIME pad for that oven.

At the end of timed baking, the oven will turn off. The end of cycle tone will sound.

Press the CLEAR/OFF pad to clear the display.

Adjust the oven thermostat—Do it yourself!

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself. Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

To Adjust the Oven Thermostat (on some models)

1 Both touch pad ovens follow the same step 1. First press the upper oven BAKE and BROIL HI/LO pads at the same time for 3 seconds until the display shows SF. Then proceed with steps 2 through 4, using the pads for the upper or lower oven.
2 Press the BAKE pad. A two digit number shows in the display.

3 The oven temperature can be adjusted up to (+) 35^ F. hotter or (-) 35^ F. cooler. Press the TEMP + pad to increase the temperature in 1 degree increments. Press the TEMP - pad to decrease the temperature in 1 degree increments.
4 When you have made the adjustment, press the START pad to go back to the time of day display. Use your oven as you would normally.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

ONION INSULANCE SHEET DENT POTTER 10.4MΩ5 GEMI COOLED TINU 60A

Turn the disk counterclockwise to increase the oven temperature.

TOMATO OVER COOLER TINING D

Turn the disk clockwise to decrease the oven temperature.

To Adjust the Oven Thermostat (on some models)

Pull the OVEN knob off the shaft, look at the back of the knob and note the current setting before making any adjustment. The knob is factory set with the top screw directly under the pointer.

1 Pull off the OVEN knob.
2 Loosen both screws on back of the knob.
3 Hold both parts of the knob as shown in the illustration of the back of the OVEN knob and turn so the lower screw moves in the desired direction.

You will hear and feel the notches as you turn the knob. Each notch changes temperature about 10^ Fahrenheit.

4 Tighten the screws.
5 Return the OVEN knob to the oven.

Re-check oven performance before making any additional adjustments.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affect the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

Using the self-cleaning oven. (ovens operated with touch pads)

The oven door must be closed and all controls must be set correctly for the cycle to work properly.

Illustration of a hand holding a tool near a vehicle (no text or symbols visible)

Wipe up heavy soil on the oven bottom. (appearance may vary)

Before a Clean Cycle

The oven must be cool in order to set the self-clean cycle.

We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle.

Remove the broiler pan, broiler grid, all cookware and any aluminum foil from the oven.

The oven shelves can be self-cleaned, but they will darken, lose their luster and become hard to slide.

Do not use abrasives or oven cleaners. Clean the top, sides and outside of the oven door with soap and water.

Make sure the oven light bulb cover (on some models) is in place and the oven light is off.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any oven. Move birds to another well ventilated room.

On models with touch pad controls for both ovens, you can set a clean cycle in both ovens at the same time. The last oven set will automatically delay its start until the end of the first oven's clean cycle.
- On models with touch pad controls for both ovens, you can use timed baking in one oven and self-clean the other at the same time.

How to Set the Oven for Cleaning

1 Press the SELF CLEAN pad.

2 Using the HOUR and MIN + or - pads, enter the desired clean time, if a time other than 4 hours is needed.

Clean cycle time is normally 4 hours. You can change the clean time to any time between 3 hours and 5 hours, depending on how dirty your oven is.

3 Press the START pad.

The door locks automatically. The display will show the clean time remaining. It will not be possible to open the oven door until the temperature drops below the lock temperature and the LOCKED DOOR light goes off.

When the LOCKED DOOR light is off, open the door.

■ The words LOCK DOOR will flash and the oven control will signal if you set the clean cycle and forget to close the oven door.
To stop a clean cycle, press the CLEAR/OFF pad. When the LOCKED DOOR light goes off indicating the oven has cooled below the locking temperature, open the door.

Using the self-cleaning oven. (ovens operated with touch pads)

The oven door must be closed and all controls must be set correctly for the cycle to work properly.

How to Delay the Start of Cleaning

1 Press the SELF CLEAN pad.
2 Using the HOUR and MIN + or - pads, enter the desired clean time.
3 Press the DELAY START pad.
4 Using the HOUR and MIN + or - pads, enter the time of day you want the clean cycle to start.
5 Press the START pad.

The door locks automatically. The display will show the start time. It will not be possible to open the oven door until the temperature drops below the lock temperature and the LOCKED DOOR light goes off.

When the LOCKED DOOR light is off, open the door.

NOTE: On models with touch pad controls for both ovens, you can set a delay clean in both ovens at the same time. The second oven set will automatically delay the start of cleaning until the end of the first oven's clean cycle.

To recall the start time of the second oven set, press the DELAY START pad on the controls for the second oven.

After a Clean Cycle

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with a soap-filled steel wool pad and rinse thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

■ You cannot set the oven for cooking until the oven is cool enough for the door to unlock.
■ If the shelves become hard to slide, wipe the shelf supports with cooking oil.

Care and cleaning of the oven.

Be sure electrical power is off and all surfaces are cool before cleaning any part of the oven.

How to Remove Packaging Tape

To assure no damage is done to the finish of the product, the safest way to remove the adhesive left from packaging tape on new appliances is an application of a household liquid dishwashing detergent, mineral oil or cooking oil.

Apply with a soft cloth and allow to soak. Wipe dry and then apply an appliance polish to thoroughly clean and protect the surface.

NOTE: The plastic tape must be removed from all chrome trim. It cannot be removed if it is baked on.

Line drawing of a person installing or maintaining a large appliance on a door (no text or symbols)

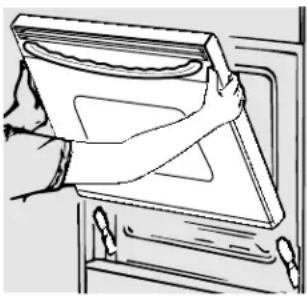

Lift the door straight up and off the hinges.

Simple line drawing of a rectangular frame with a central black rectangle and diagonal lines, no text or symbols present.

The gasket is designed with a gap at the bottom to allow for proper air circulation.

Do not rub or clean the door gasket—it has an extremely low resistance to abrasion.

If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

Lift-Off Oven Door

The oven door is removable for easier access to the light bulb.

Do not lift the door by the handle.

To remove the door, open it to the broil stop position. Grasp firmly on each side and lift the door straight up and off the hinges.

Do not place hands between the hinge and the oven door frame.

To replace the door, make sure the hinges are in the broil stop position. Position the slots in the bottom of the door squarely over the hinges and slowly lower it over both hinges.

To clean the outside of the door:

■ Use soap and water to thoroughly clean the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door. Do not let water drip into the vent openings.
■ Spillage of marinades, fruit juices, tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.
■ Do not use oven cleaners, cleaning powders or harsh abrasives on the outside of the door.

To clean the inside of the door: (on self-cleaning ovens)

Because the area inside the gasket is cleaned during the self-clean cycle, you do not need to clean this by hand.
The area outside the gasket and the front frame can be cleaned with a soap-filled steel wool or plastic pad, hot water and detergent. Rinse well with a vinegar and water solution.

To clean the inside of the door:

(on standard clean ovens)

Soap and water will normally do the job. Heavy spattering or spillovers may require cleaning with a mild abrasive cleaner. Soap-filled steel wool pads may also be used.

Do not allow food spills with a high sugar or acid content (such as tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface. They may cause a dull spot even after cleaning.

If necessary, you may use an oven cleaner. Follow the package directions.
■ Clean the inside of the oven window with a mild non-scratching cleaner and a damp cloth.

Oven Shelves

Clean the oven shelves with an abrasive cleanser or steel wool. After cleaning, rinse the shelves with clean water and dry with a clean cloth.

NOTE: The oven shelves may be cleaned in the self-cleaning oven. However, the shelves will darken in color, lose their luster and become hard to slide if cleaned during the self-cleaning cycle. You can wipe the shelf supports with cooking oil after self-cleaning to make the shelves slide more easily.

Care and cleaning of the oven.

After broiling, remove the broiler pan from the oven.

Broiler Pan & Grid

Do not clean the broiler pan or grid in a self-cleaning oven.

After broiling, remove the broiler pan from the oven. Remove the grid from the pan. Carefully pour out the grease from the pan into a proper container.

Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.

If food has burned on, sprinkle the grid with detergent while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned-on foods.

Both the broiler pan and grid may be cleaned with a commercial oven cleaner.

Both the broiler pan and grid can also be cleaned in a dishwasher.

Do not store a soiled broiler pan and grid anywhere in the oven.

Control Panel

It's a good idea to wipe the control panel after each use. Clean with mild soap and water or vinegar and water, rinse with clean water and polish dry with a soft cloth.

Do not use abrasive cleansers, strong liquid cleansers, plastic scouring pads or oven cleansers on the control panel—they will damage the finish. A 50/50 solution of vinegar and hot water works well.

Molded rib Spring clip Clear groove in stem

Oven Knob (on some models)

The control knob (lower oven only) may be removed for easier cleaning.

Before removing the knob for cleaning, please note that the knob is in the OFF position. When replacing the knob, check the OFF position to insure proper placement.

The knob stem is D shaped. Install the flat of the shaft to the flat of the knob.

Wash the knob in soap and water or a vinegar and hot water solution but do not soak.

Painted Surfaces

Clean with soap and water or a vinegar and water solution.

Do not use commercial oven cleaners, cleansing powders, steel wool or harsh abrasives on any painted surface.

Glass Surfaces

To clean the outside glass finish, use a glass cleaner. Rinse and polish with a dry cloth.

Do not allow the water or cleaner to run down inside the oven door while cleaning.

Illustration of hands connecting a device to a rack (no text or symbols visible)

Oven Heating Elements

Do not clean the bake element or the broil element. Any soil will burn off when the elements are heated.

To clean the oven floor, gently lift the bake element. Clean with warm soapy water.

Porcelain Oven Interior (on some models)

With proper care, the porcelain enamel finish on the inside of the oven—top, bottom, sides, back and inside of the door—will stay new-looking for years.

Let the oven cool before cleaning. We recommend that you wear rubber gloves when cleaning the oven.

Soap and water will normally do the job. Heavy spattering or spillovers may require cleaning with a mild abrasive cleaner. Soap-filled steel wool pads may also be used.

Do not allow food spills with a high sugar or acid content (such as tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface. They may cause a dull spot even after cleaning.

Household ammonia may make the cleaning job easier. Place 1/2 cup in a shallow glass or pottery container in a cold oven overnight.

The ammonia fumes will help loosen the burned-on grease and food.

If necessary, you may use an oven cleaner. Follow the package directions.

• Do not spray oven cleaner on the electrical controls and switches because it could cause a short circuit and result in sparking or fire.
  Do not allow a film from the cleaner to build up on the temperature sensor—it could cause the oven to heat improperly. (The sensor is located at the top of the oven.) Carefully wipe the sensor clean after each oven cleaning, being careful not to move the sensor as a change in its position could affect how the oven bakes.
  Do not spray any oven cleaner on the oven door, handles or any exterior surface of the oven, cabinets or painted surfaces. The cleaner can damage these surfaces.

Socket 3½" Maximum length Bulb Tab Glass cover

Oven Light Bulb (on some models)

NOTE: The glass cover should be removed only when cold. Wearing latex gloves may offer a better grip.

Before replacing the bulb, disconnect electrical power to the oven at the main fuse or circuit breaker panel. Let the bulb cool completely before removing it. For your safety, do not touch a hot bulb with a damp cloth. If you do, the bulb will break.

To remove:

Turn the glass cover counterclockwise 1/4 turn until the tabs of the glass cover clear the grooves of the socket. Remove the bulb.

To replace:

Put in a new 40-watt appliance bulb.

NOTE:

A 40-watt appliance bulb is smaller than a standard 40-watt household bulb.
■ Install and tighten the cover clockwise.
■ Reconnect electrical power to the oven.
For improved lighting inside the oven, clean the glass cover frequently using a wet cloth. This should be done when the oven is completely cool.

Technical diagram of a mechanical component with a circular housing and a separate curved housing, showing no text or symbols.

Wire cover holder

Oven Light Bulb (on some models)

CAUTION: Before replacing your oven light bulb, disconnect the electrical power to the oven at the main fuse or circuit breaker panel.

Be sure to let the light cover and bulb cool completely.

To remove the cover:

Hold a hand under the cover so it doesn't fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.

Do not remove any screws to remove the cover.

2 Replace bulb with a 40-watt appliance bulb.

To replace the cover:

1 Place it into grooves of the light receptacle. Pull wire forward to the center of the cover until it snaps into place.
2 Connect electrical power to the oven.

Care and cleaning of the oven.

Stainless Steel Surfaces (on some models)

Do not use a steel-wool pad; it will scratch the surface.

To clean the stainless-steel surface, use a hot, damp cloth with a mild detergent suitable for stainless-steel surfaces. Use a clean, hot, damp cloth to remove soap. Dry with a dry, clean cloth.

If food soil remains, try a general kitchen cleaner, such as Fantastik ^® , Simple Green ^® , or Formula 409 ^® .

For hard-to-clean soil, use a standard stainless-steel cleaner, such as Bon-Ami ^® or Cameo ^® .

Apply cleaner with a damp sponge. Use a clean, hot, damp cloth to remove cleaner. Dry with a dry, clean cloth. Always scrub lightly in the direction of the grain.

After cleaning, use a stainless-steel polish, such as Stainless Steel Magic ^® , Revere Copper and Stainless Steel Cleaner ^® , or Wenol All Purpose Metal Polish ^® . Follow the product instructions for cleaning the stainless-steel surface.

Before You Call For Service...

Troubleshooting Tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

Problem Possible Causes What To Do
Control signals after entering cooking time or delay start	You forgot to enter a • Press the bake temperature or cleaning time.	BAKE pad and desired temperature or the SELF CLEAN pad and desired clean time.
Food does not bake or roast properly	Oven controls improperly set. • See the shelf position is incorrect • See the or the shelf is not level.	Using the oven section.
		Using the oven section.
	Incorrect cookware or • See the cookware of improper size being used.	Using the oven section.
	Oven thermostat • See the needs adjustment. section.	Adjust the oven thermostat—Do it yourself!
Food does not broil properly	Door not open to the • See the broil stop position as recommended.	Using the oven section.
	Oven controls improperly set. • Make sure you press the Improper shelf • See the position being used.	BROIL HI/LO pad.
		Broiling Guide.
	Food being cooked in a hot pan. Make sure it is cool.	• Use the broiling pan and grid that came with your oven.
	Cookware not suited for broiling.	• Use the broiling pan and grid that came with your oven.
	Aluminum foil used on the • See the the broiling pan and grid has not been fitted properly and slit as recommended.	Using the oven section.
	In some areas the power (voltage) may be low.	• Preheat the broil element for 10 minutes.
		• Broil for the longest period of time recommended in the Broiling Guide.
Clock and timer do not work	A fuse in your home may be blown or the circuit breaker tripped.	• Replace the fuse or reset the circuit breaker.
	Oven controls improperly set.	• See the Using the clock and timer section.
Oven light does not work	Light bulb is loose or defective.	• Tighten or replace the bulb.
	Pad operating light is broken.	• Call for service.

Before You Call For Service...

Troubleshooting Tips

Problem Possible Causes What To Do
Oven temperature too hot or too cold	Oven thermostat • See the needs adjustment. section.	Adjust the oven thermostat—Do it yourself!
Oven will not work	A fuse in your home may be blown or the circuit breaker tripped.	• Replace the fuse or reset the circuit breaker.
	Oven controls improperly set. • See the Using the oven section.
Oven will not self-clean	The oven temperature is too high to set a the controls. self-clean operation.	• Allow the oven to cool to room temperature and reset
	Oven controls improperly set. • See the Using the self-cleaning oven section.
“Crackling” or “popping” sound	This is the sound of the • This is normal. metal heating and cooling during both the cooking and cleaning functions.
Excessive smoking during clean cycle	Excessive soil. • Press the CLEAR/OFF pad. Open the windows to rid the room of smoke. Wait until the LOCKED DOOR light goes off. Wipe up the excess soil and reset the clean cycle.
Oven door will not open after a clean cycle	Oven too hot. • Allow the oven to cool below locking temperature.
Oven not clean after a clean cycle	Oven controls improperly set. • See the Using the self-cleaning oven section.
	Oven was heavily soiled. • Clean up heavy spillovers before starting the clean cycle. Heavily soiled ovens may need to self-clean again or for a longer period of time.
“LOCK DOOR” flashes in the display	The self-clean cycle • Close the oven door. has been selected but the door is not closed.
LOCKED DOOR light is on when you want to cook	The oven door is locked because the temperature inside the oven has not dropped below the locking temperature.	• Press the CLEAR/OFF pad. Allow the oven to cool.
“F— and a number or letter” flash in the display	You have a function • Press the error code. one hour. Put the oven back into operation.	CLEAR/OFF pad. Allow the oven to cool for
	If the function code repeats, seconds and then reconnect power. If the function error code repeats, call for service.	Disconnect all power to the oven for at least 30
Display goes blank	A fuse in your home may be blown or the circuit breaker tripped.	Replace the fuse or reset the circuit breaker.
	The clock is in the black-out mode.	Special features of your oven control section.
Display flashes	Power failure. • Reset the clock.
Unable to get the display to show “SF”	Oven control pads were • The not pressed properly. at the same time and held for 3 seconds.	BAKE and BROIL HI/LO pads must be pressed
Power outage, clock flashes	Power outage or surge.	Reset the clock. If the oven was in use, you must reset it by pressing the CLEAR/OFF pad, setting the clock and resetting any cooking function.
“Burning” or “oily” odor emitting from the vent	This is normal in a new oven and will disappear in time.	• To speed the process, set a self-clean cycle for a Using the self-cleaning oven section.
Strong odor	An odor from the insulation around the inside of the oven is normal for the first few times the oven is used.	• This is temporary.
Fan noise	A cooling fan may automatically turn on and off to cool internal parts.	• This is normal. The cooling fan will turn off and on.

Notes

GE Service Protection Plus™

GE, a name recognized worldwide for quality and dependability, offers you Service Protection Plus™—comprehensive protection on all your appliances—No Matter What Brand!

Benefits Include:

• Backed by GE
• All brands covered
• Unlimited service calls
• All parts and labor costs included
  • No out-of-pocket expenses
  • No hidden deductibles
  • One 800 number to call

We'll Cover Any Appliance. Anywhere. Anytime.\*

You will be completely satisfied with our service protection or you may request your money back on the remaining value of your contract. No questions asked. It's that simple.

Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand! Plus there's no extra charge for emergency service and low monthly financing is available. Even icemaker coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable household products are protected against expensive repairs.

Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224 for more information.

*All brands covered, up to 20 years old, in the continental U.S.

Cut here

Please place in envelope and mail to:

General Electric Company

Warranty Registration Department

P.O. Box 32150

Louisville, KY 40232-2150

Consumer Product Ownership Registration

Dear Customer:

Thank you for purchasing our product and thank you for placing your confidence in us.

We are proud to have you as a customer!

Follow these three steps to protect your new appliance investment:

1

Complete and mail

your Consumer

Product Ownership

Registration today.

Have the peace of

mind of knowing we

can contact you in the

unlikely event of a

safety modification.

2

After mailing the

registration below,

store this document

in a safe place. It

contains information

you will need should

you require service.

Our service number is

800 GE CARES

(800-432-2737).

3

Read your Owner's

Manual carefully.

It will help you

operate your new

appliance properly.

Model Number Serial Number

Important: If you did not get a registration card with your product, detach and return the form below to ensure that your product is registered, or register online at www.geappliances.com.

Cut here

Consumer Product Ownership Registration

Model Number Serial Number

Mr. □ Ms.□ Mrs.□ Miss First Name Last Name

Street Address

Apt. # E-mail Address ________________

City State Zip Code

Date Placed In Use Month Day Year Phone Number

Occasionally, we may allow selected companies to send you information.

☐ Check here if you do not want this information.

GE Appliances

General Electric Company

Louisville, Kentucky

www.geappliances.com

GE Built-In Electric Oven Warranty

All warranty service provided by our Factory Service Centers or an authorized Customer Care® technician. For service, call 800-GE-CARES.

For The Period Of: GE Will Replace:

One Year Any part From the date of the original purchase

of the oven which fails due to a defect in materials or workmanship. During this full one-year warranty, GE will also provide, free of charge, all labor and in-home service to replace the defective part.

What GE Will Not Cover:

■ Service trips to your home to teach you how to use the product.
■ Improper installation.
- Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Service Telephone Numbers.

GE Answer Center ^® 800.626.2000

The GE Answer Center ^® is open 24 hours a day, 7 days a week.

OR

Visit our Website at: www.geappliances.com

In-Home Repair Service 800-GE-CARES (800-432-2737)

Expert GE repair service is only a phone call away.

Special Needs Service 800.626.2000

800-TDD-GEAC (800-833-4322)

GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons with limited mobility.

Service Contracts 800-626-2224

Purchase a GE service contract while your warranty is still in effect and you'll receive a substantial discount. GE Consumer Service will still be there after your warranty expires.

Parts and Accessories 800-626-2002

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted).

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Service Satisfaction

If you are not satisfied with the service you receive from GE:

First, contact the people who serviced your appliance.

Next, if you are still not pleased, write all the details—including your phone number—to:

Manager, Customer Relations

GE Appliances

Appliance Park

Louisville, KY 40225
