Product Type	Built-In Microwave Trim Kit
Brand	GE
Model	JX7227DFBB
Compatible Microwave Models	JX7227, JX7230, JX2127SH, JX2130SH
Fits Microwave Width	27" and 30" models
Cutout Height	16 3/4" (42.5 cm)
Cutout Width	25 1/2" (64.8 cm)
Minimum Depth (receptacle outside)	19 1/2" (49.5 cm)
Minimum Depth (receptacle inside)	22" (55.9 cm)
Weight	Approximately 12 lbs (5.4 kg)
Material	Metal with painted finish
Color	Black (DFBB)
Installation Type	Built-in under cabinet or over wall oven
Required Tools	Phillips screwdriver, pencil, awl, drill with 1/16" bit, tape measure
Included Parts	Trim frame, bottom duct, top bracket, anti-tip bracket, screws
Safety Features	Anti-tip bracket, requires power disconnect during installation
Certification	UL listed
ADA Compliance	Maximum installation height 36 1/4" from floor
Warranty	Consult product warranty; improper installation not covered
Frequency of Use	Permanent installation for microwave oven

Frequently Asked Questions - JX7227DFBB GE

Is the JX7227DFBB a microwave oven or just a trim kit?

The JX7227DFBB is a trim kit designed to install a compatible GE microwave oven into a built-in cabinet or over a wall oven. It does not include the microwave itself.

What microwave models are compatible with this trim kit?

Compatible models include JX7227, JX7230, JX2127SH, and JX2130SH. Always verify compatibility before purchase.

What are the cutout dimensions for installation?

For both 27" and 30" models, the cutout height is 16 3/4" and width is 25 1/2". Minimum depth is 19 1/2" with receptacle outside cabinet, or 22" with receptacle inside.

Can I install this trim kit over any wall oven?

This kit is listed for installation over General Electric/Hotpoint single electric wall ovens. It may not be suitable for other brands or types.

Do I need special skills to install the trim kit?

Installation requires basic mechanical and electrical skills. The manual recommends two people for easier installation. A drill, screwdriver, and tape measure are needed.

How do I ensure the microwave is secure after installation?

The kit includes an anti-tip bracket that must be installed on the cutout floor. The bottom bracket engages with it to prevent tipping. Follow step 3 in the manual.

What is the purpose of the top bracket?

The top bracket attaches to the top of the microwave and the cabinet above, providing additional stability. It is secured with nine screws.

Can I install this trim kit myself without professional help?

Yes, if you have basic tools and mechanical ability. The manual provides step-by-step instructions. However, if you are uncomfortable working with electrical connections, hire a professional.

What is the maximum installation height for ADA compliance?

For ADA compliance, the microwave must be installed no higher than 36 1/4" from the floor to the bottom of the unit.

Why should I unplug the microwave before installation?

For safety, the manual recommends unplugging the microwave and switching power off at the service panel to prevent accidental activation during installation.

USER MANUAL JX7227DFBB GE

Installation Instructions

Built-In Trim Kits

JX7227/JX7230/JX2127SH/JX2130SH

Questions? Call GE Answer Center at 800.626.2000 or Visit our Website at: www.GEAppliances.com

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT – Save these instructions for local inspector's use.
  • IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• For easier installation and personal safety, we recommend that two people install this microwave oven.
• Unplug the microwave oven before attempting installation of this kit.

FOR YOUR SAFETY:

WARNING

— Before beginning the

installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

TOOLS YOU WILL NEED

2 Phillips screwdriver

Pencil

Awl or punch

Drill with 164 " bit or #35

Scissors (optional)

Tape measure

• Skill level – Installation of this appliance requires basic mechanical and electrical skills.
  • Completion time – 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• This kit is UL listed for installation alone or over any General Electric/Hotpoint single electric wall oven.

PARTS INCLUDED

PART		QUANTITY
	Trim	Frame
	Bottom	Duct
	Top	Bracket
[w85W]	Phillips Round-Head Screws	24(21 or 22 required for installation)
	J 5 Screws	for installation)
	Anti-Tip	Bracket
	Bottom	Bracket
	Template 1

1 CUTOUT DIMENSIONS

Models	27"	30"
Height	1634"	1634"
Width	2512"	2512"
Depth (min.)* 19	^1/_2" or 22"	1912" or 22"

* Min. depth with receptacle outside cabinet 19½" Min. depth with receptacle inside cabinet 22"

CAUTION

This trim kit uses air flow from the top, bottom and sides of the trim frame. Blocking the air flow can cause the microwave to function improperly and may cause damage to the microwave.

Allow a 1" clearance beyond the edge of the Trim Frame to provide proper air flow.

On 27" models, allow 1¼" at the top, 9½" on the sides and 1" at the bottom for overlap of the Trim Frame over the edges of the cutout.

On 30" models, allow 1½" at the top, 2½" on the sides and 1" at the bottom for overlap of the Trim Frame over the edges of the cutout.

For ADA Compliance, the microwave must be installed no higher than 36 ^1/4 ".

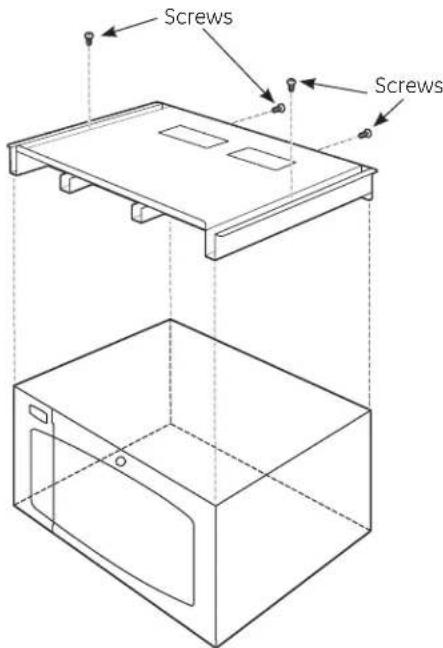

2 INSTALL BOTTOM BRACKET AND BOTTOM DUCT

A Fit the tab on the bottom bracket into the slot on the back of the bottom duct, and push down until the bracket is flush with the bottom of the duct. Fasten the bottom bracket to the bottom duct by using two round-head screws.

B Disconnect the microwave oven before proceeding with the installation.

C Remove any loose items inside the microwave oven, including the turntable and turntable support. Carefully turn the microwave oven upside down.

D Line up the tabs on the bottom duct with the slots on the bottom of the microwave and insert the tabs into the slots. Secure the bottom duct with four round-head screws as shown.

Microwave Oven Upside Down

3 INSTALL THE ANTI-TIP BRACKET

A Draw a line on the cutout floor at the center of the cutout, and extend the line 12 " down the face of the cabinet.
B Fold or cut the front edge of the template, along the front guide line. Place the template flush along the front edge of the cutout floor, aligning the center line of the template with the center line of the cutout floor. Mark the centers of the two screw holes with an awl or center punch for the anti-tip bracket location as shown.

Pure 3D geometric diagram showing a rectangular prism intersecting a plane with dashed lines indicating hidden edges (no text or symbols)

Cutout Floor

C Remove the template and drill two holes for the anti-tip bracket.

☐ Install the anti-tip bracket onto the cutout floor using two round-head screws.

4 INSTALL MICROWAVE OVEN INTO CABINET

A slide the microwave oven part way into the cabinet opening.
B Plug in the microwave oven.

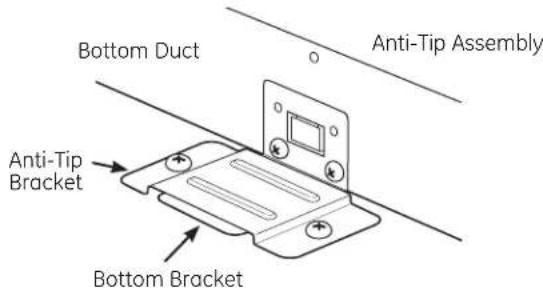

C The bottom bracket must be flat to the cutout floor to engage correctly with the anti-tip bracket as shown. Carefully slide the microwave oven back, engaging the anti-tip bracket. Make sure the power cord is not mashed or cut as you slide the microwave into place.
D Center the microwave oven within the cutout opening.
E Ensure the microwave oven is accurately centered. Line up the center line on the cabinet with the triangular hole on the front of the bottom duct.

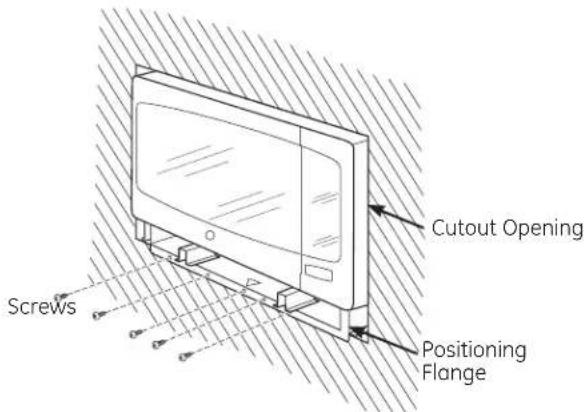

F Drill pilot holes through the positioning flange and then install five round-head screws at the front of the bottom duct as shown.

Screw Models

4 JX7227SFSS,JX7230SFSS,JX7230EHES

5 JX7227DFBB,JX7227DFWW,JX7230DFBB,JX7230DFWW,JX2127SH,JX2130SH

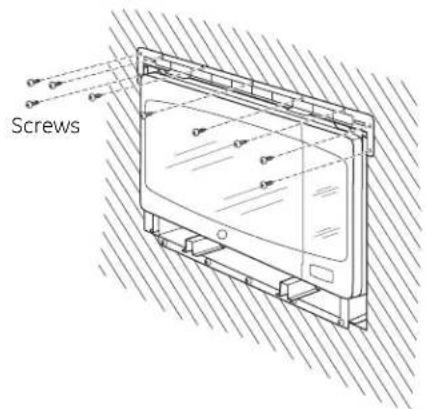

5 INSTALL THE TOP BRACKET

A Place the top bracket on the top of the microwave oven, with the tabs on the top and sides of the bracket fitting squarely against the microwave oven.

B Drill pilot holes through the holes in the top bracket. Attach the top bracket to the cabinet using nine round-head screws.

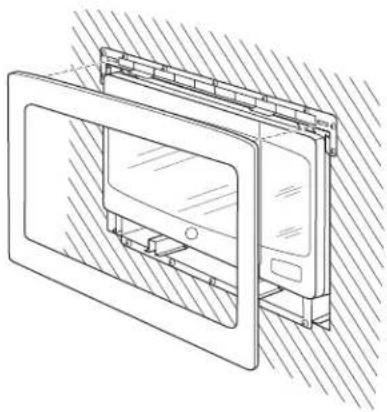

6 INSTALL THE TRIM FRAME

APlace the trim frame over the microwave oven.

Technical line drawing of a mechanical assembly with hatched background (no text or symbols)

B Open the microwave oven door. Secure the trim frame using four flat-head screws (two on the inside top and two on the inside bottom).

7 REPLACE ANY LOOSE ITEMS

A Your trim kit is now fully installed. Replace any loose items that were removed from the inside of the microwave oven. Save or discard the extra screws. Do not place them in the microwave oven.

B Keep these installation instructions for future reference.

CReplace house fuse or close circuit breaker to restore power at the service panel.

JX7227/JX7230/

JX2127SH/JX2130SH

49-40727

04-14 GE
