USER MANUAL Sierra SRA-KF-PG ZLine

Stylized blue water droplet icon with gradient shading (no text or symbols)

KITCHEN FAUCETS

Installation Guide

and Users Manual

WARNING

This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

Even though the materials used in all ZLINE Kitchen and Bath products conform to all federal government regulations and all national product standards, California's Prop 65 requires all businesses to provide a "clear and reasonable warning" if one or more listed chemicals may be present in the product, even if that chemical is present in trace quantities

Z

ZLINE

Inspired by the clear, serene waters of the stunning Lake Tahoe, ZLINE Kitchen Faucets provide the ultimate luxury experience at the center of your home. Designed to seamlessly match every kitchen, ZLINE Faucets are offered in a wide selection of contemporary styles and designer finishes. With ergonomic control in mind, these faucets offer the perfect amount of aerated water pressure at 1.8 gal/min, allowing for an eco-friendly and efficient washing experience.

Each faucet is precision tested, as they undergo over 50,000 unit tests - a step above the industry standard of 15,000 tests. Have peace of mind knowing ZLINE Faucets are cUPC Certified, ensuring the materials used are durable and lead-free. Discover what makes Attainable Luxury® the core essence of ZLINE Kitchen with these designer kitchen faucets.

TABLE OF CONTENTS

- SAFETY INSTRUCTIONS

Prior to Installation

Safety Tips

Installation Preparation

Care and Maintenance

Notes

SPRING FAUCETS

Parts

Tools

Assembly

PULL DOWN FAUCETS

Parts

Tools

Assembly

DA VINCI (DAV-KF-BN) PULL DOWN FAUCET 11

Parts

Tools

Dimensions

Assembly

- SINGLE HANDLE FAUCETS

Parts

Tools

Assembly

DOUBLE HANDLE FAUCETS

Parts

Tools

Assembly

- TROUBLESHOOTING

SAFETY INSTRUCTIONS

Prior to Installation

Make sure that the cold and hot water lines are turned off.
- Wrap all threaded connections with plumber's tape. Always wrap in a clockwise direction.
- Cover your drain to avoid losing parts.
Do not disassemble the main faucet body, as it has been installed and commissioned correctly and precisely before delivery to the factory.
To keep the faucet from jamming, flush the water pipe before installation.

Operating conditions: Working pressure at 0.05-1.0 MPa (including cold and hot water pressure) with applicable water temperature: 39.2°F - 194°F.

Water supply line length: 22.25"

Sprayer length: 35.75"

Installation Preparation

1. Shut off the water and let the water in the current faucet drain.
2. Assemble needed tools. The tools needed for each installation are included at the beginning of each section.
3. Loosen the hardware that keeps the current faucet in place. Remove faucet.

Care and Maintenance

To keep the product clean and shining, follow the steps below:

1. Rinse clean with water and dry with a soft cloth.
2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners.
3. Do not use cloth with a coarse surface.
4. Unscrew the aerator and clean when necessary.

If soldering the water connections when installing the faucet, remove the O-rings, cartridges, and washers before applying any heat.
- Protect your eyes when cutting or soldering.
- Do not over tighten screws/nuts. Finger tighten, then use a wrench/Philips-head screwdriver to tighten the fixing screw/nut until snug.

SPRING FAUCET

1. Faucet Body 2. Base O-Ring 3. Rubber Wash 4. Metal Washe 5. Fixing Nut an

3. 4. 5.

1. Faucet Body
2. Base O-Ring
3. Rubber Washer
4. Metal Washer
5. Fixing Nut and Screws
6. Spray Head

SPRING FAUCET

Tools:

Wrench

Time required:

Phillips-head screwdriver

+/- 45 minutes

Bucket

Legend:

Hot Water

Cold Water

Grease

Warning

Plumber's Tape- Used for a watertight seal on threaded pipe joints.

SPRING FAUCET

Technical diagram of a mechanical assembly with coiled and threaded components, showing directional arrows indicating movement (no text or symbols present)

Loosen the fixing nut and screws and put aside.

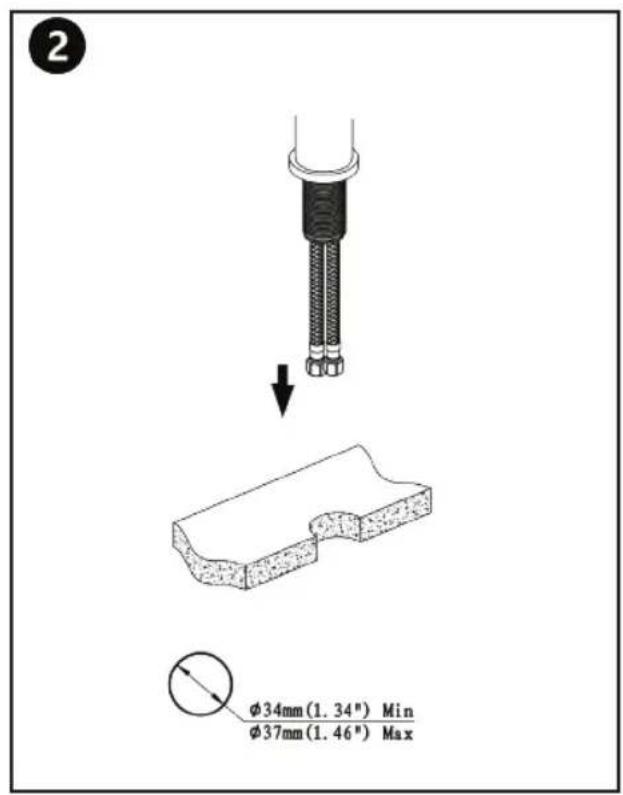

2 Ø34mm(1.34") Min Ø37mm(1.46") Max

Mount faucet to counter top.

Technical diagram illustrating a mechanical assembly with labeled steps 3 and 3a, showing motion of a spring-loaded component.

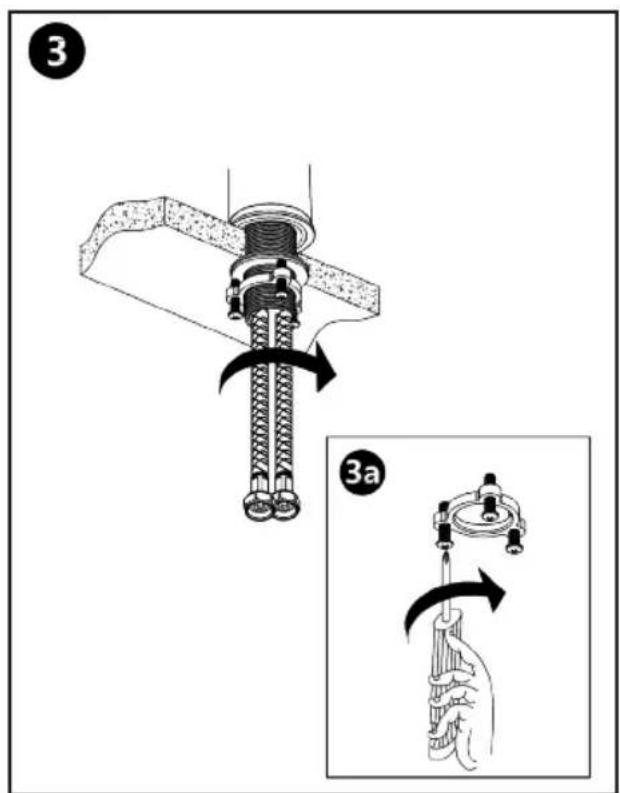

Secure the hardware into place with the Base O-ring, nuts, and screws.

9/16-24UNEF Plumbers Tape

Secure the hoses to the hot (red) and cold (blue) lines appropriately.

SPRING FAUCET

Illustration of a kitchen sink with a coiled hose and water droplets falling from the drain (no text or symbols)

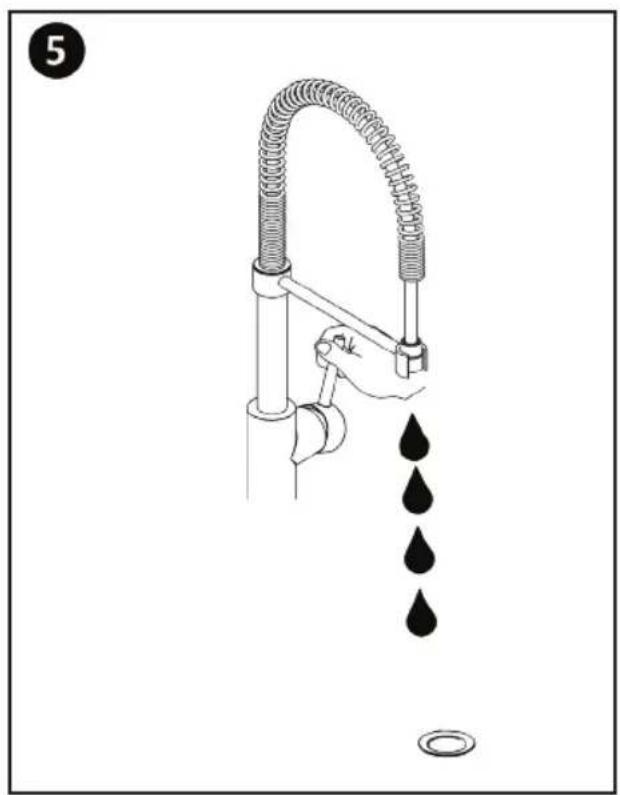

Test the faucet.

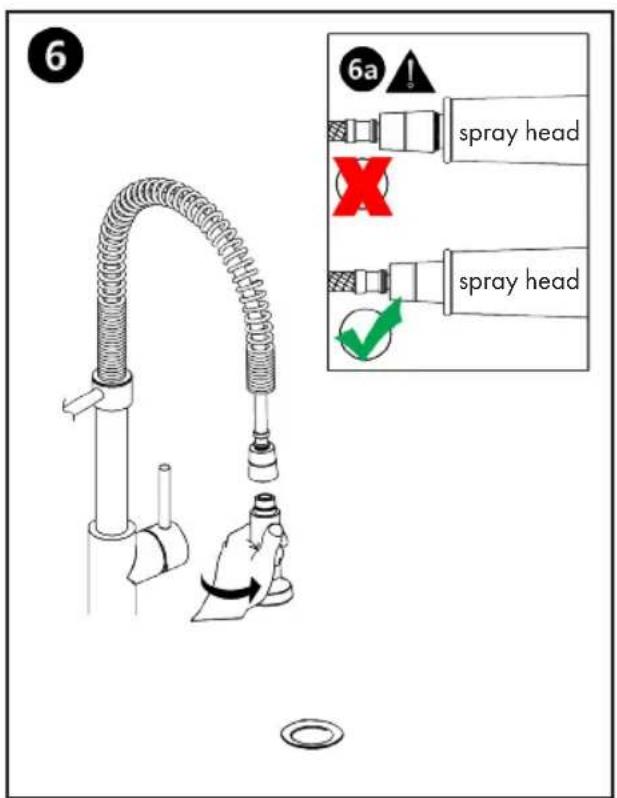

6 6a! spray head X spray head

Make sure that the spray head is properly secured.

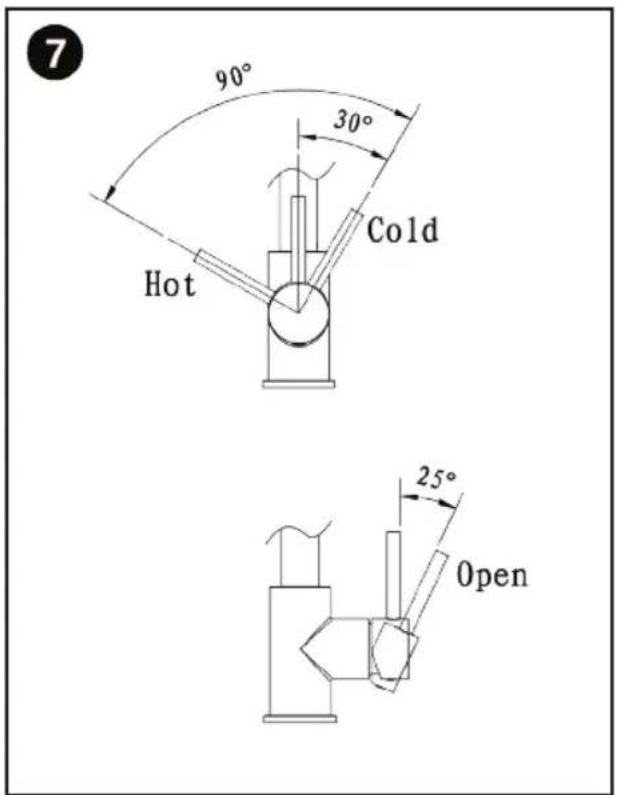

7 90° 30° Cold Hot 25° Open

Review the diagram to understand the hot, cold, and open settings.

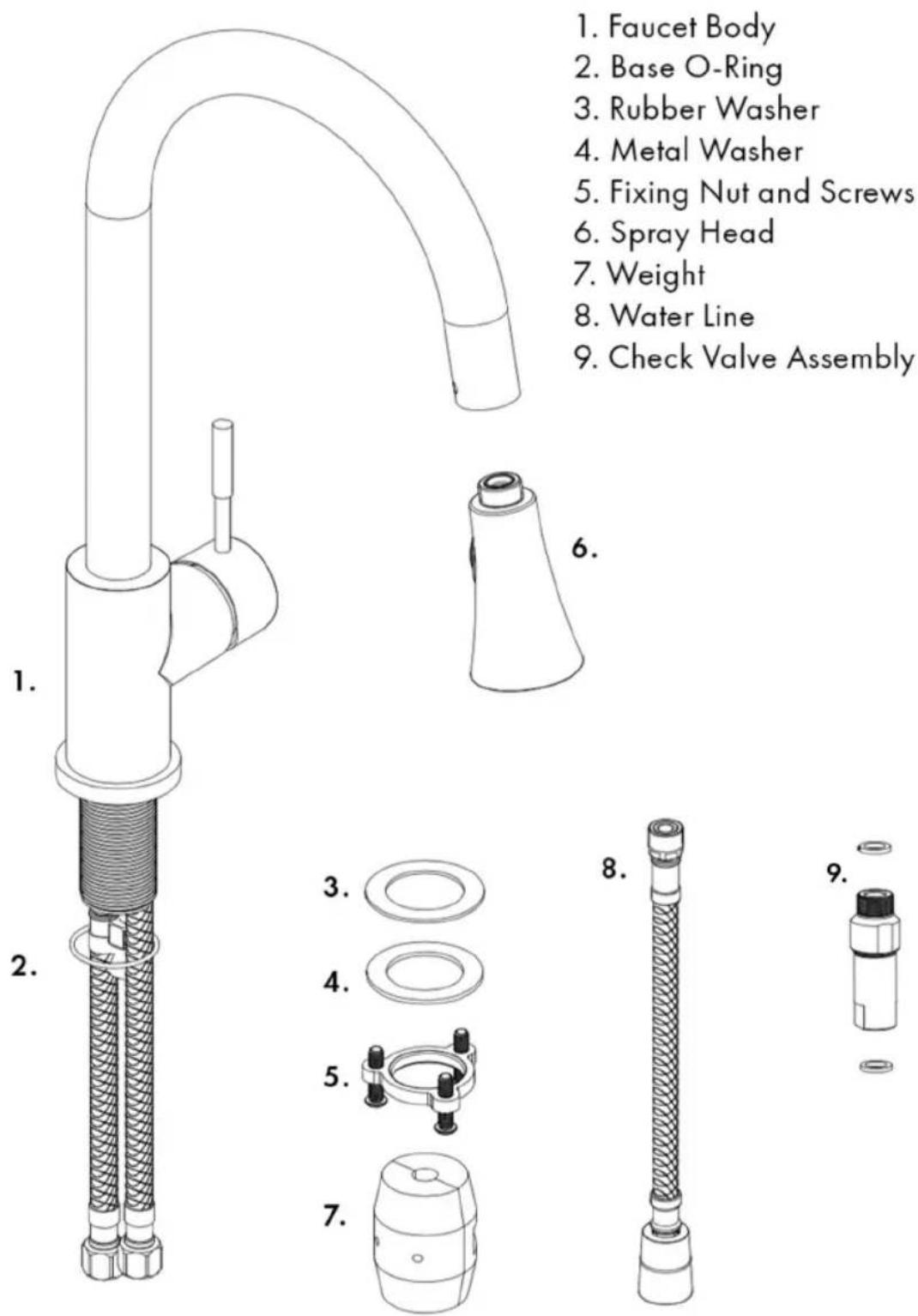

1. Faucet Body
2. Base O-Ring
3. Rubber Washer
4. Metal Washer
5. Fixing Nut and Screws
6. Spray Head
7. Weight
8. Water Line
9. Check Valve Assembly

PULL DOWN FAUCETS

Tools:

Wrench

Time required:

Phillips-head screwdriver

+/- 45 minutes

Bucket

Legend:

Hot Water

Cold Water

Grease

Warning

Plumber's Tape-Used for a watertight seal on threaded pipe joints.

PULL DOWN FAUCETS

Technical diagram of a mechanical assembly with coiled spring and threaded shaft, showing directional arrows (no text or symbols)

Loosen the fixing nut and screws and put aside.

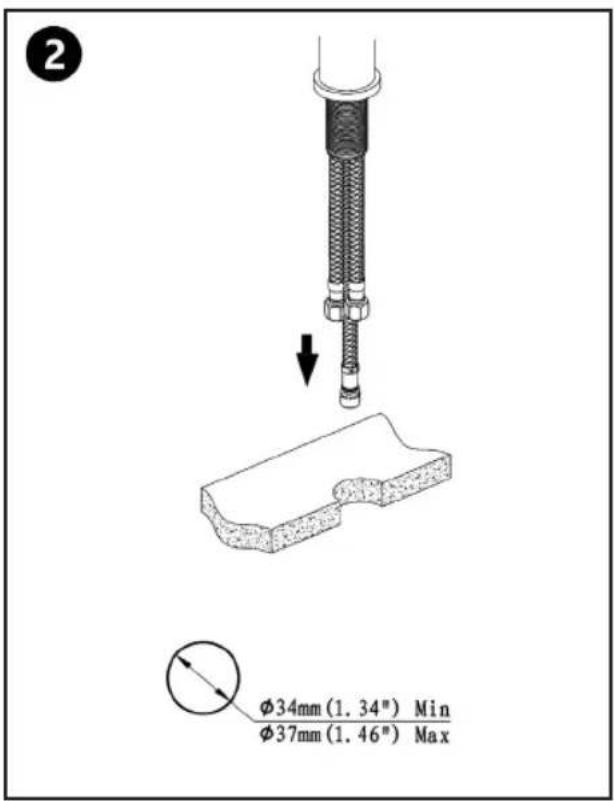

2 Ø34mm (1.34") Min Ø37mm (1.46") Max

Mount faucet to counter top.

3

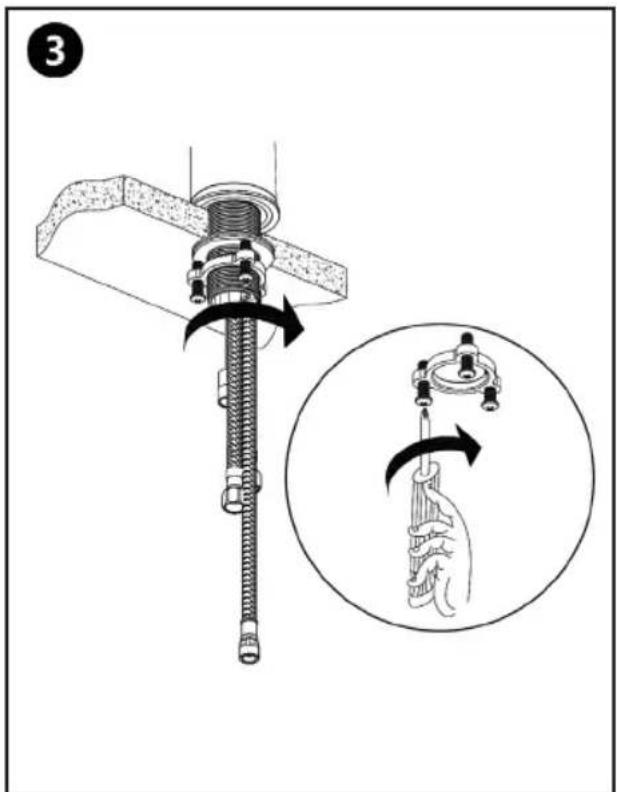

Secure the hardware into place with the Base O-ring, nuts, and screws.

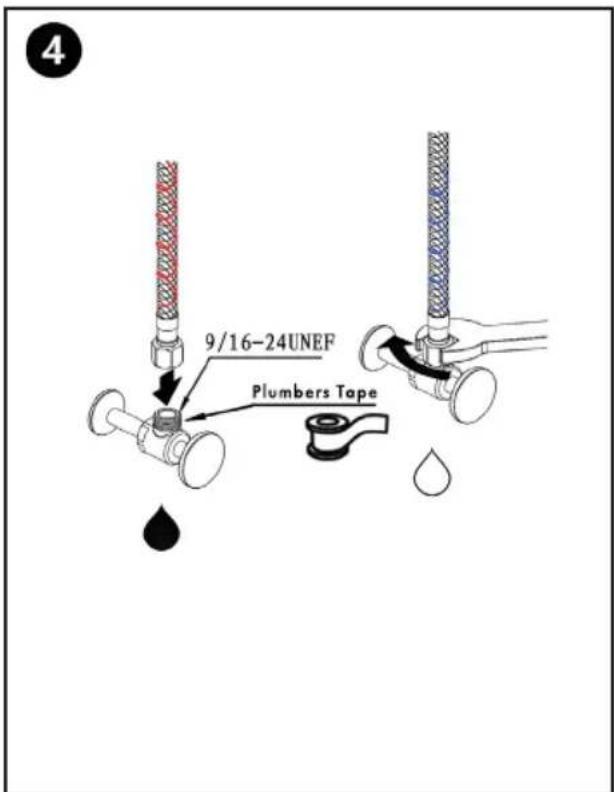

9/16-24UNEF Plumbers Tape

Secure the hoses to the hot and cold lines appropriately.

PULL DOWN FAUCETS

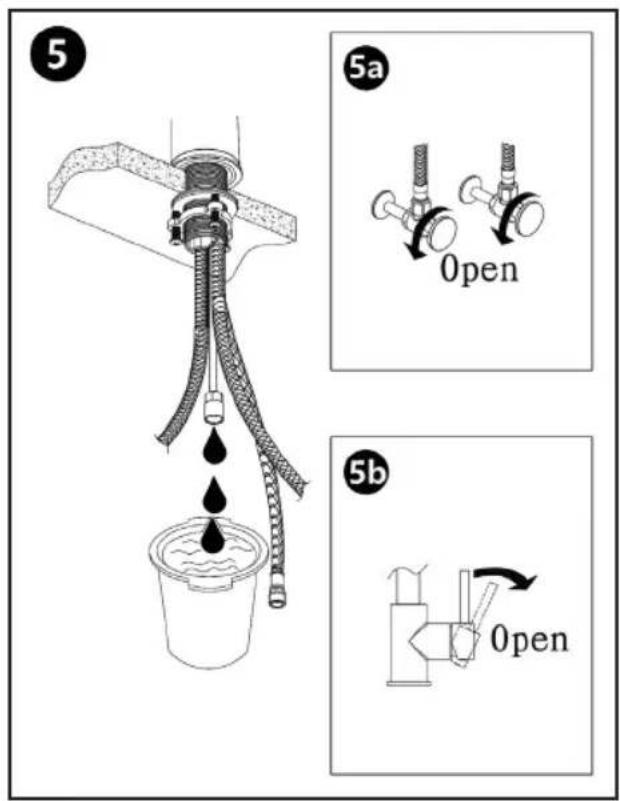

5 5a 0pen 5b 0pen

Drain the valve.

Technical diagram illustrating three steps (6a, 6b) of a mechanical assembly with labeled components and directional arrows indicating motion.

Secure the hardware into place.

Illustration of a hand using a faucet to lift water droplets into a sink, with a washer nearby (no text or symbols)

Test the faucet. Make sure that the spray head is properly secured.

8 8a !! spray head X spray head ✓

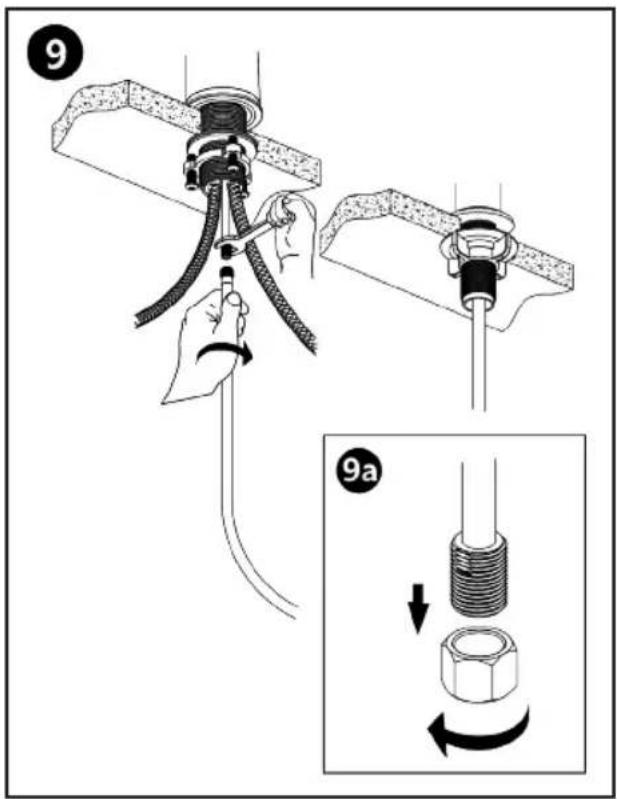

9 51mm (2") 76mm (3") 9a 9b

Apply the weight to the center of the hose for even distribution.

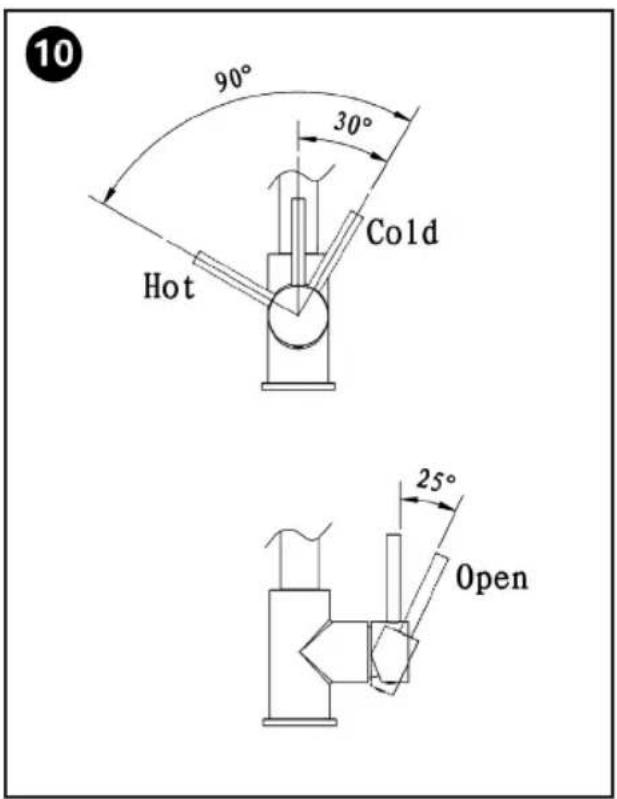

10 90° 30° Cold Hot 25° Open

Review the diagram to understand the hot, cold, and open settings.

Technical diagram of a kitchen sink with labeled parts 1, 2, and 6

3

4

5

1. Faucet Body
2. Base O-Ring
3. Rubber Washer
4. Metal Washer
5. Fixing Nut and Screws
6. Spray Head

Tools:

Wrench

Time required:

Phillips-head screwdriver

+/- 45 minutes

Bucket

Legend:

Hot Water

Cold Water

Grease

Warning

Plumber's Tape-Used for a watertight seal on threaded pipe joints.

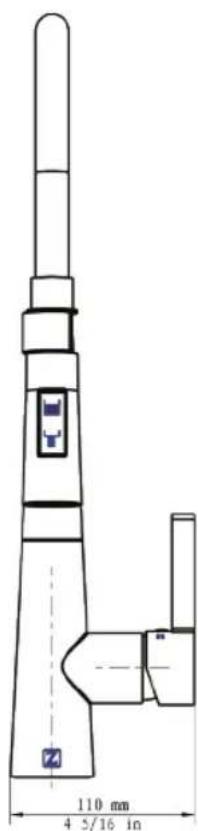

Pull Down Kitchen Faucet Model

Da Vinci Series (DAV-KF-BN)

Modern kitchen sink with black and silver color scheme (no text or symbols visible)

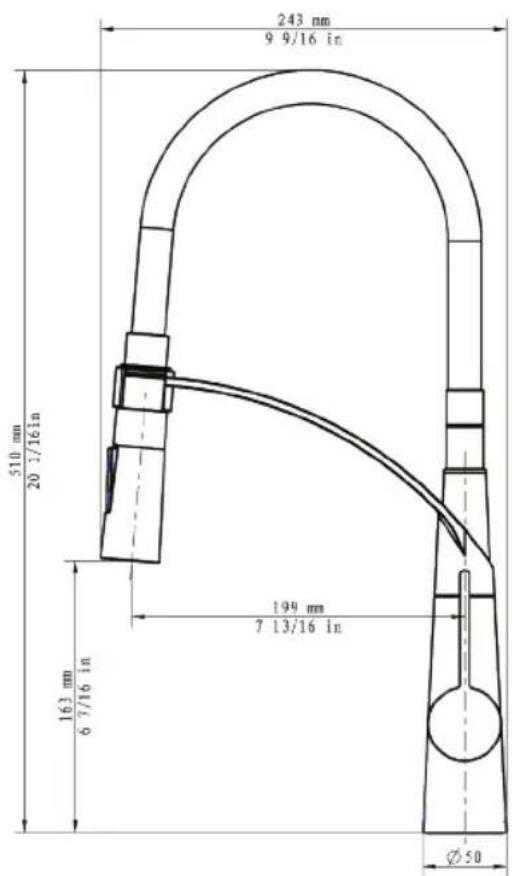

243 nm 9 9/16 in 510 nm 20 1/16 in 163 mm 6 7/16 in 199 mm 7 13/16 in Ø50

110 mm 4 5/16 in

Hot Cold

Diagram illustrating a kitchen sink assembly with labeled parts and directional arrows indicating movement or repair.

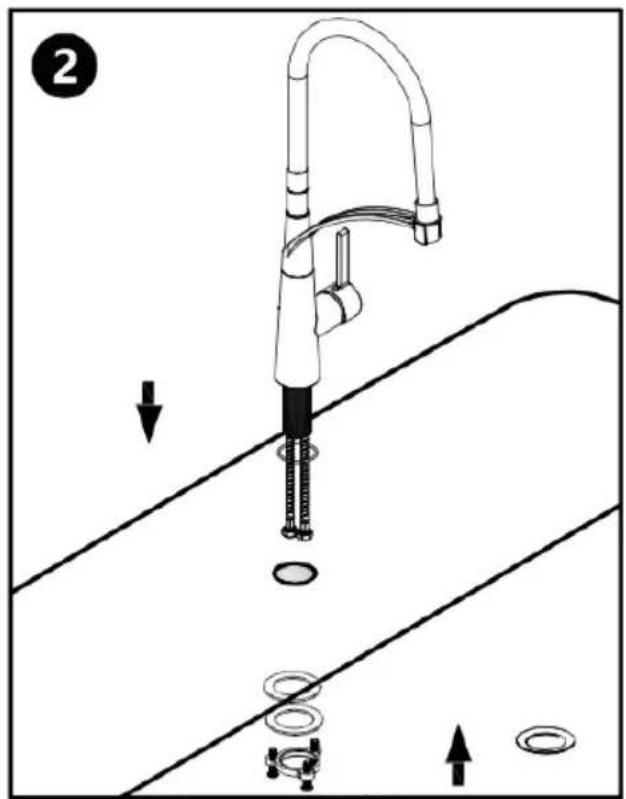

Mount the faucet to the counter top. Turn off th

bucket beneath, in case of dripping.

Technical diagram showing a mechanical assembly with labeled component 3 and an inset illustrating the hand turning a tool.

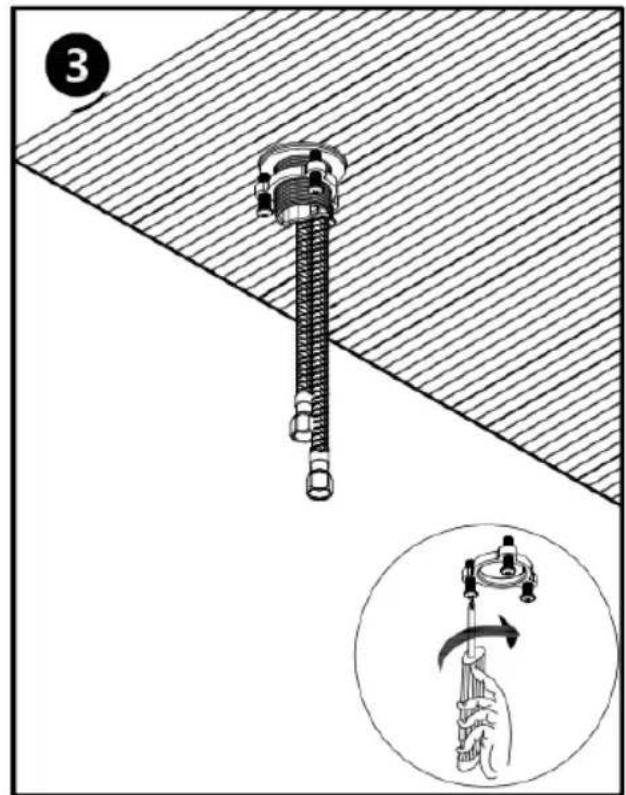

Secure the hardware into place with the Base O-ring, nuts, and screws.

Hot (Red) 9/16-24 UNEF Cold (Blue) Hot Cold

Attach the hot and cold lines to the valves appropriately.

DA VINCI PULL DOWN FAUCET (DAV-KF-BN)

Line drawing of a hand using a faucet to clean water droplets from a sink (no text or symbols)

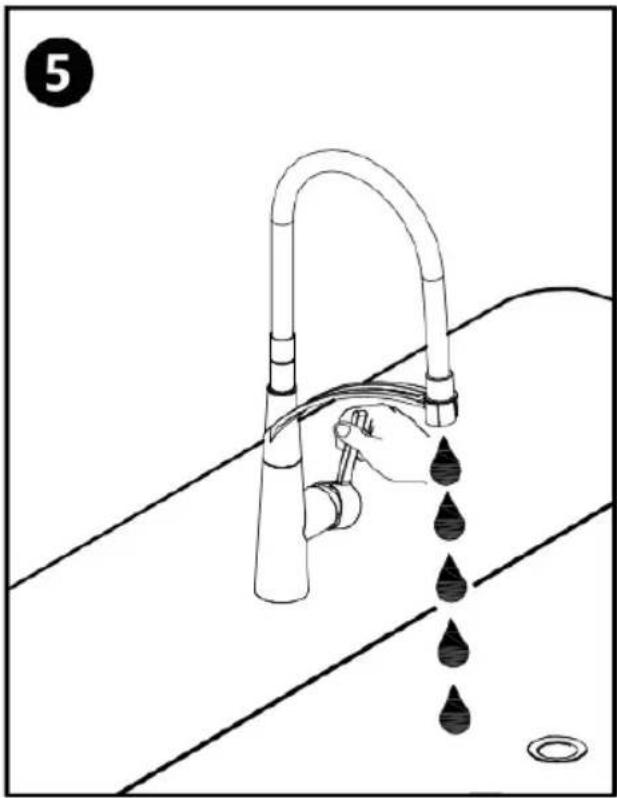

Test the faucet before installing the spray head.

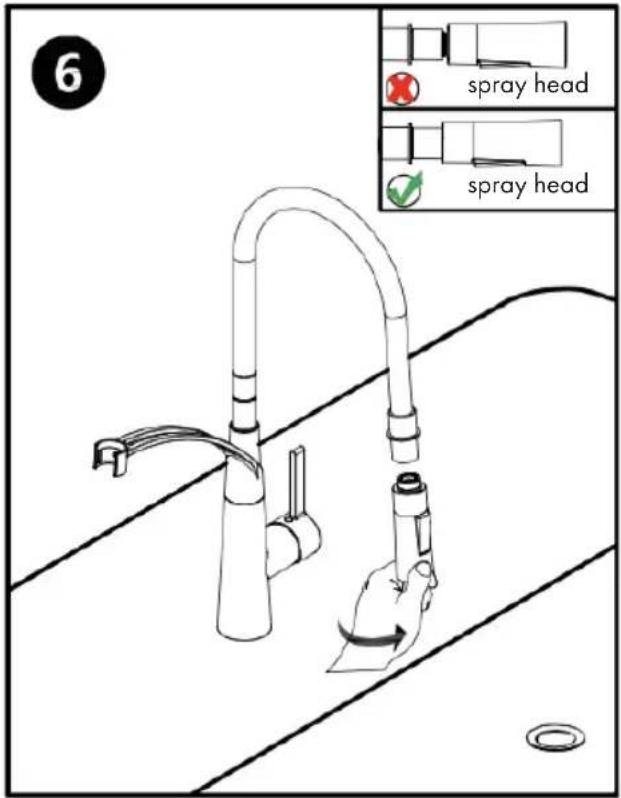

6 spray head spray head

Make sure that the spray head is properly secured.

Line drawing of a hand holding a curved pipe with water droplets falling into a basin (no text or symbols)

Test the faucet. Press the button to switch from stream to spray.

8

1. Faucet Body
2. Base O-Ring
3. Rubber Washer
4. Metal Washer
5. Fixing Nut and Screws
6. Spray Head
7. Washer
8. Nut

Tools:

Wrench

Time required:

Phillips-head screwdriver

+/- 45 minutes

Bucket

Legend:

Hot Water

Cold Water

Grease

Warning

Plumber's Tape-Used for a watertight seal on threaded pipe joints.

SINGLE HANDLE FAUCETS

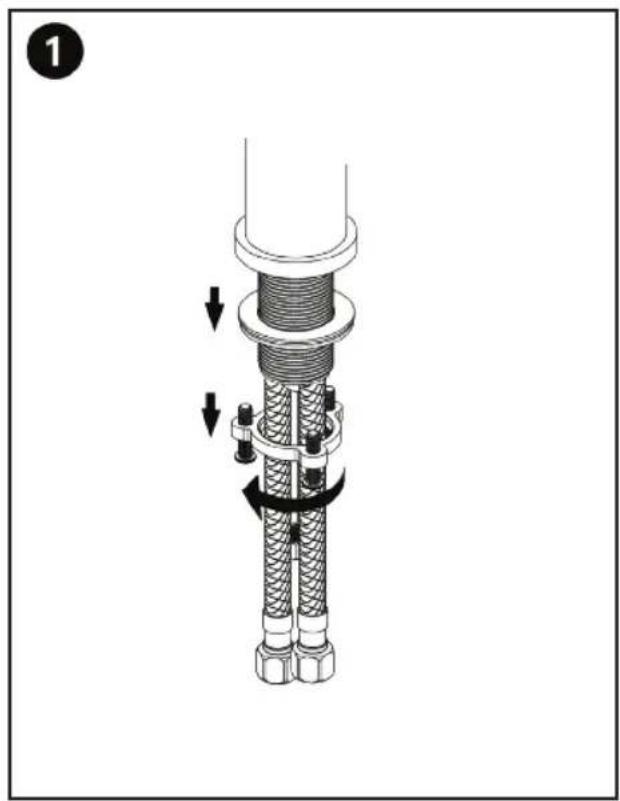

Technical diagram of a cable or hose assembly with directional arrows indicating movement (no text or symbols present)

Loosen the fixing nut and screws and put aside.

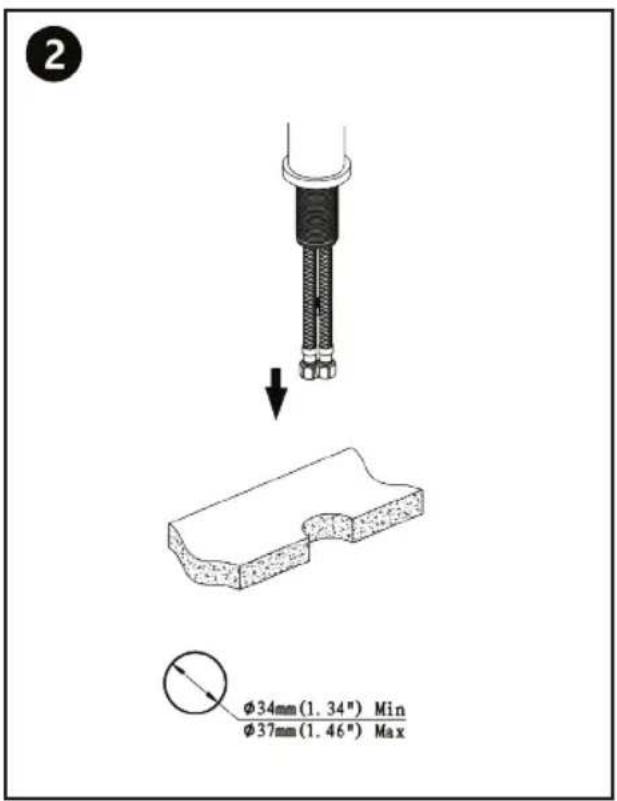

2 Ø34mm(1.34") Min Ø37mm(1.46") Max

Mount faucet to counter top.

Technical diagram showing mechanical assembly steps with labeled parts and directional arrows

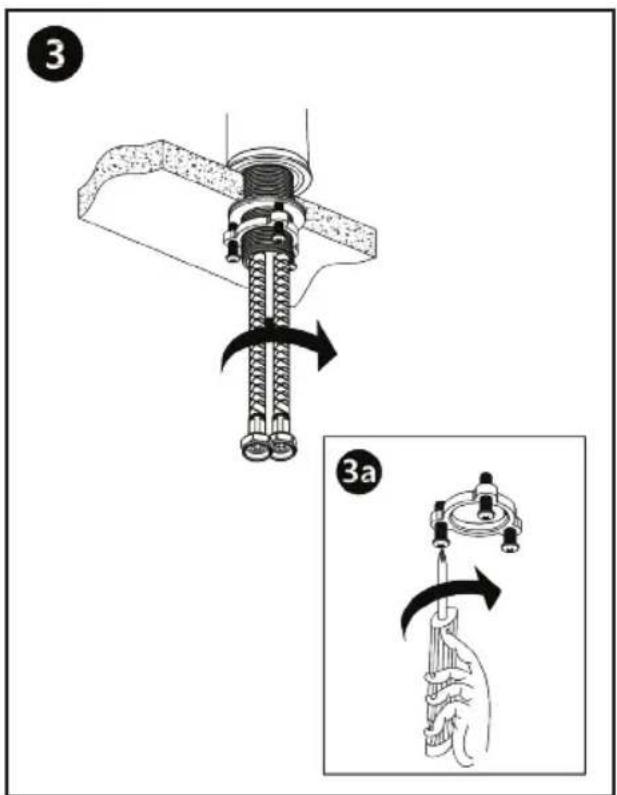

Secure the hardware into place with the Base O-ring, nuts, and screws.

9/16-24UNEF Plumbers Tape

Secure the hoses to the hot and cold lines appropriately.

SINGLE HANDLE FAUCETS

Illustration of a hand turning a faucet with water droplets falling from the drain (no text or symbols)

Mechanical assembly diagram showing a cylindrical component with rotating shaft and flanges, no text or symbols present

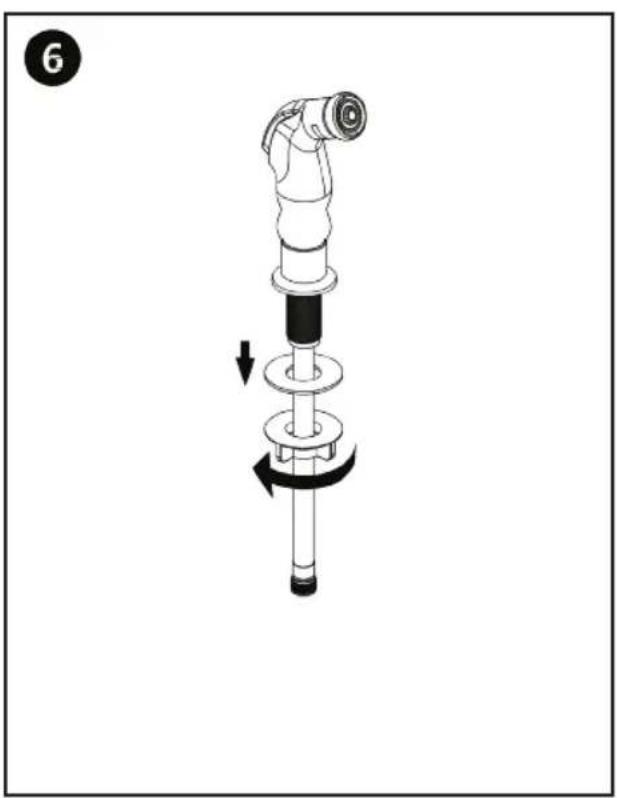

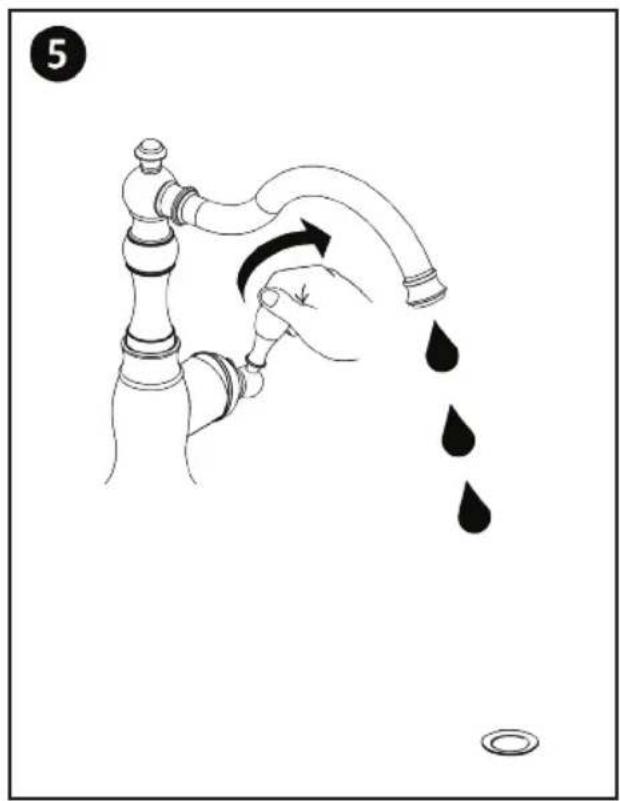

Test the faucet. Loosen the washer on the spray head.

7 Ø25mm(1°) Min Ø30mm(1.18°) Max

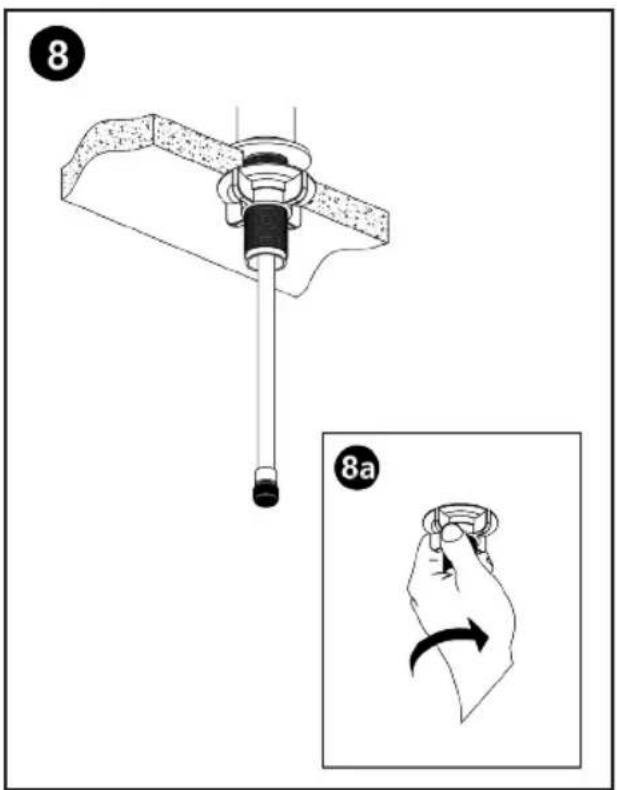

8 8a

Mount spray head to counter top. Secure the hardware into place with nuts and screws.

SINGLE HANDLE FAUCETS

Technical diagram showing mechanical assembly steps with labeled parts and directional arrows

Tighten the hardware.

10 90° 30° Cold Hot 25° Open

Review the diagram to understand the hot, cold, and open settings.

1. Faucet Body
2. Base O-Ring
3. Rubber Washer
4. Metal Washer
5. Nut
6. Spray Head
7. Washer
8. Nut

Tools:

Wrench

Time required:

Phillips-head screwdriver

+/- 45 minutes

Bucket

Legend:

Hot Water

Cold Water

Grease

Warning

Plumber's Tape-Used for a watertight seal on threaded pipe joints.

DOUBLE HANDLE FAUCETS

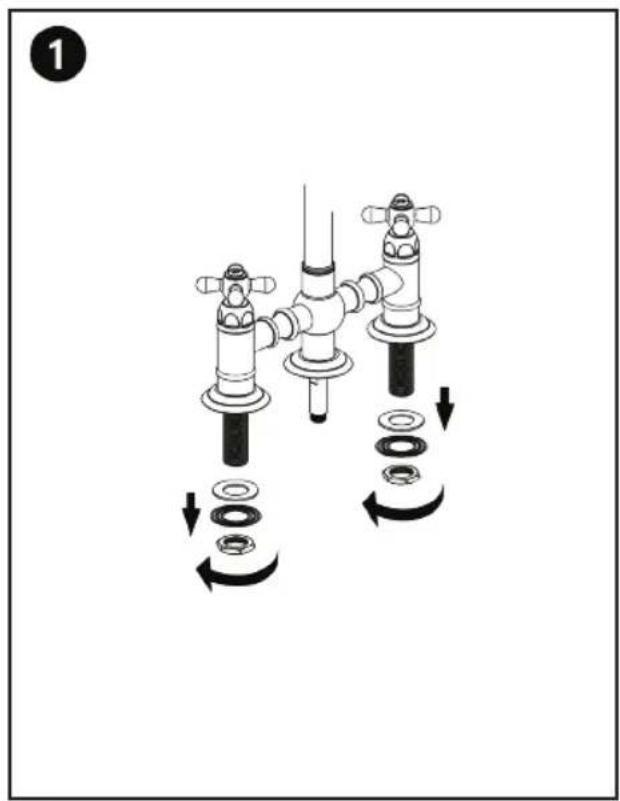

Diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or movement.

Loosen the fixing nut and washers and put aside.

2 102 102 4" 4" 3-Ø22mm(0.87") Min 3-Ø25mm(1') Max

Mount faucet to counter top.

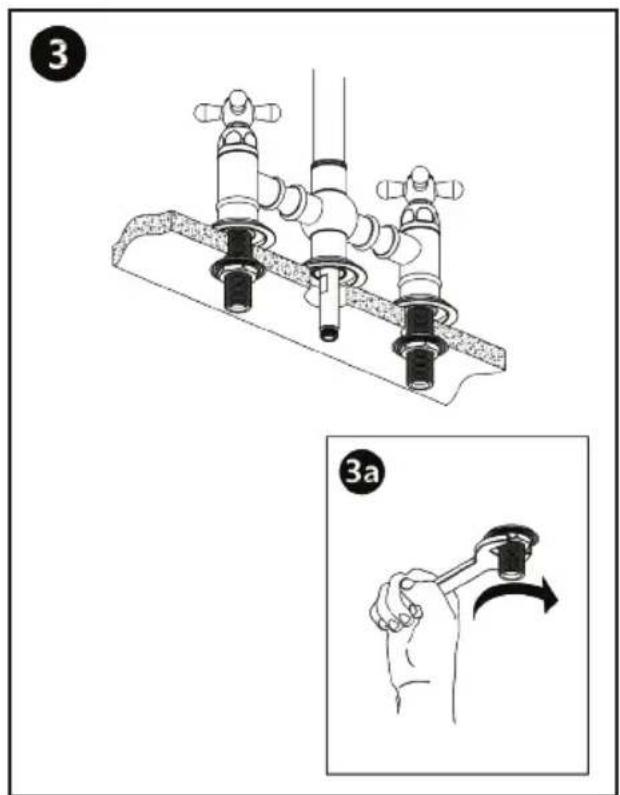

3 3a

Secure the hardware into place with the Base O-ring, nuts, and screws.

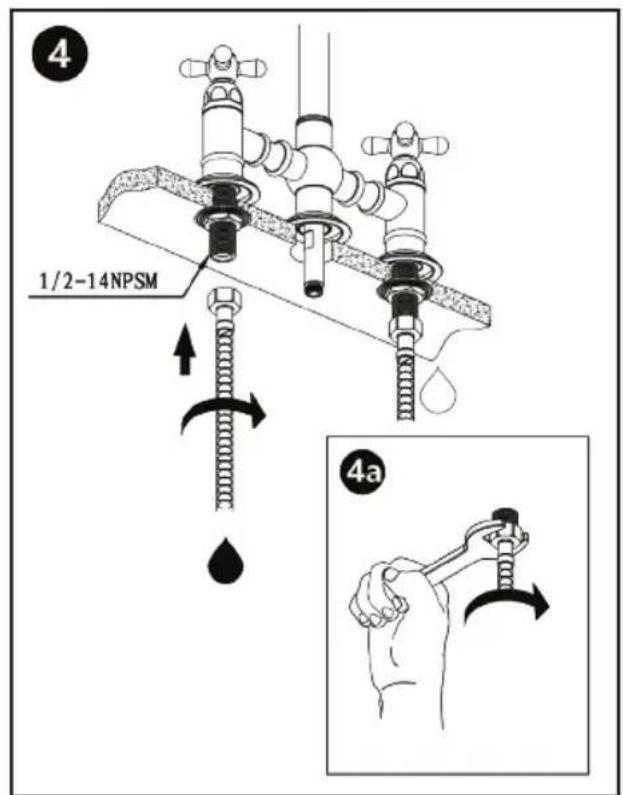

1/2-14NPSM 4a

Secure the hoses to the hot and cold lines appropriately.

DOUBLE HANDLE FAUCETS

Mechanical assembly diagram showing a shaft with rotating components and a curved arrow indicating motion (no text or symbols)

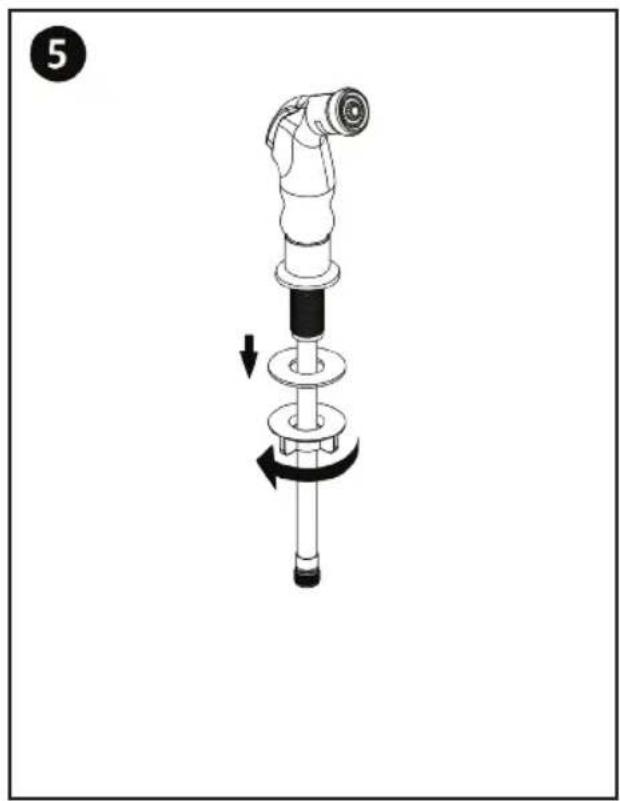

Loosen the washer on the spray head.

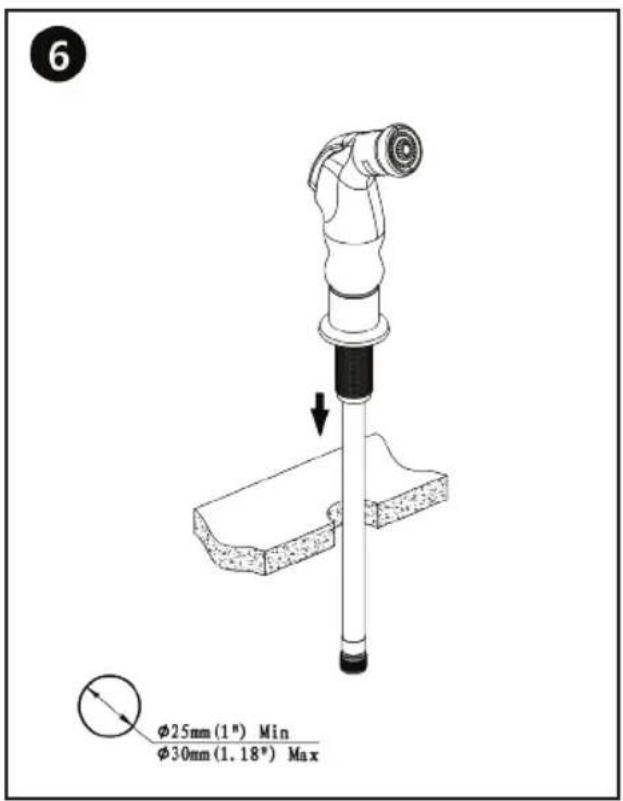

6 φ25mm(1") Min φ30mm(1.18") Max

Mount spray head to counter top.

Technical diagram showing a mechanical device with labeled parts and a magnified view of the hand holding a curved object.

Secure the hardware into place with nuts and screws.

8

Use the hose to connect the spray head and main faucet head.

DOUBLE HANDLE FAUCETS

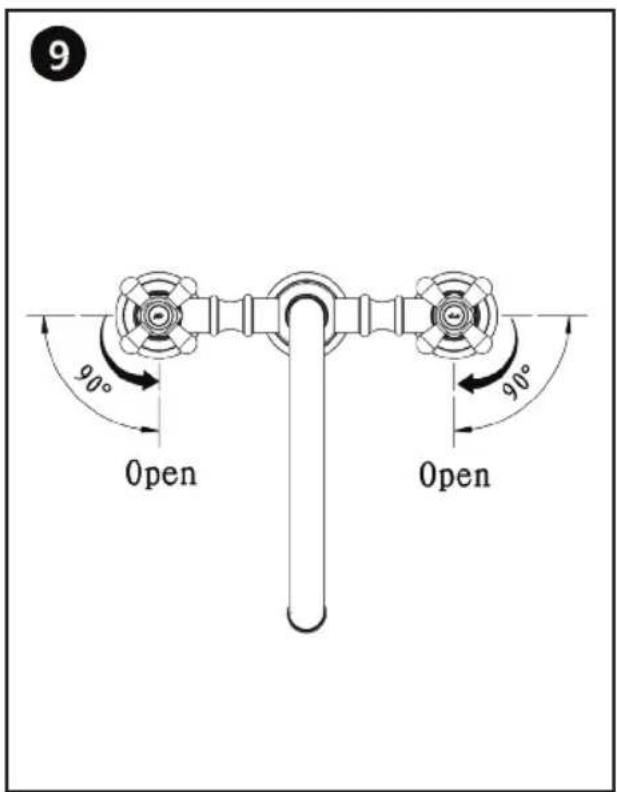

9 90° Open Open 90°

Review the diagram to understand the hot, cold, and open settings.

Problem	Possible Cause	Solution
There is leakage under the handle.	The locking nut has come loose.	Unscrew the lever on the handle by hand. Loosen set screw with a hex wrench.Remove the handle and unscrew trim cap by hand.Tighten locking nut with an adjustable wrench.
Water will not shut off completely.	Cartridge may be defective.	Unscrew the level on the handle by hand. Loosen set screw with a hex wrench.Remove the handle and unscrew trim cap by hand.Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge. Check for cracks.
There is a leak between the spray head and the hose.	The spray head may be loose or the washer is not seated correctly in the hose connection.	Tighten the spray head by hand until snug. Make sure the washer is seated correctly.
