USER MANUAL SHKR100 MIDLAND

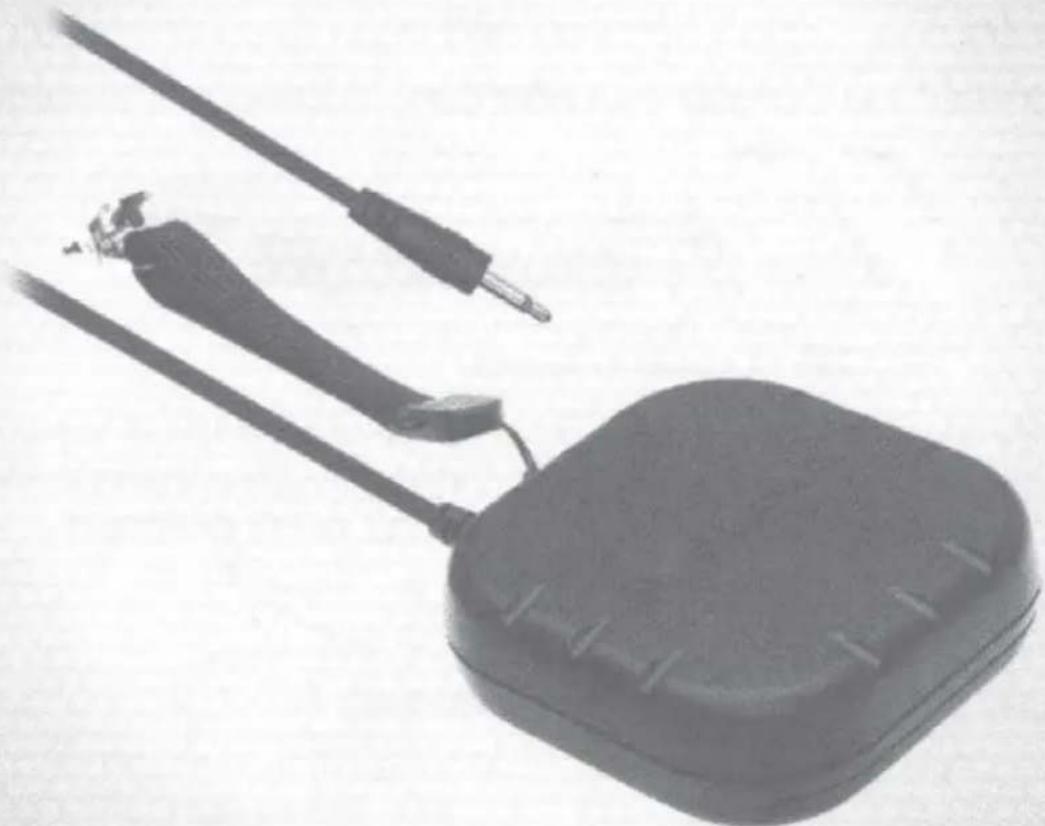

Pillow Shaker for Midland Weather Alert Radios

Close-up of a black electronic device with two cables, one attached and one inserted (no visible text or symbols)

Owner's Manual Manual del Usuario Manuel de Propriétaire

Set-up

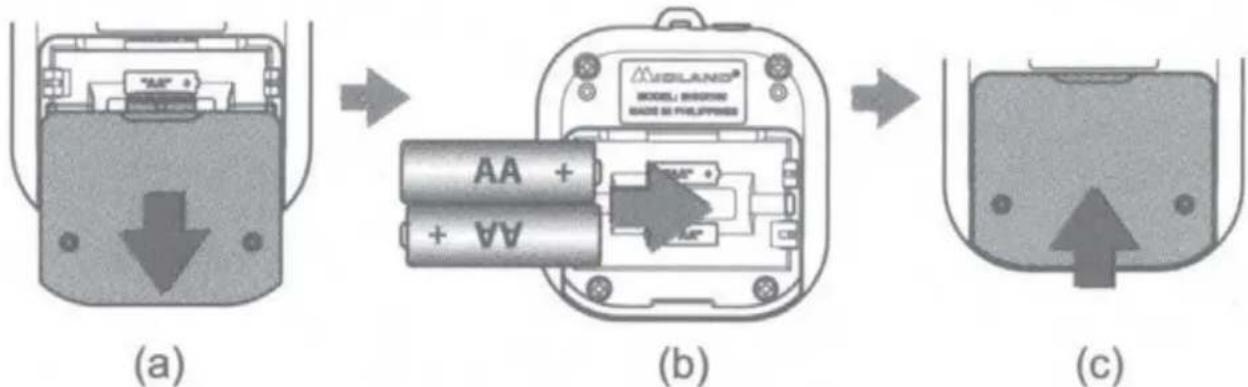

1. Install the batteries.

a. Remove the battery cover.
b. Install 2 AA batteries (Included) observing polarity.

- You will get 2 quick pulses to confirm the batteries are installed correctly.

c. Replace the battery cover, making sure it locks into place.

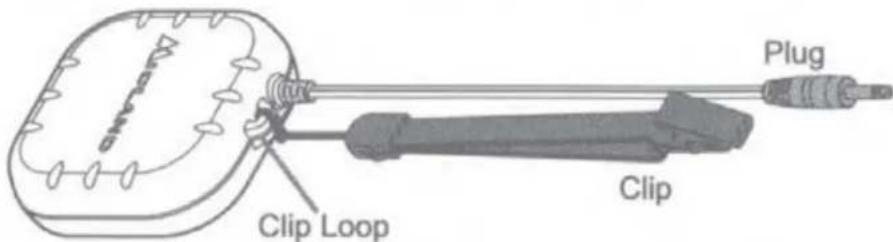

1. Install the Pillow Clip into the Clip Loop.

Plug Clip Loop Clip

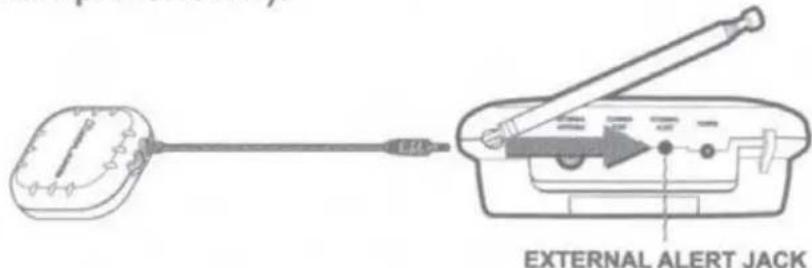

1. Connect the 3.5 mm jack on the SHKR100 cable to the External Alert Jack input of your Midland Weather Alert radio (WR120EZ example shown).

EXTERNAL ALERT JACK

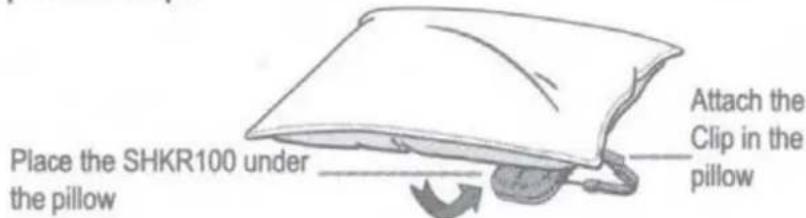

1. Place the SHKR100 under your pillow, and secure it in position using the pillow clip.

Place the SHKR100 under the pillow Attach the Clip in the pillow

How it Works

1. The SHKR100 will vibrate for 5 seconds on and 5 seconds off when the Midland weather radio is activated by a National Weather Service alert broadcast. The vibration sequence will continue for the duration of the NWS alert.

2. When the batteries are low, the SHKR100 will vibrate for 1 second on - one second off, for three times every 30 seconds.

The SHKR100 will continue to work until the batteries are fully dead but they should be replaced as soon as possible to avoid missing an important alert. It is recommended that you replace the batteries on a regular schedule, similar to that of a smoke detector.

1. The SHKR100 may be compatible with other radios that provide a ground signal to complete the circuit of an external accessory. Check your radio's owner's manual or with the radio's manufacturer to see if it provides this type of output.

Tips

Pillow types are important.

For example, memory foam pillows are very dense and you may not feel the vibration as strongly as using a feather or down pillow.

Placement is important.

Placement under your pillow is the recommended position, but you may find that a different placement may work better for you. Suggestions include placing it on top of the pillow, inside the pillow case or over a headboard. You can use the Alert Test function of the Midland Weather Alert radio to try different locations until you find the one best suited for you. (See the weather alert radio owner's manual for alert test instructions).

LIMITED WARRANTY

Midland Radio Corporation will repair or replace, at its option without charge, a SHKR100 which fails due to a defect in material or workmanship within One Year following the initial consumer purchase.

This warranty does not apply to water damage, battery leak or abuse. Accessories have a 90-day warranty from date of purchase, including any antennas, batteries, chargers, or headsets/earphones.

This warranty does not include the cost of labor for removal or re-installation of the product in a vehicle or other mounting.

For Product Purchased in the USA:

Performance of any obligation under this warranty may be obtained by returning the warranted product, prepaid freight, along with proof of purchase to:

Midland Radio Corporation Warranty Service Department 5900 Parretta Drive Kansas City, MO 64120

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Note: The above warranty applies only to merchandise purchased in the United States of America or any of the territories or possessions thereof, or from a U.S. Military exchange.

For Product Purchased in Canada:

Performance of any obligation under this warranty may be obtained by returning the warranted product, along with proof of purchase, to your dealer in Canada.

This warranty gives you specified legal rights. Additional warranty rights may be provided by law in some areas.

ACCESSORIES

Accessories can be purchased from your local dealer or at www.midlandusa.com

STR180 Strobe Light \$29.99

Close-up of a rectangular electronic device with two leads (no visible text or symbols)

SYCBL "Y" Cable \$9.99

Coiled audio jack with two leads (no text or symbols visible)

ENGLISH

Note: Features & Specifications are subject to change without notice. MIDLAND is not responsible for unintentional errors or omissions on its packaging or owner's manual.

We'd love to hear from you! Let us know what you think of your new Midland product at:

Close-up of a transparent electronic device with a black cable extending into it, showing internal components (no text or symbols visible)

Users Guide

Manual del Usuario

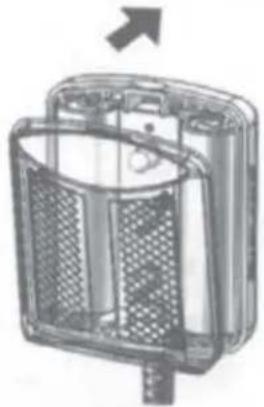

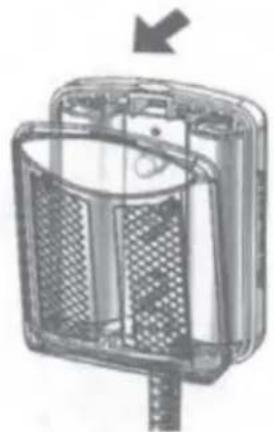

1. Install the batteries.

a.Remove the clear lens cover.
b.Install 2 AA batteries (Included) observing polarity.
c.Replace the lens cover, making sure it locks into place.

Cross-sectional diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

a

Cross-sectional diagram of a battery pack with two AA batteries and an upward arrow indicating direction (no text or symbols)

b

Cross-sectional diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

C

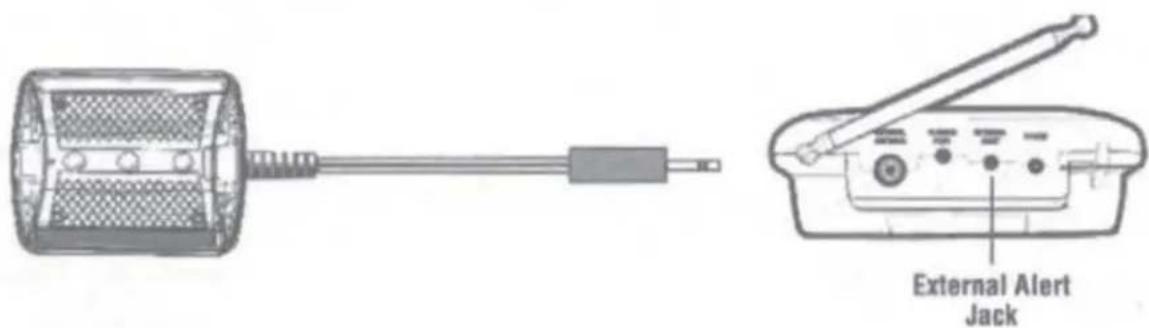

1. Connect the 3.5 mm jack on the STR180 cable to the External Alert Jack output of your Midland Weather Alert radio(WR120 example shown).

External Alert Jack

1. Remove the backing from the Velcro strip and mount the STR180 to a place that will give you high visibility.

Illustration of a mechanical device with a screw and arrow, no visible text or symbols

How it Works

1. The STR180 will flash continuously when the Midland weather radio is activated by a National Weather Service alert broadcast. It will continue to flash for the duration of the NWS alert.

2. When the batteries are low, the center LED of the STR180 will flash once every 5 minutes.

• The STR180 will continue to work until the batteries are fully depleted but they should be replaced as soon as possible to avoid missing an important alert.

- It is recommended that you replace the batteries on a regular schedule, similar to that of a smoke detector.

1. The STR180 may be compatible with other radios that provide a ground signal to complete the circuit of an external accessory. Check your radio's owner's manual or with the radio's manufacturer to see if it provides this type of output.

FCC COMPLIANCE INFORMATION:

This device complies with Part 15 class B of the FCC Rules.

Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received including interference that may cause undesired operation.

ICES-003 Class B Notice - Avis NMB-003, Classe B

This Class B digital apparatus complies with Canadian ICES-003.

Midland Radio Corporation will repair or replace, at its option without charge, a STR180 which fails due to a defect in material or workmanship within One Year following the initial consumer purchase.

This warranty does not apply to water damage, battery leak or abuse. Accessories have a 90-day warranty from date of purchase, including any antennas, batteries, chargers, or headsets/earphones.

This warranty does not include the cost of labor for removal or re-installation of the product in a vehicle or other mounting.

For Product Purchased in the USA:

Performance of any obligation under this warranty may be obtained by returning the warranted product, prepaid freight, along with proof of purchase to:

Midland Radio Corporation Warranty Service Department 5900 Parretta Drive Kansas City, MO 64120

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Note: The above warranty applies only to merchandise purchased in the United States of America or any of the territories or possessions thereof, or from a U.S. Military exchange.

For Product Purchased in Canada:

Performance of any obligation under this warranty may be obtained by returning the warranted product, along with proof of purchase, to your dealer in Canada. This warranty gives you specified legal rights. Additional warranty rights may be provided by law in some areas.

ACCESSORIES

Accessories can be purchased from your local dealer or at www.midlandusa.com

SYCBL

"Y" Cable

\$9.99

Coiled audio jack with two leads (no text or symbols visible)

SHKR100

Pillow Shaker

\$29.99

Silhouette of a rounded rectangular object with three protruding pins (no text or symbols visible)

ENGLISH

Note: Features & Specifications are subject to change without notice. MIDLAND is not responsible for unintentional errors or omissions on its packaging or owner's manual.

We'd love to hear from you! Let us know what you think of your new Midland product at:

Rural residential neighborhood with houses, trees, and a dramatic lightning strike over mountainous terrain (no visible text or symbols)

DON'T MISS AN IMPORTANT ALERT: TORNADO, FLOOD, HURRICANE, WILDFIRE, CIVIL EMERGENCIES

Rest comfortably knowing you will be alerted to severe weather events or civil emergencies with the SHKR100 Pillow Shaker and the STR180 Strobe Light. Designed for the deaf and hard of hearing, these physical and visual alerts will immediately let you know when your Midland Weather Alert Radio is activated by the National Weather Service.

Close-up of a transparent electronic device with a black cable and a small metallic connector (no visible text or symbols)

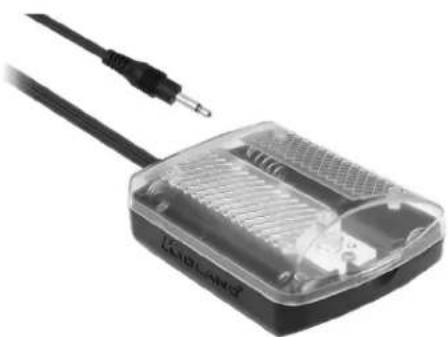

STR180 STROBE LIGHT

This powerful strobe flashes a bright white light to alert you of severe weather events and civil emergencies. It can also be used in noisy work environments where the extra visual alert is needed.

Black wireless audio adapter with attached cable and connector (no visible text or symbols)

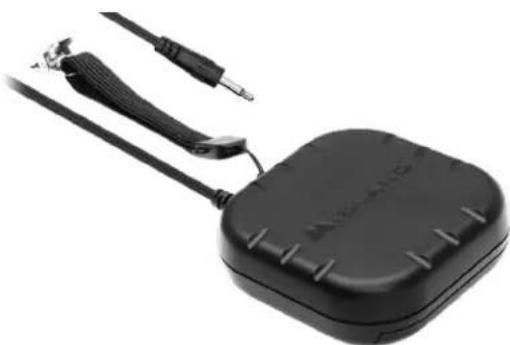

The pillow shaker creates a physical sensation to help wake a heavy sleeper. It easily plugs into your radio and clips onto your pillow, allowing peace of mind for yourself or a loved one.

As dangerous nocturnal weather events and deadly wildfires increase across the country, get the extra protection of the STR180 Strobe Light and SHKR180 Pillow Shaker.

The STR180 Strobe Light and SHKR100 Pillow Shaker come ready to use with batteries and cable for easy connection. Get either the STR180 Strobe Light or the SHKR100 Pillow Shaker separately, or get both is a special bundle pack that includes the Y cable for connection to a single radio.

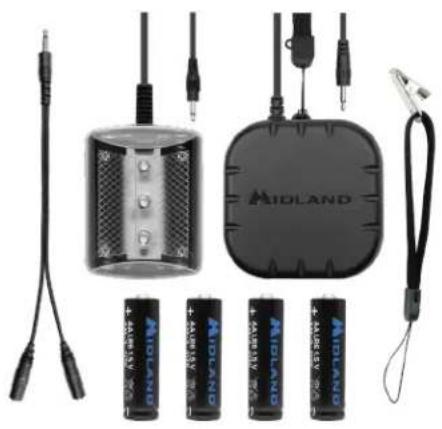

SBNDL BUNDLE KIT

Product photo of a Midland audio recording device with attached cables and connectors (no visible text or symbols)

Pillow Shaker and Strobe Light Value Pack Creates a physical sensation and visual alert to help wake a sleeping person

• Combines the power of a visual alert with a physical sensation to assist the hard of hearing or a heavy sleeper when an emergency alert is received by a Midland Alert Radio.
• Y cable included for quick connection
  • Ready to use, 4 AA batteries included
• Low battery alert.

What's in the box: SHKR100 Pillow Shaker, STR180 Strobe Light, 4-AA Batteries, Pillow Clip, "Y" Cable and 2-Owner's Manuals.

STR180 STROBE LIGHT

Exterior view of a cylindrical battery with internal components and external wiring (no visible text or symbols)

Visual Alert for Midland Weather Radios

• Flashes a bright white light when an emergency alert is received by a Midland Alert Radio.
  • Powerful LED strobe for high visibility.
  • Ready to use, 2 AA batteries included.
• Low battery alert.

What's in the box: STR180 Strobe light, 2-AA Batteries and Owner's Manual.

Electronic device with attached cables and a black device labeled 'MIOLAND' (no visible text or symbols on main components)

Creates a physical sensation to help wake a sleeping person

• Vibrates under a pillow to assist the hard of hearing or a heavy sleeper when an emergency alert is received by a Midland Alert Radio.
• Includes a clip to help secure the Pillow Shaker in place.
  • Ready to use, 2 AA batteries included.
• Low battery alert.

What's in the box: SHKR100 Pillow Shaker, 2-AA Batteries, Pillow Clip and Owner's Manual.

• Compatible with Midland WR11, WR100, WR120(EZ), WR300 and WR400 Weather Alert radios • Backed by a 1-Year limited warranty
• Low battery alert lets you know when it is time to change the batteries
• May be compatible with other weather radios
