USER MANUAL Nuvo 88335760 ATLANTIC

Line drawing of a simple wooden coffee table with curved legs and a flat top (no text or symbols)

Item# 88335760

Nuvo™ TV Stand

Assembly Tips:

Become familiar with the instructions and all parts.

Make sure that all parts are in the box and in good condition.

Assemble the product on the open flat carton or a rug to protect the product and your floor.

Some heavy products need a second person to assist in the assembly.

Use of power tools is not recommended.

It is strongly recommended that at least two people carry out the assembly.

Assemble the product close to a wall.

With each step, first insert and hand-tighten all bolts and screws by hand. After ALL BOLTS are slightly screwed in, fully tighten bolts with Phillips screwdriver in sequential pattern (clockwise or counter clockwise).

Caution:

Never let children climb on furniture or play with furniture.

Do not sit or stand on furniture.

Do not place a TV that is heavier than the recommended load rating on the furniture surface.

Do not overload shelves.

Use care when moving furniture. Furniture can tip over if moved improperly.

Only move furniture when it is empty of TV or other electronic components.

Handle items with glass with extra care. Use eye and hand protection.

Improper handling can result in cuts and lacerations.

Do not install on sloping surface.

Care Instructions:

Use electrostatic dust cloths to clean furniture.

Do not set hot or cold containers directly on the furniture surface.

Part List

Item	Components parts list	Qty
A		2
B		2
C		1
D		1
E		12
F		4
G		4
H		4
Tool needed (not included)

①

Ex 6 A x 2 C

1-Fasten metal frame (A) to the top board (C) with screws (E).

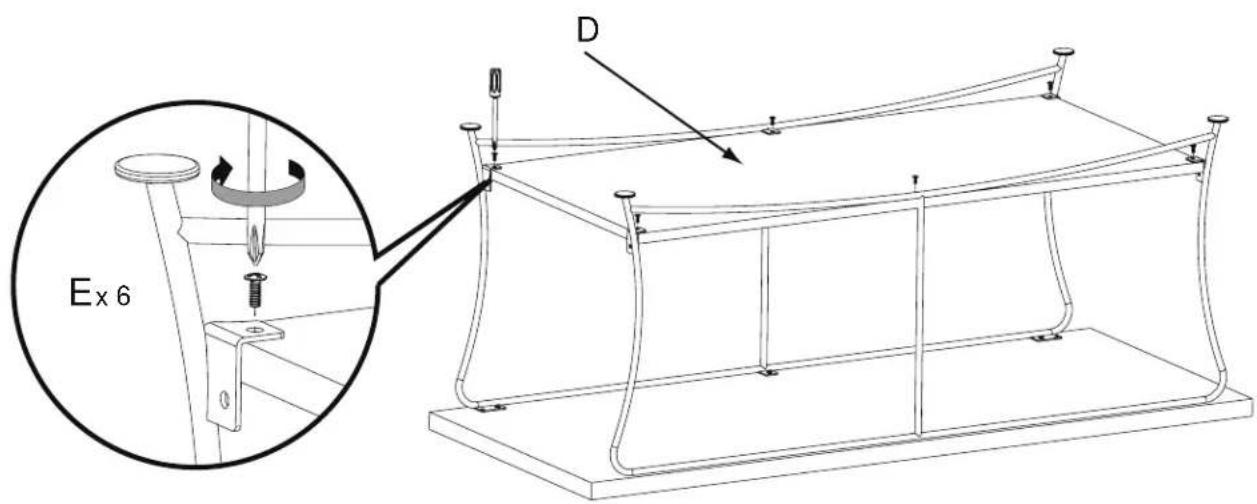

②

Ex 6 D

2-Fasten bottom board (D) to the frames (A) with screws (E). A second person may be needed to assist in completing this step

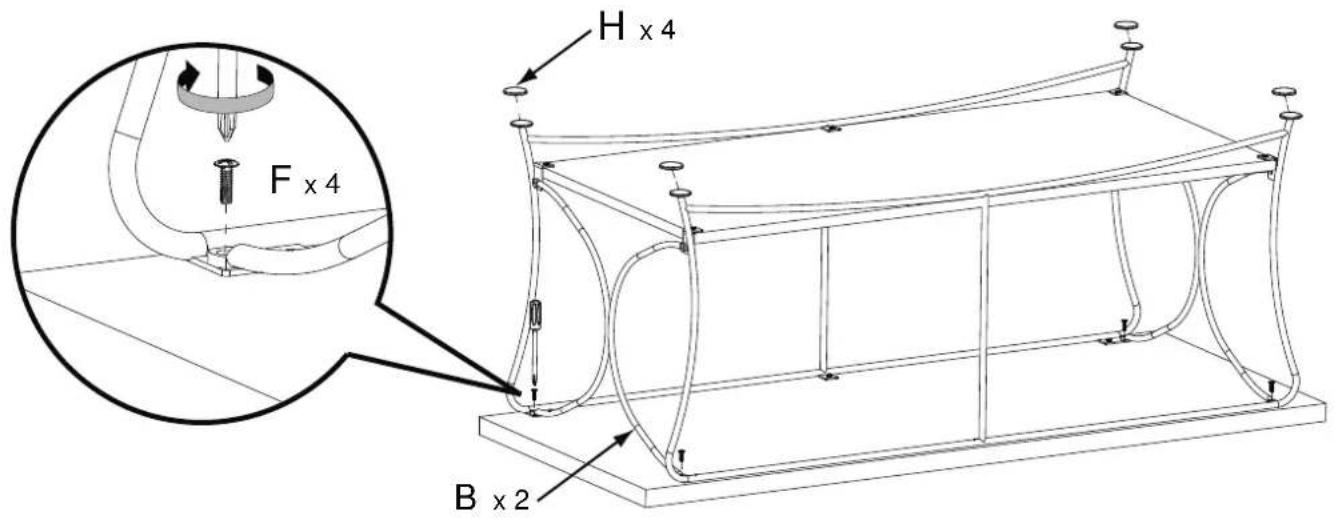

③

H x 4 F x 4 B x 2

3-Fasten side metal frame (B) to the top board (C) with screws (F). Press feet potector (H) on the feet.

④

G x 4

2-Fasten side metal frame (B) to body (C) with screws (G).

Max. 135 lbs Max. 65 lbs

Product Warranty: Atlantic Inc., warrants to the original purchaser that its products are free from defect in materials or workmanship. If after inspection, we find that the product was defective in materials or workmanship, we shall repair or replace the product at our discretion. This warranty does not cover accidental damage, misuse, improper care or alteration and excludes claims for incidental or consequential loss. This limited warranty applies to product purchased in the U.S. and Canada. This warranty gives you specific legal rights and you may also have other rights which vary from State to State. This warranty duration will be last one year.

Keep this Instruction Manual for future reference.

Keep your original proof of purchase (store receipt).

If parts are missing, DO NOT return to the store.

To order missing / replacement parts or for assembly assistance please contact [e-mail].

Or call 1-800-747-2660 M-F, 8am-5pm, P.S.T.

ATLANTIC®

©2010 Atlantic Inc. Santa Fe Springs, CA. U.S.A.

U.S. and other foreign patents pending /
