1 Product Overview

The MuxLab “MuxStream Live Streaming Solution” (model 100521) includes the main components needed to broadcast live content to mass recipients spread out across the globe. The solution allows live presentations to effectively be streamed over the Internet at 1080p/60, and can work with industry standard broadcast streaming services such as YouTube, Facebook, Wowza, to name a few, and also works with popular Audio/Video content production software tools such as OBS, Wirecast, and others.

The kit comes complete with a MuxStream Camera 1080p@60, a wireless Lav Mic system, and an intuitive control application (MuxStream App)

The MuxLab MuxStream Control App is free to download from the MuxLab website (for Windows PC), and from the iOS and Android App Stores (for tablet and smartphone). The Control App manages the system setup, configures the system to stream to various broadcast services such as YouTube, Facebook and Wowza, manages camera settings including pan/tilt/zoom (PTZ). The MuxStream Camera supports up to 1080p video @ 60Hz and supports low bandwidth for streaming AV content over the Internet.

2 Installation

1. Please validate that you received all contents listed below.

Please validate that you received all contents listed below:

(1) Camera

(1) Wireless Mic Kit

1. Download the MuxStream App.

Download the MuxStream Desktop App to manage the above devices at: www.muxlab.com/muxstream or at the Apple App Store for iOS and Google Play Store for Android, available for Tablet and Smartphones.

Illustration of a laptop with a Windows logo on the screen (no text or symbols)

Hand holding a smartphone displaying Apple, Android, and iOS logos (no text or symbols on the device screen)

1. Make sure you have an internet connection.

Internet access required to stream to these services and more.

WiFi is required if the MuxStream App is run from a wireless device.

1. Connect the Mic Wireless Receiver to the Camera.

Connect the Mic Wireless Receiver to the Camera (Line IN port).

Make sure the Mic and its Receiver are charged.

Diagram of a handheld electronic device with a fan and ports, showing no text or symbols

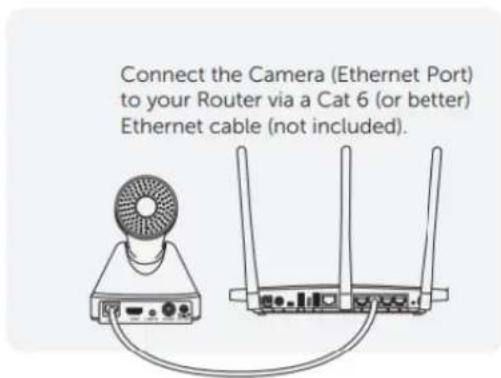

1. Connect the Camera to your Router.

Connect the Camera (Ethernet Port) to your Router via a Cat 6 (or better) Ethernet cable (not included).

1. Power On all devices.

Power all the supplied devices above. Make sure to turn on the wireless Mic and its Receiver in close proximity for them to pair.

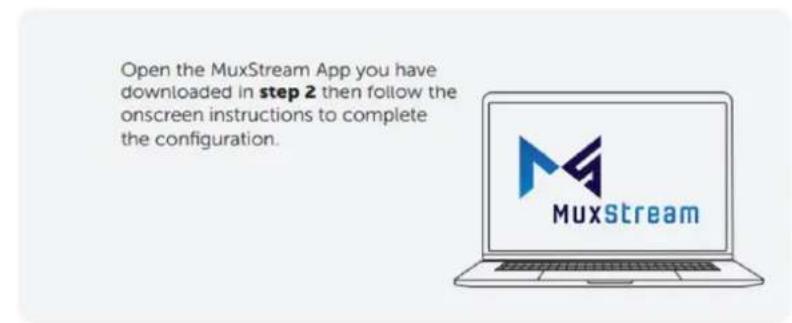

1. Open the MuxStream App.

Open the MuxStream App you have downloaded in step 2 then follow the onscreen instructions to complete the configuration.

3 Using the MuxStream App

3.1 Configuring the App

3.1.1 Creating an account

If this is the first time you are running the MuxStream App, a new user must be created, see figure below.

To create a new user, following these steps:

1. Enter your email address.
2. Enter your password.
3. Confirm your password.
4. Press the "Next" button.

HomeLine Marketing Hot Mail Free Window Help Create an Account mail: [e-mail] message message read ① ② ③ ④

3.1.2 Auto discover and configure your kit.

After creating an account, the application will search for and discover the devices on the network (PTZ Camera and Streamer/Transmitter) and will configure them automatically.

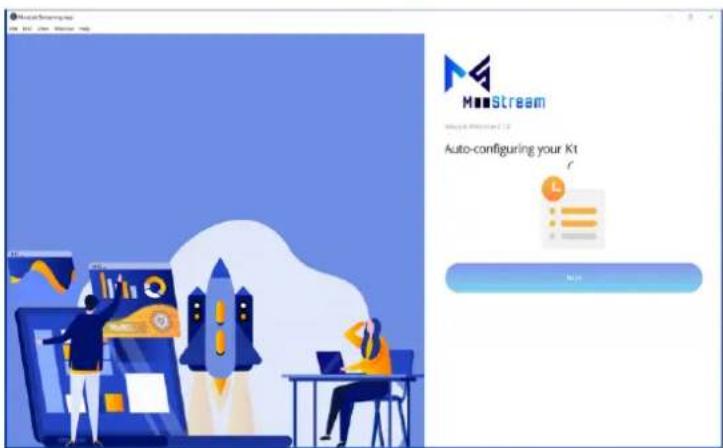

MaxStream Auto-configuring your Kit

Once the application has configured the devices, click the "Next" button to begin (See figure below).

MioLab Streaming App File Edit Your Window Help MioStream Setup 8: Welcome 2-2 You're all set! Click next continue Your equipment has been detected and configured, Click Next below to get started with streaming. Next

To start using the application, the user must enter their email address and password and then press the "Sign in" button.

MioStream Streaming App In Kit View Window Help MioStream Welcome Back! Sign in to continue EMAIL [e-mail] PASSWORD m Forged Password! Sign in

After pressing the "Sign in" button, the system control interface will start automatically.

3.2 Control interface

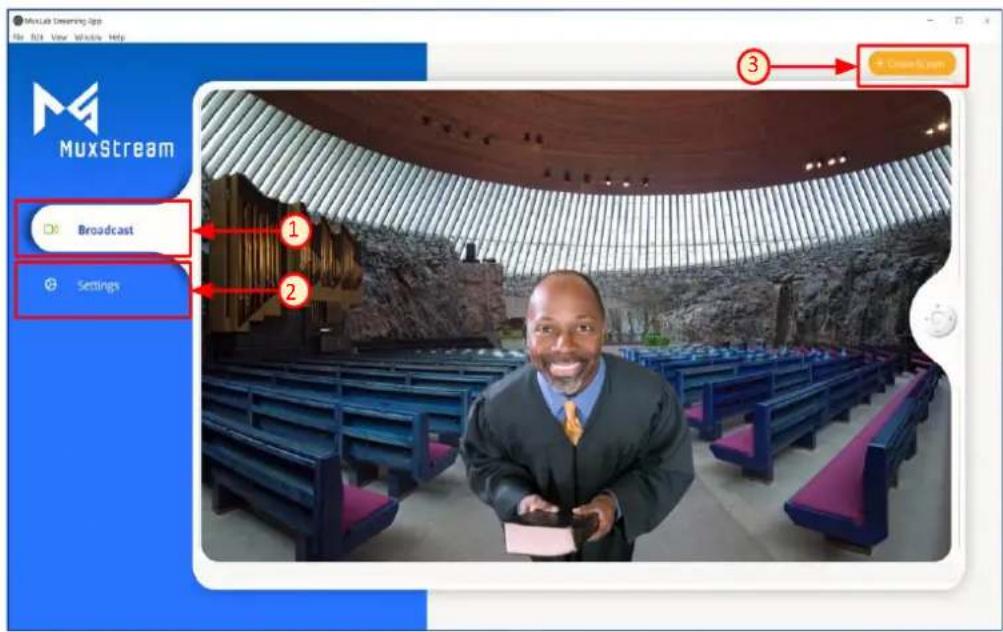

Once logged in, the User can see three main tabs: Broadcast, Create Stream and Settings.

MuxStream MuxStream Broadcast Settings 1 2 3

3.2.1 Broadcast tab

When the "Broadcast" tab is selected, the application displays the camera preview in the center of the window and allows you to control the different PTZ options for the camera, focus, and pre-sets by selecting the icon on the right-side of the window.

MuxStream App MuxStream Broadcast Settings Click to open options for Camera and presets.

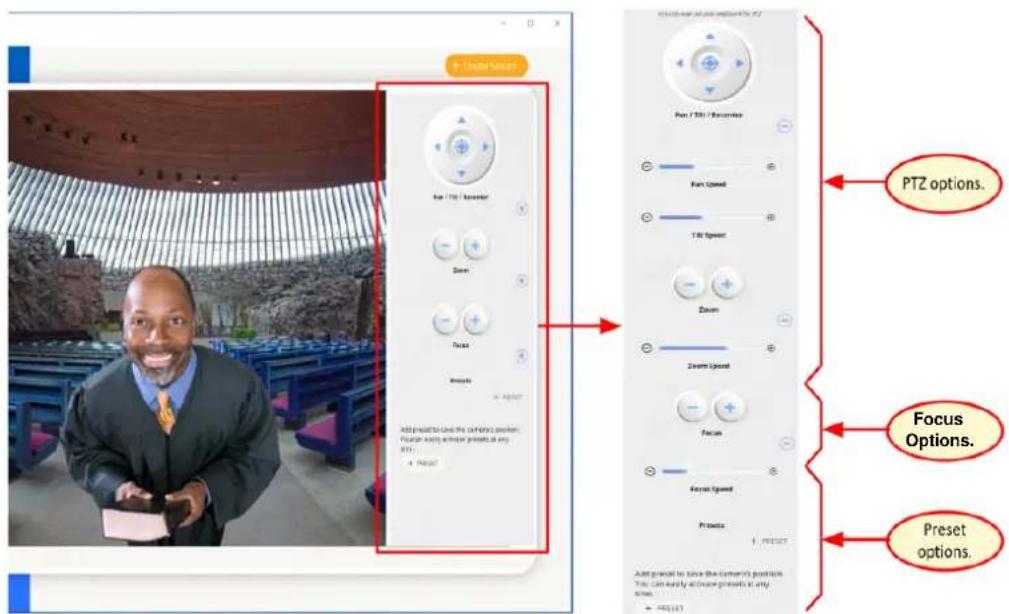

Pressing or hovering the cursor over the control icon will bring up a pop-up Window with different control options (Pan, Tilt, Recenter, Zoom, Focus, Preset, etc.) that can be adjusted using the mouse or keyboard.

PTZ options. Focus Options. Preset options.

Multiple Presets may be created, each recording the current pan/tilt/zoom settings at the time they are saved. Saved Presets may be recalled by simply pressing on a given Preset button. To create a Preset, press on "+ PRESET" and a new pop-up window will appear to allow the user to enter the necessary data. The current pan/tilt/zoom settings may be saved.

To create a new Preset, follow these steps:

1. Input the new "Preset" name. Any name may be given.
2. Press the "SAVE" button to confirm.

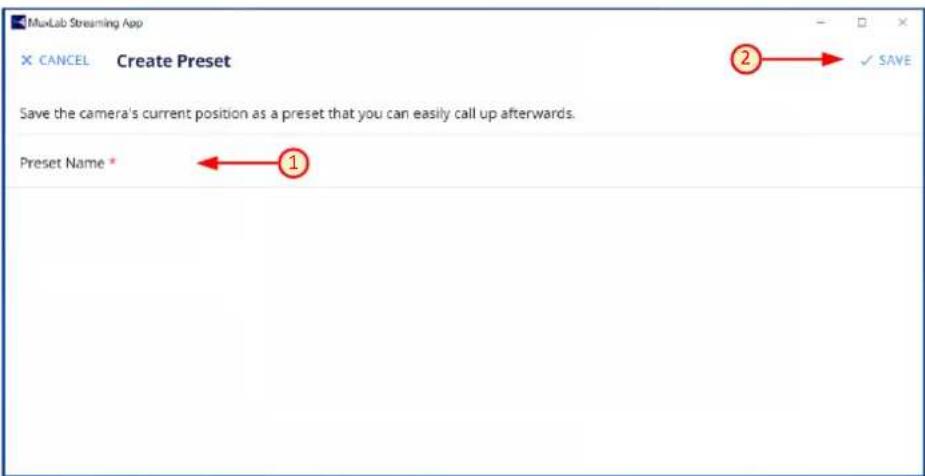

MuxLab Streaming App X CANCEL Create Preset Save the camera's current position as a preset that you can easily call up afterwards. Preset Name * ① 2 ✓ SAVE

Saved Presets will show up as Preset buttons with their assigned name. To activate a Preset, simply press on its button.

3.2.2 Settings tab

In the "Settings" tab, the application shows two options: App Version and AutoDiscover.

MuxStream App Version 1.000.00 Re-look Network to start if you allow hardware, or if you're having issues using your system ① ② LIFE SOFTWARE

1. App Version: The user can see the current MuxStream App version.
2. Auto-Discover: By pressing the "AUTO-DISCOVER" button the App will automatically re-detect the Streamer/Transmitter and Camera that are connected in the network. If there is more than one Streamer/Transmitter or more than one Camera connected, the user will be requested to select the units to be used from a list provided.

3.2.3 Create Stream tab

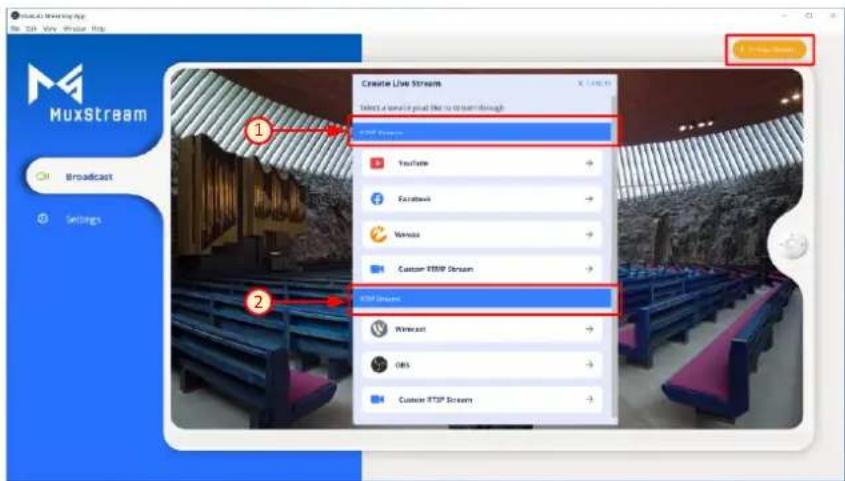

To create a new stream, the user must press the "Create Stream" button. Once selected, a new pop-up window will appear in which we can see two main options: RTMP Streams and RTSP Streams.

MuxStream Select a stream in point (the top stream through) Create Live Stream 1 2 Broadcast Settings YouTube Facebook Twitter Custom RTSP Stream RTSP Stream Internet CBS Custom RTSP Scavery

1. Creating an RTMP Stream; To do this, select the service from the list provided. If the service is not listed, select the "Custom RTMP Streaming" button.

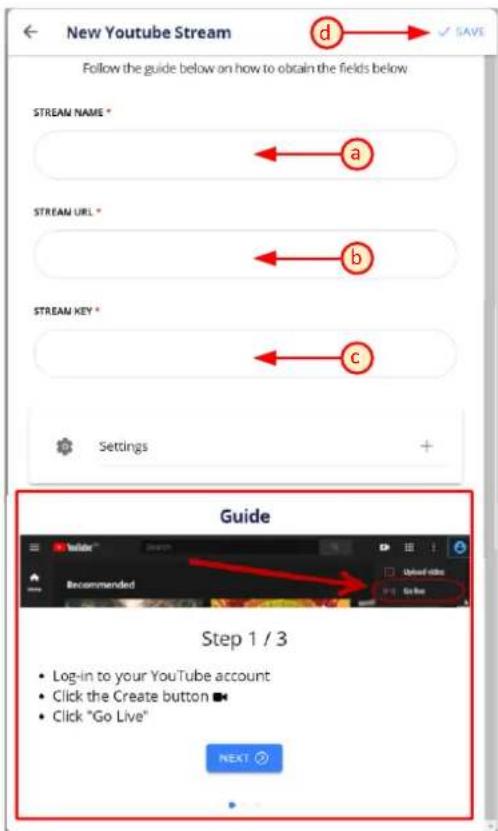

To create a new RTMP Stream, following these steps:

a. Input a user defined new Stream name.
b. Input the Stream URL (from your streaming provider).
c. Input the Stream Key (from your streaming provider).
d. Press the "SAVE" button to confirm.

Note: For each RTMP Streaming service that is listed, the App displays a guide on how to find the "Stream URL" and the "Stream Key".

New Youtube Stream Follow the guide below on how to obtain the fields below STREAM NAME * STREAM URL * STREAM KEY * Settings Guide Step 1 / 3 • Log-in to your YouTube account • Click the Create button • Click "Go Live" NEXT

In the "Settings" section the user can modify different parameters such as: Resolution, Bitrate, FPS, GOP and Encoding method.

It should be noted that the App for each service shown in the list will give default values for these parameters, these defaults are recommended values for the Streaming service selected, but the user can change them at any time according to their needs.

New Youtube Stream Follow the guide below or how to obtain the little below. STREAM NAME * STREAM URL * STREAM URL * STREAM LIST * Settings + Guide Step 1 / 3 • Log-in to your YouTube account • Click the Create button • Click "Go Live" Add" OK Settings Customs (Blink, Default) keys upon in any Also enable RTSP streaming Yes this is usually not received Resolution 1520x1080 Microsoft Accessible 1000 RPL (S - KB) 30 GCP (S - KB) 5 Encoding Method VERS

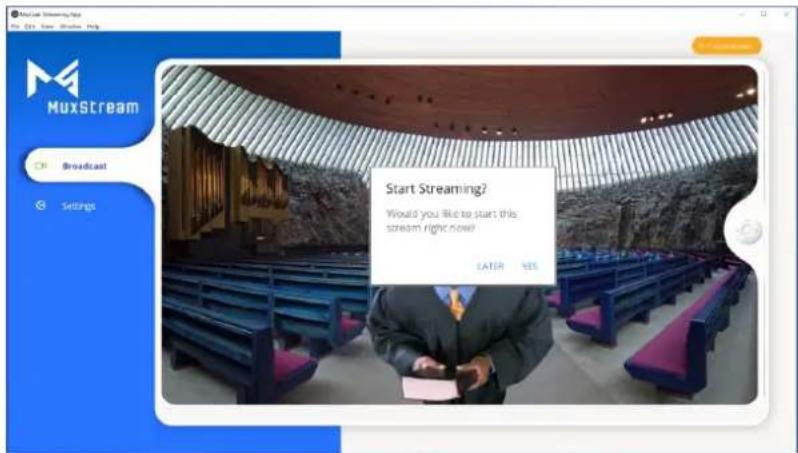

When the creation of an RTMP Stream is complete, a pop-up window will appear to confirm whether you want to start streaming now or later.

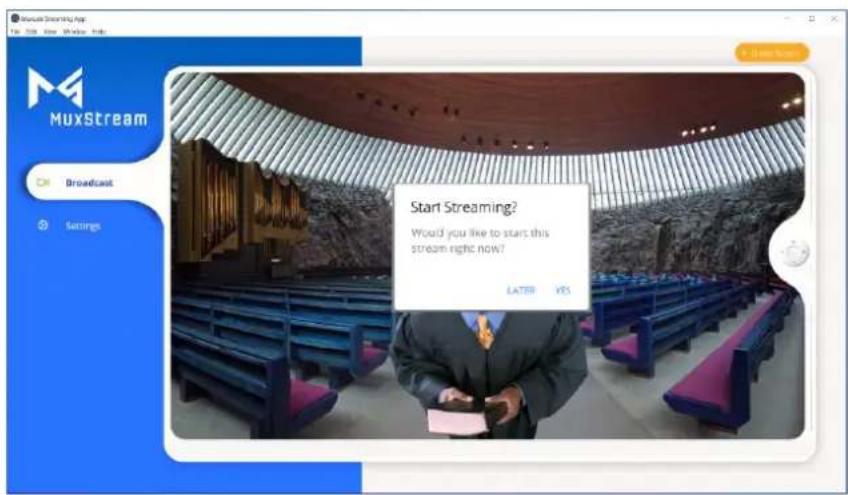

MuxStream Broadcast Settings Start Streaming? Would you like to start this stream right now! LATER YES

Once the creation of at least one RTMP Stream is complete, a "Start Stream" tab will appear.

MuxStream Streaming Help MuxStream Broadcast Savings China Mobile Just Streaming

1. Creating an RTSP Stream; To do this, select the service from the list provided. If the service is not listed, select the "Custom RTSP Streaming" button.

To create a new RTSP Stream, following these steps:

a. Input a user defined new Stream name.
b. Copy the RTSP URL. This URL should be pasted into the appropriate box on your RTSP streaming service.
c. Press the "SAVE" button to confirm.

Note: For each RTSP Streaming service that is listed, the App displays a guide on how to enter the "RTSP URL"

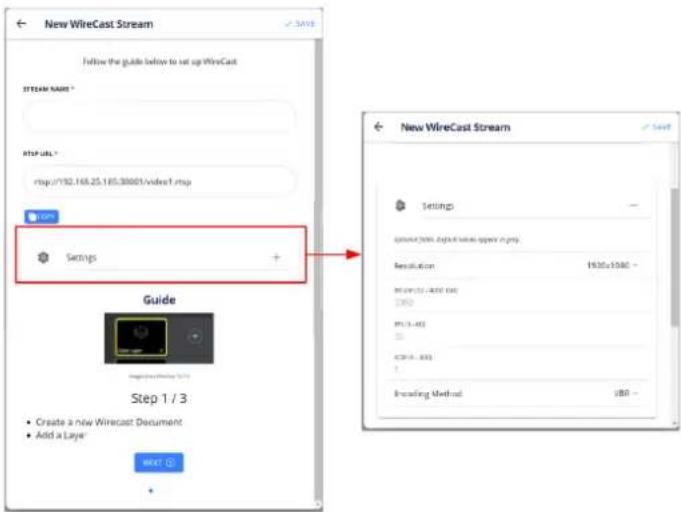

New WireCast Stream Follow the guide below to set up WireCast STREAM NAME * RTSP URL * rtsp://192.168.25.185:38001/video1.rtsp COPY Settings Guide Clear Layer Images from WireCast 11.1.3 Step 1 / 3 • Create a new Wirecast Document • Add a Layer NEXT

In the "Settings" section the user can modify different parameters such as: Resolution, Bitrate, FPS, GOP and Encoding method.

It should be noted that the App for each service shown in the list will give default values for these parameters, these defaults are recommended values for the Streaming service selected, but the user can change them at any time according to their needs.

New WireCast Stream Follow the guide below to set up WireCast STREAM NAME * FTP URL * http://192.168.25.165.30001/video1.rmp Browse Settings + Guide Step 1 / 3 • Create a new Wirecast Document • Add a Layer REC: + New WireCast Stream Settings Coverage: 700% digital video space in play. Resolution: 1920x1000 - Size: 52.400 x 100 RGB F11.3-400 D CPU: 800 I Encoding Method: RGB -

When the creation of an RTSP Stream is complete, a pop-up window will appear to confirm whether you want to start streaming now or later.

MuxStream Broadcast Settings Start Streaming? Would you like to start this stream right now? LATER YES

Once the creation of at least one RTSP Stream is complete, a "Start Stream" tab will appear.

Muxstream Muxstream Broadcast Settings Start Streaming

3.2.4 Start Streaming tab

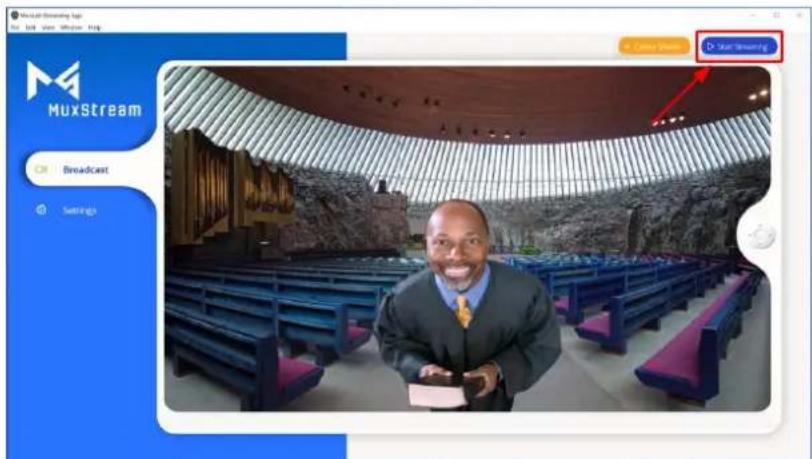

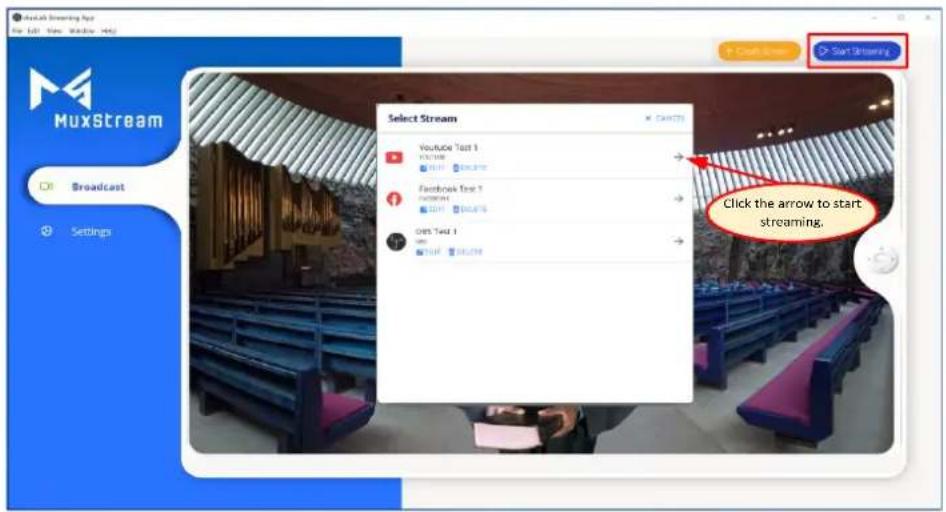

By clicking on the 'Start Streaming' button, the application shows the list of streams created and allows the user to edit, delete or start a transmission. To start streaming, simply click on the arrow to the right of the Stream Name.

MuxStream Start Streaming Select Stream Youtube Text 1 VOLUME F2007 Facebook Text 1 COUNTRY GND Text 1 M2007 Click the arrow to start streaming.

After clicking the arrow, a popup window reminds you to check if the broadcast service is transmitting. Click the "GOT IT" button if the transmission works fine.

MuxStream Streaming App Make sure YouTube is also streaming Camera Streaming Active GOT IT Clear Stream Stop Streaming Broadcast Settings Click here after verify that the broadcast service is also streaming.

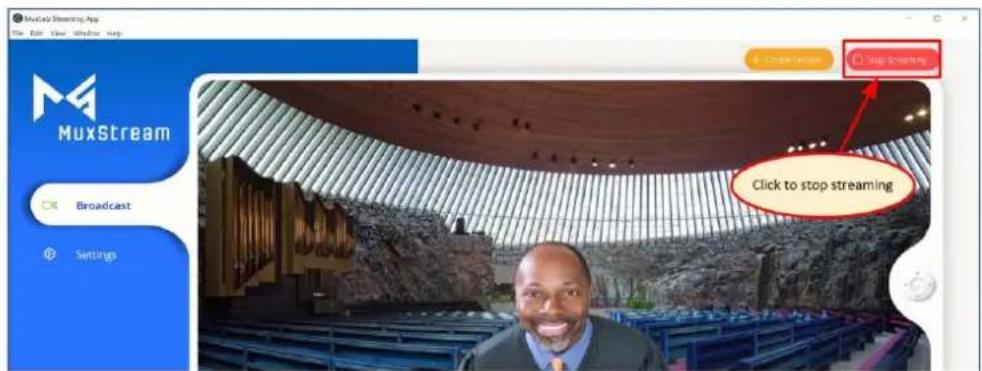

To end a transmission just click on the "Stop Streaming" button in this App and in your broadcasting service.

MuxStream MuxStream Broadcast Settings Click to stop streaming Stop Streaming

2.2.5 Control interface for iOS and Android.

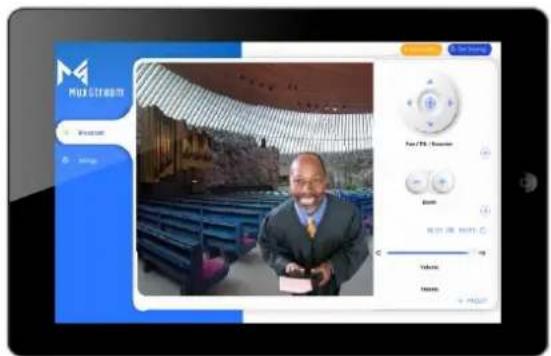

For iOS and Android devices, for both tablets and smartphones, the MuxStream application will present the same options found in the Windows version for PC, changing only the arrangement of the tabs. See section 3.2 for a description of each option.

Below are screenshots of iOS and Android devices for reference only.

iOS iPad

Scanned screenshot of a presentation slide featuring a photo of a man in a suit inside a modern auditorium with audience seating.

MIX GTRIM Wristor Sung Fan/PSI: Descenter Box Volume: Notes:

MUXSFRONT Download Settings 8 minutes Access App Store My name: www.muxsfront.com Use the installed website or this email to access your system

iOS iPhone

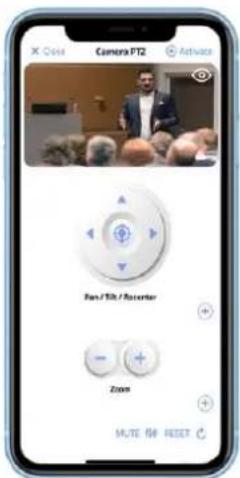

Camera PT2 Actuate Fan/Fish / Fancenter Zoom MUTE FOR RESET

Select Stream OIDS Test 105 1047 366.29 → YouTube Test 10574 1047 366.01 →

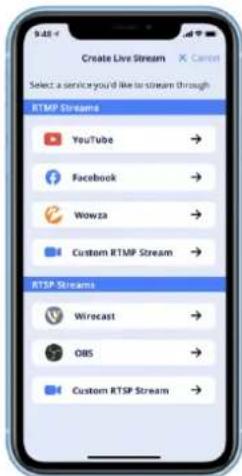

Create Live Stream Select a service you'd like to stream through RTMP Streams YouTube Facebook Wowza Custom RTMP Stream RTSP Streams Wiprocast OBS Custom RTSP Stream

Android Tablet

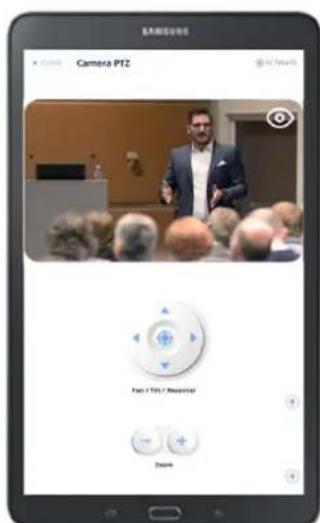

SAMSUNG Camera PTZ Fan / PTA / Reverter Zoom

9:48 Create Live Stream Cancel Select a service you'd like to stream through RTMP Streams YouTube Facebook Wrowse Custom RTMP Stream RTSP Streams Wirecast OBS Custom RTSP Stream

4 Troubleshooting

The following table describes some of the symptoms and possible solutions regarding the MuxStream App.

symptom	Probable cause	Possible solution
No Camera found	The Camera is not connected to the network.The Camera is not turned on.The Camera is connected to a different Subnet	Check that the network cable is properly connected to the Camera.Verify that the Camera is turned on.Make sure you are in the same subnet as your Camera and make sure DHCP mode is active.
Not able to Stream	There is no internet connection.The Streaming URL is not correct.The Streaming key is not correct.No Audio being sent.	Verify that you have a good quality Internet connection.Verify that you pasted the correct Streaming URL.Verify that you pasted the correct Streaming key.Some streaming services like YouTube and others require both audio and video signals to be present. Make sure the wireless mic is connected, charged and working correctly.
