Product Type	Built-in Dishwasher
Model Number	DWBS18 (DW7714-18 / DW7713-24)
Capacity	8 place settings (DW7714-18) / 10 place settings (DW7713-24)
Dimensions (W x D x H)	17.7" x 22.8" x 32.5" (DW7714-18) / 23.6" x 22.8" x 32.5" (DW7713-24)
Power Supply	120 Volts, 60 Hz
Rated Power Usage	Wash motor 100W, Heater 700W
Water Feed Pressure	0.04 - 1 MPa (5.8 - 145 psi)
Inlet Water Temperature	120°F - 149°F (49°C - 65°C)
Filter System	Multiple filter system with three mesh filters
Smart Wash System	Automatic soil sensing for optimal wash cycle
Wash Cycles	Heavy, Normal, ECO, Glass, Rapid, Rinse
Options	Heating Dry, Sanitize (156.2°F), Hi Temp (140°F), Energy Save
Delay Start	1 - 24 hours
Rinse Aid Dispenser	Automatic release, capacity approximately 1 month
Detergent Dispenser	Main wash compartment with release catch
Noise Level	Not specified, likely standard dishwasher level
Energy Star Certified	Yes
Installation Type	Under-counter, built-in
Exterior Finish	Stainless steel (from manual mention)
Safety Features	Child lock, overflow protection, grounding
User Maintenance	Clean filters regularly, wipe exterior, periodic vinegar wash

Frequently Asked Questions - DWBS18 ZLine

What should I do if my dishwasher won't start?

Check the power supply and ensure it is connected. Verify that the delay start option is not selected. If your model has a child lock, deactivate it. Refer to the manual for detailed troubleshooting.

How do I clean the filters?

Turn off the dishwasher. Rotate the filter insert counterclockwise to unfasten and remove it. Remove the fine filter. Clean them under running water. Reinstall by reversing the steps.

Why are my dishes not drying properly?

Ensure the rinse aid dispenser is filled. Check that you are using rinse aid. Also, select a cycle that includes a drying phase, such as Heavy or Normal with heating dry option. Proper loading also helps.

What does error code E1 mean?

E1 indicates that the flow meter did not detect water after 4 minutes during the water inlet step. Check the water supply, inlet valve, hose connections, and ensure the water pressure is adequate.

Can I use regular dish soap?

No, only use automatic dishwasher detergent. Regular dish soap can cause excessive suds, leading to leaks and poor cleaning.

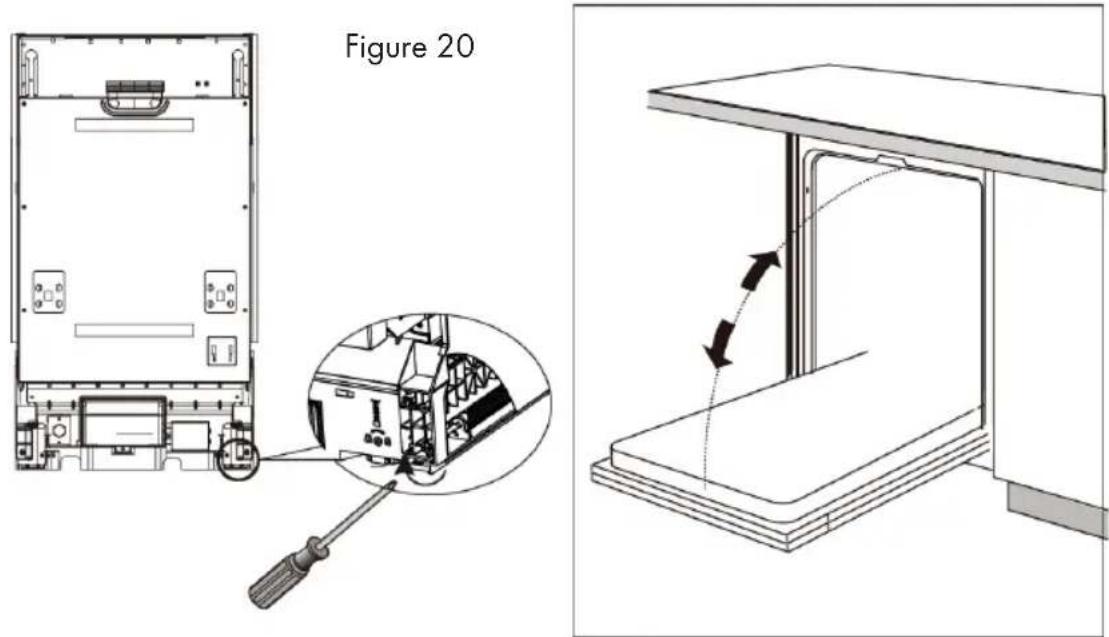

How do I adjust the door spring tension?

Rotate the adjusting screw on the door spring to either strain or relax the steel cable. The door should remain horizontal when fully opened and rise to close with a slight lift of a finger.

My dishwasher is leaking. What could be wrong?

Check if the dishwasher is level. Ensure you are using automatic dishwasher detergent only (not regular soap). Inspect the door seal and hose connections for damage or looseness.

How do I use the delay start feature?

Press the delay start pad until the desired delay time (1-24 hours) appears on the LED display. Then press Start/Cancel and close the door within 4 seconds. The dishwasher will start after the delay.

What is the smart wash system?

The smart wash system automatically senses the soil level of the dishes. For lightly soiled partial loads, it runs a shorter cycle; for heavily soiled full loads, it runs a heavy cycle, optimizing water and energy usage.

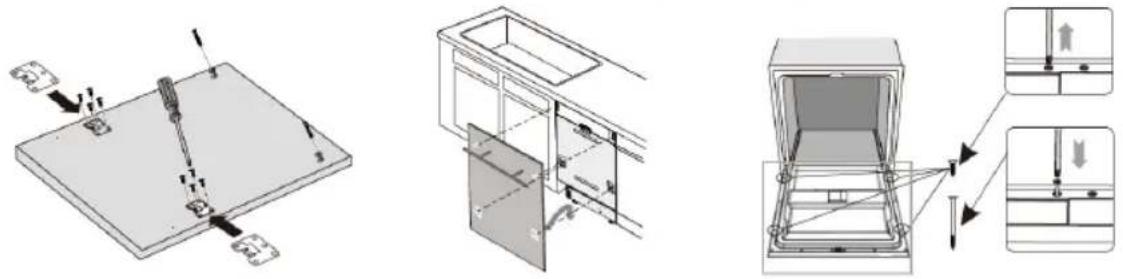

How do I install the decorative door?

Install the hook and brackets on the decorative door. Put the hook into the slot of the outer door. Fix the decorative door onto the outer door using the provided screws and bolts. Adjust door spring tension if needed.

USER MANUAL DWBS18 ZLine

Stylized blue water droplet icon with gradient shading (no text or symbols)

DISHWASHER

Installation Guide

and Users Manual

CONTENTS

INSTALLATION GUIDE

- SAFETY INSTRUCTIONS

Important Safety Instructions

Grounding Instructions

BEFORE INSTALLING

Electric Shock Hazard

PREPARING THE DISHWASHER ENCLOSURE 5

Product Dimensions

Enclosure Dimensions

INSTALLING THE DISHWASHER

Step 1: Check the Parts and Tools

Step 2: Select the Best Location for the Dishwasher

Step 3: Check Water Supply Requirements and Cautions

Step 4: Check the Electrical Requirements and Cautions

Step 5: Unpacking and Inspecting the Dishwasher

Step 6: Preparing the Dishwasher

Step 7: Placing the Dishwasher and Connecting the Hot Water Supply Line

Step 8: Leveling the Dishwasher

Step 9: Securing the Dishwasher

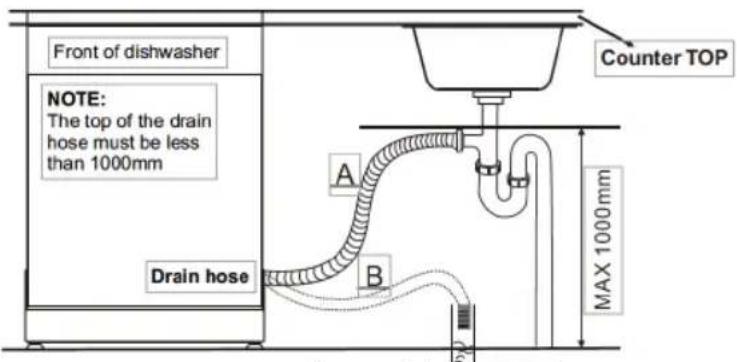

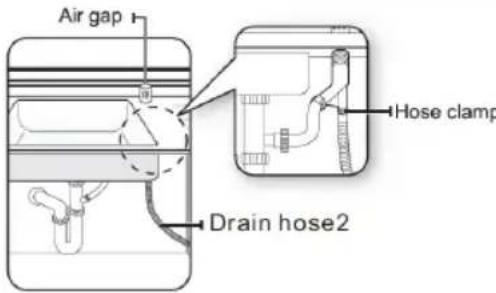

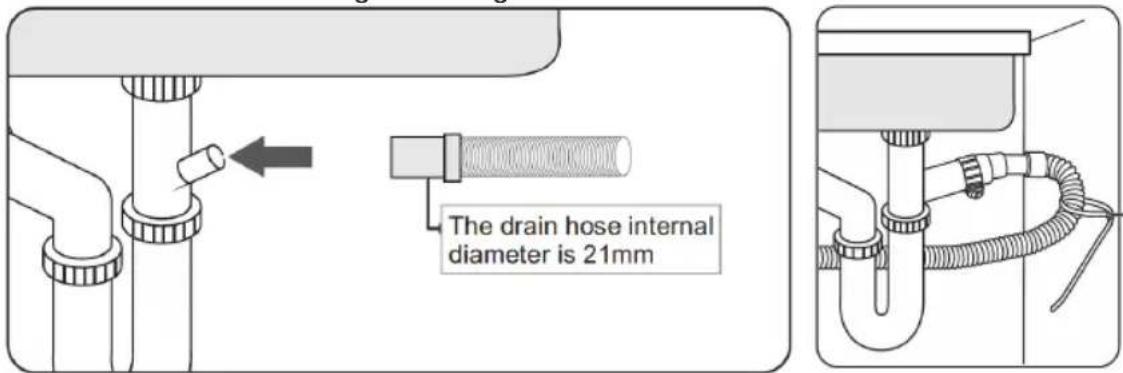

Step 10: Connecting the Drain Hose

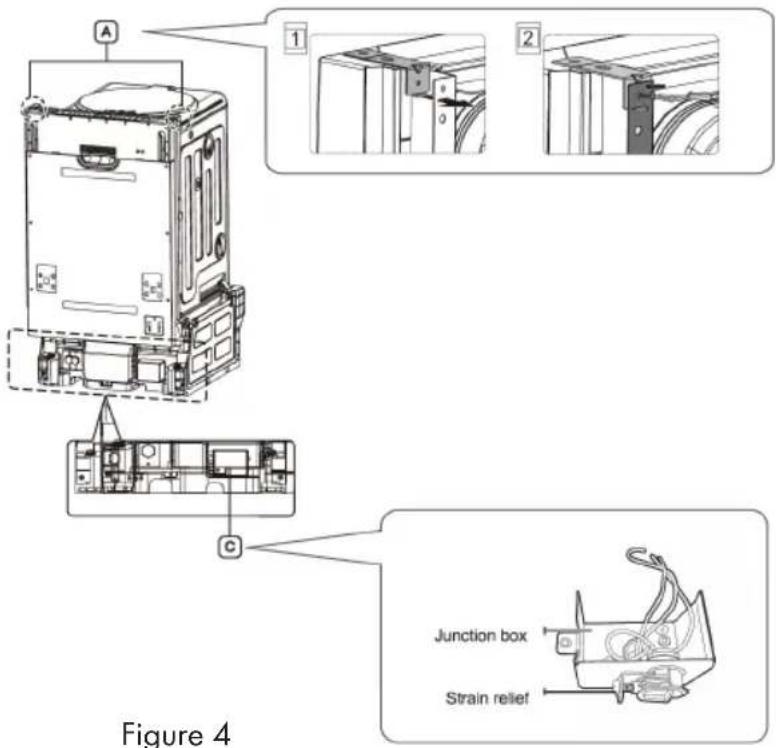

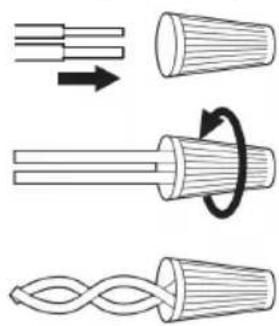

Step 11: Wiring Connections

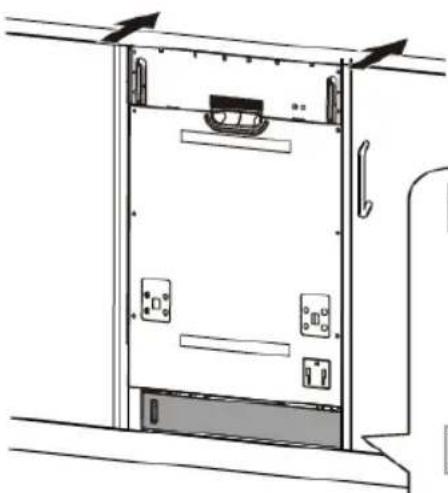

Step 12: Completing the Installation

SPECIFICATIONS

CONTENTS

USERS MANUAL

- SAFETY INSTRUCTIONS

Proper Installation

Basic Precaution Before Use

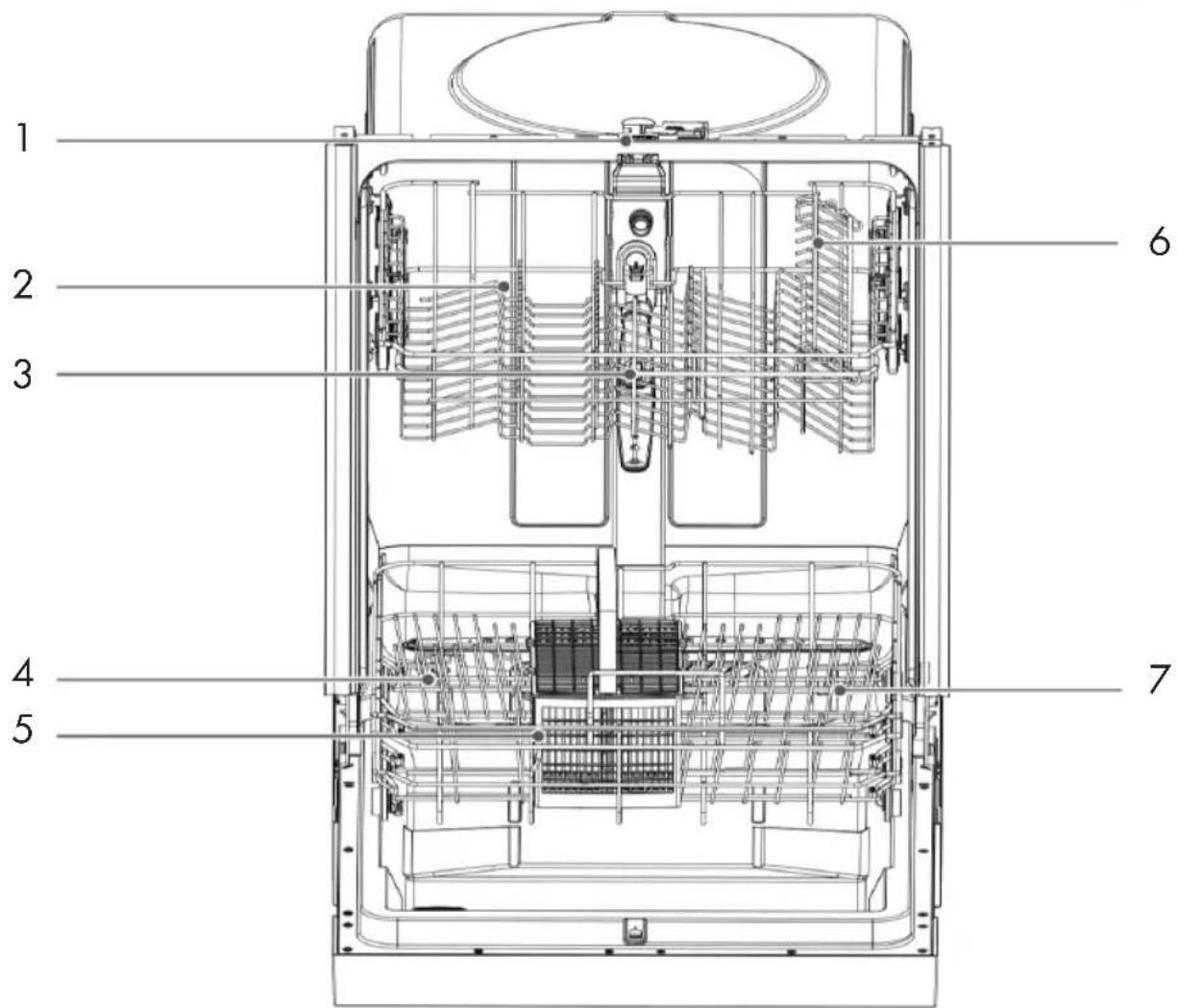

FEATURES OF YOUR NEW DISHWASHER 28

Specification

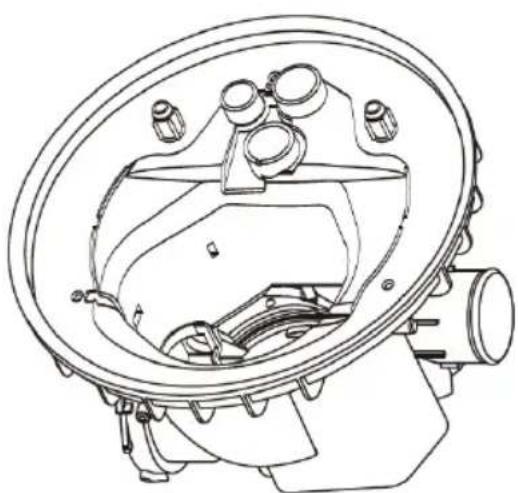

Filter System

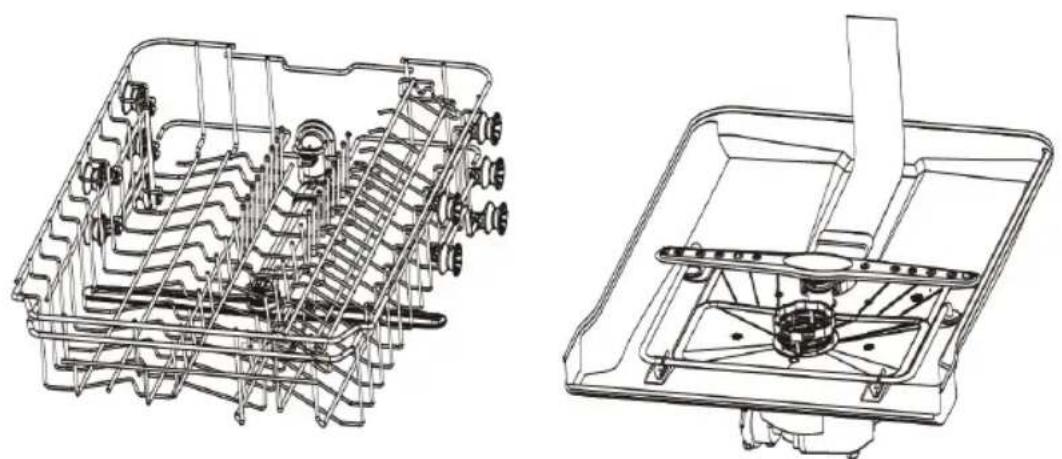

Smart Wash System

OPERATING INSTRUCTIONS

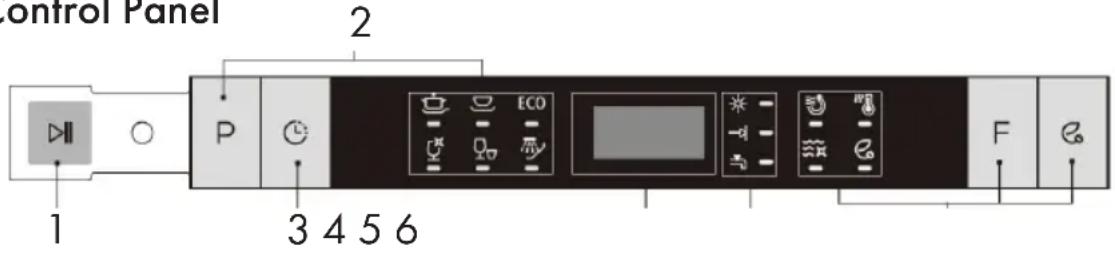

Control Panel

Cycle Chart

PREPARING AND LOADING DISHES 36

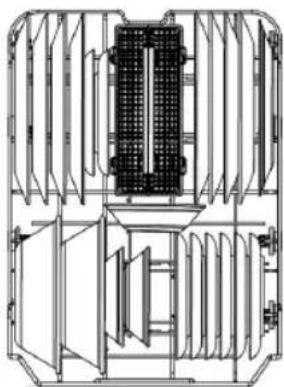

Loading the Lower Basket

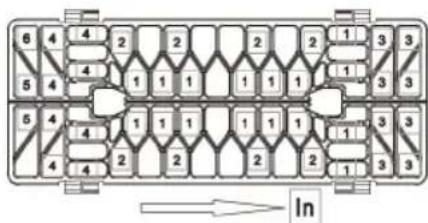

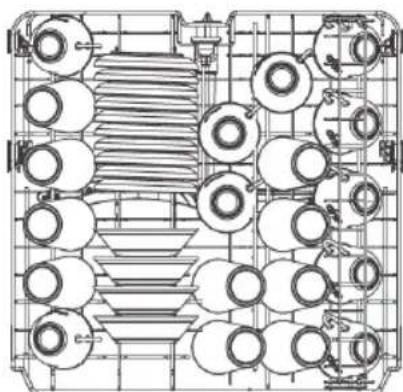

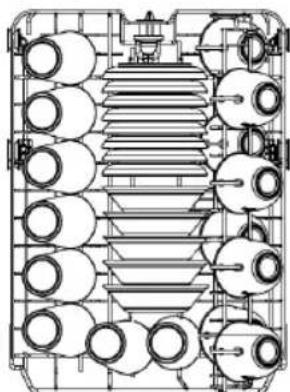

Loading the Upper Basket

Loading the Silverware Basket

Adding a Dish

Filling the Detergent Dispenser

Filling the Rinse Aid Reservoir

- USER MAINTENANCE

Cleaning the Exterior

Cleaning the Interior

Cleaning the Nozzles

TROUBLESHOOTING

INSTALLATION GUIDE

SAFETY INSTRUCTIONS

Throughout this manual, you'll see Warning and Caution notes. These warnings, cautions, and important safety instructions that follow do not cover all possible conditions and situations that may occur. It's your responsibility to use common sense, caution, and care when installing, maintaining, and operating the dishwasher. ZLINE is not liable for damages resulting from improper use.

These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this book, keep it in a safe place for future reference.

Important Safety Instructions

Hazards or unsafe practices that may result in severe personal injury or death.

s or unsafe practices that may result in personal injury or property damage.

To reduce risk of fire, explosion, electric shock, or personal injury when using the dishwasher, follow these basic safety precautions.

sure the machine is grounded to prevent electric shock.

Read all instructions before using the appliance.

Install and store the dishwasher inside, away from exposure to weather.

Do not install the dishwasher near electrical components. Keep the dishwasher away from open flames.

Do not install the dishwasher on a carpet as this is a fire hazard.

Do not install the dishwasher in a location where the water may freeze (where the temperature falls below 32^(0^) ). Frozen water in the hoses or pipes may damage the dishwasher.

As with all equipment using electricity, water and moving parts, potential hazards exist. To safely operate this appliance, become familiar with its operation and exercise care when using it.

The dishwasher must be properly grounded. Never connect it to an ungrounded outlet.

SAFETY INSTRUCTIONS

o removal of original dishwasher and the installation of your new unit,

sure to switch off your circuit breaker. Do not connect the dishwasher

until you have completed the installation. Connecting the power cable is the last step when installing the dishwasher.

All wiring and grounding must be done in accordance with the electrical code applicable to the region.

Grounding Instructions

For a permanently connected appliance:

This appliance must be connected to grounded metal, a permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

The dishwasher is very heavy. Do not attempt to move or carry a dishwasher alone. Two or more people are needed to move a dishwasher and avoid potential injuries.

CAUTION

If the power cable is damaged, it must be replaced by the manufacturer, a service agent or similarly qualified person in order to avoid a hazard.

Do not touch the power cable with wet hands.

Do not connect another appliance to the same power outlet as the dishwasher.

Make sure to use a new water supply line. Old lines are susceptible to breakage because they become hardened and may cause property damage due to a water leakage.

The dishwasher must be connected to a hot water supply with a temperature between 120^ F and 149^ F. This temperature range provides the best washing result and shortest cycle time. Temperature should not exceed 149^ F to prevent damage to dishes.

Ensure that the water supplied to the dishwasher does not freeze. Frozen water can damage the hoses, valves, pump, or other components.

For a full list of safety information, please refer to the User Manual.

BEFORE INSTALLING

WARNING

Do not use the dishwasher until it is correctly installed.

Do not push down on the door when it is open.

Do not place excessive weight on the open door.

Black hand with red lightning bolt symbol and curved tail, no text or labels present

Electric Shock Hazard

Failure to follow these instructions can result in death, fire, or electric shock:

Electrically ground the dishwasher.

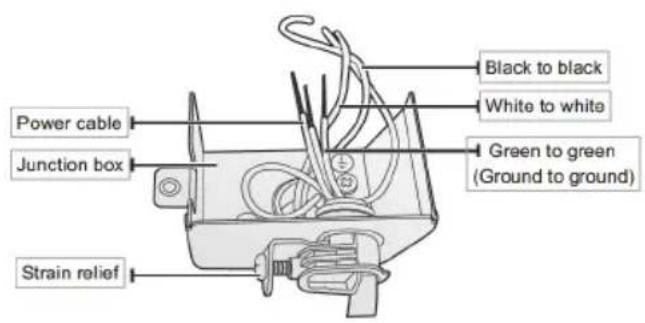

Connect the ground wire to the green ground connector in the junction box.

Do not use an extension cord.

To reduce the risk of electric shock, fire, or injury to persons, the installer must ensure that dishwasher is completely enclosed at the time of installation.

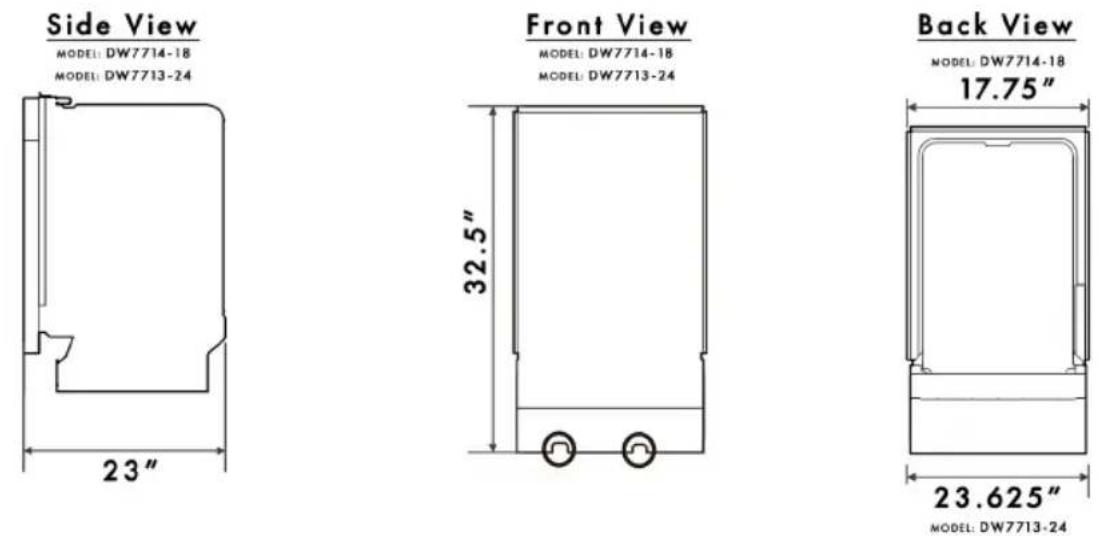

Product Dimensions

MODEL: DW7714-18
MODEL: DW7713-24
MODEL: DW7714-18
MODEL: DW7713-24
MODEL: DW7714-18
17.75"
MODEL: DW7713-24

The water supply line, power cable, and drain hose should go through the space behind the dishwasher. The power cable runs in channels under the dishwasher to connections in the front.

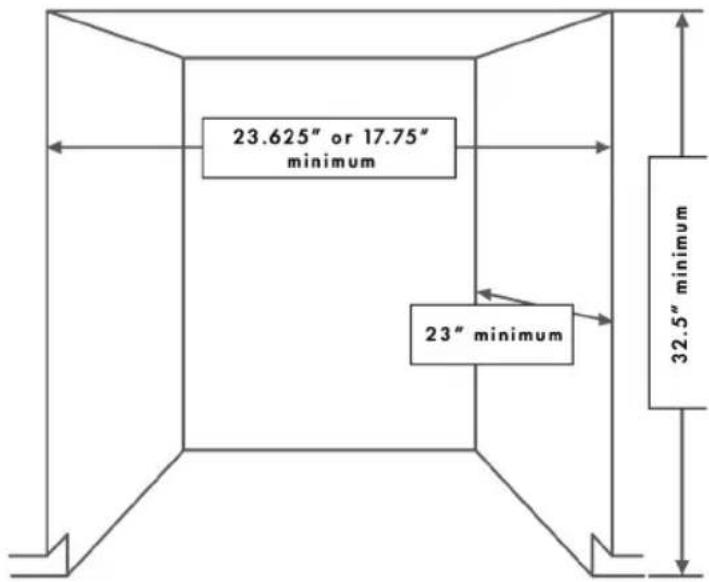

Enclosure Dimensions

This dishwasher is designed to be enclosed on the top and on both sides by a standard residential kitchen cabinet unit.

The installation enclosure must be clean and free

of any obstructions.

The enclosure must be at least 23.6 inches wide 23 inches deep and 32.5 inches high.

For the front door of the dishwasher to be flush with the leading edge of the counter top, the counter top must be at least 23 inches deep.

INSTALLING THE DISHWASHER

Be sure that you or your installer follow these instructions closely so that the new dishwasher works properly and that you're not at risk of injury when washing dishes.

Step 1: Check the Parts and Tools

Before starting on the installation, prepare all the necessary tools and parts required to install the dishwasher. This will save installation time and simplify the installation process. Below are all the parts that are provided with the dishwasher. See step 5.

Technical line drawing of two metal bracket components with mounting holes (no text or symbols)

Pure electrical circuit lines without any symbols

Two types of screwdrivers shown side by side, no text or symbols present

Installation Bracket #1 x2 Installation Bracket #2 x2 ST3.9*13 x2

(for the kick plate)

Illustration of two screwdrivers with metal fasteners (no text or symbols)

ST4*14 x10 (for install brackets 1&2)

Two types of screwdrivers shown in line drawings (no text or symbols)

ST3.5*9 ×2 ST3.5*45 ×4

(for the decorative door)

ST3.5*25 x2 (for the decorative door hook)

Decorative Door Hook Adjustment Cap x2

Cable Tie (for the drain hose)

Simple line drawing of a curved, elongated object resembling a tool or bracket (no text or symbols)

Kick Plate Condensation Strip

INSTALLING THE DISHWASHER

Not Provided:

Illustration of binoculars with visible ridges (no text or symbols)

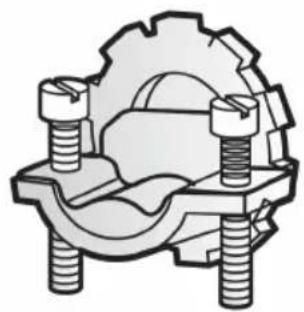

Twist on wire connector Strain relief

Mechanical gear assembly diagram showing two bolts and a central hub (no text or labels)

Simple 3D illustration of a cylindrical object with a central hole (no text or symbols)

Electrical tape & standard duct tape

Illustration of a coiled cable with a strap (no text or symbols)

Hot water supply line 90° Elbow Tube fittings

Technical illustration of a threaded pipe fitting (no text or symbols)

Illustration of a cylindrical electrical plug with two leads (no text or symbols)

Air gap Rubber connector Hose clamp

Simple line drawing of a cylindrical mechanical part with flanges (no text or symbols)

Illustration of a mechanical clamp or hose assembly (no text or symbols)

Illustration of a coiled cable or wire with no text or symbols

Power cable Teflon tape or sealing compound

Simple line drawing of a cylindrical mechanical component (no text or symbols)

Decorative door

Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a leak inside the tube fitting. We strongly recommend using copper tubing with a compression fitting or a flexible stainless steel braided hot water supply line.

Tools Required (Not Provided):

Line drawing of a handheld electric drill bit (no text or symbols)

Illustration of a pair of eyeglasses with curved bristles (no text or symbols)

Electric drill Safety glasses Gloves

Line drawing of a pair of pliers (no text or symbols)

Adjustable wrench Wire stripper Pliers

Line drawing of a measuring tape (no text or symbols)

Simple line drawing of a pencil (no text or symbols)

Line drawing of a screwdriver with a flat blade and threaded shaft (no text or symbols)

Tape measure

Pencil Phillips screwdriver

Illustration of a mechanical tool with a handle and internal components (no text or symbols)

Technical line drawing of a mechanical component with flanged ends and a central slot (no text or symbols)

Illustration of two types of screwdrivers: a cylindrical saw and a threaded drill bit (no text or symbols)

Tubing cutter Cutting knife Hole saw

Line drawing of a screwdriver with no text or symbols

Illustration of a multi-pin electrical connector with leads and coils (no text or symbols)

Simple line drawing of a flashlight with a handle (no text or symbols)

Torx t20 Hex L-wrench Flashlight

Nipper Flat screwdriver Level

INSTALLING THE DISHWASHER

If the dishwasher is a new installation, most of the installation work must be done before the dishwasher is moved into place. If the dishwasher is replacing an old dishwasher, you must check the existing dishwasher connections for compatibility with the new dishwasher. Replace the existing connections as necessary.

Step 2: Select the Best Location for the Dishwasher

The following criteria are important to ensure the best location for the dishwasher:

The location must have a solid floor that is able to support the weight of the dishwasher.

The location must be near a sink with easy access to the water supply, drain, and electrical outlet.

For the drain to operate properly, the dishwasher should be installed within 9.8 ft of the sink.

The location must let you load your dishes into the dishwasher easily.

The location must have sufficient space for the dishwasher door to open easily and provide enough space between the dishwasher and the cabinet sides (at least 0.1 in).

If the dishwasher is installed in a corner, ensure that the side of the dishwasher is more than 2 inches from the wall or cabinet.

The wall at the back must be free of obstructions.

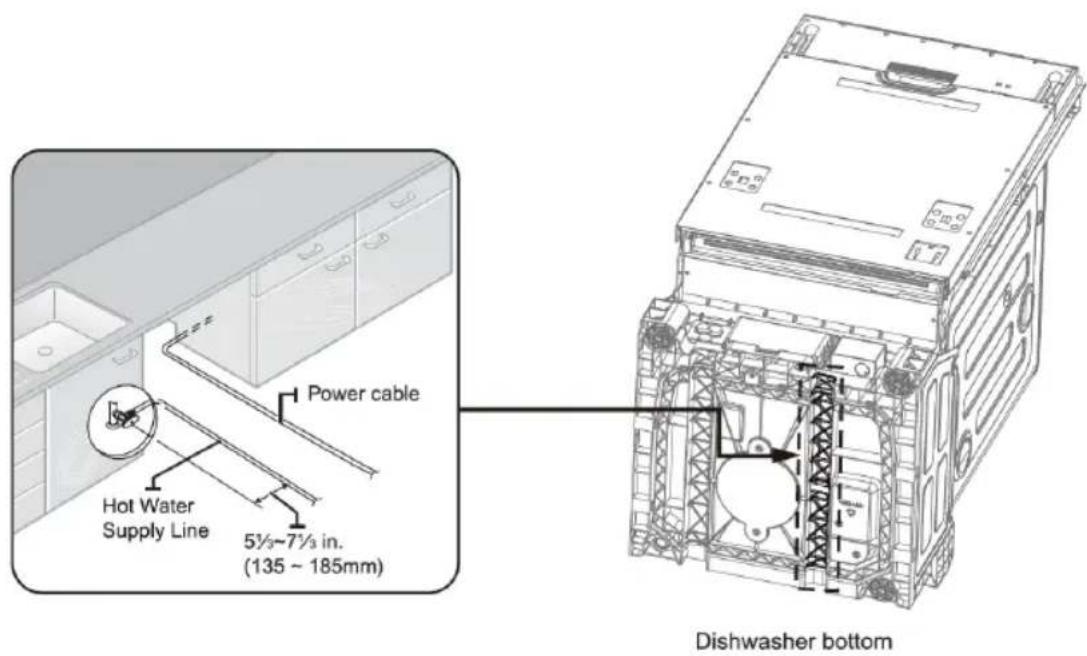

If this is a new installation, follow these steps:

1. Using a hole saw, cut a hole into the side of the cabinet that hold the sink as shown in Figure 1-1 below.

2. If the base inside the sink cabinet is raised above the kitchen floor and is higher than the connections on the dishwasher, make a hole in the base inside the cabinet and in the cabinet side as shown in Figure 1-2.

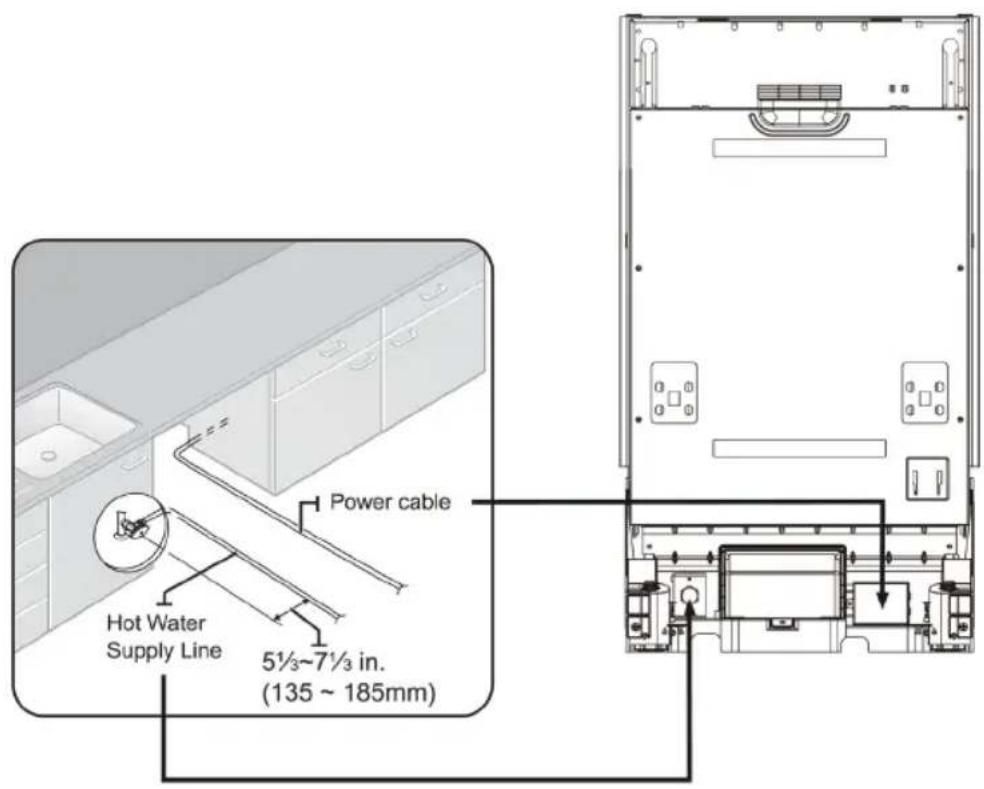

Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.

Isometric line drawing of a kitchen sink with faucet and drain (no text or symbols)

Figure 1-1 Figure 1-2

Step 3: Check Water Supply Requirements and Cautions

The hot water supply line pressure must be between 0.04-1 MPa.
Adjust the water heater to deliver water between 120°F\~149°F.

The dishwasher must be connected to a hot water supply between

120°F\~149 °F. This temperature range provides the best

washing result and shortest cycle time. Temperature should not

exceed 149°F to prevent damage to dishes.

Ensure that the water supply valve is turned off before connecting the hot water supply line to the dishwasher.

Seal the hot water supply line connections using teflon tape or sealing compound to stop any water leakage.

When you install the dishwasher, ensure there is nothing on the drain hose and be careful not to tear it during the installation process.

Figure 2

Step 4: Check the Electrical Requirements and Cautions

The electrical requirements for the dishwasher are as follows:

In the United States, install in accordance with the National Electric Code/State and Municipal codes and/or local codes.

For cable direct connections.

Use flexible, armored or non-metallic sheathed, copper wire with a grounding wire that meets the wiring requirements for your local codes and ordinances.

Use the strain relief method provided with the wiring junction box or install a U.L.-listed/CSA-certified clamp connector to the wiring junction box. If using conduit, use a U.L.-listed/CSA-certified conduit connector.

Step 5: Unpacking and Inspecting the Dishwasher

Unbox the dishwasher in an open area free of obstruction both around the carton and overhead. We recommend that you retain the carton and all of the packing materials until the dishwasher is fully installed and operational to ensure you have removed all the product's components from the carton prior to disposal.

Unboxing

1. Unbuckle or cut the four straps securing the carton top.
2. Lift the top of the telescoping carton clear of the carton tray and the contents, and then turn it over and place it on the floor.
3. Put the straps and all of the packing materials from around the dishwasher inside the carton top, inspecting them for any signs of damage.
4. Lift the dishwasher from the carton tray, and then place it on the floor. Put the tray into the carton top.
5. Remove the bag that protects the dishwasher during shipping.

CAUTION

ALWAYS LIFT THE DISHWASHER TO MOVE IT.

Sliding it over rough surfaces can damage the dishwasher's feet and sliding the feet over finished surfaces can, in some cases, damage that finish or the underlying surface.

1. There is also packing inside the dishwasher that you may want to leave in place until the dishwasher is installed.
2. Do not, under any circumstances, remove the sound-absorbent padding that surrounds the exterior of the tub of the dishwasher.

Mechanical Inspection

1. Check the plastic base assembly to ensure that it is intact.
2. Check the dishwasher's feet to ensure they are in place and can be adjusted so you can level and secure the dishwasher.
3. Check all the visible components on the bottom of the dishwasher to ensure they are intact and secure.
4. Check the door latch, the operation of the hinges, and confirm the door is properly secured to the dishwasher.

Step 5: Unpacking and Inspecting the Dishwasher Continued

Plumbing Inspection

1. Check the hot water connection on the front left side of the base of the dishwasher. The mounting plate should be secured to the front of the base, the threads inside the connection should be smooth and shiny, and the area should be clean and free of any debris.
2. Check the plastic brake and sensor cases to ensure these assemblies are not cracked and that all connections are secure.
3. Check the drain hose for any holes or deformities that could allow a water leak during draining.

Electrical Inspection

1. Confirm the junction box cover is secured to the junction box on the front right side of the base of the dishwasher.
2. Confirm the electrical box was not damaged during shipping and that it is secured to the base of the dishwasher.

Appearance Inspection

1. Confirm there are no dents or scratches on the front of the dishwasher
2. Check the edges of the doors for any roughness or cracking
3. Check the control panel to ensure it is clear and unscratched, and that all the control markers are in their proper places.

Parts Inspection

1. Confirm you have all the parts listed in step 1.

Step 6: Preparing the Dishwasher

e that the circuit breaker and water supply valve are turned off before needing with the following steps.

Before you move or lay down the dishwasher for installation, make sure to adjust the height of the legs so the legs are as short as possible. This prevents the legs from breaking. Level the dishwasher by adjusting the height of the legs after you have the dishwasher in place.

1. Make sure there are no kinks and that the hose is not bent at any extreme angles that could constrict the flow of water.
2. Remove the junction box cover located at the bottom front right of the dishwasher using a screwdriver, and then Install the strain relief (Figure 4 - C). Make sure to keep the junction box cover you removed. It is used in Step 11, Wiring Connections.
3. If the countertop is made of wood or a material that is not damaged by drilling, attach the two Installation brackets that were supplied with the dishwasher using the supplied screws (Figure 4 - A). They will be used in Step 9, Securing the Dishwasher

CAUTION

Do not overtighten the 90^ elbow.

Doing so may damage the water inlet valve and cause a water leak.

Figure 4

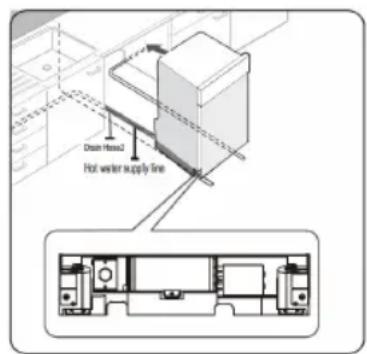

Step 7: Placing the Dishwasher and Connecting the Hot Water Supply Line

1. Adjust the three leveling legs at the bottom of the dishwasher after measuring the height of the cabinet opening from under the countertop to the floor. (See Step 8, Leveling the Dishwasher.)
2. Locate the hot water supply line and the power cable.
3. Place the dishwasher so that the power cable is in the right channel of the base of the dishwasher. Use standard duct tape or cable ties to secure the electrical cable to their adjacent channels in the base. This can prevent the electrical cable from being squeezed when you push the dishwasher into place.
4. Pull the drain hose through the hole in the sink cabinet side wall. Keep it free of kinks and twists.
5. Make sure the hot water supply line is not twisted, and then connect the hot water supply line to the elbow joint.
6. Slide the dishwasher carefully into the installation space. If possible, gently pull any excess lengths of water supply line, drain hose, or power cable back as you move the dishwasher. Get a second or third person to help you do this if necessary.

WARNING

Do not place the dishwasher on the water supply line, drain hose, or power cable. Also, make sure they are not folded or twisted.

Figure 6

Figure 7

Step 8: Leveling the Dishwasher

1. Open the door and place the level against the top of the tub on the inside and check if the dishwasher is level. If it is not level, rotate the leveling legs at the at the bottom front of the dishwasher until the dishwasher is level. See the first note below for instructions on adjusting the height of the front legs.

2. Use the level to check if the dishwasher is level front to back, as shown in the figure to the right. If the dishwasher is not level front to back, adjust the height of the rear leg until the dishwasher is level. See the second note below for the instructions on adjusting the rear leg.

3. Open the door of the dishwasher and check if both the tub and door clearances are correct. If not, rotate the leveling legs on the bottom front of the dishwasher. You can also check this by placing a level against the inside front vertical surface of the tub.

Line drawing of a hand holding a device with circular buttons and a handle (no text or symbols)

Simple line drawing of a door handle and vertical panel, no text or symbols present

Technical line drawing showing a 3D box being cut with an arrow indicating compression or dislocation (no text or symbols present)

Hand holding a tool interacting with a device (no text or symbols visible)

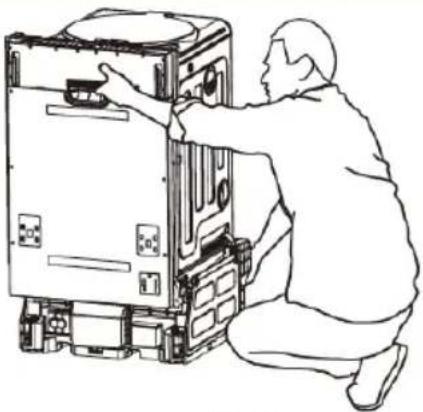

Note:

1. Before you move the dishwasher for installation, make sure to adjust the height of the legs so the legs are as short as possible. This prevents the legs from breaking. Level the dishwasher by adjusting the height of the legs after you have the dishwasher in place.

2. When you prepare to move the dishwasher for installation, you should put your hand under the basement, this prevents injury to your hand.

Line drawing of a person assembling or adjusting a large appliance (no text or symbols visible)

Step 9: Securing the Dishwasher

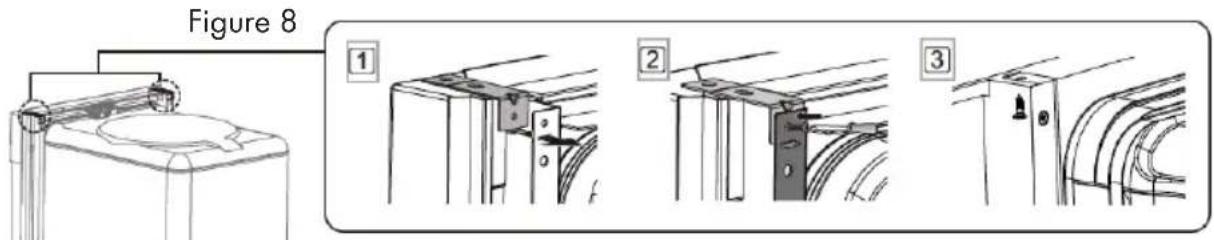

You must fix the dishwasher to the countertop or cabinet side walls for additional stability.

If the countertop is made of wood or the material will not be damaged by drilling, follow the instructions in 1 below.

If the countertop is made of granite, marble, or any other material that can be damaged by drilling, follow the Instructions in 2 below.

1. Put a large towel into the bottom of the dishwasher to prevent wood shavings or a dropped screw from falling into the dishwasher.

Carefully drill screw holes into the counter top bottom by passing the drill bit through a screw hole in each bracket, and then drilling into the counter top bottom beneath.

Make sure the hole you drill is smaller than the diameter of the screw.

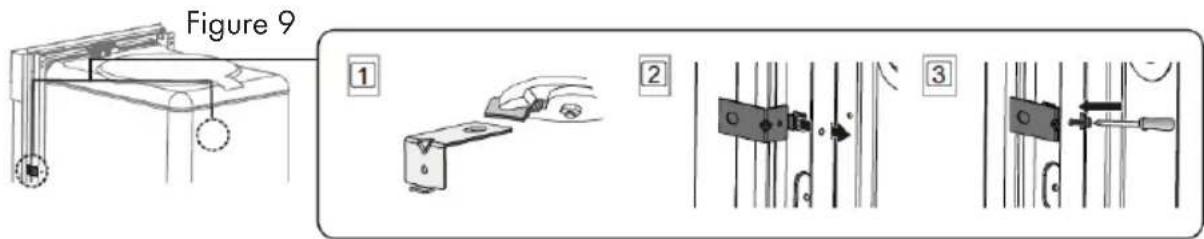

Firstly, put the installation bracket into the slot of the side plane and tighten to the dishwasher with screw ST3.5*9. Secondly, insert the provided screws into the brackets, and then tighten to secure the dishwasher to the counter top.

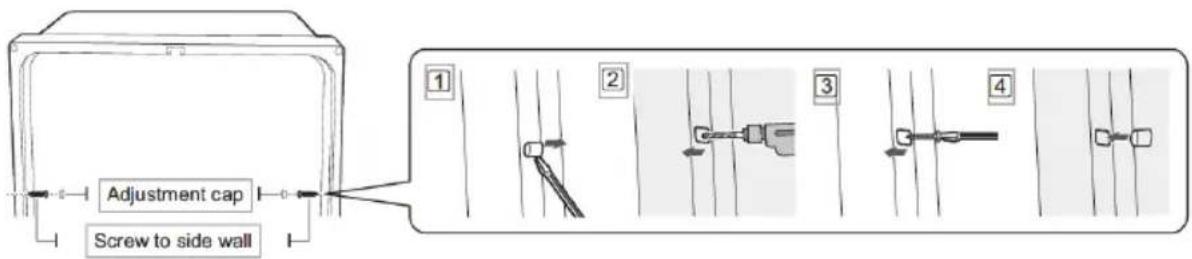

1. Put a large towel into the bottom of the dishwasher to prevent wood shavings or a dropped screw from falling into the dishwasher. Remove the adjustment cap with the tip of a screwdriver. The caps are just inside the tub near the middle of the tub an both sides(Figure 9 on the next page).

Drill a hole into the sides of the kitchen cabinet on both sides by carefully passing a drill bit through the screw holes exposed by the removal of the spacer caps, and then drilling into the cabinet side beneath.

Make sure the hole you drill is smaller than the diameter of the screw.

Also make sure the drill bit does not strike the sides of the spacer cap holes. Firstly, put the installation bracket into the slot of the side plane and tighten to the dishwasher with screw ST3.5*9. Secondly, insert the provided screws into the holes, and then tighten to secure the dishwasher to the cabinet. Make sure the tub is not distorted by pressure from the screws.

If the tub is distorted, loosen the screws a little.

Replace the tub spacer caps.

Step 9: Securing the Dishwasher Continued

The screws or tub spacer cap may fall into the dishwasher while you are working with the door open.
Cover the interior of the dishwasher with a towel to prevent any screws from falling into the dishwasher. If any foreign items such as a screw get into the dishwasher, it may cause noise, an abnormal operation, damage, or a malfunction.
Use a magnetic screwdriver to help prevent screws from falling into the dishwasher.
If a foreign item, such as a screw, gets into the dishwasher and you are unable to remove it, the dishwasher needs to be disassembled. Contact a qualified service technician for this.

Step 10: Connecting the Drain Hose

1. Check the parts on the sink to which the drain hose will be connected.
2. There are several ways to insert the drain hose into the drain hose connector of the sink, as shown in the following figure. You must connect the drain hose in accordance with the water pipe installation regulations in your region.

Case 1 - Without Disposal

Without disposal	With an air gap/without disposal	Without an air gap

1. Check the size of the sink's drain hose connector (21mm (0.83 inches)- as shown in Figure 11 on the next page). If the end of the drain hose does not fit onto the drain hose connector of the sink, use an adaptor purchasable at a plumbing/hardware supply store.
2. Slide a hose clamp over the end of the drain hose. Attach the drain hose to the sink connector, slide the hose clamp to the end of the hose, and then tighten the hose clamp.

Note :

You must use a hose clamp. Failure to do so may cause water leakage.

1. If there is no air gap, make sure to hang the middle of the drain hose well above the sink cabinet base to prevent backflow (see Figure 13 on the next page).
2. When drilling a hole for the drain hose on the cabinet wall, take caution not to damage the drain hose by sharp edges of the hole. On wooden walls, use sand paper to soften the edges. On metal walls, use insulation tape or duct tape to cover the sharp edges around the hole.
3. Take caution not the damage the drain hose when installing the dishwasher on the floor, wall, or cabinet.

Step 10: Connecting the Drain Hose Continued

To prevent leaks or drainage problems, make sure the drain hose is not damaged, kinked, or twisted.

1. Do not cut the wrinkled area of the drain hose to fit the size. When arranging the drain hose, take caution to avoid contact with sharp edges of the cabinet or undersink.

Be careful when cutting off the end of the drain hose as there is a risk of injury. Clean around the sink's drain connection so that it does not damage the hose. Check for any foreign items in the drain hose and remove them.

When arranging the drain hose, make sure the drain hose is not cut, torn, or broken by any sharp edges of the floor, the product itself, or the cabinet. A damaged drain hose causes a leak.

Figure 11 Figure 12

Figure 12: Secure the drain hose to the sink wall using cable ties or other fastening materials. Otherwise, the drain hose may bend at the end causing a drainage problem or excessive supply of water.

Figure 13

Step 11: Wiring Connections

1. Before connecting the power cable to the dishwasher, make sure the circuit breaker is completely turned off.
2. In the junction box located at the front bottom right of the dishwasher, find the three power wires from the dishwasher including the grounding line.
3. Pass the power cable through the strain relief and into the junction box. Connect the black wire of the dishwasher to the black wire of the power cable by inserting both into a wire nut and then rotating the wire connector as shown in figure 15.
4. Connect the white wire to the white wire and the green to the green in the same manner as in step 3.
5. Recheck each wire to ensure it is connected correctly and securely.
   Each colored wire should be connected to the corresponding wire of the same color.
6. White should be connected to white, black to black, and green to green.
   Replace the junction box cover on the dishwasher.

Figure 15 Figure 14

Diagram illustrating the process of twisted cable and coiled wire, showing deformation from straight to twisted ends (no text or symbols)

Electrical Shock Hazard

To avoid electrical shock, do not work on an energized circuit. Doing so could result in serious injury or death. Only qualified electricians should perform electrical work. Do not attempt any work on the dishwasher electric supply circuit until you are certain the circuit is de-energized.

Fire Hazard

To avoid a fire hazard, make sure electrical work is properly installed. Only qualified electricians should perform electrical work.

CAUTION

Step 12: Completing the Installation

1. Open the door and remove all foam, paper packaging, and unnecessary parts.
2. Turn on the circuit breaker you turned off before you began the installation.
3. Open the water supply valve to supply water to the dishwasher.
4. Turn on the dishwasher, and then select and run a cycle.

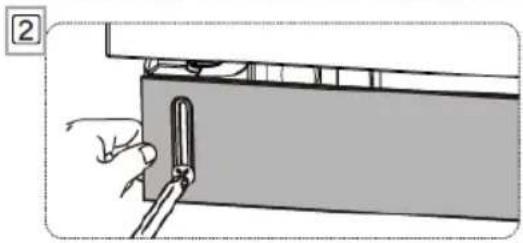

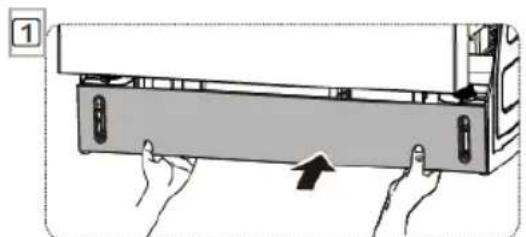

5. Confirm that the kick plate gasket is on the bottom of the kick plate. To install the kick plate with screw ST3.9*13, refer to the figure 16.

Check if the power turns on correctly and if there is any water leakage while the dishwasher is operating. If no errors occur while it is operating, turn off the dishwasher and go to step 5.

If an error has occurred, turn off the dishwasher, close the water supply valve, and refer to the user manual or contact a service center.

Make sure to check for water leakage on both ends of the water supply line and drain hose connector.

Diagram of an electrical cabinet or enclosure with internal components and directional arrows indicating flow (no text or symbols present)

Figure 16

Illustration of hands installing or adjusting a device panel with an arrow indicating motion (no text or symbols present)

Illustration of a hand inserting a tool into a panel or bracket (no text or symbols visible)

Step 12: Completing the Installation Continued

1. Install the decoration door to the outer door of the dishwasher.

Install the hook and brackets on the decoration door, see figure 17.

Put the hook into the slot of the outer door, see figure 18.

Fix the decoration door onto the outer door with the correct screws and bolts, see figure 19.

Figure 18 Figure 17 Figure 19

1. Adjust the tension of the door spring.

The door springs are set at the factory to the proper tension for the outer door. If the decoration door is installed, you will have to adjust the door spring tension.

Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable, see figure 20.

Door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with the slight lift of a finger.

SPECIFICATIONS

Specifications are subject to change without any notice for quality improvement purposes. The actual appearance of the dishwasher may differ from the illustrations in this manual.

Specifications for Model DW7714-18

Power Supply 120 Volts, 60 Hz

Water Pressure 0.04 - 1 MPa

Dimensions 17.7" x 22.8" x 32.5"

Inlet Water Temp 120°F

Specifications for Model DW7713-24

Power Supply 120 Volts, 60 Hz

Water Pressure 0.04 - 1 MPa

Dimensions 23.6" x 22.8" x 32.5"

Inlet Water Temp 120°F

USERS MANUAL

SAFETY INSTRUCTIONS

Proper Installation

Please install your dishwasher properly by following the installation guide.

Water supply inlet temperature should be between 120° and 149°.

■ Dispose of the discarded appliance and packing material properly.

The dishwasher must be properly grounded, or it can result in a risk of electric shock. PERMANENTLY CONNECTED is allowed.

If there is any damage to the dishwasher, please contact to your dealer, do not attempt to repair or replace any part by yourself.

Basic Precaution Before Use

Read all instructions before using the dishwasher.

The manual does not cover every possible condition and situation that may occur.

Use the dishwasher only for intended function as described in this manual.

When loading items to be washed:

Load sharp items and knives so that they are not likely to damage the door seal and tub.

Load sharp items and knives with the handles up to reduce the risk of injury.

Do not wash plastic items unless they are marked dishwasher safe, if not marked, check with manufacture for recommendation, items that are not dishwasher safe may melt and create a potential fire hazard.

If the dishwasher drains in to a food disposer, make sure disposer is completely empty before running dishwasher.

Do not tamper with controls.

Do not operate your dishwasher unless all enclosure panels are in the proper place.

Do not touch the heating element during or immediately after use, especially if the sanitize option has been selected.

To reduce the risk of injury, do not allow children to play in or on a dishwasher.

SAFETY INSTRUCTIONS

Basic Precaution Before Use Continued

Do not let children abuse, sit, or stand on door or racks of the dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using dishwasher, turn on all hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. Hydrogen gas is flammable. Do not smoke or use an open flame during this time.

Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Use only detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children.

- Keep young children and infants away from dishwasher when it is operating.

Do not use the dishwasher if it has a damaged power line or plug, and do not plug the dishwasher into a damaged outlet. Failure to observe these instructions may result in electrical shock.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

WARNING

For your safety, please follow the information in this manual to minimize the risk of fire, explosion, electric shock, and to help prevent property damage or personal injury.

Specifications for Model DW7714-18

Capacity 8 place settings

Dimensions 17.6" x 22.6" x 32.4" (W x D x H)

Power Supply 120 Volts, 60 Hz

Rated Power Usage Wash motor 100W Heater 700W

Water Feed Pressure 5.8 \~ 145 psi (0.04 \~ 1 MPa)

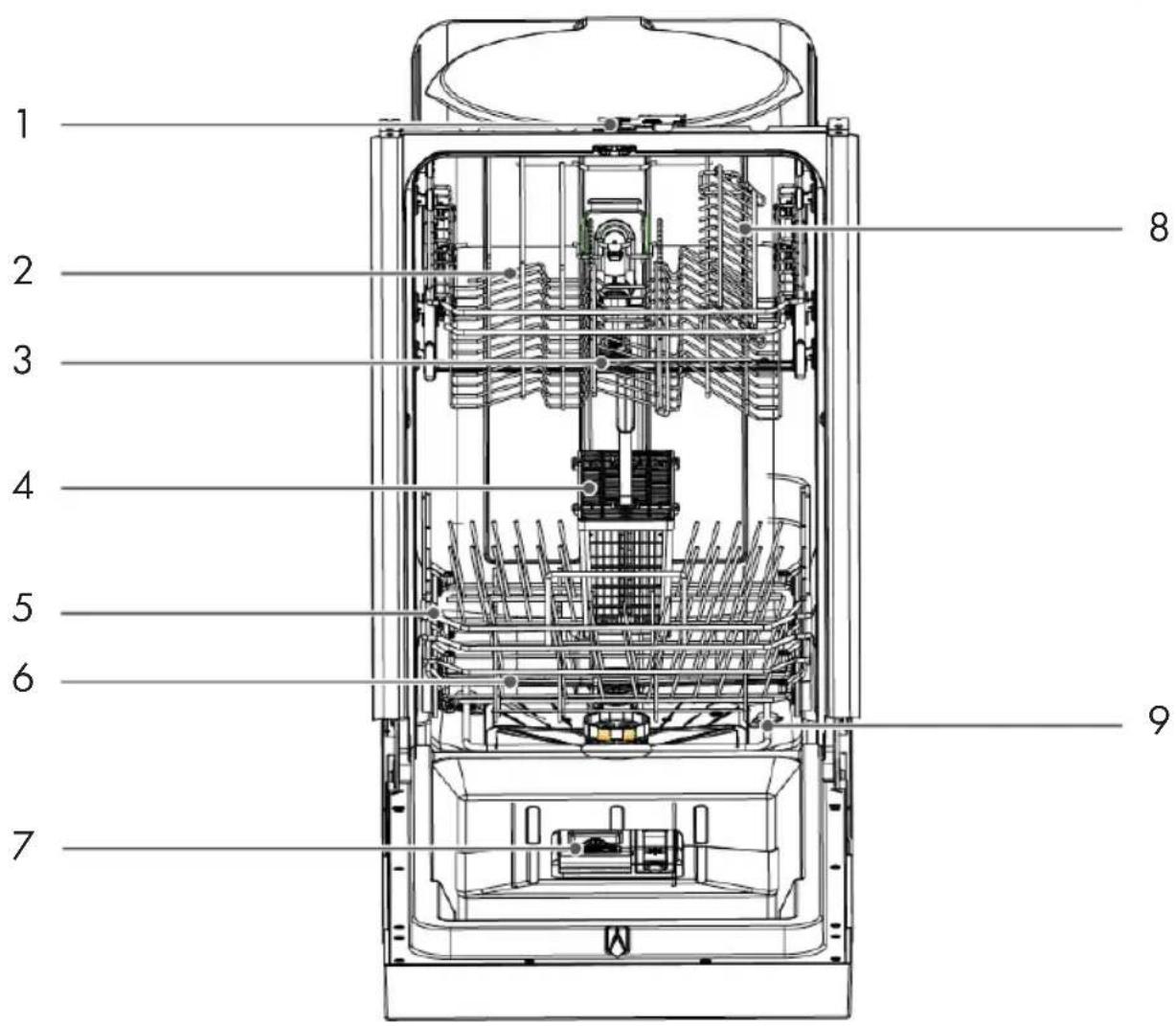

1 Lock

6 Lower Spray Arm

2 Upper Basket

7 Rinse Aid Dispenser

3 Upper Spray Arm

8 Cup Shelf

9 Heating Element

4 Cutlery Basket

5 Lower Basket

Specifications for Model DW7713 - 24

Capacity 10 place settings

Dimensions 23.5" × 22.6" × 32.4" (W × D × H)

Power Supply 120 Volts, 60 Hz

Rated Power Usage Wash motor 100W Heater 700W

Water Feed Pressure 5.8 \~ 145 psi (0.04 \~ 1MPa)

1 Lock

2 Upper

Basket

3 Upper Spray Arm

4 Cutlery

Basket

5 Lower Basket

6 Cup Shelf

7 Heating Element

FEATURES OF YOUR NEW DISHWASHER

Filter System

Your dishwasher has a multiple filter system. In the system, there are three mesh filters. It can separate soiled water and clean water in different chambers.

The multiple filter system helps your dishwasher to get better performance with less water and less energy.

Technical line drawing of a mechanical assembly with no visible text or symbols

Smart Wash System

Your dishwasher has a smart wash system. When a partial load of lightly soiled dishes is placed in the unit, a wash cycle similar to a short wash will automatically be performed.

When a full load of heavily soiled dishes is placed in the unit, a heavy wash cycle will automatically be performed. It can determine the type of cycle required to clean the dishes and will clean more efficiently every time.

Technical line drawings of a mechanical device with internal components and mounting brackets (no text or symbols)

How Your Dishwasher Cleans

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces.

The dishwasher fills with water covering the filter area. Water is then pumped through the multiple filter and spray arms. Separated soil particles go down the drain as the water is pumped out and replaced with clean water.

The number of water fills will vary with the cycle being used.

Wash Cycle Selections

Cycle times are approximate and will vary with the options selected. Hot water is necessary to activate the detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature. If it is not at the appropriate temperature the timer will delay the cycle to allow automatic water heating during the main wash. When the HI-TEMP wash is selected an even higher temperature will be assured to handle heavier soil loads.

Getting Started

1. Load the dishwasher (see dish preparation and loading sections).
2. Add detergent (see filling the detergent dispenser).
3. Add rinse aid (see filling the rinse aid dispenser).
4. Select desired CYCLE (see cycle chart).
5. Select desired OPTIONS (see control panel). The indicator light above the pad will glow when selected.
6. To start, press start/cancel (see control panel). Then close door

Note:

Your dishwasher has the controls mounted on the front of the door. The door should be closed first if you want to operate the machine.

Control Panel

1. Start/Cancel

Open the door to select the desired cycle and options, touch the Start/

Cancel button and close the door within 4 seconds to start the cycle or begin the delay countdown. To cancel and reset the program during the cycle, open the door, and touch Start/Cancel for 3 seconds. Close the door and dishwasher will start a 60 second drain.

2. Wash Cycle Selections

P - Program Buttons

Touch to select the program, corresponding indicator will be lightened.

H - Heavy

This cycle is for hard-to-clean, heavily soiled dishes, pots, pans, and dishes.

N - Normal

This is the standard program. It is for regularly soiled dinner dishes or silverware.

E - ECO

It is suitable to clean normally soiled tableware and it is the most efficient ECO program in terms of its combined energy and water consumption for that type of tableware.

G - Glass

For lightly soiled loads, such as glasses, crystal, and fine china.

R - Rapid

A shorter wash for lightly soiled loads that do not need drying.

R - Rinse

Use for rinsing dishes, glasses, and silverware that will not be washed right away.

OPERATING INSTRUCTIONS

3. Delay

To delay the start of a selected cycle, press the delay start pad until the desired delay time shows in the LED display. You can delay the start for 1 to 24 hours. To cancel the delay start option before the delay period is over, press the start/cancel pad for 3-5 seconds.

4. Dispay Window

This displays the remained hours and minutes of the running cycle, delay hours, and error codes etc.

5. Status Indicators

R - Rinse detergent needs to be refilled.

P - Program end.

N- Water failure, faucet is not open.

6. Options

H - Heating Dry

When the heating dry function is selected, the heater will work during the dry process.

S - Sanitize

When the sanitize function is selected, the temperature of water will be maintained at 156.2^ F max. The max temperature may not be reached if the incoming water temperature is not correct. Certified residential dishwashers are not intended for licensed food establishments.

Note:

The sanitize option is available with heavy, normal, and ECO cycles.

H - Hi Temp

When the hi temp wash function is selected, the temperature of the water will be maintained at 140^ F max.

Note:

The hi temp option is available with heavy, normal, ECO, and glass cycles.

OPERATING INSTRUCTIONS

E - Energy Save

When the energy save function is selected, energy consumption will be reduced during the washing process.

Note:

The energy save option is available with heavy and normal cycles.

Status Window

H:01-H:24

If the delay start option is selected, the number of delay start hours shows in the status window.

2:25 - 0:00

After the machine starts operation, the remaining time of the selected cycle will be shown in the window.

Error Indication

In certain situations which are critical to the machine function and safe operation, the control shall shut down and indicate an error code (See error codes on page 18). If error codes are displayed, contact the dealer or services. They will be able to provide assistance in trouble shooting the problem and/or locate an authorized service technician if needed.

Note:

The remaining time could suddenly increase or drop several minutes. This means the smart sensor has checked the soil level and determined if additional water fills are needed or if water fills can be deleted.

Cycle Chart

Program	Description of Cycle Water (L or G)	Cycle Time (min)
Heavy	Pre WashMain Wash (140°F)Rinse (149°F)Rinse with Sanitize (156.2°F)Drying	19.7 or 5.2
Normal	Pre WashMain Wash (122-131°F)Rinse (136.4-140°F)Rinse with Sanitize (156.2°F)Drying	9.5-18.5 or 2.5-4.9
ECO	Pre WashMain Wash (113-122°F)Rinse (122-131°F)Rinse with Sanitize (156.2°F)Drying	15.5 or 4.1
Glass	Pre WashMain Wash (118.4-122°F)Rinse (122-131°C)Drying	15.5 or 4.1
Rapid	Pre WashMain Wash (122°F)Rinse (131°F)	15.5 or 3.3
Rinse	Pre WashMain Wash (122°F)	6.7 or 1.8

Dish Preparation

Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously filtered wash system will remove the remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups. Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may

Illustration of hands pouring liquid from a circular container into a beaker (no text or symbols)

cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. Unless the dishwasher is to be operated at once, it is best to rinse off these food soils. If the dishwasher drains into a food disposer, be sure the disposer is completely empty before starting dishwasher.

Loading the Upper Basket

The upper basket is designed for cups, glasses, small plates, bowls and plastic items marked dishwasher safe etc.

For best results, place the bowls, cups, glasses, and sauce pans with soiled surfaces facing down or toward the center. Tilt slightly for better drainage.

Loading the Bottom Basket

The bottom basket is designed to load plates, soup bowls, plates, saucers and cookware. The adjustable basket space will allow you to load items with a maximum height of 11 inches.

The fold-down tines in the bottom basket make it easy to load those extra large and hard-to-fit items. The tines may be left up for normal use or folded down for more flexible loading. Fold down for more space to load large pots or pans.

WARNING

Make sure the loaded dishes do not interfere with the rotation of the middle spray arm, which is located at the bottom of the upper basket (check this by rotating the middle spray arm by hand). Large items should be placed along the edge so they do not interfere with the middle spray arm rotation. Make sure they do not prevent the detergent dispenser from opening. Large items should be turned so that the inside faces downward. Make sure these items do not interfere with the lower spray arm rotation.

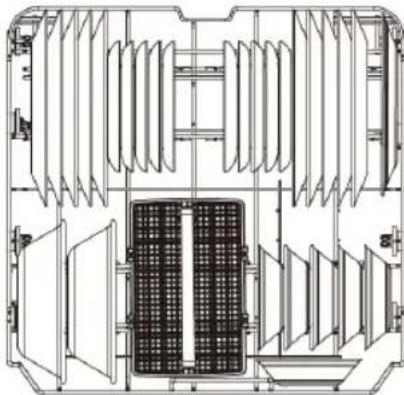

Loading the Lower Basket

The lower basket has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.

Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper basket.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Model DW7714-18 8 place settings

Technical line drawing of an electrical enclosure or enclosure with multiple panels and insulators (no text or symbols)

Model DW7713-24 10 place settings

Loading the Upper Basket

The upper basket has been designed for small plates, mugs, glasses, and plastic items marked dishwasher safe. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper basket (check this by rotating the nozzle by hand). When loading dishes, pull the upper basket out completely so you can load it without striking the counter.

Technical line drawing of a mechanical assembly with multiple circular components and a central shaft (no text or symbols)

Model DW7714-18 8 place settings

Top-down schematic of a mechanical or electrical component layout with circular components and wiring (no text or labels)

Model DW7713-24 10 place settings

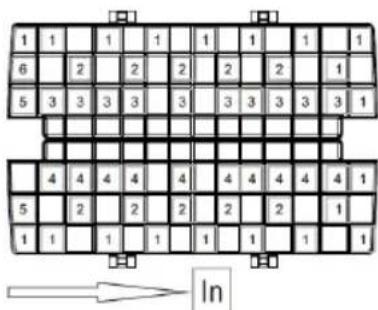

Loading the Silverware Basket

The silverware basket can be divided into three separate modules that can be used in both upper and lower racks.

1. Spoons 4. Forks
2. Knives 5. Large Spoons
3. Salad Forks 6. Large Forks

Model DW7714-18
8 place settings

Adding a Dish

To add or remove items after wash cycle starts:

1. Open door slightly and wait a
   few seconds until wash action stops completely before opening.
2. Add the item.
3. Close the door firmly to latch within 4 seconds, then cycle will automatically resume.

Model DW7713-24
10 place settings

WARNING

1. Do not let item extend though bottom.

2. Be sure nothing protrudes though bottom of the basket or rack to block the lower spray arm.

CAUTION

TO AVOID BURN INJURY: Slightly open door and wait until spray arms and wash action stop. Hot water may splash out of dishwasher. Failure to do so may result in injury.

Filling the Rinse Aid Dispenser

Rinse aid greatly improves drying and reduces water spots and filming. Without rinse aid your dishes and dishwasher interior will have excessive moisture.

The heated dry option will not perform as well without rinse aid. The rinse aid dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse.

If the rinse aid is low, the rinse aid light is illuminated at the beginning and end of the cycle indicating that it is time to refill.

Filling the Rinse Aid Dispenser

Your dishwasher is designed to use a liquid rinse aid. The use of rinse greatly improves drying performance after the final rinse. Do not use a solid or bar-type rinse aid. Under normal conditions, the rinse aid will last approximately one month. It is best to keep it full, but do not over fill.

Filling the Detergent Dispenser

1. Open the detergent dispenser cap by pushing the detergent dispenser release catch.

The flap is always open at the end of a dishwashing cycle.

1. Add the recommended amount of detergent to the main wash detergent compartment.
2. Close the flap and then press it down.

Filling the Rinse Aid Reservoir

Your dishwasher has been designed to use liquid rinse aid only.

Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.

Rinse aid improves the drying performance of the dishwasher.

Illustration of a hand pouring liquid into a container with a cloth (no text or symbols)

Do not add regular detergent to the rinse aid reservoir. Do not fill the reservoir above the full level indicator. Excess rinse aid can overflow during the wash cycle.

1. Remove the rinse aid reservoir cap by rotating it counterclockwise.
2. Fill the rinse aid reservoir with rinse aid.

Use the viewing port when filling the rinse aid reservoir.

1. Add the rinse aid if the LED screen shows "LSb".
2. Close the rinse aid reservoir cap by rotating it clockwise.

Hand inserting a card into a device (no text or symbols visible)

USER MAINTENANCE

Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens it's life.

Cleaning the Exterior

It's best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by sprinkling water over it and avoid letting water come into contact with any of the electrical parts.

If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for home appliances or a similar product using a clean, soft cloth.

Cleaning the Interior

Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of the dishwasher and the inner part of the door with a wet dishcloth. We recommend filling the detergent dispenser with dish detergent, and then running the dishwasher empty periodically using either the normal or rapid cycle with the sanitize option. This will keep your dishwasher clean.

If white spots and odor are still present in your dishwasher, run the normal cycle with the dishwasher empty and without detergent until it flushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into the lower basket. Close the dishwasher and let the cycle finish.

Do not remove the tub front seal (the long rubber seal encosing the opening of the dishwasher).

Do not touch the heating element during or immediately after use.

Cleaning the Filters

1. Turn off the dishwasher.
2. Rotate the filter insert
   counterclockwise to unfasten and then detach the filter insert.
3. Remove the fine filter (flat, rectangular).

TROUBLESHOOTING

Problem	Possible Cause	Solution
Dishwasher won't start	Power supply or power line is not connectedDelay start option has been selectedChild lock activated (selected models)	Check and connect power supplyRefer to delay start section in this manualDeactivate the child lock
Rinse Aid light on	LED screen show "LSb"	Add rinse aid
Dishwasher operates too long	The dishwasher is connected to cold waterThe cycle time will vary according to soil levelThe sanitize option is selected	Make sure the dishwasher is connected to hot waterThe cycle will increase based on soil levelThe cycle will increase when using sanitize
Dishes are not clean enough	Water pressure is temporarily lowThe inlet water temperature is lowDishes are loaded too close togetherThe selected cycle is not suitable for soil conditionSpray arms are blocked	Try again when water pressure is normalMake sure hot water is connectedRe-load dishes according to manualChoose another cycle with a longer wash timeUnblock spray arms
Dishes are not drying	Rinse aid dispenser is emptyImproper dish loadingThe chosen cycle does not include drying	Fill rinse aid dispenserRe-load dishes according to manualChoose a different cycle with drying
Spots and film on dishes	Water is too hardImproper dish loadingOld rinse aidRinse dispenser empty	Install water softenerRe-load the dishesUse fresh rinse aidAdd rinse aid
Etching	Too much detergentInlet water temp exceeds 158°F	Use less detergentLower inlet water temp
Detergent left in dispenser	Detergent may be too oldSpray arm is blocked	Use fresh detergentUnblock spray arms
Detergent dispenser won't close	Improper operation of the detergent cover	Add detergent and rise aid as indicated
Water remains in the dishwasher	Previous cycle has not finished or has been interrupted	Select the proper cycle
Dishwasher does not drain properly	Drain is cloggedDrain hose is kinked	Check the air gap if you have one. Make sure the disposer is empty if the dishwasher is connected to oneMake sure the drain hose is properly connected to the sink
Suds in the tub	Improper detergent was used	Only use automatic dishwasher detergent
Dishwasher leaks	Improper detergent was usedDishwasher is not level	Only use automatic dishwasher detergentLevel the dishwasher
Black or gray marks on dishes	Aluminum utensils rubbed against dishes	Rearrange dishes and make sure water inlet is no less then 120°F
Stained tub interior	Coffee and tea soilReddish stain	Use an approved spot cleaner to remove soilUse the rinse only cycle right after loading to decrease staining
Noises	Detergent cup is openA hard object entered the wash module	This is normalIf noise persists, call for service
Dishwasher won't fill	Water valve is offDoor latch may not be properly sealed	Turn on water valveMake sure door is closed

TROUBLESHOOTING

Error Codes

When some malfunctions come on, the appliance will display error codes to warm you.

Symptom	Error Message	Possible Reason
E1	during the water inlet step, if the flow meter can't detect the defined water after 4 minutes, the dishwasher will warning for E1.	1. check the water supply2. check the inlet valve3. check the inlet4. check the flowmetre5. check the pressure switch6. check the drain7. check the PCB
E3	(only appeared in the factory mode) when the temperature cant reached the defined value after 90 minutes, the dishwasher will warning for E3.	1. check the heater2. check the thermistor3. check the PCB
E4	the water flood into the bottom and result in the detective switch moves, the dishwasher will warning for E4.	1. check the use of the detergent2. check whether the appliance is level3. check the micro-switch4. check the drain pump5. check the amount of the filled water6. find where leakage is
E6	(only appeared in the factory mode) E6 - thermal sensor cut.	1. check the inlet water temperature
E7	E7 - thermal sensor short.	2. check the thermistor3. check the PCB
E9	If pushing one button for more than 30s, the dishwasher will warning for E9	Button sticks, warning resolved when releasing the button
Ed	If the Dashboard detect communication data is abnormal for more than 30s, the dishwasher will show a warning for Ed	communication data abnormal, warning resolved when communicate data return to normal.

WARNING

If overflow occurs, turn off the main water supply before calling a service.

If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

At ZLINE Kitchen & Bath, we're dedicated to serving our customers, which is why we've worked tirelessly to create products that meet EPA guidelines to save you money and protect the environment.

LEARN MORE AT energystar.gov

ZLINE

KITCHEN AND BATH

Two Locations:

916 Delaware Avenue

Marysville, Ohio 43040

350 Parr Circle

Reno, NV 89512

www.zlinekitchen.com

1-614-777-5004
