WCM3KS15F - Mobile Phone Charger BLAUPUNKT - Free user manual and instructions

Brand	Blaupunkt
Model	WCM3KS15F
Product Type	Portable Phone Charger
Wireless Charging Standard	Qi-compatible (15W max)
Input Voltage	9V - 16V DC (vehicle system)
Output Current	12V/1.8A
Transmitting Power	15W
Operating Frequency	127.7kHz (iOS) / 130kHz (Android)
Operating Temperature	-30°C to 70°C
Protection Features	Overvoltage, overcurrent, high temperature, reverse polarity, short circuit
Indicator Light	Red (standby), Green (charging), Flashing Green (foreign object)
Charging Area	X-axis: ±15mm, Y-axis: ±35mm, Z-axis: 0-8mm
Dimensions (approx.)	100 x 60 x 10 mm
Weight (approx.)	80 g
Installation	Mounting kit included, 12V vehicle system
Maintenance	Clean with dry cloth; avoid liquids
Safety	Do not obstruct driving; ensure proper wiring; avoid direct sunlight

Frequently Asked Questions - WCM3KS15F BLAUPUNKT

Why is my Blaupunkt WCM3KS15F not charging my phone?

Ensure your phone supports Qi wireless charging and is placed at the center of the charger. Remove any foreign objects between the phone and the charger. Check if the LED indicator shows green; if red, the device is in standby. If the problem persists, restart the ACC power.

What does the red light on the charger indicate?

A red LED indicates standby mode (no charging). The charger is powered but waiting for a compatible device.

What does a flashing green light mean?

A flashing green LED indicates a foreign object has been detected between the phone and the charger. Remove the object and clean the surface with a dry cloth.

Are all smartphones compatible with this charger?

Only smartphones that support Qi wireless charging are compatible. iPhones (8 and later) and many Android phones (e.g., Samsung Galaxy) work. Check your phone's specifications.

Can I use this charger in a 24V vehicle?

No, this charger is designed for 12V vehicle systems (input range 9V-16V). Using it in a 24V system may cause damage.

How do I install the WCM3KS15F in my car?

Connect the charger to the vehicle's ACC power supply. Mount the device in a location that does not obstruct driving. Ensure all wires are properly connected before fitting the mount. Consult an authorized dealer if needed.

What should I do if the indicator light does not turn on?

Check the ACC power supply to ensure it is activated. Verify that the vehicle's ignition is on. If the issue persists, restart the ACC and the device.

Will a phone case affect charging?

Thin cases (less than 3mm) usually work, but thick or metal cases may interfere. If charging is slow or stops, remove the case. Ensure the phone is placed centrally.

What is the operating temperature range?

The charger operates between -30°C and 70°C. Avoid exposing it to direct sunlight or extreme temperatures to ensure proper function.

Does this product come with a warranty?

Yes, Blaupunkt provides a warranty, but note that it is not valid in the USA or Canada (purchased as-is). For other regions, consult your dealer. Unauthorized modifications void the warranty.

USER MANUAL WCM3KS15F BLAUPUNKT

Smartphone displaying a battery icon with green progress bar, surrounded by blue circular waves (no text or symbols)

Enjoy it.

Safety Notes

This vehicle security system has been manufactured according to established safety guidelines. However, dangers may still occur if the safety notes in this manual is not observed. This manual is intended to familiarize the user with the wireless charger important functions. Read this carefully, prior to using the wireless charger. Keep this manual in an easily accessible location. In addition, do observe the instructions of the devices used in conjunction with this wireless charger.

Attentions

• Assign a mounting location that will not obstruct drive in any circumstances. Or cause injuries to drives and passengers in case of emergency brake or accidents.
• Ensure all wires are connected properly, and that the unit is functioning well before fitting the unit into the mount.
• Any unauthorized installation, disassembly or modification may cause malfunction to the unit and void warranty of the unit.
• Always use only the parts that are included with the units only.
• Do not damage vehicle components when drilling holes for the mount.
• Do not expose device to direct sunlight or store in high temperature environment.

• Do not drop or expose device to high vibration/impact.

• Vehicle may differ from the description provided here. Consult an authorized Blaupunkt dealer or vehicle's manufacturer if the information provided here does not fit your specific installation requirement.

• The device is intended for installation and operation in 12V vehicle system outage.

This manual may be updated from time to time without any notice.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

• Input Voltage : 9V - 16V
• Output Current : 12V/1.8A
• Transmitting Power : 15W
- Operating Frequency: 127.7kHz for iOS phone; 130kHz for Android Phone
• Operating Temperature: -30°C \~ 70°C
• Protection : Overvoltage, over current, high temperature, reverse polarity & short circuit

Indicator Light Status

LED Indicator Light	Status
Red	Standby mode (no charging)
Green	Device is charging
Flashing Green	Foreign object is detected

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problem	Problem	Solution
Indicator light does not work.	No ACC power supply.	Activate the ACC power supply.
	Device working abnormal.	Restart ACC and the device.
Green indicator light is flashing	A foreign object is detected between the phone and the device.	Remove the foreign object from the device or clean the device with dry cloth.
Device is not charging	Wireless transmitter unidentified or don’t start.	Please use the compatible smartphone.
	The phone is deviating the transmitter range.	Ensure smartphone is placed on the center of the device.

1. Turn on

- Start car ACC, the LED indicator will illuminate in red colour.

2. Charging Smartphone

• When smartphone is placed at the center of the device, the LED indicator switched to green colour.
• Charging status will reflect on the smartphone screen.

3. Charging Area

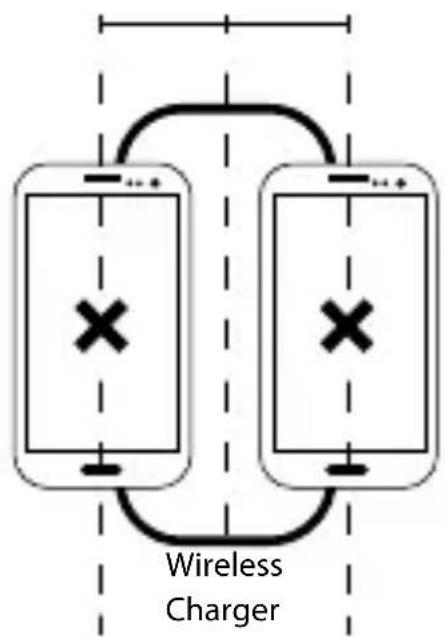

a) X-axis movable area: -15mm \~ 15mm


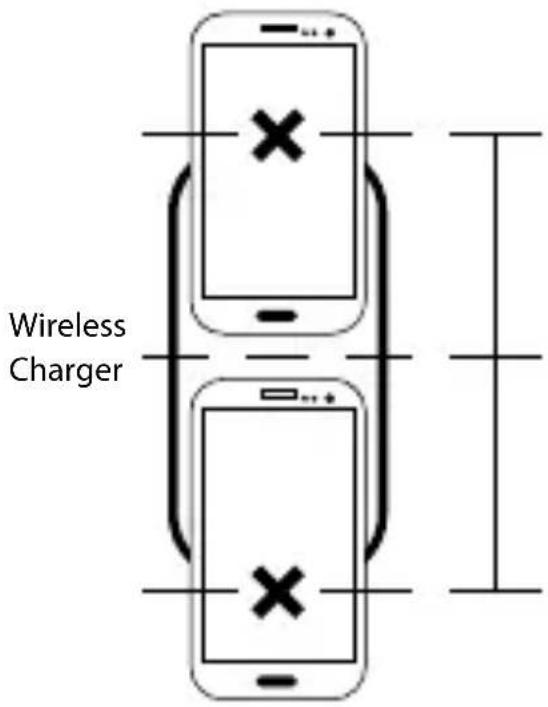

b) Y-axis movable area: -35mm \~ 35mm

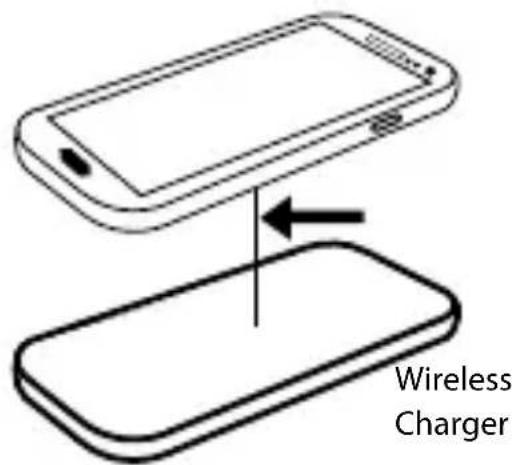

c) Z-axis movable area: 0mm \~ 8mm

Designed and engineered by Blaupunkt Competence Centre

WCM3KB15FMITXPD

1 610 20 001 47 01
