GTT 25 - Car radio BLAUPUNKT - Free user manual and instructions

Product Type	Car Audio Tweeter Pair
Brand	Blaupunkt
Model	GTT 25
Tweeter Type	2.0" Silk Dome Tweeter
Maximum Power Output	45W
RMS Power Output	20W
Sensitivity	90 dB
Impedance	8 ohms
Frequency Response	1800 Hz - 22 kHz
Mounting Depth	18 mm
Mounting Hole Diameter	43.3 mm
Voice Coil Diameter	25 mm
Included Accessories	2 Capacitors, Mounting Hardware
Mounting Options	Flush-Mount or Surface-Mount
Weight (per tweeter)	Approx. 0.1 kg
Safety Features	Disconnect battery before installation; avoid drilling near vehicle components
Compliance	RoHS
Warranty	1 year (subject to Blaupunkt terms)
Country of Origin	Designed in Germany

Frequently Asked Questions - GTT 25 BLAUPUNKT

What is the impedance of the Blaupunkt GTT 25 tweeters?

The impedance is 8 ohms, which is standard for most car audio systems.

Can the GTT 25 tweeters be used with a 4-ohm system?

Yes, but the total load on the amplifier will change. For optimal performance, ensure the amplifier can handle the 8-ohm load.

What is the mounting depth of the GTT 25?

The mounting depth is 18 mm, making them suitable for shallow installations.

Are the GTT 25 tweeters easy to install?

Yes, they come with flush-mount and surface-mount options, plus included hardware. Follow the installation instructions in the manual.

What tools are needed for installation?

Basic tools like a drill (for flush-mount), screwdrivers, wire cutters, and a multimeter for checking connections.

Do I need to use the included capacitors?

Yes, the capacitors are required for proper crossover filtering to protect the tweeters from low frequencies.

What should I do if the tweeter produces no sound?

Check wiring connections for looseness or damage. Ensure the capacitor is connected correctly. If still no sound, the tweeter may be damaged and needs replacement.

How do I clean the GTT 25 tweeters?

Use a soft, dry cloth. Avoid liquid cleaners or spraying directly on the tweeter. The silk dome is delicate.

What is the frequency response of the GTT 25?

The frequency range is 1800 Hz to 22 kHz, covering high frequencies for crisp treble.

Are these tweeters compatible with my car?

They fit most vehicles with standard 43.3 mm mounting holes. Check the available depth (18 mm) in your desired location.

USER MANUAL GTT 25 BLAUPUNKT

Two black Blaupunkt sound purifiers with hexagonal mesh patterns, shown from different angles (no text or symbols on the devices themselves)

Enjoy it.

INTRODUCTION

Proper system planning is vital in order to maximize the device's performance and road safety. Plan your installation carefully to avoid compromising performance reliability of the system. Consult an authorized Blaupunkt delaler for installation or reparation. Read the manual carefully before operating the device for the first time.

Safety Notes

Ensure to follow below safety notes during installation and wiring connection: -

• Disconnect the negative terminal of the battery. Refer to the safety notes of the vehicle manufacturer.
• Ensure positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.
• Ensure cross section of the cable is no less than 2.5mm^2 if the positive and negative cables are too long.
• Incorrect installation may result in malfunction of the device or the car sound system.

Installation and Connection Instructions

• Select a dry and well-ventilated location to install the device.
• The device must not be installed in overly exposed location such on the rear shelf, rear seat etc.
• The installation location must be suitable for screw holes and have stable ground support.

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products. USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

Recycling and Disposal

Do not dispose your old unit in the

household trash!

Use the return and collection systems

available to dispose of the old device

This manual may be updated from time to time without any notice.

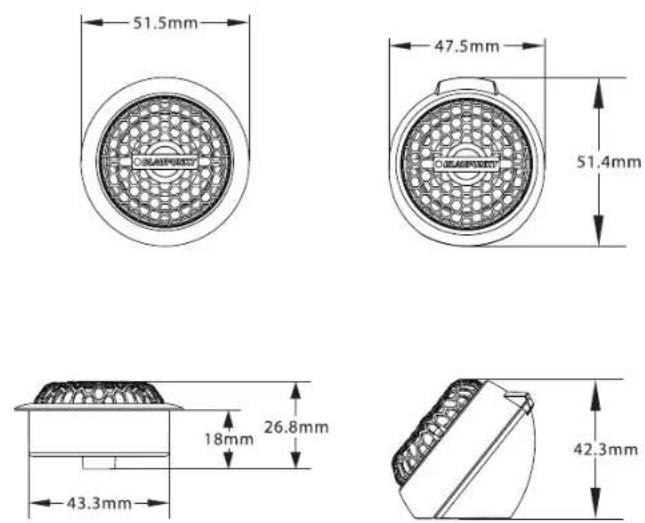

SPECIFICATION

GTT 25

Pair of 2.0" silk dome tweeter including mounting hardware

• Max. output power: 45W
• Normal output power (RMS): 20W
• Sensitivity: 90dB
• Impedance: 8ohm
• Frequency Response: 1800Hz-22kHz
• Mounting Depth: 18mm
• Mounting Hole Diameter: 43.3mm
• Voice Coil: 25mm
• Accessories: 2 Capacitors

INSTALLATION INSTRUCTION

Flush-Mounting

Technical line drawing showing a mechanical assembly with rotating components and a separate view of a cylindrical component (no text or symbols)

Surface-Mounting

Diagram showing a mechanical assembly with rotating components and a separate view of a cylindrical component (no text or symbols)

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problems	Possible Causes	Solutions
Tweeter does not work	Incorrect or loose wiring connection.	Ensure proper wiring connections of tweeter.
	Fraying or broken cables.	Repair or replace if the cables are damaged.
	Tweeter is damaged.	Replace with a new tweeter.
Distorted and hissing sound	Voice coil or tweeter cone is damaged.	Replace with a new tweeter.

Designed and engineered by Blaupunkt Competence Centre 1 111 20 029 02 01
