USER MANUAL TNO-4051T Wisenet

©2018 Hanwha TechwinCo., Ltd. All rights reserved.

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization.

Disclaimer

Hanwha Tochwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Hanwha Tochwin reserves the right to change the contents of this document without prior notice.

❖ Design and specifications are subject to change without prior notice.

The initial administrator ID is "admin" and the password should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

important Safety inStructionS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean the contaminated area on the product surface with a soft, dry cloth or a clamp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.)
7. Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power Supply Unit marked "Class 2" or "LPS" and rated from 24 Vac (50/60 Hz) min.0.91 A or 12 Vdc, min.0.83 A.
16. If you use excessive force when installing the product, the camera may be damaged and malfunction. If you forcibly install the product using non-compliant tools, the product may be damaged.
17. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table.
    This may cause damage to the product.
18. When installing the product, be careful not to allow the surface of the product to be stained with chemical substance.
    Some chemical solvents such as cleaner or adhesives may cause serious damage to the product's surface.
19. If you install/disassemble the product in a manner that has not been recommended, the production functions/performance may not be guaranteed. Install the product by referring to "Installation & connection" in the user manual.
20. Installing or using the product in water can cause serious damage to the product.

warning

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance with the installation instructions.

caution

eXpLanation of GrapHicaL SymBoLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

overview

Class I construction

An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it's defected. And please call a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

ATTENTION

IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT. METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.

Please use the input power with just one camera and other devices must not be connected. The ITE is to be connected only to PoE networks without routing to the outside plant.

The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802-3af shall be a UL Listed device with the output evaluated as a Limited Power Source as defined in UL60950-1.

Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102. As such, associated Ethernet wiring shall be limited to inside the building.

Please read the following recommended safety precautions carefully.

• Do not place this apparatus on an uneven surface.
• Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
• Do not place this apparatus near conductive material.
• Do not attempt to service this apparatus yourself.
• Do not place a glass of water on the product.
• Do not install near any magnetic sources.
• Do not block any ventilation openings.
• Do not place heavy items on the product.
• Please wear protective gloves when installing/removing the camera. The high temperature of the product surface may cause a burn.

User's Manual is a guidance book for how to use the products.

The meaning of the symbols are shown below.

• Reference: In case of providing information for helping of product's usages
• Notice: If there's any possibility to occur any damages for the goods and human caused by not following the instruction
  ※ Please read this manual for the safety before using of goods and keep it in the safe place.

contentS

OVERVIEW

3 Important Safety Instructions

6 Recommended PC Specifications

6 Recommended Micro SD/SDHC/SDXC Memory Card Specifications

6 NAS recommended specs

7 What's Included (TNO-4030T/4040T/4050T/4030TR/4040TR)

8 What's Included (TNO-4041T/4051T/4041TR)

9 At a Glance (TNO-40301/40401/40501/40301R /4040TR)

9 At a Glance (TNO-4041T/4051T/4041TR)

INSTALLATION & CONNECTION

10 Installation (TNO-4030T/4040T/4050T/4030TR/4040TR)

11 Installation (TNO-4041T/4051T/4041TR)

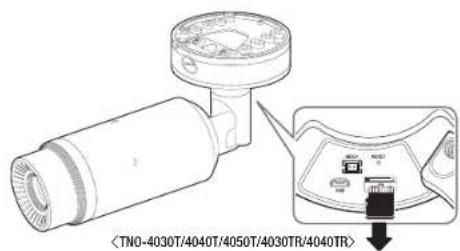

13 Inserting/Removing a Micro SD Memory Card

14 Memory Card Information (Not Included)

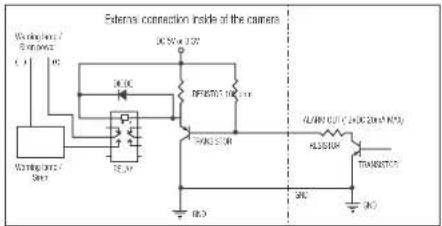

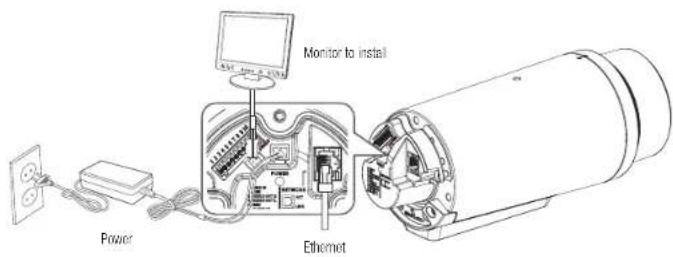

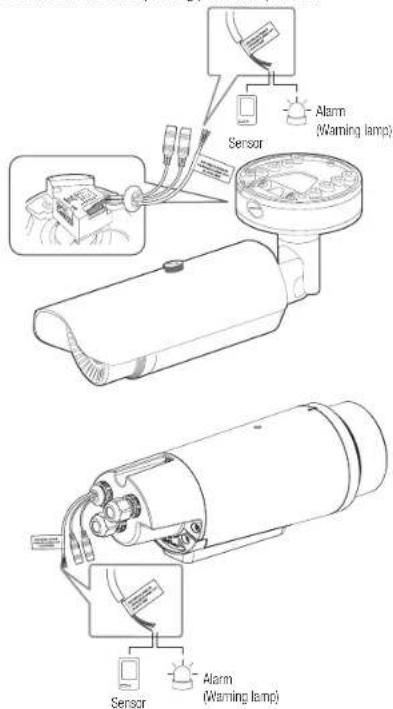

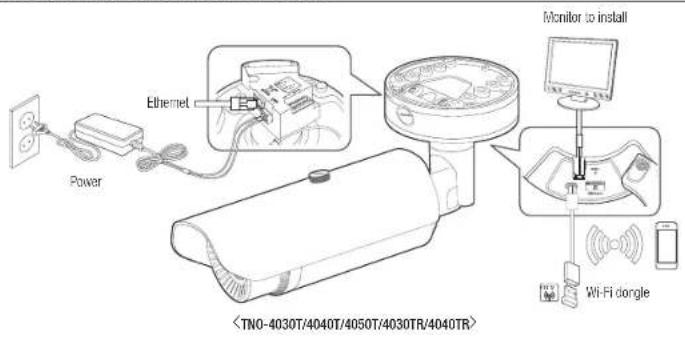

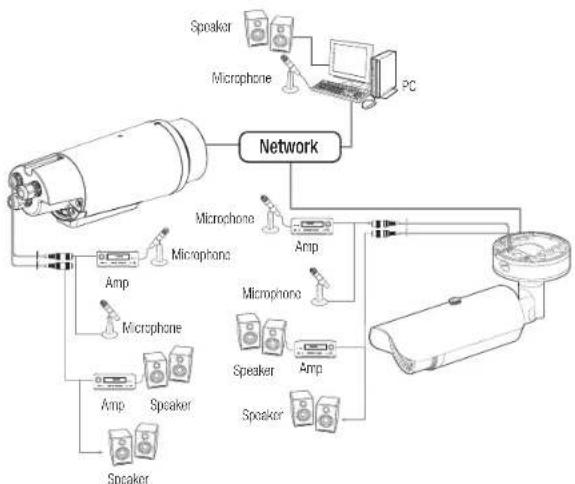

14 Connecting with other Device

NETWORK CONNECTION AND SETUP

18 Connecting the Camera Directly to Local Area Networking

18 Connecting the Camera Directly to a DHCP Based DSL/Cable Modem

19 Connecting the Camera Directly to a PPPoE Modem

19 Connecting the Camera to a Broadband Router with the PPPoE/Cable Modem

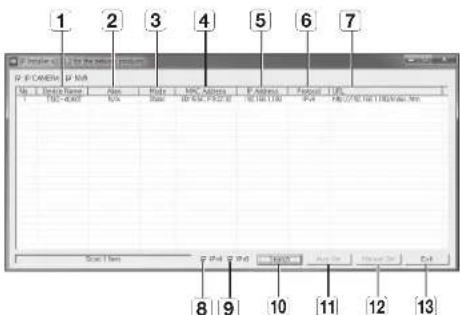

20 Buttons used in IP Installer

20 Static IP Setup

22 Dynamic IP Setup

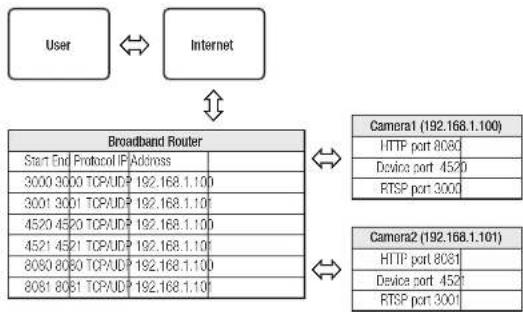

22 Port Range Forward (Port Mapping) Setup

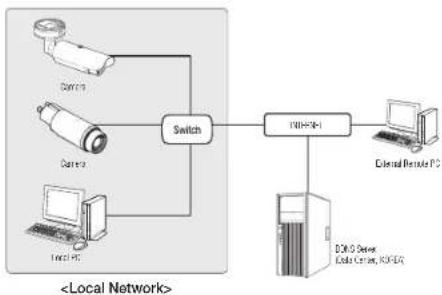

23 Connecting to the Camera from a Shared Local PC

23 Connecting to the Camera from a Remote PC via the Internet

WEB VIEWER

24 Connecting to the Camera

24 Password setting

24 Login

24 Camera Web Viewer Setup

APPENDIX

25 Specification

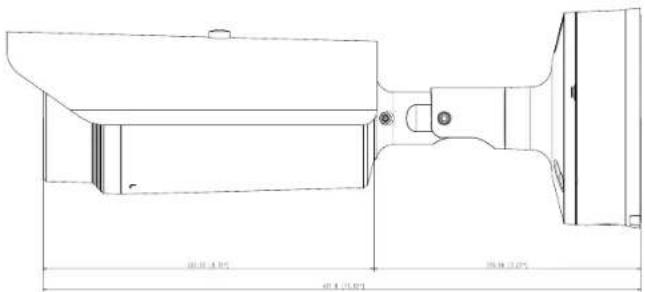

29 Product Overview

30 Troubleshooting

31 Open Source Announcement

overview

recommenDeD pc SpecificationS

• CPU : Intel(R) Core(TM) i7 3.4 GHz or higher
• RAM : 8G or higher
• Supported OS : MS Windows, Mac OS X
• Recommended browser: Google Chrome
Supported browsers: MS Explorer, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OSX only)
※ Please see the appendix for detailed information on verified OS and browsers.

recommenDeD micro SD/SDHc/SDXc memory carD SpecificationS

• Recommended capacity : 16GB to 256GB (MLC type)
- The following types of memory cards from the following manufacturers are recommended for this camera.
Manufacturer: SanDisk, Transcend
Product family : High endurance

naS recommenDeD SpecS

• Recommended capacity: 200GB or higher is recommended.
• Simultaneous access: One unit of NAS can accept a maximum of sixteen camera accesses.
• For this camera, you are recommended to use a NAS with the following manufacturer's specs.

Recommended products Available sizes

GNAP NAS A maximum of 16 cameras can access simultaneously.

Synology NAS A maximum of 18 cameras can access simultaneously.

- If you use NAS equipment for purposes other than video saving, the number of accessible cameras may be reduced.

wHat'S incLuDeD (tno-4030t/4040t/4050t/4030tr/4040tr)
Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.)

Appearance Item Name Quantity Description
	Camera	1
	Instruction book, Installer SW CD	1
	Quick Guide (Optional)	1
	Warranty card (Optional)	1
	Cable for the testing monitor	1	Used to test the camera connection to a portable display device
	Template	1	Product installation guide
	Power Terminal Block	1	Plugged in the power plug
	Audio/alarm Terminal Block	1	Plugged in the audio/alarm plug
	Power Cable	1	Used to plug into the power port

Appearance Item Name Quantity Description
	L Wrench	1	Used to control the direction of the camera
	Audio/alarm cable	1	Used to connect with the audio and alarm port.
	Tapping Screw	4	Used for installation on the wall or ceiling
	Sunshield	1	It protects the camera from the direct sunlight.
used	Sunshield Hold	1	It fixes the sunshield with the camera.
	BASE WALL MOUNT	1	The adaptor that should be adjusted in order to hang the camera on the wall
	Cable bush	1	Used to connect the LAN cable with a diameter of 7 8.5 .

overview

wHat'S incLuDeD (tno-4041t/4051t/4041tr)

Appearance Item Name Quantity Description
	Camera	1
	Instruction book, Installer SW CD	1
	Quick Guide (Optional)	1
	Warranty card (Optional)	1
	Cable for the testing monitor	1	Used to test the camera connection to a portable display device
	Power Terminal Block	1	Plugged in the power plug
	Audio/alam Terminal Block	1	Plugged in the audio/alam plug
	Power Cable	1	Used to plug into the power port
	Star-Shape wrench	1	Used to fasten the PT bracket to the main body

Appearance Item Name Quantity Description
	Camera	1
	Instruction book, Installer S/W CD	1
	Quick Guide (Optional)	1
	Warranty card (Optional)	1
	Cable for the testing monitor	1	Used to test the camera connection to a portable display device
	Power Terminal Block	1	Plugged in the power plug
	Audio/alam Terminal Block	1	Plugged in the audio/alam plug
	Power Cable	1	Used to plug into the power port
	Star-Shape wrench	1	Used to fasten the PT bracket to the main body

Appearance Item Name Quantity Description
	Audio/alarm cable	1	Used to connect with the audio and alarm port
	Sunshield	1	It protects the camera from the direct sunlight.
	Sunshield Hold	1	It fixes the sunshield with the camera.
	Waterproof stopper	1	Used to block a hole from which the cable does not come out
	Waterproof adapter	1	Cable range: 2mm(minimum) - 6mm(maximum) Used for connecting cables (Ex: Power cable)※ Provided cable glands from the camera will be applicable to 4.5mm(minimum) - 10mm(maximum) cable

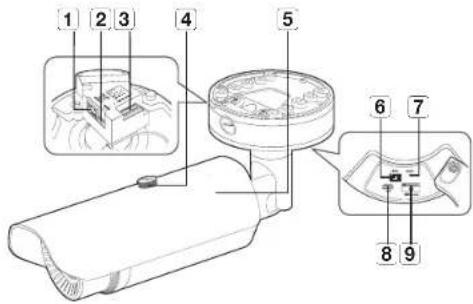

AT A GLANCE (TNO-4030T/4040T/4050T/4030TR/4040TR)

Appearance & Components

Item Description
1	Network Port Used to connect the PoF or Ethernet cable for network connection.
2	Power Port Used to plug the power cable.
3	Audio and alarm cable port	Port to connect audio and alarm cables.
4	Sunshield Hold It fixes the sunshield with the camera.
5	Sunshield It protects the camera from the direct sunlight.
6	Test Monitor Out	Output port for test monitoring the video output. Use the test monitor cable to connect to a mobile display and check the test video.
7	Reset Button	The button restores all camera settings to the factory defaultPress and hold for about 5 seconds to reboot the system.If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask Gateway, etc., before you can connect to the network.
8	MICRO USB port	Port to connect the WiFi dongle.You can check the installation video through the applications installed in the smartphone.Refer to "Connect to WIFI dongle" on page 15.WiFi dongle and OTG adapter are sold separately.
9	Micro SD card slot This is a slot in which you can insert a Micro SD card.

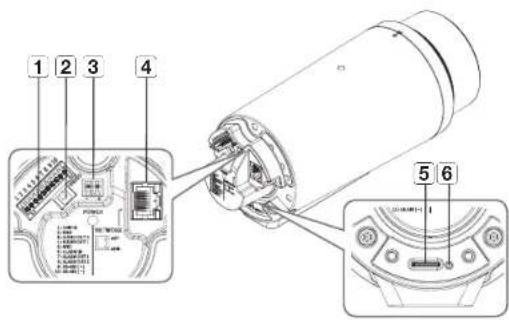

AT A GLANCE (TNO-4041T/4051T/4041TR)

Appearance & Components

Item Description
1 Audio and alarm cable port	Port to connect audio and alarm cables.
2 Test Monitor Out	Output port for test monitoring the video output. Use the test monitor cable to connect to a mobile display and check the test video.
3 Power Port Used to plug the power cable.
4 Network Port Used to connect the PoF or Ethernet cable for network connection.
5 Micro SD card slot This is a slot in which you can insert a Micro SD card.
6 Reset Button	The button restores all camera settings to the factory default.Press and hold for about 5 seconds to reboot the system.If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.

INSTALLATION (TNO-4030T/4040T/4050T/4030TR/4040TR)

This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera, including the installation bracket.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site. And put aside personal belongings from the site, just in case.
• Do not use the sunshield hole for any purpose other than for connecting the sunshield.
• If you use excessive force when installing the product, the camera may be damaged and malfunction. If you forcibly install the product using non-compliant tools, the product may be damaged.

Installation

1. Use the four tapping screws provided to secure the base wall mount.

Circular diagram with internal components and directional arrows, no text or symbols present

1. Hang the safety cable up on a hook that looks like an arrow in the Bottom cover.
2. Connect the appropriate cables with camera terminals.
3. After placing the bottom cover on the base wall mount, use the L wrench provided to connect and secure the three screws.
4. After placing the camera on the bottom cover, use the L wrench provided to connect the three screws on the top cover.

1. Adjust the camera direction using the L wrench provided.

- When you adjust the camera position using a bracket, please loosen the bracket screw, adjust the camera, and tighten it. If you attempt to adjust it forcibly while the screw is tight, it may result in a scratch or other problems.

Line drawing of a handheld device with a circular top and handle, emitting light rays (no text or symbols)

Connecting waterproof power cable and LAN cable

1. Pick off the extruded part of the rubber cover on the bottom side of the bottom cover as shown in the figure below.
2. Use an appropriate cable bush for the LAN cable to be connected.
3. Basic camera: Use the cable with a diameter of 25\~6.5.
4. Components provided: Use the cable with a diameter of 27\~8.5.
5. Insert the power cable into the small hole made by removing the projected part of the rubber plug in step 1 above.
6. Connect the power cable with the power terminal block.

Simple line drawing of a circular mechanical or electronic component with no text, numbers, or symbols.

Diagram of a device with two circular components and wiring, no visible text or symbols

1. Insert the LAN cable into the large hole made by removing the projected part of the rubber plug in step 1 above.
2. Remove the sheath with a cable cutter, and align the cables.
3. Connect the LAN cable with a LAN connector, and insert it into the LAN tool.
4. Connect the finished cable to the Ethernet port.

Technical line drawing of a mechanical assembly with two circular components and wiring (no text or symbols)

Connecting the alarm and audio cable

1. Remove the rubber cover on the bottom side of the bottom cover as shown in the figure below.

Circular mechanical component with mounting holes and a black arrow indicating direction (no text or symbols)

1. Insert the alarm/audio cable through the hole created by removing the rubber cap in No. 1, and connect the cable to the alarm terminal.
2. Align the cable so that it should not be damaged or jammed when installing the camera.
3. Put the rubber cap located on the alarm/audio cable in the hole.

Line drawing of a circular device with internal components and a cable, no text or symbols present

Outdoor installation

When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

1. Connect to cables, such as I/O and audio.

2. Wrap the black cable jacket (Area A) and the cable connection area with waterproof (butyl rubber) tape so that more than half of the butyl rubber tape is overlapped.
   If the cable jacket is not waterproofed properly, then it can directly cause leakage. Make sure to protect the cable with a dense layer of taping.

3. Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.

INSTALLATION (TNO-4041T/4051T/4041TR)

This camera is waterproof and in compliance with the IP56 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of caves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera including the installation bracket.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site. And put aside personal belongings from the site, just in case.
• Do not use the sunshield hole for any purpose other than for connecting the sunshield.
• If you use excessive force when installing the product, the camera may be damaged and malfunction. If you forcibly install the product using non-compliant tools, the product may be damaged.

installation & connection

Installation

1. Use the star-shaped wrench to separate the PT bracket from the main body.

Technical line drawing of a cylindrical mechanical device with internal components and directional arrows (no text or symbols)

1. Tighten the PT driver and PT bracket by fixing screws into the three holes as shown in the figure.

PT driver is not provided.

1. Use the star-shaped wrench to tighten the PT bracket and main body.

- When you adjust the camera position using a bracket, please loosen the bracket screw, adjust the camera, and tighten it. If you attempt to adjust it forcibly while the screw is tight, it may result in a scratch or other problems.

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Connecting waterproof power cable and LAN cable

1. Pick off the extruded part of the rubber cover on the bottom side of the bottom cover as shown in the figure below.

- Use an appropriate cable bush for the LAN cable to be connected.

- Basic camera : Use the cable with a diameter of 05\~6.5.

- Components provided : Use the cable with a diameter of 27\~8.5.

1. Insert the power cable into the center hole made by removing the projected part of the rubber plug in step 1 above.

2. Connect the power cable with the power terminal block.

3. Insert the LAN cable into the right hole made by removing the projected part of the rubber plug in step 1 above.
4. Remove the sheath with a cable cutter, and align the cables.
5. Connect the LAN cable with a LAN connector, and insert it into the LAN tool.
6. Connect the finished cable to the Ethernet port.
7. Insert the terminal block cable into the left hole made by removing the projected part of the rubber plug in step 1 above.

Outdoor installation

When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

1. Connect to cables, such as I/O and audio.
2. Wrap the black cable jacket (Area A) and the cable connection area with waterproof (butyl rubber) tape so that more than half of the butyl rubber tape is overlapped.
   If the cable jacket is not waterproofed properly, then it can directly cause leakage. Make sure to protect the cable with a dense layer of taping.
3. Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.

12 installation & connection

INSERTING/REMOVING A MICRO SD MEMORY CARD

• Disconnect the power cable from the camera before inserting the Micro SD memory card.
• Do not insert the Micro SD memory card while it's upside down by force.
  Otherwise, it may damage the Micro SD memory card.
• When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.

Inserting a Micro SD Memory Card

Insert a Micro SD card in the arrow direction shown in the figure.

Diagram of a device interior showing a circular component with internal components and an arrow pointing to a labeled component (no text or symbols present)

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Diagram of a device rear panel with internal components and a close-up view showing a connector (no text or symbols)

• Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably from the slot when released.
  Before removing the Micro SD memory card, in , set the device to and press the [Apply] button and turn the camera off.
• If you turn off the camera or remove the Micro SD memory card that contains data from the product, the data may be lost or damaged.

MEMORY CARD INFORMATION (NOT INCLUDED)

What is a memory card?

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Selecting a memory card that's suitable for you

Your camera supports Micro SD/SDHC/SDXC memory cards.

You may, however, experience compatibility issues depending on the model and make of the memory card.

The following types of memory cards from the following manufacturers are recommended for this camera.

- Manufacturer : SanDisk, Transcend

- Product family : High endurance

It is recommended to use a 16GB to 256GB (MLC type) memory card for this camera.

Playback performance can be affected depending on the speed of memory card.

Micro SD/SDHC/SDXC

CONNECTING WITH OTHER DEVICE

The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.

• The Micro USB out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.
• If the screen freezes for about 1-2 seconds at a certain time interval or when there is a change in the temperature of the surrounding area, this is normal; the screen is simply undergoing a calibration process.

Ethernet Connection

Connect the Ethernet cable to the local network or to the Internet.

Connecting Wi-Fi (TNO-4030T/4040T/4050T/4030TR/4040TR)

Camera Setup

1. Connect OTG adapter (5-pin) and WIFI dongle to the micro USB terminal.

Smartphone Setup

1. Install the Wisenet Installation application.

2. Select the camera SSID after turning on the WiFi

3. Run the Wisenet Installation application.

4. When you log in to the camera, the video will be connected. (Initial password: 4321)

■ The video will be played without being logged in during the initial connection.

1. You can adjust angle of view while watching the video through smartphone.

Recommended dongle manufacturer

Manufacturer Model
NETS WF2123 n300
EDIMAX EW-7811Un
IP Time N100mini
TP-LINK TL-WN823N V1
ASUS USB-N13
NETGEAR WNA3100M

Power Supply

Use the screwdriver to connect each line (+,-) of the power cable to the corresponding power port of the camera.

- When supplying PoE and DC 12V or PoE and AC 24V power at the same time, the equipment is powered by the external source (AC 24V, DC 12V).

- You can also use a router featuring PoE to supply power to the camera.

- Use PoE that is compliant with the IEEE 802.3af protocols.

- It is recommended to use a single source for powering the equipment among PoE, DC 12V and AC 24V.

- Be careful not to reverse the polarity when you connect the power cable.

- When the power is initially turned on, time is needed to allow the screen to stabilize. For this reason, a screen calibration is performed when the power is initially turned on.

- If you want to connect an external device, you must turn off the external device before proceeding.

- Connect the set and the adaptor power line first, and then connect the power cable to the outlet on the wall.

Power Cable Specification for Each Model

Input power Wire Type (AWG)		Cable Length (Max.)
DC 12V	#18		19m
	#16		30m
IC 24V	#20		26m
	#18		40m

Network Cable Specification

Item Contents	Remark
Connector	RJ45
Ethernet	10/100Base-T	10/100 Mbps
Cable	UTP Category 5c
Max Distance	100M
PoE Support	IEEE 802.3a!

installation & connection

Connecting to Audio Input/Output

1. Connect the AUDIO IN port of the camera with the microphone or LINE OUT port of the amplifier that the microphone is connected to.
2. Connect the AUDIO OUT port of the camera with the speaker or LINE IN port of the amplifier that the speaker is connected to.
3. Check the specifications for audio input.

- Audio Codec

• Audio In : G.711 PCM (Bit Rate: 64Kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate: 16Kbps, 24Kbps, 32Kbps, 40Kbps / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kbps / Sampling Frequency: 16kHz)
• Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz)
  • Full duplex Audio
• Audio In : Selectable (microphone/Line-In), Supported voltage: 2.5VDC (4mA), Input Impedance: 2K Ohm
  • Audio out : Line-out (3.5mm mono jack), Maximum output: 1Vms
  • Line out impedance : 600Ω

Connecting to the I/O port box

Connect the Alarm I/O cable to the corresponding port of the port box.

- ALARM-IN: Used to connect the alarm input sensor or external day/night sensor.

• ALARM-OUT : Used to connect the alarm output signal.
• GND : Common port for alarm In/output signal.

- If devices (e.g., flashing light and screen) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction.

Refer to the "Alarm Out Wiring Diagram" when connecting devices that exceed the voltage and current specifications.

RS-485 setup (TNO-4041T/4051T/4041TR)

All these operations above mentioned will be enabled only if the network camera is properly connected to the pan/til-compliant receiver. And the serial port for the pan/til operations should be properly specified.

- Check the functions supported by the receiver when it is connected. Some functions may be disabled depending on the receiver or protocol specification. Refer to the following table for more details.

Functions Supported for Each Protocol

Protocol P control		P movement speed	T control	T movement speed	Preset Remarks
SAMSUNG-T O O (1~6) O O (1~6) O
PELCO-D O O (1~6) O O (1~6) O
PELCO-P O O (1~6) O O (1~6) O
SUNGJIN O X O X O					PT direction (Up, down, left, bottom)
PANASONIC	O O (1~6) O O (1~6) O
HONEYWELL O O (1~6) O O (1~6) O
AD	O O (1~6) O O (1~6) O
VICON	O O (1~6) O O (1~6) O
GE	O O (1~6) O O (1~6) O
BOSCH	O O (1~6) O O (1~6) X

To connect the external sensor

Connect one strand of each signal line (2-strand) of the sensors to the [ALARM IN] port, and connect the other strand to the [GND] port.

Alarm In Wiring Diagram

Alarm Out Wiring Diagram

network connection and setup

You can set up the network settings according to your network configurations.

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING

Connecting to the camera from a local PC in the LAN

1. Launch an Internet browser on the local PC.
2. Enter the IP address of the camera in the address bar of the browser.

A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet if the port-forwarding is not properly set or a firewall is set.
In this case, to resolve the problem, contact your network administrator.
- In the IP installer, you can use the initial password, "4321" to set IP Address, Subnot Mask, Gateway, HTTP Port, VWP Port, IP type. After changing the network interface, for better security, access the web viewer and change the password.
- By factory default, the IP address will be assigned from the DHCP server automatically if there is no DHCP server available, the IP address will be set to 192.168.1.100. To change the IP address, use the IP Installer. For further details on IP Installer use, refer to "Static IP Setup". (Page 20)

CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM

1. Connect the user PC directly with the network camera.
2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] - [DDNS] and configure the DDNS settings.
6. Move to [Basic] - [IP & Port], and set the IP type to [DHCP].
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.

- For information on how to set DONS, refer to the online help of Web Viewer. - For information on how to set the IP, refer to the online help of Web Viewer.

CONNECTING THE CAMERA DIRECTLY TO A PPPoE MODEM

1. Connect the user PC directly with the network camera.
2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] - [DDNS] and configure the DDNS settings.
6. Move to [Basic] - [IP & Port] Setup Page, set the IP type to [PPPoE], and enter the network service's ID and password.
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.

For information on how to set DONS, refer to the online help of Web Viewer.

- For information on how to set the IP, refer to the online help of Web Viewer.

CONNECTING THE CAMERA TO A BROADBAND ROUTER WITH THE PPPoE/CABLE MODEM

This is for a small network environment such as homes, SOHO and ordinary shops.

Configuring the network settings of the local PC connected to a Broadband Router

Configuring the network settings of the local PC connected to a Broadband Router, follow the instructions below:

- Select: → → → → → → or .

- Follow the instructions below if you select :

ex1) If the address (LAN IP) of the Broadband Router is 192.168.1.1

IP address : 192.168.1.100

Subnet Mask: 255.255.255.0

Default Gateway:192.168.1.1

ex2) If the address (LAN IP) of the Broadband Router is 192.168.0.1

IP address : 192.168.0.100

Subnet Mask: 255.255.255.0

Default Gateway:192.168.0.1

ex3) If the address (LAN IP) of the Broadband Router is 192.168.xxx.1

IP address : 192.168.xxx.100

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.xxx.1

For the address of the Broadband Router, refer to the product's documentation.

For more information about port forwarding of the broadband router, refer to "Port Range Forward (Port Mapping) Setup" (Page 22)

network connection and setup

BUTTONS USED IN IP INSTALLER

Item Description
1	Device Name	Model name of the connected camera.Click the column to sort the list by model name.However, search will be stopped if clicked during the search.
2	Alias This function is not currently implemented.
3	Mode	Displays otherorfor the current network connection status.
4	MAC(Ethernet) Address	Ethernet address for the connected camera.Click the column to sort the list by Ethernet address.However, search will be stopped if clicked during the search.
5	IP Address	IP address.Click the column to sort the list by IP address.However, search will be stopped if clicked during the search.
6	Protocol	Network setting for the camera.The factory default is "IPv4".Cameras with the IPv6 setting will be displayed "IPv6".
7	URL	DDAS URL address enabling access from the external Internet.However, this will be replaced with theof the cameras if DDAS registration has failed.
8	IPv4 Scans for cameras with the IPv4 setting

Item Description
9 IPv6	Scans for cameras with the IPv6 setting. Activated in an IPv6 compliant environment only.
10 Search	Scans for cameras that are currently connected to the network. However, this button will be grayed out if neither IPv4 nor IPv6 is checked.
11 Auto Set The IP Installer automatically configures the network settings.
12 Manual Set You should configure the network settings manually.
13 Exit Exits the IP Installer program.

- For the IP installer, use only the installer version provided in the installation CD or use the latest one if available. You can download the latest version from the Hanwha Tachwn web site.

- If the supporting OS is Windows 8.1, it is recommended that you use the Wisenet Device Manager instead of the IP Wisenet. The Wisenet Device Manager Program can be downloaded by visiting the Hanwha Techwin website (http://www.hanwha-security.com) under the menu -

STATIC IP SETUP

Manual Network Setup

Run to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

- For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

1. Select a camera in the search list. Check the MAC address of the camera on the camera's label. Both the [Auto Set] and [Manual Set] buttons will be activated.

2. Click [Manual Set]. The Manual Setting dialog appears: , , , , and of the camera are displayed in the preset values.

3. In the

   pane, provide the necessary information.
4. MAC (Ethernet) Address: The MAC address imprinted on the camera label is automatically displayed and requires no user setting.

If not using a Broadband Router

For setting , , and , contact your network administrator.

1. In the pane, provide necessary information.

2. HTTP Port: Used to access the camera using the Internet
   browser, defaulted to 80.
   • VNP Port : Used to control the video signal transfer.
   defaulted to 4520.

3. Enter the password.

Enter the password of "admin" account, which was used to access the camera.

For the security purposes, you are recommended to use a combination of numbers, alphabets uppercase and lowercase and special characters for your password.

- For information on how to change the password, refer to the online help of Web Viewer.

1. Click [OK]

Manual network setup will be completed.

If using a Broadband Router

- IP Address : Enter an address falling in the IP range provided

by the Broadband Router.

ex) 192.168.1.2-254. 192.168.0.2-254.

192.168XXX.2\~254

• Subnet Mask: The of the Broadband Router will be the of the camera.
• Gateway: The of the Broadband Router will be the of the camera.

The settings may differ depending on the connected Broadband Router model.

For more information, refer to the user manual of the applicable router.

- For more information about port forwarding of the broadband router, refer to 'Port Range Forward (Port Mapping) Setup'. (Pages 22)

If the Broadband Router has more than one camera connected

Configure the IP related settings and the Port related settings distinctly with each other.

exi

Category Camera #1 Camera #2
IP related settings	IP Address	192.168.1.100	192.168.1.101
	Submit Mask	255.255.255.0	255.255.255.0
	Gateway	192.168.1.1	192.168.1.1
Port related settings	HTTP Port	8080	8081
	VNP Port	4520	4521

If the is set other than 80, you must provide the number in the address bar of the Internet browser before you can access the camera.

exi. http://AP address : HTTP Port

http://192.168.1.100:8080

Auto Network Setup

Run to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

1. Select a camera in the search list. Check the MAC address of the camera on the camera's label. Both the [Auto Set] and [Manual Set] buttons will be activated.

2. Click [Auto Set]. The Auto Setting dialog appears. The , , and will be set automatically.

3. Enter the password. Enter the password of "admin" account, which was used to access the camera.

- For the security purposes, you are recommended to use a combination of numbers, alphabels uppercase and lowercase and special characters for your password.

- For information on how to change the password, refer to the online help of Web Viewer.

1. Click [OK]. Auto network setup will be completed.

DYNAMIC IP SETUP

Dynamic IP Environment Setup

• Example of the Dynamic IP environment
- If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server
- If connecting the camera directly to modem using the DHCP protocols
- If IPs are assigned by the internal DHCP server via the LAN

Checking the Dynamic IP

1. Run the IP Installer on the user's local computer. Cameras allocated with address are shown in the list.
2. Select a camera from the search result.
3. Click the [Manual Set] button and check the camera's address. If you uncheck , you can change IP to .

PORT RANGE FORWARD (PORT MAPPING) SETUP

If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the Broadband Router so that a remote PC can access the camera in it.

Manual Port Range Forwarding

1. From the Setup menu of the Broadband Router, select - . For setting the port range forward for a third-party Broadband Router, refer to the user guide of that Broadband Router.
2. Select and for each connected camera to the Broadband Router. The number of each port to be configured to the IP router should be set according to the port number designated in - - on the camera web viewer.

22_ network connection and setup

1. When done, click [Save Settings]. Your settings will be saved.

2. Above sample instructions are based on the CISCO's Broadband Router.

3. The settings may differ depending on the connected Broadband Router model. For more information, refer to the user manual of the applicable router.

Setting up Port Range Forward for several network cameras

• You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page.
  • A user can change each port using the camera setting screen.

When Camera1 and Camera2 are connected to a router :

• Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. After connecting the network camera, select the checkbox from the menu in in 'Settings -> Network -> DDNS'.

connectinG to tHe camera from a SHARED LocaL pc

1. Run the IP Installer. It will scan for connected cameras and display them as a list.
2. Double-click a camera to access. The Internet browser starts and connects to the camera.

- Access to the camera can also be gained by typing the camera's IP address in the address bar of the Internet browser.

connectinG to tHe camera from a remote pc via tHe internet

Since using the IP Installer on a remote computer that is not in the Broadband Router's network cluster is not allowed, users can access cameras within a Broadband Router's network by using the camera's DDNS URL.

1. Before you can access a camera in the Broadband Router network, you should have set the port range forward for the Broadband Router.
2. From the remote PC, launch the internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.harwha-security.com/ID

■ For information on how to register DDNS, refer to the network setup guide.

CONNECTING TO THE CAMERA

Normally, you would

1. Launch the Internet browser.

2. Type the IP address of the camera in the address bar.

ex) • IP address (IPv4) : 192.168.1.100 →

http://192.168.1.100

- the Login dialog should appear.

* IP address (IPv6) : 2001:230:abcd: ffff:0000:0000:ffff:1111

→ http://[2001:230:abcd:ffff:0000:0000:ffff:1111] - the Login

dialog should appear.

If the HTTP port is other than 80

1. Launch the Internet browser.

2. Type the IP address and HTTP port number of the camera in the address bar.

ex) IP address : 192.168.1.100:HTTP Port number(8080)

→ http://192.168.1.100:8080 - the Login dialog should appear.

Using URL

1. Launch the Internet browser.

2. Type the DDNS URL of the camera in the address bar, ox) URL address : http://ddns.hanwha-security.com/ID

- the Login dialog should appear.

■ Network connection is disabled in the LAN only environment.

To check the DDNS address

If the camera is connected directly to the DHCP cable modem, DSL modem, or PPPoE modem, the IP address of your network will be changed each time you try to connect to the ISP (Internet Service Provider) server.

If this is the case, you will not be informed of the IP address changed by DDNS.

Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP when you try to access the device.

To register your device to the server, visit http://ddns.hanwha-security.com and register your device first, and then set the Web Viewer's - to , as well as providing

that had been used for DDNS registration.

PASSWORD SETTING

When you access the product for the first time, you must register the login password.

When the "Password change" window appears, enter the new password.

- For a new password with 8 to 9 digits, you must use at least 3 of the following: uppercase/overcase letters, numbers and special characters. For a password with 10 to 15 digits, you must use at least 2 types of those mentioned.

-Special characters that are allowed. : \~!@4%^^|_-1 = [0.7]

• For higher security, you are not recommended to repeat the same characters or consecutive keyboard inputs for your passwords.
• If you lost your password, you can press the [RESET] button to initialize the product. So, don't lose your password by using a memo pad or memorizing it.

LOGIN

Whenever you access the camera, the login window appears.

Enter the User ID and password to access the camera.

1. Enter "admin" in the input box.
   The administrator ID, "admin", is fixed and can not be changed.
2. Enter the password in the input field.
3. Click [OK].

If you have logged in successfully, you will the Live Viewer screen.

- When you access the camera web viewer, pay special attention to the security by checking whether the image data is encrypted.

• If you check the "Remember my credentials" option when your input is done, in future you will be logged in automatically without being prompted to enter the login information.
• You will experience the best video quality if the screen size is 100%. Reducing the ratio may cut the image on the borders.

CAMERA WEB VIEWER SETUP

1. Click the [Setup ( * ] icon.
2. The Settings window appears.
3. You can configure settings for the camera's basic information, video, audio, network, event, analysis, and system over the network.
4. Click to view detailed descriptions of each function.

appendix

Specification

Items		Description
		TNO-4030T TNO-4040T TNO-4050T TNO-4041T			TNO-4051T
Video	Imaging Device Uncovered Micro odometer
	Pixel size 17μm
	Effective Pixels 640x480
	NETD	<50mK
	Video Out	CVBS: 1.0 Vp-p / 750 composite, 720x480(N), 720x576(P), for installationUS3: Micro USB type B, 1280x720, for installation			CVBS: 1.0 Vp-p / 750 composite, 720x480(N), 720x576(P), for installation
Lens	Focal Length (Zoom Ratio) 13mm fixed 19mm fixed 35mm fixed 19mm fixed 35mm fixed
	Max. Aperture Ratio F-1.0
	Angular Field of View	H:48.5V/36.47D:61.6'	H:32'V:24.37D:39.2'	H:17.2V:137D:22'	H:32'V:24.37D:39.2'	H:17.2V:137D:22'
	Focus control Fixed
	Min. Object Distance 5m 11m	85m 11m 35m
	Mount Type	Board-in type
Operational	Camera Title	Off/ On- WW: English/Numeric/Special Characters- Common: Multi-line (Max 5), Color (Grey/Green/Rod/Blue/Black/White), Transparency, Auto Scale by Resolution
	Digital Image Stabilization Off On/with GyroJ
	Motion Deflection	Off/ On/8ea, 8point Polygonal zones), Handover
	Privacy Masking	Off/ On (32ea, polygonal zones)- Color : Grey/Green/Rod/Blue/Black/White- Mosaic
	Flip / Mirror	Flip : On/OffMirror: On/OffHallway view: 30°/270°

Items		Description
		TNO-4030T TNO-4040T TNO-4050T TNO-4041T TNO-4051T
Operational	Video & Audio Analytics	Temporing, Ordering, Directional Detection, Virtual Line, Enter/Exit, Apocar / Disappear Audio Detection, Motion Detection, Sound Classification, Shock detection, Temperature change detection
	Alarm I/O Input 1ea / Output 2ea
	Remote control	-	RS485
	RS-485 Protocol	-	Peco D/P, Samsung T, Honeywell, Bosch, Panasonic, Surgin, AD, Vicom, CE
	Alarm Triggers	Alarm Input, Motion Detection, Video & Audio Analytics, Network Disconnect
	Alarm Events	• File upload via FTP, E-Mail• Notification via E-Mail• local storage(SD/SDHC/SDXC) or NAS recording at Event Triggers• External output
	Audio In	Selectable (Mic IV/Line IV), Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K Ohm
	Audio out	Line out, Max output level: 1 Vrms
	Pixel count	support
Network	Ethernet	RJ-45 (10'100BASE-T)
	Video Compression	H.265/H.264 (MPEG-4 Part 10AVC) : Main/Baseline/High, Motion JPEG
	Resolution	640x490, 640x360, 320x240
	Max. Framerate	H.265/H.264 : Max. 30fps at all resolutionsMotion JPEG : Max. 30fps
	WiseStream II	Support
	Video Quality Adjustment	H.264/H.265 : Target Bitrate Level ControlMJPEC : Target Bitrate Level Control

appendix

Items		Description
		TNO-4030T TNO-4040T TNO-4050T TNO-4041T	TNO-4051T
Network	Bitrate Control Method	H.264/H.265 : CBR or VBRMJPEC : VBR
	Streaming Capability Multiple Streaming (Up to 10 Profiles)
	Audio Compression Format	G.711 u-law /8.726 SelectableG.726 (ADPCM) 8KHz, G.711 8KHzG.726 : 16Kcps, 24Kcps, 32Kcps, 40KcpsAAC LC : 48Kbps at 8/16/32/48KHz
	Audio Communication Bi-directional (P-Way)
	IP IPv4, IPv6
	Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SS/TLS,DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/V2cw3(MIB-Z), ARP, DNS, DONS,QoS, PIM-SM, UPnP, Bonjour, LLDP
	Security	HTTPS/SSL Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1X Authentication (EAP-TLS, EAP-LEAP)
	Streaming Method Unicast / Multicast
	Max. User Access	20 users at Unicast Mode
	Edge Storage	SD/SDHC/SDXC (up to 256 GB)- Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.NAS Network Attached Storage)Local PC for Instant Recording
	Application Programming Interface	ONVIF Profile S/GSUNAP/HTTP API?Open Platform
	Webpage Multi Langu	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Items		Description
		TNO-4030T TNO-4040T TNO-4050T TNO-4041T TNO-4051T
Network	Web Viewer	Supported OS: Windows / 8.1 / 10, MAC OS X 10.10, 10.11, 10.12Recommended browser: Google ChromeSupported Browser: MS Explorer 11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
	Central Management Software	SmartViewer, SSM
Environmental	Operating Temperature / Humidity	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
	Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
	Ingress protect (PSG, NEMA 4X)
	Vandal Resistance K10 - IK10 -
Electrical	Input Voltage 24VAC, 12VDC, Pb(IEEE502.3af)
	Power Consumption	Max.10.5W(AC24V), Max.9W(DC12V), Max.10W(PoF)Typical 8.9W(AC24V), Typical 7.5W(DC*2V). Typical 8.6W(PoE)
Mechanical	Color / Material White(RAL-9003) / Aluminum
	Dimension (O x H)	∅101.97 x H401.8mm		∅101.97 x H308mm
	Weight	3,124g	3,126g	2,452g
Video	Imaging Device Uncooied Micro odometer
	Pixel size 17μm
	Effective Pixels 640x480
	NETD	<50mK
	Video Out	CVBS: 1.0 Vp-p / 750 composite, 720x480(M), 720x576(P), for installationUSG: Micro USB type B, 1280x720, for installation		CVBS: 1.0 Vp-p / 750 composite, 720x480(M), 720x576(P), for installation
Lens	Focal Length (Zoom Ratio) 13mm fixed 19mm fixed
	Max. Aperture Ratio F-1.0
	Angular Field of View	H:48.6/W:36.4/0x61.6"	H:32/W:24.3/0.30.2"
	Focus control Fixed
	Min. Object Distance 5m 11m
	Mount Type Board-in type
Radiometry	Temperature detect range -2°C ~ 130°C (-4F~266°F)
	Temperature accuracy =5°C (≤100°C) =20% (>100°C)
	Temperature detection Off / On/Bea roctopic)
	Additional	Hybrid palettes, Spot temperature reading
Operational	Camera Title	Off / On- WW / English/Numeric/Special Characters- Common : Multi-line (Max S); Color (Grey/Green/Red/Blue/Black/White);Transparency, Auto Scale by Resolution
	Digital Image Stabilization	Off / On(With Gyro)
	Motion Detection	Off/ On(Bea, Apoint Polygonal zones), Handover
	Privacy Masking	Off / On (32ea polygonal zones)- Color : Grey/Green/Red/Blue/Black/White-Mosaic
	Flip / Mirror	Flip : On/OffMirror : On/OffHallway view : 90°/270°		Flip : On/OffMirror : On/Off

Items		Description
		TNO-4030TR TNO-4040TR TNO-4041TR
Operational	Video & Audio Analytics	Temporing, Ordering, Directional Detection, Virtual Line, Enter/Exit, Appear / Disappear Audio Detection, Motion Detection, Sound Classification, Shock detection, Temperature detection
	Alarm I/O input 1ea / Output 2ea
	Remote control	-	RS485
	RS-485 Protocol	-	Pelco D/P, Samsung T, Honeywell, Bosch, Pansonic, Sungin, AO. Vicon, GE
	Alarm Triggers	Alarm Input, Motion Detection, Video & Audio Analytics. Network Disconnect
	Alarm Events	• File upload via FTP, E-Mail• Notification via E-Mail• local storage(SO/SDHC/SDXC) or NAS recording at Event Triggers• External output
	Audio In	Selectable (Mic IV/Linc IV), Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K Ohm
	Audio out	Line cut, Max output level: 1 Vrms
	Pixel count	support
Network	Ethernet	PJ-45 (10*100BASE-T)
	Video Compression	H.265/H.264 (MPEG-4 Part 10/AVC) : Main/Baseline/High, Motion JPEG
	Resolution	640x480, 640x360, 320x240
	Max. Framerate	H.265/H.264 : Max. 30fps at all resolutionsMotion JPEG : Max. 30fps
	WiseStream II	Support
	Video Quality Adjustment	H.264/H.265 : Target Bitrate Level ControlMJPEG : Target Bitrate Level Control

appendix

Items		Description
		TNO-4030TR TNO-4040TR TNO-4041TR
Network	Bitrate Control Method	H.264/H.265 : CBR or VBRMJPEG : VBR
	Streaming Capability Multiple Streaming (Up to 10 Profiles)
	Audio Compression Format	G.711 u-law /8.726 SelectableG.726 (ADPCM) 8KHz, G.711 8KHzG.726 : 16Kcps, 24Kcps, 32Kcps, 40KcpsAAC LC : 48Kbps at 8/16/32/48KHz
	Audio Communication Bi-diorcional (P-Way)
	IP IPv4, IPv6
	Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS,DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2v3/v3(MIB-Z), ARP, DNS, DDNS,QoS, PIM-SM, UPnP, Bonjour, LLDP
	Security	HTTPS/SSL Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1X Authentication (EAP-TLS, EAP-LEAP)
	Streaming Method Unicast / Multicast
	Max. User Access	20 users at Unicast Mode
	Edge Storage	SD/SDHC/SDXC (up to 256 GB)- Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.NAS Network Attached Storage)Local PC for Instant Recording
	Application Programming Interface	ONVF Profile S/GSUNAPI(HTTP AP)Open Platform
	Webpage Multi Langu	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Items		Description
		TNO-4030TR TNO-4040TR TNO-4041TR
Network	Web Viewer	Supported OS: Windows / / 8.1 / 10, MAC OS X 10.10, 10.11, 10.12Recommended browser: Google ChromeSupported Browser: MS Explorer 11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
	Central Management Software	SmartViewer, SSM
Environmental	Operating Temperature / Humidity	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
	Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
	Ingress protect P66, NEMA 4X
	Vandal Resistance K10
Electrical	Input Voltage 24VAC, 12VDC, Pb(IEEE502.3af)
	Power Consumption	Max.10.5W(AC24V), Max.9W(DC12V), Max.10W(PoF)Typical 8.9W(AC24V), Typical 7.5W(DC12V). Typical 8.6W(PoE)
Mechanical	Color / Material White(RAL-9003) / Aluminum
	Dimension (0 x H) 0101.97 x H401.8mm 0101.97 x H309mm
	Weight 3,124g	3.126g	2,462g

proDuct overview

tno-4030t/4040t/4050t/4030tr/4040tr

Unit : mm (inch)

tno-4041t/4051t/4041tr

Unit : mm (inch)

PROBLEM SOLUTION
When an Windows 10 user accesses the web viewer through Chrome or Firefox, the sound volume of microphone changes periodically.	This is what happens when microphone driver has been set to Realtek driver.Install the High Definition Audio device (Windows Default Driver) or the third party driver as the microphone driver.
No video is displayed when accessing the plug-in free webviewer on Safari via HTTPS.	On the authentication popup window prompted when initially accessing https, click "View Authentication Certificate" and select the "Always trust when connecting to the designated webviewer IP" check box.If the webviewer continues failing to display a video after you select "Next" on the message window below, press the command key + C to exit the Safari browser, access again and follow the procedures stated above.
I can't access the camera from a web browser.	Check to make sure that the camera's Network settings are appropriate.Check to make sure that all network cables have been connected properly.If connected using DHCP, verify that the camera is able to acquire dynamic IP addresses without any problem.If the camera is connected to a Broadband Router, verify that port forwarding is properly configured.
Viewer got disconnected during monitoring.	Connected Viewers become disconnected upon any change to camera or network configurations.Check all network connections.If the camera is connected over an PPPoE network, it's possible for Viewer to disconnect under poor network conditions.
The camera connected to the network Is not detected in the IP installer program.	Turn off the firewall settings on your PC and then search the camera again.
Images overlap.	Check whether too or more cameras are set to a single multicast address instead of different addresses. If a single address is used for multiple cameras, the images may overlap.
No Image appears.	If the transmission method is set to multicast, check whether there is a router that supports multicast in the LAN the camera is connected to.

PROBLEM SOLUTION
Voice is not recorded even though audio input settings are configured.	You must enable thecheck box in-
of, but no notification e-mail reaches me even when an analysis event had occurred.	Verify the settings in the following sequence:A. Checksettings.B. Theshould be set toC. Check if theoption ofmenu is checked to use.
No signal is found at the Alarm Output port even when an Intelligent video analysis event is generated.	Check alarm output port settings.
Cannot record into the Micro SD memory card.	Check if the memory card is defective.
Micro SD memory card is inserted but the camera does not operate property.	Check if the memory card is inserted in the procer direction. Operation of memory card that is formatted by other devices is not guaranteed with this camera unitFormat the memory card again in→→menu.
Cannot record in the NAS.	Confirm that the information registered in the NAS is correct.
It reports that NAS setting has failed.	Confirm that the IP address of the NAS is valid.Clofim that the ID/password of the NAS is valid.Confim that you can access the folder designated as the default folder using the ID of the NAS.Confim that the NAS SMB/CIFS items are unchecked.Confim that the NAS IP address and the camera IP address are in the same format cx) The NAS & camera subnot mask initial value is 255.255.255.0.If the IP address is 192.168.20.32 then the NAS IP address should be in the range of 192.168.20.1-192.168.20.255.Check whether you tried to access as another user without formatting the default folder saved or used.Confim that you used recommended NAS equipment.

OPEN SOURCE ANNOUNCEMENT

GPL/LGPL software license

The software included in this product contains copyrighted software that is licensed under the GPL/CFL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to http://[e-mail]

If you want to obtain the complete Corresponding Source code in the physical medium such as CO-HOM, the cost of physically performing source distribution might be charged.

GPL SW
Component Name License URL

Basa Kamel	CPL 2.0
Buybox	CPL 2.0	http://www.buybox.net/downloads/snapshots
txonalit-4.5.0	GHI 2.0
tplatzes 1.4.21	GHI 2.0	http://tip.netliters.org/pub/exp Planles
ethanol 4.3	GHI 2.0
m2-1.5.2	CPL 2.0	http://to.infracted.org/pub/mnt=utie
ml-disg-2.11	CPL 2.0
rs-sppor-5.11	CPL 2.0	http://www.roanrigpengjin.com/sppor/
wps_supplacent 2.a	GHI 2.0
bach 4.6.20	GHI 3.0
zomocent	GHI 2.0

LGPL SW

Component Name License URL

g/lbc	LGH 2.0
Inetudie	LGFL 3.0
neon-0.29.6	LGFL 2.0 https://www.webcler.org/neon/

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright ©1999. 1981 Free Software Foundation, Inc., S1 Franklin Street, Full Floor, Boston, MA 02110-1301, USA

Everyone, a permit to copy and distribute verbalizing copies of this license document, but changing it is not allowed.

Preamble

The license for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is inserted to guarantee your freedom to share and change this software. To make sure this software is true for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lowerer General Public License installed). You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not being used in the website or to access the website. The license is scanned to move sure that you have the license to distribute resources or less software and change for me service from which, that you choose source codes or can get it if you want it, that you can change the software or use places of it into new tree programs, and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies or such a program, whether grants or for a fee, you must give the recipients all the rights that you have.

You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know then rights. We protect your rights with two steps:

(1) copyright the software, and (2) printer you this licensor which gives you legal permission to copy distribution and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputation.

I finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistribution of a free program will individually obtain patent licenses. In effect making the program proprietary. To prevent this, we have made a clear, that any patent must be licensed for everyone's free use or not licensed at all. The prices terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

Version 2, June 1961 Copyright (C) 1983, 1981 From Software Foundation, Inc. 51 Franklin S

1. This License applies to any program or other work which contains a notice placed on the copyright holder saying it may be distributed under the terms of this General Public License.

the "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under

copyright law: that it is to say, a work concerning the Program of a portion of it, either relevant or with modification is and/or translated into another language. Hence, this translation is industry-inclusive limitations in the term 'transification' ^11 . Fresh language in accordance as 'true'.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not realized, and the output from the Program is covered only if its contents constitute a work based on the Program independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbal copies of the Program's source code as you receive it, in any medium, provided that you consciously and

appropriately putlen on each copy an appropriate copyright notice and disclaimer of warranty, keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your opt on offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications one or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you charged the files and the date of any change.

c) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this license.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most and many ways to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty for else, saying that you provide a warranty and that there may restrict the program under these conditions, and calling the user now to view a copy of the License. (Exceptional the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and accurate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of the Licensee, whose permissions for other licenses extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entireks by you, rather the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, there aggregation of another work not based on the Program with the Program for a work based on the Program in a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program for a work based on it, under Section 2 in object case or executable form under the forms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or.

b) Accompany it with a written offer, valid for or lost three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a compute machine durable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the Information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, it accord with Subsection b above.) The source code for a work means the preferred form of the work, or making modifications so it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface filtration lists, plus the scripts used to correct compilation and installation of the execution. However, as a special execution, the source code distributed need not include anything that, a normally distributed [in either source or binary form] with the major

components sampler, kernel, and so only of the operating system on which the executable runs, unless that component shall accompanies the execution. If distribution of executable or object code is made by offering access to copy from a desired place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even enough third parties are not competed to copy the source along with the object code.

1. You may no copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is valid, and will automatically terminate your rights under this license.

However, parties who have received copies, or rights, from you under this License will not have their licensee terminated so long as such parties remain in full compliance.

1. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works.

These actions are prohibited by law. If you do not accept the License, therefore, by modifying or distributing the Program for any work based on the Program, you indicate your accordance of this License to do an, and all its terms and scope are for copying, distributing or modifying the Program or works based on it.

1. Each time you distribute the Program for any work based on the Program, the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to the Licensee.

2. It, as a consequence of a court (ignment or signing on of patent infringement or for any other reason (not limited to patent resale), conditions and increased on you) whether by court order, agreement or otherwise that contradicts the conditions of this License, they do not excuse you from the conditions of this License. In you cannot dislocate so as to satisfy simultaneously your obligations under the License and any other pertinent obligations, then as a consequence you may not distribute the Program at all

For example, if a patent license would not permit royalty or distribution of the Program by all those who raise copies directly or indirectly through you, then the only way you could satisfy both I and this License would be to reinan elderly from distribution of the Program.

If any portion of this section is limited or un Therefore under any particular circumstances, the balance of the section is enhanced to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to impose any patents or other property, title claims or to contain validity at any such claims. This section has no the sole purpose or presenting the integrity of the two software distribution system, which is implemented by public license solutions. Many people have made numerous contributions to the order range of software distribution through that system in reliance on consistent application of this system; it is up to the author/funder to decide in the or she is willing to distribute software through any other system and a licensees cannot make contracts. This section is intended to make summary over what is allowed to be a consequence of time, time of sale.

1. In the distribution and/or use of the Program is restricted in certain countries either by patents or by copyright interfaces, the original copyright holder who chooses the Program under this license may add an explicit geographical distribution limitation excluding these countries, so that distribution is permitted only in or among countries not thus excluded. In such case, the License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may submit revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the program version, but may other in detail to access new versions or concerns. Each version is given a distinguishing version number in the Program specifies a version number of the License which applies it to "any later version", you have the option of following the items and conditions either of this version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the License, you may choose any version ever published by the Free Software Foundation.

3. If you wish to incorporate parts or the Program in other three programs whose distribution conditions are different, write to the author to ask for permission, or software which is copyrighted by the Free Software Foundation, where to the Free Software Foundation; we sometimes make exceptions or this. Our decision will be guided by the two goals of presenting the free status of all perspectives of our free software end of promoting the sharing and reuse of software generally.

NO WARRANTY

IT. RECAUSE THE PROGRAM IS CONSENT REFIE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM ASSIS WITH OUT WARRANTY OF ANY KIND. OTHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUIT AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM/PROVE DEFECTIVE. YOU ASSUME THE COST OF ALL NECESSARY SERVIENC, REPAIR OF COFFECTION.

1. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY, WHO MAY MODIFY AND/OR REDISTRIBUTE DAMAGES, INCLUDING ANY GENERAL SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM INCLUDING BUT NOT LIMITED TO LOSS OF DATA ON DATA BEVERIFIED INNOVATE OF LOSS'S SUBMITTED BY YOU OR WITHOUT PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS, EVEN IF SUCH HOLD OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs if you develop a new program, and you want it to be of the greatest possible use to the public, the best way is achieving this is to make it free software which everyone can reduce and change under these terms. To do so, all the following rules to the program, it is solved to attach them to the start of each source file. In most effectively convey the exclusion or warranty; and each file should have at least one "copyright" line and a pointer to where the full notice is found one line to give the program's name and an idea of what it does.

Copyright (C) any name of author

This program is free software; you can allocate it and/or modify it under the terms of the OKU General Public License as published by the Free Software Foundation, either version 2 of the License, or at your optionlany later version.

This program is distributed in the note that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or ETNRES FOR A PARTICULAR PURPOSE. See that GNII Grand Punts License for more details

You should have received a copy of the GNU General Public License along with this program; I note, write to the free Software Foundation, Inc. at Franklin Street, Fifth Floor, Boston, MA 02, 10-1301, USA.

Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Garcopedia version 60. Copyright (C) your name of author Grace, doesn comes with AH50. UI-1Y NO WARRANTY: for details type show w- this is free software, and you are welcome a redistribution under certain conditions; type show o for details.

The hypothetical commands 'show' and 'show' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show' and 'show' they could even be mouse-closes or menu items-- whatever suite your program.

You should also get your employer if you work as a programmer your school, if any to sign a copyright disclaimer for the program it necessary. Here is a sample; alter me names;

Yoyodyne, Inc., hereby declares all copyright interest in the program. Genovision (which makes persons at colleges) within by James Hacker, signature of Ty Ocor, 1 April 1993. Ty Ocor, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subgroup library you may consider I more useful to permit linking proprietary applications with the library. If this is Livinacean vicesome want to do, use the CNU Lesser General Public Instead of the Licenses.

GNU GENERAL PUBLIC LICENSE

Version 3.29 June 2007

Copyright © 2007 Free Software Foundation, Inc. http://aif.org

Everyone is permitted to copy and distribute verbalin copies of this license document, but changing it is not allowed.

Preamble

The GNU General Public License is a free, copyright license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and charge the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of or program, to make sure it running free software for all its users.

We, the Free Software Foundation, use the GNU General Public License for most of our software, it applies also to any other work released this way by its numbers.

You can apply it to your programs, too. When we speak of free software, we are rotating to freedom, not prior. Our General Public Licensee are designed to make sure that you have the freedom to distribute copies of free software and charge for them. If you wish, that your code or source often can get if they want it, that you can charge the software or use prices of a new free programs, and that you know you can do these things.

In protect your rights, we need to prevent others from denying you those rights or arising you to surrender the rights. Therefore, you have certain responsibilities if you think in progress of the privilege, will you mostly be a opportunity to protect your freedom or other. Los Anquels, I was likely to come up on a

program, whether plans or for a key, you must search on for the recipients the same freedom that you received. You must make sure that they too, recover or can get the trouble code. And you must show that these tennis so they know their rights. Develops that use the GNU OFL protect your rights with two steps (1) instead of going on the software, and 20 other you this license giving you legal permission to copy, distribute and modify it! For the developers and users' protection, let their clearly explain that there is no entropy the first active, like both users' and users' safe, the Golf required that mortified and unfortified services are not only available. If you need to have a good number of users, then you need to have a very useful user access or install or run modified versions of the software inside one, although the manufacturer can do it. This is fundamentally incompatible with its role or promoting users' motion to change the activator. The systematic process of such audio occurs in the area of products for India's auto, which is precisely where it is most acceptable. Therefore, we have designed this version of the GPL to prohibit the protocols for times products. If such problems arise, subfamily in other domains, we want ready to extend the provision to those domains in future versions of the GPL, as needed to proceed, the freedom of

Finally, every program is threatened constantly by software patents. Status should not allow patents to respect for development and use of software on general-purpose computers, but in case that do, we wish to avoid the special anger that parents applied to a tree program could make it costly proprietary. To prevent me, the GPI assures that atoms cannot be used to render the program main tree. We please terms and conditions for copying, distribution and modification below:

TERMS AND CONDITIONS

1. Definitions.

This License refers to version 5 of the GNU General Public License.

Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconductor marks. "The Program" refers to any copyrightable work licensed under the License. Each licensea is addressed as "you". "Licensesa" and "recipients" may be individuals or organizations.

is "modify" a work means to copy from or adopt all or part of the work in a lesson requiring copyright permission, other than the making of an exact copy. The resulting work is often a "modified version" of the earlier work or a work "based on" the earlier work.

A "covered work" means either the unmodified Program or a work based on the Program.

To "protagate" a work means to do anything with it that, without permission, would make you directly or accordingly liable for infringement under applicable copyright law, except exciting from a computer or modifying a private copy.

Propagation includes copying, distribution with or without modifications, making available to the public, and in some countries other activities as well.

To "convey" a work means any kind of conception that enables other parties to make or receive copies. We're interaction with a user through a computer network, with no transfer of a copy, is not conveying. An interactive user interface displays: "Appropriate Legal Notices" to the extent that it includes a convenient and prominently visible feature that [1] displays an appropriate copyright notice, and if it looks in, user that more is no warranty for the work (except to the extent that guarantees are provided, that loenees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list needs the option."

1. Source Code.

The "source code" for a work means the preferred form of the work for making modifications to i. "Object code" means any non-source form of a work.

A "Standard Interface" means an interface that either is an official standard defined by a recognized standards body, or, in the case of interface specified for a particular programming language, one then a widely used among developers working in that language.

The "System Listeners" of an executable work includes anything, other than the work as a whole, that is includes in the normal form of packaging a Major Component, but which is not part of the Major Component, and it's serves only to enable use of the work with that Major Component, or to implement a Standard Interface for which an implementation is withdrawn to the public in course done form. A "Major Component", in this context, needs a major essential component (personal, window system, and so on) or the specific operating systems (if any or which has executable work runs, or a computer used to produce the work, or an other code interpreter used to run it).

The "Corresponding Source" for a work in object code form insurs all the source code needed to generate, install, and/or an executable work run the object code and to modify the work, including scripts to control these activities.

However, it does not include the works System Libraries or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes: Infrastructure files associated with source files for the work, and the source code for shared libraries and dynamically links subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between these subprograms and other parts of the work.

The Corresponding Source need not include anything that users can recognize automatically from other parts of the Corresponding Source. The Corresponding Source for a work in source scale term is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are in.. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as cordised by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your licence otherwise remains in loose. You may convey, covered works to others for the sole purposes of having them make modifications exercise only for you, or provide your with facilities for running their own works, provided that you comply with the terms of this Upperia in conveying alimentaria for which you do not certify copyright. Those true making or running the covered works for you must so exclusively on your behalf under your direction and control on terms may prohibit them from making any opinions of your copyright material suitable their relationship with your. Conveying and/or any other circumstances is permitted solely under the conditions directed below. Sublikending is not allowed; section 10 makes it unnecessary.

3. Protecting Users' Legal Rights From anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under articles 11 of the WIPC copyright, properly adopted on 20 December 1986, or similar laws prohibiting or restricting a corruption of such measures.

When you convey a covered work, you waive any legal power to forbid a circumvention of technological measures to the extent such circumvention is effected by exercising rights under the Licence with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a measure of enforcing, against the works' users, your or third parties' legal rights to forbid circumvention of technological measures.

4. Conveying Verbatim Copies.

You may convey certain copies of the Program's source code as you receive it, in any medium, provided that you consciously and appropriate publish on each copy an appropriate copyright notice; keep intact all notices storing that this License and any non-permissive terms advice. In accord with section 7 apply to the code; keep intact all notices at the absence or any warranty and give all recipients a copy of this License along with the Program. You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program. In the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modified it, and giving a relevant date.

c) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement, modifies the requirement, in section 4 to "keep intact all notices".

c) You must license the entire work, as a whole. Under the License to anyone who comes into possession of a copy. The License will therefore apply, along with any applicable section or additional forms, to the whole at the work, and at its plans, regardless of now they are packageback. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have effectively received it.

at the work has interactive user interfaces, each must display Appropriate Legal Notices, however if the Program has interactive interfaces that do not display Appropriate Legal Notices, your work head is not risks me do so. A compilation of a covered work with other experts and Independent works, which are not by their nature extensions of the covers works, and which are not corneled with it such as to term a larger program, in or on a volume of a strength or distribution medium. Its called an 'aggregate' if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's uses beyond what the individual works permit. Induction of a covered work in an aggregate does not cause this Business to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and b, provided that you also convey the machine readable. Corresponding Source under the terms of this License, in one of these ways:

ai Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software Interchange.

by Century the physical code, in accordance to, a physical product (including a physical distribution measure, accounts or by a written editor) valid for at least three years and valid for as long as you offer state parts or customer support. For that product model, a given anyone who possesses the object code other [1] a copy of the Corresponding Source for all the software in the product that is covered by the License, on a durable physical medium customarily used for software in charge, for a price no more than your reasonable cost of physically performing the conveying of source, or [2] access to copy the Corresponding Source in a network server at no charges.

c) Convey individual copies of the object code with a copy of the written offer to provide the corresponding Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code with such an offer, in accord with subsection 8b.

q. Company the object code, by clicking access from a designated place (grate or for a charge), and other equivalent access to the Corresponding Source. In the same way through the same's place or no further charge, you need not require recipients to copy the Corresponding Source along with the object code. If the place is copy the object code is a network server, the Corresponding Source may be on a different server (accessed by your or a third party) that supports equivalent copying facilities, provided you maintain clear thresholds now to the object code saying where to find me. Corresponding Source. Regardless of what server hosts the Corresponding Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.

(2) Convey the object trade using peer-to-peer transmission, provides your own other keys where the object code and Corresponding Source of the work are being offered for the general public at no charge under succession it. A separate portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work. A "User Product" is either (5) or "consumer product", which means any tangible personal property which is normally used for (personal), family or households purposes, or (2) anything designed or said for incorporation into its dwelling, in determining whether a product is a consumer product, doubtful access shall be resolved in cover of coverage. For particular, this product has received by particular user, normally used, raters to use a product or converter use of the class of product, regardless of the status of the particular user or of the way in which the particular user activity uses, or aspects of is expected to use, the product. A product is a consumer product regardless of whether the product has traded for commercial, industrial or non-consumer uses. Unless such uses represent the only significant mode of use of the product.

"Installation information" for a User Product means any methods, precautions, authorisation keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding source. The information must suffice to ensure that the continued functioning of this modified object codes is in case previous to interest with sensitive because modification has been made. If you convey on order color work under the section 4, or with, or specifically for use in a User Product, and the conveying occurs as part of a transaction in which the light of possession can be used to be used. This material is not necessary to be used in any way to do so effectively. In particular, the content of the source conveyed under this section must be accompanied by the installation information. But this requirement does not apply, neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROW).

The requirement to provide installation information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the Uttar Pradesh in which it has been modified or installed. Access to a network may be derived when the modification on Israel materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network. Corresponding Source conveyed, and Installation Information provided, in accord with the security must be in a format that is cubically documented (and) with an implementation available to the public in source code entry, and must require no special password or key for unpacking, reading or copying.

7. Additional Terms.

"Additional pensions" are terms that supplement the terms of this License or making except one from one or more of its contracts. Additional permission that are applicable to the entire Program shall be treated as enough may be included in this License, so the extent that may be will not under appropriate law. If additional permissions apply only to a court, of the Program, that part may be used separately unless notice permit orders, but the entire Program remains governed by the provisions of the above written permission. The provisions of the other terms must be made for any purposes and/or otherwise applicable to the other terms permitted from that copy, or from any part of it. (Additional permissions may be written to require their own removal in certain cases when you modify the work.) You may close additional permissions on material, addies by you to a covers' work, for which you have or can give appropriate copyright permission. If you do not apply any such permission, for materials you add to a covered work, you may if someone by this copyright holder of that material, supplement the terms at this license with home:

a) Disclaiming warranty or limiting liability differently from the terms of sections 16 and 18 at this license; or

b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by words containing it; or

c) Prohibiting representation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version or

d) Limiting the use for publicly purposes of names of licences or authors of the material; or

e) Decining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or

- Requiring redemption of licensors and authors of their material by anyone who conveys the material (or modified versions only) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly improve on those licenses and suffices. All other non-permissive additional items are considered "further restrictions" within the meaning or section 10. In the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a turnover restriction, you may remove that term. If this license document contains a further restriction but permits releasing or conveying under the License, you may add to covered work material governed by the same of trial license documents, protected that the further restriction does not survive such reliance or conveying. If you add items to a converter work in accord with this section, you must place, in the relevant source list, a statement of the additional terms that apply to those lines, or a notice indicating whether applicable to the license. For instance, please refer to: persons or non-permissive, may be stated. In the form of a separately written license, or related as exemptions; the above requirements apply after five days

8. Termination.

You may not propagate or modify a covered work except as expressly provides under this license. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under the License (including any patent licenses granted under the third paragraph of section 11).

However, if your lease still violation of this License, then your license from a particular copyright holder is reinstated (if provisions, unless and until the copyright holder implicitly and finally terminates your license, and by prominently, if the copyright holder fails to notify you of the viction on by some reasonable means prior to 50 days after the cessation. Moreover, your license from a particular copyright holder is reinstated permanently. If the copyright holder reflects you either valuation by some reasonable means, this is the first time; you have received notice or violation of this License (for any work from that copyright holder, and you cure the viction prior to 50 days after your receipt of the notice). Termination of your rights under this secon do not termite the loiter sale of parties who have received no interest in any such transaction in the License. If your rights have been dismissed and not permanently rendered, you do not qualify to receive new licenses for the same monetary under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept the License in order to receive or run a copy of the Program. Andany propagation of a covered work accounting solely as a consequence of using past-to-poor termination to receive a copy however does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These options infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance or the License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you covers a covered work, the recipient automatically receives a license from the original lotorers, to run, modify and propaganda that work, subject to this issue. You are not responsible for entering compliance by third parties with this license. An "only transistor" is a transaction "transitancing control of an organization, or subfamily all assets of one, or multidrugating an organization, or managing organizations. If propagation is a covered work results from an entity transmission, each party to that transaction who receives a copy of the work also receives whatever lotorers at the work, the party's predecessor in interest had could give under the previous paragraph, plus a right to decrease on of the Corresponding Source of the work from the predecessor in interest, if the predecessor has its car get it with reasonable efforts. You may not impose any further restrictions on the exercise of the lights granted or affirm under the provisions of the person's rights, or shall not impose a license for any way or any charge for exercise of lights granted under this notice, who you may not influence the application including a secure class or counterclaim in a lawsuit arising that any sitting claim is missed by making, using, testing, charging or sale, or reducing the program or any portion of it.

11. Patents.

A "contributor" is a copyright holder who authorizes use under this License of the Program or a work or which the Program is based. The work thus licensed is called the contributor's "contributor version". A contributor's "essential patent claims" are sell patent, claims owned or controlled by the contributor, whether already acquired or thereafter acquired, that would be infringed by some manner permitted by this License of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further authorization of the contributor version. For purposes of this admission, "normal" includes no light to give patent followers in a manner conditional with the requirements of this issue. Each contributor grows you a non exclusive information and/or information on the contribution of the contributor's essential patent claims, to make, use, sell, other or trade, import and otherwise run, materially and propagate the contents of its contributor version.

In the following three paragraphs, a patent license is any express agreement or commitment, however, denominated, not to enforce a patent (such as an express permission to practice a patent or even grant not to issue for certain infringement). In “great” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party. If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to do up, free of charge and under the terms of this License, through a publicly available network server or other reliable accessible items, then you must either (1) cause the Corresponding Source to be available, or (2) arrange or despite yourself of the benefit of the patent license for the particular work or its change, in a manner consistent with the requirements of this License, to extend the patent license to downstream activities. The rights of the company shall be granted by the employees' rights of the covered work in a country, would bring one or more individualities in that country, that you have reason to collect are valid. It, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of it, a covered work, and grant a

patient licenses to some of the parties receiving a coverer work according to them to us, penesette, morality or convey a specific copy of the covered work; then the patient license you grant is automatically extended to all recipients of the covered work and works trained in it. A patient license is "discriminatory" ill does not include within the scope of its coverage, prohibits the exercise of, or be conditional on the non-exercise or one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an equal agent with a third party that is in the business of distributing information, under which you make payment is the third party raised on the extent of your activity at conveying the work, and under which the third party grants, to any of the parties who would receive a passive work from you, a discrimination patient license.

is): In connection with copies or the owned work conveyed by you for copies made from these copies, or

(b) primarily for and in connection with specific products or correlations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007. Nothing in the License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. No Surrender of Others' Freedom.

It conditions are imposed on your attorney by court order, agreement or otherwise, that contradict the conditions of this license, they do not excuse you from the conditions of trial license. If you cannot convey a courted work so as to potentially simultaneously your obligations under this license and any other portion obligations, then see a consequence you may not convey it at all. For example, if you agree to Terms that obligate you to collect a royalty for further conveying from close to whom you convey the Program, the only way you could satisfy both those entire and the License would be to refrain entirely from conveying the Program.

13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU After General Public License into a single combination work, and to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU After General Public License, act on 13, concerning interaction through a network will apply to the combination as such.

14. Revised Versions of this License.

The Free Software checklist may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in script to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version on number. If the Program specialist that a certain numberless version of the GNU General Public License ("or any later version") applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any version ever published by the first Stavillans Foundation. If the Program specializes that a proxy can decide which future versions on the GNU General Public License can be used, that procys public statement of acceptance of a version permanently sunsthaty you to choose that version for the Program. I enter license sessions may give you archival or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THE IS NO WARRANTY FOR THE PROGRAM, OBLIGATION, RMT LIDY APP. CALLS, RICELIPTEN ON OUR WIRE STAND IN WORKING. THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM PROVE DEFECTIVE YOU ASSURE THE COST OF ALL NECESSARY SHIMAGING, PEEAR OR CORRECTION.

16. Limitation of Liability

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MECHANIC AND YOUR CONNIVES THE PROGRAM AS HELMID TO ANEX. HE NAME TO YOU ON DAMAGE, INC. USING ANY SHINHAI, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USF OR INABILITY TO USE THE PROGRAMS INCLUDING BUT NOT THIRD TO LOSS OF DATA OR DATA BEING RENDERED INACCRATE OF LOSSES SUSTINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS, EVEN IF SUCH ORDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. Interpretation of Sections 16 and 16.

If the disclaimer of warranty and limitation or liability provided above cannot be given local legal effect according to their terms, reverting courts shall apply locally that most closely approaches an accurate wider of all civil liability in connection with the Program, unless a warranty or assumption of facility accounts is a copy of the Program in return for a fee.

OpenSSL Combined License

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLkey license apply to the books. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact open Saudi.com@open Saudi.org.

Component Name License URL

openssl-1.0.2e OpenSSL Combined License http://www.openssl.org/escuros

Copyright (c) 1983-2011 The OpenSSL Project. All rights reserved.

Red distribution and use in source and binary limits, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must return the above copyright notice, this list of conditions and the following disclustes.

2. Reclassifications in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with no distribution.

3. At advertising materials mentioning features or use of this software must display the following acknowledgment: This product includes software developed by the OpenSSL Projector use in the OpenSSL Toolkit: http://www.opensa.org/?

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].

5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.

6. Contributions of any form whatsoever must retain the following achievements: "This product includes software developed by the OpenSSU Project for use in the OpenSSU Outlook (https://www.operaes.org/)

THIS SOFTWARE IS PROMOTLY THE OCCIDENT PROJECT AS ST AND ANY EXPRESSED IMPRIED WARRANTIES INCLUDING BUT NOT LIMITED TO THE TIMPLIT WARRANTIES OF THIS WARRANTY AND THIS SO FOR A PARTICULAR PURPOSE AND USE AVAILABLE WHEN SHALL THE OFFICIAL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL SPECIAL DEMILIARY, OR CONSENSIONAL DAMAGES INCLUDING BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR PAYONS, OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY OR TORT INCLUDING NO LIABILITY OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF A MISED OF THE POSSIBILITY OR SUCH DAMAGE.

This product includes cryptographic software written by Eric YoungpayEncryption.com. This product includes software written by The Hudson (historyproof.com).

Original SSLeay License

Copyright © 1956-1995 Eric Young Jaysonpress.com All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]).

The implementation was written so as to conform with Necospes SSL.

This library is true for commercial and non commercial use as long as the following conditions are shown to. The following conditions apply to all codes found in this distribution, as it: the FCA, HSA, hash, DLS, etc., code; not just the SSL code. The SSL documentation included with the distribution is covered by the same copyright terms except, that, the holder is Tim Hudson [e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the binary used. This can be in the form of a textual message or program startup or in documentation online or privately provided with the package. Distributed and used in source and binary forms, with or without modification, are permitted provided that the following contracts are noted:

1. Recistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

2. Realizations in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and other materials provided with the distribution.

3. All advertising materials mentioning features or use of the software must display the following acknowledgement: "This product includes cryptographic software which by Eric Young (payAcyptsoft.com)" The word 'cryptographic' can be off out the results from the library using used are not cryptographic related to."

4. If you include any Windows specific code for a derivative thereof from the apps directory application code, you must include an acknowledgement: "The product includes software written by Tim Hudson (JhCryptosoft.com)"

THIS SOFTWARE IS PROVIDED BY LYC YOUNG AS IPT. AND ANY EXPRESS OF IMPLED WARRANTIES, INCLUDING OUT NOT LIMITED TO THE INFORMATION OF THE MERCHANTABILITY AND IN ACCORDANCE FOR A PARTICULAR ECONOMIC AND EXCAVATION, IN NO WHAT SHALL THE AUTHOR OR CONTRIBUTORS TO BE LABEL FOR ANY DIRECT, INDIRECT, INCIDENTAL SPECIAL, EXEMPLARY, ON CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO PROCEDURE OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR PROFITS, OR BUSINESS INTERRUPTIONS HOWEVER GAINED ON ANY THEORY OF THYLY, WHICH IN CONTRACT, STRUCTURALITY, OR LIGHT AND USING INSIGHT OF OTHER RIGHTS ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF AWARD OF THE POSSIBILITY OF SUCH DAMAGE

the licence and distribution terms for any publicly available version or derivative of this code cannot be changed. In the code cannot simply be copied and put under another distribution licence [including the GNU Pub lo licence.]

BSD License

Some software components of the product incorporate source code covered under the BSD license as follows

Component Name License URL

net-emp-3.7.3	850	http://www.net-emp.org/about/license.html
pore-3.36	850
thoop 1.7.4	850 7.0	http://www.kome.org/public/inv.bics/sacurhylux.phv&libop?
Ighmed 1.4.30	850 7.0	http://www.opcensour.org/licons/achedLicense.html
MiniPHP Project Client	850 7.0
pcpd-2.4.7	850 2.0	http://opensource.org/licenses/ESD-3-Clause

lightpaid is a secure, total, compliant, and very wide website that has been optimized for strong performance environments. It has a very low memory footprint compared to other web browsers and taxes case of distributors. Its advanced features include: SQL, Auto, Output-Compression, UDP-, Revelling and many more; more lightweight the perfect weather/energy for every server that suffers load problems. Simple Network Management Protocol SNMP is an interstandard protocol for managing devices on IP networks. It is used mostly in network management systems to monitor the devices attached to the network for conditions that meet administrative attention. Not SNMP is a auto or applications used to improve SNMP v1, SNMP v2e and SNMP v3 using both IPv and IPv. For more exceptional information, send email to [e-mail].

Copyright © 2004. Kneschke, Incremental

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Broadcast sources of sources made must also be shown to the above copyright notice, this list of conditions and the following checklist:
- Satellite bursts in binary term must reproduce the above copyright notice, this list of conditions and the following declaration in the documentation and/or other materials provided with the distribution.
- Neither the name of the 'Incremental' nor the name of its contributors may be used to encode or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS' ASIS AND ANY EXPRESS OR IMPERITIVARIANTS, INCLUDING, BUT NOT LIMITED TO, THE ITEMS/WAHAN LES OF CHIKHAN A'BILLY AND THBS FOR A MICHELUL PURPOSE. ARE DISC. AMID. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS ON SERVICES, LOSS OF USE, DATA OF THIS INFORMATION WITHOUT ANY NOTICE IN ANY BASIS. ANY OTHER THAN ANY THIS COPY IS IN WHOLETH (NO.) WE GALESH AND ON ANY THEORY OR ANY OTHERS. THIS COPY IS IN THIS INFORMATION OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, WHEN A OBSERVED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 1908-2001 University College London

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, is permitted provided that the following conditions are met.

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer:

2. Recistributions in binary form must reproduce the above copyright notes, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of the software must display the following acknowledgement. The product includes software developed by the Computer Science Department at University College London.

4. Neither the name of the University nor of the Department may be used to endorse or promote products derived from the software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHORS AND CONTRIBUTORS "AS IS AND ANY EXPRESSSED OR IMPLIFY WARRANTIES, INJ.ING, BUT NOT INTUIT TO, THE IMPED WARRANTY OF MERCHANTABILITY AND ITIN SS FOR A PARTICULAR PURPOSES, DISCRIMED, IN NOVIENT SHALL THE AUTHORS OR CONTRIBUTORS IS YELLOW FOR ANY OBJECT, INDIRECT, INCIDENTAL, SPECIAL, EXCLUSIVE, OR CONSEQUENTIAL AS SPECIFICATIONS AND ANY OTHERS ARE TO BE USED IN ANY LOSS OF USE, DATA, OR PORTS OF BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THOOP OF LIABILITY WHETHER IN CONTRACT, STRICT, ABILITY, ON TITU INCLUDING NOFLIGENCE OR OTHERS PRIALS IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE Copyright © 1983, 1982, 1992, 1997, 1998, 1999, 1999 The Reges of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Reclistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name or the Rogers of the University or California nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS ISCH I/WARE - PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "ASIS" AND ANY EXPRESS OR IMPEDIT WARRANTIES, INCLUDING, BUT NOT LIMITED, TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISAILED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSULTING, DAWARDS, INCLUDING, BUT NOT LIMITED, TO PROCUREMENT OR SUBSTITUTE. SHOULD BE NOT VALID, LOSS OF US\$ 100, IN THIS DOCUMENT OF THIS INFORMATION IS SUBJECT TO ANY ANY ANY OTHERS. ANY ANY ANY OTHERS ARE USED WITHOUT THE WRITTEN BY, WITHOUT ENDING NOCEPTION OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IT PAVISED OF THE POSSIBILITY OF SLICH DAMAGE.

Copyright (c) 2008, Creative Labs Inc

All rights reserved.

Red attribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Re-distributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name or the Creative Labs nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROMISED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS", AND ANY EXPRESS OR IMPERIT WARRANTIES. INCLUDING, BUT NOT LIMITED TO, THE BIRTH DAWHAN IS OF "HIGH AN AII" AND IN BASIS FOR A PARTICULAR PURPOSE - AND DISC AMID IN NO EVENT SHALL THE COPYRIGHT OWNER OR "PROTEURS BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR OTHER ASSES INTUITUATION HOOD TO USE AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY; OR WITHOUT CONCLUSION OF US PRAISE, ARISING IN ANY WAY IT OF THE USE OF THIS SOFTWARE, EVERY COMISIE OF THE POSSIBILITY OR SUCH DAMAGE."

Copyright (c) 2005-2012, Thomas BERNARD

All rights reserved.

Red attribution and use in source and binary terms, with or without modification, are permitted provided that the following conditions are met:

1. Redistribution of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Real distributions in binary form must reproduce the above copyright notice, this list of conditions and the following claims or in the documentation and other materials provided with the distribution.

3. Neither the name of Thomas BERNARD nor the names of its contributors may be used to endorse or promote products derived from to a software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS AS IS'ANT ANY EXPRESS OR IMPED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSOLIDATED DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES LOSS OF USE, DATA OR PROFITS; OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY, OR

TORT (NOTI-ING NEGENDOR OF OTHER SAISH) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IT ADMISED OF THE POSSIBILITY OF SUCH DAMAGE.

Various copyrights apply to this package, listed in various separate parts below. Please make sure that you read all the parts.

Part 1: CMU/UCD copyright notice: (BSD like)

Copyright 1980, 1981, 1982 by Carnegie Mellon University Derivative Work - 1996, 1998 2000

Copyright 1986, 1986-2000 The Regents of the University of California

All Hights Reserved

Permitted to use, copy, modify and distribute this software and its documentation for any purpose and without less is hereby granted, provided that the above copyright notice appears in all copies and this, both that copyright notice and the permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California not be used in advertising or publicity pertaining to distribution of the software without specific written permission.

CIVU AND THE RIGHTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTY IS WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL OMU ON THE RECEIPTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES ON ANY DAMAGES WHATSOEVER RESULTING FROM THE LOGS OF USE DATA BEFORE THIS, WHICH I IN AN ACTION OF CONTRACT NIGIBILITY OR OTHER TOHICIOUS ACTION, ARISING OUT OF OK IN COMMITTEE WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Part 2: Networks Associates Technology, Inc copyright notice (BSD)

Copyright (c) 2001-2008, Networks Associates Technology, Inc.

All rights reserved.

Podiatrbrum and use in source and binary items, with or without modification are permitted provided that the following conditions are met: yy Redistribution of source code must retain the above copyright notice, this list of conditions and the following disclaimer: yy Redistribution in binary form must reproduce the above copyright notices, this list of conditions and the following disclaimer in the documentation and other materials provided with the distribution: yy Nester ma name or the bandwidth. Associates, Technoogy, Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS IS LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR GENE CUSTINUM DAMAGE (INCLUDING, BUT NOT ALLOWED TO, EXCELIMATE OR SUBSTITUT, WHO ON WORK/SLOST OF THE DATA OR TOBLES) OR BUSINESS INTERRUPTIONS, HEVER CAUSED, AND ON ANY THEORY OF ABILITY WHETHER IN CONTRACT OPICIT, HELTY NOT TORT ON YOUR SERVICE OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OR SLICH DAMAGE.

Part 3: Cambridge Broadband Ltd. copyright notice (BSD)

Portions of this code are copyright (c) 2001-2003, Cambridge Broadband Ltd.

All rights reserved

Redistribution and use in source and binary farms, with or without modification, are permitted provided that the following conditions are met: By Redistributions of source codes must retain the above copyright notice, this list of conditions and the following disclaimer: By Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other material provided with the distribution: by The name of Cambridge Broadcast Ltd. may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER AS IS AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE ITEMS WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY INDIRECT, INDIRECT, INCIDENTAL, SPECIAL EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBS INTERE-GOODS OR SHANGS-LOSIS OF WATER, OIL & GAS, OR PROFITS, OR SUBSSES IN THE PIFICATION HOWEVER CAULD AND ON ANY THEORY OF LIABILITY WHILE IN CONTRACT, STRUCT, LIABILITY, OR OTHER (INCLUDING NO SUSINESS OTCHOWLESS) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE. EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE

Part 4: Sun Microsystems, Inc. copyright notice

(184)

Copyright (c) 2003 Sun Microsystems, Inc., 4150 Network

Circle, Santa Clara. California (9506), U.S.A.

All rights reserved.

Use is subject to license terms before. This distribution may include materials developed by third parties. Sun, Sun Microsystems, the San logo and Source are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Redistribution and use in source and binary forms, with or without modification, are permitted provided if the following conditions are met: by Redistribution or source code must retain the above copyright policies, lists for conditions and the following disclaimer: by Redistribution in binary form must reproduce the above copyright policies, this list or conditions and the following disclaimer in the documentation editor for other materials provided with the distribution, by Neither the name of the Sun Microsystems, Inc. nor the names of its contributors may be used to endorse or promote product derivative from the software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "ASIS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPED WARRANTY OF WHICH AN AUTHORITY FOR A PARTICULAR PURPOSE. ARE USED AND INDE个月内. THE COPYRIGHT HOLDERS OR CONTRIBUTORS IS LIMITED FOR ANY OTHER, INDICIPAL, INCIDENTAL, EXCLUSIVE, EXPLAYABLE, OF CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE OCCS OR SERVICE, LOSS OF USE, DATA OF PROFITS, OR BUSINESS INTERRUPTIONS. HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LAVELITY, OR ANY OTHER, AS IS NOT KNOWN OR OTHER THAN, ARISING IN ANY WAY OUT OF THE USE OF THIS SOFR, IT INVIT. ANY DISCRETE OR RESPONSIBILITY OF SUCH DAMAGE.

Part 5: Sperta, Inc copyright notice (BSD)

Copyright (c) 2003-2000, Sports, Inc.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted to produce that the following conditions are met: by Reistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer by Reistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution by neither the name or scope, nor the names of its contributions may be used to embrace or promote a product derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS ON IMPLIED WARRANTIES INCLUDING, BUT NOT LIABLE TO, THE IMPULD WAHAN IL'S OF WHICHAN ABILY AND THIS STORE A PARTICULAR PURPOSE, ALL DRG AMID IN DLY, WILL NOT BE THE COPYRIGHT. OR THIS CONTRIBUTION IS THAT FOR ANY OFFICIAL ORDER NO. IN ACCORDANCE, WITHOUT ANY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROBLEM OF SUBSTITUTE GOODS OR SYSTEMS, LOSS OF DATA AND PROFITS OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY "DESCRIPTION" OF LIABILITY, WHETHER IN CONTRACT STRICT VALIDITY, OR ANY OTHER THAN ANY WHICH ON WHICH AREIN AT THE USE OF THIS SOFTWARE, WHEN ATIVES OF THE POSSIBILITY OF SUCH DAMAGE.

Part 6: Cisco/BUPTNIC copyright notice (BSD)

Copyright © 2007, Cisco, Inc and Information Network

Center of Beijing University of Posts and telecommunications.

All rights reserved

Redistribution and use in source and binary terms, with or without modification, are permitted to provide that the following conditions are met by Redistributions of source codies must retain the above copyright notice, this list of conditions and the following disclaimer by Redistributions in binary form must reproduce the above copyright notice, this list of corrections and the following disclaimer in the documentation and/or other materials produced with the distribution by Verlier the name of Gasta, Inc., Beijing University of Rides and Telecommunications, nor the names of their contributors may be used to endorse or promote products derived from the software without a specific prior written permission.

THIS SOFAWE'S PROMO BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS AS IS AT ANY EXPRESS OR IMPERISH WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPERISH WARANIS, LANS OF MERCHANTABILITY AND TITNESS FOR A PARTICULAR PURPOSE, ARE DISCRIBED IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL EXEMPIALY. OF CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE DATA, OR PROFITS, OR BUSINESS INTERRUPTION, HOWEVER CAUSED AND ON ANY THEORY OF ABILITIES WHETHER IN CONTACT, STRICT RELIANCE, OR ANY OTHER INFORMATION WITHOUT ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY ANY THIS WORK

Part 7: Fabasoft R&D Software Software GmbH & Co KG copyright Notice (BSO)

Copyright (c) Fabestel R&D Software GmbH & Co KG, [e-mail]

Author: Bornhard Ponz

Poddistribution and use in sources and binary texts with or without modification, are permitted produced that the following conditions are met: by Redistribution of source code must refer to the above copyright notice, this list of conditions and the following disclaimer by Redistribution in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentary and/or other materials produced with the distribution by the name of Fabasco. RSD Software GmbH & Co KG or any of its subsidiaries, brand or product matrices may not be used to endorse or promote products derived from the software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER AS IS AND ANY EXPENSES OF IMPUR WRANTERS, INCLUDING, BUT NOT LIMITED. ITC: THE THIS WARRANTY OF THIS KHORANIIARY AND HONSOF A PART, OR APPLICABLE AND DISCLAIMING IN THIS STATEMENT SHALL BE SOLD FOR THIS COPYRIGHT HOLDER IS LIABE TO ANY OF THE PUBLIC INDUSTRIAL SPECIAL COMPLIARY OR CONS. QUINUAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT, INCLUDING NOLOGY OR OTHERS ARE IN ANY WAY OUT OF THE USE OF THIS SOFTWARE. EVEN APPROVED OF THE POSSIBILITY OF SUCH DAMAGE

Part 8: Apple Inc. copyright notice (BSD)

Copyright (c) 2007 Apple Inc.

All rights reserved.

Red distribution and use in source and binary formats, with or without modification are permitted provided that the following conditions are met:

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Recistributions in binary form must reproduce the show copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of Apple Inc. ("Apple") nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROMoted BY APPLIC AND THIS CONTRIBUTOR AS BY AND ANY OFFSHS OR IMPRINT WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL APPLE OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, INC. (NOT LIMITED TO, PROCUREMENT OF SUBSTITUTIONS) SOODS OR RIGHTS, LOSS OF US\$1, DATA, OR POINTS OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT STRICT LIABILITY OR TENT INCLUDING NOBLIGENCE OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OR SUCH DAMAGE

Part 8: ScienceLogic, LLC copyright notice(BSD)

Copyright (c) 2003, ScienceLogic, LLC

At rights reserved

Redistribution and use in source and binary forms with or without modification, are permitted produced that the following conditions shown: by Publications of source code must remain the above copyright notice, this list of conditions and the following disclaimer, by Publications in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or materials provided with the distribution by Whitney's name of Sociologics LLC nor the names of its contributions may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OTHERS OR CONTRIBUTORS SHALL ARE FOR ANY EFFECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE DATA, INFORMATION, CHECKING, AS PROVIDED IN THIS DOCUMENT IS PREPARED FROM YOUR INFORMATION AND ANY VALUE OF LIABILITY WITHOUT ANY CHANGE, STRICT LIABILITY OR ALLOWING THIS INFORMATION OR ANY ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION OR ANY ANY THIS INFORMATION

The MIT License

Some software components at this product incorporate source code overseas under the MI license as follows

MIT License 2.0

- Aseakogel, beltermears, query-u, foxnl, foxn2, Mes3D-Mes3Lib, invEntrez; OpenGL Samples Pack, Wide Studio, xorg-server, droptega-2012.55; https://a.sina.6.7

Copyright (c) 2011, The Dojo Foundation

Copyright 2010. AUTHORS INC (http://quanyu.com/reabout)

Dual licensed under the MT or GPL Version 2 licenses.

http://jcuery.org/licenses

http://docs.query.com/18w/dgct

Copyright Daniel Verland

Copyright for Zlatovic [e-mail]

Copyright Agency Sarin

Copyright Gary Perrington [e-mail]

Copyright Alfred Mickaulsen - call to Amnickaulsen.de

Copyright Hjcm House

Copyright Joel W. Hees

Copyright William Black [e-mail]

Copyright © 2007-2010 The Khones Group Inc.

Copyright Alish Kumar Petra

Copyright © 2008 Free Software Foundation, Inc.

Permits on its hereby General, not of charge, to any person obtaining a copy of this software and associates documentation files the "Software", to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribution, sublease, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or subential portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPIED, INCLUDING BUT NOT LIMITED TO THE INWRANTIES OF MECHANABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OF COPYRIGHT. HOLDFERS BE LIABLE FOR ANY CLAIM, DAMAGES OF OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE ARISING FROM OUT OR ON CONNECTION WITH THE SOFTWARE OR THE JIS OR OTHER CHANGES IN THE SOFTWARE.

Mozilla Public License

Since we, at Hanwha, Todwah, used the Mozlic Biotech component without modifying the source case according to the MOZL [A Public License], we are not obliged to provide the source code of the corresponding component.

- Version 1.

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.

1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.

1.2. "Conditurer version" means the combination of the Original Cases prior Modifications used by a Contributor, and the Modifications made by that particular Contributor

1.3. Covered Code* means the Original Code or Modifications of the combination of the Original Code and Modifications, in each case including portions thereof

1.4. Electronic Distribution Mechanism* means a mechanism generally accepts in the software development community for the electronic transfer of data.

1.5. Executable* insure Covered Code in any form other than Source Code.

1.6. Initial Developer means the individual entity identified as the initial Developer in the Source Code notice required by Exhibit A.

1.7. Large Work means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.

1.8. License means this document

1.8.1. "Licensee" means having the right to grant, to the maximum extent price, whether at the time of the little grant or subsequently accrued any end all of the rights conveyed herein.

1.9. Modifications" means any add/or to or delete from the substance or structure or either the Original Code in any previous Modifications. When Covered Code is released as a series of files, a Modification is

A. Are addition to a definition from the contents of a file containing Original Code or previous Modifications.

B. Any new file that contains any part of the Original Code or previous Modifications.

1.10. "Original Code" means Source Code of computer software code which is described in the Source Code house required by Exhibit A as Original Code, and which at the time of its optional under this license is not already Covered Code governed by this License.

1.10.1. "Poert Claims" means any patent claim(s), now owned or entered in acquires, including without litigation, illness, process, and apparatus claims, in any patent I convertible by grantor.

1.11. Source Code® means the preterm team of the Source Code for making modifications to it, including all resources it contains, plus any associated interests definition rules, scripts used to control corridation and installation or an excalation, or source code essential components against either the Original Code or another well known, available Covered Code of the Contributor's choice. The Source Code can be in a compressed or actual form, provided the appropriate decompression or degrading software is widely available for no change.

1.12. "Your (or 'Your') means an individual or a legal entity exercising rights under, and complying with all to the terms of, this license or a future version of his license is under Section 6.1. or legal matters." "Your" includes any entity which controls, is controlled by or its unrecognizable control with You's or purposes of this definition, "control" means at the power direct or indirect to cause the direction or management of such entity, whether by contract, or otherwise, or by ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant, The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive licence, subject to third party intellectual property claims.

(a) under intellectual property rights (other than patent or trademark) Licenseable by India Developer to use, reproduce, modify, display, perform, sublicense and distribute the Origin Code for portions thereof) with or without Modifications, another as part of a Larger Work; and

(b) under Potents Claims infringed by the making, using or selling of Original Code. To make, have made, use, practices, sell, and offer for sale, and/or otherwise dispose of the Original Code (proportions thereof).

(4) the licenses granted in this Section 2.1(a) and (b) are effective on the date initial Developer First distributes Original Code under the terms of the licenses. (4) Notwithstanding Section 2.1(b) above, no patent license is granted: (1) for some that You orders from the Original Code; (2) assume from the Original Code or (3) for infringements caused by: (3) the modification of the Original Code or (4) the combination of the Original Code with other software or devices.

2.2. Contributor Grant. Subject to third party intellectual property claims, each Contributor hereby grants You a world win, loyalty from non-exclusive income

(g) under Intellectual property rights (other than patent or trade risk) licenseable by Contributor, to use reproduce, modify display, perform, sublicense and distribute the Modifications sealed by such Contributor (or portions thereto either or an unmodified case, with other Modifications, as Covered Code and or as part of a larger Word and

(b) under Patent Claims infringed by the making, using, or setting of Modifications made by that. Contributor either alone and/or in combination with its. Contributor Version (or portions of such combination), to make use, sell, offer for sale, have made, and/or otherwise disposed at. (1) Modifications made by that. Contributor (or portions thereof) and (2) the combination of Modifications made by that. Contributor with its. Contributor Version (or portions of such combination).

(a) the licences granted in Sections 2.2(s) and 2.3(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.

(4) Notwithstanding Section 2.2 by above, no patent license is granted: To for any code that Contributor has deleted from the Contributor version, 2 separate from the Contributor version, 3 for infringement caused by (1) third party modifications of Contributor version or (2) the combination of Modifications made by that Contributor with other software except as part of the Contributor version (or other devices; or it under Patent Claims infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License - The Modifications which you create or to check You must have been governed by the terms of trial license, including without limitation Section 2.2. The Source Code was or of Reference Code may be distributed only under this terms of the License or a finite version of the License released under Section 8.1. And you must include a copy of this License with every copy of the Source Code. You distribute. You may not offer or impose any written on any Source Code version that allows or restricts the applicable version of this license or the recipients' sign in Resource. I however, You may include an additional document offering the additional rights described in Section 3.5.

3.2 Availability of Source Code: Any Medication which you create or shall you contribute must be made available in Source Code form under the terms or risks. I have either on the same media as an Exocardiol version or is an accepted Electronic Distribution on Mechanics to anyone to synov your marks of Exocardiol version available, and I made available via Electronic Distribution Mechanism, thus remain available for a least twelve 12 months after the date initially become available, or at least six months later a subsequent version of that particular Medication has been made available to such reductions. You are responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is not reached by a third party.

3.3. Description of Modifications. You must cause all Covered Code to which You contribute to contain a file documenting the changes You make to create that Covered Code are the date of any change. You must include an comment statement that the Modification is derived directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer in the Source Code, and for many notes in an Exercisable version or related documentation in which You describe the origin or ownership of the Covered Code.

3.4. Intellectual Property Matters

(i) Third Party Claims. If Contributor knowledge that a license under a third party's individual proprietary lights is required to exercise the rights granted by such Contributor under Sections 2.1 or 3.2, Contributor must include a text. It was the Source Code distribution under "1.0A-5" which describes the claim and the party making the claim in sufficient detail that a result will know when to contact. If contribution obtains such knowledge after the Mitigation is made available as described in Section 8.2, Contributor and prompts modify the 20A. The in copies Contributor makes available herself and shall take other steps (such as notifying appropriate mailing lists or newgroups reasonably salrated to inform those who receive the Covered Code that new knowledge has been obtained.

(b) Contributor APs. If Contributor's Modifications include an application programming interface and Contributor has knowledge of patent licenses which are reasonably necessary to implement, that APs. Contributor must also include the information in the LEGAL file

(3) -depreservakire.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above. Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by the Licensee

3.5. Required Notes: You must duplicate the notion to Phint A in open for the Source Code. It is not possible to put such articles in a particular Source Code due to its structure, then you must include such articles in association (such as a relevant direction) where an author would be likely to look for such a article. You desired one or more Modification? You may also your name as a Contributor to the notion described in Benefit A. You must also duplicate the License in any documentation for the Source Code where you discover the responsibility of the other's right relating to Covered Code. You may choose to offer, and to share a fee for warranty, support, indemnity or liability obligations to one or more residents of Governor's Class. However, You may do so only on Your ever-behind, and now on behalf of that initial October or any Contributor. You must make it absolutely clear than any such warranty support. Indemnity or liability obligation is offered by You alone, and you hereby agree to inferily the Initial Developer and every Contributor for any liability involved by the Initial Developer or such Contributor as a result of warranty support. Indemnity or liability terms you offer.

3.4. Applications of Explanable Versions: You may distribute Covered Goods to Exercisable from any if the requirements of Section 3.1. Have been one or more Covered Goods and it you must include a notice listing this, the Exposure Code version of the Covered Code is available under the terms of this license, including a prescription of this and where You have fulfilled the provisions of Section 3.2. The note must be consciously induced in any issue in an Exercisable version, related documentation or collaboration in which You describe being plant-to-rising to the Covered Code. You may also do the Exercisable version of Covered Code on external rights under a license of your code, which may contain ten terms different from this License, provided that You are in compliance with the terms of this License and that the license

for the Recyclable version does not attempt to limit or alter the recipients' rights in the Source. Consider can travel the rights and forth in this License. If you distribute the Exclusible version under a different license you must make it absolutely clear that any terms which differ from this License are ordered by you, one, nor by the Initial Developer or any Contributor. You hereby agree to internally the Initial Developer and every Contributor for any liability incurred by the Initial Developer on such Contributor as a result of any such items you offer.

3.7. Larger Works. You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distribute the Larger Works as a single product. In such a case, you must make sure the requirements of this License are fulfilled for the Covered Code.

4. Inability to Comply Due to Statute or Regulation.

It is impossible for you to comply with any of the terms of this license with respect to some or all of the General Code due to statute, judicial order, or regulation then. You must be comply with the terms of a document to the medium extent possible, and you decide by the limitations and the code they offer. Such description must be included in the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the extent prohibited by statute or regulation, such description must be sufficiently retained for a recipient of ordinary skill to be able to understand it.

5. Application of this License.

This license applies to code to which the Initial Developer has attached the notice in which A and is related Covered Code.

6. Versions of the License.

6.1. New versions, Netscape Communications Corporation ("Netscape") may pull into related and/or new versions of the license. Four time to time. Each version will be given a dating offering version number.

6.2. Effect of New Versions, Once Covered Code has been published under a particular version of the License. You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version of the License published by Netscape. No one other than httpspe has the right to modify the terms applicable to Covered Code created under this license.

6.3 Derivative Works. If you create or use a modified version of this License (which you may only do in order to apply) in the code which is not already Covered Code governed by the License, "You must be re Name your license so that the chases 'Bisla', 'MOZZLAPL', 'MOZPL', "Newspaper", "MIL", "NFIL" or any conflicting similar phrase do not appear in your license except to note that your license differs from the License and to otherwise make it clear that. Your version of the license contains none which differ from the Molar Public License and Newspaper Public License. Initing in the name of the initial Discoverer, Original Code or Contributor in the notice describes it Exhibit A oral and other prescriptions as deemed to be modifications at this License."

7. DISCLAIMER OF WARRANTY.

COVER CODE IS PROVIDED ON THE INSPECTION ON AS BY BASIS, WITHOUT WARRANTY OF ANY SIGN, WITHOUT SPECIFIED INFORMATION, INCLUDING WILL NOT LIMITATION, WARRANTY IS THE COVER CODE IS HELD. DUCTIN, MICHIGANIE, IL: IT OR A PUBLIC PURPOSE, OR NON-INFRINGEMENT. THE ENTIRE RIGHTS TO THE QUALITY AND PERFORMANCE OF THE COVER CODE IS WITH YOU SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT. YOU NOT THE INITIAL DEVELOPED OR ANY OTHER CONTRIBUTOR, ASSUME THE COST OF ANY NEEDS SERVING, PENAIR OR CONNECTION. THIS DOCUMENT OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THE LICENSE NO USE OF ANY COVERED CODE IS AUTHORIZED BEFORE ACCEPT UNDER THE OBSERVED NAME.

8. TERMINATION.

8.1. This License and the rights granted herein under will terminate automatically if you fail to comply with termic reason and fail to cure such breach within 30 days of becoming parties of the breach. All licensees to the Covered Code which are properly granted shall survive any termination of the Licensee. Provisione which, by their nature, must remain in order beyond the termination of the Licensee shall survive.

8.2. If You initiate a legal or by assisting a patent infringement other (exercising regulatory judgment actions against) into a Developer or a Contributor (the Initial Developer or Contributor against whom You is such action is referred to as "Participant") alleging that:

(4) Such Participants Contribution Version correctly or moderately in things any part, then any and all rights granted by such Participant to You under Sections 2.1 and/or 2.2 of the License shall upon 60 days notice from Participant to the date prospective unless before 60 caves after receipt of Notice Underlines. Indegree in writing, to pay Participant a mutually agnostic reasonable money for your heart and future use of benefits as made by such Participant, only will receive Your Right claim with respect to the Contextive worker against such Participant. If within 60 days of note, a reasonable money and payment arrangement are not mutually agnostic upon or in writing by the parties or the litigation claims is not withdrawn. The rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at the application of the 60 day notice period specified above

(d) any software, hardware, or device, other than such. Participant's Contributor Version, directly or indirectly infringes any patent, then envirgts granted to You by such. Participant under Sections 2.1(d) and 3.7(f) are relevant effective as of the data and first made, used, sold, distribution, or held made. Modifications made by that. Participant:

8.3. If you accept a patent infringement claim against Participant alleging that such Participant's Contributor, version directory or inventory lending any patent where such claim is resolved such as by license or settlement prior to the initiation of patent infringement litigation, then the reasonable value of the license granted by each Participant under Section 2.1 or 2.2 shall be taken into account in determining the amount or value of any payment or license.

8.4. In the event of termination under Sections 8.1 or 8.2 above, all end user license agreements (excluding distributors and receivers) which have been valid granted by You or any distributor thereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDERNO CPOULTIMATES AND UNDER NO LEGAL, THEORY WHETHER TORT INCLUDING NEGUSCONSINIC, CONTROL OR OTHERWISE, SHALL YOU THE INLET FOR OTHER ANY OTHER CONTINUOCH, OR ANY OTHERS NOTCH ON COCONTRUCED, OR ANY SURFACE OR ANY OTHER SHIELDS IS HELAND TO ANY PERSON FOR ANY OTHER SPECIAL, NOTIONAL OR CONJUNCTIONAL, MAISSES OF ANY CHARACTER INCLUSION WITH LIMITATION. DAMS IS NOT TO BE USED IN ANY OTHER INFORMATION OR ANY OTHER INFORMATION. THIS INFORMATION IS NOT TO BE USED IN ANY OTHER INFORMATION. IF SUCH ASPTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS IMINATION OF LIABILITY SHALL NOT APPLY TO LEVELLY FOR IDEATH OR PERSONAL INFLUSTRY RESULTING FROM SLOK PARTY'S NEGUSCONSINCE TO THE EXTENT APPLICATE LAW PROBITS SUCH IMINATION. SOME JURISSED ONE TO NOT ALLOW THE INLET OR Organization OF NEGUSNIA OR CONJUNCTIONAL, DAMAGE IS SO THE INCLUSION AND ITAL ON MY LAW.

The Covered Code is a "commercial item" as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation" as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 43 C.F.R. 227 7202- through 227 7202-4 (June. 1996), at U.S. Government End LLCs are acquired Covered Code with only those rights act from prior

11. MISCELLANEOUS.

The License represents the complete agreement concerning an unknown interest. If any provision of this License is held to be unrecognizable, such provision shall be retained only to the extent necessary to make its incorporation. In all terms shall be governed by California law provisions except to the extent applicable law. If any provider alternates, excluding the clinical law provisions. With respect to circuits in which all one party is a resident of, or an entity chartered or registered to do business in the United States of America, any Argentina relating to the License shall be subject to the jurisdiction. The Federal Council of the Northern District of California, with revenue having in Santa Clara County, California, with the issuing party responsible for access, including without limitation, court costs and reasonable attorney fees and expenses. The application of the United Nations Convention on Contracts for the International Sale of Cocoa is exclusively excluded. Any law or regulation which

provides that the language of a contract shall be construed against the latter shall not apply to this issue.

1. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, some party is responsible for claims and damages arising, directly or indirectly, out of the utilisation rights under his license and you agree to work with initial Developer and Contributors to distribute such responsibility on an available basis. Nothing herein is intended or shall be deemed to continue any admission of liability.

1. MULTIPLE-LICENSED CODE

Initial Developer may designate portions of the Coverage Code as Multiple Licensed Multiple Prescriptions that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the MPI or the alternative licenses. It any, specified by the Initial Developer in this description in Initial A.

EXHIBIT A - Mozilla Public License.

The contents of the file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License or http://www-IIpress.org/MP/Software Egypt Button under the License is distributed on an "AS IP" task, WITHOUT WARRANTY OF ANY KNO, either express or implied. See the License for the specific language governing rights and limitations under the license.

The Original Code is

the Initial Developer of the Original Code is ____ Portions approved by ____ and Copyright (C)____.____. All Rights Reserved.

Cori Bucu

Alternatively, the contents of this file may be used under the terms of the license (the [ ] License), in which case the provisions of [ ] License are applicable. Instead of those access, if you own to allow use or your version of this file only under the terms of this [ ] License and not to allow clients to use your version of this file under the MP3, indicate your discretion by setting the provisions active and replace them with the notice and other provisions required by the [ ] License. If you do not delve the provisions active, a recipient may use your version of this file under either the MP3 or the [ ] License.

[NOTE: The text of the Exhibit A may differ slightly from the text of the notice in the Source Code files of the Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your Modifications]

The Independent JPEG Group's JPEG Software

The software included in this product contains copyrighted software that is licensed under the JPEG license.

JPF3 logo

- Core project. Generating Outline OpenGL, Libya

This dedication contains the sixth public release of the Independent JPHG Group's free JPHG software. You are accepted to distribute this software and to use for any purpose, subject to the conditions under LPGA, BISLIFE, bohne.

Serious users of this software particularly those incorporating it into larger programs should contact L.G. at https://info.com.cn/ to be added to our electronic mailing for. Making list members are notice of license and have a chance to participate in technical disclosures, etc.

This software is the work of Lord Lans, Philip Glodsters, Jim Souches, Las Otrasver, Julian Mingullon, Luis Chife, George Philes, Davide Frost, Guano Volscoring, Se' Weijers, and other members at the Independent JAPG Group.

UC is not affiliated with the official IEC JFEG standards committee.

LEGAL ISSUES

请仔细阅读并填写完整内容。

In plain English:

1. We don't promise that this software works. But I you find any bugs, please of us know!

2. You can use this software or whatever you want. You don't have to pay us.

3. You may not present that you wrote this software. If you use it in a program, you must acknowledge somewhere in your documentation that you've used the iOS code.

In legalese:

The authors make NO WARRANTY or representation, either excess or implied, with respect to the software, its quality, accuracy, merchantability, or fitness for a particular purpose. This software is provided "AS IS", and you, its user, assume the entire risk as to its quality and accuracy.

This software is copyright © 1991 1998. Thomas G. I are. All Rights Reserved except as specified below.

Permissors is hereby granted to use copy, modify, and distribute this software (or protocols thereof) or any purpose, without fee, subject to these conditions. (1) If any part of the source code for this software is distributed, then this README file must be included, with this copyright and no warranty notice unlatered; and any additional decisions, or expense to the admin list must be closely indicated in accompanying documentation.

(2) If only executable code is distributed, then the accompanying documentation on must state that "the certificate is based or part on the work or the Independent PBO Group".

(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences, the authors accept NO LIABILITY or damages of any kind.

These conditions apply to any software derived from or based on the UG code, not just to the unmodified library. If you use our work, you ought to acknowledge us.

Permission is NOT granted for the use of any UGI author's name or company name in advertising or publicly relating to this software or products derived from this software may be referred to only as "the independent JHG Group's software".

We specifically permit and encourage the use of this software as the basis of commercial products, provided that all warranty or liability claims are assumed by the product vendor.

and Pence is included in this distribution by permission of L. Peter Deutsch, sale proprietor of its copyright holder: Aladin Enterprises of Merke Park, CA.

and Price is NOT greater by the above copyright and conditions, but there by the usual credit burden some of the Free Software Foundation: pricing policy, that you must include source code if you re进建its it. See the file and Print or to its details. However, since and Print does not need to be part of any program generated from the LOG code, this does not limit you more than the foregoing paragraphs do.

The Jink configuration script "configure" was produced with GNU Autohome." It is copyright by the Free Software Foundation but is freely distributed. The same holds for its supporting certificate contiguous, subgroup, licitor, finan, etc., Another support social, install-sh, is copyright by MUI, but is also freely distributive. It represents that the arithmetic coding option of the JPSO space is covered by patients covered by IBD, AT&T, and Mitsubishi. Finite arithmetic coding cannot legally be used without obtaining one or more licenses. For this reason, support for arithmetic coding has been removed from the JPSO software (Since an arithmetic coding provides only a marginal gain over the unintended Huffman motor), it is likely that very many implementations will support it. So other as we aware there are no patient excellent orders on this remaining orders.

The UG data source formerly included code to read and write CIF files. To avoid entanglement with the Unive LZW pattern, CIF reading support has been removed altogether, and the CIF author has been simplified to produce 'uncompressed CIFs'. The technique does not use the LZW algorithm, the resulting CIF files are larger than usual, but are modulated by all standard CIF decoders.

We are required to state that

The Graphite Interchange Format(s) is the Copyright property of CompuServe Incorporated. CIFerr is a Service Mark property of CompuServe Incorporated.

T-Kernel License

This Product uses the Source Code or 1-Kernel under license granted by the Engine Forum(www.engine.org)

T-License [License Agreement for Source Code of T-Komel]

established by I-Engrel forum

on January 23, 2024

revised on December 21, 2008

revised on March 24, 2001

Article 1. Scope of License Agreement

1. This License Agreement sets form copyrights and the terms and conditions of use applicable to the source code of T-Kamel distributed by T-Engine Forum and any derivative work created therefrom.

Article 2. Definition

1. "I-Kamel" means a real-time operating system controlled and distributed by I-Engine Forum on behalf or the copyright holder thereof.

2. "Source Code" means a source program, including related comments and documentations, for the T-Kernel and the Ported Source Code defined in Article 2.8 which is registered with I Engine Forum.

3. "Hardware-dependent. Part" means the part of the Source Code which depends on hardware and needs to be charged when the Source Code is ported and operated on the larger hardware, and is designated and separated as such part.

4. "Compiler dependent Part" means the part of the Source Code which depends on compiler and access to be changed when the Source Code is period and operated on the target hardware, and is designated and separated as such part.

5. "Header File" means the part of the Source Code which contains definitions necessary to develop application programs.

6. "I Engine Hardware" means the hardware which is manufactured in accordance with the T-Engine Hardware specifications or the pI Engine Hardware specifications issued by T-Engine Forum, and registered with T-Engine Forum.

7. "Similar Hardware to T-Engine Hardware," means any hardware including software, which creates hardware, other than that defects in Article 2.6 above, or which the I-Kamel can be operated.

8. "Ported Source Code" means a source program produced from the Source Code by modifying only its Hardware-dependent Part and/or Computer-dependent Part to enable it to be operated on the T-Engine Hardware or the Similar Hardware to T-Engine Hardware. The Ported Source Code which is registered with T-Engine Hardware and is included in the Source Code.

9. "Modified Source Code" means a source program modified from the Source Code for the purpose of improving its performance, increasing or decreasing its function, and the like. The Ported Source Code shall not be included in the Modified Source Code.

10. "Binary Code" means an executable once form which is created by computing programs, which include all or part of the Source Code or the Modified Source Code.

11. "Derivative Work" means the Modified Source Code or the Binary Code.

12. "Embedded Product" means any product which operates with favorable once form or the Source Code, the Modified Source Code or the Binary Code loaded on its hardware.

13. "End Last" measures a consumer who uses the Intended Product.

14. "System Developer" means any person who develops the Embedded Product by itself or has a third party develop the same and provides, whether with or without payment, the End User with the Embedded Product.

15. "Distributor of Modification" means any person who prepares the Methodist Source Code and whether with or without payment, distributes the same to any third party.

16. "Patch for Modification" means a difference, program, system, or the file in order to paste the Modified Source Code from the Source Code or the Binary Code thereof.

17. "Molecular Execution of Batch Processing" means vigorous execution service to create the Modified Source Code applying the Patch for Modification to the Source Code or the Binary Code menu.

18. "Source Code User" means a person who uses the Source Code.

19. "Distribution" means any of the following acts:

20. to transmit a work to a large number of specific persons through the Internet communication, broadcasting, and the like:

21. To transmit a work to the general public through the internet communication, broadcasting, and the like automatically in response to a request from the public; and

22. to distribute a copy of a work to the general public or a large number of specific persons.

Article 3. Copyright

1. The copyrights of the Source Code shall be owned by Ken Sakamura.

Article 4. License of Source Code

1. As provided for in the Article, T-Engine Forum shall provide and grant a license to use, the Source Code free of charge to any person who has taken the necessary procedure for registration as prescribed by T-Engine Forum and agreed to the I-1 license.

2. The Source Code shall be distributed exclusively by T-Engine Forum. Any person who obtains the Source Code under Article 4.1 above shall not make any re-Distribution of the Source Code.

3. In accordance with the license granted under Article 4.1 above, the Source Code User may perform the following acts:

4. to copy and/or modify the Source Code provided by T-Engine Forum hereunder for its own research, development and the life.

5. To run the Source Code provided by T-Engine Forum hereunder for its own research, development and the like.

6. to run the Source Code modified in accordance with the provision of Article 4.5 (1) above for its own research, development and the like.

7. To distribute the Binary Code created from the Source Code provided by I Engine Forum hereunder or from the Source Code modified in accordance with the provision of Article 4.3 (1) above.

8. In accordance with the licence granted under Article 4.1 above, the System Developer may perform the following acts:

9. to perform any and all acts set forth In the Article 4.3 above.

10. to develop end manufacture the Embedded Product containing the Binary Code, and, whether with or without payment, provide the End User with the same and make the Binary Code available to the End User on the Embedded Product.

11. The Source Code User and the System Developer shall be obligated to give a notice that the Source Code is used, in such a way as separately specified by T-Engine Forum, when they use the Source Code or the Binary Code, or make the Binary Code available for the End User on the Embedded Product.

Article 5. Distribution of Modified Source Code

1. Any of A- members of T-Engine Forum may become the Distributor of Modification by obtaining the approval of T-Engine Forum through the registration procedure as prescribed by the Forum provided that only the department, of the A-member which has taken the registration procedure may distribute the Modified Source Code. In such a way as provider for in this Article as long as it holds the AnMembership.

2. The Distributor of Modification may create the Modified Source Code based on the Source Code provided by T-Engine Forum and the Patch for Modification to be applied to create such Modified Source Code from the Source Code.

3. The Distributor of Modification shall prior to the distribution. Inform 1 Engine Forum of and register a name and description of the Modific Source Code in such a way as specified by 1-Engine Forum.

4. The Distributor of Modification shall determine the name of the Modified Source Code subject to the rules separately established by T-Engine Forum and publish an appropriate code as required by the rules on the Hatch for Modification and the Modified Source Code.

5. The Distributor of Modification may distribute the Modified Source Code to a third party, whether with or without payment, provided that the Distributor of Modification shall take the necessary measures to prohibit the third party from making the re-Distribution of the Modified Source Code.

6. Developer with the Plan for Modification. Provided, however, that the Distribution of Modification shall be obliged to confirm that the System Developer is the Source Code User duly licensed under Article 4.1.

7. The Distributor of Modification may perform the Vilarious Execution of Patch Processing for the System Developer;

8. The System Developer shall not distribute the Modified Source Code In further modified form to any third party as a stand-alone software product.

9. The System Developer may, under the same obligation as imposed in Article 4.6, make the Embedded Product available for the End User through use of the Patch for Modification distributed by the Distributor of Modification or the Derivative Works obtained through the Viscuous Execution of Batch Processing.

Article 6. Distribution and Registration of the Ported Source Code

1. The Source Code User and the System Developer may whether with or without charge, distribute to any third party only the following parts of the Period

Source: Gods or the 1-Engine Hardware or the Similar Hardware to 1-Engine Hardware

1. The Hardware-dependent Part and/or Compiler-dependent Part; provided that the Source Code User and the System Developer shall inform T-Engine Forum of, and T-Engine Forum may publish, a method for distributing said Part(s) to third parties.

2. The Header File provided that the Header File shall be distributed together with the Binary Code of the Ported Source Code.

3. Any member of T-Engine Forum may request T-Engine Forum to register and distribute, as an original source code for T-Kernel, the Ported Source Code on the T-Engine Hardware or the Similar Hardware to T-Engine Hardware.

4. Any member of T-Engine Forum who requests the distribution mentioned in the preceding cersgraph shell scope to the following conditions:

5. The member shall confirm that the object hardware is the | Engine Hardware or the Similar Hardware to | Engine Hardware.

6. The member shall provide T-Engine Forum with a complete set of operational environment, for the object hardware and T-Kernel free of charge when requesting the distribution.

7. The member shall submit test results of the Ported Source Code to T-Engine Forum when requesting the distribution.

8. In the event that T-Engine Forum accepts the request mentioned in Article 6.2. T-Engine Forum shall register and distribute the Ported Source Code as the Source Code for T-Kernel. Provided, however, that the Ported Source Code may be treated in the same way as the Modified Source Code until the time of registration norunder.

9. The provision set forth in Article 3 shall apply to the Portal Source Code registered in accordance with this Article.

Article 7. Use for Other Purpose

1. Any use of the Source Code, the Modified Source Code or the Ported Source Code other than those stipulated in Articles 4, 5 and 6 shall be subject to the prior approval of T. Eng no Forum.

Article 8. Limited Warranty

1. T-Engine Forum and the copyright holder of the Source Code warrant that the Source Code does not infringe third party's copyrights. Provided, however, that Huglina Forum and the copyright holder at the Source Code makes no warranty as to the Hardware-dependent Part and/or Compiler-dependent Part sell forth in Africa 6.2 in the Parson Source Code by any third party.

2. Neither T-Engine Forum nor the copyright holder of the Source Code warrants that the Source Code will fit for any particular purpose of the Source Code User.

3. Neither T-Engine Forum nor the copyright holder of the Source Code warrants that the Source Code does not infringe any third party's industrial property rights, in no event shall T-Engine Forum and the copyright holder of the Source Code be liable for any dispute which may arise between the Source Code Use and a third party in connection with the third party's industrial property rights.

Article 9. Indemnity

1. Neither T-Engine Forum nor the copyright holder of the Source Code shall be liable for any damages (including, but not limited to, damages resulting from loss of profit, business interruption, loss of business information or any other statutory damages) arising out of use or impossibility or use of the Source Code, except in T-Engine Forum and the copyright holder have been informed on the potential or such damages.

Article 10. Breach of Agreement

1. In case that I-Engine Forum consists that this license Agreement is breached or met the population billion at I-Kemli is obstructed, I-Engine Forum shall take measures to correct such breach or such obstruction, take measures on the grounds of copyright infringement, or take any other necessary measures against the breaching person or the obstructing person, regardless of whether or not, the said person is a member of I-Engine Forum.

2. In case of breach of this License Agreement by a member of H-Engine Forum, H-Engine Forum may take appropriate measures against the member; for example, the member is disqualified from membership, depending on what kind of breach has been committed by it.

3. Any legal dispute which may arise in relation to any breach of this License Agreement, shall be subject to the exclusive jurisdiction of the Tokyo District Court. Article 11. Governing Law and Language

4. This License Agreement shall be governed by and interpreted under the laws of Japan.

5. This License Agreement is executed in both Japanese text and English text, provided that the Japanese text shall govern the interpretation and performance of this License Agreement.

Apache License 2.0

Component Name License URL

MONSResponder conjour Apache License 2.0 http://www.apache.org/licenses/LICENSE-2.0

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "License" shall mean the copyright owner or entity authorized by the copyright owner that is granting the license.

I legal entity, shall mean the burden of the acting entity and all other entities that contract, are controlled by, or are under common control with that entity for the purchases of this definition, "control" means it be power, strict or indirect, to cause the direction or management of such entity whether by contract or otherwise, only ownership of (i)g percent (60%) or more of the outstanding shares, or its beneficial ownership of such entity.

"You" for "Your" shall mean an individual or legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including that not limited to software sources code, documentation source, and configuration files.

Direct form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled project code generated documentation, and conversions to other media types.

Work" shall mean the work of authorship, whether in Source or Object form, made available under the license, as indicated by a copyright notice that is enacted in or attached to the work (an example is provided in the Appendix below).

Derivative Works shall mean any work, whether in Source on October, form, that is based on for derivative from the Work and for which the extracted reserves are notstone, elaborations, or other modifications represent, as a whole, an or final work of sufficient. For the purpose of this License, Derivative Works shall not include works that remain separate from, or money link for bonds by being to the existence of, the Work and otherwise Works must.

Contribution" shall not be a short, but the following, including this original version or the Work and any modifications or legal Works, therefore, that is intentionally prescribed to License for incise on the Work by the copyright owner or by an Individual or Legal Entity to consider on behalf of the copyright owner. For the purposes of the definition "submitted" means are form of electronic, verbal, or written communication set to the License or its representatives, including ball and limit to the communication on electronic and logical items, source control components, and supply making systems that can manage by, or on behalf of, then License for this purpose of releasing and removing the Work, but excluding communication that is applicable only material, or otherwise necessary. The Company's license is approved by the License and are individual or Legal Entity or Belfit of which a Commission has been granted by License and subsequently incorporated within the Work.

1. Grant of Copyright License, subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, non-exclusive, exchange, royalty-ree, irreducible copyright license to reproduce, prepare Derivative Works of, publicly disloy, publicly perform, disclosure, and distribute the Work and such Derivative Works in Source or Object form.

2. Grant of Patent License: Subject to the terms and conditions of the License, each Contribution hereby grants to Your personnel, volunteer, non-exclusives, non-large, royalty-free, irreversible respect as stated in this electronic patent license or rules, have made, use, offer, to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent authors or recipients by such Contributor that are nonstantially infringed by their Contribution(s) account or by contribution of their Contribution(s) with the Work to which such Contributions will be subject to. If you institute patent litigation against any entity, practicing a crossponsor or crossponsor in a lawsuit(s) alleging that the Work or a Contribution incorporated within the Work consults direct or contributory patent infringement, then any patent licenses granted to You under the License for that Work shall terminate as of the date such as 12 March 2017.

3. First publication. You may reproduce and distribute copies of the Work or Derivative Works that in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

(a) You must give any other recipients of the Work or Derivative Works a copy of this License, and

(b) You must cause any modified ties to carry prominent relokes stating that You changed the ties; and

(4) You must retain, in the Source form at any Derivative Works that You distribute all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding these notices that do not per an to any part of the Derivative Works; and

(4) If the Work includes a NOTICE text file as part of its distribution, then any Derivative Works that you distribute must include a readable copy of the attribution notices contained within each NOTICE - excluding this notice that do not prepare to any part or the Derivative Works, in at least one of the following persons: within a NOTICE. You list the distributed as part of the Derivative Works; within the Source form or documentation, it provided along with the Derivative Works, or within a folder generated by the Derivative Works. And whenever such third-party notices normally appear, the contents of the NOTICE are for no monetary purposes only and do not modify the Loweres. You may also your own attribution notices within the Derivative Works that you distribute alongside or see an appendix to the NOTICE text from the Work, provided that such other attribution notices cannot be construed as modifying the License.

You may ask Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, previous year use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.

1. Submission of Contributions Unless You explicitly state otherwise, any Contribution is not only supported for inclusion in the Work by You to the Employer shall be under the terms and conditions of the License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms at any separate license agreement you may have executed with Licenses regarding such Commitments.

2. trademarks: This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE 1e.

3. Disclaimer of Warranty, Unless requires by applicants are or agreed to in writing. I cannot provide the Work and each Contributor provides as Distribution on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, KONIM PENSION, MERCHANT ABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the approximations of using a redistributing the Work and assume any risks associated with Your exercise of presentations under this license.

4. Limitation of Licitty in no event and under no legal theory, whether in front-Including negligence, contract or otherwise unless required by applicable law (such as dissociates and greedy neglect acts) or agrees to be arising with any Contribution for links to you for damages, including any direct, indirect, special, incidental or consequential damages of any character arising as a result of this I license or out of the use or liquidity to use the Work producing but not limited to damages for loss or goodwill, work, soppage, computer failure or malfunction, or any and all other commercial damages or losses, even if such Contribution has been advised of the possibility of such damages.

5. Accepting Warranty or Additional Lienity. While distributing the Work or Derivative Works thereof, You may choose to offer and charge it for accordance of support, warranty, indemnity, or other facility obligations and/or rights compliant with its License, however, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, incl or behalf of any Other Contributor, and only if You agree to Indemnity, defend, and hold each Contributor members or any facility incurred by or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

APPHN08: How to apply the Apache license to your work.

To approve the Apache series to your work, attach the following boiler plate notice, with the fields enclosed by brackets [1] replaced with your own identifying information (not include the orders). The text should be enclosed in the approximate comment syntax for the file former. We also recommend that a file or clear name and description or purpose be issued on the same "printed page" as the copyright notice or order formulation within third party archives.

Copyright (yes) [name of copyright owner]

Licensed under the Apache License. Version 2.0 (the "License"), you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses.12-NSL-9.0

Unless required by applicable law or agreed to be writing, software distributed under the License is distributed on an "A8.9" BASIS, WITHOUT WARRANTY OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

BZip2 License

This program, "bup2", the associated library "lobap3", and all documentation, are copyright (C) 1956-2007 Julian R. Seward. All rights reserved.

Component Name License URL

http://1.08 Hsp2 http://www.hzp.org/

Redistribution and use in source and binary forms, with or without modification on, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, the list of conditions and the following disclaimer.

2. The origin of this software must not be misrepresentation; you must not claim that you write the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

3. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

4. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR ASIS, AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO THE IMMID WARRANTY OF THIS INFORMATION AND INTELORS FROM GUARD POURCH AS: DISCLAIMING, IN NOVIANT SHALL THE AUTHOR IS LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE OOCOS OF SERVICES, LOSS OF USE DATA, ON YOURS, ON BUSINESS INTERRUITING HOWEVER CAUSED AND ON ANY THICKY OF LIABILITY, WITHOUT ANY CONTRACT, THIS LIABILITY, OR ANY LOONG NIGUS, NOT OR ITS WHOLE SAHING IN ANY WAY OUT OF THE USE OF THIS WORK, EVEN ALLOWED OR THE POSSIBILITY OF SUCH DAMAGE.

Julian Reward | [e-mail]

bri2/Ischem version 1.0.5 of 10 December 2007

University of Illinois / NCSA Open Source License

Copyright (c) 1958-2007, The Board of Trustees by the University of Illinois All Rights Reserved.

Component Name License

Imar 2 O.A. University of Illinois / NCSA Open Source

|perf performance test.

Mark Gates

Ala: Tumala

JH Fergusson

- on Duocr

1

Kevin Glce

born + slabcock

National Laboratory for Applied Network Resource

National Center for Supercomputing Applications

University of Illinois at Urbana Champaign

http://www.nesu.edu.au

Pennies on is hereby granted, free of charge, to any person obtaining a copy of this software (perf) and associated documentation files the "Software", to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, autocase, and/or sell copies of the Software, and to permit persons to whom the Software is published to do so, subject to the following conditions:

Redistribuone of source code must retain the above copyright notice, this let of such one and the following disclaimers.

Redistribution in binary form must reproduce the above copyright notice, the list of conditions and the following disclosures in the documentation and/or other materials produced with the distribution

Neither the names of the University of Illinois, NOSA, nor the names of its contributory may be used as endeners or promote products derived from this Software Virtual specific prior written permission. I.T. SCH WARS is PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND. EXCHANGE OR WHOULD. INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE CONTRIBUTORS ON COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY WHETHER IN AN ACTION OF CONTRACT, OR OR OTHER RIGHTS, ARISING HOME, OUT OR OR IN CONNECTION WITH THE SCH WARS OR THE US, OR OTHER HEADLINES IN THE SOFTWARE.

PHP 3.01 License

The PHP License, version 3.01 Copyright (c) 1996 - 2010 The PHP Group. All rights reserved.

Component Name License URL

pnc 5.2.17 FFP3.01 https://www.pnc.org/distributions

Redistribution and use in source and binary forms with or without modification, is certified provided that the following conditions are met:

1. Recistributions of source code must remain the above copyright notice, the list of conditions and the following disclares.

2. Recistributions in binary form must reproduce the above copyright notice, this list of conditions and the following checklist in the documentation answer other materials provided with the distribution.

3. The name "PHP" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, close contact [e-mail]

4. Products derived from this software may not be called "PHP", nor may "PHP" appear in their name, without prior written permission from [e-mail]. You may indicate that your software works in conjunction with PHP by saying "Foo for PHP" instead of calling it "PHP Foo" or "chptoo".

5. The FHP Group may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number. Once current code has been published under a particular version or this license, you may always continue to use it under the terms of that version. You may also choose to use such covered code under the terms of any subsequent version of the license published by the FHP Group. No one other than the FHP Group has the right to modify the terms applicable to covered code created under the License.

6. Realistic values of any form whatsoever must retain the following acknowledgment: "This product includes PHP software, directly exists from <http://www.php.net/software/";

THIS SOFTWARE IS PROVIDED BY THE PHP DEVELOPMENT TEAM ASIS AND ANY EXPRESSED OR IMPLED WARRANTIES, INCLUDING, BUT NOT LIMITED TO THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLOSED. INNO EVENT SHALL THE PHP DEVELOPMENT TEAM OF ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EBV/FLORY OR CONFIDENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PRODUCTION OF SUBSTITUTE GOODS OR SERVICE'S LOSS/CHIP, DATA ON THIS INFORMATION (NOT IN THIS) WITHOUT ANY OTHER THAN THIS COPY OF LIABILITY, WHICH IN ANY PROCESSED WARRANTY, OR TORT INCLUDING NO OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, ITLY CONTAINED THE POSSIBILITY OF SUCH DAMAGE.

This software consists of voluntary contributions made by many individuals on behalf of the PHP Group. The PHP Group can be contacted via Email or group 8 purchases.

For more information on the PHP Group and the PHP project, please see http://www.php.net. PHP includes the Zend Engine, freely available at http://www.zord.com.

zlib / libpng License

This software is provided as it, without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Component Name License URL

Zb-1.2.0 Ab / Ibpg Flg://zbc.net/

Copyright (C) 1985-2010 Jean-oup Gaily and Mark Alder

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to start and redistribute it freely subject to the following restrictions:

1. The origin of the software must not be represented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product, documentation would be appreciated but, is not required.

2. Alteron source versions must be plainly marked as such, and must not be misrepresentation as being the original software.

3. This notice may not be removed or altered from any source distribution.

Jean-Iouc Gally Mark Adler

joup@[e-mail]/

The data format used by the data library is described by F1Cs (Request or Comments), 1953 to 1952 in the https://www.jc.org/nic/1962.txt (to format), rfc1961.txt (base format) and rfc1962.txt (gas format).

Portions of this software are copyright 1988-2002 The Free-Type Project (www.freelyse.org). All rights reserved.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Hanwha Techwin cases for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.

The Eco mark represents Harwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU ReHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hp, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

memo

Head Office

6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si,

Gyeonggi-do, 463-400 Rep. of KOREA

Tel: [phone] Fax: [phone]

www.hanwha-security.com

Hanwha Techwin America

500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666

Toll Free +1.877.213.1222 Direct +1.201.325.6920

Fax [phone]

www.hanwhasecurity.com

Hanwha Techwin Europe

Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom

Tel [phone] Fax [phone]

www.hanwha-security.eu

Hanwha

Techwin
