USER MANUAL PND-A9081RF Wisenet

©2019 Hanwha TechwinCo., Ltd. All rights reserved.

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization.

Disclaimer

Hanwha Tochwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Hanwha Tochwin reserves the right to change the contents of this document without prior notice.

❖ Design and specifications are subject to change without prior notice.

The initial administrator ID is "admin" and the password should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean the contaminated area on the product surface with a soft, dry cloth or a clamp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.)
7. Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power Supply Unit marked "Class 2" or "LPS" and rated from 12 Vdc, 1.48 A or PoE, 0.38 A. (PND-A9081RV/RF)
16. This product is intended to be supplied by a Listed Power Supply Unit marked "Class 2" or "LPS" and rated from 12 Vdc: 1.56 A or PoE, 0.38 A. (PNV-A9081R)
17. This product is intended to be supplied by a Listed Power Supply Unit marked "Class 2" or "LPS" and rated from 12 Vdc 1.5 A or PoE, 0.4 A. (PNO-A9081R)
18. This product is intended to be supplied by a Listed Power Supply Unit marked "Class 2" or "LPS" and rated from 12 Vdc, 1.15 A or PoE, 0.32 A. (PNB-A9001)
19. This product is intended to be supplied by isolation power.
20. If you use excessive force when installing the product, the camera may be damaged and malfunction. If you forcibly install the product using non-compliant tools, the product may be damaged.
21. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table.

This may cause damage to the product.

1. When installing the product, be careful not to allow the surface of the product to be stained with chemical substance.
   Some chemical solvents such as cleaner or adhesives may cause serious damage to the product's surface.
2. If you install/disassemble the product in a manner that has not been recommended, the production functions/performance may not be guaranteed.
   Install the product by referring to "Installation & connection" in the user manual.
3. Installing or using the product in water can cause serious damage to the product.
4. Although a rapid change in temperature could cause frost inside the dome, there will be no problem with the video.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance with the installation instructions.

CAUTION

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

overview

Class I construction

An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

The battery cannot be replaced.

Disconnection Device

Disconnect the main plug from the apparatus, if it's defected. And please call a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

ATTENTION

IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT.

METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS.

CAUTION

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Please use the input power with just one camera and other devices must not be connected.

The ITE is to be connected only to PoE networks without routing to the outside plant.

The wired LAN hub providing power over the Ethernet (PoE) in accordance with IEEE 802.3at shall be a UL Listed device with the output evaluated as a Limited Power Source as defined in UL60950-1.

Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102. As such, associated Ethernet wiring shall be limited to inside the building.

Please read the following recommended safety precautions carefully.

• Do not place this apparatus on an uneven surface.
• Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
• Do not place this apparatus near conductive material.
• Do not attempt to service this apparatus yourself.
• Do not place a glass of water on the product.
• Do not install near any magnetic sources.
• Do not block any ventilation openings.
• Do not place heavy items on the product.
• Please wear protective gloves when installing/removing the camera. The high temperature of the product surface may cause a burn.

User's Manual is a guidance book for how to use the products.

The meaning of the symbols are shown below.

• Reference: In case of providing information for helping of product's usages
• Notice: If there's any possibility to occur any damages for the goods and human caused by not following the instruction
  ※ Please read this manual for the safety before using of goods and keep it in the safe place.

We do not guarantee the quality of third-party products (e.g. lenses, accessories) that you separately purchase.

CONTENTS

OVERVIEW

3 Important Safety Instructions

6 Recommended PC Specifications

6 Recommended Micro SD/SDHC/SDXC

Memory Card Specifications

6 NAS recommended specs

8 Optional Accessories for Installation

OUTDOOR VANDAL DOME CAMERA

9 What's Included

9 At a Glance

10 Installation

INDOOR DOME CAMERA

17 What's Included

17 At a Glance

18 Installation

FLUSH MOUNT DOME CAMERA

24 What's Included

24 At a Glance

25 Installation

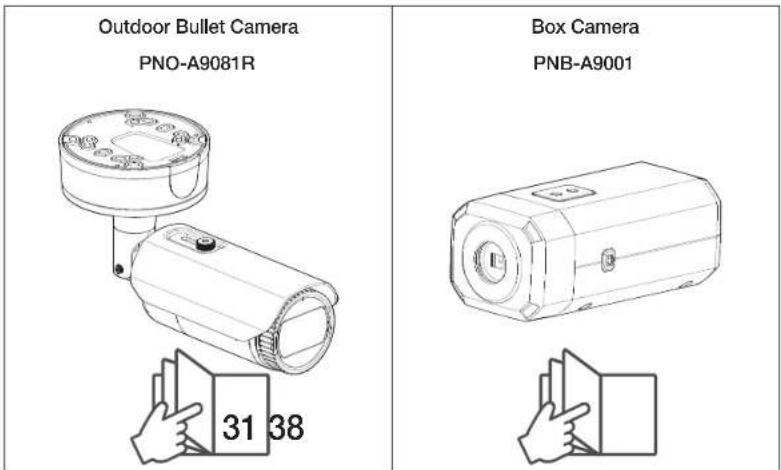

OUTDOOR BULLET CAMERA

31 What's Included

31 At a Glance

32 Installation

BOX CAMERA

38 What's Included

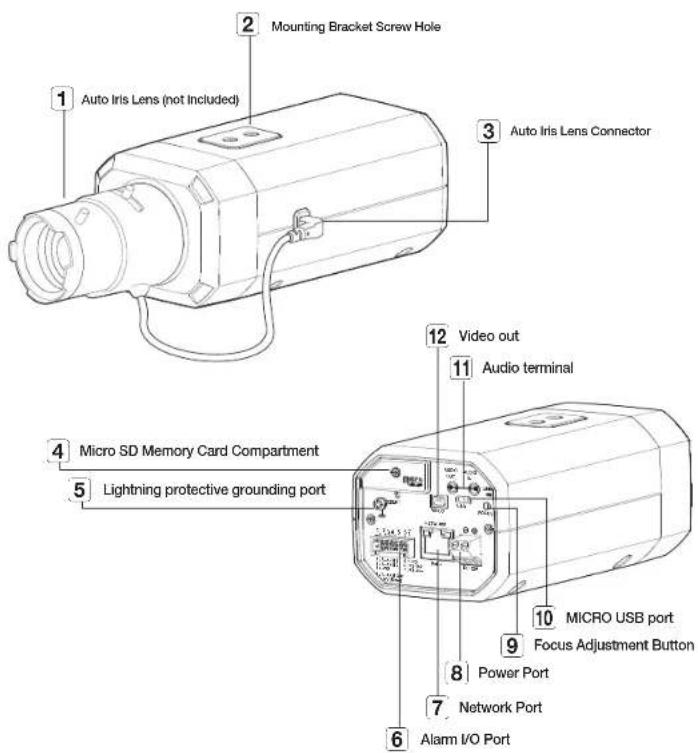

38 At a Glance

39 Mounting the Lens

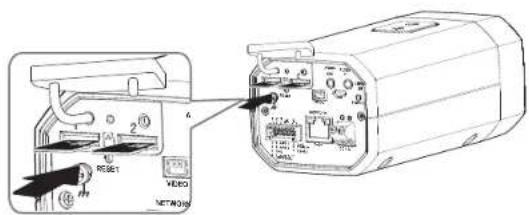

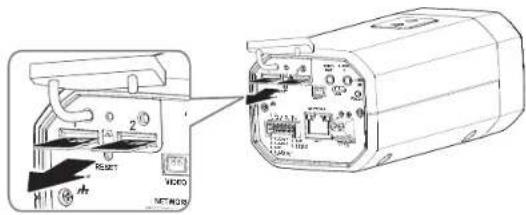

40 Inserting/Removing a Micro SD Memory Card

INSTALLATION & CONNECTION

41 Adjusting the monitoring direction for the camera

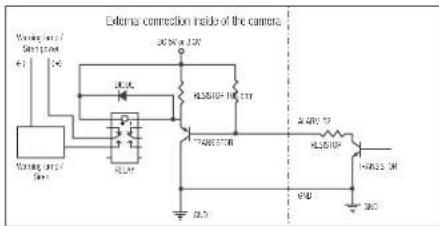

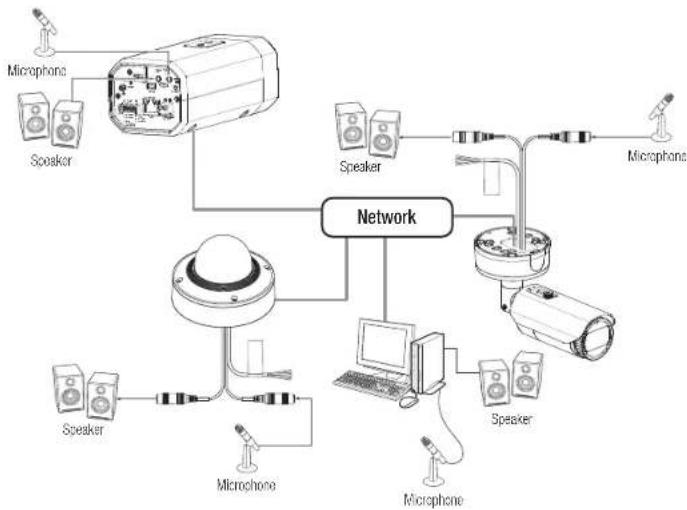

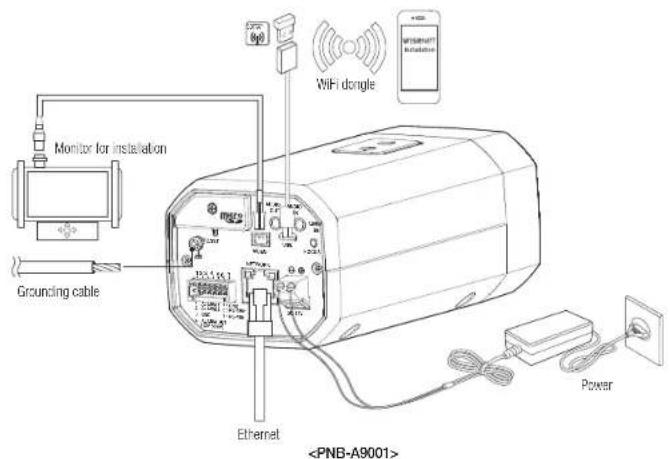

42 Connecting with other Device

NETWORK CONNECTION AND

47 Connecting the Camera Directly to Local Area Networking

47 Connecting the Camera Directly to a DHCP Based DSL/Cable Modem

48 Using Device Manager

48 Automatically searching camera

48 Configuring IP address

49 Manually registering camera

49 Automatically configuring IP

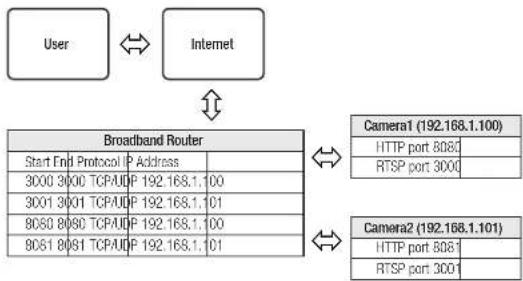

50 Port Range Forward (Port Mapping) Setup

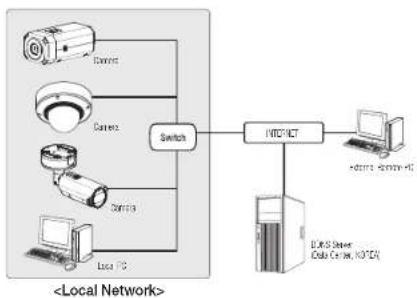

51 Connecting to the Camera from a Shared Local PC

51 Connecting to the Camera from a Remote PC via the Internet

WEB VIEWER

52 Connecting to the Camera

53 Password setting

53 Login

53 Camera Web Viewer Setup

APPENDIX

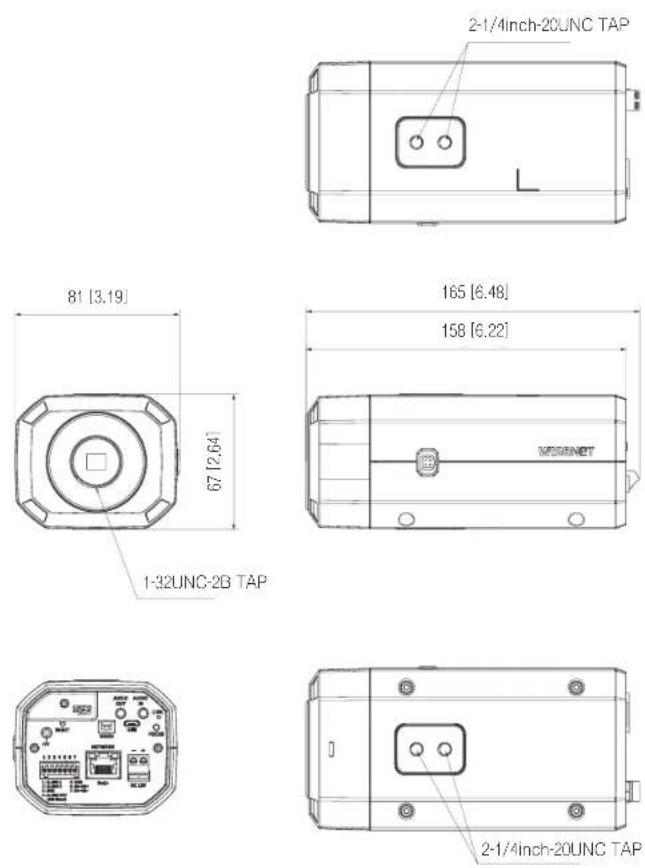

54 Specification

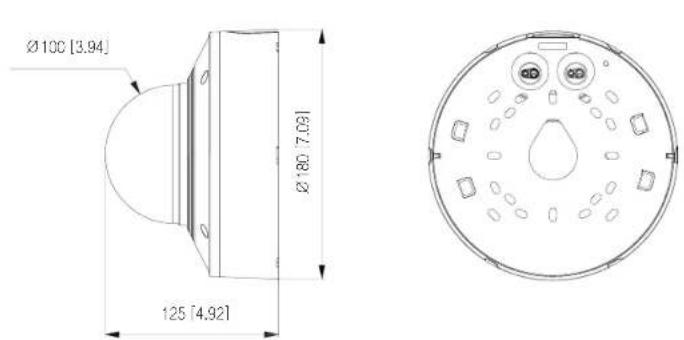

64 Product Overview

67 Troubleshooting

68 Open Source Announcement

overview

RECOMMENDED PC SPECIFICATIONS

• CPU : Intel(R) Core(TM) i7 3.4 GHz or higher
• RAM : 8G or higher
• Supported OS : MS Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14
• Recommended browser: Google Chrome

Supported browsers: MS Explorer, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OSX only)

* Please see the appendix for detailed information on verified OS and browsers.

RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD SPECIFICATIONS

• Recommended capacity: 16GB to 256GB (MLC type required)
  • Recommended Manufacturers : SanDisk, Transcend
  • Product Type : High endurance
• The compatibility varies depending on the card manufacturers and types.

NAS RECOMMENDED SPECS

• Recommended capacity: 200GB or higher is recommended.
• For this camera, you are recommended to use a NAS with the following manufacturer's specs. Recommended products : QNAP NAS, Synology NAS

Outdoor Vandal Dome CameraPNV-A9081R	Indoor Dome CameraPND-A9081RV	Flush Mount Dome CameraPND-A9081RF

OPTIONAL ACCESSORIES FOR INSTALLATION

You can purchase appropriate optional accessories available.

Model name	Hanging Mount	Pole Mount	Skin Cover	Housing	All
PM-A9081R SBP-187HMW SBC-180B (Black)					SBP-300LMW (Parapet Mount)SBP-300CMW (Ceiling Mount)SBP-300WMW (Wall Mount)SBP-300WMW1 (Wall Mount)SBP-300NBW (Instalation Box)SBP-300NBW (Wall Mount Base)SBP-300PMW (Pole Mount)SBP-300KMW (Corner Mount)
PND-A9081RV SBP-167HMW SBC-160B (Black)
PNO-A9081R SBP-302PM
PNB-A9001 SHB-4300HP

outdoor vandal dome camera

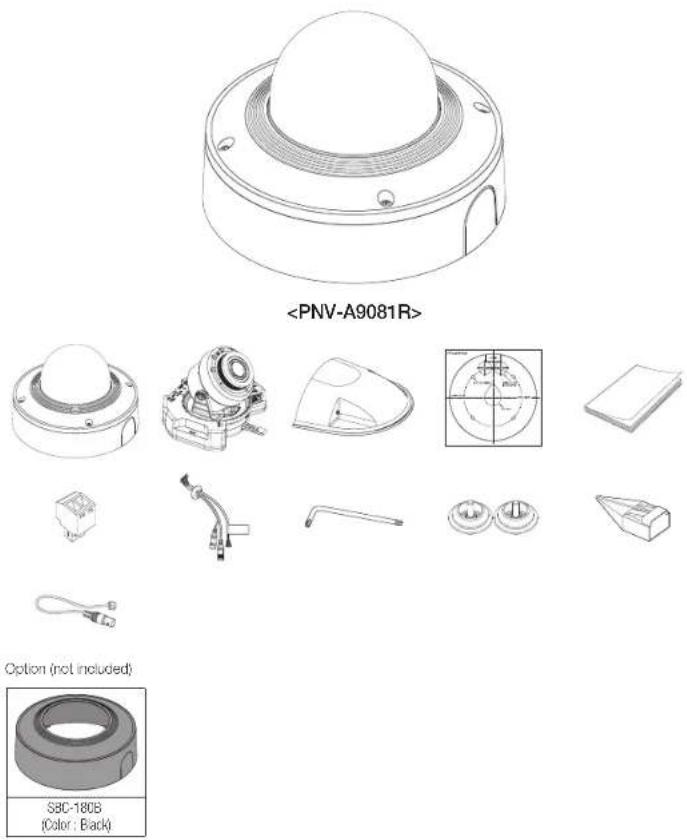

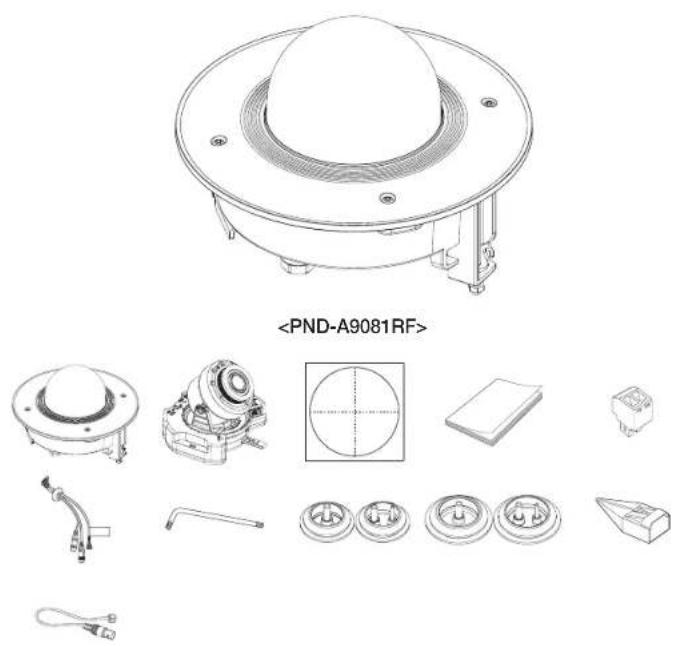

WHAT'S INCLUDED

As for each sales country, accessories are not the same.

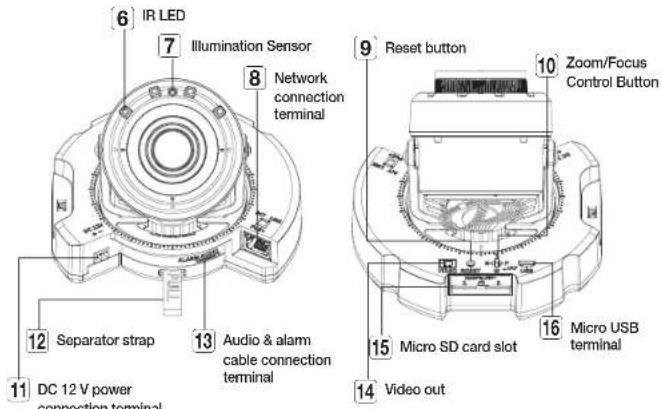

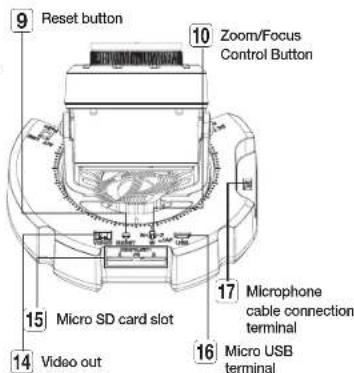

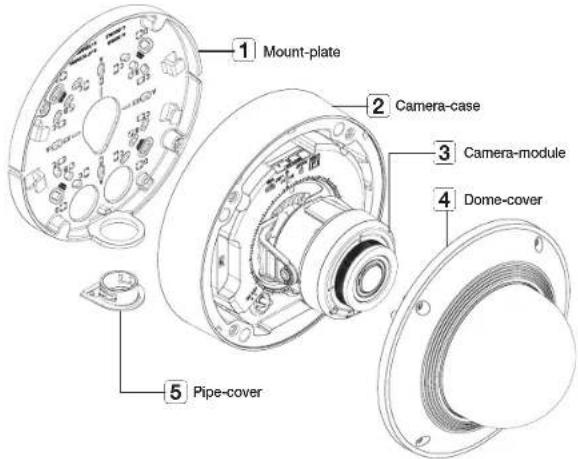

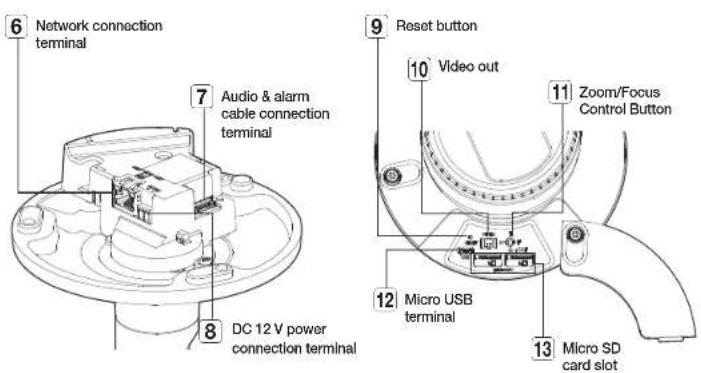

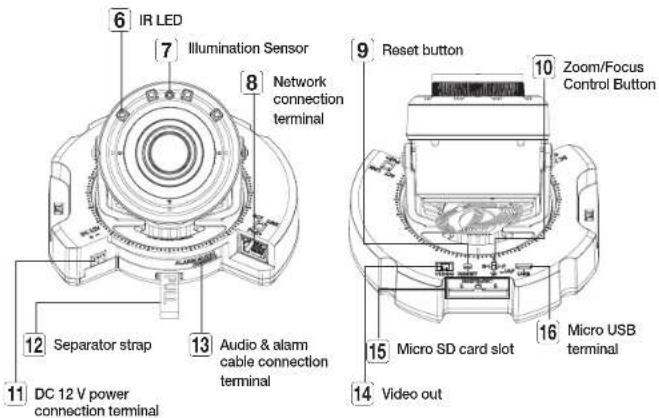

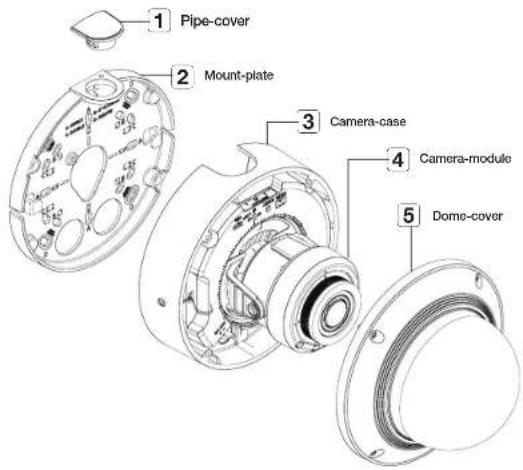

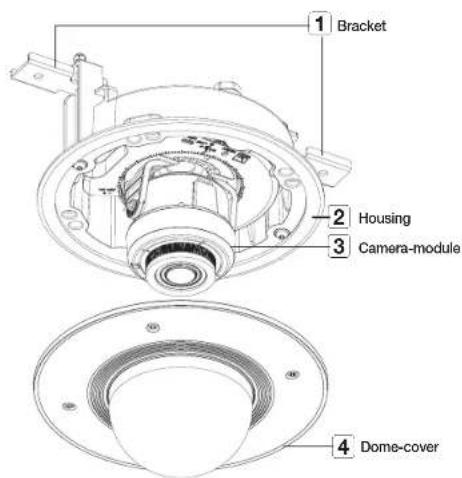

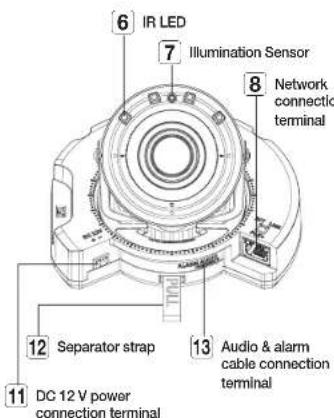

AT A GLANCE

INSTALLATION

This camera is waterproof and in compliance with the IP67 / IP6K9K spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• Select an installation site that can hold at least 5 times the camera's weight.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site.
  And put aside personal belongings from the site, just in case.
• If the product is installed with excessive force, it may cause damage to the camera due to malfunction. Forcing assembly using non-compliant tools may damage the product.

Removal

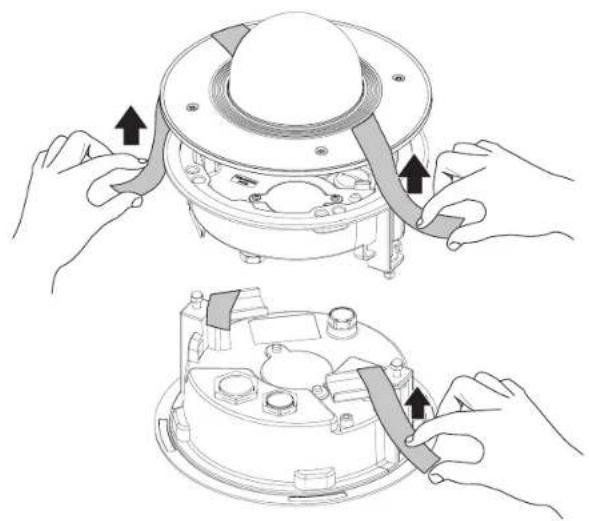

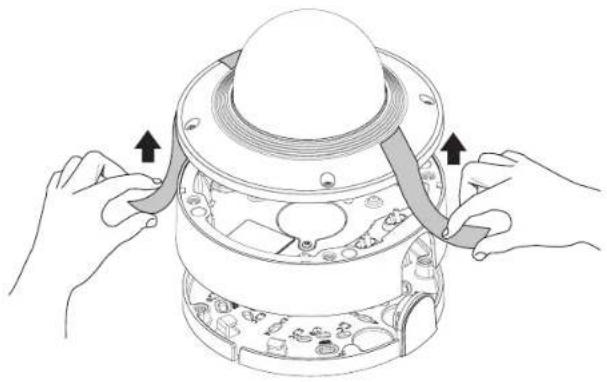

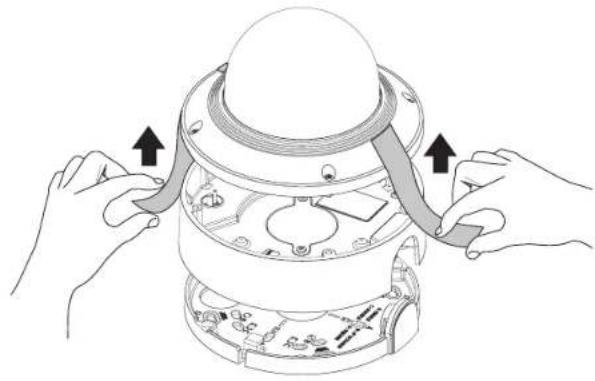

1. Peel off the tape fixing the camera case.

Illustration of hands operating a device with arrows indicating motion (no text or symbols)

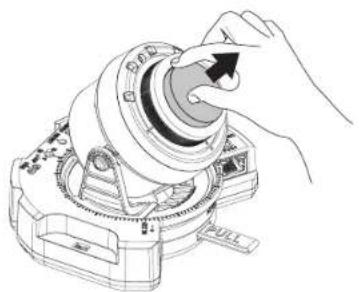

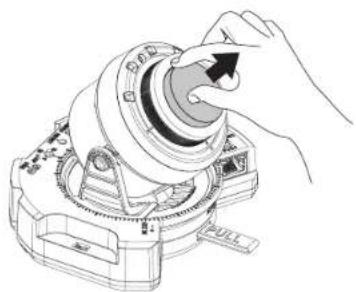

1. Take off the cushion protecting the camera lens.

Line drawing of a hand inserting a component into a device housing (no text or symbols)

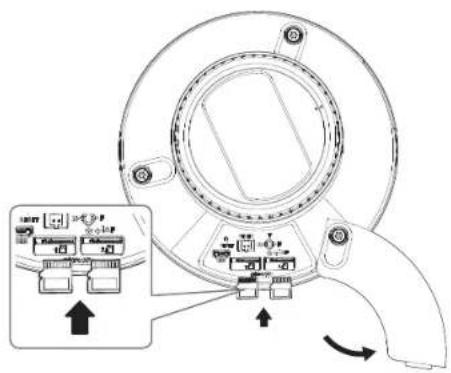

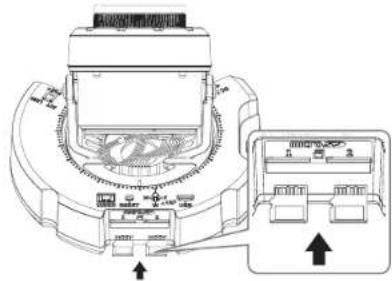

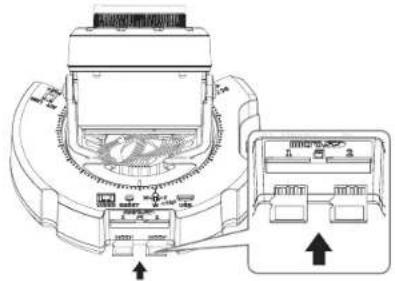

Inserting a Micro SD Memory Card

Slide the Micro SD card into the Micro SD slot on the camera module in the direction of the arrow.

Before installing the camera, the Micro SD memory card should be inserted while the power source and the body are separated.
- Do not forcefully insert it in the reverse direction. It might damage your Micro SD memory card and your product.
- When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
- When installing/removing the Micro SO memory card, make sure you put the product body on a flat ground before working on it in order to prevent accidents due to loss or drop of any parts.

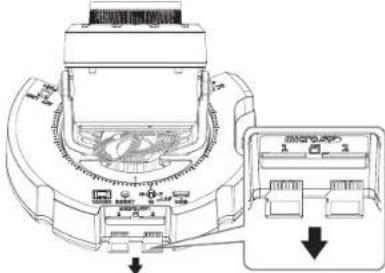

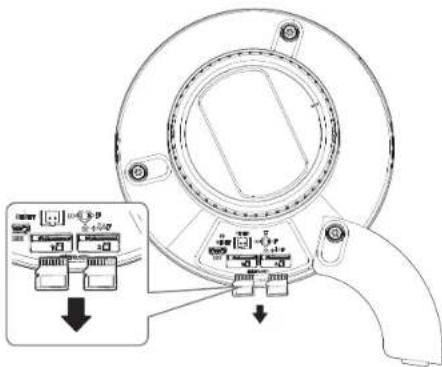

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Before removing the Micro SD memory card, in , set the device to and press the [Apply] button and turn the camera off.
- if you turn off the camera or remove the Micro SD memory card that contains data from the product, the data may be lost or damaged.

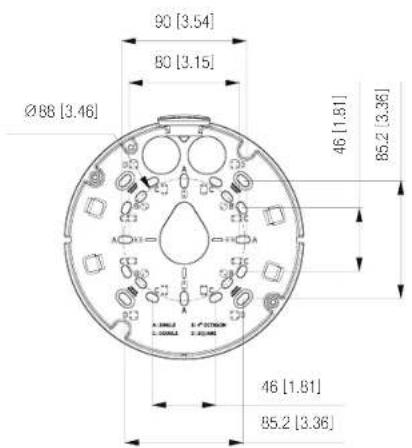

Installation (mount plate)

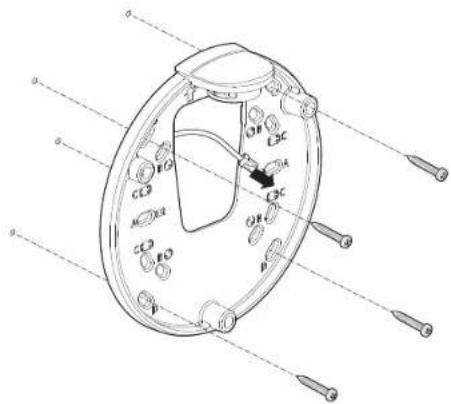

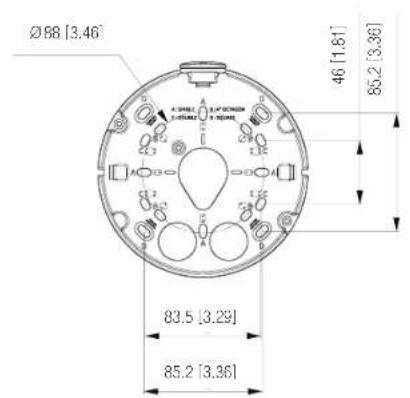

[Directly installing on wall/ceiling]

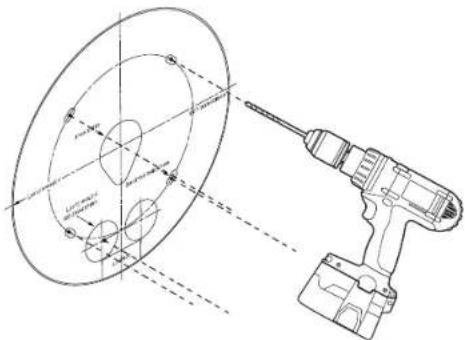

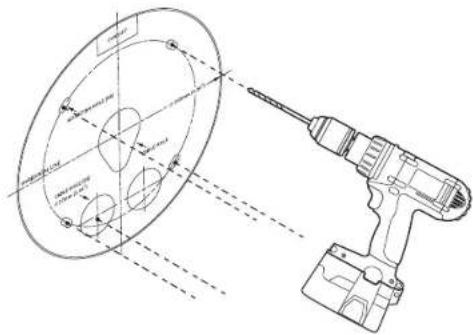

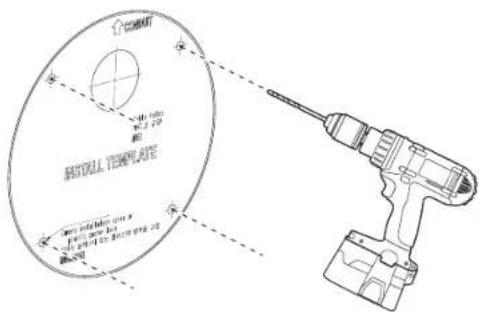

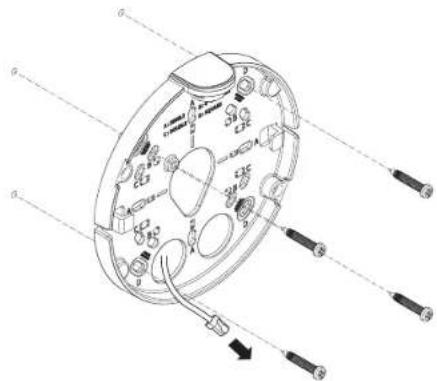

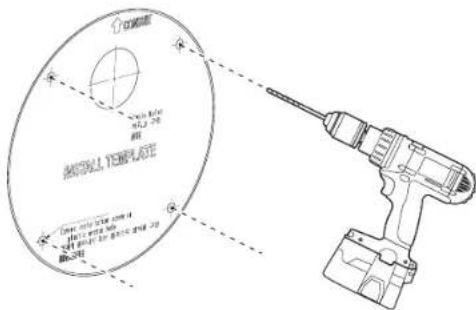

1-1. Attach the installation template on the desired surface and drill holes for screws and cables.

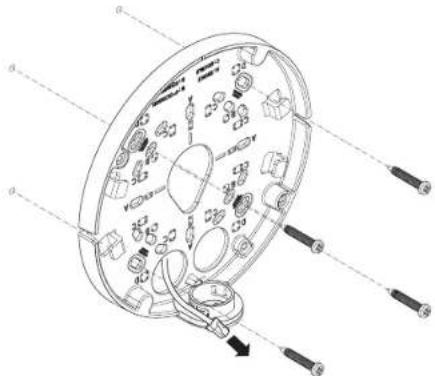

1-2. Fix the mount plate using appropriate screws.
1-3. Pull out necessary cables among LAN/power/audio & alarm cables through the hole in the mount plate.

outdoor vandal dome camera

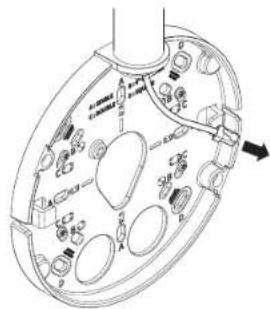

[Installing using pipe]

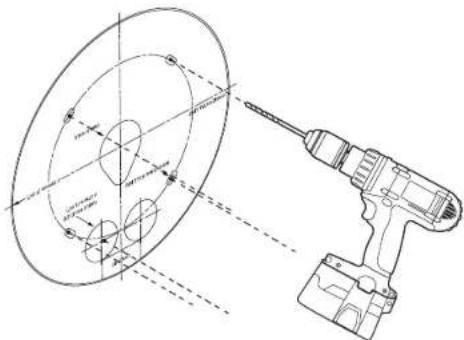

2-1. Attach the installation template and drill holes for screws and cables.

Technical line drawing of a mechanical assembly with concentric circles and a tool, no text or symbols present

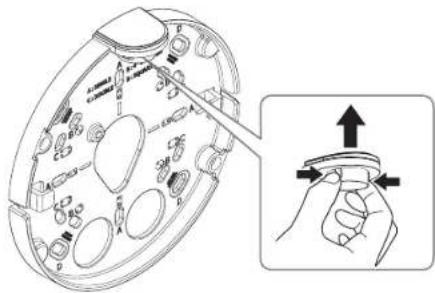

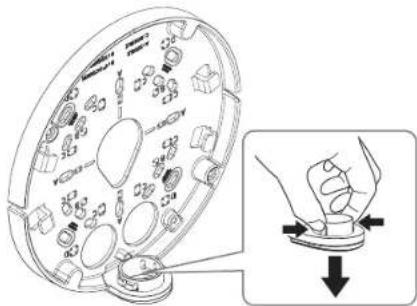

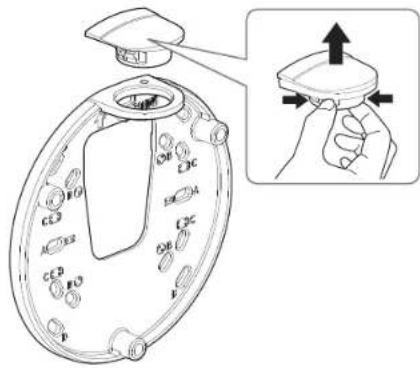

2-2. Separate the pipe cover of the mount plate by pressing its sides.

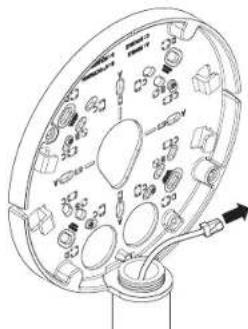

2-3. Place the pipe on the mount plate.
2-4. Fix the mount plate using appropriate screws.
2-5. Pull out necessary cables among LAN/power/audio & alarm cables through the pipe.

Installation (camera case)

- Use a cable bush compliant with the LAN cable to be connected.

-Camera main: use a cable with the diameter of 85 to 6.5

-Components: use a cable with the diameter of 0.5 to 8.5

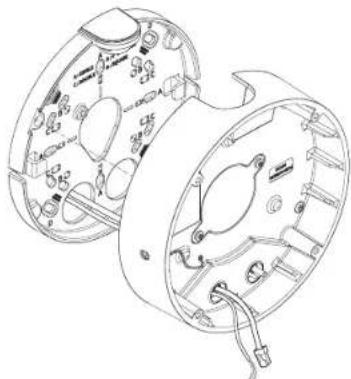

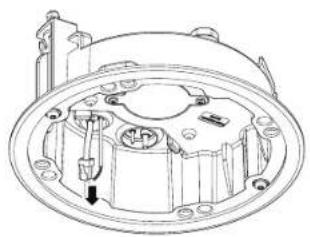

[Installing LAN/power cables]

1-1. Pull off the extruded parts of the bush to be used.

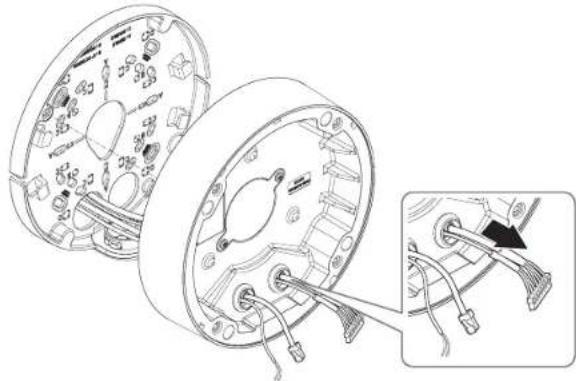

1-2. Route the LAN cable through the big hole of the bush and connect to the LAN connector.
1-3. (When using the power) Route the power cable through the small hole of the bush and connect it to the provided terminal block.

12_ outdoor vandal dome camera

1-4. Mount the bush to the camera case.

Technical line drawing of a mechanical assembly with internal components and wiring (no text or symbols)

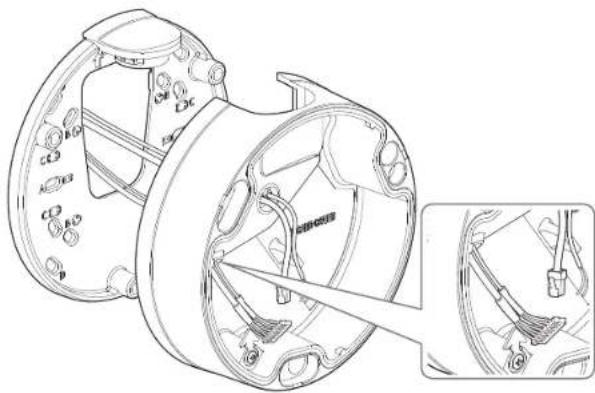

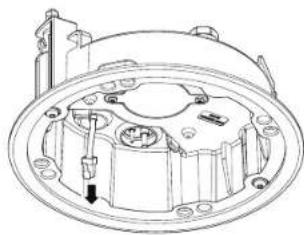

[Installing the LAN cable] (IP66)

2-1. Pull off the extruded part of the 1-hole bush provided.

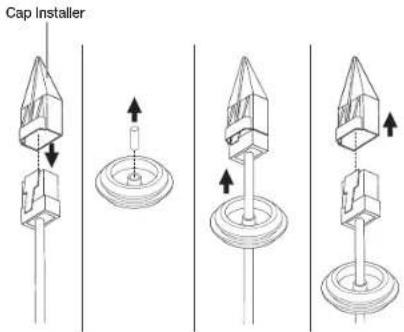

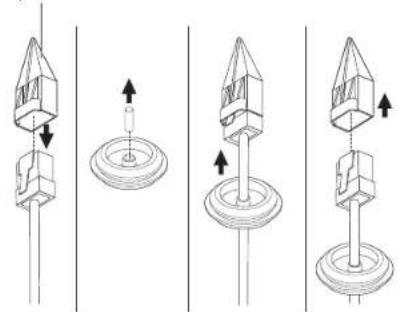

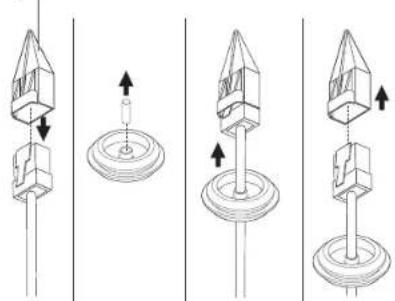

2-2. Use the cap installer to pass through the RJ45 cable.

Cap Installer

Four technical diagrams showing mechanical assembly steps with arrows indicating motion (no text or symbols)

2-3. Mount the bush to the camera case.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

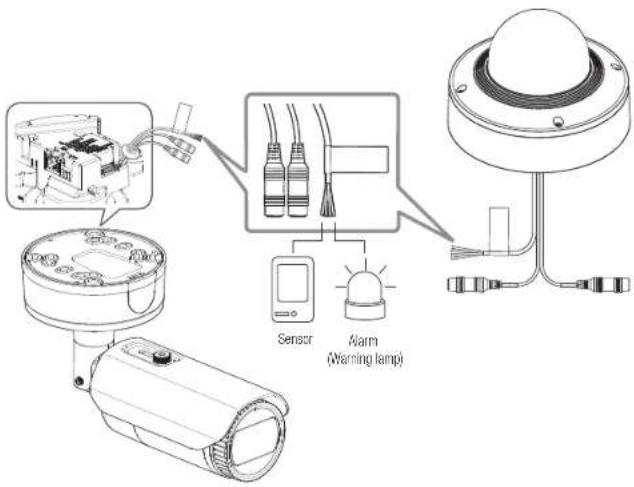

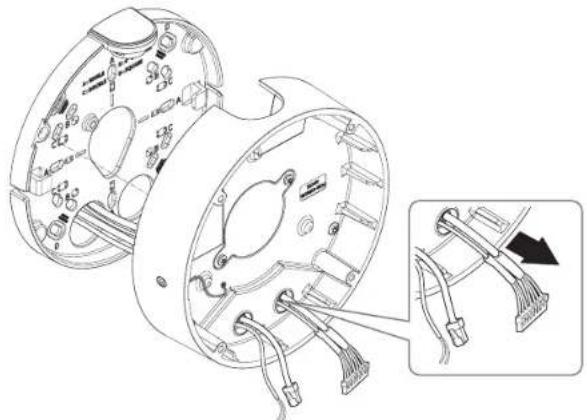

[Installing audio & alarm cables]

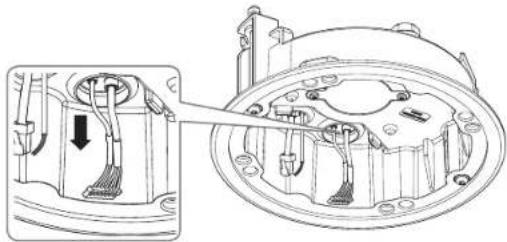

3-1. Mount the bush of the provided audio & alarm cables to the camera case.

Technical line drawing of a mechanical assembly with exploded view and close-up detail (no text or symbols)

outdoor vandal dome camera

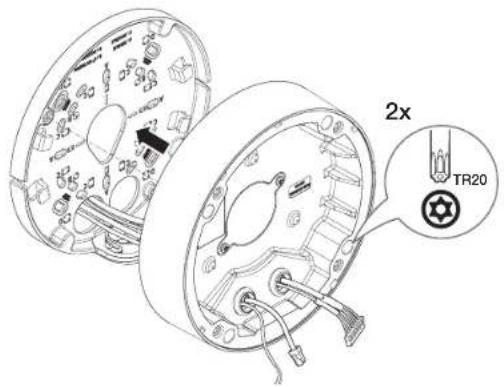

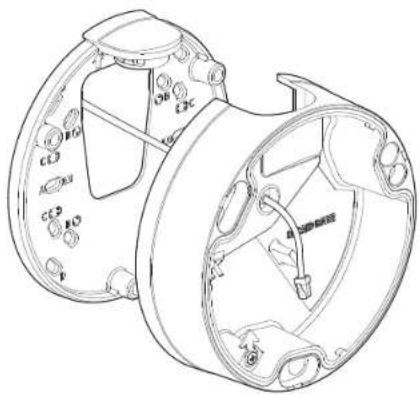

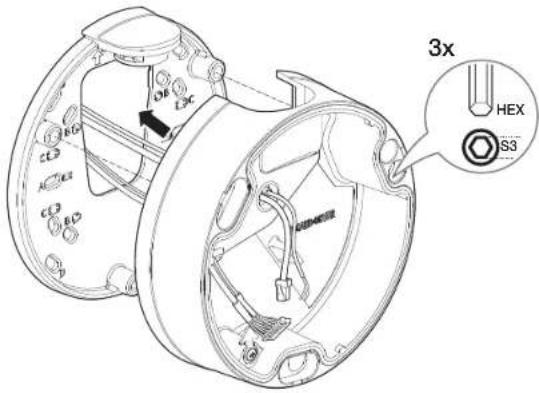

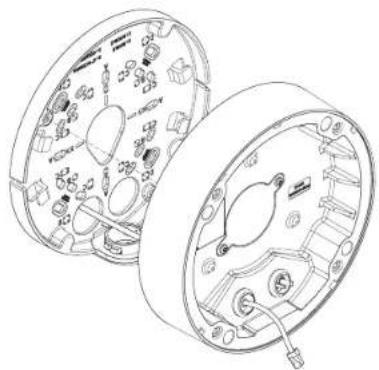

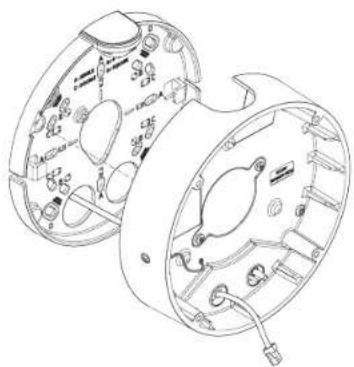

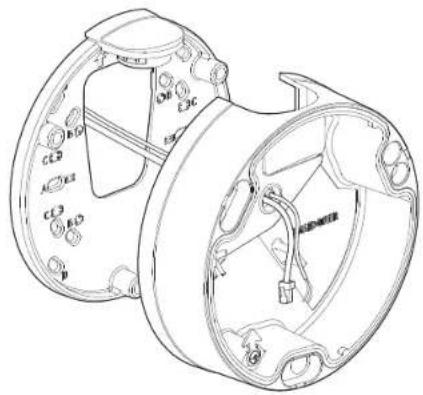

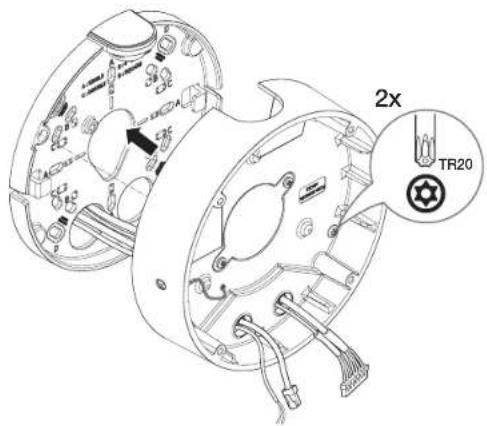

1. Join the mount plate with the camera case.

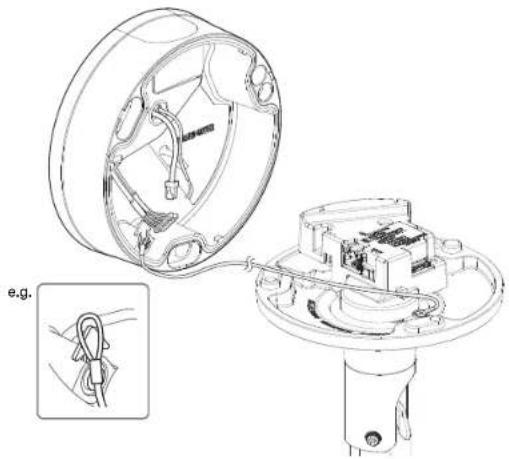

Installing the camera module

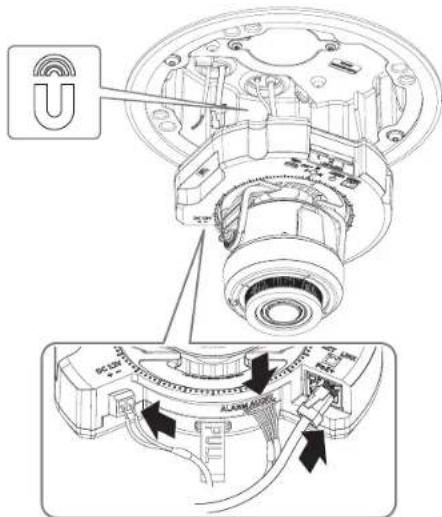

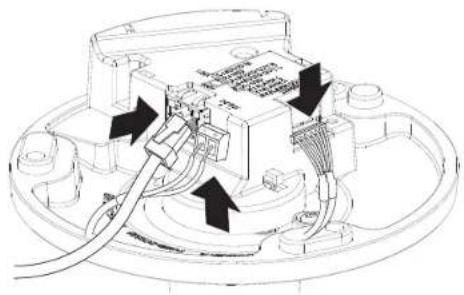

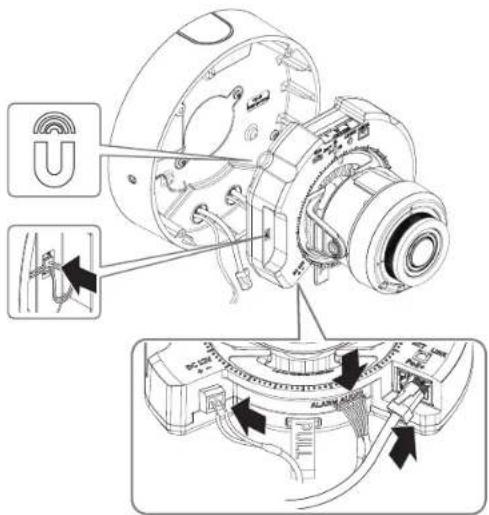

1. Connect the LAN/power/audio & alarm cables to the camera module terminal.

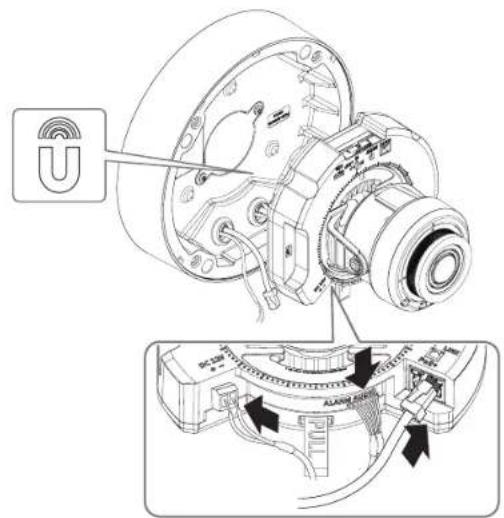

2. Attach the camera module to the case.

A magnet is embedded at the bottom of the module
Take caution not to allow any foreign objects between the attaching surfaces.

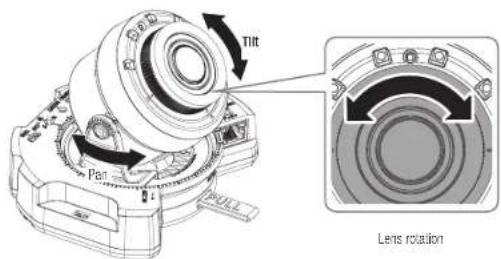

1. Adjust the lens to the desired direction with reference to "Adjusting the monitoring direction for the camera" section. (page 41)

14 outdoor vandal dome camera

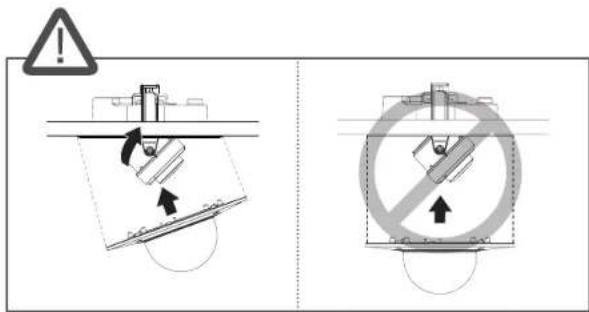

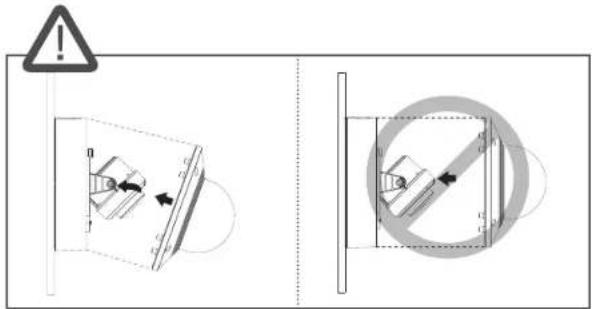

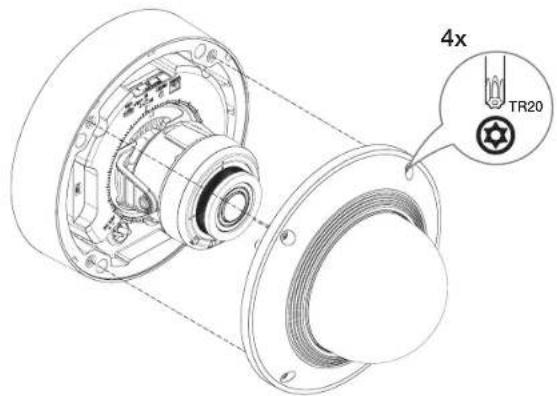

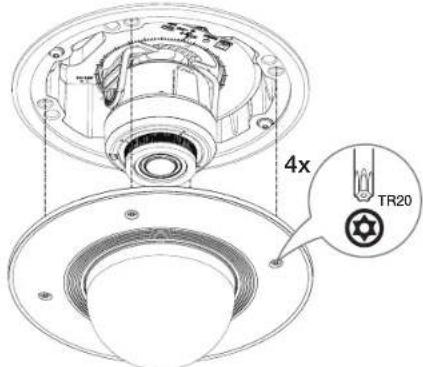

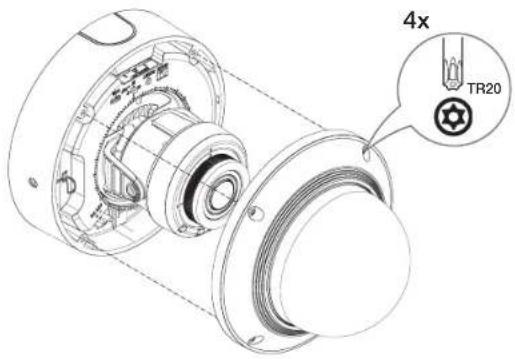

Assembling the dome cover

[Directly installing on wall/ceiling]

1. Assemble the dome cover.

- Make sure to firmly tighten the fastening screws so that there is no water damage issue.

- Be careful not to alter the monitoring direction of your camera.

[Using Weather cap]

1. Remove the screws from the dome cover.

1. Assemble the dome cover.

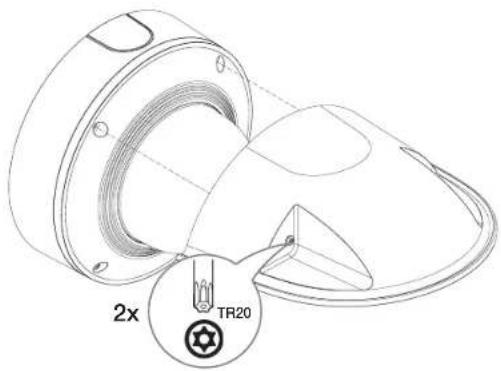

2. Mount the weather cap to the dome cover and fasten the screws.

■ Make sure to firmly tighten the fastening screws so that there is no water damage issue.

outdoor vandal dome camera

Outdoor installation

When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

1. Connect the power, I/O, and LAN cables.

2. Wrap the black cable jacket (Area A) and the cable connection area with waterproof (butyl rubber) tape so that more than half of the butyl rubber tape is overlapped.

- If the cable jacket is not waterproofed properly, then it can directly cause leakage. Make sure to protect the cable with a dense layer of laping.

- Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.

WHAT'S INCLUDED

As for each sales country, accessories are not the same.

Technical line drawing of a mechanical component with a spherical top and concentric rings (no text or symbols)

Option (not included)

AT A GLANCE

INSTALLATION

This camera is waterproof and in compliance with the IP52 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• Select an installation site that can hold at least 5 times the camera's weight.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site.
  And put aside personal belongings from the site, just in case.
• If the product is installed with excessive force, it may cause damage to the camera due to malfunction. Forcing assembly using non-compliant tools may damage the product.

Removal

1. Peel off the tape fixing the camera case.

Illustration of hands assembling a mechanical component with arrows indicating assembly direction (no text or symbols)

1. Take off the cushion protecting the camera lens.

Illustration of a hand turning a mechanical component with a circular arrow indicating rotation (no text or symbols present)

Inserting a Micro SD Memory Card

Slide the Micro SD card into the Micro SD slot on the camera module in the direction of the arrow.

Before installing the camera, the Micro SO memory card should be inserted while the power source and the body are separated.

• Do not forcefully insert it in the reverse direction. It might damage your Micro SD memory card and your product.
• When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
• When installing/removing the Micro SO memory card, make sure you cut the product body on a flat ground before working on it in order to prevent accidents due to loss or drop of any parts.

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Before removing the Micro SD memory card, in , set the device to and press the [Apply] button and turn the camera off.
- if you turn off the camera or remove the Micro SD memory card that contains data from the product, the data may be lost or damaged.

Installation (mount plate)

[Directly installing on wall/ceiling]

1-1. Attach the installation template on the desired surface and drill holes for screws and cables.

1-2. Fix the mount plate using appropriate screws.
1-3. Pull out necessary cables among LAN/power/audio & alarm cables through the hole in the mount plate.

indoor dome camera

[Installing using pipe]

2-1. Attach the installation template and drill holes for screws and cables.

2-2. Separate the pipe cover of the mount plate by pressing its sides.

2-3. Place the pipe on the mount plate.
2-4. Fix the mount plate using appropriate screws.
2-5. Pull out necessary cables among LAN/power/audio & alarm cables through the pipe.

Installation (camera case)

- Use a cable bush compliant with the LAN cable to be connected.

- Camera main: use a cable with the diameter of 95 to 6.5

-Components: use a cable with the diameter of 85 to 8.5

[Installing LAN/power cables]

1-1. Pull off the extruded parts of the bush to be used.
1-2. Route the LAN cable through the big hole of the bush and connect to the LAN connector.
1-3. (When using the power) Route the power cable through the small hole of the bush and connect it to the provided terminal block.

1-4. Mount the bush to the camera case.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

2-3. Mount the bush to the camera case.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

[Installing the LAN cable]

2-1. Pull off the extruded part of the 1-hole bush provided.
2-2. Use the cap installer to pass through the RJ45 cable.

Cap Installer

Four sequential diagrams showing mechanical assembly or assembly steps with arrows indicating motion (no text or symbols)

indoor dome camera

[Installing audio & alarm cables]

3-1. Mount the bush of the provided audio & alarm cables to the camera case.

Technical line drawing of a device interior with exploded view and close-up detail (no text or symbols)

1. Join the mount plate with the camera case.

22_indoor dome camera

Installing the camera module

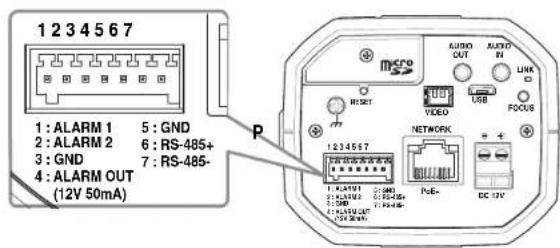

1. Connect the LAN/power/audio & alarm cables to the camera module terminal.
2. Attach the camera module to the case.

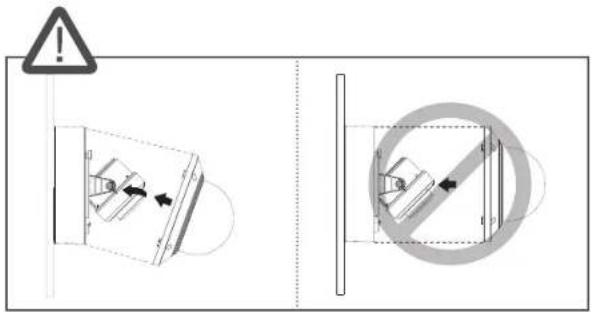

- A magnet is embedded at the bottom of the module - Take caution not to allow any foreign objects between the attaching surfaces.

1. Connect the microphone cable to the camera module.

1. Adjust the lens to the desired direction with reference to "Adjusting the monitoring direction for the camera" section. (page 41)

Assembling the dome cover

[Directly installing on wall/ceiling]

1. Assemble the dome cover.

- Make sure to firmly tighten the fastening screws so that there is no water damage issue.

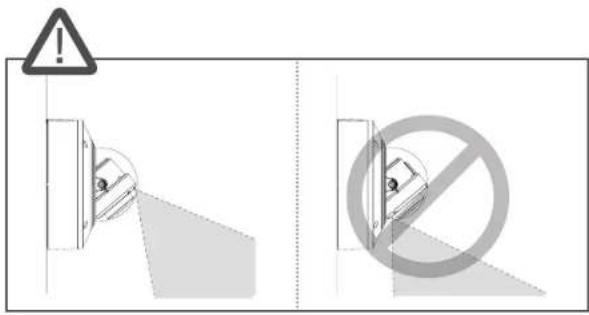

- Be careful not to alter the monitoring direction of your camera.

flush mount dome camera

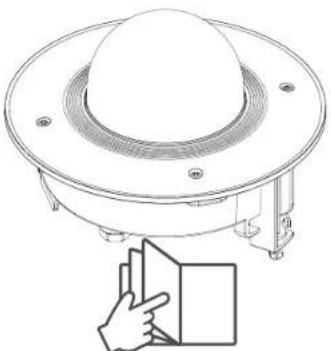

WHAT'S INCLUDED

As for each sales country, accessories are not the same.

Technical line drawings of electronic components including a dome-shaped device, camera, and various electronic components (no text or symbols)

AT A GLANCE

INSTALLATION

This camera is waterproof and in compliance with the IP52 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• Select an installation site that can hold at least 5 times the camera's weight.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site.
  And put aside personal belongings from the site, just in case.
• If the product is installed with excessive force, it may cause damage to the camera due to malfunction. Forcing assembly using non-compliant tools may damage the product.

Removal

1. Peel off the tape fixing the camera case.

Technical illustration showing hands operating a mechanical device with directional arrows indicating movement (no text or symbols present)

1. Take off the cushion protecting the camera lens.

Illustration of a hand turning a mechanical component with an arrow indicating rotation (no text or symbols present)

Inserting a Micro SD Memory Card

Slide the Micro SD card into the Micro SD slot on the camera module in the direction of the arrow.

Before installing the camera, the Micro SO memory card should be inserted while the power source and the body are separated.
- Do not forcefully insert it in the reverse direction. It might damage your Micro SD memory card and your product.
- When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
- When installing/removing the Micro SO memory card, make sure you cut the product body on a flat ground before working on it in order to prevent accidents due to loss or drop of any parts.

flush mount come camera

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Before removing the Micro SD memory card, in , set the device to and press the [Apply] button and turn the camera off.
- if you turn off the camera or remove the Micro SD memory card that contains data from the product, the data may be lost or damaged.

Installation (housing)

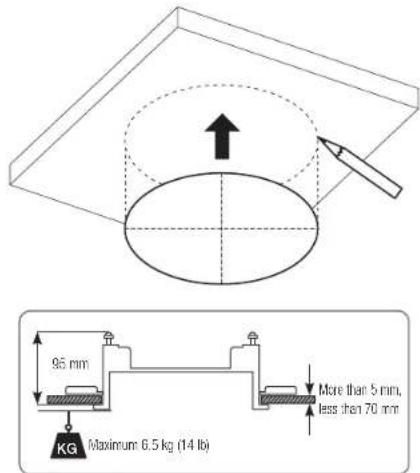

1. Attach the installation template to the ceiling and mark its location with a pencil.

1. Attach the installation template and drill holes.

Line drawing of a saw cutting into a circular opening on a square base (no text or symbols)

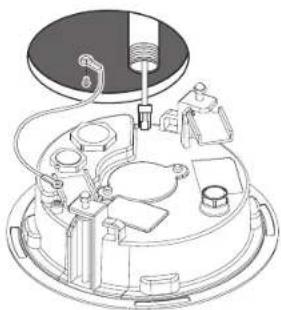

1. Connect the safety cable.

- A safety cable is not provided.

e.g

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

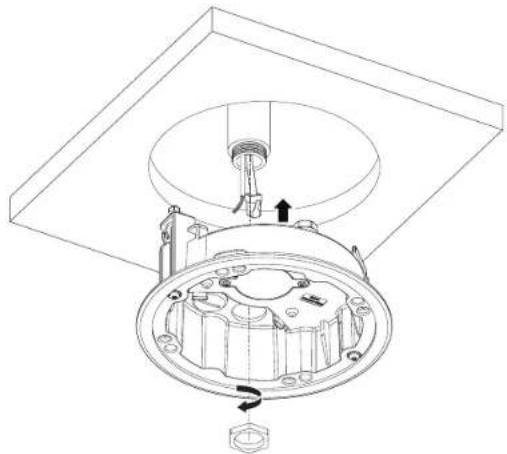

[Using pipe]

4-1. Install the pipe in a fitting hole.

4-2. Pull out necessary cables among LAN/power/audio & alarm cables through the pipe.

Technical line drawing of a ceiling-mounted device with internal components and mounting bracket (no text or symbols)

flush mount come camera

Installation (camera case)

- Use a cable bush compliant with the LAN cable to be connected.

-Components: use a cable with the diameter of 25 to 8.5

[Installing LAN/power cables]

1-1. Pull off the extruded parts of the bush to be used.
1-2. Route the LAN cable through the big hole of the bush and connect to the LAN connector.
1-3. (When using the power) Route the power cable through the small hole of the bush and connect it to the provided terminal block.

1-4. Mount the bush to the housing.

Technical line drawing of a mechanical component with no visible text or symbols

[Installing the LAN cable]

2-1. Pull off the extruded part of the 1-hole bush provided.
2-2. Use the cap installer to pass through the RJ45 cable.

Cap Installer

Four technical diagrams showing mechanical assembly steps with arrows indicating motion (no text or symbols)

2-3. Mount the bush to the housing.

Technical line drawing of a mechanical housing component with mounting flanges and internal components (no text or symbols)

[Installing audio & alarm cables]

3-1. Mount the bush of the provided audio & alarm cables to the camera case.

Technical line drawing of a mechanical assembly with no visible text or symbols

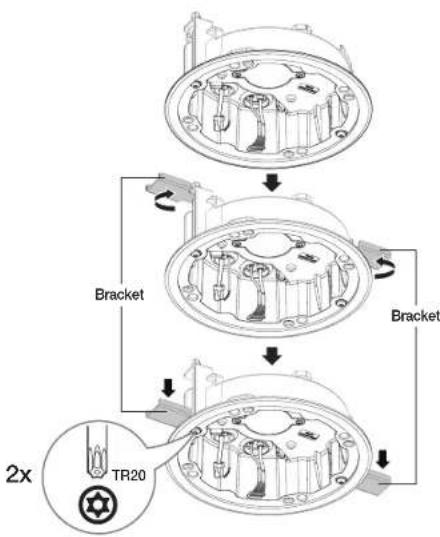

1. Turn the screws on the housing to fix the housing to the ceiling.

The bracket will fix the housing to the ceiling.
■ Ensure that the housing is firmly fixed to the ceiling.

Installing the camera module

1. Connect the LAN/power/audio & alarm cables to the camera module terminal.
2. Attach the camera module to the case.

- A magnet is embedded at the bottom of the module - Take caution not to allow any foreign objects between the attaching surfaces.

1. Adjust the lens to the desired direction with reference to "Adjusting the monitoring direction for the camera" section. (page 41)

flush mount come camera

Assembling the dome cover

1. Assemble the dome cover.

- Make sure to firmly tighten the fastening screws so that there is no water damage issue.

- Be careful not to alter the monitoring direction of your camera.

30_ flush mount dome camera

Waterproofing cables

If there is any possibility of moisture intrusion through the gap of the cable, please waterproof the concerned area with waterproof butyl rubber tape (can be purchased in stores) as below.

1. Connect the power, I/O, and LAN cables.

2. Wrap the black cable jacket (Area A) and the cable connection area with waterproof (butyl rubber) tape so that more than half of the butyl rubber tape is overlapped.

- If the cable jacket is not waterproofed properly, then it can directly cause leakage. Make sure to protect the cable with a dense layer of taping.

- Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.

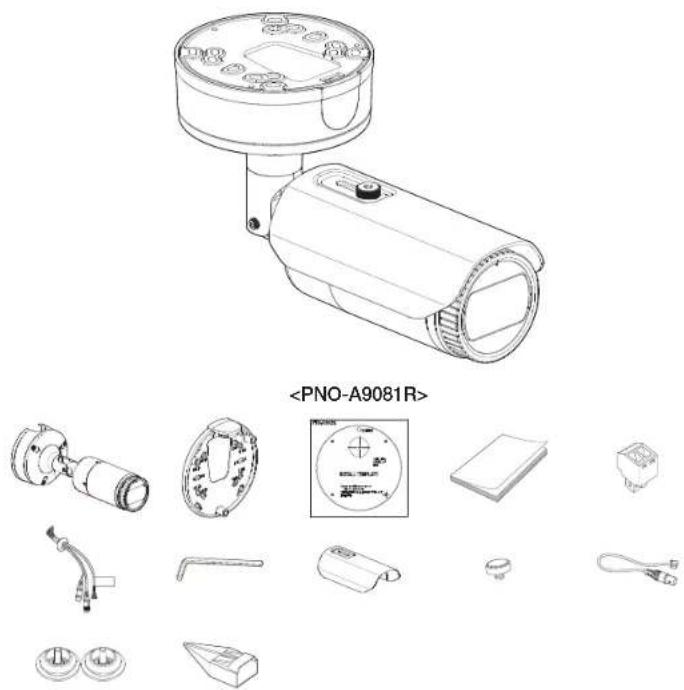

WHAT'S INCLUDED

As for each sales country, accessories are not the same.

Technical line drawing of a surveillance camera with exploded view and component details (no text or symbols)

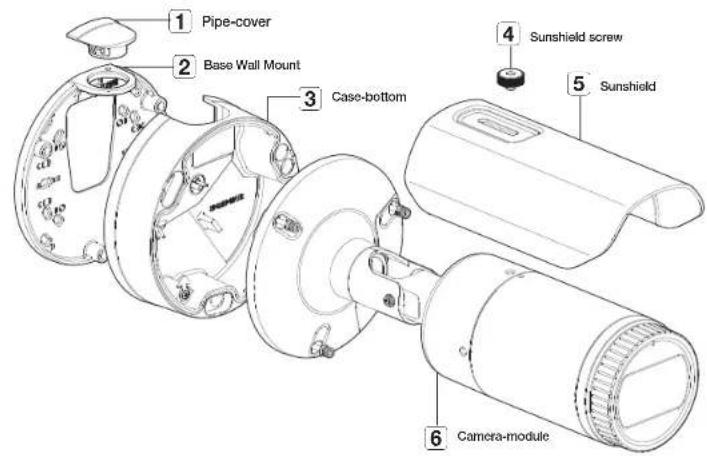

AT A GLANCE

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied ethanol.

INSTALLATION

This camera is waterproof and in compliance with the IP67 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• Select an installation site that can hold at least 5 times the camera's weight.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site.
  And put aside personal belongings from the site, just in case.
• If the product is installed with excessive force, it may cause damage to the camera due to malfunction. Forcing assembly using non-compliant tools may damage the product.
• Do not use the sunshield hole for any purpose other than for connecting the sunshield.

Inserting a Micro SD Memory Card

Slide the Micro SD card into the Micro SD slot on the camera module in the direction of the arrow.

Before installing the camera, the Micro SO memory card should be inserted while the power source and the body are separated.

- Do not forcefully insert it in the reverse direction. It might damage your Micro SD memory card and your product.

- When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.

- When installing/removing the Micro SD memory card, make sure you cut the product body on a flat ground before working on it in order to prevent accidents due to loss or drop of any parts.

32_ outdoor bullet camera

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Before removing the Micro SD memory card, in , set the device to and press the [Apply] button and turn the camera off.

- If you turn off the camera or remove the Micro SO memory card that contains data from the product, the data may be lost or damaged.

Installation (Base Wall Mount)

[Directly installing on wall/ceiling]

1-1. Attach the installation template on the desired surface and drill holes for screws and cables.

1-2. Fix the Base Wall Mount using appropriate screws.
1-3. Pull out necessary cables among LAN/power/audio & alarm cables through the hole in the Base Wall Mount.

[Installing using pipe]

2-1. Attach the installation template and drill holes for screws and cables.

2-2. Separate the pipe cover of the Base Wall Mount by pressing its sides.

outdoor bullet camera

2-3. Place the pipe on the Base Wall Mount.
2-4. Fix the Base Wall Mount using appropriate screws.
2-5. Pull out necessary cables among LAN/power/audio & alarm cables through the pipe.

Installation (Case-bottom)

- Use a cable bush compliant with the LAN cable to be connected.

- Camera main: use a cable with the diameter of 65 to 6.5

-Components: use a cable with the diameter of 25 to 8.5

[Installing LAN/power cables]

1-1. Pull off the extruded parts of the bush to be used.
1-2. Route the LAN cable through the big hole of the bush and connect to the LAN connector.
1-3. (When using the power) Route the power cable through the small hole of the bush and connect it to the provided terminal block.

1-4. Mount the bush to the Case-bottom.

Technical line drawing of a mechanical assembly with labeled components (no readable text or symbols)

[Installing the LAN cable]

2-1. Pull off the extruded part of the 1-hole bush provided.
2-2. Use the cap installer to pass through the RJ45 cable.

34 outdoor bullet camera

2-3. Mount the bush to the Case-bottom.

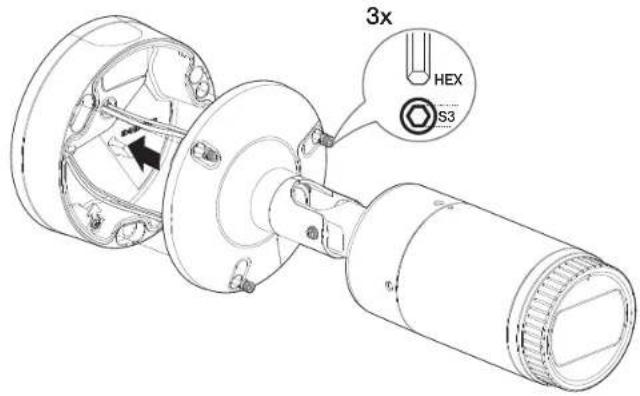

1. Join the Base Wall Mount with the Case-bottom.

[Installing audio & alarm cables]

3-1. Mount the bush of the provided audio & alarm cables to the Case-bottom.

Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

outdoor bullet camera

Installing the camera module

1. Hang the safety cable up on a hook that looks like an arrow in the Case-bottom.

Technical line drawing of a mechanical assembly with exploded view and close-up detail (no text or symbols)

1. Connect the LAN/power/audio & alarm cables to the camera module terminal.

Technical line drawing of an electronic device with internal components and wiring (no text or symbols)

36 outdoor bullet camera

1. Attach the camera module to the Case-bottom.

- Make sure to firmly tighten the fastening screws so that there is no water damage issue.

1. Adjust the camera direction using the L wrench provided.

- When you adjust the camera position using a bracket, please loosen the bracket screw, adjust the camera, and tighten it. If you attempt to adjust it forcibly while the screw is tight, it may result in a scratch or other problems.

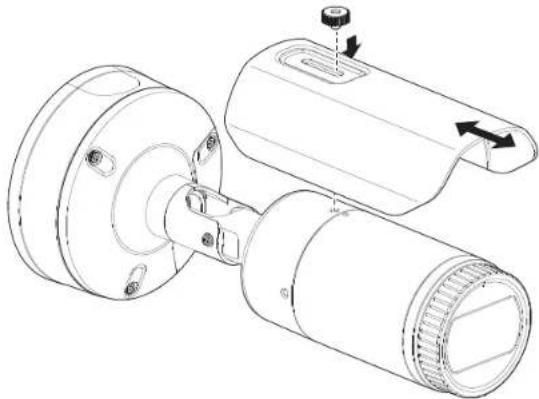

1. Assemble the sunshield to the camera module using sunshield screw.

Technical line drawing of a mechanical assembly with flange and housing (no text or symbols)

Outdoor installation

When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

1. Connect the power, I/O, and LAN cables.

2. Wrap the black cable jacket (Area A) and the cable connection area with waterproof (butyl rubber) tape so that more than half of the butyl rubber tape is overlapped.

• If the cable jacket is not waterproofed properly, then it can directly cause leakage. Make sure to protect the cable with a dense layer of taping.
• Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.

box camera

WHAT'S INCLUDED

As for each sales country, accessories are not the same.

Line drawing of a cylindrical mechanical device with mounting holes and a central circular component (no text or symbols)

Option (not included)

38 box camera

AT A GLANCE

MOUNTING THE LENS

Disconnect the power before proceeding.

■ The CS lens are not included in the product package.

It is recommended that megapool lens are use on this camera to optimise performance.

Mounting the CS lens on a camera

Turn the CS lens clockwise to attach it.

Connecting the Auto Iris Lens connector

Plug the iris connector of the lens in the camera connecting groove.

Line drawing of a mechanical device with cylindrical ports and a handle (no text or symbols)

Focusing

Select a target to film, turn the zoom lever of the lens to adjust the magnification and then focus the lens so that target is clearly displayed.

Line drawing of a mechanical device with rotating ports and wiring (no text or symbols)

After focusing with the zoom lever of the lens, press the [FOCUS] button on the rear of the camera to adjust the lens even more clearly.
- The I-CS lens is equipped with a motor so it can be adjusted with the web viewer for zoom / focus adjustment and iris open / close.

INSERTING/REMOVING A MICRO SD MEMORY CARD

Inserting a Micro SD Memory Card

Insert a Micro SD card in the arrow direction shown in the figure.

Before installing the camera, the Micro SD memory card should be inserted while the power source and the body are separated.
- Do not forcefully insert it in the reverse direction. It might damage your Micro SD memory card and your product.
- When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
- When installing/removing the Micro SD memory card, make sure you put the product body on a flat ground before working on it in order to prevent accidents due to loss or drop of any parts.

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Before removing the Micro SD memory card, in , set the device to and press the [Apply] button and turn the camera off.
- If you turn off the camera or remove the Micro SO memory card that contains data from the product, the data may be lost or damaged.

ADJUSTING THE MONITORING DIRECTION FOR THE CAMERA

- Adjusting the monitoring direction

You can adjust the camera direction only when the camera is fixed on the ceiling. At this time, rotating the main body of the camera in the left and right direction is called PAN, and adjusting the angle of the camera is called TILT.

• The pan angle is 0^ - 360^
• The tilt angle is -45° - 85°.
• The rotation angle is 0° - 355°.

In 75° or more tilt angle, a blockage of view or burned image may occur in some part of the screen depending on the zoom magnification.

Do not forcefully rotate or press the focus/zoom ions. Otherwise, the focus might not work properly due to motor failure.

- Methods of adjustment

1. Adjust the pan angle taking account of the direction to monitor.
2. Adjust the horizontal angle so that the video does not flip when rotated.
3. Adjust the tilt angle toward the direction to monitor.

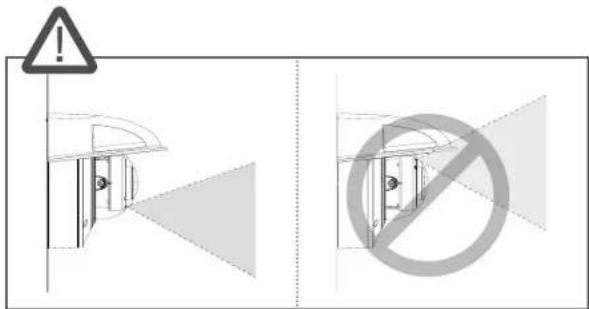

- Adjust the direction of IR LEDs not to hinder their view by an instrument.

- Adjust the direction of IR LEDs not to hinder their view by a weather cap (if any).

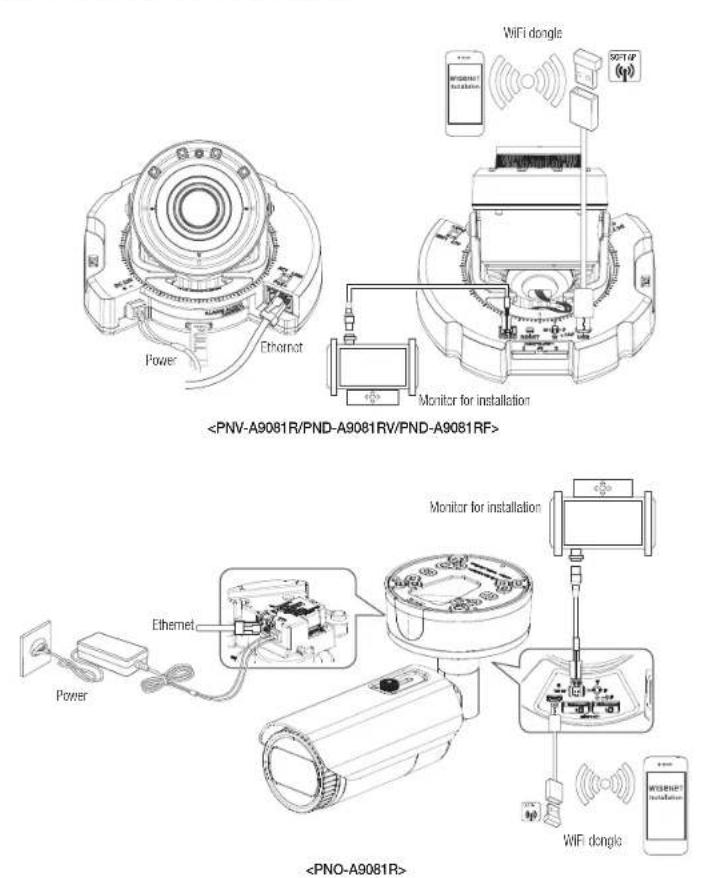

CONNECTING WITH OTHER DEVICE

The CVBS out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.

- The Micro USB out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes.

Ethernet Connection

Connect the Ethernet cable to the local network or to the Internet.

Connecting WiFi

Camera Setup

1. Connect OTG adapter (5-pin) and WIFI dongle to the micro USB terminal.

Smartphone Setup

1. Install the Wisenet Installation application.
2. Select the camera SSID after turning on the WiFi.
3. Run the Wisenet Installation application.
4. When you log in to the camera, the video will be connected.

- The video will be played without being logged in during the initial connection.

1. You can adjust angle of view while watching the video through smartphone.

Recommended dongle manufacturer

Manufacturer Model
NETIS WF2123 n300
EDIMAX EW-7811Un
IP Time N100mini
TP-LINK TL-WN823N V1
ASUS USB-N13
NET3EAR WNA3100M

Power Supply

Use the screwdriver to connect each line (+, -) of the power cable to the corresponding power port of the camera.

If the power sources for PoE+ and DC 12 V are simultaneously turned on, the device power will be supplied by both of PoE+ and DC 12 V.

• You can also use a router featuring PoE+ to supply power to the camera.
• Use PoE+ that is compliant with the IEEE 802.3at protocols.
• Be careful not to reverse the polarity when you connect the power cable.
• If you want to connect an external device, you must turn off the external device before proceeding.
• Connect the set and the adapter power line first, and then connect the power cable to the outlet on the wall.

Power Cable Specification for Each Model

Model	Input power	Wire Type (AWG)	Cable Length (Max.)
PND-A9081RW	DC 12V	#18	15m
PND-A9081RF		#16	24m
PNV-A9081R		#18	15m
		#16	24m
PNO-A9081R	DC 12V	#18	18m
		#16	29m
PNB-A9001	DC 12V	#18	18m
		#16	29m

Network Cable Specification

Item	Contents	Remark
Connector	RJ-45(10/100/1000BASE-T)
Ethernet	10/100/1000BASE-T
Cable	Category 6
Max Distance	100M
PoE Support	IEEE 802.3at

installation & connection

Connecting to Audio Input/Output

1. Connect the AUDIO IN port of the camera with the microphone or LINE OUT port of the amplifier that the microphone is connected to.

• You can use the internal microphone of the camera without an external microphone connection (only applicable for PND-A9081RV / PNB-A9001).
• Connect the AUDIO OUT port of the camera with the speaker or LINE IN port of the amplifier that the speaker is connected to.
• Check the specifications for audio input.

• Audio Codec

• Audio In : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz), G.726 ADPCM (Bit Rate: 16Kops, 24Kbps, 32Kops, 40Kops / Sampling Frequency: 8kHz), AAC (Bit Rate: 48Kops / Sampling Frequency: 16kHz)
• Audio Out : G.711 PCM (Bit Rate: 64kbps / Sampling Frequency: 8kHz)

• Full duplex Audio

• Audio in (PND-A9081RV/PNB-A9001): Selectable (microphone/Line-in/Built-in microphone), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
• Audio In (PNV-A9081R/PND-A9081RF/PNO-A9081R): Selectable (microphone/Line-In), Supported voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
  • Audio out : Line-out (3.5mm mono jack), Maximum output: 1Vms
  • Line out impedance : 600Ω

- In the case you access the web viewer and select an external microphone as the audio input sources in

• Frequency range: 40-16.000 Hz
• Impedaros: 1,500 Ω
• Sensitivity: -40±3 dB (7.1-14.1 mV)

In any of the following cases, sound classification performance may be degraded or malfunction:

• If gunshot sounds are heard continuously in a short interval (e.g. machine gun sound) rather than a one-time gunshot sound
• If the noise is too loud for the noise and the target sound to be distinguished
• If two or more of different sounds are registered simultaneously
• If the sound classification is applied while using the noise removal function in a quiet place
• If the source of clapping sounds or screams is close to the camera (within 1 meter)
• If a sound that does not belong to any of the sound classification categories (airplanes sound, siren sound, etc.) is loudly heard all of sudden
• If external microphone does not meet the recommended specifications.

Connecting to the I/O port box

Connect the Alarm I/O cable to the corresponding port of the port box.

- ALARM #1: Used to connect the alarm input sensor or external day/night sensor.

• ALARM #2: Used to connect the alarm output signal.
  • GND : Common port for alarm in/output signal.

- If devices (e.g., flashing light and sron) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction.

Refer to the "Alarm Out Wiring Diagram" when connecting devices that exceed the voltage and current specifications. (page 46)

To connect the external sensor

Connect one strand of each signal line (2-strand) of the sensors to the [ALARM #1] port, and connect the other strand to the [GND] port.

Connecting to the I/O port box(PNB-A9001)

Connect the Alarm I/O cable to the corresponding port of the port box.

- ALARM #1: Used to connect the alarm input sensor or external day/night sensor.

• ALARM #2: Used to connect the alarm output signal.
  • GND ; Used for earth-grounding.
  • RS-485+ ; Communication port for RS-485 receiver (+),
• RS-485- : Communication port for RS-485 receiver (-).

installation & connection

Alarm In Wiring Diagram

To connect the alarm out

If devices (e.g., flashing light and siren) that exceed the voltage and current specifications are connected by using the open collector method, it may cause malfunction.

Refer to the alarm out connection diagram below when connecting devices that exceed the voltage and current specifications.

Alarm Out Wiring Diagram

When the warning light/siren exceeds DC12V/50mA

When the warning light/siren does not exceed DC12V/50mA

network connection and setup

You can set up the network settings according to your network configurations.

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING

Connecting to the camera from a local PC in the LAN

1. Launch an Internet browser on the local PC.
2. Enter the IP address of the camera in the address bar of the browser.

• A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet if the port-forwarding is not properly set or a firewall is set. In this case, to resolve the problem, contact your network administrator.
• By factory default, the IP address will be assigned from the DHCP server automatically. If there is no DHCP server available, the IP address will be set to 192.108.1.100. To change the IP address, use the Device Manager. For further details on Device Manager use, refer to "Using Device Manager", (Page 48)

CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM

1. Connect the user PC directly with the network camera.
2. Run the Device Manager and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] - [DDNS] and configure the DDNS settings.
6. Move to [Basic] - [IP & Port], and set the IP type to [DHCP].
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.

• For information on how to set DONS, refer to the online help of Web Viewer.
• For information on how to set the IP format, refer to the online help of Web Viewer.

USING DEVICE MANAGER

• Device manager program can be downloaded from -- menu at Hanwha Techwin website (http://www.hanwha-security.com).
• More instructions of Device Manager can be found at menu of the main page.

AUTOMATICALLY SEARCHING CAMERA

If a camera is connected to the same network of the PC where device manager is installed, you can find network camera by using search function.

1. Click at the main page of device manager.
2. Check the camera from the list.

- Check MAC address at the sticker attached to the camera.

CONFIGURING IP ADDRESS

If you want to change camera network setting, sign must be displayed at . Click at the main page to log in.

Configuring Static IP

Manually insert and configure IP address & port information.

1. Click the camera from the list that you want the change the IP setting.
2. Click at the main page of device manager.
3. Select .

- IP information of the camera will be displayed as previously set.

1. Fill in IP & Port related categories.

If not using a Broadband Router

For setting , , and , contact your network administrator.

• HTTP Port: Used to access the camera using the Internet browser, defaulted to 80.
• RTSP Port: A port that controls real-time streaming. The initial value is 554.

If using a Broadband Router

• IP Address: Enter an address falling in the IP range provided by the Broadband Router.
  ex) 192.168.1.2-254, 192.168.0.2-254, 192.168.XXX.2-254

• Subnet Mask: The of the Broadband Router will be the of the camera.

• Gateway: The of the Broadband Router will be the of the camera.

• The settings may differ depending on the connected Broadband Router model. For more information, refer to the user manual of the applicable router.
• For more information about port forwarding of the broadband router, refer to "Port Range Forward (Port Mapping) Setup" (Page 50)

If the Broadband Router has more than one camera connected

Configure the IP related settings and the Port related settings distinctly with each other.

exi

Category Camera #1 Camera #2
IP related settings	IP Address	192.168.1.100	192.168.1.101
	Subnet Mask	255.255.255.0	255.255.255.0
	Gateway	192.168.1.1	192.168.1.1
Port related settings	HTTP Port	8080	8081
	RTSP Port	554	555

- If the is set other than 80, you must provide the number in the address bar of the Internet browser before you can access the camera.

ex) http://AP address: HTTP Port
http://192.168.1.100:8080

1. Click [Apply] Button.
2. If the success message is displayed, click [OK].

Configuring Dynamic IP

Receive IP address from DHCP

• Example of the Dynamic IP environment
- If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server
- If connecting the camera directly to modem using the DHCP protocols
- If IPs are assigned by the internal DHCP server via the LAN

1. Click the camera from the list that you want to change the IP setting.
2. Click at the main page of device manager.
3. Select
4. Click [Apply] button.
5. If the success message is displayed, click [OK].

MANUALLY REGISTERING CAMERA

If the camera cannot be found using search function, the camera can be registered remotely by manually inserting IP information, if the camera is connected to external network.

1. Click - at the main page of device manager.
2. Insert the range of IP address that you search.
3. Select the of the camera that you register, and insert HTTP port, ID, and password.
4. Click [Register] button.
5. Check if camera is registered.
6. Check MAC address at the sticker attached to the camera.

AUTOMATICALLY CONFIGURING IP

1. Click the camera from the list that you want to automatically configure the IP.
2. Click <+ > at the main page of device manager. • Equipment Setting menu appears.
3. At the menu, click .
4. Click [Close] button.

PORT RANGE FORWARD (PORT MAPPING) SETUP

If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the Broadband Router so that a remote PC can access the camera in it.

Manual Port Range Forwarding

1. From the Setup menu of the Broadband Router, select - . For setting the port range forward for a third-party Broadband Router, refer to the user guide of that Broadband Router.
2. Select and for each connected camera to the Broadband Router. The number of each port to be configured to the IP router should be set according to the port number designated in - - on the camera web viewer.
3. When done, click [Save Settings]. Your settings will be saved.

- Port forwarding setting is an example of setting CISCO IP router. - The settings may differ depending on the connected Broadband Router model. For more information, refer to the user manual of the applicable router.

Setting up Port Range Forward for several network cameras

• You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page.
• A user can change each port using the camera setting screen.

When Camera1 and Camera2 are connected to a router :

- Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. After connecting the network camera, select the checkbox from the menu in in 'Settings -> Network -> DDNS'.

CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC

1. Run device manager. It will scan for connected cameras and display them as a list.
2. Double-click a camera to access. The Internet browser starts and connects to the camera.

- Access to the camera can also be gained by typing the camera's IP address in the address bar of the Internet browser.

CONNECTING TO THE CAMERA FROM A REMOTE PC VIA THE INTERNET

On a remote computer that is not in the Broadband Router's network cluster is not allowed, users can access cameras within a Broadband Router's network by using the camera's DDNS URL.

1. Before you can access a camera in the Broadband Router network, you should have set the port range forward for the Broadband Router.
2. From the remote PC, launch the Internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.hanwha-security.com/ID

To use Wisenet DDNS, sign up at the Wisenet DDNS homepage (http://dcns.hanwha-security.com) and register the product at [My DDNS]>[Register Product].

CONNECTING TO THE CAMERA

Normally, you would

1. Launch the Internet browser.

2. Type the IP address of the camera in the address bar.

ex) • IP address (IPv4) : 192.168.1.100 →

http://192.168.1.100

- the Login dialog should appear.

• IP address (IPv6) : 2001:230:abcd: ffff:0000:0000:ffff:1111

→ http://[2001:230:abcd:ffff:0000:0000:ffff:1111] - the Login

dialog should appear.

If the HTTP port is other than 80

1. Launch the Internet browser.

2. Type the IP address and HTTP port number of the camera in the address bar.

ex) IP address : 192.168.1.100:HTTP Port number(8080)

→ http://192.168.1.100:8080 - the Login dialog should appear.

Using URL

1. Launch the Internet browser.

2. Type the DDNS URL of the camera in the address bar.

ex) URL address : http://ddns.hanwha-security.com/ID

- the Login dialog should appear.

■ Network connection is disabled in the LAN only environment.

Connecting via UPnP

1. Run the client or operating system in support of the UPnP protocol.

2. Click the camera name for search.

In the Windows operating system, click the camera name searched from the network menu.

- The login window is displayed.

Connecting via Bonjour

1. Run the client or operating system in support of the Bonjour protocol.
2. Click the camera name for search.

In the Mac operating system, click the camera name searched from the Bonjour tab of Safari.

- The login window is displayed.

To check the DDNS address

If the camera is connected directly to a DHCP-based cable modem or DSL modem, the IP address will change each time it tries to connect to the ISP (the company you subscribed to).

If this is the case, you will not be informed of the IP address changed by DDNS.

Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP when you try to access the device.

To register your device to the server, visit http://ddns.hanwha-security.com and register your device

first, and then set the Web Viewer's - to , as well as providing

that had been used for DDNS registration.

PASSWORD SETTING

When you access the product for the first time, you must register the login password.

• For a new password with 8 to 9 digits, you must use at least 3 of the following: uppercase/lovercase letters, numbers and special characters. For a password with 10 to 15 digits, you must use at least 2 types of those mentioned. -Special characters that are allowed: : -1@#\$%^*/_+ = [ ],?
• For higher security, you are not recommended to repeat the same characters or consecutive keyboard inputs for your passwords.
• If you lost your password, you can press the [RESET] button to initialize the product. So, don't lose your password by using a memo pad or memorizing it.

LOGIN

Whenever you access the camera, the login window appears. Enter the User ID and password to access the camera.

1. Enter "admin" in the input box. The administrator ID, "admin", is fixed and can not be changed.
2. Enter the password in the input field.
3. Click [OK] If you have logged in successfully, you will the Live Viewer screen.

- When you access the camera web viewer, pay special attention to the security by checking whether the image data is encrypted.

• if you check the "Remember my credentials" option when your input is done, in future you will be logged in automatically without being prompted to enter the login information.
• You will experience the best video quality if the screen size is 100%. Reducing the ratio may cut the image on the borders.

CAMERA WEB VIEWER SETUP

1. Click the [Setup (◆ icon.
2. The Settings window appears.
3. You can configure settings for the camera's basic information, video, audio, network, event, analysis, and system over the network.
4. Click to view detailed descriptions of each function.

appendix

SPECIFICATION

Items		Description
		PWV-A9081R
Video	Imaging Device	1/1.8" 8MP CMOS
	Effective Pixels	3864(H) x 2180(V)
	Min. Illumination	Color: 0.05Lux(F1.6, 1/30sec)BW: 0lux(IR LED on)
	Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720x480(fV), 720x576(P) for installationUSB : Micro USB type B, 1280x720 for installation
Lens	Focal Length (Zoom Ratio)	4.5~10mm(2.2x) motorized varifocal
	Max. Aperture Ratio	F1.6(Wide)~F2.65(Tele)
	Angular Field of View	H: 101.4°(Wide) ~ 45.5°(Tele)V: 53.6°(Wide) ~ 25.5°(Tele)D: 120.7°(Wide) ~ 52.3°(Tele)
	Min. Object Distance	0.5m (1.64ft)
	Focus Control	Simple focus
	Lens Type	DC Auto Iris, P-iris
Pan / Tilt / Rotate	Pan / Tilt / Rotate range	0°~360° / -45°~85° / 0°~355°
Operational	IR Viewable Length	30 m(98.42 ft)
	Camera Title	Off / On (Up to 85 characters)
	Day & Night	Auto(CR)
	Backlight Compensation	BLC, WDR, SSDR
	Wide Dynamic Range	120dB
	Digital Noise Reduction	SSNR V
	Digital Image Stabilization	Support (built-in Gyro Sensor)
	Motion Detection	8ea, polygonal zones

Items		Description
		PNV-A9081R
Operational	Privacy Masking	6ea, rectangle zones- Color: Gray / Green / Red / Blue / Black / White
	Gain Control	Low / Middle / High
	White Balance	ATW / AWC / Manual / Indoor / Outdoor
	LDC	Support
	Electronic Shutter Speed	Minimum / Maximum / Anti flickor (1/5-1/12,000sec)
	Digital PTZ	Support(Preset, Group)
	Video Rotation	Flip, Mirror, Hallway view(90°/270')
	Analytics	- Classified object type : Person/Face/Vehicle/License plate with attributes,BostShot por object- Analytics events based on AI engine : Object detection, Directional detection,Digital auto tracking, Enter/Ext. Lohoring, Virtual line- Analytics events : Defocus detection, Motion detection Appear/Disappear,Tampering, Audio detection, Sound classification, Shock detection
	Business Intelligence	People counting, Queue management, Heatmap based on AI engine
	Alarm I/O	Input 1ea / Output 1ea / 12V Power (Max. 50mA) 1ea
	Alarm Triggers	Analytics, Network disconnect, Alarm input
	Alarm events	• File upload via FTP, E-Mail• Notification via E-Mail• SD/SDHQ/SDXC or NAS recording at event triggers• Alarm output• Handover
	Audio In	Selectable (Mic IN/Line IN)Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K Ohm
	Audio out	Line out, Max output level: 1 Vrms
Network	Ethernet	RJ-45(10/100/1000BASE-T)
	Video Compression	H.265/H.264: Main/High, MJPEG
	Resolution	3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
	Max. Framerate	H.265/H.264: Max. 30Ips/25Ips/60Hz/50HzMJPEG: Max. 15Ips/12fps/60Hz/50Hz
	Smart Codec	Manual(5oa area), WisoStream II
	Video Quality Adjustment	H.264/H.265: Target bitrate level controlMJPEG: Quality level control
	Bitrate Control	H.264/H.265 : CBR or VBRMJPEG : VBR
	Streaming	Unicast(20 users) / MulticastMultiple streaming(Up to 3 profiles)
	Audio Compression	G.711 μ-law /G.726 SelectableG.726 (ADPCM) 8KHz, G.711 8KHzG.726 : 16Kbps, 24Kbps, 32Kbps, 40KbpsAAC-LC : 48Kbps at 16KHz

Items		Description
		PNV-A9081R
Network	Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP/UDP, RTP/TCP, RTCP, RTSP, NTP, HTTP, HTTPS SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP/Vp1/V2/V3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
	Security	HTTPS:SSL, Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1x Authentication (EAP-TLS, EAP-LEAP)Device Certificate(Hanwha Techwin Root CA)
	Edge Storage	Micro SD/SDHC/SDXC 2slots 512GB
	Application Programming Interface	ONWIF Profile S/G/TSUNAPI(HTTP API)Wisenet Open Platform
	Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
	Web Viewer	Supported OS : Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14Recommended Browser : Google ChromeSupported web browsers : MS Explorer11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
	Memory	4006MB RAM, 512MB Flash
Environmental	Operating Temperature / Humidity	-40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH* Start up should be done at above -30°C
	Storage Temperature / Humidity	-50°C ~ +80°C (-58°F ~ +140°F) / Less than 90% RH
	Certification	IP66AP67/IP6X0K, IK10 -, NEMA4X
Electrical	Input Voltage	PoE=IEEE802.3af), 12VDC
	Power Consumption	PoE= Max 20.0 W, typical 17.0 W12VDC: Max 18.7 W, typical 15.0 W
Mechanical	Color / Material	White / Aluminum
	RAL Code	RAL9003
	Product dimensions / weight	∅180 x 125 mm(7.09 x 4.92") / 1.90 kg(4.19 lb)

appendix

Items		Description
		PND-A9061RV
Video	Imaging Device	1/1.8" 8MP CMOS
	Effective Pixels	3864(H) x 2190(V)
	Min. Illumination	Color: 0.05Lux(F1.6, 1/30sec)BW: 0Lux(IR LED or)
	Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installationUSB : Micro USB type B, 1280x720 for installation
Lens	Focal Length (Zoom Ratio)	4.5~10mm(2.2x) motorized varifocal
	Max. Aperture Ratio	F1.6(Wide)~F2.65(Tele)
	Angular Field of View	H: 101.4°(Wide) ~ 45.5°(Tele)V: 53.6°(Wide) ~ 25.5°(Tele)D: 120.7°(Wide) ~ 52.3°(Tele)
	Min. Object Distance	0.5m (1.64ft)
	Focus Control	Simple focus
	Lens Type	DC Auto Iris, P-iris
Pan / Tilt / Rotate	Pan / Tilt / Rotate range	0°~360° / -45°~85° / 0°~385°
Operational	IR Viewable Length	30 m(38.42 ft)
	Camera Title	Off / On (Up to 85 characters)
	Day & Night	Auto(ICR)
	Backlight Compensation	BLC, WDR, SSDR
	Wide Dynamic Range	120dB
	Digital Noise Reduction	SSNR V
	Digital Image Stabilization	Support (built-in Gyro Sensor)
	Motion Detection	8ea, polygonal zones

Items		Description
		PND-A9061RV
Operational	Privacy Masking	6ea, rectangle zones- Color: Gray / Green / Red / Blue / Black / White
	Gain Control	Low / Middle / High
	White Balance	ATW / AWC / Manual / Indoor / Outdoor
	LDC	Support
	Electronic Shutter Speed	Minimum / Maximum / Anti flickor (1/5-1/12,000sec)
	Digital PTZ	Support(Preset, Group)
	Video Rotation	Flip, Mirror, Hallway view(90°/270°)
	Analytics	- Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot por object- Analytics events based on AI engine : Object detection, Directional detection, Digital auto tracking, Enter/Ext. Lohoring, Virtual line- Analytics events : Defocus detection, Motion detection. Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection
	Business Intelligence	People counting, Queue management, Heatmap based on AI engine
	Alarm I/O	Input 1ea / Output 1ea / 12V Power (Max. 50mA) 1ea
	Alarm Triggers	Analytics, Network disconnect, Alarm input
	Alarm events	• File upload via FTP, E-Mail• Notification via E-Mail• SD/SDHQ/SDXC or NAS recording at event triggers• Alarm output• Handover
	Audio In	Selectable (Mic IN/Line IN/Built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K Ohm
	Audio out	Line out, Max output level: 1 Vrms
Network	Ethernet	RJ-45(10/100/1000BASE-T)
	Video Compression	H.265/H.264: Main/High, MJPEG
	Resolution	3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
	Max. Framerate	H.265/H.264: Max. 30Ips/25Ips/60Hz/50HzMJPEG: Max. 15Ips/12fps/60Hz/50Hz
	Smart Codec	Manual(5oa area), WisoStream II
	Video Quality Adjustment	H.264/H.265: Target bitrate level controlMJPEG: Quality level control
	Bitrate Control	H.264/H.265 : CBR or VBRMJPEG : VBR
	Streaming	Unicast(20 users) / MulticastMultiple streaming(Up to 3 profiles)
	Audio Compression	G.711 μ-law /G.726 SelectableG.726 (ADPCM) 8KHz, G.711 8KHzG.726 : 16Kbps, 24Kbps, 32Kbps, 40KbpsAAC-I.C : 48Kbps at 16KHz

Items		Description
		PND-A9061RV
Network	Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP/UDP, RTP/TCP, RTCP, RTSP, NTP, HTTP, HTTPS SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP/V1/V2/V3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
	Security	HTTPS:SSL, Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1x Authentication (EAP-TLS, EAP-LEAP)Device Certificate(Hanwha Techwin Root CA)
	Edge Storage	Micro SD/SDHC/SDXC 2slots 512GB
	Application Programming Interface	ONWIF Profile S/G/TSUNAPI(HTTP API)Wisenet Open Platform
	Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
	Web Viewer	Supported OS : Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14Recommended Browser : Google ChromeSupported web browsers : MS Explorer11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
	Memory	4006MB RAM, 512MB Flash
Environmental	Operating Temperature / Humidity	-25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH (IR LED on)-25°C ~ +55°C (-13°F ~ +131°F) / Less than 90% RH (IR LED off)
	Storage Temperature / Humidity	-50°C ~ +80°C (-58°F ~ +140°F) / Less than 90% RH
	Certification	IP52, IK10
Electrical	Input Voltage	PoE=IEEE802.3af), 12VDC
	Power Consumption	PoE= Max 20.0 W, typical 16.0 W12VDC: Max 17.7 W, typical 14.0 W
Mechanical	Color / Material	White / Aluminum
	RAL Code	RAL9003
	Product dimensions / weight	150 x 125 mm(6.30 x 4.92") / 1.60 kg(3.53 lb)

appendix

Items		Description
		PND-A9061RF
Video	Imaging Device	1/1.8" 8MP CMOS
	Effective Pixels	3864(H) x 2190(V)
	Min. Illumination	Color: 0.05Lux(F1.6, 1/30sec)BW: 0Lux(IR LED or)
	Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installationUSB : Micro USB type B, 1280x720 for installation
Lens	Focal Length (Zoom Ratio)	4.5~10mm(2.2x) motorized varifocal
	Max. Aperture Ratio	F1.6(Wide)~F2.65(Tele)
	Angular Field of View	H: 101.4°(Wide) ~ 45.5°(Tele)V: 53.6°(Wide) ~ 25.5°(Tele)D: 120.7°(Wide) ~ 52.3°(Tele)
	Min. Object Distance	0.5m (1.64ft)
	Focus Control	Simple focus
	Lens Type	DC Auto Iris, P-iris
Pan / Tilt / Rotate	Pan / Tilt / Rotate range	0°~360° / -45°~85° / 0°~385°
Operational	IR Viewable Length	30 m(38.42 ft)
	Camera Title	Off / On (Up to 85 characters)
	Day & Night	Auto(ICR)
	Backlight Compensation	BLC, WDR, SSDR
	Wide Dynamic Range	120dB
	Digital Noise Reduction	SSNR V
	Digital Image Stabilization	Support (built-in Gyro Sensor)
	Motion Detection	8ea, polygonal zones

Items		Description
		PND-A9061RF
Operational	Privacy Masking	6ea, rectangle zones- Color: Gray / Green / Red / Blue / Black / White
	Gain Control	Low / Middle / High
	White Balance	ATW / AWC / Manual / Indoor / Outdoor
	LDC	Support
	Electronic Shutter Speed	Minimum / Maximum / Anti flickor (1/5-1/12,000sec)
	Digital PTZ	Support(Preset, Group)
	Video Rotation	Flip, Mirror, Hallway view(90°/270°)
	Analytics	- Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot por object- Analytics events based on AI engine : Object detection, Directional detection, Digital auto tracking, Enter/Ext. Lohoring, Virtual line- Analytics events : Defocus detection, Motion detection. Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection
	Business Intelligence	People counting, Queue management, Heatmap based on AI engine
	Alarm I/O	Input 1ea / Output 1ea / 12V Power (Max. 50mA) 1ea
	Alarm Triggers	Analytics, Network disconnect, Alarm input
	Alarm events	• File upload via FTP, E-Mail• Notification via E-Mail• SD/SDHQ/SDXC or NAS recording at event triggers• Alarm output• Handover
	Audio In	Selectable (Mic IN/Line IN)Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K Ohm
	Audio out	Line out, Max output level: 1 Vrms
Network	Ethernet	RJ-45(10/100/1000BASE-T)
	Video Compression	H.265/H.264: Main/High, MJPEG
	Resolution	3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
	Max. Framerate	H.265/H.264: Max. 30Ips/25Ips/60Hz/50HzMJPEG: Max. 15Ips/12fps/60Hz/50Hz
	Smart Codec	Manual(5oa area), WisoStream II
	Video Quality Adjustment	H.264/H.265: Target bitrate level controlMJPEG: Quality level control
	Bitrate Control	H.264/H.265 : CBR or VBRMJPEG : VBR
	Streaming	Unicast(20 users) / MulticastMultiple streaming(Up to 3 profiles)
	Audio Compression	G.711 μ-law /G.726 SelectableG.726 (ADPCM) 8KHz, G.711 8KHzG.726 : 16Kbps, 24Kbps, 32Kbps, 40KbpsAAC-I.C : 48Kbps at 16KHz

Items		Description
		PND-A9061RF
Network	Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP/UDP, RTP/TCP, RTCP, RTSP, NTP, HTTP, HTTPS SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP/V1/V2/V3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
	Security	HTTPS:SSL Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1x Authentication (EAP-TLS, EAP-LEAP)Device Certificate(Hanwha Techwin Root CA)
	Edge Storage	Micro SD/SDHC/SDXC 2slots 512GB
	Application Programming Interface	ONWIF Profile S/G/TSUNAPI(HTTP API)Wisenet Open Platform
	Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
	Web Viewer	Supported OS : Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14Recommended Browser : Google ChromeSupported web browsers : MS Explorer11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
	Memory	4006MB RAM, 512MB Flash
Environmental	Operating Temperature / Humidity	-25°C ~ +50°C (-13°F ~ +122°F) / Less than 90% RH (IR LED on)-25°C ~ +55°C (-13°F ~ +131°F) / Less than 90% RH (IR LED off)
	Storage Temperature / Humidity	-50°C ~ +80°C (-58°F ~ +140°F) / Less than 90% RH
	Certification	IP52, IK10, Plenum rate
Electrical	Input Voltage	PoE=IEEE802.3af), 12VDC
	Power Consumption	PoE= Max 20.0 W, typical 16.0 W12VDC: Max 17.7 W, typical 14.0 W
Mechanical	Color / Material	White / Aluminum
	RAL Code	RAL9003
	Product dimensions / weight	6205 x 163 mm(8.07 x 6.42) / 1.95 kg(4.30 lb)

appendix

Items		Description
		PN0-A9081R
Video	Imaging Device	1/1.8" 8MP CMOS
	Effective Pixels	3864(H) x 2160(V)
	Min. Illumination	Color: 0.05LuxIF1.6, 1/30secBW: 0Lux(IR LED on)
	Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installationUSB : Micro USB type B, 1280x720 for installation
Lens	Focal Length (Zoom Ratio)	4.5~10mm(2.2x) motorized varifocal
	Max. Aperture Ratio	F1.6(Wide)~F2.6S(Tele)
	Angular Field of View	H: 101.4°(Wide) ~ 45.5°(Tele)V: 53.6°(Wide) ~ 25.5°(Tele)D: 120.7°(Wide) ~ 52.3°(Tele)
	Min. Object Distance	0.5m (1.54ft)
	Focus Control	Simple focus
	Lens Type	DC Auto Iris, P-iris
Operational	IR Vlowable Length	30 m(98.42 ft)
	Camera Title	Off / On (Up to 85 characters)
	Day & Night	Auto(ICR)
	Backlight Compensation	BLC, WDR, SSDR
	Wide Dynamic Range	120dB
	Digital Noise Reduction	SSNR V
	Digital Image Stabilization	Support (built-in Gyro Sensor)
	Motion Detection	8oa, polygonal zones

Items		Description
		PNO-A9081R
Operational	Privacy Masking	6ea, rectangle zones- Color: Gray / Green / Red / Blue / Black / White
	Gain Control	Low / Middle / High
	White Balance	ATW / AWC / Manual / Indoor / Outdoor
	LDC	Support
	Electronic Shutter Speed	Minimum / Maximum / Anti flickor (1/5~1/12,000sec)
	Digital PTZ	Support(Preset, Group)
	Video Rotation	Flip, Mirror, Hallway view(90°/270°)
	Analytics	- Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot por object- Analytics events based on AI engine : Object detection, Directional detection, Digital auto tracking, Enter/Ext. Lohoring, Virtual line- Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification, Shock detection
	Business Intelligence	People counting, Queue management, Heatmap based on AI engine
	Alarm I/O	Input 1ea / Output 1ea / 12V Power (Max. 50mA) 1ea
	Alarm Triggers	Analytics, Network disconnect, Alarm input
	Alarm events	• File upload via FTP, E-Mail• Notification via E-Mail• SD/SDHQ/SDXC or NAS recording at event triggers• Alarm output• Handover
	Audio In	Selectable (Mic IN/Line IN) Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K Ohm
	Audio out	Line out, Max output level: 1 Vrms
Network	Ethernet	RJ-45(10/100/1000BASE-T)
	Video Compression	H.265/H.264: Main/High, MJPEG
	Resolution	3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
	Max. Framerate	H.265/H.264: Max. 30Ips/25Ips/60Hz/50HzMJPEG: Max. 15Ips/12fps/60Hz/50Hz
	Smart Codec	Manual(5oa area), WisoStream II
	Video Quality Adjustment	H.264/H.265: Target bitrate level controlMJPEG: Quality level control
	Bitrate Control	H.264/H.265 : CBR or VBRMJPEG : VBR
	Streaming	Unicast(20 users) / MulticastMultiple streaming(Up to 3 profiles)
	Audio Compression	G.711 μ-law/G.726 SelectableG.726 (ADPCM) 8KHz, G.711 8KHzG.726 : 16Kbps, 24Kbps, 32Kbps, 40KbpsAAC-LC : 48Kbps at 16KHz

Items		Description
		PNO-A9081R
Network	Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP/UDP, RTP/TCP, RTCP, RTSP, NTP, HTTP, HTTPS SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1Ax2v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
	Security	HTTPS:SSL, Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1x Authentication (EAP-TLS, EAP-LEAP)Device Certificate(Hanwha Techwin Root CA)
	Edge Storage	Micro SD/SDHC/SDXC 2slots 512GB
	Application Programming Interface	ONVIF Profile S/G/TSUNAPI(HTTP API)Wisenet Open Platform
	Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
	Web Viewer	Supported OS : Windows 8.1, 10, Mac OS X 10.12, 10.13, 10.14Recommended Browser : Google ChromeSupported web browsers : MS Explorer11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
	Memory	4096MB RAM, 512MB Flash
Environmental	Operating Temperature / Humidity	-40°C ~ +50°C(-40°F ~ +131°F) / Less than 90% RH* Start up should be done at above -30°C
	Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
	Certification	IP66/IP67, IK1D, NEMA4X
Electrical	Input Voltage	PoE=IEEE802.3af), 12VDC
	Power Consumption	PoE= Max 20.0 W, typical 17.0 W12VDC; Max 18.0 W, typical 16.0 W
Mechanical	Color / Material	Dark grey / Aluminum
	Product dimensions / weight	∅91.0x368.6 mm (3.58" x 14.51") (Without sunshield) / 2.48 Kg (5.47 lb)

appendix

Items		Description
		PNB-A9001
Video	Imaging Device	1/1.8" 8MP CMOS
	Effective Pixels	3864(H) x 2190(V)
	Min. Illumination	Color: 0.03Lux|F1.2, 1/30secj
	Video Out	CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installationUSB : Micm USB type B, 1280x720 for installation
Lens	Focus Control	Simple focus
	Lens Type	DC Auto Iris, P-Iris, Manual, I-CS
	Mount Type	C mount, CS mount
Operational	Camera Title	Off / On (Up to 85 characters)
	Day & Night	Auto(ICR)
	Backlight Compensation	BLC, WDR, SSDR
	Wide Dynamic Range	120dB
	Digital Noise Reduction	SSNR V
	Digital Image Stabilization	Support (built-in Gyro Sensor)
	Motion Detection	8ea, polygonal zones
	Privacy Masking	6ea, rectangle zones- Color: Gray / Green / Red / Blue / Black / White
	Gain Control	Low / Middle / High
	White Balance	ATW / AWC / Manual / Indoor / Outdoor
	LDC	Support

Items		Description
		PNB-A9001
Operational	Electronic Shutter Speed	Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
	Digital PTZ	Support/preset, Group
	Video Rotation	Flip, Mirror, Hallway view(90°270°)
	Analytics	- Classified object type : Porson/Faco/Vehicle/License plate with attributes, BestShot per object- Analytics events based on AI engine : Object detection, Directional detection, Digital auto tracking, Enter/Ext. Lottering, Virtual line- Analytics events : Defocus detection, Motion detection. Appear/Disappear, Tampering, Audio detection, Sound classification. Shock detection
	Business Intelligence	People counting, Queue management L. Heatmap based on AI engine
	Serial Interface	RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
	Alarm I/O	Input 1ca / Output 1ca / 12V Power (Max. 50mA) 1ca
	Alarm Triggers	Analytics, Network disconnect, Alarm input
	Alarm events	• File upload via FTP, E-Mail• Notification via E-Mail• SD/SDHC/SDXC or NAS recording at event triggers• Alarm output• Handover
	Audio In	Selectable (mic livline in/Built in MIC)Supply voltage: 2.5VDC(4mA). Input impedance: approx. 2K Ohm
	Audio out	Line out, Max output level: 1 Vrms
Network	Ethernet	RJ-45(10/100/1000BASE-T)
	Video Compression	H.265/H.264: Main/High, MJPEG
	Resolution	3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360
	Max. Framerate	H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
	Smart Codec	Manual(Sea area), WiseStream II
	Video Quality Adjustment	H.264/H.265: Target bitrate level control MJPEG: Quality level control
	Bitrate Control	H.264/H.265 : CBR or VBR MJPEG : VBR
	Streaming	Unicasi(20 users) / Multicast Multiple streaming(Up to 3 profiles)
	Audio Compression	G.711 μ-law /G.726 Selectable G.726 (ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz
	Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTP SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1A2o/x3,MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
	Security	HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1x Authentication (EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
	Edge Storage	Micro SD/SDHC/SDXC 2slots 512GB

Items		Description
		PNB-A9001
Network	Application Programming Interface	ONWIF Profile S/G/T SUNAPI(HTTP API) Wisenet Open Platform
	Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
	Web Viewer	Supported OS: Windows 8.1, 10. Mac OS X 10.12, 10.13, 10.14Recommended Browser: Google ChromeSupported web browsers: MS Explorer11, MS Edge, Mozilla Firefox (Window 64bit only), Apple Safari (Mac OS X only)
	Memory	4096MB RAM, 512MB Flash
Environmental	Operating Temperature / Humidity	-10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
	Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Electrical	Input Voltage	PoE=IEEE802.3a), 12VDC
	Power Consumption	PoE+: Max 16.5 W, typical 12.5 W12VDC; Max 13.5 W, typical 10.8 W
Mechanical	Color / Material	Black / Aluminum
	Product dimensions / weight	81 x 67 x 165 mm (3.19 x 2.64 x 6.48") / 0.88 kg(1.94 lb)

PRODUCT OVERVIEW

PNV-A9081R

Unit : mm [inch]

PND-A9081RV

Unit : mm [inch]

64_ appendix

PND-A9081RF

Unit : mm [inch]

PNO-A9081R

Unit : mm [inch]

Top-down schematic of a circular mechanical or electrical component with no visible text or symbols

Technical drawing of a circular mechanical component with hexagonal center and mounting holes (no text or symbols)

Circular diagram with symmetrical internal components and mounting holes, no text or symbols present

appendix

PNB-A9001

Unit : mm [inch]

TROUBLESHOOTING

PROBLEM SOLUTION
When an Windows 10 user accesses the web viewer through Chrome or Firefox, the sound volume of microphone changes periodically.	This is what happens when microphone driver has been set to Realtek driver.Install the High Definition Audio device (Windows Default Driver) or the third party driver as the microphone driver.
What are the specifications for WAVE files necessary to play audio at the time of an event?	Sampling rate of 48,000 KHz or less is recommended.For hits per sample (bpa), up to 9/16 bit is recommended.Only PCM encoding format is supported.
No video is displayed when accessing the plug-in free webviewer on Safari via HTTPS.	On the authentication popup window prompted when initially accessing https, click "View Authentication Certificate" and select the "Always trust when connecting to the designated webviewer IP" check box.If the webviewer continues failing to display a video after you select "Next" on the message window below, press the command key + Ω to exit the Safari browser, access again and follow the procedures stated above.
I can't access the camera from a web browser.	Check to make sure that the camera's Network settings are appropriate.Check to make sure that all network cables have been connected properly.If connected using DHCP, verify that the camera is able to acquire dynamic IP addresses without any proclon.If the camera is connected to a Broadband Router, verify that port forwarding is properly configured.
Viewer got disconnected during monitoring.	Connected Viewers become disconnected upon any change to camera or network configurations.Check all network connections.
The camera connected to the network is not detected in the Device Manager program.	Turn off the firewall settings on your PC and then search the camera again.
Images overlap.	Check whether two or more cameras are set to a single multicast address instead of different addresses. If a single address is used for multiple cameras, the images may overlap.
No image appears.	If the transmission method is set to multicast, check whether there is a router that supports multicast in the LAN the camera is connected to.

PROBLEM SOLUTION
Voice is not recorded even though audio Input settings are configured.	You must enable thecheck box in-
of, but no notification e-mail reaches me even when an analysis event had occurred.	Verify the settings in the following sequence:A. Checksettings.B. Theshould be set to.C. Check if theoption ofmenu is checked to use.
No signal is found at the Alarm Output port even when an Intelligent video analysis event is generated.	Check alarm output port settings.
Cannot record into the Micro SD memory card.	Check if the memory card is defective.
Micro SD memory card is inserted but the camera does not operate property.	Check if the memory card is inserted in the proper direction. Operation of memory card that is formatted by other devices is not guaranteed with this camera unitFormat the memory card again in→→menu.
Cannot record In the NAS.	Confirm that the information registered in the NAS is correct.
It reports that NAS setting has failed.	Confirm that the IP address of the NAS is valid.Confirm that the ID/password of the NAS is valid.Confirm that you can access the folder designated as the default folder using the ID of the NAS.Confirm that the NAS SMB/CIFS items are unchecked.Confirm that the NAS IP address and the camera IP address are in the same format ex) The NAS & camera subnet mask Initial value is 265.255.255.0.If the IP address is 192 * 68.20.32 then the NAS IP address should be in the range of 192.168.20.1-192.168.20.255.Check whether you tried to access as another user without formatting the default folder saved or used.Confirm that you used recommended NAS equipment.

OPEN SOURCE ANNOUNCEMENT

GPL/LGPL software license

The software included in this product contains copyrighted software that is licensed under the GPL/CGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to http://[e-mail]

If you want to obtain the complete Corresponding Source code in the physical medium such as CO-HOM, the cost of physically performing source distribution might be charged.

GPL SW
Component Name License URL

Bass Kamel	CFL 2.0
Busbox	CFL 2.0	http://www.busbox.net/downloads/snapshots
iproulsl-4.50	GHI 2.0
iplabras 1.4.21	GHI 2.0	http://ip.nellris.org/pub/sapiates
ethcnol 4.3	GHI 2.0
mss-1.5.2	CFL 2.0	http://m.sinfreked.org/pub/mnto-utle
ml-disg-2.11	CFL 2.0
ns-sppore-3.11	CFL 2.0	http://www.roanrspengsin.com/sppore/
wps_susiprent 2.6	GHI 2.0
bach 4.8.20	GHI 3.0
zomont	GHI 2.0

LGPL SW

Component Name License URL

g/lbc	LGH 2.0
Ineludie	LGPL 3.0
neon-0.29.6	LGPL 2.0 http://www.veicdes.org/neon/

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright ©1999. 1981 Free Software Foundation, Inc., S1 Franklin Street, Full Floor, Boston, MA 02110-1301, USA

Everyone is permitted to copy and distribute verbalizing copies of this license document, but changing it is not allowed.

Preamble

The license for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is inserted to guarantee your freedom to share and change this software. To make sure this software is true for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lowerer General Public License installed). You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not being used in the website or to access the license to distribute resources or less software and change for make service you wish! that you subscribe audio cards or can get it if you want it, that you can change the software or use phones of ill in how two types of programs can be done.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies or such a program, whether grants or for a fee, you must give the recipients all the rights that you have.

You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know then rights. We protect your rights with two steps:

(1) copyright the software, and (2) printer you this licensor which gives you legal permission to copy distribution and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputation.

I finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistribution of a free program will individually obtain patent licenses. In effect making the program proprietary. To prevent this, we have made a clear, that any patent must be licensed for everyone's free use or not licensed at all. The prices terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

Version 2, June 1961 Copyright (C) 1983, 1981 Free Software Foundation, Inc. 51 Franklin S

1. This License applies to any program or other work which contains a notice placed on the copyright holder saying it may be distributed under the terms of this General Public License.

the "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under

copyright law: that is to say, a work pertaining the Program of a portion of it, either relevant or with modification is and/or translated into another language. Hence, this translation is industry-inclusive limitations in the term 'transification' ^11 . Fresh language in accordance as 'true'.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not realized, and the output from the Program is covered only if its contents constitute a work based on the Program independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbal copies of the Program's source code as you receive it, in any medium, provided that you consciously and

appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty, keep intact all the notices that refer to this License and to the absence of any way to add due any copy Mississippi of the Program a copy of this License a copy with the Program.

You may charge a fee for the physical act of transferring a copy and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion of it, thus offering a work based on the Program, and copy and distribute such

modifications or work under the terms of Section I above, provided that you also most all of these conditions:

a) You must cause the modified ties to carry prominent notices stating that you charged the ties and the date of any change.

c) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any can thereof, to be licensed as a whole at no charge to all third parties under the terms or this license.

c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty for else, saying that you provide a warranty and that there may redistribute the program under these conditions, and telling the user how to view a copy of the License. (Exceptional the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and accurate works in themselves, then this license, and its terms, do not apply to those sections when you distribute them as separate works. But when you distute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of the Licensee, whose permission for other licenses extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program for a work based on the Programant a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may only and distribute the Program for a work based on it, under Section 2 in object size or executable form under the forms of Sections 1 and 2 above provides that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or.

b) Accompany it with a written offer, valid for or in cost three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a computer machine readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customerly used for software interchange; or

c) Accompany with the Information you received as to the other to distribute corresponding source code. (This alternative is allowed only for noncommodular distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications it is. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface filtration rules, plus the scripts used to control compilation and installation of the execution. However, as a special execution, the source code distributed need not include anything that is normally distributed in either source or binary form with the major

components sampler, kernel, and so only of the operating system on which the executable runs, unless that component shall accompanies the execution. If distribution of executable or object code is made by offering access to copy from a desired place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even enough third parties are not competed to copy the source along with the object code.

1. You may no copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is valid, and will automatically terminate your rights under this License.

However, parties who have received copies, or rights, from you under this License will not have their licensee terminated so long as such parties remain in full compliance.

1. You are not required to accept this License, except you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works.

These actions are prohibited by law. If you do not accept the License Therefore, by modifying or distributing the Program for any work based on the Program, you indicate your accordance of this License to do so, and all its terms and scope for copying, distributing or modifying the Program or worse based on it.

1. Each time you distribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercises of the rights granted herein. You are not responsible for enforcing compliance by third parties to the License

2. It, as a consequence of a court judgment or allegation on patent infringement or for any other reason (not limited to patent hours), conditions and implications on your whether by court order, agreement, or otherwise that contradicts the conditions of the Licensee, they do not excuse you from the conditions of this Licensee if you cannot distribute so as to satisfy simultaneously your obligations under this Licensee and any other pertinent obligations, then as a consequence you may not distribute the Program at all

For example, if a patent license would not permit royalty or distribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both I and this License would be to reinan elderly from distribution of the Program.

If any portion of this section is limited or un Therefore under any particular circumstances, the balance of the section is enhanced to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to impose any patents or other property, title claims or to contain validity at any such claims. This section has no the shift purpose or permitting the integrity of the two software distribution system, which is implemented by public license solutions. Many people have made numerous contributions to the order range of software distribution through that system in reliance on consistent application of this system; it is up to the author/funder to decide in the or she is willing to distribute software through any other system and a licensee cannot make contracts. This section is intended to make summary over what is allowed to be a consequence of time, time of sale.

1. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyright entities, the original copyright holder who places the Program under this license may act on explicit geographical distribution limitation excluding those countries so that distribution is permitted only in or among countries not thus exudated. In such case, the License incorporates the limitation as if written in the body of the License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in April to the present version, but may differ in initial to address new provisions or concerns. Each version is given a distinguishing version number. In this Program specifically a version number of the license which applies to all and any later version, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the License, you may choose any version ever published by the Free Software Foundation.

3. If you wish to incorporate parts or the Program into other tree programs where distribution conditions are different, write to the author to ask for permission for software which is copyrighted by the Free Software Foundation where it is the free Software Foundation: we sometimes make exceptions for this. Our decision will be guided by the two goes of preserving the tree status of all derivatives of our tree software and of promoting the anaring and cause of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM BY OWNED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "ASS" WITH OUT WARRANTY OF ANY KIND. CIT OR EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMULD WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM/FORME DEFECTIVE. YOU ASSUME THE COST OF ALL NECESSARY SERVENC, REPAIR OR COFFECTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY, WHO MAY MODIFY AND/OR REDISTRIBUTE DAMAGES, INCLUDING ANY GENERAL SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM INCLUDING BUT NOT LIMITED TO LOSS OF DATA ON DATA BEVERIFIED INNOVATE OF LOSS'S SUBMITTED BY YOU OR WITHOUT PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS, EVEN IF SUCH HOLD OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programme if you develop a new program, and you want it to be of the greatest possible use to the public, the best way is achieving this is to make it free software which everyone can reduce and change under these terms. To do so, all the following rules to the program, it is solved to attach them to the start of each source file. In most effectively convey the exclusion or warranty; and each file should have at least one "copyright" line and a pointer to where the full notice is found one line to give the program's name and an idea of what it does.

Copyright (C) any name of author

This program is free software; you can allocate it and/or modify it under the terms of the OKU General Public License as published by the Free Software Foundation, either version 2 of the License, or at your optionlany later version.

This program is distributed in the note that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FTNERS FOR A PARTICULAR PURPOSE. See that GNII Grand Punts License for more details

You should have received a copy of the GNU General Public License along with this program; I note, write to the free Software Foundation, Inc. of Franklin Street, Fifth Floor, Boston, MA 02, 10-1301 USA

Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Greenpension version 60. Copyright (C) your name of author Graceclark comes with A850. U1-1YND WARRANTY: for details type: show w. This is free software and you are welcome a reattribute under certain conditions; type: show o for details.

The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-closes or menu items-- whatever suite your program.

You should also get your employer if you work as a programmer your school, if any to sign a copyright disclaimer for the program it necessary. Here is a sample; alter me names;

Yoyodyne, Inc., hereby shallers all copyright interest in the program. (Showversion) (which makes parents all computers) written by James Hacker, signature of Ty Cozor, 1 April 1908. Ty Cozor, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is Limited as we want to do, use the CNU Lesser General Public Instead of the License.

GNU GENERAL PUBLIC LICENSE

Version 3.29 June 2007

Copyright © 2007 Free Software Foundation, Inc. http://aif.org

Everyone is permitted to copy and distribute verbalin copies of this license document, but changing it is not allowed.

Preamble

The GNU General Public License is a free, copyright license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and charge the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of or program, to make sure it running free software for all its users.

We, the Free Software Foundation, use the GNU General Public License for most of our software, it applies also to any other work released this way by its numbers.

You can apply it to your programs, too. When we speak of this software, we are rotating to freedom, not prior. Our General Public Licensee are designed to make sure that you have the freedom to distribute copies of this software and charge for them. If you wish, that your reader's source often can get if they want it, that you can charge the software or use prices of him new free programs, and that you know you can do these things.

In protect your rights, we need to prevent others from denying you those rights or arising you to surrender the rights. Therefore, you have certain responsibilities if you think in progress of the privilege, will you mostly be a opportunity to protect your freedom or other. Los Anquels, I was likely to come up on a

program, whether plans or for a key, you must search on for the recipients the same freedom that you received. You must make sure that they too, recover or can get the trouble code. And you must show that these tenis so they know their rights. Develops that use the GNU OFL protect your rights with two steps (1) instead of going on the software, and 20 other you this license giving you legal permission to copy, distribute and modify it! For the developers and users' protection, let their clearly explain that there is no entropy the first active, like both users' and users' safe, the Golf required that mortified and unfortified services are not able to support them. If you need to have a very little number of users access a real or run modified versions of the software inside one, although the manufacturer can do it. This is fundamentally incompatible with its role or promoting users' motion to change the activator. The systematic process of such audio occurs in the area of products for India only to use, which is precisely where it is most acceptable. Therefore, we have designed this version of the GPL to prohibit the protocols for times products. If such problems arise, subfamily in other domains, we want ready to extend the provision to those domains in future versions of the GPL, as needed to proceed, the freedom of

Finally, every program is threatened constantly by software patents. Status should not allow patents to respect for development and use of software on general-purpose computers, but in case that do, we wish to avoid the special anger that parents applied to a tree program could make it costly proprietary. To prevent me, the GPI assures that atoms cannot be used to render the program main tree. We please terms and conditions for copying, distribution and modification below:

TERMS AND CONDITIONS

1. Definitions.

'This License' refers to version 3 of the GNU General Public License.

Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconductor marks. "The Program" refers to any copyrightable work licensed under the License. Each licensea is addressed as "you". "Licensesa" and "recipients" may be individuals or organizations.

is "modify" a work means to copy from or adopt all or part of the work in a lesson requiring copyright permission, other than the making of an exact copy. The resulting work is also a "modified version" of the earlier work or a work "based on" the earlier work.

A "covered work" means either the unmodified Program or a work based on the Program.

To "protagate" a work means to do anything with it that, without permission, would make you directly or accordingly liable for infringement under applicable copyright law, except excaling if on a computer or modifying a private copy.

Propagation includes copying, distribution with or without modifications, making available to the public, and in some countries other activities as well.

To "conver" a work means any kind of perception that enakes other parties to make or receive copies. Were interaction with a user through a computer network, with no transfer of a copy is not conveying. An interactive user interface displays "Appropriate Legal Notices" to the event that it includes a converter and prominently visible feature that I displays an appropriate copyright notice, and (2) tells me her that there is no warranty for the work except to the extent that warranties are provided, that loiteres may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.

1. Source Code.

The "source code" for a work means the preferred form of the work for making modifications to i. "Object code" means any non-source form of a work.

A "Standard Interface" means an interface that either is an official standard defined by a recognized standards body, or in the case of interfaces specified for a particular programming language, and that a widely used among developers working in that language.

The "System Licenses" at an executable work includes anything, other than the work as a whole, that it is included in the normal form of packaging a Major Component, but which is not part of the Major Component, and it's serve only to enable use of the work with that Major Component, or to implement a Standard file flow for which an implementation is available to the public in source code form. A "Major Component", in this context, measures a major essential component (personal window system, and so on) or the specific operating system (if any or which the executable work runs, as a computer used to produce the work, or as a computer interpreter used to run it).

The "Corresponding Sources" for a work in object code form means all the source code needs to generate, retail, and/or an executable work run the object code and to modify the work, including scripts to control these activities.

However, it does not include the work's System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes Interface definition files associated with source files for the work, and the sources code for branded libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data communication or control flow between those subprograms and other parts of the work.

The Corresponding Source has not included anything that users can recognize automatically from other parts of the Corresponding Source. The Corresponding Source for a work in source scale term is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are in.. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as cordised by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your licence otherwise exists in loose. You may convey, covered works to others for the sole purposes of having them make modifications exercise only for you, or provide your with facilities for running their own works, provided that you comply with the terms of this Upperia in conveying alimentaria for which you do not certify copyright. Those true making or running the covered works for you must so exclusively on your behalf under your direction and control on terms may prohibit them from making any opinions of your copyright material suitable their relationship with your. Conveying and/or any other circumstances is permitted solely under the conditions directed below. Sublikending is not allowed; section 10 makes it unnecessary.

3. Protecting Users' Legal Rights From anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under articles 11 of the WIPC copyright, properly adopted on 20 December 1986, or similar laws prohibiting or restricting a corruption of such measures.

When you convey a covered work, you waive any legal power to forbids or even the technological measures to the extent such circumvention is effected by exercising rights under the Licence with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a measure of enforcing, against the works' users, your or third parties legal rights to forbids circumvention of technological measures.

4. Conveying Verbatim Copies.

You may convey certain copies of the Program's source code as you receive it, in any medium, provided that you consciously and appropriate publish on each copy an appropriate copyright notice; keep intact all notices storing that this License and any non-permissive terms advice. In accord with section 7 apply to the code; keep intact all notices at the absence or any warranty and give all recipients a copy of this License along with the Program. You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program. In the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modified it, and giving a relevant date.

c) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement, modifies the requirement, in section 4 to "keep intact all notices".

c) You must license the entire work, as a whole. Under the License to anyone who comes into possession of a copy. The License will therefore apply, along with any applicable section or additional forms, to the whole at the work, and at its parts, regardless of how they are packageback. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have effectively received it.

at the work has interactive user interfaces, each must display Appropriate Legal Notices, however if the Program has interactive interfaces that do not display Appropriate Legal Notices, your work head is not risks me do so. A compilation of a covered work with other expertise and Independent works, which are not by their nature extensions of the covers works, and which are not corneled with it such as to form a larger program, in or on a volume of a strength or distribution medium. Its called an 'aggregate' if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's uses beyond what the individual works permit. Induction of a covered work in an aggregate does not cause this Business to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and b, provided that you also convey the machine readable. Corresponding Source under the terms of this License, in one of these ways:

a) Convey the object code in, or embedded in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange.

By Century the physical costs, or combinations in a physical product (including a physical distribution on mobility, accompanied by a written offer valid for at least three years and valid for as long as you offer spare parts or customer support for that product model). To give anyone who possesses the object to access other [1], a copy of the Corresponding Source for all the software in the product that is covered by this License, on a durable physical medium customarily used for software interchange, for a price no more than your reasonable cost of physically performing the conveying of source, or (2) soces to copy the Corresponding Source from a network server at no charge.

c) Convey individual copies of the object code with a copy of the written offer to provide the corresponding Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code with such an offer, in accord with subsection 5b.

of Comvy the object code, by clicking access from a designated place (grate or for a charge), and other equivalents access to the Corresponding Source. In the same way through the same place at no further charge. You need not require equivalents to copy the Corresponding Source along with the object code. If the place to occupy the object code is a network server, the Corresponding Source may be on a different server (labeled by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions more to the object code saying where to find the Corresponding Source regardless of what server hosts the Corresponding Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.

c) Conney the product code using peer to pre-transmission, provided your own owner peers where the product code and Corresponding Source or its work are being offered to the general public at no change under subsection 8. A separable portion on of the product code, versus source code it exudited from the Corresponding Source as a System Library need not be included in corresponding the Product code work. A "User Product" is either (i.e., a "consumer product", which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling, in determining whether a product is a consumer purchase, doubtful reasons shall be worked in tower of coverage. In particular, we have been received by a particular user, normally used - relative to a typical common use or that class of product, regardless of the slather or the particular user or the view in which the particular user actually uses, or expects or is appropriate to use, the product is a consumer product regardless of whether the product has substantially commercial, industrial or non-consumer users, unless such use represents the only significant mode of use or the product.

"Installation information" for a User Product means any methods, precautions, authorisation keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding source. The information must suffice to ensure that the continued functioning of this modified object codes is in case previous to interest with sensitive because modification has been made. If you convey on order color work under the section 4, or with, or specifically for use in a User Product, and the conveying occurs as part of a transaction in which the light of possession is considered by the following material used: "If you know, you can be able to use this product code, you can also have a copy of the content of the product code." This requirement is not clearly characterized, the Corresponding Source conveyed under this section must be accompanied by the Installation Information. But this requirement does not apply whether you now any third party retains the ability to install modified object codes on the User Product (for example, the work has been installed in ROW).

The requirement to provide installation information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the Uttar Pradesh in which it has been modified or installed. Access to a network may be derived when the modification on Israel materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network. Corresponding Source conveyed, and Installation Information provided, in accord with the section must be in a format that is cubically documented (and) with an implementation available to the public in source code entry, and must require no special password or key for unpacking, reading or copying.

7. Additional Terms.

"Additional permission" are terms that supplement the terms of this License or making except one from one or more of its buttons. Additional permission that are applicable to the entire Program shall be treated as enough may be indicated in this License, so the extent that may be will not under appropriate law. If additional permissions apply only to a list of: (1) The program, that pair may test separately unless permit orders, but the entire Program remains governed by the provisions of the same permission. If you have a copy of the original permission from the other terms of the following provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions of the other terms of the provisions and for any part of it. (2) Additional permission may be written to require their own removal in certain cases when you modify our work. You may close additional permission on materials, addies by you to a coverset work, for which you have or can give appropriate copyright permission. If you do not apply any material to any such item, please note that this permission is required, for materials you add to a covered work, you may if it is covered by this copyright holder or that material is supplemented by this license with some.

a) Disclaiming warranty or limiting liability differently from the terms of sections 10 and 16 at this license; or

b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by words containing it; or

c) Prohibiting representation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version or

d) Limiting the use for publicly purposes of names of licences or authors of the material; or

e) Decining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or

- Requiring permission of licenses and authors of their material by anyone who convex the material (or modified versions or) with contractual assumptions of liability to the recipient, for any liability that there contractual assumptions directly impose on those licenses and authors. All other non-permissive additional items are considered "further restrictions" within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a form that is a turnover restriction, you may remove that form. If the license document contains a further restriction but ceimits releasing or conveying under the License, you may add to a covered work material governed by the same of its license document, prevented that the further restriction does not survive such reliance or conveying. If you add some to a convertible work in accordance with this Section, you must place, in the relevant portion it's, a statement of the additional terms that apply to these lines, or a notice indicating that the applicable license will be granted to persons with the permission or non-permissive, may be stated in the form of a separately written license or related as executions. The above requirements apply either for

8. Termination.

You may not propagate or modify a covered work except as expressly provides under this license. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under the License (including any patent licenses granted under the third paragraph of section 11).

However, if your lease still violation of this License, then your license from a particular copyright holder is reinstated (if provisions, unless and until the copyright holder implicitly and finally terminates your license, and by prominently, if the copyright holder fails to notify you of the viction on by some reasonable means prior to 50 days after the cessation. Moreover, your license from a particular copyright holder is reinstated permanently. If the copyright holder reflects you either valuation by some reasonable means, this is the first time; you have received notice or violation of this License (for any work from that copyright holder, and you cure the viction prior to 30 days after your receipt of the notice). Termination of your rights under this secon do not termite the loiter sale of parties who have received no interest in any such transaction in the License. If your rights have been dismissed and not permanently rendered, you do not qualify to receive new licenses for the same monetary under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept the License in order to receive or run a copy of the Program. Andany propagation of a covered work accounting solely as a consequence of using past-to-poor termination to receive a copy however does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These options infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance or the License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you covers a covered work, the recipient automatically receives a license from the original lotorers, to run, modify and propaganda that work, subject to this issue. You are not responsible for entering compliance by third parties with this license. An "only transistor" is a transaction "transitancing control of an organization, or subfamily all assets of one, or multidrugating an organization, or managing organizations. If propagation is a covered work results from an entity transmission, each party to that transaction who receives a copy of the work also receives whatever lotorers at the work, the party's predecessor in interest had could give under the previous paragraph, plus a right to decrease on of the Corresponding Source of the work from the predecessor or interest, if the predecessor has its car get it with reasonable efforts. You may not impose any further restrictions on the exercise of the lights granted or affirm under the provisions of the person's rights, or shall not impose a license for any way or any charge for exercise of lights granted under this notice, who you may not influence the application including a secure class or counterclaim in a lawsuit arising that any sitting claim is missed by making, using, testing, charging or sale, or reducing the program or any portion of it.

11. Patents.

A "contributor" is a copyright holder who authorizes use under this License of the Program or a work or which the Program is based. The work thus licensed is called the contributor's "contributor version". A contributor's "essential patent claims" are sell patent, claims owned or controlled by the contributor, whether already acquired or thereafter acquired, that would be infringed by some manner permitted by this License of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further authorization of the contributor version. For purposes of this admission, "normal" includes no light to give patent followers in a manner conditional with the requirements of this document. Each contributor grows you a non-delivery and has been made to take into consideration the contribution of the contributor's essential patent claims, to make, use, sell, offer or sale, import and otherwise run, materially and propagate the contents of its contributor version.

In the following three paragraphs, a patent license is any express agreement or commitment, however, denominated, not to enforce a patent (such as an express permission to practice a patent or even grant not to issue for certain infringement). In “great” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party. If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to do up, free of charge and under the terms of this License, through a publicly available network server or other reliable accessible entrants, then you must either (1) cause the Corresponding Source to be available, or (2) arrange or despite yourself of the benefit of the patent license for the particular work or its change, in a manner consistent with the requirements of this License, to extend the patent license to downstream activities. The rights of the company shall be granted by the employees' rights of the covered work in a country, would bring one or more individualities in that country, that you have reason to collect and visit it, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of it, a covered work, and grant a

patient licenses to some of the parties meeting the covers work surviving them to us, penesette, morality or convey a specific copy of the covered work; then the patient license you grant is automatically extended to all recipients of the covered work and works trained in it. A patient license is "discriminatory" ill does not include within the scope of its coverage, prohibits the exercise of, or be conditioned on the non-exercise of one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an equal agent with a third party that is in the business of distributing information, under which you make payment at the third party raised on the extent of your activity at conveying the work, and under which the third party grants, to any of the parties who would receive the absence of work from you, a discrimination patient license.

is): In connection with copies or the owned work conveyed by you for copies made from these copies, or

(b) primarily for and in connection with specific products or correlations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007. Nothing in the License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. No Surrender of Others' Freedom.

It conditions are imposed on your attorney by court order, agreement or otherwise, that consider the conditions of this license, they do not secure you from the conditions of trial license. If you cannot convey a courted work so as to potentially simultaneously your obligations under this license and any other portion obligations, then as a consequence you may not convey it at all. For example, if you agree to Terms that obligate you to collect a royalty for further conveying from choice to whom you convey the Program, the only way you could satisfy both those entire and the License would be to refrain entirely from conveying the Program.

13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU After General Public License into a single combination work, and to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU After General Public License, act on 13, concerning interaction through a network will apply to the combination as such.

14. Revised Versions of this License.

The Free Software - cancellator may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in script to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version on number. If the Program specialist that a certain numberless version of the GNU General Public License ("or any later version") applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any version ever published by the first Stavillans Foundation. If the Program specializes that a proxy can decide which future versions on the GNU General Public License can be used, that procys public statement of acceptance of a version permanently sunsthaty you to choose that version for the Program. I enter license sessions may give you archival or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THE IS NO WARRANTY FOR THE PROGRAM, OBLIGATION, RMT LIDY APP. CALLS, RICELIPTEN ON OUR WIRE STAND IN WORKING. THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM PROVE DEFECTIVE YOU ASSURE THE COST OF ALL NECESSARY SHIMAGING, PEEAR OR CORRECTION.

16. Limitation of Liability

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MECHANIC AND YOUR CONNIVES THE PROGRAM AS HELMID TO ANEX. HE NAME TO YOU ON DAMAGE, INC. USING ANY SHINHAI, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USF OR INABILITY TO USE THE PROGRAMS INCLUDING BUT NOT I MIND TO LOSS OF DATA OR DATA BEING RENDERED INACCRATE OF LOSSES SUSTINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS, EVEN IF SUCH ORDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. Interpretation of Sections 16 and 16.

If the disclaimer of warranty and limitation or liability provided above cannot be given local legal effect according to their terms, reverting courts shall apply locally that most closely approaches an accurate wider of all civil liability in connection with the Program, unless a warranty or assumption of facility accounts is a copy of the Program in return for a fee.

OpenSSL Combined License

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLkey license apply to the books. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact open Saudi.com@open Saudi.org.

Component Name License URL

openssl-1.0.2e OpenSSL Combined License http://www.openssl.org/escuros

Copyright (c) 1983-2011 The OpenSSL Project. All rights reserved.

Red distribution and use in source and binary limits, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must return the above copyright notice, this list of conditions and the following disclustes.

2. Reclassifications in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the attribution.

3. All advertising materials mentioning lectures or use of its software must display the following acknowledgment: This product includes software developed by the OpenSSL Projector use in the OpenSSL Toolkit, http://www.openssl.org/

4. The names "OpenSSL Tookt" and "OpenSSL Project" must not be used to endorse or promote products derived from the software without prior written permission. For written permission, please contact open Saudi-core@open Saudi.org.

5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" space in their names without prior written permission of the OpenSSL Project.

6. Contributions of any form whatsoever must retain the following endorsements: "This product includes software developed by the OpenSSI Project for use in the OperaSI Toolkit (http://www.operaSI.org)"

THIS SOFTWARE IS PROMOTLY THE OCCIDENT PROJECT AS ST AND ANY EXPRESSED IMPRIED WARRANTIES INCLUDING BUT NOT LIMITED TO THE TIMPLIT WARRANTIES OF THIS WARRANTY AND THIS SOA FOR A PARTICULAR PURPOSES AND USE AVAILABLE WHEN SHALL THE OFFICIAL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL SPECIAL DEMILIARY, OR CONSENSIONAL DAMAGES INCLUDING BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR PAYONS, OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT INCLUDING NO LIABILITY OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF A MISED OF THE POSSIBILITY OR SUCH DAMAGE.

This product includes cryptographic software written by Eric YoungpayEncryption.com. This product includes software written by The Hudson (historyproof.com).

Original SSLeay License

Copyright © 1956-1995 Eric Young Jaysonpress.com All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]).

The implementation was written so as to conform with Nerospecs SSL.

This library is true for commercial and non commercial use as long as the following conditions are shorted to. The following conditions apply to all codes found in this distribution: see it: the PCA, PSA, hazard, DL S, etc., codes not just the SSL codes. The SSL documentation included with this distribution is covered by the same copyright terms except that, the reader is Tin Hudson ([e-mail]).

Copyright remains Eric Young's, and see such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be placed distribution as the author of the cars of the library used. This can be in the form of a textual message at program startup or in documentation online or textually products with the package. And distribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are noted:

1. Pedsistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

2. Realizations in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and other material's provided with the distribution.

3. At advertising materials mentioning features or use of the software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young (psychotyptech.com)" The word "cryptographic" can be left out if the results from the library being used are not cryptographic needed (-).

4. If you include any Windows specific code for a derivative thereof) from the apple directory application code, you must include an acknowledgement: "The product includes software written by Tim Huseon (InSoroptsoft.com)"

THIS SOFTWARE IS PROVIDED BY LYC YOUNG AS IRI AND ANY EXPRESS OF INSULD WARRANTIES, INCLUDING UN NOT LIMITED TO THE INHLY WARRANTIES OF MERCHANTABILITY AND INSURANCE FOR A PARTICULAR PURPOSE ARE EXIDED ABOVE. IN THIS statement, THE AUTHOR OR CONTRIBUTORS TO LEALE FOR ANY DIRECT INDIRECT INCIDENTAL SPECIAL EXEMPLARY TO CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES LOSS OF USE, DATA, OR PROFITS, OR BUSINESS INTERRUPTIONS HOWEVER CALLS AND ON ANY THEORY OF THATY WITH THE IN CONTRACT, SUCH INTENSITY OR LIME (NO USING THIS NO OF OTHER RIVISH) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE

the licence and distribution terms for any publicly available version or derivative of this code cannot be changed. In this code cannot simply be copied and put under another distribution licence [including the GNU Pub lo licence.]

BSD License

Some software components of the product incorporate source code covered under the BSD license as follows

Component Name License URL

net-emp-3.7.3	850	http://www.net-emp.org/about/license.html
pore-3.36	850
thoop 1.7.4	850 7.0	http://www.kome.org/public/inv.bics/sacurhylux.phv&libop?
Ighmed 1.4.30	850 7.0	http://www.opcensour.org/licons/achedLicense.html
MiniPHP Project Client	850 7.0
pcpd-2.4.7	850 2.0	http://opensource.org/licenses/ESD-3-Clause

lightpaid is a secure, total, compliant, and very wide website that has been optimized for strong performance environments. It has a very low memory footprint compared to other web browsers and taxes case of distributors. Its advanced feature-install if accessOR, SQL, AutoI, OutputCompression, OR-, Revelling and many more, more litigued the perfect verification/sensor for every server, but sufficient load problems. Simple Network Management Protocol SNMP is an interstandard protocol for managing devices on IP networks. It is used mostly in network management systems to monitor the devices attached to the network for conditions that meet administrative attention. Not SNMP is a auto or applications used to improve SNMP v1, SNMP v2e and SNMP v3 using both IPv and IPv. For more exceptional information, send email to [e-mail].

Copyright © 2004. Kneschke, Incremental

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Broadcast sources of sources made must also be shown to the above copyright notice, this list of conditions and the following checklist:
- Satellite bursts in binary term must reproduce the above copyright notice, this list of conditions and the following declaration in the documentation and/or other materials provided with the distribution.
- Neither the name of the 'Incremental' nor the name of its contributors may be used to encode or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS' ASIS' AND ANY EXPRESS OR IMPERITIVARIANTS. INCLUDING, BUT NOT LIMITED TO, THE ITEMS/WAHAN LES OF CHIKHAN A'BILLY AND THBS FOR A PARTICIPAL PURPOSE. ARE DISC. AMID. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA OR INFORMATION, THIS NOTICE WITH ANY BASIS ON ANY HISTORY OF THIS SOFTWARE. ANY OTHERS (A BILLY) TO CONTAIN WITHOUT ANY CHANGE OR OTHERS ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, ANY OTHERS OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 1908-2001 University College London

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, is permitted provided that the following conditions are met.

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer:

2. Recistributions in binary form must reproduce the above copyright notes, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. At advertising materials mentioning features or use of the software must display the following acknowledgement: The product includes software developed by the Computer Science Department at University College London.

4. Neither the name of the University nor of the Department may be used to endorse or promote products derived from the software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHORS AND CONTRIBUTORS "ASIS" AND ANY EXPRESSED OR IMPED. WARRANTIES, INCLUDING, BUT NOT INTUIT TO, THE IMPED WARRANTIES OF MERCHANTABILITY AND IT'S SS FOR A PARTICULAR PURPOSES, DISC AUTH, IN MOVINT SHALL BE AUTHERS OR CONTRIBUTORS IS LEGIBLE TO ANY OBJECT, INDIRECT, INCIDENTAL, SPECIAL, EXCLUSIVE, OR CONSEQUENTIAL OTHERS. ANY INFORMATION USED IN THIS Software IS NOT TO BE USED IN ANY OTHERS. ANY OTHERS ARE USED TO USE, USE OF, USE NO, OF PERTS OF BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT QUANTITY OF TORT INCLUDING NOFLUENCE OR OTHERWISE APRIALS IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright © 1983, 1985, 1992, 1997, 1994, 1995, 1999 The Reges of the University of California.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Reclistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name or the Rogers of the University or California nor the names of its contributors may be used to endorse or promote products derived from this software without, specific prior written permission.

THIS ISCH I/WARI'S PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "ASIS" AND ANY EXPRESS OR IMPEDIT WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISAIDED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONS. OUTRUN, DAWARDS, INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OR SUBSTITUTE. RESULTS ON THIS NOTICE IS NOT AVAILABLE. THIS INFORMATION SHOULD BE USED ONLY. THESE INTERVENTIONS HOWEVER CAUSED AND ON ANY THEORY OF BASIS, WHETHER IN CONTACT STRICT LABURY OR TORT INCLUDING NEGENCE OR OTHERGARY ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IT ADVISED OF THE POSSIBILITY OF SLICH DAMAGE.

Copyright (c) 2008, Creative Labs Inc

All rights reserved.

Red attribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimers.

2. Re-distributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name or the Creative Iacs nor the names of its contributors may be used to endorse or promote products derived from this software without specific color written permission.

THIS SOFTWARE IS PROMISED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS", AND ANY EXPRESS OR IMPERIT WARRANTIES. INCLUDING, BUT NOT LIMITED TO, THE BIRTH DAWHAN IS OF "HIGH AN AIIITY AND IN BASIS FOR A PARTICULAR PURPOSE - AND DISC AMID IN NO EVENT SHALL THE COPYRIGHT OWNER OR "PROTEURS BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA OR OTHER ASSES INTUITUATION HOUST ON USE AND ON ANY THEORY OF LABURY, WHETHER IN CONT"NOTIC" LIABILITY OR PROCESSED BENEFICANCE OR YOUNDED ASSETS ARE ASING IN ANY WAY TO IT OF THE USE OF THIS SOFTWARE, EVERY OMISED OF THE POSSIBILITY OR SUCH DAMAGE."

Copyright (c) 2005-2012, Thomas BERNARD

All rights reserved.

Red attribution and use in source and binary terms, with or without modification, are permitted provided that the following conditions are met:

1. Redistribution of source code must retain the above copyright notice, this list of conditions and the following disclaimers.

2. Real distributions in binary form must reproduce the above copyright notice, this list of conditions and the following claims or in the documentation and other materials provided with the distribution.

3. Neither the name of Thomas EBERNARD nor the names of its contributors may be used to endorse or promote products derived from a software without specific offer written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS AS IS'ANT ANY EXPRESS OR IMPED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSOLIDATED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES LOSS OF USE, DATA OR PROFITS; OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY OR

TORT (NOTI-ING NEGENDOR OF OTHER SAISH) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IT ADMISED OF THE POSSIBILITY OF SUCH DAMAGE.

Various copyrights apply to this package, listed in various separate parts below. Please make sure that you read all the parts.

Part 1: CMU/UCD copyright notice: (BSD like)

Copyright 1980, 1981, 1982 by Carnegie Mellon University Derivative Work - 1996, 1998 2000

Copyright 1986, 1986-2000 The Regents of the University of California

All Hights Reserved

Permission to use, copy, modify and distribute this software and its documentation or any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and this, both that copyright notice and the permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California not be used in advertising or publicity pertaining to distribution of the software without specific written permission.

CIVU AND THE RIGHTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTY IS WITH RIGARD. THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL OMU ON THE RECEIPTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES ON ANY DAMAGES WHATSOEVER RESULTING FROM THE LOGS OF USE DATA BEFORE THIS, WHICH IS IN AN ACTION OF CONTRACT, NEGENCE OR OTHER FORIOUS ACTIONS, ARISING OUT OF CH IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Part 2: Networks Associates Technology, Inc copyright notice (BSD)

Copyright (c) 2001-2008, Networks Associates Technology, Inc.

All rights reserved.

Redistribution and use in sources and binary items, with or without modification are permitted provided that the following conditions are met: yi Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer: yi Redistributions in binary form must reproduce the above copyright notices, this list of conditions and the following disclaimer in the documentation and other materials provided with the distribution: yi Nether name or the networks. Associates, Technology, Inc. nor the names or its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "ASIS" AND ANY EXPRESS OR IMPEDIT WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS IS LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSENT ON UNIDAWARDS (INCLUDING, BUT NOT ALLOWED TO, EXCELIMATE OR SUBSTITUTE, VIDEO OR DISCUSSIONS) OR OTHER ASSETS. THIS DATA IS OBSERVATED OR BUSINESS INTUCTIONS WHEN KEVER CAUSED AND ON ANY THEORY OF ABILITY, WHETHER END CONTRAT OPTIC ABILITY OF TORTY CONTINUING, ELEVATION OF OTHER ASSETS OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF CONDED OF THE POSSIBILITY OR SLICH DAMAGE.

Part 3: Cambridge Broadband Ltd. copyright notice (BSD)

Portions of this code are copyright (c) 2001-2003, Cambridge Broadband Ltd.

All rights reserved

Redistribution and use in source and binary farms, with or without modification, are permitted provided that the following conditions are met: By Redistributions of source codes must retain the above copyright notice, this list of conditions and the following disclaimer; by Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other material provided with the distribution; by The name of Cambridge Broadband Ltd. may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER WAS IT AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE ITEMS WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER IS LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PRODUCTION OF SUBS INTERE GOALS OR SHANGS LOSS OF USE DATA, ON PROFITS, OR SUBSSES IN THE EDITION HOW/WH CAUSD AND ON ANY THEORY OF LIABILITY, WILL BE HELD IN CONTRACT, STRICT LIABILITY OR ICH (INCLUDING NO LEGENCE OF OTHER BASIS) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE. EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE

Part 4: Sun Microsystems, Inc. copyright notice

(184)

Copyright (c) 2003 Sun Microsystems, Inc., 4150 Network

Circle, Santa Clara, California 95067, U.S.A.

All rights reserved.

Use is subject to license terms below. This distribution may include material developed by third parties, Sun, Sun Microsystems, the Sun logo and Soiris are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. Redistribution and use in sourcea and binary forms with or without modification, are permitted provided that the following conditions are met: y Redistribution or source code must rely on the above copyright notices, etc. for conditions and the following disclaimer: y Redistribution in binary form must reproduce the above copyright notice. The list of conditions and the following disclaimer in the documentation order other materials provided with the distribution, by Neither the name of the Sun Microsystems, Inc., nor the names of its contributors may be used to endorse or promote products derived from the software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "ASIS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPERED WARRANTIES OF WHICH AN AVEY AND OTHERS FOR A PARTICULAR PURPOSE APPROVED AMOUNT IN ANY WIRELLAT THE COPYRIGHT HOLDERS OR CONDUIERS IS LIMITED FOR ANY OTHER INCOME, INCOME ONLY, SPECIAL EXPANY, ANY CONSOBUSTIONAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE OCCUS OR SERVICES, LOSS OF USE DATA AND ANY OTHER ASSETS. THIS INFORMATION PROCESSED BY BUSINESS INTERVENTION, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN SOCIETY, STRICT LIABILITY, OR ALLOWING ITEMS OR CHANGE ON YOUR BASIS ASPIRING IN ANY WAY OUT OF THE UN OF THIS SOCIETY, WITHOUT ANY NOTICE IN POSSIBILITY OF SUCH DAMAGE.

Part 5: Sparta, Inc copyright notice (BSD)

Copyright (c) 2003-2000, Sports, Inc.

All rights reserved.

Redistribution and use in source and binary forms, with or without modification are permitted provided that the following conditions are met: by Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer: by Redistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution by neither name or scope, nor the names of its contributions may be used to embrace or promote a product derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS ON IMPLIED WARRANTIES INCLUDING, BUT NOT LIABLE TO, THE IMPULD WAHAN IL'S OF WHICHAN ABILY AND THIS ORDER A PARTICULAR PURPOSE, ALL DSO AMID INNO. WITHOUT THE COPYRIGHT. OR THIS CONTRIBUTION IS THAT FOR ANY OFFICIAL NOTICE IN ANY OTHER AS A CONTRACTOR, ANY COMPARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROBLEM OF SUBSTITUTE GOODS OR SYSTEMS, LOSS OF DATA AND COSTS, PROFITS, OR BUSINESS INTERRUPTION, HOWEVER CAUSED AND ON ANY "DESCRIPTION" OF LIABILITY, WHETHER IN CONTRACT STRICT VALIDITY, OR ANY OTHER AS A CONTRACTOR, ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OTHER AS A CONTRACTOR OR ANY OBTILITY

Part 6: Cisco/BUPTNIC copyright notice (BSD)

Copyright © 2007, Cisco, Inc and Information Network

Center of Beijing University of Posts and telecommunications.

All rights reserved

Redistribution and use in source and binary terms, with or without modification, are permitted to provide that the following conditions are met by Redistributions of source codies must retain the above copyright notice, this list of conditions and the following disclaimer by Redistributions in binary form must reproduce the above copyright notice, this list of corrections and the following disclaimer in the documentation and/or other materials produced with the distribution by Verlier the name of Gasta, Inc., Beijing University of Rides and Telecommunications, nor the names of their contributors may be used to endorse or promote products derived from the software without a specific prior written permission.

THIS SOFAWE'S PROMO BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS AS IS AT ANY EXPRESS OR IMPATH WARRIANDS. INCLUDING, BUT NOT LIMITED TO, THE BIPLED WARWAN LEAS OF MERCHANT ADULTY AND TINNESS FOR A PARTICULAR PURPOSE, ARE DISC. AMID. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INFECT, INCIDENTAL, SPECIAL EXemplatory. OF CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PYCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF DATA OR PROFITS, OR BUSINESS INTERPRODUCATION, HOWEVER CAUSED AND ON ANY THEORY OF ABILITY WHETHER IN CONTRACT, STRICT RELIANCE, OR ANY OTHER THAN THIS WORK. ANY OTHER AS PERMITTED UNDERSTOCKS.

Part 7: Fabasoft R&D Software Software GmbH & Co KG copyright Notice (BSO)

Copyright (c) Fabesoft-RSD Software GmbH & Co KG, [e-mail]

Author: Bornhard Penz

Prodistributio and Use in sources and binary forms, with or without modification, are permitted produced that the following conditions are met: by Redistribution of source codies must return the above copyright notice, this list of conditions and the following disclaimer by Redistribution in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentary and/or other materials produced with the distribution by the name of Fabasco. RSD Software GmbH & Co KG or any of its subsidiaries, brand or product matrices may not be used to endorse or promote products derived from the software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER AS IS AND ANY EXPENSES OF IMPRIED WARRANTIES, INCLUDING, BUT NOT LIMITED. IT'S THE WARRANTY OF THIS MERCHANTABILITY AND HILLS OF A PART, OR APPLICABLE AND DISCLAIMLY IN NOT AVAILABLE SHALL THE COPYRIGHT HOLDER IS LIABE TO ANY OF THE PUBLIC INDUSTRIAL SPECIAL COMPLIARY OR CONS. QUINUAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT, INCLUDING NEGLIGENCE OR OTHERWISE AREING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE. EVEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Part 8: Apple Inc. copyright notice (BSD)

Copyright (c) 2007 Apple Inc.

All rights reserved.

Red distribution and use in source and binary formats, with or without modification are permitted provided that the following conditions are met:

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Recistributions in heavy form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of Apple Inc. (App'd) nor the names of its contributors may be used to endorse or promote products derived from this software without sale to prior written permission.

THIS SOFTWARE IS PROMISE BY APPLICANT, CONS. CONTRIBUTORS AS BY AND ANY OFFSHRS OR IMPOSTAWARIANTS, INCLUDING, BUT NOT LIMITED TO, THE IMPIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL APPLE OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, INC. (NOT LIMITED TO, PROCUREMENT IN SUBSTITUTIONS) SHOULD BE NOT USED. DATA, OR PUBLIC OR BUSINESS INTERRUPTION, HOWEVER CAUSED ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT STRICT LIABILITY OR TENT INCLUDING NEGLIGENCE OR OTHERWISE ARISING IN ANY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OR SUCH DAMAGE

Part 8: ScienceLogic, LLC copyright notice(BSD)

Copyright (c) 2003, ScienceLogic, LLC

At rights reserved

Redistribution and use in source and binary forms with or without modification, are permitted produced that the following conditions shown, by Publications of source code must remain above copyright notice, this list of conditions and the following disclaimer, by Contributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or materials provided with the distribution, by Whitney's name of Sociologics, LLC nor the names of its contributions may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OTHERS OR CONTRIBUTORS SHALL ARE FOR ANY EFFECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE AT any of the RIGHTS OF THIS DRAWING IS PRIOR TO ANY CHARGED OR ANY ANY LOOP OF LIABILITY WHICH HEREIN CONTRACT, STRICT LIABILITY OR ALLOWING INFORMATION OR ANY MATTHE ARISING IN ANY WAY OUT OF THE USE OF THIS SCHWAF, ANY FACTS-OCCID THE POSSIBILITY OF SUCH DAMAGE.

The MIT License

Some software components of this product incorporate source code overseas under the MI license as follows

MIT License 2.0

- Aseakogel, beltermears, query-u, foxnl, foxn2, Mes3D-Mes3Lib, invEntrez; OpenGL Samples Pack, Wide Studio, xorg-server, droptega-2012.55; https://a.psd/

Copyright (c) 2011, The Dojo Foundation

Copyright 2010. AUTHORS INC (http://quanyu.com/reabout)

Dual licensed under the MT or GPL Version 2 licenses.

http://jcuery.org/licenses

http://docs.query.com/18w/dgct

Copyright Daniel Verland

Copyright for Zlatovic < [e-mail]>

Copyright Agency Sarin

Copyright Gary Perrington [e-mail]

Copyright Alfred Mickaulsen - call to Amnickaulsen.de

Copyright Hjcm House

Copyright Joel W. Hees

Copyright William Black [e-mail]

Copyright © 2007-2010 The Khones Group Inc.

Copyright Alish Kumar Petra

Copyright © 2008 Free Software Foundation, Inc.

Permits on its hereby General, not of charge, to any person obtaining a copy of this software and associates documentation files the "Software", to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribution, sublease, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or subential portions of the Software.

THE SOFTWARE IS PROVIDED "AIS IS" WITHOUT WARRANTY OF ANY KIND, EXPRESS OR INTENDED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OF COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE ARISING FROM OUT OR ON CONNECTION WITH THE SOFTWARE OR THE IRS OR OTHER CHANGES IN THE SOFTWARE.

Mozilla Public License

Since we, at Hervish, Technik, uses the Network Framework component without modifying the source code according to the MOZL LA Public License | 1, we are not obliged to provide the source code of the corresponding component. • Version 1.1

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.

1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.

1.2. "Contribution version" means the combination of the Original Cases prior Modifications used by a Contributor, and the Modifications made by that particular Contributor

1.3. Covered Code* means the Original Code or Modifications of the combination of the Original Code and Modifications, in each case including portions thereof

1.4. Electronic Distribution Mechanism* means a mechanism generally accepts in the software development community for the electronic transfer of data.

1.5. Executable" insure Covered Code in any form other than Source Code.

1.6. Initial Developer means the individual entity identified as the initial Developer in the Source Code notice required by Exhibit A.

1.7. Large Work means a work which combines Covered Code or portions thereof with code not governed by the terms of this License.

1.8. License means this document

1.8.1. "Licensee" means having the right to grant, to the maximum extent price, whether at the time of the little grant or subsequently accrued any end all of the rights conveyed herein.

1.9. Modifications" means any add/or to or delete from the substance or structure or either the Original Code in any previous Modifications. When Covered Code is released as a series of files, a Modification is

A. Are addition to a definition from the contents of a file containing Original Code or previous Modifications.

B. Any new file that contains any part of the Original Code or previous Modifications.

1.10. "Original Code" means Source Code of computer software code which is described in the Source Code house required by Exhibit A as Original Code, and which at the time of its optional under this license is not already Covered Code governed by this License.

1.10.1. "Poert Claims" means any patent claim(s), now owned or entered in acquires, including without litigation, method, process, and apparatus claims, in any patent I convertible by grantor.

1.11. Source Code® means the preterm team of the Source Code for making modifications to it, including all resources it contains, plus any associated interests definition rules, scripts used to control corridation and installation or an exoculation, or source code essential components against either the Original Code or another well known, available Covered Code of the Contributor's choice. The Source Code can be in a compressed or actual form, provided the appropriate decompression or degrading software is widely available for no change.

1.12. "Your (or 'Your') means an individual or a legal entity exercising rights under, and complying with all to the terms of, this license or a future version of his license is under Section 6.1. or legal norms." "Your" includes any entity which controls, is controlled by or its unrecognizable control with You's or purposes of this definition, "control" means the power direct or indirect to cause the direction or management of such entity, whether by contract, or otherwise, or by ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant, The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive licence, subject to third party intellectual property claims.

(a) under intellectual property rights (other than patent or trademark) Licenseable by India Developer to use, reproduce, modify, display, perform, sublicense and distribute the Origin Code for portions thereof) with or without Modifications, another as part of a Larger Work; and

(b) under Potents Claims infringed by the making, using or selling of Original Code. To make, have made, use, practices, sell, and offer for sale, and/or otherwise dispose of the Original Code (proportions thereof).

(4) the licenses granted in this Section 2.1(a) and (b) are effective on the date initial Developer First distributes Original Code under the terms of the licenses. (4) Notwithstanding Section 2.1(b) above, no patent license is granted: (1) for some that You orders from the Original Code; (2) assume from the Original Code or (3) for infringements caused by: (3) the modification of the Original Code or (4) the combination of the Original Code with other software or devices.

2.2. Contributor Grant. Subject to third party intellectual property claims, each Contributor hereby grants You a world win, loyalty from non-exclusive income

(g) under Intellectual property rights (other than patent or trade risk) licenseable by Contributor, to use reproduce, modify display, perform, sublicense and distribute the Modifications sealed by such Contributor (or portions thereto either or an unmodified case, with other Modifications, as Covered Code and or as part of a larger Word and

(b) under Patent Claims infringed by the making, using, or setting of Modifications made by that. Contributor either alone and/or in combination with its. Contributor Version (or portions of such combination), to make use, sell, offer for sale, have made, and/or otherwise disposed at. (1) Modifications made by that. Contributor (or portions thereof) and (2) the combination of Modifications made by that. Contributor with its. Contributor Version (or portions of such combination).

(a) the licences granted in Sections 2.2(s) and 2.3(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.

(4) Notwithstanding Section 2.2 by above, no patent license is granted: To for any code that Contributor has deleted from the Contributor version, 2 separate from the Contributor version, 3 for infringement caused by (1) third party modifications of Contributor version or (2) the combination of Modifications made by that Contributor with other software except as part of the Contributor version (or other devices; or it under Patent Claims infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License - The Registrations which You create or to check You must have been governed by the terms of this license, including without limitation Section 2.2. The Source Code was or of Reference Code may be distributed only under this terms of the License or a future version of the License released under Section 8.1. And you must include a copy of this License with every copy of the Source Code. You distribute. You may not offer or impose any written on any Source Code version that allows or restricts the applicable version of this license or the recipients' sign in Resource. I however, You may include an additional document offering the additional rights described in Section 3.5.

3.2 Availability of Source Code: Any Medication which you create or be shown. Your contributc must be made available in Source Code form under the terms of ms. I have either on the same media as an Exocardi version or is an accepted Electronic Distribution on Mechatron to anyone to show your words of Exonucleic version available, and I made available via Electronic Distribution Mechanism, thus remain available for a least twelve 12 months after the date it finally become available, or at least six months later a subsequent version of that particular Medication has been made available to such reductions. You are responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is not restored by a third party.

3.3. Description of Modifications: You must cause all Covered Code to which You contribute to contain a file documenting the changes. You make it create that Covered Code are the date of any change. You must include a comment statement that the Modification is derived directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer in the Source Code, and join any notice in an Executive version or related documentation in which You describe the origin or ownership of the Covered Code

3.4. Intellectual Property Matters

(a) Third Party Claims. If Contributor knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such Contributor under Sections 2.1 or 3.2, Contributor must include a list. In with the Source Code distribution under "LQA", which described the claim and the party making the claim in sufficient detail that a student will know whom to contact. If Contribution obtains such knowledge after the Memorization is made available as described in Section 5.2, Contributor and promptly modify the LQA. The in copies Contributor makes available freshwater and shall take other steps (such as notifying appropriate mailing lists or newgroups reasonably salrated to inform those who receive the Covered Code that new knowledge has been obtained.

(b) Contributor APs. If Contributor's Modifications include an application programming interface and Contributor has knowledge of patent licenses which are reasonably necessary to implement, that APs. Contributor must also include the information in the LEGAL file.

(3) -depreservakire.

Contributor represents that, except as disclosed pursuant to Section 3.4(a) above. Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by the Licensee

3.5. Required Notes: You must duplicate the notion to Phint A in open for the Source Code. It is not possible to put such articles in a particular Source Code due to its structure, then you must include such articles in association (such as a relevant direction) where an author would be likely to look for such a article. You desired one or more Modification? You may also your name as a Contributor to the notion described in Benefit A. You must also duplicate the License in any documentation for the Source Code where you discover the responsibility of the other's right relating to Covered Code. You may choose to offer, and to share a fee for warranty, support, indemnity or liability obligations to one or more residents of Governor's Class. However, You may do so only on Your ever-beal, and now on behalf of that initial October or any Contributor. You must make it absolutely clear than any such warranty support. Indemnity or liability obligation is offered by You alone, and you hereby agree to inferily the Initial Developer and every Contributor for any liability involved by the Initial Developer or such Contributor as a result of warranty support. Indemnity or liability terms you offer.

3.4. Applications of Explanable Versions: You may distribute Covered Goods to Exercisable from any if the requirements of Section 3.1. It has been met at least Covered Goods and it is subject to a notice stating that the Covered Goods version of the Covered Goods is available under the terms of this license, including a prescription of this and where you have fulfilled the provisions of Section 3.2. The rules must be consciously induced in any issue in an Exercisable version, related documentation or collaboration in which you describe being plant-to-rising to the Covered Goods. You may also do the Exercisable version of Covered Goods on commercial rights under a license of your works, which may contain ten terms different from this License, provided that you are in compliance with the terms of this License and that the license

for the Recyclable version does not attempt to limit or alter the recipients' rights in the Source. Consider can travel the rights and forth in this License. If you distribute the Exclusible version under a different license you must make it absolutely clear that any terms which differ from this License are ordered by you, one, nor by the Initial Developer or any Contributor. You hereby agree to internally the Initial Developer and every Contributor for any liability incurred by the Initial Developer on such Contributor as a result of any such items. You offer

3.7. Larger Works. You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distribute the Larger Works as a single product. In such a case, you must make sure the requirements of this License are fulfilled for the Covered Code.

4. Inability to Comply Due to Statute or Regulation.

It is impossible for you to comply with any of the terms of this license with respect to some or all of the General Code due to statute, judicial order, or regulation then. You must be comply with the terms of a document to the medium extent possible, and you decide by the limitations and the code they offer. Such description must be included in the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the extent prohibited by statute or regulation, such description must be sufficiently retained for a recipient of ordinary skill to be able to understand it.

5. Application of this License.

this License applies to code to which the initial Developer has attached the notice in Exhibit A and is related to General Code.

6. Versions of the License.

6.1. New versions, Netscape Communications Corporation ("Netscape") may pull into related and/or new versions of the license. Four time to time. Each version will be given a dating offering version number.

6.2. Effect of New Versions, Once Covered Code has been published under a particular version of the License. You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version of the License published by Netscape. No one other than httpspe has the right to modify the terms applicable to Covered Code created under this license.

6.3. Descriptive Works, If you create or use a modified version at this License (which you may only do in order to apply in this code which is not already Covered Code governed by the License, "you must be to name your license so that the dresses" Mobile, "MOZZLAPPA," M2PC, "Nescape," MFL," NFL" or any surfacing similar practice do not appeal in your license respect to note that your licenses differ from the License and for otherwise make it clear. That your version of the license contains none which differ from the License Public License and Nescape Public License. Initing in the name of the Initial Development Original Code or Contributor in the notice describes in Exhibit A oral and other forms as deemed to be modifications at this License;

7. DISCLAIMER OF WARRANTY.

COVER CODE IS PROVIDED ON THE INSPECTION ON AS BY BASIS, WITHOUT WARRANTY OF ANY SIGN, OTHER EXPRESS OR IMMY INC. INCLUDING WILL NOT LIMITATION, WARRANTY IS THE COVER CODE IS HELD OF DELIN, MICHIGANALIE, IT TO A PUBLIC PRIOR PURPOSE, OR NON-INFRINGEMENT. THE ENTIRE RIGHTS TO THE QUALITY AND PERFORMANCE OF THE COVER CODE IS WITH YOU SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT. YOU NOT THE INITIAL DEVELOPED OR ANY OTHER CONTRIBUTION, ASSUME THE COST OF ANY NEEDSARY SERVING, PENAIR OR CONNECTION. THIS DOCUMENT OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THE LICENSE NO USE OF ANY COVERED CODE IS AUTHORIZED BEFORE ACCEPT UNDER THE OBSERVED NAME.

8. TERMINATION.

8.1. This License and Rights granted her under will terminate automatically if you fail to comply with terms necessary and fail to cure each breach within 30 days of becoming entire of the breach. An license to the Covered Code which are properly granted shall survive any termination of the License. Prefolence which, by their nature, must remain in office beyond the termination of this License shall survive.

8.2. If You initiate a legal or by assisting a patent infringement other (excluding regulatory judgment actions against) into a Developer or a Contributor (the Initial Developer or Contributor against whom You is such action is referred to as "Participant") alleging that:

(4) Such Participants Contribution Version correctly or moderately in things any part, then any and all rights granted by such Participant to You under Sections 2.1 and/or 2.2 of the License shall open 60 days notice from Participant to the date prospective unless before 60 caves after receipt of Notice Underlines. Indegree in writing, to pay Participant a mutually agnostic reasonable money for your year end and future run of benefits as made by such Participant, only will receive Your Right claim with respect to the Platform worker against such Participant. If within 60 days of notice, a reasonable money and payment arrangement are not mutually agnostic upon or in writing by the parties or the litigation claims is not withdrawn. The rights granted by Participant to You under Sections 2.1 and/or 2.2 automatically terminate at the application of the 60 day notice period specified above

(d) any software, hardware, or device, other than such. Participant's Contributor Version, directly or indirectly infringes any patent, then envirgts granted to You by such. Participant under Sections 2.1(d) and 3.7(f) are relevant effective as of the data and first made, used, sold, distribution, or held made. Modifications made by that. Participant:

8.3. If you resort a patent infringement warrant claim against Participant sloping that such Participant's Contribution Section directory or Indicery Innges any patent where such claim is reserved (such as by license or settlement) prior to the initiation of patent infringement litigation, then the reasonable value of the license granted by each Participant under Sections 2.1 or 2.2 shall be brought into account in determining the amount or value of any payment or license.

8.4. In the event of termination under Sections 8.1 or 8.2 above, all and user license agreements (excluding distributors and receivers), which have been validly granted by You or any distributor thereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDERNO CPOULTIMATES AND UNDER NO LEGAL, THEORY WHETHER TORT INCLUDING NEGUSCONSINIC, CONTROL OR OTHERWISE, SHALL YOU THE INLET FOR OTHER ANY OTHER CONTINUOCH, OR ANY OTHERS NOTHING OF COOK-TICK COOL, OR ANY SURFACE OR ANY OTHER SHAPES IS HELAND TO ANY PERSON FOR ANY OTHER SPECIAL, NOTIONAL OR CONJUNCTION, MAISERS OF ANY CHARACTER INCLUSION WITH LIMITATION. DAMS IS NOT TO BE USED IN ANY OTHER INFORMATION OR ANY OTHER INFORMATION. THIS INFORMATION IS NOT TO BE USED IN ANY OTHER INFORMATION. IF SUCH APPTY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OR SUCH DAMAGES. THIS IMINATION OF LIABILITY SHALL NOT APPLY TO LEVELLY POT OF DEATH OR PERSONAL INFLUSTRY RESULTING FROM SLOK PARTY'S NEGUSCONSINCE TO THE EXTENT APPLICATE LAW PROBITS SUCH IMINATION. SOME JURISSED ONE TO NOT ALLOW THE INLET OR Organization OF NORTHNIA OR CONJUNCTION, DAMAGE IS SO THE INCLUSION AND ITAL ONMY

The Covered Code is a "commercial item" as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation" as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consistent with 48 C.F.R. 12.212 and 43 C.F.R. 227 7202- through 227 7202-4 (June. 1996), at U.S. Government End LLCs are acquired Covered Code with only those rights act from prior

11. MISCELLANEOUS.

The License applies the complete agreement concerning an actuarial interest. If any provision of this License is held to be unrecognizable, such provision shall be retained only to the option necessary to make in accordance. This license shall be governed by California law provisions except to the actual applicable law. If any provides alternative, excluding its conduct law provisions, with respect to circuits in which local one party is a receptor of, or an entity characterized or registered to do business in the United States of America, any Argentina relating to its License shall be subject to the jurisdiction. The Federal Council of the Northern District of California, with revenue being in Santa Clara County, California, with the issuing party responsible for assets. Including without limitation, court, taxes and responsible activities fees and expenses. The application of the United Nations Convention on Contracts for the International Bank of Canada excise exclusively. Any law or regulation within

provides that the language of a contract shall be construed against the latter shall not apply to this issue.

1. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, some party is responsible for claims and damages arising, directly or indirectly, out of the utilisation rights under his license and you agree to work with initial Developer and Contributors to distribute such responsibility on an available basis. Nothing herein is intended or shall be deemed to constitute any admission or liability.

1. MULTIPLE-LICENSED CODE

Initial Developer may designate portions of the Coverage Code as Multiple Licensed Multiple Instructions that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the MPI or the alternative licenses. It any specified by the Initial Developer in this description in Initial A.

EXHIBIT A - Mozilla Public License.

The contents of the file are subject to the Mozilla Public License Version 1.1 (the "Licenses"); you may not use this file except in compliance with the License. You may obtain a copy of the License or http://www-IIpress.org/MP/Software ID without under the License is distributed on an "AS IP" task, WITHOUT WARRANTY OF ANY KNO, either express or implied. See the License for the specific language governing rights and limitations under the license.

The Original Code is

the Initial Developer of the Original Code is ____ Portions approved by ____ and Copyright (C)____.____. All Rights Reserved.

Contra Bucurica

Alternatively, the contents of this file may be used under the terms of the license (the [ ] License), in which case the provisions of [ ] License are applicable. Instead of those access, if you own to allow use or your version of this file only under the terms of the [ ] License and not to allow clients to use your version of this file under the MP3, indicate your discretion by setting the provisions active and replace them within the notice and other provisions required by the [ ] License. If you do not believe the provisions active, a recipient may use your version of this file under either the MP3 or the [ ] License.

[NOTE: The text of the Exhibit A may differ slightly from the text of the notice in the Source Code files of the Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your Modifications]

The Independent JPEG Group's JPEG Software

The software included in this product contains copyrighted software that is licensed under the JPEG license.

• JFFG Inc.

- Close project. Generating Outline OpenGL, Libya

This dedication contains the sixth public release of the Independent JPHG Group's free JPHG software. You are accepted to distribute this software and to use for any purpose, subject to the conditions under LPGA, BISLIFE, bohne.

Serious users of this software particularly those incorporating it into larger programs should contact L.G. at https://info.com.cn/ to be added to our electronic mailing for. Making list members are notice of usome and have a chance to participate in technical discussions, etc.

This software is the work of Lord Lans, Philip Glodsters, Jim Souches, Las Otrasver, Julian Mingullon, Luis Chife, George Philes, Davide Frost, Guano Valladang, Se' Weijers, and other members at the Independent JAP.G Group.

UC is not affiliated with the official IEC JFEG standards committee.

LEGAL ISSUES

请仔细阅读并填写完整内容。

In plain English:

1. We don't promise that this software works. But I you find any bugs, please of us know!

2. You can use this software or whatever you want. You don't have to pay us.

3. You may not create this, you wrote this software. If you use it in a program, you must acknowledge somewhere in your documentation that you've used the UC code.

In legalese:

The authors make NO WARRANTY or representation, either excess or implied, with respect to the software, its quality, accuracy, merchantability, or fitness for a particular purpose. This software is provided "AS IS", and you, its user, assume the entire risk as to its quality and accuracy.

This software is copyright © 1991 1998. Thomas G. I are. All Rights Reserved except as specified below.

Permissors is hereby granted to use, copy, modify, and distribute this software (or protocols thereof) or any purpose, without fee, subject to these conditions. (1) If any part of the source code for this software is distributed, then this README file must be included, with this copyright and no warranty notice unmarked; and any additional, decisions, or expense to the admin list must be closely indicated in accompanying documentation.

(2) If only executable code is distributed, then the accompanying documentation on must state that "the certificate is based or part on the work or the Independent PBO Group".

(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences, the authors accept NO LIABILITY or damages of any kind.

These conditions apply to any software derived from or based on the UG code, not just to the unmodified library. If you use our work, you ought to acknowledge us.

Permission is NOT granted for the use of any UGI author's name or company name in advertising or publicly relating to this software or products derived from its software may be referred to only as "the independent JHG Group's software".

We specifically permit and encourage the use of this software as the basis of commercial products, provided that all warranty or liability claims are assumed by the product vendor.

and Pence is included in this distribution by permission of L. Peter Deutsch, sale proprietor of its copyright holder: Aladin Enterprises of Merke Park, CA.

and Price is NOT covered by the above copyright and conditions, but ahead by the usual distribution terms of the Free Software Foundation principle, that you must include source code if you re进建its it. See the file and Print or full details. However, since and Print is not needed as part of any program generated from the LOG code, this does not limit you more than the foregoing paragraphs do.

The Jink configuration script "configure" was produced with GNU Autoconn. It is copyright by the Free Software Foundation but is freely distributed. The same holder for its supporting certificate contiguous, subgroup, licitor, finan, etc. Another support social, insalash, is copyright by MUI, but is also merely distributionable. It represents that the arithmetic coding option of the JPSO space is covered by patients covered by IBD, AT&T, and Mitsubishi. Fine arithmetic coding cannot legally be used without obtaining one or more licenses. For this reason, support for arithmetic coding has been removed from the JPSO software (Since an intronic coding provides only a marginal gain over the unintended Huffman needs, it is likely that very many implementations will support it). So that we are aware there are no patient access claims on this remaining orders.

The UG distributor formerly included code to read and write GIF files. To avoid enlargement with the Unisys LZW patent, GIF reading support has been removed altogether, and the GIF writer has been airplaneed to produce uncompressed GIFs. The technique does not use the LZW algorithm, the resulting GIF files are important than usual, but are needed by at standard GIF processors.

We are required to state that

The Graphite Interchange Format(s) is the Copyright property of CompuServe Incorporated. CIFerr is a Service Mark property of CompuServe Incorporated.

T-Kernel License

This Product uses the Source Code or 1-Kernel under license granted by the Engine Forum(www.engine.org)

T-License [License Agreement for Source Code of T-Komel]

established by I-Engrel forum

on January 23, 2024

revised on December 21, 2008

revised on March 24, 2001

Article 1. Scope of License Agreement

1. This License Agreement sets form copyrights and the terms and conditions of use applicable to the source code of T-Kamel distributed by T-Engine Forum and any derivative work created therefrom.

Article 2. Definition

1. *I-Kamel means a real-time operating system controlled and distributed by I-Engine Forum on behalf or the copyright holder thereof.

2. "Source Code" means a source program, including related comments and documentations, for the T-Kernel and the Ported Source Code defined in Article 2.8 which is registered with T-Engine Forum.

3. "Hardware-dependent. Part" means the part of the Source Code which depends on hardware and needs to be charged when the Source Code is ported and operated on the larger hardware, and is designated and separated as such part.

4. "Compiler dependent Part" means the part of the Source Code which depends on compiler and access to be changed when the Source Code is period and operated on the target hardware, and is designated and separated as such part.

5. "Header File" means the part of the Source Code which contains definitions necessary to develop application programs.

6. "I Engine Hardware" means the hardware which is manufactured in accordance with the T-Engine Hardware specifications or the pI Engine Hardware specifications issued by T-Engine Forum, and registered with T-Engine Forum.

7. "Similar Hardware to T-Engine Hardware," means any hardware including software, which creates hardware, other than that defects in Article 2.6 above, or which the I-Kamel can be operated.

8. "Ported Source Code" means a source program produced from the Source Code by modifying only its Hardware-dependent Part and/or Computer-dependent Part to enable it to be operated on the T-Engine Hardware or the Similar Hardware to T-Engine Hardware. The Ported Source Code which is registered with T-Engine Hardware and is included in the Source Code.

9. "Modified Source Code" means a source program modified from the Source Code for the purpose of improving its performance, increasing or decreasing its function, and the like. The Ported Source Code shall not be included in the Modified Source Code.

10. "Binary Code" means an executable once form which is created by computing programs, which include all or part of the Source Code or the Modified Source Code.

11. "Derivative Work" means the Modified Source Code or the Binary Code.

12. "Embedded Product" means any product which operates with favorable once form or the Source Code, the Modified Source Code or the Binary Code loaded on its hardware.

13. "End Last" measures a consumer who uses the Intended Product.

14. "System Developer" means any person who develops the Embedded Product by itself or has a third party develop the same and provides, whether with or without payment, the End User with the Embedded Product.

15. "Distributor of Modification" means any person who prepares the Methodist Source Code and, whether with or without payment, distributes the same to any third party.

16. "Patch for Modification" means a difference, program, system, or the file in order to paste the Modified Source Code from the Source Code or the Binary Code thereof.

17. "Molecular Execution of Batch Processing" means vigorous execution service to create the Modified Source Code applying the Patch for Modification to the Source Code or the Binary Code menu.

18. "Source Code User" means a person who uses the Source Code.

19. "Distribution" means any of the following acts:

20. to transmit a work to a large number of specific persons through the Internet communication, broadcasting, and the like;

21. To transmit a work to the general public through the internet communication, broadcasting, and the like automatically in response to a request from the public; and

22. to distribute a copy of a work to the general public or a large number of specific persons.

Article 3. Copyright

1. The copyrights of the Source Code shall be owned by Ken Sakamura.

Article 4. License of Source Code

1. As provided for in the Article, T-Engine Forum shall provide and grant a license to use, the Source Code free of charge to any person who has taken the necessary procedure for registration as prescribed by T-Engine Forum and agreed to the I-1 license.

2. The Source Code shall be distributed exclusively by T-Engine Forum. Any person who obtains the Source Code under Article 4.1 above shall not make any re-Distribution of the Source Code.

3. In accordance with the license granted under Article 4.1 above, the Source Code User may perform the following acts:

4. to copy and/or modify the Source Code provided by T-Engine Forum hereunder for its own research, development and the life.

5. To run the Source Code provided by T-Engine Forum hereunder for its own research, development and the like.

6. to run the Source Code modified in accordance with the provision of Article 4.5 (1) above for its own research, development and the like.

7. To distribute the Binary Code created from the Source Code provided by 1 Engine Forum hereunder or from the Source Code modified in accordance with the provision of Article 4.3 (1) above.

8. In accordance with the licence granted under Article 4.1 above, the System Developer may perform the following acts:

9. to perform any and all acts set forth In the Article 4.3 above.

10. to develop end manufacture the Embedded Product containing the Binary Code, and, whether with or without payment, provide the End User with the same and make the Binary Code available to the End User on the Embedded Product.

11. The Source Code User and the System Developer shall be obligated to give a notice that the Source Code is used, in such a way as separately specified by T-Engine Forum, when they use the Source Code or the Binary Code, or make the Binary Code available for the End User on the Embedded Product.

Article 5. Distribution of Modified Source Code

1. Any of A- members of T-Engine Forum may become the Distributor of Modification by obtaining the approval of T-Engine Forum through the registration procedure as prescribed by the Forum provided that only the department, of the A-member which has taken the registration procedure may distribute the Modified Source Code. In such a way as provider for in this Article as long as it holds the Amembership.

2. The Distributor of Modification may create the Modified Source Code based on the Source Code provided by T-Engine Forum and the Patch for Modification to be applied to create such Modified Source Code from the Source Code.

3. The Distributor of Modification shall prior to the distribution. Inform 1 Engine Forum of and register a name and description of the Modific Source Code in such a way as specified by 1-Engine Forum.

4. The Distributor of Modification shall determine the name of the Modified Source Code subject to the rules separately established by T-Engine Forum and publish an appropriate code as required by the rules on the Hatch for Modification and the Modified Source Code.

5. The Distributor of Modification may distribute the Modified Source Code to a third party, whether with or without payment, provided that the Distributor of Modification shall take the necessary measures to prohibit the third party from making the re-Distribution of the Modified Source Code.

6. Developer with the Plan for Modification. Provided, however, that the Distribution of Modification shall be obliged to confirm that the System Developer is the Source Code User duly licensed under Article 4.1.

7. The Distributor of Modification may perform the Vilarious Execution of Patch Processing for the System Developer;

8. The System Developer shall not distribute the Modified Source Code In further modified form to any third party as a stand-alone software product.

9. The System Developer may, under the same obligation as imposed in Article 4.6, make the Embedded Product available for the End User through use of the Patch for Modification distributed by the Distributor of Modification or the Derivative Works obtained through the Viscuous Execution of Batch Processing.

Article 6. Distribution and Registration of the Ported Source Code

1. The Source Code User and the System Developer may whether with or without charge, distribute to any third party only the following parts of the Period

Source: Gods or the 1-Engine Hardware or the Similar Hardware to 1-Engine Hardware

1. The Hardware-dependent Part and/or Complex-dependent Part, provided that the Source Code User and the System Developer shall inform T-Engine Forum of, and T-Engine Forum may publish, a method for distributing said Part(s) to third parties.

2. The Header File provided that the Header File shall be distributed together with the Binary Code of the Ported Source Code.

3. Any member of T-Engine Forum may request T-Engine Forum to register and distribute, as an original source code for T-Kernel, the Ported Source Code on the T-Engine Hardware or the Similar Hardware to T-Engine Hardware.

4. Any member of T-Engine Forum who requests the distribution mentioned in the preceding cersgraph shell scope to the following conditions:

5. The member shall confirm that the object hardware is the | Engine Hardware or the Similar Hardware to | Engine Hardware.

6. The member shall provide T-Engine Forum with a complete set of operational environment, for the object hardware and T-Kernel free of charge when requesting the distribution.

7. The member shall submit test results of the Ported Source Code to T-Engine Forum when requesting the distribution.

8. In the event that T-Engine Forum accepts the request mentioned in Article 5.2. T-Engine Forum shall register and distribute the Ported Source Code as the Source Code for T-Kernel. Provided, however, that the Ported Source Code may be treated in the same way as the Modified Source Code until the time of registration norunder.

9. The provision set forth in Article 3 shall apply to the Portal Source Code registered in accordance with this Article.

Article 7. Use for Other Purpose

1. Any use of the Source Code, the Modified Source Code or the Ported Source Code other than those stipulated in Articles 4, 5 and 6 shall be subject to the prior approval of T. Eng no Forum.

Article 8. Limited Warranty

1. T-Engine Forum and the copyright holder of the Source Code warrant that the Source Code does not infringe third party's copyrights. Provided, however, that Huglina Forum and the copyright holder at the Source Code makes no warranty as to the Hardware-dependent Part and/or Compiler-dependent Part sell forth in Africa 6.2 in the Parson Source Code by any third party.

2. Neither T-Engine Forum nor the copyright holder of the Source Code warrants that the Source Code will fit for any particular purpose of the Source Code User.

3. Neither T-Engine Forum nor the copyright holder of the Source Code warrants that the Source Code does not infringe any third party's industrial property rights, in no event shall T-Engine Forum and the copyright holder of the Source Code be liable for any dispute which may arise between the Source Code Use and a third party in connection with the third party's industrial property rights.

Article 9. Indemnity

1. Neither T-Engine Forum nor the copyright holder of the Source Code shall be liable for any damages (including, but not limited to, damages resulting from loss of profit, business interruption, loss of business information or any other statutory damages) arising out of use or impossibility or use of the Source Code, except in T-Engine Forum and the copyright holder have been informed on the potential or such damages.

Article 10. Breach of Agreement

1. In case that I-Engine Forum consists that this license Agreement is breached or met the population billion at I-Kemli is obstructed, I-Engine Forum shall take measures to correct such breach or such obstruction, take measures on the grounds of copyright infringement, or take any other necessary measures against the breaching person or the obstructing person, regardless of whether or not, the said person is a member of I-Engine Forum.

2. In case of breach of this License Agreement by a member of Engine Forum, Engine Forum may take appropriate measures against the member; for example, the member is disqualified from membership, depending on what kind of breach has been committed by it.

3. Any legal dispute which may arise in relation to any breach of this License Agreement, shall be subject to the exclusive jurisdiction of the Tokyo District Court. Article 11. Governing Law and Language

4. This License Agreement shall be governed by and interpreted under the laws of Japan.

5. This License Agreement is executed in both Japanese text and English text, provided that the Japanese text shall govern the interpretation and performance of this License Agreement.

Apache License 2.0

Component Name License URL

MONSResponder conjour Apache License 2.0 http://www.apache.org/licenses/LICENSE-2.0

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "License" shall mean the copyright owner or entity authorized by the copyright owner that is granting the license.

I legal entity shall mean the burden of the acting entity and all other entities that contract, are controlled by, or are under common control with that entity for the purchases of this definition, "control" means it be possible, strict or indirect, to cause the direction or management of such entity whether by contract or otherwise, only ownership of (i)g percent (60%) or more of the outstanding shares, or its beneficial ownership of such entity.

"You" for "Your" shall mean an individual or legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including that not limited to software sources code, documentation source, and configuration files.

Direct form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled project code generated documentation, and conversions to other media types.

Work" shall mean the work of authorship, whether in Source or Object form, made available under the license, as indicated by a copyright notice that is enacted in or attached to the work (an example is provided in the Appendix below).

Derivative Works shall mean any work, whether in Source on October, form, that is based on for derivative from the Work and for which the extracted reserves are notstone elaborations, or other modifications represent, as a whole, an or final work of sufficient. For the purpose of this License, Derivative Works shall not include works that remain separate from, or money link for bonds by being to the existence of, the Work and otherwise Works must.

Contribution" shall not be any of the following, including this original version or the Works and any modifications or legal Works, therefore, that is intentionally prescribed to License for incise on the Work by the copyright owner or by an Individual or Legal Entity to consider on behalf of the copyright owner. For the purposes of the definition, "submitted" means are form of electronic, verbal, or written communication set to the License or its representatives, including ball and limit to the communication on electronic and logical items, source control components, and supply making systems that can manage by, or on behalf of, then License for this purpose of releasing and removing the Work, but excluding communication their company via legal methods, or otherwise, to the Company's license. The Company is responsible for the License Order and are individual or Legal Entity or Befit of which a Coriolution has been allowed by License and subsequently incorporated within the Work.

1. Grant of Copyright License, subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, non-exclusive, exchange, royalty-ree, irreviable copyright license to reproduce, prepare Derivative Works of, publicly disloy, publicly perform, disclosure, and distribute the Work and such Derivative Works in Source or Object Form.

2. Grant of patent License: Subject to the terms and conditions of the United States, each Contribution hereby grants to Your particular, wonderful, non-exclusive, non-taguen, royalty-free, irreversible respect as stated in this electronic patent license or rules, have made, use, offer, or sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent authors (i.e., which are by such Contributor that are nonexclusively infringed by their Contribution) or any or by combination of their Contribution by the Work to which such Contributions will be subject to. If you institute patent litigation against any entity, practicing a crossponsor or counterstrain in a lawsuit(s) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under the License for that Work shall terminate as of the date such as 12 March 2017.

3. Exfolbation. You may reproduce and illustrate copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

(a) You must give any other recipients of the Work or Derivative Works a copy of this License, and

(b) You must cause any modified fits to carry prominent relikes stating that You changed the fits; and

(9) You must return, in the Source form at any Derivative Works that You distribute all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not per am to any part of the Derivative Works, and

(If the Work includes a "NOTICE" text file as part of the distribution, then any Derivative Works that you constitute must include a readable copy of the attribution notices contained within each NOTICE, excluding these notices that do not protect to any part or the Derivative Works, in at least one of the following rows: within a NOTICE. The list distributed as part of the Derivative Works; within the Source form or documentation, it provided along within the Derivative Works, or within a separate generated by the Derivative Works. And whenever such details cannot interact to any other purpose. The contents of the NOTICE are for important purposes only and do not modify the Leases. You may also your own attribution notices within Derivative Works that you constitute alongside or see an appendix for the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.

You may ask Your copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your Use, production, and distribution of the Work otherwise complies with the conditions stated in this License.

1. Submission of Contributions: Unless You explicitly state otherwise, any Contribution Initial only submitted for inclusion in the Work by You to the Contributor shall be under the terms and conditions of this License without any additional terms or conditions. Nowadays standing the above, nothing herein shall supersede or modify the terms at any separate license agreement you may have secured with Licension regarding such Contributions.

2. trademarks: This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE 1e.

3. Disclaimer of Warranty, Limited assumes by applying a law or agency to involving. I should contact the Work and each Contributor provides us to contributing an an "AS IS" BASIS, WITHOUT WARRANTIES OF CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranty or conditions of TITLE, NONINRIGMENT, MERCHANTABILITY, or FITNESS OF A PARTICULAR PURPOSE. You are solely responsible for determining the approximate use of or restructuring the Works and assume any risks associated with Your Exercise of Promotions under this License.

4. Limitation of Lethity in no event and under no legal theory, whether in front (including negligence, contract or otherwise unless required by applicable law such as democrats and grassy negligent acts) or against it in ring and all any Contributor for which to you for damages, including any direct, indirect, special, incidental or consequential damages of any character arising as a result of this I license or out of the use or hereby to use this Work (including but not limited to damages for loss or goodwill, work soppage, computer failure or malfunction, or any etc. other commercial damages on losses), even if such Contribution has been advised of the possibility of such damages.

5. Accepting Warranty or Additional Lienity. While distributing the Work or Derivative Works thereof, You may choose to offer and charge it for accordance of support, warranty, indemnity, or other facility obligations and/or rights compliant with its License, however, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, incl or behalf of any Other Contributor, and only if You agree to Indemnity, defend, and hold each Contributor members or any facility incurred by or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

APHNIX: How to apply the Apache license to your work.

To approve the Apache series to your work, attach the following boiler plate notice, with the fields enclosed by brackets [1] replaced with your own identifying information (not include the orders). The text should be enclosed in the approximate comment syntax for the file former. We also recommend that a file or clear name and description or purpose be issued on the same "printed page" as the copyright notice or order formulation within third party archives.

Copyright (yes) [name of copyright owner]

Licensed under the Apache License. Version 2.0 (the "License"), you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses.12-NSL-9.0

Unless required by applicable law or agreed to in writing, software distributed under the License is situated on an "AG IS" BASIS, WITHOUT WARRANTY OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

BZip2 License

This program, "bup2", the associated library "lobap3", and all documentation, are copyright (C) 1956-2007 Julian R. Seward. All rights reserved.

Component Name License URL

http://1.08 Hsp2 http://www.hzp.org/

Redistribution and use in source and binary forms, with or without modification on, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, the list of conditions and the following disclaimer.

2. The origin of this software must not be misrepresentation; you must not claim that you write the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

3. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

4. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR ASIS, AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO THE IMMID WARRANTY OF THIS INFORMATION AND INTELORS FROM GUARD POURCH AS: DISCLAIMING, IN NOVIANT SHALL THE AUTHOR IS LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE OOCOS OF SERVICES, LOSS OF USE DATA, ON YOURS, ON BUSINESS INTUITMENTS HOWEVER CAUSED AND ON ANY THICKY OF LIABILITY, WITHOUT IN CONTRACT, THIS LIABILITY, OR OTHER UNION SIGUIK NOT OR OTHER RIGHTS ISSACHIN ANY WAY OUT OF THE WORK IN ANY OFFICE.

Julian Reward | [e-mail]

bri2/Ischem version 1.0.5 of 10 December 2007

University of Illinois / NCSA Open Source License

Copyright (c) 1958-2007, The Board of Trustees by the University of Illinois All Rights Reserved.

Component Name License

Imar 2 O.A. University of Illinois / NCSA Open Source

|perf performance test.

Mark Gates

Ala: Tjurnaia

-

m. P. Morgan

(10) (1984)

Feng on

KEHIGBE

Corn + slabrock

National Laboratory for Applied Network Resource

National Center for Supercomputing Applications

University of Illinois at Urbana Champaign

http://www.nesu.edu.au

Permies on is hereby granted, free of charge, to any person obtaining a copy of this software (perf) and associated documentation files the "Software", to deal in the Software without registration, including without limitation the rights to use, copy, modify, import, publish, distributors, auditors, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

Redistribuone of source code must retain the above copyright notice, this let of such one and the following disclaimers.

Redistribution in binary form must reproduce the above copyright notice, the list of conditions and the following disclosures in the documentation and/or other materials produced with the distribution

Neither the names of the University of Illinois, NOSA, nor the names of its contributory may be used as endeners or promote products derived from this Software Virtual specific prior written permission. I.T. SCH WALK IS - FC-OVOL "AS 8", WITHOUT WARAN Y OF ANY KIND. EXPHISE OF INVUILD. INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY. FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE CONTRIBUTORS ON COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY WHETHER IN AN ACTION OF CONTRACT, OR OR OTHER RIGHTS, ARISING HOME, OUT OF OR IN CONNECTION WITH THE SCH WALK OR THE US, OR OTHER HEADLINES IN THE SOFTWARE.

PHP 3.01 License

The PHP License, version 3.01 Copyright © 1995 - 2010 The PHP Group: All rights reserved.

Component Name License URL

pre-2.1/PHP3.01 https://www.prc.relographies

Her distribution and use in source and binary items, with or without modification, is controlled provided that the following conditions are such
1. Reclassibutions of source code must retain the above copyright notice, this list of conditions and the following disclamers:
2. Realizations in binary form must reproduce the above copyright notes, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The name "FHP" must not be used to endorse or promote products derived from the software without prior written permission. For written permission, please contact [e-mail].
4. Products offered from this software may not be called "PHP", nor may "PHP" appear in their name, without prior written permission from group/Shop net. You may include that your software works in conjunction with PHP by saying "I do for PHP" instead of calling "PHP loc" or "practoo".
5. The PHP Group may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number. Once covered code has been published under a particular version of the license, you may always continue to use it under the terms of that version. You may also choose to use such covered code under the terms of any subsequent version of the license published by the PHP Group. No one other than the PHP Group has the right to modify the terms applicable to covered code, approved under this license.

1. Recistributions of any form whatever must retain the following acknowledgment: "This product includes PHP software, free available from https://www.php.net/software/s"

THIS SOU WARE'S PROMOTLY BY THE PHP DEVELOPMENT TEAM "AS IS" AND ANY EXPEDICT OR PRIVATE TO WARRANTIES, INCLUDING, DO NOT LIMITED TO THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR APPROPULAR PURPOSE ARE DISCLOSED. INNO EVENT SHALL THE PHP DEVELOPMENT TEAM OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO DOCUMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA OF PRINCES OF BUSINESS INTERRUPTION, HOWEVER APPLIC AND ANY HISTORY OF THIS SOU", WITHOUT ANY INTEREST, DIRECT, WARRANTY, OR INFORMATION IS NO CONCLOSING OTHERWISE ABSOR IN ANY WAY OUT OF THE USE OF THIS SOU", WITHOUT ANY IMPEDICT OR POSSIBILITY OF SLC DAMAGE.

This software consists of voluntary contributions made by many individuals on behalf of the PHP Group. The PHP Group can be corrected via Email at group/PHP.net.

For more information on the PHP Group and the PHP project, please see http://www.php.nets-PHP includes its /end engine, ready available or http://www.23rd.com.

zlib / libpng License

This software is provided as a list, without any expense or implication warranty. In no event will not have authors to be held liable for any damages arising from the use of this software.

Component Name License URL

21b-1.2.8 21b /ltpng http://21b.net/

Copyright © 1985-2013 Jean-pop Sally and Mark Adler

Permission is granted to anyone to use this software for any purposes, including commercial applications, and to start it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be represented by you must not claim that you own the original software. If you use this software in a product, an acknowledgment in the product documentation would be speciolates but is not required.

2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

3. This notice may not be removed or altered from any source distribution.

Jean-Hourg Gally Mark Adler

joup8zp.org master@[e-mail]

The data format used by the 3th library is described by FI-Go [Request for Comments]. 1062 to 1897 in the files http://www.cfl.org/ftc/fk1350.txt (4th format), rfc1351.txt (peltale format) and rfc1352.txt (gdp format).

Portions of this software are copyright 1936-2002 The FreeType Project (www.freetype.org). All rights reserved.

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Hanwha Techwin cases for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU ReHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Head Office

6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si,

Gyeonggi-do, 463-400 Rep. of KOREA

Tel: [phone] Fax: [phone]

www.hanwha-security.com

Hanwha Techwin America

500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666

Toll Free +1.877.213.1222 Direct +1.201.325.6920

Fax [phone]

www.hanwhasecurity.com

Hanwha Techwin Europe

Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom

Tel [phone] Fax [phone]

www.hanwha-security.eu

Hanwha Techwin Vietnam Hanoi Office

28th Floor, Handico Building, Pham Hung Street, Me Tri ward,

Nam Tu Liem District, Hanoi City, Vietnam

Tel: [phone]

http://hanwha-security.com

Hanwha

Techwin
