USER MANUAL LND-6031R Wisenet

©2018 Hanwha TechwinCo., Ltd. All rights reserved.

Trademark

Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Copyright of this document is reserved. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization.

Disclaimer

Hanwha Tochwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Hanwha Tochwin reserves the right to change the contents of this document without prior notice.

❖ Design and specifications are subject to change without prior notice.

The initial administrator ID is "admin" and the password should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.

Please, take note that it's a user's responsibility for the security and any other problems caused by mismanaging a password.

important Safety inStructionS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean the contaminated area on the product surface with a soft, dry cloth or a damp cloth. (Do not use a detergent or cosmetic products that contain alcohol, solvents or surfactants or oil constituents as they may deform or cause damage to the product.)
7. Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed Power Supply Unit marked "Class 2" or "LPS" and rated from PoE, 0.18A.
16. If you use excessive force when installing the product, the camera may be damaged and malfunction. If you forcibly install the product using non-compliant tools, the product may be damaged.
17. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table.
    This may cause damage to the product.
18. When installing the product, be careful not to allow the surface of the product to be stained with chemical substance.
    Some chemical solvents such as cleaner or adhesives may cause serious damage to the product's surface.
19. If you install/disassemble the product in a manner that has not been recommended, the production functions/performance may not be guaranteed.
    Install the product by referring to "Installation & connection" in the user manual.
20. Installing or using the product in water can cause serious damage to the product.

warning

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance with the installation instructions.

caution

eXpLanation of GrapHicaL SymBoLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

overview

Class I construction

An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it's defected. And please call a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

ATTENTION

IL Y A RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACÉE PAR UNE BATTERIE DE TYPE INCORRECT. METTRE AU REBUT LES BATTERIES USAGÉES CONFORMÉMENT AUX INSTRUCTIONS.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Please use the input power with just one camera and other devices must not be connected.

The ITE is to be connected only to PoE networks without routing to the outside plant. The wired LAN hub providing power over the Ethemet (PoE) in accordance with IEEE 802-3af shall be a UL Listed device with the output evaluated as a Limited Power Source as defined in UL60950-1.

Unit is intended for installation in a Network Environment 0 as defined in IEC TR 62102. As such, associated Ethernet wiring shall be limited to inside the building.

Please read the following recommended safety precautions carefully.

• Do not place this apparatus on an uneven surface.
• Do not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
• Do not place this apparatus near conductive material.
• Do not attempt to service this apparatus yourself.
• Do not place a glass of water on the product.
• Do not install near any magnetic sources.
• Do not block any ventilation openings.
• Do not place heavy items on the product.
• Please wear protective gloves when installing/removing the camera. The high temperature of the product surface may cause a burn.

User's Manual is a guidance book for how to use the products.

The meaning of the symbols are shown below.

• Reference : In case of providing information for helping of product's usages
• Notice: If there's any possibility to occur any damages for the goods and human caused by not following the instruction
  ※ Please read this manual for the safety before using of goods and keep it in the safe place.

WARNING

To prevent damage which may caused by IR LED, don't stare at operating lamp.

For below models only.

LND-6011R/LND-6021R/LND-6031R/LND-6071R

LNO-6011R/LNO-6021R/LNO-6031R/LNO-6071R

LNV-6011R/LNV-6021R/LNV-6031R/LNV-6071R

Risk Group 1

WARNING IR emitted from this product.Do not stare at operating lamp.

Product tested against IEC 62471

contentS

OVERVIEW

3 Important Safety Instructions

6 Product Features

6 Recommended PC Specifications

6 Recommended Micro SD/SDHC Memory Card Specifications

7 What's Included (LND-6011R/6021R/6031R/6071R)

7 What's Included (LNO-6011R/6021R/6031R/6071R)

8 What's Included (LNV-6011R/6021R/6031R/6071R)

9 At a Glance (LND-6011R/6021R/6031R)

10 At a Glance (LND-6071R)

12 At a Glance (LNO-6011R/6021R/6031R)

12 At a Glance (LNO-6071R)

13 At a Glance (LNV-6011R/6021R/6031R)

14 At a Glance (LNV-6071R)

INSTALLATION & CONNECTION

15 Installation (LND-6011R/6021R/6031R/6071R)

16 Installation (LNO-6011R/6021R/6031R/6071R)

18 Installation (LNV-6011R/6021R/6031R/6071R)

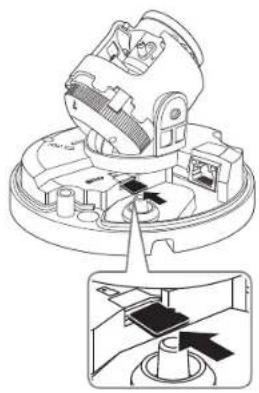

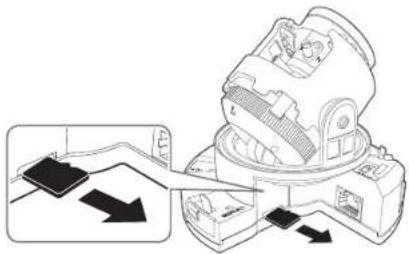

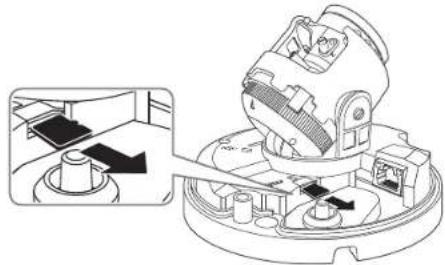

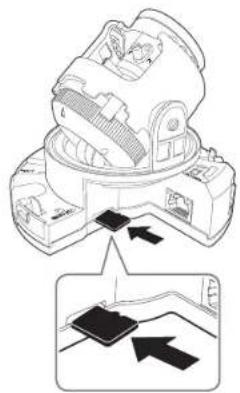

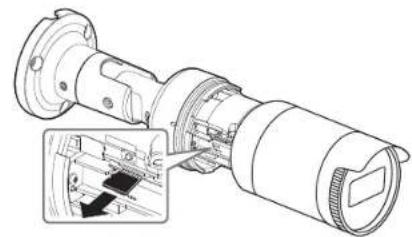

20 Inserting/Removing a Micro SD Memory Card

22 Powering and networking

NETWORK CONNECTION AND

SETUP

23 Connecting the Camera Directly to Local Area Networking

23 Connecting the Camera Directly to a DHCP Based DSL/Cable Modem

24 Connecting the Camera Directly to a PPPoE Modem

24 Connecting the Camera to a Broadband Router with the PPPoE/Cable Modem

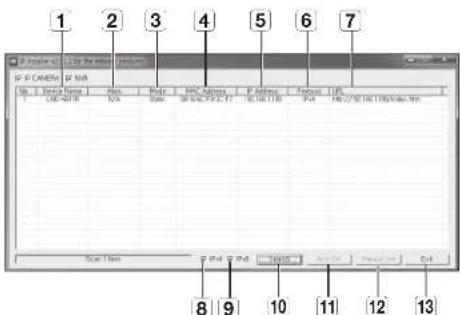

25 Buttons used in IP Installer

25 Static IP Setup

27 Dynamic IP Setup

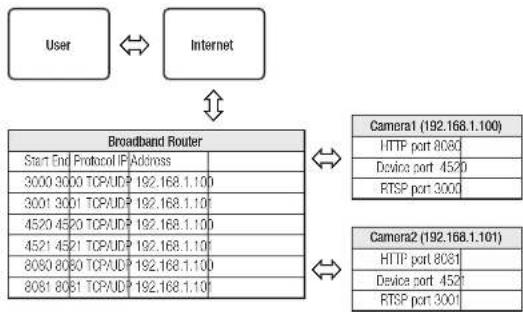

27 Port Range Forward (Port Mapping) Setup

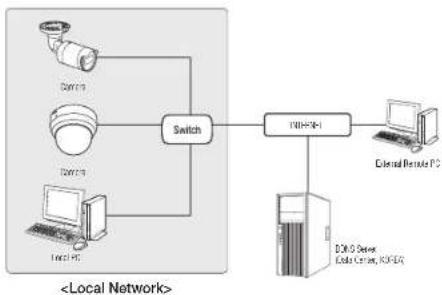

28 Connecting to the Camera from a Shared Local PC

28 Connecting to the Camera from a Remote PC via the Internet

WEB VIEWER

29 Connecting to the Camera

30 Password setting

30 Login

30 Plug-in support specifications for each browser

31 Installing WebViewer Plugin

31 Using a Plug-in Free Webviewer

APPENDIX

32 Specification

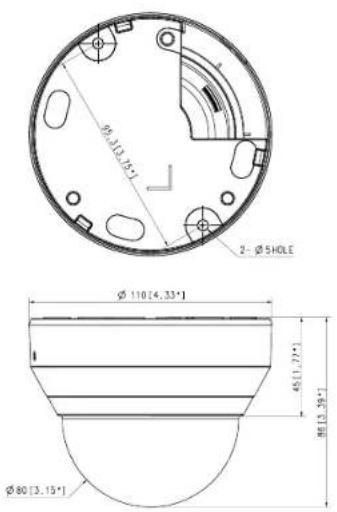

36 Product Overview

39 Troubleshooting

40 Open Source Announcement

PRODUCT FEATURES

- Dustproof/Waterproof (IP66) (LNO-6011R/6021R/6031R/6071R, LNV-6011R/6021R/6031R/6071R)

The dustproof and waterproof design makes you feel at ease when installing the product outdoors or exposing it to rain.

- IR mode

If the IR indicator turns on, the product switches to the IR mode for preventing an object from being too bright, which helps you identify the object in near distance.

• Supports 2 megapixel resolution videos

- Multi-Streaming

This network camera can display videos in different resolutions and qualities simultaneously using different CODECs.

• Web Browser-based Monitoring

Using the Internet web browser to display the image in a local network environment.

- Alarm

When an event occurs, related videos are sent to the user's registered e-mail and FTP server or stored on the Micro SD memory card.

- Tampering Detection

Detects tempering attempts on video monitoring.

- Motion Detection

Detects motion from the camera's video input.

• ONVIF Compliance

This product supports ONVIF Profile S&G.

For more information, refer to www.orvif.org.

RECOMMENDED PC SPECIFICATIONS

• CPU : Intel(R) Core(TM) i7 3.4 GHz or higher

• Supported OS : Windows, Mac OS X

- Plug-in free web viewer

Supported web browsers : Google Chrome, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)

- Plug-in Webviewer

Supported web browsers : MS Explorer

• VGA : PCIe 256MB GDDR3 video graphics card or higher

※ For detailed version information on the OS and the browser, please refer to the appendix.

RECOMMENDED MICRO SD/SDHC MEMORY CARD SPECIFICATIONS

• Recommended capacity : 16GB \~ 32GB (MLC Type)

- For your camera, we recommend you use a memory card from the following manufacturers: Micro SD/SDHC Memory Card : Sandisk, Transcend

wHat'S incLuDeD (LnD-6011r/6021r/6031r/6071r)

Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.)

Appearance Item Name Quantity Description
	Camera	1
	Warranty card /Optional	1
	Template	1	Product installation guide

wHat'S incLuDeD (Lno-6011r/6021r/6031r/6071r)

Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.)

Appearance	Item Name	Quantity	Description	Model Name
	Camera	1		LNO-6011R/6021R/6031R/6071R
	Warranty card (Optional)	1		Use for all models
	Template	1	Product installation guide
	RJ45 waterproof accessory	1	Used to install in humid paces
	Card-type moisture absorbent	1	Attached when installed, LNO-6071R

wHat'S incLuDeD (Lnv-6011r/6021r/6031r/6071r)
Please check if your camera and accessories are all included in the product package. (As for each sales country, accessories are not the same.)

Appearance	Item Name	Quantity	Description	Model Name
	Camera	1		LMV-6011R/6021R/6031R/6071R
	Warranty card(Optional)	1		Use for all models
	Template	1	Product installation guide
	Star-shaped wrench	1	Used for the assembly and disassembly of dome covers
[A4H7]	Card-type moisture absorbent	1	Attached when installed.
[A4E8]	Cable bush	1	Used to connect the LAN cable with a diameter of 07-2.5.

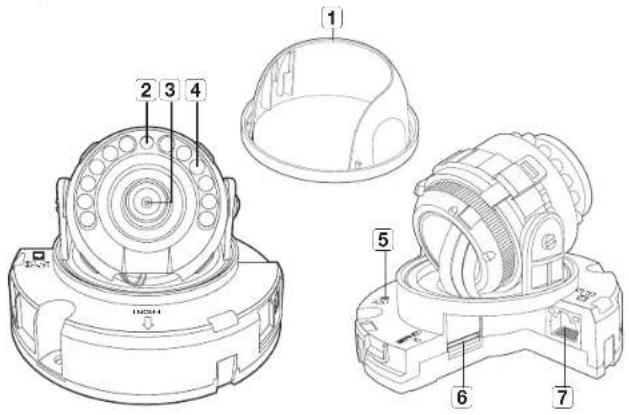

AT A GLANCE (LND-6011R/6021R/6031R)

Appearance

Item Description
1 Dome cover	Case cover used to protect the lens and the main unit.
2 Camera Case	Housing part that covers the camera body.

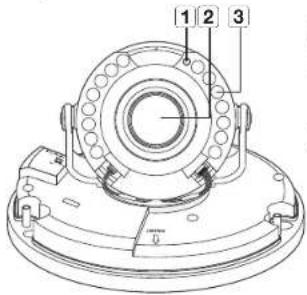

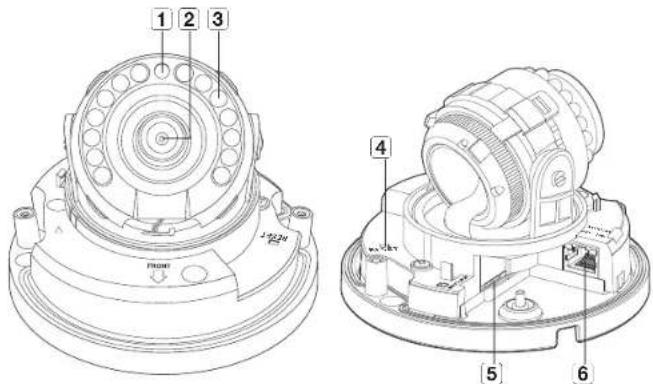

Components

Item Description
1 Inside cover Protective cover for the main body.
2 Illumination Sensor Detecta incoming light to control the IR LED.
3 Lens Lens for the camera.
4 IR LED These infrared LED's are controlled by the illumination sensor.
5 Reset Button	The button restores all camera settings to the factory default.Press and hold for about 5 seconds to reboot the system.If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP installer program to change the basic network settings such as IP address, Subnot mask, Gateway, etc., before you can connect to the network.
6 Micro SD Memory Card Compartment	Compartment for the Micro SD memory card.
7 PoE connector Supply power through the Ethernet cable and connect to the network.

AT A GLANCE (LND-6071R)

Appearance

Item Description
1 Dome cover	Case cover used to protect the lens and the main unit.
2 Camera Case	Housing part that covers the camera body.

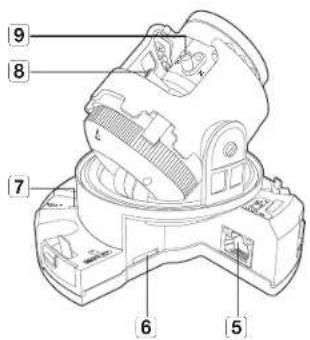

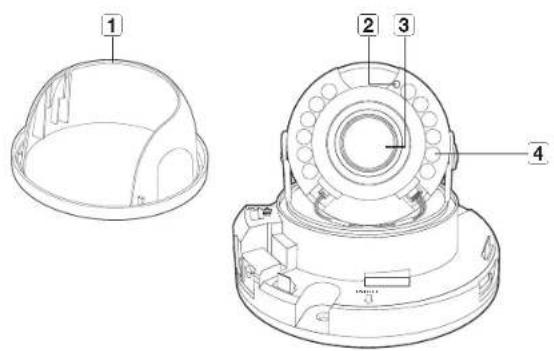

Components

Item Description
1 Inside cover Protective cover for the main body.
2 Illumination Sensor Detects incoming light to control the IR LED.
3 Lens Lens for the camera.
4 IR LED Those infrared LED's arc controlled by the illumination sensor.
5 PoE connector Supply power through the Ethernet cable and connect to the network.
6 Micro SD Memory Card Compartment	Compartment for the Micro SD memory card.
7 Reset Button	The button restores all camera settings to the factory defaultPress and hold for about 5 seconds to reboot the system.■ If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address. Subnet mask. Gateway, etc., before you can connect to the network.

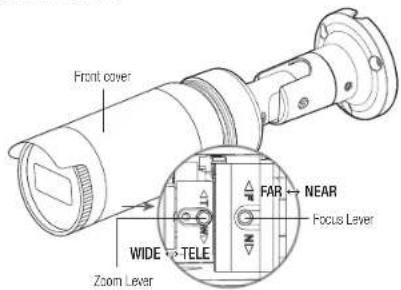

8 Zoom control lever	T Zoom in (Tele)
	W Zoom out (Wide)
	Release the lever and move it to left or right to zoom the lens in or out.Turn the lever clockwise to fix the adjusted position to prevent it from being moved.
9 Focus control lever	N Focusing on a near object (Near)
	F Focusing on a far object (Far)
	Release the lever and move it to left or right to adjust the lens focus.Turn the lever clockwise to fix the adjusted position to prevent it from being moved.

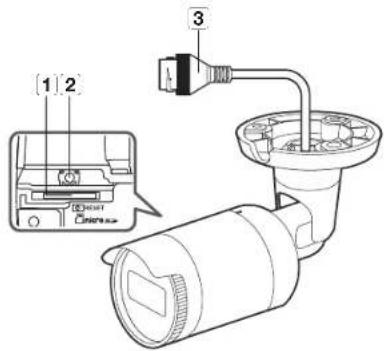

AT A GLANCE (LNO-6011R/6021R/6031R)

Appearance

Item Description
1 Micro SD card slot	(Internal space of the product) This is a slot in which you can insert a Micro SD card.
2 Reset button	The button restores all camera settings to the factory defaultPress and hold for about 5 seconds to reject the systemIf you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnot mask, Gateway, etc., before you can connect to the network.
3 PoE connector Supply power through the Ethernet cable and connect to the network.

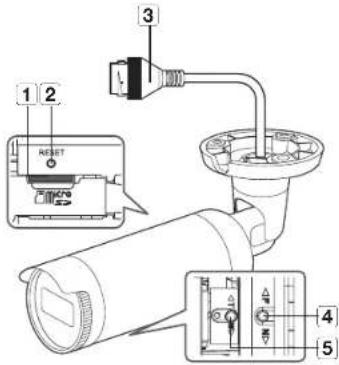

AT A GLANCE (LNO-6071R)

Appearance

Item Description
1 Micro SD card slot	Internal space of the product. This is a slot in which you can insert a Micro SD card.
2 Reset button	The button restores all camera settings to the factory default.Press and hold for about 5 seconds to reboot the system.■ If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.
3 PoE connector	Supply power through the Ethernet cable and connect to the network.
4 Focus control lever	N Focusing on a near object (Near)
	F Focusing on a far object (Far)
	Release the lever and move it to left or right to adjust the lens focus.Turn the lever clockwise to fix the adjusted position to prevent it from being moved.
5 Zoom control lever	T Zoom In (Tele)
	W Zoom out (Wide)
	Release the lever and move it to left or right to zoom the lens in or out.Turn the lever clockwise to fix the adjusted position to prevent it from being moved.

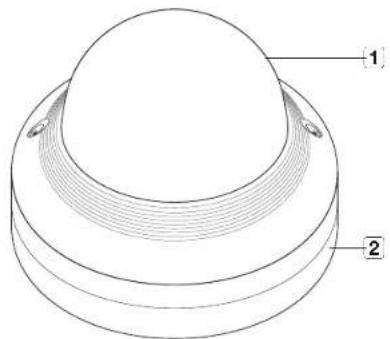

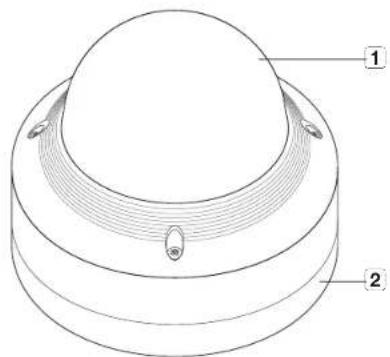

AT A GLANCE (LNV-6011R/6021R/6031R)

Appearance

Item Description
1 Dome cover	Case cover used to protect the lens and the main unit.
2 Camera Case	Housing part that covers the camera body.

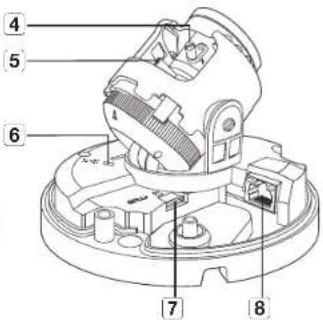

Components

Item Description
1 Illumination Sensor Detects in coming light to control the IR LED.
2 Lens Lens for the camera.
3 IR LED These infrared LED's are controlled by the illumination sensor.
4 Reset button	The button restores all camera settings to the factory default.Press and hold for about 5 seconds to reboot the system.□ If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.
5 Micro SD Memory Card Compartment	Compartment for the Micro SD memory card.
6 PoE connector Supply power through the Ethernet cable and connect to the network.

AT A GLANCE (LNV-6071R)

Appearance

Item Description
1 Dome cover	Case cover used to protect the lens and the main unit.
2 Camera Case	Housing part that covers the camera body.

Components

Item Description
1 Illumination Sensor Detects incoming light to control the IR LED.
2 Lens Lens for the camera.
3 IR LED Those infrared LED's are controlled by the illumination sensor.
4 Focus control lever	N Focusing on a near object (Near)
	F Focusing on a far object (Far)
	Release the lever and move it to left or right to adjust the lens focus.Turn the lever clockwise to fix the adjusted position to prevent it from being moved.
5 Zoom control lever	T Zoom in (Tels)
	W Zoom out (Wide)
	Release the lever and move it to left or right to zoom the lens in or out.Turn the lever clockwise to fix the adjusted position to prevent it from being moved.
6 Reset button	The button restores all camera settings to the factory default.Press and hold for about 5 seconds to reboot the system.If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.
7 Micro SD Memory Card Compartment	Compartment for the Micro SD memory card.
8 PoE connector	Supply power through the Ethernet cable and connect to the network.

INSTALLATION (LND-6011R/6021R/6031R/6071R)

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera, including the installation bracket.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site. And put aside personal belongings from the site, just in case.
• For the manual variable focal lens camera, features such as focus and zoom should be adjusted before installation. When adjusting these, be sure to prevent foreign substances from becoming attached.

Disassembling

1. Use one hand to hold the camera's bottom part and turn the cover counterclockwise with another hand to separate it.

1. Lift up the inner cover to separate it.

Installation

1. Attach the installation template to the desired location, and drill holes by following the template.

1. Use the tapping screws to secure the camera to the holes drilled through the template.
2. Set the < 🔒 mark imprinted on the camera to face the direction of camera monitoring.
3. Connect the camera internal terminal with the corresponding cable.
4. Adjust the lens in a desired direction by referring to the "Adjusting the monitoring direction for the camera" section. (page 20)

You are recommended not to touch the lens separately, as it is shipped from the factory with the focus correctly adjusted when the inspection is completed. Touching the lens may cause the focus to become distorted or the lens to become dirty. (LND-6011R/6021R/6031R)

- For the manual variable focal lens camera, features such as focus and zoom should be adjusted before installation. When adjusting these, be sure to prevent foreign substances from becoming attached. (LND-6071R)

1. Please connect the inner cover to the main body.
2. While grabbing the bottom side of the camera with your hand, please grab and push its cover with the other hand to align the two arrow signs, as shown in the figure.

To assemble the dome cover, make the arrows match each other and press the cover firmly. If the dome cover is rotated during assembly or is assembled incorrectly, diffused reflection may occur or the lens section may rotate, which will cause the shooting range to be changed.
- Make sure that the dome cover is correctly connected to the bottom part as shown in the figure. If the snap-fit is not connected correctly, the dome cover may fall, which may cause injury.

Technical line drawing of a mechanical component with no visible text or symbols

INSTALLATION (LNO-6011R/6021R/6031R/6071R)

This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera including the installation bracket.
• Stuck-in or peeled-off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site. And put aside personal belongings from the site, just in case.
• For the manual variable focal lens camera, features such as focus and zoom should be adjusted before installation. When adjusting these, be sure to prevent foreign substances from becoming attached.

Installation

1. Attach the installation template to the desired location, and drill holes by following the template.

2. Use the tapping screws to secure the camera to the holes drilled through the template.

3. Connect the appropriate cables with camera terminals.

Technical line drawing of a mechanical assembly with cylindrical components and mounting brackets (no text or symbols)

1. Adjust the orientation of the camera using a Phillips screwdriver.

- When you adjust the camera position using a bracket, please loosen the bracket screw, adjust the camera, and tighten it. If you attempt to adjust it forcibly while the screw is light, it may result in a scratch or other problems.

Diagram of a mechanical assembly with a cylindrical component and a circular component, showing rotational motion (no text or symbols)

How to connect the RJ45 waterproof cable to a LAN cable

1. Insert it through the arrow direction.
2. Connect the LAN connector (male) to the cable.
3. Connect the RJ45 modular jack (female) to the RJ45 connector (male).
   Please, keep each of the parts separated.
4. Assemble by rotating the RJ45 modular jack (famale) and the RJ45 protection cover clockwise (Follow the arrow).
5. Assemble by rotating RJ45 protection cover and back cover clockwise (Follow the arrow). When the back cover is assembled, the cable waterproof gasket is tightly attached to the cable to make it waterproof.
   You must fully assemble it to rotate the back cover up to the end of the screw thread of the RJ45 connector.

Outdoor installation

When you install it outside of the building, please waterproof it with waterproof butyl rubber tape (can be purchased in stores) so that water does not leak from the gap of the cable connected to the outside.

1. Connect the PoE cable.

2. Wrap the black cable jacket (Area A) and the cable connection area with waterproof (butyl rubber) tape so that more than half of the butyl rubber tape is overlapped.

- If the cable jacket is not waterproofed properly, then it can directly cause leakage. Make sure to protect the cable with a dense layer of taping.

- Waterpictol butyl tape is made of butyl rubber that can be stretched to twice its normal length.

To adjust the zoom factor or focus (LNO-6071R)

1. Loosen the front cover as shown.
2. Loosen the zoom/focus lever slightly.
3. Position the zoom/focus lever to WIDE (NEAR) or TELE (FAR) as appropriate.
4. Then, tighten the zoom/focus lever to fix the adjusted position.
5. Tum the front cover to tighten it.

To ensure seamless waterproofing, tighten up the front cover by turning it to the end.
When combining the front cover, please combine the main body and the front cover so that the LOCK indicator is interlocked.
- Use the lever to adjust the zoom factor or focus, and turn the lever clockwise to fix it.
Before you can adjust the zoom factor/focus of the lens, loosen and remove the front cover.

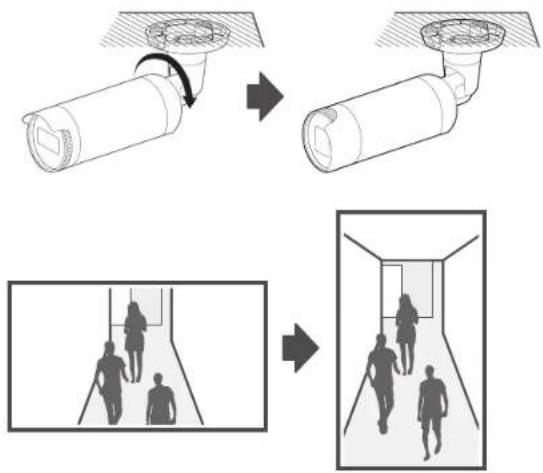

Hallway view

The camera can be rotated to enlarge the vertical monitoring area to an aspect ratio of 9:16, making it suitable for narrow corridors and passageways.

- Rotate both the camera body and the front cover.

INSTALLATION (LNV-6011R/6021R/6031R/6071R)

This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the external cable is not. You are recommended to install this product below the edge of eaves to prevent the cable from being externally exposed.

Precautions before installation

Ensure you read out the following instructions before installing the camera:

• It must be installed on the area (ceiling or wall) that can withstand 5 times the weight of the camera, including the installation bracket.
• Stuck in or peeled off cables can cause damage to the product or a fire.
• For safety purposes, keep anyone else away from the installation site. And put aside personal belongings from the site, just in case.
• For the manual variable focal ions camera, features such as focus and zoom should be adjusted before installation. When adjusting these, be sure to prevent foreign substances from becoming attached.

Disassembling

1. Remove the dome cover by loosening the fastening bolts by turning them counterclockwise using the supplied star-shaped wrench.

Installation

1. Attach the installation template to the desired location, and drill holes by following the template.
2. Use the tapping screws to secure the camera to the holes drilled through the template.
3. Connect and arrange the necessary cables lest that they should be damaged or twisted while installing the camera.
4. Adjust the lens in a desired direction by referring to the "Adjusting the monitoring direction for the camera" section, (page 20)
5. Close the dome cover.
6. Tighten the fastening bolts lightly using the star-shaped wrench to prevent water leakage.

Technical line drawing of a mechanical component with a circular base and flange (no text or symbols)

18 installation & connection

Connecting the LAN cable

1. Remove the dome cover and the case.
2. Pull out the long projected part of the rubber plug on the bottom and remove it as shown in the figure.

Use an appropriate cable bush for the LAN cable to be connected. - Basic camera : Use the cable with a diameter of 25\~6.5. - Components provided : Use the cable with a diameter of 27\~8.5.

1. Insert the LAN cable through the hole that was formed by removing the protruded part in step 2.
2. Remove the sheath with a cable cutter, and align the cables.
3. Connect the LAN cable with a LAN connector, and insert it into the LAN tool.
4. Connect the finished cable to the Ethernet port.

Technical line drawing of a mechanical assembly with no visible text or symbols

Attaching to the unbundled adapter

Choose and purchase a necessary one of the following options (unbundled) that is suitable to the installation site or for your convenience.

1. Remove the dome cover from the case by referring to the "Disassembling" section. (page 18)
2. Use the machine screw to fix the camera case to the unbundled adapter.
3. Connect and arrange the necessary cables lest that they should be damaged or twisted while installing the camera.
4. Install the camera body in the reverse order of "Disassembling".
5. Adjust the lens in a desired direction by referring to the "Adjusting the monitoring direction for the camera" section. (page 20)
6. Close the dome cover,
7. Securely fasten the fastening bolt using an L wrench to prevent water from leaking.

Optional Accessories for Installation

For your easier installation, you can purchase appropriate optional accessories available.

1. WALL MOUNT ADAPTOR(SBP-300WMW1)/HANGING MOUNT(SBP-122HMW: LND-6071R, LNV-6011R/6021R/6031R, SBP-301HMW2: LNV-6071R, SBP-300HMW7: LND-6011R/6021R/6031R) This adaptor is used when installing the dome camera onto a wall.

Technical line drawing of two mechanical components with flanged ends and a vertical support (no text or symbols)

1. CEILING MOUNT ADAPTOR(SBP-300CM)/HANGING MOUNT(SBP-122HMW): LND-6071R, LNV-6011R/6021R/6031R, SBP-301HMW2: LNV-6071R, SBP-300HMW7: LND-6011R/6021R/6031R) This adaptor is used when installing the dome camera on a concrete ceiling.

1. POLE MOUNT ADAPTOR(SBP-300PM) This is an adaptor for WALL MOUNT ADAPTOR (SBP-300WM or SBP-300WM1) installation on a pole whose diameter is bigger than 80mm.

2. CORNER MOUNT ADAPTOR (SBP-300KM) This is an adaptor for WALL MOUNT ADAPTOR (SBP-300WM or SBP-300WM1) installation on the corner of wall joint.

installation & connection

Adjusting the monitoring direction for the camera (LND-6011R/6021R/6031R/6071R, LNV-6011R/6021R/6031R/6071R)

■ Adjusting the monitoring direction

You can adjust the camera direction only when the camera is fixed on the ceiling.

Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called Tilt, and turning the lens on its axis is called Rotation.

• The effective range of pan is a total of 350 degrees.
• The effective range of rotation is a total of 355 degrees.
• The effective range of tilt is a total of 67 degrees.

The image can be covered up by the camera case depending on the angle.

- Do not forcefully turn the focus/zoom lens after the dome case is disassembled. Otherwise, it may cause an incorrect focus due to a motor failure.

■ Methods of adjustment

1. After installing the camera, adjust the panning angle in consideration of the monitoring direction.
2. Set the horizontal angle so that the image is not reversed.
3. Adjust the tilt angle so that the camera faces toward the monitoring object.

INSERTING/REMOVING A MICRO SD MEMORY CARD

- Disconnect the power cable from the camera before inserting the Micro SD memory card.

• Do not insert the Micro SD memory card while it's upside down by force. Otherwise, it may damage the Micro SD memory card.
• When it rains or the humidity is high, insertion or ejection of a Micro SD card is not recommended.
• Disassembly of the product cover should be finished within 5 minutes, or there will be the risk of internal dew condensation.

Inserting a Micro SD Memory Card (LNO-6011R/6021R/6031R/6071R)

1. Turn the front cover to the UNLOCK [ ] direction.

1. Pull and separate the front cover.

1. Insert a Micro SD card in the arrow direction shown in the figure.

Inserting a Micro SD Memory Card (LND-6011R/6021R/6031R/6071R, LNV-6011R/6021R/6031R/6071R)

1. Separate the Dome cover of the camera.
2. Insert a Micro SD card in the arrow direction shown in the figure.

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Removing a Micro SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

Diagram of a device being processed with arrows indicating process flow (no text or symbols present)

Technical line drawing of a mechanical device with internal components and an inset close-up showing a component detail (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing a component being inserted (no text or labels present)

Please note that if you firmly push and release the Micro SO memory card when it is ejected, it may pop out

Before removing the Micro SD memory card, in , set the device to and press the [Apply] button and turn the camera off.
- If you turn off the camera or remove the Micro SO memory card that contains data from the product, the data may be lost or damaged.

installation & connection

POWERING AND NETWORKING

Connect your PoE device to the camera.

Connect to a PoE (Power over Ethernet) enabled router's PoE connector.

- Use PoE (Power over Ethernet) equipment that supports the IEEE802.3al standard.

Technical line drawing of a mechanical device with labeled component 'PoE' (no readable text or symbols beyond label)

Technical line drawing of a mechanical assembly with no visible text or symbols

Network Cable Specification

Item Contents Remark
Connector RJ45
Ethernet 10/100BASE-T 10/100 Mbps
Cable UTP Category Se
Max Distance 100M DC Resistance		≤ 0.188 Q/m
PoE Support IEEE 802,3af

22 installation & connection

network connection and setup

You can set up the network settings according to your network configurations.

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING

Connecting to the camera from a local PC in the LAN

1. Launch an Internet browser on the local PC.
2. Enter the IP address of the camera in the address bar of the browser.

• A remote PC in an external Internet out of the LAN network may not be able to connect to the camera installed in the intranet if the port-forwarding is not properly set or a firewall is set.
  In this case, to resolve the problem, contact your network administrator.
  In the IP installer, you can use the initial password, *4321* to set IP Address, Subnet Mask, Gateway, HTTP Port, VAP Port, IP type. After changing the network interface, for better security, access the web viewer and change the password.
• By factory default, the IP address will be assigned from the DHCP server automatically. If there is no DHCP server available, the IP address will be set to 192.168.1.100. To change the IP address, use the IP Installer.
  For further details on IP Installer use, refer to 'Static IP Setup'. (Page 25)

CONNECTING THE CAMERA DIRECTLY TO A DHCP BASED DSL/CABLE MODEM

1. Connect the user PC directly with the network camera.
2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] - [DDNS] and configure the DDNS settings.
6. Move to [Basic] - [IP & Port], and set the IP type to [DHCP].
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.

For information on how to set DDNS, refer to the online help of Web Viewer.

■ For information on how to set the IP format, refer to the online help of Web Viewer.

CONNECTING THE CAMERA DIRECTLY TO A PPPoE MODEM

1. Connect the user PC directly with the network camera.
2. Run the IP Installer and change the IP address of the camera so that you can use the web browser on your desktop to connect to the Internet.
3. Use the Internet browser to connect to the web viewer.
4. Move to [Setup] page.
5. Move to [Network] - [DDNS] and configure the DDNS settings.
6. Move to [Basic] - [IP & Port] Setup Page, set the IP type to [PPPoE], and enter the network service's ID and password.
7. Connect the camera, which was removed from your PC, directly to the modem.
8. Restart the camera.

For information on how to set DONS, refer to the online help of Web Viewer.

- For information on how to set the IP format, refer to the online help of Web Viewer.

CONNECTING THE CAMERA TO A BROADBAND ROUTER WITH THE PPPoE/CABLE MODEM

This is for a small network environment such as homes, SOHO and ordinary shops.

Configuring the network settings of the local PC connected to a Broadband Router

Configuring the network settings of the local PC connected to a Broadband Router, follow the instructions below:

- Select: → → → → → → or .

- Follow the instructions below if you select :

ex1) If the address (LAN IP) of the Broadband Router is 192.168.1.1

IP address : 192.168.1.100

Subnet Mask: 255.255.255.0

Default Gateway:192.168.1.1

ex2) If the address (LAN IP) of the Broadband Router is 192.168.0.1

IP address : 192.168.0.100

Subnet Mask: 255.255.255.0

Default Gateway:192.168.0.1

ex3) If the address (LAN IP) of the Broadband Router is 192.168.xxx.1

IP address : 192.168.xxx.100

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.xxx.1

For the address of the Broadband Router, refer to the product's documentation.

For more information about port forwarding of the broadband router, refer to "Port Range Forward (Port Mapping) Setup" (Page 27)

BUTTONS USED IN IP INSTALLER

Item Description
1	Device Name	Model name of the connected camera.Click the column to sort the list by model name.However, search will be stopped if clicked during the search.
2	Alias This function is not currently implemented.
3	Mode	Displays otherorfor the current network connection status.
4	MAC(Ethernet) Address	Ethernet address for the connected camera.Click the column to sort the list by Ethernet address.However, search will be stopped if clicked during the search.
5	IP Address	IP address.Click the column to sort the list by IP address.However, search will be stopped if clicked during the search.
6	Protocol	Network setting for the camera.The factory default is "IPv4".Cameras with the IPv6 setting will be displayed "IPv6".
7	URL	DDAS URL address enabling access from the external Internet.However, this will be replaced with theof the cameras if DDAS registration has failed.
8	IPv4 Scans for cameras with the IPv4 setting

Item Description
9 IPv6	Scans for cameras with the IPv6 setting. Activated in an IPv6 compliant environment only.
10 Search	Scans for cameras that are currently connected to the network. However, this button will be grayed out if neither IPv4 nor IPv6 is checked.
11 Auto Set The IP Installer automatically configures the network settings.
12 Manual Set You should configure the network settings manually.
13 Exit Exits the IP Installer program.

For the IP installer, use the latest one if available. You can download the latest version from the Hanwha techwin web site (www.hanwhasecurity.com).

STATIC IP SETUP

Manual Network Setup

Run to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

1. Select a camera in the search list. Check the MAC address of the camera on the camera's label. Both the [Auto Set] and [Manual Set] buttons will be activated.

2. Click [Manual Set].

The Manual Setting dialog appears. , , , , and of the camera are displayed in the preset values.

1. In the
   pane, provide the necessary information.
2. MAC (Ethernet) Address: The MAC address imprinted on the camera label is automatically displayed and requires no user setting.

IP related parameters can be set only when DHCP is not checked.

network connection and setup

If not using a Broadband Router

For setting , , and , contact your network administrator.

1. In the pane, provide necessary information.

2. HTTP Port: Used to access the camera using the Internet browser, defaulted to 80.
   • VNP Port : Used to control the video signal transfer, defaulted to 4520.

3. Enter the password.

Enter the password of "admin" account, which was used to access the camera.

For the security purposes, you are recommended to use a combination of numbers, alphabets uppercase and lowercase and special characters for your password.

- For information on how to change the password, refer to the online help of Web Viewer.

1. Click [OK]

Manual network setup will be completed.

If using a Broadband Router

- IP Address : Enter an address falling in the IP range provided by the Broadband Router. ex) 192.168.1.2-254, 192.168.0.2-254, 192.168.XXX.2-254

- Subnet Mask: The of the Broadband Router will be the of the camera.

- Gateway: The of the Broadband Router will be the of the camera.

- The settings may differ depending on the connected Broadband Router model. For more information, refer to the user manual of the applicable router.

- For more information about port forwarding of the broadband router, refer to "Port Range Forward (Port Mapping) Setup". (Pages 27)

If the Broadband Router has more than one camera connected

Configure the IP related settings and the Port related settings distinctly with each other.

exi

Category Camera #1 Camera #2
IP related settings	IP Address	192.168.1.100	192.168.1.101
	Submit Mask	255.255.255.0	255.255.255.0
	Caleway	192.168.1.1	192.168.1.1
Port related settings	HTTP Port	8080	8081
	VIP Port	4520	4521

If the is set other than 80, you must provide the number in the address bar of the Internet browser before you can access the camera.

ex) http://MP address: HTTP Port http://192.168.1.100:8080

Auto Network Setup

Run to display the camera search list.

At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

- For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not support this function.

1. Select a camera in the search list. Check the MAC address of the camera on the camera's label. Both the [Auto Set] and [Manual Set] buttons will be activated.

2. Click [Auto Set]. The Auto Setting dialog appears. The , , and will be set automatically.

3. Enter the password. Enter the password of "admin" account, which was used to access the camera.

- For the security purposes, you are recommended to use a combination of numbers, alphabels uppercase and lowercase and special characters for your password.

- For information on how to change the password, refer to the online help of Web Viewer.

1. Click [OK].

Auto network setup will be completed.

DYNAMIC IP SETUP

Dynamic IP Environment Setup

• Example of the Dynamic IP environment
- If a Broadband Router, with cameras connected, is assigned an IP address by the DHCP server
- If connecting the camera directly to modem using the DHCP protocols
- If IPs are assigned by the internal DHCP server via the LAN

Checking the Dynamic IP

1. Run the IP Installer on the user's local computer. Cameras allocated with address are shown in the list.
2. Select a camera from the search result.
3. Click the [Manual Set] button and check the camera's address. If you uncheck , you can change IP to .

PORT RANGE FORWARD (PORT MAPPING) SETUP

If you have installed a Broadband Router with a camera connected, you must set the port range forwarding on the Broadband Router so that a remote PC can access the camera in it.

Manual Port Range Forwarding

1. From the Setup menu of the Broadband Router, select - . For setting the port range forward for a third-party Broadband Router, refer to the user guide of that Broadband Router.
2. Select and for each connected camera to the Broadband Router. The number of each port to be configured to the IP router should be set according to the port number designated in - - on the camera web viewer.

1. When done, click [Save Settings]. Your settings will be saved.

2. Above sample instructions are based on the CISCO's Broadband Router.

3. The settings may differ depending on the connected Broadband Router model. For more information, refer to the user manual of the applicable router.

Setting up Port Range Forward for several network cameras

• You can set a rule of Port Forwarding on the Broadband Router device through its configuration web page.
  • A user can change each port using the camera setting screen.

When Camera1 and Camera2 are connected to a router :

- Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. After connecting the network camera, select the checkbox from the menu in in "Settings -> Network -> DDNS".

connectinG to tHe camera from a SHARED LocaL pc

1. Run the IP Installer. It will scan for connected cameras and display them as a list.
2. Double-click a camera to access. The Internet browser starts and connects to the camera.

- Access to the camera can also be gained by typing the camera's IP address in the address bar of the Internet browser.

connectinG to tHe camera from a remote pc via tHe internet

Since using the IP Installer on a remote computer that is not in the Broadband Router's network cluster is not allowed, users can access cameras within a Broadband Router's network by using the camera's DDNS URL.

1. Before you can access a camera in the Broadband Router network, you should have set the port range forward for the Broadband Router.
2. From the remote PC, launch the internet browser and type the DDNS URL address of the camera, or the IP address of the Broadband Router in the address bar. ex) http://ddns.harwha-security.com/ID

- For information on how to register DDNS, refer to the network setup guide.

CONNECTING TO THE CAMERA

Normally, you would

1. Launch the Internet browser.

2. Type the IP address of the camera in the address bar.

ex) • IP address (IPv4) : 192.168.1.100 →

http://192.168.1.100

- the Login dialog should appear.

• IP address (IPv6) : 2001:230:abcd: ffff:0000:0000:ffff:1111

→ http://[2001:230:abcd:ffff:0000:0000:ffff:1111] - the Login

dialog should appear.

If the HTTP port is other than 80

1. Launch the Internet browser.

2. Type the IP address and HTTP port number of the camera in the address bar.

ex) IP address : 192.168.1.100:HTTP Port number(8080)

→ http://192.168.1.100:8080 - the Login dialog should appear.

Using URL

1. Launch the Internet browser.

2. Type the DDNS URL of the camera in the address bar.

ex) URL address : http://ddns.hanwha-security.com/ID

- the Login dialog should appear.

■ Network connection is disabled in the LAN only environment.

Connecting via UPnP

1. Run the client or operating system in support of the UPnP protocol.

2. Click the camera name for search.

In the Windows operating system, click the camera name searched from the network menu.

- The login window is displayed.

Connecting via Bonjour

1. Run the client or operating system in support of the Bonjour protocol.
2. Click the camera name for search.

In the Mac operating system, click the camera name searched from the Bonjour tab of Safari.

- The login window is displayed.

To check the DDNS address

If the camera is connected directly to the DHCP cable modem, DSL modem, or PPPoE modem, the IP address of your network will be changed each time you try to connect to the ISP (Internet Service Provider) server.

If this is the case, you will not be informed of the IP address changed by DDNS.

Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP when you try to access the device.

To register your device to the server, visit http://cdns.hanwha-security.com and register your device first, and then set the Web Viewer's - to , as well as providing

that had been used for DDNS registration.

PASSWORD SETTING

When you access the product for the first time, you must register the login password.

When the "Password change" window appears, enter the new password.

For a new password with 8 to 9 digits, you must use at least 3 of the following: uppercase/lowercase letters, numbers and special characters. For a password with 10 to 15 digits, you must use at least 2 types of those mentioned.

-Special characters that are allowed.: \~!@4%^^0_-1=[]/.?/

• For higher security, you are not recommended to repeat the same characters or consecutive keyboard inputs for your passwords.
• If you lost your password, you can press the [RESET] button to initialize the product. So, don't lose your password by using a memo pad or memorizing it.

LOGIN

Whenever you access the camera, the login window appears. Enter the User ID and password to access the camera.

1. Enter "admin" in the Input box. The administrator ID, *admin*, is fixed and can not be changed.
2. Enter the password in the input field.
3. Click [OK].

If you have logged in successfully, you will the Live Viewer screen.

- When you access the camera web viewer, pay special attention to the security by checking whether the image data is encrypted.

• If you check the "Remember my credentials" option when your input is done, in future you will be logged in automatically without being prompted to enter the login information.
• You will experience the best video quality if the screen size is 100%. Reducing the ratio may cut the image on the borders.

PLUG-IN SUPPORT SPECIFICATIONS FOR EACH BROWSER

The web viewer has a built-in plugin web viewer and a new plugin-free web viewer together. This means that the web viewer can be used even in modern browser environments that do not support plugins, such as Chrome, EDGE, and FireFox (Windows 64bit only). It is recommended to install the plugin in the IE browser, which allows plugin installation.

The following differences will occur depending on your browser environment:

- Chrome, Firefox(Windows 64bit only), EDGE, Safari : Although they don't support plug-ins, you can use a web viewer as a plug-in free web viewer is embedded.

As the plug-in free webviewer has lower performance than the plug-in webviewer, it has a limit on the monitoring of high quality profiles and playback of saved videos.
To monitor high quality profiles and play saved videos, use either a plug-in webviewer or SmartViewer. -A plugin-free profile is automatically created when there is a delay in live video.
-Playback may cause delays, depending on the codes and resolution.
■ The plug-in free feature has been optimized for the Chrome browser.
- IE browser: You can use a web viewer even if you don't install the existing plug-in web viewer.
To monitor/play saved video seamlessly, you are required to install a plug-in.

INSTALLING WebViewer PLUGIN

If you try to access the plugin-free web viewer from the IE browser and request a live view with a codec other than the one currently in use, or request to use the recorded video playback function, an installation message appears. At this time, the web viewer plugin must be installed to use the functions normally.

1. When the monitoring page is accessed for the very first time, the installation page is displayed. Click [Click Here] to begin installation.

- If the plug-in installation file download status is suspended at 99% in the Internet Explorer browser, retry it after selecting "Release SmartScreen filter" in "Tool → SmartScreen filter".

1. Click [Bun] in the message window.

2. Click [Yes] when the notice window saying that all browser windows will be closed.

■ Steps 4 and 5 will be skipped if no Web Viewer Plug-in is installed.

1. When the old version of the Web Viewer Plug-in is installed, a notice window saying the old version will be deleted is displayed.

Click [Yes] when the notice window is displayed.

1. Click [OK]. The old version of Web Viewer Plug-In is deleted.

2. Click [Install] to begin installation of the Web Viewer Plug-in.

3. Click [Finish]. Web Viewer Plug-in installation is completed.

In your internet explorer, if you need to move to the installation screen after installing the webreader plugin, check whether webviewer, activeplugin. Its control in the "Tool → Additional Function Management" menu is "Activated", if not, and if there is a persisting problem, then select "Tools → Internet Options → General" and delete all the search records. If the problem persists, please register the IP or Domain of your camera in "Tools → Internet Options → Security → Trusted acts".

USING A PLUG-IN FREE WEBVIEWER

If you connect to a camera from Google Chrome, Mozilla Firefox, MS Edge, or the Safari web browser, you cannot install a separate plug-in, but you can view and control the camera videos in real time, without any plugin.

1. Enter your username and password to log in.
2. When you are logged in, a camera live view screen appears.

To set the camera

1. Click the [Setup ( icon.
2. The Settings window appears.
3. You can perform settings for the camera's basic information, video, network, event, analysis, and system over the network.
4. Click to view detailed descriptions of each function:

appendix

Specification

Items		Description
		LND-6011R/6021R/6031R	LNO-6011R/6021R/6031R LNV	-6011R/6021R/6031R
Video	Imaging Device 1/2.9" 2.19M CMOS
	Total Pixels 2,000(H) x 1,121(W)
	Effective Pixels 1,984(H) x 1,105(W)
	Scanning System Progressive
	Min. Illumination	Color: 0.18Lux (1/30sec, F2.0), 0.003Lux (2sec, F2.0)B/W : CLux (R LED on)
Lens	Focal Length (Zoom Ratio)	LND-6011R/LNO-6011R/LMV-6011R : 3mmLND-6021R/LNO-6021R/LMV-6021R : 4mmLND-6031R/LNO-6031R/LMV-6031R : 6mm
	Max. Aperture Ratio F 2.0
	Angular Field of View	LND-6011R/LNO-6011R/LMV-6011R : H : 102° / V : 54° / D : 120°LND-6021R/LNO-6021R/LMV-6021R : H : 80° / V : 43° / D : 94°LND-6031R/LNO-6031R/LMV-6031R : H : 51° / V : 29° / D : 58°
	Min. Object Distance 0.5m(1.64ft)
	Lens Type Fixed
	Mount Type Board type
Pan / Tilt /Rotate	Pan Range 0~350° - 0~350°
	Tilt Range 0~67° - 0~67°
	Rotate Range 0~355° - 0~355°
Operational	Viewable Length	20m	30m
	Camera Title	Off / On (Displayed up to 15 characters)
	Day & Night Auto(ICR) / Color / BW / Schedule
	Backlight Compensation	Off / BLC / WDR

Items		Description
		LND-6011R/6021R/6031R LND-6011R/6021R/6031R LNV-6011R/6021R/6031R
Operational	Wide Dynamic Range	120dB
	Contrast Enhancement	SSDR (Off / On)
	Digital Noise Reduction	SSNR (Off / On)
	Motion Detection	Off / On (Sea polygon zones)
	Privacy Masking	Off / On (Sea rectangle zones)
	Gain Control	Off / Low / Middle / High
	White Balance	ATW / AWC / Manual / Indoor / Outdoor
	LDC (Lens distortion control) O	/Off (5 levels with Min/Max)
	Electronic Shutter Speed	Minimum / Maximum / Anti flicker
	Flip / Mirror	Flip / Mirror / Hallway view
	Intelligent Video Analytics	Motion Detection, tampering
	Alarm Triggers	Motion detection, Tampering Detection, SD card error
	Alarm events	• File upload via FTP, E-Mail• Notification via E-Mail• Local storage recording at Event
Network	Ethernet	RI-45 (10/100BASE-T)
	Video Compression Format	H.264, MJPEG
	Resolution	1920x1080 / 1280x1024 / 1280x960 / 1280x720 / 1024x768 / 800x600 / 800x448 / 720x576 / 720x480 / 640x480 / 640x360 / 320x240
	Max. Framerate	H.205/H.264 - Max 30fps at all resolutionsMJPEG - Max. 1fps at 1920x1080/1280x1024/1280x960/1280x720/1024x768, Max. 15fps at other resolution
	WiseStream II	Support
	Video Quality Adjustment	H.264/MJPEG - Target Bitrate Level Control
Network	Bitrate Control Method	H.264 : CBR or VBRMLPEG : VBR
	Streaming Capability Multiple Streaming (Up to 3 Profiles)
	Audio I/O -
	Audio Compression Format -
	Audio Communication -
	IP IPv4, IPv6
	Protocol	TCP/IP, UDP/IP, RTP(UDP, RTP(TCP), RTP, RTSP, MTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1A2cV3(MIB 2), ARP, DNS, DDNS, QoS, PWM-SM, UPnP, Bonjour
	Security	HTTPS(KSL) Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1x Authentication (EAP-TLS, EAP-LEAP)
	Streaming Method Unicast / Multicast
	Max. User Access 6 users at Unicast Mode
	Edge Storage	Micro SD/SDHC (up to 32G)motion Images recorded in the SD memory card can be downloaded.Manual recording at Local PC
	Application Programming Interface	OMIF Profile SVGSUNAPI(WTP API)
	Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Items		Description
		LND-6011R/6021R/6031R LN0-6011R/6021R/6031R LNV-6011R/6021R/6031R
Network	Web Viewer	Supported OS : Windows 7 / 8.1 / 10, MAC OS X 10.10, 10.11, 10.12Plug-in free web viewerSupported web browsers : Google Chrome 63, MS Edge 41, Mozilla Firefox 57 (Window 64bit only), Apple Safari 11 (Mac OS X only)Plug-In web viewerSupported web browsers : MS Explorer 11
	Central Management Software	SmartViewer, SSM
Environmental	Operating Temperature / Humidity	-10°C ~ +55°C (14°F ~ +131°F) / Less than 90% RH	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH* Start up should be done at above -20°C
	Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
	Ingress Protection -	IP66
	Vandal Resistance	-		IK10
Electrical	Input Voltage / Current	PoEIEEE802.3af. Class3)
	Power Consumption	6.5W
Mechanical	Color / Material	Ivory / Plastic	Dark gray / Plastic	Ivory / Aluminum, Plastic
	Dimension (0xH)	Ø110.0mm(4.33") x H86.0(3.39")mm	Ø58.6mm(2.31") x H182.0(7.17")mm	Ø120.3 mm(4.74") x H91.7(3.61")mm
	Weight	230g(0.51lb)	240g(0.53lb)	395g(0.87lb)

appendix

Items		Description
		LND-6071R LNO-6071R LNV-6071R
Video	Imaging Device 1/2.9" 2.19M CMOS
	Total Pixels 2,000(H) x 1,121(V)
	Effective Pixels 1,984(H) x 1,105(V)
	Scanning System Progressive
	Min. Illumination	Color: 0.095Lux (1/30sec, F1.6), 0.003Lux (2sec, F1.6)E/W: 0Lux (IR LED or)
Lens	Focal Length (Zoom Ratio) 3.2~10mm (3.1x) varifocal
	Max. Aperture Ratio F1.6~2.9
	Angular Field of View	H: 101.6"(Wide) - 31.3"(Tole)V: 54.1"(Wide) - 17.8"(Tole)D: 120.6"(Wide) ~ 36.0"(Tele)
	Min. Object Distance 0.5m(1.6ft)
	Focus control Manual
	Lens Type DC auto ins
	Mount Type Board type
Pan / Tilt /Rotate	Pan Range 0~350° - 0~350°
	Tilt Range 0~67° - 0~67°
	Rotate Range 0~355°	0~355°
Operational	Viewable Length	20m	30m
	Camera Title	Off / On (Displayed up to 15 characters)
	Day & Night Auto(ICR) / Color / BW / Schedule
	Backlight Compensation	Off / BLC / WDR

Items		Description
		LND-6071R LNO-6071R LNV-6071R
Operational	Wide Dynamic Range	120dB
	Contrast Enhancement	SSDR (Off / On)
	Digital Noise Reduction	SSNR (Off / On)
	Motion Detection	Off / On (Aea polygon zones)
	Privacy Masking	Off / On (Sea rectangler zones)
	Gain Control	Off / Low / Middle / High
	White Balance	ATW / AWC / Manual / Indoor / Outdoor
	LDC (Lens distortion control)	On/Off /5 levels with Min/Max)
	Electronic Shutter Speed	Minimum / Maximum / Anti flicker*
	Flip / Mirror	Flip / Mirror / Hallway view
	Intelligent Video Analytics	Motion Detection, tampering
	Alarm Triggers	Motion detection, Tampering Detection, SD card smor
	Alarm events	• File upload via FTP, E-Mail• Notification via E-Mail• Local storage recording at Event
Network	Ethernet	RU-45 (10/100BASE-T)
	Video Compression Format	H.264, MJPEG
	Resolution	1920x1080 / 1280x1024 / 1280x960 / 1280x720 / 1024x768 / 800x600 / 800x448 / 720x576 / 720x480 / 640x480 / 640x360 / 320x240
	Max. Framerate	H.265/H.264 - Max 30fps at all resolutionsMJPEG - Max. 1fps at 1920x1080/1280x1024/1280x960/1280x720/1024x768, Max. 15fps at other resolution
	WiseStream II	Support
	Video Quality Adjustment	H.264/MJPEG - Target Bitrate Level Control
Network	Bitrate Control Method	H.264 : CBR or VDRMUPEG : VBR
	Streaming Capability Multiple Streaming (Up to 3 Profiles)
	Audio I/O -
	Audio Compression Format -
	Audio Communication -
	IP IPv4, IPv6
	Protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS,DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPvT/V2c/v3(MIB-2), ARP, DkS, DONG,QoS, PIM-SM, UPnP, Bonjour
	Security	HTTPS(SSL) Login AuthenticationDigest Login AuthenticationIP Address FilteringUser access Log802.1x Authentication (EAP-TLS, EAP-LEAP)
	Streaming Method Unicast / Multicast
	Max. User Access 6 users at Unicast Mode
	Edge Storage	Micro SD/SDHC (up to 32G)motion images recorded in the SO memory card can be downloaded.Manual recording at Local PC
	Application Programming Interface	OM/IF Profile S/GSUNAP(HTTP API)
	Webpage Language	English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Items		Description
		LND-6071R LNO-6071R LNV-6071R
Network	Web Viewer	Supported OS: Windows / 8.1 / 10, MAC OS X 10.10, 10.11, 10.12Plug-in free web viewerSupported web browsers: Google Chrome 63, MS Edge 41, Mozilla Firefox 57(Window 64bit only), Apple Safari 11 (Mac OS X only)Plug-in web viewerSupported web browsers: MS Explorer 11
	Central Management Software	SmartViewer, SSM
Environmental	Operating Temperature / Humidity	-10°C ~ +55°C (14°F ~+131°F) / Less than 90% RH	-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH* Start up should be done at above -20°C
	Storage Temperature / Humidity	-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
	Ingress Protection - IP66
	Vandal Resistance			IK10
Electrical	Input Voltage / Current	PoEIEEE802.3af. Class3)
	Power Consumption	6.5W
Mechanical	Color / Material	Ivory / Plastic	Dark gray / Plastic	Ivory / Aluminum, Plastic
	Dimension (0xH)	∅119.8mm(4.72") x H96.8(3.59)*mm	∅78.0mm(3.07") x H262.0(10.32)*mm	∅137.8mm(5.43") x H106.1(4.18)*mm
	Weight	274g(0.6lb)	380g(0.84lb)	515g(1.16lb)

proDuct overview

LnD-6011r/6021r/6031r

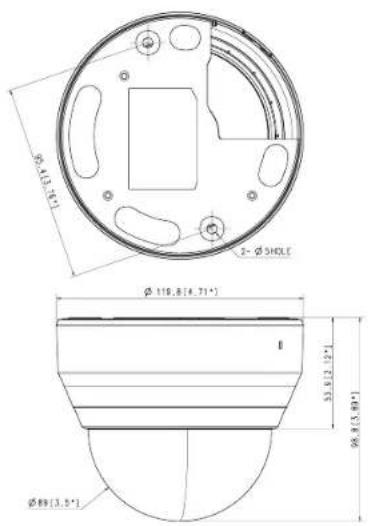

LnD-6071r

Unit : mm (inch)

Unit : mm (inch)

Lno-6011r/6021r/6031r

Unit : mm (inch)

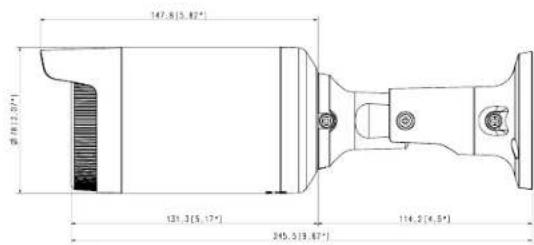

Lno-6071r

Unit : mm (inch)

English_37

appendix

Lnv-6011r/6021r/6031r

Unit : mm (inch)

Lnv-6071r

Unit : mm (inch)

38_ appendix

trouBLeSHootinG

PROBLEM SOLUTION
No video is displayed when accessing the plug-in free webviewer on Safari via HTTPS.	On the authentication popup window prompted when initially accessing https, click "View Authentication Certificate" and select the "Always trust when connecting to the designated webviewer IP" check box.If the webviewer continues failing to display a video after you select "Next" on the message window below, press the command key + Ω to exit the Safari browser, access again and follow the procedures stated above.
I can't access the camera from a web browser.	Check to make sure that the camera's Network settings are appropriate.Check to make sure that all network cables have been connected properly.If connected using DHCP, verify that the camera is able to acquire dynamic IP addresses without any problem.If the camera is connected to a Broadband Router, verify that port forwarding is properly configured.
Viewer got disconnected during monitoring.	Connected Viewers become disconnected upon any change to camera or network configurations.Check all network connections.If the camera is connected over an PPPoE network, it's possible for Viewer to disconnect under poor network conditions.
No video is displayed when I nowly access the webviewer or connect streaming to the client.	The maximum number of profiles available is 3.The connection may be lost if you use 4 or more of profiles.Example) if you access MJPEC, H.264 and H.264(Profiles with Different Settings) and then access with a different profile, the connection will be lost.
The camera connected to the network Is not detected in the IP installer program.	Turn off the firewall settings on your PC and then search the camera again.
Images overlap.	Check whether two or more cameras are set to a single multicast address instead of different addresses. If a single address is used for multiple cameras, the images may overlap.
No Image appears.	If the transmission method is set to multicast, check whether there is a router that supports multicast in the LAN the camera is connected to.

PROBLEM SOLUTION
File is not transferred to the email even if a motion detection event is generated withset toin thepage.	· Verify the settings in the following sequence:A. Checksettings.B. Theshould be set toC. Check if theoption ofmenu is checked to use.
Cannot record into the Micro SD memory card.	· Check if the memory card is defective.
Micro SD memory card is inserted but the camera does not operate properly.	· Check if the memory card is inserted in the proper direction. Operation of memory card that is formatted by other devices is not guaranteed with this camera unit· Format the memory card again in→→menu.

OPEN SOURCE ANNOUNCEMENT

GPL/LGPL software license

The software included in this product contains copyrighted software that is licensed under the CPL/CPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to http://[e-mail]

If you want to obtain the complete Corresponding Source code in the physical medium such as CU-ROM, the case of physically performing source distribution might be charged.

GPL SW
Component Name License URL

Boss Kamol	CPL 2.0
Bulebox	CPL 2.0	http://www.busebox.net/downloads/snapshots
tprouls-4.50	691 2.0
tpbbics 1.4.21	691 2.0	http://tp.netlab.org/pub/exploides
ebricat 4.3	691 2.0
mtc-1.5.2	CPL 2.0	http://t.culinfaced.org/pub/mkt-suite
mt-dag-2.11	CPL 2.0
rc-spoce-5.11	CPL 2.0	http://www.veerngspenq.com/spoce/
wps_supplcnt 2.a	691 2.0
bach 4.8.20	691 3.0
zamcomf	691 2.0

LGPL SW

Component Name License URL

g Inc.	LGI 2.0
Inelule	LGPL 3.0
neon-0.28.6	LGPL 2.0 http://www.nescier.org/neon/

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Copyright ©1989. 1987 Free Sollvere Foundation, Inc. \$1 Franklin Street, Hill Floor, Boston, MA 20-110-1301, USA

Everyone, a permittee to copy and distribute verbalizing papers of this license document, but changing it is not allowed.

Preamble

The license for total software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is instructed to guarantee your freedom to share and change this software. It is made sure the software is that for all its users. This General Public License applies to more of the Free Software Foundation's software and to any other program who uses authors to commit to using it. (Some other Free Software Foundation software is covered by the GNU Lowerer General's Public License website). You can apply if you your programs are, when we speak of free software, we are referring to freedom, not being used in the software. The license is copied to me give that you have the system to distribute courses or less software, which charges for make service from why, then you choose source cards or can get it if you want it, that you can change the software or also classes of fill in the next two programs, and then you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibility for you if you distribute copies of the software, or if you modify it.

For example, I you distribute copies of such a program. Whether grants or for a fee you must give the recipients all the rights that you have

You must miss sure that they too receive or can get the source code. And you must show them these terms so they know then rights. We project your rights with two steps:

I copyright the software, and Platter you this license which gives you legal permission to copy distribution and/or modify the software. Also, for each author's provision and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want us recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' solutions.

I finally, any free program is stressed constantly by software patents. We wish to avoid the danger that redistrictors of a free program will individually obtain patent licenses, or effect making the program proprietary. To prevent this, we have made a clear, that any patent must be licensed for everyone's free use or not licensed at all. The prese terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

Version 2, June 1991 Copyright (C) 1983. 1981 Host Software Foundation, Inc. 5: Franklin S

1. This License applies to any program or other work which contains a notice placed on the copyright holder saying it may be distributed under the terms of this General Public License

The Program, below, refers to any such program or work, and a 'work basis on the Program' means either the Program or any derivative work under

copyright less: that is to say, a work concerning the Program of a portion of L. E. her Veracnir or with MOH edition is and/or translated into another language.

Activities other than covering distribution and modification are not covered by this License; they are outside to scope. The act of running the Program is not realized, and the output from the Program is covered only if its contents constitute a work based on the Program independently at having been made by running the Program. Whether that is true depends on what the Program does.

1. You may create and distribute web-based copies of the Program's source code as you receive it, in any medium, provided that you concentrate and

appropriately putlen on each copy an appropriate copyright notice and disclaimer of warranty. Keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of the License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your op on other warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Program or any portion or it, thus turning a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you are most all of these conditions.

al You must cause the modified Yes to carry prominent notices stating that, you charged the Yes and the date of any change.

c) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any can thereof, to be licensed as a whole at no charge to all third parties under the same or his license.

q) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most and many ways, to print or display an announcement including an approximately copyright notice and a notice that there is no warranty for sale, saying that you provide a warranty and that there may restrict the program under these conditions, and calling the user now to view a copy of the License. (Exceptional the Program itself is interactive but does not normally print such an announcement, your work caused or the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identical sections of that work are not derived from the Program, and can be reasonably considered independent and accurate works in themselves, then this license and its terms, do not apply to these sections when you distribute them as separate works. But when your distribution the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of the Licensee, whose permission for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the main of this section to claim rights or contest your rights to work written entrack by you, rather the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, more aggregation of another work not based on the Program with the Program (or with a work based on the Program) a volume of a storage or distribution medium does not bring the other work under the scope of this license.

1. You may only and distribute the Program for a work based on it, under Section 2 in object one or executable form under the terms of Section 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or.

by Accompany it with a written offer, valid for an incat three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a compute machine-reducible copy of the corresponding source code, to no distributed under the forms of Sections 1 and 2 above on a medium customerly used for software interchange; or,

6) Accompany with the Information you received as to me differ to distribute corresponding source code. (This alternative is allowed only for noncommoderate distribution and only if you received the program in object code or executable form which such an offer, it accord with Subscription b above.) The source code for a work means the preferred form of the work, or making modifications it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface filtration lists, plus the adapties used to complete compilation and installation at the execution. However, as a special execution, the source code distributed need not include anything that is normally distributed in either source or binary form with the major

components (enplicer, kandl, and so only of the operating system on which the executable runs, unless that component shall accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even enough third parties are not competed to copy the source along with the object code.

1. You may no copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is valid, and will automatically terminate your rights under this license.

However, parties who have received copies, or rights, from you under this License will not have their licensee terminated so long as such parties remain in full compliance.

1. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works.

These actions are prohibited by law. If you do not accept this License, therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and scope for copying, distributing or modifying the Program or works based on it.

1. Each time you distribute the Program for any work based on the Program, the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to the Licensee.

2. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradicts the conditions of this License, they do not excuse you from the conditions of this License. If you cannot discontinue so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, it is as a consequence you may not distribute the Program at all

For example, it a patent license would not permit royalty and distribution of the Program by all those who receive copies directly or indirectly through you, then me only way you could satisfy both it and this License would be to retain entirely from distribution of the Program.

If any portion of this section is held in line or unforwardable under any particular circumstance, the balance of the section is intended to apply and the section as a whole; it is intended to apply in other circumstances. It is not the purpose of this section to induce you to manage any patents or other property, right claims or to contain validity at any such claims. This action has the act and purpose, or pertaining the integrity of the two software distribution system, which is implemented by public license resolutions. Many people have made generous contributions to the wide range of software distribution through that system in reliance on consistent application of this section; it is up to the author/doctor to describe if me or she is willing to distribute software through any other system and a licensee does. Impose that choice. This section is intended to make summary over what a collection will be a consequence of the real of this issue.

1. If the distribution and/or use of the Program is restitiated in certain countries either by patients or by copyrighted interfaces, the original copyright holder who places the Program under this License may ask an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

2. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may either in detail to address new problems or concerns. Each version is given a distinguishing version number: 1. The Program specifies a version number of the License which applies it to "any later version", you have the option of following the terms and conditions either of this version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the License, you may choose any version ever published by the Free Software Foundation.

3. If you wish to incorporate parts of the Program into other tree programs whose distribution conditions are different, write to the author to ask for permission for software which is copyrighted by the Free Software Foundation, where to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of presenting the free status of all derivatives of our free software end of promoting the sharing and reuse of software generally.

NO WARRANTY

1. RECAUSE THE PROGRAM IS CONSENT REF. OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW, EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM BASIS WITH OUT WARRANTY OF ANY KIND, OTHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PPOGRAVITROVE DEFECTIVE. YOU ASSUME THE COST OF ALL, NECESSATY SETVOMING, REPAIR OF COFFICTION.

2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE DAMAGES, INCLUDING ANY GENERAL SPECIAL, INDIDENTIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM INCLUDING BUT NOT LIMITED TO LOSS OF DATA ON DATA BEING REDESIGNED IN AUCURATE OF LOSS'S SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OFFERA WITH ANY OTHER PROGRAMS, EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ALLOWED OF THE POSSIBILITY OF SUCH DAMAGE IS.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Program. If you develop a new program, and you want it to be of the greatest possible use to the public, the best way is achieved this is to make it free software which everyone can reduce or change under these terms. To do so, all act the following notices to the program it is solved to attach them to the start of each source: it is most effectively convey the exclusion or warranty; and each tie should have at least the "copyright" line end a pointer to where the full notice is found one line to give the program's name and an idea of what it does.

Copyright (C) https name of author

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or [all your option] any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or RTNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; I note, write to the free Software Foundation, Inc. at Franklin Street, Fifth Floor, Boston, MA 02 10-1301, USA.

Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output, a short notice like this when it starts in an interactive mode:

Gromovetaken version 60. Copyright (C) your name of author Gromovetaken comes with A\$EO: U1-1Y NO WARRANTY; for details by: "show v". This is free software and you are welcome to redistribute it under certain conditions; type "show v" for details.

The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-clicks or menu items-- whatever suits your program.

You should also get your employer (if you work as a programmer or your school, if any to sign a "copyright disclaimer" for the program, it necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby claims all copyright interest in the program "Snowvision" (which makes passes all computers) written by James Hacker, signature of Ty Cozzr, 1 April 1908 Ty Cozzr, President or Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is Laxhasein vocetun want to do, use the CNU Lesser General Public Instead of this License.

GNU GENERAL PUBLIC LICENSE

Version 3, 29 June 2007

Copyright © 2007 Free Software Foundation, Inc. http://ref.org

Everyone is permitted to copy and distribute verbalim copies of this license document, but changing it is not allowed.

Preamble

The GNU General Public License is a free, copyright license for software and other kinds of works. The license for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program—to make sure it cumins free software for all its users.

We, the Free Software Foundation, use the OKU General Public License for most of our software, it applies also to any other work released this way by its authors.

You can apply if to your programs, too. When we speak of this software, we are referring to freedom, not price. Our General Public Licensea are designed to make sure that you have the freedom to distribute copies of this software and charge for them if you wish? That you receive source code or can get it if you want it, that you can change the software or use prices of a in new free programs, and that you know you can do these things.

To protect your rights, we need to prevent others from denying you those rights or asking you to surrender the rights. Therefore, you have certain responsibilities if you wish in ranking at the privilege, all you must be a summary billier to respect your freedom of citizens. Los Anamples, I was clarify to come up with a

program, whether prails or for a key, you must, less on to the recipients the same freedom that you received. You must make sure that they, too, receive or can get the course code. And you must show that these ten are so their own rights. Develops that use the GNU OFL protect your rights with two steps (1) assert copyright on the software, and (2) offer you this license giving you legal permission to copy, distribute and modify it. For the developers and users' protection, the digital clearly explains that there is no warranty for this free activity. Use both users' and users' sales, the digital requires that mortified products and services will be used in the use of the online platform. If you need to use any other user access or install or run modified versions of the software inside item, although the manufacturer can do etc. This is fundamentally incompatible with the role of protecting users' creation to change the activator. The systematic person of such audio occurs in the area of products for indiv adults to use, which is precisely where it is most unrecognizable. Therefore, we have designed this version of the GPL to prohibit the protection for those products. If such problems arise substantially in other domains, we stamp ready to extend the protection to those domains in future versions of the GPL, as needed to protect the freedom of

Finally, every program is threatened constantly by software patents. Stabes should not allow patents to restrict development and use of software on general-purpose computers, but in more that do, we wish to avoid the special anger that parents applied to a tree program could make it effectively proprietary. To prevent me, the GPI assures that atoms cannot be used to render the program non-free. He precise terms and conditions for copying, distribution and modification follow:

TERMS AND CONDITIONS

1. Definitions.

"This License" refers to version 5 of the GNU General Public License.

Copyright" also means copyright-like laws that apply to other kinds of works, such as semiconductor masks. "The Program" refers to any copyrightable work licensed under this License. Each licensee is addressed as "you". "Licensesa" and "recipients" may be individuals or organizations.

is "modify" a work means to copy from or adopt all or part of the work in a fashion requiring copyright permission, other than the making of an exact copy. The resulting work is called a "modified version" of the earlier work or a work "based on" the earlier work.

A "covered work" means either the unmodified Program or a work based on the Program.

To "proseciate" a work means to do anything with it that, without permission, would make you directly or accordingly liable for infringement under applicable copyright law, except excalling if on a computer or modifying a private copy.

Propagation includes copying, distribution (with or without modifications), making available to the public, and in some countries other activities as well.

To "conver" a work means any kind of propagation that enables other parties to make or receive copies. More interaction with a user through a computer network, with no transfer of a copy, is not conveying. An interactive user interface displays "Appropriate Legal Notices" to the extent that it includes a convenient and prominently visible feature that [1] displays an appropriate copyright notice, and [2] is too much user that there is no warranty for the work (except to the extent that warrants are provided, that loenees may convey the work under this Licensee, and how to view a copy of this Licensee. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list needs this criterion.

1. Source Code.

The "source code" for a work means the preferred form of the work for making modifications to i. "Object code" means any non-source form of a work. A "Standard Interface" means an interface that either is an official standard defined by a recognized standards body, or in the case of interface specified for a particular programming language, one that is widely used among developers working in that language.

The "System Literates" of an executable work includes anything, other than the work as a whole, that (a) is included in the normal form of packaging a Major Component, but which is not part of that Major Component, and (b) serves only to enable use of the work with that Major Component, or to implement a Standard Interface for which an implementation is available to the public in source code form. A "Major Component", in this context, means a major essential component (normal window system, and so on) or the specific operating system (any on which the executable work runs, or a computer used to produce the work, or an objective code interpreter used to run it).

The "Corresponding Source" for a work in object code form means all the source code needs to generate, install, and/or an executable work run the object code and to modify the work, including scripts to control those activities.

However, it does not include the works System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes interface definition files associated with source files for the work, and the sources made for shared libraries and dynamically links subprograms that the work is specifically designed to require, such as by Infinitive data communication or control flow between three subprograms and other parts of the work.

The Corresponding Source need not include anything that users can recognize automatically from other parts of the Corresponding Source. The Corresponding Source for a work in source code form is that same work.

2. Basic Permissions.

All rights granted under this License are granted for the term of copyright on the Program, and are irrevocable provided the stated conditions are in.. This License explicitly affirms your unlimited permission to run the unmodified Program. The output from running a covered work is covered by this License only if the output, given its content, constitutes a covered work. This License acknowledges your rights of fair use or other equivalent, as cordised by copyright law.

You may make, run and propagate covered works that you do not convey, without conditions so long as your licence otherwise remains in loose. You may convey, covered works to others for the sole purposes of having them make modifications exercise only for you, or provide your with facilities for running their own works, provided that you comply with the terms of this Upperia in conveying alimentaria for you, who do not certify copyright. Those true making or running the covered works for you must so exclusively on your behalf under your direction and control on terms may prohibit them from making any opinions of your copyright material suitable their relationship with your. Conveying and/or any other circumstances is permitted solely under the conditions directed below. Sublikending is not allowed; section 10 makes it unnecessary.

3. Protecting Users' Legal Rights From anti-Circumvention Law.

No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under articles 11 of the WIPC copyright, properly adopted on 20 December 1986, or similar laws prohibiting or restricting a corruption of such measures.

When you convey a covered work, you waive any legal power to forbids or even the technological measures to the extent such circumvention is effected by exercising rights under the Licence with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a measure of enforcing, against the works' users, your or third parties legal rights to forbids circumvention of technological measures.

4. Conveying Verbatim Copies.

You may convey certain copies of the Program's source code as you receive it, in any medium, provided that you consciously and appropriate publish on each copy an appropriate copyright notice; keep intact all notices storing that this License and any non-permissive terms advice. In accord with section 7 apply to the code; keep intact all notices at the absence or any warranty and give all recipients a copy of this License along with the Program. You may charge any price or no price for each copy that you convey, and you may offer support or warranty protection for a fee.

5. Conveying Modified Source Versions.

You may convey a work based on the Program, or the modifications to produce it from the Program. In the form of source code under the terms of section 4, provided that you also meet all of these conditions:

a) The work must carry prominent notices stating that you modified it, and giving a relevant date.

c) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7. This requirement, modifies the requirement, in section 4 to "keep intact all notices".

c) You must license the entire work, as a whole. Under this License to anyone who comes into possession of a copy. The License will therefore apply, along with any applicable section or additional terms, to the whole or the work, and at its parts, regardless of now they are packaged. This License gives no permission to license the work in any other way, but it does not invalidate such permission if you have successfully received it.

at the work has interactive user interfaces, each must display Appropriate Legal Notices, however if the Program has interactive interfaces that do not display Appropriate Legal Notices, your work head is not risks me do so. A compilation of a covered work with other expertise and Independent works, which are not by their nature extensions of the covers works, and which are not corneled with it such as to form a larger program, in or on a volume of a strength or distribution medium. It is called an 'aggregate' if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's uses beyond what the individual works permit. Induction of a covered work in an aggregate does not cause this Business to apply to the other parts of the aggregate.

6. Conveying Non-Source Forms.

You may convey a covered work in object code form under the terms of sections 4 and b, provided that you also convey the machine readable. Corresponding Source under the terms of this License, in one of these ways:

ai Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software Interchange.

by Century the physical code, in accordance to, a physical product (including a physical distribution medium, accounts or by a written editor) valid for at least three years and valid for as long as you offer some parts or customer support. For that product model, a given anyone who possesses the object code other [1] a copy of the Corresponding Source for all the software in the product that is covered by the License, on a durable physical medium customarily used for software in charge, for a price no more than your reasonable cost of physically performing the conveying of source, or [2] access to copy the Corresponding Source in a network server at no charges.

c) Convey individual copies of the object code with a copy of the written offer to provide the corresponding Source. This alternative is allowed only occasionally and noncommercially, and only if you received the object code with such an offer, in accord with subsection 8b.

q. Convry the object code, by editing access from a designated place (grate or for a charge), and other equivalent access to the Corresponding Source. In the same way, through the same place are no further charge, you need not require recipients to copy the Corresponding Source along with the object code. If the place is copy the object code is a network server, the corresponding source may be on a different server (accessed by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions now to the object code saying where to find this Corresponding Source. Regardless of what server hosts the Corresponding Source, you remain obligated to ensure that it is available for as long as needed to satisfy these requirements.

(2) Convey the object code using peer-to-peer transmission, provided your own other keys where the object codes and Corresponding Source of the work are being offered for the general public at no charge under succession it. A separate portion of the object code, whose source code is excluded from the Corresponding Source as a System Library, need not be included in conveying the object code work. A "User Product" is either (i.e., "a consumer product", which means any tangible personal property which is normally used for personnel), family or households purposes, or (2) anything designed or said for incorporation in its dwelling, in determining whether a product is a consumer product, doubtful access shall be resolved in cover of coverage. For particular, this product has received by particular user, normally used, raters to be applied or converter use of the class of product, regardless of the status of the particular user or of the way in which the particular user activity uses, or aspects of is expected to use, the product. A product is a consumer product regardless of whether the product has subscribed for commercial, industrial or non-consumer uses. Unless such uses represent the only significant mode of use of the product.

"Installation information" for a User Product means any methods, precautions, authorisation keys, or other information required to install and execute modified versions of a covered work in that User Product from a modified version of its Corresponding source. The information must suffice to ensure that the continued functioning of this modified object codes is in case previous to interest with sensitive because modification has been made. If you convey on order color work under the section 4, or with, or specifically for use in a User Product, send the conveying occurs as part of a transaction in which the light of possession is considered by the following material used: "If you know, you can be able to use this product code, you can also have a copy of the content of the product code." This document is characterized by the Corresponding Source conveyor under this section must be accompanied by the Installation Information. But this requirement does not apply, neither you nor any third party retains the ability to install modified object code on the User Product (for example, the work has been installed in ROW).

The requirement to provide installation information does not include a requirement to continue to provide support service, warranty, or updates for a work that has been modified or installed by the recipient, or for the Uttar Pradesh in which it has been modified or installed. Access to a network may be derived when the modification on Israel materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network. Corresponding Source conveyed, and Installation Information provided, in accord with the section must be in a format that is cubically documented (and) with an implementation available to the public in source code entry, and must require no special password or key for unpacking, reading or copying.

7. Additional Terms.

"Additional permission" are terms that supplement the terms of this License or making except one from one or more of its conditions. Additional permission that are applicable to the entire Program shall be treated as enough may be included in this License, so the extent that may be will not under appropriate law. If additional permissions apply only to a list of: (1) The Program, that pair may be used separately unless permit orders, but the entire Program remains governed by the provisions of the Company's license; (2) The Program does not require permission for any other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to use any permission from the other person to Use

a) Disclaiming warranty or limiting liability differently from the terms of sections 10 and 16 at this license; or

b) Requiring preservation of specified reasonable legal notices or author attributions in that material or in the Appropriate Legal Notices displayed by words containing it; or

c) Prohibiting representation of the origin of that material, or requiring that modified versions of such material be marked in reasonable ways as different from the original version or

d) Limiting the use for publicly purposes of names of licences or authors of the material; or

e) Decining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or

- Requiring permission of licenses and authors of their material by anyone who conveys the material (or modified versions or) with contractual assumptions of liability to the recipient, for any liability that there contractual assumptions directly impose on those licenses and authors. All other non-permissive additional items are considered "further restrictions" within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a form that is a turnover restriction, you may remove that form. If the license document contains a further restriction but ceimits releasing or conveying under the License, you may add to a covered work material governed by the same of its license document, prevented that the further restriction does not survive such reliance or conveying. If you add some to a convertible work in accordance with this Section, you must place, in the relevant portion, as a statement of the additional terms, not apply to those lines, or a notice indicating that the applicable license will be granted to persons with a permission or non-permissive, may be stated in the form of a separately written license or related as exemptions. The above requirements apply either offer

8. Termination.

You may not propagate or modify a covered work except as expressly provides under this license. Any attempt otherwise to propagate or modify it is void, and will automatically terminate your rights under the License (including any patent licenses granted under the third paragraph of section 11).

However, if your lease still violation of this License, then your license from a particular copyright holder is reinstated (if provisions, unless and until the copyright holder implicitly and finally terminates your license, and by permanently, if the copyright holder fails to notify you of the viction on by some reasonable means prior to 50 days after the cessation. Moreover, your license from a particular copyright holder is reinstated permanently. If the copyright holder reflects you either valuation by some reasonable means, this is the first time; you have received notice or violation of this License (for any work from that copyright holder, and you cure the viction prior to 30 days after your receipt of the notice). Termination of your rights under this secon do not termite the loiter sale of parties who have received no right to the same extent in the License. If your rights have been dismissed and not permanently rendered, you do not qualify to receive new licenses for the same monetary under section 10.

9. Acceptance Not Required for Having Copies.

You are not required to accept the License in order to receive or run a copy of the Program. Andany propagation of a covered work accounting solely as a consequence of using past-to-poor termination to receive a copy however does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These options infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance or the License to do so.

10. Automatic Licensing of Downstream Recipients.

Each time you covers a covered work, the recipient automatically receives a license from the original lotorers, to run, modify and propaganda that work, subject to this issue. You are not responsible for entering compliance by third parties with this license. An "only transistor" is a transaction "transitancing control of an organization, or subfamily all assets of one, or multidrugating an organization, or managing organizations. If propagation is a covered work results from an entity transmission, each party to that transaction who receives a copy of the work also receives whatever lotorers at the work, the party's predecessor in interest had could give under the previous paragraph, plus a right to decrease on of the Corresponding Source of the work from the predecessor or interest, if the predecessor has its car get it with reasonable efforts. You may not impose any further restrictions on the exercise of the fights granted or affirm under the provisions of the person's rights, or shall not impose a license for, hereby or mandatory orders for exercise of fights granted under this notice, who you may not influence the application including a secure class or counterclaim in a lawsuit allowing that any sitting claim is missed by making, using, testing, charging or sale, or reducing the program or any portion of it.

11. Patents.

A "contributor" is a copyright holder who authorizes use under this License of the Program or a work or which the Program is based. The work thus licensed is called the contributor's "contributor version". A contributor's "essential patent claims" are set patent, claims owned or controlled by the contributor, whether already acquired or thereafter acquired, that would be infringed by some manner permitted by this License of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further authorization of the contributor version. For purposes of this admission, "normal" includes no light to give patent followers in a manner conditional with the requirements of this document. Each contributor grows you a non exclusive information and/or information on the contribution of the contributor's essential patent claims, to make, use, sell, other or sale, import and otherwise run, materially and propagate the contents of its contributor version.

In the following three paragraphs, a patent license is any express agreement or commitment, however, denominated, not to enforce a patent (such as an express permission to practice a patent or owner not to use for percent infringement). In “great” such a patent license to a party members to make such an agreement or commitment not to enforce a patent against the party. If you convey a covered work, knowingly relying on a patent license, and the Corresponding Source of the work is not available for anyone to do up, free of charge and under the terms of this License, through a publicly available network server or other reliable accessible items, then you must either (1) cause the Corresponding Source to be available, or (2) arrange or despite yourself of the benefit of the patent license for the particular work or its change, in a manner consistent with the requirements of this License, to extend the patent license to downstream activities. The rights of the company shall be granted by the employees' rights of the covered work in a country, would bring one or more individual patents in that country, that you have reason to collect and visit it, pursuant to or in connection with a single transaction or arrangement, you convey, or propagate by procuring conveyance of it, a covered work, and grant a

patient licenses to some of the parties receiving a coverer work according to them to us, penesette, morality or convey a specific copy of the covered work; then the patient license you grant is automatically extended to all recipients of the covered work and works trained in it. A patient license is "discriminatory" ill does not include within the scope of its coverage, prohibits the exercise of, or be conditional on the non-exercise or one or more of the rights that are specifically granted under this License. You may not convey a covered work if you are a party to an equal agent with a third party that is in the business of distributing information, under which you make payment is the third party raised on the extent of your activity at conveying the work, and under which the third party grants, to any of the parties who would receive a passive work from you, a discrimination patient license.

is): In connection with copies or the owned work conveyed by you for copies made from these copies, or

(b) primarily for and in connection with specific products or correlations that contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007. Nothing in the License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.

12. No Surrender of Others' Freedom.

It conditions are imposed on your attorney by court order, agreement or otherwise, that contradict the conditions of this license, they do not excuse you from the conditions of trial license. If you cannot convey a courted work so as to potentially simultaneously your obligations under this license and any other portion obligations, then as a consequence you may not convey it at all. For example, if you agree to Terms that obligate you to collect a royalty for further conveying from choice to whom you convey the Program, the only way you could satisfy both those entire and the License would be to refrain entirely from conveying the Program.

13. Use with the GNU Affero General Public License.

Notwithstanding any other provision of this License, you have permission to link or combine any covered work with a work licensed under version 3 of the GNU After General Public License into a single combination work, and to convey the resulting work. The terms of this License will continue to apply to the part which is the covered work, but the special requirements of the GNU After General Public License, act on 13, concerning interaction through a network will apply to the combination as such.

14. Revised Versions of this License.

The Free Software checklist may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in script to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version on number. If the Program specialist that a certain numberless version of the GNU General Public License ("or any later version") applies to it, you have the option of following the terms and conditions either of that numbered version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of the GNU General Public License, you may choose any version ever published by the first Stavillans Foundation. If the Program specialists that a proxy can decide which future versions on the GNU General Public License can be used, that procys public statements of acceptance of a version permanently sundries you to choose that version for the Program. I enter license sessions may give you archival or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.

15. Disclaimer of Warranty.

THE IS NO WARRANTY FOR THE PROGRAM, OBLIGATION, RMT LIDY APP. CALLS, RICELIPTEN ON OUR WIRE STAND IN WORKING. THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU SHOULD THE PROGRAM PROVE DEFECTIVE YOU ASSURE THE COST OF ALL NECESSARY SHIMAGING, PEEAR OR CORRECTION.

16. Limitation of Liability

IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MOCHS AND/OR CONNIVIS THE PROGRAM AS HELMID A VIEW: HE DAILY TO YOU FOR DAMAGE, INC. USING ANY SHINESE SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE IRS OR INABILY TO USE THE PROGRAMING, USING BUT NOTIFIED TO LOSS OF DATA OR DATA BEING RENDERED INCURATE OR LOSSES SUSTINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS, EVEN IF SUCH ORDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

17. Interpretation of Sections 16 and 16.

If the disclaimer of warranty and limitation or liability provided above cannot be given local legal effect according to their terms, reverting courts shall apply locally that most closely approaches an accurate wider of all civil liability in connection with the Program, unless a warranty or assumption of facility accounts is a copy of the Program in return for a fee.

OpenSSL Combined License

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLkey license apply to the books. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact open Saudi.com@open Saudi.org.

Component Name License URL

openssl-1.0.2e OpenSSL Combined License http://www.openssl.org/escuros

Copyright (c) 1983-2011 The OpenSSL Project. All rights reserved.

Red distribution and use in source and binary limits, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must return the above copyright notice, this list of conditions and the following disclustes.

2. Reclassifications in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with no distribution.

3. At advertising materials mentioning features or use of this software must display the following acknowledgment: This product includes software developed by the OpenSSL Projector use in the OpenSSL Toolkit. http://www.opensa.org/?

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].

5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.

6. Contributions of any form whatsoever must retain the following endorsements: "This product includes software developed by the OpenSSU Project for use in the OpenSSU Outlook (https://www.opera.org/)

THIS SOFTWARE IS PROMOTLY THE OCCIDENT PROJECT AS ST AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE TIMPLIT WARRANTIES OF THIS WARRANTY AND THIS SO FOR A PARTICULAR PURPOSE AND USE AVAILABLE WHEN SHALL BE USED. This PROJECT OR ITS CONTRIBUTORS IS LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSENSIONAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR PAYS, OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OR LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT INCLUDING NO EXCEPTION OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF A MISED OF THE POSSIBILITY OR SUCH DAMAGE

This product includes cryptographic software written by Eric YoungpayEncryption.com. This product includes software written by The Hudson (historyproof.com).

Original SSLeay License

Copyright © 1956-1995 Eric Young Jaysonpress.com All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]).

The implementation was written so as to conform with Nerospecs SSL.

This library is true for commercial and non commercial use as long as the following conditions are shown to: The following conditions apply to all codes found in this distribution, as it: the FCA, HSA, hash, DLS, etc., code; not just the SSL code. The SSL documentation included with the distribution is covered by the same copyright terms except, that, the holder is Tim Hudson [e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given distribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation online or textually provider with the package. Real distribution and use in sources and binary forms, with or without modification, are permitted provided that the following conditions are first:

1. Pedsistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

2. Realizations in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and other materials provided with the distribution.

3. All advertising materials mentioning features or use of the software must display the following acknowledgement: "This product includes cryptographic software which by Eric Young (payAcyptocn.com)" The word 'cryptographic' can be off out the results from the library using aids are not cryptographic related to.

4. If you include any Windows specific code for a derivative thereof from the app directory application code, you must include an acknowledgement: "The product includes software written by Tim Hudson (JhCryptosoft.com)"

THIS SOFTWARE IS PROVIDED BY LYC YOUNG AS IPT. AND ANY EXPRESS OF IMPLED WARRANTIES, INCLUDING OUT NOT LIMITED TO THE INFORMATION IS OF THE MERCHANTABILITY AND IN ACCORDANCE FOR A PARTICULAR ECONOMIC AND EXCAVATION, IN NO WHAT SHALL THE AUTHOR OR CONTRIBUTORS TO BE LABEL FOR ANY DIRECT, INDIRECT, INCIDENTAL SPECIAL, EXEMPLARY, ON CONSEQUENTIAL DAMAGES INCLUDING BUT NOT LIMITED TO PROCEDURE OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA, OR PROFITS, OR BUSINESS INTERRUPTIONS HOWEVER CALLS AND ON ANY THEORY OF THYLY, WHICH IN CONTRACT, STRUCTURALITY, OR LIGHT AND USING INSIGHT OF OTHER RIGHTS ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF AWARD OF THE POSSIBILITY OF SUCH DAMAGE

the licence and distribution terms for any publicly available version or derivative of this code cannot be changed. In the code cannot simply be copied and put under another distribution licence [including the GNU Pub lo licence.]

BSD License

Some software components of the product incorporate source code covered under the BSD license as follows

Component Name License URL

net-emp-3.7.3	850	http://www.net-emp.org/about/license.html
pore-3.36	850
thoop 1.7.4	850 7.0	http://www.kome.org/public/inv.bics/sacurhylux.phv&libopp?
Ighmed 1.4.30	850 7.0	http://www.opensource.org/framesatchedLicense.html
MiniPHP Project Client	850 7.0
pcpd-2.4.7	850 2.0	http://opensource.org/licenses/ESD-3-Clause

lightpaid is a secure, total, compliant, and very wide website that has been optimized for strong performance environments. It has a very low memory footprint compared to other web browsers and taxes case of distributors. Its advanced feature-install if accessOR, SQL, AutoI, OutputCompression, OR-, Revelling and many more, more litigued the perfect weather/energy for every server, but sufficient load problems. Simple Network Management Protocol SNMP is an interstandard protocol for managing devices on IP networks. It is used mostly in network management systems to monitor the devices attached to the network for conditions that meet administrative attention. Not SNMP is a auto or applications used to improve SNMP v1, SNMP v2e and SNMP v3 using both IPv and IPv. For more exceptional information, send email to [e-mail].

Copyright © 2004. Kneschke, Incremental

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted to provide that the following conditions are met:

• Broadcast sources of sources made must also be shown to the above copyright notice, this list of conditions and the following checklist:
- Satellite bursts in binary term must reproduce the above copyright notice, this list of conditions and the following declaration in the documentation and/or other materials provided with the distribution.
- Neither the name of the 'Incremental' nor the name of its contributors may be used to encode or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS AS IS AND ANY EXPRESS OR IMPATH WARRANTY. INCLUDING, BUT NOT LIMITED TO, THE ITEMS/WAHMAN IS OF "WHICHMAN AGENCY AND THIS FOR A MICHELIP PURPOSE." ARE USED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS ON SERVICES, LOSS OF USE, DATA OF INFORMATION, ANY OTHER THAN THIS INFORMATION IS NOT AVAILABLE. YOU ARE IN THE CONC. SPECIFIC AUTHORITY, OR (NOT) INCLUDING THIS INFORMATION OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN FEATEND OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright (c) 2018-2001 University College London

All rights reserved

Redistribution and use in source and binary forms, with or without modification is omitted provided that the following conditions are met.

1. Reclistitions of source code must retain the above copyright notice, this list of conditions and the following disclaimer

2. Realistbullins in binary form must reproduce the above copyright notice, this list of conditions and the following declarer in the documentation and

other materials provided with the distribution.

1. All advertising materials mentioning features or use of the software must display the following acknowledgement. The product includes software developed by the Computer Science Department at University College London.

2. Neither the name of the University nor of the Department may be used to endorse or promote products derived from the software without specific prior written permission.

THIS SOFTWARE IS PROMISED BY THE AUTHORS AND CONTRIBUTORS ABIS AND ANY EXPRESSSED OR IMPLY WARRANTIES, INCLUDING, BLIT, NOT LIMITED TO THE EMPLOYE WARRANTIES OF MERCHANTABILITY AND HIM \\S FOR A WRITTEN PURPOSES, DISCH ABIDLY, IN NOVENT SHALL BE AUTHICERS OR CONTRIBUTORS DE LEAVES TO ANY OBJECT, INDIRECT, INCOVATIAL, SPECIAL, EXPLANACY, OR CONGECATIONAL AS PRODUCTION. THIS INFORMATION IS SUBJECT TO THE USE OF USE DATA, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS, OTHERS

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Registrations of source code must rear the above copyright notice, this list of conditions and the following discharge.

2. Reclassibutions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the declaration.

3. Neither the name or the Registrar of the University of California nor the names of its contributions may be used to endorse or promote products desired from this software without specific prior written permission.

THIS ISCH IWARE, IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS' ASSETS AND ANY EXPRESS OR IMPATH WARRANTY. INCLUDING, BUT NOT LIMITED, TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSULTING, DAWARDS, INCLUDING, BUT NOT LIMITED, TO PRODUCTION OR SUBSTITUTIVE GOODS IS NOT USED LOSS OF USE, DATA ON THIS INFORMATION. THESE OPTIONS HOWEVER CAUSED AND ON ANY THEORY OF USILITY WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT INCLUDING NEGENCE OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IT ADVISED OF THE POSSIBILITY OR SLICIT DIAWARE.

Copyright (c) 2008, Creative Labs Inc

All rights reserved

Red attribution and use: In source and binary items, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must rear the above copyright notice, this list of conditions and the following disclaimers.

2. Recistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name or the Creative Data nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROMISEY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPERWARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE BYD WAPHAN IS SOIL HIGRAN AIIY AND "THE FOR A PERICIPAL PURPOSE - AND OBS AMID. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSENSUAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUPPMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA OR PROCESSING BUSINESS INTEPUTIONS HOUSTOR CHASED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTAINNT, OTTIC LIABILITY; OR WITHOUT INCLUDING NO LEGIBLE INFORMATION OR ASPIRE, ARISING IN ANY WAY OF THE USE OF THIS SOFTWARE, EVENT COM<|box_end|><|ref_start|>OF THE POSSIBILITY OR SUCH ADAM

Copyright (c) 2005-2012, Thomas BERNARD

All rights reserved.

Red strubution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must remain the active copyright notice, this list of conditions and the following disclaimer.

2. Book distributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and other materials provided with the distribution:

3. Neither the name of Thomas EBTWARD nor the names of its contributors may be used to endorse or promote products derived from a software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDS AND CONTRIBUTORS AS IS' ANY ANY EXPRESS ON IMPED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE DISABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSOLIDATED DAMAGES, INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SHAO-US; LOSS OF USE, DATA OF PROFITS; OR BUSINESS INTERRUPTION HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LIABILITY, OR

FOR (INCLUDING NEGEND OF OTHER ASIP) ARISING IN ANY WAY OUT OF THE USE OF THIS SCH WARF, EVEN IT ADMIS-DO OF THE POSSIBILITY OF SUCH DAMAGE.

Various copyrights apply to this package. Listed in various separate parts below. Please make sure that you read all the parts.

Parl 1: CMU/UCD copyright notice: (USD like)

Copyright 1989. 1981. 1982 by Carnegie Motor University Derivative Work 1996, 1998 2000

Copyright 1986, 1986-2000 The Regents of the University of California

At Hights Received

Permission to use, copy, notably and distribute this software and its documentation for any purpose and without beer is hereby granted, provided that the above occasional notice appears in all copies and this, both that occasional notice and the permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California is not be used in advertising or publicity pertaining to distribution of the software without specific writer permission.

CIVU AND THE RESULTS OF THE UNIVERSITY OF CALIFORNIA SOCIAM ALL WARHANES WITH RIGARD OF THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT CHUI OU THE RECEIPTS OF THE UNIVERSITY OF CALIFORNIA IS LIABLE FOR ANY SPECIAL INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE. DATA FOR PROHIBITED IN AN ACTION OF CONTRACT NO GNING OR OTHER TOHOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Part 2: Networks Associates Technology, Inc copyright notice (BSD)

Copyright (c) 2001-2008, Networks Associates Technology, Inc.

All rights reserved

Podulation and use in source and binary items, with or without modification are permitted provided that the following conditions are met by Redistribution of source code must remain the above copyright notice, this list of conditions and the following disclaimer: by Redistribution in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution: y Neither name or its turnover. Associations, technology, and their names of its contributors may be used to endorse or promote products defined from this activator without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "ASIST" AND ANY EXPRESS OR IMPEDIVANTIES, INCLUDING, BUT NOT LIMITED, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTIONS IS AVAILABLE AT ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR GENDER EQUALIS AND INJIMENTS, BUT NOT PERIOD TO EXCELING IN SUBSTITUTIONS FROM OBLIGATION, LOSS OF USE OF ITALIA. THIS DATA IS OBSERVATED OR BUSINESS INTERRUPTIONS HEARTER CAUSED AND ON ANY THEORY OF ABILITIES WHETHER IN CONTRACT OPICITIE, HELDUT TO TORTY, INCORPORATE SERVICE OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ANDED OF THE POSSIBILITY OF SLOCH DAMAGE.

Part 3: Cambridge Broadband Ltd. copyright notice (BSD)

Portions of this code are copyright © 2010-2003, Cambridge Broadband to

All rights reserved

Redistribution and use in source and binary frames, with or without modification, are permitted provided that the following conditions are met by Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer by Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other material provided with the distribution by The name of Cambridge Broadlands Ltd. may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER WAS IT AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE ITEMS WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER IS UBLIC FOR ANY INDIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBS IIIE GOODS OR SHANGS LOSSES OF DATA, OR MONTHS OR SUBSSES IN THE PIFICATION HOWEVER ARE LIQUID AND ON ANY HISTORY OF LIABILITY WHILE ILLIN CONTRACTS, WARRANTY, OR OTHER (INCLUDING ASUAL) OTHERS) ASHENS IN ANY WAY OUT OF THE USE OF THIS SOFTWARE. EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE

Part 4: Sun Microsystems, Inc. copyright notice

1829

Copyright © 2003 Sun Microsystems, Inc. 4150 Network

Giro, Santa Gare. California (850V), U.S.A.

All rights reserved

Uses a supplier to lease niche before. This distribution may include materials developed by third parties. Sun, Sun Microsystems, the Sun logo and Source are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and/or countries. Redistribution and use in source and binary forms, within or without localization, are permitted provided that the following conditions are met: by Redistribution or source code must: retain the above copyright policies, must be accounted for the following conditions: by Redistribution in binary format must reproduct the above copyright policies, this list or conditions and the following disclaimer in the document end for other materials provided with the distribution by Receiver the name of the Sun Microsystems, Inc. nor the names of its contributors may be used to endorse or promote products delivered from its software without specific or natural permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "ASIS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT BEHTO, TO THE IMPED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ARE NO AMOUNTED IN ANY SELT. THE COPYRIGHT HOLDERS OF CONTRIBUTIONS IS LIMITED OF ANY CHANGE, INDICIPAL, INCIDENTAL, SPECIAL, EXHAPPY OF CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE OCCS OR SERVICE, LOSS OF USE OF PRODUCTS OR BUSINESS INVENTORIES. HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT, STRICT LAVELITY, OR ANY OTHER ASSEMPATIVES, OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER ASSEMPATIVES OR ANY OTHER

Part 5: Sparta, Inc copyright notice (BSD)

Copyright © 2003-7500, Santa, Inc.

At right reserved

ReDistribution and use in source and binary forms, with or without modification, are permitted to produce that the following conditions are met by Reistributions of source code must retain the above copyright notice, this list of conditions and the following declaration by Reistributions in binary form must reproduce the

above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution by Neither the name or Sparta, Inc. nor the names of its contributions may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS ON IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPULD-WAHAN LEASE OF MERCHANTABILITY AND THINSE FOR A PARTICULAR PURPOSE. ARE DISCRIMED IN N.D. WILL BE TOWN. THE COPYRIGHT HOIRS OR CONTRIBUTIONS IS THAT FOR ANY OTHER, NON-OCTO, INDICIPAL, SAICIA, COMPANY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, LOSS OF USE, DATA OR PROFITS OR BUSINESS INTERRUPTION; HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT STRICT LIABILITY, OR ANY OTHER AS IS RESPONSIBLE FOR ANY CHANGE OR THE BASIS ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, WHEN ATIVES OF THE POSSIBILITY OF SUCH DAMAGE.

Part 6: Cisco/BUPTNIC copyright notice (BSD)

Copyright (c) 2001, Class, Inc and Information Network

Center of Beijing University of Posts and telecommunications.

All rights reserved.

Redistribution and use in source and binary items, with or without modification, are permitted to produce that the following conditions are met: y Redistributions of source code must refer to the above copyright notice, this list of conditions and the following disclaimer: y Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution: y Neither the name or Class, Inc., Beijing University of Posts and Telecommunications, nor the names of their contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFAIR IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS AS IS AT ANY EXPRESS OR IMPERISH WARRANTIES. INCLUDING, BUT NOT LIMITED TO, THE IMPERLED WARAN LEAS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL EXPLAYANT, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE DATA, OR PROFITS, OR BUSINESS INTERRUPTION; HOWEVER CAUSED AND ON ANY THEORY IS SUBJECT, WHETHER IN CONTRACT, STRICT LARITY, OR ANY OTHERS WITH ANY INTERESTOR AS IS AVAILABLE.

Part 7: Fabasoft R&D Software Software GmbH & Co KG copyright Notice (BSD)

Copyright (c) Fabesoll-RSD Software GmbH & Co KG, [e-mail]

Author: Hornhard Ponz

Paid distribution and use in sources and binary forms, with or without modification, are permitted provided that the following conditions are met: y. Redistribution of source cards must retain the above copyright notice, this list of conditions and the following disclaimer: y. Redistribution in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials produced with the distribution. y. The name of Fabasol, R&D Software GmbH & Co KG or any of its subsidiaries, brand or product matrices may not be used to endorse or promote products derived from the software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER "AS IS AND ANY EXPRESS OF IMPRIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPRIED WARRANTIES OF THE MERCHANTABILITY AND HINSE *} FOR A PART OR PURPOSE ARE DISCIAMABLE IN THIS STATE. THIS COPYRIGHT HOLDER IS LEGIBLE TO ANY OF THE PUBLIC, INDICIPAL, SPECIAL, EXHILIARY OR CONSULTING DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT, INCLUDING NEGLIGENCE OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE. EVEN APPOSED OF THE POSSIBILITY OF SUCH DAMAGE.

Part 8: Apple Inc. copyright notice (BSD)

Copyright (c) 2007 Apple Inc.

All rights reserved.

Red distribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Recistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Recistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of Apple Inc. ("Appn") nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY APPI AND ITS CONDUCERS' AS BY AND ANY OFFSHRS OR IMPROWII WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL APPLE OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTIONS, GOODS OR WHICH IS LOSS OF USE, DATA, OR OTHERS OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY WHETHER IN CONTRACT STRICT LIABILITY, OR TORT INCLUDING NEGLIGENCE OR OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OR SUCH DAMAGE

Part 8: ScienceLogic, LLC copyright notice(BSD)

Copyright (c) 2003, ScienceLogic, LLC

All rights reserved.

Redistribution and use in source and binary forms with or without modification are permitted provided that the following conditions referred: y. Redistributions of source code must remain the above copyright notice, this list of conditions and the following disclaimer, y. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following declaration in this documentation and/or other material as provided with the distribution: y. Neither the name of Solenacologic LLC nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOIRS OR CONTRIBUTORS SHALL BE HARD FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE DATA, THIS INFORMATION IS SUBJECT TO BUSINESS PRELIPATION, KNOWING CAUSED AND ON ANY ELOPE OF LIABILITY WHILE FROM CONTRACT, STRICT LIABILITY, OR OTHER INCLUDING IS GROSE OR THE BASIS ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, PRIOR ANY FACTS OR THE POSSIBILITY OF SUCH DAMAGE.

The MIT License

Some software components of this product incorporate source code covered under the MI license as follows

MIT License 2.0

- AserWidget, bettermeans, jquery-u, foxml, foxml2, Mears3D-MearsLib, revEmbed.OpenGL Samples Pack, Wide Studio, xorg-server, dropbase-2012.SS, nusicsa 5.7

Copyright (c) 2011, The Dejo Foundation

Copyright 2010, AUITHORS INC (http://quayui.com/about)

Dual licensed under the MIT or GPL Version 2 licenses.

http://jhuory.org/license

- http://docs.query.com/114widget

Copyright Daniel Verbard

Copyright Igor Zlatovic

Copyright Aleksey Garin

Copyright Gary Pennington [e-mail]

Copyright Alfred Mckautsch - [e-mail]

Copyright Hjam Rose [e-mail]

Copyright Joel W. Reed

Copyright William Brack [e-mail]

Copyright (c) 2007-2010 The Khoros Group Inc.

Copyright Alish Kumar Petra

Copyright (c) 2008 Free Software Foundation, Inc.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distributs, sublease, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROMED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY. FINESSES FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OF COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OR ON CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DETAILS IN THE SOFTWARE.

Mozilla Public License

Since we, at Hanwha, Tschwin, used the Weffle Fabric component without modifying the source code according to the MOZLLA Public License 1.1, we are not obliged to provide the source code of the corresponding component.

- Version 1.

1. Definitions.

1.0.1. "Commercial Use" means distribution or otherwise making the Covered Code available to a third party.

1.1. "Contributor" means each entity that creates or contributes to the creation of Modifications.

1.2. "Contributor Version" means the combination of the Original Costs prior Modifications used by a Contributor, and the Modifications made by that particular Contributor.

1.3. "Covered Code" means the Original Code or Modifications of the combination of the Original Code and Modifications, in each case including portions thereof.

1.4. "Electronic Distribution Mechanism" means a mechanism generally accepted in the software development community for the electronic transfer of data.

1.5. "Executable" means Covered Code in any form other than Source Code.

1.6. "Initial Developer" means the individual or entity identified as the initial Developer in the Source Code notice required by Exhibit A.

1.7. "Large Work" means a work which combines Covered Code or portions thereof with code not covered by the terms of this license.

1.8. "License" means this document.

1.8.1. "Licenses" means having the right to grant, to the maximum extent possible, whether at the time of the initial grant or subsequently accrued, any and all of the rights conveyed herein.

1.9. Modifications* means are added to or defects from the substance or structure of either the Original Code or any previous Modifications. When Covered Code is released as a series of files, a Modification is:

A. Any addition to or deletion from the contents of a Tie containing Original Code or previous Modifications.

B. Any new file that contains any part of the Original Code or previous Modifications.

1.10. "Original Code" means Source Code of computer software code which is described in the Source Code house required by Exhibit A as Original Code, and which, at the time of its license under this License is not currently Covered Code governed by this License.

1.10.1. "Patent Claims" means any patent claim(s), now owned or hereafter acquired, including without litigation, method, process, and apparatus claims, in any patent I licensable by grantor.

1.11. Source Code® means the preterm team of the Source Code for making modifications to it, including all resources it contains, plus any associated interests definition rules, scripts used to control corridation and installation or an exoculation, or source code essential components against either the Original Code or another well known, available Covered Code of the Contributor's choice. The Source Code can be in a compressed or actual form, provided the appropriate decompression or degrading software is widely available for no change.

1.12. "Your (or 'Your') means an individual or a legal entity exercising rights under, and complying with all to the terms of, this license or a future version of his license is under Section 6.1. or legal norms." "Your" includes any entity which controls, is controlled by or its unrecognizable control with You's or purposes of this definition, "control" means at the power direct or indirect to cause the direction or management of such entity, whether by contract, or otherwise, or by ownership of more than fifty percent (50%) of the outstanding shares or beneficial ownership of such entity.

2. Source Code License.

2.1. The Initial Developer Grant, The Initial Developer hereby grants You a world-wide, royalty-free, non-exclusive licence, subject to third party intellectual property claims.

(a) under intellectual property rights (other than patent or trademark) Licenseable by India Developer to use, reproduce, modify, display, perform, sublicense and distribute the Origin Code for portions thereof) with or without Modifications, another as part of a Larger Work; and

(b) under Potents Claims infringed by the making, using or selling of Original Code. To make, have made, use, practices, sell, and offer for sale, and/or otherwise dispose of the Original Code (proportions thereof).

(4) the licenses granted in this Section 2.1(a) and (b) are effective on the date initial Developer First distributes Original Code under the terms of the licenses. (4) Notwithstanding Section 2.1(b) above, no patent license is granted: (1) for some that You orders from the Original Code; (2) assume from the Original Code or (3) for infringements caused by: (3) the modification of the Original Code or (4) the combination of the Original Code with other software or devices.

2.2. Contributor Grant. Subject to this party into actual property claims, each Contributor hereby grants you a world win, royalty from non-exclusive income

(g) under Intellectual property rights (other than patent or trade risk) licenseable by Contributor, to use reproduce, modify display, perform, sublicense and distribute the Modifications sealed by such Contributor (or portions thereto either or an unmodified case, with other Modifications, as Covered Code and or as part of a larger Word and

(b) under Patent Claims infringed by the making, using, or setting of Modifications made by that. Contributor either alone and/or in combination with its. Contributor Version (or portions of such combination), to make use, sell, offer for sale, have made, and/or otherwise disposed at. (1) Modifications made by that. Contributor (or portions thereof) and (2) the combination of Modifications made by that. Contributor with its. Contributor Version (or portions of such combination).

(a) the licences granted in Sections 2.2(s) and 2.3(b) are effective on the date Contributor first makes Commercial Use of the Covered Code.

(4) Notwithstanding Section 2.2 by above, no patent license is granted: To for any code that Contributor has deleted from the Contributor version, 2 separate from the Contributor version, 3 for infringement caused by (1) third party modifications of Contributor version or (2) the combination of Modifications made by that Contributor with other software except as part of the Contributor version (or other devices; or 4) under Patent Claims infringed by Covered Code in the absence of Modifications made by that Contributor.

3. Distribution Obligations.

3.1. Application of License - The Modifications which you create or to check You must have been governed by the terms of trial license, including without limitation Section 2.2. The Source Code was or of Reference Code may be distributed only under this terms of the License or a finite version of the License released under Section 8.1. And you must include a copy of this License with every copy of the Source Code. You distribute. You may not offer or impose any written on any Source Code version that allows or restricts the applicable version of this license or the recipients' sign in Resource. I however, You may include an additional document offering the additional rights described in Section 3.5.

3.2 Availability of Source Code: Any Medication which you create or be shown. You contribute must be made available in Source Code form under the terms of ms. I have either on the same media as an Exocardi version or is an accepted Electronic Distribution on Mechanics to anyone to show your words of Exocardi section available, and I made available via Electronic Distribution Mechanism, thus remain available for a least twelve 12 months after the date it finally become available, or at least six months later a subsection version of that particular Medication has been made available to such reductions. You are responsible for ensuring that the Source Code version remains available even if the Electronic Distribution Mechanism is not restored by a third party.

3.3. Description of Modifications: You must cause all Covered Code to which You contribute to contain a file documenting the changes. You make it create that Covered Code are the date of any change. You must include a comment statement that the Modification is derived directly or indirectly, from Original Code provided by the Initial Developer and including the name of the Initial Developer in the Source Code, and join any notice in an Executive version on related documentation in which You describe the origin or ownership of the Covered Code

3.4. Intellectual Property Matters

(a) Third Party Claims. If Contributor knowledge that a license under a third party's intellectual property rights is required to exercise the rights granted by such Contributor under Sections 2.1 or 3.2, Contributor must include a list. In with the Source Code distribution under "LQA", which described the claim and the party making the claim in sufficient detail that a student will know whom to contact. If Contribution obtains such knowledge after the Memorization is made available as described in Section 5.2, Contributor and promptly modify the LQA. The in copies Contributor makes available freshwater and shall take other steps (such as notifying appropriate mailing lists or newgroups reasonably salrated to inform those who receive the Covered Code that new knowledge has been obtained.

(b) Contributor APs. If Contributor's Modifications include an application programming interface and Contributor has knowledge of patent licenses which are reasonably necessary to implement, etc. APs. Contributor must also include the information in the LEGAL file

(3) -depreservakire.

Contributor represents that, except as disclosed pursuant to Section 5.4(a) above. Contributor believes that Contributor's Modifications are Contributor's original creation(s) and/or Contributor has sufficient rights to grant the rights conveyed by the Licensee

3.5. Required Notes: You must duplicate the notion to Phint A in open for the Source Code. It is not possible to put such articles in a particular Source Code due to its structure, then you must include such articles in association (such as a relevant direction) where an author would be likely to look for such a article. You desired one or more Modification? You may also your name as a Contributor to the notion described in Benefit A. You must also duplicate the License in any documentation for the Source Code where you discover the responsibility of the other's right relating to Covered Code. You may choose to offer, and to share a fee for warranty, support, indemnity or liability obligations to one or more residents of Governor's Class. However, You may do so only on Your ever-behind, and now on behalf of that initial October or any Contributor. You must make it absolutely clear than any such warranty support. Indemnity or liability obligation is offered by You alone, and you hereby agree to inferily the Initial Developer and every Contributor for any liability involved by the Initial Developer or such Contributor as a result of warranty support. Indemnity or liability terms you offer.

3.4. Applications of Explanable Versions: You may distribute Covered Goods to Exercisable from any if the requirements of Section 3.1. Have been one or more Covered Goods and it you must include a notice listing this, the Exposure Code version of the Covered Code is available under the terms of this license, including a prescription of this and where You have fulfilled the provisions of Section 3.2. The note must be consciously induced in any issue in an Exercisable version, related documentation or collaboration in which You describe being plant-to-rising to the Covered Code. You may also do the Exercisable version of Covered Code on external rights under a license of your code, which may contain some terms different from this License, provided that You are in compliance with the terms of this License and that the license

for the Recyclable version does not attempt to limit or alter the recipients' rights in the Source. Consider can travel the rights and forth in this License. If you distribute the Exclusible version under a different license you must make it absolutely clear that any terms which differ from this License are ordered by you, one, nor by the Initial Developer or any Contributor. You hereby agree to internally the Initial Developer and every Contributor for any liability incurred by the Initial Developer on such Contributor as a result of any such items. You offer

3.7. Larger Works. You may create a Larger Work by combining Covered Code with other code not governed by the terms of this License and distribute the Larger Works as a single product. In such a case, you must make sure the requirements of this License are fulfilled for the Covered Code.

4. Inability to Comply Due to Statute or Regulation.

It is impossible for you to comply with any of the terms of this license with respect to some or all of the General Code due to statute, judicial order, or regulation then. You must be comply with the terms of a document to the medium extent possible, and you decide by the limitations and the code they offer. Such description must be included in the LEGAL file described in Section 3.4 and must be included with all distributions of the Source Code. Except to the extent prohibited by statute or regulation, such description must be sufficiently retained for a recipient of ordinary skill to be able to understand it.

5. Application of this License.

this License applies to code to which the initial Developer has attaches the notice in Exhibit A and is related to General Code.

6. Versions of the License.

6.1. New versions, Netscape Communications Corporation ("Netscape") may pull into related and/or new versions of the license. Four time to time. Each version will be given a dating offering version number.

6.2. Effect of New Versions, Once Covered Code has been published under a particular version of the License. You may always continue to use it under the terms of that version. You may also choose to use such Covered Code under the terms of any subsequent version of the License published by Netscape. No one other than httpspe has the right to modify the terms applicable to Covered Code created under this license.

6.3. Descriptive Works, If you create or use a modified version at this License (which you may only do in order to apply in this code which is not already Covered Code governed by the License, "you must be to name your license so that the dresses" Module, "MOZZLAPPA", "MOZPS", "Nescape", "MFL", "NFL" or any surfacing similar practice do not appeal in your license respect to note that your license differs from the License and for otherwise make it clear. That your version of the license contains none within other from the License Public License and Nescape Public License. Initing in the name of the Initial Development Original Code or Contributor in the notice describes in Exhibit A oral and all themselves as deemed to be modifications at this License).

7. DISCLAIMER OF WARRANTY.

COVER CODE IS PROVIDED ON THE INSPECTION ON AS BY BASIS, WITHOUT WARRANTY OF ANY SIGN, WITHOUT SPECIFIED INFORMATION, INCLUDING WILL NOT LIMITATION, WARRANTY IS THE COVER CODE IS HELD. DUCTIN, MICHIGANALIE, IT TO A PUBLIC PRIOR PURPOSE, OR NON-INFRINGEMENT. THE ENTIRE RIGHTS TO THE QUALITY AND PERFORMANCE OF THE COVER CODE IS WITH YOU SHOULD ANY COVERED CODE PROVE DEFECTIVE IN ANY RESPECT. YOU NOT THE INITIAL DEVELOPED OR ANY OTHER CONTRIBUTION, ASSUME THE COST OF ANY INDICATIVE SERVING, PREPARIS OR CONNECTION. THIS DOCUMENT OF WARRANTY CONSTITUTES AN ESSENTIAL PART OF THE LICENSE NO USE OF ANY COVERED CODE IS AUTHORIZED BEFORE ACCEPT UNDER HIS USED NAME.

8. TERMINATION.

8.1. This License and Rights granted the under will terminate automatically if you fail to comply with terms herein and fail to cure each breach within 30 days of becoming aware of the breach. An expensive shall be properly granted shall survive any termination of the License. Proceedings which, by their nature, must remain in office beyond the termination of this license shall survive.

8.2. If You initiate a legal or by assisting a patent infringement other (exercising regulatory judgment actions against) into a Developer or a Contributor (the Initial Developer or Contributor against whom You is such action is referred to as "Participant") alleging that:

(1) This is a series of 2018 annual data from the United States. The company's performance and results are based on the following: (1) The company's annual earnings per share (EPS) for the year ended December 31, 2017, or 2020, the division between the first and second quarters of the year ended December 31, 2017, and the third quarter ended December 31, 2018, respectively. The company's performance and results are based on the following: (1) The company's annual earnings per share (EPS) for the year ended December 31, 2017, or 2020, the division between the first and second quarters of the year ended December 31, 2018, and the third quarter ended December 31, 2019, respectively.

(d) any software, hardware, or device, other than such. Participant's Contributor Version, directly or indirectly infringes any patent, then envirgts granted to You by such. Participant under Sections 2.1(d) and 3.7(f) are relevant effective as of the data and first made, used, sold, distribution, or held made. Modifications made by that. Participant:

8.3. If you resort a patent infringement warrant claim against Participant sloping that such Participant's Contribution Section directory or Indicery Innges any patent where such claim is reserved (such as by license or settlement) prior to the inflation of patent infringement litigation, then the reasonable value of the license granted by each Participant under Sections 2.1 or 2.2 shall be breast into account in determining the amount or value of any payment or license.

8.4. In the event of termination under Sections 8.1 or 8.2 above, all and user license agreements (excluding distributors and receivers), which have been validly granted by You or any distributor thereunder prior to termination shall survive termination.

9. LIMITATION OF LIABILITY.

UNDERNO CPOULTIMATES AND UNDER NO LEGAL, THEORY WHETHER TORT INCLUDING NEGUSCONSINIC, CONTROL OR OTHERWISE, SHALL YOU THE INLET FOR OTHER ANY OTHER CONTINUOCH, OR ANY OTHERS NOTCH ON COCONTRUCED, OR ANY SURFACE OR ANY OTHER SHIELDS IS HELAND TO ANY PERSON FOR ANY OTHER, SPECIAL, NOTIONAL, OR CONJUNCTION, ASSETS OF ANY CHARACTER INCLUSION WITH LIMITATION. DAMAGES ARE AVAILABLE. THIS INFORMATION IS SUBJECT TO THE INFORMATION AND INFORMATION IS TO BE USED. IF SUCH ASPTA SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES. THIS IMINATION OF LIABILITY SHALL NOT APPLY TO LEVELLY POTISH AT PERSONAL INFLUSTRY RESULTING FROM SICKY PARTNIES' NEGUSCONSINCE TO THE EXTENT APPLICATE LAW PROBITS SUCH IMINATION. SOME JURISSED ONE TO NOT ALLOW THE INLET OR UNIFORM ON NORTHIA OR CONJUNCTION OR CONJUNCTION. IS THE INCLUSION AND ITAL ON ANY

The Covered Code is a "commercial item" as that term is defined in 48 C.F.R. 2.101 (Oct. 1995), consisting of "commercial computer software" and "commercial computer software documentation" as such terms are used in 48 C.F.R. 12.212 (Sept. 1995). Consider with 48 C.F.R. 12.212 and 43 C.F.R. 227 7202- through 227 7202-4 (June. 1996), at U.S. Government End LLCs acquires Covered Code with only those rights act from prior

11. MISCELLANEOUS.

The License applies the complete agreement concerning an actuarial interest. If any provision of this License is held to be unrecognizable, such provision shall be retained only to the option necessary to make in accordance. This license shall not be granted by California law provisions except to the actual applicable law. If any provider alternates, excluding its court law provisions. With respect to circuits in which local one party is a receiver of, or an entity characterized or registered to do business in the United States of America, any Argentina relating to its License shall be subject to the jurisdiction. The Federal County of the Northern District of California, with revenue being in Santa Clara County, California, with the issuing party responsible for access, including without limitation, court costs and reasonable attorney fees and expenses. The application of the United Nations Convention on Contracts for the International Sale of Cocoa is exclusively excluded. Any law or regulation which

provides that the language of a contract shall be construed against the latter shall not apply to this issue.

1. RESPONSIBILITY FOR CLAIMS.

As between Initial Developer and the Contributors, some party is responsible for claims and damages arising, directly or indirectly, out of the utilisation rights under his license and you agree to work with initial Developer and Contributors to distribute such responsibility on an available basis. Nothing herein is intended or shall be deemed to continue any admission of liability.

1. MULTIPLE-LICENSED CODE

Initial Developer may designate portions of the Coverage Code as Multiple Licensed Multiple Prescriptions that the Initial Developer permits you to utilize portions of the Covered Code under Your choice of the MPI or the alternative licenses. It any specified by the Initial Developer in this description in Initial A.

EXHIBIT A - Mozilla Public License.

The contents of the file are subject to the Mozilla Public License Version 1.1 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License or http://www-IIpress.org/MP/Software Egypt Button under the License is distributed on an "AS IP" task, WITHOUT WARRANTY OF ANY KNO, either express or implied. See the License for the specific language governing rights and limitations under the license.

The Original Code is

the Initial Developer of the Original Code is ____ Portions approved by ____ and Copyright (C)____.____. All Rights Reserved.

Contra Bucurica

Alternatively, the contents of this file may be used under the terms of the license (the [ ] License), in which case the provisions of [ ] License are applicable. Instead of those access, if you own to allow use or your version of this file only under the terms of this [ ] License and not to allow clients to use your version of this file under the MP3, indicate your discretion by setting the provisions active and replace them with the notice and other provisions required by the [ ] License. If you do not delve the provisions active, a recipient may use your version of this file under either the MP3 or the [ ] License.

[NOTE: The text of the Exhibit A may differ slightly from the text of the notice in the Source Code files of the Original Code. You should use the text of this Exhibit A rather than the text found in the Original Code Source Code for Your Modifications]

The Independent JPEG Group's JPEG Software

The software included in this product contains copyrighted software that is licensed under the JPEG license.

JPF3 logo

- Core project. Generating Outline OpenGL, Libya

This dedication contains the sixth public release of the Independent JPHG Group's free JPHG software. You are accepted to distribute this software and to use for any purpose, subject to the conditions under LPGA, BISLIFE, bohne.

Serious users of this software particularly those incorporating it into larger programs should contact L.G. at https://info.com.cn/ to be added to our electronic mailing for. Making list members are notified of usome and have a chance to participate in technical disclosures, etc.

This software is the work of Lord Lans, Philip Glodsters, Jim Souches, Las Otrasver, Julian Mingullon, Luis Chife, George Philes, Davide Frost, Guano Volscoring, Se' Weijers, and other members at the Independent JAP.G Group.

UC is not affiliated with the official IEC JFEG standards committee.

LEGAL ISSUES

请仔细阅读并填写完整内容。

In plain English:

1. We don't promise that this software works. But I you find any bugs, please of us know!

2. You can use this software or whatever you want. You don't have to pay us.

3. You may not present that you wrote this software. If you use it in a program, you must acknowledge somewhere in your documentation that you've used the iOS code.

In legalese:

The authors make NO WARRANTY or representation, either excess or implied, with respect to the software, its quality, accuracy, merchantability, or fitness for a particular purpose. This software is provided "AS IS", and you, its user, assume the entire risk as to its quality and accuracy.

This software is copyright (C) 1901-1986. Thomas G. I are. All Rights Reserved except as specified below.

Permissors is hereby granted to use copy, modify, and distribute this software (or protocols thereof) or any purpose, without fee, subject to these conditions. (1) If any part of the source code for this software is distributed, then this README file must be included, with this copyright and no warranty notice unmarked; and any additional, decisions, or expense to the admin list must be closely indicated in accompanying documentation.

(2) If only executable code is distributed, then the accompanying documentation on must state that "the certificate is based or part on the work or the Independent PBO Group".

(3) Permission for use of this software is granted only if the user accepts full responsibility for any undesirable consequences, the authors accept NO LIABILITY or damages of any kind.

These conditions apply to any software derived from or based on the UG code, not just to the unmodified library. If you use our work, you ought to acknowledge us.

Permission is NOT granted for the use of any UGI author's name or company name in advertising or publicly relating to this software or products derived from this software may be referred to only as "the independent JHG Group's software".

We specifically permit and encourage the use of this software as the basis of commercial products, provided that all warranty or liability claims are assumed by the product vendor.

and Pence is included in this distribution by permission of L. Peter Deutsch, sale proprietor of its copyright holder: Aladin Enterprises of Merke Park, CA.

and Price is NOT greater by the above copyright and conditions, but there by the usual credit burden some of the Free Software Foundation: pricing policy, that you must include source code if you re进建its it. See the file and Print or to its details. However, since and Print does not need to be part of any program generated from the LOG code, this does not limit you more than the foregoing paragraphs do.

The Jink configuration script "configure" was produced with GNU Autohome." It is copyright by the Free Software Foundation but is freely distributed. The same holds for its supporting certificate pointing, subgroup, logic, timer, etc., Another support social, install, is copyright by MUI, but is also freely distributed. It represents that the arithmetic coding option of the JPSO space is covered by patients covered by IBD, AT&T, and Mitsubishi. Finite arithmetic coding cannot legally be used without obtaining one or more licenses. For this reason, support for arithmetic coding has been removed from the free FDS software (Since an arithmetic coding provides only a marginal gain over the unintended Huffman motor), it is likely that very many implementations will support it. So other as we aware there are no patient excellent orders on this remaining orders.

The UG distributor formerly included code to resc and write GIF files. To avoid enlargement with the Unvs LZW point, GIF reaching support has been removed altogether, and the CIF writer has been an pillared to produce 'uncompressed GIFs'. The technique does not use the LZW algorithm, the resulting GIF files are longer than usual, but are needed by at standard GIF processors.

We are required to state that

"The Grachise Interchange Format(s) is the Copyright property of CompuServe Incorporated. GHerm is a Service Mark property of CompuServe Incorporated."

T-Kernel License

This Product uses the Source Code or 1-Kernel under license granted by the Engine Forum(www.engine.org)

T-License [License Agreement for Source Code of T-Komel]

established by I-Engrel forum

on January 23, 2024

19490 of June 17, 2008

revised on March 24, 2009

Article 1. Scope of License Agreement

1. This License Agreement sets forth copyrights and the terms and conditions of use applicable to the source code of T-Kernel distributed by T-Engine Forum and any derivative work created hereinfront.

Article 2. Definition

1. "I-Kamel" means a real-time operating system controlled and distributed by I-Engine Forum on behalf or the copyright holder thereof.

2. "Source Code" means a source program, including related comments and documentations, for the T-Kernel and the Portal Source Code defined in Article 2.8 which is registered with L-Engine Forum.

3. "Hardware-dependent. Part" means the part of the Source Code which depends on hardware and needs to be charged when the Source Code is ported and operated on the larger hardware, and is designated and separated as such part.

4. "Compiler dependent Part" means the part of the Source Code which depends on compiler and access to be changed when the Source Code is period and operated on the target hardware, and is designated and separated as such part.

5. "Header File" means the part of the Source Code which contains definitions necessary to develop application programs.

6. "I Engine Hardware" means the hardware which is manufactured in accordance with the T-Engine Hardware specifications or the pI Engine Hardware specifications issued by T-Engine Forum, and registered with T-Engine Forum.

7. "Similar Hardware to T-Engine Hardware," means any hardware including software, which creates hardware, other than that defects in Article 2.6 above, or which the I-Kamel can be operated.

8. "Ported Source Code" means a source program produced from the Source Code by modifying only its Hardware-dependent Part and/or Computer-dependent Part to enable it to be operated on the T-Engine Hardware or the Similar Hardware to T-Engine Hardware. The Ported Source Code which is registered with T-Engine Hardware and is included in the Source Code.

9. "Modified Source Code" means a source program modified from the Source Code for the purpose of improving its performance, increasing or decreasing its function, and the like. The Ported Source Code shall not be included in the Modified Source Code.

10. "Binary Code" means an executable code form which is created by computing programs, which include all or part of the Source Code or the Modified Source Code

11. "Derivative Work" means the Modified Source Code or the Binary Code.

12. "Embedded Product" means any product which operates with favorable once form or the Source Code, the Modified Source Code or the Binary Code loaded on its hardware.

13. "End Use" means a consumer who uses the Encoded Product.

14. "System Developer" means any person who develops the Embedded Product by itself or has a third party develop the same and provides, whether with or without payment, the End User with the Embedded Product.

15. "Distributor of Modification" means any person who prepares the Methodist Source Code and whether with or without payment, distributes the same to any third party.

16. "Patch for Modification" means a difference, program, system, or the file in order to paste the Modified Source Code from the Source Code or the Binary Code thereof.

17. "Molecular Execution of Batch Processing" means vigorous execution service to create the Modified Source Code applying the Patch for Modification to the Source Code or the Binary Code menu.

18. "Source Code User" means a person who uses the Source Code.

19. "Distribution" means any of the following acts:

20. to transmit a work to a large number of specific persons through the Internet communication, broadcasting, and the like;

21. To transmit a work to the general public through the internet communication, broadcasting, and the like automatically in response to a request from the public; and

22. to distribute a copy of a work to the general public or a large number of specific persons.

Article 3. Copyright

1. The copyrights of the Source Code shall be owned by Ken Bakamura.

Article 4. License of Source Code

1. As provided for in the Article, T-Engine Forum shall provide and grant a license to use, the Source Code free of charge to any person who has taken the necessary procedure for registration as prescribed by T-Engine Forum and agreed to the I-1 license.

2. The Source Code shall be distributed exclusively by T-Engine Forum. Any person who obtains the Source Code under Article 4.1 above shall not make any re-Distribution of the Source Code.

3. In accordance with the license granted under Article 4.1 above, the Source Code User may perform the following acts:

4. to copy and/or modify the Source Code provided by T-Engine Forum hereunder for its own research, development and the life.

5. To run the Source Code provided by T-Engine Forum hereunder for its own research, development and the like.

6. to run the Source Code modified in accordance with the provision of Article 4.5 (1) above for its own research, development and the like.

7. To distribute the Binary Code created from the Source Code, provided by I Engine Forum hereunder or from the Source Code modified in accordance with the provision of Article 4.3 (1) above.

8. In accordance with the licence granted under Article 4.1 above, the System Developer may perform the following acts:

9. to perform any and all acts set forth In the Article 4.3 above.

10. to develop end manufacture the Embedded Product containing the Binary Code, and, whether with or without payment, provide the End User with the same and make the Binary Code available to the End User on the Embedded Product.

11. The Source Code User and the System Developer shall be obligated to give a notice that the Source Code is used, in such a way as separately specified by T-Engine Forum, when they use the Source Code or the Binary Code, or make the Binary Code available for the End User on the Embedded Product.

Article 5. Distribution of Modified Source Code

1. Any of A- members of T-Engine Forum may become the Distributor of Modification by obtaining the approval of T-Engine Forum through the registration procedure as prescribed by the Forum provided that only the department, of the A-member which has taken the registration procedure may distribute the Modified Source Code. In such a way as provider for in this Article as long as it holds the Amembership.

2. The Distributor of Modification may create the Modified Source Code based on the Source Code provided by T-Engine Forum and the Patch for Modification to be applied to create such Modified Source Code from the Source Code.

3. The Distributor of Modification shall prior to the distribution. Inform 1 Engine Forum of and register a name and description of the Modific Source Code in such a way as specified by 1-Engine Forum.

4. The Distributor of Modification shall determine the name of the Modified Source Code subject to the rules separately established by T-Engine Forum and publish an appropriate code as required by the rules on the Hatch for Modification and the Modified Source Code.

5. The Distributor of Modification may distribute the Modified Source Code to a third party, whether with or without payment, provided that the Distributor of Modification shall take the necessary measures to prohibit the third party from making the re-Distribution of the Modified Source Code.

6. Developer with the Plan for Modification. Provided, however, that the Distribution of Modification shall be obligated to confirm that the System Developer is the Source Code User duly licensed under Article 4.1.

7. The Distributor of Modification may perform the Vilarious Execution of Patch Processing for the System Developer;

8. The System Developer shall not distribute the Modified Source Code In further modified form to any third party as a stand-alone software product.

9. The System Developer may, under the same obligation as imposed in Article 4.6, make the Embedded Product available for the End User through use of the Patch for Modification distributed by the Distributor of Modification or the Derivative Works obtained through the Viscuous Execution of Batch Processing.

Article 6. Distribution and Registration of the Ported Source Code

1. The Source Code User and the System Developer may whether with or without charge, distribute to any third party only the following parts of the Period

Source: Gods or the 1-Engine Hardware or the Similar Hardware to 1-Engine Hardware

1. The Hardware-dependent Part and/or Computer-dependent Part; provided that the Source Code User and the System Developer shall inform T-Engine Forum of, and T-Engine Forum may publish, a method for distributing said Part(s) to third parts.

2. The Header File provided that the Header File shall be distributed together with the Binary Code of the Ported Source Code.

3. Any member of T-Engine Forum may request T-Engine Forum to register and distribute, as an original source code for T-Kernel, the Ported Source Code on the T-Engine Hardware or the Similar Hardware to T-Engine Hardware.

4. Any member of T-Engine Forum who requests the distribution mentioned in the preceding cersgraph shell scope to the following conditions:

5. The member shall confirm that the object hardware is the | Engine Hardware or the Similar Hardware to | Engine Hardware.

6. The member shall provide T-Engine Forum with a complete set of operational environment, for the object hardware and T-Kernel free of charge when requesting the distribution.

7. The member shall submit test results of the Ported Source Code to T-Engine Forum when requesting the distribution.

8. In the event that T-Engine Forum accepts the request mentioned in Article 6.2. T-Engine Forum shall register and distribute the Ported Source Code as the Source Code for T-Kernel. Provided, however, that the Ported Source Code may be treated in the same way as the Modified Source Code until the time of registration norunder.

9. The provision set forth in Article 3 shall apply to the Portal Source Code registered in accordance with this Article.

Article 7. Use for Other Purpose

1. Any use of the Source Code, the Modified Source Code or the Ported Source Code other than those stipulated in Articles 4, 5 and 6 shall be subject to the prior approval of T. Eng no Forum.

Article 8. Limited Warranty

1. T-Engine Forum and the copyright holder of the Source Code warrant that the Source Code does not infringe third party's copyrights. Provided, however, that Huglina Forum and the copyright holder at the Source Code makes no warranty as to the Hardware-dependent Part and/or Compiler-dependent Part sell forth in Africa 6.2 in the Parson Source Code by any third party.

2. Neither T-Engine Forum nor the copyright holder of the Source Code warrants that the Source Code will fit for any particular purpose of the Source Code User.

3. Neither T-Engine Forum nor the copyright holder of the Source Code warrants that the Source Code does not infringe any third party's industrial property rights, in no event shall T-Engine Forum and the copyright holder of the Source Code be liable for any dispute which may arise between the Source Code Use and a third party in connection with the third party's industrial property rights.

Article 9. Indemnity

1. Neither T-Engine Forum nor the copyright holder of the Source Code shall be liable for any damages (including, but not limited to, damages resulting from loss of profit, business interruption, loss of business information or any other statutory damages) arising out of use or impossibility or use of the Source Code, except in T-Engine Forum and the copyright holder have been informed on the potential or such damages.

Article 10. Breach of Agreement

1. In case that I-Engine Forum consists that this license Agreement is breached or met the population billion at I-Kemli is obstructed, I-Engine Forum shall take measures to correct such breach or such obstruction, take measures on the grounds of copyright infringement, or take any other necessary measures against the breaching person or the obstructing person, regardless of whether or not, the said person is a member of I-Engine Forum.

2. In case of breach of the License Agreement by a member of H-Engine Forum, H-Engine Forum may take appropriate measures against the member; for example, the member is disqualified from membership, depending on what kind of breach has been committed by it.

3. Any legal dispute which may arise in relation to any breach of this License Agreement, shall be subject to the exclusive jurisdiction of the Tokyo District Court. Article 11. Governing Law and Language

4. This License Agreement shall be governed by and interpreted under the laws of Japan.

5. This License Agreement is executed in both Japanese text and English text, provided that the Japanese text shall govern the interpretation and performance of this License Agreement.

Apache License 2.0

Component Name License URL

MONSResponder conjour Apache License 2.0 http://www.apache.org/licenses/LICENSE-2.0

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "License" shall mean the copyright owner or entity authorized by the copyright owner that is granting the license.

I legal Entity shall mean the burden of the acting entity and all other entities that contract, are controlled by, or are under common control with that entity for the purchases of this definition, "control" means it be power, strict or indirect, to cause the direction or management of such entity whether by contract or otherwise, only ownership of (i)g percent (60%) or more of the outstanding shares, or its beneficial ownership of such entity.

"You" for "Your" shall mean an individual or legal Entity exercising permissions granted by this License. "Source" form shall mean the preferred form for making modifications, including that not limited to software sources code, documentation source, and configuration files.

Direct form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled project code generated documentation, and conversions to other media types.

Work" shall mean the work of authorship, whether in Source or Object form, made available under the license, as indicated by a copyright notice that is enacted in or attached to the work (an example is provided in the Appendix below).

Derivative Works shall mean any work, whether in Source on October, form, that is based on for derivative from the Work and for which the extracted reserves are notstone elaborations, or other modifications represent, as a whole, an or final work of sufficient. For the purpose of this License, Derivative Works shall not include works that remain separate from, or money link for bonds by being to the existence of, the Work and otherwise Works must.

Contribution" shall not be a short, but the following: including this original version of the Work and any modifications or legal Works, therefore, that is intentionally prescribed to License for incise on the Work by the copyright owner or by an Individual or Legal Entity to consider on behalf of the copyright owner. For the purposes of the definition "submitted" means are form of electronic, verbal, or written communication set to the License or its representatives, including ball and limit to the communication on electronic and logical items, source control components, and supply making systems that can manage by, or on behalf of, then License for this purpose of releasing and removing the Work, but excluding communication that is applicable only material, or otherwise necessary. The Company's license is approved by the License and are individual or Legal Entity or Befit of which a Commission has been granted by License and subsequently incorporated within the Work.

1. Grant of Copyright License, subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, non-exclusive, exchange, royalty-ree, irreducible copyright license to reproduce, prepare Derivative Works of, publicly disloy, publicly perform, disclosure, and distribute the Work and such Derivative Works in Source or Object form.

2. Grant of Patent License: Subject to the terms and conditions of the License, each Contribution hereby grants to Your personnel, volunteer, non-exclusive, non-large, royalty-free, irreversible respect as stated in this electronic patent license or rules, have made, use, offer, to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent authors or recipients by such Contributor that are nonstantly infringed by their Contribution(s) account or by contribution of their Contribution(s) with the Work to which such Contributions will be subject. If you institute patent litigation against any entity, practicing a crossponsor or counterstrain in a lawsuit(s) alleging that the Work or a Contribution incorporated within the Work consults direct or contributory patent infringement, then any patent licenses granted to You under the License for that Work shall terminate as of the date such as 12 March 2017.

3. First publication. You may reproduce and distribute copies of the Work or Derivative Works that in any medium, with or without modifications, and in Source or Object form, provided that you meet the following conditions:

(a) You must give any other recipients of the Work or Derivative Works a copy of this License, and

(b) You must cause any modified ties to carry prominent relokes stating that You changed the ties; and

(4) You must retain, in the Source form at any Derivative Works that You distribute all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding these notices that do not per an to any part of the Derivative Works; and

(4) If the Work includes a NOTICE text file as part of its distribution, then any Derivative Works that you distribute must include a readable copy of the attribution notices contained within each NOTICE - excluding this notice that do not prepare to any part or the Derivative Works, in at least one of the following persons: within a NOTICE. You list the distributed as part of the Derivative Works; within the Source form or documentation, it provided along with the Derivative Works, or within a folder generated by the Derivative Works. And whenever such third-party notices normally appear, the contents of the NOTICE are for no monetary purposes only and do not modify the Leasers. You may also your own attribution notices within the Derivative Works that you distribute alongside or see an appendix to the NOTICE text from the Work, provided that such other attribution notices cannot be construed as modifying the License.

You may ask Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, previous year use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.

1. Submission of Contributions Unless You explicitly state otherwise, any Contribution is not only supported for inclusion in the Work by You to the Employer shall be under the terms and conditions of the License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms at any separate license agreement you may have executed with Licenses regarding such Commitments.

2. trademarks: This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE 1e.

3. Disclaimer of Warranty, Unless requires by applicants are or agreed to in writing. I cannot provide the Work and each Contributor provides as Distribution on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, KONIM PENSION, MERCHANT ABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the approximations of using a redistributing the Work and assume any risks associated with Your exercise of presentations under this license.

4. Limitation of Lethity in no event and under no legal theory, whether in front (including negligence, contract or otherwise unless required by applicable law (such as democrats and grassy negligent acts) or against it in ring) and any Contributor for which to you for damages, including any direct, indirect, special, incidental or consequential damages of any character arising as a result of this I license or out of the use or hereby to use this Work (including but not limited to damages for loss or goodwill, work soppage, computer failure or malfunction, or any etc. other commercial damages on losses), even if such Contribution has been advised of the possibility of such damages.

5. Accepting Warranty or Additional Lienity. While distributing the Work or Derivative Works thereof, You may choose to offer and charge it for accordance of support, warranty, indemnity, or other facility obligations and/or rights compliant with its License, however, in accepting such obligations, You may act any on Your own behalf and on Your sole responsibility, incl or behalf of any Other Contributor, and only if You agree to Indemnity, defend, and hold each Contributor members or any facility incurred by or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

APPHN08: How to apply the Apache license to your work.

To approve the Apache series to your work, attach the following boiler plate notice, with the fields enclosed by brackets [1] replaced with your own identifying information (not include the orders). The text should be enclosed in the approximate comment syntax for the file former. We also recommend that a file or clear name and description or purpose be issued on the same "printed page" as the copyright notice or order formulation within third party archives.

Copyright (yes) [name of copyright owner]

Licensed under the Apache License. Version 2.0 (the "License"), you may not use this file except in compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses.12-NSL-9.0

Unless required by applicable law or agreed to be writing, software distributed under the License is distributed on an "A8.9" BASIS, WITHOUT WARRANTY OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

BZip2 License

This program, "bup2", the associated library "lobap3", and all documentation, are copyright (C) 1956-2007 Julian R. Seward. All rights reserved.

Component Name License URL

http://1.08 Hsp2 http://www.hzp.org/

Redistribution and use in source and binary forms, with or without modification on, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, the list of conditions and the following disclaimer.

2. The origin of this software must not be misrepresentation; you must not claim that you write the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.

3. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.

4. The name of the author may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR ASIS, AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO THE IMMID WARRANTY OF THIS INFORMATION AND INTELORS FROM GUARD POURCH AS: DISCLAIMING, IN NOVIANT SHALL THE AUTHOR IS LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PROCUREMENT OF SUBSTITUTE OOCOS OF SERVICES, LOSS OF USE DATA, ON YOURS, ON BUSINESS INTERRUITING HOWEVER CAUSED AND ON ANY THICKY OF LIABILITY, WITHOUT IN CONTRACT, THIS LIABILITY, OR OTHER UNION SIGUIK NOT OR OTHER RIGHTS ISSACHIN ANY WAY OUT OF THE USE OF THIS WORK, EVEN ALLOWED OR THE POSSIBILITY OF SUCH DAMAGE.

Julian Reward | [e-mail]

bri2/Ischem version 1.0.5 of 10 December 2007

University of Illinois / NCSA Open Source License

Copyright (c) 1958-2007, The Board of Trustees by the University of Illinois All Rights Reserved.

Component Name License

Imar 2 O.A. University of Illinois / NCSA Open Source

|perf performance test.

Mark Gates

Ala: Tumala

Jrn Ferguson

on Duer

Feng Dn

Kevin Glce

Corn + slabrock

National Laboratory for Applied Network Resource

National Center for Supercomputing Applications

University of Illinois at Urbana Champaign

http://www.nesu.edu/

Pennies on is hereby granted, free of charge, to any person obtaining a copy of this software (perf) and associated documentation files the "Software", to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, autocase, and/or sell copies of the Software, and to permit persons to whom the Software is published to do so, subject to the following conditions:

Redistribuone of source code must retain the above copyright notice, this let of such one and the following disclaimers.

Redistribution in binary form must reproduce the above copyright notice, this list of conditions and the following derivatives in the documentation and/or other materials provided with the distribution.

Neither the names of the University of Illinois, NOSA, nor the names of its contributory may be used as endeners or promote products derived from this Software Virtual specific prior written permission. I.T. SCH WALK IS - FC-OVOL "AS 8", WITHOUT WARAN Y OF ANY KIND. EXPHISE OF INVUILD. INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY. FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE CONTRIBUTORS ON COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY. WHETHER IN AN ACTION OF CONTRACT, OR OR OTHER PREMISE, ARISING HOME, OUT OR OR IN CONNECTION WITH THE SCH WALK OR THE US, OR OTHER UNLESS INIS THE SOFTWARE.

PHP 3.01 License

The PHP License, version 3.01 Copyright (c) 1996 - 2010 The PHP Group. All rights reserved.

Component Name License URL

pnc 5.2.17 FFP3.01 https://www.pnc.org/distributions

Redistribution and use in source and binary forms with or without modification, is certified provided that the following conditions are met:

1. Recistributions of source code must remain the above copyright notice, the list of conditions and the following disclares.

2. Recistributions in binary form must reproduce the above copyright notice, this list of conditions and the following checklist in the documentation answer other materials provided with the distribution.

3. The name "PHP" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, close contact [e-mail]

4. Products derived from this software may not be called "PHP", nor may "PHP" appear in their name, without prior written permission from [e-mail]. You may indicate that your software works in conjunction with PHP by saying "Foo for PHP" instead of calling it "PHP Foo" or "chptoo".

5. The FHP Group may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number. Once previous code has been published under a particular version or this license, you may always continue to use it under the terms of that version. You may also choose to use such covered code under the terms of any subsequent version of the licenses published by the FHP Group. No one other than the FHP Group has the right to modify the terms applicable to covered code created under the License.

6. Realistic values of any form whatsoever must retain the following acknowledgment: "This product includes PHP software, directly exists from <http://www.php.net/software/";

THIS SOFTWARE IS PROVIDED BY THE PHP DEVELOPMENT TEAM ASIS AND ANY EXPRESSED OR IMPLED WARRANTIES, INCLUDING, BUT NOT LIMITED TO THE IMPLED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLOSED. INNO EVENT SHALL THE PHP DEVELOPMENT TEAM OF ITS CONTRIBUTORS TO BE LIABLE FOR ANY DIRECT INDIRECT, INCIDENTAL, SPECIAL, EBV/FLORY OR CONFIDENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO PRODUCTION OF SUBSTITUTE GOODS OR SERVICE'S LOSS/CHF, DATA ON THIS INFORMATION SHOULD BE USED IN ANY OTHER THAN IT IS NOT AVAILABLE. WHICH IT IS CONTAINED, THIS LIABILITY, OR TORT INCLUDING NO OTHERWISE ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, IT MAY BE CONTAINED OF THE POSSIBILITY OF SUCH DAMAGE.

This software consists of voluntary contributions made by many individuals on behalf of the PHP Group. The PHP Group can be contacted via Email or group 8 purchases.

For more information on the PHP Group and the PHP project, please see http://www.php.net. PHP includes the Zend Engine, freely available at http://www.zord.com.

zlib / libpng License

This software is provided as it, without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Component Name License URL

Zb-1.2.0 Ab / Ibpng Flg://zbc.net/

Copyright (C) 1985-2010 Jean-oup Gaily and Mark Alder

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to start and redistribute it freely subject to the following restrictions:

1. The origin of the software must not be represented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product, documentation would be appreciated but, is not required.

2. Alteron source versions must be plainly marked as such, and must not be misrepresentation as being the original software.

3. This notice may not be removed or altered from any source distribution.

Jean-Iouc Gally Mark Adler

joup@gz pang [e-mail]

the data format used by the statistics is described by F1Co (Request or Comments), 1953 to 1952 in the https://www.jc.org/nic/1962.txt (to format), rbc1961.txt (pellase format) and rbc1952.txt (type format).

Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Hanwha Techwin cases for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products.

The Eco mark represents Harwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Head Office

6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si,

Gyeonggi-do, 463-400 Rep. of KOREA

Tel: [phone] Fax: [phone]

www.hanwha-security.com

Hanwha Techwin America

500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666

Toll Free +1.877.213.1222 Direct +1.201.325.6920

Fax [phone]

www.hanwhasecurity.com

Hanwha Techwin Europe

Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom

Tel [phone] Fax [phone]

www.hanwha-security.eu

Hanwha

Techwin
