DS-LEDTK-8S - Audiovisual support Peerless-AV - Free user manual and instructions

Product Type	Video Wall Trim Kit
Brand	Peerless-AV
Model	DS-LEDTK-8S
Color	Black (assumed)
Material	Steel, aluminum
Dimensions	For covers up to 8 ft (244 cm) wide
Weight	Approx. 5-10 lbs (estimate)
Load Capacity	Trim kit only, not load-bearing
Compatible Displays	Unilumin UpanelS and similar flat panel video walls
Installation Type	Wall-mounted on plywood walls
Included Hardware	Wood screws, togglers, allen wrench, nut bars, spacers, cutting jigs, corner covers, wall plates, covers
Tools Required	Drill, screwdriver, wrench, measuring tape, pencil, cutting tool
Wall Requirements	Plywood min 1/2" thick, wood studs min 2x4
Indoor Use Only	Yes
Warranty	See www.peerless-av.com/warranty
Manufacturer	Peerless-AV, Aurora, IL, USA
Features	Solid and perforated trim options, cutting jigs for precise trimming, corner covers with VHB tape, spacers for alignment, nut bars for secure attachment

Frequently Asked Questions - DS-LEDTK-8S Peerless-AV

What tools are needed for installation?

You will need a drill, screwdriver, wrench, measuring tape, pencil, and a cutting tool (e.g., saw). A 4mm allen wrench is included.

What type of wall is required?

The kit must be installed on a flat, vertical plywood wall. The plywood must be at least 1/2" (13 mm) thick and over wood studs of minimum 2x4 nominal size. Drywall up to 5/8" is acceptable over the plywood.

Can this trim kit be used with any video wall display?

It is designed for Peerless wall mounts and includes alternate steps for Unilumin UpanelS displays with bump-outs. It may work with other flat panel video walls.

What is included in the box?

The box includes solid and perforated covers, wall brackets, corner covers, cutting jigs, spacers, nut bars, screws, togglers, a 4mm allen wrench, vinyl sticker, and instruction manual.

How do I cut the covers to size?

Use the provided outer and inner cutting jigs. Clamp the jig to the side of the cover being discarded and cut along the guide. Leave top and right edges uncut for proper alignment.

How do I install the corner covers?

Clean the surfaces, remove the adhesive backing from the VHB tape on the corner covers, and attach (4) corner covers to the wall plate cover.

Can I use this kit outdoors?

No, this product is intended for indoor use only. Outdoor use could lead to product failure or personal injury.

What is the maximum cover length?

The manual indicates covers up to 8 ft (244 cm) are supported. For 5 ft covers, follow specific bracket spacing instructions.

How do I ensure the trim is aligned with the video wall?

Use the provided wall plate spacers to set the final position. Align the bottom of the spacer cutout and notches with the guiding lines made on the wall.

Where can I get support if I have issues?

Contact Peerless-AV customer care at 1-800-865-2112 or email [e-mail]. Visit www.peerless-av.com for warranty information.

USER MANUAL DS-LEDTK-8S Peerless-AV

Isometric line drawing of a rectangular panel with a flat top and side edges, no text or symbols present.

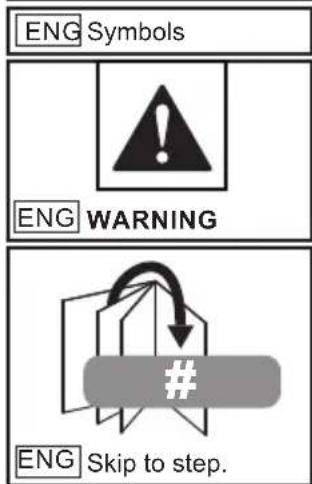

WARNING

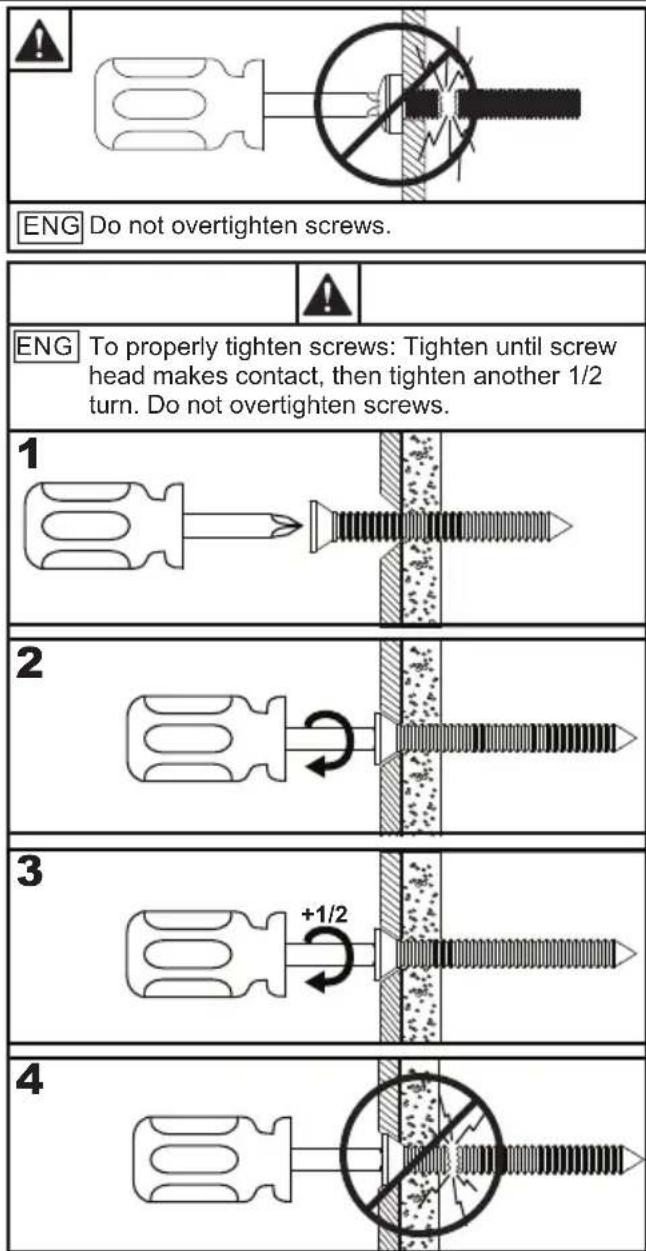

ENG - This product is designed to be installed on plywood walls. Hardware is included for plywood installation. This product is designed to be installed on flat, unobstructed, vertical walls. Do not install on curved or angled walls. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. Be careful not to pinch fingers when operating the mount. For support please call customer care at 1-800-865-2112.

ENG Tools Needed for Assembly.

Simple line drawing of a mechanical component inside a circle (no text or symbols)

Line drawing of a screwdriver inside a circle (no text or symbols)

Line drawing of a handheld electric drill (no text or symbols)

Line drawing of a wrench inside a circle (no text or symbols)

Line drawing of a measuring tape inside a circle (no text or symbols)

Simple line drawing of a pencil inside a circle (no text or symbols)

ENG Parts (Before beginning, make sure you have all parts shown below).

Parts ListDescription Part #

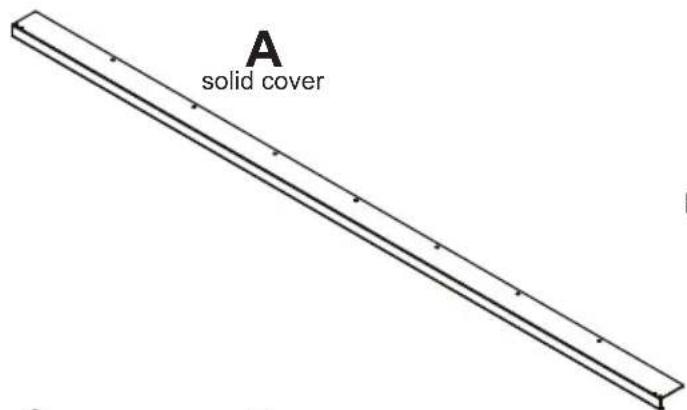

A solid cover -

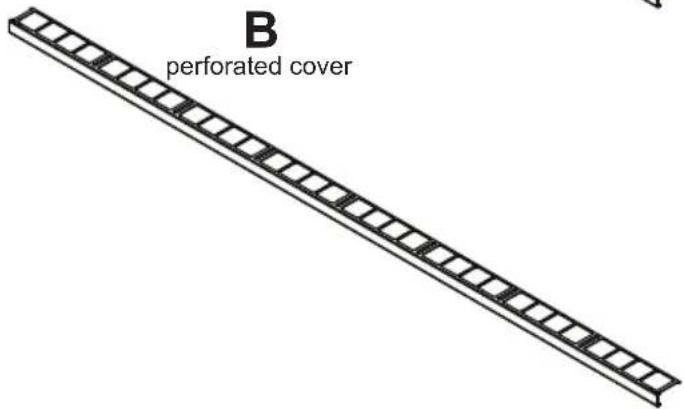

B perforated cover -

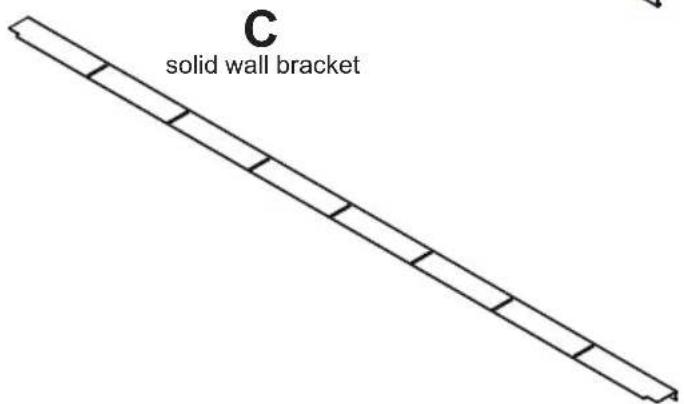

C solid wall bracket -
D wall-side bracket 147-1859
E corner cover assembly 147-1876

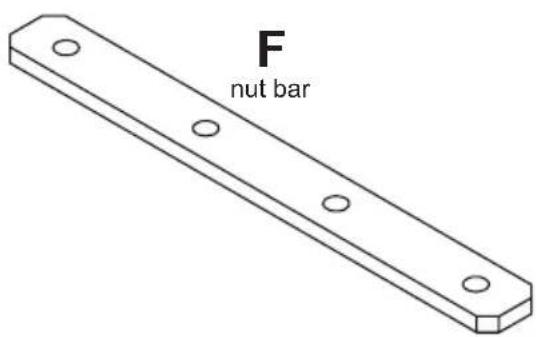

F nut bar 147-T1881

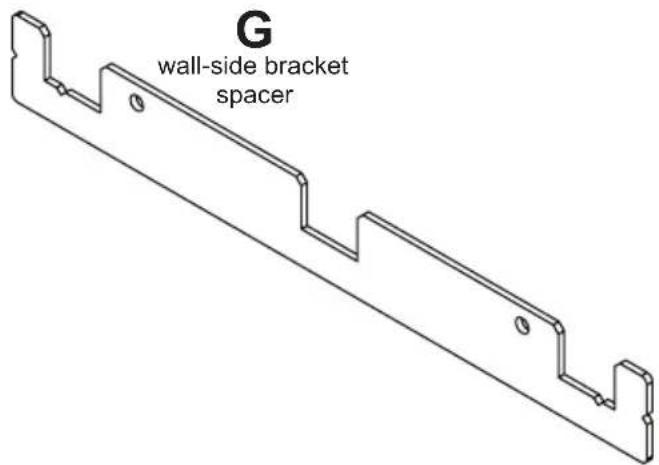

G wall-side bracket spacer 147-T1879

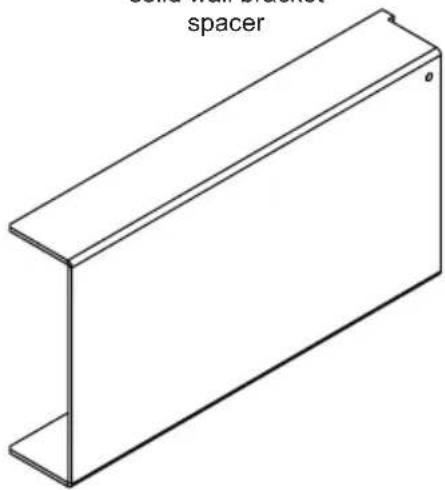

H solid wall bracket spacer 147-T1880

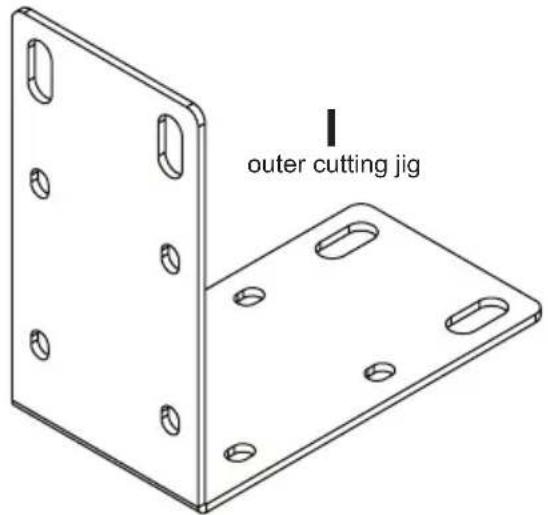

I outer cutting jig 147-T1882

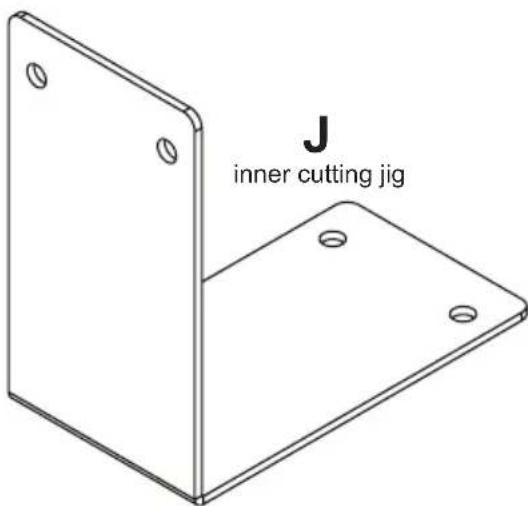

J inner cutting jig 147-T1883
K wall plate shim 147-1891
L 1/4-20 x 25mm screw	521-0710
M #14-10 x 1.75 wood screw	521-1688
N M3 x 8mm phillips	521-0711
O 1/4-20 x 1/2 btn skt scr	520-1169
P vinyl sticker	580-0535
Q toggler	590-1093
R #8-18 X 3/4" self drilling screw	521-0714
S 4mm allen wrench	560-9646
T 1/4-20 x 12mm screw	520-2325

O
1/4-20 × 1/2

R

8-18 X 3/4"

P
vinyl sticker

Two overlapping rectangular shapes with no text or symbols

S (1)
4mm allen wrench

H
solid wall bracket spacer

Isometric line drawing of a rectangular I-beam with no text or symbols

K
wall plate shim

Technical line drawing of a mechanical bracket component (no text or symbols)

M

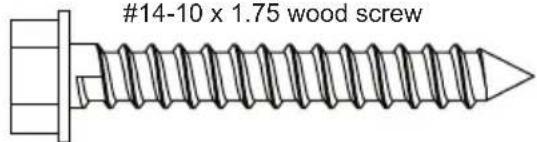

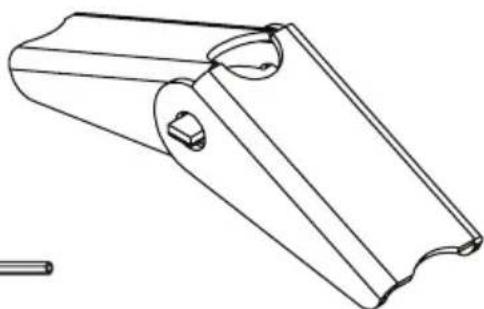

14-10 x 1.75 wood screw

T
1/4-20 x 12mm 1/4-203x25mm

N

L

Simple line drawing of a bolt with threaded shaft (no text or symbols)

Q
toggler

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

1

Follow steps for solid or perforated trim kits.

Alternate steps for Unilumin UpanelS sides with bump-outs start on page 22.

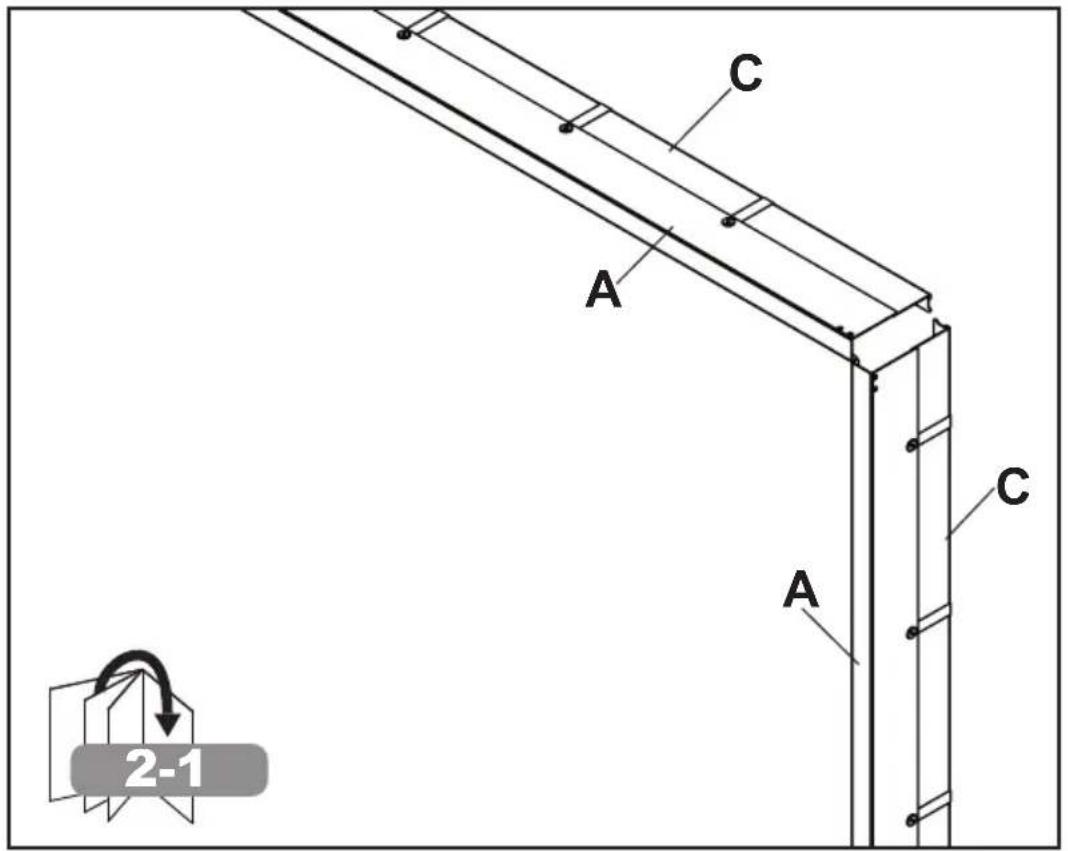

2-1

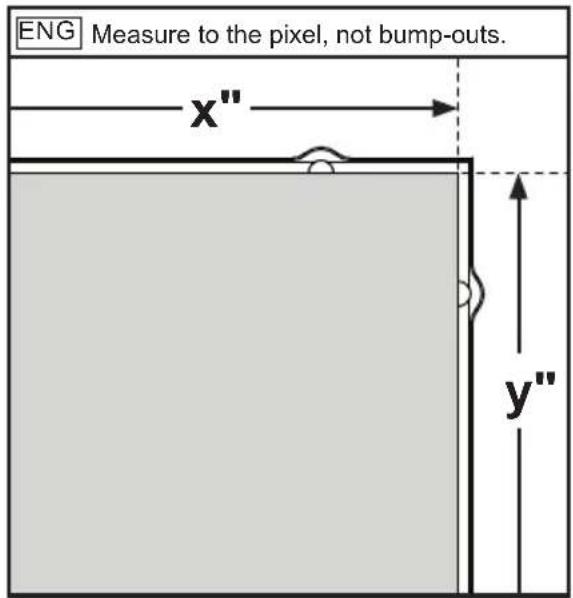

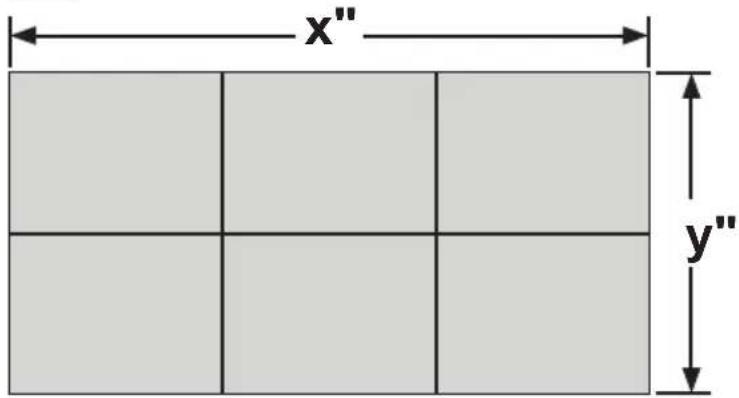

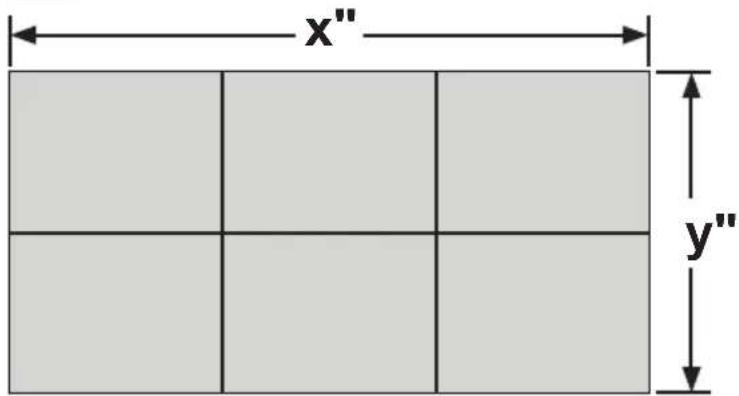

ENG Measure video wall dimensions.

2-2

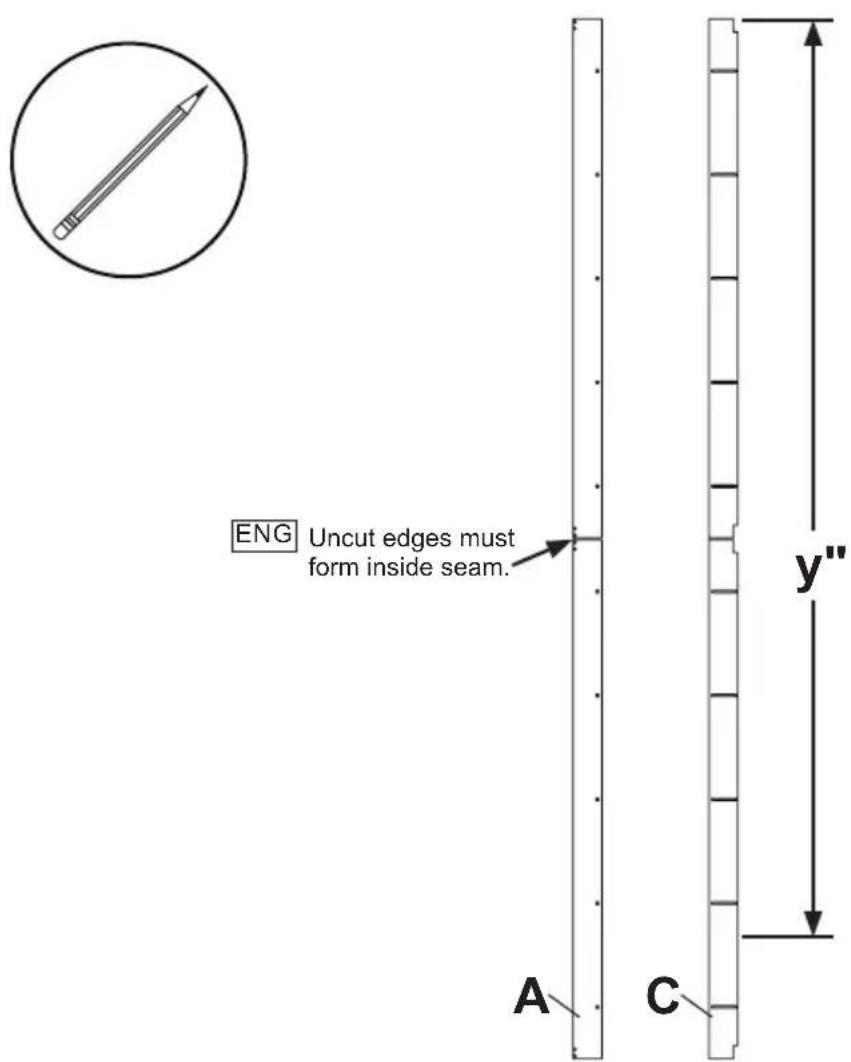

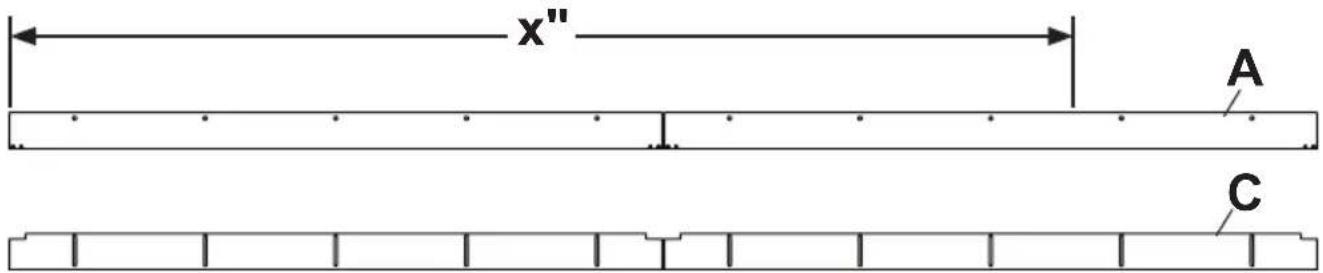

ENG Mark cutting line on wall plates and covers. Do not join covers until installing covers to the wall.

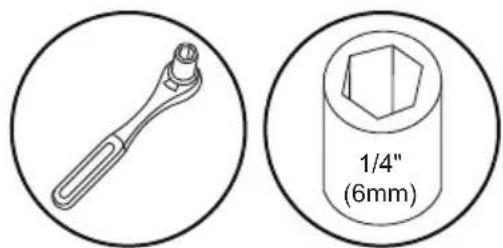

3-1

ENG

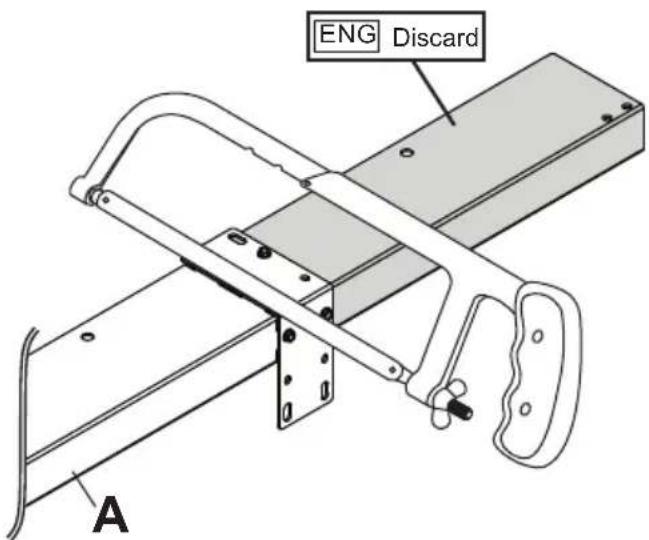

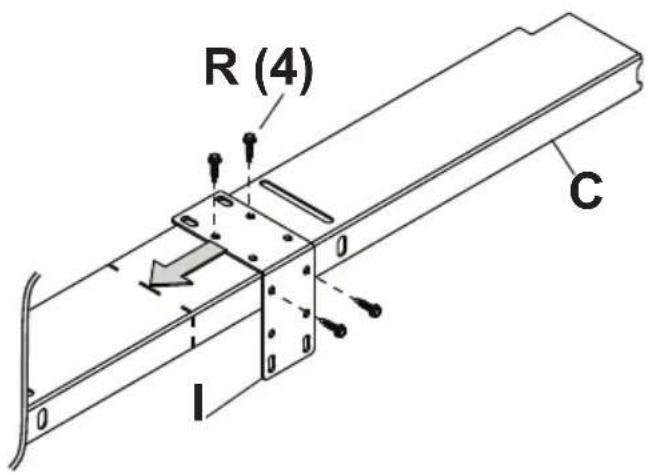

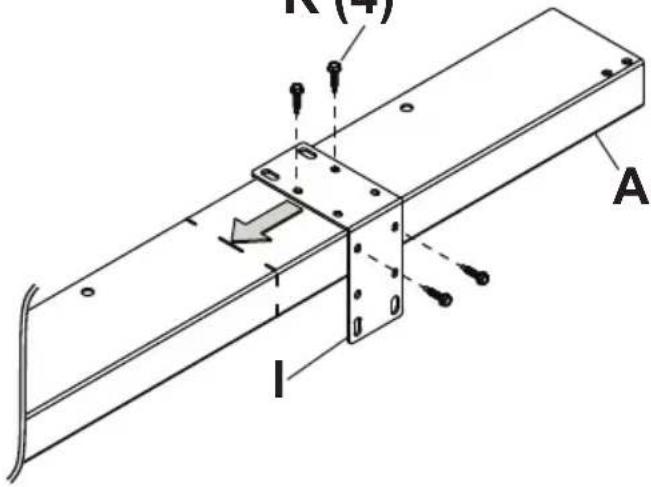

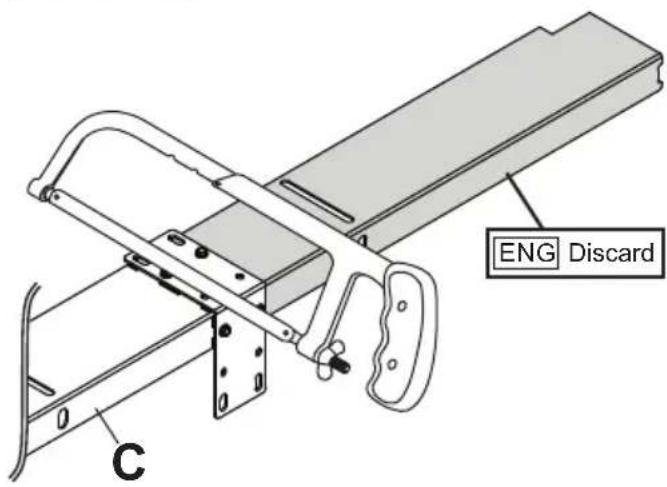

Optional: Clamp or fasten cutting fixture to side of cover being discarded.

R (4)

3-2

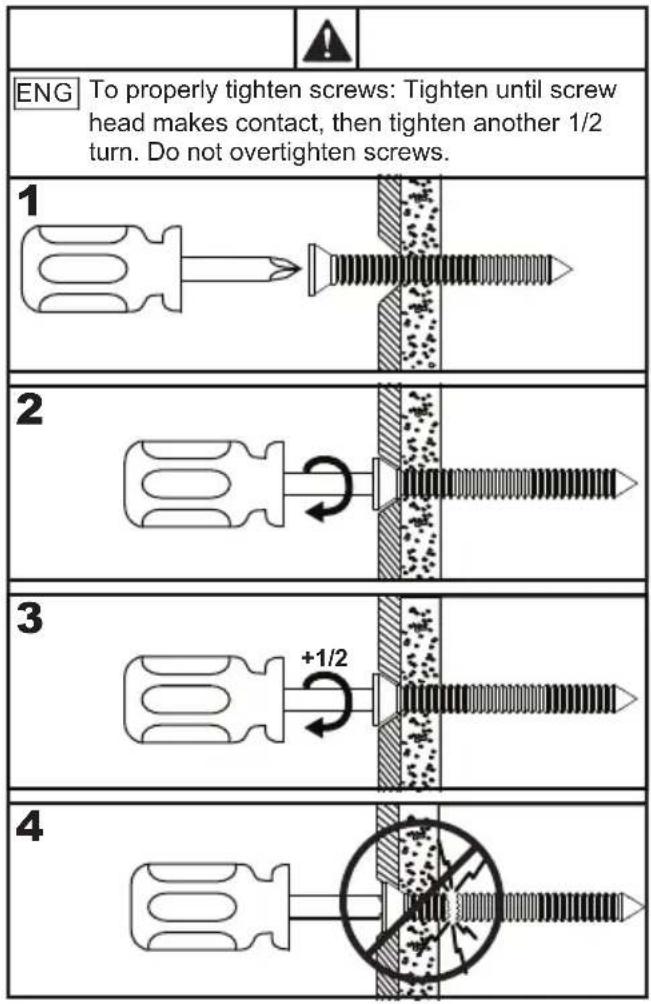

WARNING

ENG - When installing Peerless wall mounts on a wood stud wall covered with plywood, verify that the wood studs are a minimum of 2" x 4" nominal size and plywood is a minimum Grade BC, 1/2" (13 mm) thick. Plywood may be covered by gypsum board (drywall) up to 5/8" thick.

4-1

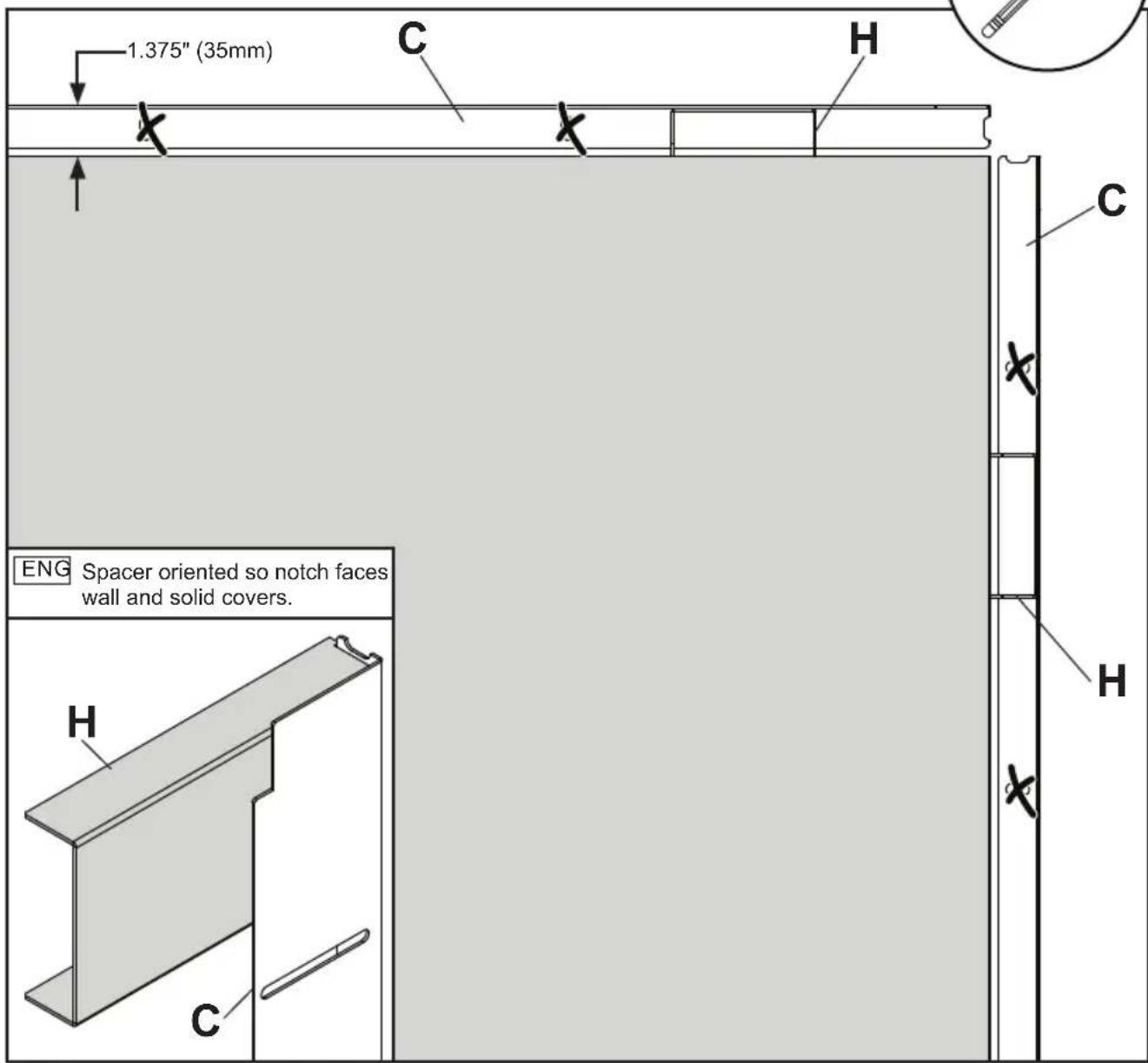

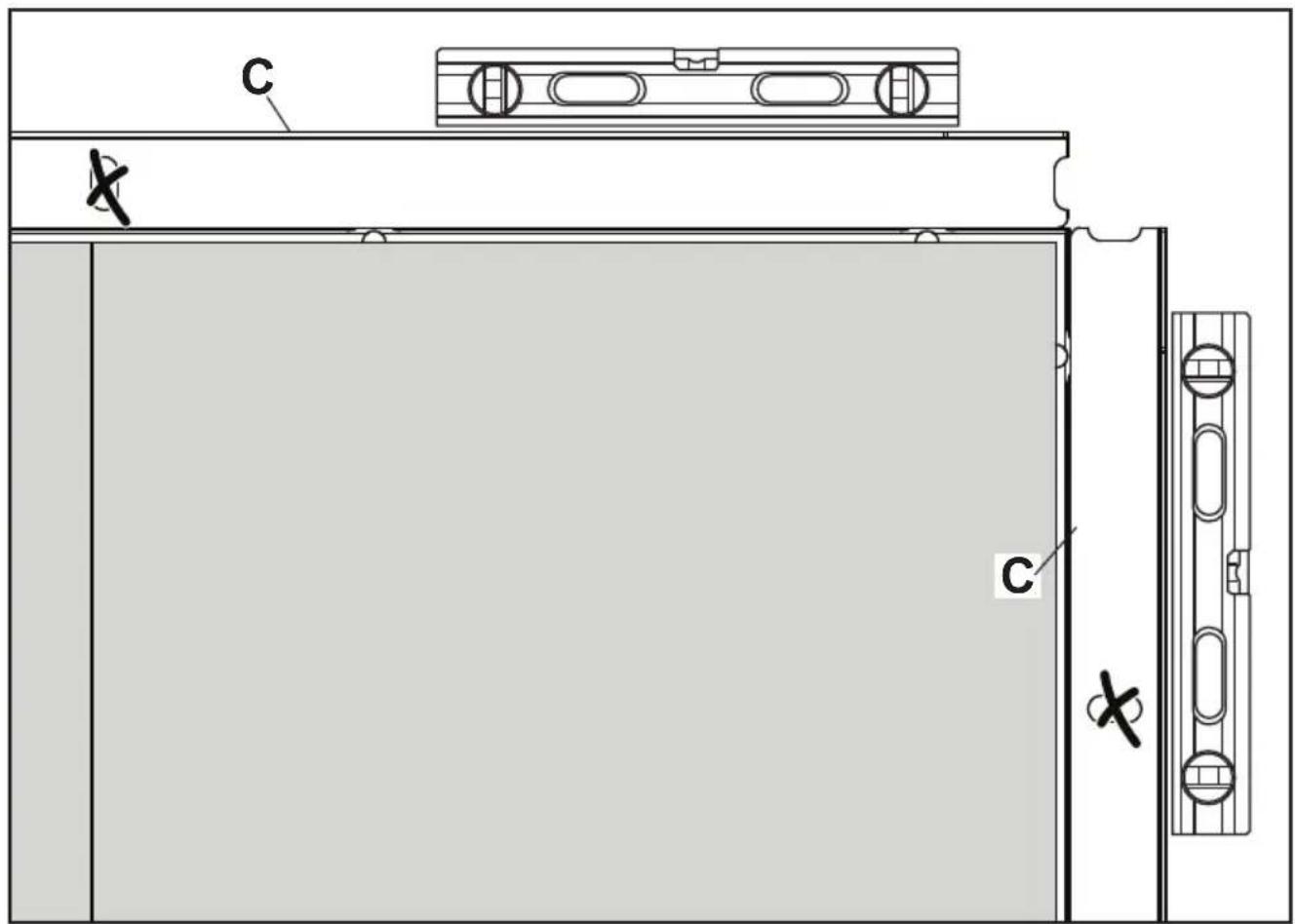

ENG Align wallplates with edge of video wall, using spacer to set final position.

Simple line drawing of a pencil inside a circle (no text or symbols)

4-2

Line drawing of a handheld electric drill (no text or symbols)

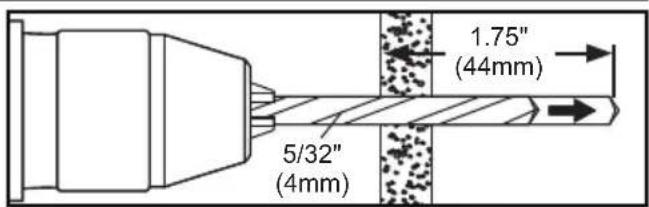

ENG Drill mounting holes into supporting surface (1.75" (44mm) minimum depth required).

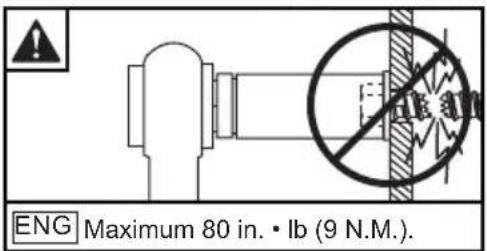

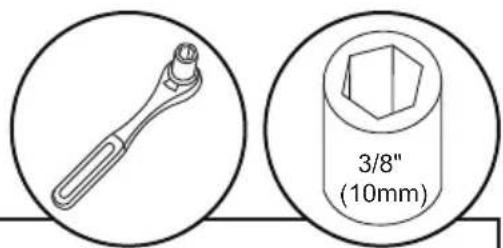

4-3

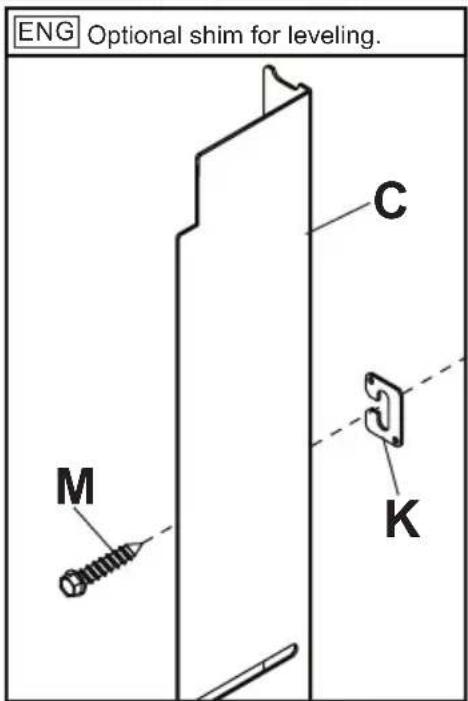

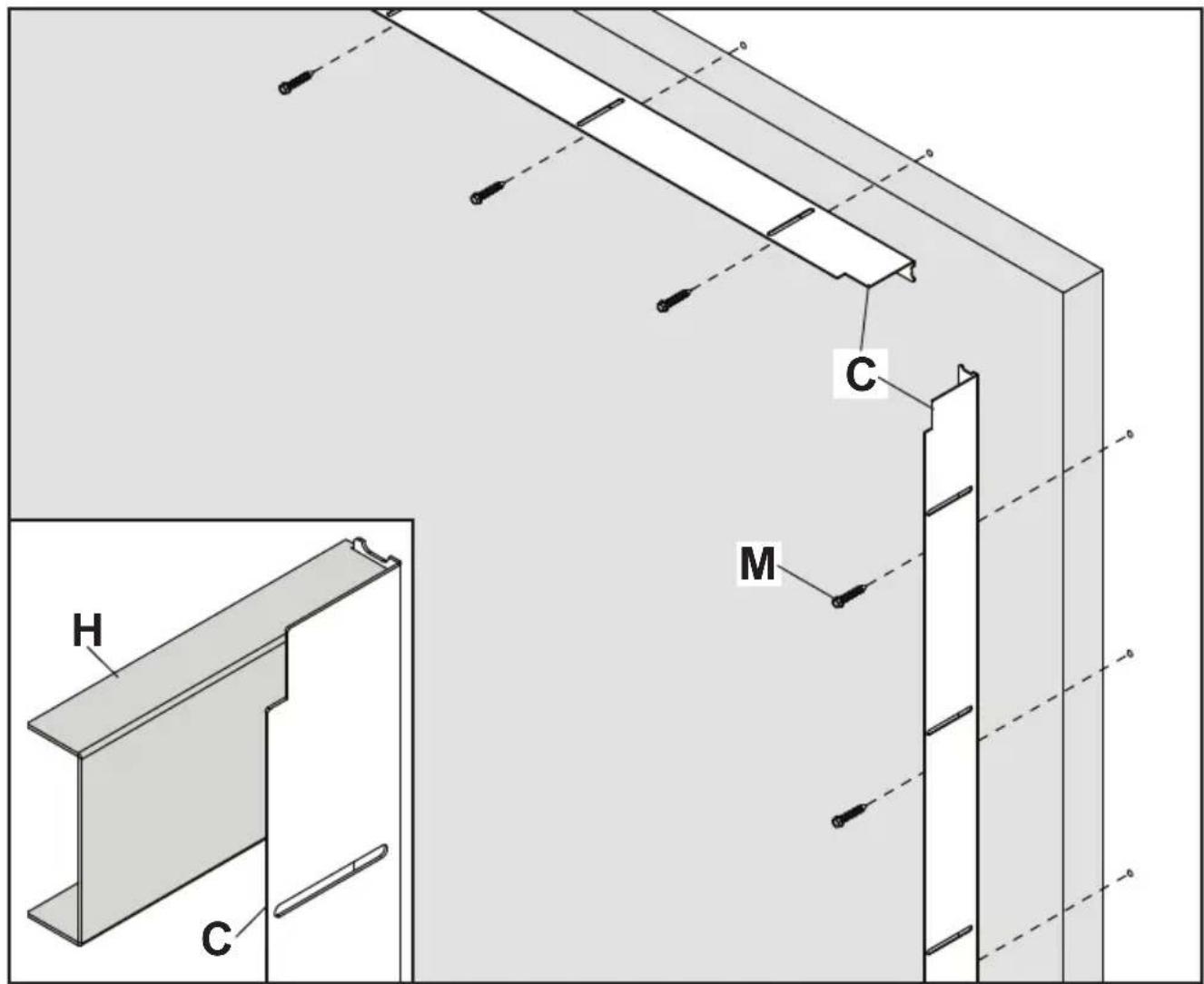

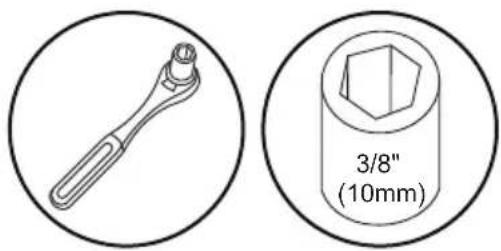

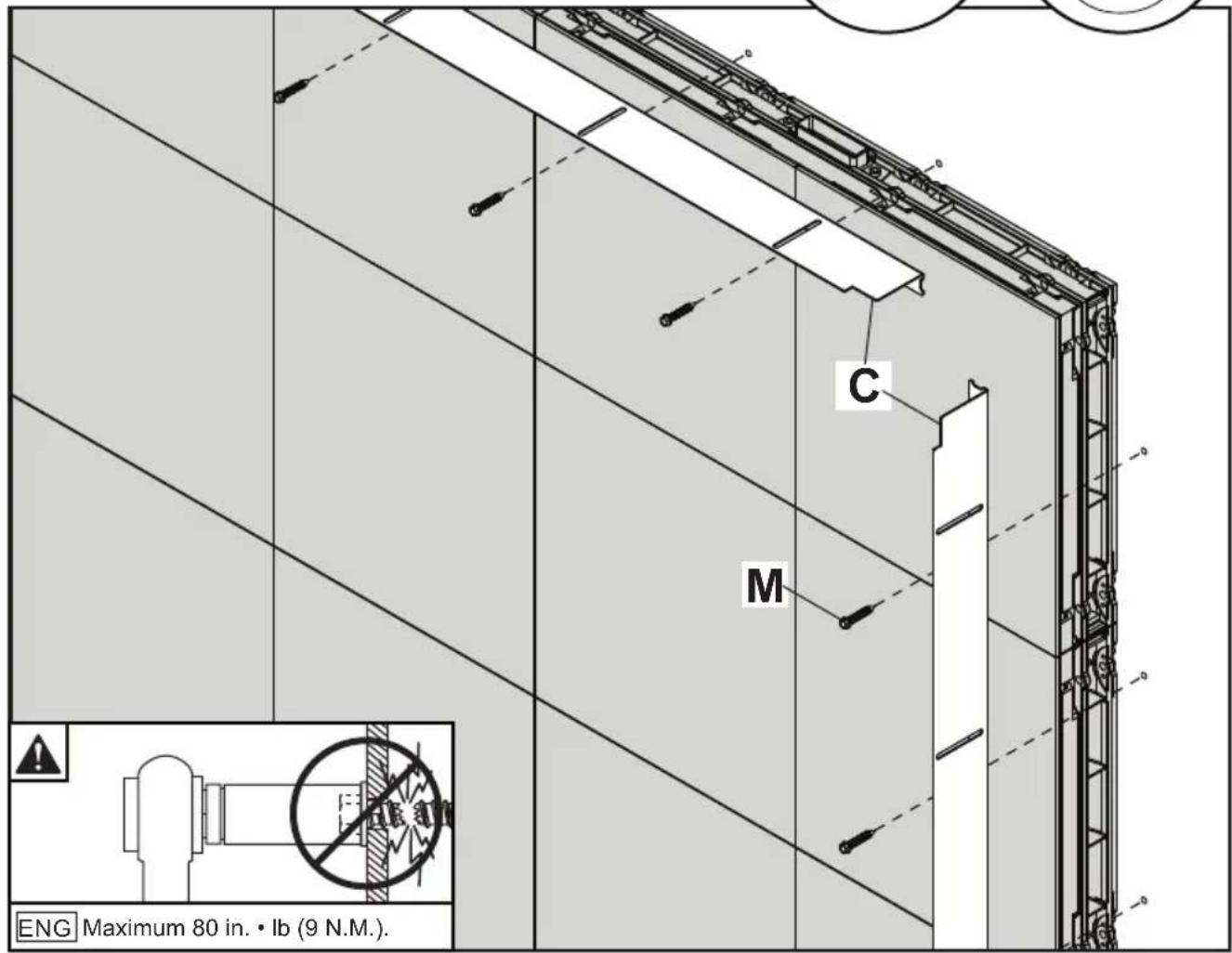

Install using wood screws provided.

Use spacer to set final position of wall bracket.

5-1

ENG Place wall plate cover over wall plate. Slide back until flush with front of video wall.

5-2

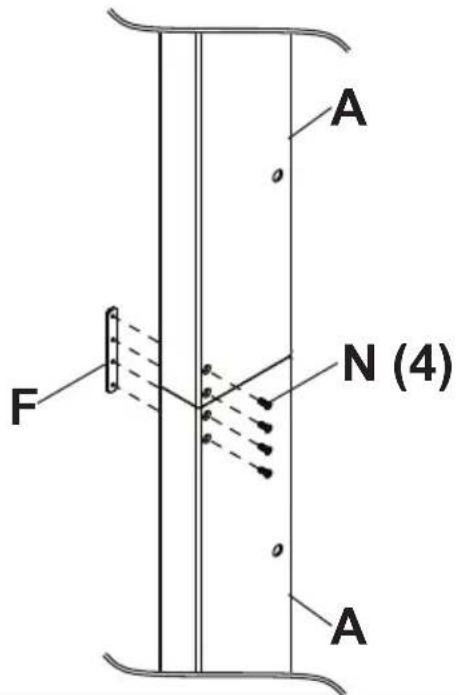

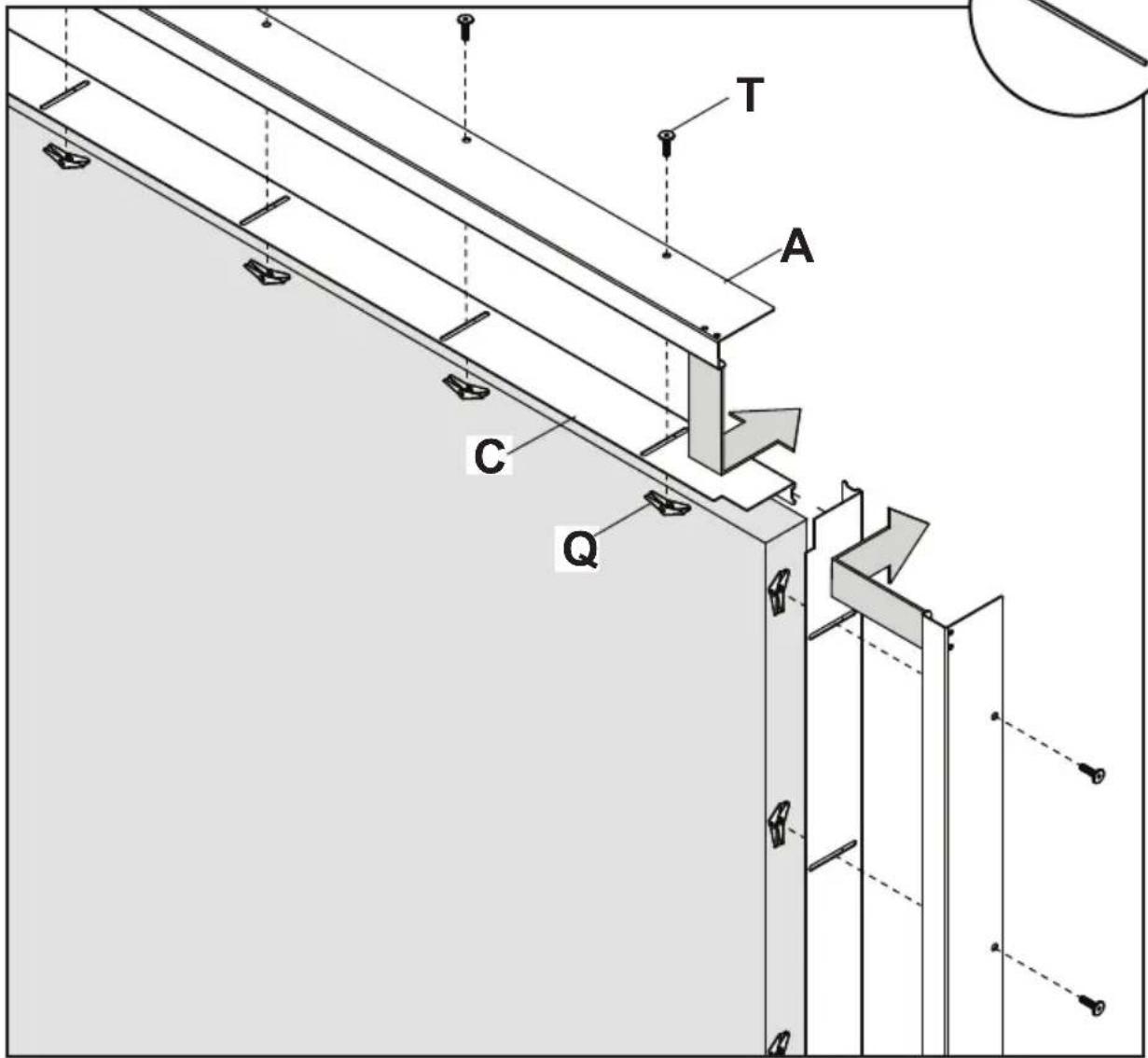

ENG Attach covers with nut bar inside cover. Displays not shown for clarity.

Simple line drawing of a screwdriver inside a circle (no text or symbols)

5-3

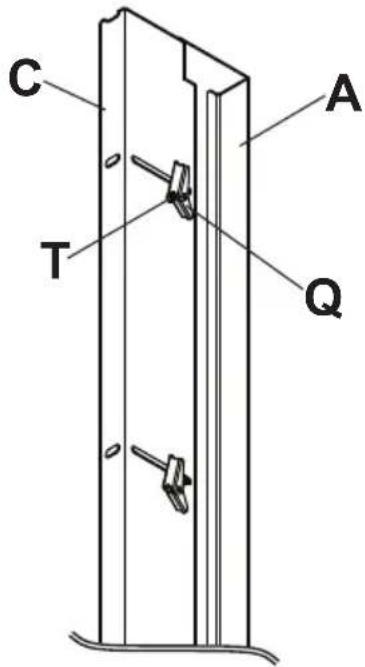

ENG Attach tooglers loosely, one at a time. Then, tighten all. Displays not shown for clarity.

5-4

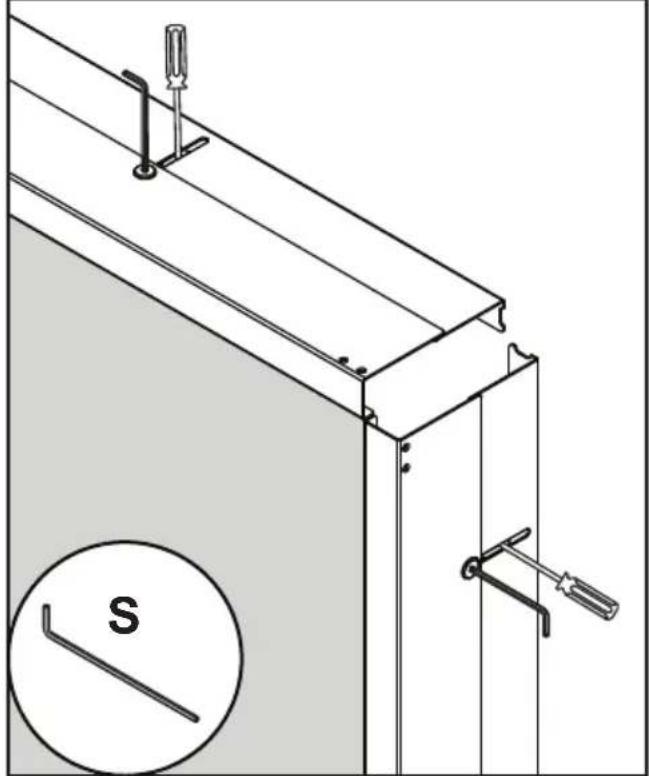

ENG Use screwdriver to hold toggler in place while tightening toggler screws.

Technical line drawing of a structural panel assembly with clamps and a magnified inset showing a 'S' symbol (no text or labels)

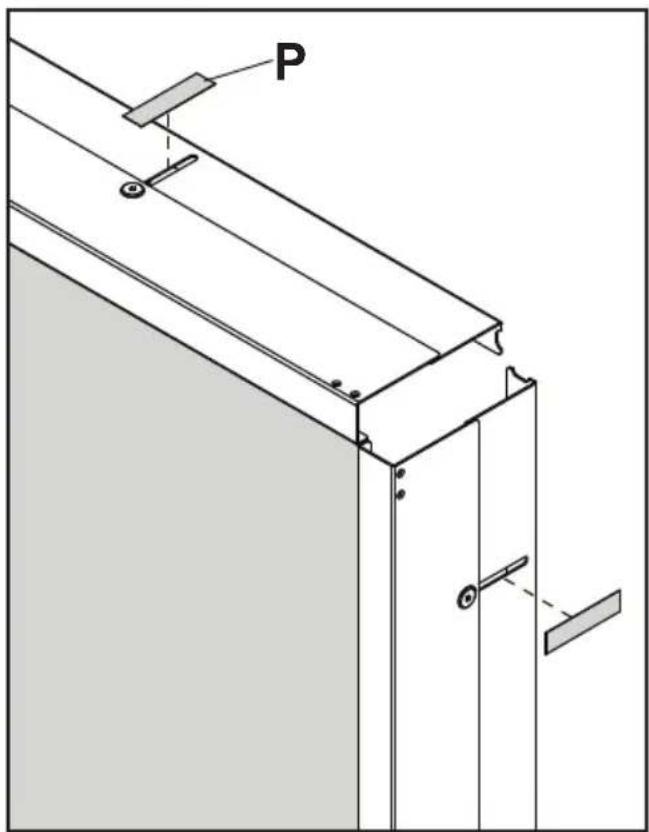

5-5

Technical line drawing of a structural assembly with labeled component 'P' (no text or symbols beyond label)

6-1

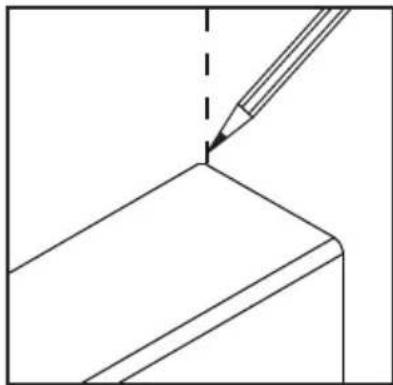

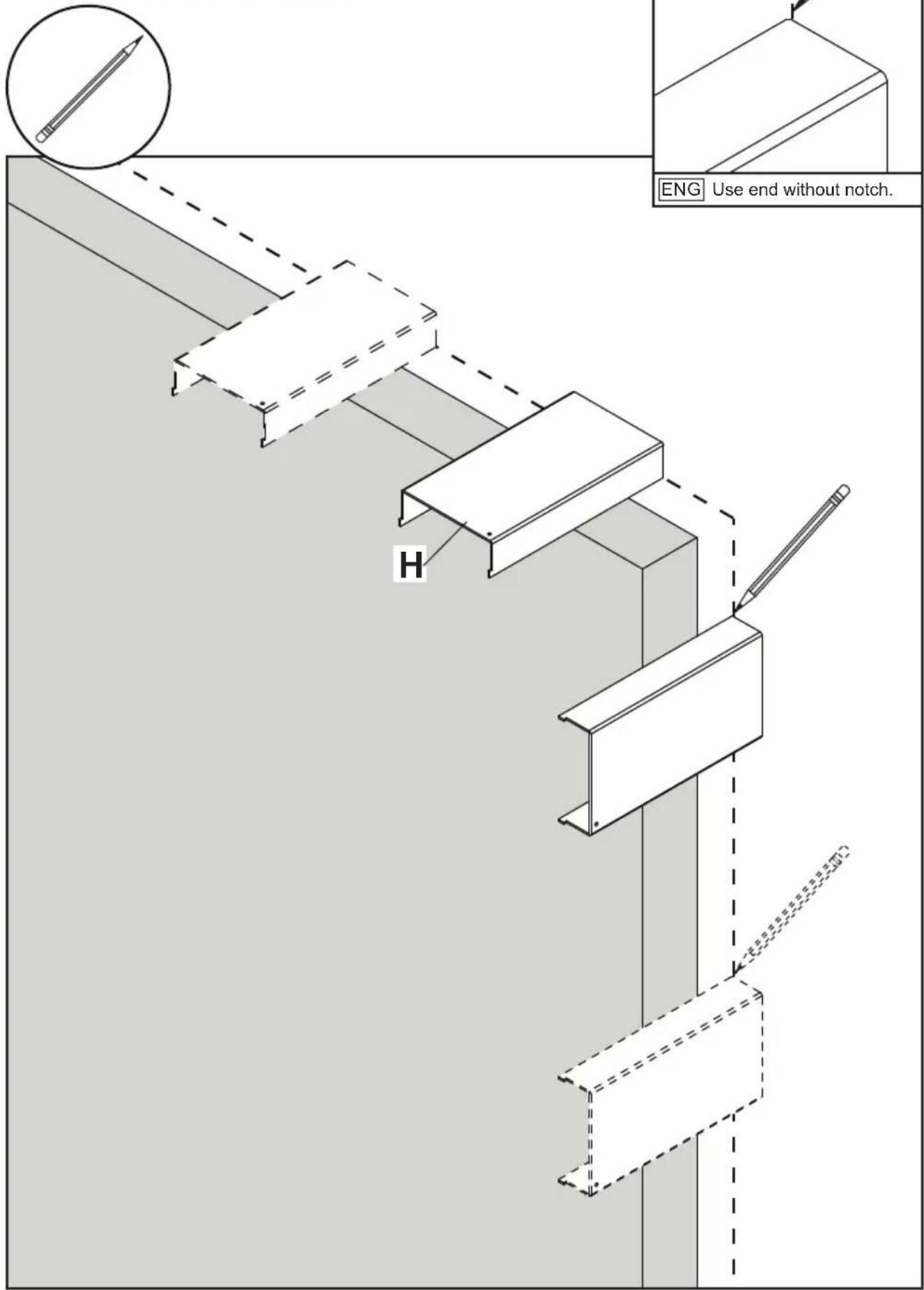

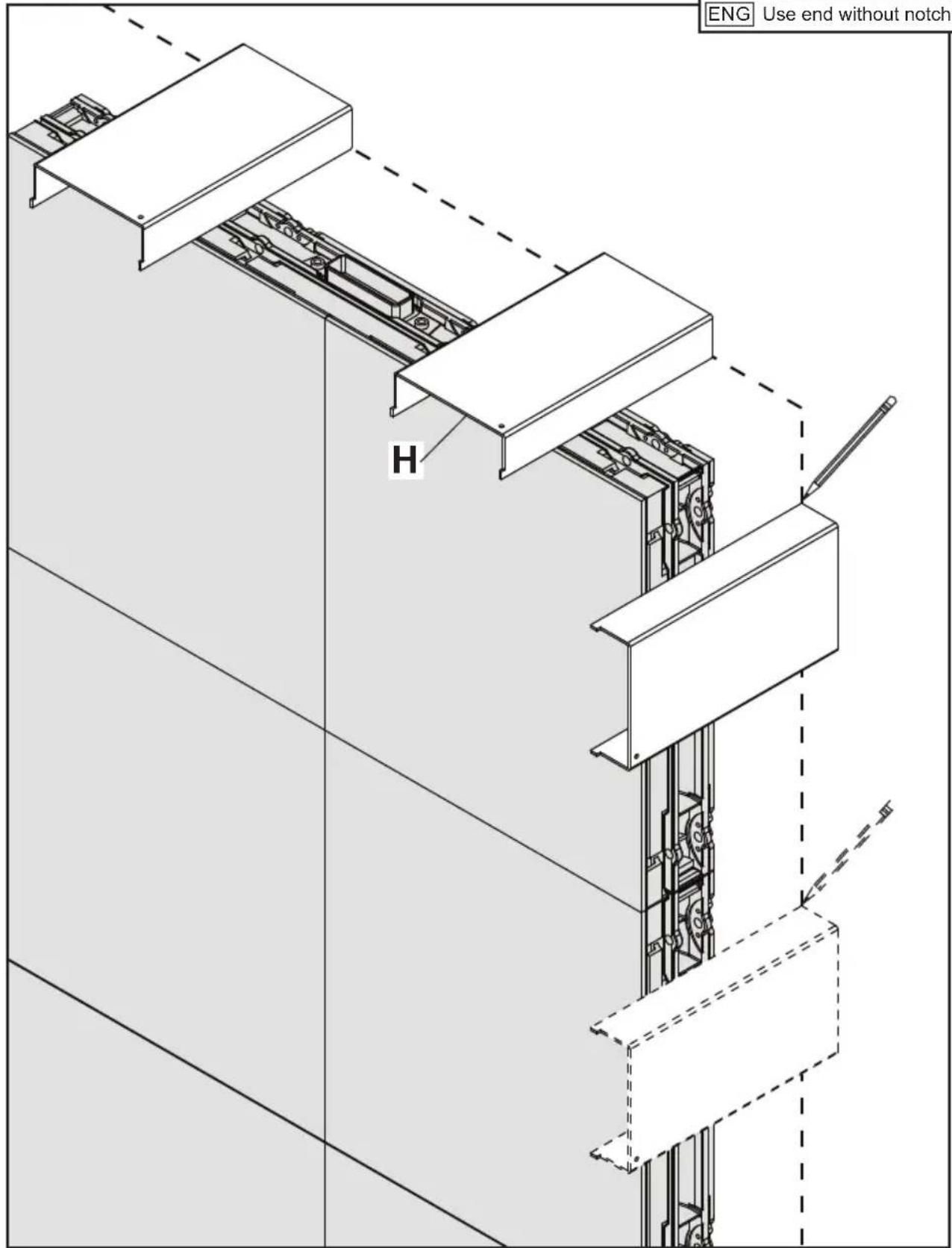

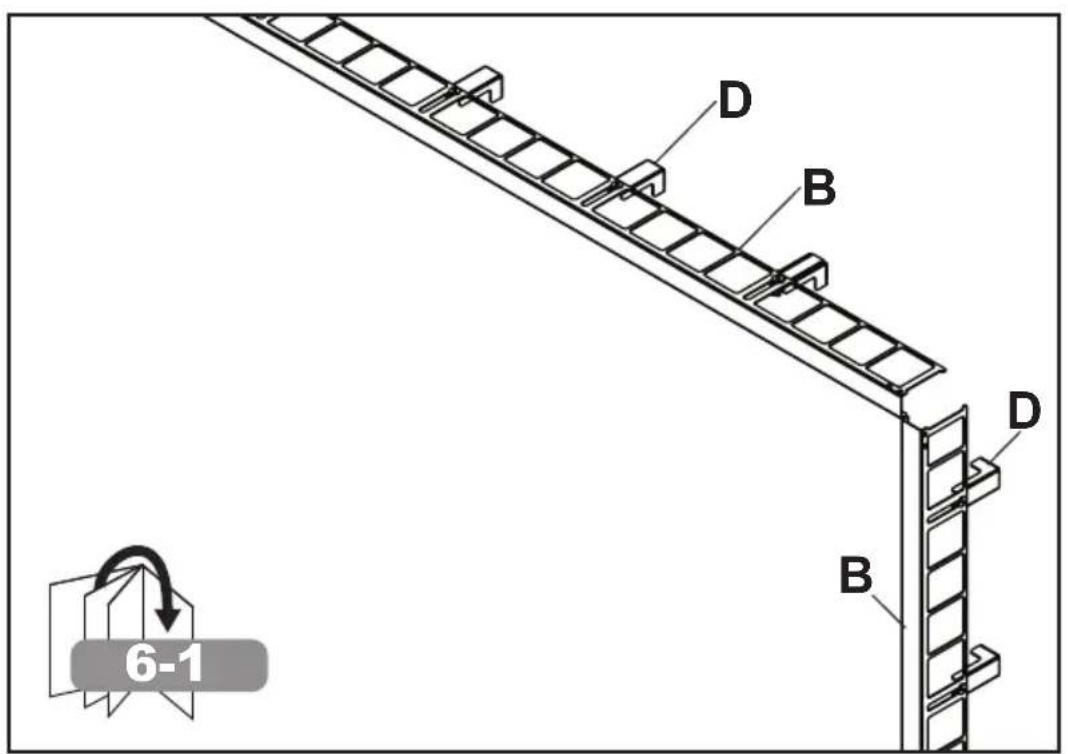

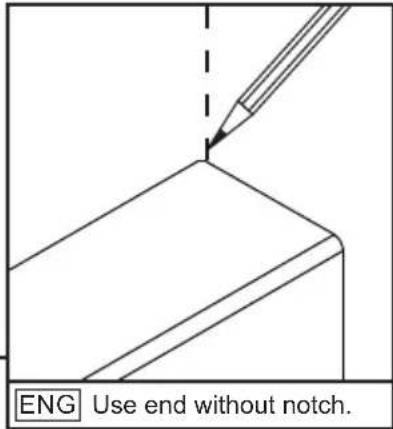

ENG To begin installing perforated trim, create guiding line around unit using spacer provided.

6-2

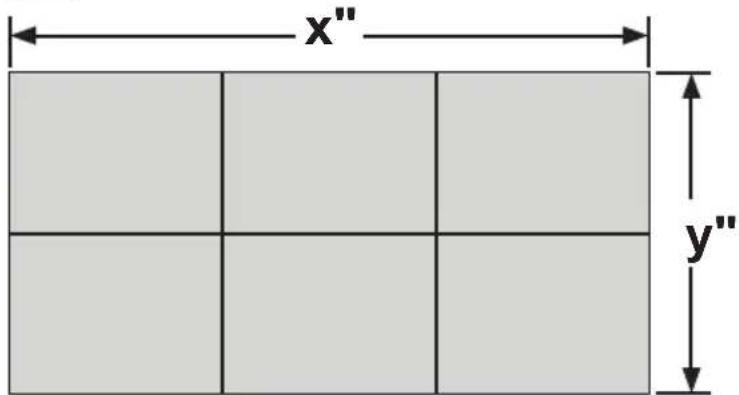

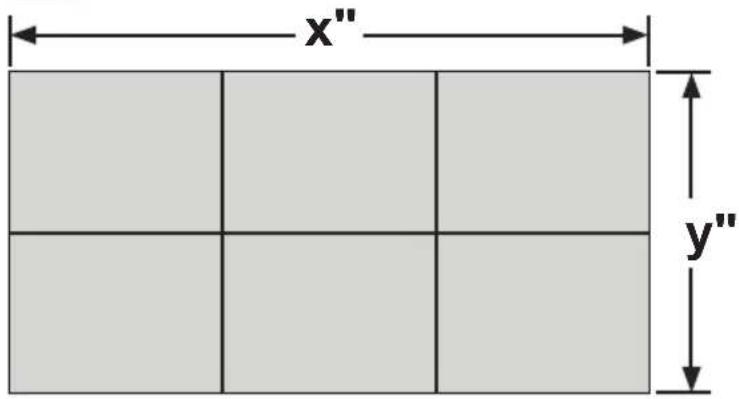

ENG Measure video wall dimensions.

6-3

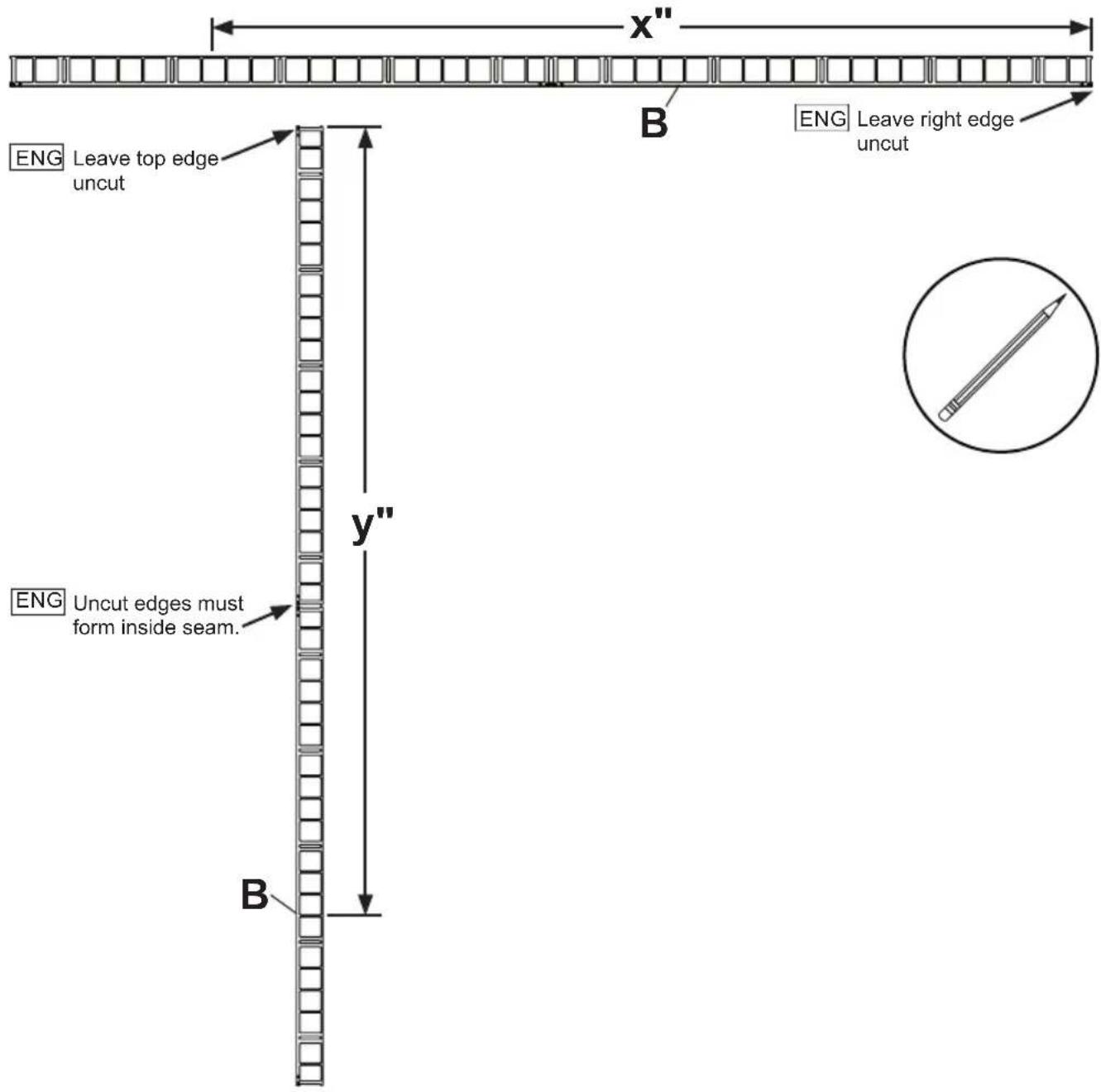

ENG Mark cutting line on covers. Do not join covers until installing covers to the wall. Leave top and right cover edges uncut for proper alignment.

7-17-

ENG

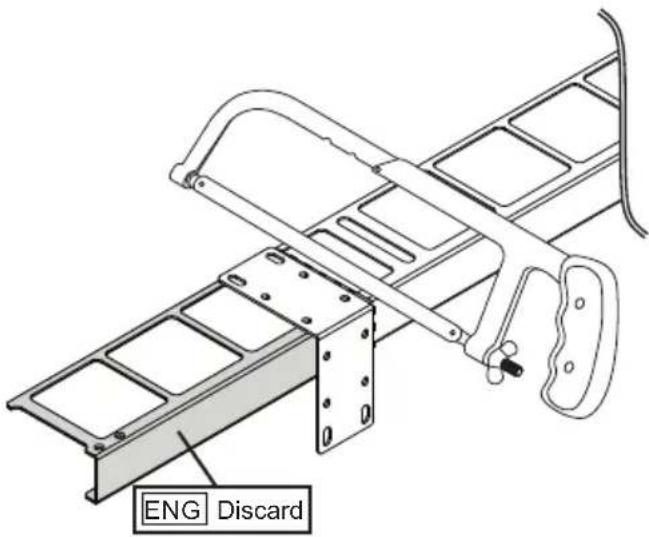

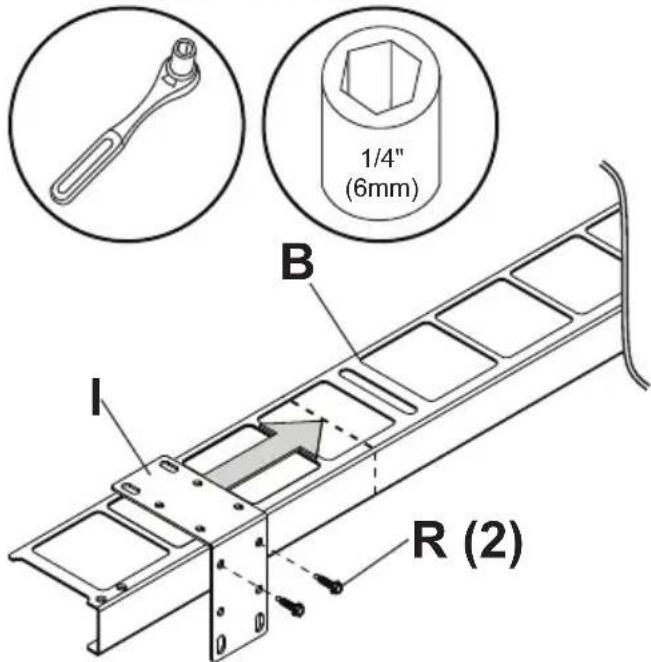

Optional: Clamp or fasten cutting fixture to side of cover being discarded.

8-1

ENG

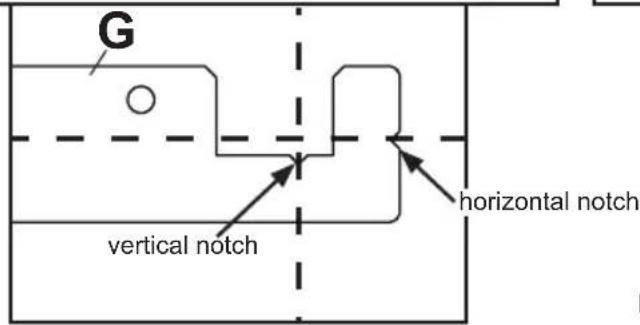

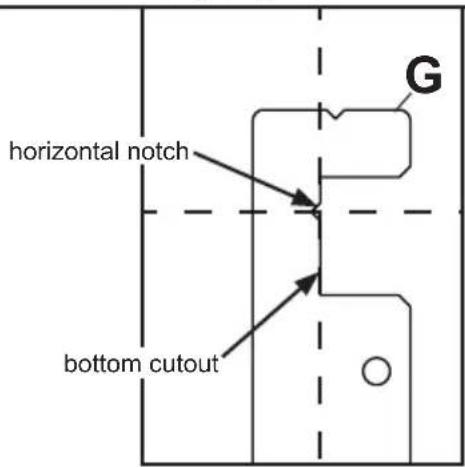

Align bottom of spacer cutout and vertical notch with guiding lines.

ENG

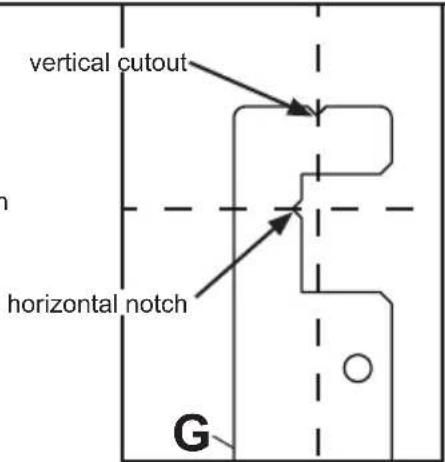

Align bottom of spacer cutout and horizontal notch with guiding lines.

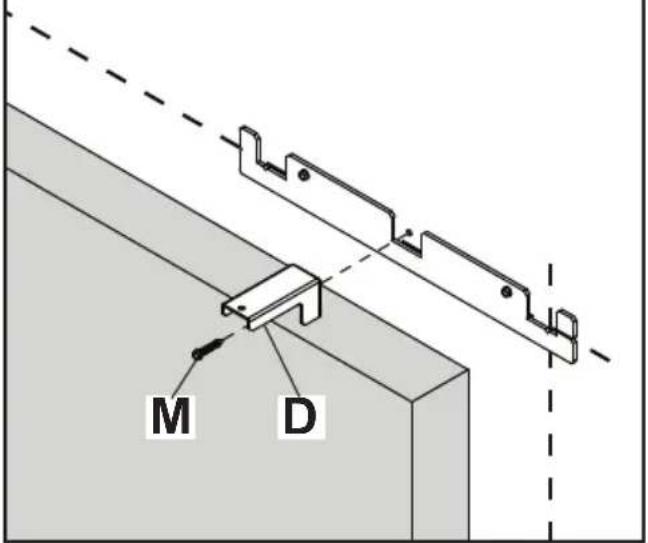

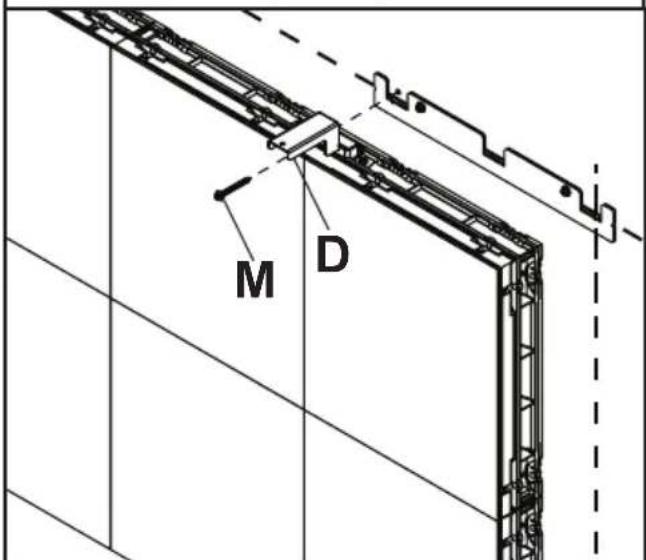

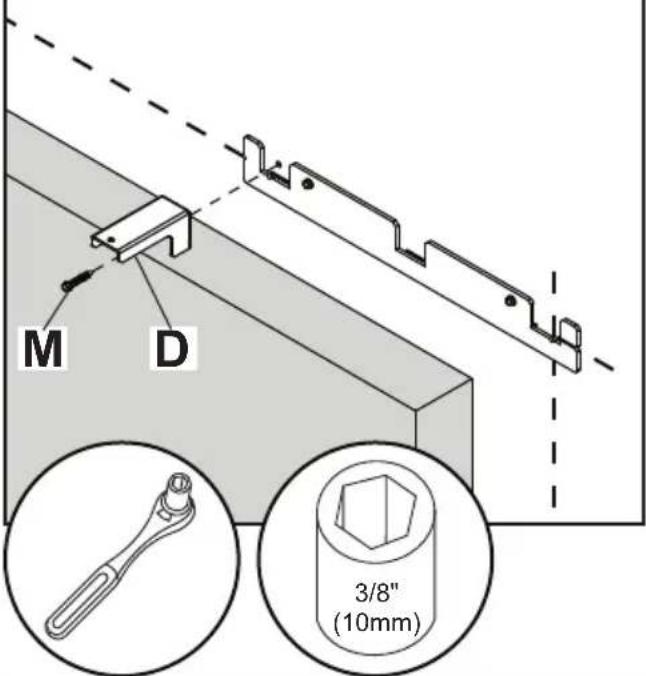

8-2

ENG

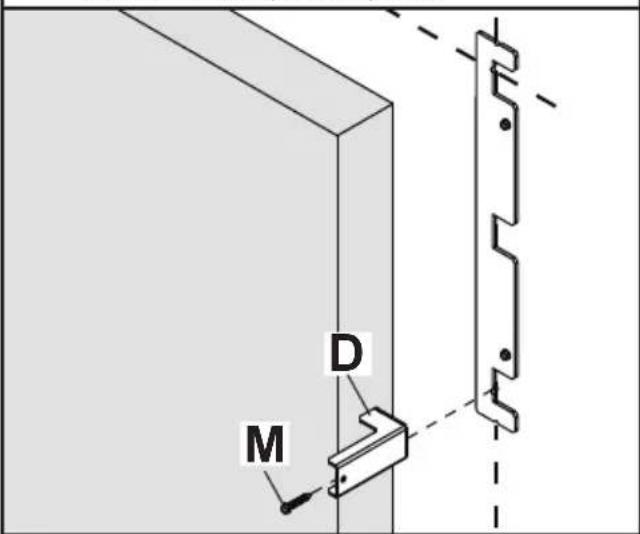

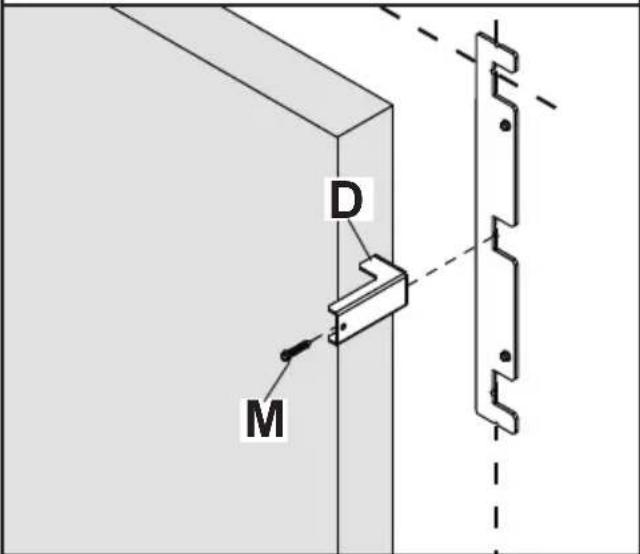

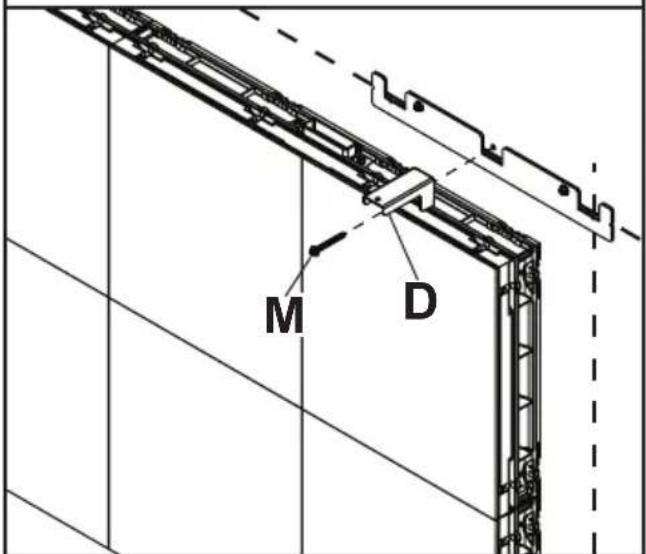

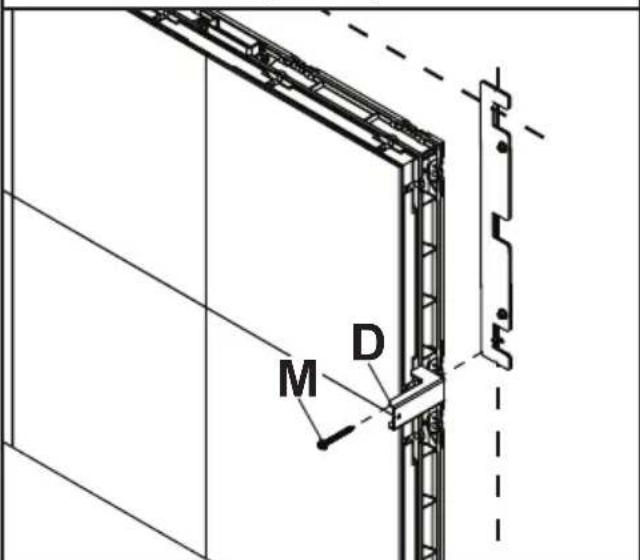

For 5 ft. covers, install first bracket in the middle space, then every 12". Optional: Use wood screws to hold spacer in place.

ENG
For 5 ft. covers, install first bracket in the middle space, then every 12". Optional: Use wood screws to hold spacer in place.

ENG
For 6 - 8 ft. covers, install first bracket at the end space, then every 12". Optional: Use wood screws to hold spacer in place.

ENG
For 6 - 8 ft. covers, install first bracket at the end space, then every 12". Optional: Use wood screws to hold spacer in place.

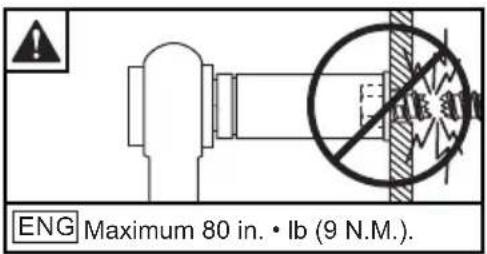

8-3

ENG

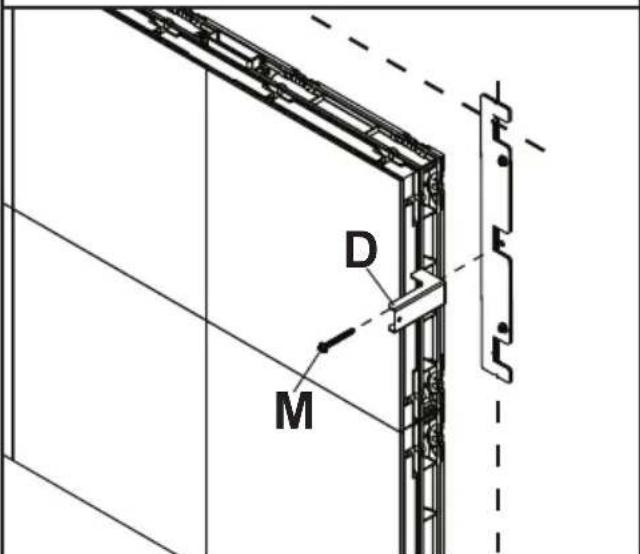

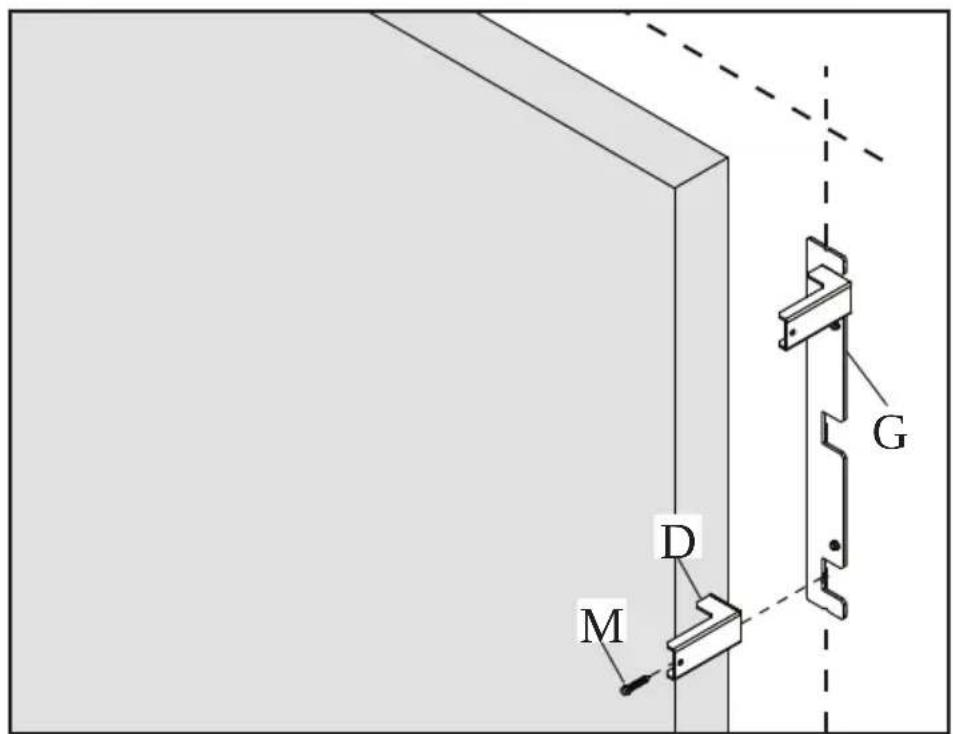

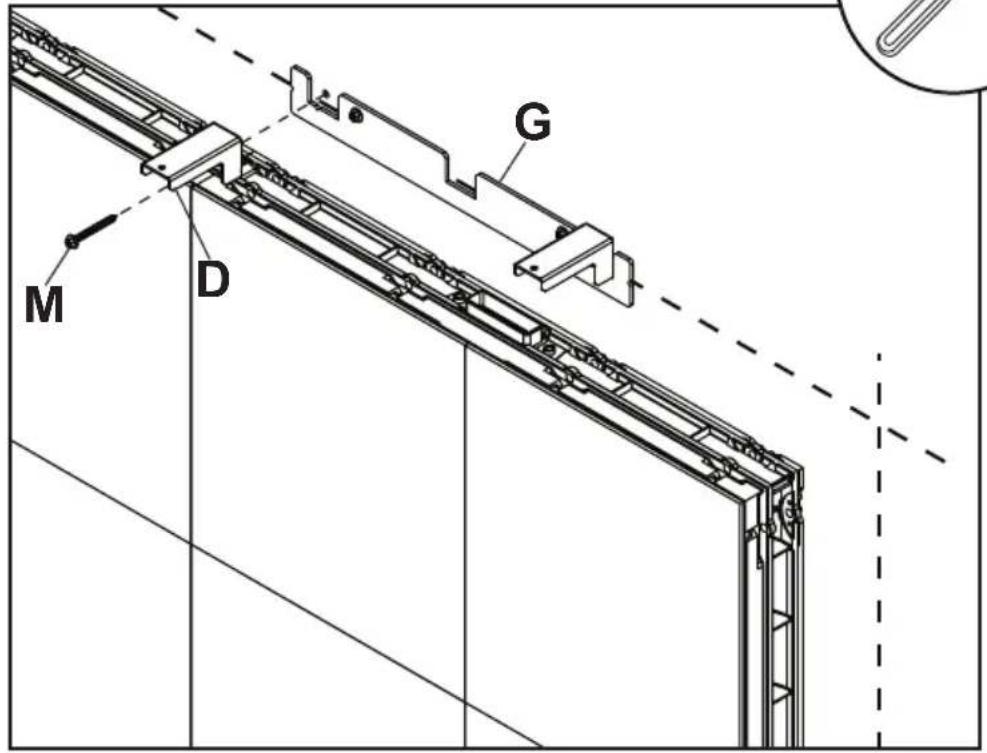

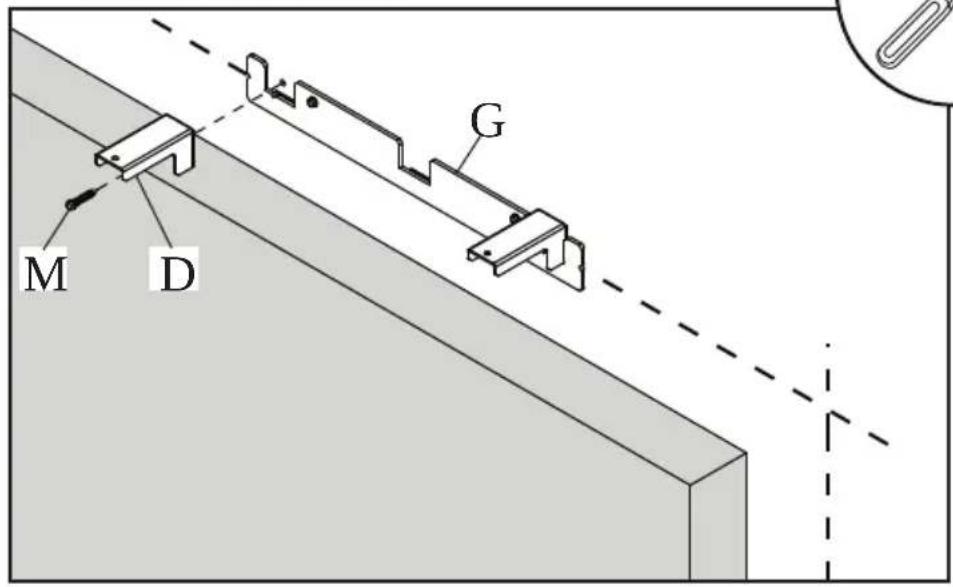

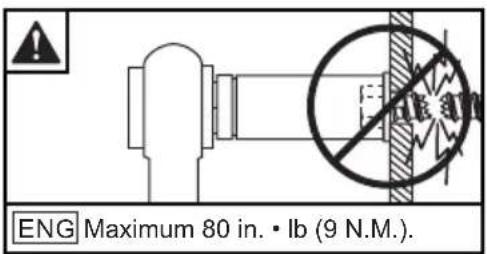

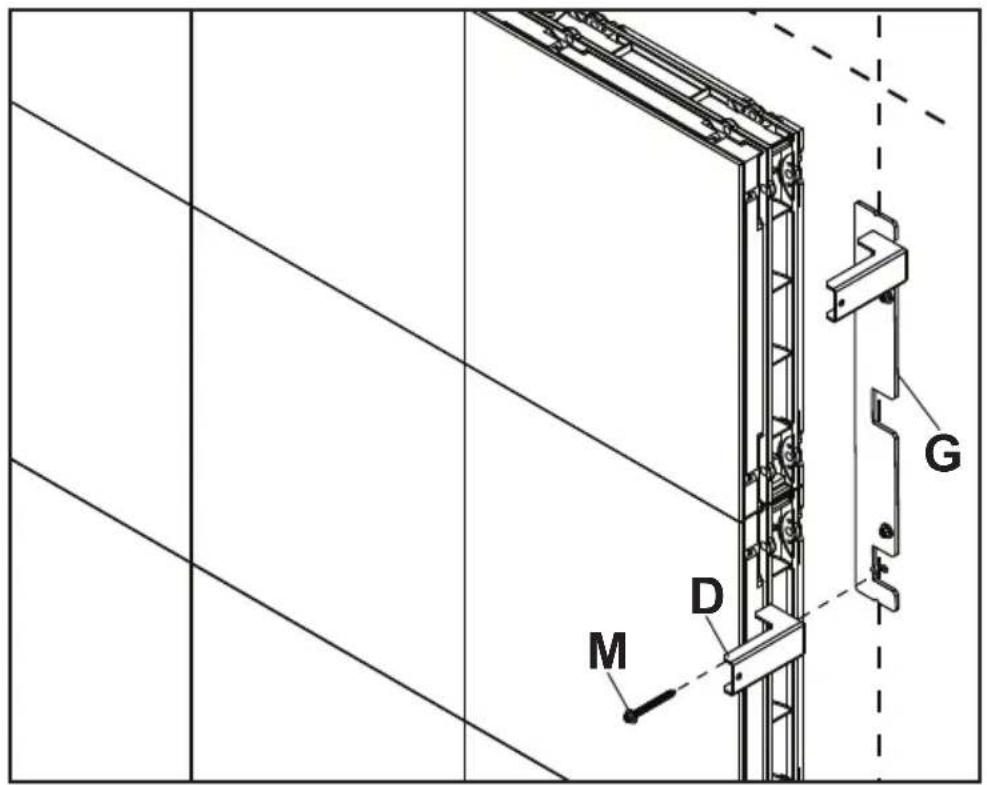

Keep wallplates level using spacer. Install every 12" with wood screws provided.

Line drawing of a wrench inside a circle (no text or symbols)

9-1

ENG

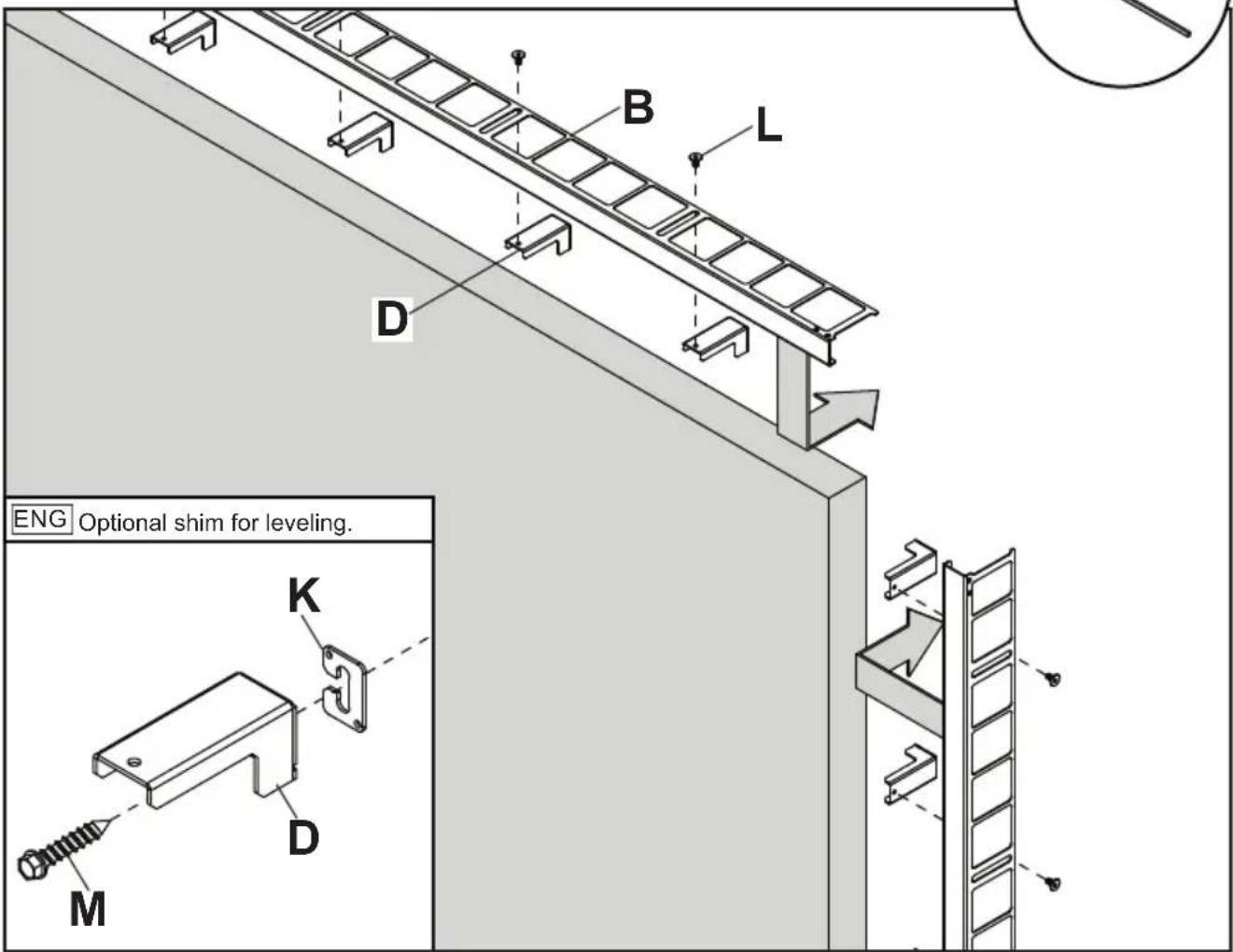

Place top wall plate. Slide back until flush with front of video wall. Secure with hardware.

9-2

ENG

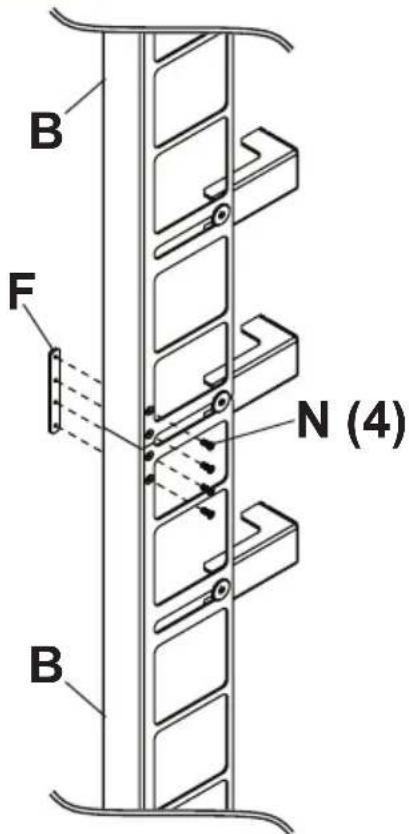

Attach covers with nut bar inside cover. Displays not shown for clarity.

Simple line drawing of a screwdriver inside a circle (no text or symbols)

10-1

ENG

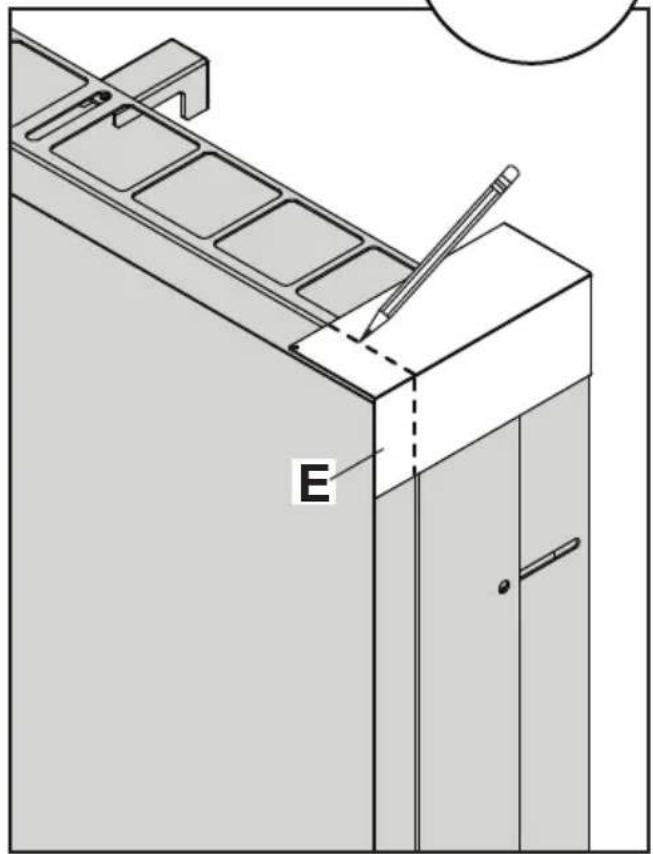

Place corner cover against wall and mark cutting line.

Simple line drawing of a mechanical component inside a circle (no text or symbols)

10-2

ENG

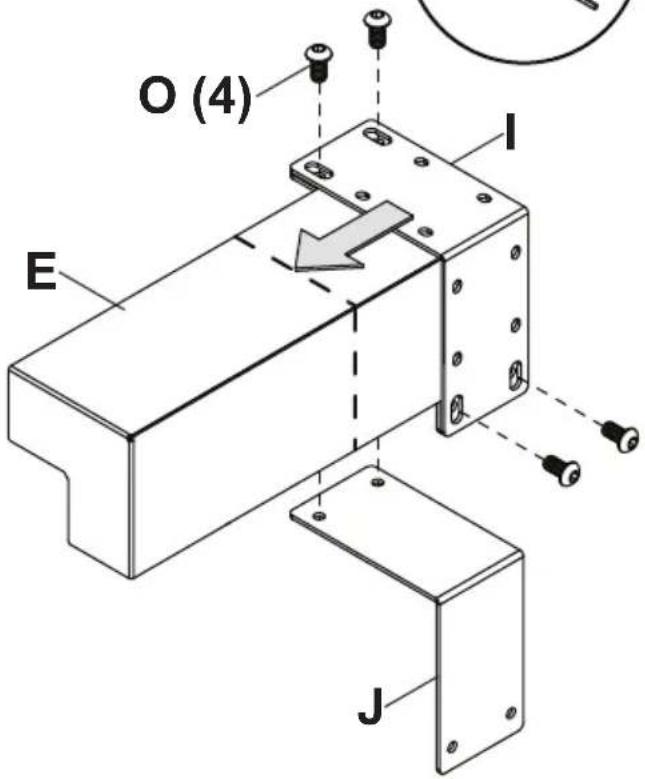

Slide corner cutting fixture into place and clamp on side of cover being discarded.

10-3

ENG

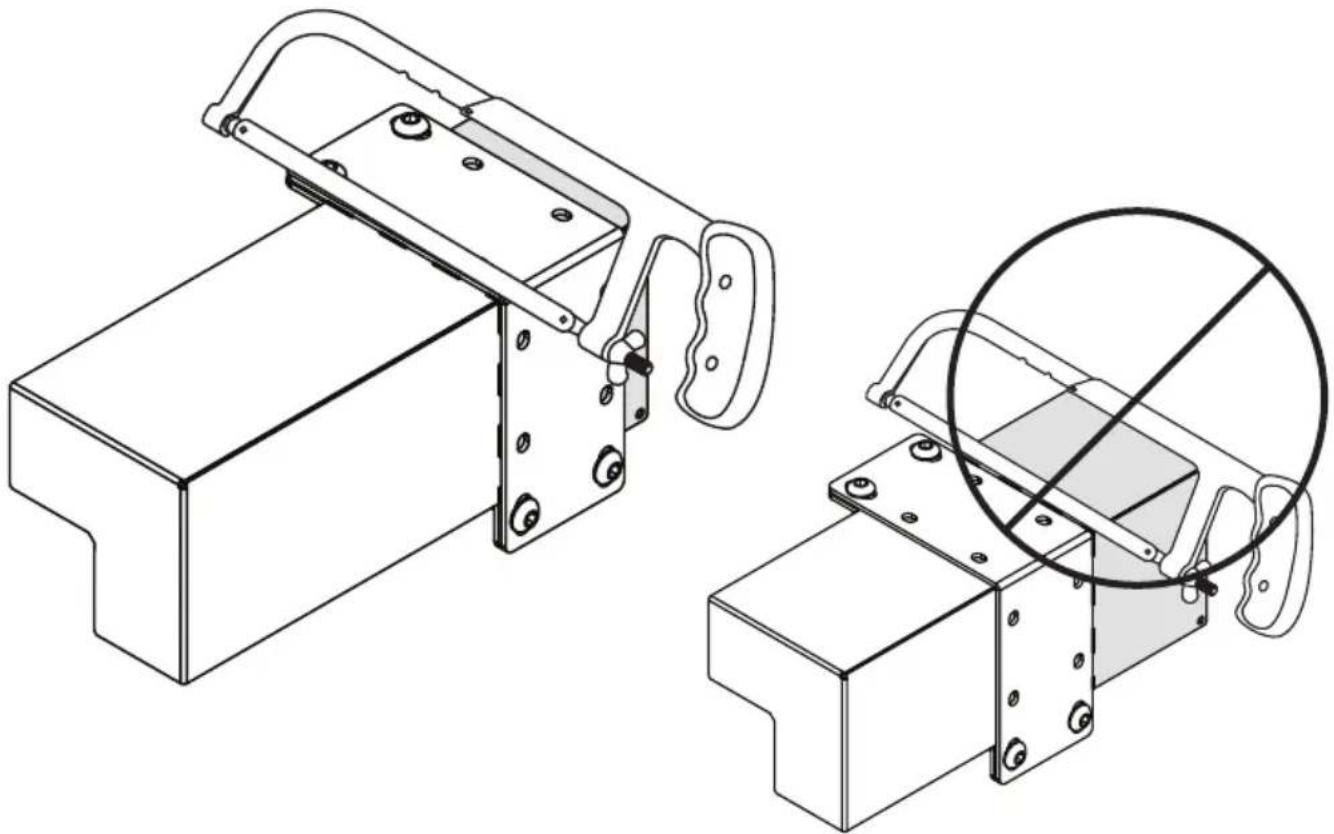

Cut excess corner cover off.

Technical line drawing of two mechanical components with mounting brackets and a circular inset showing a cross-section (no text or symbols)

Do not clamp fixture on wrong side of cutting line.

10-4

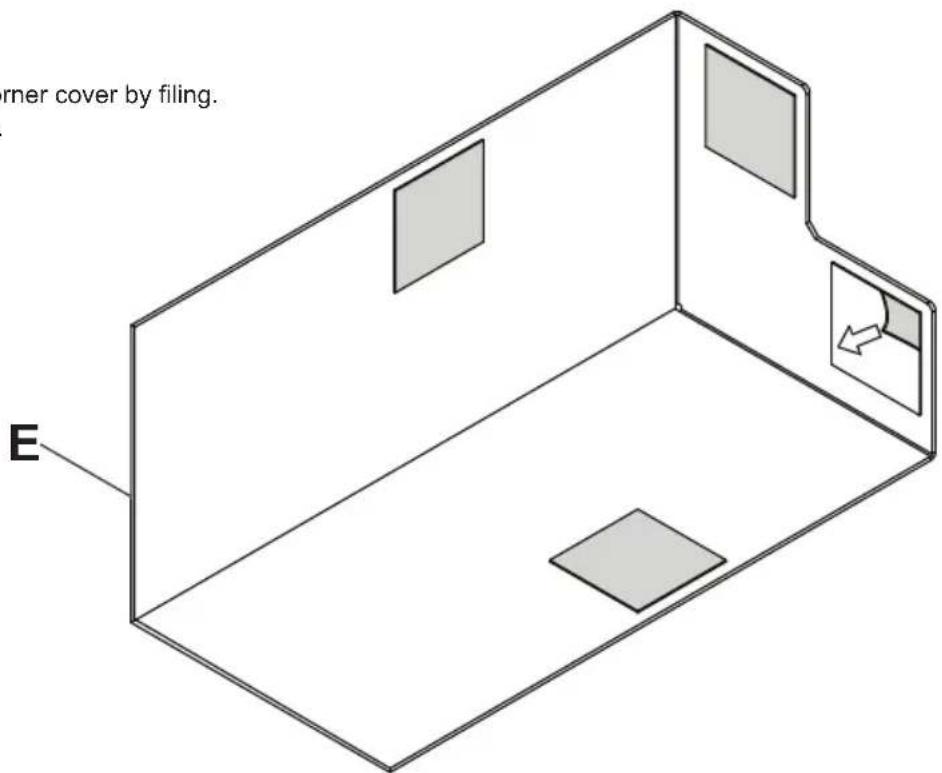

ENG Remove sharp edges of corner cover by filing. Remove adhesive backing.

x4

10-51

ENG Clean surfaces before applying VHB.

Technical line drawing of a structural joint or panel assembly (no text or symbols present)

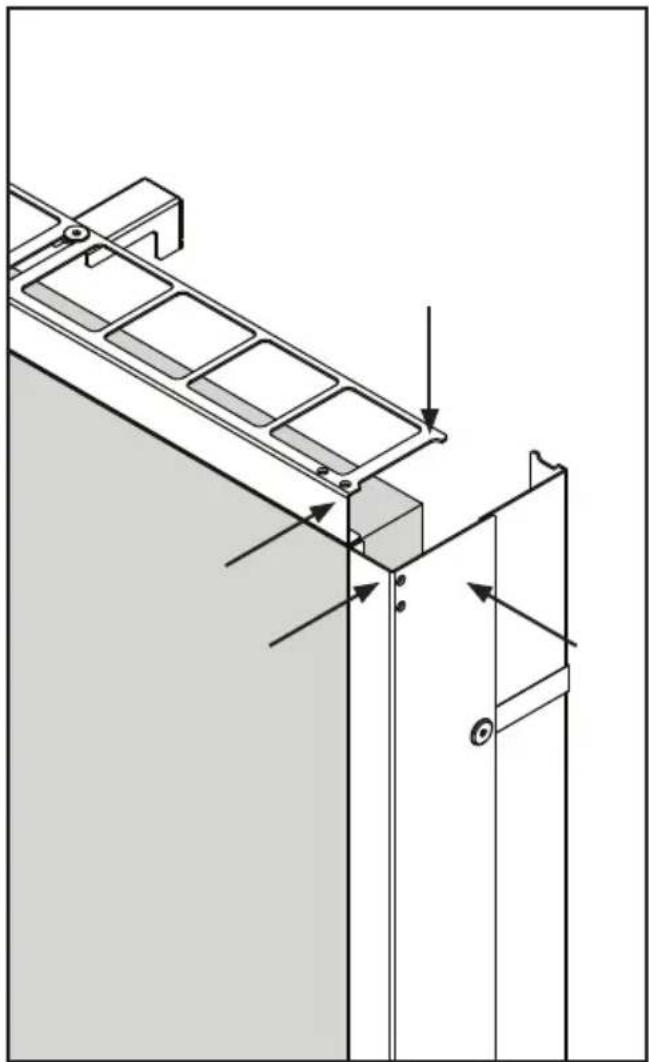

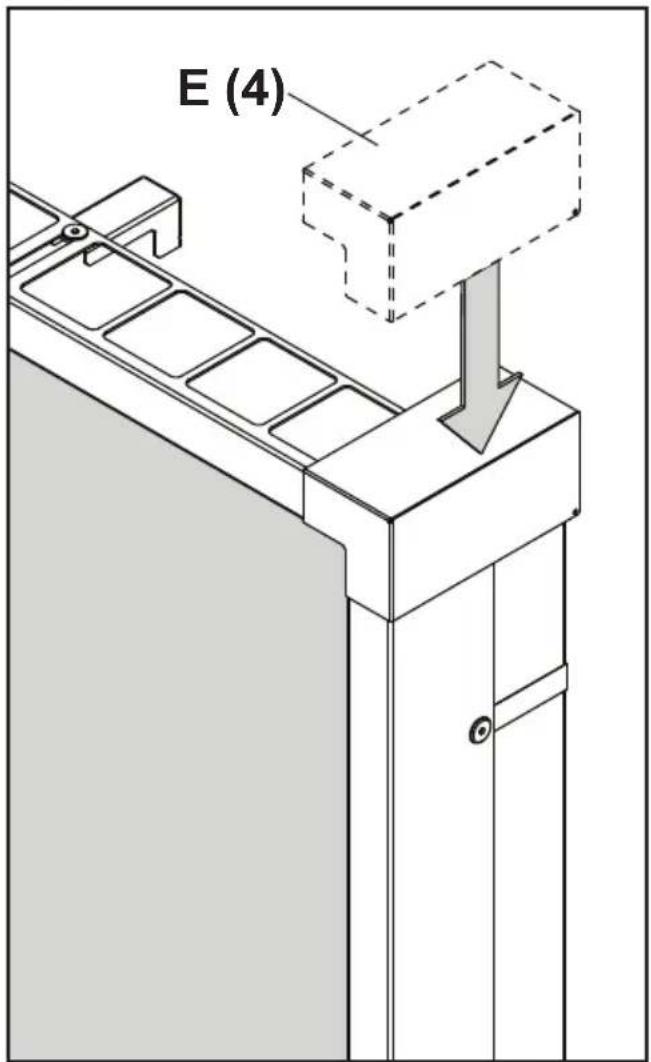

ENG Attach (4) corner covers with VHB.

Alternate steps for Unilumin UpanelS sides with bump-outs

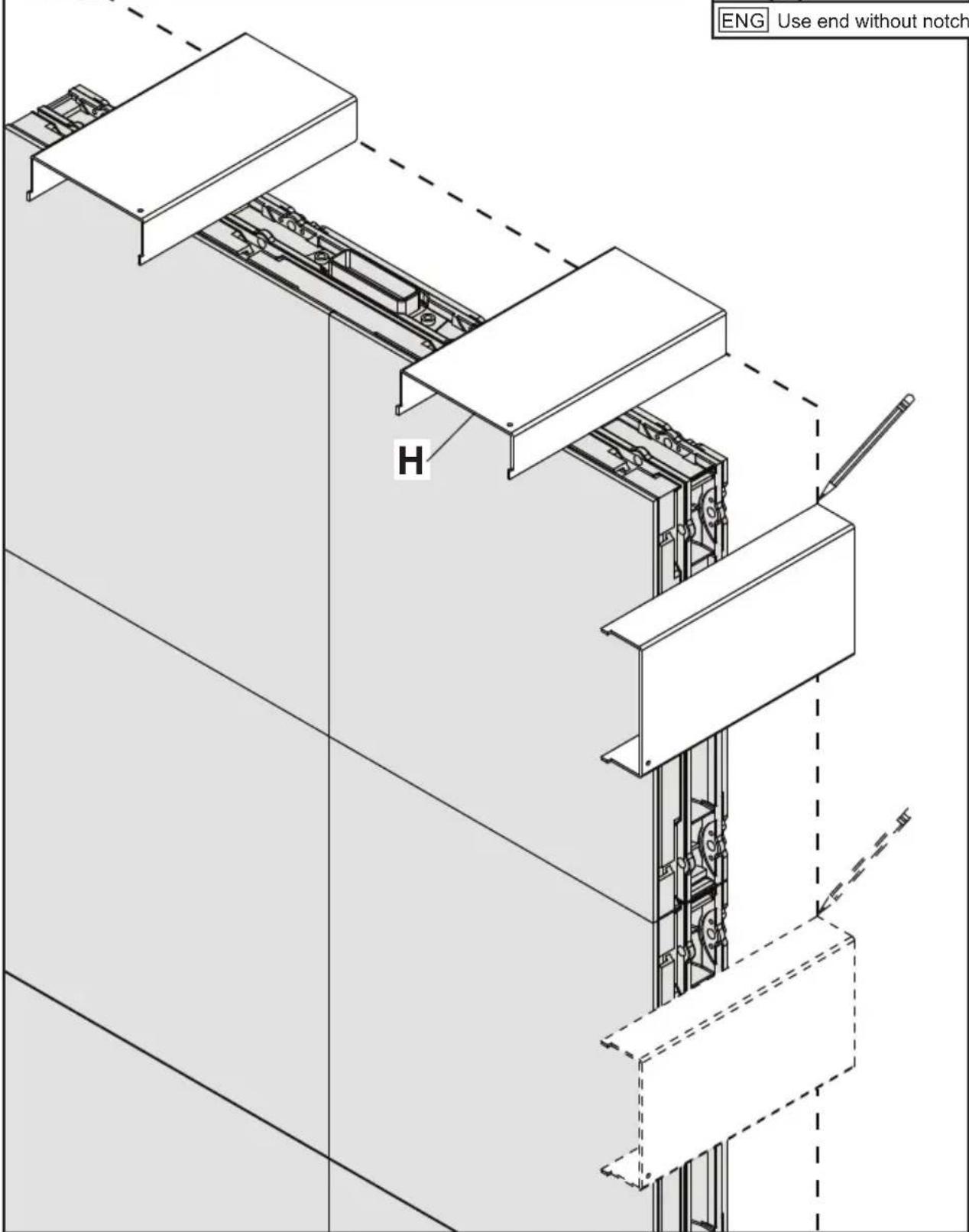

2

ENG
To begin installing solid trim on Unilumin UpanelS edges with bumpouts, create guiding line around unit using spacer provided.

Simple line drawing of a pencil inside a circle (no text or symbols)

Pure technical line drawing of a pencil tip onto a 3D block (no text or symbols)

2-1

ENG Measure video wall dimensions

4-1

ENG Align wall plates with display guiding lines. Mark mounting holes.

Two circular diagrams showing a mechanical component and a pencil, both without any text or symbols.

4-3

ENG Install using wood screws provided.

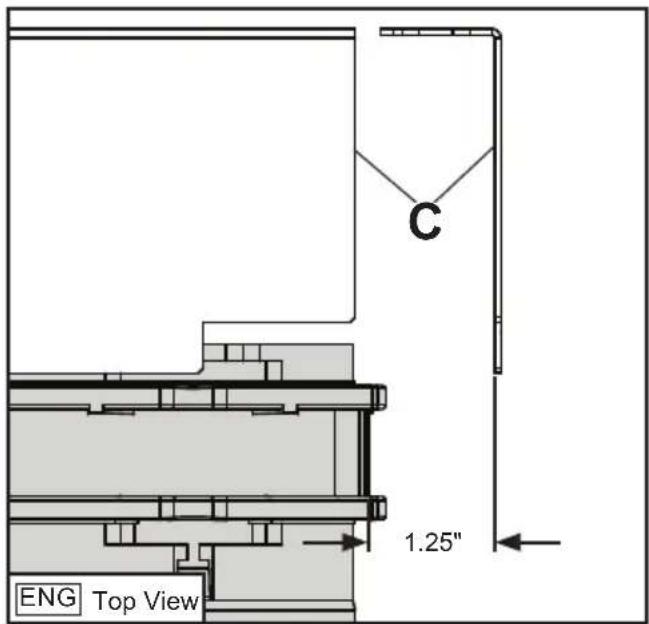

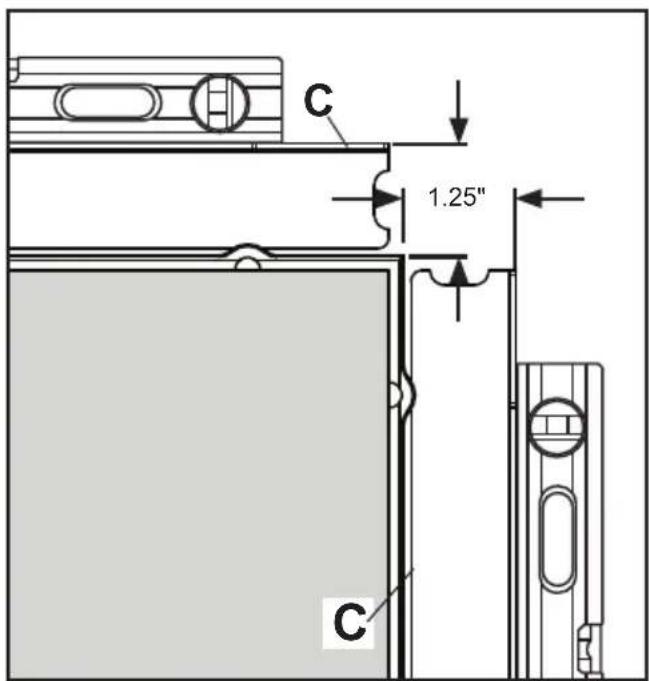

ENG Slide wall brackets in slot until they sit 1.25" from display guiding lines. Level and tighten wood screws.

6-1

ENG
To begin installing perforated trim on Unilumin UpanelS edges with bump-outs, create guiding line around unit using spacer provided.

Simple line drawing of a pencil inside a circle (no text or symbols)

Pure technical line drawing of a 3D geometric shape with a pencil, no text or symbols present

6-2

ENG Measure video wall dimensions

8-1

ENG
To avoid the display bump-outs, align vertical and horizontal notch with guiding lines.

ENG
To avoid the display bump-outs, align vertical and horizontal notch with guiding lines.

8-2

ENG
For 5 ft. covers, install first bracket in the middle space, then every 12". Optional: Use wood screws to hold spacer in place.

ENG
For 5 ft. covers, install first bracket in the middle space, then every 12". Optional: Use wood screws to hold spacer in place.

ENG
For 6 - 8 ft. covers, install first bracket at the end space, then every 12". Optional: Use wood screws to hold spacer in place.

ENG
For 6 - 8 ft. covers, install first bracket at the end space, then every 12". Optional: Use wood screws to hold spacer in place.

8-3

Keep wallplates level using spacer. Install every 12" with wood screws provided.

Line drawing of a wrench inside a circle (no text or symbols)
