Twist - Heating Argoclima - Free user manual and instructions

Product Type	Fan Heater
Brand	Argoclima
Model	Twist
Dimensions (W x D x H)	20 x 15 x 30 cm
Weight	2.0 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	2000 W
Heating Type	Fan forced air
Thermostat	Adjustable thermostat
Oscillation	Yes
Overheat Protection	Yes
Tip-over Switch	Yes
Remote Control	Included
Timer	Yes, 24-hour programmable
Filter Type	Washable dust filter
Cleaning	Remove and wash filter regularly; wipe exterior with damp cloth
Safety Features	Overheat protection, tip-over switch, cool-touch housing
Spare Parts Availability	Filter, remote control, thermostat (contact support)
Repairability	Repairable by qualified technician; user-replaceable parts: filter, fuse
Noise Level	45 dB (approximate)
Certifications	CE, RoHS

Frequently Asked Questions - Twist Argoclima

How do I clean the filter of my Argoclima Twist heater?

Turn off and unplug the heater. Locate the filter cover on the rear, remove it, and take out the filter. Wash the filter with warm water and mild soap, let it dry completely, then reinsert and close the cover.

Why is my heater not turning on?

Check if the power cord is plugged in and the outlet is working. Ensure the thermostat is set to a temperature above room temperature. The heater may have tripped the overheat protection; let it cool down and reset by turning off and on.

What does the overheat protection do?

If the heater reaches an unsafe temperature, the overheat protection automatically shuts off the unit to prevent fire hazards. Once it cools down, you can reset it by turning the heater off and back on.

Can I use the heater in a bathroom?

No, the Argoclima Twist is not designed for bathrooms. It should only be used in dry indoor areas away from water sources to avoid electric shock.

How do I set the timer?

Press the timer button on the control panel or remote. Use the + and - buttons to set the desired time (up to 24 hours). The heater will automatically turn off after the set time.

Is the remote control included?

Yes, the Argoclima Twist comes with a remote control for convenient operation from a distance.

What is the recommended maintenance schedule?

Clean the filter every two weeks during heavy use. Wipe the exterior with a soft, damp cloth monthly. Have the heater inspected by a professional annually if used frequently.

Why is the heater making a clicking noise?

Clicking sounds are normal when the thermostat turns the heating element on/off. If the noise is excessive, check for loose parts or contact support.

Can I use an extension cord?

It is recommended to plug the heater directly into a wall outlet. If necessary, use a heavy-duty extension cord rated at least 15 amps and keep it fully uncoiled.

Where can I find spare parts?

Contact Argoclima customer support or visit their website for genuine parts such as filters and remote controls. Always use approved parts to ensure safety.

USER MANUAL Twist Argoclima

Read the instructions carefully before installing and operating the appliance or performing maintenance operations. Observe all the safety instructions; failure to observe the instructions may cause accidents and/or damages. Store these instructions for future reference.

GENERAL SAFETY INFORMATION

• Use this fan heater only as outlined in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to people.
• Ensure that the mains power complies with the voltage specified on the fan heater data plate (220-240V\~50Hz).
• This product is not a toy. Children of less than 3 years should be kept away unless continuously supervised.

- This device is not intended for persons (including children) with reduced physical, sensory or mental capabilities, or without the necessary experience and knowledge, unless they have received the necessary supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children aged from 3 and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

WARNING: In order to avoid hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through and external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

WARNING: do not use the fan heater with a controller or any other external device that activates the appliance automatically, as there may be a risk of fire if the fan heater is covered or incorrectly positioned.

• Do not restrict the air inlet and outlet grilles.
• The appliance heats up slightly when in use. In order to avoid burns, do not let bare skin touch hot surfaces.
• Ensure that all objects are at least 1 meter from the front and sides of the appliance.
• Disconnect the mains power when the appliance is not used or for cleaning operations.
• Avoid using the fan heater in dusty environments or in the presence of inflammable vapors (e.g. in workshops or garages) or paint vapors.

- Do not place anything on the appliance, do not use the appliance to dry clothing.

- Use the appliance in a well-ventilated area.

- Avoid placing fingers or foreign objects in the air inlet/outlet grilles, as this may lead to electric shock or fire and may damage the appliance.

- To avoid the risk of fire, do not block the grilles or tamper with them in any way while the fan heater operates.

- Do not use the appliance if the cord or plug are damaged. If the power supply cord is damaged, it must be replaced by the manufacturer, dealer or a similarly qualified person so as to avoid any safety risks.

- Do not operate the appliance if it has fallen from a height or has suffered damage in any way. Contact qualified technical personnel to examine the appliance or perform any electrical or mechanical repairs.

- The most common cause of overheating is the build-up of dust in the appliance. Remove dust deposits by unplugging the appliance and cleaning the air outlets and grilles with the aid of a vacuum cleaner.

- Do not use abrasive detergents for cleaning this appliance. Clean the appliance with the aid of a damp (not wet) cloth rinsed in hot soapy water. Always remove the plug from the mains socket before cleaning.

- To disconnect the fan heater, push the switch to OFF and remove the plug from the socket. Pull on the plug only. Avoid pulling on the cord when disconnecting the fan heater.

- Do not place any objects on the cord and do not bend it.

- It is not advisable to use extension cords, as these may overheat and cause the risk of fire. Do not use a single extension cord to operate multiple appliances.

- Do not immerse the cord, plug or any other element of the appliance in water or other liquids.

- Do not touch the plug with wet hands.

- Do not place the fan heater above or near another heat source.

WARNING: AVOID COVERING THE FAN HEATER TO PREVENT IT FROM OVERHEATING.

The symbol below signals the above warning:

• The fan heater may cause the risk of fire if, while in operation, is covered by or comes into contact with inflammable material including curtains, drapery, blankets, etc. KEEP THE FAN HEATER AWAY FROM THESE MATERIALS.
• Do not connect the appliance to the mains power before it has been properly assembled and positioned.
• Do not run the cord under carpets. Do not cover the cord with blankets, carpets or similar materials. Place the cord far away from busy areas or where it cannot be accidentally pulled-out.
• Do not operate the fan heater in close proximity to bathtubs, showers, washbasins or pools.
• Do not position the fan heater below a socket outlet.
• Do not operate the appliance outdoors.

Upon initial start-up, the fan heater may emit a slight, harmless smell. This smell is a normal effect of the initial heating up of the internal heating elements, and should not recur later on.

WARNING: DO NOT DEPEND ON THE ON/OFF BUTTON SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER. WHEN SERVICING OR MOVING THE FAN HEATER, ALWAYS UNPLUG THE POWER CORD.

• A fan heater has hot and arcing or sparkling parts inside. It must not be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmosphere.
• Do not place the fan heater on soft surfaces, like a bed, where openings may become blocked. Always place the fan heater on a stable, flat, level surface when operating, to avoid the chance of the fan heater overturning. Locate the power cord so the fan heater or other objects are not resting on it.
  • Always unplug the fan heater when not in use.
• In order to avoid accidents turn unit off if unattended.
• In the event of any problems (abnormal noise or a strange smell) switch off the appliance immediately, do not attempt to repair it and take it to your local after sales service.

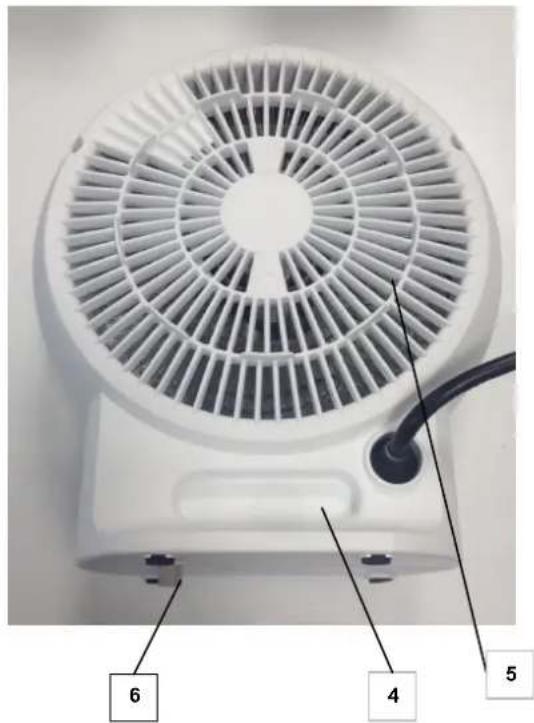

DESCRIPTION OF PARTS

1 2 3 DT - 4 °C WR MAX

1. On/off and selection knob
2. Thermostat knob
3. Air outlet grille

6 4 5

1. Carrying handle
2. Air suction grille
3. Anti-tilt device

HOW TO USE THE FAN HEATER

Put the fan heater vertically on a flat and stable surface.

Connect the power cord to a suitable electric socket (220-240V\~/50Hz).

Turn the thermostat knob clockwise to maximum position "6".

Turn on the On/off and selection knob and select one of the possible positions:

Cold ventilation ✅, ECO mode (1200W) or COMFORT mode (2000 W).

CONTROL PANEL AND AVAILABLE FUNCTIONS

OFF: fan heater off. Cold ventilation Thermostat adjustment knob: from Minimum to Maximum temperature, by turning the knob clockwise. MIN MAX OFF ECO mode: 1200W reduced power and consumption to save energy . COMFORT mode: maximum heating power (2000W).

The thermostat maintains the desired room temperature by automatically switching on/off the fan heater.

As you rotate the knob clockwise, the room temperature increases.

Operate the unit until the room reaches a comfortable temperature, then turn the knob thermostat knob counter-clockwise until you hear a "click" and the unit will shut down; then turn again slightly (just a little) the thermostat knob clockwise, in this position the thermostat will maintain the temperature you have chosen.

The appliance is fitted with an anti tip-up device that prevents it from operating when it detects that the product is inclined.

Do not position the appliance on its side or upside down.

OVERHEATING SAFETY DEVICE

In case of overheating the safety cut out protecting the heating element will automatically switch off the appliance.

If this happens:

• switch off the fan heater;
• remove the causes of abnormal operation or overheating (i.e. obstacles in front of air inlet or air outlet grille);
• leave the heater cool down for 15/20 minutes;
• switch on again the fan heater.

MAINTENANCE AND STORAGE

A

LWAYS UNPLUG THE APPLIANCE BEFORE CLEANING OR MAINTENANCE.

IMPORTANT: DO NOT SUBMERGE THE CERAMIC FAN HEATER IN WATER

Cleaning the outside surface of the appliance

Turn the switch off and unplug before carrying out any maintenance work or moving the appliance.

Use a soft cloth to remove any dust from the fan heater.

If the fan heater is excessively dirty, use a soft cloth moistened with water and a mild detergent at a temperature lower than 50^ . Let the fan heater dry completely before use.

Do not use corrosive detergents or solvents such as petrol. Do not wash the appliance with water. Do not use oils, chemical substances or other items to clean that may damage the surface.

Use a vacuum cleaner to remove dust from the air inlet/outlet grilles.

STORAGE

If the appliance is not used for prolonged periods, it must be stored together with this manual in its original packaging, in a cool and dry place.

INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH THE EUROPEAN DIRECTIVE 2012/19/EU

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.
