Product Type	Notebook Battery Pack (Lithium-Ion)
Model Number	PCGA-TKN1
Brand	Sony
Compatibility	Select Sony VAIO Notebook Computers
Color	Black
Battery Chemistry	Lithium-Ion (Li-Ion)
Safety Features	Overcharge protection, temperature monitoring, short-circuit prevention
Charging Temperature Range	50°F to 86°F (10°C to 30°C)
Storage Temperature Range	32°F to 140°F (0°C to 60°C)
Humidity Range	20% to 80% (non-condensing)
Environmental Requirements (Operating)	41°F to 95°F (5°C to 35°C), < 80% RH
Cleaning Instructions	Wipe with dry or lightly moistened soft microfiber cloth; do not use solvents
Recommended Accessories	Original Sony AC Adapter (PCGA-AC series)
Spare Parts Availability	Contact Sony eSupport or official resellers for genuine replacements
Warranty	Standard manufacturer warranty (check with Sony)
Safety Certification	UL, CE, FCC compliant

Frequently Asked Questions - PCGA-TKN1 SONY

How should I handle the battery pack to ensure safety and longevity?

Use only genuine Sony battery packs. Avoid temperatures above 140°F (60°C). Charge between 50°F and 86°F (10°C to 30°C). Keep battery dry, do not disassemble or expose to mechanical shock. If not used for long periods, remove from computer.

Can I use a third-party battery pack with my Sony VAIO?

Sony cannot guarantee safety with non-original battery packs. Unauthorized batteries may cause unpredictable results. Always use genuine Sony batteries purchased from official resellers.

How do I clean my Sony VAIO computer?

Disconnect AC adapter and remove battery. Clean the cabinet with a dry or lightly moistened soft microfiber cloth. Use only mild detergent solution. Do not use abrasive pads, scouring powder, or solvents like alcohol or benzine.

What should I do if my computer gets wet or I drop a solid object on it?

Shut down the computer, unplug the AC adapter, and remove the battery pack. Have it checked by a Sony-qualified technician before operating again. Do not use damaged cables.

Why does the bottom of my computer get hot during normal use?

The temperature of the bottom rises during operation due to heat buildup. This is normal. Avoid placing the computer directly on your lap to prevent discomfort. Ensure air vents are not blocked.

What environmental conditions should I avoid for my computer?

Avoid heat sources (radiators, direct sunlight), excessive dust, moisture, mechanical vibration, strong magnets, temperatures above 95°F (35°C) or below 41°F (5°C), and high humidity. Do not place other electronic equipment nearby.

How do I properly handle CDs/DVDs/Blu-ray discs?

Do not touch the surface. Hold by edges and center hole. Clean from center outward with a soft cloth. For heavy soil, use a damp (water only) soft cloth then dry. Never use solvents or adhesive labels.

What ergonomic practices should I follow when using my laptop?

Place the computer directly in front of you. Keep forearms horizontal, wrists neutral, upper arms hanging naturally. Use a chair with back support, feet flat on floor. Adjust display tilt and brightness. Use indirect lighting to avoid glare. Take frequent breaks.

Can I use any AC adapter with my VAIO computer?

Use only Sony original AC adaptors. Non-original adaptors may cause safety issues. Ensure the power cable is properly connected and, if 3-pin, use a grounded wall socket.

What should I do if my battery pack runs out quickly after being fully charged?

This may indicate the battery pack has reached the end of its life and should be replaced with a genuine Sony battery pack. There is no requirement to discharge before recharging.

USER MANUAL PCGA-TKN1 SONY

Care and Handling of Your VAIO® Computer

Proper Handling

Use your computer on a clean dry, stable surface.

Use only specified peripheral equipment and interface cables or you may experience problems.

When your computer is brought directly from a cold location to a warm one, moisture may condense inside the computer. If this occurs, wait at least one hour before turning on the computer. If you experience problems:

B Unplug the computer

β Remove the battery pack

β Contact eSupport at 1-888-476-6972

IMPORTANT

Proper air circulation is important to prevent overheating. Do not block your computer's air vents, located on the bottom of your notebook computer, by placing the computer on porous surfaces. For example, materials such as rugs, blankets, couches, beds or curtains, can block the computer's air vents.

IMPORTANT

Do not place your computer directly on your lap. The temperature of the bottom of the unit rises during normal operation. The heat can cause discomfort.

Improper Handling

Do not place your computer in a location subject to:

β Heat sources, such as radiators or air ducts
β Direct sunlight
β Excessive dust
B Moisture or rain
β Mechanical vibration or shock
B Strong magnets or speakers that are not magnetically shielded
β Ambient temperature of more than 95°F (35°C) or less than 410°F (5°C)
β High humidity

Do not place electronic equipment near your computer, as the electromagnetic field of the equipment may cause the computer to malfunction.

Do not drop your computer or place any objects on top of the computer.

If you drop a solid object or spill any liquid onto your computer:

B Shut down the computer

β Unplug it

β Remove the battery pack.

β Have the computer checked by a Sony-qualified technician before operating it again

IMPORTANT

Do not use damaged or cut connection cables or cords.

Cleaning your VAIO PC

Clean the cabinet with a dry or lightly moistened soft microfiber cloth. Use only a mild detergent solution.

Disconnect the AC adapter and remove the battery pack before cleaning your computer.

IMPORTANT

Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer.

Using the Battery Pack

Use original Sony battery packs. Sony cannot guarantee product safety when third party non-original replacement battery packs are used. We recommend purchasing the battery packs directly from official Sony resellers to avoid counterfeit products.

β Do not leave battery packs in temperatures above 140°F (60°C), such as in a car parked in the sun or under direct sunlight.
B Battery life is shortened in a cold environment. This is due to decreased battery efficiency at low temperatures.
β Charge battery packs at temperatures between 50°F (10°C) to 86°F (30°C). Lower temperatures require longer charging time.
β Certain rechargeable battery packs do not meet Sony quality and safety standards. For safety reasons this computer should only be connected to genuine Sony battery packs designed for this model. If an unauthorized battery pack is installed the results could be unpredictable.
β While the battery pack is in use or being charged, heat builds up in the battery pack. This is normal and is not cause for concern.
B Keep the battery pack away from all sources of heat.
β Keep the battery pack dry.
β Do not open or try to disassemble the battery pack.
β Do not expose the battery pack to any mechanical shock, such as dropping it on a hard surface.
β If you are not using your computer for a long period of time, remove the battery pack from the computer to prevent damage to the battery pack.
β If you have not used the battery pack for a considerable amount of time, the remaining battery life may become short. However, this is normal and does not indicate a malfunction, because the battery pack will gradually discharge over time even when not in use. Connect the AC adapter to your computer and recharge the battery pack before using the computer again.
β There is no requirement to discharge the battery pack before recharging.
β If the battery pack quickly runs out of power after being fully charged, it may have reached the end of its life and should be replaced.

Using the AC adaptor

Make sure that the power cable is properly connected to the AC adapter; only use the power cable that was delivered with the VAIO PC and/or AC adaptor.

If the AC adaptor was delivered with a 3 pin power cable, use the AC adaptor with a properly grounded wall socket to avoid a small static charge building up on the notebook casing.

During operation the AC adaptor might get warm, make sure the AC adaptor is in a well ventilated area with the label facing down.

IMPORTANT

Use only Sony original AC adaptors. Sony cannot guarantee product safety when non-original AC adaptors are used. You can purchase AC Adaptors directly from official Sony resellers to avoid counterfeit products.

Handling the CD / DVD / Blu-ray Disc™ media

Do not touch the surface of the disc.

Fingerprints and dust on the surface of a disc may cause read errors. Always hold the disc by its edges and central hole, as shown below:

Illustration of a hand pressing down on a CD or DVD disc (no text or symbols)

Proper care of the disc is essential to its continuous reliability. Do not use solvents (such as benzine, thinner, alcohol, commercially available cleaners, or anti-static spray) which may cause damage to the disc.

For normal cleaning, hold the disc by its edges and use a soft cloth to wipe the surface from the center out.

If the disc is badly soiled, moisten a soft cloth with water, wring it out well, and use it to wipe the surface of the disc from the center out. Wipe off any remaining moisture with a dry soft cloth.

Never affix an adhesive label to a disc. This will affect the use of the disc and may result in an irreparable problem.

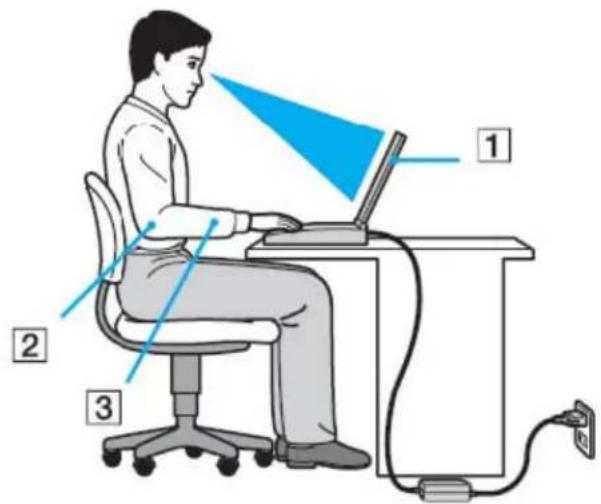

Ergonomic Considerations

Your computer is a portable device that may be used in various environments. Whenever possible, consider the following ergonomic factors for both stationary and portable environments:

Position of your computer – Placing the computer directly in front of you:

1. Keep your forearms horizontal.
2. Position your wrists in a neutral, comfortable position while using the keyboard, touch pad, or external mouse.
3. Let your upper arms hang naturally at your sides.
4. Take frequent breaks while using your computer.

Excessive use of the computer may cause strain to your eyes, muscles, or tendons.

Furniture and posture – Sit in a chair with good back support. Adjust the level of the chair so your feet are flat on the floor. A footrest may make you more comfortable. Sit in a relaxed, upright posture and avoid slouching forward or leaning far backwards.

Viewing angle of the computer's display – Use the display's tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.

Lighting – Choose a location where windows and lights do not cause glare and reflection on the display. Use indirect lighting to avoid bright spots on the display. Proper lighting adds to your comfort and work efficiency.

Positioning an external display – When using an external display, set the display at a comfortable viewing distance. Make sure the display screen is at eye level or slightly lower when you are sitting in front of the monitor.
