USER MANUAL ZBF 3094 ZANUSSI

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

Safety Instructions

This information has been provided in the interests of your safety. Please read it before installing or using the appliance. Please retain the instruction book for future reference. If owner ship is transferred, please leave the user manual for the new owner.

Domestic Use

• The domestic refrigerators and freezers are designed to be used specifically for the storage of edible foodstuffs only.
• Check the appliance for transport damage. Under no circumstances should a damaged appliance be installed. In the event of damage please contact your retailer.
• This appliance is heavy. The edges and projecting parts of the cabinet may be sharp. Be careful when moving the cabinet and always use gloves.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. Make sure that the cable is not trapped underneath the appliance, nor touches the motor.
• Do not remove the power cord by pulling on its lead, particularly when the appliance is being pulled out of its niche. If the power plug socket is loose, do not insert the power plug. Damage to the cord may cause a short-circuit, fire and/or electric shock.
• Do not use electrical appliances inside the appliance.
• Do not keep carbonated drinks or bottles in the freezer compartment. The glass bottles may break.
• Ice lollies can cause ‘frost/freezer burns’ if consumed straight from the freezer.
• It is dangerous to try and alter the specifications or modify this product in any way.
• Under no circumstances should you attempt to repair the appliance yourself. Refer to your local Service Centre, and always insist on genuine spare parts.

Child Safety

- This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance

Environment Protection

- This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. Avoid damaging the cooling unit. Information on your local disposal sites may be obtained from your municipal authorities.

Remove the plug and ensure that any locks or catches are removed, to prevent young children being trapped inside.

Disposal

Appliance Packaging Information

- The materials marked with the symbol are recyclable.

PE< for polyethylene, e.g. sheet wrapping material
PS< for polystyrene, e.g. padding material (always CFC-free)
POM< polyoxymethylene, e.g. plastic clips.

All materials are environmentally sound! Information concerning collection schedules or locations can be obtained from your local Council or Environmental Health Office.

Disposal of old appliances

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Contents

Safety Instructions ....2

Disposal 2

Use and Control Before Use ....3

Control panel / Starting the appliance / Temperature control 4

NORMAL-SUPER switch and quick freezing / Warning light / Freezer calendar 4

Interior accessories / Hints ....5

Maintenance Defrosting / Cleaning 6

Something not Working 7

Customer Service and Spare Parts ....7

Technical Specifications 7

Installation Positioning / Electrical connection .....8

Door reversal 9

Building-in 9

Use and Control

The freezer is marked with the Symbol, which means that the compartment is suitable for freezing fresh food and long-term storage of frozen food.

Before Use

Wait two hours before connecting the appliance to allow the oil to flow back in the compressor.

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

- Remove safety elements used for transportation.

Control panel

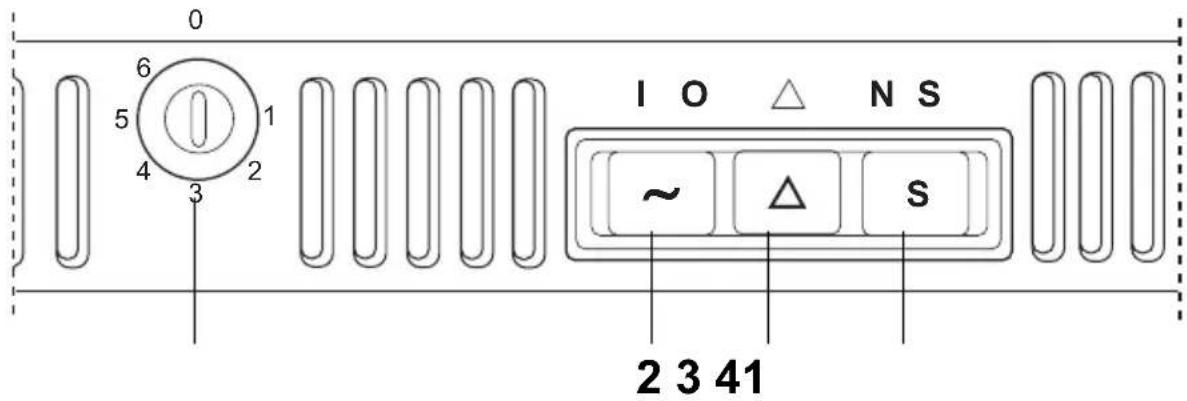

0 6 5 1 4 2 3 I O △ N S ~ △ S 2 3 41

1 Thermostat control knob and ON/OFF switch
2 Pilot light (green)

3 Warning light (red)
4 Fast freeze light (yellow) - SUPER function and Fast freeze (SUPER-NORMAL) switch

Starting the appliance

• Insert the plug into the wall socket.
  Turn the thermostat control knob (1) clockwise beyond position «O». The pilot light (2) will light up.
• Freezer operation can be halted by turning the thermostat control knob (1) to position «O».

Temperature control

• Turn knob (1) beyond the «1» position until its pointer coincides with the required setting. The minimum setting (least cold) is represented by the lowest number and the maximum setting (coldest) by the highest number.
• To safely store frozen and deep-frozen foods, the inner temperature of the freezer must be at least -18°C or colder.

• The following effects are of significance in respect of the interior temperature:

• Ambient temperature
  • Quantity and temperature of the food stored;

• Frequency with which the door is opened and how long it is left open
  • the location of the appliance.

- The temperature inside the appliance is automatically adjusted.

• Setting „1“ = hightest temperature, warmest setting
• Setting „6“ = lowest temperature, coldest setting.

A medium setting is generally the most suitable.

NORMAL-SUPER switch and quick freezing

Activate fast freeze by depressing the fast freeze switch (4). The Fast freezing light (4) will then light up. The SUPER function can be ended by pressing the switch (4) again. The yellow light goes out.

Warning light (red)

If the temperature warning light (3) lights up, it indicates that the temperature within the freezer has reached a level where the safe food storage is no longer ensured.

When the freezer is first switched on, the warning light will stay on until the temperature has dropped to a safe level for the storage of frozen food.

Freezing Calendar

These symbols show different types of frozen goods.

3 | 🎨 🎨 🎨 🎨 | 6 | 🎨 🎨 🎨 🎨 | 9 | 🎨 🎨 🎨 🎨 | 12 | 🎨 🎨 🎨 🎨

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pretreating before freezing.

Interior Accessories

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Fill these trays with water, then put them in the freezer.

Do not use metallic instruments to remove the trays from the freezer.

Never consume ice lollies or ice cubes immediately after removing them from the freezer since they can cause frost burns.

Hints

Saving Energy

• Pay careful attention to where the cabinet is placed. See the section “Installation”. When installed correctly the cabinet will consume less energy.
• Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
• Do not place warm foods inside the appliance. Allow warm foods to cool first.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food will then be used to cool the fridge.
• Keep the heat emitting condenser, the metall grille on the rear wall of your appliance, always clean.

Freezing of fresh foods and storage of frozen food

• To quick-freeze foods when the appliance has not been in use, switch on the freezer and let it run on the quick-freeze setting for at least three hours before putting the food to be frozen in the compartment.
  If instead the appliance is already in operation, it should run on the quick-freeze setting for at least 24 hours before the foods are put in the freezer.

- Once the foods have been placed in the freezer, the freezing operation can be considered to be complete 24 hours later. Once freezing is complete, the freezer should be reset for normal storage use.

- When you first start the freezer or if the freezer has been out of use for some time, we advise you to run your appliance for at least two hours in the «fast freeze» mode before storing frozen food.

- Food to be frozen must be placed in the top compartment.

- In the top compartment, products must only be stacked up to the mark on the cabinet wall so as to ensure that air circulation is not obstructed.

- The maximum amount of food which is freezable in 24 hours is indicated on the rating plate. This is to be found on the bottom left-hand side.

- Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required.

- Not open the door frequently or leave it open longer than absolutely necessary.

- Wrap up the food in aluminium foil or polythene and make sure that the packages are airtight.

- Do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter.

- Do not touch frozen food with wet hands. Your hands could stick to the food and cause skin abrasions.

- It is advisable to show the freezing-in date on each individual pack to enable you to keep tab of the storage time.

- Be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time.

- Do not put carbonated liquids (fizzy drinks, etc.) in the freezer as they may burst.

- A temperature increase of the frozen food shortens its safe storage period.

- Once defrosted, food deteriorates rapidly and cannot be refrozen.

Unplug the appliance before carrying out any maintenance operation.

Warning

This appliance contains hydrocarbons in its cooling unit maintenance and recharging must therefore only be carried out by authorised technicians.

Defrosting

• Remove the frost with a plastic scraper.
• Whenever the thickness of the frost exceeds 5 mm complete defrosting should be carried out.
  Proceed as follows:
• Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.
• Pull out the plug from the wall socket or turn the thermostat control knob (1) to position «O».

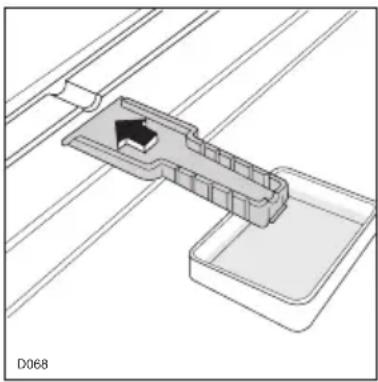

• Leave the door open and introduce the plastic scraper in the appropriate seating at the base of the cabinet as shown in the figure and place a basin underneath to collect the defrost water (see fig.).

Technical diagram of a mechanical component with directional arrow and plate (no text or symbols)

• When defrosting is completed dry the interior thoroughly. Keep the scraper for future use.
• Turn the thermostat control to a medium setting and, after letting the appliance run for at least two hours in the «fast freeze» mode, replace the previously removed food into the compartments.

Never use metal objects for defrosting your appliance as it may get damaged.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

Cleaning

Never use metal objects for cleaning your appliance as it may get damaged.

NEVER use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as these will damage the surface and leave a strong odour.

Clean the inside with warm water and bicarbonate of soda. Rinse and dry thoroughly.

To guarantee a safe operation of the fridge, once a year remove the ventilation grille at the base and clean the air channels with a vacuum cleaner.

When the appliance is not in use

Disconnect the appliance from the electricity supply. Empty all foods and clean the appliance, leaving the doors ajar to prevent unpleasant smells.

Problems may be due to causes which can easily be solved before calling the Technical Service. Please follow these instructions:

SYMPTOM SOLUTION
Door does not close	Weight surpasses the storage limit of the door shelf so spread weight more evenly or take some products out.The appliance is not properly installed. Please look in the “Building-in” section.
It is too warm inside the appliance.	Set a lower temperature.Distribute the food products to allow cold air to circulate around them.Make sure that the door is completely closed and that the insulating strip is complete and clean.The temperature where the cabinet is placed is above normal room temperature.
It is too cold inside the appliance.	Set a warmer temperature.
The compressor works continuously.	Turn the thermostat knob to a lower number.The temperature where the cabinet is placed is above normal room temperature.Check that the ventilation is sufficient and that the ventilation openings are unobstructed.The cause could be the introduction of large quantities of food and/or frequent opening/closing of the door.
Noises	Sometimes this is normal. Temperature control may cause clicking sounds when the system is connected or disconnected.The injected cooling gas may produce a gurgling sound while passing through the tubes.The motor may cause a humming noise and/or slight bumping.The insulation material used has a tendency to slightly increase noise levels, how ever it allows for much better insulation and a lower energy consumption.

Customer service and spare parts

If you cannot find the remedy for a malfunction in these operating instructions, please contact your dealer or our customer service department and consult the Guarantee card.

Selective ordering of replacement parts can save unnecessary travel and costs.

For this reason always provide the following appliance information:

• Model Name
• Model Number (PNC)
• Serial Number (S-No.)

This information can be found on the rating plate inside the cabenit on the left hand wall. We recommend that you enter this information here, so that it is handy if needed.

Technical specifications

The technical data is indicated in the rating plate on the left side inside the appliance.

If there is a power failure when food is in the freezer, do not open the door of the freezer. The frozen food will not be affected if the power cut is of short duration (up to 13 hours) and the freezer is full, otherwise, it is recommended that the food should be used within a short time (a temperature increase of the frozen food shortens its safe storage period).

Take utmost care when handling your appliance so as not to cause any damages to the cooling unit with consequent possible fluid leakages.

• During normal operation, the condenser and compressor at the back of the appliance heat up considerably. Always ensure that there is adequate ventilation as a failure to do this will result in component failure and possible food loss. See installation instructions.
• Important: if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

Positioning

• Unpack the cabinet and check that it is in good condition and free of any transport damage.
• Place the refrigerator away from direct sunlight and heat sources.
• Avoid prolonged exposure of the appliance to direct sunlight.

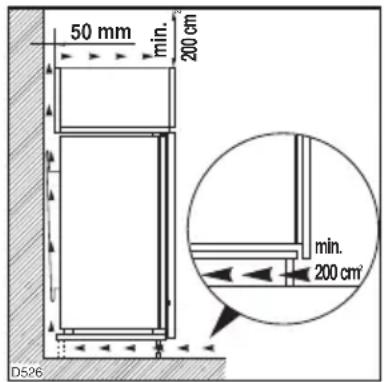

• For safety reasons, minimum ventilation must be as shown in Fig.

50 mm min. 200 cm min. 200 cm' D526

Attention: keep ventilation openings clear of obstruction.

- It is necessary that the niche is provided with a conduct of venti-lation having the following dimensions:

Depth 50 mm

Width 540 mm

The climate classification can be found on the rating plate, which is located inside the cabinet on the left hand wall.

The following table shows which ambient temperature is correct for each climate classification:

Climate classification	for an ambient temperature of
SN +10 to +32°C
N	+16 to +32°C
ST	+18 to +38°C
T	+18 to +43°C

When the ambient temperature is not included within the range indicated for the class of this appliance, the storage temperature in the appliance cannot be guaranteed; therefore it is advisable to use the food stored as soon as possible.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the serial number plate correspond to your domestic power supply.

Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized auto-transformer must be used.

Important

The appliance must be earthed.

The power supply cable plug is provided with a contact for this purpose.

If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a specialist technician.

The Manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the following E.E.C. Directives:

• 87/308 EEC of 2/6/87 relative to radio interference suppression.
• 73/23 EEC of 19.2.73 (Low Voltage Directive)

and subsequent modifications.

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Attention!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Door Reversibility

The appliance is supplied with the door opening to the right.

For door opening in the opposite direction, perform the following actions prior to installation

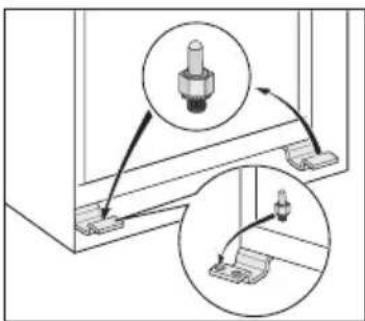

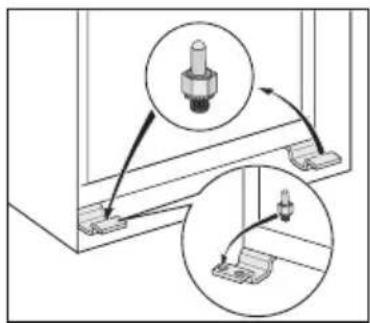

1. Unscrew the upper pin and remove the spacer
2. Remove the door.
3. Unscrew with a key the lower pin and replace it on the opposite side.
4. Reinsert the door, refit the spacer and rescrew the upper pin on the opposite side.

Building-in

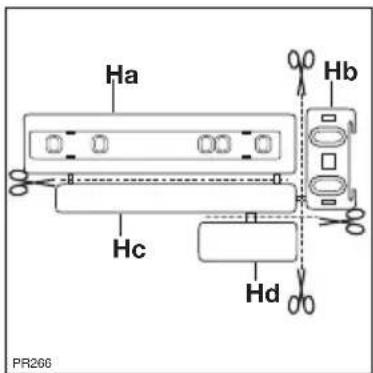

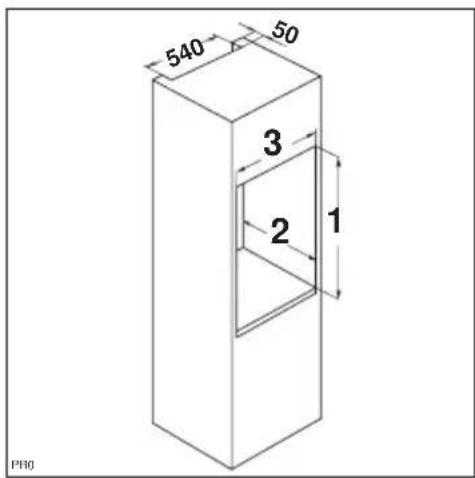

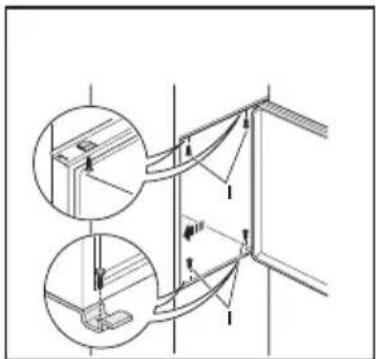

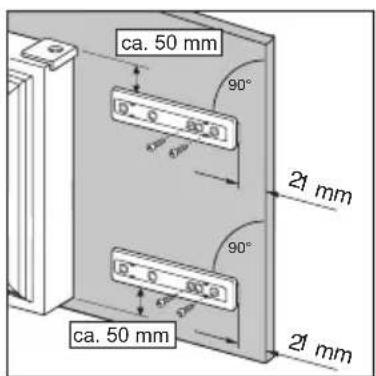

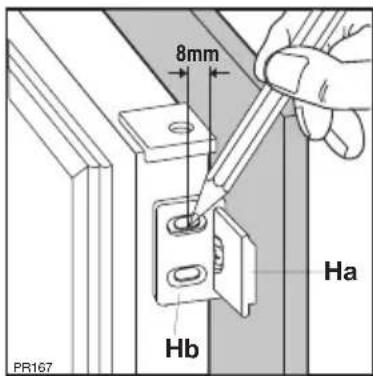

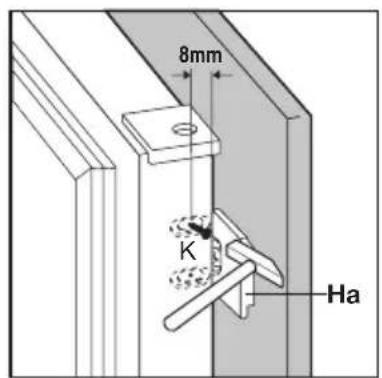

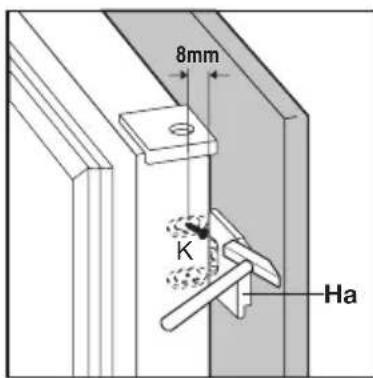

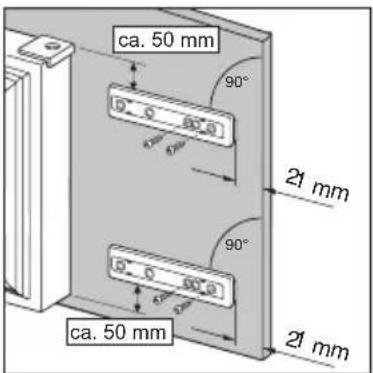

Dimensions of the recess

Height of housing (1) 702 mm

Depth of housing (2) 550 mm

Width of housing (3) 560 mm

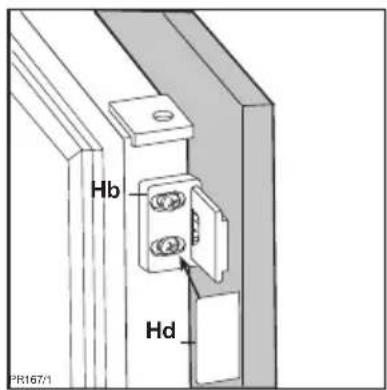

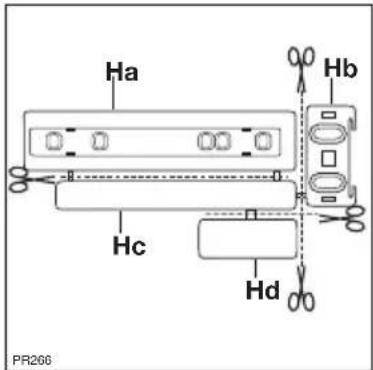

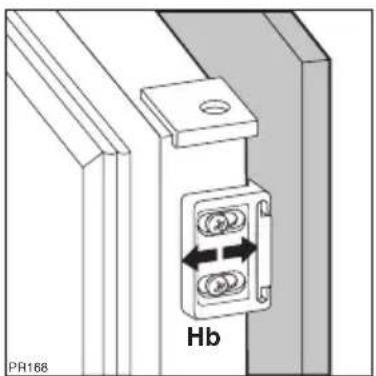

540 50 3 2 1 PRO

Diagram showing a mechanical assembly with a tool inserted into a component and a separate connector (no text or symbols)

Technical diagram showing mechanical assembly with two views of a component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts and dimensions, including 2mm height and E label.

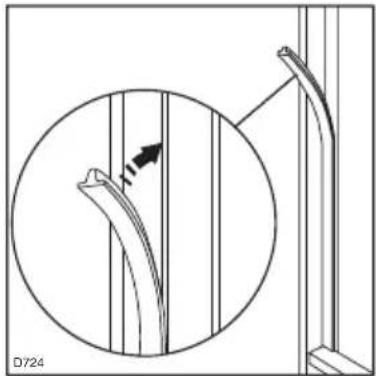

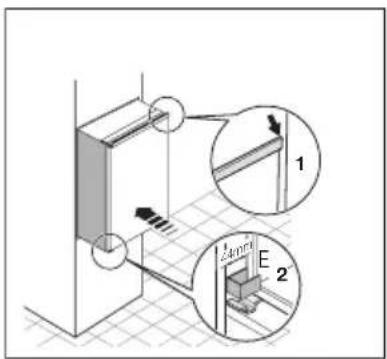

Make sure that a distance of 44 mm is maintained in the lower part between the kitchen furniture and the border of the appliance.

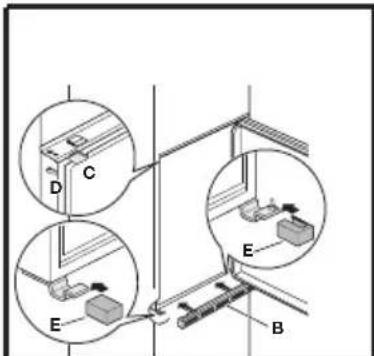

The lower hinge cover inserted in the accessories bag, is useful to guarantee the exact position of the kitchen furniture and the appliance.

Also make sure that the appliance does not clamp the mains cable

Technical line drawing of a structural frame with two magnified insets showing internal components (no text or symbols)

Fasten the appliance with 4 screws provided in the kit included with the appliance.

Apply the sealing strip pushing it between the refrigerator and the adjacent cabinet.

From the plastic cover (E), which is used to cover the hinge with the pivot pin, you must take away the part as indicated in the drawing.

This operation is made easier since there is, in the internal part of the cover hinge lid a groove that facilitates the removal of this cocomponent.

"Remove the part marked with DX, if the pivot pin is inserted in the right hinge, SX in opposite case."

Apply covers (C-D) on joint cover lugs and into hinge holes.

Snap vent grille (B) and hinge covers (E) into position.

Separate parts Ha, Hb, Hc, Hd as shown in the figure.

Place guide (Ha) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes. After having drilled holes, fix the guide with the screws supplied.

Technical diagram showing a circular component with internal channels and an arrow indicating direction, next to a curved bracket (no text or symbols)

Simple 3D diagram of a rectangular block with a dashed top and arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A, B, C, D and E, including a ladder and support structure.

Ha Hb Hc Hd PR266

ca. 50 mm 90° 0_0_50° 6° 21 mm 90° 0_0_50° 6° 21 mm ca. 50 mm

Fix cover (Hc) on guide (Ha) until it clips into place

Open the appliance door and the furniture door at 90°. Insert the small square (Hb) into guide (Ha).

Put together the appliance door and the furniture door and mark the holes as indicated in the figure.

Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

Place the small square on the guide again and fix it with the screws supplied.

Should the lining up of the furniture door be necessary, use the clearance of slots.

At the end of operations, it is necessary to check if the door of the furniture closes properly.

Fix cover (Hd) on guide (Hb) until it clips into place.

Ha Hc

8mm Ha Hb PR167

8mm K Ha

Hb PR168

Hb Hd PR167/1

Technical diagram of a mechanical component with directional arrow, no visible text or symbols

Diagram showing a tool interacting with a component, with an arrow indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly with two views of a bolt and base plate (no text or symbols)

Technical diagram showing mechanical assembly with labeled parts and magnified views

Technical line drawing of a structural frame with two magnified insets showing internal components (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a curved feature and directional arrow (no text or symbols)

Simple 3D diagram of a box with a paper feeding into it, showing an arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components A, B, C, D and E, including a ladder and support structure.

Ha Hb Hc Hd PR266

ca. 50 mm 90° D_0_6000 60° 21 mm 90° D_0_6000 60° 21 mm ca. 50 mm

8mm Ha Hb PR167

8mm K Ha

Hb PR168

Hb Hd PR167/1

www.electrolux.com
