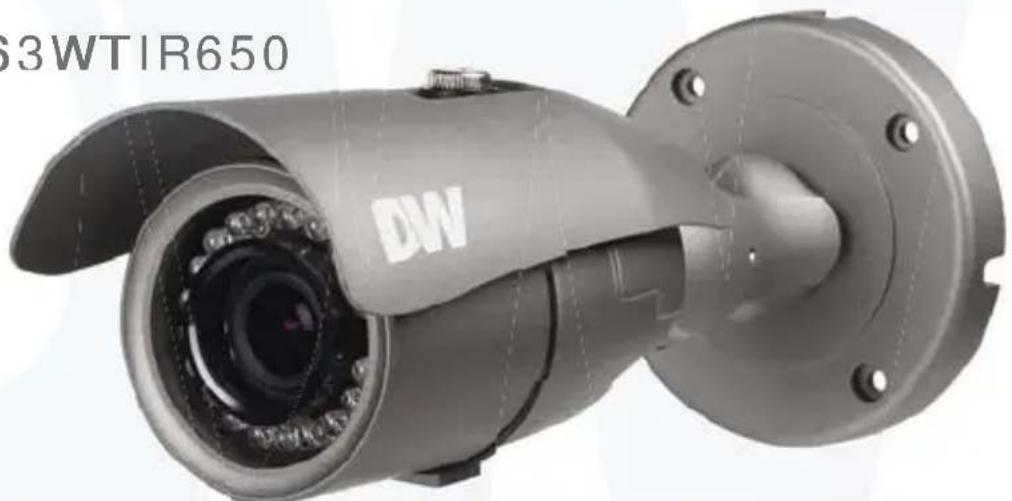

Star-Light AHD DWC-B6763WTIR650 - Security Camera Digital Watchdog - Free user manual and instructions

Type	Star-Light AHD Analog High Definition Bullet Camera
Model	DWC-B6763WTIR650
Image Sensor	Panasonic 1/3" CMOS
Resolution	1920x1080 (1080p) at 30fps
Lens	Varifocal P-Iris, 6~50mm
IR Range	Smart IR™, up to 150ft (45.7m)
Minimum Illumination	0.35 Lux (Color), 0 Lux (B&W with IR)
Video Output	AHD 1080p/720p, BNC and UTP
Day/Night	True Day/Night with mechanical IR cut filter
WDR	Wide Dynamic Range (WDR) on/off
Noise Reduction	Smart DNR™ 3D Digital Noise Reduction (Off/Low/Mid/High)
Privacy Zones	8 zones (box or polygon masks)
Power Requirements	12VDC/24VAC dual voltage, auto polarity
Power Consumption	DC12V: 3.17W (LED off), 4.95W (LED on); AC24V: 3.12W (LED off), 4.87W (LED on)
Dimensions	234.5 x 82.2 mm (9.23 x 3.23 in)
Weight	1.65 lbs (0.75 kg)
Housing Material	Aluminum
IP Rating	IP66 (weather resistant)
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Certifications	FCC, CE, RoHS
Warranty	5 years on camera, 1 year on IR LEDs
Maintenance	Clean with soft cloth and mild detergent; avoid harsh chemicals
Safety	Do not open or modify; keep away from humidity, dust, and magnetic fields; mount on sturdy surface
Included Accessories	User manual, mounting template, 4 machine screws, 4 dry wall anchors, secondary video BNC cable, L-key, DC plug power cable

Frequently Asked Questions - Star-Light AHD DWC-B6763WTIR650 Digital Watchdog

How do I connect the camera to an AHD DVR?

Use a coaxial cable to connect the camera's BNC video output to the DVR's BNC input. For UTP connections, set the internal UTP/COAX switch to UTP and connect via twisted pair. Ensure the switch matches the connection type.

What is the maximum IR distance and how does Smart IR work?

The camera provides Smart IR up to 150ft (for the 6-50mm model). Smart IR adjusts the IR intensity to prevent overexposure of nearby objects, optimizing image clarity at different distances.

How do I adjust the camera angle?

Rotate the camera body carefully, but do not exceed 360 degrees or twist excessively to avoid damage. Use the L-key to loosen the bracket joint, adjust the angle, and tighten.

How do I access the OSD menu?

Remove the lens cover by rotating it counter-clockwise. Use the built-in joystick to navigate the OSD menu. Press the joystick to select and move up/down/left/right to change settings.

What should I do if there is no video output?

Check the coaxial/UTP connection and ensure the internal switch matches the cable type. Verify power supply voltage and current. Also check the lens iris adjustment in the OSD menu.

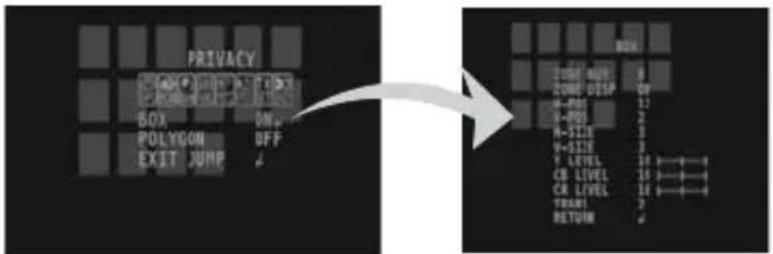

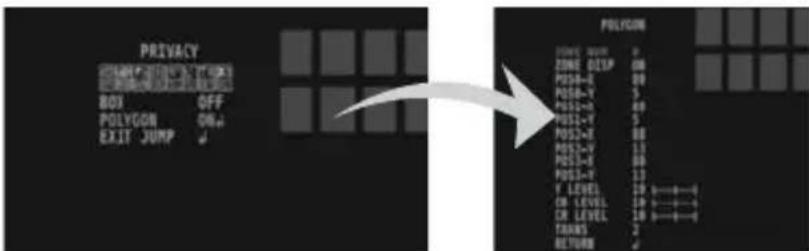

How do I set up privacy zones?

Go to the PRIVACY menu in the OSD. Choose BOX or POLYGON masks. Enable the zone, then adjust position (H-POS, V-POS) and size (H-SIZE, V-SIZE) for box masks, or modify corner coordinates for polygon masks. Up to 8 zones are available.

What power supply is compatible?

The camera accepts 12VDC or 24VAC dual voltage with auto polarity detection. Use a regulated power supply that can provide the required current (max 412mA at 12VDC with IR on).

How do I clean the camera?

Use a soft cloth moistened with a mild detergent solution to gently wipe the housing. Avoid abrasive cleaners or solvents. For the lens, use a lens cleaning cloth to remove fingerprints or dirt.

What is the STABILIGHT feature?

STAR-LIGHT (or Starlight) is a slow shutter function that activates when the scene is too dark, allowing the camera to capture more light. It can be set from OFF to x2~x34, but high values may cause image lag.

How can I reset the camera to factory defaults?

In the SETUP menu, select INITIAL. Press and hold the joystick select button for 5 seconds to reset all settings to default. Alternatively, you can use the EXIT menu and choose INITIAL.

USER MANUAL Star-Light AHD DWC-B6763WTIR650 Digital Watchdog

STAR-LIGHT AHD™ Analog High Definition Bullet Camera

DWC-B6763WTIR

DWC-B6763WTIR650

STAR-LIGHT AHD ^TM

Super Low Light Analog HD Cameras

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

PRECAUTIONS

■ Do not open or modify.
- Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.
■ Do not put objects into the unit.
- Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
■ Be careful when handling the unit.
■ To prevent damages, do not drop the camera or subject it to shock or vibration.
■ Do not install near electric or magnetic fields.
■ Protect from humidity and dust.
■ Protect from high temperature.
- Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high levels.
- Cleaning: To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

■ Mounting Surface: The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference, when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction Features 4
Parts and Descriptions ____ 5
Dimensions 6-7

Installation ____ Inside the Box ____ 8

Installation Instructions ____ 9

Connecting to Monitors 10 ____

Control Board 11

Adjusting the Camera Angle ____ 12

Module OSD Menu 13-25

Troubleshooting 26

Warranty Information 27-28

Specifications 29-30

FEATURES\*

■ Analog High Definition (AHD) HD over Coax Technology
■ STAR-LIGHT™ Super Low Light Technology
■ Panasonic 1/3" CMOS Sensor
■ 1080P Resolution at 30fps
■ Wide Dynamic Range (WDR)
■ Varifocal P-Iris Lens from 2.8\~12mm [DWC-B6763WTIR Models]
■ Varifocal P-Iris Lens from 6\~50mm [DWC-B6763WTIR650 Models]
■ Smart IR™ with Intelligent Camera Sync. 100-150ft Range
■ Smart DNR™ 3D Digital Noise Reduction
■ Highlight Masking Exposure (HME)
■ True Day/Night Mechanical IR Cut Filter
■ Auto Sensing 24VAC/12VDC with Line Lock
■ Secondary Video-BNC Output (While UTP in use)
■ Easy Icon Driven OSD Menu with Built-in Joystick
■ Programmable Privacy Zones
■ Auto Gain Control (AGC)
■ Back Light Compensation (BLC)
■ Dynamic Range Compressor (DRC) Reveals Low Light Detail
■ Auto White Balance (AWB)
■ RS-485 Built-in
■ IP66 Certified (Weather Resistant)

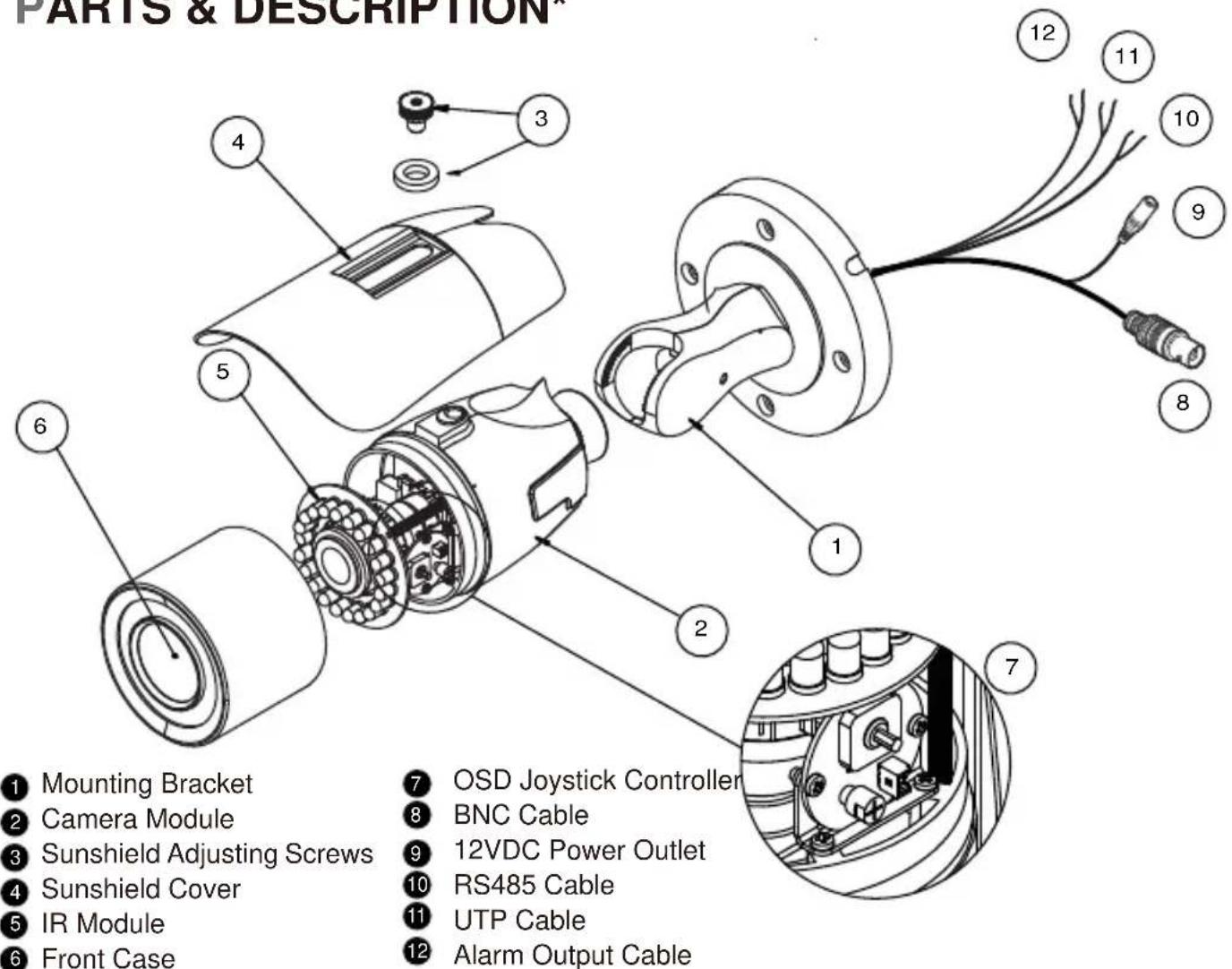

PARTS & DESCRIPTION*

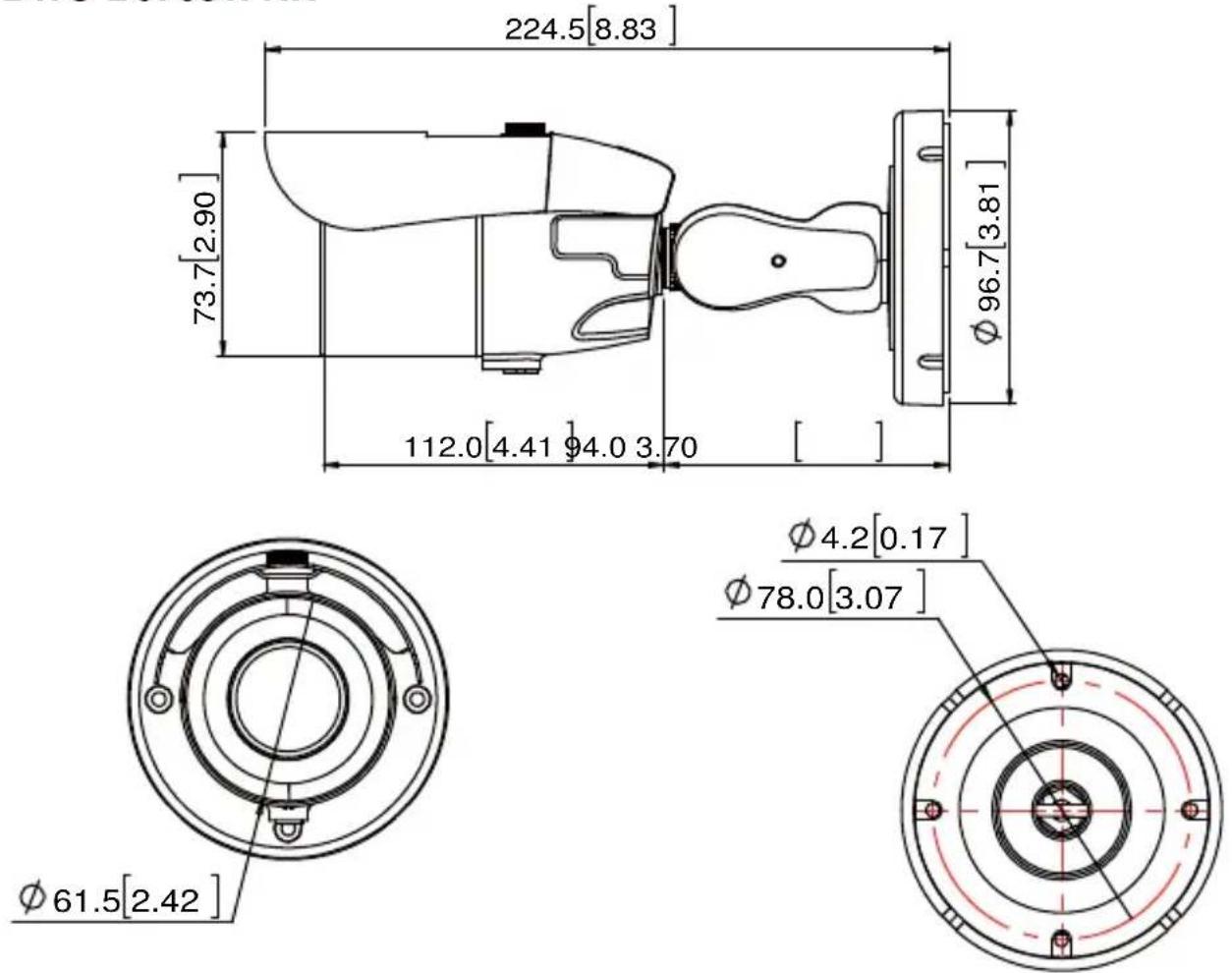

DIMENSIONS IN MILLIMETERS (IN)\*

DWC-B6763WTIR

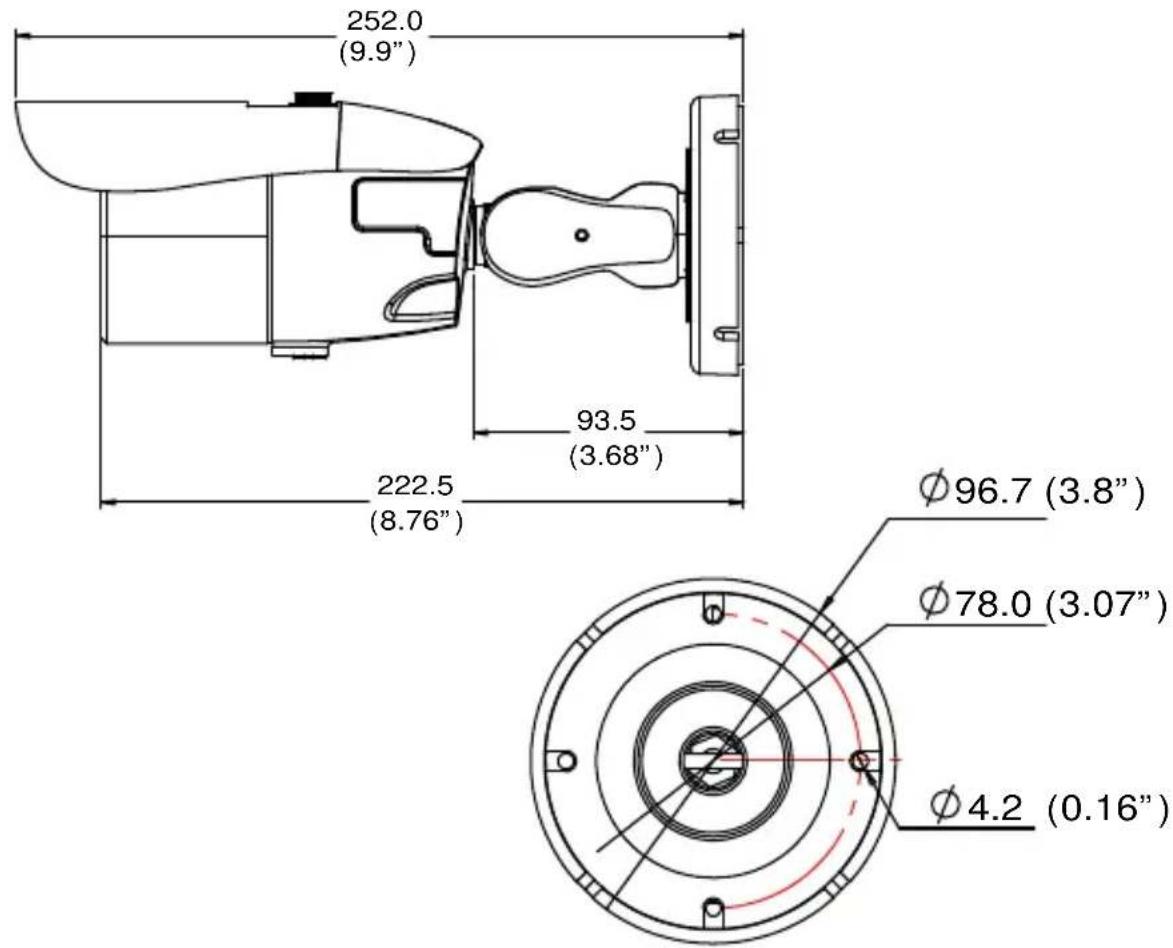

DIMENSIONS IN MILLIMETERS (IN)\*

DWC-B6763WTIR650

INSIDE THE BOX\*

Included with Bullet Camera:

1 User Manual
2 Mounting Template
3 4 Machine Screws and 4 Dry Wall Anchors

4 Secondary Video-BNC Cable
5 L-Key
6 DC Plug Power Cable

Simple line drawing of a medical or laboratory device with a bulbous tip and curved body, labeled with number 4 (no text or symbols on the device itself)

Simple line drawing of a bent tool with a circular badge containing the number 5 (no text or symbols on the tool itself)

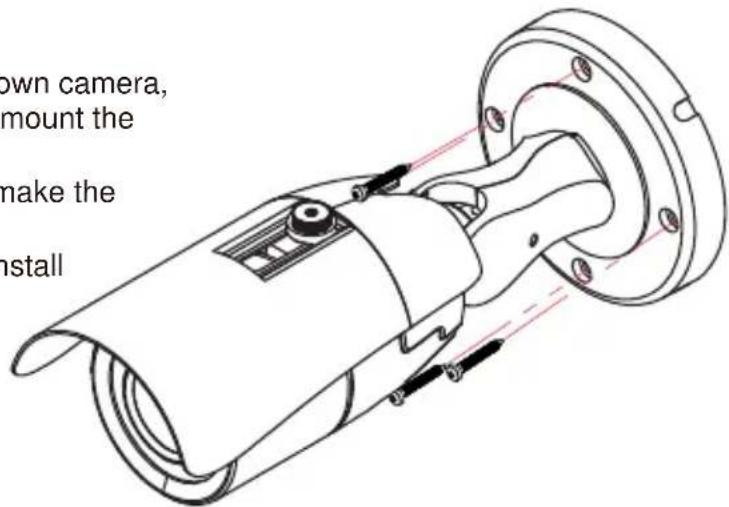

INSTALLATION INSTRUCTIONS\*

1. Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling.
2. Pull all necessary wires through and make the proper connections.
3. Use the four (4) mounting screws to install the camera on the wall or ceiling.

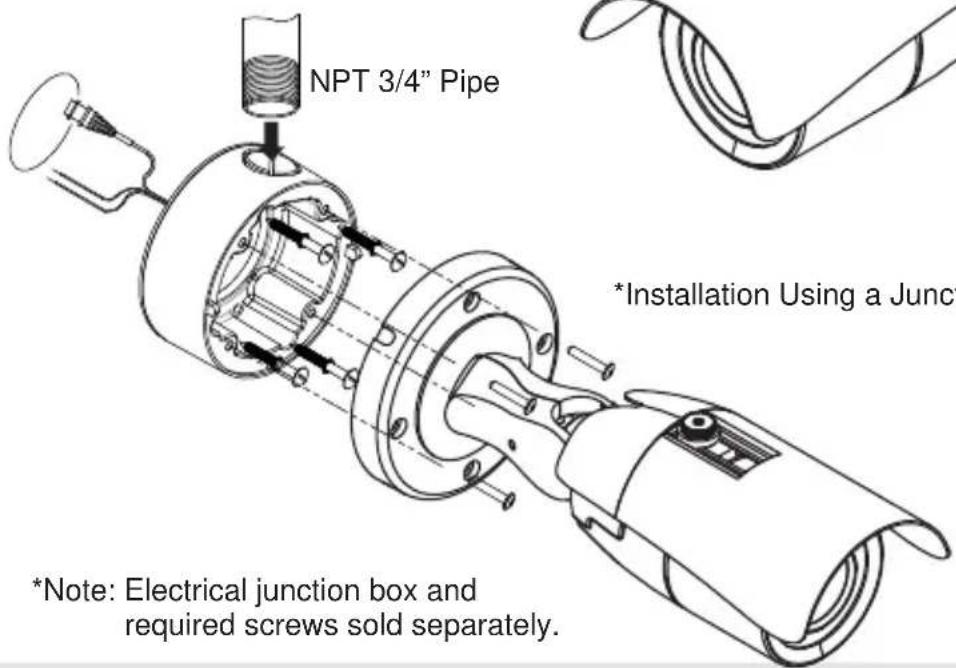

*Installation Using a Junction Box

*Note: Electrical junction box and required screws sold separately.

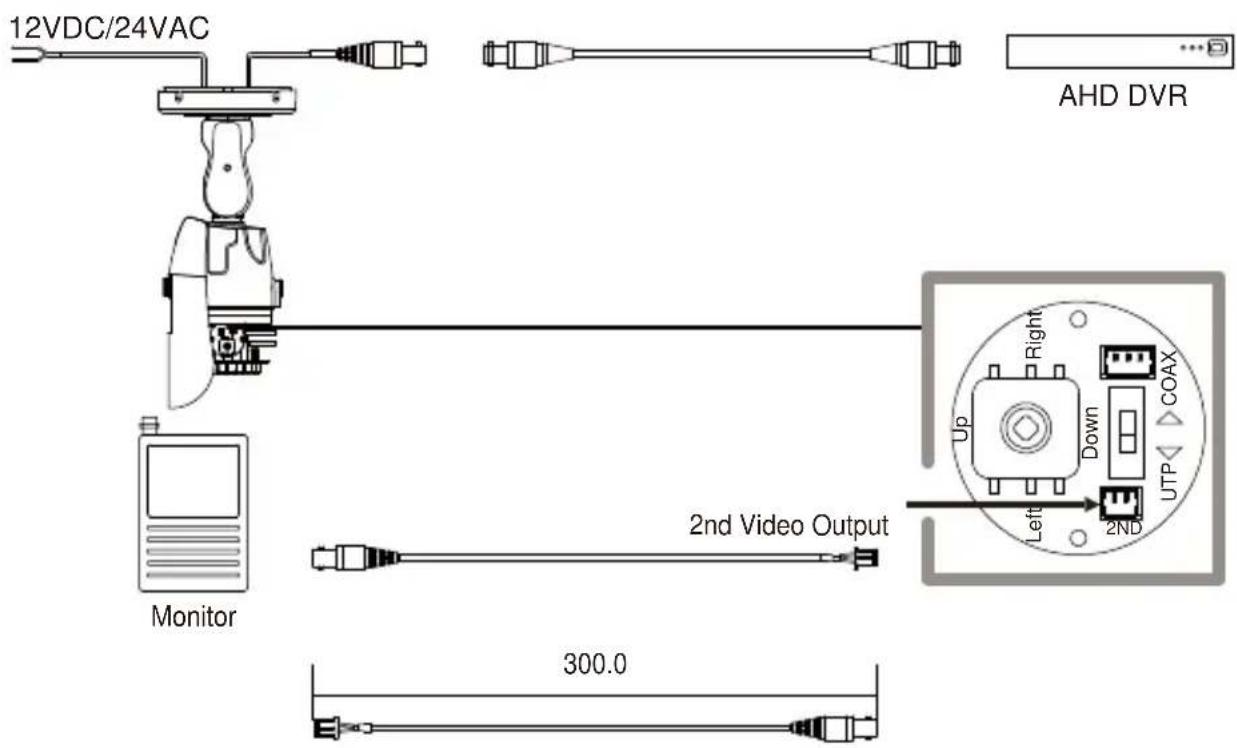

CONNECTING TO MONITORS\*

Use the diagram below to connect to an AHD DVR or CRT Monitor properly.

■ Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection)
■ All cameras are equipped with a second video output for on-site configuration.
■ NOTE: Make sure the UTP/ COAX switch is set to the proper connection. If the switch is set, for example to UTP, but the camera is connected via Coax, the video from the camera will appear black.

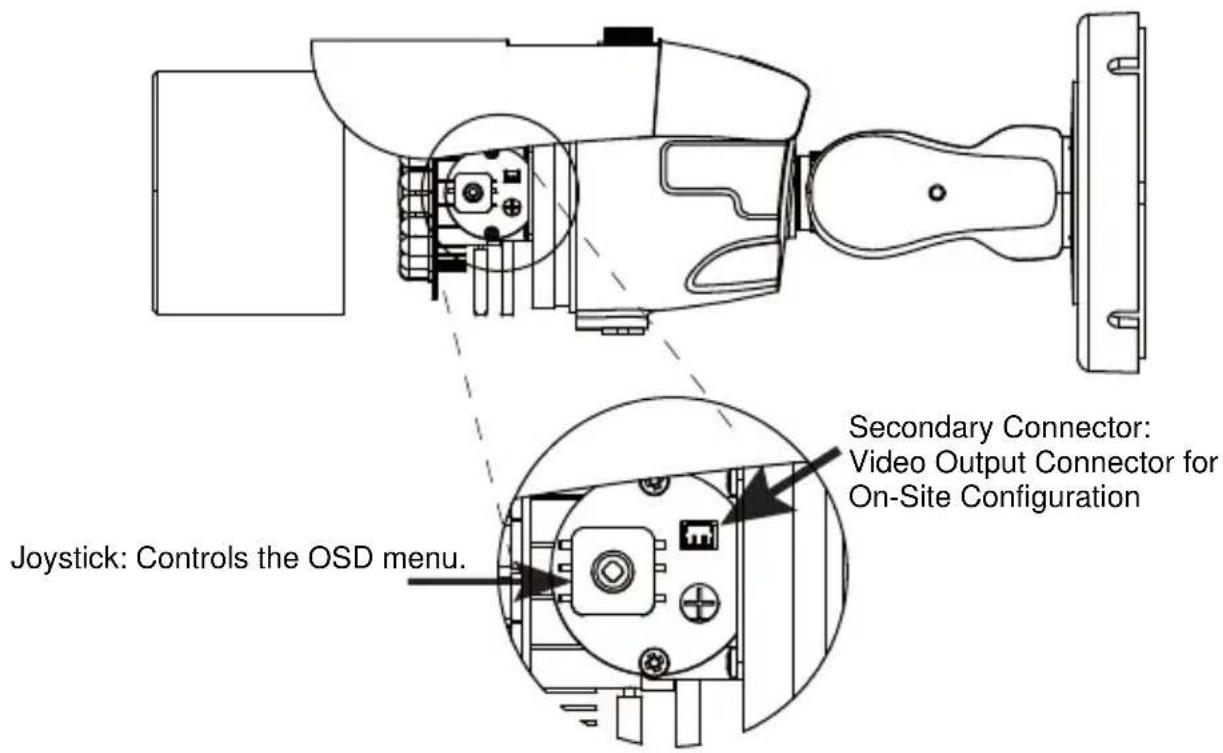

CONTROL BOARD\*

Remove the camera's lens cover by rotating it counter-clockwise.
② Use the Joystick to control the camera's OSD options.

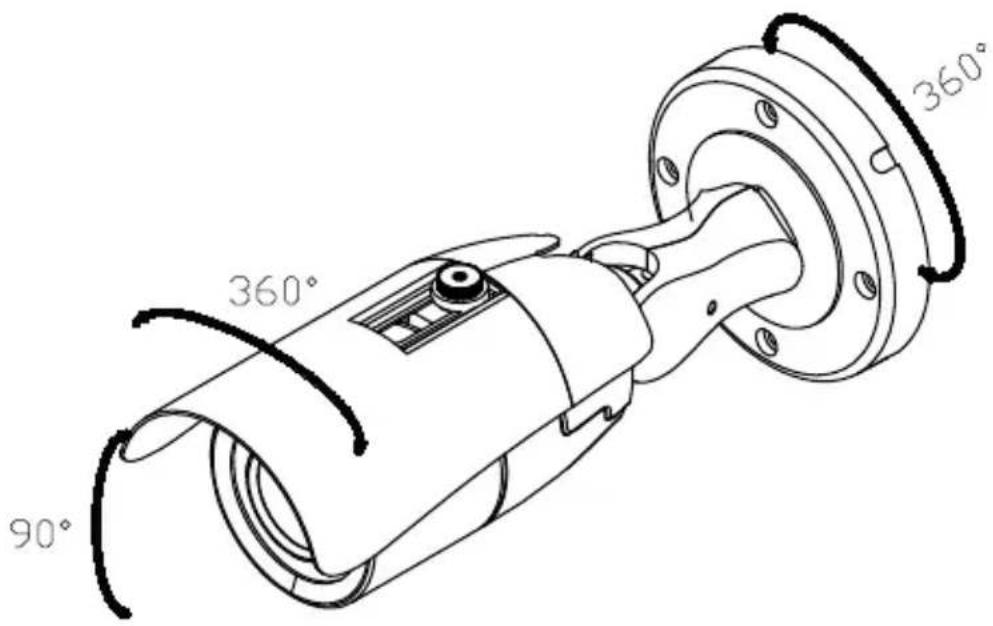

ADJUSTING THE CAMERA ANGLE\*

CAUTION :

1 Do not rotate more than 360^ .
② Do not unnecessarily twist too many times.

MODULE OSD MENU*

EXPOSURE	COLOR	DAY & NIGHT	FUNCTION
	WB BAL.AUTO / AUTO-EX / PRESET/MANULALCOLOR GAIN0~20EXIT JUMPSAVE & EXIT / EXIT	D&N MODEAUTO / COLOR / BW / EXTERNAGC THRES0~20AGC MARGIN0~20EXT LEDOFF / AUTODELAYLOW / MIDDLE / HIGHSMART IR0~20EXIT JUMPSAVE & EXIT / EXIT	SHARPNESS0~10GAMMA0.45 ~ 0.75MIRROROFF / ONFLIPOFF / OND. ZOOMx1.0 ~ x16.0EXIT JUMPSAVE & EXIT / EXIT
MOTION	PRIVACY	SETUP	EXIT
	BOXOFF / ONPOLYGONOFF / ONEXIT JUMPSAVE & EXIT / EXIT	COMMUNICA.CAM TITLEOFF / ONIMAGE RANGEFULL / COMP / USERFRAME RATE720_50P/60P / 720_25P/30P/1080_25P/30PFREQUENCY50Hz / 60HzLANGUAGEENG / CHN / CHN (S) / JPN / KORDEFECT DETONINITIALONEXIT JUMPSAVE & EXIT / EXIT	SAVERESTOREEXIT

EXPOSURE

LENS

MANUAL/ Manual mode supports the fixed board lens or the manual iris lens. AUTO AUTO mode sets the camera's iris automatically.

• Level: Change the camera's iris value manually. If AUTO is selected, this option is disabled.
• Brightness: Adjust the camera's brightness from 0\~20. The higher the number, the brighter the image will appear.

- Shutter: Set the shutter speed to AUTO, Manual, or FLC (Flicker-less mode).

• If AUTO is selected, select from the following options:
• NORMAL: Set when the camera is installed in an indoor environment.
• DEBLUR: Set when the camera is installed in an outdoor environment.

- Select FLC if the camera is experiencing some flickering in the image. The shutter speed will be set to 1/100 for NTSC, or 1/120 for PAL.

- If Manual is selected, set the shutter speed from the options: 1/30, 1/60, 1/120 \~ 1/30000.

- Focus Adjustment: When on, the default level is set automatically by controlling lens focus and based on the installation and environment circumstances.

EXPOSURE

BACKLIGHT

OFF

HME HIGHLIGHT MASKING EXPOSURE

HME allows objects to appear clearly on the screen by masking extremely bright areas. To setup HME, set the level and color. The lower the setting, the darker the masking areas have to be. Select from: 0 \~ 10.

Color: Set the color of the HME mask. Select from: BLACK / WHITE / YELLOW / CYAN / GREEN / MAGENTA / RED / BLUE

BLC BACK LIGHT COMPENSATION

If BLC is selected, adjust the size nad position of the mask:

- H-POS: Move the Zone position left or right. The higher the number, the zone will move to the right.

- V-POS: Move the Zone position up or down. The higher the number, the zone will move down.

- H-Size: Reset the zone's size horizontally. The higher the number, the right side panel will move further to the right.

- V-Size: Reset the zone's size vertically. The higher the number, the bottom side panel will move further down.

WDR Wide Dynamic Range

If WDR is selected, adjust the WDR level (Weight) in the submenu. Select from Low, Middle, or High (Default).

EXPOSURE

DRC DYNAMIC RANGE COMPRESSOR

DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: OFF / ON.

NOTE: If WDR or DEFOG are enabled, the DRC settings are set automatically and will not be available for adjustment.

DEFOG Allows the camera to process a scene that is obscured by fog or weather conditions and provides a visibly improved image.

AUTO / Manual: Select AUTO to have the WDR and DRC levels adjusted automatically. Set the DEFOG level from LOW / MIDDLE / HIGH.

AGC AUTO GAIN CONTROL

0\~10 AGC enhances the picture brightness in low light conditions. A higher level AGC setting makes the images brighter; however, it could increase the amount of noise.

STARLIGHT Automatically activates slow shutter function when the image is too dark.

OFF / x2 \~ x34 High values are not recommended as they may cause the image to lag.

(Default: X4) Starlight menu cannot be controlled if the SHUTTER setting is above 1/60.

3D DNR 3D DIGITAL NOISE REDUCTION

OFF/ LOW/ 3D-DNR reduces the noise on the screen in low light conditions and MID/ HIGH allows for clearer images, even at night.

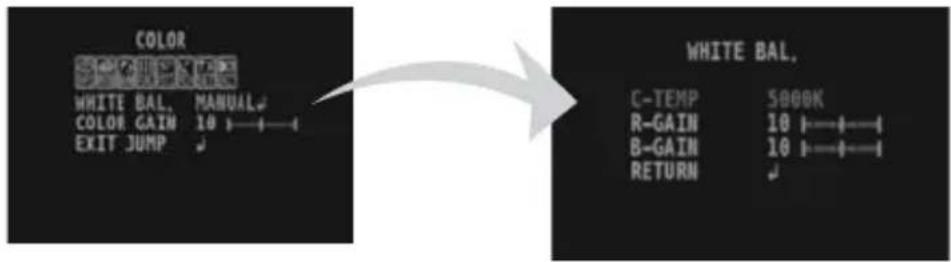

COLOR

WB MODE

ATW Auto Tracking White Balance Control mode compensates for color temperature changes between ° and 24000K°.

AWB Auto White Balance Control mode compensates for color temperature changes lower than 2000K ^° and higher than 15000K ^° .

PUSH Push fixes the white balance based on the current lighting automatically.

MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below).

C-TEMP: Select the color temperature for the white balance setup. If enabled, the Red and Blue Gain settings will be set automatically according to the C-TEMP selected.

RED GAIN: 0 \~ 20. Adjusts the amount of red in the image.

BLUE GAIN: 0 \~ 20. Adjust the amount of blue in the image.

COLOR GAIN

Set the color gain from 0\~20.

DAY & NIGHT

D&N MODE

AUTO / Day/ Night switch will be based on the AGC levels.

COLOR / The camera always stays in day/color mode.

B&W The camera always stays in night/B&W mode.

EXTERN Day/ Night switch will be based on using IR LED lights.

AUTO:

• AGC Threshold: Set when the camera switches between Day & Night.
• AGC Margin: Set the value added to the AGC Threshold. Adjust the value based on the environment in which the camera is installed. If the margin is too low, the camera will switch from color to B/W and back.

EXT.:

- CDS Threshold: Marks the light level at which the camera will switch between color and B/W.

The lower the value, the camera will require less light (more darkness) to switch to Night Mode.

- CDS Margin: The value added to the CDS Threshold. Adjust this based on the environment in which the camera is installed. If the margin is too low, the camera will switch from color to B/W and back.

EXT LED

AUTO / AUTO: The LEDs are enabled/ disabled by the CDS Sensor on the LED Board.

OFF OFF: The camera's LEDs are disabled manually.

DELAY

Low/Mid/High Time interval delay before switching from day mode to night mode.

SMART IR

0 \~ 20 Enable Smart IR and set the level. Higher values will make Smart IR stronger.

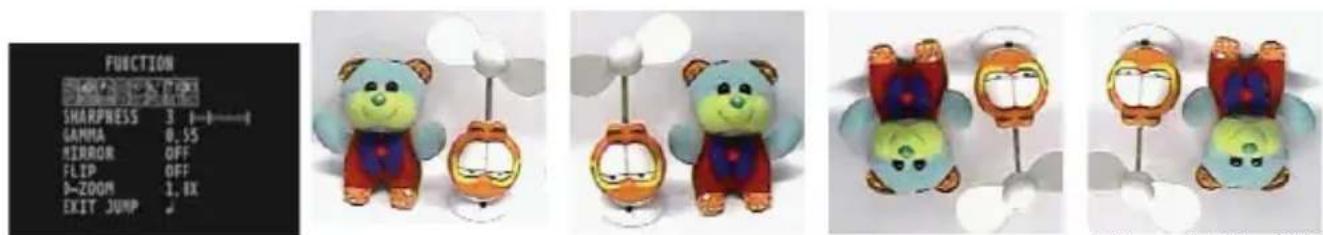

FUNCTION

SHARPNESS

0 \~ 10 Sets the image sharpness. The higher the number, the sharper the image.

GAMMA

0.45 \~ 0.75 Select the desired gamma level. 0.55 is default setting.

MIRROR / FLIP

OFF

MIRROR Reflects the camera horizontally.

FLIP Reflects the camera vertically.

Mirror & Flip ONFlip ONM

D-Zoom

x1 \~ x16 Enable or Disable Digital zoom to the camera's field of view. By default, the zoom will go to the center of the camera's Field of View.

MOTION

The camera can detect the movement and display an alarm on the screen when movement is detected.

MOTION To use the motion detection settings, be fore Motion is ON.

DET. WINDOW

- Window Use: Select which zone to setup from the 4 motion zones available.

- Window Zone: Enable or disable the selected motion zone.

- DET H-POS: Move the Zone left or right. The higher the number, the zone will move to the right

- DET V-POS: Move the Zone up or down. The higher the number, the zone will move down.

- DET H-Size: Adjust the zone's size horizontally. The higher the number, the right side panel will move further to the right.

- DET V-Size: Adjust the zone's size vertically. The higher the number, the bottom side panel will move further down.

SENSITIVITY

The smaller the movement you want to detect, the higher the sensitivity value must be.

MOTION OSD

If enabled, the text MOTION ZONE will appear on the screen indicating the area of motion detection.

TEXT ALARM

Setup a text to appear on the screen when motion is detected explaining the alarm situation.

• WINDOW MOTION: Will appear when a motion alarm is detected.
• CAMERA MOVING: Will appear if the camera is shaken abruptly.
• BRIGHT CHANGE: Will appear if the brightness in the scene changes suddenly and drstically.

SIGNAL OUT

If enabled, the camera can trigger an output when motion is detected.

PRIVACY

You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks.

BOX MASKS

- ZONE NUM.: Select the zone number you want to setup.

- ZONE DISP.: To enable it, turn the display option ON.

- H-POS: Move the Zone position Left or right. The higher the number, the zone will move to the right.

- V-POS: Move the Zone position up or down. The higher the number, the zone will move down.

- H-SIZE: Reset the zone's size horizontally. The higher the number, the right side panel will move further to the right.

- V-SIZE: Reset the zone's size vertically. The higher the number, the bottom side panel will move further down.

- Y LEVEL- The higher the number, the brighter the color will appear.

- CR LEVEL- The higher the number, the more red tone will be added to the zone's color. The lower the number, the more green will be added to the zone's color.

- CB LEVEL - High CB Level + High CR Level = Red High CB Level + Low CR Level = Blue Low CB Level + High CR Level = Orange

PRIVACY

You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. The cameras support square privacy masks or advanced polygon masks.

POLYGON MASKS

- ZONE NUM.: Select the zone number you want to setup.

- ZONE DISP.: To enable it, turn the display option ON.

-POS0-X: Move the mask's upper left angle left to right.

-POS0-Y: Move the mask's upper left angle up and down.

-POS1-X: Move the mask's upper right angle left to right.

-POS1-Y: Move the mask's upper right angle up and down.

-POS2-X: Move the mask's lower right angle left to right.

-POS2-Y: Move the mask's lower right angle up and down.

-POS3-X: Move the mask's lower left angle left to right.

-POS3-Y: Move the mask's lower left angle up and down.

- Y LEVEL- The higher the number, the brighter the color will appear.

- CR LEVEL- The higher the number, the more red tone will be added to the zone's color.

The lower the number, the more green will be added to the zone's color.

- CB LEVEL- High CB Level + High CR Level = Red

High CB Level + Low CR Level = Blue

Low CB Level + High CR Level = Orange

SETUP

COMMUNICATION

Adjust the camera's ID and Baudrate. Default Protocol is Pelco-D.

• CAM ID: Provide an ID number for the camera (0 \~ 255).
• BAUDRATE: 9600bps is default. Select the baudrate from the following options: 2400/4800/9600/57600/115200 bps.

CAM. TITLE

Add a name to the camera. Set the title by using the OSD joystick.

IMAGE RANGE

Image Range allows you to set the proper Black and White levels according to the external display you use.

FULL: Display all BLACK level and WHITE level without compression.

COMP: Display BLACK level and WHITE level with compression.

USER : Reset the BLACK level by changing the OFFSET value.

SETUP

FRAME RATE

Set the camera's display frame rate and resolution. Select from: 720-30P, 720-60P, 1080-30P. The camera may have to be rebooted after frame rate change.

FREQUENCY

When the camera's image appears to have flickering issues, change the frequency value to adjust the image.

LANGUAGE

Select from the following: English (Default), Chinese, Chinese (S), Japanese, and Koran.

DEFECT DET.

The camera can detect and correct dead pixels in the image. Press the select button and set the threshold level. The camera will detect and adjust the pixels automatically.

INITIAL

Reset the camera to its default settings. Press and hold the select button for five (5) seconds.

EXIT

EXIT

SAVE Exit the OSD menu after saving the recent changes.

INITIAL Exit the OSD menu after resetting the camera to factory default.

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact our technical specialist.

FOR NO VIDEO

Check the coaxial cable and make sure it is connected securely.

Check the lens' iris adjustment at the camera's OSD menu.

Check the power supply and make sure the camera has the proper voltage and current.

Check UTP/COAX switch inside the camera's housing and confirm the switch's position matches the signal connection type.

FOR OUT-OF-FOCUS VIDEO

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean. Check the lens' manual focal and zoom adjustment. The use of a field test monitor is recommended.

WARRANTY INFORMATION\*

Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows:

LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.

PARTS: In addition, the Warrantor will supply replacement parts for the initial five (5) years and one (1) year on IR LED.

To obtain warranty or out of warranty service, please contact a Technical Support Representative at 1+ [phone] Monday through Friday from 9:00AM to 8:00PM Eastern Standard Time.

A purchase receipt or other proof of the original purchase date is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damage which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

LIMITS & EXCLUSIONS\*

There are no express warranties except as listed. The warrantor will not be liable for incidental or consequential damages (including damage to recording media without limitation) resulting from the use of these products or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitatons on how long an implied warranty lasts, so the exclusions or limitations listed above may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state.

If the problem is not handled to your satisfaction, then write to the following address:

Digital Watchdog, Inc.

ATTN: RMA Department

5436 W. Crenshaw Street

Tampa, FL 33634

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Costs of such service calls are the responsibility of the purchaser.

SPECIFICATIONS*

VIDEO
Image Sensor Panasonic 1/3" CMOS
Active Pixels 1944(H) x 1092(V)
Scanning System Progressive scan
Frequency		60Hz/50Hz
Signal Technology 2.0 Megapixel AHD
Synchronization		Internal
Resolution		1920x1080 (1080p)
Minimum Scene Illumination F1.4 (30 RE): 0.35Lux [Color]
F1.4 (30IRE): 0 Lux [B&W]
S/N Ratio		55dB
Video Output		AHD 1080p30fps/720p60fps/720p3
Alarm Output 1 Alarm Output
LENS
Focal Length 2.8 ~ 12mm, 6 ~ 50mm [B6763WTIR650]
Lens Type		Vari-Focal
IR Distance 100ft [B6763WTIR], 150ft [B6763WTIR650]
OPERATIONAL
Shutter Speed 1/30(25)-1/30,000
Backlight		Off/ On
STAR-LIGHT OFF, x2 -x32
Wide Dynamic Range (WDR) Off/ On

SPECIFICATIONS*

OPERATIONAL (CONT.)
Digital Noise Reduction Off, Low, Middle, High
White Balance Auto / Auto-Ex/ Preset / Manual
Day and Night Day/ Night/ Auto
Auto Gain Control Max 60dB
Privacy Zones 16 Privacy Zones
RS485/ UTP Built-in PELCO D/PELCO C
Digital Zoom x1.0 ~ x16.0
ENVIRONMENTAL
Operating Temperature -20°C ~ 50°C (-4°F ~ 122°F)
Operating Humidity No more than 90% (Non-Condensing)
IP Rating IP66 (Weather Resistant)
Other Certifications FCC, CE, ROHS
ELECTRICAL
Power Requirements DC12V/AC24V Dual Voltage
Power B6763WTIR DC12V: 3.1W, 258mA, LED On: 4.36W, 363mA
Consumption AC24V: 3.12W, 130mA, LED On: 4.4W, 183mA
B6763WTIR650 DC12V: 3.17W, 264mA, LED On : 4.95W, 412mA, AC24V: 3.12W, 130mA, LED On: 4.87W, 202mA
MECHANICAL
Housing Material and Dimensions Aluminum, 234.5 x 82.2 mm (9.23 X 3.23 in)
Weight	1.65lbs

*Specification is subject to change without prior notice.

MEMO*

DIGITAL WATCHDOG®

Complete Surveillance Solutions

Headquarters Office: 5436 W Crenshaw St, Tampa, FL 33634 Sales Office: 16220 Bloomfield Ave., Cerritos, California, USA 90703 PH: 866-446-3595 I FAX: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support PH:

USA & Canada 1+ [phone]

International 1+ [phone]

French Canadian 1+ [phone]

Technical Support Hours: Monday-Friday

9:00am to 8:00pm Eastern Standard Time
