Product Type	Super Speed Dome PTZ Security Camera
Model	Star-Light DWC-PTZ37XAL
Brand	Digital Watchdog
Image Device	1/4" Interline Transfer CCD
Effective Pixels	768 (H) x 494 (V), 380K
Horizontal Resolution	Color: 560 TV Lines, B/W: 680 TV Lines
S/N Ratio	52 dB (AGC Off)
Zoom	x37 Optical Zoom & x16 Digital Zoom (Total x592)
Focal Length	f = 3.5 (W) ~ 129.5 (T) mm, F1.6 (W) ~ 3.9 (T)
Angle of View	H: 55.5° (W) ~ 1.59° (T), V: 42.5° (W) ~ 1.19° (T)
Minimum Illumination	0.7 Lux (Color), 0.07 Lux (B/W) at F1.6, 50IRE
Shutter Speed	X512 ~ 1/120,000 sec
Day & Night	Auto / Day / Night (ICR)
Pan Range	360° (Endless)
Tilt Range	0° ~ 180° (Auto-Flip On), 0° ~ 90° (Auto-Flip Off)
Pan/Tilt Speed (Manual)	0.05° ~ 200°/sec (Zoom Proportional)
Presets	127 Presets with Labels
Patterns	4 Patterns
Scans	8 Scans
Groups	8 Groups (Max. 20 Entities per Group)
Privacy Zones	12 Zones
Video Output	CVBS: 1.0 V p-p / 75Ω
Communication	RS-485
Protocols	Auto, Pelco-D/P, Samsung, Panasonic, GE(Kalatel), AD
Alarm I/O	8 Inputs / 4 Relay Outputs
Power Requirements	AC 24V, 20W (Heater Off) / 50W (Heater On)
Weight (Net)	12.8 lbs (5.8 Kg)
Housing Material	Body: Aluminum Die-casting, Clear Bubble: Polycarbonate
Operating Temperature	-45° ~ 50° C (-49° ~ 122° F)
Approvals	FCC, CE, IP66, RoHS
Warranty	5 years parts and labor (1 year on IR LED)

Frequently Asked Questions - Star-Light DWC-PTZ37XAL Digital Watchdog

How do I set the camera ID using DIP switches?

The camera ID is set using binary DIP switches (pins 1-7) where each pin corresponds to a value: 1, 2, 4, 8, 16, 32, 64, 128. For example, to set ID=5, turn on pin 1 and pin 3 (1+4=5). The valid range is 0-255. Refer to the manual's DIP switch setup section.

What is the default communication protocol and baud rate?

The default protocol is 'Auto' which automatically detects Samsung-E or Pelco-D/P protocols. The default baud rate is 2400 BPS. These can be changed via DIP switches or OSD menu.

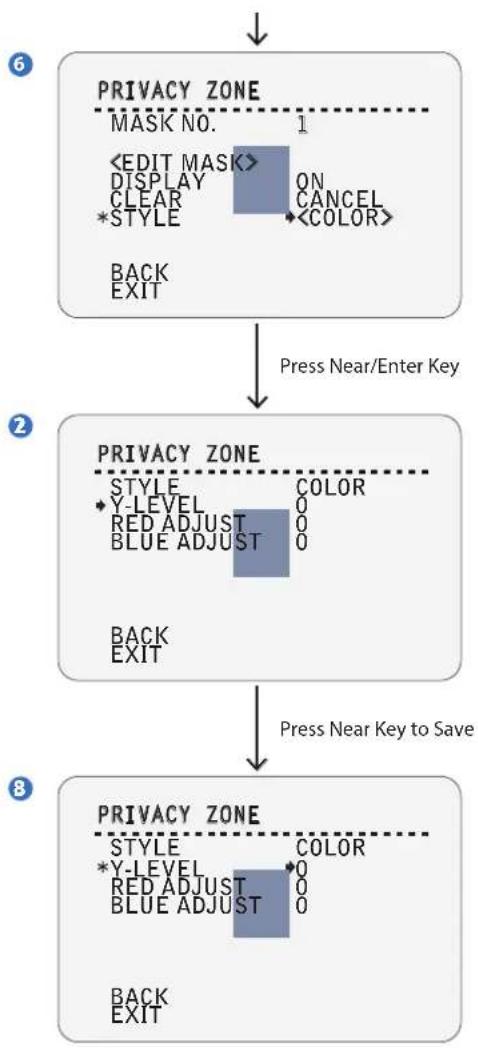

How do I configure privacy zones?

Go to OSD Menu > Display Setup > Privacy Zone. Select a mask number (1-12), enable it, then edit the mask position and size using the joystick. You can choose between color or mosaic styles.

What does 'Power Up Action' do?

When enabled, the camera resumes the last action performed before power loss (except jog actions). If set to 'PWR. P', it goes to a specific preset. It requires 'Focus Mode' to be 'Auto' for proper operation.

How do I set up a park action?

In OSD Menu > Motion Setup > Parking Action Setup, enable 'Park Enable', set a wait time (5 sec to 4 hours), and choose an action (Home, Preset, Scan, Pattern, or Group). The camera will execute that action if no PTZ command is received within the wait time.

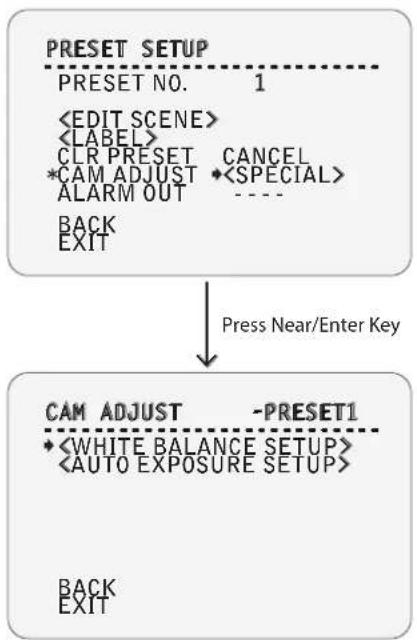

Can I adjust white balance for each preset separately?

Yes. In the Preset Setup menu, set 'Cam Adjust' to 'Special'. Then you can configure White Balance and Auto Exposure independently for that preset. During jog operation, general WB/AE is used.

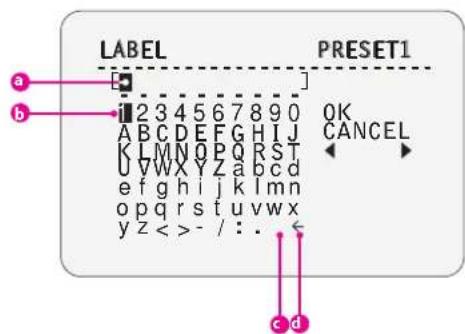

What is the maximum number of presets and how do I label them?

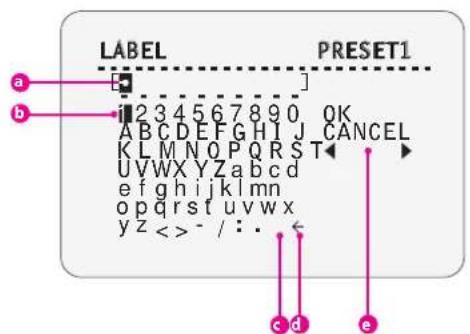

You can store up to 127 presets (1-128 excluding 95). Each preset can have a label of up to 10 characters. Use the OSD menu to enter labels via an on-screen keyboard.

How do I reset the camera to factory defaults?

Go to OSD Menu > System Initialize. You can clear all data or selectively reset display, camera, motion, or function settings. There is also an option to reboot the camera or system.

What is the proper way to clean the dome cover?

Use a dry cloth to clean the dome cover. Avoid liquid cleaners to prevent damage. Do not remove the protective film until after installation to avoid scratches and dust.

The camera is not responding to PTZ commands. What should I check?

Verify the DIP switch settings for protocol and baud rate match your controller/DVR. Ensure RS-485 connections are correct and termination resistor is set properly (normally off). Check the camera ID matches the controller's CAM ID setting.

USER MANUAL Star-Light DWC-PTZ37XAL Digital Watchdog

Line drawing of a security guard dome (no text or symbols)

Super Speed Dome x37 PTZ Outdoor All in One Dome Camera

User's Manual

Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning Precaution

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause excessive heat generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
6. Do not place conductive objects (e.g. screw drivers, coins, metal items, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power sore and contact the service center. Continued use in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way.
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.

Precaution

Operating

• Before using, make sure power supply and all other parts are properly connected.
• While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and contact your dealer.

Handling

• Do not disassemble or tamper with parts inside the camera.
• Do not drop the camera or subject it to shock or vibration as this can damage the camera.
• Clean the clear dome cover with extra care. Scratches and dust can ruin the quality of the camera image.

Installation and Storage

• Do not install the camera in areas of extreme temperature, exceeding the allowed range.
• Avoid installing in humid or dusty environments.
• Avoid installing in places where radiation is present.
• Avoid installing in places where there are strong magnetic fields and electric signals.
• Avoid installing in places where the camera would be subject to strong vibrations.

• Never expose the camera to rain or water.

• Read these instructions. - All these safety and operating instructions should be read before the product is installed or operated.

• Keep these instructions. - The safety, operating and use instructions should be retained for future reference.
• Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

• Follow all instructions. - All operating and use instructions should be followed.

• Do not use this device near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.

• Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhere to.

• Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

1. Introduction

5 Product & Accessories
6 Parts Name & Functions_Appearance
7 Parts Name & Functions_Inside

2. Installation

8 Installation
13 DIP Switch Setup
15 Cabling

3. OSD Menu

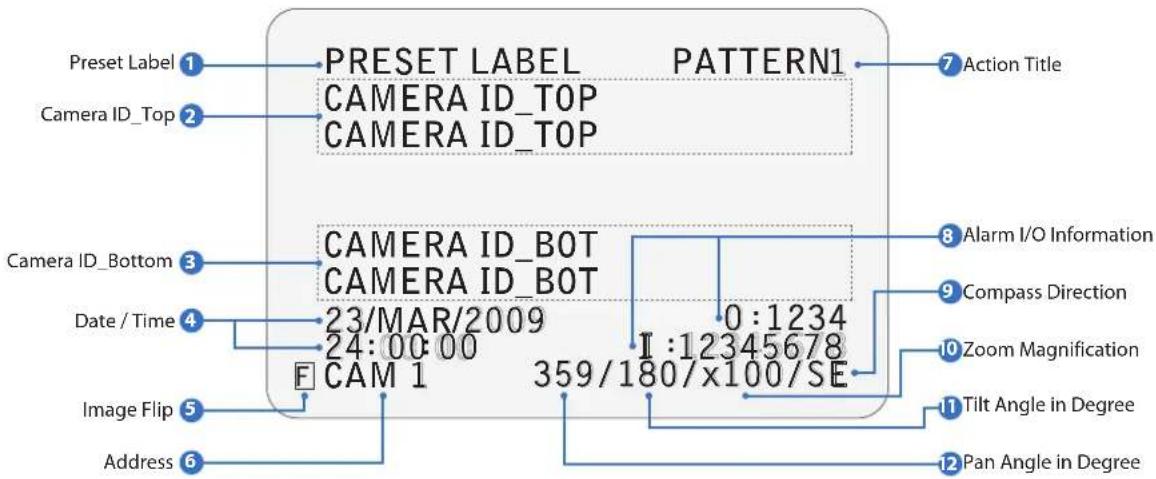

17 OSD Information

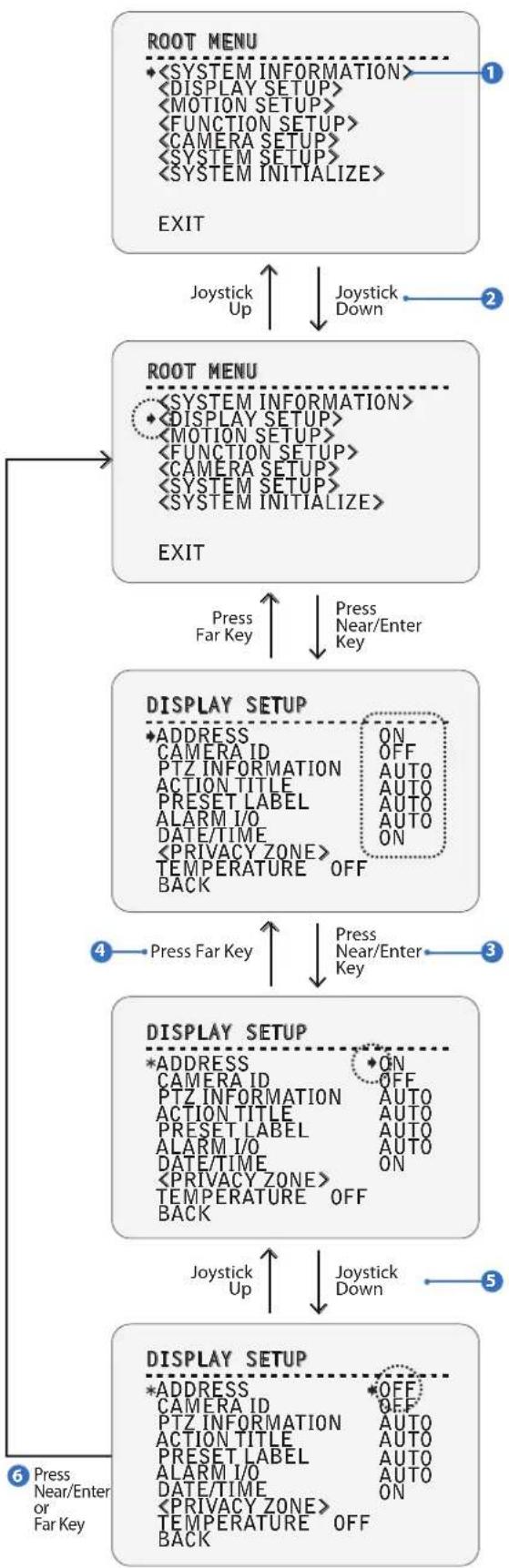

18 General Rules of Menu Operation

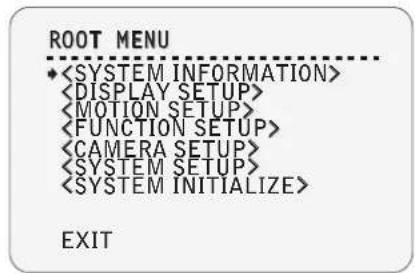

19 ROOT MENU & SYSTEM INFORMATION

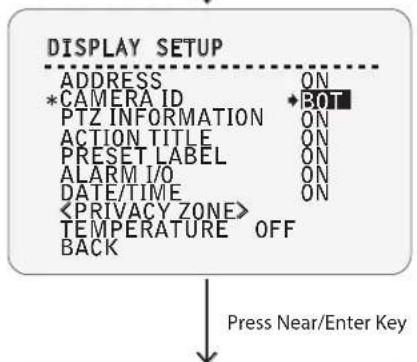

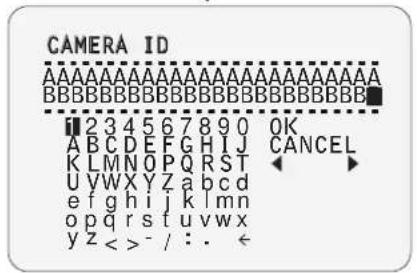

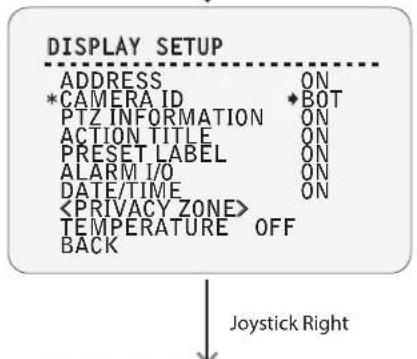

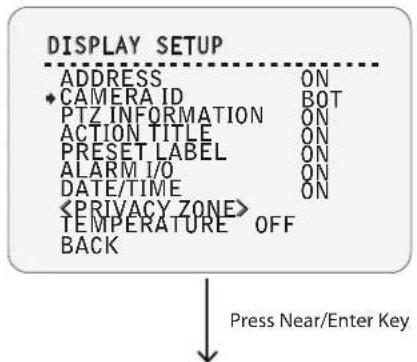

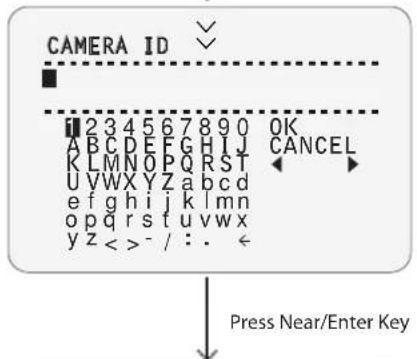

20 DISPLAY SETUP > CAMERA ID

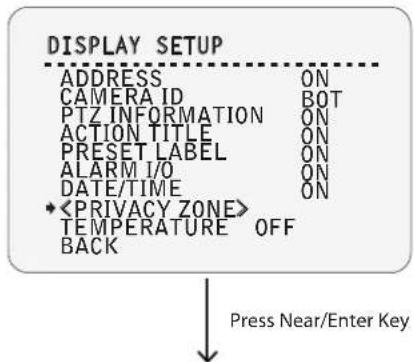

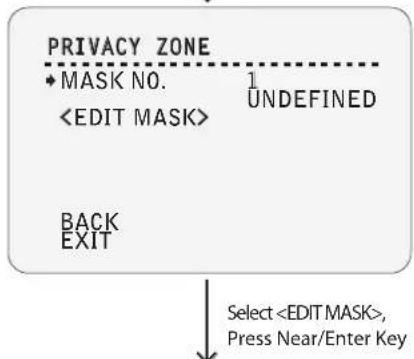

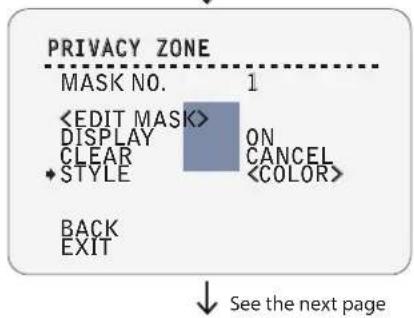

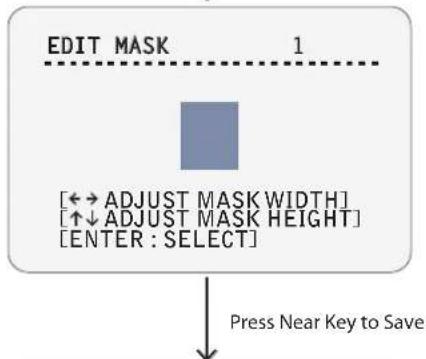

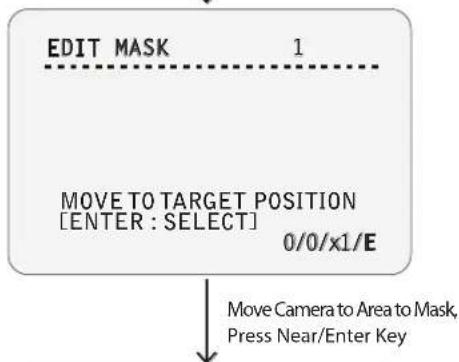

21 DISPLAY SETUP > PRIVACY ZONE

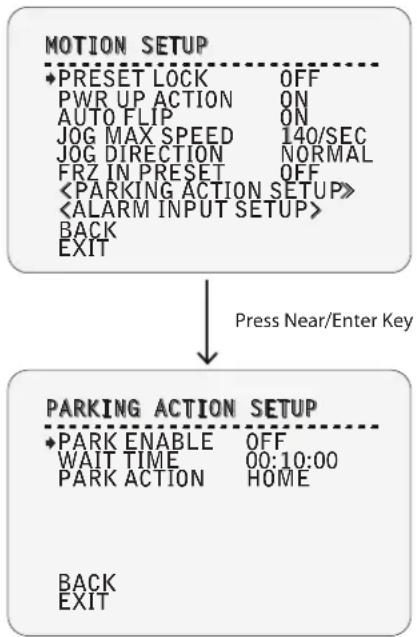

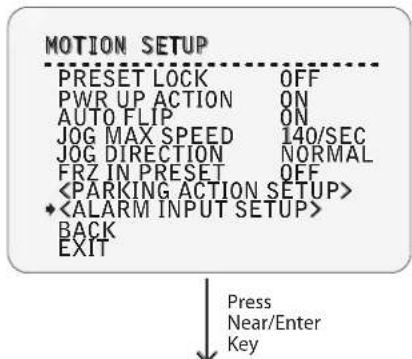

23 MOTION SETUP

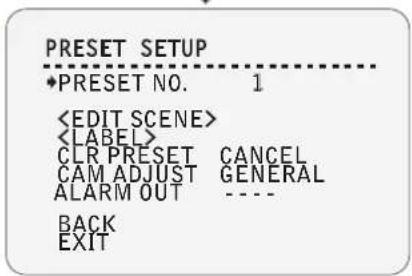

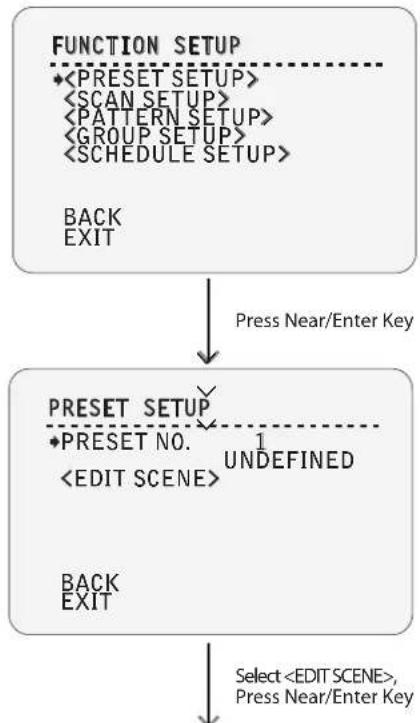

25 FUNCTION SETUP > PRESET SETUP

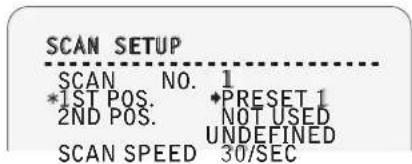

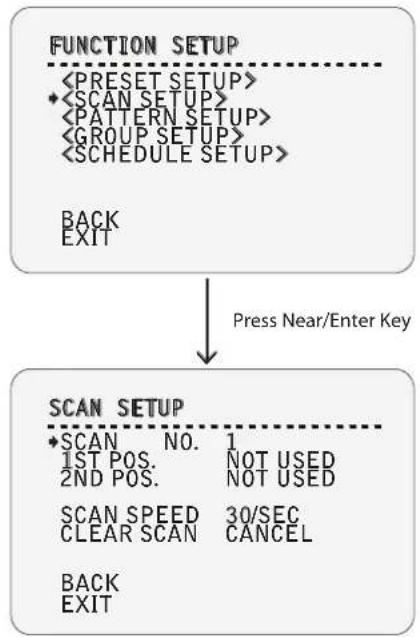

27 FUNCTION SETUP > SCAN SETUP

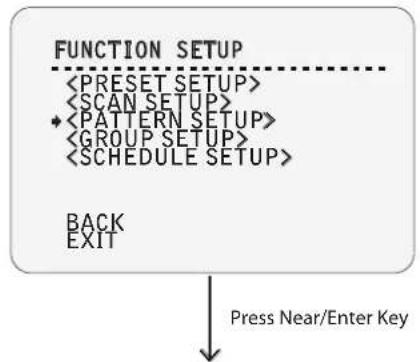

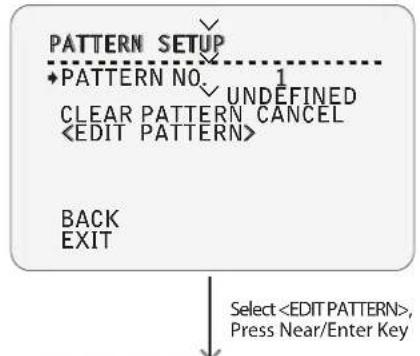

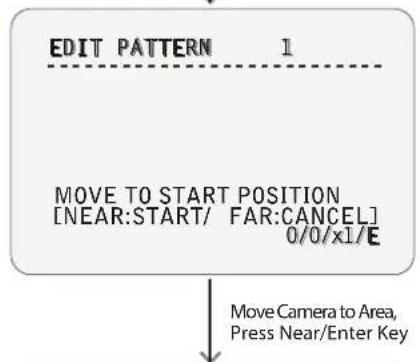

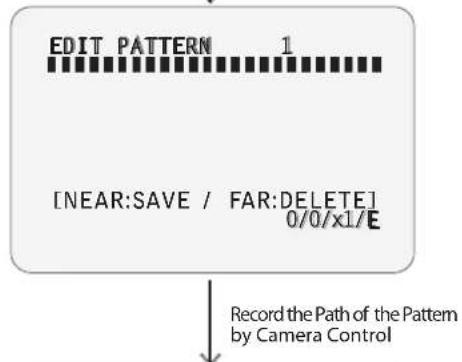

28 FUNCTION SETUP > PATTERN SETUP

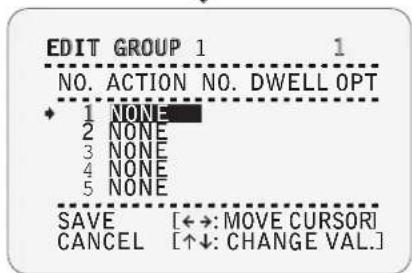

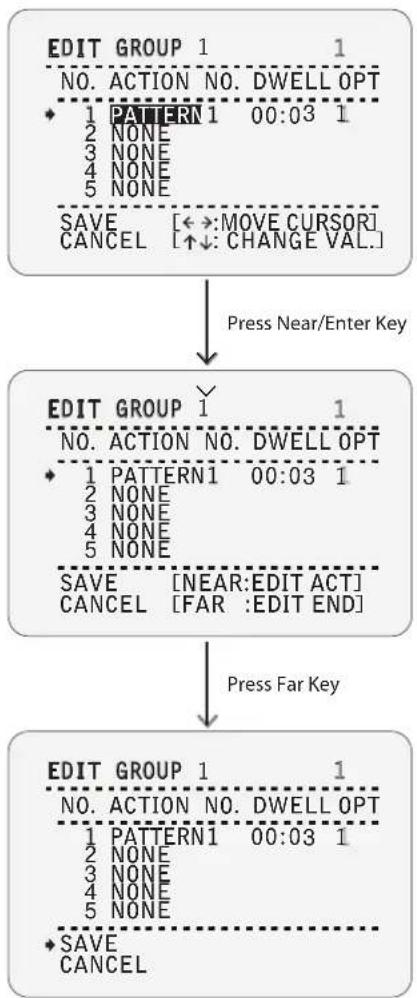

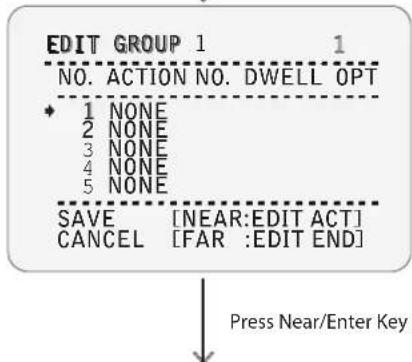

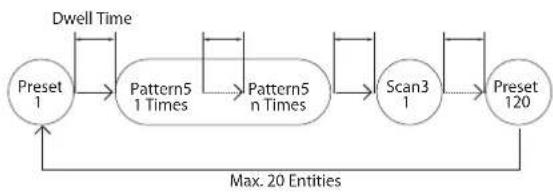

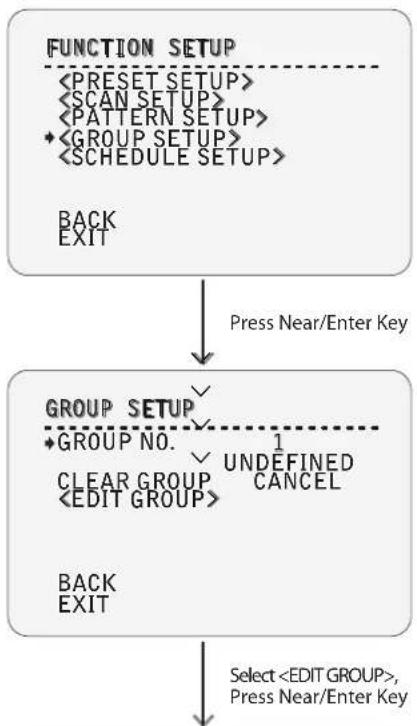

29 FUNCTION SETUP > GROUP SETUP

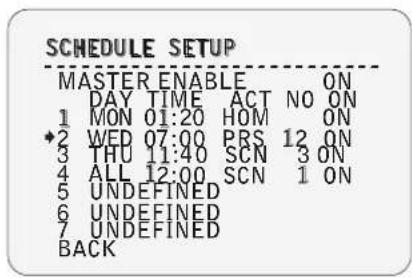

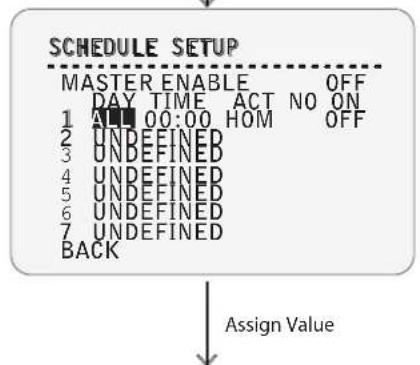

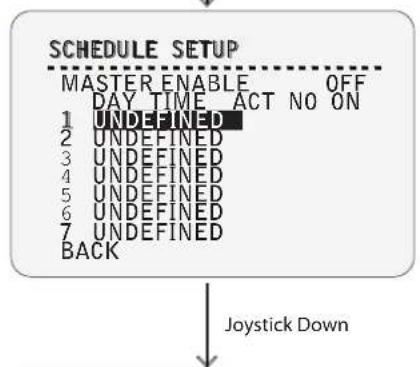

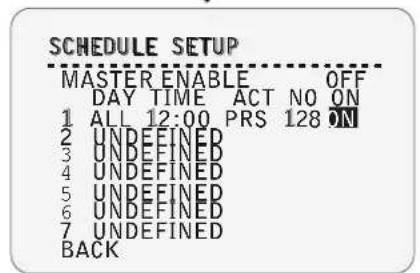

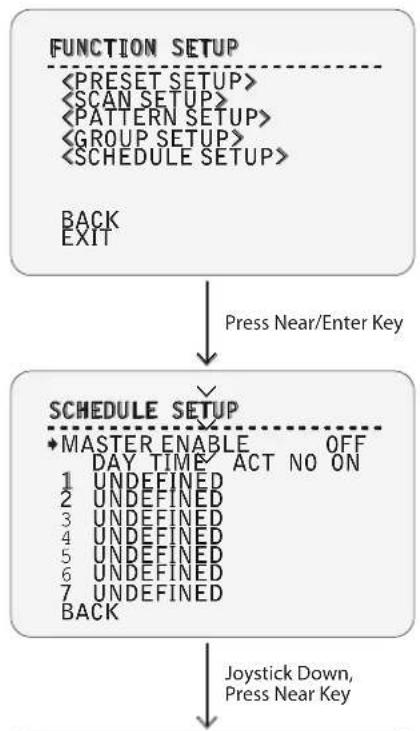

31 FUNCTION SETUP > SCHEDULE SETUP

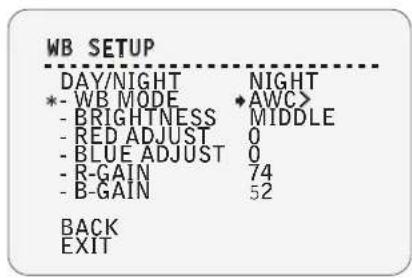

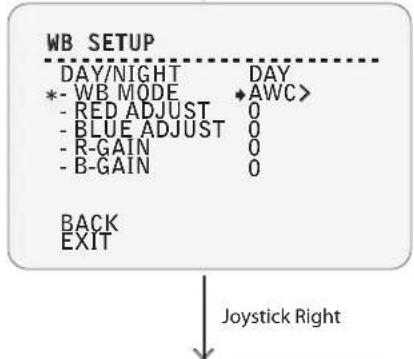

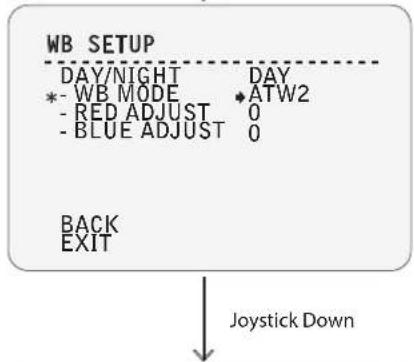

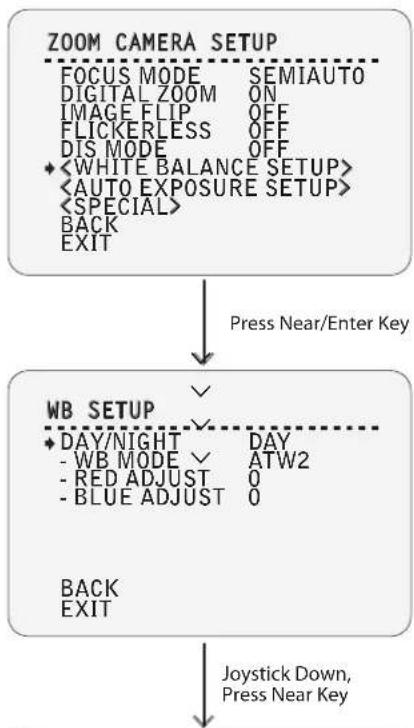

33 CAMERA SETUP > WB SETUP

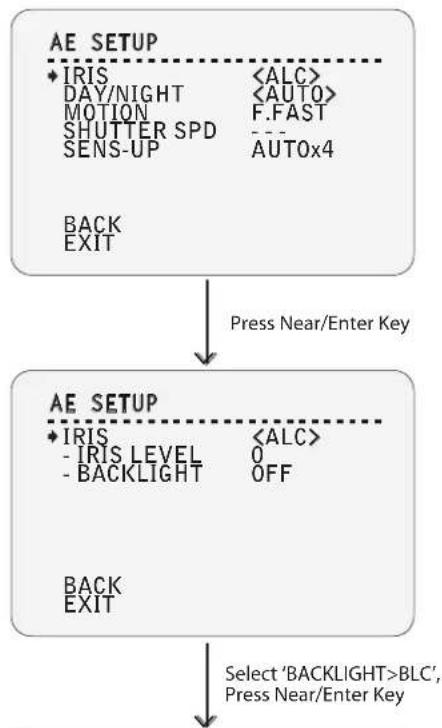

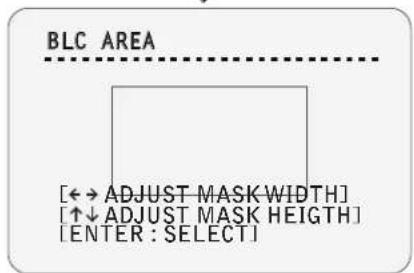

35 CAMERA SETUP > AE SETUP
37 CAMERA SETUP > SPECIAL
38 SYSTEM SETUP

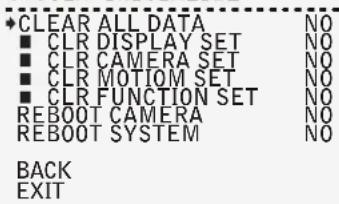

40 SYSTEM INITIALIZE

4. Specifications

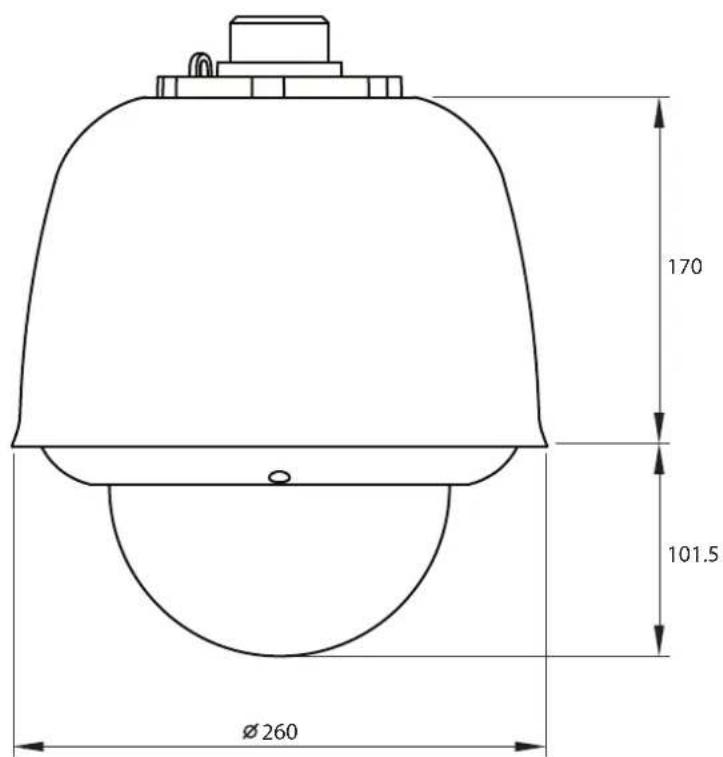

41 Dimension
42 Specification
43 WARRANTY INFORMATION
44 LIMITS AND EXCLUSIONS

1 Introduction - Product & Accessories

Please check if all the camera and accessories are included in the package.

Product Accessories

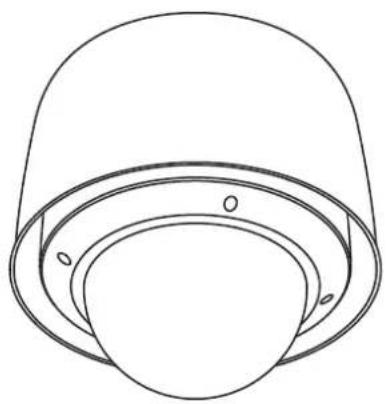

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

All-In-One Camera

Hexagonal Wrench

Manual CD

Quick Manual

NOTE: Mounting Accessories sold separately.

1 Introduction - Part Name & Functions\_Appearance

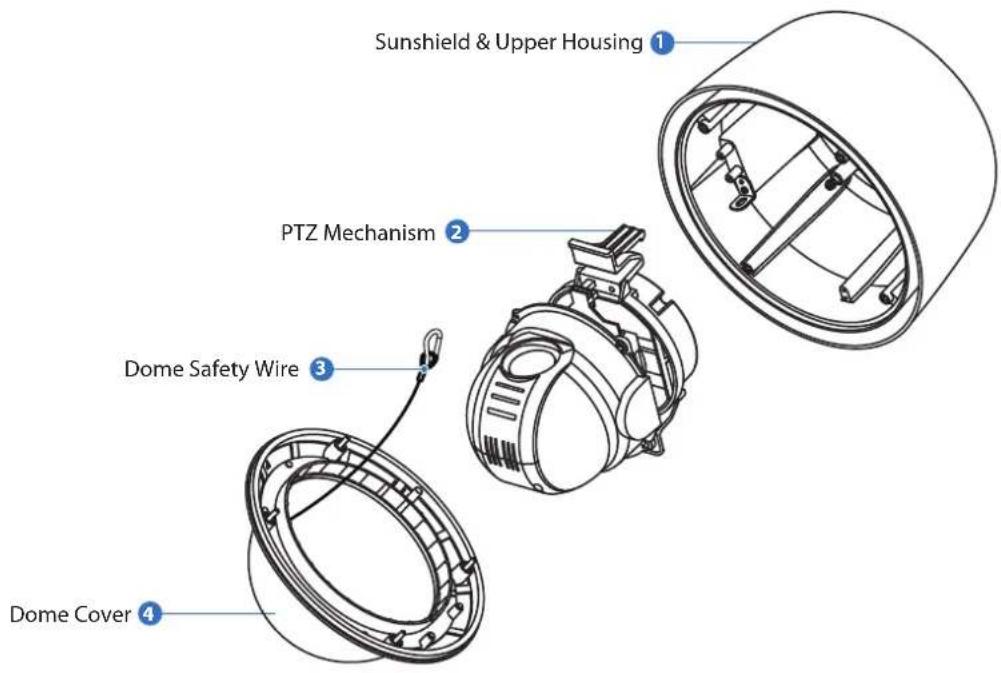

1 Sunshield & Upper Housing

Sunshield protect bubble dome cover from the sun rays and rain fall. In the sunshield, there is the upper housing which will contain accommodate PTZ mechanism. Also, the upper housing will be connected to both mounting brackets and dome cover.

2 PTZ Mechanism

Control the PTZ operations of the camera.

3 Dome Safety Wire

Prevents the dome cover from falling.

4 Dome Cover

Do not detach protection film from dome cover before finishing all installation process to protect dome cover from scratches or dust. In the dome cover, there are fan and heater to remove moisture on the bubble dome.

1

Introduction - Part Name & Functions\_Inside

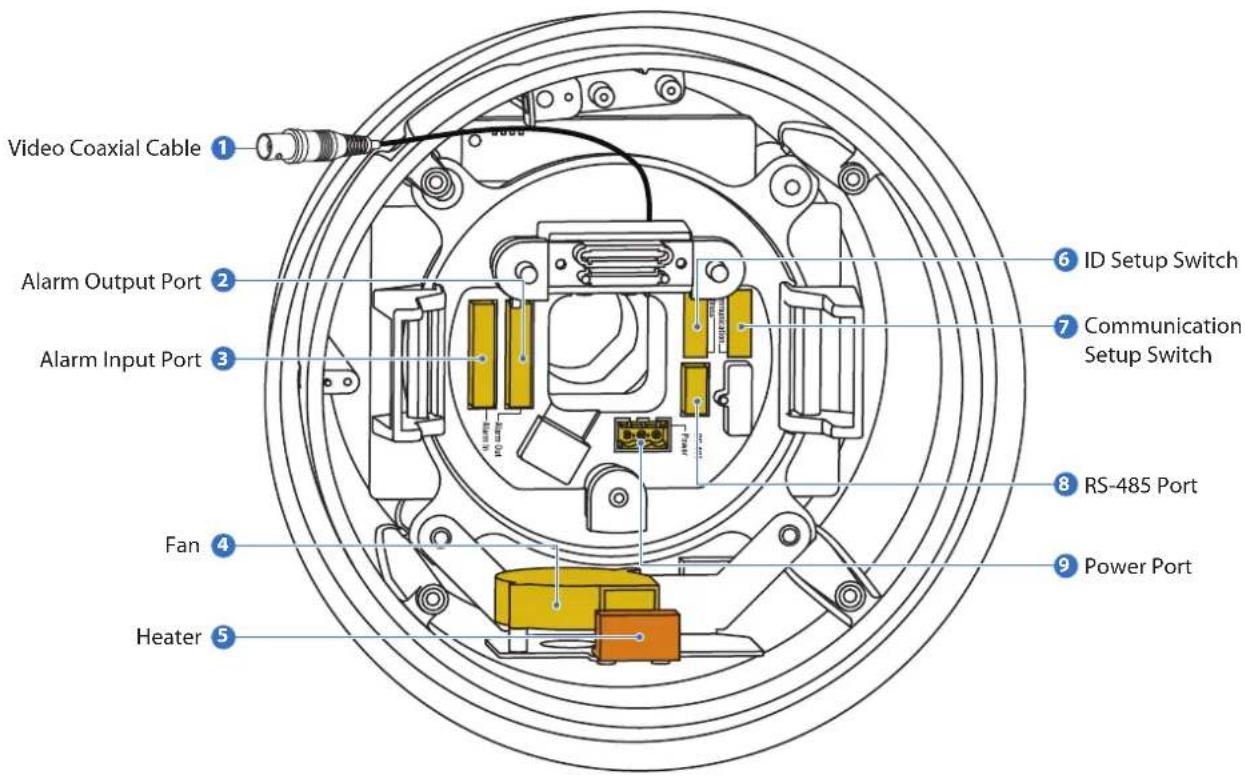

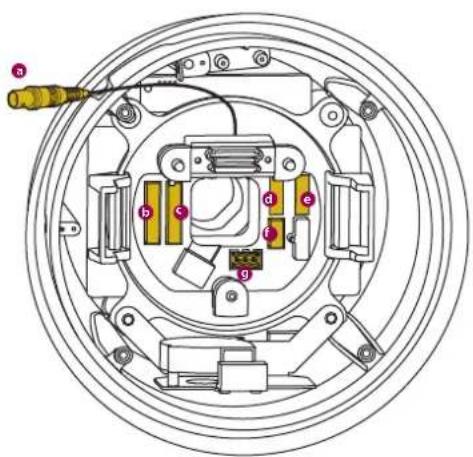

1 BNC Coaxial Cable

Connects to video output device such as monitor using the BNC coaxial cable.

2 Alarm Output Port

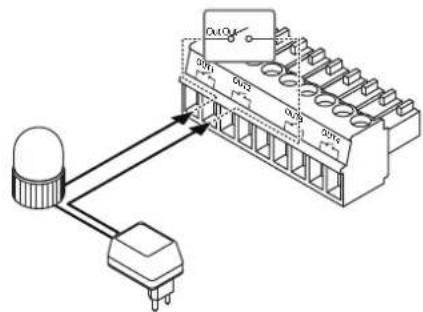

It connects to the alarm lights, siren or lamps, and it is activated according to the OSD menu or 'Setup' on the Web -viewer setting.

3 Alarm Input Port

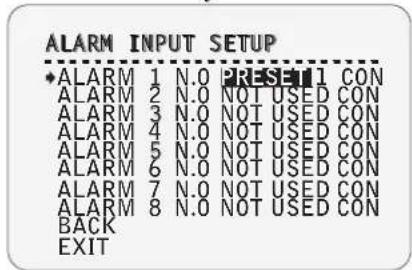

It connects to IR sensor, IrDA sensor or door switch. If the sensor is activated, it can activate to move camera to the specific angle and to connect the alarm device.

4 Fan

Defrosts the dome cover and removes moisture.

5 Heater

Defrost the dome cover in a low temperature by increasing the internal temperature of the housing.

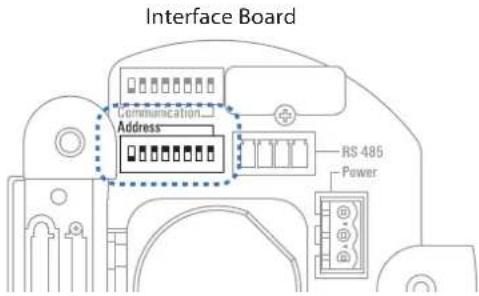

6 ID Setup Switch

Specify the camera ID.

7 Communication Setup Switch

Set the transfer rate and protocols.

8 RS-485 Port

Used for RS-485 communications.

9 Power Port

Connect the power source here.

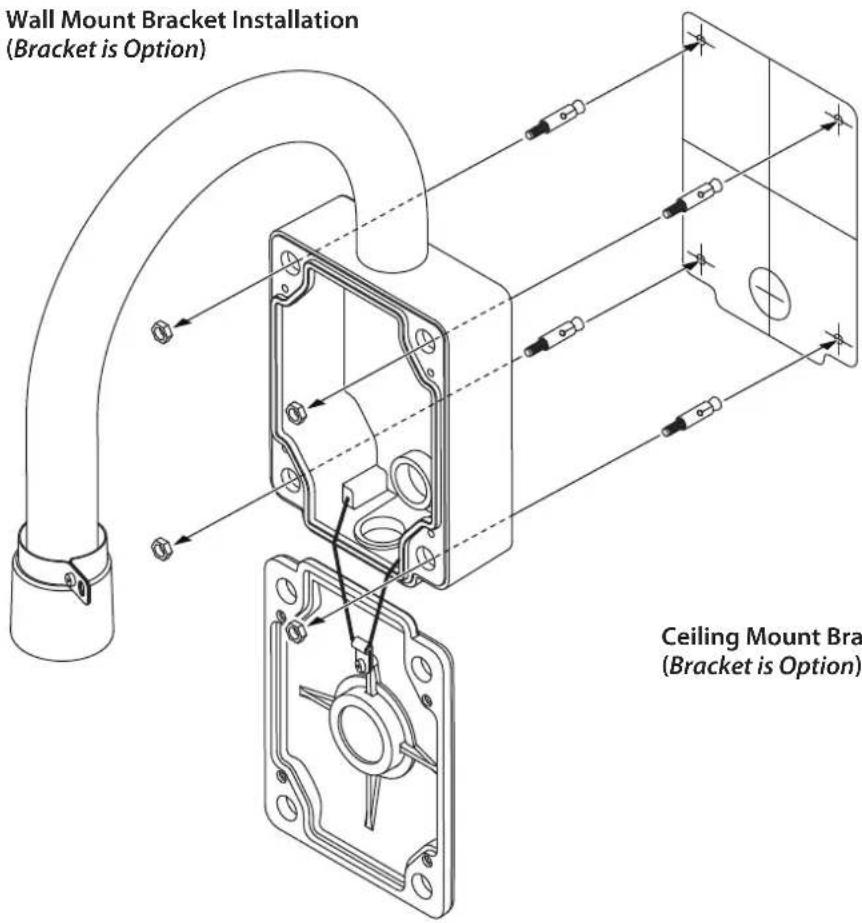

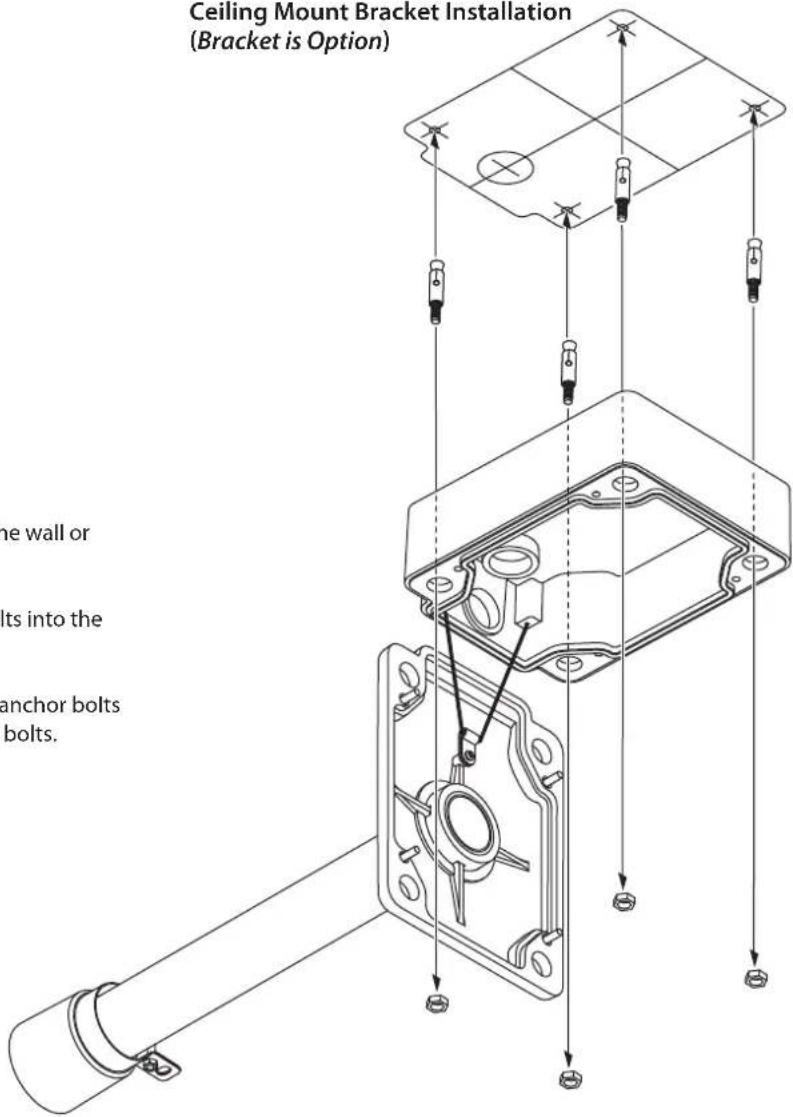

Ceiling Mount Bracket Installation (Bracket is Option)

1 Using the hole template, mark the holes on the wall or ceiling.
2 After drilling the holes, fix the four anchor bolts into the holes.
3 Place the wall/ceiling mount bracket on the anchor bolts properly and tighten the nuts on the anchor bolts.

2 Installation - Installation

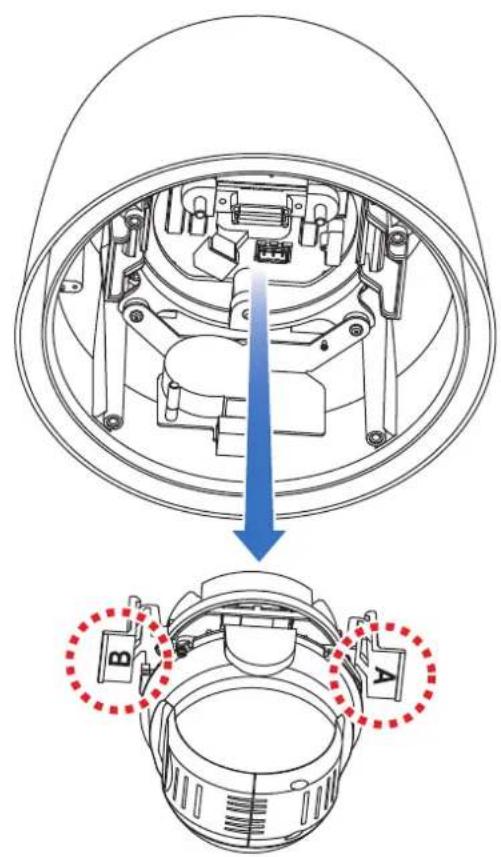

4 Detach the PTZ mechanism from the upper housing to plug the main cable. When detaching the PTZ mechanism, press down and hold up the black handles on both sides of the PTZ mechanism.

Remove the protecting tape used to fix the PTZ mechanism.

Line drawing of a helmet with blue directional arrows indicating movement or force (no text or symbols)

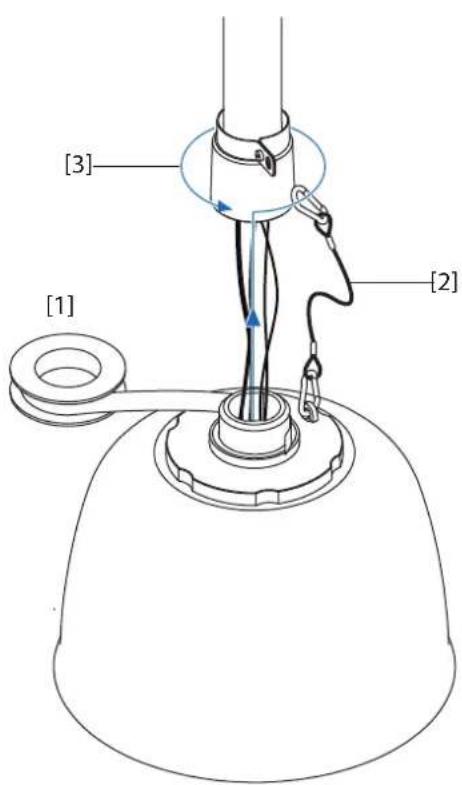

6 [1] Wind the waterproof tape around the pipe of housing. [2] Hook the safety wire on the hole of pipe and the housing safety cable hanger. [3] Attach the upper housing to wall mount bracket by turning it at least seven turns. To secure the orientation of the housing, turn the ring cap counter-clockwise until it is tight.

Technical illustration of a mechanical assembly with a central component and blue circular motion indicator (no text or symbols)

2 Installation - Installation

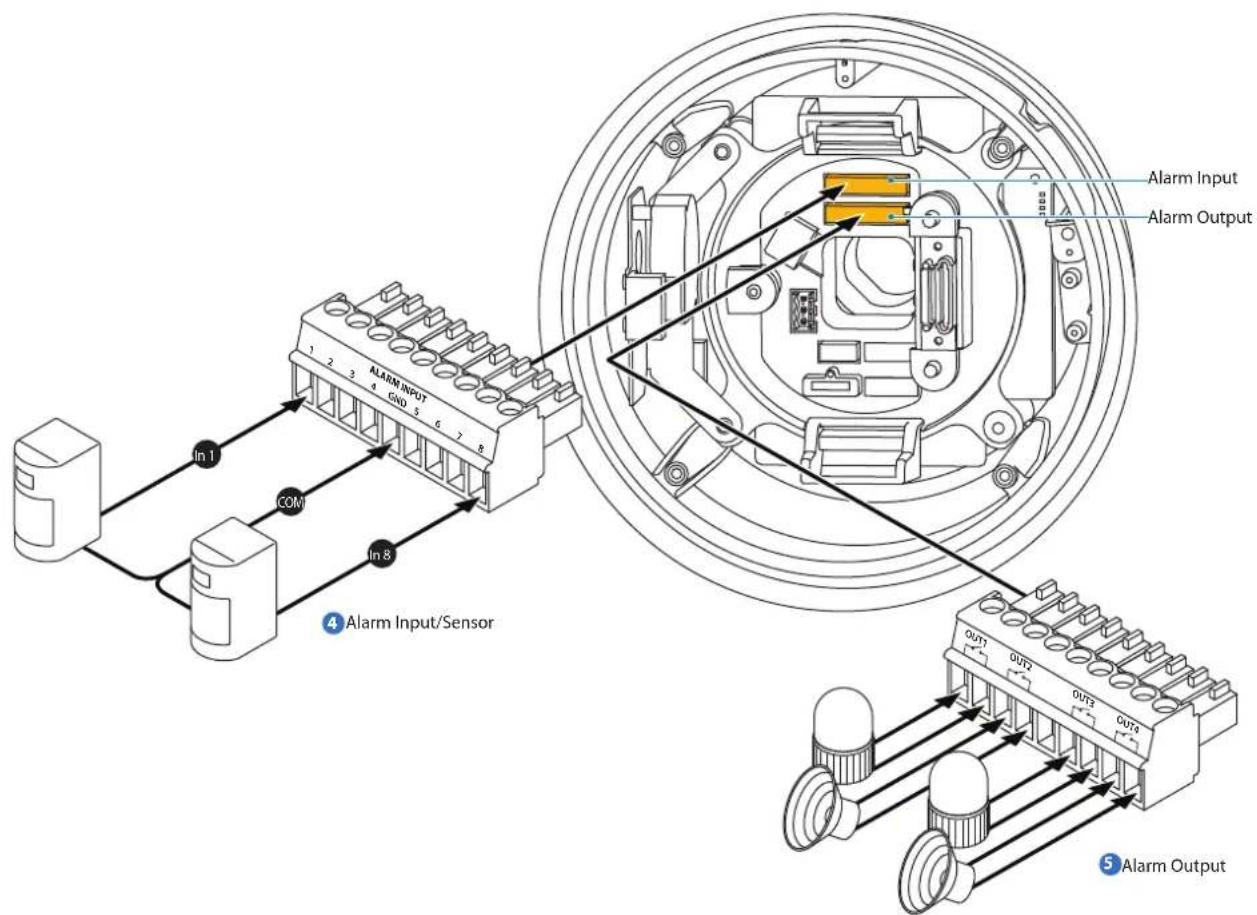

7 Connect each of the following cables to the applicable port and set the DIP switch to configure the camera ID, communication protocol.

a Video Output Cable

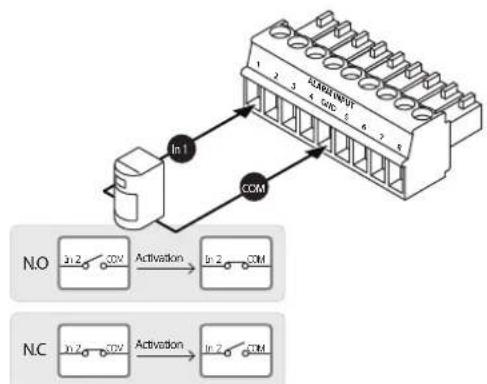

b Alarm Input Port
Alarm Output Port
④ DIP Switch for Camera ID Setup
e DIP Switch for Communication Setup
f RS-485 Slot
9 Power Port

See the 'DIP Switch Setup' on 13, 14 page for details.

See the 'Cabling' on 15, 16 page for details.

Technical diagram of a mechanical assembly with a highlighted component and wiring (no text or symbols)

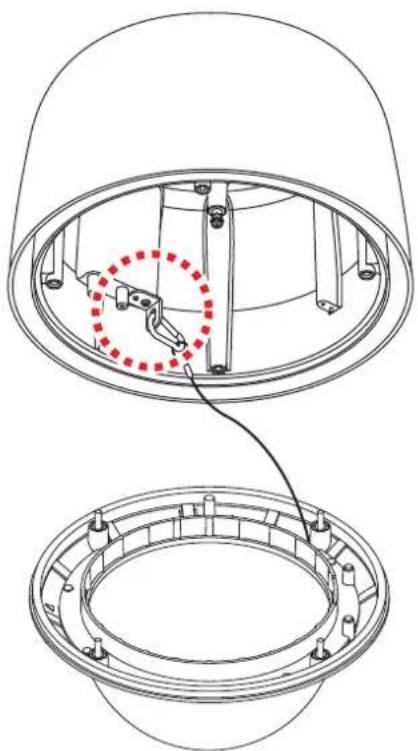

8 Connect the dome safety wire to the upper housing.

2 Installation - Installation

7 Plug the connector of cable from junction box into properly. After checking the orientation of one touch connector in the upper housing, press the PTZ mechanism into hook in the upper housing.

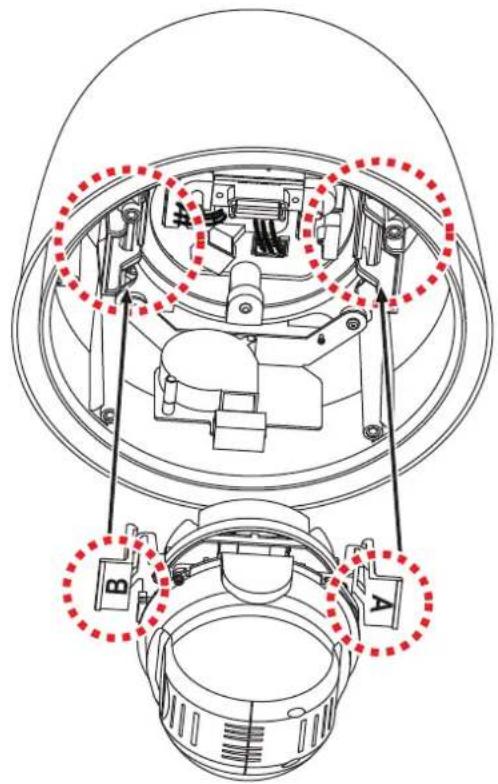

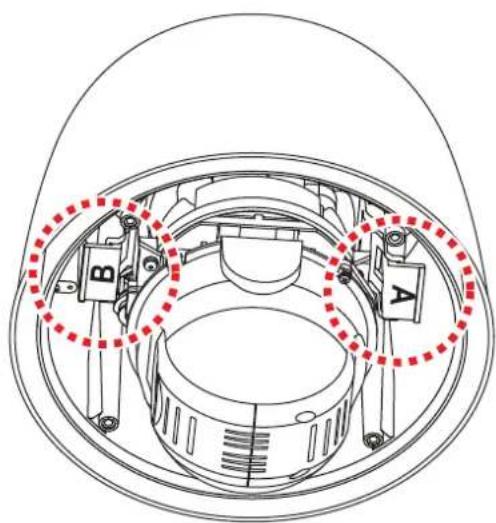

8 To lock the PTZ mechanism to the upper housing, press the two black handles until a snap sound is heard.

2 Installation - Installation

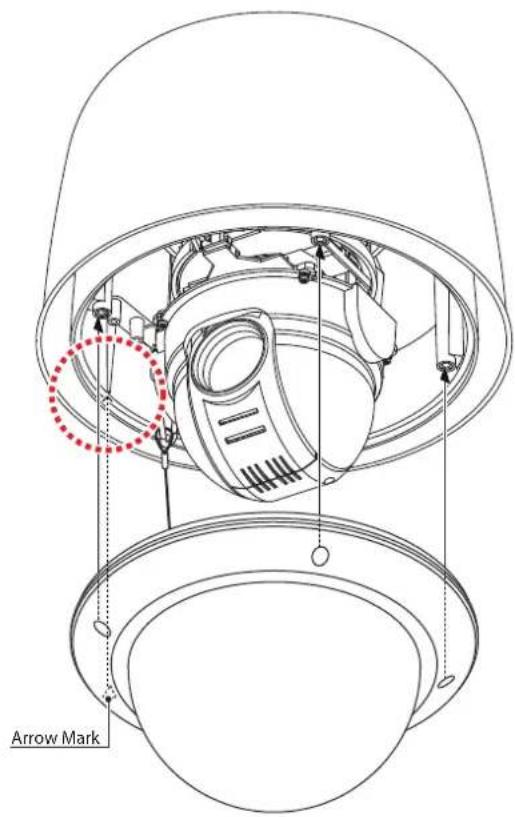

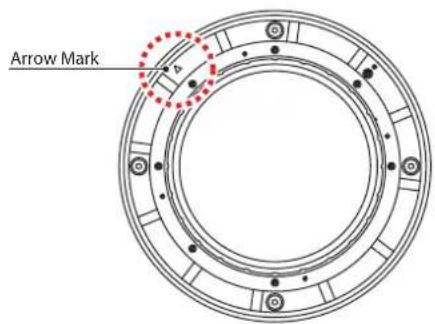

9 Close the dome cover. Match the arrow mark on the dome cover and the housing.

Pure geometric diagram of concentric and curved layers with no text, numbers, or symbols

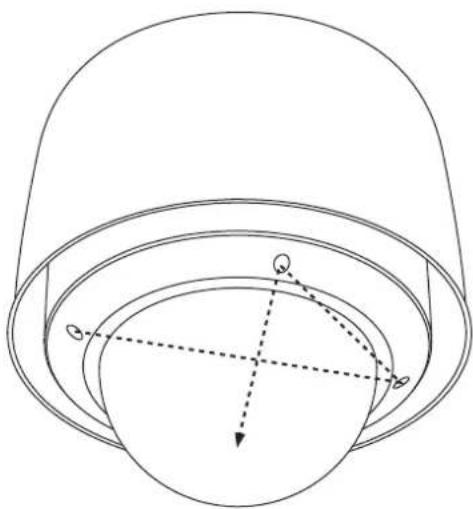

10 Tighten four screws on the dome cover in the sequence shown in the image.
To maintain the best sealing, the torque of each screw must be in the range of 0.5 \~ 1.0 N·m(0.3 \~ 0.73 lbf·ft).

2 Installation - DIP Switch Setup

Before installing the camera, set up the DIP switch to configure the Camera ID, communication protocol, located on the mount.

1. Communication Protocol Setup

Select the appropriate protocol with DIP switch combination.

1 Auto - Factory Default

2 PELCO-D

3 PELCO-P

4 SAMSUNG

5 Panasonic

6 GE(Kalatel)

7 AD(American Dynamics)

- When the communication protocol setting is 'Auto', camera will recognize SAMSUNG-E or PELCO-D / P protocol automatically.

※ Any other DIP switch combinations will be recognized as Auto protocol.

- If you want to control the camera using a DVR or a keyboard controller, the protocol must be identical to the protocol set on the camer.

- If you change the camera protocol by changing the DIP switch, the change will be effective only after you reboot the camera.

2 Installation - DIP Switch Setup

2. Communication Baud Rate Setup

Select the appropriate baud rate with DIP switch combination.

1 2400 BPS - Factory Default

2 4800 BPS

3 9600 BPS

4 19200 BPS

5 38400 BPS

3. RS-485 Termination Resistor

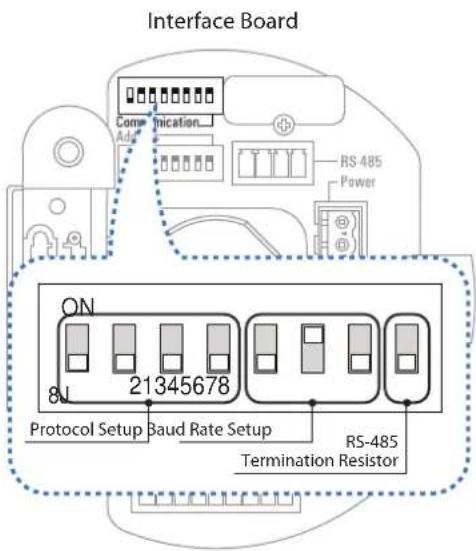

• Pin 8 is used for on/off of RS-485 termination.
• Normally, it must be OFF.
• When you have trouble with long daisy chain style connections, turn ON this termination switch on the last camera.

4. Camera ID Setup

The ID number of the camera is set using binary numbers. See the example below.

Pin	1	2	3	4	5	6	7	8
ID Value	1	2	4	8	16	32	64	128
ex) ID=5	on	off	on	off	off	off	off	off
ex) ID=10	off	on	off	on	off	off	off	off

• If you want to control a certain camera, you must match the camera ID with 'CAM ID' setting of DVR or keyboard controller.
• The range of Camera ID is 0\~255.
• All cameras have a factory default Camera ID of 1.
• Camera ID will be effective without having to reboot the camera.

2 Installation - Cabling

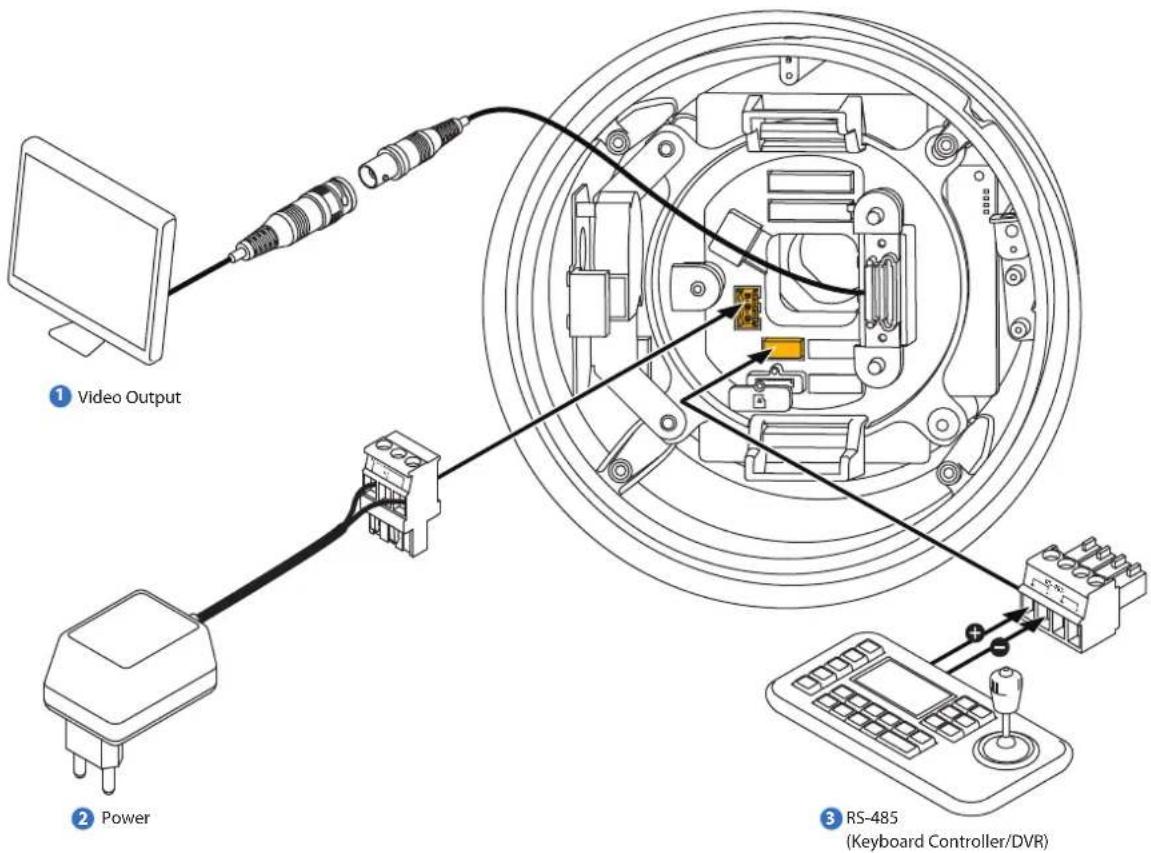

1 Video Output

Connects to video output device such as a monitor using a BNC coaxial cable.

2 Power Connection

- Please check the correct rated power. - The rated power is marked on the front of the inner box and the side of the PTZ mechanism.

Rate Power Current Consumption
AC 24V	Heater OFF: 24W, 1000mA | Heater ON: 57W, 2400mA

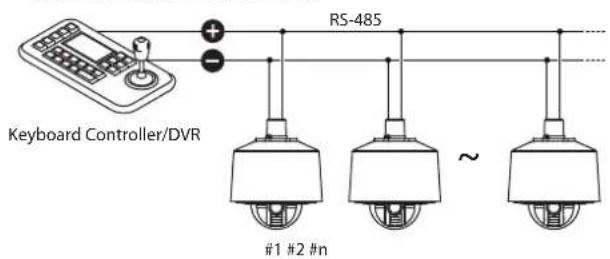

3 RS-485 Communication (DVR/Keyboard)

To control multiple PTZ cameras at the same time, the RS-485 communication lines should be connected in parallel form as shown below.

2 Installation - Cabling

4 Sensor Input/Sensor

To use the alarm input, the type of sensor must be selected in OSD menu. Select from 'Normal Open' and 'Normal Close'. If sensor type is not selected properly, the alarm can be activated reversely.

The short circuit between the GND and Input pin means alarm is activated.

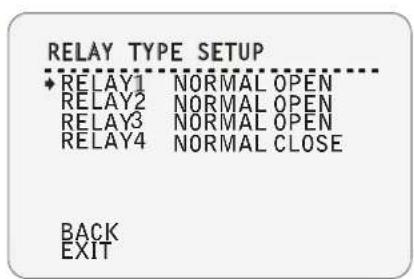

5 Alarm Output

There are 4 alarm outputs, and all of them are the relay contact type. Polarity (AC/DC) and isolations between channels do not need to be taken into consideration. Make sure the power capacity of the relay contact matches the instructions written above.

3 OSD - OSD Information

1 Preset Label

• The label stored for specific preset.
• See the section 'ROOT MENU>FUNCTION SETUP>PRESET SETUP>LABEL'.

2 Camera ID\_Top

• If 'CAMERA ID' sets 'TOP', camera ID displayed in this area.
• See the section 'ROOT MENU>DISPLAY SETUP>CAMERA ID'.

3 Camera ID\_Bottom

• If 'CAMERA ID' sets 'BOT', camera ID displayed in this area.
• See the section 'ROOT MENU>DISPLAY SETUP>CAMERA ID'.

4 Date / Time

• Shows the current date/time.

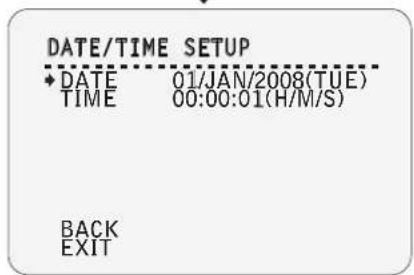

• See the section 'ROOT MENU>SYSTEM SETUP>DATE/TIME SETUP.'

5 Image Flip

• Shows that images are currently reversed by auto flip function.
• See the section 'ROOM MENU>CAMERA SETUP>IMAGE FLIP'.

6 Address

• The current RS-485 address information.
• See the section 'ROOT MENU>SYSTEM INFORMATION'.

7 Action Title

Followings are possible action titles and their meaning.

Action Title	Means
SET PRESET 123	Means to store preset 123.
PRESET 123	Means it reached preset 123.
PATTERN 1	Means the camera is running pattern 1.
SCN 1/PRESET 123	Means the camera is running scan 1.
RANGE OVER	Means the action received is not within the range supported.
UNDEFINED	Means the action received is not defined.

8 Alarm I/O Information

• This information shows current state of alarm input and output.
• The 'I' means input and 'O' means output.
• If an input is on state it will show the number of input. If an input is off state, ' -' will be displayed. In the same way 'O:1 -- -' means output 1 is on and other output is off.

Ex) When point 2 of inputs are on, and output 1 is on, OSD will show as below.

9 Compass Direction

• Shows the current compass direction of the camera.
• The direction is shown as N(North), S(South), E(East), W(West), NE(Northeast), NW(Northwest), SE(Southeast), SW(Southwest).
• See the section 'ROOT MENU>SYSTEM SETUP>SET NORTH DIRECTION'.

10 Zoom Magnification

Shows the current zoom magnification.

11 Tilt Angle in Degree

Shows the current tilt(0 \~ 180) angle.

12 Pan Angle in Degree

Shows the current pan(0 \~ 359) angle.

3 OSD - General Rules of Menu Operation

1 The menu items surrounded with < > always has its sub menu.
2 To move from items to item in the menu, use joystick in the up/down or left/right.
3 For all menu level, to go into sub menu, press near or enter key.
4 To go to up-one-level menu, press far key.
5 To change a value of an item, use up/down of the joystick in the controller.
6 Press near or enter key to save values and press far key to cancel values.

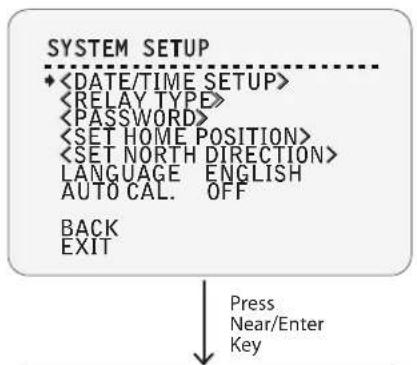

3 OSD - ROOT MENU & SYSTEM INFORMATION

1

1 ROOT MENU

Shows information and current configuration.

Enable/Disable of OSD display on main screen.

Setup for motion related settings.

Setup for various functions such as preset, scan, pattern, group and schedule.

Configure camera related functions and data.

Configure for basic system setup.

Initializes system configuration and sets all data to factory default configuration.

1

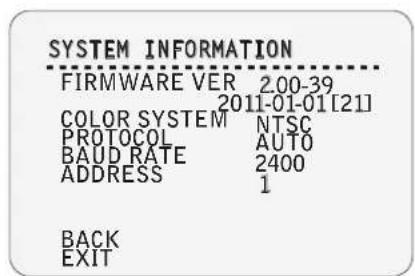

1 SYSTEM INFORMATION

FIRMWARE VER

Shows the current firmware version and date of upgrade.

COLOR SYSTEM

Shows the current analog video system.

PROTOCOL

Shows the current PTZ control protocol.

BAUD RATE

Shows the current baud rate of the PTZ control.

ADDRESS

Shows the current camera ID of the PTZ control.

3 OSD - DISPLAY SETUP > CAMERA ID

1

2

3

4

5

11 DISPLAY SETUP

This menu defines enable/disable of OSD display on main screen. If an item is set to be 'AUTO', the item is displayed only when the value of it is changed.

ADDRESS	ON / OFF
CAMERA ID	BOT / TOP / OFF
Select the camera ID location. Refer to 'OSD Display of Main Screen'.
PTZ INFORMATION	ON / OFF / AUTO
ACTION TITLE	ON / OFF / AUTO
PRESET LABEL	ON / OFF / AUTO
ALARM I/O	ON / OFF / AUTO
DATE/TIME	ON / OFF
Start Privacy Zone Mask setup Menu.
TEMPERATURE	CELSIUS / FAHRENHEIT / OFF

3 CAMERA ID - Alphabet Input

• Edits the camera ID to show on monitor when camera ID sets 'TOP(Top)' or 'BOT(Bottom)'.
• Max. 48 alphabets are allowed(Including space).

a Current Cursor Position: In edit label menu, a reverse rectangular is cursor. As soon as finishing selecting alphabet, cursor moves to the next digit.
b Selecting Alphabet: Using left/right/up/down of joystick, move to an appropriate character from the character set. To choose the character, press the near or enter key.
Space: If you want to use blank, choose space character ('').
Back-Space: If you want to delete a character in front, use back space character ('←').
e Cursor button: Use this button to move the Current Cursor(a) for left or right direction.

4 CAMERA ID - Complete Editing

If you complete the camera ID editing, move the cursor to 'OK' and press near key to save the completed camera ID. To abort the current change, move the cursor to 'CANCEL' and press the near key.

3 OSD - DISPLAY SETUP > PRIVACY ZONE

1

2

3

4
[↑↓ ADJUST MASK HEIGHT]
[ENTER : SELECT]]
    B --> C["Press Near Key to Save"]

5

11 DISPLAY SETUP

See the previous page.

3 EDIT MASK - Move to Target Position

Move camera to area to mask. Then the menu to adjust mask size will be displayed.

If the tilt angle is located in the range between 90^ to 90^ , you can not set up privacy zone mask.
If tilt angle over 90^ (image flipped region) is designated, camera will automatically move to identical poison by changing tilt angle less than 90^ and moving pan angle 180^ relatively.

4 EDIT MASK - Adjust Mask Size

Adjust mask size. Use joystick or arrow buttons to adjust mask size.

• Move Joystick Left/Right(◀▶): Adjust Mask Width.
• Move Joystick Up/Down(▲▼): Adjust Mask Height.

To hide a certain zone completely regardless of high speed pan/tilt motions, it is recommended that the size of mask must be 20% bigger than original target size.
It is noted that during pan/tilt control like jog action, the object behind the privacy mask can be disclosed in a short period of time.

2 PRIVACY ZONE

Selects area in image to mask.

MASK NO.	1 ~ 12
Select mask number. If the selected mask has data already, camera moves as it was set. Otherwise, 'UNDEFINED' will be displayed under 'MASK NO.'.
DISPLAY	ON / OFF
Sets if the camera makes mask shows or not on images.
CLEAR MASK	CANCEL / OK
Deletes data in the selected mask no.
STYLE	/COLOR> / MOSAIC 1 ~ 4
Set the style of the mask. See the next page.

3 OSD - DISPLAY SETUP > PRIVACY ZONE

71 PRIVACY ZONE - STYLE>COLOR Set the color of the mask.

Y-LEVEL	0 ~ 100
Set the color 'Y-LEVEL' of the mask.
RED ADJUST	0 ~ 100
BLUE ADJUST	0 ~ 100

3 OSD - MOTION SETUP

1

1 MOTION SETUP

PRESET LOCK

ON / OFF

If motion lock is set to on, it is impossible to set up and delete preset, scan, pattern and group. It is possible only to run those functions. To set up and delete those functions, enter into OSD menu.

PWR UP ACTION

ON / OFF /

This function enables to resume the last action executed before power down. Most of actions such as preset, pattern, scan and group are available for this function but jog actions are not available to resume.

If 'AUTO CAL.' is set to be On, 'PWR UP ACTION' should be 'ON' among possible options such 'ON', 'OFF' and 'PWR. P'. If 'AUTO CAL.' is set to 'On' and 'PWR. P' is set, it is likely to cause malfunction.

If 'PWR. P' needs to be set for 'PWR UP ACTION', 'FOCUS MODE' should be 'AUTO'. If 'FOCUS MODE' is set to 'SEMI-AUTO' and 'PWR. P' is set, it is likely to cause malfunction

AUTO FLIP

ON / OFF

In case that tilt angle arrives at the top of tilt orbit (90°), zoom module camera keep moving to opposite tilt direction (180°) to keep tracing targets. As soon as zoom module camera passes through the top of tilt direction(90°), images should be reversed automatically and Fappears in screen. If this function is set to 'OFF', tilt movement range is 0° \~ 90°.

JOG MAX SPEED

2/SEC \~ 200/SEC

Sets maximum jog speed. Jog speed is inversely proportional to zoom magnification. As zoom magnification goes up, pan/tilt speed goes down.

JOG DIRECTION

INVERSE / NORMAL

If you set this to 'NORMAL', the view in the screen is moving same direction with jog tilting. If 'INVERSE' is selected, the view in the screen is moving reversely.

FRZ IN PRESET

ON / OFF

At start point of preset movement, camera starts freezing the image of start point. Camera keeps displaying the image of start point during preset movement and does not display the images which camera gets during preset movement. As soon as camera stops at preset end point, camera starts displaying live images which it gets at preset end point. This function availability should be different by models.

Moves to 'PARKING ACTION SETUP' screen.

Moves to 'ALARM INPUT SETUP' screen.

2 PARKING ACTION SETUP

If 'PARK ENABLE' is set to 'ON', camera runs assigned function automatically if there is no PTZ command during assigned 'WAIT TIME'.

PARK ENABLE

ON / OFF

WAIT TIME

00:00:05 \~ 04:00:00

The time is displayed with "hh:mm:ss" format and you can change this by 1 sec. unit.

1. To place the cursor on the time marked as below, press near key.

00:10:00

1. Move joystick Left/Right to adjust hours, minutes and seconds.
2. Move joystick Up/Down to select the digit.
3. By pressing near key, save current setting.

PARKING ACTION

HOME / PRESET 1\~128 (Excluding 95) /

SCAN 1\~8 / PATTERN 1\~4 / GROUP 1\~8

Ex) If 'HOME' is selected for park action, camera will move to home position when there is no PTZ command during the assigned 'WAIT TIME.'

3 OSD - MOTION SETUP

1

2

3

4

5

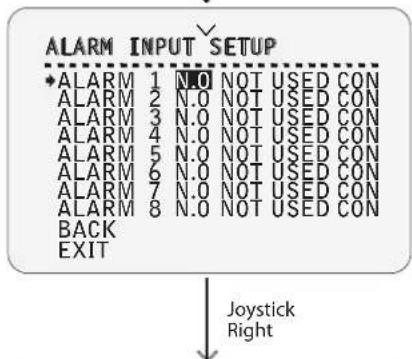

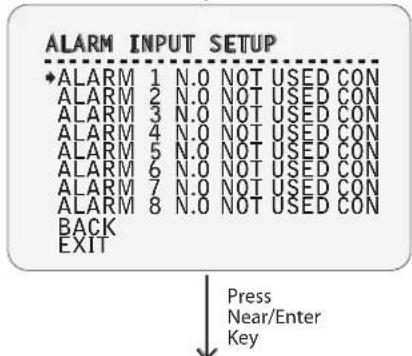

2 ALARM INPUT SETUP

If an external sensor is activated, camera will move to the corresponding action.

Alarm Type:	N.O(Normal Open) / N.C(Normal Close)
Sets the sensor input type.

Alarm Action

NOT USED / HOME /PRESET 1~128 (Excluding 95) / SCAN 1~8 /PATTERN 1~4 / GROUP 1~8

For each alarm input, you can assign the counteraction functions (Preset, Scan, Pattern, Group).

Alarm Duration

CON / 3 ~ 120 (sec.)

Sets the duration of alarm action.

- CON: Alarm action will continue until the user stops it although the input signal is disconnected.

- 3 \~ 120: Alarm action will be activated for the this setting time after the input signal is disconnected.

3 OSD - FUNCTION SETUP > PRESET SETUP

1

2

3

1 FUNCTION SETUP

Configure 5 special functions with this menu.

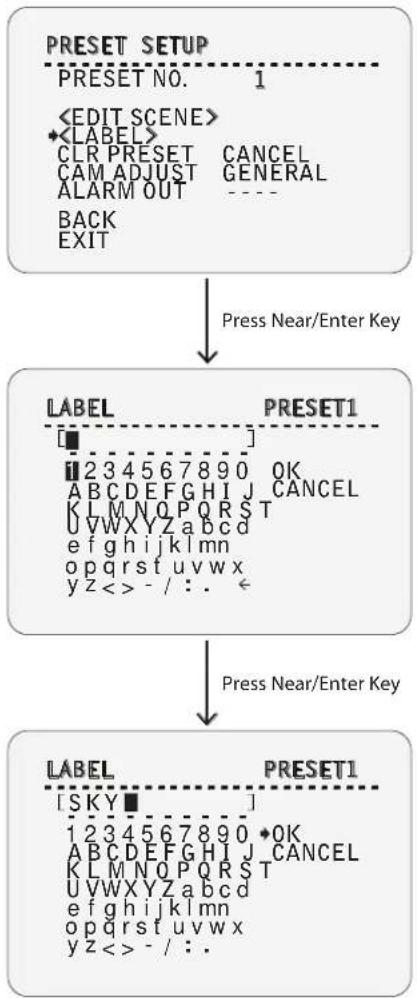

2 PRESET SETUP - Undefined

127 presets from the number 1 to 128 can be assigned excluding preset 95 reserved for menu.

PRESET NO. 1 \~ 128 (Excluding 95) If a selected preset is already defined, camera moves to pre-defined position and preset characteristics such as label and relay outputs show on monitor. (Refer screen 4) If a selected preset is not defined, 'UNDEFINED' shows on monitor.

Redefine the current preset scene position(i.e. PTZ).

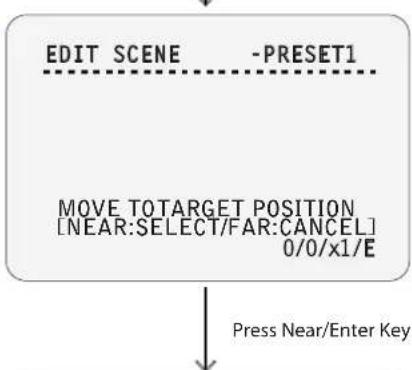

3 EDIT SCENE

1. Using joystick, move camera to the desired position.
2. By pressing near key, save the current PTZ data.
3. Press far key to cancel.

PRESET configuration should be used only for Optical Zoom, if optical zoom and digital zoom are used together and PRESET is set, it is likely to cause malfunction.

4 PRESET SETUP

If the preset is defined, the information will be shown on the OSD menu with the setting, and the alarm device (if defined) will be activated.

PRESET NO. 1 \~ 128 (Excluding 95)

Edits Label to show on monitor when preset runs. Max. 10 alphabets are allowed.

CAM ADJUST GENERAL / SPECIAL - WB(White Balance) and AE(Auto Exposure) can be set up independently for each preset. - GENERAL: WB or AE can be set up totally and simultaneously for all presets in 'ROOT MENU>CAMERA SETUP' menu. - SPECIAL: WB or AE can be set up independently or separately for each preset in each preset setup menu. - Each special WB/AE value should the activated correspondingly when camera arrives at each preset location. During jog operation, general WB/AE value should be applied. - All special WB/AE value should not be changed although general WB/AE value is changed. If 'SPECIAL' is selected, the menu to set WB/AE is shown on monitor.

ALARM OUT ---- \~ 1 2 3 4 State of four alarm outputs can be freely controlled in conjunction with preset run. The character '-' means off state and the number representing each bit means on. Ex) If it is set to be '-' 2 3 - ', output relay 2, 3 will be on and 1, 4 will be be off, when you run this preset.

3 OSD - FUNCTION SETUP > PRESET SETUP

1

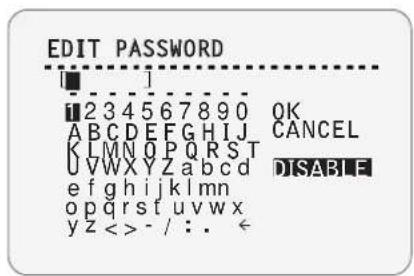

2 LABEL

- Edits label to show on monitor when camera arrives at preset.

a Current Cursor Position: In edit label menu, a reverse rectangular is cursor. As soon as finishing selecting alphabet, cursor moves to the next digit.

b Selecting Alphabet: Using left/right/up/down of joystick, move to an appropriate character from the character set. To choose the character, press the near or enter key.

Space: If you want to use blank, choose space character ('').

d Back-Space: If you want to delete a character in front, use back space character ('←').

e Cursor button: Use this button to move the Current Cursor(a) for left or right direction.

3 LABEL – Complete Editing

If you complete the label editing, move cursor to 'OK' and press near key to save completed label. To abort current change, move cursor to 'CANCEL' and press near key.

1

2 CAM ADJUST

Edits label to show on monitor when the camera arrives at presets.

See the section 'ROOT MENU>CAMERA SETUP>WB SETUP'.

See the section 'ROOT MENU>CAMERA SETUP>AE SETUP'.

3 OSD - FUNCTION SETUP > SCAN SETUP

1

2 SCAN SETUP

By using the scan function, you can make the camera to move between 2 preset positions repeatedly.

When the scan function runs, the camera moves from the preset assigned as the 1st point to the preset assigned as the 2nd point in CW(Clockwise) direction. Then the camera moves from the preset assigned as the 2nd point to the preset assigned as the 1st point in CCW(Counterclockwise) direction.

In case that the preset assigned as the 1st point is same as the preset assigned as the 2nd point, the camera turns on its axis by 360° in CW direction and then it turns on its axis by 360° in CCW direction.

SCAN NO.

1\~8

Selects the scan number to edit. If a selected scan has not defined, 'NOT USED' is displayed in 1st position and 2nd position.

1ST POS. / 2 ND POS. PRESET 1 \~ 128 (Excluding 95) / NOT USED Set up the 2 position for scan function. If a selected preset is not defined, 'UNDEFINED' will be displayed as shown below.

SCAN SPEED

1/SEC \~ 180/SEC

Sets the scan speed.

CLEAR SCAN

CANCEL / OK

Deletes the current scan data.

3 OSD - FUNCTION SETUP > PATTERN SETUP

1

2

3

4

5

2 PATTERN SETUP

Pattern function is that a camera memorizes the path (mostly curve path) by joystick of controller for assigned time and revives the path exactly as it memorized.

4 patterns are available and max. 1000 communication commands can be stored in a pattern.

PATTERN NO. 1 \~ 4 Select pattern number to edit. If a selected pattern number is not defined, 'UNDEFINED' will be displayed under selected pattern number.

CLR PATTERN CANCEL / OK Deletes data in the current pattern.

Starts editing pattern.

3 EDIT PATTERN - Select the Position

1. By using joystick, move to the start position with appropriate zoom.
2. To start the pattern recording, press near or enter key.
3. To exit this menu, press far key.

4 EDIT PATTERN - Records

1. Move the camera with joystick of the controller or run preset function to memorize the path (mostly curve path) in a selected pattern.
2. The total memory size and the rest memory size is displayed in the form of bar.
3. To save data and exit, press near key.
4. To cancel recording and delete the recorded data, press far key.

3 OSD - FUNCTION SETUP > GROUP SETUP

1

2

3

4

5

2 GROUP SETUP SCREEN

The group function allows running sequence of presets, pattern and/or scans. Max. 8 group can be stored. Each group can have max. 20 action entities which can be preset, pattern or scan. Preset speed can be set up and the repeat number of pattern & scan can be set up in group setup. Dwell time between actions can be set up also.

GROUP NO. 1 \~ 8 Selects group number to edit. If a selected group number is not defined, 'UNDEFINED' will be displayed under the selected group number.

CLEAR GROUP CANCEL / OK Deletes data in the current group.

Starts editing group.

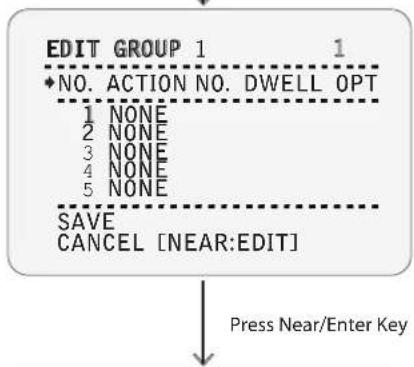

3 EDIT GROUP - Initial Screen

Press near or enter key in 'NO' list to start group setup.

ACTION NO. NONE / PRESET 1\~128(Excluding 95) / PATTERN 1\~4 / SCAN 1\~8

DWELL TIME 00:03 \~ 04:00 (min:sec) Sets dwell time between function by moving joystick up/down.

OPT PRESET: 2\~360 / PATTERN & SCAN: 1\~255 It represents preset speed (2\~360) when preset is selected. It should be the number of repetition (1\~255) when pattern or scan is selected for 'ACTION'.

4 EDIT GROUP – Select Function Sequence

Note that max. 20 functions are allowed in a group. Move cursor up/down and press near or enter key to set up.

56 EDIT GROUP - Assign Function

Set up 'ACTION, 'DWELL' and 'OPT'. Note that selected item is displayed in reverse. Move cursor left/right to select items and move cursor up/down to change each value.

3 OSD - FUNCTION SETUP > GROUP SETUP

6

7 EDIT GROUP - Selects Function Sequence

After finishing setting up an 'ACTION', press near or enter key to one-upper-level menu. Move cursor up/down to select 'ACTION NO.' and repeat to step 4\~ step 6 to edit the selected group.

8 EDIT GROUP - Saves the Setting

After finishing setting up all actions, press far key to exit. Then cursor should be moved to 'SAVE'. Press near or enter key to save the data.

3 OSD - FUNCTION SETUP > SCHEDULE SETUP

1

2

3

4

2 SCHEDULE SETUP SCREEN

The schedule function allows running an appropriate function like preset, scan, pattern, group, home move at designated day and time.

EX) If you setup a rule 'Tuesday at 9:00AM' and 'Preset 1(say main gate)', the camera will move to main gate every Tuesday at 9:00 AM. If you choose weekday, camera will move to main gate everyday except weekend.

It is noted that due to the real time clock(ROOT MENU> SYSTEM SETUP>DATE/TIME SETUP), the time data will be kept regardless of blackout. The initial time and day setup is essential to proper schedule function.

MASTER ENABLE	ON / OFF
Decide whether schedule function is active or not.
DAY	UNDEFINED / ALL / WKD / SUN ~ MON
Set the day for scheduling.
- Undefined: Inactivate
- All: Applies to every day
- WKD: Applies to every day except Saturday and Sunday
- SUN-MON: Applies to designated day only
TIME	00:00 ~ 23:59 (hour:min)
Set the time.
ACT NO	HOM(HOME) / PRS(Preset) 1~128(Excluding 95)/ SCN(Scan) 1~8 / PTN(Pattern) 1~4/GRO(Group) 1~8
Set the function and no.
ON	ON / OFF
Decide to make this rule effective or not.

4 5 SCHEDULE SETUP - Assign Value

Each field (DAY, TIME, ACT, NO., ON) can be selected by Left/Right keys and the values in the field are changed using Up/Down keys.

3 OSD - FUNCTION SETUP > SCHEDULE SETUP

6

EX)

The second rule means camera will move to preset 12 position at 7:00 on every wednesday.

If there are rules conflicts to each other, the higher number is the higher priority has.
If you assign undefined function, there will be no action.

3

OSD -

CAMERA SETUP > WB SETUP

1

2

3

4

1 ZOOM CAMERA SETUP

Setup the general functions of zoom camera module.

FOCUS MODE

AUTO / MANUAL / SEMIAUTO

Sets the camera focus mode.

• SEMIAUTO: This mode exchanges the focus mode automatically between manual focus mode and auto focus mode. Manual focus mode activates in preset operation and auto focus mode activates when jog operation starts.
• MANUAL: With manual mode at presets, focus data is memorized in each preset in advance and camera calls focus data in correspondence with presets as soon as camera arrives at a preset.

DIGITAL ZOOM

ON / OFF

Sets digital zoom function to 'ON' or 'OFF'. If this is set to 'OFF', optical zoom function runs but zoom function stops at the end of optical zoom magnification.

If 'DIGITAL ZOOM' is set to 'ON', 'DIS' will be off automatically.

IMAGE FLIP

ON/OFF

Sets if the image should be reversed or not.

FLICKERLESS

ON / OFF

Turns on or off the flickerless function. In this function, AE mode becomes shutter priority mode and shutter speed value will be fixed to 1/100 sec.

DIS MODE

ON / OFF

Sets the digital image stabilization mode.

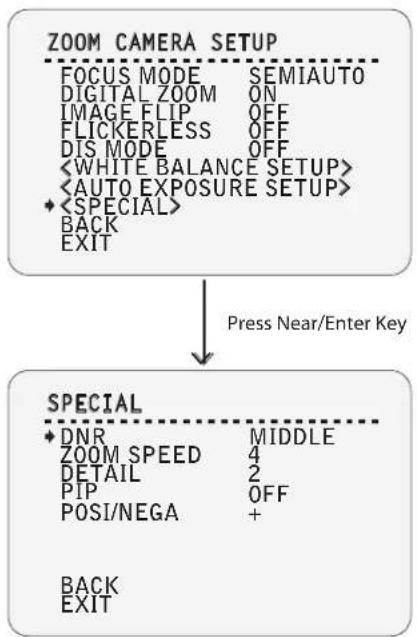

Starts 'WHITE BALANCE SETUP' setup screen.

Starts 'AUTO EXPOSURE SETUP' setup screen.

Starts to 'SPECIAL SETUP' screen.

2 WB SETUP - DAY

DAY/NIGHT

DAY / NIGHT

The day/night mode can be set independently.

Only, night mode will be deactivated if 'AGC' in 'CAMERA SETUP' is set to 'OFF' or 'FIX'.

WB MODE

ATW1 / ATW2 / AWC / 3200K / 5600K / OFF

• ATW1: The color temperature is adjusted automatically between 2500K and 9300K.
• ATW2: The color temperature is adjusted automatically between 2000K and 10000K.
• AWC: The color temperature is adjusted automatically once, then adjusted value of 'R-GAIN, B-GAIN' are maintained. Gain value can be adjusted manually by the user. It can be fixed as 3200K or 5600K.
• OFF: Only activated when 'NIGHT' is selected. At night, the setting will be same as day's setting.

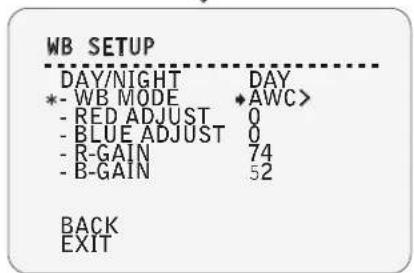

RED/BLUE ADJUST

-32\~+32

In every mode except 'OFF', users can adjust the red/blue adjust value to have the image they want.

R/B - GAIN

0\~1000

If 'AWC' is on, the adjusted value will be marked. Also, the user can adjust the values after it was adjusted automatically.

3 OSD - CAMERA SETUP > WB SETUP

6

6 WB SETUP - NIGHT

BRIGHTNESS

LOW / MIDDLE / HIGH

When 'NIGHT' is selected, it sets the criterion of the automatic day/night selection.

If set to 'LOW', the image has to be very dark to be recognized as night among 3 settings. If set to 'HIGH', the image will be recognized as night even though it is a little dark.

3 OSD - CAMERA SETUP > AE SETUP

1


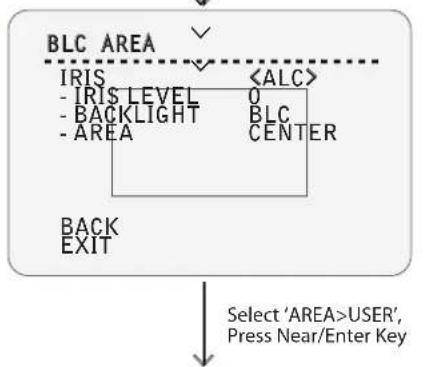

    C --> D["Select 'BACKLIGHT>BLC', Press Near/Enter Key"]

2

3


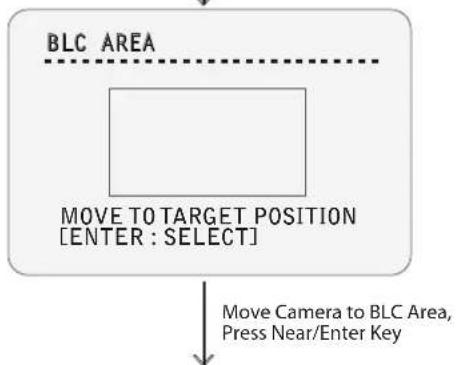

    A["BLC AREA"] --> B["MOVE TO TARGET POSITION [ENTER : SELECT"]]
    B --> C["Move Camera to BLC Area, Press Near/Enter Key"]

4

1 AE SETUP

IRIS

ALC / MANUAL

See the bellow

2 'AE SETUP - IRIS>ALC'

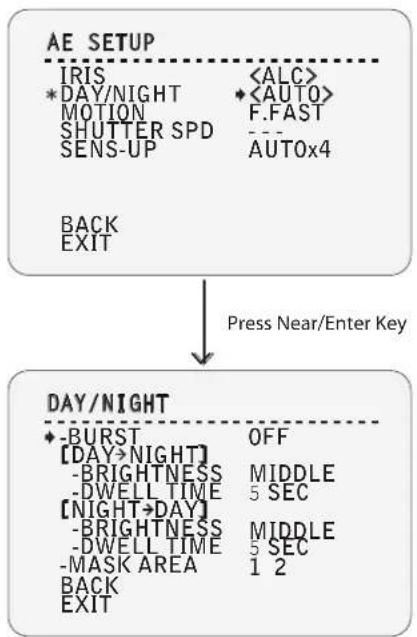

DAY/NIGHT

DAY / NIGHT / AUTO

Color filter or B/W filter can be selected. If DAY/NIGHT is set to 'AUTO', starts 'DAY/NIGHT' editing. See the next page ② 'DAY/NIGHT'.

This is changed to 'AGC' or 'MOTION' according to the 'SENS-UP' setting.

AGC

VERY LOW / LOW / MIDDLE / HIGH /

VERY HIGH / USER 1\~16 / FIX 1\~16

Enhances the brightness of the image by amplifying gain when the illumination is low.

MOTION

S.SLOW / SLOW / NORMAL / FAST / F.FAST

If 'MOTION' is set towards 'S.SLOW', the gain will be used less. However, so as compensate it, the shutter speed will be slower to obtain more light. Thus, there will be less noise but this can cause the ghost effect of the moving object. If 'MOTION' is set towards 'F.FAST', there will be more noise but this will reduce the ghost effect of the moving object.

SHUTTER SPD

If this speed is faster, the moving object can be photographed without the ghost effect. However, picture can be dark if there is no sufficient lighting.

If 'SENS-UP' is set to 'AUTO', 'SHUTTER SPD' is deactivated.

SENS-UP

OFF / AUTO x2 \~ AUTO x256 / FIX x2 \~ FIX x256

It activates the slow shutter function when luminance of image is too dark so that CCD can accumulate the light as much as it is multiplied by the number which is set.

② AE SETUP - IRIS>ALC

If 'ALC' is selected, iris will be controlled automatically.

IRIS LEVEL

-32\~+32

BACKLIGHT

OFF / BLC / WDR

Using this function, the backlight effect, which the object displays dark on the monitor when there is intensive backlight, can be improved.

• BLC: You can set the desired area, then the area will be bright. If it is set on the bright area, note that the area will be even more brighter.
• WDR: See the next page 'AE SETUP-IRIS>ALC>BACKLIGHT>WDR'.

3 BLC AREA

AREA

TOP / BOTTOM / LEFT / RIGHT / CENTER / USER

If set to 'USER', the user can set the area by him/herself.

See the screen 4 5 on this page.

3 OSD - CAMERA SETUP > AE SETUP

1

2 DAY/NIGHT

It is automatically changed by sensing the brightness of the scene.

BURST

ON/OFF

If 'BURST' is set to 'ON', the burst signal is outputted although it is changed to B/W filter

BRIGHTNESS

LOW / MIDDLE / HIGH

When switched from color to B/W filter, it has to be darker if 'BRIGHTNESS' is the 'LOW' side. When switched from B/W to color, it has to be brighter if 'BRIGHTNESS' is the 'HIGH' side.

DWELL TIME

2 SEC / 3 SEC / 5 SEC / 10 SEC / 15 SEC /

20 SEC / 25 SEC / 30 SEC

When the switching criterions are satisfied, the filter is changed after the status is maintained during the dwell time.

MASK AREA

1/2

If the streetlights or traffic lights are present, the mode might not be changed to B/W. In this occasion, if you set 'MASK AREA' on those kind of the spot light, this can reduce the effect of the interference on criterion.

'BACKLIGHT' is set to 'BLC', 'MASK AREA' function is deactivated.

1


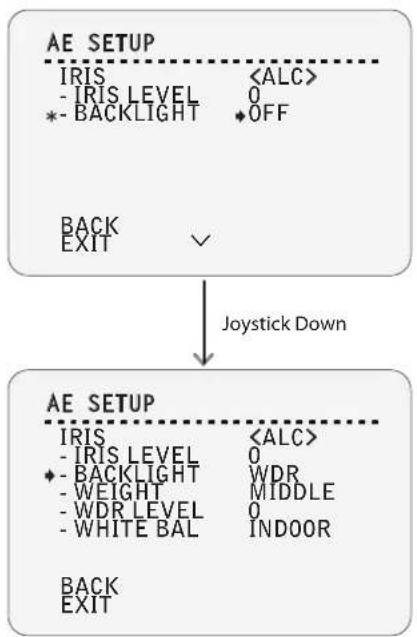

2 AE SETUP - IRIS>ALC>BACKLIGHT>WDR

In 'WDR' mode, the brightness is adjusted in all area of the picture by combining high speed shutter and low speed shutter.

WEIGHT

LOW / MIDDLE / HIGH

If 'WEIGHT' goes to 'HIGH', the area applying high speed shutter is expanded.

WDR LEVEL

-9\~+9

If 'WDR LEVEL' goes up, the speed of the high speed shutter becomes faster.

WHITE BAL

INDOOR / OUTDOOR

If 'WHITE BAL' is set to 'INDOOR', the color temperature is adjusted based on the dark area, if set to 'OUTDOOR', it is adjusted based on the bright area.

When 'WDR' is used, the internally operating 'VPS' function is stopped.

3 OSD - CAMERA SETUP > SPECIAL

1

2 SPECIAL

Sets the special function relaced to the image.

DNR	OFF / LOW / MIDDLE / HIGH / USER 1~16If reduces the noise caused by 'AGC' action. If set towards 'HIGH', the noise will be reduced but the ghost effect on moving objects will be increased.
ZOOM SPEED	1 ~ 4Zoom speed while zoom in/out action can be adjusted. 1 is the slowest, and 4 is the fastest.
DETAIL	0 ~ 3The distinction can be set as 4 levels.If the level is high, the outline is clear but the noise is increased.
PIP	ON / OFFSelects if the sub screen will be displayed.Sub screen will be displayed on the bottom of the right side.Even though the main image enables the digital zoom, the sub screen will only display with maximum optical zoom.
POSI/NEGA	+ / -If set to '+', the normal image will be outputted. However, if set to '-', the brightness signal and color signal will be outputted as reverse.

3 OSD - SYSTEM SETUP

1

2

3

4

1

SYSTEM SETUP

Starts 'DATE/TIME SETUP'.

Start 'RELAY TYPE' setup.

Start 'PASSWORD' setup.

Starts 'SET HOME POSITION' setup.

Starts 'SET NORTH DIRECTION' setup.

LANGUAGE

ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH / ITALIANO / PYCCKIЙ / PORTUGUÊS

You can select a preferred Language of OSD display from 7 choices. After selecting a language, press near or enter key.

AUTO CAL. ON/OFF

Auto Calibration. If the camera is continuously subjected to very high temperature (over 50°C or 122°F) environment for a long time, it is possible for the camera to lose focus. As a result, you will get blurry image. In this case, it is recommended to turn on auto calibration.

If auto calibration is set to On, it will be conducted for 10 seconds every 24 hours.

• During auto calibration, unexpected images can show up due to unordinary PTZ movement.
• During auto calibration, 'A.C' mark will be shown on the left bottom of the screen
• During auto calibration, some functions including PTZ cannot be executed.

2

RELAY TYPE SETUP

RELAY1, 2, 3, 4 NORMAL OPEN(N.O) / NORMAL CLOSE(N.C) Contacts type of of 4ch. Relay out are defined.

3

EDIT PASSWORD

Sets the 4 characters long password. If this function is set to 'ENABLE', the password is required whenever you enter OSD menu.

The default password is '4321' and the master password is '-->g'.

3 OSD - SYSTEM SETUP

5

SET HOME POSITION

MOVE TOTARGET POSITION [NEAR:SELECT/FAR:CANCEL] 0/0/x1/E

6

SET NORTH DIRECTION

MOVE TOTARGET POSITION [NEAR:SELECT/FAR:CANCEL] 0/0/x1/N

5 SET HOME POSITION

Home position means the origin of pan angle calculation. The value of pan angle displayed on the screen is based on this home position.

By using joystick, move the camera to the desired position and press near key.

Home is not effective to tilt angle.

If you change the location of the home position, all horizontal location of functions such as preset, scan, pattern, group and privacy zone mask will be shifted based on the changed home position.

If there are no setup for those functions like preset, pattern, scan, group camera will automatically move to home position after rebooting.

If power up action is set to be on, camera will continue the function which is executed lastly after rebooting.

Set Home Position?

When you replace the camera block or the orientation of camera is changed due to maintenance operations, it is very difficult to maintain the same pan orientation. Therefore, all function data maintain on pan orientation such as preset, scan, pattern, group and privacy zone mask are not useful any more accordingly.

However, even in this case, you can reuse the data if you redefine set home position on the previous home position.

6 SET NORTH DIRECTION

By using joystick, move the camera to the desired north position and press enter (near/save).

The direction will be displayed in the screen

[NEAR:SELECT/FAR:CANCEL] 0/0/x1/N

Direction will be displayed from:

N(North) / S(South) / E(East) / W(West) / NE(Northeast) / NW(Northwest) / SE(Southeast) / SW(Southwest).

SYSTEM INITIALIZE

SYSTEM INITIALIZE

CLEAR ALL DATA	YES / NO
Deletes all configuration data such as display, camera, motion setup and so on.
CLR DISPLAY SET	YES / NO
Initializes display configuration.
CLR CAMERA SET	YES / NO
Initializes camera configuration.
CLR MOTION SET	YES / NO
Initializes motion configuration.
CLR FUNCTION SET	YES / NO
Deletes preset data, scan data, pattern data, group data and schedule data.
REBOOT CAMERA	YES / NO
Reboots zoom camera module.
REBOOT SYSTEM	YES / NO
Reboots speed dome camera.

Initial Configuration Table

Address	ON
Camera ID	OFF
PTZ Information	AUTO
Action Title	AUTO
Preset Label	AUTO	Display
Alarm I/O	AUTO
Date/Time	ON
Privacy Zone	Undefined
Temperature	OFF
Preset Lock	OFF
Power Up Action	ON
Auto Flip	ON
Jog Max Speed	140°/sec	Motion
Jog Direction	NORMAL
Freeze In Preset	OFF
Park Action	OFF
Preset 1~128	Undefined
Auto Pan 1~8	Undefined
Pattern 1~4	Undefined	Function
Scan 1~8	Undefined
Schedule 1~7	Undefined
Focus Mode	AUTO
Digital Zoom	OFF
Image Flip	OFF
Flickerless	OFF
DIS Mode	OFF
Day/Night	DAY
WB Mode	ATW2
Red Adjust	0
Blue Adjust	0
Day/Night	NIGHT
WB Mode	OFF
Iris	ALC	Camera
Iris Level	0
Backlight	OFF
Day/Night	AUTO
Burst	OFF
Brightness	MIDDLE
Dwell Time	5 SEC
Mask Area	Undefined
Motion	F.FAST
Sens-up	AUTOx4
DNR	MIDDLE
Zoom Speed	4
Detail	2
PIP	OFF
Posi/Nega	+
LANGUAGE	ENGLISH	SYSTEM
AUTO CAL.	ON

Unit: mm

Camera

Image Device	1/4" Interline Transfer CCD
Effective Pixel	: 768 (H) x 494 (V), 380K
H. Resolution	Color: 560 TV Lines B/W: 680 TV Lines
S/N Ratio	52 dB (AGC Off)
Zoom	x37 Optical Zoom & x16 Digital Zoom (Total x592)
Focal Length	f = 3.5 (W) ~ 129.5 (T) mm, F1.6 (W) ~ 3.9 (T)
Angle of View	H: 55.5° (W) ~ 1.59° (T)V: 42.5° (W) ~ 1.19° (T)
Min. Illuminance	0.7Lux (F1.6, 50IRE) at Color0.07Lux (F1.6, 50IRE) at B/W
Shutter Speed	X512 ~1/120,000
Day & Night	Auto / Day / Night (ICR)
Focus	Auto / Manual / Semi-Auto
Iris	Auto / Manual
White Balance	AUTO / AWC / INDOOR / OUTDOOR / Manual (1700 °K ~ 11,000°K)
AGC	OFF, LOW, MIDDLE, High Selectable
3D SSNR	Low, Middle, High, Off
DIS	On / Off
BLC	OFF / BLC / HLC / WDR Selectable
WDR	On / Off
Other Functions	Frame Freeze Function, System Image Flip by Installation Type

Pan/Tilt

Pan Range	360° (Endless)
Tilt Range	0° ~ 180° (Auto-Flip On) • 0° ~ 90° (Auto-Flip Off)
Pan/Tilt Speed	Preset: 360°
	Scan: 1° ~ 180°/sec.
	Manual: 0.05° ~ 200°/sec. (Zoom Proportional)
Preset	127 Presets with Labels / Independent Camera Setup
Pattern	4 Patterns
Scan	8 Scans
Group	8 Groups (Max. 20 Entities per Group)
Schedule	7 Rules (Condition: Day, Time → Action: Preset, Scan, Group, Pattern)
Other Functions	Image Auto Flip, Auto Parking, Power-up Action & etc.

General

Video Out	CVBS: 1.0 V p-p / 75Ω
Communication	RS-485
Protocol	Auto, Pelco-D/P, Samsung, Panasonic, GE(Kalatel), AD Selectable
Privacy Zone	12 Zones
Sensor In/Out	Built-in 8 Input / 4 Relay Output
OSD	Menu, PTZ Information, etc., Support 7 Languages:ENGLISH / ESPAÑOL / FRANÇAIS / DEUTSCH / ITALIANO / РУССКИЙ / PORTUGUÊS
Power	AC 24V, 20W (Heater Off) / 50W (Heater On)
Approvals	FCC, CE, IP66, RoHS
Outdoor Housing	Weather Proof, Vandal Proof Structure, White Pearl Color
Material	Body: Aluminum Die-casting • Clear Bubble: Polycarbonate
Weight	Net: 12.8 lbs. (5.8Kg)
Operating Temp.	-45° ~ 50° C (-49° ~ 122° F)
Power Requirements	AC24V
Power Consumption	Heater OFF: 24W, 1000mA | Heater ON: 57W, 2400mA

Digital Watchdog (referred to as "the Warrantor") warrants the Digital Watchdog Camera against defects in materials or workmanship as follows:

LABOR : For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.

PARTS : In addition, the Warrantor will supply replacement parts for the initial five (5) years and one (1) year on IR LED.

To obtain warranty or out of warranty service, please contact a Technical Support Representative at 1-866-446-3595 Monday through Friday from 9:00AM to 8:00PM Eastern Standard Time.

A purchase receipt or other proof of the original purchase date is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damage which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without limitation or damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the exclusions or limitations listed above may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

If the problem is not handled to your satisfaction, then write to the Address listed on the next page.

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Costs of such service calls are the responsibility of the purchaser.

DW DIGITAL WATCHDOG®

Complete Surveillance Solutions

5436 W Crenshaw St. Tampa, FL 33634

Tel:[phone]

Fax:[phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support Hours : Monday-Friday

9:00am to 8:00pm Eastern Time

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
