Star-Light DWC-V4363TIRB - Security Camera Digital Watchdog - Free user manual and instructions

Product Type	Security Camera
Brand	Digital Watchdog
Model	Star-Light DWC-V4363TIRB
Image Sensor	1/3" CCD
Horizontal Resolution	620 TV Lines (B&W), 600 TV Lines (Color)
Lens	3.3-12mm Varifocal Auto Iris
IR Range	70ft with Intelligent Camera Sync
Minimum Illumination	0.14 Lux (Color), 0.03 Lux (B&W), 0.0 Lux (B&W IR on)
Day & Night	TDN with IR Cut Filter
Video Output	CVBS 1.0Vp-p / 75Ω, Secondary BNC
Power Input	12VDC or 24VAC (Auto Sensing)
Power Consumption	12VDC: 2.3W (4.8W IR on); 24VAC: 2.5W (4.9W IR on)
IP Rating	IP68
Operating Temperature	-29°C ~ 55°C (-20°F ~ 131°F)
Storage Temperature	-29°C ~ 70°C (-20°F ~ 158°F)
Dimensions	∅139 x 118.8 mm (∅5.47 x 4.7 in)
Weight	2.05 lbs (IR model)
Housing Material	Aluminum
Warranty	5 years labor/parts, 1 year IR LED
Mounting Options	Flush, Surface, Wall, Pendant, Corner

Frequently Asked Questions - Star-Light DWC-V4363TIRB Digital Watchdog

How do I adjust the camera lens?

Loosen the zoom and focus handles by turning them counter-clockwise. Adjust the field of view by moving the handle RIGHT (TELE) to zoom in or LEFT (WIDE) to zoom out. After setting zoom, adjust focus similarly. Tighten handles clockwise when done.

How to mount the camera on a surface?

Use the mounting template to mark holes. Drill holes for drywall anchors. Pull wires through the surface mount base (junction box) and mount the base. Snap the camera module onto the base aligning red/black markings, secure with three assembly screws, adjust using the 3-Axis Gimbal, and tighten the dome cover with the L-wrench.

How to access the OSD menu?

The OSD menu is controlled via a built-in joystick on the camera control board. Navigate through menus like EXPOSURE, COLOR, DAY & NIGHT, FUNCTION, MOTION, PRIVACY, and SETUP. Use the joystick to change settings and select SAVE & EXIT to keep changes.

What is Star-Light mode?

Star-Light is a Super Low Light Technology that automatically activates a slow shutter function (from x2 to x1024) when the image is too dark. Default is x4. Increasing the setting may cause image lag. It cannot be controlled if E.SHUTTER is above 1/60.

How to set privacy zones?

In the OSD menu, go to PRIVACY. Up to 8 masks (MASK 1-8) can be enabled. For each mask set ON, select a start point (L_TOP, R_TOP, L_BOT, R_BOT), modify size by moving joystick, adjust position, and set color (GRAY, BLACK, WHITE, RED, GREEN, BLUE, MAGENTA, CYAN).

What is the warranty period?

Digital Watchdog warrants the camera for 5 years on labor and parts, plus 1 year on IR LED from the original purchase date. A proof of purchase is required. Contact technical support at 1-866-446-3595 for service.

How to clean the camera?

To remove dirt from the case, moisten a soft cloth with a mild detergent solution and wipe gently. Avoid using abrasive cleaners. Protect the camera from humidity, dust, and high temperatures.

How to connect to a monitor?

Use the primary BNC output (or secondary BNC for on-site configuration) to connect to a monitor or CRT. For UTP, use a passive-to-passive connection. Ensure power is connected via the dual voltage input (12VDC or 24VAC) with auto polarity detection.

What power supply is needed?

The camera accepts 12VDC or 24VAC (auto sensing). Power consumption: 12VDC: 2.3W (4.8W with IR on); 24VAC: 2.5W (4.9W with IR on). Use a compatible power source with proper voltage and current.

How to enable motion detection?

In the OSD menu, go to MOTION. Set AREA SET to ON for up to 4 areas, adjust TOP/BOTTOM/LEFT/RIGHT. Set SENSITIVITY (1-30) and SHOW INDI to OFF, ICON (bell icon) or TRACE (highlight area). Optionally set EXTER OUT for alarm output duration (0-15 seconds).

USER MANUAL Star-Light DWC-V4363TIRB Digital Watchdog

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

PRECAUTIONS

■ Do not open or modify.
■ Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages.
■ Do not put objects into the unit.
- Keep metal objects and flammable substances from entering the camera.
It can cause fire, short-circuits, or other damages.
■ Be careful when handling the unit.
■ To prevent damages, do not drop the camera or subject it to shock or vibration.
■ Do not install near electric or magnetic fields.
■ Protect from humidity and dust.
■ Protect from high temperature.
■ Be careful when installing near the ceiling of kitchen or a boiler room, as the temperature may rise to high levels.
■ Cleaning:
To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
■ Mounting Surface:
The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference, when the equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction	Features	4
	Parts and Descriptions	5
	Dimensions	6
Installation	Inside the Box	7
	Mount Installation Instructions	8-13
	Connecting to Monitors	14-15
	Adjusting the Camera Lens	16
	Adjusting the 3-Axis Gimbal 17

Module OSD Menu 18-29

Troubleshooting 30

Warranty Information 31-32

Specifications 33-36

FEATURES\*

■ 1/3" CCD
■ 620 TV Lines (B&W), 600 TV Lines (Color)
■ 3.3\~12mm Varifocal Auto Iris Lens
■ 70ft Range IR with Intelligent Camera Sync [DWC-V4363TIR Only]
■ Electronic Day and Night [DWC-V4363D & DWC-V4363DH]
■ TDN (True Day and Night / IR Cut Filter) [DWC-V4363TIR Only]
■ Smart DNR (Digital Noise Reduction)
■ DRC (Dynamic Range Compressor)
■ Star-Light (Super Low Light Technology)
■ HME (Highlight Masking Exposure)
■ Programmable Privacy Zones & Motion Detection
■ Easy Icon Driven OSD Menu with Built-In Joystick
IP68 Certified
■ Heater Built-in [DWC-V4363DH Only]
■ Junction Box Included
■ UTP & RS485 Built-In
■ Auto Sensing 12VDC or 24VAC with Line Lock
■ Secondary Video-BNC Output

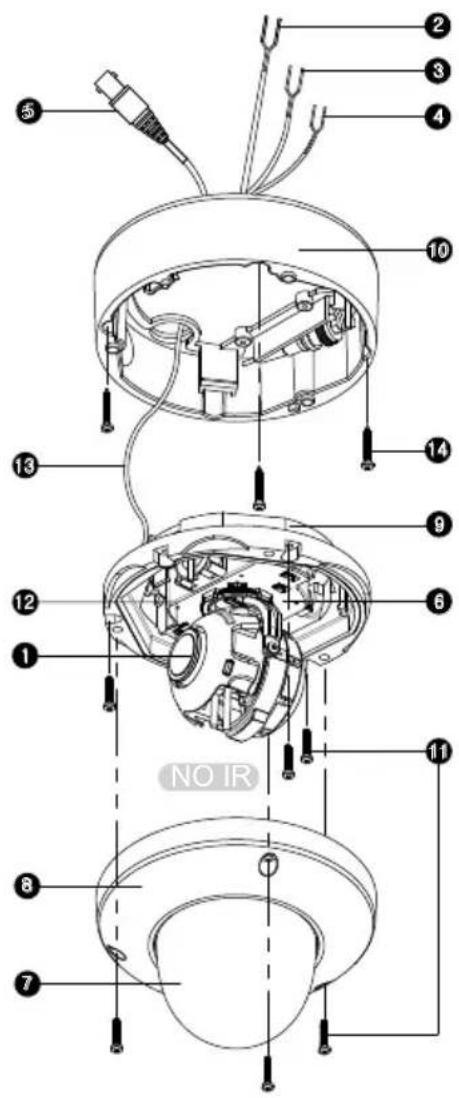

PART & DESCRIPTIONS\*

1 Lens
2 Power Input Connector (Dual Voltage)
3 UTP
4 RS-485
5 Primary Video-BNC Output Connector
6 Camera Control Board
⑦ Bubble Dome Cover
8 Upper Case
9 Flush Mount Base
10 Surface Mount Base / Junction Box
Assembly Screws (#8 - 32 x 0.75)
12 Secondary Video-BNC Output Connector
18 Safety Wire
14 Mounting Screws

Mechanical gear assembly diagram with no visible text or symbols

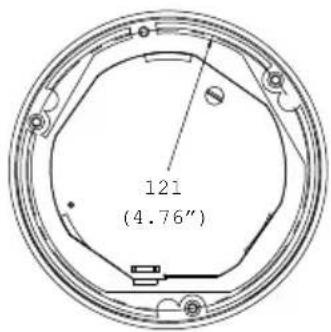

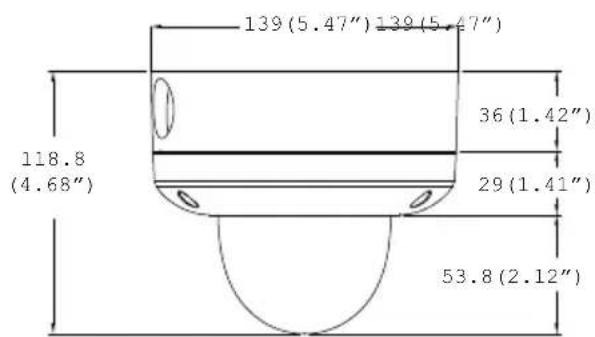

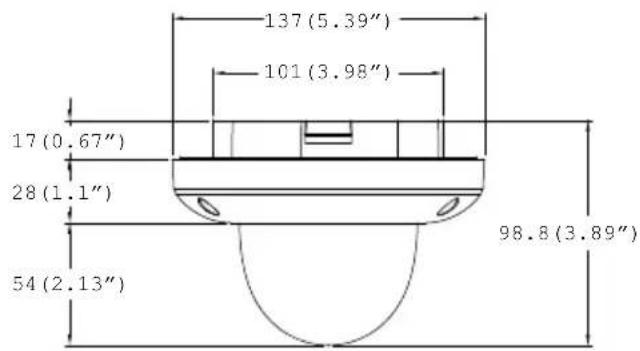

DIMENSIONS IN MILLIMETERS (IN)\*

Flush Mount

Surface Mount

INSIDE THE BOX\*

Included with Snapit Vandal Dome Camera

① User Manual
2 Mounting Template
3 4 Machine Screws and 4 Dry Wall Anchors
④ TORX-T20 Wrench

⑤ L-Wrench
6 TORX-T20 Bolt
⑦ DC Plug
8 Secondary Video-BNC Cable

Black screwdriver with a black handle and circular head labeled '4' (no text or symbols on the object itself)

Simple line drawing of a bent tool with a circular label containing the number 5 (no text or symbols on the tool itself)

SURFACE MOUNT INSTALLATION INSTRUCTIONS\*

Close-up of hands holding a white plastic housing with a yellow tool inserted, showing internal components (no text or symbols visible)

Use the camera's mounting template or your camera to mark the holes as required.

Close-up of a red soldering iron with a black tip, partially visible against a plain background (no text or symbols)

2 Drill holes into the drywall and insert the drywall mounts into the holes.

Close-up of a white electronic device with wires and connectors, no visible text or symbols

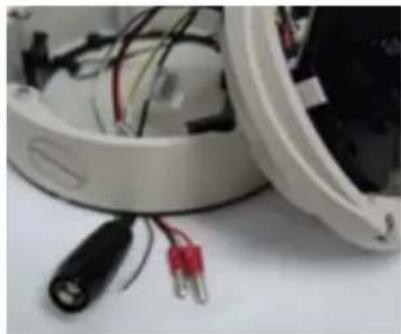

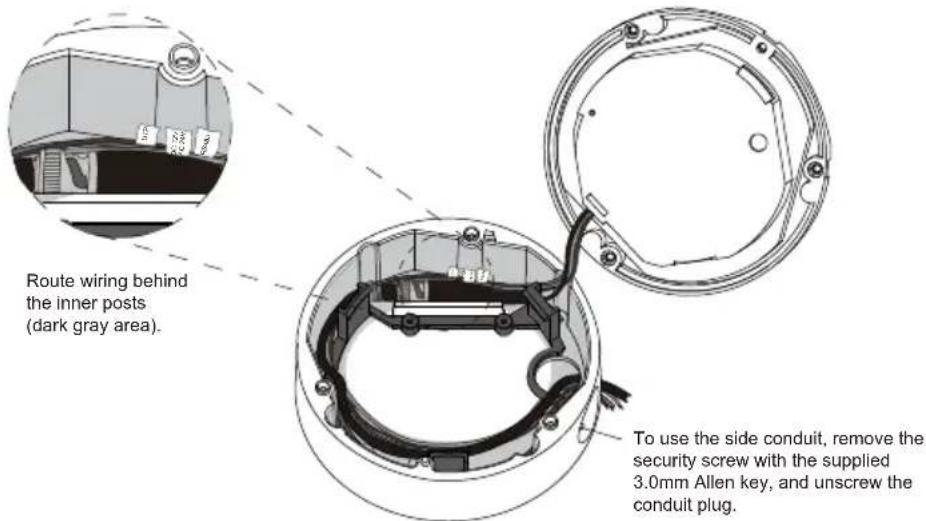

3 Pull wires through and make connections. If you need to keep the wiring within the camera housing, refer to the diagram below.

Hand holding a white circular device with black wires inserted, no visible text or symbols

4 Mount the surface mount base (junction box) to the wall.

Close-up of a white electronic device with exposed wiring and black connectors (no visible text or symbols)

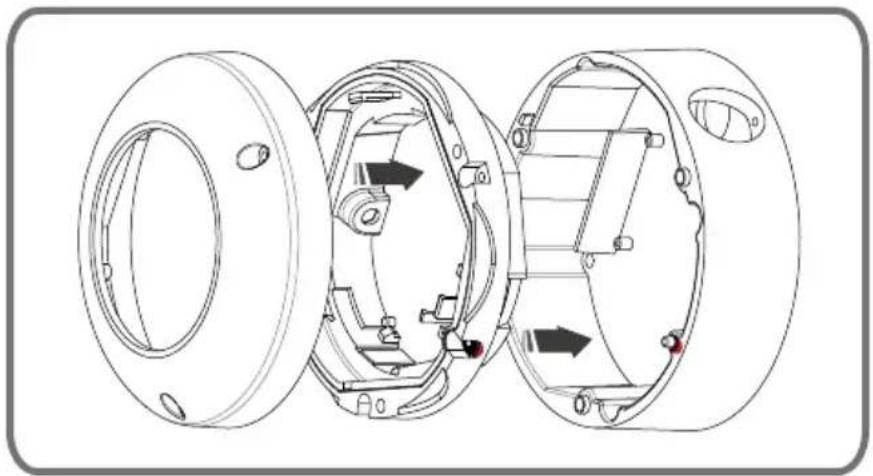

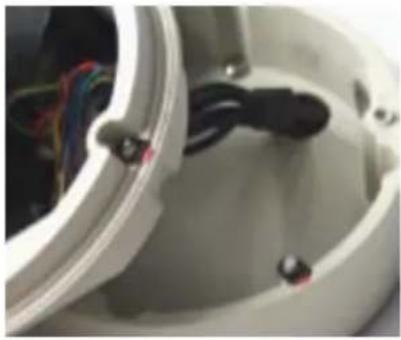

5 Snap the camera module onto the base by aligning the red and black markings on the base and the camera module.

Exploded view diagram of a mechanical assembly showing internal components and directional arrows (no text or labels)

Close-up of a mechanical device interior showing internal components and wiring (no visible text or symbols)

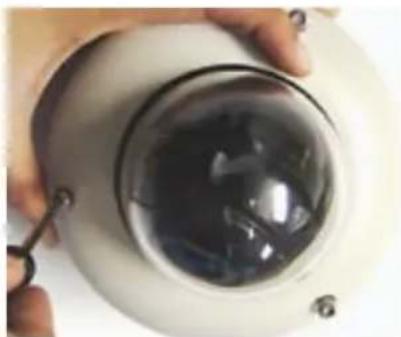

67 Secure the three (3) assembly screws.

Close-up of a hand holding a black mechanical device with visible internal components (no text or symbols)

7 Adjust the camera's position by using the 3-Axis Gimbal.

Close-up of hands holding a transparent glass container with dark liquid, no visible text or symbols

8 Tighten the three locking screws in with the L-Wrench to secure the dome cover over the camera.

FLUSH MOUNT INSTALLATION INSTRUCTIONS\*

For a flush mount housing, detach the surface mount base, which is also known as the junction box, from the flush mount base.

Use the mounting template to mark the holes for the screws and a larger hole for the top extruded component of the flush mount base.

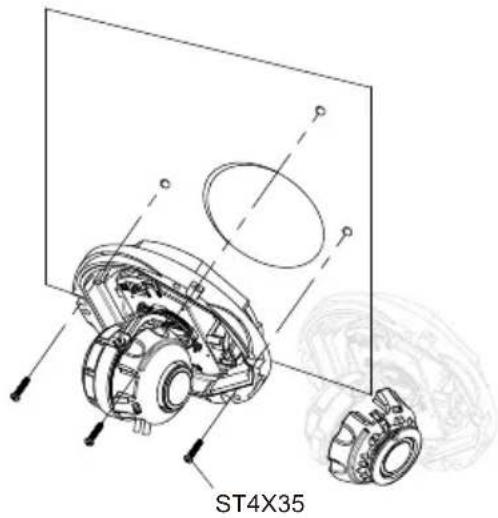

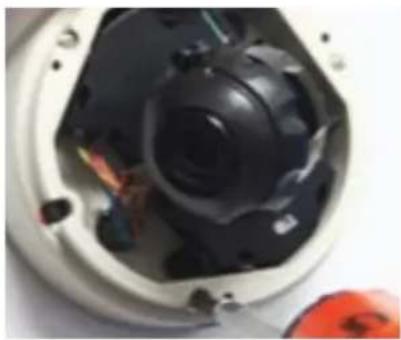

② The three assembly screws (ST4X35) fixed to the flush mount base should be used to mount the camera to the surface of the wall or ceiling.

Close-up of a mechanical device interior showing internal components and wiring (no visible text or symbols)

34 Secure the three (3) assembly screws.

Close-up of a hand adjusting a black camera lens (no visible text or symbols)

4 Adjust the camera's position by using the 3-Axis Gimbal.

Close-up of hands holding a transparent dome-shaped object with dark liquid, no visible text or symbols

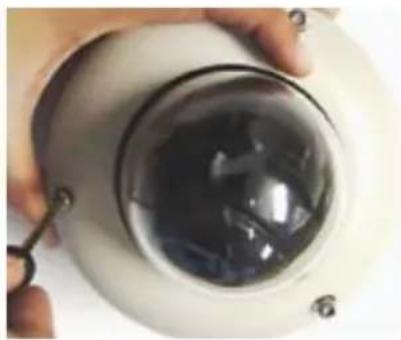

5 Tighten the three locking screws in with the L-Wrench to secure the dome cover over the camera.

WALL MOUNT INSTALLATION INSTRUCTIONS\*

Product photo showing a white plastic mechanical component with flange, bolt holes, and a separate small diagram with handwritten marks (no readable text or symbols)

Check to see all parts are in the box.

Close-up of a mechanical assembly with exposed wiring and a green component inside a gray circular housing (no text or symbols visible)

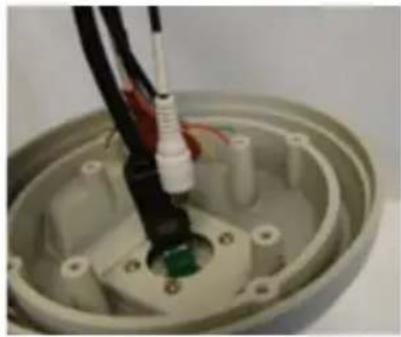

② Insert the wires from the camera through the wall mount housing.

Close-up of a white and red robotic head with black plastic cover (no text or symbols visible)

③ Use the mounting template to make pilot holes. Use the dry wall anchors and machine screws to attach the assembly.

Close-up of a white cylindrical device with a circular dial and internal components, mounted on a stand (no visible text or symbols)

45 Attach the camera's surface mount base (junction box) to the wall mount.

Close-up of a mechanical component with a black cylindrical body and a metallic rod inserted (no visible text or symbols)

5 Connect all cables and snap the camera module onto the base.

Close-up of a security camera with a blue dome and black screwdriver inserted (no visible text or symbols)

6 Adjust the camera and secure the dome cover over the camera module.

PENDANT MOUNT INSTALLATION INSTRUCTIONS\*

Collection of mechanical parts and tools laid out on a white surface, including a cylindrical component, washer, and plastic housing (no visible text or symbols)

Check to see all parts are in the box.

Close-up of a hand using a screwdriver to test internal components in a bowl (no text or symbols visible)

2 Attach the top shield to the pendant mount.

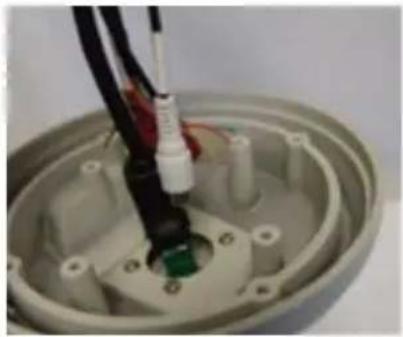

Close-up of a mechanical component with wires and a green connector, no visible text or symbols

3 Run all necessary cables from the ceiling to the mount.

Close-up of hands holding a white cylindrical object with a red tool, no visible text or symbols

48 Use the mounting template to make pilot holes. Use the dry wall anchors and machine screws to attach the assembly to the wall.

Close-up of a white mechanical component with a black tool inserted, held by fingers (no visible text or symbols)

5 Connect all cables and verify camera is operating properly.

Close-up of a ceiling-mounted security camera with a black sensor mounted on a pole (no visible text or symbols)

6 Attach the camera to the ceiling mount and secure the dome cover properly.

CORNER MOUNT INSTALLATION INSTRUCTIONS\*

① Check to see all parts are in the box.

White metal bracket with two circular cutouts and mounting holes, placed on a plain surface (no text or symbols visible)

2 Attach the two compression fittings to the corner bracket.

White 3D-printed white object with a curved handle and textured base, displayed on a plain surface (no text or symbols visible)

3 Attach the wall mount bracket to the corner mount using the machine screws.

Close-up of a hand holding a white lamp with a scroll, next to a wall-mounted cabinet (no visible text or symbols)

4 Mount the camera assembly to the corner of the wall, using wall mount anchors and machine screws.

CONNECTING TO MONITORS\*

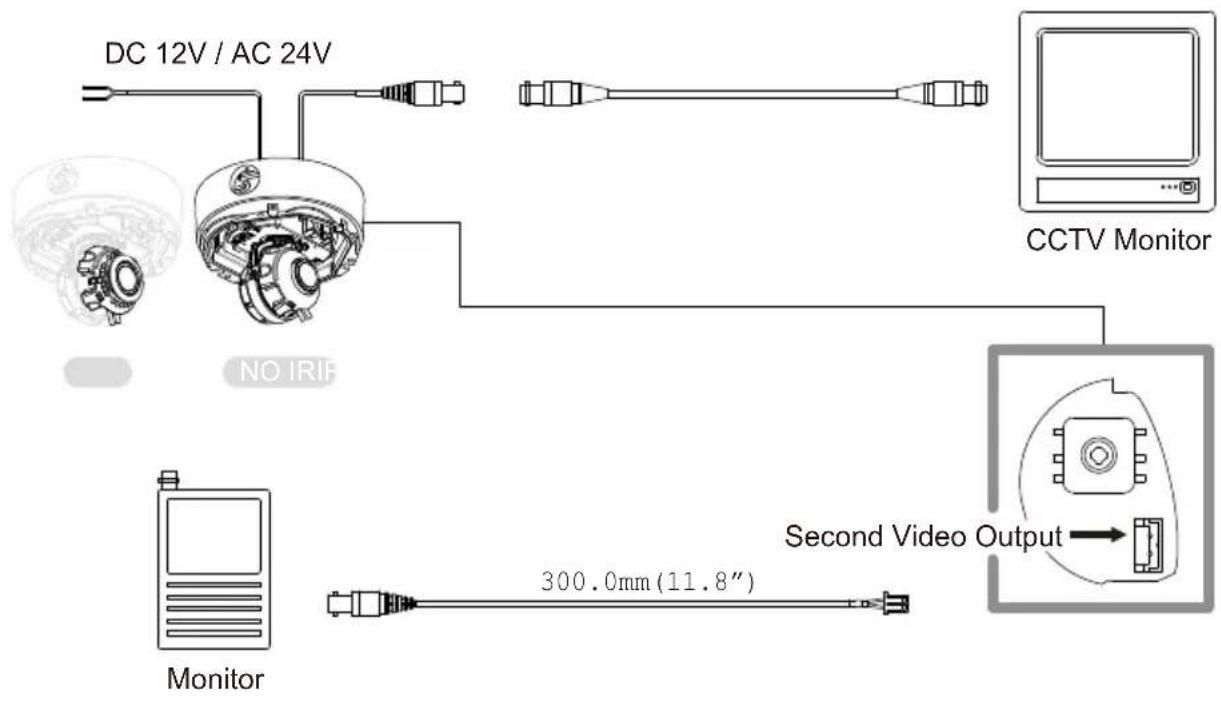

Use the diagram below to connect to a Monitor or CRT Monitor properly.

Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration.

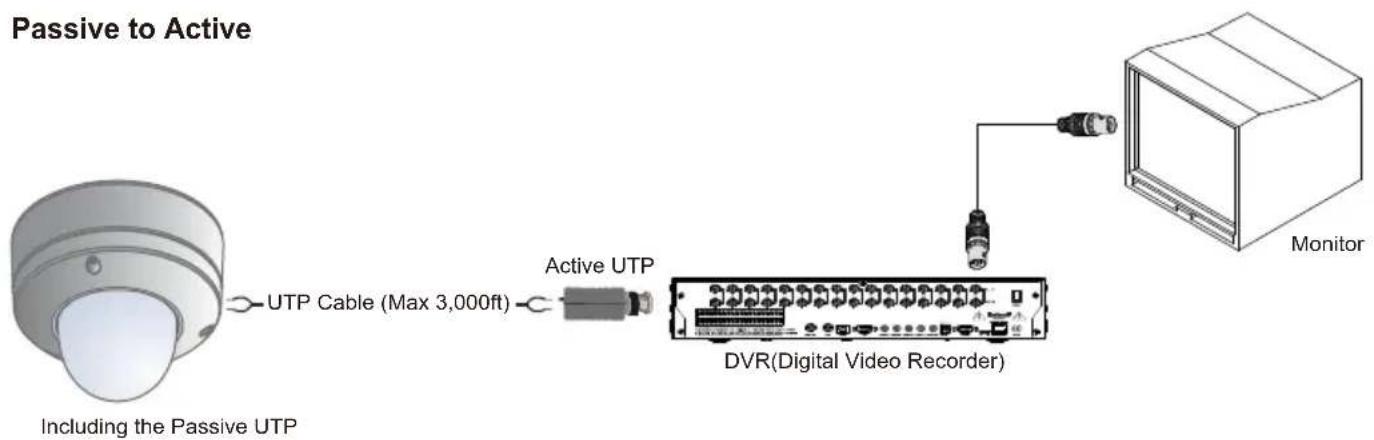

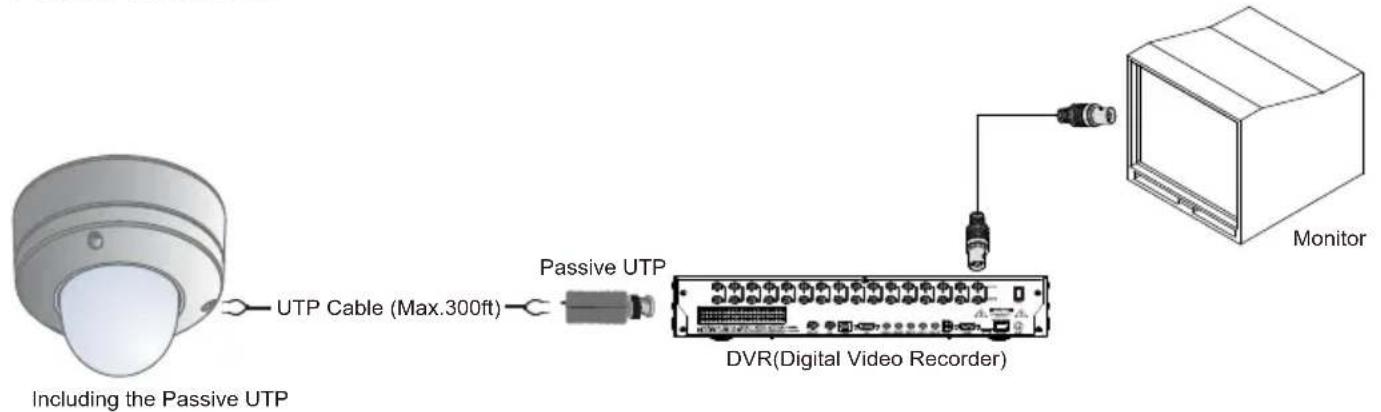

UTP SYSTEM\*

Passive to Passive

ADJUSTING THE CAMERA LENS\*

Follow the instructions provided below to make any lens adjustments.

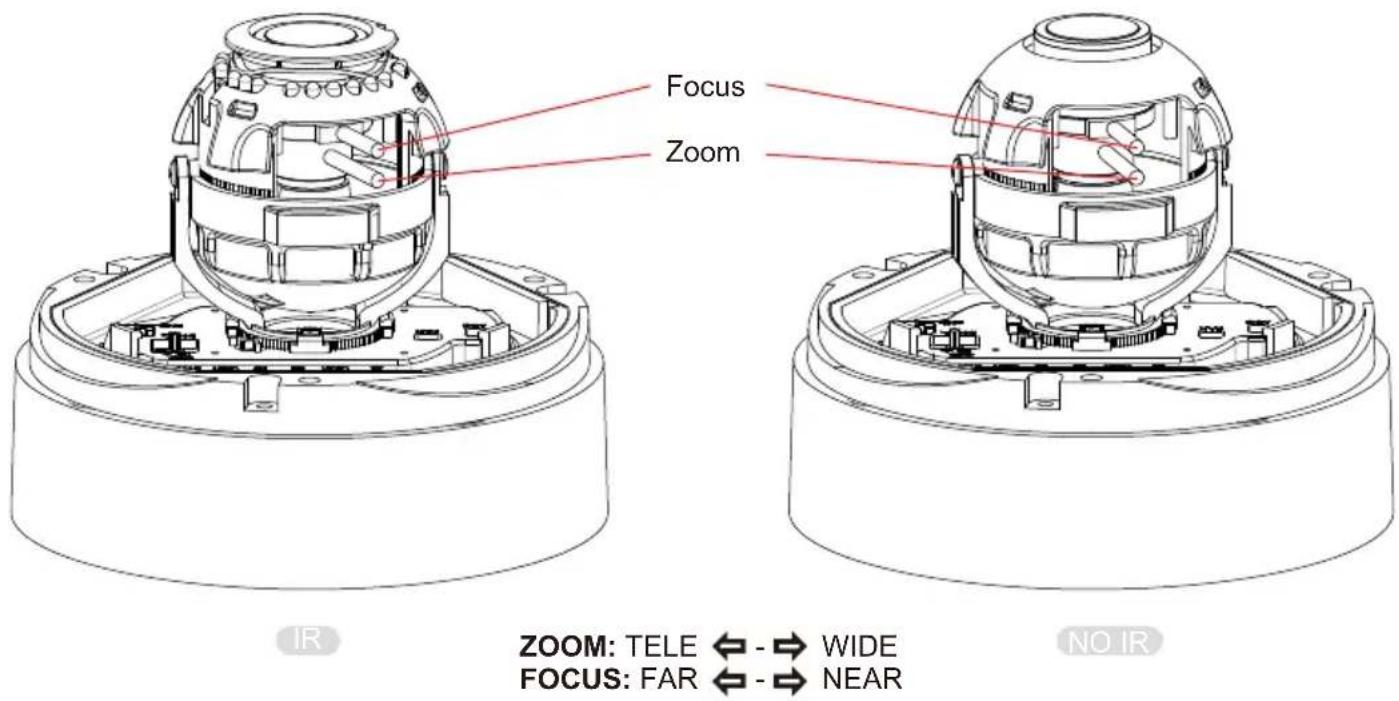

1 Loosen the zoom and focus handles by rotating them counter-clockwise.
2 Adjust the field of view by moving the handle RIGHT (TELE) to zoom in or LEFT (WIDE) to zoom out.
③ After the desired zoom position has been established, adjust the Focus the same way as described above.
4 Once the desired adjustments have been made, tighten the handles back by turning them clockwise.

ADJUSTING THE 3-AXIS GIMBAL\*

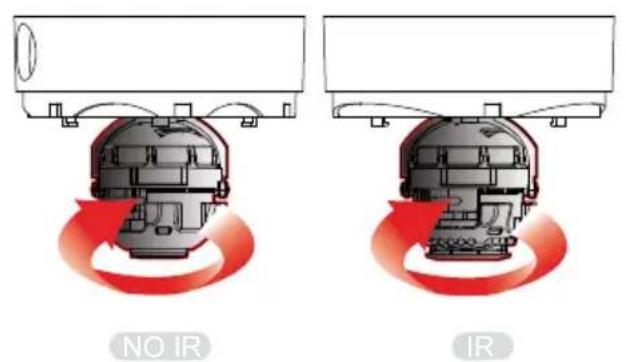

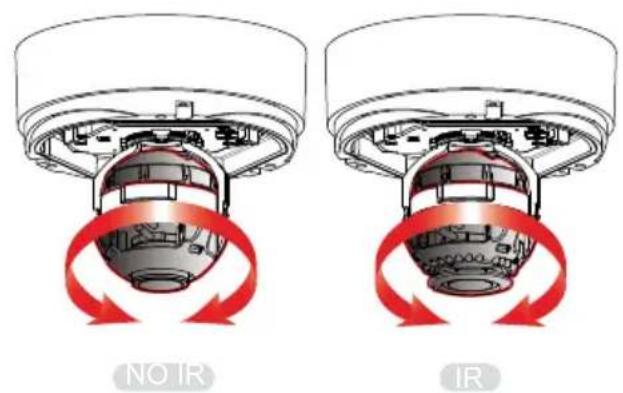

The Gimbal mechanism yields maximum rotation and placement as shown below.

Rotation 360^

Panning 360°

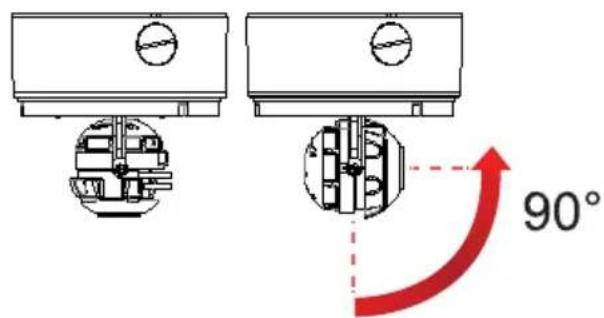

NO IR Tilting 90°

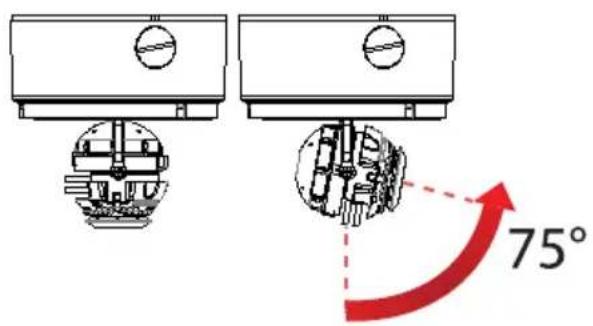

IR Tilting 75°

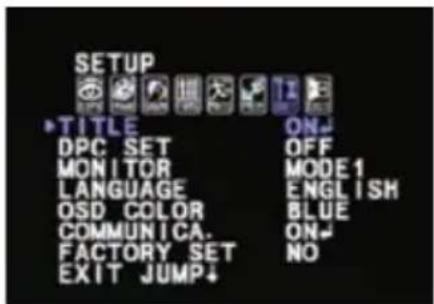

MODULE OSD MENU*

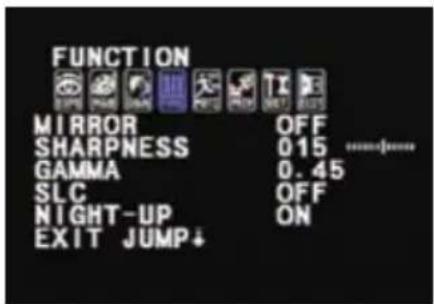

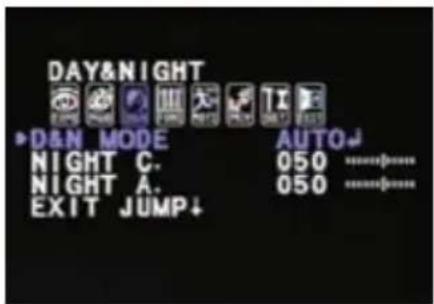

EXPOSURE	COLOR	DAY & NIGHT	FUNCTION
	WB MODEAWC / ATW / MANUAL / PUSHLOCKRED GAIN0 ~ 255BLUE GAIN0 ~ 255COLOR MODENORMAL / COOL / WARMEXIT JUMPSAVE& EXIT / EXIT	D&N MODEAUTO / COLOR / B&WNIGHT C.0 ~ 100NIGHT A.0 ~ 100EXIT JUMPSAVE & EXIT / EXIT

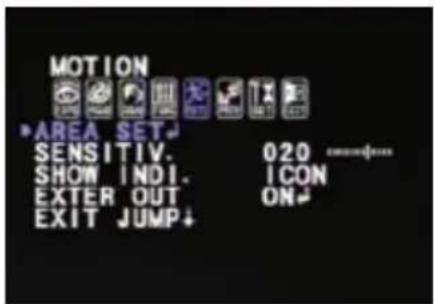

MOTION	PRIVACY	SET-UP	EXIT

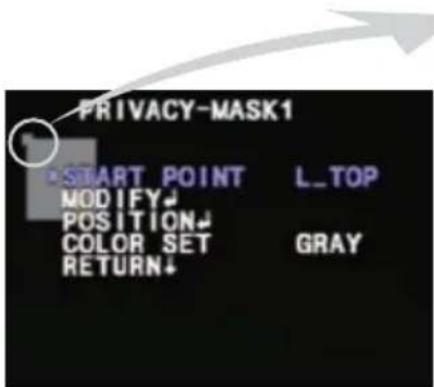

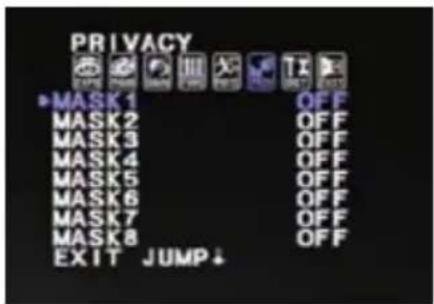

	MASK 1AREA SETOFF / ONMASK 2OFF / ONMASK 3OFF / ONMASK 4OFF / ONMASK 5OFF / ONMASK 6OFF / ONMASK 7OFF / ONMASK 8OFF / ONEXIT JUMPSAVE& EXIT / EXIT	TITLE EDITOFF / ONDPC SETOFF / AUTOMONITORMODE 1 / MODE 2LANGUAGEENGLISH 標髙中文/简体中文/日本語 / DEUTSCH / FRENCH /ITALIAN / RUSSIAN / SPANISH / DUTCHOSD COLORBLUE / GREEN / CYAN / RED /MAGENTA / YELLOW / PURPLE /GRAYCOMMUNICATIONOFF / ONFACTORY SET.NO / YESEXIT JUMPSAVE & EXIT / EXIT

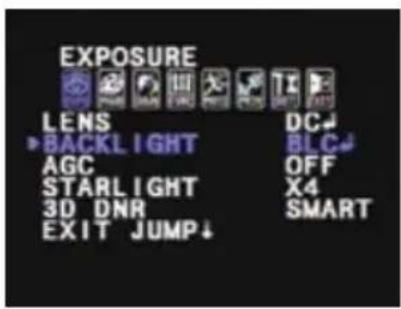

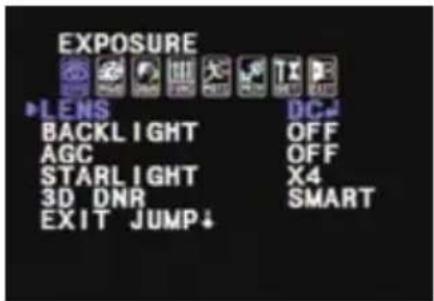

EXPOSURE

LENS

Manual Manual mode supports the fixed board lens or the manual iris lens.

DC DC mode supports the auto-iris varifocal lens.

NOTE: Both MANUAL and DC mode have FOCUS TARGET. You can adjust the focus by finding the highest number on the FOCUS TARGET. See page 16 for focus information.

ELC Levels and DC Levels are adjustable. The higher the number, the brighter the image.

E. Shutter sets the shutter speed levels from 1/60 to 1/100000.

*For LENS-MANUAL Mode, the default E.SHUTTER is AUTO.

*For LENS-DC Mode, the default E.SHUTTER is 1/60. Select DC-AUTO for outdoor use.

Select 1/100FLC to run camera in flickerless mode.

Note: The STARLIGHT option cannot be controlled if the E.SHUTTER setting is above 1/60.

EXPOSURE

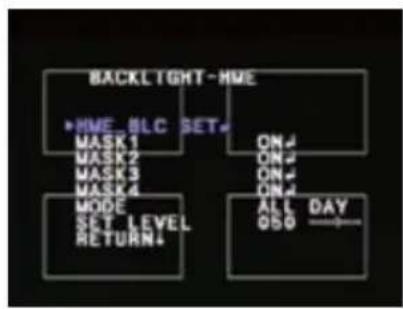

BACKLIGHT

OFF

BLC BACK LIGHT COMPENSATION

MANUAL User can manually adjust the BLC level in five areas of the scene (TOP, BOTTOM, CENTER, LEFT, RIGHT). Increase the BLC levels to make the image brighter.

SMART This is recommended. Camera will automatically detect and adjust the BLC zone. BLC levels to choose from include: LOWEST, LOW, MID, HIGH.

HME HIGHLIGHT MASKING EXPOSURE

HME masks highlights to allow objects to appear clearly on the screen. If ON is selected, HME levels are adjustable. The lower the number, the darker the masking areas.

DRC DYNAMIC RANGE COMPRESSOR

With the advanced light compensation technology DRC, dark spots in images particularly become more visible without overexposing the bright spots to create one perfect image. The higher the number, the better the performance of DRC.

EXPOSURE

AGC (AUTO GAIN CONTROL)

OFF / LOW / MID / HIGH / HIGHEST the amount of noise.

AGC enhances the picture brightness in low light conditions. A higher level AGC setting makes the images brighter; however, it could increase

STARLIGHT Starlight mode automatically activates slow shutter function when the

OFF/x2\~x1024 image is too dark. x4 is the default. We do not recommend you to increase the setting, for it causes the image to lag.

Note: Starlight menu cannot be controlled if the E.SHUTTER setting is above 1/60.

3D DNR (DIGITAL NOISE REDUCTION)

OFF / LOW / MID / HIGH / SMART allows for clearer images, even at night. The SMART option will adjust the camera to prevent lagging when there is motion.

EXIT JUMP

SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.

COLOR

WB MODE

AWC Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K.

ATW Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K.

MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below).

PUSHLOCK Pushlock is to fix the white balance based on the current lighting.

RED GAIN

0 \~ 255 Adjusts the amount of red in the image.

BLUE GAIN

0 \~ 255 Adjust the amount of blue in the image.

COLOR MODE

NORMAL Color is similar to actual color.

COOL Color has more blue.

WARM Color has more red.

EXIT JUMP

SAVE & EXIT Save the current settings and exit the OSD menu.

EXIT Exit the OSD menu without saving the changes.

DAY & NIGHT

AUTO Camera switches between day and night automatically depending on light level. Camera will stay in color mode when there is enough light. Camera will switch to B&W at night or other low light environments.

If AUTO is selected, please define the following settings:

*BURST: If ON is selected, the camera provides a color burst signal mode. If OFF, no color burst signal is provided.

*COLOR->B&W: Adjusts the light level at which the camera switches from day (color) to night (B&W) mode. The higher the number, the lower the light level.

*B&W->COLOR: Adjusts the light level at which the camera switches from night (B&W) to day (color) mode. This number should be lower than the value of COLOR->B&W above.

*SMART IR: ON/OFF. If using IR LEDs, ON is recommended.

*READ TIME: Time interval delay before switching from day mode to night mode. It is adjustable from 3 seconds to 12 seconds.

*EX_IR INT.: AUTO/EXT. If using IR LEDs built into the camera, select AUTO. If using external IR LEDs separately, select EXT.

COLOR Camera always stays in day/color mode.

B&W Camera always stays in night/B&W mode.

NIGHT C.

0 \~ 100 Color will be reduced in low light conditions.

(This level cannot be adjusted when 3D-DNR is ON.)

NIGHT A.

0 \~ 100 Edge sharpness will be reduced in low light conditions.

(This level cannot be adjusted when 3D-DNR is ON.)

EXIT JUMP

SAVE & EXIT Save the current settings and exit the OSD menu.

EXIT Exit the OSD menu without saving the changes.

FUNCTION

MIRROR

OFF

MIRROR Flips the image horizontally.

SHARPNESS

0 \~ 30 Sets the image sharpness. The higher the number, the sharper the image.

GAMMA

0.45 / 0.60 / Select the desired gamma level. 0.45 is default setting.

1.0 / MANUAL

SLC (SIDE LIGHT COMPENSATION)

OFF / ON Increase the brightness on sides of the image.

NIGHT-UP

OFF / ON Adjusts sensitivity in low light conditions by set-up level. If ON is selected, the set-up level becomes higher, and the images become brighter.

EXIT JUMP

SAVE & EXIT Save the current settings and exit the OSD menu.

EXIT Exit the OSD menu without saving the changes.

MOTION

The camera can detect the movement and display an alarm on the screen when movement is detected.

AREA SET

AREA 1\~4 OFF / ON

If ON, motion areas can be selected and moved accordingly. Select Areas 1-4 and adjust using controls for TOP, BOTTOM, LEFT, or RIGHT.

SENSITIV.

1 \~ 30 Sensitivity level of the motion detection is adjustable. Motio Detection will be more sensitive at a higher number.

SHOW INDI.

OFF / ICON Set the Show Indicator to OFF, ICON, or TRACE. If ICON is selected, a TRACE a bell will appear in the upper right hand corner when motion is detected. If TRACE is selected, the area where motion was detected will be highlighted.

EXTER OUT (ALARM SIGNAL, EXTERNAL OUTPUT)

OFF / ON If ON is selected, you can set how long the alarm is displayed on the screen when motion is detected (0 \~ 15 seconds).

EXIT JUMP

SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.

PRIVACY

You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available.

MASK 1 \~ MASK 8

OFF / ON Select ON or OFF for each mask (MASK 1 through 8).

If ON is selected you can set the area to be masked and the shape and color of the mask.

*START POINT: Select the START POINT to adjust the size of the privacy zone.

L_TOP (Left Top)

R_TOP (Right Top)

L_BOT (Left Bottom)

R_BOT (Right Bottom)

*MODIFY: After selecting the START POINT, you can modify the size of the privacy zone by moving the joystick left or right.

*POSITION: You can move the privacy zone by moving the joystick left or right.

*COLOR SET: Privacy zones can be set with eight different colors - GRAY, BLACK, WHITE, RED, GREEN, BLUE, MAGENTA, and CYAN.

SETUP

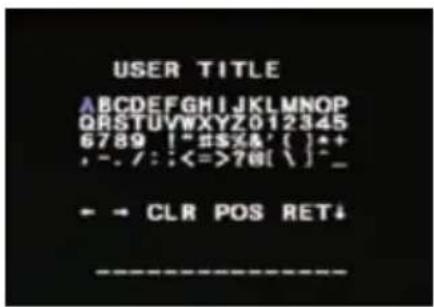

TITLE

OFF / ON If ON is selected, you can display the camera title on the screen.

*CLR: Clear the title.

*POS: Position the title on the screen.

DPC (DEAD PIXEL CANCELLATION)

OFF DPC automatically removes defective pixels in real time.

AUTO If AUTO is selected, you can define the following settings:

*WHITE THR: Cancels the white defective pixels.

*BLACK THR: Cancels the black defective pixels.

*DPC LEVEL: Adjusts the sensitivity level of the dead pixel cancellation.

NOTE: Adjust the WHITE THR/BLACK THR and DPC LEVEL at the same time.

SETUP

MONITOR

MODE 1 MODE 1 is the default. If the displayed image is not good enough, try MODE 2. MODE 2

LANGUAGE

The camera supports the following languages: ENGLISH, CANTONESE, MANDARIN, JAPANESE, GERMAN, FRENCH, ITALIAN, RUSSIAN, SPANISH, AND DUTCH.

OSD COLOR

The following colors are available for the OSD menu: BLUE, GREEN, CYAN, RED, MAGENTA, YELLOW, PURPLE, and GRAY.

COMMUNICATION

OFF

ON If ON is selected, you can define the following:

*PROTOCOL: PELCO-D only.

*CAMERA ID: Provide an ID number for the camera (0\~255).

*BAUDRATE: 9600bps is the default. There are four options: 2400bps, 4800bps, 9600bps, and 19200bps.

FACTORY SET

If selected, the camera reverts back to factory default settings.

NOTE: FACTORY SET does not affect the LENS, DAY & NIGHT, CAMERA ID, and DPC SETTINGS.

EXIT JUMP

SAVE & EXIT Save the current settings and exit the OSD menu.

EXIT Exit the OSD menu without saving the changes.

EXIT

EXIT

SAVE & EXIT Save the current settings and exit the OSD menu. EXIT Exit the OSD menu without saving the changes.

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact our technical specialist.

FOR NO VIDEO

Check the coaxial cable and make sure it is connected securely.

Check the lens' iris adjustment at the camera's OSD menu.

Check the power supply and make sure the camera has the proper voltage and current.

FOR OUT-OF-FOCUS VIDEO

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens' manual focal and zoom adjustment. The use of a field test monitor is recommended.

WARRANTY INFORMATION\*

Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows:

LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.

PARTS: In addition, the Warrantor will supply replacement parts for the initial five (5) years and one (1) year on IR LED.

To obtain warranty or out of warranty service, please contact a Technical Support Representative at 1-866-446-3595 Monday through Friday from 8:30AM to 8:00PM Eastern Standard Time.

A purchase receipt or other proof of the original purchase date is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damage which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS\*

There are no express warranties except as listed. The warrantor will not be liable for incidental or consequential damages (including damage to recording media without limitation) resulting from the use of these products or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitatons on how long an implied warranty lasts, so the exclusions or limitations listed above may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state.

If the problem is not handled to your satisfaction, then write to the following address:

Digital Watchdog, Inc.

ATTN: RMA Department

5436 W. Crenshaw Street

Tampa, FL 33634

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Costs of such service calls are the responsibility of the purchaser.

SPECIFICATIONS*

DWC-V4363D & DWC-V4363TIR
VIDEO
Image Sensor 1/3" CCD
Total Pixels 811 (H) x 508 (V), 411K Pixels
Effective Pixels 768 (H) x 494 (V)
Frequency 15.734KHz (H), 59.95Hz (V)
Synchronization Internal or Line Lock
Horizontal Resolution 620 TV Lines [B&W], 600 TV Lines [Color]
Minimum Illumination F1 2 (30IRE): 0.14 Lux [Color]F1.2 (30IRE): 0.03 Lux [B&W]; 0.0 Lux [B&W] for IR Model
S/N Ratio 50dB (AGC off)
Video Output CVBS: 1.0Vp-p / 75 Ω
LENS
Focal Length 3.3-12mm
Lens Type DC Auto Iris
OPERATIONAL
Day & Night Electronic;	TDN with IR Cut Filter [IR Model]
3D-DNR OFF / LOW / MID / HIGH / SMART
Star-Light OFF / x2 ~ x1024
White Balance	AWC / ATW / MANUAL / PUSH
OPERATIONAL
Backlight Compensation	OFF / BLC / HME / DRC
Auto Gain Control OFF /	LOW / MID / HIGH / HIGHEST
Privacy Zones OFF / ON (8 Programmable Zones)
Language ENGLISH / GERMAN / JAPANESE / MANDARIN / CANTONESE
RUSSIAN / FRENCH / SPANISH / ITALIAN / DUTCH
ENVIRONMENTAL
Operating Temperature -29 °C ~ 55°C (-20°F ~ 131°F)
Operating Humidity Less than 90% (Non-Condensing)
Storage Temperature -29 °C ~ 70°C (-20°F ~ 158°F)
IP Rating IP68 (Protects against dust and immersion beyond 3ft.)
ELECTRICAL
Power Requirement Dual (12VDC & 24VAC)
Power Consumption 12VDC: 2.3W, 192mA / LED ON 4.8W, 400mA
24VAC: 2.5W, 104mA / LED ON 4.9W, 204mA
MECHANICAL
Housing Material Aluminum
Dome Cover Material Polycarbonate
Dimensions ∅139 X 118.8 mm (∅5.47 X 4.7 in)
Weight 2.028 lbs; 2.05 lbs [IR Model]

*Specification is subject to change without prior notice.

SPECIFICATIONS*

DWC-V4363DH
VIDEO
Image Sensor 1/3" CCD
Total Pixels 811 (H) x 508 (V), 411K Pixels
Effective Pixels 768 (H) x 494 (V)
Frequency 15.734KHz (H), 59.95Hz (V)
Synchronization Internal or Line Lock
Horizontal Resolution 620 TV Lines [B&W], 600 TV Lines [Color]
Minimum Illumination F1.2 (30IRE): 0.14 Lux [Color]F1.2 (30IRE): 0.03 Lux [B&W]
S/N Ratio 50dB (AGC off)
Video Output CVBS: 1.0Vp-p / 75 Ω
LENS
Focal Length 3.3-12mm
Lens Type DC Auto Iris
OPERATIONAL
Day & Night Electronic
3D-DNR OFF / LOW / MID / HIGH / SMART
Star-Light OFF / x2 ~ x1024
White Balance	AWC / ATW / MANUAL / PUSH
OPERATIONAL
Backlight Compensation	OFF / BLC / HME / DRC
Auto Gain Control OFF /	LOW / MID / HIGH / HIGHEST
Privacy Zones OFF / ON (8 Programmable Zones)
Language ENGLISH / GERMAN / JAPANESE / MANDARIN / CANTONESE
RUSSIAN / FRENCH / SPANISH / ITALIAN / DUTCH
ENVIRONMENTAL
Operating Temperature -40 °C ~ 55°C (-40°F ~ 131°F)
Operating Humidity Less than 90% (Non-Condensing)
Storage Temperature -40 °C ~ 70°C (-40°F ~ 158°F)
IP Rating IP68 (Protects against dust and immersion beyond 3ft.)
ELECTRICAL
Power Requirement Dual (12VDC & 24VAC)
Power Consumption 12VDC: 2.3W, 192mA / HEATER ON 6.0W, 500mA
24VAC: 2.5W, 104mA / HEATER ON 6.0W, 250mA
MECHANICAL
Housing Material Aluminum
Dome Cover Material Polycarbonate
Dimensions ∅139 X 118.8 mm (∅5.47 X 4.7 in)
Weight 2.028 lbs

*Specification is subject to change without prior notice.

MEMO*

MEMO*

MEMO*

DW•DIGITAL WATCHDOG

Everything's Digital

5436 W Crenshaw St. Tampa, FL 33634

Tel:[phone]

Fax:[phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support Hours: Monday-Friday

8:30am to 8:00pm EST
