Product Type	Color/BW 12IR LED Day/Night Digital Bullet Camera
Image Sensor	1/3" Samsung HAD CCD
Total Pixels	537(H) x 505(V)
Effective Pixels	510(H) x 492(V)
Horizontal Resolution	420 TV Lines
Scanning System	525 lines, 2:1 Interlace
Minimum Illumination	0 Lux (IR LEDs on)
Video Output	1.0 Vp-p (75 Ohm load)
Signal-to-Noise Ratio	48 dB
Lens Focal Length	3.6 mm
Lens Type	Fixed
Wide Dynamic Range (WDR)	Yes
Automatic Gain Control (AGC)	Yes (on/off)
White Balance	ATW / AWB / Manual
On-Screen Display (OSD)	No
Power Requirement	12 VDC
Power Consumption	86 mA (LED off), 215 mA (LED on)
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Operating Humidity	Less than 90%
Dimensions (W x H)	110 x 64.7 mm
Mount Type	Conventional Bracket
IR LED	12 IR LEDs
Day/Night	Yes (IR cut filter)
Warranty	5 years parts and labor

Frequently Asked Questions - DWC-B3252DIR Digital Watchdog

What is the minimum illumination required for the camera to produce a usable image?

The camera can produce an image in complete darkness (0 Lux) when the IR LEDs are turned on.

Does the camera support Wide Dynamic Range (WDR)?

Yes, the camera has WDR ON function to handle high-contrast scenes.

What is the horizontal resolution of this camera?

The horizontal resolution is 420 TV lines.

What power supply is required for the DWC-B3252DIR?

The camera requires a 12 VDC power supply. Check polarity when connecting.

How do I adjust the camera's viewing direction?

Loosen the Fixed Screw to adjust the direction, then tighten it to secure the camera in position.

How should I clean the lens?

Gently wipe dirt or fingerprints off the lens with a soft cloth or lens cleaning paper and cleaning fluid.

What should I do if no image appears?

Check that the coaxial cable is attached securely, power and voltage are normal, the iris is adjusted, and there is adequate illumination.

What is the warranty period for this camera?

Digital Watchdog provides a 5-year warranty on parts and labor from the date of original purchase.

Can this camera be used outdoors?

Yes, the operating temperature range is -10°C to +55°C, and it includes a sun cover. However, protect it from direct rain or moisture as per the precautions.

What are the steps for installing the camera?

Drill holes for the bracket, mount the bracket with screws, assemble the camera, adjust direction using the fixed screw, adjust the sun cover, and finalize after checking the monitor image.

USER MANUAL DWC-B3252DIR Digital Watchdog

Everything's Digital

5436 W Crenshaw Street

Tampa, FL 33634

www.digital-watchdog.com

Technical Support : 1-866-446-3595 / 813-888-9555

INSTRUCTION MANUAL

B3252DIR Series

About manual

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Exterior view of a silver security camera with dual circular lens (no visible text or symbols)

PRECAUTIONS

■ Do not open or modify
Do not open the case except during maintenance and installation, as it may be dangerous and cause damages.
■ Do not put objects inside the unit
Make sure that no metal objects or flammable substances get inside the camera. It could cause fire, short-circuits or damages.
■ Be careful when handling the unit
To prevent damage, do not drop the camera or subject it to strong shock or vibration.
■ Install away from electric or magnetic fields
■ Protect from humidity and dust
■ Protect from high temperature
Be careful when installing close to the ceiling, in a kitchen or boiler room, as the temperature may rise to high levels.
Cleaning
Dirt can be removed from the case only by wiping it with a soft cloth moistened with a soft detergent solution.
■ Mounting Surface
The mounting surface material must be strong enough to support the camera.

TROUBLESHOOTING

Before sending the camera out for repair, check the items below.

If the problem persists after checking these items, contact technical support.

If no image appears

Is the coaxial cable attached securely?

Are the power and voltage normal?

Has the iris of the lens inside the camera been adjusted correctly (with the level volume)?

Is there adequate illumination?

■ If the image is unclear

Is the lens in focus?

Is the lens dirty?

Dirt or fingerprints on the lens can adversely affect the images. Gently wipe any dirt or fingerprints off the lens

with a soft cloth or lens cleaning paper and cleaning fluid (commercially available).

Is the monitor adjusted correctly?

WARNING:

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

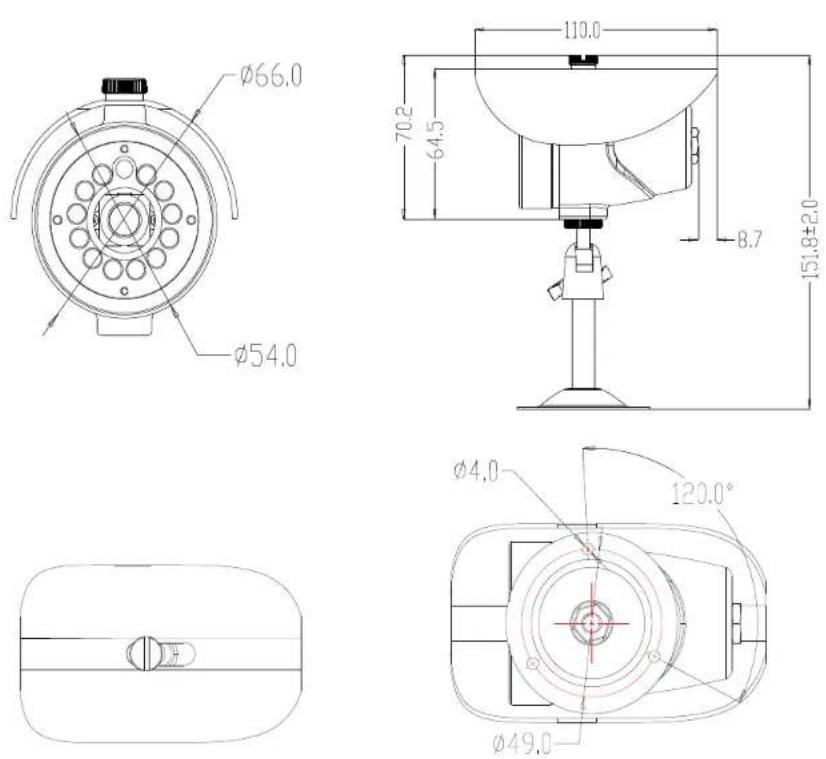

DIMENSION (mm)

INSTALLATION

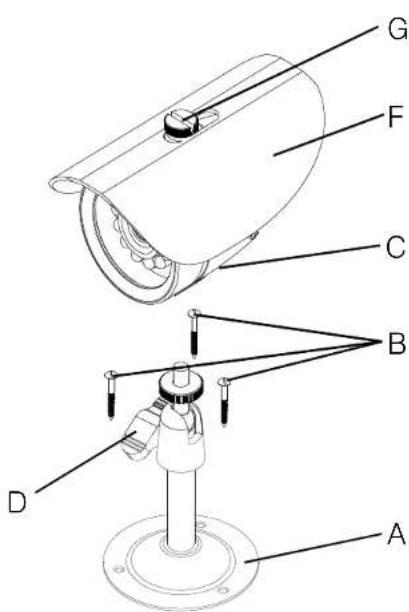

A. Drill the holes in the places where the screw holes of the Bracket are to be mounted.

B. Using Screws, mount the Bracket to the wall.

C. Assemble the Camera with the Bracket.

D. Loosen the Fixed Screw to adjust the direction of the Camera.

E. After the Camera is adjusted firmly in position, tighten the Fixed Screw to set of the Camera.

F. Loosen the Screw on top of the Sun Cover to adjust the Sun Cover.

G. If the image on the monitor looks good, tighten the Screw to the Sun Cover.

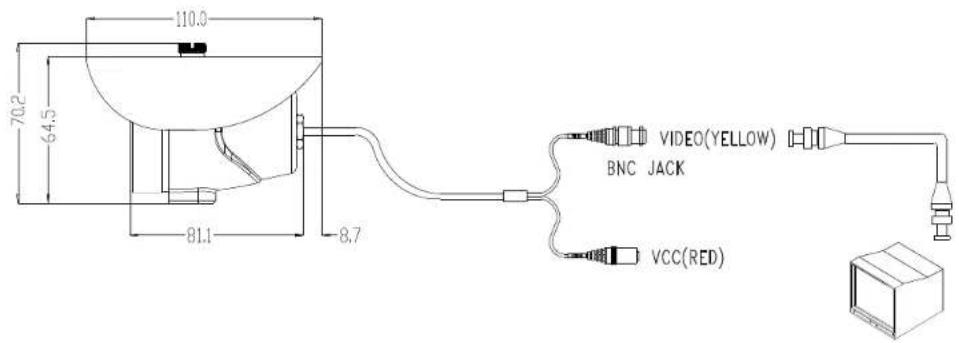

CONNECTION

CAUTION :

Check for polarity when using a DC 12V power supply.

WARRANTY INFORMATION

Digital Watchdog (referred to as "the Warrantor") warrants the Camera Series against defects in materials or workmanship as follows:

LABOR: For the initial five (5) years from the date of original purchase, if the camera is determined to be defective, the Warrantor will repair or replace the unit, with new or refurbished product at its option, at no charge.

PARTS: In addition, the Warrantor will supply replacement parts for the initial five (5) years.

To obtain warranty or out of warranty service, please contact a Technical Support Representative at 1-866-446-3595 Monday through Friday from 9:00 AM to 5:00 PM Eastern.

A purchase receipt or other proof of the date of the original purchase is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damage which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without limitation, damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state.

If the problem is not handled to your satisfaction, then write to the Address above.

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Costs of such service calls are the responsibility of the purchaser.

Model no.	B3252DIR
Camera TYPE Color/BW 12IR LED Day/Night Digital Bullet Camera
	Mount Conventional Bracket
Image Device Samsung HAD CCD
	Size 1/3"
	Pixels-Total 537(H) x 505(V)
	Pixels-Effective 510(H) x 492(V)
Scanning System 525 line, 2:1Interlace
	Horizontal Frequency Internal Mode 15,734Hz
	Vertical Frequency Internal Mode 59.94Hz
Min. Scene Illumination IR-LED on 0 Lux
Functions WDR ON
	AGC	ON/OFF (Gain Adjust)
	AWB	ATW / AWB / Manual
Lens	Focal Length	3.6mm
Resolution	Horizontal	420 TV Lines
Video Output	VBS 1.0Vp-p	VBS 1.0Vp-p(75 Load)
S/N Ratio	S/N Ratio	48dB
OSD	OSD	NO
Environmental Conditions	Operating Temperature	-10°C ~ +55°C(14°F ~ 131°F)
	Humidity	Less than 90%
Power	Power Requirement	12VDC
	Power Consumption	12VDC: 86mA(LED OFF) 215mA(LED ON)
Physical Specification	Dimensions(W x H)	110 x 64.7mm
