Type	Wall Mount for Screen
Brand	Chief
Model	Kontour K1P22H
Number of Displays Supported	2
Weight Capacity per Display	9 lb (4.08 kg)
Total Weight Capacity	18 lb (8.16 kg)
VESA Compatible	Yes (M4 screws)
Tilt Adjustment	Yes, with pitch tension screw
Pivot Adjustment	Yes, with hex key
Rotation Adjustment	Yes, 90° portrait/landscape (optional lock)
Lift Arm Tension	Adjustable with hex key
Roll Adjustment	Yes, on array bar
Lateral Shift	Yes, slide on array
Cable Management	Yes, covers and clips included
Mounting Method	Pole mount (1.5" NPT or 1.5" pipe)
Material	Steel
Color	Black
Tools Required	Phillips screwdriver, hex keys (5/32", 3/16", 1/8")
Adjustments	Pitch, pivot, rotation, lift tension, roll, lateral shift
Safety Warning	Must support 5x combined weight; max weight per display 9 lb

Frequently Asked Questions - Kontour K1P22H Chief

What is the weight capacity of the Kontour K1P22H?

Each display can weigh up to 9 lb (4.08 kg), and the total system capacity is 18 lb (8.16 kg).

How many displays can I mount?

The K1P22H supports mounting two displays.

What tools are required for installation?

You will need a Phillips screwdriver and the included hex keys: 5/32", 3/16", and 1/8".

Can I adjust the tilt of the monitors?

Yes, you can adjust the pitch using the pitch tension screw to set the desired tilt.

How do I install the array for dual displays?

Slide the rotational spacer into the array attachment bracket, then secure the array to the K1 arm using the provided screws, washers, spacers, and pivot pin as shown in Figure 2 of the manual.

How do I remove a display from the mount?

Ensure the display is in the upright position, then pull the quick release lever and slide the faceplate off the mount.

Can I rotate the screen to portrait mode?

Yes, the mount allows 90 degrees of rotation in either direction for portrait orientation. An optional locking screw can lock the rotation.

How do I manage cables?

Use the cable management covers on the arms and the array cable clips to route and secure cables, leaving enough slack for full arm articulation.

Is the mount compatible with VESA standards?

Yes, the faceplate uses M4 screws for flush or recessed mounting holes, compatible with standard VESA patterns.

What type of pole is required for mounting?

The mount fits a 1.5" NPT pipe or a 1.5" diameter pipe. Use the appropriate screws provided.

USER MANUAL Kontour K1P22H Chief

INSTALLATION INSTRUCTIONS

K1P Pole Mounts

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located attached to the K1P Series Monitor Arm up to (and including) the display does not exceed the weight limits listed below. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

MODEL Max Weight Allowed for EACH Display		Max Weight Capacity of Mounting System
K1P110	25 lbs(11.34 kg)	25 lbs(11.34 kg)
K1P120	25 lbs(11.34 kg)	25 lbs(11.34 kg)
K1P22H	9 lbs(4.08 kg)	18 lbs(8.16 kg)
K1P220	25 lbs(11.34 kg)	50 lbs(22.68 kg)

--SAVE THESE INSTRUCTIONS!--

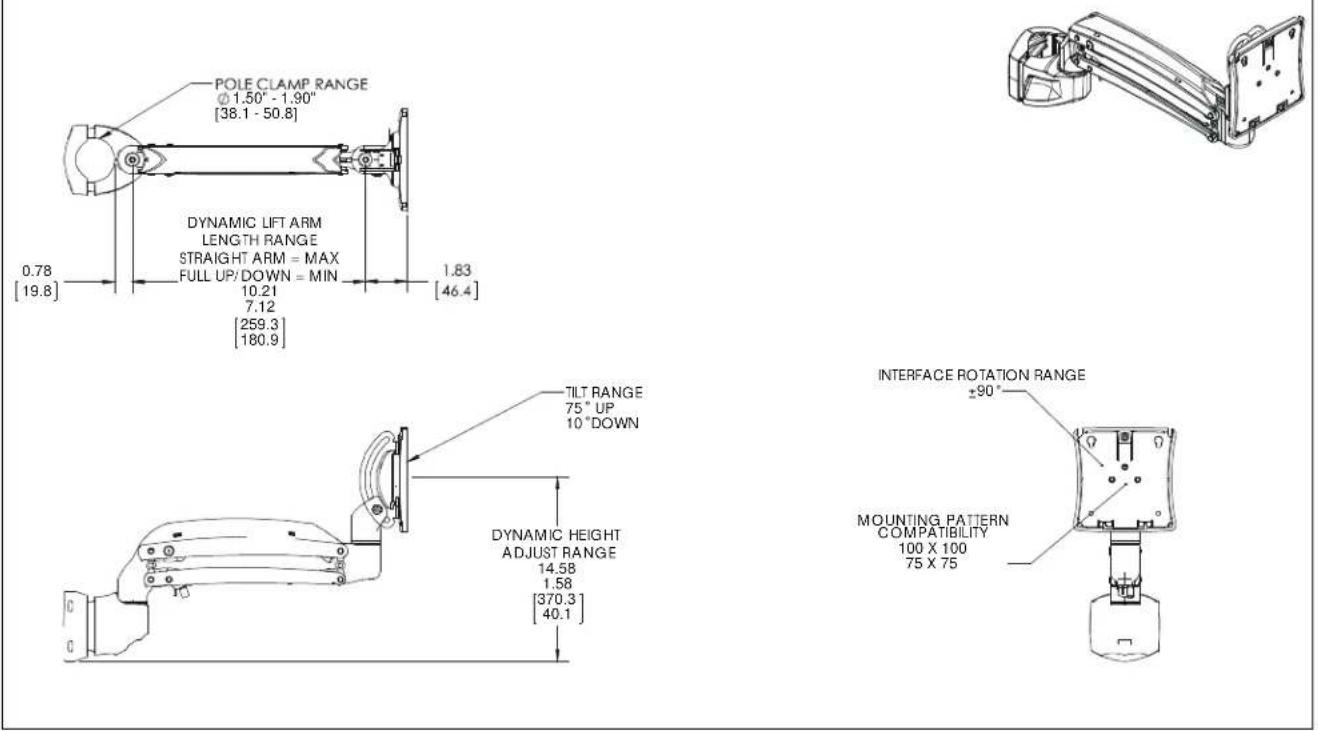

DIMENSIONS

K1P110

K1P22H

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

TOOLS REQUIRED FOR INSTALLATION

PARTS

Assembly And Installation

Connecting to Pole

1. Determine approximate location for mount keeping in mind display size, extension, height adjustment requirements.
2. Place mount (A) against pole with clamp (E) on opposite side of pole. (See Figure 1)

Figure 1

1. Using 5/32" hex key (L) and appropriate length screws, loosely attach assembly to pole clamp (E). If installing to 1 1/2" NPT pipe, use 1/4-20 x 1 1/2" button head cap screws (F). If installing to 1 1/2" diameter pipe, use 1/4-20 x 1" button head cap screws (G). (See Figure 1)
2. Position mount at desired height and orientation.
3. Equally tighten screws against mount and the pole clamp.

Array Installation (K1P22H ONLY)

1. Slide rotational spacer (J10) into opening on array attachment bracket. (See Figure 2)
2. Use 5/16-18 x 3" button head cap screw (J3), two thin steel washers (J8), plastic spacer (J9), pocket washer (J5), pivot pin (J4), pivot point spacer (J12) and 5/16-18 lock nut (J6) to secure array (J1) to K1 arm (A). (See Figure 2)

NOTE: Cable clip (J11) can be used in place of pivot point spacer (J12) if additional cable management is desired. (See Figure 2)

Figure 2

Display Installation

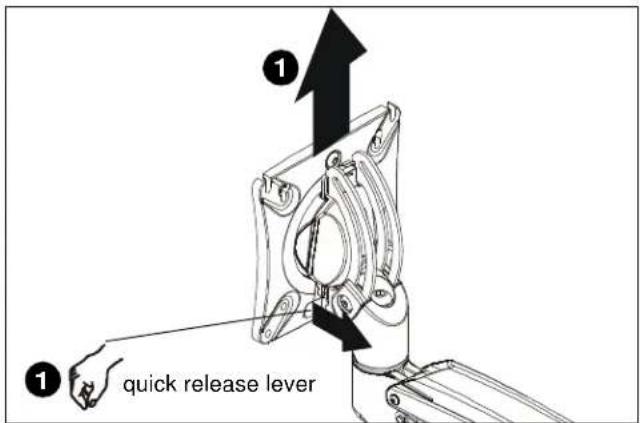

1. Remove quick release faceplate from mount by pulling quick release lever and sliding faceplate off mount. (See Figure 3)

Figure 3

WARNING: Only remove display from mount when the display can be lifted up from the mount! DO NOT remove display unless the display is in the upright position! See Display Removal section for details.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the K1P Series Monitor Arm up to (and including) the display does not exceed the weight limits listed below. Use with products heavier than the maximum weight indicated may result in collapse of the mount and its accessories causing possible injury.

MODEL Max Weight Allowed for EACH Display		Max Weight Capacity of Mounting System
K1P110	25 lbs(11.34 kg)	25 lbs(11.34 kg)
K1P120	25 lbs(11.34 kg)	25 lbs(11.34 kg)
K1P22H	9 lbs(4.08 kg)	18 lbs(8.16 kg)
K1P220	25 lbs(11.34 kg)	50 lbs(22.68 kg)

1. Carefully place display face down on protective surface.

2. Connect faceplate to display

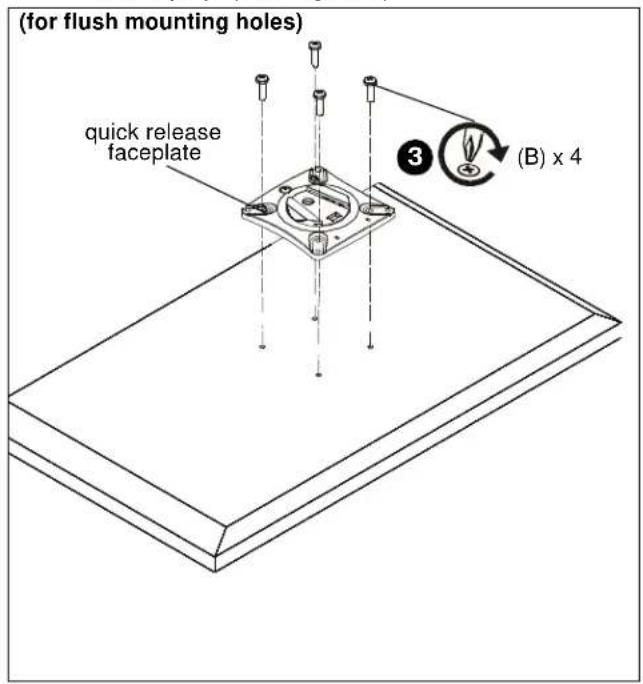

For flush mounting hole installation:

- Using Phillips screwdriver, carefully install four M4x14mm screws (B) through corresponding holes on faceplate and into the mounting holes on the display. (See Figure 4)

Figure 4

For recessed mounting hole installation:

• Place four spacers (D) on top of mounting holes on back of display. (See Figure 5)
• Using Phillips screwdriver, carefully install four M4x25mm screws (C) through corresponding holes on faceplate, spacers (D) and into the mounting holes on the display. (See Figure 5)

Figure 5

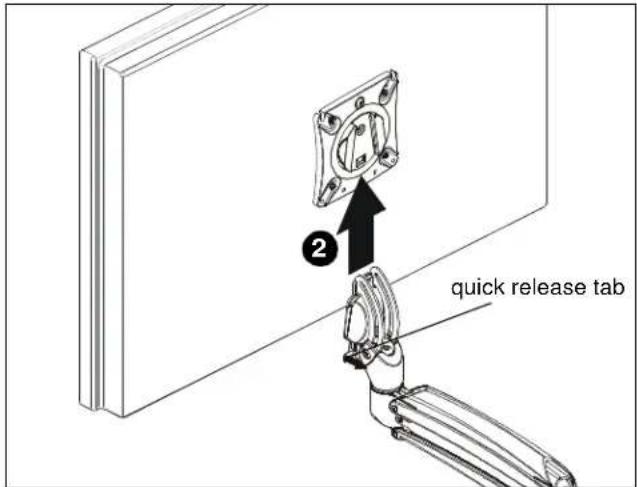

1. Position display with faceplate attached above mount. (See Figure 6)
2. Slide faceplate onto mounting head until quick release tab clicks into place. (See Figure 6)

Figure 6

Handle Installation (K1P22 model only)

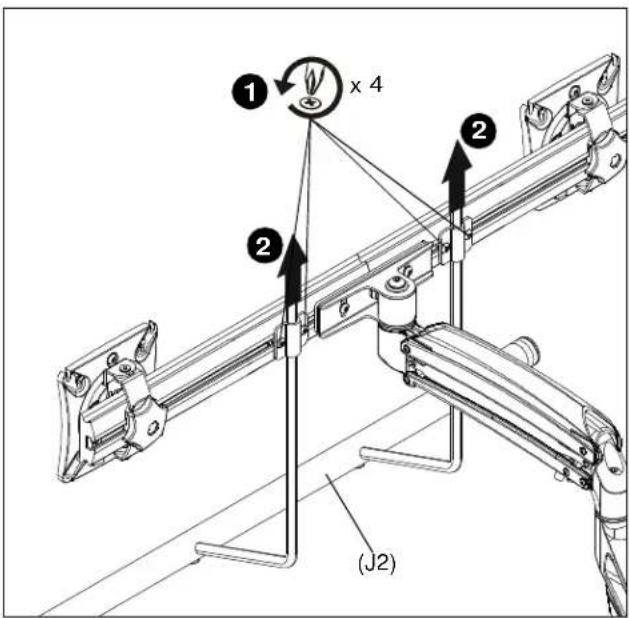

1. Loosen four screws securing handle brackets to K1P22 array. (See Figure 7)
2. Install uprights of handle (J2) into handle brackets located on the back of array. (See Figure 7)

Figure 7
3. Position handle (J2) at desired height and secure by tightening button head cap screws attaching handle brackets to array. (See Figure 8)

Figure 8

Adjustments

Pitch Adjustment (non-array models)

1. Adjust pitch to desired tilt position. (See Figure 9)
2. Adjust pitch tension screw to change the adjustment tension. (See Figure 9)

Pivot Adjustment (non-array models)

1. Adjust pivot position as desired. (See Figure 9)
2. Use 3/16" hex key (L) to adjust pivot point tension screws to change pivot adjustment tension. (See Figure 9)

Figure 9

Rotational Adjustment

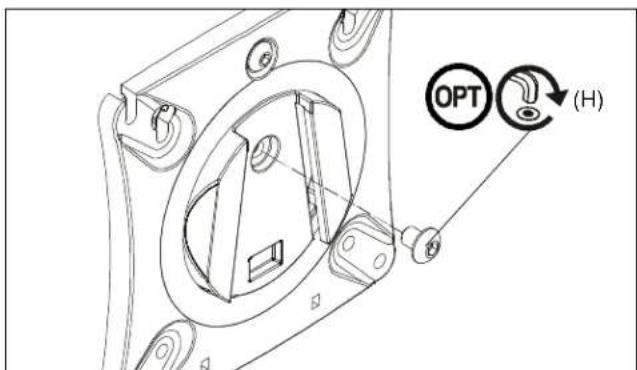

NOTE: (Optional) Rotational adjustment may be locked by installing rotational locking screw (H) into back of faceplate. (See Figure 10)

Figure 10

1. The monitor may be adjusted 90 degrees in either direction in order to provide a portrait view of the monitor. (See Figure 9)
2. Use 3/16" hex key (L) to adjust rotational adjustment screw to adjust rotational tension. (See Figure 9)

Lift Arm Tension Adjustment

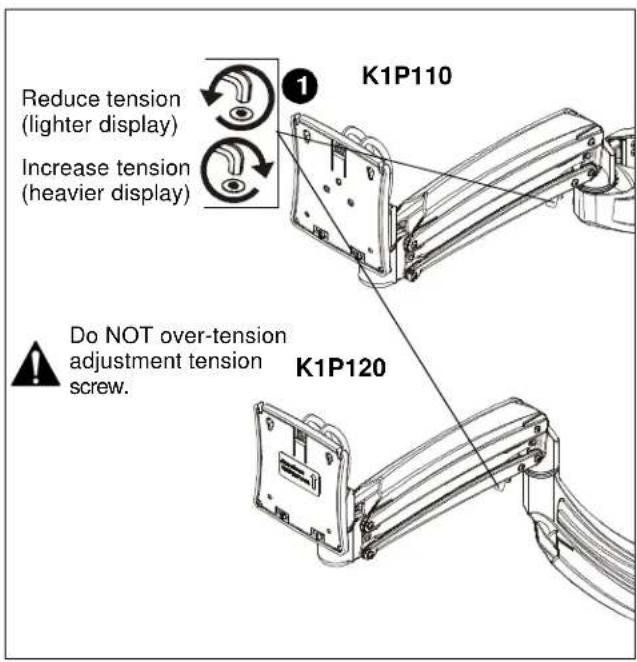

1. Use 3/16" hex key (L) to adjust lift arm tension adjustment screw. (See Figure 11)

Figure 11

NOTE: Tension may also be adjusted with upper tension adjustment screw inside cable management cover and 1/8" hex key (M). (See Figure 12)

Figure 12

Adjustments - K1P22H models only

1. Loosen knobs securing faceplates to array. (See Figure 13)
2. Slide displays laterally on array to adjust lateral shift. (See Figure 13)
3. Adjust pitch and pivot position as desired. (See Figure 13)
4. Tighten knobs to secure faceplates in position. (See Figure 13)

Figure 13

Array Bar Roll Adjustment

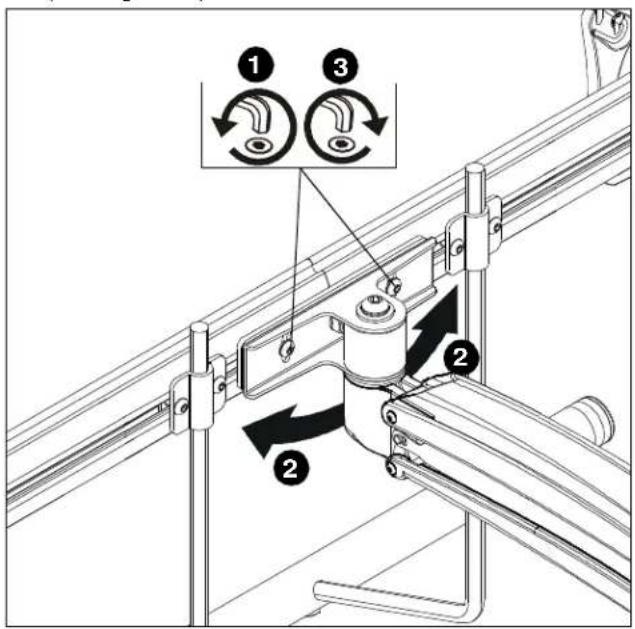

1. Loosen roll adjustment screws on back of array bracket. (See Figure 14)
2. Adjust roll of array bar as desired. (See Figure 14)
3. Tighten roll adjustment screws on back of array bracket. (See Figure 14)

Figure 14

Display Removal

WARNING: Only remove display from mount when the display can be lifted up from the mount! DO NOT remove display unless the display is in the upright position! (See Figure 15)

1. Make sure display is in the upright position.
2. Remove quick release faceplate from mount by pulling quick release lever and sliding faceplate off mount. (See Figure 15)

Figure 15

Pivot Adjustment Range

Single Arm Models

1. Adjust arm angle as desired up to 90 degrees in either direction. (See Figure 16)

WARNING: Swinging the arm beyond 90 degrees may result in the mount slipping off the desk causing serious injury!

Figure 16

Dual Arm Models

1. Adjust arm angles as desired within a 90 degree range from the pivot point of the arm and a perpendicular centerline of mount. (See Figure 17)

WARNING: Swinging the arm beyond this range may result in the mount slipping of the desk causing serious injury!

Figure 17

Cable Management

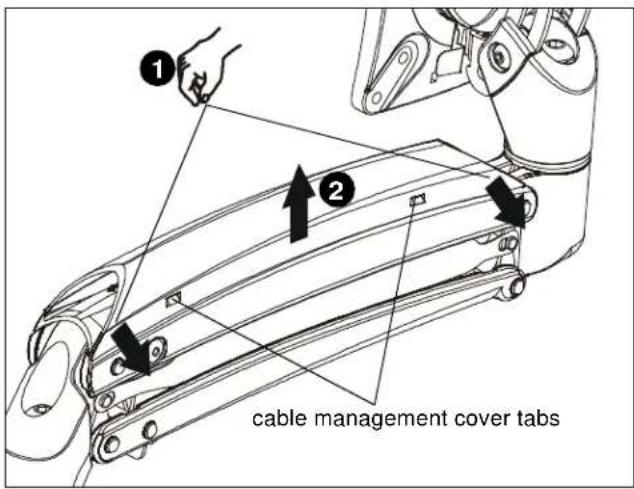

1. Press insides of cable management covers at both ends to unhinge tabs on either end of cable management cover on upper arm. (See Figure 18)
2. Lift cable management cover up until tabs are unhinged and cover is in the "open" position. (See Figure 18)

Figure 18

Figure 19

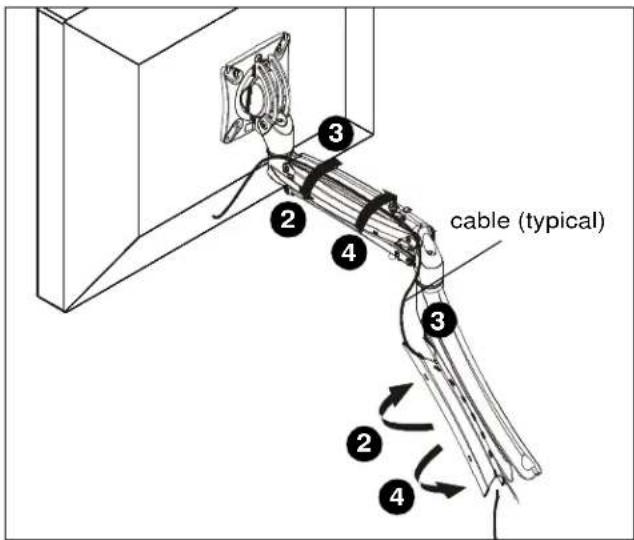

1. Route cables through cable management channels. (See Figure 19)

IMPORTANT ! : Be sure to leave enough slack in the cables near display and arm joint to allow for full arm articulation!

1. Close cable management covers on monitor arm. (See Figure 19)
2. Repeat Steps 1-4 for lower arm.

Array Models

1. Install array cable clips (J7) to back of array. (See Figure 20)
2. Route cables through array cable clips (J7) as desired. (See Figure 20)
3. Route cables through arm cable clips as desired. (See Figure 20)

Figure 20
