Product Type	Accessory Shelf for Fusion Mounts
Brand	Chief
Model	Fusion FCA810HS
Compatible Mounts	Chief Fusion Wall, Cart, and Ceiling Mounts (including FCA623 accessory)
Maximum Load Capacity	10 lbs (4.5 kg)
Material	Steel
Finish	Black
Installation Orientation	Above or Below Display
Extension Adjustment	Multiple levels: Minimum, Intermediate, Maximum
Extension Distance (Below Wall Mount)	15 to 28.1 inches from center of mount
Extension Distance (Above Wall Mount)	15.3 to 28.4 inches from center of mount
Extension Distance (Below Cart/Ceiling Mount)	17.1 to 28.3 inches from center of mount
Extension Distance (Above Cart/Ceiling Mount)	21 to 28.6 inches from center of mount
Included Components	Shelf Bracket, Upright Bracket, Adapter Plate, Hardware Kit, Adhesive Hook and Loop
Hardware Specifications	Includes screws, washers, lock nuts, and spacers (for FCA623)
Required Tools	#2 Phillips Screwdriver, 3/8" Open-Ended Wrench, 1/8" Hex-Head Wrench (included)
Usage Environment	Indoor only
Intended Purpose	Support for HuddleSHOT or similar cameras; not for video equipment
Assembly Required	Yes

Frequently Asked Questions - Fusion FCA810HS Chief

What is the weight capacity of the Fusion FCA810HS shelf?

The maximum weight capacity is 10 lbs (4.5 kg). This includes the camera and any accessories mounted on the shelf. Exceeding this limit can cause serious injury or damage.

Can I mount the shelf above or below my display?

Yes, the FCA810HS shelf can be installed either above or below the display, depending on your preference. The manual provides separate instructions for both orientations.

Is the shelf compatible with all Chief Fusion mounts?

The shelf is designed for use with Chief Fusion wall, cart, and ceiling mounts. It also works with the FCA623 accessory for dual display carts. Refer to the installation instructions for specific compatibility.

What tools do I need for installation?

You will need a #2 Phillips screwdriver and a 3/8" open-ended wrench. A 1/8" hex-head wrench is included in the hardware kit.

Does the shelf come with all necessary hardware?

Yes, the FCA810HS includes a full hardware kit with screws, washers, lock nuts, and spacers. All parts are listed in the manual's parts section.

How do I adjust the extension of the shelf?

The shelf offers minimum, intermediate, and maximum extension levels. Adjustment is done by changing the mounting hole positions on the brackets. Detailed tables in the manual show the extension distances for each configuration.

Can I use this shelf to hold a video monitor or TV?

No, the shelf is not intended for video equipment such as televisions or computer monitors. It is designed specifically for cameras like the HuddleSHOT. Using it for other purposes may cause injury or damage.

What is the maximum extension distance?

The maximum extension distance depends on the mount type: 28.1 inches for below wall, 28.4 inches for above wall, 28.3 inches for below cart/ceiling, and 28.6 inches for above cart/ceiling.

Is the shelf designed for indoor use only?

Yes, the manual states do not use this product outdoors. It is intended for indoor installation only.

How do I clean and maintain the shelf?

Clean the shelf with a soft, dry cloth. Do not use abrasive cleaners or solvents. Periodically check that all screws and brackets are tight and secure.

USER MANUAL Fusion FCA810HS Chief

INSTALLATION INSTRUCTIONS

Technical line drawing of a mechanical device with mounting brackets and internal components (no text or symbols)

Above Cart/Ceiling

Technical line drawing of a mechanical device with vertical supports and cylindrical components (no text or symbols)

Above Wall

Technical line drawing of a mechanical assembly with mounting holes and a vertical rail (no text or symbols)

Below Cart/Ceiling

Technical line drawing of a mechanical device with two parallel rods and a labeled 'below Wall' (no text or symbols on the diagram itself)

Below Wall

XL Fusion™Above/Below HuddleSHOT™ Shelf

DISCLAIMER

Legrand | AV and its affiliated corporations and subsidiaries (collectively "Legrand | AV"), intend to make this manual accurate and complete. However, Legrand | AV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand | AV makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand | AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.

DEFINITIONS

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary product designed to mount the projector or display.

ACCESSORY: An ACCESSORY is any product designed by Chief® to complement the primary mounting system either by mounting any supporting components or enhancing the mounting capabilities of the primary mounting system.

COMPONENT: A COMPONENT is any secondary product designed to be used with the accessory, i.e. speakers, CPU's, cameras, tablets, additional displays.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the weight mounted to the FCA810HS shelf does not exceed 10 lbs (4.5 kg).

WARNING: Use of this accessory will decrease the weight capacity of the mounting system to which it is attached by the combined weight of the accessory and all components supported by this accessory! See Figure below for reference.

standard weight limit of mounting system - (weight of FCA810HS shelf + shelf components)

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this product outdoors.

WARNING: RISK OF INJURY TO PERSONS! Do not use this accessory to support video equipment such as televisions or computer monitors.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

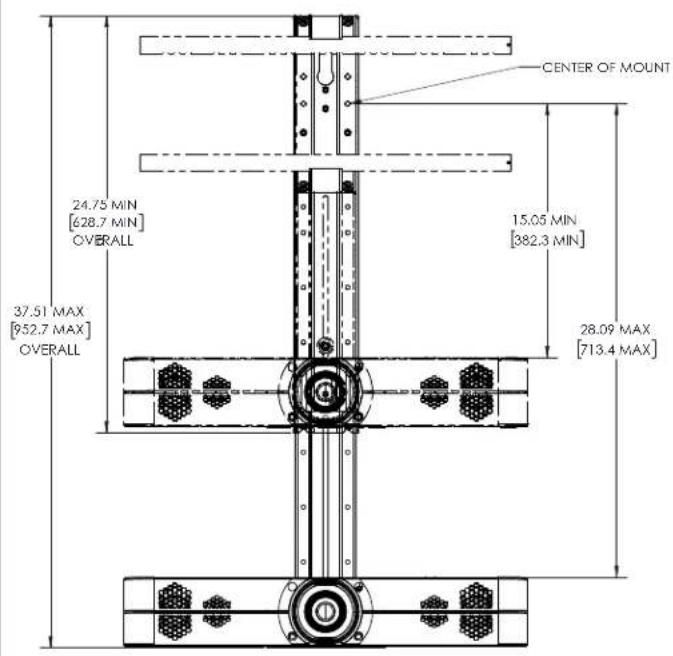

FUSION WALL BELOW MOUNT SETUP

Technical line drawing of a mechanical assembly with mounting brackets and a projector (no text or symbols)

[*]NOTES:
• TYPICAL FUSION INTERFACES ARE 0.5 [12.7] DEEP
*HUDDLESHOT SHOWN FOR ILLUSTRATIVE PURPOSES

FUSION WALL ABOVE MOUNT SETUP

Technical line drawing of a mechanical device with mounting brackets and cylindrical components (no text or symbols)

(*)NOTES:
• TYPICAL FUSION INTERFACES ARE 0.5" (12.7) DEEP
*HUDDLESHOT SHOWN FOR ILLUSTRATIVE PURPOSES

DIMENSIONS (CONTINUED)

FUSION CEILING/CART BELOW MOUNT SETUP

Technical line drawing of a mechanical assembly with mounting bracket and cylindrical component (no text or symbols)

(*)NOTES:
• TYPICAL SINGLE DISPLAY MODELS HAVE INTERFACE DEPTHS .5' [12.7]
• TYPICAL DUAL DISPLAY MODELS HAVE INTERFACE DEPTRS • FCA623 DUAL MONITOR INTERFACES ARE 1.4" DEEP [35.6]

*HUDDLESHOT SHOWN FOR ILLUSTRATIVE PURPOSES

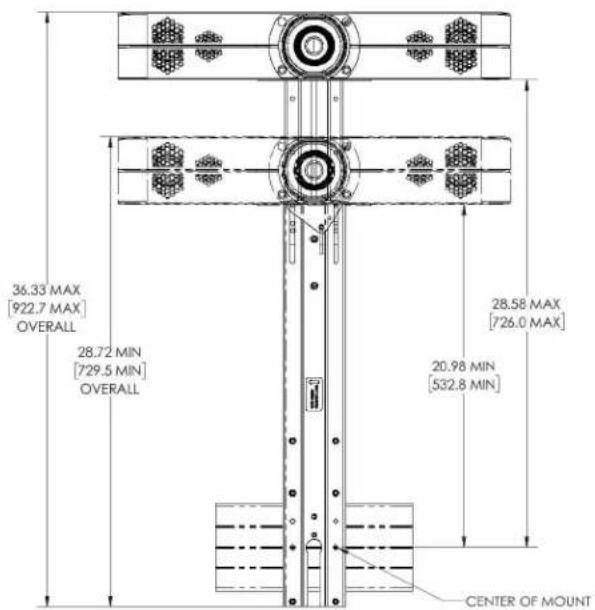

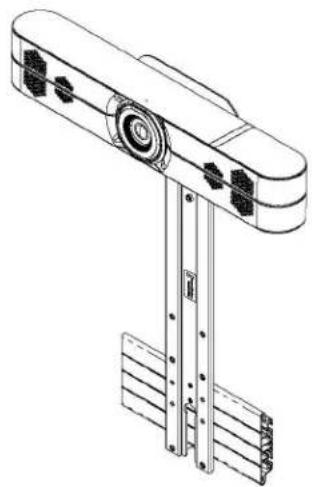

FUSION CEILING/CART ABOVE MOUNT SETUP

Technical line drawing of a mechanical device with mounting brackets and a vertical support structure (no text or symbols)

(*)NOTES:
• TYPICAL SINGLE DISPLAY MODELS HAVE INTERFACE DEPTHS .5" [12.7]
• TYPICAL DUAL DISPLAY MODELS HAVE INTERFACE DEPTHS 1.9" [48.3] • FCA623 DUAL MONITOR INTERFACES ARE 1.4" DEEP [35.6]

*HUDDLESHOT SHOWN FOR ILLUSTRATIVE PURPOSES

LEGEND

	Tighten Fastener		Phillips Screwdriver
	Apretar elemento de fijación		Destornillador Phillips
	Befestigungsteil festziehen		Kreuzschlitzschraubendreher
	Apertar fixador		Chave de fendas Phillips
	Serrare il fissaggio		Cacciavite a stella
	Bevestiging vastdraaien		Kruiskopschroevendraaier
	Serrez les fixations		Tournevis à pointe cruciforme
	Loosen Fastener		Open-Ended Wrench
	Aflojar elemento de fijación		Llave de boca
	Befestigungsteil lösen		Gabelschlüssel
	Desapertar fixador		Chave de bocas
	Allentare il fissaggio		Chiave a punte aperte
	Bevestiging losdraaien		Steeksleutel
	Desserrez les fixations		Clé à fourche
	Hex-Head Wrench
	Llave de cabeza hexagonal
	Sechskantschlüssel
	Chave de cabeça sextavada
	Chiave esagonale
	Zeskantsleutel
	Clé à tête hexagonale

TOOLS REQUIRED FOR INSTALLATION

#2

3/8"

1/8" (included)

PARTS

			Hardware bag (1)
	[Shelf bracket]	E (1) 1/4-20 x 5/8"	J (2) #10-24
		F (1) [Center washer]	K (1) [Small washer]	N (4) [Large washer]	T (8) 1" adhesive hook and loop
	D (1) [Camera shelf]	G (4) 1/2"	L (3) 1/4-20 x 1/2"	P (5) 1/4-20 x 1/4"
		H (1) [Adapter plate]	M (1) 1/4-20 x 3/8" (not used)	Q (1) #10-32 x 3/8"	C (1) 5/32"
				R (4) 1/4-20 x 7/16"

ASSEMBLY AND INSTALLATION

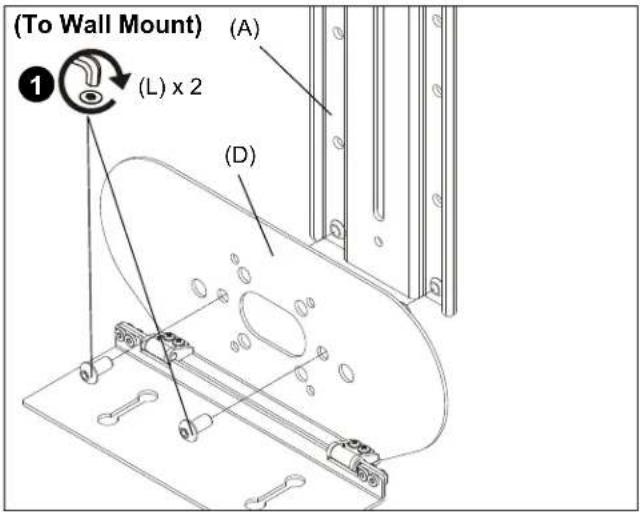

Assembling Shelf to Upright Bracket

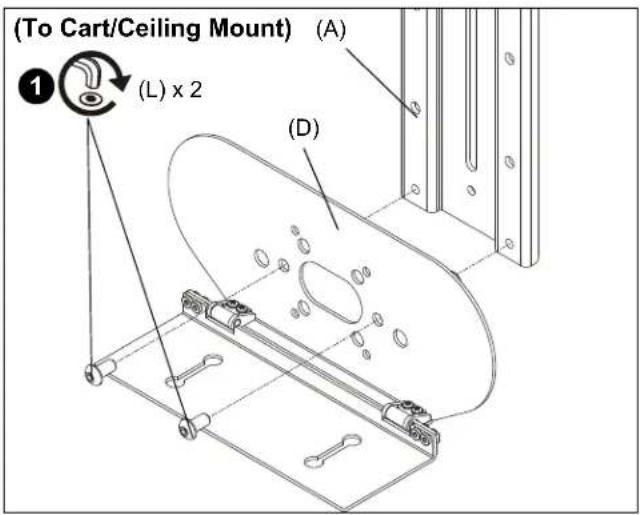

1. Attach shelf (D) to upright bracket (A) using two 1/4-20 x 1/2" button head machine screws (L). (See Figure 1) or (See Figure 2)

Figure 1

Figure 2

Below Installation

NOTE: FCA810HS shelves may be installed above or below displays. To install above display, proceed to "Above Installation" Section.

Attaching Shelf to Wall Mount

NOTE: If attaching to cart or ceiling mount, proceed to Attach Shelf to Cart/Ceiling Section.

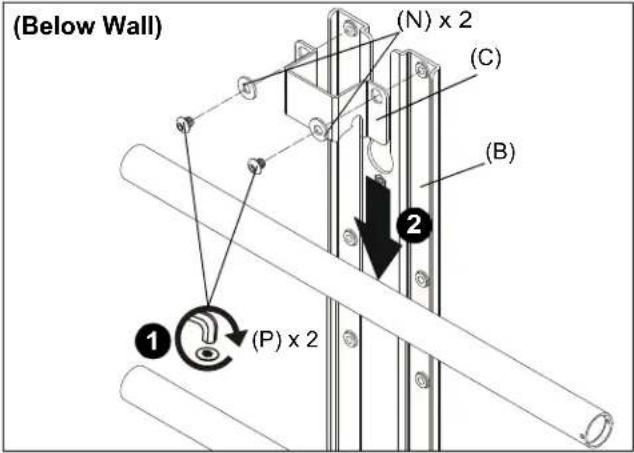

1. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 3)

CAUTION: Slide bracket with caution so that the bracket does not scratch or damage the wall!

1. Slide main bracket (B) behind wall mount rails until shelf bracket (C) rests on top of wall mount rail. (See Figure 3)

Figure 3

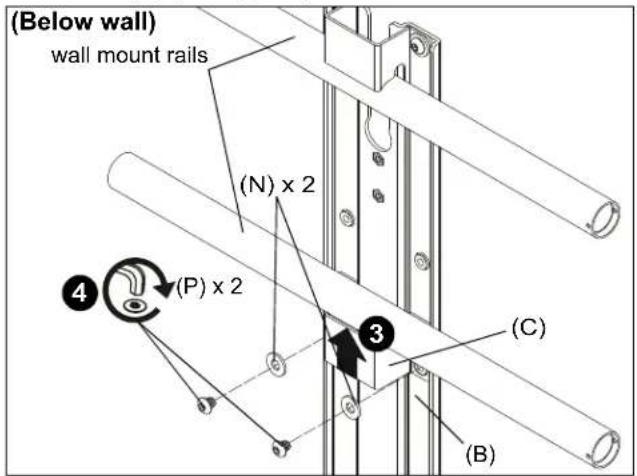

1. Slide second shelf bracket (C) underneath lower rail on wall mount, lining up holes on shelf bracket (C) to main bracket (B). (See Figure 4)

2. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 4)

Figure 4

NOTE: Refer to Table 1 and dimension drawings on pages 3-4 to determine the extension level based on extension distance from mount center.

Table 1: Below Wall Mount

Extension distance from center of mount (in.)
15-16.7 Minimum
16.7-26.7 Intermediate
26.7-28.1 Maximum

1. (For maximum extension) Use #10-32 x 3/8" button head cap screw (Q) and small washer (K) to secure adapter plate (A) to main bracket (B). (See Figure 5)
2. (For maximum extension) Use two #10-24 lock nuts (J) to secure upright bracket (A) to main bracket (B) and adapter plate (H). (See Figure 5)

Figure 5

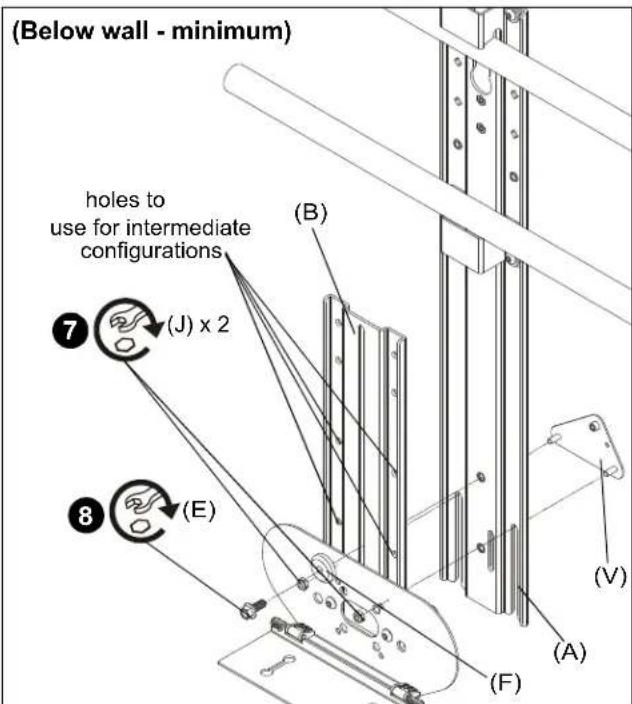

1. (For minimum/intermediate extension) Use two #10-24 lock nuts (J) to secure upright bracket (A) to main bracket (B) and adapter plate (H). (See Figure 6)
   NOTE: Minimum configuration is shown below. Several intermediate configurations are possible depending on which holes are used.
   NOTE: Camera shelf (D) will need to be temporarily removed in order to attach lock nuts (J) for minimum extension.
2. (For minimum/intermediate extension) Use 1/4-20 x 5/8" hex head flange bolt (E) and center washer (F) to secure upright bracket (A) to main bracket (B). (See Figure 6)

Figure 6

Attaching Shelf to Cart/Ceiling Mount

IMPORTANT ! : If installing to a 2x1 display cart using the FCA623 accessory, proceed to "Installing to FCA623 Accessory" Section (Step 6).

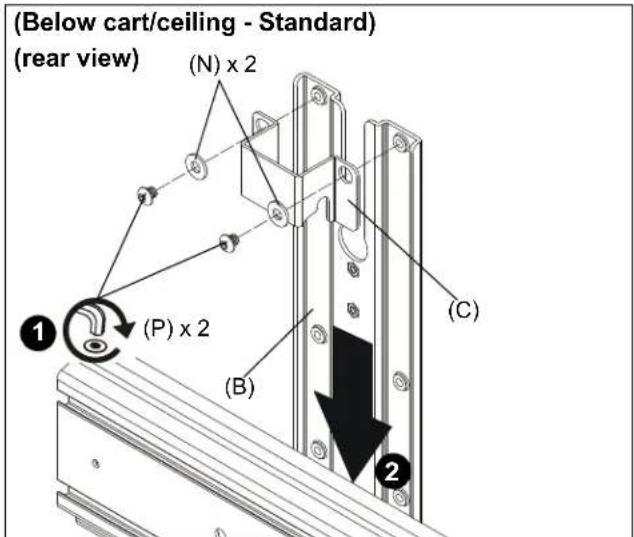

1. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 7)
2. Slide main bracket (B) onto front of cart/ceiling mount head assembly until shelf bracket (C) rests on top of head assembly. (See Figure 7)

Figure 7

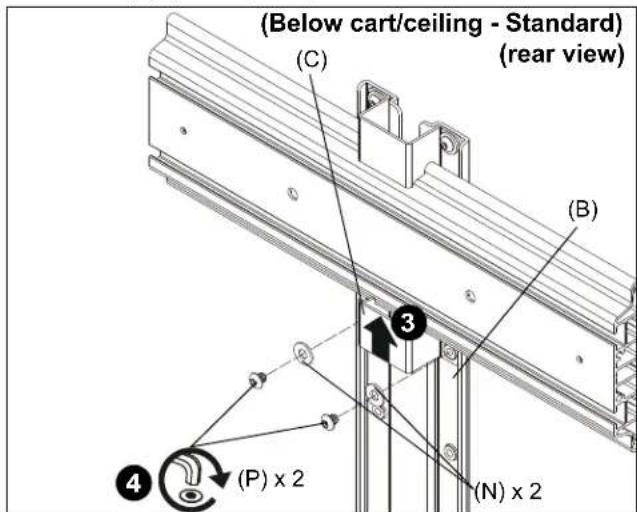

1. Slide second shelf bracket (C) underneath head assembly, lining up holes on shelf bracket (C) to holes on main bracket (B). (See Figure 8)
2. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 8)

Figure 8

1. Proceed to Step 11.

Installing to FCA623 Accessory

IMPORTANT ! : Steps 6-10 only apply if installing to FCA623 accessory.

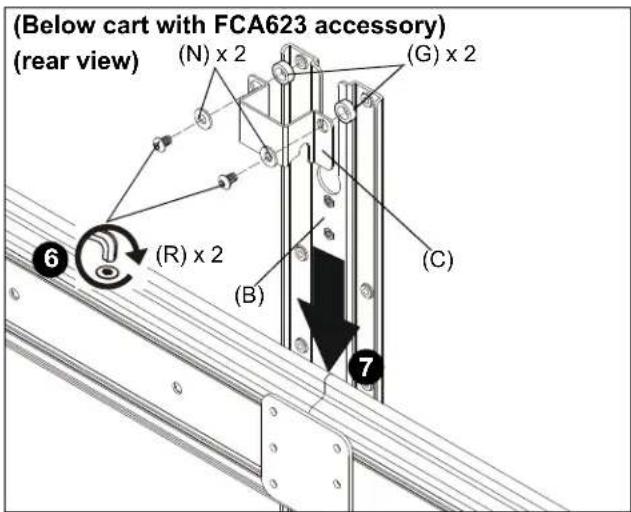

1. Use two 1/4-20 x 7/16" button head cap screws (R), two large washers (N) and two 1/2" spacers (G) to secure shelf bracket (C) to main bracket (B). (See Figure 9)
2. Slide main bracket (B) onto front of cart/ceiling mount head assembly until shelf bracket (C) rests on top of head assembly. (See Figure 9)

Figure 9

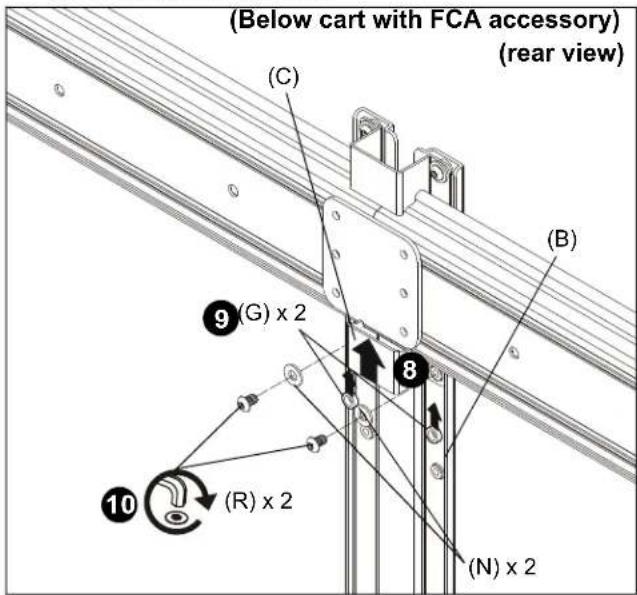

1. Slide second shelf bracket (C) underneath head assembly, lining up holes on shelf bracket (C) to holes on main bracket (B). (See Figure 10)
2. Slide two 1/2" spacers (G) in between shelf bracket (C) and main bracket (B). (See Figure 10)
3. Use two 1/4-20 x 7/16" button head cap screws (R) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 10)

Figure 10

NOTE: Refer to Table 2 and dimension drawings on pages 3-4 to determine the extension level based on extension distance from mount center.

Table 2: Below Cart/Ceiling Mount

Extension distance from center of mount (in.)
17.1-18.8 Minimum
18.8-25 Intermediate
25-28.3 Maximum

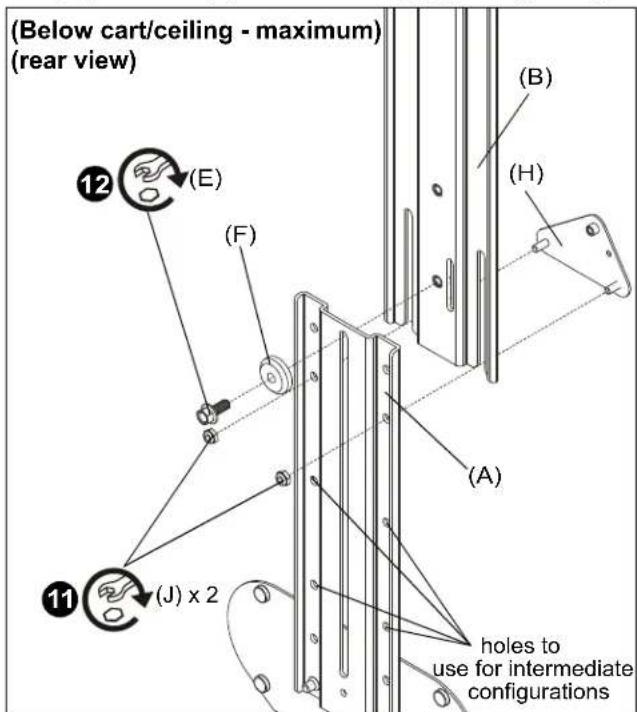

1. (For maximum/intermediate extension) Use two #10-24 lock nuts (J) to secure upright bracket (A) to main bracket (B) and adapter plate (H). (See Figure 11)
   NOTE: Maximum configuration is shown below. Several intermediate configurations are possible depending on which holes are used.
2. (For maximum/intermediate extension) Use 1/4-20 x 5/8" hex head flange bolt (E) and center washer (F) to secure upright bracket (A) to main bracket (B). (See Figure 11)

Figure 11

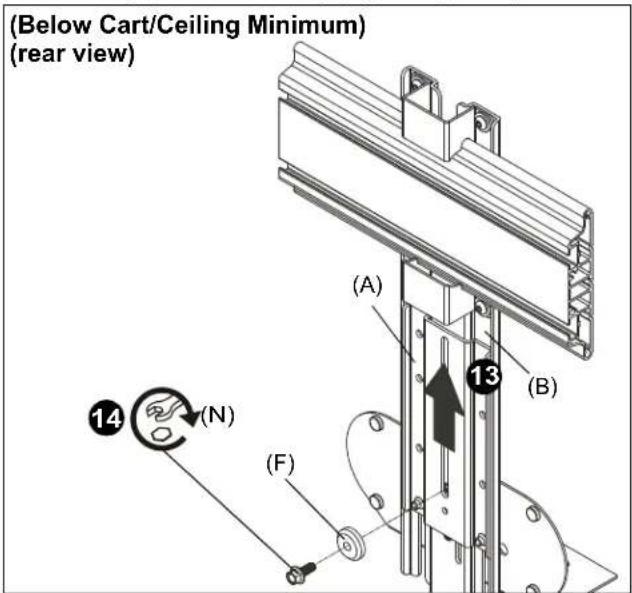

1. (For minimum extension) Slide upright bracket behind main bracket. (See Figure 12)
2. (For minimum extension) Use 1/4-20 x 5/8" hex head flange bolt (N) and center washer (F) to secure upright bracket (A) to main bracket (B). (See Figure 12)

Figure 12

Above Installation

Attaching Shelf to Wall Mount

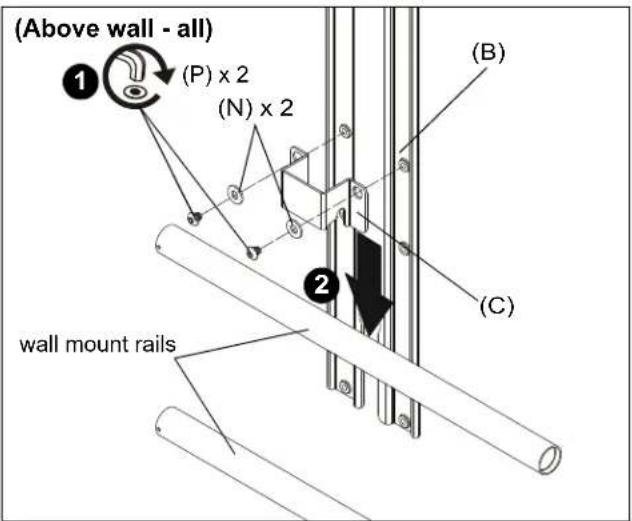

1. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 13)

CAUTION: Slide bracket with caution so that the bracket does not scratch or damage the wall!
2. Slide main bracket (B) behind wall mount rails until shelf bracket (C) rests on top wall mount rail. (See Figure 13)

Figure 13

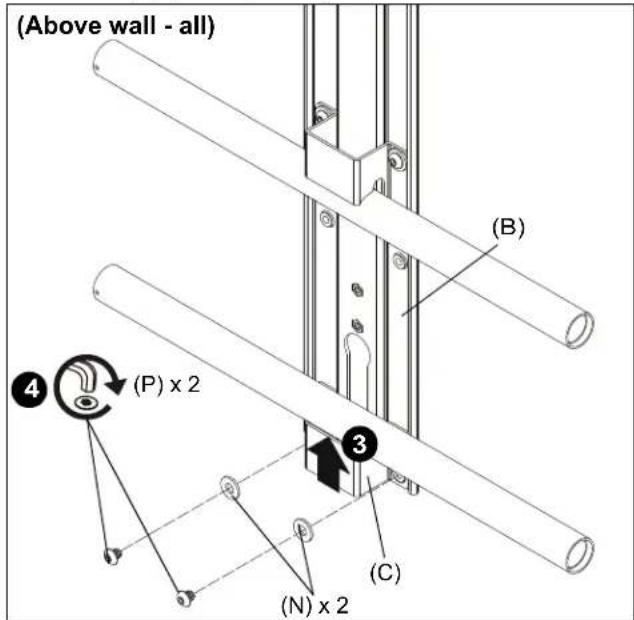

1. Slide second shelf bracket (C) underneath lower rail on wall mount, lining up holes on shelf bracket (C) to holes on main bracket (B). (See Figure 14)
2. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 14)

Figure 14

NOTE: Refer to Table 3 and dimension drawings on pages 3-4 to determine the extension level based on extension distance from mount center.

Table 3: Above Wall Mount

Extension distance from center of mount (In.)
15.3-17 Minimum
17-27 Intermediate
27-28.4 Maximum

1. (For maximum extension) Use #10-32 x 3/8" button head cap screw (Q) and small washer (K) to secure adapter plate (H) to main bracket (B). (See Figure 15)
2. (For maximum extension) Use two #10-24 lock nuts (J) to secure upright bracket (A) to main bracket (B) and adapter plate (H). (See Figure 15)

Figure 15

1. (For minimum/intermediate extension) Use two #10-24 lock nuts (J) to secure upright bracket (A) to main bracket (B) and adapter plate (H). (See Figure 16)
   NOTE: Camera shelf (D) will need to be temporarily removed in order to attach lock nuts (J) for minimum extension.
2. (For minimum/intermediate extension) Use 1/4-20 x 5/8" hex head flange bolt (E) and center washer (F) to secure upright bracket (A) to main bracket (B). (See Figure 16)
   NOTE: Minimum configuration is shown below. Several intermediate configurations are possible depending on which holes are used.

Figure 16

Attaching Shelf to Cart/Ceiling Mount

IMPORTANT ! : If installing to a 2x1 display cart using the FCA623 accessory, proceed to "Installing to FCA623 Accessory" Section (Step 6).

1. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 17)
2. Slide main bracket (B) onto front of cart/ceiling mount head assembly until shelf bracket (C) rests on top of head assembly. (See Figure 17)

Figure 17

1. Slide second shelf bracket (C) underneath head assembly, lining up holes on shelf bracket (C) to holes on main bracket (B). (See Figure 18)
2. Use two 1/4-20 x 1/4" button head cap screws (P) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 18)

Figure 18

1. Proceed to Step 11.

Installing to FCA623 Accessory

NOTE: Steps 6-10 only apply if installing to FCA623 accessory.

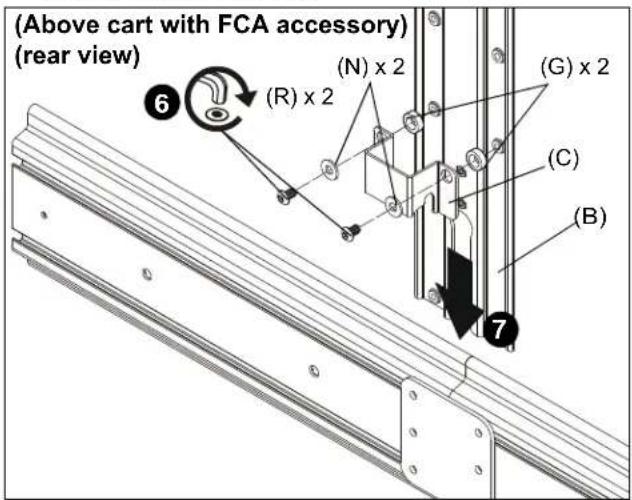

1. Use two 1/4-20 x 7/16" button head cap screws (R), two large washers (N) and two 1/2" spacers (G) to secure shelf bracket (C) to main bracket (B). (See Figure 19)
2. Slide main bracket (B) onto front of cart mount head assembly until shelf bracket (C) rests on top of head assembly. (See Figure 19)

Figure 19

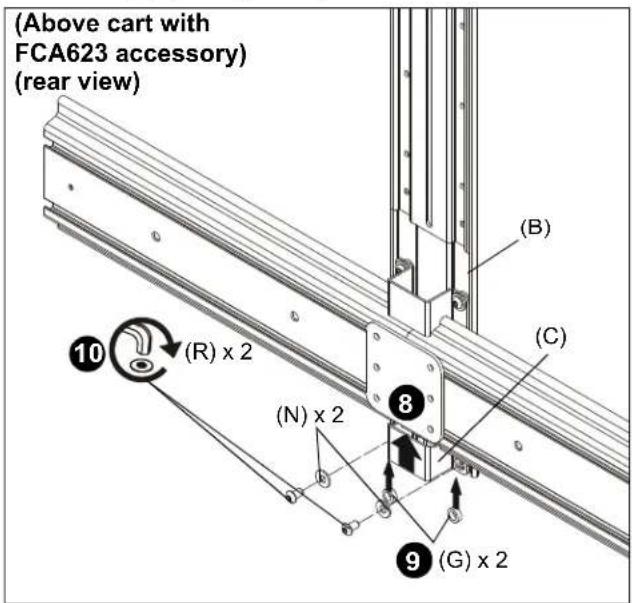

1. Slide second shelf bracket (C) underneath head assembly, lining up holes on shelf bracket (C) to holes on main bracket (B). (See Figure 20)
2. Slide two 1/2" spacers (G) in between shelf bracket (C) and main bracket (B). (See Figure 20)
3. Use two 1/4-20 x 1/2" button head cap screws (R) and two large washers (N) to secure shelf bracket (C) to main bracket (B). (See Figure 20)

Figure 20

NOTE: Refer to Table 4 and dimension drawings on pages 3-4 to determine the extension level based on extension distance from mount center.

Table 4: Above Cart/Ceiling

Extension distance from center of mount (in.)
21 Minimum
21-25.4 Intermediate
25.4-28.6 Maximum

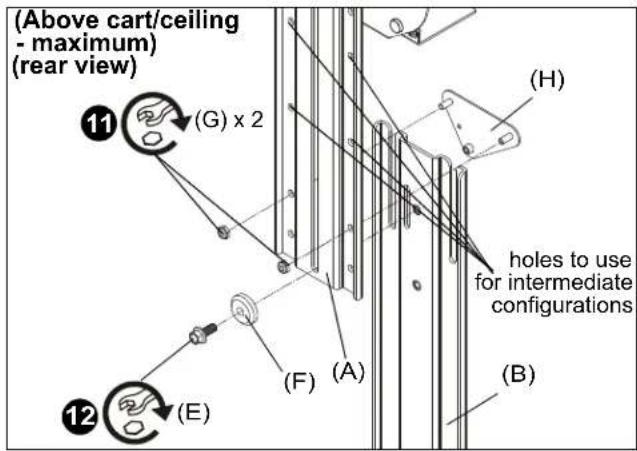

1. (For maximum/intermediate extension) Use two #10-24 lock nuts (J) to secure upright bracket (A) to main bracket (B) and adapter plate (H). (See Figure 21)
   NOTE: Maximum configuration is shown below. Several intermediate configurations are possible depending on which holes are used.
2. (For maximum/intermediate extension) Use 1/4-20 x 5/8" hex head flange bolt (E) and center washer (F) to secure upright bracket (A) to main bracket (B). (See Figure 21)

Figure 21

1. (For minimum extension) Slide upright bracket (A) behind main bracket (B). (See Figure 22)
2. (For minimum extension) Use 1/4-20 x 5/8" hex head flange bolt (E) and center washer (F) to secure upright bracket (A) to main bracket (B). (See Figure 22)

Figure 22

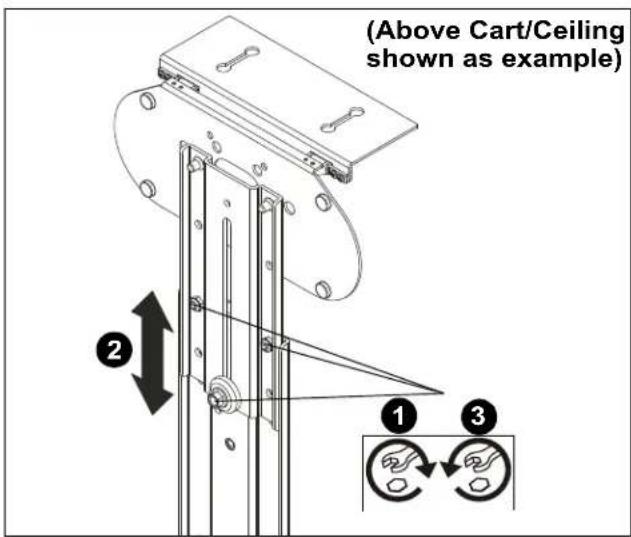

Height Adjustment

1. Loosen hardware used to attach main bracket (B) to upright bracket (A). (See Figure 23)
2. Adjust shelf height as desired. (See Figure 23)

NOTE: For all above display installations, it is recommended that the shelf be positioned so that it rests on top of display to help ensure an even mount.

1. Tighten hardware used to attached main bracket (B) to upright bracket (A). (See Figure 23)

Figure 23

Installing Camera (not included)

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight mounted on the FCA810HS does not exceed 10 lbs (4.5 kg).

WARNING: Camera must be secured to FCA810HS shelf using screws! Failure to securely mount camera to shelf may result in serious personal injury or damage to equipment!

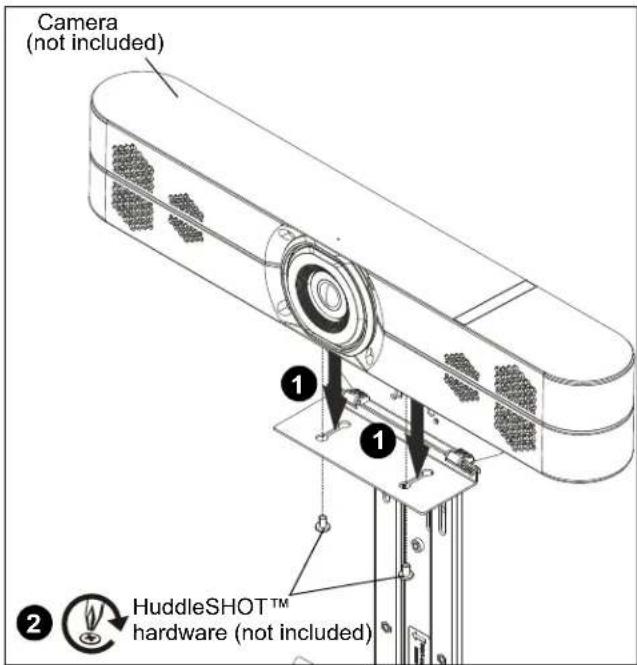

1. Place HuddleSHOT™ camera onto shelf. (See Figure 24)
2. Use screws provided with camera and slots on shelf to secure camera to shelf. (See Figure 24)

Figure 24

CHIEF®

A brand of legrand®

8800-003198 Rev00

©2020 Legrand | AV

www.legrandav.com

02/20

USA/International A 6436 City West Parkway, Eden Prairie, MN 55344

P 800.582.6480 / 952.225.6000

F 877.894.6918 / 952.894.6918

Europe A Franklinstraat 14, 6003 DK Weert, Netherlands

P [phone]

F [phone]

Asia Pacific A Office No. 918 on 9/F, Shatin Galleria

18-24 Shan Mei Street

Fotan, Shatin, Hong Kong

P 852 2145 4099

F 852 2145 4477
