QMI-FTCMK - Computers and Peripherals Crestron - Free user manual and instructions

Product Type	Cable Management Kit
Brand	Crestron
Model	QMI-FTCMK
Category	Computer Peripherals
Compatible Models	QMI-FTDC-B, QMI-FTDC-BALUM, QMI-FTCC-B, QMI-FTCC-BALUM, QMI-FTMC-B, QMI-FTMC-BALUM
Included Cables	VGA to VGA (RGB) cable, 3.5 mm Stereo Audio cable
Cable Length	6 ft (1.83 m) each
Accessories Included	Cable support plate, 4 small bushings, 2 large bushings, 3 tie wraps
Installation Tools Required	Phillips screwdriver, small flat-blade screwdriver
Mounting Type	Internal, attaches to FlipTop box bottom
Material	Metal and plastic
Color	Black (compatible with black and brushed aluminum FlipTop models)
Power Consumption	0 W (passive)
Operating Environment	Indoor, dry location
Compliance	Not specified, but typical Crestron standards
Warranty	3 years limited warranty
Manufacturer	Crestron Electronics, Inc.
Manual Language	English
Function	Organizes and stores cables, eliminates need for patch cables
Installation Guide	Included in manual (12 pages)

Frequently Asked Questions - QMI-FTCMK Crestron

What is the purpose of the QMI-FTCMK?

The QMI-FTCMK is a cable management kit designed to organize and store connecting cables for Crestron's international FlipTop boxes, eliminating the need for external patch cables.

Which FlipTop models are compatible with the QMI-FTCMK?

Compatible models include QMI-FTDC-B, QMI-FTDC-BALUM, QMI-FTCC-B, QMI-FTCC-BALUM, QMI-FTMC-B, and QMI-FTMC-BALUM.

What cables are included with the kit?

The kit includes one 6-foot VGA to VGA (RGB) cable and one 6-foot 3.5 mm stereo audio cable.

How is the cable management kit installed?

Remove the blank bottom plate from the FlipTop box, thread cables through the cable support plate, snap bushings into place, and attach the plate using the provided screws. Then connect the cables to the front connectors and secure with tie wraps.

What tools are required for installation?

A Phillips screwdriver and a small flat-blade screwdriver (for VGA connector) are needed.

Does the kit require external power?

No, the kit is passive and does not require any power source.

What is the warranty period for the QMI-FTCMK?

Crestron offers a 3-year limited warranty against manufacturing defects.

Can the kit be used with domestic FlipTop boxes?

No, the QMI-FTCMK is specifically for international FlipTop boxes. For domestic models, use the QM-FTCMK kit.

How do I clean the cable management kit?

Clean with a dry or slightly damp cloth. Avoid harsh chemicals or abrasive cleaners.

Where can I find the complete installation guide?

The full installation guide is available for download on the Crestron website or included in the product manual (12 pages).

USER MANUAL QMI-FTCMK Crestron

FlipTop Cable Management Kit

Installation Guide

This document was prepared and written by the Technical Documentation department at:

CRESTRON®

Crestron Electronics, Inc.

15 Volvo Drive

Rockleigh, NJ 07647

1-888-CRESTRON

Contents

FlipTop Cable Management Kit: QM-FTCMK 1

Introduction....1

Installation....3

Problem Solving....6

Further Inquiries ....6

Future Updates....6

Return and Warranty Policies 7

Merchandise Returns / Repair Service ....7

CRESTRON Limited Warranty 7

FlipTop Cable Management Kit: QM-FTCMK

Introduction

The FlipTop Cable Management Kit provides a means of organizing and storing connecting cables for the QuickMedia™ FlipTop boxes, part of the Crestron MediaManager™ line of network devices, room control systems and signal routing solutions.

Functional Summary

• Organizes cables
• Provides storage of cables
• Eliminates the need to furnish patch cables

Two kits are available, one for domestic FlipTop boxes (QM-FTMCK), and a larger one that accommodates the international version of the FlipTop boxes (QMI-FTCMK). Refer to the following table for a list of applicable kits and models.

The optional FlipTop Cable Management kits can be added to the following FlipTop models.

FlipTop Cable Management Kits

FLIPTOP CABLE MANAGEMENT KIT	APPLICABLE MODELS
QM-FTCMK	QM-FTDC-BQM-FTDC-NB-BQM-FTDC-BALUMQM-FTDC-NB-BALUMQM-FTCC-BQM-FTCC-NB-BQM-FTCC-BALUMQM-FTCC-NB-BALUMQM-FTMC-BQM-FTMC-NB-BQM-FTMC-BALUMQM-FTMC-NB-BALUM
QMI-FTCMK QMI-FTDC-B	QMI-FTDC-BALUMQMI-FTCC-BQMI-FTCC-BALUMQMI-FTMC-BQMI-FTMC-BALUM

NOTE: The suffix ‘-B’, and ‘-BALUM’, respectively denotes color, i.e., -B is a black unit, and -BALUM has a brushed aluminum finish. The suffix ‘-NB’ denotes a no button model.

Installation

The QM-FTDC, QMI-FTDC, QM-FTCC, QMI-FTCC, QM-FTMC and QMI-FTMC are shipped with a blank bottom plate. The FlipTop Cable Management Kit provides a six-hole plate for user access, and two 6-foot cables (computer and computer audio).

Parts Supplied with Optional Cable Management Kit

PART DESCRIPTION QUANTITY
Small Cable Bushing, 5/16 inch ID,0.5 inch OD	4
Large cable Bushing, 0.55 inch ID,0.80 inch OD	2
Cable Support Plate 1
Tie Wrap 3
Computer RGB Cable, VGA to VGA,6 ft long	1
Computer Audio Cable, 3.5 mm Stereo,6 ft long	1

Tools Required

• Phillips screwdriver
• Small flat-blade screwdriver (for connecting the VGA cable)

The cable support plate should be installed before mounting the FlipTop box to a surface. The cables are looped through the cable support plate.

1. Remove the blank bottom plate and retain the four #4 x 14 LG black mounting screws.
2. Place the bushings on the cables (six bushings supplied). Use the large bushing for the VGA cable.
3. Thread the cables through the appropriate slots on the plate.
4. Snap the bushings into the plate slots.
5. Feed all the excess cable through the opening.

6. Attach the plate using the four # 4 × 14 LG black screws retained in step 1.

7. Connect the cables to the appropriate connector on the front of the FlipTop box.

8. The cables may be secured to the bottom bar using the supplied tie wraps.

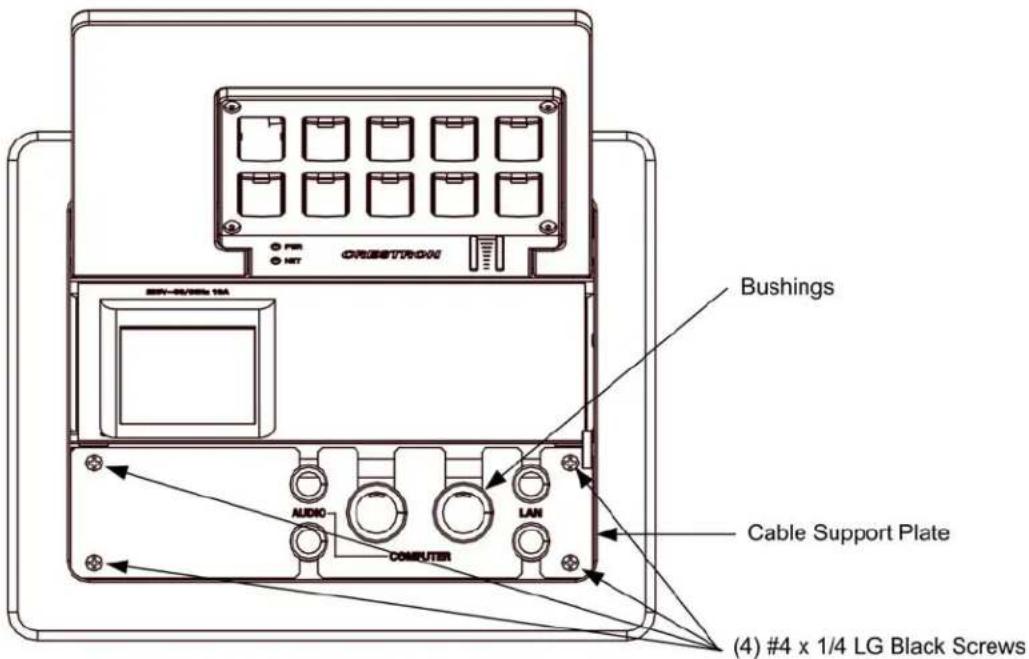

Cable Management Kit Installation - Domestic FlipTop Boxes

Cable Management Kit Installation – International FlipTop Boxes

Cable Loops Through the Cable Plate

NOTE: Ensure that the cables have sufficient clearance to enable smooth movement. Allow approximately 40 inches (1 meter) from the top surface of the FlipTop box.

Problem Solving

Further Inquiries

If you cannot locate specific information or have questions after reviewing this guide, please take advantage of Crestron's award winning customer service team by calling the Crestron corporate headquarters at 1-888-CRESTRON [1-888-273-7876]. For assistance in your local time zone, refer to the Crestron website (www.crestron.com) for a listing of Crestron worldwide offices.

You can also log onto the online help section of the Crestron website to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.

Future Updates

As Crestron improves functions, adds new features, and extends the capabilities of this product, additional information may be made available as manual updates. These updates are solely electronic and serve as intermediary supplements prior to the release of a complete technical documentation revision.

Check the Crestron website periodically for manual update availability and its relevance. Updates are identified as an “Addendum” in the Download column.

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange, or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact the factory and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying the nature of the problem, name and phone number of contact person, RMA number, and return address.
2. Products may be returned for credit, exchange, or service with a CRESTRON Return Merchandise Authorization (RMA) number. Authorized returns must be shipped freight prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. 07647, or its authorized subsidiaries, with RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its sole and absolute discretion to charge a 15% restocking fee, plus shipping costs, on any products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON, shipping by standard ground carrier. In the event repairs are found to be non-warranty, return freight costs shall be paid by the purchaser.

CRESTRON Limited Warranty

CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials and workmanship under normal use for a period of three (3) years from the date of purchase from CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and overlay components are covered for 90 days; batteries and incandescent lamps are not covered.

This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any.

CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended, or if it has been subjected to misuse, accidental damage, modification, or improper installation procedures. Furthermore, this warranty does not cover any product that has had the serial number altered, defaced, or removed.

This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a third party or made by the purchaser for a third party.

CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or implied, nor authorizes any other party to offer any warranty, including any implied warranties of merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
