Product Type	Power Strip
Model	PSF3612
Amperage Rating	15A
Number of Outlets	12 x 5-15R
Input Plug	5-15P
Cord Length	15 ft (4.6 m)
Overall Length	36 in (91.4 cm)
Circuit Breaker	15A
Folding Feature	Yes, allows multiple space-saving configurations
Wall Mountable	Yes, with mounting clips (hardware not included)
Indoor Use Only	Yes
Surge Protection	No (not provided)
Warranty	Lifetime Limited Warranty
Product Registration	Recommended at www.tripplite.com/warranty
Safety	Do not use with ungrounded outlets; avoid moisture; no user-serviceable parts
Maintenance	No user-serviceable parts; do not open housing

Frequently Asked Questions - PSF3612 Tripp Lite

What is the amperage rating of the Tripp Lite PSF3612?

The PSF3612 has an amperage rating of 15A. Do not connect equipment that draws more than 15 amps total, or the circuit breaker will trip.

How many outlets does the PSF3612 have?

It has 12 outlets (NEMA 5-15R). These are standard three-prong grounded outlets.

Does the PSF3612 provide surge protection?

No, the PSF3612 does not provide surge or line noise protection. It is a basic power strip, not a surge protector.

Can I use the PSF3612 outdoors?

No, the PSF3612 is designed for indoor use only. Keep it away from moisture, heat sources, and excessive humidity.

How do I reset the circuit breaker on the PSF3612?

If the breaker trips, unplug or reduce the load on the power strip. Then press the breaker button (usually on the end) to reset. Ensure clearance for the breaker to operate.

Can I plug an extension cord into the PSF3612?

No, do not plug extension cords into the power strip. This could cause overheating and create a fire hazard.

How do I mount the PSF3612 on a wall?

Use the included mounting clips. Mark a horizontal or vertical line, place clips 1 inch from the edges, drive #10 screws (not included) through washers into the wall, then snap the power strip into the clips. For strips over 48 inches, use a third clip in the middle.

What is the warranty on the PSF3612?

The PSF3612 comes with a Lifetime Limited Warranty. If defective in material or workmanship, Tripp Lite will repair or replace it. See the manual for details.

Is the PSF3612 foldable?

Yes, the power strip features a folding design that allows you to create various space-saving configurations, making it flexible for different setups.

What should I do if the PSF3612 stops working?

First, check that it is plugged into a grounded outlet and that the circuit breaker is not tripped. If it still doesn't work, unplug all devices and try a different outlet. If the problem persists, contact Tripp Lite support at www.tripplite.com/support.

USER MANUAL PSF3612 Tripp Lite

Foldable Power Strips are designed to provide convenient access to multiple AC outlets.

Note: The Power Strip models listed above DO NOT provide your connected equipment with surge or line noise protection.

Register your product for quicker service and ultimate peace of mind.

You could also win an ISOBAR6ULTRA surge protector— a \$50 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2015 Tripp Lite. All rights reserved.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

• DO NOT connect the power strip to an ungrounded outlet.
• DO NOT use the power strip with 2-wire extension cords or adapters.
• This power strip is designed for indoor use only. Install the power strip away from heat-emitting appliances such as radiators or heat registers.
• Do not install where excessive moisture is present.
• Do not plug extension cords into the power strip.
• Never install electrical, telephone, network or coaxial wiring during a lightning storm.
• Do not drill into any part of the housing or open the housing for any reason. There are no user-serviceable parts inside.
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.

Equipment Connection

Plug your equipment into the Power Strip's AC receptacles. DO NOT plug in equipment that draws more total amps than your Power Strip's amperage rating (see label on Power Strip for amperage rating), or you will trip the circuit breaker. If the circuit breaker trips, remove overload and depress breaker to reset. Leave enough clearance at the end of the Power Strip to allow the circuit breaker to operate normally.

Note: Select models with a power switch feature a protective switch cover. To access the switch, flip open the attached cover.

Folding Feature

For added convenience, the power strips can be folded to create multiple space-saving configurations.

Technical line drawing of a TRIPP-LITE network device chassis with multiple ports and connectors (no text or symbols)

PSF2408 model shown

Wall Mounting

All Power Strip models feature clips for horizontal or vertical mounting on a variety of surfaces. The user must supply other mounting hardware (screws, etc.) and determine its suitability for use with the chosen mounting surface.

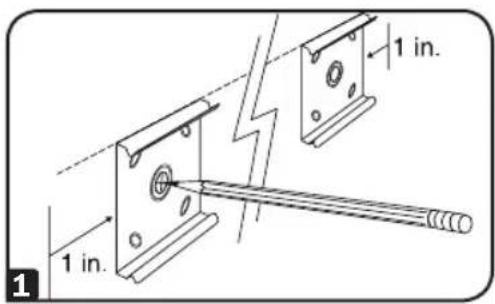

1 Mark a straight horizontal or vertical line where you want to mount the Power Strip. At each end of the line, mark where the edges of the Power Strip will be located. Place a mounting clip on the mounting surface 1" in from these edges and mark where the screws must be driven into the wall. For strips longer than 48" (120 cm), also mark a screw hole for a third mounting clip midway between the other two.

2 Clip Mounting: Drive #10 screws through washers, through the centers of the mounting clips and into the mounting surface 2a. Place the Power Strip inside one edge of the mounting clips, then snap the Power Strip into place 2b.

Specifications

Model	Amperage Rating	Outlet Qty. x Type Input Plug Cord	Length	Overall Length Breaker
PSF2408	15A 8 x 5-15R 5-15P	15 ft. 24 in. 15A
PSF3612	15A 12 x 5-15R 5-15P	15 ft. 36 in. 15A

Lifetime Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for its lifetime. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty can only be obtained by your delivering or shipping the product (with all shipping or delivery charges prepaid) to: TRIPP LITE; 1111 W. 35th Street, Chicago, IL 60609. Seller will pay return shipping charges. Visit www.tripplite.com/support before sending any equipment back for repair.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from jurisdiction to jurisdiction.)

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

PRODUCT REGISTRATION

Visit www.triplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marketing name or model number of the product.

Tripp Lite follows a policy of continuous improvement. Product specifications are subject to change without notice.
