| Product Type | 1:2 HDBaseT Distributor / Extender for AV signals |
| Brand | Kramer |
| Model | VM-2DT |
| Video Resolution | Up to 4K@60Hz (4:2:0) and 1080p@60Hz |
| HDMI Compliance | HDMI 2.0, HDCP 1.4 |
| Input | 1 x RJ-45 (HDBaseT) |
| Outputs | 2 x RJ-45 (HDBaseT) |
| Maximum Range (4K) | 40 m (130 ft) using Kramer HDBaseT cable |
| Maximum Range (1080p) | 70 m (230 ft) using Kramer HDBaseT cable |
| Power Supply | 5.2V DC / 4A (included) |
| Power Consumption | 5V DC, 2.5A |
| Dimensions (W x D x H) | 18.8 cm x 11.5 cm x 2.54 cm (7.4" x 4.53" x 1") |
| Weight | 0.53 kg (1.17 lb) |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RH non-condensing |
| Control | Front panel EDID button, DIP-switches, Mini-USB for Protocol 3000 |
| LED Indicators | Power, Active Input, HDBaseT Link, Outputs Connected |
| Mounting | Compact Mega TOOLS™ fan-less enclosure; optional RK-T2B rack adapter |
| Included Accessories | Power supply unit |
| Warranty | 7 years limited warranty (standard) |
Frequently Asked Questions - VM-2DT Kramer
User questions about VM-2DT Kramer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-Fi System in PDF format for free! Find your manual VM-2DT - Kramer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VM-2DT by Kramer.
USER MANUAL VM-2DT Kramer
Typical Applications 3
About HDBaseT™ Technology 3
Using Twisted Pair Cable for HDBT 3
Defining the VM-2DT 1:2 HDBT Distributor 4
Connecting the VM-2DT 5
Operating the VM-2DT 6
Routing the IR and RS-232 Signals 6
Acquiring an EDID 9
Upgrading the Firmware 10
Default EDID 11
Technical Specifications 13
Default Communication Parameters 14
Protocol 3000 15
Understanding Protocol 3000 16
Kramer Protocol 3000 Syntax 17
Protocol 3000 Commands 18
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration.
Getting Started
We recommend that you:
- Unpack the equipment carefully and save the original box and packaging materials for possible future shipment.
- Review the contents of this user manual.
Go to www.kramerav.com/downloads/VM-2DT to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).
Achieving the Best Performance
- Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables).
- Do not secure the cables in tight bundles or roll the slack into tight coils.
- Avoid interference from neighbouring electrical appliances that may adversely influence signal quality.
- Position your Kramer VM-2DT away from moisture, excessive sunlight and dust.
This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.
Safety Instructions
Caution: There are no operator serviceable parts inside the unit.
Warning: Use only the power cord that is supplied with the unit.
Warning: Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
Warning: Disconnect the power and unplug the unit from the wall before installing.
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling/.
Overview
Congratulations on purchasing your Kramer VM-2DT 1:2 HDBT Distributor.
VM-2DT is a high-quality integrated extension product featuring a long-reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one long-reach HDBaseT input, equalizes and reclocks the signal and distributes it to two identical HDBaseT outputs. VM-2DT distributes native HDBaseT signals with up to 4K video resolution, along with their re-extension over HDBaseT.
VM-2DT is a standard extender that can connect to any market-available HDBaseT compliant extending products.
VM-2DT provides exceptional quality and user-friendly operation.
Exceptional Quality
- Line Extender Distributor – Native 1:2 long-each HDBaseT distributor for deploying mid-way between AV source and distributed-signal displays to gain extra long-reach extension.
- High-quality professional extension, on either input or output lines, of maximum 4K @60Hz (4:2:0) 24bpp video resolution signal to a maximum of 40m (130ft) long-reach over Kramer HDBaseT compliant copper cable.
Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non-Kramer twisted pair cables.
- HDMI Signal Transmission – HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ – An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
User-friendly Operation
- LED Indicators – Status indicators for HDBaseT input and output connected signals, including far-end active device connection, and a power indicator, easily maintaining and troubleshooting the extended system end-to-end.
- Easy Installation – Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the optional RK-T2B rack adapter.
- A default EDID for fast and efficient connection of the unit. The default EDID feature lets you connect the VM-2DT without having to connect a display to the output.
• Supports EDID Designer and firmware upgrade via the USB port. - Includes an EDID setup button to capture the EDID or select the default EDID.
Typical Applications
The VM-2DT is ideal for the following typical applications:
- Native AV signal re-extension and distribution in large rooms.
• Corporate, education, hospitality, and government market segments.
About HDBaseT™ Technology
HDBaseT™ is an advanced all-in-one connectivity technology (supported by the HDBaseT Alliance). It is particularly suitable in the ProAV – and also the home – environment as a digital networking alternative, where it enables you to replace numerous cables and connectors by a single LAN cable used to transmit, for example, uncompressed full high-definition video, audio, IR, as well as various control signals.
Using Twisted Pair Cable for HDBT
Kramer engineers have developed special twisted pair cables to best match our digital twisted pair products that significantly outperform regular CAT 5 / CAT 6 cables.
We strongly recommend that you use shielded twisted pair cable. For details, go to our website at www.kramerav.com/product/VM-2DT.
Defining the VM-2DT 1:2 HDBT Distributor
This section defines the VM-2DT.

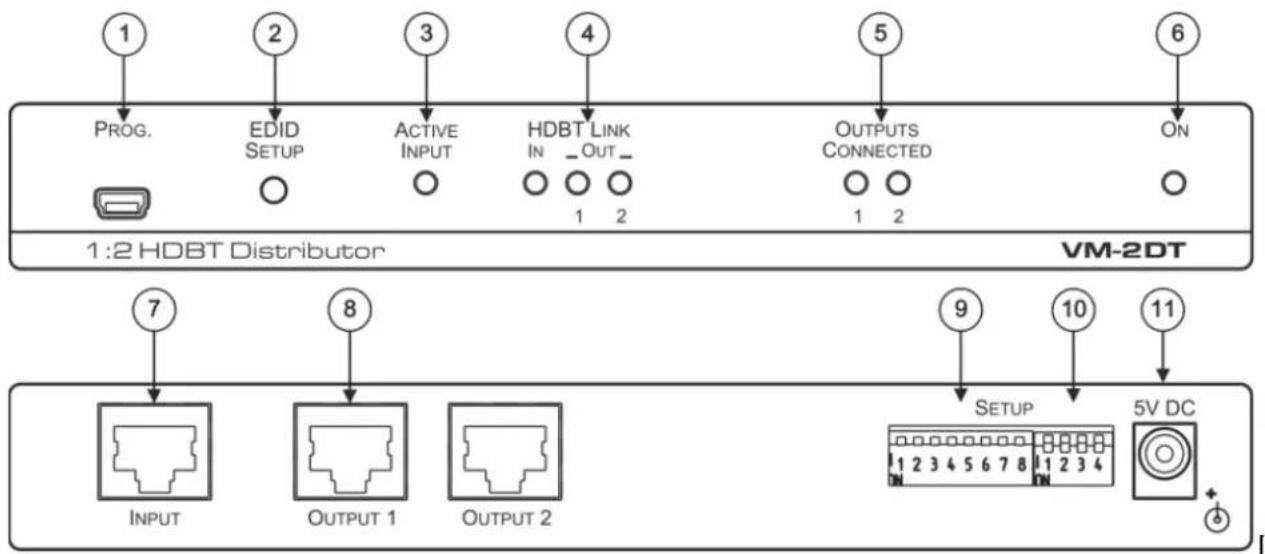

Figure 1: VM-2DT 1:2 HDBT Distributor Front Panel
| # | Feature | Function | |
| 1 | PROGRAM Mini USB Connector | Use to send serial commands, seeProtocol 3000on page15. Connect to a PC to perform firmware upgrades (via K-Upload) and work with the EDID Designer.K-Upload and EDID Designer can be downloaded from our Web site at:www.kramerav.com/support/product_downloads.asp. | |
| 2 | EDID SETUP Button | Press to capture the input EDID or select the default EDID, seeAcquiring an EDIDon page9. | |
| 3 | ACTIVE INPUT LED | Lights when an HDMI signal is embedded on the HDBaseT input | |
| 4 | HDBT LINK LEDs | IN | Lights when a link is established with the transmitter. |
| OUT | Lights when a link is established with the receiver (from 1 to 2). | ||
| 5 | OUTPUTS CONNECTED LEDs | Lights when an acceptor (sink) is detected on the HDBaseT receiver connected to the output (from 1 to 2) | |
| 6 | ON LED | Lights when the unit receives power. | |
| 7 | INPUT HDBT Connector | Connects to the HDBT source, for example TP-580T. | |
| 8 | HDBT OUT Connectors | Connect to an HDBT acceptor (from 1 to 2), for example TP-580R. | |
| 9 | SETUP 8-way DIP-switches | Used to set the IR and RS-232 commands behavior, seeSetting theDIP-Switches for Routingon page6. | |
| 10 | SETUP 4-way DIP-switch | For future use. | |
| 11 | 5V DC Connector | Connects to the 5V DC power supply. | |
Connecting the VM-2DT
Always switch off the power to each device before connecting it to your VM-2DT. After connecting your VM-2DT, connect its power and then switch on the power to each device.

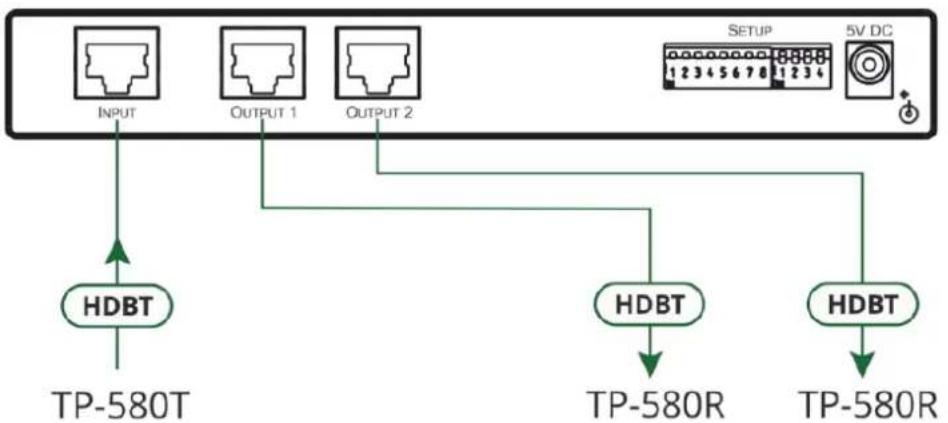

To connect the VM-2DT as illustrated in the example in Figure 2:
- Connect the HDBT input source (for example, TP-580T) to the HDBT IN connector ⑦.
- Connect the two HDBT outputs ⑧ to two HDBT receivers (for example, two TP-580R devices).
- Connect the 5V DC power adapter to the power socket ⑪ unit and then connect the adapter to the mains electricity (not shown in Figure 2). The ON LED lights ⑥
Figure 2: Connecting to the VM-2DT Rear Panel
Operating the VM-2DT
This section describes how to:
- Route the IR and RS-232 signals via the HDBT ports (see Routing the IR and RS-232 Signals on page 6).
• Acquire the EDID (see Acquiring an EDID on page 9).
- Perform Firmware upgrade via K-Upload (see Upgrading the Firmware on page 10).
Routing the IR and RS-232 Signals
VM-2DT transports IR and RS-232 signals between the HDBT input and the two HDBT outputs. Each signal can pass bidirectional commands via the VM-2DT HDBT ports (one input and two outputs).
The IR/RS-232 signal routing is set via the SETUP DIP-switches ⑨.
Setting the DIP-Switches for Routing
Set the DIP-switches as defined by the following table:
| Output # | IR Routing is enabled when: | RS-232 Routing is enabled when: |
| OUT 1 | DIP 1 – OFF | DIP 5 – OFF |
| OUT 2 | DIP 2 – OFF | DIP 6 – OFF |
DIP-switches 3, 4, 7 and 8 are preserved for future use.
By default, all DIP-switches are set to OFF (up).

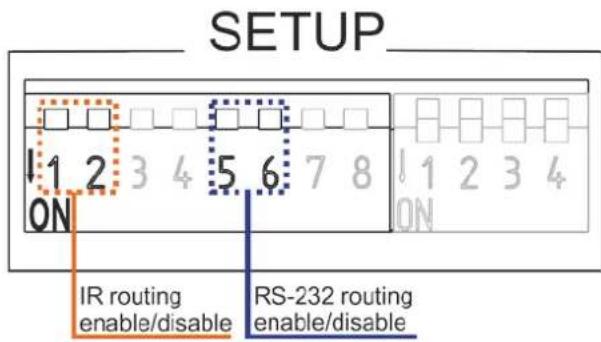

Figure 3: VM-2DT DIP-Switches

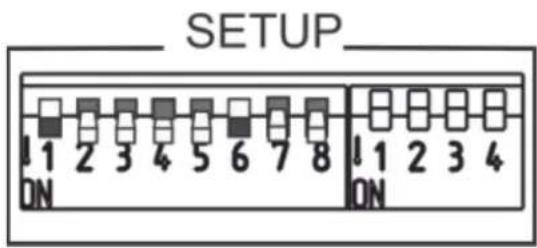

For example, in the DIP-switch setup shown in Figure 4, DIPs 1, and 6 are set to OFF (up). This means that IR signals can traverse between IN and OUT 1 ports and RS-232 commands can traverse between IN and OUT 2 ports. DIP-switches 2 and 5 are set to ON (down) and are therefore disabled.
Figure 4: VM-2DT DIP-Switches Setup
Signal Routing Example

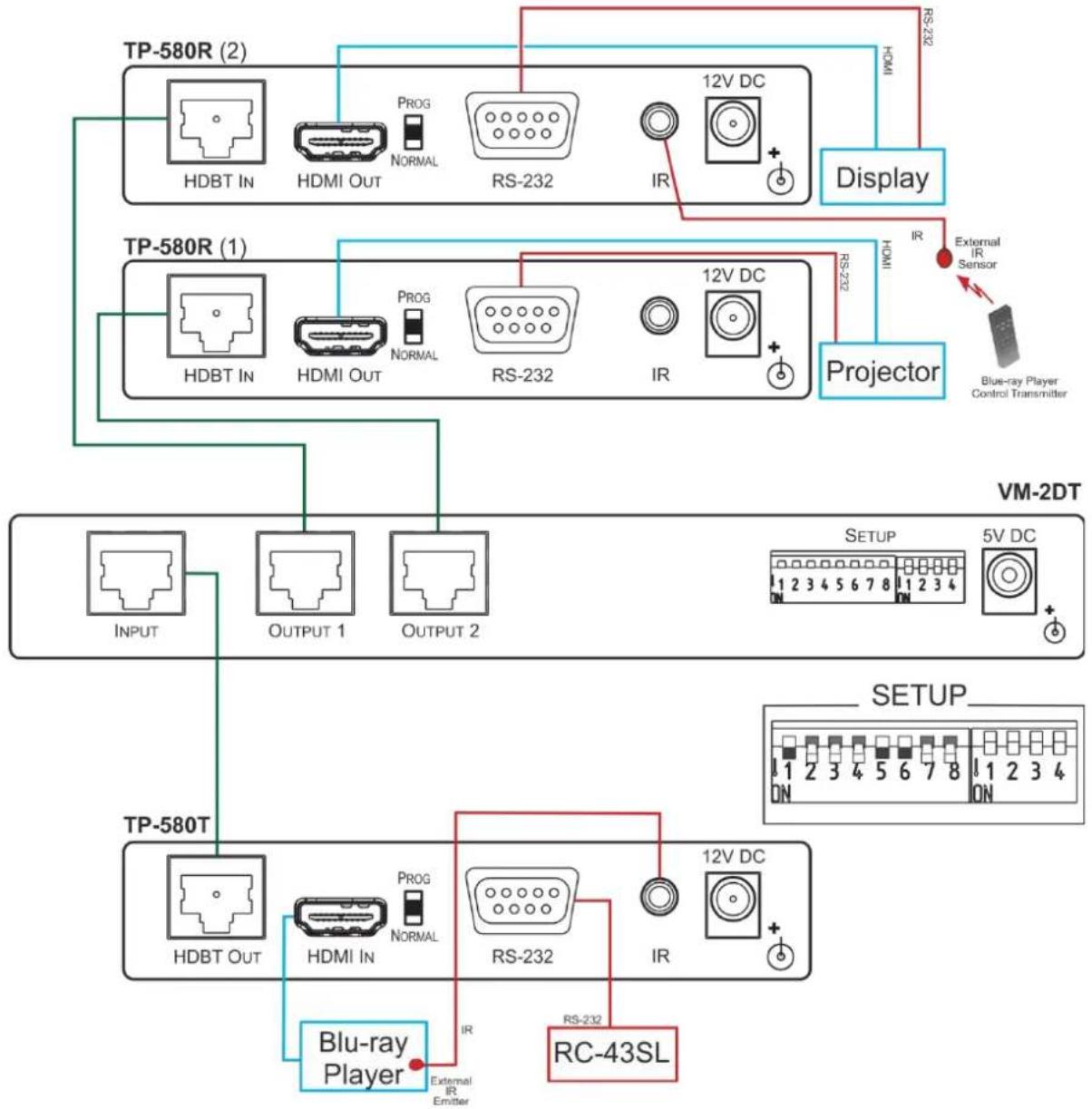

The example in Figure 5 shows the VM-2DT connected to two TP-580R devices. The table below summarizes the types of connections:
| Output # | HDMI OUT: | INPUT | IR | RS-232 |
| VM-2DT | TP-580T (Blu-ray player) | Emitter | RC-43SL | |
| TP-580R (1) | Projector | Projector | ||
| TP-580R (2) | Display | Sensor | Display |
RS-232 and IR signals are transparently routed between the VM-2DT source and two acceptors. Since RS-232 is designed for point-to-point communication, make sure that only one RS-232 signal is sent to a destination. However, although only one device may send RS-232 signals down a line, sending RS-232 signals to multiple devices is permissible.
You can send RS-232 signals to an AV device via the transmitter or receivers that are connected to the VM-2DT. If you have set the DIP-switches to traverse to both outputs, any command sent to a destination on one of the outputs will also pass to the other output destination, so you need to be sure that it will not have any unwanted effect on the other destination.
In general, we recommend that you set the DIP-switches to traverse to both outputs only when both destination devices are identical (same vendor and same product model) and avoid sending of concurrent responses.
Routing the IR signal
In the example in Figure 5, an IR emitter cable is connected from TP-580T to the Blu-ray player and an IR sensor cable is connected to the TP-580R (2) receiver for receiving IR remote signals. This setup lets you remotely control the Blu-ray player via the TP-580R (2) receiver device, using the Blu-ray player IR remote control transmitter.
To route the IR signal you have to use the Kramer external IR Receiver cable on one end and the Kramer IR emitter cable on the other end. Note that IR Emitter Extension Cables are also available, if required. For further details, go to our website at www.kramerav.com/product/VM-2DT.
Routing the RS-232 Signal
An RS-232 controller can be used to control the AV devices via the TP-580T RS-232 port by sending RS-232 commands over HDBaseT lines to the remote connected AV devices.
In the example in Figure 5, the Kramer RC-43SL control keypad is used to control AV devices that are connected to both TP-580R (1) and TP-580R (2). RC-43SL is connected to the TP-580T RS-232 port. The RS-232 ports on TP-580R (1) and TP-580R (2) are connected to a projector and display, respectively. This type of setup enables you to control the projector and display via the RC-43SL.
When RC-43SL sends a command to the projector on TP-580R (1), it bears no effect on the display that is connected to TP-580R (2). If TP-580R (1) and TP-580R (2) were connected each to identical projectors, both would respond to the sent RS-232 command.
subgraph_TP-580R["TP-580R (2)"]
A1["HDBT IN"] --> B1["HDMI OUT"]
B1 --> C1["PROG NORMAL"]
C1 --> D1["RS-232"]
D1 --> E1["IR"]
E1 --> F1["12V DC"]
F1 --> G1["Display"]
end
subgraph_TP-580R["TP-580R (1)"]
A2["HDBT IN"] --> B2["HDMI OUT"]
B2 --> C2["PROG NORMAL"]
C2 --> D2["RS-232"]
D2 --> E2["IR"]
E2 --> F2["12V DC"]
F2 --> G2["Projector"]
G2 --> H2["External IR Sensor"]
H2 --> I2["Blue-ray Player Control Transmitter"]
end
subgraph_VM-2DT["VM-2DT"]
J1["INPUT"] --> K1["OUTPUT 1"]
K1 --> L1["OUTPUT 2"]
L1 --> M1["SETUP 5V DC"]
M1 --> N1["ON"]
N1 --> O1["SETUP ON"]
O1 --> P1["SETUP ON"]
P1 --> Q1["SETUP ON"]
Q1 --> R1["SETUP ON"]
R1 --> S1["SETUP ON"]
S1 --> T1["SETUP ON"]
T1 --> U1["SETUP ON"]
U1 --> V1["SETUP ON"]
V1 --> W1["SETUP ON"]
W1 --> X1["SETUP ON"]
X1 --> Y1["SETUP ON"]
Y1 --> Z1["SETUP ON"]
Z1 --> AA1["SETUP ON"]
AA1 --> AB1["SETUP ON"]
AB1 --> AC1["SETUP ON"]
AC1 --> AD1["SETUP ON"]
AD1 --> AE1["SETUP ON"]
AE1 --> AF1["SETUP ON"]
AF1 --> AG1["SETUP ON"]
AG1 --> AH1["SETUP ON"]
AH1 --> AI1["SETUP ON"]
AI1 --> AJ1["SETUP ON"]
AJ1 --> AK1["SETUP ON"]
AK1 --> AL1["SETUP ON"]
AL1 --> AM1["SETUP ON"]
AM1 --> AN1["SETUP ON"]
AN1 --> AO1["SETUP ON"]
AO1 --> AP1["SETUP ON"]
AP1 --> AQ1["SETUP ON"]
AQ1 --> AR1["SETUP ON"]
AR1 --> AS1["SETUP ON"]
AS1 --> AT1["SETUP ON"]
AT1 --> AU["SETUP ON"]
AU --> AV["SETUP ON"]
AV --> AW["SETUP ON"]
AW --> AX["SETUP ON"]
AX --> AY["SETUP ON"]
AY --> AZ["SETUP ON"]
AZ --> BA["SETUP ON"]
BA --> BB["SETUP ON"]
BB --> BC["SETUP ON"]
BC --> BD["SETUP ON"]
BD --> BE["SETUP ON"]
BE --> BF["SETUP ON"]
BF --> BG["SETUP ON"]
BG --> BH["SETUP ON"]
BH --> BI["SETUP ON"]
BI --> BJ["SETUP ON"]
BJ --> BK["SETUP ON"]
BK --> BL["SETUP ON"]
BL --> BM["SETUP ON"]
BM --> BN["SETUP ON"]
BN --> BO["SETUP ON"]
BO --> BP["SETUP ON"]
BP --> BQ["SETUP ON"]
BQ --> BR["SETUP ON"]
BR --> BS["SETUP ON"]
BS --> BT["SETUP ON"]
BT --> BU["SETUP ON"]
BU --> BV["SETUP ON"]
BV --> BW["SETUP ON"]
BW --> BX["SETUP ON"]
BX --> BY["SETUP ON"]
Figure 5: IR/RS-232 Routing Example
Acquiring an EDID
You can acquire the EDID from a connected output or set the VM-2DT to the default EDID.
To acquire an EDID, press the EDID SETUP button as follows:
- Press EDID SETUP once.
The OUTPUTS CONNECTED LEDs flash to indicate the current EDID used: 1 or 2, or both if the default EDID is currently used.
- Press EDID SETUP ② again to enter the EDID read mode and then press repeatedly to cycle through the EDID source options until the desired EDID source is reached: OUT 1 -> OUT 2 -> both LEDs flash (for a default EDID).
- Wait a few seconds for the VM-2DT to read the EDID. When complete, all LEDs return to display the present output connection status.
Note that if an unconnected output is chosen or the EDID cannot be read, the VM-2DT loads the default EDID.
Note that VM-2DT Supports EDID Designer (via the mini USB port) available at our website: Kramer EDID Designer.
Note that in order to use the mini USB port, you need to download and the Kramer USB driver from our web site at: www.kramerav.com/support/product_downloads.asp and install it.
Forcing the RGB Mode
VM-2DT can acquire EDID in normal mode (default) or in RGB mode (EDID supports only RGB color space).
To enter the RGB-only mode:
- Press and hold EDID SETUP ②.
The output LEDs flash 4 times and then turn off.
- If required, read the EDID (see Acquiring an EDID, on page 9).
To return to the normal mode:
- Press and hold EDID SETUP ②.
The output LEDs light once and then turn off. - If required, read the EDID (see Acquiring an EDID, on page 9).
Upon power on, the output LEDs flash according to their EDID mode: four times for RGB mode and once for normal mode.
Upgrading the Firmware
Use the Kramer K-UPLOAD software to upgrade the firmware via the VM-2DT PROG. Mini USB port 1
The latest version of K-UPLOAD and installation instructions can be downloaded from our website at: www.kramerav.com/support/product_downloads.asp.
Note that in order to use the mini USB port, you need to install the Kramer USB driver, available at: www.kramerav.com/support/product_downloads.asp.
Default EDID
This section lists the default HD EDID.
Model name...... VM-2DT
Manufacturer..... KMR
Plug and Play ID...... KMR0672
Data string...... Default-EDID
Serial number...... 2
Manufacture date...... 2012, ISO week 255
Filter driver...... None
EDID revision...... 1.3
Input signal type...... Digital
Color bit depth...... Undefined
Display type...... RGB color
Screen size.... 520 x 320 mm (24.0 in)
Power management...... Standby, Suspend, Active off/sleep
Extension blocs..... 1 (CEA-EXT)
DDC/CI...... Not supported
Color characteristics
Default color space..... Non-sRGB
Display gamma...... 2.20
Red chromaticity...... Rx 0.674 - Ry 0.319
Green chromaticity...... Gx 0.188 - Gy 0.706
Blue chromaticity...... Bx 0.148 - By 0.064
White point (default).... Wx 0.313 - Wy 0.329
Additional descriptors... None
Timing characteristics
Horizontal scan range.... 30-83kHz
Vertical scan range..... 56-76Hz
Video bandwidth..... 170MHz
CVT standard...... Not supported
GTF standard...... Not supported
Additional descriptors... None
Preferred timing...... Yes
Native/preferred timing.. 1280x720p at 60Hz (16:10)
Modeline...... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync
Standard timings supported
720 x 400p at 70Hz - IBM VGA
640 x 480p at 60Hz - IBM VGA
640 x 480p at 75Hz - VESA
800 x 600p at 60Hz - VESA
800 x 600p at 75Hz - VESA
1024 x 768p at 60Hz - VESA
1024 x 768p at 75Hz - VESA
1280 x 1024p at 75Hz - VESA
1280 x 1024p at 60Hz - VESA STD
1600 x 1200p at 60Hz - VESA STD
1152 x 864p at 75Hz - VESA STD
EIA/CEA-861 Information
Revision number...... 3
IT underscan...... Supported
Basic audio..... Supported
YCbCr 4:4:4...... Supported
YCbCr 4:2:2...... Supported
Native formats...... 1
Detailed timing #1..... 1920x1080p at 60Hz (16:10)
Modeline...... "1920x1080" 148.500 1920 2008 2052 2200 1080 1084 1089 1125 +hsync +vsync
Detailed timing #2..... 1920x1080i at 60Hz (16:10)
Modeline...... "1920x1080" 74.250 1920 2008 2052 2200 1080 1084 1094 1124 interlace +hsync +vsync
Detailed timing #3..... 1280x720p at 60Hz (16:10)
Modeline...... "1280x720" 74.250 1280 1390 1430 1650 720 725 730 750 +hsync +vsync
Detailed timing #4..... 720x480p at 60Hz (16:10)
Modeline...... "720x480" 27.000 720 736 798 858 480 489 495 525 -hsync -vsync
CE video identifiers (VICs) - timing/formats supported
1920 x 1080p at 60Hz - HDTV (16:9, 1:1)
1920 x 1080i at 60Hz - HDTV (16:9, 1:1)
1280 x 720p at 60Hz - HDTV (16:9, 1:1) [Native]
720 x 480p at 60Hz - EDTV (16:9, 32:27)
720 x 480p at 60Hz - EDTV (4:3, 8:9)
720 x 480i at 60Hz - Doublescan (16:9, 32:27)
720 x 576i at 50Hz - Doublescan (16:9, 64:45)
640 x 480p at 60Hz - Default (4:3, 1:1)
NB: NTSC refresh rate = (Hz*1000)/1001
CE audio data (formats supported)
LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz
CE vendor specific data (VSDB)
IEEE registration number. 0x000C03
CEC physical address..... 1.0.0.0
Maximum TMDS clock..... 165MHz
CE speaker allocation data
Channel configuration.... 2.0
Front left/right..... Yes
Front LFE...... No
Front center...... No
Rear left/right..... No
Rear center...... No
Front left/right center.. No
Rear left/right center... No
Rear LFE...... No
Report information
Date generated..... 01/12/2016
Software revision..... 2.90.0.1020
Data source...... Real-time 0x0071
Operating system...... 6.1.7601.2.Service Pack 1
Technical Specifications
| Input: | 1 HDBT on an RJ-45 female connector |
| Outputs: | 2 HDBT on RJ-45 female connectors |
| Extension Line / Range: | HDBaseT 1.0 compliantUp to 40m (130ft) at 4K@60Hz (4:2:0)Up to 70m (230ft) at full HD (1080p@60Hz 36bpp)Note: The specs only apply when using Kramer HDBaseT cables. This reach applies to each IN and OUT port separately, the total end-to-end reach is the sum of both ports' reach. |
| Video: | Up to 4K@60Hz (4:2:0) resolution; Up to 10.2Gbps (3.4Gbps per graphic channel) data rate; Complies with HDBaseT 1.0, HDMI 2.0 and HDCP 1.4 |
| Controls: | Front panel:EDID SETUP buttonIndicator LEDs: OUTPUTS CONNECTED 1 and 2, HDBT LINK 1 and 2, ACTIVE INPUT, ONMini-USB for RS-232 Protocol 3000 communicationRear Panel:SETUP DIP-switches |
| Operating Temperature: | 0° to +40°C (32° to 104°F) |
| Storage Temperature: | -40° to +70°C (-40° to 158°F) |
| Humidity: | 10% to 90%, RHL non-condensing |
| Power Source: | 5.2V DC/4A power supply unit |
| Power Consumption: | 5V DC, 2.5A |
| Dimensions: | 18.8cm x 11.5cm x 2.54cm (7.4" x 4.53" x 1") W, D, H |
| Shipping Dimensions: | 34.5cm x 16.5cm x 5.2cm (13.6" x 6.5" x 2.05") W, D, H |
| Weight: | 0.53kg (1.17lb) |
| Shipping Weight: | 1.29kg (2.84lb) |
| Included Accessories: | Power supply |
| Specifications are subject to change without notice atwww.kramerav.comFor optimum range and performance use the recommended Kramer cables available atwww.kramerav.com/product/VM-2DT | |
Default Communication Parameters
| Serial USB | ||
| Baud Rate: | 115,200 | |
| Data Bits: | 8 | |
| Stop Bits: | 1 | |
| Parity: | None | |
| Factory Reset | ||
| Protocol 3000 | FACTORY command to reset to factory default configuration | |
| Protocol 3000 | ||
| Command Format: | ASCII protocol 3000 | |
| Example (get the input signal status): | #SIGNAL? 1,1 | |
Protocol 3000
The VM-2DT 1:2 HDBT Distributor can be operated using the Kramer Protocol 3000 serial commands. The command framing varies according to how you interface with the VM-2DT.
Generally, a basic video input switching command that routes a layer 1 video signal to HDMI out 1 from HDMI input 2 (ROUTE 1, 1, 2), is entered as follows:

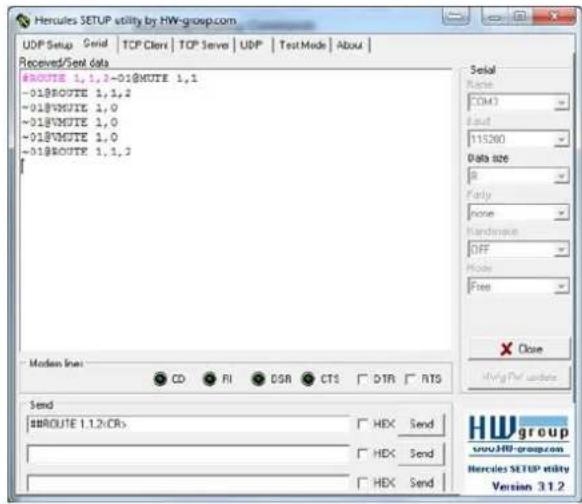

• Terminal communication software, such as Hercules:
The framing of the command varies according to the terminal communication software.
• K-Touch Builder (Kramer software):
• K-Config (Kramer configuration software):
All the examples provided in this section are based on using the K-Config software.
You can enter commands directly using terminal communication software (e.g., Hercules) by connecting a PC to the serial or Ethernet port on the VM-2DT. To enter CR press the Enter key (LF is also sent but is ignored by the command parser).
Commands sent from various non-Kramer controllers (e.g., Crestron) may require special coding for some characters (such as, /x##). For more information, refer to your controller's documentation.
For more information about Protocol 3000 commands, see:
• Understanding Protocol 3000 on page 16
• Kramer Protocol 3000 Syntax on page 17
• Protocol 3000 Commands on page 18
Understanding Protocol 3000
Protocol 3000 commands are structured according to the following:
- Command – A sequence of ASCII letters (A-Z, a-z and -). A command and its parameters must be separated by at least one space.
- Parameters – A sequence of alphanumeric ASCII characters (0-9, A-Z, a-z and some special characters for specific commands). Parameters are separated by commas.
- Message string – Every command entered as part of a message string begins with a message starting character and ends with a message closing character.
A string can contain more than one command. Commands are separated by a pipe (|) character.
• Message starting character:
-
– For host command/query
- \~ – For device response
- Device address – K-NET Device ID followed by @ (optional, K-NET only)
- Query sign – ? follows some commands to define a query request
• Message closing character:
- CR – Carriage return for host messages (ASCII 13)
- CR LF – Carriage return for device messages (ASCII 13) and line-feed (ASCII 10)
- Command chain separator character – Multiple commands can be chained in the same string. Each command is delimited by a pipe character ( | ). When chaining commands, enter the message starting character and the message closing character only at the beginning and end of the string.
Spaces between parameters or command terms are ignored. Commands in the string do not execute until the closing character is entered. A separate response is sent for every command in the chain.
Kramer Protocol 3000 Syntax
The Kramer Protocol 3000 syntax uses the following delimiters:
- CR = Carriage return (ASCII 13 = 0x0D)
• LF = Line feed (ASCII 10 = 0x0A) - SP = Space (ASCII 32 = 0x20)
Some commands have short name syntax in addition to long name syntax to enable faster typing. The response is always in long syntax.
The Protocol 3000 syntax is in the following format:
- Host Message Format:
| Start | Address (optional) | Body | Delimiter |
| # | Device_id@ | Message | CR |
- Simple Command – Command string with only one command without addressing:
| Start | Body | Delimiter |
| # | Command SPParameter_1,Parameter_2,... | CR |
- Command String – Formal syntax with command concatenation and addressing:
| Start | Address | Body | Delimiter |
| # | Device_id@ | Command_1Parameter1_1,Parameter1_2,.../Command_2Parameter2_1,Parameter2_2,.../Command_3Parameter3_1,Parameter3_2,...|... | CR |
• Device Message Format:
| Start | Address (optional) | Body | Delimiter |
| ~ | Device_id@ | Message | CR LF |
- Device Long Response – Echoing command:
| Start | Address (optional) | Body | Delimiter |
| ~ | Device_id@ | Command SP [Param1,Param2 ...] result | CR LF |
Protocol 3000 Commands
This section includes the following commands:
• System Commands on page 18
• EDID Handling Commands on page 23
System Commands
| Command | Description |
| # | Protocol handshaking (system mandatory) |
| BUILD-DATE | Get device build date (system mandatory) |
| FACTORY | Reset to factory default configuration |
| HELP | Get command list (system mandatory) |
| MODEL | Get device model (system mandatory) |
| PROT-VER | Get device protocol version (system mandatory) |
| RESET | Reset device (system mandatory) |
| SN | Get device serial number (system mandatory) |
| DISPLAY | Get output HPD status |
| NAME | Set/get machine (DNS) name (system – Ethernet) |
| SIGNAL | Get input signal lock status (system) |
| HDCP-STAT | Get HDCP signal status |
| Functions | Permission | Transparency | |
| Set: | # | End User | Public |
| Get: | - | - | - |
| Description | Syntax | ||
| Set: | Protocol handshaking | #CR | |
| Get: | - | - | |
| Response | |||
| ~nn@SPOKCR LF | |||
| Notes | |||
| Validates the Protocol 3000 connection and gets the machine numberStep-in master products use this command to identify the availability of a device | |||
| K-Config Example | |||
| “#”, 0x0D | |||
BUILD-DATE
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get: | BUILD-DATE? | End User | Public |
| Description | Syntax | ||
| Set: | - | - | |
| Get: | Get device build date | #BUILD-DATE?CR | |
| Response | |||
| ~nn@BUILD-DATESPdateSPtimeCR LF | |||
| Parameters | |||
| date-Format:YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time-Format:hh:mm:ss where hh = hours, mm = minutes, ss = seconds | |||
| K-Config Example | |||
| "#BUILD-DATE?", 0x0D | |||
FACTORY
| Functions | Permission | Transparency | |
| Set: | FACTORY | End User | Public |
| Get: | - | - | - |
| Description | Syntax | ||
| Set: | Reset device to factory default configuration | #FACTORYCR | |
| Get: | - | - | |
| Response | |||
| ~nn@FACTORYSPOKCR LF | |||
| Notes | |||
| This command deletes all user data from the device. The deletion can take some time.Your device may require powering off and powering on for the changes to take effect. | |||
| K-Config Example | |||
| "#FACTORY", 0x0D | |||
HELP
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get: | HELP | End User | Public |
| Description | Syntax | ||
| Set: | - | - | |
| Get: | Get command list or help for specific command | 1. #HELP CR2. #HELP SP COMMAND_NAME CR | |
| Response | |||
| 1.Multi-line: ~nn@Device available protocol 3000 commands: CR LF command, SP command... CR LF2.Multi-line: ~nn@HELP SP command: CR LF description CR LF USAGE: usage CR LF | |||
| Parameters | |||
| COMMAND_NAME – name of a specific command | |||
| Notes | |||
| To get help for a specific command use: HELPSP COMMAND_NAME CR LF | |||
| K-Config Example | |||
| "#HELP", 0x0D | |||
MODEL
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get: | MODEL? | End User | Public |
| Description | Syntax | ||
| Set: | - | - | |
| Get: | Get device model | #MODEL?CR | |
| Response | |||
| ~nn@MODELSPmodel_nameCR LF | |||
| Parameters | |||
| model_name - String of up to 19 printable ASCII chars | |||
| Notes | |||
| This command identifies equipment connected to Step-in master products and notifies of identity changes to the connected equipment. The Matrix saves this data in memory to answer REMOTE-INFO requests | |||
| K-Config Example | |||
| “#MODEL?", 0x0D | |||
PROT-VER
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get: | PROT-VER? | End User | Public |
| Description | Syntax | ||
| Set: | - | - | |
| Get: | Get device protocol version | #PROT-VER?CR | |
| Response | |||
| ~nn@PROT-VERSP3000:versionCR LF | |||
| Parameters | |||
| version - XX.XX where X is a decimal digit | |||
| K-Config Example | |||
| "#PROT-VER?", 0x0D | |||
RESET
| Functions | Permission | Transparency | |
| Set: | RESET | Administrator | Public |
| Get: | - | - | - |
| Description | Syntax | ||
| Set: | Reset device | #RESETCR | |
| Get: | - | - | |
| Response | |||
| ~nn@RESET SPOK CR LF | |||
| Notes | |||
| To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port. | |||
| K-Config Example | |||
| "#RESET", 0x0D | |||
SN
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get: | SN? | End User | Public |
| Description Syntax | |||
| Set: | - | - | |
| Get: | Get device serial number | #SN?CR | |
| Response | |||
| ~nn@SNSPserial_numberCR LF | |||
| Parameters | |||
| serial_number - 11 decimal digits, factory assigned | |||
| Notes | |||
| This device has a 14 digit serial number, only the last 11 digits are displayed | |||
| K-Config Example | |||
| “#SN?", 0x0D | |||
DISPLAY
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get | DISPLAY? | End User | Public |
| Description | Syntax | ||
| Set: | - | - | |
| Get: | Get output HPD status | #DISPLAY?SPout_idCR | |
| Response | |||
| ~nn@DISPLAYSPout_id,statusCR LF | |||
| Parameters | |||
| out_id-1 (Output 1), 2 (Output 2)status-HPD status according to signal validation: 0 (Off), 1 (On), 2 (On and all parameters are stable and valid) | |||
| Response Triggers | |||
| A response is sent to the com port from which the Get was received, after command execution and:After every change in output HPD status from On to Off (0)After every change in output HPD status from Off to On (1)After every change in output HPD status form Off to On and all parameters (new EDID, etc.) are stable and valid (2) | |||
| K-Config Example | |||
| Get the output HPD status of Output 1:"#DISPLAY? 1",0x0D | |||
NAME
| Functions | Permission | Transparency | |
| Set: | NAME | Administrator | Public |
| Get: | NAME? | End User | Public |
| Description | Syntax | ||
| Set: | Set machine (DNS) name | #NAME SP machine_name CR | |
| Get: | Get machine (DNS) name | #NAME? CR | |
| Response | |||
| Set: ~nn@NAME SP machine_name CR LF Get: ~nn@NAME? SP machine_name CR LF | |||
| Parameters | |||
| machine_name - String of up to 14 alpha-numeric characters (can include hyphens but not at the beginning or end) | |||
| Notes | |||
| The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS feature on). | |||
| K-Config Example | |||
| Set the DNS name of the device to “room-442”: "#NAME room-442", 0x0D | |||
SIGNAL
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get | SIGNAL? | End User | Public |
| Description | Syntax | ||
| Set: | - | - | |
| Get: | Get input signal lock status | #SIGNAL?SPinp_idCR | |
| Response | |||
| ~nn@SIGNALSPinp_id,statusCR LF | |||
| Parameters | |||
| inp_id – input number: 1 (Input)status – signal status according to signal validation: 0 (Off), 1 (On) | |||
| Response Triggers | |||
| After execution, a response is sent to the com port from which the Get was receivedA response is sent after every change in input signal status from On to Off or from Off to On | |||
| K-Config Example | |||
| Get the input signal status:"#SIGNAL? 1", 0x0D | |||
HDCP-STAT
| Functions | Permission | Transparency | |
| Set: | - | - | - |
| Get | HDCP-STAT? | End User | Public |
| Description | Syntax | ||
| Set: | None | - | |
| Get: Get HDCP signal status | #HDCP-STAT?SPstage, stage_idCR | ||
| Response | |||
| ~nn@HDCP-STATSPstage, stage_id, statusCR LF | |||
| Parameters | |||
| stage - 0 (input), 1 (output)stage_id - for input stage: 1 (Input), for output stage 1 (Output 1), 2 (Output 2)status - signal encryption On/Off status: 0 (HDCP Off), 1 (HDCP On), 2 (Follow input), 3 (Mirror output (Mac mode)) | |||
| Response Triggers | |||
| Response is sent to the com port from which the Set (before execution) / Get command was receivedResponse is sent to all com ports after execution if HDCP-STAT was set by any other external control device (button press, device menu and similar) or HDCP mode changed. | |||
| Notes | |||
| On output - sink statusOn input - signal status | |||
| K-Config Example | |||
| Get the output HDCP-STATUS of the input:"#HDCP-STAT? 0,1", 0x0D | |||
EDID Handling Commands
Additional EDID data functions can be performed via a compatible EDID management application, such as Kramer EDID Designer (see www.kramerav.com/product/EDID%20Designer).
| Command | Description |
| CPEDID | Copy EDID data from the output to the input EEPROM |
CPEDID
| Functions | Permission | Transparency | |
| Set: | CPEDID | End User | Public |
| Get: | - | - | - |
| Description | Syntax | ||
| Set: | Copy EDID data from the output to the input EEPROM | #CPEDIDSPsrc_type, src_id, dst_type, dest_bitmapCR | |
| Get: | - | - | |
| Response | |||
| ~nn@CPEDIDSPsrc_type, src_id, dst_type, dest_bitmapCR LF | |||
| Parameters | |||
| src_type - EDID source type (usually output): 0 (Input), 1 (Output), 2 (Default EDID)src_id - for input source: 1 (Input), for output source: 0 (Default EDID source), 1 (Output 1), 2 (Output 2)dst_type - EDID destination type (usually input): 0 (input), 1 (output), 2 (default EDID)dest_bitmap - bitmap representing destination IDs. Format: XXXX...X, where X is hex digit. The binary form of every hex digit represents corresponding destinations. Setting '1' indicates that EDID data is copied to this destination. Setting '0' indicates that EDID data is not copied to this destination. | |||
| Response Triggers | |||
| Response is sent to the com port from which the Set was received (before execution) | |||
| Notes | |||
| Destination bitmap size depends on device properties (for 64 inputs it is a 64-bit word)Example: bitmap 0x0013 means inputs 1, 2 and 5 are loaded with the new EDID.In this device, if the destination type is input (0), the bitmap size is 1 bits, for example bitmap 0x1 means the input is loaded with the new EDID. | |||
| K-Config Example | |||
| Copy the EDID data from the Output 1 (EDID source) to the Input:"#CPEDID 1,1,0,0x1",0x0DCopy the EDID data from the default EDID source to the Input:"#CPEDID 2,0,0,0x1",0x0D | |||
The warranty obligations of Kramer Electronics Inc. ("Kramer Electronics") for this product are limited to the terms set forth below:
What is Covered
This limited warranty covers defects in materials and workmanship in this product.
What is Not Covered
This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.
How Long this Coverage Lasts
The standard limited warranty for Kramer products is seven (7) years from the date of original purchase, with the following exceptions:
- All Kramer VIA products are covered by a standard three (3) year warranty for VIA hardware and a standard one (1) year warranty for firmware and software updates. (An extended software warranty plan for an additional 2 years can be purchased separately).
- All Kramer fiber optic cables and adapters, all Kramer speakers and Kramer touch panels are covered by a standard one (1) year warranty.
- All Kramer Cobra products, all Kramer Calibre products, all Kramer Minicom digital signage products, all HighSecLabs products, all streaming, and all wireless products are covered by a standard three (3) year warranty.
- All Sierra Video MultiViewers are covered by a standard five (5) year warranty.
- Sierra switchers & control panels are covered by a standard seven (7) year warranty (excluding power supplies and fans that are covered for three (3) years).
- K-Touch software is covered by a standard one (1) year warranty for software updates.
- All Kramer passive cables are covered by a ten (10) year warranty.
Who is Covered
Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.
What Kramer Electronics Will Do
Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:
- Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
- Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
- Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.
What Kramer Electronics Will Not Do Under This Limited Warranty
If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.
How to Obtain a Remedy Under This Limited Warranty
To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, visit our web site at www.kramerav.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required (RMA number). You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.
If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.
Limitation of Liability
THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW.
IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A "CONSUMER PRODUCT" UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.
Other Conditions
This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, visit our web site at www.kramerav.com or contact a Kramer Electronics office from the list at the end of this document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
- Connecting the VM-2DT 5
- Operating the VM-2DT 6
- Default EDID 11
- Technical Specifications 13
- Introduction
- Getting Started
- Achieving the Best Performance
- Safety Instructions
- Recycling Kramer Products
- Overview
- Exceptional Quality
- User-friendly Operation
- Typical Applications
- About HDBaseT™ Technology
- Using Twisted Pair Cable for HDBT
- Defining the VM-2DT 1:2 HDBT Distributor
- Connecting the VM-2DT
- To connect the VM-2DT as illustrated in the example in Figure 2:
- Operating the VM-2DT
- Routing the IR and RS-232 Signals
- Setting the DIP-Switches for Routing
- Signal Routing Example
- Routing the IR signal
- Routing the RS-232 Signal
- Acquiring an EDID
- Forcing the RGB Mode
- Upgrading the Firmware
- Default EDID
- Protocol 3000
- Understanding Protocol 3000
- – For host command/query
- Kramer Protocol 3000 Syntax
- Protocol 3000 Commands
- EDID Handling Commands
- What is Covered
- What is Not Covered
- How Long this Coverage Lasts
- Who is Covered
- What Kramer Electronics Will Do
- What Kramer Electronics Will Not Do Under This Limited Warranty
- How to Obtain a Remedy Under This Limited Warranty
- Limitation of Liability
- Exclusive Remedy
- Other Conditions
- SAFETY WARNING
Brand : Kramer
Model : VM-2DT
Category : Hi-Fi System
